USER GUIDE

LM-X520ZMW

ENGLISH

MFL71482005 (1.0)

www.lg.com

ENGLISH

About this user guide

Thank you for choosing this LG product. Please carefully read this user guide before using the device for the first time to ensure safe and proper use.

• Always use genuine LG accessories. The supplied items are designed

only for this device and may not be compatible with other devices.

• This handset is not suitable for people who have a visual impairment

due to the touch screen keyboard.

• Descriptions are based on the device default settings.

• Default apps on the device are subject to updates, and support for

these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact an LG Service Centre. For user-installed apps, please contact the relevant service provider.

• Modifying the device’s operating system or installing software from

unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG licence agreement and void your warranty.

• Some content and illustrations may differ from your device, depending

on the area, service provider, software version, or OS version, and are subject to change without prior notice.

• Software, audio, wallpaper, images, and other media supplied with

your device are licenced for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully responsible for the illegal use of media.

• Additional charges may incur for data services, such as messaging,

uploading, downloading, auto-syncing and location services. To avoid additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details.

Instructional notices

WARNING: Situations that could cause injury to the user and third

CAUTION: Situations that may cause minor injury or damage to the

NOTE: Notices or additional information.

parties.

device.

2About this user guide

Table of contents

5 Guidelines for safe and efficient use

Custom-designed Features

14 Camera features 17 Gallery features 21 Sound quality and effects

features

21 Google Assistant 23 Fingerprint recognition 26 Multi-tasking feature

Basic Functions

29 Product components and

accessories

30 Parts overview 33 Turning the power on or off 34 Installing the SIM card 37 Inserting the memory card 38 Removing the memory card

38 Battery 40 Touch screen 44 Home screen 53 Screen lock 58 Memory card encryption 59 Taking screenshots 59 Entering text 64 Content sharing 66 Do not disturb

Useful Apps

68 Installing and uninstalling apps 69 App trash 70 App Shortcuts 71 Phone 75 Messaging 76 Camera 86 Gallery 90 Contacts 93 QuickMemo+ 95 Clock

96 Calendar 97 Tasks 97 Music 98 Calculator 98 E-mail 99 Audio Recorder 99 FM Radio 100 Update centre 100 File Manager 100 Smart Doctor 101 LG Mobile Switch 101 SmartWorld 102 RemoteCall Service 102 Cell Broadcast 103 Google apps

Settings

107 Settings 107 Network 119 Sound 120 Display 121 General

Appendix

134 LG Language Settings 134 LG Bridge 135 Phone software update 137 Anti-Theft Guide 138 Open Source Software Notice

Information

138 Regulatory information

(Regulation ID number, E-labeling,

etc.)

139 Trademarks 140 DECLARATION OF

CONFORMITY

140 More information 142 FAQ

4Table of contents

Guidelines for safe and efficient use

Please read these simple guidelines. Not following these guidelines may be dangerous or illegal.

Should a fault occur, a software tool is built into your device that will gather a fault log. This tool gathers only data specific to the fault, such as signal strength, cell ID position in sudden call drop and applications loaded. The log is used only to help determine the cause of the fault. These logs are encrypted and can only be accessed by an authorised LG repair centre should you need to return your device for repair.

Exposure to radio frequency energy

Radio wave exposure and Specific Absorption Rate (SAR) information.

This device has been designed to comply with applicable safety requirements for exposure to radio waves. These requirements are based on scientific guidelines that include safety margins designed to assure the safety of all persons, regardless of age and health.

• The radio wave exposure guidelines employ a unit of measurement known

as the Specific Absorption Rate, or SAR. Tests for SAR are conducted using standardised methods with the device transmitting at its highest certified power level in all used frequency bands.

• While there may be differences between the SAR levels of various LG device

models, they are all designed to meet the relevant guidelines for exposure to radio waves.

• The SAR limit recommended by the International Commission on Non-Ionizing

RadiationProtection(ICNIRP)is2W/kgaveragedover10goftissue.

• The highest SAR value for this model tested for use at the ear is 0.342 W/kg

(10g)andwhenwornonthebodyis1.050W/kg(10g).

• This device meets RF exposure guidelines when used either in the normal use

positionagainsttheearorwhenpositionedatleast5mmawayfromthebody.

When a carry case, belt clip or holder is used for body-worn operation, it should

notcontainmetalandshouldpositiontheproductatleast5mmawayfrom

your body. In order to transmit data files or messages, this device requires a quality connection to the network. In some cases, transmission of data files or messages may be delayed until such a connection is available. Ensure the above separation distance instructions are followed until the transmission is completed.

Product care and maintenance

• Use only in-box accessories which are authorised by LG. LG does not guarantee

any damage or failure which is caused by third party accessories.

• Some contents and illustrations may differ from your device without prior

notice.

• Do not disassemble this unit. Take it to a qualified service technician when repair

work is required.

• Repairs under warranty, at LG’s discretion, may include replacement parts

or boards that are either new or reconditioned, provided that they have functionality equal to that of the parts being replaced.

• Keep away from electrical appliances such as TVs, radios and personal

computers.

• The unit should be kept away from heat sources such as radiators or cookers.

• Do not drop.

• Do not subject this unit to mechanical vibration or shock.

• Switch off the device in any area where you are required to by special

regulations. For example, do not use your device in hospitals as it may affect sensitive medical equipment.

• Do not handle the device with wet hands while it is being charged. It may cause

an electric shock and can seriously damage your device.

• Do not charge a handset near flammable material as the handset can become

hot and create a fire hazard.

• Use a dry cloth to clean the exterior of the unit (do not use solvents such as

benzene, thinner or alcohol).

• Do not charge the device when it is on soft furnishings.

• The device should be charged in a well ventilated area.

• Do not subject this unit to excessive smoke or dust.

• Do not keep the device next to credit cards or transport tickets; it can affect the

information on the magnetic strips.

• Do not tap the screen with a sharp object as it may damage the device.

• Do not expose the device to liquid or moisture.

• Use accessories like earphones cautiously. Do not touch the antenna

unnecessarily.

6Guidelines for safe and efficient use

• Do not use, touch or attempt to remove or fix broken, chipped or cracked glass.

Damage to the glass display due to abuse or misuse is not covered under the warranty.

• Your device is an electronic device that generates heat during normal operation.

Extremely prolonged, direct skin contact in the absence of adequate ventilation may result in discomfort or minor burns. Therefore, use care when handling your device during or immediately after operation.

• If your device gets wet, immediately unplug it to dry off completely. Do not

attempt to accelerate the drying process with an external heating source, such as an oven, microwave or hair dryer.

• The liquid in your wet device, changes the colour of the product label inside your

device. Damage to your device as a result of exposure to liquid is not covered under your warranty.

• A mobile device requires proper air circulation in order to dissipate heat. Direct skin

contact and inadequate circulation of air flow to the device may cause the device to overheat. The device must be at least 1.0cm from between the user’s body.

• Prevent dust of any other foreign substances from getting into the Charger/

USB cable port. It may cause heat or fire.

• Please ensure that the product does not get in contact with liquid. Do not

use or recharge the product if it is wet. Once the product becomes wet, the liquid damage indicator changes color. Please note that this will limit you from receiving any free-of-charge repair services provided under warranty.

Efficient device operation

Electronics devices

All devices may receive interference, which could affect performance.

• Do not use your device near medical equipment without requesting permission.

Please consult your doctor to determine if operation of your device may interfere with the operation of your medical device.

• Pacemakermanufacturersrecommendthatyouleaveatleast15cmofspace

between other devices and a pacemaker to avoid potential interference with the pacemaker.

• This device may produce a bright or flashing light.

• Some hearing aids might be disturbed by devices.

7Guidelines for safe and efficient use

• Minor interference may affect TVs, radios, PCs etc.

• Useyourdeviceintemperaturesbetween0ºCand40ºC,ifpossible.Exposing

your device to extremely low or high temperatures may result in damage, malfunction, or even explosion.

Road safety

Check the laws and regulations on the use of devices in the area when you drive.

• Do not use a hand-held device while driving.

• Give full attention to driving.

• Pull off the road and park before making or answering a call if driving conditions

so require.

• RF energy may affect some electronic systems in your vehicle such as car

stereos and safety equipment.

• When your vehicle is equipped with an air bag, do not obstruct with installed

or portable wireless equipment. It can cause the air bag to fail or cause serious injury due to improper performance.

• If you are listening to music whilst out and about, please ensure that the volume

is at a reasonable level so that you are aware of your surroundings. This is of particular importance when near roads.

Avoid damage to your hearing

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Damage to your hearing can occur if you are exposed to loud sound for long periods of time. We therefore recommend that you do not turn on or off the handset close to your ear. We also recommend that music and call volumes are set to a reasonable level.

• When using headphones, turn the volume down if you cannot hear the people

speaking near you, or if the person sitting next to you can hear what you are listening to.

• Excessive sound pressure from earphones and headphones can cause

hearing loss.

8Guidelines for safe and efficient use

Glass Parts

Some parts of your device are made of glass. This glass could break if your device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch or attempt to remove it. Stop using your device until the glass is replaced by an authorised service provider.

Blasting area

Do not use the device where blasting is in progress. Observe restrictions and follow any regulations or rules.

Potentially explosive atmospheres

• Do not use your device at a refueling point.

• Do not use near fuel or chemicals.

• Do not transport or store flammable gas, liquid or explosives in the same

compartment of your vehicle as your device or accessories.

In aircraft

Wireless devices can cause interference in aircraft.

• Turn your device off before boarding any aircraft.

• Do not use it on the ground without permission from the crew.

Children

Keep the device in a safe place out of the reach of small children. It includes small parts which may cause a choking hazard if detached.

9Guidelines for safe and efficient use

Emergency calls

Emergency calls may not be available on all mobile networks. Therefore you should never depend solely on your device for emergency calls. Check with your local service provider for more information.

Use your mobile phone to call emergency services for yourself or others in the case of fire, traffic accident or medical emergencies;

• Australia Dial (0-0-0)

• New Zealand Dial (1-1-1)

• International Dial (1-1-2)

• other local emergency number.

Remember, it is a free call when dialling emergency services from your mobile phone in Australia.

Notice for Battery replacement

• For your safety, do not remove the battery incorporated in the product.

If you need to replace the battery, take it to the nearest authorised LG Electronics service point or dealer for assistance.

• Li-Ion Battery is a hazardous component which can cause injury.

• Battery replacement by non-qualified professional can cause damage

to your device.

Battery information and care

• You do not need to completely discharge the battery before recharging. Unlike

other battery systems, there is no memory effect that could compromise the battery’s performance.

• Use only LG batteries and chargers. LG chargers are designed to maximise the

battery life.

• Do not disassemble or short-circuit the battery.

• Keep the metal contacts of the battery clean.

• Replace the battery when it no longer provides acceptable performance. The

battery pack may be recharged hundreds of times before it needs replacing.

• Recharge the battery if it has not been used for a long time to maximise

usability.

10Guidelines for safe and efficient use

• Do not expose the battery charger to direct sunlight or use it in high humidity,

such as in the bathroom.

• Do not leave the battery in hot or cold places, as this may deteriorate battery

performance.

• Risk of explosion if battery is replaced by an incorrect type. Dispose of used

batteries according to the instructions.

• If you need to replace the battery, take it to the nearest authorised LG

Electronics service point or dealer for assistance.

• Always unplug the charger from the wall socket after the device is fully charged

to save unnecessary power consumption of the charger.

• Actual battery life will depend on network configuration, product settings,

usage patterns, battery and environmental conditions.

• Make sure that no sharp-edged items such as animal’s teeth or claws, come

into contact with the battery. This could cause a fire.

Driver Safety Tips

Your mobile telephone gives you the powerful ability to communicate almost anywhere, anytime, but an important responsibility accompanies the benefits of mobile phones, one that every user must uphold.

When driving a car, driving is your first responsibility. When using your mobile phone behind the wheel of a car, practice good common sense and remember the following tips:

• Use a hands free device to add an additional layer of convenience and safety

to your wireless phone with one of the many hands free accessories available today.

• Let the person you are speaking with know you are driving; if necessary,

suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice and even heavy traffic can be hazardous.

• Do not take notes or look up phone numbers while driving. Typing up a “to

do” list or flipping through your address book takes attention away from your primary responsibility of driving safely.

• Place calls when you are not moving or before pulling into traffic. Try to plan

calls when you will not be driving.

11Guidelines for safe and efficient use

• Do not engage in stressful or emotional conversations that may be distracting.

Make people you are talking with aware you are driving and suspend conversations that have the potential to divert your attention from the road.

• Use your mobile phone to help others in emergencies. If you see an auto

accident, crime in progress or other serious emergency where lives are in danger, call the emergency number, as you would want others to do for you.

• If you see a broken down vehicle posing no serious hazard, a broken traffic

signal, a minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call roadside assistance, local traffic authority or police station.

Securing personal information

• Make sure to protect your personal information to prevent data leakage or

misuse of sensitive information.

• Always back up important data while using the device. LG is not responsible for

any data loss.

• Make sure to back up all data and reset the device when disposing of the device

to prevent any misuse of sensitive information.

• Read the permission screen carefully while downloading applications.

• Be cautious using the applications that have access to multiple functions or to

your personal information.

• Check your personal accounts regularly. If you find any sign of misuse of your

personal information, ask your service provider to delete or change your account information.

• If your device is lost or stolen, change the password of your account to secure

your personal information.

• Do not use applications from unknown sources.

12Guidelines for safe and efficient use

Custom-designed Features

Camera features

Portrait

You can take a sharp portrait by applying the camera lens blur effect.

Tap , then tap Portrait.

Tap to take a photo.

• To adjust blur strength, drag the slide bar to the left or right.

• Keep the distance to your subject within 1.3 ~ 5.0 feet when using the

rear camera.

• This feature is not available If the surroundings are too dark.

• After applying this feature, tap the desired position on the preview

screen to automatically apply the exposure value and focus when using the rear camera, or exposure value only when using the front camera.

Custom-designed Features 14

AI CAM

Sunset Flower

You can effectively take photos or record videos since the camera recognises the object when taking a photo or recording a video.

Tap , then tap AI CAM.

When the object is recognised, the best effect for the scene is applied.

• To apply other effects, tap the scene icon.

• Pet, city, flower, food, landscape, person, sunset, auto, total 8

categories can be recognised automatically.

• The result of the scene recognition may differ depending on the

illumination or the location of the subject while taking photos. Keywords do not appear on the actual photos or videos.

• This feature is available only when the front and rear cameras are in the

Auto mode.

Custom-designed Features 15

Flash Jump-Cut

Photos taken at a regular interval are saved as GIF files.

Tap , then tap MODE Flash Jump-Cut .

Tap to take a photo.

• Photos are taken every 3 seconds and saved as a GIF file.

on the screen to select the number of photos you want to

• Tap

take.

• While taking photos, tap

photos.

• The flash automatically turns on to act as a timer.

• The shots taken this time and the total number of shots are displayed

at the bottom of the screen.

• All taken photos are saved as GIF files only.

• You may not change the GIF speed nor image order.

to create GIF files with previously taken

Custom-designed Features 16

Gallery features

Making a collage

You can make a collage from the associated content.

While viewing an album, tap Make collage.

Select the desired images to add to the a collage and then tap NEXT.

• Select the desired layout from the bottom of the screen.

Tap MAKE.

• A maximum of 9 images can be used to create a collage.

Custom-designed Features 17

Creating a movie

You can create a new movie by putting images and videos together.

Tap Photos tab, then tap Create movie.

You can also tap

Select images or videos for your movie and tap NEXT.

Edit the selected images and videos and then tap SAVE.

Play tab, then tap Create movie.

Custom-designed Features 18

Deleting files

You can select images or videos to delete from your video by tapping at its thumbnail.

Adding files

You can select images or videos to add after tapping at the bottom of the screen. You can also select the images or videos you have already previously added.

• Touch and hold a file, and then tap another file for multiple selection.

Rearranging files

To rearrange the images and videos, touch and hold the file you want to move, then dragging it to the desired location.

Adding file effects

Tap to add a theme or background music, change the font.

Resetting the movie edits

You can reset the edits made to the movie (e.g. play time) by tapping .

Previewing a file

Check your new video before saving it by tapping . After the playback time elapses, the next file is played automatically.

• A maximum of 50 images and videos can be used to create a video.

• The playback time for an image is 3 seconds by default and it cannot be

changed. Videos can be trimmed down to a minimum of 1 second.

• This feature may not support some image or video formats.

Custom-designed Features 19

Making a GIF

You can easily make a GIF file using recorded videos or photos.

Making a GIF by using recorded videos

At the desired starting point while watching a video, tap .

Select the length of the GIF you want to create.

• GIF is generated for the time selected from the current time.

• For videos less than 5 seconds, GIF images are automatically

generated for the remaining time.

Making a GIF by using photos

While viewing an album, tap Create GIF.

You can also tap

Select the desired photos to create a GIF file and then tap NEXT.

• You can add more images and adjust the GIF speed, screen ratio,

and file order.

• You may use this feature solely for creative purposes. The use of this

feature involving infringement of any other person’s rights, such as copyright or defamatory or offensive statements, may be subject to civil, criminal, or administrative liabilities and/or penalties under applicable laws. You shall not copy, reproduce, distribute, or otherwise make illegal use of any copyrighted materials without permission of the rightful owner or copyright holder. To the fullest extent permitted by applicable law, LG Electronics disclaims all expressed and implied warranties as well as liabilities associated thereto.

• A maximum of 100 images can be used to create a GIF file.

on Play on the Play tab of the Gallery app.

Custom-designed Features 20

Sound quality and effects features

DTS:X 3D Surround

You can play a song or video in three-dimensional, immersive and vivid sound. To use this feature, connect earphones, speaker or other external audio devices to your device.

Settings Sound Sound quality and effects DTS:X 3D

Tap

Surround, then tap

Adjusting the sound direction

You can adjust the sound direction as desired.

Tap Settings Sound Sound quality and effects DTS:X 3D

Surround, then tap

Select sound direction.

to activate this feature.

Google Assistant

Google Assistant overview

You can launch or use desired apps with your voice.

• To use this feature, first connect to the network and sign in to your

Google Account.

• This feature may not work properly or voice recognition accuracy may

decrease in areas where Wi-Fi or mobile network signal strength is weak.

• This function may not be supported, or the supported languages may

differ depending on the service area.

Custom-designed Features 21

Launching Google Assistant

Press and hold from the Home screen to launch Google Assistant.

Tap GET STARTED.

Follow the on-screen instructions and say “Ok Google”.

• The device saves your voice data for recognition.

Tap Save.

Launching Google Assistant with your voice

Say “Ok Google” when the screen is turned on.

Say a command or question when “Hi, how can I help?” appears on

the screen.

Launching Google Assistant from the Home screen

Touch and hold on the Home screen.

Say a command or question when “Hi, how can I help?” appears on

the screen.

• Voice recognition accuracy may decrease if you speak with an unclear

voice or in a noisy place. When you use the voice recognition feature, increase its accuracy by speaking with a clear voice in a quiet place.

Custom-designed Features 22

Fingerprint recognition

Fingerprint recognition overview

You must register your fingerprint on your device first before using the fingerprint recognition function.

You can use the fingerprint recognition function in the following cases:

• To unlock the screen.

• To view the locked content in the QuickMemo+.

• Confirm a purchase by signing in to an app or identifying yourself with

your fingerprint.

• Your fingerprint can be used by the device for user identification. Very

similar fingerprints from different users may be recognised by the fingerprint sensor as the same fingerprint.

• If the device cannot detect your fingerprint, or you forgot the value

specified for registration, visit the nearest LG Customer Service Centre with your device and ID card.

Precautions for fingerprint recognition

Fingerprint recognition accuracy may decrease due to a number of reasons. To maximise the recognition accuracy, check the following before using the device.

• The device has a fingerprint sensor. Ensure that the fingerprint sensor

is not damaged by a metallic object, such as coin or key.

• When water, dust or other foreign substance is on the fingerprint

sensor or your finger, the fingerprint registration or recognition may not work. Clean and dry your finger before having the fingerprint recognised.

• A fingerprint may not be recognised properly if the surface of your

finger has a scar or is not smooth due to being soaked in water.

Custom-designed Features 23

• If you bend your finger or use the fingertip only, your fingerprint may

not be recognised. Make sure that your finger covers the entire surface of the fingerprint sensor.

• Scan only one finger for each registration. Scanning more than one

finger may affect fingerprint registration and recognition.

• The device may generate static electricity if the surrounding air is

dry. If the surrounding air is dry, avoid scanning fingerprints, or touch a metallic object such as coin or key before scanning fingerprints to remove static electricity.

Registering fingerprints

You can register and save your fingerprint on the device to use fingerprint identification.

Tap Settings General Lock screen & security Fingerprints.

• A lock screen must be set to use this feature.

• If the screen lock is not active, configure the lock screen by following the

on-screen instructions. See

Locate the fingerprint sensor on the back of the device and gently put

your finger on it to register the fingerprint.

• Gently press the fingerprint sensor so that the sensor can recognise

your fingerprint.

• Ensure that your fingertip covers the entire surface of the fingerprint

sensor.

Setting a screen lock

for details.

Custom-designed Features 24

Follow the on-screen instructions.

• Repeat scanning the fingerprint by moving your finger little by little

until the fingerprint registers.

When the fingerprint registration is done, tap OK.

• Tap ADD MORE to register another fingerprint. If you register

only one fingerprint and the corresponding finger is not in a good condition, the fingerprint recognition may not work well. As the preventive measure against this kind of situation, register multiple fingerprints.

Managing fingerprints

You can edit or delete registered fingerprints.

Tap Settings General Lock screen & security Fingerprints.

Unlock according to the specified lock method.

From the fingerprint list, tap a fingerprint to rename it. To delete it, tap

Unlocking the screen with a fingerprint

You can unlock the screen or view the locked content by using your fingerprint. Activate the desired function:

Tap Settings General Lock screen & security Fingerprints.

Unlock according to the specified lock method.

On the fingerprint settings screen, activate the desired function:

• Screen lock: Unlock the screen with a fingerprint.

• Content lock: Unlock content with a fingerprint. To do this, make

sure that the content lock is set.

Custom-designed Features 25

Multi-tasking feature

Multi window

You can use two apps at the same time by separating the screen into the multiple windows.

Tap from the Home touch buttons.

• Recently-used apps appear.

Tap at the top of the desired app to use the Multi window feature.

• The selected app appears at the top half of the screen.

Alternatively,

Touch and hold while using an app.

• Recently-used apps appear on the split screen.

Tap at the top of the desired app to use the Multi window feature.

• The selected app appears at the top half of the screen.

Custom-designed Features 26

• To deactivate the Multi window feature, touch and hold on the

Home touch button.

• To adjust the size of the split screen, drag

screen.

• The Multi window feature is not supported by some LG apps and the

apps downloaded from the Play Store.

at the center of the

Overview screen

The Overview screen provides a preview of your recently used apps. To view the list of recently used apps, tap

displayed app.

• Touch and hold an app and drag it to the top of the screen to start the

app with the Multi window feature. You can also tap each app.

on the Home, then tap the

at the top of

Custom-designed Features 27

Basic Functions

Product components and accessories

The following items are included with your device.

• Device

• Stereo headset

• USB cable

• The items described above may be optional.

• The items supplied with the device and any available accessories may

vary depending on the area and service provider.

• Always use genuine LG Electronics accessories. Using accessories made

by other manufacturers may affect your device's call performance or cause malfunctions. This may not be covered by LG's repair service.

• Some of the device parts are made of tempered glass. If you drop your

device on a hard surface or subject it to severe impact, the tempered glass may be damaged. If this happens, stop using your device immediately and contact an LG Customer Service Centre.

• If any of these basic items are missing, contact the dealer from which

you purchased your device.

• To purchase additional items, contact an LG Customer Service Centre.

• Some items in the product box are subject to change without notice.

• The appearance and specifications of your device are subject to change

without notice.

• Device specifications may vary depending on the area or service provider.

• Remove the protective film from the Fingerprint sensor before use of

the fingerprint recognition feature.

• Charger

• Quick Start Guide

• Ejection pin

Basic Functions 29

Parts overview

Earpiece

Microphone

Front camera lens

LED Indicator

Proximity/Ambient light sensor

Volume keys (+/-)

Google Assistant button

Nano-SIM card tray

Nano-SIM/Memory card

Stereo headset jack

Rear camera lenses (Depth

sensor / Standard-angle)

Fingerprint sensor

tray

Speaker Microphone

Power/Lock key

Touch screen

Charger/USB cable port

Flash

Basic Functions 30

Do NOT attempt to remove the back cover.

This device has a non-removable battery. Do not attempt to remove the back cover. Doing so may severely damage the battery and device, which could cause overheating, fire, and injury.

• Proximity/Ambient light sensor

- Proximity sensor: During a call, the proximity sensor turns off the

screen and disables touch functionality when the device is in close proximity to the human body. It turns the screen back on and enables touch functionality when the device is outside a specific range.

- Ambient light sensor: The ambient light sensor analyses the ambient

light intensity when the auto-brightness control mode is turned on.

• Volume keys

- Adjust the volume for ringtones, calls or notifications.

- While using the Camera, gently press a Volume key to take a photo.

To take continuous photos, press and hold the Volume key.

- Press the Volume Down (-) key twice to launch the Camera app

when the screen is locked or turned off. Press the Volume Up (+) key twice to launch Capture+.

• Power/Lock key

- Briefly press the key when you want to turn the screen on or off.

- Press and hold the key when you want to select a power control

option.

• Google Assistant button

- Your device has the Google Assistant built-in. Find answers and get

things done while on-the-go. To get started, just tap the Google Assistant button on the side of the phone.

- Activate Google Assistant. See the

Google Assistant

for details.

Basic Functions 31

• Fingerprint sensor

Good example Bad example

- Turn on the fingerprint recognition feature to simplify the process

of unlocking the screen. See

Fingerprint recognition overview

for

details.

• Some functions may be restricted for access, depending on the device

specifications.

• Do not put heavy objects on the device or sit on it. Failure to do so may

damage the touch screen.

• Screen-protective film or accessories may interfere with the proximity

sensor.

• If your device is wet or is being used in a humid place, the touch screen

or buttons may not function properly.

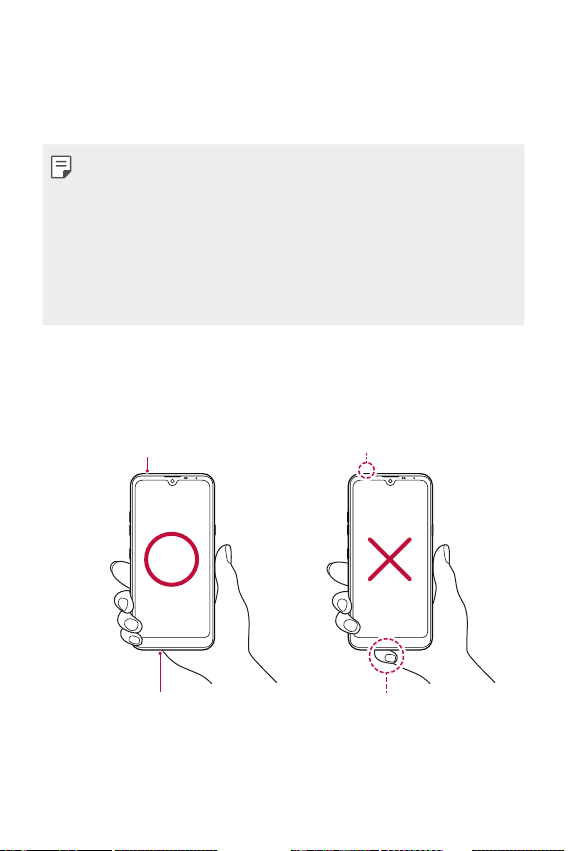

Hold the device correctly as shown below. If you cover the microphone hole with a hand, finger, or protective case while using the device, you may sound unclear during a call.

Do not cover the microphone.Microphone

Basic Functions 32

Turning the power on or off

Turning the power on

When the power is turned off, press and hold the Power/Lock key.

• When the device is turned on for the first time, initial configuration

takes place. The first booting time for the smart phone may be longer than usual.

Turning the power off

Press and hold the Power/Lock key, then select Power off.

Restarting the device

When the device is not working properly or does not respond, restart it by following the instructions below.

Press and hold the Power/Lock key and the Volume Down (-) key at

the same time until the power is turned off.

When the device is restarted, release the key.

Power control options

Press and hold the Power/Lock key, then select an option.

• Power off: Turn the device off.

• Power off and restart: Restart the device.

• Turn on Airplane mode: Block telecommunication-related functions,

including making phone calls, messaging and browsing the Internet. Other functions remain available.

Basic Functions 33

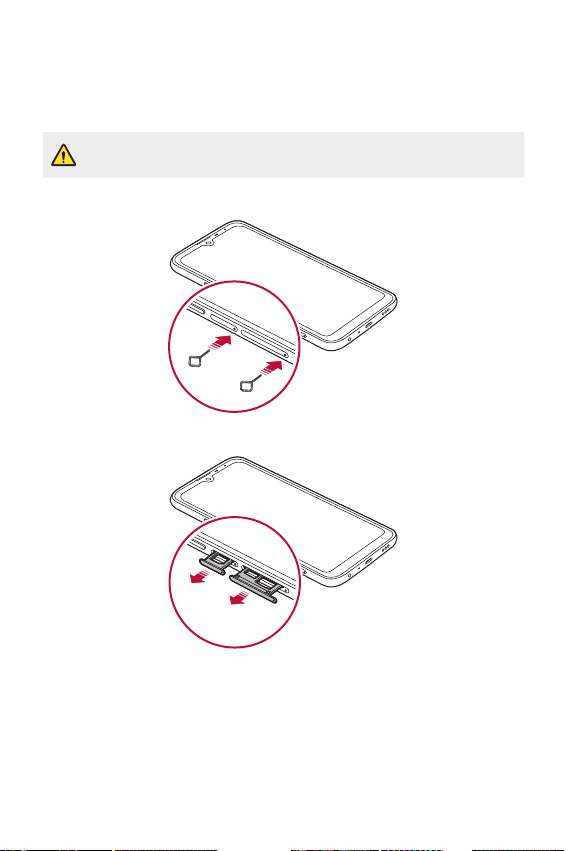

Installing the SIM card

Insert the SIM (Subscriber Identity Module) card provided by your service provider to start using your device.

• Be careful with the ejection pin since it has a sharp edge.

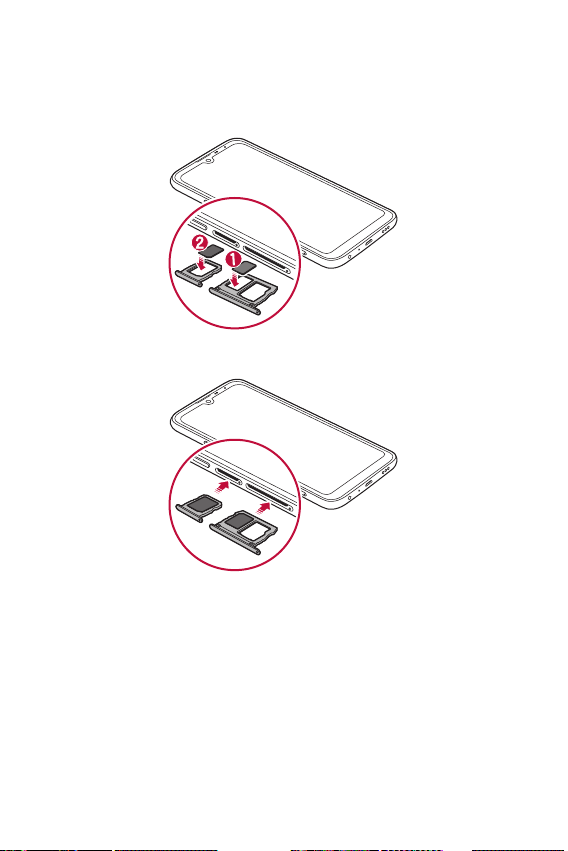

Insert the ejection pin into the hole on the card tray.

Pull out the card tray.

Basic Functions 34

Put the SIM card on the card tray with the gold-coloured contacts

facing downwards. Put the primary SIM card on the SIM card tray 1 and the secondary SIM card on the SIM card tray 2.

Insert the card tray back into the slot.

Basic Functions 35

• This device supports only Nano SIM cards.

Nano Micro Standard

• For problem-free performance, it is recommended to use the device

with the correct type of SIM card. Always use a factory-made SIM card supplied by the operator.

• If you insert the card tray into your device while the card tray is wet,

your device may be damaged. Always make sure the card tray is dry.

Precautions when using the SIM card

• Do not lose your SIM card. LG is not responsible for damage and other

issues caused by loss or transfer of a SIM card.

• Be careful not to damage the SIM card when you insert or remove it.

Basic Functions 36

Inserting the memory card

Insert the memory card into your device. Depending on the memory card manufacturer and type, some memory

card may not be compatible with your device.

Insert the ejection pin into the hole on the card tray.

Pull out the card tray.

Put the memory card on the card tray with the gold-coloured contacts

facing downwards.

Memory card (optional-sold separately)

SIM card

Insert the card tray back into the slot.

• Some memory cards may not be fully compatible with the device. If you

use an incompatible card, it may damage the device or the memory card, or corrupt the data stored in it.

• Frequent writing and erasing of data may shorten the memory card

lifespan.

Basic Functions 37

Removing the memory card

Charging cable terminal

Unmount the memory card before removing it for safety.

Tap Settings General Storage .

Insert the ejection pin into the hole in the card tray and then pull out

the card tray from the device.

Remove the memory card from the card tray.

Insert the card tray back into the slot.

• Do not remove the memory card while the device is transferring or

accessing information. This may cause data to be lost or corrupted, or may damage the memory card or the device. LG is not responsible for losses that result from the abuse or improper use of memory cards, including the loss of data.

Battery

Charging the battery

Before using the device, fully charge the battery.

Basic Functions 38

• Do not use the external terminal, charging cable or gender for the

device in presence of moisture. This may cause fire, electric shock, injury, or device malfunction. If there is moisture, stop using the device immediately and remove the moisture completely.

• Make sure to use the USB cable provided with your device.

• Make sure to use an LG-approved charger and charging cable. Charging

the battery with a third-party charger may cause the battery to explode or may damage the device.

• Your device has an internal rechargeable battery. For your safety, do not

remove the embedded battery.

• Using the device when it is charging may cause electric shock. To use the

device, stop charging it.

• Remove the charger from the power socket after the device is fully

charged. This prevents unnecessary power consumption.

• Another way to charge the battery is by connecting a USB cable

between the device and a desktop or laptop computer. This may take longer time than plugging the adapter to a wall outlet.

• Do not charge the battery by using a USB hub that is unable to maintain

the rated voltage. Charging may fail or unintentionally stop.

Precautions when using the device

• Make sure to use the USB cable provided; do not use third party USB

cables or chargers with your device. The LG limited warranty does not cover the use of third party accessories.

• Failure to follow the instructions in this guide and improper use may

damage the device.

Basic Functions 39

Using the battery efficiently

Battery lifespan may decrease if you keep many apps and functions running simultaneously and continuously.

Cancel background operations to increase battery life. To minimise battery consumption, follow these tips:

• Turn off the Bluetooth

them.

• Set the screen timeout to as short a time as possible.

• Minimise the screen brightness.

• Set a screen lock when the device is not used.

• Check the battery level while using any downloaded apps.

or Wi-Fi network function when not using

Touch screen

You can familiarise yourself with how to control your device by using touch screen gestures.

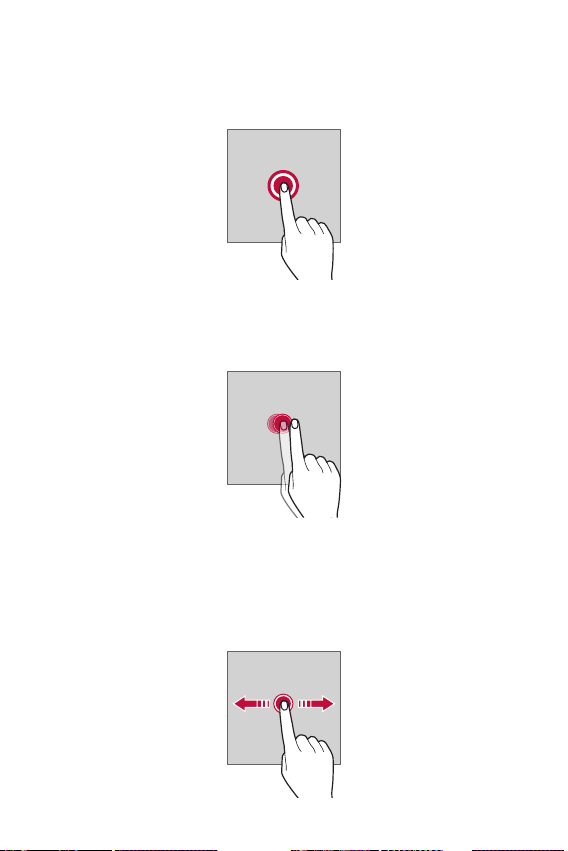

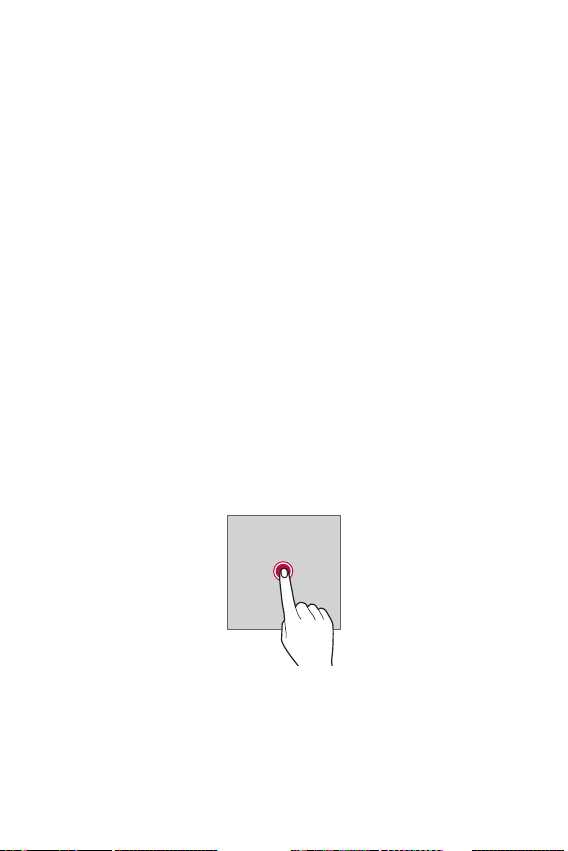

Tapping

Lightly tap with your fingertip to select or run an app or option.

Basic Functions 40

Touching and holding

Touch and hold for several seconds to display a menu with available options.

Double-tapping

Tap twice quickly to zoom in or out on a web page or map.

Dragging

Touch and hold an item, such as an app or widget, then move your finger to another location in a controlled motion. You can use this gesture to move an item.

Basic Functions 41

Swiping

Touch the screen with your finger and move it quickly without pausing. You can use this gesture to scroll through a list, a web page, photos, screens, and more.

Pinching and spreading

Pinch two fingers to zoom out such as on a photo or map. To zoom in, spread your fingers apart.

• Do not expose the touch screen to excessive physical shock. You might

damage the touch sensor.

Basic Functions 42

• A touch screen failure may occur if you use the device near a magnetic,

metallic or conductive material.

• If you use the device under bright lights, such as direct sunlight, the

screen may not be visible, depending on your position. Use the device in a shady location or a location with an ambient light that is not too bright and bright enough to read books.

• Do not press the screen with excessive force.

• Gently tap with your fingertip on the option you want.

• Touch control may not work properly if you tap while wearing a glove or

by using the tip of your fingernail.

• Touch control may not work properly if the screen is moist or wet.

• The touch screen may not function properly if a screen-protective film

or accessory purchased from a third party store is attached to the device.

• Displaying a static image for extended periods of time may result in

after-images or screen burn-in. Turn off the screen or avoid displaying the same image for a long time when you do not use the device.

Basic Functions 43

Home screen

Status bar

Home screen overview

The Home screen is the starting point for accessing various functions and apps on your device. Tap screen.

You can manage all apps and widgets on the Home screen. Swipe the screen left or right to view all installed apps at a glance.

Home screen layout

You can view all apps and organise widgets and folders on the Home screen.

Weather widget

Home touch buttons

on any screen to directly go to the Home

Google Search widget

Page icon Quick access area

• The Home screen may differ depending on the manufacturer policy, user

settings, software version or service provider.

• Status bar: View status icons, the time and the battery level.

• Weather widget: View the information of weather and time for a

specific area.

Basic Functions 44

• Google Search widget: Type or speak to pull open Google Search.

• Page icon: Display the total number of Home screen canvases. You

can tap the desired page icon to go to the page you selected. The icon reflecting the current canvas will be highlighted.

• Quick access area: Fix main apps at the bottom of the screen so that

they can be accessed from any Home screen canvas.

• Home touch buttons

: Return to the previous screen. Close the keypad or pop-up

windows.

: Tap to go to the Home screen. To launch Google Assistant, touch

and hold.

: Tap to view a list of recently used apps or run an app from the

list. To delete all the recently used apps, tap CLEAR ALL. To use two apps at the same time with the Multi window feature, touch and hold the button while using an app.

: Choose which SIM card you are going to use. Tap and hold to

configure the Dual SIM card settings.

Editing the Home touch buttons

You can rearrange the Home touch buttons or add frequently used functions to the Home touch buttons area.

Settings Display Home touch buttons Button

Tap combination and customise the settings.

• Several functions, including QSlide, Notification and Capture+, are

provided.

Basic Functions 45

Hiding the Home touch buttons

You can hide the Home touch buttons to view in a larger screen while using an app.

Tap Settings Display Home touch buttons Hide Home

touch buttons.

Select apps to hide the Home touch buttons whiling using the app,

and tap

• The Home touch buttons disappear 3 seconds after the last touch.

• To view the Home touch buttons again, drag the bottom of the

screen upwards.

Lock/hide icon

The icon to lock or hide the Home touch buttons appears at the bottom left of the screen.

If you want to lock the Home touch buttons while hiding the buttons, tap

on the left of the Home touch buttons.

To hide the Home touch buttons again, double-tap

• Some features may not be supported while hiding the Home touch

buttons.

Basic Functions 46

Status icons

When there is a notification for an unread message, calendar event or alarm, the status bar displays the corresponding notification icon. Check your device’s status by viewing notification icons displayed on the status bar.

No signal

Data is being transmitted over the network

Alarm is set

Vibrate mode is on

Bluetooth is on

Connected to a computer via USB

Battery level

Airplane mode is on

Missed calls

Wi-Fi is connected

Mute mode is on

GPS is on

Hotspot is on

No SIM card

• Some of these icons may appear differently or may not appear at all,

depending on the device's status. Refer to the icons according to the actual environment and area in which you are using the device and your service provider.

• Displayed icons may vary, depending on the area or service provider.

Basic Functions 47

Notifications panel

You can open the notifications panel by dragging the status bar downward on the main screen.

• To open the quick access icons list, drag the notifications panel

downwards.

• To rearrange, add, or remove icons, tap EDIT.

• If you touch and hold the icon, the settings screen for the

corresponding function appears.

EDIT

• You can use the notifications panel even on the lock screen. Drag the

notifications panel while the screen is locked to quickly access the desired features.

Basic Functions 48

Switching the screen orientation

You can set the screen orientation to automatically switch according to the device’s physical orientation.

On the notification panel, tap Rotation from the quick access icon list. You can also tap

screen.

Settings Display and activate Auto-rotate

Editing the Home screen

On the Home screen, touch and hold on an empty space, then select the desired action from below.

• To rearrange the Home screen canvases, touch and hold on a canvas,

then drag it to another location.

• To add a widget to the Home screen, touch and hold on a blank area of

the Home screen, then select Widgets.

• To change wallpapers, themes, and icons, touch and hold on a blank

area of the Home screen, then select Wallpaper & theme.

You can also tap select wallpapers, themes, and icons, to apply to the device.

Settings Display Wallpaper & theme, then

Basic Functions 49

• To configure the Home screen settings, touch and hold on a blank area

of the Home screen, then select Home screen settings. See

screen settings

for details.

Home

• To view or reinstall the uninstalled apps, touch and hold on a blank area

of the Home screen, then select App trash. See

App trash

for details.

• To change the default screen, touch and hold on a blank area of the

Home screen, move to desired screen, tap

, then tap the screen once

more.

Default screen

Basic Functions 50

Viewing the background theme

You can view only the background image by hiding the apps and widgets on the Home screen.

Spread two fingers apart on the Home screen.

• To return to the original screen, which displays apps and widgets, pinch

your fingers on the Home screen or tap

Moving apps on the Home screen

On the Home screen, touch and hold an app, then drag it to another location.

• To keep frequently used apps at the bottom of the Home screen, touch

and hold an app, then drag it to the quick access area at the bottom.

• To remove an icon from the quick access area, drag the icon to the

Home screen.

Basic Functions 51

Using folders from the Home screen

Creating folders

On the Home screen, touch and hold an app, then drag it over another app.

• A new folder is created and the apps are added to the folder.

Editing folders

On the Home screen, tap a folder and do one of the following actions.

• To edit the folder name and colour, tap the folder name.

• To add apps, touch and hold an app, then drag it over the folder and

release it.

• To remove an app from the folder, touch and hold the app and drag it to

outside the folder. If the removed app is the only one app that existed in the folder, the folder is removed automatically.

• You can also add or remove apps after tapping

• You cannot change the folder colour while using downloaded theme.

in the folder.

Home screen settings

You can customise the Home screen settings.

Tap Settings Display Home screen.

Customise the following settings:

• Select Home: Select a Home screen mode.

• Wallpaper: Change the Home screen background wallpaper.

• Screen swipe effect: Select an effect to apply when the Home

screen canvas switches.

Basic Functions 52

• Icon shape: Choose if you want icons to have square or rounded

corners.

• Google feed: Enable Google feed to show to the left of Home

screen.

• Sort apps by: Set how apps are sorted on the Home screen.

• Grid: Change the app arrangement mode for the Home screen.

• Hide apps: Select which apps you want to hide from the Home

screen.

• Loop Home screen: Enable to allow continuous Home screen

scrolling (loop back to first screen after the last screen).

• Search: Search by swiping down on the Home screen.

• Home screen lock: Turn on to prevent apps and widgets from being

rearranged or removed.

Screen lock

Screen lock overview

Your device’s screen turns off and locks itself if you press the Power/Lock key. This also happens after the device is left idle for a specified period of time.

If you press the Power/Lock key when a screen lock is not set, the Home screen appears immediately.

To ensure security and prevent unwanted access to your device, set a screen lock.

• A screen lock prevents unnecessary touch input on the device screen

and reduces battery consumption. We recommend that you activate the screen lock while not using the device.

Basic Functions 53

Setting a screen lock

There are several options available for configuring the screen lock settings.

Tap Settings General Lock screen & security Select

screen lock and then select the method you prefer.

Customise the following settings:

• Swipe: Swipe on the screen to unlock the screen.

• Pattern: Draw a pattern to unlock the screen.

• PIN: Enter a numeric password to unlock the screen.

• Password: Enter an alphanumeric password to unlock the screen.

• Fingerprints: Unlock the screen by using your fingerprint.

• If you incorrectly attempt to unlock the device 5 times, the screen is

blocked for 30 seconds.

Secure start-up settings

When you select Pattern, PIN or Password as a screen lock method, you can configure your device to be locked whenever turning on the device in order to secure your data.

• You cannot use all functions, except for emergency calls until you

unlock the device.

• If you forget your decryption password, you cannot restore encrypted

data and personal information.

Basic Functions 54

Precautions for the secure start-up feature

• If you forget your decryption password, you cannot restore encrypted

data and personal information.

• Be sure to keep your screen lock passwords separately.

• If you enter the screen lock passwords incorrectly more than the

specified times, the device automatically resets itself and the encrypted data and your personal information are deleted automatically and they cannot be restored.

• Be cautious not to enter incorrect screen lock passwords more than

the specified times.

• When you turn on the device right after the device resets, encryption

also starts. If you stop the encryption arbitrarily, the data may be damaged. Be sure to wait until the reset is completed.

Customise Lock screen

You can customise lock screen.

Tap Settings General Lock screen & security Customize

Lock screen.

Select a function you want to set.

• Wallpaper: Allows you to set the background for your Lock screen.

• Clock: Allows you to set where to position the clock on the Lock

screen.

• Shortcuts: Allows you to choose apps to run on your Lock screen.

This setting appears only when a screen lock is set.

• Contact info for lost phone: Allows you to set text to be displayed

on the Lock screen to identify the phone’s owner.

Basic Functions 55

Secure lock settings

You can set secure lock settings.

Tap Settings General Lock screen & security Secure lock

settings.

Select a function you want to set.

• Lock timer: Allows you to set the amount of time before the screen

automatically locks after the backlight turns off (time-out due to inactivity).

• Power key instantly locks: Enable this option to instantly lock

the screen when the Power/Lock button is pressed. This setting overrides the Security Lock timer setting.

• Smart Lock: Allows you to set trusted devices, places, voice, and/or

on-body detection that will allow your phone to remain unlocked.

• Menus you can set may be different depending on lock screen methods

you choose.

Basic Functions 56

KnockON

You can turn the screen on or off by double-tapping the screen.

• This option is available only on the Home screen provided by LG. It may

not function properly on a custom launcher or on the Home screen installed by the user.

• When tapping the screen, use your fingertip. Do not use a fingernail.

• To use the KnockON feature, make sure that the proximity/light sensor

is not blocked by a sticker or any other foreign substance.

Turning the screen on

Double-tap the middle of the screen.

• Tapping the top or bottom of the screen may decrease the recognition

rate.

Turning the screen off

Double-tap on an empty space on the Home screen and Lock screen. You can also double-tap an empty space on the status bar.

Basic Functions 57

Memory card encryption

You can encrypt and protect data saved on the memory card. The encrypted data in the memory card cannot be accessed from another device.

Tap Settings General Lock screen & security Encryption

& credentials

Read the on-screen overview of memory card encryption and then tap

CONTINUE to continue.

Select an option and tap ENCRYPT NOW.

• New data encryption: Encrypt only data that is saved on the

memory card after encryption.

• Full encryption: Encrypt all the data currently saved on the memory

card.

• Exclude media files: Encrypt all files, except for media files such as

music, photos and videos.

• To encrypt the memory card, make sure that a screen lock is set using a

PIN or password.

• Once memory card encryption starts, some functions are not available.

• If the device is turned off while encryption is underway, the encryption

process will fail, and some data may be damaged. Therefore, be sure to check if the battery level is sufficient before starting encryption.

• Encrypted files are accessible only from the device where the files were

encrypted.

• The encrypted memory card cannot be used on another LG device. To

use the encrypted memory card on another mobile device, format the card.

• You can activate memory card encryption even when no memory card

is installed into the device. Any memory card that is installed after encryption will automatically be encrypted.

Encrypt SD card.

Basic Functions 58

Taking screenshots

You can take screenshots of the current screen you are viewing.

Via a shortcut

Press and hold the Power/Lock key and the Volume Down (-) key at the same time for at least two seconds.

• Screenshots can be viewed from the Screenshots folder in the

Gallery.

Via Capture+

On the screen where you want to take a screenshot, drag the status bar downwards, then tap

• When the screen is turned off or locked, you can access Capture+ by

pressing the Volume Up (+) key twice. To use this feature, tap Settings

Writing notes on a screenshot

• See

General Shortcuts and turn on Open Capture+.

for details.

Entering text

Using the Smart keyboard

You can use the Smart keyboard to enter and edit text. With the Smart keyboard, you can view text as you type without

bothering to alternate between the screen and a conventional keyboard. This allows you to easily find and correct errors when typing.

Moving the cursor

With the Smart keyboard, you can move the cursor to the exact position you want. When typing text, touch and hold on the space bar and then drag left or right.

Basic Functions 59

• This option is available only on the QWERTY keyboard.

Changing the QWERTY keyboard layout

You can add, delete or rearrange keys on the bottom row of the keyboard.

Tap Settings General Language & keyboard On-screen

keyboard keyboard layout.

You can also tap layout

Tap a key on the bottom row, then drag it to another position.

• You can select and organise frequently used symbols.

Basic Functions 60

LG Keyboard Keyboard height and layout QWERTY

on the keyboard and tap Keyboard height and

QWERTY keyboard layout.

• This option is available on the QWERTY, QWERTZ and AZERTY

keyboards.

• This function may not be supported for some languages.

Customising the keyboard height

You can customise the keyboard height to maximise hand comfort when typing.

Tap Settings General Language & keyboard On-screen

keyboard height.

You can also tap layout

Adjust the keyboard height.

LG Keyboard Keyboard height and layout Keyboard

on the keyboard and tap Keyboard height and

Keyboard height.

Selecting a landscape keyboard mode

You can select a landscape keyboard mode from several choices.

Tap Settings General Language & keyboard On-screen

keyboard type in landscape.

You can also tap layout

Select a keyboard mode.

LG Keyboard Keyboard height and layout Keyboard

on the keyboard and tap Keyboard height and

Keyboard type in landscape.

Basic Functions 61

Splitting the keyboard

You can split the keyboard in half and place each piece on either side of the screen when the screen is in landscape mode.

To split the keyboard, turn the device horizontally and spread it apart on both sides with holding the keyboard with two fingers. To attach the keyboard, close it with pressing with two fingers.

One-handed operation mode

You can move the keyboard to one side of the screen so that you can use the keyboard with one hand.

Tap Settings General Language & keyboard On-screen

keyboard handed operation.

You can also tap layout

Press the arrow displayed next to the keyboard to move the keyboard

in the direction you want.

LG Keyboard Keyboard height and layout One-

on the keyboard and tap Keyboard height and

One-handed operation.

Basic Functions 62

Adding languages to the keyboard

You can make additional languages available for keyboard input.

Tap Settings General Language & keyboard On-screen

keyboard

Select the languages you want to make available.

LG Keyboard Select languages.

Copy and Paste

You can cut or copy text from an app, and then paste the text into the same app. Or, you can run other apps and paste the text into them.

Touch and hold around the text you want to copy or cut.

Drag / to specify the area to copy or cut.

Select either CUT or COPY.

• Cut or copied text is automatically added to the clipboard.

Touch and hold the text input window, then select PASTE.

• If there is no item that has been copied or cut, the PASTE option will

not appear.

Entering text by using voice

On the keyboard, tap .

• To maximise the voice command recognition, speak clearly.

• To enter text with your voice, make sure that your device is connected

to a network.

• To select the language for voice recognition, tap

voice recognition screen.

• This function may be not supported, or the supported languages may

differ depending on the service area.

Languages on the

Basic Functions 63

Clip Tray

If you copy or cut an image or text, it is automatically saved to the clip tray and can be pasted to any space at any time.

On the keyboard, tap .

You can also touch and hold the text input window, then select CLIP TRAY.

Select and paste an item from the clip tray.

• A maximum of 20 items can be saved to the clip tray.

to lock saved items in order not to delete them, even when

• Tap

the maximum quantity is exceeded. A maximum of ten items can be locked. To delete locked items, unlock them first.

to delete the items saved to the clip tray.

• Tap

• The clip tray may not be supported by some downloaded apps.

Content sharing

Playing content from another device

You can play photos, videos or songs saved on your device from a TV.

Connect the TV and your device to the same Wi-Fi network.

While viewing an item in the Gallery or Music app, tap Play on

other device.

Select the TV you want to connect to.

• For use with Chromecast, Google Play services should be up to date.

Basic Functions 64

Viewing content from nearby devices

You can view content from various devices, such as a computer, NAS or mobile device, by using the Gallery or Music app.

Connecting the devices

Connect both your device and a device that support DLNA function to the same wireless network.

• Make sure that File sharing (DLNA) is activated on both devices.

Searching for nearby devices

You can view a list of DLNA devices on the same network by selecting the Nearby devices menu in each app.

Use content from nearby devices as if you were using it on your device.

Sending or receiving files

You can share files between your device and another LG device, or a tablet or computer.

Sending files

From the Gallery or File Manager app, tap Share or , then select a device on the file sharing list.

Basic Functions 65

Receiving files

Drag the status bar downward and tap , then tap File sharing. If your device does not support the file sharing feature, tap

Network File sharing SmartShare Beam .

• Make sure that your device is connected to the same wireless network

as the file transfer target device.

• Make sure that File sharing is activated on both devices.

Settings

Do not disturb

You can limit or mute notifications to avoid disturbances for a specific period of time.

Settings Sound Do not disturb.

Tap

• Mode and select the mode you want:

- Priority only: Receive sound or vibrate notifications for the selected apps. Even when Priority only is turned on, alarms still sound.

- Total silence: Disable both the sound and vibration.

• Select priorities: Receive alarms and the notifications for the selected

apps.

- App notifications: Select apps to receive the notifications.

- Calls from: Set up a range of notifications when receiving a call.

- Repeated calls: Second call from same caller within 15 min is not silenced.

- Messages from: Set up a range of notifications when receiving a message.

• Use Do not disturb: Turn on the Do not disturb feature.

• SCHEDULE: Set the schedule for which you want to turn on the Do

not disturb feature.

• Help: View the help for Do not disturb.

Basic Functions 66

Useful Apps

Installing and uninstalling apps

Installing apps

Access an app store to search and download apps.

• You can use SmartWorld, Play Store or the app store provided by your

service provider.

• Some app stores may require you to create an account and sign in.

• Some apps may charge fees.

• If you use mobile data, you may be charged for data usage, depending

on your pricing plan.

• SmartWorld may not be supported depending on the area or service

provider.

Uninstalling apps

Uninstall apps that you no longer use from your device.

Uninstalling with the touch and hold gesture

On the Home screen, touch and hold the app to uninstall, then drag it over Delete at the top of the screen.

• If apps were uninstalled within 24 hours from now, you can reinstall

them. See

App trash

Uninstalling by using the settings menu

Tap Settings General Apps & notifications App info, select an app, then tap Uninstall.

for details.

• Some apps cannot be uninstalled by users.

Useful Apps 68

Uninstalling apps from the app store

To uninstall an app, access the app store from which you download the app and uninstall it.

Installing and uninstalling apps during the setup

When you turn on the device for the first time, you can download recommended apps.

You can skip to the next step without installation.

App trash

You can view the uninstalled apps on the Home screen. You can also reinstall apps which were uninstalled within 24 hours from now.

Tap Management App trash.

You can also touch and hold an empty area of the Home screen, then tap App trash.

Activate the desired function:

• Restore: Reinstall the selected app.

: Remove the uninstalled apps permanently from the device.

•

• Uninstalled apps are automatically removed from the device 24 hours

after they were uninstalled. If you want to reinstall the uninstalled apps, you must download them again from the app store.

• This feature is activated on the default Home screen only. If you

uninstall apps while using the EasyHome screen or other launcher, they are immediately and permanently removed from the device.

Useful Apps 69

App Shortcuts

On the Home screen, touch and hold an app icon such as Call, Message, Camera, Gallery and Settings to display a quick access menu. Use apps more easily through App Shortcuts.

to configure the settings for the desired app’s widget.

• Tap

to view the information for the desired app.

• Tap

• This feature is available only on some apps.

Useful Apps 70

Phone

Voice call

Make a phone call by using one of the available methods, such as manually entering a phone number and making a call from the contact list or the list of recent calls.

Making a call from the keypad

Tap Dial.

Make a call by using a method of your choice:

• Enter a phone number and tap

• Touch and hold a speed dial number.

• Search for a contact by tapping the initial letter of a contact name

in the contact list, and then tap

• To enter "+" when making an international call, touch and hold number

• See

Adding contacts

speed dial list.

for details on how to add phone numbers to the

Making a call from the contact list

Tap Contacts.

From the contact list, select a contact and tap .

Useful Apps 71

Answering a call

To answer a call, drag on the incoming call screen.

• When the stereo headset is connected, you can make calls by using the

call/end button on the headset.

• To end a call without turning off the screen, tap

Network with the Power key.

Call Answer and end calls and then activate End call

Settings

Rejecting a call

To reject an incoming call, drag across the incoming call screen.

• To send a rejection message, drag the rejection message option

across the screen.

• To add or edit a rejection message, tap

Call blocking & Decline with message Decline with message.

• When a call is coming in, press the Volume Up (+), Volume Down (-) or

Power/Lock key to mute ringtone or vibration, or to hold the call.

Settings Network Call

Checking an incoming call while using an app

When a call comes in while using an app, a pop-up notification can be displayed at the top of the screen. You can receive the call, reject the call, or send message from the pop-up screen.

• Tap Settings Network Call Additional settings Incoming

voice call pop-up and then select the desired way you would like to

display the incoming call while using an app.

Useful Apps 72

Viewing missed calls

If there is a missed call, the status bar at the top of the screen displays . To view missed call details, drag the status bar downwards. You can also

Call logs.

tap

Functions accessible during a call

During a call, you can access a variety of functions by tapping the on-screen buttons:

• Contacts: View the contact list during a call.

• Hold: Hold a call.

• Dialpad: Display or hide the dial pad.

• Speaker: Turn on the speakerphone function.

• Mute: Mute your voice so that your voice cannot be heard by the other

party.

• Bluetooth: Switch the call to a Bluetooth device that is paired and

connected.

: End a call.

•

: Access additional call options.

•

• Available settings items may vary depending on the area or service

provider.

Useful Apps 73

Making a three-way calling

You can make a call to another contact during a call.

During a call, tap Add call.

Enter a phone number and tap .

• The two calls are displayed on the screen at the same time, and the

first call is put on hold.

To start a conference call, tap Merge calls.

• You may be charged a fee for each call. Consult with your service

provider for more information.

Viewing call records

To view recent call records, tap Call logs. Then, you can use the following functions:

• To view detailed call records, select a contact. To make a call to the

selected contact, tap

• To delete call records, tap

• The displayed call duration may differ from the call charge. Consult with

your service provider for more information.

• The deleted call history can not be restored.

• Pinch two fingers or spread your fingers apart to adjust the font size of

call logs or contacts.

Delete.

Configuring call options

You can configure various call options.

Tap Dial or Call logs.

Tap Call settings and then configure the options to suit your

preferences.

Useful Apps 74

Messaging

Sending a message

You can create and send messages to your contacts using the Messaging app.

• Sending messages abroad may incur additional charges. Consult with

your service provider for more information.

Tap .

Tap or .

Specify a recipient and create a message.

• To use multimedia options, tap

• To access optional menu items, tap

Tap to send the message.

Reading a message

You can view exchanged messages organised by contact.

Tap .

Select a contact from the message list.

Configuring messaging settings

You can change messaging settings to suit your preferences.

Tap .

Tap Settings from the message list.

Useful Apps 75

Camera

Starting the camera

You can take a photo or record a video to cherish all of your memorable moments.

Tap

• Before taking a photo or recording a video, wipe the camera lens with a

soft cloth.

• Be careful not to stain the camera lens with your fingers or other

foreign substance.

• Images included in this user guide may be different from the actual

device.

• Photos and videos can be viewed or edited from the Gallery. See

overview

for details.

Changing the camera mode

You can select a camera mode that suits your environment to take a photo or record a video easily and conveniently.

MODE, then select the desired mode.

Tap

• Press and hold the Mode icon and drag it to the desired location to

change the mode order.

Gallery

Useful Apps 76

Auto mode

Turn the flash on

You can take photos or record videos by selecting a variety of camera modes and options.

Tap , then tap MODE Auto (A).

To take a photo, tap . To record a video, tap .

or off.

Switch between

front and rear

cameras.

Apply a film filter

effect.

Select a camera

mode.

Change the

camera options.

Taking a photo

Select a camera mode and tap the subject to focus the camera on.

Tap to take a photo.

• When the screen is turned off or locked, start the camera by pressing

the Volume Down (-) key twice. Tap Shortcuts and then tap Open Camera

Settings General

to activate it.

Start the Gallery.

Take photos.

Record videos.

Useful Apps 77

Recording a video

Select a camera mode and tap the subject to focus the camera on.

Tap .

• To take a photo while recording a video, tap

• To pause the video recording, tap

tap

• While recording a video, you may spread or pinch two fingers to

zoom in or out.

• While recording a video, you may tap the desired area to adjust the

brightness.

Tap to end the video recording.

• To check the aspect ratio before recording a video, press and hold .

. To resume the video recording,

Customising the camera options

You can customise a variety of camera options to suit your preferences.

on the screen.

Tap

• Available options vary depending on the selected camera (front or rear

camera) and the selected camera mode.

• : Take a photo in FullVision.

: Select values for aspect ratio and size for taking photos.

•

: Select values for resolution and size for recording videos.

•

: Set the timer to automatically take photos or record videos after a

•

specified period of time.

Useful Apps 78

Obtain photos in vivid colours and get compensated

HDR

Cheese shutter Take photos with voice commands.

Tag locations Save the image with GPS location data.

Grid

Storage

Help Provide Help for each camera menu.

effects even when they are taken against the light. These functions are provided by the high dynamic range (HDR) technology equipped in the camera.

Display guide grids so that you can take photos or record videos based on the horizontal and vertical reference lines.

Select if you want to store the pictures and videos in the Internal storage or SD card. (Available when a memory card is inserted.)

Additional options on the front camera

Selfie shot

Save as flipped Save as flipped images after taking selfies.

Take a selfie by selecting its option between Gesture shot and Auto shot.

Various camera modes

Food

You can take a photo or record a video with adjusting the colour slide bar and white balance.

Tap , then tap MODE .

To take a photo, tap .

• Drag the colour slide bar on the screen to adjust the white balance

and select the best colour.

• If the slide bar is not displayed, tap

Useful Apps 79

to adjust the white balance.

YouTube Live

You can record a video and directly upload to YouTube.

Tap , then tap MODE .

Tap and record a video.

To use this feature, you need to verify your phone number.

• YouTube Live is available only when your device is connected to the

Internet. If you use mobile data, you may be charged for data usage, depending on your pricing plan.

Flash Jump-Cut

You can create a GIF by taking photos at an regular interval.

Flash Jump-Cut

See

for details.

Portrait

You can take sharp portrait by applying camera lens blur effect.

Portrait

See

Useful Apps 80

for details.

AI CAM

You can effectively take photos or record videos since the camera recognises the object when taking a photo or recording a video.

AI CAM

See

for details.

Burst shot

You can take continuous shots of photos to create moving pictures. In the Auto mode, touch and hold

• Continuous shots are taken at a fast speed while

is held down.

Other useful features in the Camera app

Auto-Exposure/Auto-Focus lock

You can fix the current exposure level and focus position by touching and holding the screen in the Auto mode. To turn off the feature, tap a blank area on the screen.

• This feature is available only in specific modes.

Useful Apps 81

Switching between cameras

You can switch between the front and rear cameras to suit your environment.

On the camera screen, tap between the front and rear cameras.

or drag the screen in any direction to switch

• Use the front camera to take selfies. See

Selfie shot

for details.

Zoom in or out

You can use zoom in or out on the camera screen while taking a photo or recording a video.

• On the camera screen, pinch or spread two fingers to zoom in or out,

then use the displayed +/- slide bar.

• You can also drag the

only in specific modes.

• The zoom feature is not available when using the front camera in selfie

mode.

button up or down. This feature is available

82Useful Apps

Selfie shot

You can use the front camera to view your face on the screen and take selfies.

Gesture shot

You can take selfies by using gestures. Show your palm to the front camera and then clench your fist. You can also clench your fist and then open it towards the front camera.

• In three seconds, a photo is taken.

• To use this feature, switch to the front camera mode, then tap

Selfie shot

• Make sure that your palm and fist are within the reference line so that

the camera can detect them.

• This feature may not be available while using some of the camera

features.

Gesture shot.

Useful Apps 83

Auto shot

You can use the face detection feature to take selfies easily and conveniently. You can set the device so that, when you look at the screen, the front camera detects your face and takes a selfie automatically.

• The white coloured guide frame appears when the front camera

detects your face. If the subject within the guide frame stops moving, the guide frame colour turns yellow, then the camera takes a photo.

• Tap Selfie shot Auto shot to enable the Auto shot feature.

Interval shot

You can take selfies at an interval. While using the front camera, you can show your palm to the camera,

then clench your fist twice quickly.

• Four photos are taken at regular intervals after a timer delay of three

seconds.

Useful Apps 84

Save as flipped

quick share icon

Before taking a photo with the front camera, tap Save as flipped. The image is flipped horizontally.

• When using the front camera, you can change how selfies are taken in

the camera options. See

Customising the camera options

for details.

quick share

You can share a photo or video to the app you want immediately after taking it.

Tap , then take a photo or record a video.

Tap the app icon that appears on the screen to share it using that app.

You can also swipe the icon towards the opposite direction to see what other apps you can use to share your photos and videos.

Useful Apps 85

• The app displayed by the quick share icon may vary, depending on the

type and frequency of access to the apps installed on the device.

• This feature is available only in specific modes.

Gallery

Gallery overview

You can view and manage photos and videos saved on your device.

Tap .

• Saved photos and videos are displayed by folder.

Tap a folder and select a file.

• View the selected file in full-screen mode.

• While viewing a photo, swipe left or right to view the previous or

next photo.

• While viewing a video, swipe left or right to rewind or fast-forward

the video.

• When you take a photo by using the AI CAM feature, a Tag folder

is created under the Album tab of the Gallery app. The photos are automatically classified by tags under the Tag folder.

• You can view the photos or videos organised by year, month or day

in the Photos tab.

• To view photos by location at which the photo was taken, tap

Tag locations, then tap . The photos are automatically

grouped by location under the Memory tab of the Gallery app.

• Some file formats may not be supported, depending on the installed

software.

• Some files may not be opened due to encoding.

• Files that exceed the size limit may cause an error.

• You need to activate the GPS feature to create Memory albums.

Useful Apps 86

Viewing photos

Start Google Lens.

Write a memo on a

Add to or remove

Back to the

previous screen.

from your favorites.

Access additional options.

Start the camera.

photo.

• To display the menu items, gently tap the screen. To hide the menu

items, tap the screen again.

Delete images.

Share images.Edit images.

Writing a memo on the photo

While viewing a photo, tap .

Write a memo on the photo and tap SAVE.

• The memo is applied to the photo.

• Some photos may not support the photo memo feature.

Useful Apps 87

Editing photos

Open with QSlide.

DTS:X 3D Surround

Making a GIF file.

While viewing a photo, tap .

Use a variety of effects and tools to edit the photo.

Playing a video

Pause or play the

Rewind the video.

video.

Choose screen

ratio.

• To adjust the sound volume, drag the right side of the video screen up

or down.

• To adjust the screen brightness, drag the left side of the screen up or

down.

Access additional options.

Fast-forward the video.

Lock or unlock the screen.

Edit the video.

Useful Apps 88

Editing videos

Automatically

Create a movie using

While viewing a video, tap .

Use a variety of effects and edit tools to edit the video.

create a 15 sec, Adjust the resolution.

Revert the edit.

Tap SAVE to save changes.

30 sec or 60 sec

video clip.

various effects.

Launch the

KineMaster video

editor.

Select a section to

change the play

speed.

Adjust the video

duration.

Creating a movie

You can create a new movie by putting images and videos together.

Creating a movie

See

for details.

Making a GIF

You can easily make a GIF file using recorded video.

Making a GIF

See

for details.

Useful Apps 89

Deleting files

You can delete files by using one of the following options:

• Touch and hold a file from the file list, then tap Delete.

from the file list and delete the desired files.

• Tap

• Deleted files are automatically moved to Trash and they can be

restored to the Gallery within 7 days.

to completely delete the files. In this case, the files cannot be

• Tap

restored.

Sharing files

You can share files by using one of the following options:

• While viewing a photo, tap

you want.

• While viewing a video,

you want.

from the file list to select files and share them using the method

• Tap

you want.

to share the file by using the method

Share to share the file by using the method

Contacts

Contacts overview

You can save and manage contacts.

Essentials Contacts.

Tap

Adding contacts

Adding new contacts

On the contact list screen, tap .

Enter contact details and tap SAVE.

Useful Apps 90

Importing contacts

You can import contacts from another storage device.

On the contact list screen, tap Manage contacts Import.

Select the source and target locations of the contact you want to

import, and then tap OK.

Select the contacts and tap IMPORT.

Adding contacts to the speed dial list

On the contact list screen, tap Speed dial.

Tap Add contact from a speed dial number.

Select a contact.

• While adding a new contact, tap to add a speed dial number.

Searching for contacts

You can search for contacts by using one of the following options:

from the top of the contacts list and then enter the contact

• Tap

information or phone number.

• Scroll the contact list up or down.

• From the index of the contact list screen, tap the initial letter of a

contact.

• Tap from the top of the contacts list and then enter the contact

information or phone number to display all search details from call logs, contacts and groups.

Useful Apps 91

Contacts list

Editing contacts

On the contact list screen, select a contact.

On the contact detail screen, tap and edit details.

Tap SAVE to save changes.

Deleting contacts

You can delete contacts by using one of the following options:

• On the contact list screen, touch and hold a contact you want to

delete, then tap Delete contact.

Delete on the contact list screen.

• Tap

• Deleted contacts may not be restored.

Adding favourites

You can register frequently used contacts as favourites.

On the contact list screen, select a contact.

On the contact detail screen, tap .

Creating groups

On the contacts group list, tap .

Enter a new group name.

Tap Add members, select contacts, then tap ADD.

Tap SAVE to save the new group.

Useful Apps 92

QuickMemo+

QuickMemo+ overview

You can make creative notes by using a variety of options on this advanced notepad feature, such as image management and screenshots, which are not supported by the conventional notepad.

Creating a note

Tap QuickMemo+.

Tap to create a note.

: Save a note.

•

: Undo the previous edit.

•

: Redo the recently deleted edits.

•

: Enter a note by using the keypad.

•

: Write notes by hand.

•

: Erase handwritten notes.

•

: Zoom in or out, rotate or erase the parts of a handwritten note.

•

: Access additional options.

•

Tap to save the note.

Writing notes on a photo

Tap QuickMemo+.

Tap to take a photo, then tap OK.

• The photo is automatically attached into the notepad.

Tap or to write notes on the photo.

• Write notes by hand on the photo.

• Enter text below the photo.

Tap to save the note.

Useful Apps 93

Writing notes on a screenshot

While viewing the screen you want to capture, drag the status bar

downwards and then tap

• The screenshot appears as the notepad background theme. Memo

tools appear at the top of the screen.

Crop the image (if necessary) and take notes as desired.

• Write notes by hand on the photo.

Tap and save the notes to the location you want.

• Saved notes can be viewed in either QuickMemo+ or Gallery.

• To save notes in the same location all the time, select the Use as

default app checkbox and select an app.

• You can capture the entire screen by using the scroll capture feature.

• While using an app such as Message and Chrome, drag the notifications

panel downwards and then tap Capture+ entire screen you are currently viewing as a single file.

• This feature is available only on some apps that support the scroll

capture feature.

• Pinch two fingers or spread your fingers apart to change the memo

layout.

Extended to capture the

Useful Apps 94

Clock

Alarm

You can set an alarm to trigger it at a specified time.

Tap Clock Alarm.

Tap to add a new alarm.

Configure the alarm settings and tap SAVE.

• If you select a previously set alarm, you can edit the alarm.

• To delete an alarm, tap

and hold the alarm.

World clock

You can view the current time in cities around the world.

Tap Clock World clock.

Tap and add a city.

Timer

You can set the timer to trigger an alarm after a specified period of time.

Tap Clock Timer.

Set the time and tap Start.

• To suspend the timer, tap Pause. To resume the timer, tap Resume.

Tap Stop to stop the timer alarm.

at the top of the screen. You can also touch

Useful Apps 95

Stopwatch

You can use the stopwatch to record a lap time.

Tap Clock Stopwatch.

Tap Start to initiate the stopwatch.

• To record a lap time, tap Lap.

Tap Pause to suspend the stopwatch.

• To resume the stopwatch, tap Resume.

• To clear all the records and restart the stopwatch, tap Reset.

Calendar

Calendar overview

You can use the calendar to manage events and tasks.

Adding events

Tap Essentials Calendar.

Select a date and then tap .

Enter event details and tap SAVE.

Syncing events

Tap Calendars to sync, and select a calendar to sync.

• When your events are saved from the device to your Google account,

they are automatically synced with the Google Calendar, too. Then, you can sync other devices with the Google Calendar in order to make those devices have the same events that your device has and to manage your events on those devices.

Useful Apps 96

Tasks

Play music with the

You can register tasks to your device to easily manage schedules.

Tap Essentials Tasks.

Tap to add a task.

Enter task details and then tap SAVE.

Music

You can play and manage songs or music albums.

Tap Essentials Music.

Select a category.

Select a music file.

camera flash blinking to

Back to the previous

Tap to play from the

beginning of the current

file / Double-tap to play the previous file / Touch

Play in random order.

Adjust the sound volume.

Add to or delete from your

Useful Apps 97

the beat.

screen.

and hold to rewind.

favourites.

Set sound effects.

Access additional options.

Switch to the playlist.

Pause or play.

Tap to play the next file / Touch and hold to fast forward.

Select a repeat mode.

Change pitch and speed.

• Some file formats may not be supported, depending on the installed

software.

• Files that exceed the size limit may cause an error.

• Music files may be protected by international copyright owners or

copyright laws. You may have to obtain legal permission before copying a music file. To download or copy a music file, first check the copyright law for the relevant country.

Calculator

You can use two types of calculators: the simple calculator and the scientific calculator.

Tap Essentials Calculator.

Use the keypad to make a calculation.

• To restart a calculation, touch and hold the

button.

E-mail

Use the Email application to send and receive emails from your webmail or other accounts, using POP3 or IMAP, or access your Exchange account for your corporate email needs.

Set up E-mail account

Your phone supports several types of email accounts and allows you to have multiple email accounts set up at one time.

Before setting up an email account, make sure you have the username (user ID), password, server name, etc., so you can get set up successfully.

Tap Essentials E-mail.

Follow the onscreen instructions to set up your email account.

• The email account is set up and you will begin receiving email.

Useful Apps 98

Audio Recorder

You can record and save your voice or others’ voices from important events. Recorded voice files can be played back or shared.

Tap Essentials Audio Recorder.

• To add an event, tap

event to the desired date.

• To save the recording’s location details, tap

under Location.

Tap .

• To pause recording, tap

Tap to end the recording.

• The file is saved automatically and the recorded files screen appears.

Tap to play the recorded voice.

• Ta p to view the recorded files. You can play a recorded voice file from

the list.

Add tags Add under Event. Then, add an

Add tags Add

FM Radio

You can listen to FM radio.

Essentials FM Radio.

Tap

• To use this app, first connect earphones to the device. The earphones

function as the radio antenna.

• This function may not be supported depending on the area.

Useful Apps 99

LG LM-X520ZMW User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Custom-designed Features

Camera features

Gallery features

Sound quality and effects features

Google Assistant

Fingerprint recognition

Multi-tasking feature

Basic Functions

Product components and accessories

Parts overview

Turning the power on or off

Installing the SIM card

Inserting the memory card

Removing the memory card

Battery

Touch screen

Home screen

Screen lock

Memory card encryption

Taking screenshots

Entering text

Content sharing

Do not disturb

Useful Apps

Installing and uninstalling apps

App trash

App Shortcuts

Phone

Messaging

Camera

Gallery

Contacts

QuickMemo+

Clock

Calendar

Tasks

Music

Calculator

E-mail

Audio Recorder

FM Radio
