Page 1

- 1-1 -

CONTENTS

SECTION 1. GENERAL

• SERVICING PRECAUTIONS

....................................................................................................................

1-2

• ESD PRECAUTIONS

.................................................................................................................................

1-4

• SPECIFICATIONS

.....................................................................................................................................

1-5

SECTION 2. ELECTRICAL

• ADJUSTMENTS

.........................................................................................................................................

2-1

• TROUBLESHOOTING

...............................................................................................................................

2-3

• CD PART VOLTAGE SHEET ................................................................................................................... 2-21

• CD PART WAVEFORMS OF MAJOR CHECK POINT

............................................................................

2-24

• BLOCK DIAGRAM

...................................................................................................................................

2-26

• SCHEMATIC DIAGRAMS

........................................................................................................................

2-28

• WIRING DIAGRAM

..................................................................................................................................

2-36

• PRINTED CIRCUIT DIARGAMS

..............................................................................................................

2-38

• INTERNAL BLOCK DIAGRAM OF IC’s

...................................................................................................

2-49

• REPAIRS REGARDING CD MECHANISM

.............................................................................................

2-55

SECTION 3. EXPLODED VIEWS

• CABINET AND MAIN FRAME SECTION

.................................................................................................

3-1

• TAPE DECK MECHANISM: AUTO STOP DECK(OPTIONAL)

..................................................................

3-3

• TAPE DECK MECHANISM: AUTO REVERSE DECK

................................................................................

3-5

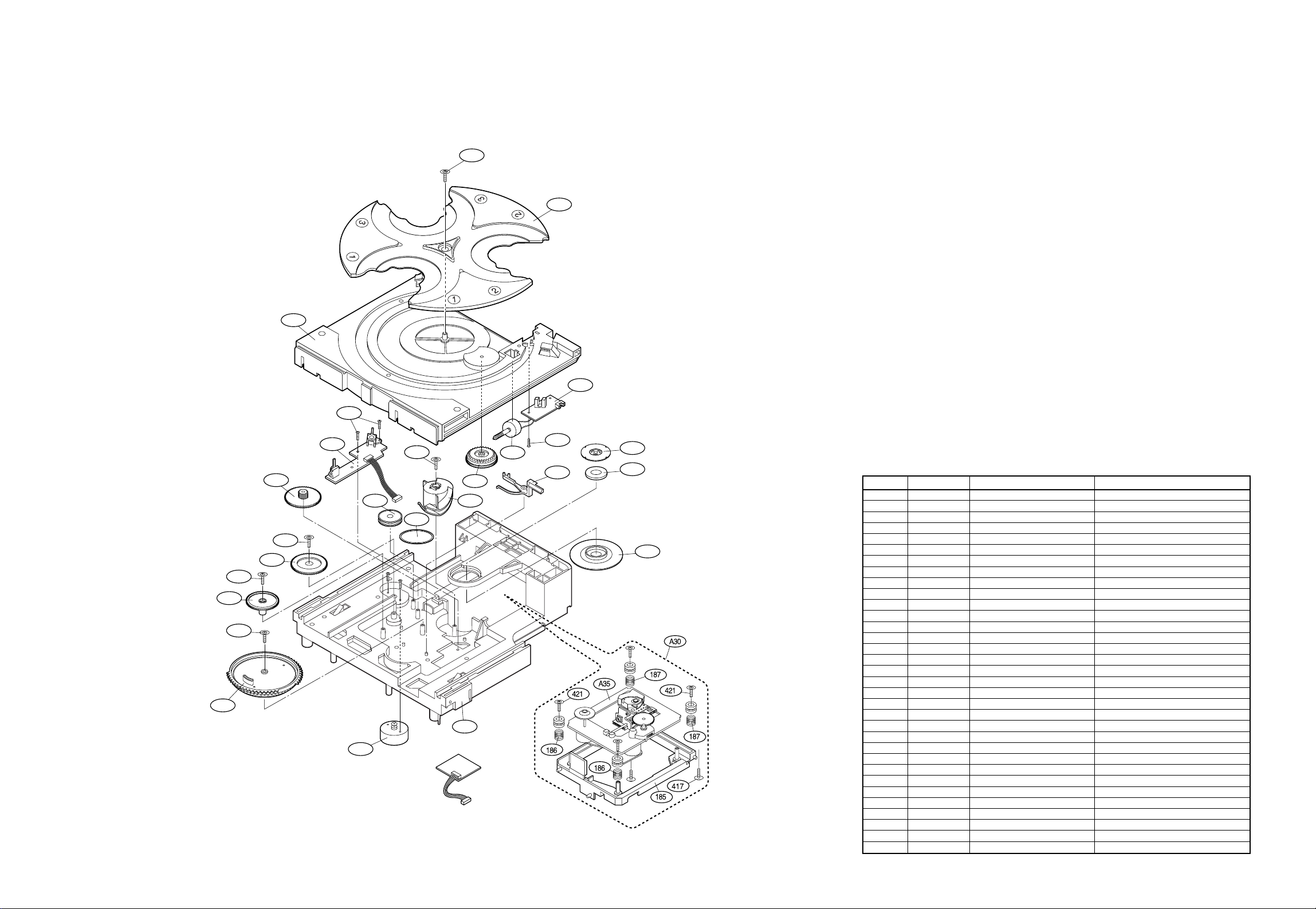

• CD MECHANISM

........................................................................................................................................

3-7

SECTION 4. SPEAKER

..................................................................................................................

4-1

SECTION 5. REPLACEMENT PARTS LIST

..................................................................................

5-1

Page 2

SECTION 1. GENERAL

❏ SERVICING PRECAUTIONS

NOTES REGARDING HANDLING OF THE PICK-UP

1. Notes for transport and storage

1) The pick-up should always be left in its conductive bag until immediately prior to use.

2) The pick-up should never be subjected to external pressure or impact.

2. Repair notes

1) The pick-up incorporates a strong magnet, and so should never be brought close to magnetic materials.

2) The pick-up should always be handled correctly and carefully, taking care to avoid external pressure and impact. If it is subjected to strong pressure or impact, the result may be an operational malfunction and/or damage to the printed-circuit board.

3) Each and every pick-up is already individually adjusted to a high degree of precision, and for that reason the adjustment point and installation screws should absolutely never be touched.

4) Laser beams may damage the eyes! Absolutely never permit laser beams to enter the eyes! Also NEVER switch ON the power to the laser output part (lens, etc.) of the pick-up if it is damaged.

5) Cleaning the lens surface If there is dust on the lens surface, the dust should be cleaned away by using an air bush (such as used for camera lens). The lens is held by a delicate spring. When cleaning the lens surface, therefore, a cotton swab should be used, taking care not to distort this.

6) Never attempt to disassemble the pick-up. Spring by excess pressure. If the lens is extremely dirty, apply isopropyl alcohol to the cotton swab. (Do not use any other liquid cleaners, because they will damage the lens.) Take care not to use too much of this alcohol on the swab, and do not allow the alcohol to get inside the pick-up.

- 1-2 -

Storage in conductive bag

Drop impact

NEVER look directly at the laser beam, and don’t let contact fingers or other exposed skin.

Magnet

How to hold the pick-up

Pressure

Cotton swab

Conductive Sheet

Page 3

NOTES REGARDING COMPACT DISC PLAYER REPAIRS

1. Preparations

1) Compact disc players incorporate a great many ICs as well as the pick-up (laser diode). These components are sensitive to, and easily affected by, static electricity. If such static electricity is high voltage, components can be damaged, and for that reason components should be handled with care.

2) The pick-up is composed of many optical components and other high-precision components. Care must be taken, therefore, to avoid repair or storage where the temperature of humidity is high, where strong magnetism is present, or where there is excessive dust.

2. Notes for repair

1) Before replacing a component part, first disconnect the power supply lead wire from the unit

2) All equipment, measuring instruments and tools must be grounded.

3) The workbench should be covered with a conductive sheet and grounded. When removing the laser pick-up from its conductive bag, do not place the pick-up on the bag. (This is because there is the possibility of damage by static electricity.)

4) To prevent AC leakage, the metal part of the soldering iron should be grounded.

5) Workers should be grounded by an armband (1MΩ)

6) Care should be taken not to permit the laser pick-up to come in contact with clothing, in order to prevent static electricity changes in the clothing to escape from the armband.

7) The laser beam from the pick-up should NEVER be directly facing the eyes or bare skin.

CLEARING MALFUNCTION

You can reset your unit to initial status if malfunction occur(button malfunction, display, etc.).

Using a pointed good conductor(such as driver), simply short the RESET jump wire on the inside of the volume knob for more than 3 seconds.

If you reset your unit, you must reenter all its settings(stations, clock, timer)

NOTE: 1. To operate the RESET jump wire, pull the volume rotary knob and release it.

2. If you wish to operate the RESET jump wire, it is necessary to unplug the power cord.

- 1-3 -

Armband

Conductive Sheet

Resistor (1 Mohm)

VOLUME KNOB

DOWN

VOLUME

RESET jump wire

Page 4

❏ ESD PRECAUTIONS

Electrostatically Sensitive Devices (ESD)

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive Devices (ESD). Examples of typical ESD devices are integrated circuits and some field-effect transistors and semiconductor chip components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ESD devices, place the assembly on a conductive

surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ESD devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static" can

generate electrical charges sufficient to damage ESD devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESD

devices.

6. Do not remove a replacement ESD device from its protective package until immediately before you are ready

to install it. (Most replacement ESD devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive materials).

7. Immediately before removing the protective material from the leads of a replacement ESD device, touch the

protective material to the chassis or circuit assembly into which the device will by installed.

CAUTION : BE SURE NO POWER IS APPLIED TO THE CHASSIS OR CIRCUIT, AND OBSERVE ALL OTHER

SAFETY PRECAUTIONS.

8. Minimize bodily motions when handing unpackaged replacement ESD devices. (Otherwise harmless motion

such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ESD device).

CAUTION. GRAPHIC SYMBOLS

THE LIGHTNING FLASH WITH APROWHEAD SYMBOL. WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE SERVICE PERSONNEL TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE SERVICE PERSONNEL TO THE PRESENCE OF IMPORTANT SAFETY INFORMATION IN SERVICE LITERATURE.

- 1-4 -

Page 5

- 1-5 -

Power supply Refer to the back panel of the unit

General

Power consumption 75W

Net weight 7.7kg

Extemal dimensions(WxHxI) 273x330x360

Frequency Response 40Hz ~ 18000Hz

CD Signal-to-noise ratio 70dB

Dynamic range 70dB

Tuning Range FM1 87.50MHz ~108MHz or 65 ~ 74MHZ

Intermediate Frequency 10.7MHz

Signal-to-noise ratio MONO : 60dB STEREO: 55dB

Frequency Response 60Hz ~ 10000Hz

Tuning Range 522KHz~1611kHz

(530kHz ~1610kHz)

AM Intermediate Frequency 450MHz

Signal-to-noise ratio 35dB

Frequency Response 100Hz ~ 1800Hz

OUtput Power 50W + 50W

AMP

T.H.D 0.15%

Frequency Response 40Hz ~ 25000Hz

Signal-to-noise ratio 80dB

Tape Speed 4.75(+2%, -1%)

Wow flutter 0.25%

F.F/REW Time 120sec(LIMIT)

Tape Frequency Response 125Hz ~ 8000Hz

Signal-to-noise ratio 43dB

channel separation 50dB

Erase Ratio 55dB

Type 5Way 5Speaker

Impedance 5Ω

Frequency Response 60~20000Hz

SPEAKER

Sound Pressure Level 5dB/W(1m)

Rated Input Power 50W

Max.Input Power 100W

net Dimension(WxHxD) 200x326x228mm

net weigh 2.92kg

NOTE : Specification are subject to change without notice in the course of product improvement.

❏ SPECIFICATIONS

Page 6

- 1-6 -

Page 7

- 2-1 -

TAPE DECK ADJUSTMENT

1. AZIMUTH ADJUSTMENT

Figure 1. Azimuth Adjustment Connection Diagram

CH1 CH2

Speaker Out

Playback Mode

Head

Test Tape MTT-114

L ch

R ch

GND

Dual-trace synchroscope

Electronic Voltmeter

L out

R out

Unit

SECTION 2. ELECTRICAL

❏ ADJUSTMENTS

This set has been aligned at the factory and normally will not require further adjustment. As a result, it is not recommended that any attempt is made to modificate any circuit. If any parts are replaced or if anyone tampers with the adjustment, realignment may be necessary.

IMPORTANT

1. Check Power-source voltage.

2. Set the function switch to band being aligned.

3. Turn volume control to minimum unless otherwise noted.

4. Connect low side of signal source and output indicator to chassis ground unless otherwise specified.

5. Keep the signal input as low as possible to avoid AGC and AC action.

Deck Mode Test Tape Test Point Adjustment Adjust for

A Deck Playback MTT-114 Speaker Out

DECK Screw

Maximum

Azimuth Screw

B Deck Playback MTT-114 Speaker Out Azimuth Screw Maximum

2. MOTOR SPEED ADJUSTMENT

Figure 2. Motor Speed Adjustment Connection Diagram

Head

Playback Mode

Unit

Speaker Out

GND

L out

R out

Record/Playback head

Test Tape MTT-111

Frequency Counter

Deck Mode Test Tape Test Point Adjustment Adjust for Remark

Normal Speed MTT-111 Speaker Out VR201 3kHz ± 1% A Deck

HI-Speed MTT-111 Speaker Out more than 5.4kHz HI-Speed Dubbing Mode

Page 8

- 2-2 -

3. RECORD BIAS ADJUSTMENT

Head

Unit

PN202

GND

Record/Playback head

Test Tape MTT-5511

Record/Playback and Pause Mode

Frequency Counter

Deck Mode Test Tape Test Point Adjustment Adjust for

Rec/Pause MTT-5511

ERASE HEAD

L203

60kHz±5kHz (Auto stop)

WIRE(PN202) 85kHz±5kHz(Auto Reverse)

Figure 3. Record Bias Adjustment Connection Diagram

Page 9

- 2-3 -

❏ TROUBLESHOOTING

TURN ON CD

CONNECTOR CHECK ( PN808,PN807 )

CHECK POWER SUPPLY CIRCUIT( PN808 )

CHECK MICOM INTERFACE CIRCUIT( PN807 )

CONNECTOR CHECK(PN801,PN802)

CHECK PICKUP MOVEMENT

CHECK BA5810FP (IC803)

CHECK MN6627933CG (IC801)

CHECK AN22004 (IC802)

CONNECTOR CHECK (PN808)

CONNECTOR CHECK

( PN808,PN807,PN802,PN801 )

OPEN CLOSE CHECK

“ READING ”

DISPLAY CHECK

READING OK CHECK

IF PLAY, AUDIO

OUTPUT CHECK

YES

• CD PART

Page 10

- 2-4 -

• OPEN CLOSE NG

CONNECTOR LOCKING CHECK ( PN808,PN807 )

DEFECTIVE MAIN

POEWR SUPPLY

DEFECTIVE MICOM

DEFECTIVE IC803

DEFECTIVE

MECHANISM

CHECK POWER SUPPLY CIRCUIT( PN808 ,PN807)

PN808 PIN 5 = 6.2V, PIN 7 = 5V

PN807 PIN 1 = 5V

CHECK VOLTAGE CHANGE OF OPEN CLOSE ,

AND BTLMUTE VOLTAGE(= 5V)

(PN807 PIN 20:OPEN, 19:CLOSE, 4:BTLMUTE)

CHECK VOLTAGE CHANGE LO+, LO- OF IC803

(PN807, PIN OPEN:20, CLOSE:19)

YES

Page 11

- 2-5 -

• “ READING ” DISPLAY CHECK

(= ONLY “CD “DISPLAY)

CONNECTOR LOCKING CHECK

(PN808,PN807,PN802,PN801 )

DEFECTIVE CONNECTOR OR

MAIN POWER SUPPLAY

DEFECTIVE IC805

DEFECTIVE MICOM OR

CONNECTOR

DEFECTIVE MICOM OR

CONNECTOR

DEFECTIVE IC801

CHECK VOLTAGE THE PIN 2 OF IC805

IC805 PIN2 : 3.3V

CHECK RESET SIGNAL OF PN807

PN807 PIN12 : 5V

CHECK POWER SUPPLY

PORT( PN808 ,PN807)

PN808 PIN 5 = 6.2V, PIN 7 = 5V

PN807 PIN 1 = 5V

CHECK POWER SUPPLY

PORT( PN808 ,PN807)

PN808 PIN 5 = 6.2V, PIN 7 = 5V

PN807 PIN 1 = 5V

CHECK MICOM INTERFACE

CIRCUIT( PN807 )

PN807 PIN 11,13,14,15 SIGNAL CHECK

(11: STAT, 13: MDATA, 14:MCLK, 15:MLD)

CHECK THE WAVE FORM #1

YES

Page 12

- 2-6 -

• READING OK CHECK (= “NO DISC” DISPLAY)

AAAA

BBBB

CCCC

DDDD

EEEE

CONNECTOR LOCKING

CHECK(PN801,PN802)

DOES SLED MOVE ?

CHECK PN802 PIN 3,4( SL+,SL-)

DEFECTIVE PICKUP OR

IC803 OR IC801 OR IC802

DEFECTIVE PICKUP OR

IC803 OR IC801 OR IC802

DEFECTIVE PICKUP OR

IC803 OR IC801

DEFECTIVE PICKUP OR

IC802

DEFECTIVE PICKUP OR

IC803

DEFECTIVE PICKUP OR

IC803 OR IC801 OR IC802

CHECK PN802 PIN 10( LD )

CHECK PN801 PIN 14,15

(TA- ,TA+)

CHECK PN802 PIN

5,6( SP+,SP-)

CHECK PN801 PIN 13,16

( FA-, FA+)

DOES LENSE MOVE ?

(= UP & DOWN)

DOES LASER LIGHT ?

DOES SPINDLE ROTATE ?

IS READING OK ?

YES

Page 13

- 2-7 -

CHECK PN802 CONNECTOR LINE

DEFECTIVE IC801

DEFECTIVE IC803

DEFECTIVE PN802

CONNECTOR

DEFECTIVE PICKUP

SLED MOTOR

• READING OK CHECK #A (= “NO DISC” DISPLAY)

AAAA

DOES SL+ WAVEFORM APPEAR AT

( IC803 PIN14 AND PN802 PIN3)

WAVEFORM #2

SLED MOTOR WAVE

DOES SLIN WAVEFORM

APPEAR AT

( IC803 PIN 5)

WAVEFORM #2

SLED DRIVE WAVE

YES

Page 14

- 2-8 -

CHECK PN801 CONNECTOR LINE

DEFECTIVE IC801

DEFECTIVE IC803

DEFECTIVE PN801

CONNECTOR

DEFECTIVE PICKUP

FOCUS ACTUATOR

• READING OK CHECK #B (= “NO DISC” DISPLAY)

BBBB

DOES FA+ WAVEFORM APPEAR AT

( IC803 PIN15 AND PN801 PIN16)

WAVEFORM #3

FOCUS COIL DRIVE WAVE

DOES FAIN- WAVEFORM

APPEAR AT

( IC803 PIN 26)

WAVEFORM #3

FOCUS DRIVE WAVE

YES

Page 15

- 2-9 -

CHECK PN801 CONNECTOR LINE

DEFECTIVE IC805

DEFECTIVE IC802

DEFECTIVE Q801 OR

D811

DEFECTIVE PN801

CONNECTOR

DEFECTIVE PICKUP

LASER PART

• READING OK CHECK #C (= “NO DISC” DISPLAY)

CCCC

IS ?V APPLIED TO PIN10 OF

PN801

LASER SUPPLY VOLTAGE CHECK

IS 3.3 V APPLIED TO

PIN3 OF IC802

RF IC SUPPLY VOLTAGE

CHECK

IS 2.0 V PIN2 OF IC802

LASER CONTROL VOLTAGE CHECK

YES

Page 16

- 2-10 -

CHECK PN802 CONNECTOR LINE

DEFECTIVE IC801

DEFECTIVE IC803

DEFECTIVE PN802

CONNECTOR

DEFECTIVE PICKUP

SPINDLE MOTOR

• READING OK CHECK #D (= “NO DISC” DISPLAY)

DDDD

DOES SP+ WAVEFORM APPEAR AT

( IC803 PIN12 AND PN802

PIN6)WAVEFORM #4

SPINDLE MOTOR DRIVE WAVE

DOES SPIN WAVEFORM

APPEAR AT( IC803 PIN 6)

WAVEFORM #4

SPINDLE DRIVE WAVE

YES

Page 17

- 2-11 -

CHECK PN802 CONNECTOR LINE

DOES ARF SIGNAL APPEAR?

(IC802 PORT 8) WAVEFORM #6

DOES FE, TE SIGNAL APPEAR?

(IC802 PORT FE:23, TE:21)

WAVEFORM #6

DEFECTIVE IC801

DEFECTIVE IC803

DEFECTIVE PN802

CONNECTOR

DEFECTIVE PICKUP OR

IC802

DEFECTIVE PICKUP OR

IC802

DEFECTIVE IC801

• READING OK CHECK # E (= “NO DISC” DISPLAY)

EEEE

DOES TA+ WAVEFORM APPEAR AT

( IC803 PIN17 AND PN801 PIN15)

WAVEFORM #5

TRACKING COIL DRIVE WAVE

DOES TAIN- WAVEFORM

APPEAR AT

( IC803 PIN 23)

WAVEFORM #5

TRACKING DRIVE WAVE

YES

Page 18

VKK PART

Does DC - 33V appear at

CN302 Pin .

Check the Voltage of IC301

pin51

Dose -33V appear at

ZD902(-)

Check the Q903

TURN ON

Check the PATTERN

Replace the ZD902

Replace the Q903

Refer to power circuit

END

Check the -33V(LOWER)

of C916

Replace the D704,

D705

YES

P-SENS PART

Does +5V appear at ZD901?

Check the pattern of

IC301 Pin .

Check the waveform

of D913(cathod).

Check the R768 and

replace ZD901.

Replace the D703

YES

• AUDIO PART

- 2-12 -

Page 19

- 2-13 -

POWER CIRCUIT

Check the Fuse

Check the DC output

of C901(+), C902(-)

Check the DC Output of

C930(+)

Check the Voltage

output of IC901, IC902

Check the DC 12V

Output of IC903

Check the 5V of CN513

pin 7(CD FUNCTION)

END

Replace the Fuse

Check the AC Output of

CN901 pin1, 5

Check the AC Output of

CN701 PIN 9, 10

Replace the IC904

Replace the D901, D902,

D903, D904

Replace the D706, D707,

D708, D709

Check the IC901, IC902

Check the 5V of

IC301 pin78

Check the “Low” of Q904“B”

Check the Q904, CD Ass’y

Check the power Ass’y or

Replace the Transformer

Check the power Ass’y

or Replace the

Transformer

Check the 5V of IC301

PIN13& PN302,

CN302, PIN13

Check the HIGH of

Q905 “B” and Replace

Check the “High” of

IC501 pin 14

Check the IC501

YES

Page 20

- 2-14 -

AUDIO ABNORMAL

Check the output of

IC601 Pin 12, 17

Refer to “IC601

Troubleshooting”

Refer to “Muting

Troubleshooting”

Check the 10V(Higher) of IC601

pin 5 & Check the power circuit

Check the input of

IC701 pin3

Check the Output of

IC701, pin14

END

YES

Muting circuit (MUTE)

Dose “Low” appear at

Q702 “B”

Check the “High” of Q701,

Q751 “B”

MUTE

Check the connector of

Q702 “B” and GND

Replace the TR

YES

Page 21

- 2-15 -

FUNCTION MODE AUDIO ABNORMAL

TAPE

Check the signal input of IC601 pin 6, 23

Refer to “IC202 Troubleshooting”

AUX

Chekc the signal input of IC601, pin 5, 24

Check the signal input of JK102

Check the signal input of IC601 pin 3, 26

Check the signal of CN513 pin 1, 3 or

Refer to “CD Troubleshooting”

Check the signal input of IC601 pin 4, 25

Refer to “TUNER MODULE”

Tuner

Check the IC601 pin2

Refer to “IC404 Troubleshooting”

MIC

Page 22

- 2-16 -

Refer to “IC301

Troubleshooting”

IC301 Troubleshooting

IC501 Troubleshooting

Check the power supplying IC301 Pin 17, 46, 72, 90?

Refer to “Power Circuit Troubleshooting”

Check the P-SENS

Replace the X301

Check the RESET circuit

Refer to “Power Circuit Troubleshooting”

Check the Data of IC301 Pin 3, 4

(CD ➞ TAPE FUNCTION)

Replace the

IC501

Check the pattern

of (IC301 & IC501)

Check the 5V of IC301 pin26

Check the oscillation of X301

When power supplying to IC301 pin11.

(High ➞ Low ➞ High)

Replace the IC301

Check the power supplying to IC501 pin16

Check the CLK Data of IC501 pin 2, 3

Check the CONTROLL function

END

YES

Page 23

- 2-17 -

IC601 Troubleshooting

IC701 Troubleshooting

Check the power supplying to IC601 Pin 1

Refer to “Power Circuit Troubleshooting”

Check the IC301 pin 76, 75, 5, 10

Check the PATTERN of MICOM

(82, 83)& IC401(21, 22)

Refer to “Muting Troubleshooting”

Refer to “power circuit Troubleshooting”

Check the power(5V) of pin 5

Replace the IC601

Replace the “IC301

Troubleshooting”

Replace the IC601

Check the Pulse waveform of IC601 pin14, 15

(VOL DIAL)

Check the Output of IC601 pin 7, 22

Check the waveform input of IC601 pin 8, 21

Check the waveform Output of IC601 pin12, 17

Check the signal input of pin7, 11

Check the power of pin 3(+) pin 1, 16(-)

Check the signal Output of pin 2, 4

END

YES

Page 24

- 2-18 -

Play

Check the VCC supplying to IC202 pin 18

Refer to “Power Circuit Troubleshooting”

Check the Deck Mechanism

Replace the Deck

Mecha.

Replace the IC202

Check the signal output of IC202 pin 5, 20

Check the Muting Circuit

YES

Page 25

- 2-19 -

REC (Q252, Q202 ON / R273, R223 High)

Check signal supplied to IC202 pin 11, 14?

Check the output of IC202 Pin9, 16

Check the IC201 pin6 : 12V and pin 4 : High

Check the power or Refer to “IC203

Troubleshooting”

Check the power

supplying to C236(+)

Check the 0.6V of Q208

“B”

Check the “Low” of

Q208 “C”

Replace the Q207

END

Check the Vcc power of IC202 Pin18

Check the oscillation of L203 pin 2, 3

Replace the DECK

Check the “Low” of Q253,

Q203 “B”

Replace the Q253, Q203

Refer to “IC203

Troubleshooting”

Refer to “Power Circuit

Troubleshooting”

Refer to “IC203

trouleshooting”

Replace the Q208

Replace the L203

YES

Page 26

- 2-20 -

YES

Dubbing(“NORMAL or REC “//“HIGH”)

Q252, 202 “OFF”//“ON” : R273, 223

“LOW”//“HIGH

Q253, 203 “ON”//“OFF” Refer to “IC203 Troubleshooting”

Refer to “REC Troubleshooting”

Page 27

- 2-21 -

❏ CD PART VOLTAGE SHEET

IC PIN NO. STOP CD-DA PLAY MP3 PLAY

IC801 1 0 0 3.3

MN6627933CG 2 0 0 3.3

3 0 0 3.3

4 0 0 3.3

5 3.3 3.3 3.3

6 0 0 3.3

700 0

8 0 0 3.3

9 0 0 3.3

10 0 0 3.3

11 0 0 3.3

12 0 0 3.3

13 0 0 3.3

14 3.3 3.3 3.3

15 3.3 3.3 3.3

16 3.3 3.3 3.3

17 3.3 3.3 3.3

18 3.3 3.3 3.3

19 0 0 3.3

20 0 0 3.3

21 0 0 3.3

22 0 0 3.3

23 3.3 3.3 3.3

24 0 0 0

25 0 0 3.3

26 0 0 0

27 0 0 0

28 1.5 1.5 1.5

29 1.6 1.5 1.6

30 3.3 0 3.3

31 1.6 1.6 1.6

32 0 0 0

33 0 0 0

34 0 0 0

35 1.6 1.6 1.6

36 0 0 0

37 1.6 1.7 1.7

38 0 0 0

39 3.3 3.3 3.3

40 1.6 1.6 1.6

41 1.6 1.6 1.6

42 1.6 1.6 1.6

43 1.6 1.6 1.6

44 2.3 2.3 2.3

45 1.5 1.5 1.5

46 0 3.3 3.3

47 3 0 0

48 0 0 0

49 0 0 0

50 3.3 3.3 3.3

IC PIN NO. STOP CD-DA PLAY MP3 PLAY

51 0.8 0.8 0.8

52 1.6 1.6 1.6

53 1.6 1.6 1.6

54 3.3 3.3 3.3

55 1 1.4 1

56 1 1.4 1

57 0 0 0

58 1.6 1.6 1.6

59 0 0 0

60 1.6 1.6 1.6

61 3.3 3.3 3.3

62 0 0 0

63 0 0 0

64 0 0 0

65 0 0 0

66 0 0 0

67 1.5 1.5 1.5

68 0 0 0

69 0 0 0

70 0 0 0

71 1.1 1.1 1.1

72 2.8 2.8 2.8

73 0 0 0

74 2.9 2.9 2.9

75 0 0 0

76 0 0 0

77 0 0 0

78 0 0 0

79 1.6 1.6 1.6

80 0 0 3.3

81 2.9 2.9 2.9

82 3.3 3.3 3.3

83 0 0 0

84 1.6 1.5 1.5

85 1.6 1.6 1.6

86 3.3 3.3 3.3

87 1.5 1.5 1.5

88 0 0 3.3

89 0 0 3.3

90 0 0 3.3

91 0 0 3.3

92 0 0 3.3

93 0 0 3.3

94 0 0 3.3

95 0 0 3.3

96 0 0 3.3

97 0 0 3.3

98 3.3 3.3 3.3

99 0 0 3.3

100 0 0 3.3

Page 28

- 2-22 -

IC PIN NO. STOP CD-DA PLAY MP3 PLAY

IC802 100 0

AN22004A 2 2.8 2 2

3 3.3 3.3 3.3

400 0

5 0 2.3 2.3

6 1.6 2 2

7 1.3 1.6 1.6

8 0.4 1.5 1.5

9 1.3 1.5 1.5

10 1.5 1.5 1.5

11 1.5 2 2

12 1 1 1

13 0 0 0

14 0 0 0

15 3 0 0

16 0 3.3 3.3

17 0 0 0

18 1.6 1.6 1.6

19 1.6 1.6 1.6

20 1.6 1.6 1.6

21 1.6 1.6 1.6

22 1.6 1.6 1.6

23 1.6 1.6 1.6

0 (*CD-RW: 3.0) 0 (*CD-RW: 3.0) 0 (*CD-RW: 3.0)

25 1.6 1.6 1.6

26 1.6 1.6 1.6

27 1.6 1.7 1.6

28 1.6 1.7 1.6

29 1.6 1.7 1.6

30 1.6 1.7 1.6

31 1.6 1.7 1.6

32 1.6 1.7 1.6

IC PIN NO. STOP CD-DA PLAY MP3 PLAY

IC803 100 0

BA5810FP 200 0

3 1.5 1.5 1.5

4 3.6 3.7 3.7

5 1.6 1.6 1.6

6 1.6 1.6 1.6

7 6.2 6.2 6.2

8 6.2 6.2 6.2

900 0

10 0 0 0

11 3.2 3.4 3.4

12 3.2 3 3

13 3.2 3.2 3.2

14 3.2 3.2 3.2

15 3 2.8 2.8

16 3.3 3.4 3.4

17 3.2 3.2 3.2

18 3.2 3.2 3.2

19 0 0 0

20 6.2 6.2 6.2

21 3.6 3.7 3.7

22 1.6 1.6 1.6

23 1.6 1.6 1.6

24 1.6 1.6 1.6

25 1.6 1.6 1.6

26 1.6 1.6 1.6

27 1.6 1.6 1.6

28 1.6 1.6 1.6

Page 29

- 2-23 -

IC PIN NO. STOP CD-DA PLAY MP3 PLAY

IC804 1 3.3 3.3 3.3

M12L16161A 2 0 0 3.3

3 0 0 3.3

400 0

5 0 0 3.3

6 0 0 3.3

7 3.3 3.3 3.3

8 0 0 3.3

9 0 0 3.3

10 0 0 0

11 0 0 3.3

12 0 0 3.3

13 3.3 3.3 3.3

14 3.3 3.3 3.3

15 3.3 3.3 3.3

16 3.3 3.3 3.3

17 3.3 3.3 3.3

18 3.3 3.3 3.3

19 0 0 3.3

20 0 0 3.3

21 0 0 3.3

22 0 0 3.3

23 0 0 3.3

24 0 0 3.3

25 3.3 3.3 3.3

26 0 0 0

27 0 0 3.3

28 0 0 3.3

29 0 0 3.3

30 0 0 3.3

31 0 0 3.3

32 0 0 3.3

33 0 0 0

34 3.3 3.3 3.3

35 0 0 3.3

36 3.3 3.3 3.3

37 0 0 0

38 3.3 3.3 3.3

39 0 0 3.3

40 0 0 3.3

41 0 0 0

42 0 0 3.3

43 0 0 3.3

44 3.3 3.3 3.3

45 0 0 3.3

46 0 0 3.3

47 0 0 0

48 0 0 3.3

49 0 0 3.3

50 0 0 0

IC PIN NO. STOP CD-DA PLAY MP3 PLAY

IC805 100 0

UTC LD1117A 2 3.3 3.3 3.3

3 4.77 4.6 4.6

Page 30

- 2-24 -

❏

CD PART WAVEFORMS OF MAJOR CHECK

POINT

# X. MICOM IN TERFACE WAVEFORM

(PN807 pin XX, X3, X4, X5) d uring n ormal play

#2. S LED DRIVE AND MOTOR WAVEFORM

(IC803 pin 5, X4) wh en foc us se arch

#3. F OCUS DRIVE AND MOTOR WAVEFORM

(TP86X, IC803 pin X5)

;When f ocus se arch f ailed or t here is n o disc on t ray ;There is disc on tray an d f ocus search su c c ess

PN807: M LD

PN807: MCLK

PN807: MDATA

PN807: STAT

IC803: SLIN

IC803: SL+

TP86X

IC803: F A+

TP86X

IC803: F A+

Page 31

- 2-25 -

#5. T RACK DRIVE AND MOTOR WAVEFORM

(TP860, IC8 03 pin 23) durin g n ormal play

#4. SPINDL E DRIVE AND MOTOR WAVEFORM

(IC803 pin 6, 2) wh en TOC re ading

IC803: SPIN

IC803: SP+

TP 860

IC803: T A+

#6. RF, TRA CKING AND FOCUS ERROR WAVEFORM

(IC802 pin 8, 2 , 23) d uring normal play

IC802: ARF

IC802: T E

IC802: F E

Page 32

2-26 2-27

BLOCK DIAGRAM

NOTE: Warning

Parts that are shaded are critical With respect to risk of fire or electrical shock.

Page 33

SCHEMATIC DIAGRAMS

• MAIN SCHEMATIC DIAGRAM

2-28 2-29

NOTE: Warning

Parts that are shaded are critical With respect to risk of fire or electrical shock.

NOTE:

1. Shaded(■) parts are critical for safety.Replace only

with specified part number.

2. Voltages are DC-measured with a digital voltmefer during Play mode.

Page 34

2-30 2-31

• FRONT SCHEMATIC DIAGRAM

Page 35

2-32 2-33

• TUNER/DECK SCHEMATIC DIAGRAM

Page 36

2-34 2-35

• CDP SCHEMATIC DIAGRAM

Page 37

2-36 2-37

WIRING DIAGRAM

NOTE: Warning

Parts that are shaded are critical With respect to risk of fire or electrical shock.

Page 38

2-38 2-39

PRINTED CIRCUIT DIAGRAMS

• MAIN P.C. BOARD (SOLDER SIDE)

Page 39

2-40 2-41

• MAIN P.C. BOARD (COMPONENT SIDE)

Page 40

2-42 2-43

• FRONT P.C. BOARD(COMPONENT SIDE)

Page 41

2-44 2-45

• FRONT P.C. BOARD(SOLDER SIDE)

Page 42

- 2-46 -

NOTE: Warning

Parts that are shaded are critical With respect to risk of fire or electrical shock.

• Power P.C. BOARD

Page 43

- 2-47 -

• CD MAIN P.C. BOARD (COMPONENT SIDE)

Page 44

• CD MAIN P.C. BOARD (SOLDER SIDE)

- 2-48 -

Page 45

- 2-49 -

❏ INTERNAL BLOCK DIAGRAM OF ICs

■ MN6627933CG (IC801)

Pin Assignment

Note) Pins marked with an asterisk can be switched to different signals by using

microcontroller commands.

Page 46

- 2-50 -

Internal Block Diagram

Page 47

- 2-51 -

Pin Descriptions

Pin No. Symbol I/O Function

1 D11 I/O DRAM data signal I/O 11 2 D10 I/O DRAM data signal I/O 10 3 D9 I/O DRAM data signal I/O 9 4 D8 I/O DRAM data signal I/O 8 5 UDQM O SDRAM upper byte data mask signal output 6 SDRCK O SDRAM clock signal output 7 A11 O DRAM address signal output 11 8 A9 O DRAM address signal output 9 9 A8 O DRAM address signal output 8 10 A7 O DRAM address signal output 7 11 A6 O DRAM address signal output 6 12 A5 O DRAM address signal output 5 13 A4 O DRAM address signal output 4 14 LDQM O SDRAM lower byte data mask signal output 15 NWE O DRAM write enable signal output 16 NCAS O DRAM CAS control signal output 17 NRAS O DRAM RAS control signal output 18 NCS O SDRAM chip select signal output 19 A3 O DRAM address signal output 3 20 A2 O DRAM address signal output 2 21 A1 O DRAM address signal output 1 22 A0 O DRAM address signal output 0 23 DRVDD1 I Power supply 1 for DRAM interface I/O 24 DVSS1 I Ground 1 for digital circuits 25 A10 O DRAM address signal output 10 26 *BA1 O SDRAM bank selection signal output 1 27 *BA0 O SDRAM bank selection signal output 0 28 DVDD1 I Power supply 1 for internal digital circuits 29 SPOUT O Spindle drive signal output (absolute value) 30 *SPPOL O Spindle drive signal output (polarity) 31 TRVP O Traverse drive signal output (positive polarity) 32 *TRVM O Traverse drive signal output (negative polarity) 33 *TRVP2 O Traverse drive signal output 2 (positive polarity) 34 *TRVM2 O Traverse drive signal output 2 (negative polarity) 35 TRP O Tracking drive signal output (positive polarity) 36 *TRM O Tracking drive signal output (negative polarity) 37 FOP O Focus drive signal output (positive polarity) 38 *FOM O Focus drive signal output (negative polarity) 39 IOVDD1 I Power supply 1 for digital I/O 40 TBAL O Tracking balance adjustment signal output 41 FBAL O Focus balance adjustment signal output 42 FE I Focus error signal input 43 TE I Tracking error signal input 44 ADPVCC I Voltage input for supply voltage monitor 45 RFENV I RF envelope signal input 46 LDON O Laser ON signal output 47 NRFDET I RF detectoion signal input 48 OFT I Off-track signal input 49 BDO I Dropout signal input 50 AVDD1 I Power supply 1 for analog circuits 51 IREF I Analog reference current input 52 ARF I RF signal input 53 DSLF O DSL loop filter pin 54 PWMSEL I PWM output mode selection input Low: Direct High: 3-state 55 PLLF O PLL loop filter pin (for phase comparison)

Page 48

- 2-52 -

Pin No. Symbol I/O Function

56 PLLFO O PLL loop filter pin (for speed comparison) 57 AVSS1 I Ground 1 for analog circuits 58 LOOUTL O L-ch audio output for line-out output 59 LOVSS1 I Ground for line-out output 60 LOOUTR O R-ch audio output for line-out output 61 LOVDD1 I Power supply for line-out output 62 N.C. - 63 TMON1 O Test monitor output 1 64 N.C. - 65 N.C. - 66 TMON2 O Test monitor output 2 67 DVDD3 I Power supply 3 for digital circuits 68 DVSS2 I Ground 2 for digital circuits 69 *EXT0 I/O Expansion I/O port 0 70 *EXT1 I/O Expansion I/O port 1 71 *EXT2 I/O Expansion I/O port 2 72 MCLK I Microcontroller command clock signal input 73 MDATA I Microcontroller command data signal input 74 MLD I Microcontroller command load signal input 75 *STAT O Status signal output 76 *BLKCK O Subcode block clock signal output 77 *SMCK O 4.2336-/8.4672-MHz clock signal output 78 *PMCK O 88.2-kHz clock signal output 79 *TX O Digital audio interface signal output 80 *FLAG O Flag signal output 81 NRST I LSI reset signal input 82 NTEST I Test mode setting input 83 DVSS3 I Ground 3 for digital circuits 84 X1 I Crystal oscillator circuit input 85 X2 O Crystal oscillator circuit output 86 IOVDD2 I Power supply 2 for digital I/O 87 DVDD2 I Power supply 2 for internal digital circuits 88 D2 I/O DRAM data signal I/O 2 89 D1 I/O DRAM data signal I/O 1 90 D0 I/O DRAM data signal I/O 0 91 D3 I/O DRAM data signal I/O 3 92 D4 I/O DRAM data signal I/O 4 93 D5 I/O DRAM data signal I/O 5 94 D6 I/O DRAM data signal I/O 6 95 D7 I/O DRAM data signal I/O 7 96 D15 I/O DRAM data signal I/O 15 97 D14 I/O DRAM data signal I/O 14 98 DRVDD2 I Power supply 2 for DRAM interface I/O 99 D13 I/O DRAM data signal I/O 13 100 D12 I/O DRAM data signal I/O 12

Page 49

- 2-53 -

■ BA5810FP (IC803)

■ KA3082 (IC 804)

Bi-Directional DC Motor Driver

Description

The KA3082 is a monolithic integrated circuit designed for driving bi-directional DC motor with braking and speed control, and it is suitable for the loading motor driver of VCR, CDP, and TOY systems. The speed control can be achieved by adjusting the external voltage of the speed control pin. It has two pins of logic inputs for controlling the forward/ reverse and braking.

Page 50

- 2-54 -

■ KIA 78R12 PI (IC 903)

4 TERMINAL LOW DROP VOLTAGE REGULATOR

The KIA78RXX Series are Low Drop Voltage Regulator suitable for various electronic equipments. It provides constant voltage power source with TO-220 4 termainal lead full molded PKG. The Regulator has multi function such as over current protection, overheat protection and ON/OFF control.

Page 51

- 2-55 -

■ KIA7805AP/API (IC 901)

THREE TERMINAL POSITIVE VOLTAGE REGULATORS 5V, 6V, 8V, 9V, 10V, 12, 15V, 18V, 24V.

EQUIVALENT CIRCUIT

Block Diagram

Page 52

- 2-56 -

■ BA3126N (IC 201)

2-channel head switch for radio cassette recorders

Page 53

- 2-57 -

Control circuit

12-bit shift register

Latch

Output buffer

(open drain)

1Vss

2DATA

3CLOCK

4Q0

5Q1

6 Q2

7Q3

8Q4

16 VDD

15 Q11

14 Q10

13 Q9

12 Q8

11 Q7

10 Q6

9 Q5

Pin No.

Pin name Function

BU2090/F/FS BU2092/F BU2092/FV

1 1 1 Vss GND

2 2 2 DATA Serial data input

3 3 3 CLOCK Data shift clock input

- 4 4 LCK Data latch clock input

4 5 5 Q0 parallel data output

5 6 6 Q1 parallel data output

6 7 7 Q2 parallel data output

7 8 8 Q3 parallel data output

8 9 9 Q4 parallel data output

9 10 10 Q5 parallel data output

10 11 11 Q6 parallel data output

- - 12 N.C. Not connected

- - 13 N.C. Not connected

11 12 14 Q7 parallel data output

12 13 15 Q8 parallel data output

13 14 16 Q9 parallel data output

14 15 17 Q10 parallel data output

15 16 18 Q11 parallel data output

- 17 19 OE Output Enable

16 18 20 V

DD Power supply

PIN DESCRIPTION

■ BU2090F (IC 501)

12-bit, Serial IN, Parallel OUT driver

Block diagram

Page 54

- 2-58 -

❏ REPAIRS REGARDING CD MECHANISM

■

IMPROVED METHOD - WHEN THE TRAY GEARS WERE

DISTORTED

1. How to open the tray

Push two hooks (H) of the ➀ BASE MAIN, and open the ➁ TRAY LOADING

2. How to correct the distorted gears

(1) Turn ➂ GEAR MAIN until it clicks, if so that ➄ PICK-UP is downed completely (2) The hold of ➅ GEAR FU DOWN array as the arrow of ➀ BASENAIN (3) Push the ② TRAY LOADING

PIC K UP

GEAR MAIN

BASE MAIN

TRAY LOADING

GEAR CAM

GEAR PU DOWN

Page 55

3-1 3-2

SECTION 3. EXPLODED VIEWS

• CABINET AND MAIN FRAME SECTION

351

A41

310

A47

306

302

354

454

303

452

306

TUNER

301

454

A46

354

253

252

A26

272

271

273

274

285

284

A00

A43

263

262

264

275

265

282

279

280

281

286

261

260

310

278

279

NOTE) Refer to “SECTION 5 REPLACEMENT

PARTS LIST” in order to look for the part number of each part.

Page 56

3-3 3-4

• TAPE DECK MECHANISM: AUTO STOP DECK(OPTIONAL)

400

011

503

401

009

010

501

502

013

406

409

408

407

032

031

030

029

028

401

027

026

014

015

403

504

024

025

023

405

A01

402

022

016

017

018

019

020

021

505

007

008

003

004

005

001

002

404

400

006

LOCA. NO PART NO. SPECIFICATION

A00 6730R-G007A CWL44FF25 TOKYO PIGEON L-DOUBL

A01 6768R-UP01A 50-093-4249 PIGEON UNIT PCB AS

001 6768R-BP01B 02-084-4202 PIGEON BELT / FELT C

002 6768R-BP01A 02-084-4204 PIGEON BELT / FELT C

003 6768R-AP01D 50-239-4027 PIGEON ARM CWL44

004 6768R-AP01E 50-239-4026 PIGEON ARM CWL44

005 6768R-SP01E 01-082-4599 PIGEON SPRING CWL4

006 6768R-QP01A 50-093-4316 PIGEON MOTOR(ASSY)

007 6768R-GP01A 50-093-4063 PIGEON GEAR CWL44

008 6768R-SP01F 01-082-4598 PIGEON SPRING CWL4

009 6768R-MP01C 50-219-4014 PIGEON MOLD CWL44

010 6768R-SP01C 01-082-4652 PIGEON SPRING CWL4

011 6768R-SP01A 01-081-4601 PIGEON SPRING CWL4

013 6768R-SP01B 01-082-4651 PIGEON SPRING CWL4

014 6768R-SP01G 01-082-4597 PIGEON SPRING CWL4

015 6768R-AP01A 50-268-3016 PIGEON ARM CWL44

016 6768R-GP01C 50-093-4069 PIGEON GEAR CWL44

017 6768R-AP01C 50-239-4072 PIGEON ARM CWL44

018 6768R-GP01D 50-222-4007 PIGEON GEAR CWL44

019 6768R-SP01H 01-081-4657 PIGEON SPRING CWL4

020 6768R-BP01C 02-083-4188 PIGEON BELT / FELT C

021 6768R-LP01A 50-223-4254 PIGEON PULLEY / FLYW

022 6768R-VP01A 50-093-4125 PIGEON SOLENOID CW

023 6768R-GP01B 50-221-3009 PIGEON GEAR CWL44

024 6768R-AP01B 50-139-4292 PIGEON ARM CWL44

025 6768R-JP01B 50-093-3361 PIGEON PULLEY / FLYW

026 6768R-SP01D 01-080-4609 PIGEON SPRING CWL4

027 6768R-MP01B 50-093-3036 PIGEON MOLD CWL44

028 6768R-RP01A 22-027-41054 PIGEON ROLLER CWL

029 6768R-MP01A 50-219-4033 PIGEON MOLD CWL44

030 6768R-HP01A TC881CB067B PIGEON HEAD CWL44

031 6768R-SP01J 01-081-4605 PIGEON SPRING CWL4

032 6768R-HP01B TC231F PIGEON HEAD CWL44

033 6768R-JP01A 50-093-3360 PIGEON PULLEY / FLYW

400 6768R-CP01A GSE10A2003 PIGEON SCREW CWL44

401 6768R-CP01B GSE20A2005 PIGEON SCREW CWL44

402 6768R-CP01C GSE10A2004 PIGEON SCREW CWL44

403 6768R-CP01D GSL10A1704 PIGEON SCREW CWL44

404 6768R-CP01E GSP10A2603 PIGEON SCREW CWL44

405 6768R-CP01F GSP11A2012 PIGEON SCREW CWL44

406 6768R-CP01G GSE20A2004 PIGEON SCREW CWL44

407 6768R-CP01H GSL20A2005 PIGEON SCREW CWL44

408 6768R-CP01J 03-300-4127 PIGEON SCREW CWL44

409 6768R-CP01K GSL20A2008 PIGEON SCREW CWL44

501 6768R-WP01A GWM19S035035 PIGEON WASHER CWL

502 6768R-WP01B GWM17S050035S PIGEON WASHER CW

503 6768R-WP01C GWM40X075010 PIGEON WASHER CWL

504 6768R-WP01D GWP21X045020 PIGEON WASHER CWL

505 6768R-WP01E GWP12X030040S PIGEON WASHER CW

Page 57

3-5 3-6

• TAPE DECK MECHANISM: AUTO REVERSE DECK

400

011

503

401

009

010

501

502

507

508

013

406

409

410

036

032

038

034

035

039

029

040

031

028

027

026

014

015

403

504

024

025

023

405

A01

402

022

016

017

018

019

020

021

505

007

008

003

004

005

001

002

404

400

506

037

006

LOCA. NO PART NO. SPECIFICATION

A00 6730R-G007B CDM-H1323 CD CHAN A01 6768R-UP01A 50-093-4249 PCB AS 001 6768R-BP01B 02-084-4202 BELT/FELT 002 6768R-BP01A 02-084-4204 BELT/FELT

003 6768R-AP01D 50-239-4027 CWL44 004 6768R-AP01E 50-239-4026 ARM 005 6768R-SP01E 01-082-4654 SPRING 006 6768R-QP01A 50-093-4316 MOTOR 007 6768R-GP01A 50-093-4063 GEAR 008 6768R-SP01F 01-082-4598 SPRING 009 6768R-MP01C 50-219-4014 MOLD 010 6768R-SP01C 01-082-4652 SPRING 011 6768R-SP01A 01-081-4601 SPRING 013 6768R-SP01B 01-082-4651 SPRING 014 6768R-SP01G 01-082-4597 SPRING 015 6768R-AP01A 50-268-3016 ARM 016 6768R-GP01C 50-093-4069 GEAR 017 6768R-AP01C 50-239-4072 ARM 018 6768R-GP01D 50-222-4007 GEAR

019 6768R-SP01H 01-081-4657 SPRING 020 6768R-BP01C 02-083-4188 BELT/FELT 021 6768R-LP01A 50-223-4254 PULLEY 022 6768R-VP01A 50-093-4125 SOLENOID 023 6768R-GP01B 50-221-3009 GEAR 024 6768R-AP01B 50-139-4292 ARM 025 6768R-JP01B 50-093-3361 PULLEY 026 6768R-SP01D 01-080-4609 SPRING 027 6768R-DP01A 50-259-3342 LEVER 028 6768R-RP01A 22-027-41054 ROLLER 029 6768R-MP01A 50-219-4033 MOLD 031 6768R-SP01L 01-080-4649 SPRING 032 6768R-EP01A 50-093-4070 HEAD AY 033 6768R-JP01A 50-093-3360 PULLEY 034 6768R-SP01K 01-082-4650 SPRING 035 6768R-PP01A 50-119-4046 PRESS 036 6768R-PP01B 50-160-4108 PRESS 037 6768R-JP01C 50-093-3315 PULLEY 038 6768R-MP01D 50-219-4034 MOLD 040 6768R-SP01M 01-080-4607 SPRING 400 6768R-CP01A GSE10A2003 SCREW 401 6768R-CP01B GSE20A2005 SCREW 402 6768R-CP01C GSE10A2004 SCREW 403 6768R-CP01D GSL10A1704 SCREW 404 6768R-CP01E GSP10A2603 SCREW 405 6768R-CP01F GSP11A2012 SCREW 406 6768R-CP01G GSE20A2004 SCREW 409 6768R-CP01L GSD10A2018 SCREW 410 6768R-CP01M 03-300-4056 SCREW 501 6768R-WP01A GWM19S035035 WASHER 502 6768R-WP01B GWM17S050035S WASHER 503 6768R-WP01C GWM40X075010 WASHER 504 6768R-WP01D GWP21X045020 WASHER 505 6768R-WP01E GWP12X030040S WASHER 506 6768R-WP01H GWP23X040020 WASHER 507 6768R-WP01F GWN21X040040 WASHER 508 6768R-WP01G GWM19X055035S WASHER

Page 58

3-7 3-8

• CD MECHANISM

416

151

156

418

169

173

171

170

419

163

422

165

159

164

417

416

166

167

177

175

172

162

153

168

155

LOCA.NO. PART NO DESCRIPTION SPECIFICATION

A26 4405RBE004C MECHANISM ASSEMBLY CDM-H1503 3 CD CHANGER A30 3041RB0002C BASE ASSEMBLY PU(SPRING DAMPER) A35 6717RCA001A PICK UP ASSY KSM-213VSCM SONY FRONT LOADING 151 3390RB0002A TRAY DISC(CDM-H1503) 153 4470RB0005A GEAR TRAY (CDM-H1503) 155 4681RBA001A MOTOR ASSEMBLY TRAY (CDM-H1503) 156 6871RF9211A PWB(PCB) ASSEMBLY,FRONT 1503 T/D SENSOR 159 3390RB0001A TRAY LOADING(CDM-H1503) 162 4400SB0001A BELT MAIN(CDM-H1303) 163 4470SB0003A GEAR PULLEY (CDM-H1303) 164 4470RB0003A GEAR LOADING (CDM-H1503) 165 6871RZ7036A PWB(PCB) ASSEMBLY,OTHERS CDM-H1503 UP/DW/OP/CL 166 4470RB0006A GEAR PU UP (CDM-H1503) 167 4470RB0007A GEAR PU DOWN (CDM-H1503) 168 4470RB0002A GEAR CAM (CDM-H1503) 169 4860SB0001A CLAMP DISC(CDM-H1303) 170 3550SB0001A COVER MAGNET(CDM-H1303) 171 524-012AAAA COVER CLAMP MAGNET (030X018X5T) 172 3040RB0005A BASE MAIN (CDM-H1503) 173 4510RB0001A LEVER S/W CLOSE 175 4680SBP001A MOTOR(MECH) OTHER . . . 177 4470RB0001A GEAR MAIN (CDM-H1503) 184 4900RB0001A DAMPER RUBBER 3CD CHANGER 185 3040SB0003A BASE PU(CDM-H1303) 186 4970RB0001A SPRING COIL 3 CD CHANGER 187 4970RB0001B SPRING COIL 50 3CD CHANGER 416 88H-0004 CD MECHA PARTS 3X12X12FNM 417 88H-0002 CD MECHA PARTS 3X9X12FZMY 418 353-025BAAA SCREW #NAME? 419 88H-0003 CD MECHA PARTS 3X12X10FZMY 420 353S353F SCREW #NAME? 421 6756SBX001A CD MECHANISM PARTS SCREW 2.6X10X10XFZMY CDM-H813 422 353-028H SCREW #NAME?

Page 59

- 4-1 -

SECTION 4. SPEAKER SECTION

MODEL: LMS-M533

856

857

858

864

852

850

853

866

855

854

LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARKS

850 3701RM0048A NET ASSEMBLY SPK LMS-230/530 JERSEY NET ASS 852 3720RMM004A PANEL,AUDIO SPK LMS-230/530 MOLD FRONT (ST 853 6400SCSX01D SPEAKER,TWEETER FE-576E SAMMI(DT-13A36L-2)DOME 854 6400WSMG02A SPEAKER,WOOFER CW-125B60L-2 SAMMI WOOFER LMS855 4766RM0014C FELT LMS-230/530 BLACK CABINET FEL 856 3091RMW053A CABINET ASSEMBLY SPK LMS-530 PB 12T 857 6871RU9274A PWB(PCB) ASSEMBLY,SUBSET(AUDIO LMS-530 NETWORK 2.2UF NEGATIVE 858 3610RM0024A FOOT SPK LMS-230/530 OTHER (EVA) PH 864 353M050M SCREW,DRAWING + 2 D3.5 L10.0 MSWR3/FZY 866 353M025F SCREW TAPTITE, 3X8 FZMY"

RUN DATE :14.JULY.2003

Page 60

- 4-2 -
