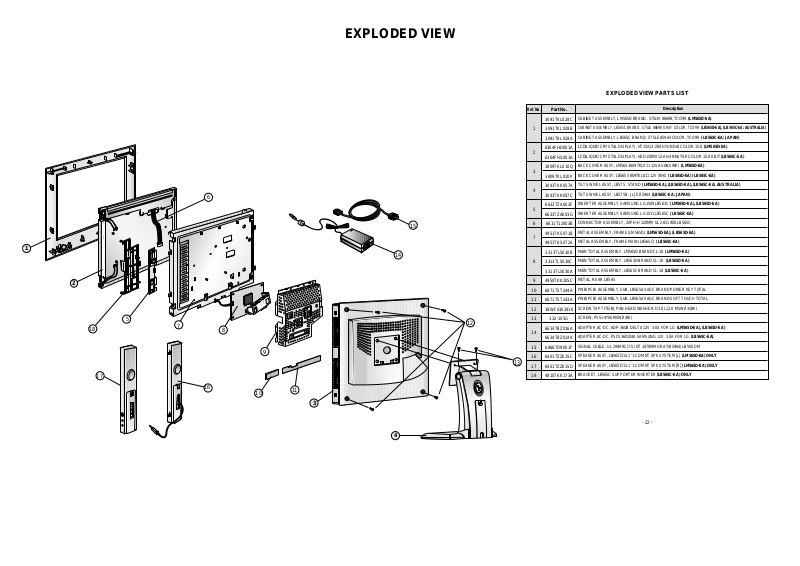

LG 575LM, LM565D-EA EXPLODED VIEW
EXPLODED VIEW
1
3
4
5
7
9
10
11
13
12
15
16
17
18
14
8
2
6
- 22 -
EXPLODED VIEW PARTS LIST
Ref. No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Part No.
3091TKL028C
3091TKL028B
3091TKL028A
6304FHD001A
6304FHS001A
3809TKL010Q
3809TKL010P
3043TKK057A
3043TKK057C
6633TZA003F
6633TZA003G
6631T12003B
4951TKS071B
4951TKS072A
3313TL5030B
3313TL5030C
3313TL5030A
4950TKK205C
6871TST244A
6871TST243A
1BWF0302816
332-105G
6634TBZ016A
6634TBZ014A
6866TD9001F
6401TZZ015C
6401TZZ015D
4810TKK173A
Description
CABINET ASSEMBLY, LM565D BRAND . 575LM 86698, TCO99 (LM565D-EA)
CABINET ASSEMBLY, LB565C BRAND . 575LE 86698 GRAY COLOR, TCO99 (LB565D-EA), (LB565C-EA: AUSTRALIA)
CABINET ASSEMBLY, LB565C BRAND . 575LE 85964 COLOR, TCO99 (LB565C-EA: JAPAN)
LCD(LIQUID CRYSTAL DISPLAY), HT15X13-200 HYUNDAI COLOR 15.0 (LM565D-EA)
LCD(LIQUID CRYSTAL DISPLAY), HSD150MX12-A HANNSTAR COLOR 15.0 8 BIT (LB565C-EA)
BACK COVER ASSY, LM565 3809TKL011 12V AUDIO(INK) (LM565D-EA)
BACK COVER ASSY, LB565 3809TKL011 12V (INK) (LB565D-EA) (LB565C-EA)
TILT SWIVEL ASSY, LB575 . STAND (LM565D-EA), (LB565D-EA), (LB565C-EA: AUSTRALIA)
TILT SWIVEL ASSY, LB575B . JLJE 85964 (LB565C-EA: JAPAN)
INVERTER ASSEMBLY, SAMSUNG LG1509 LB563C (LM565D-EA), (LB565D-EA)
INVERTER ASSEMBLY, SAMSUNG LG1511 LB565C (LB565C-EA)
CONNECTOR ASSEMBLY, 20P H-H 120MM UL 2651 #28 LB565C
METAL ASSEMBLY, FRAME (LM565D) (LM565D-EA), (LB565D-EA)
METAL ASSEMBLY, FRAME MAIN (LB565C) (LB565C-EA)
MAIN TOTAL ASSEMBLY, LM565D BRAND CL-18 (LM565D-EA)
MAIN TOTAL ASSEMBLY, LB565D BRAND CL-18 (LB565D-EA)
MAIN TOTAL ASSEMBLY, LB565C BRAND CL-18 (LB565C-EA)
METAL, REAR LB565
PWB(PCB) ASSEMBLY, SUB, LB565A XAGC BRAND POWER KEY TOTAL
PWB(PCB) ASSEMBLY, SUB, LB565A XAGC BRAND SOFT TOUCH TOTAL
SCREW TAP TITE(B), PAN HEAD WASHER, D3.0 L12.0 MSWR3/(BK)
SCREW, PVS+4*10(MSWR/BK)
ADAPTER,AC-DC, ADP-36UB DELTA 12V 3.0A FOR LG (LM565D-EA), (LB565D-EA)
ADAPTER,AC-DC, PSCV360104A SAMSUNG 12V 3.0A FOR LG (LB565C-EA)
SIGNAL CABLE, UL 2990-9C(7.5) DT 1870MM GRAY(85964) LB500 DM
SPEAKER ASSY, LB565D 15.1" LCD MNT SPK SYSTEM [L] (LM565D-EA) ONLY
SPEAKER ASSY, LB565D 15.1" LCD MNT SPK SYSTEM [R] (LM565D-EA) ONLY
BRACKET, LB565C SUPPORTER INVERTER (LB565C-EA) ONLY
