LG LGL24 Users manual

XX LGL24

Basic Manual

Preface

Thank you for buying the "LGL24" (simply called "product" from here on).

Before using the product, be sure to read the "Basic Manual" (this manual) or "Full Instruction Manual" (in Japanese only) to ensure correct use. After you have finished reading this manual, be sure to store it in a safe place so that you can retrieve it whenever needed. If you lose the "Basic Manual" (this manual), contact an au shop or Customer Service Center.

About Operating Instructions

■"Basic Manual" (this manual)

Handles only basic operations for main features. For detailed descriptions of various functions, refer to the "Basic Manual" application that can be used on your product or "Full Instruction Manual" (in Japanese only) on au website: http://www.au.kddi.com/support/mobile/guide/manual/

•All company names and product names in this manual are either trade marks or registered trade marks.

■Basic Manual Application

You can use the "Basic Manual" application on product to check detailed operational procedures. Certain functions can be directly activated from the application screens on which their operations are described.

●Steps

aHome screen "Apps" "Settings/Support" "Basic Manual"

•When using the application for the first time, you must download and install it following the onscreen instructions.

■Downloading Basic Manual

You can download "Basic Manual" (this manual), "Setting Guide" and "Full Instruction Manual" (in Japanese only) from au website. http://www.au.kddi.com/support/mobile/guide/manual/

ii

Safety Precautions

Before you start using product, be sure to read the "Safety Precautions" to ensure correct use.

Before thinking of it as a malfunction, check for possible remedies in the following au Customer Support site of au website. http://www.au.kddi.com/support/mobile/trouble/repair

When Using This Product

•Communication is not possible even inside the service area in places where the signal does not reach (e.g. tunnels and basements). Also, communication is sometimes not possible in poor reception areas. Communication is sometimes interrupted if you move into a poor reception areas during communications.

•Since product uses radio waves, the possibility of communication intercepts by third parties cannot be eliminated. (Though LTE/CDMA/GSM/UMTS system has highly secure confidential communication features.)

•product is compatible with the international roaming service. Each network service described in this manual varies depending on the area and service content.

•Since product is a radio station under the Radio Law, you may be asked to temporarily submit product for inspection in accordance with the Radio Law.

•When the IMEI information of the cell phone is automatically sent to KDDI CORPORATION for maintenance and monitoring operational status of your cell phone.

•Take care not to inconvenience people around you when you use the product in a public place.

•If you are using the product overseas, please check the relevant laws and regulations of the country/region that you visit.

•When the product is used by a child, guardians should thoroughly read the "Basic Manual" (this manual) and teach the child how to use it.

1

Use of the product is not allowed in the following places!

•Do not use a cell phone while driving a car or riding a motorbike or bicycle. Failure to do so might cause a tra c accident. Use of a cell phone while driving a car or motorbike is prohibited by law. Use of a cell phone while riding a bicycle may be punishable by some regulations.

•Do not use product while you are aboard an airplane. Use of electric devices transmitting radio waves in airplane is

prohibited by law. Some airline companies, however, allow their passengers to use cell phones. For details, contact the airline company you use.

Cell phone etiquette!

•Do not talk on the phone loudly.

•Ask for permission of other people before taking pictures of them with this cell phone.

•product is the same as PC, depending on the application you install, the operation of product may get unstable, or your location information and other personal information registered in product may get revealed and abused via Internet. Make sure to confirm the source and the operation conditions of the application you use.

Take care of people around you!

•In crowded trains or other crowded places, there may be people with a cardiac pacemaker nearby. Turn o the cell phone.

•When a medical institution has laid down designated areas where use of the product is prohibited or is not allowed

to be brought in, abide by the instructions of that medical institution.

List of Packaged Items

Before you start using the product, make sure that you have all the following packaged with the product.

●Main unit (including back cover)

●(Setting Guide) (in Japanese only)

●(Basic Manual) (in Japanese only)

●(Warranty) (in Japanese only)

2

The following items are not included in the package.

●microUSB cable

●AC adapter

●microSD memory card

●Smart phone Cradle

*Stereo earphone with Microphone (sample) is not waterproof or dust preventive.

*When watching TV (1Seg), make sure to connect Stereo earphone with Microphone (sample) to product. Stereo earphone with Microphone (sample) functions as a TV antenna.

memo

•Purchase a specified charger (sold separately).

•Illustrations of cell phones in this manual are only for reference. They may look di erent from the actual product.

•This product is built-in battery.

Using au Disaster Countermeasure Application

au (au Disaster Countermeasure) application enables you to use (Disaster Message Board),(Emergency Rapid Mail contains Earthquake Early Warnings, Disaster and Evacuation Information and tsunami warnings), (Disaster Voice Messaging Service), and (Disaster Information/Disaster Relief Donation Site).

aHome screen "Apps" "Settings/Support" "au (au Disaster Countermeasure)" au disaster countermeasure menu is displayed.

Using Disaster Message Board

(Disaster Message Board) is a service that enables you to register your safety information from disaster areas via LTE NET when large-scale disaster such as an earthquake with intensity of over 6 lower occurs. Registered safety information can be confirmed from au phones, other company's phones, and PCs.

For details, refer to " (Disaster Message Board service)" on au website.

a"au (au Disaster Countermeasure)" "(Disaster Message Board)"

Follow the onscreen instructions to register and confirm.

3

memo

•An e-mail address (@ezweb.ne.jp) is required to register safety information. Set up e-mail address beforehand. For details on settings of an e-mail address, refer to "Setting Guide".

•While wireless LAN (Wi-Fi®) is connected, deleting or changing the settings of safety information e-mail is not available.

•The Company makes no guarantee about the quality of this service. Note that in using the service, the Company is not liable regardless of the cause, for problems related to registering safety information due to access concentration or facility failure, damage due to corruption or loss of safety information, or damage caused by registered safety information.

Using Emergency Rapid Mail

The Emergency Rapid Mail is a service that distributes Earthquake Early Warning and tsunami warnings provided by Japan Meteorological Agency, or Disaster and Evacuation Information provided by national/local governments to all au cell phones in specified areas simultaneously.

The " (receiving setting)" for Emergency Rapid Mail (Earthquake Early Warning or Disaster and Evacuation Information) is set to " (receive)" at the time of purchase. The " (receiving setting)" for tsunami warnings can be set on the " (Disaster and Evacuation Information)".

When you receive Earthquake Early Warning, ensure your safety and take proper action according to the situation around you.

When you receive tsunami warnings, leave sea coast immediately and evacuate to safe places such as hills and substantial tall buildings.

4

a"au (au Disaster Countermeasure)" "(Emergency Rapid Mail)"

Inbox is displayed.

Select a mail to view detailed information.

(Delete)		Delete a received mail.
		(Earthquake Early
(Setting)	(Receive	Warning): Set if receive Earthquake
	option setting)	Early Warning.
		(Disaster and
		Evacuation Information): Set if
		receive Disaster and Evacuation
		Information and tsunami warnings.
		(Volume): Set incoming mail
	(Notification	volume.
	settings)
		(Vibrator): Set if enable
		vibrator when receiving a mail.
		(Linkage to manner
		mode): Set if notify by manner
		mode (sets Sound profile to "Vibrate
		only" or "Silent") while manner mode
		is on.
		(Earthquake Early
	(Confirm	Warning): Confirm ringtone/vibrator
	ringtone /	for Earthquake Early Warning.
	vibrator)
		(Disaster and
		Evacuation Information): Confirm
		ringtone/vibrator for Disaster and
		Evacuation Information and tsunami
		warnings.

memo

•Reception of Emergency Rapid Mail is notified by a special warning tone. The warning tone cannot be changed.

•Earthquake Early Warning is sent to areas where strong quakes (over 4 degrees) are expected when earthquakes whose maximum intensity is predicted of 5 lower or more degrees.

•Immediately after an earthquake occurs, quakes (P waves and initial tremors) near the epicenter are detected and position, scale, and expected strength are automatically calculated and notification is sent as soon as possible within a few seconds to tens of seconds before the strong quakes (S waves and major tremors) caused by the earthquake start.

•Earthquake Early Warning may not arrive before strong tremors in areas near the epicenter.

•Tsunami warning notifies major tsunami warnings and tsunami warning provided by Japan Meteorological Agency to area including the target sea coasts.

•Disaster and Evacuation Information is a service that distributes bulletins concerning residents safety including evacuation advisories, evacuation orders and other warnings issued by the national and local governments.

•This service is available only in Japan (it cannot be used overseas).

•No information fee or communication charge is required for receiving Emergency Rapid Mail.

•KDDI is not liable for damages su ered by customers resulting from the service's information, lack or delay in the information caused by transmission or system breakdowns, or other events that does not belong to the responsibility of KDDI.

5

•Refer to the Japan Meteorological Agency web page for details about distribution of Earthquake Early Warning. http://www.jma.go.jp/

•You cannot receive any Emergency Rapid Mail if the product is turned o or during a call.

•Data communication, such as receiving or sending an SMS/e-mail and using browser, you might not be able to receive Emergency Rapid Mail.

•You might not receive any Emergency Rapid Mail in places where the signal does not reach (e.g. tunnels and basements) or where the signal reception is poor even inside the service area.

•Once the Emergency Rapid Mail fails in receiving, the same mail cannot be received again later on.

•Since Emergency Rapid Mail uses a di erent delivery system, the reception time of Emergency Rapid Mail may not coincide with the same emergency warnings broadcasted through TV, radio or other medium.

•Information from someplace other than your current location may be received.

Using " (Disaster

Voice Messaging Service)"

" (Disaster Voice Messaging Service)" is the service that enables you to record your voice via your smartphone and to deliver the message to persons to whom you want to send when a large-scale disaster.

a"au (au Disaster Countermeasure)"

" (Disaster Voice

Messaging Service)"

■Sending voices (Send)

Tap " (Sending voices)", and operate "* (select a sending destination)" → "(record voices to send)" in this order.

* Sending destination can be selected from Contacts.

■Receiving voices (Receive)

Delivery of voice messages are notified by the pop-up window or SMS. Receive (download) and play back the voice message.

•If the receivers are using a smartphone or an au cell phone on which an au Disaster Countermeasure application supporting Disaster Voice Messaging Service is not active, they are notified with an SMS.

•If you are notified with SMS, the information is not saved in the au (au Disaster Countermeasure) application.

6

memo

•To use the service on Wi-Fi®, initial setting is required on the LTE/3G network.

•Voice messages can be recorded for up to 30 seconds.

•Voice messages can be exchanged among au cell phones as well as with NTT DOCOMO and Softbank cell phones.

•Voice may not be heard when the media sound volume is set to low or when the manner mode (Sound profile set to "Vibrate only" or "Silent") is set.

•When a main unit (memory) has no free space, voice messages may not be saved or played back.

•Some cell phones cannot receive voice messages. For details, refer to the au website.

Using the (Disaster

Information/Disaster Relief Donation Site)

Take the following steps to view the history of disaster information/evacuation information dispatched by municipalities, the disaster information portal site, disaster relief donation site, etc.

a"au (au Disaster Countermeasure)"

" (Disaster Information/

Disaster Relief Donation Site)"

bFollow the onscreen instructions

7

Contents

	Preface ……………………………………………………………………… ii	Phone
	About Operating Instructions ………………………………………… ii	Making Calls ……………………………………………………………… 60
	Safety Precautions………………………………………………………… 1	Receiving Calls…………………………………………………………… 62
	When Using This Product ……………………………………………… 1	Checking Your Phone Number ……………………………………… 63
	List of Packaged Items ………………………………………………… 2	File Management

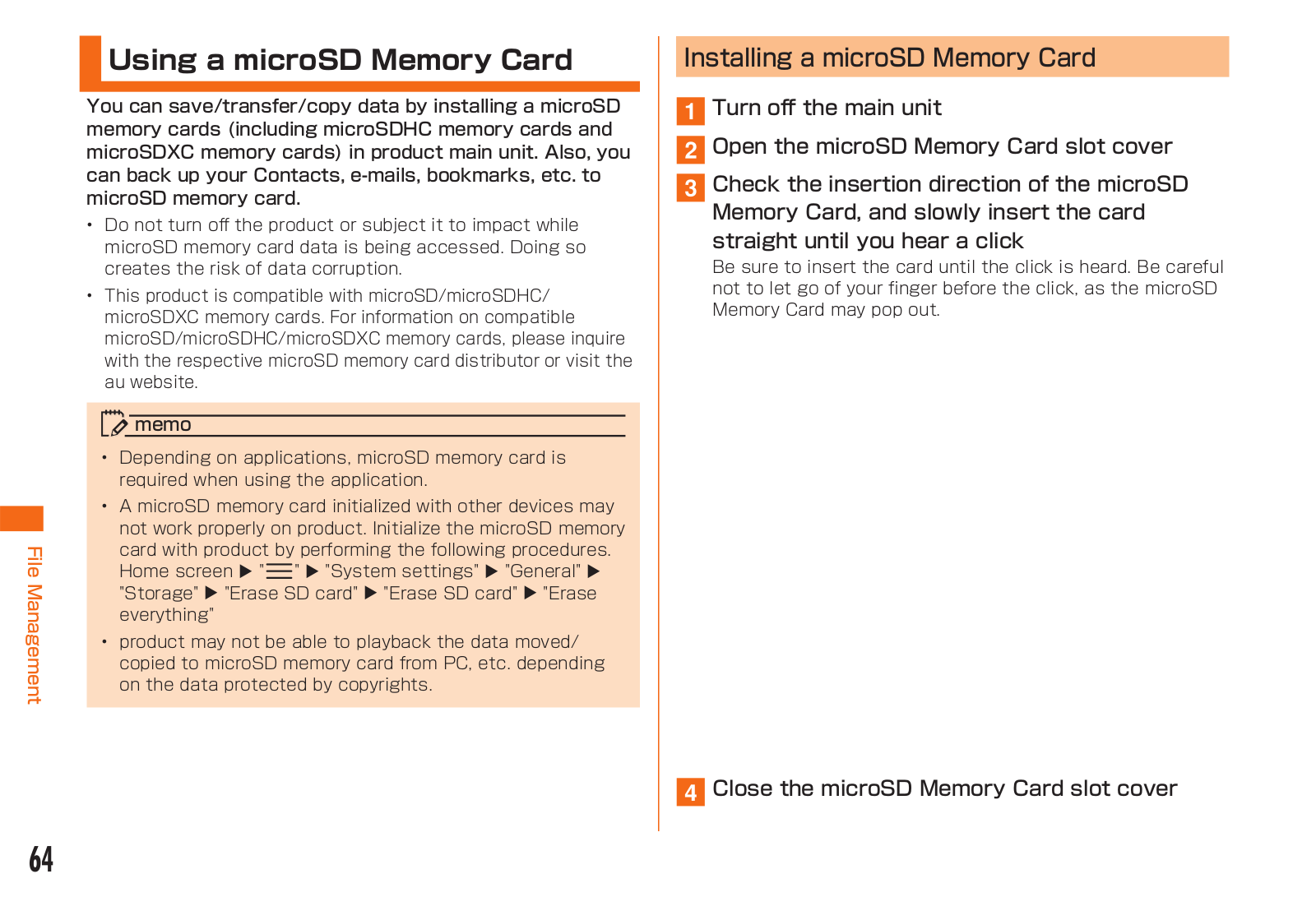

	Using au Disaster Countermeasure Application ………………… 3	Using a microSD Memory Card……………………………………… 64
	Safety Precautions
		Function Settings
	Regarding Notations Used in This Manual ………………………… 9
		Viewing the Setting Menu …………………………………………… 66
	Exemptions ……………………………………………………………… 10	Appendix
	Safety Precautions (Observe Strictly) …………………………… 11	Introduction of Related Accessories ……………………………… 69

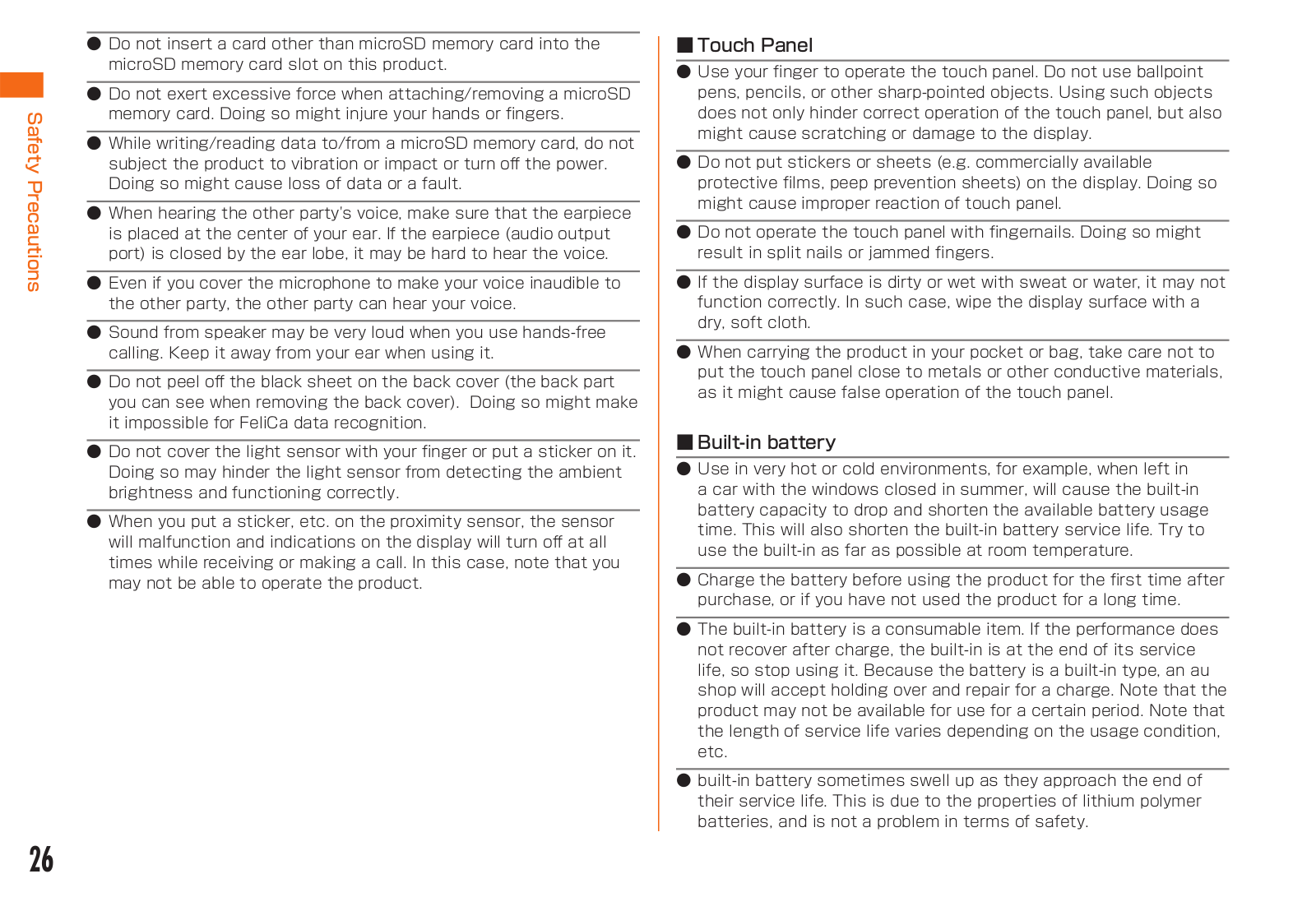

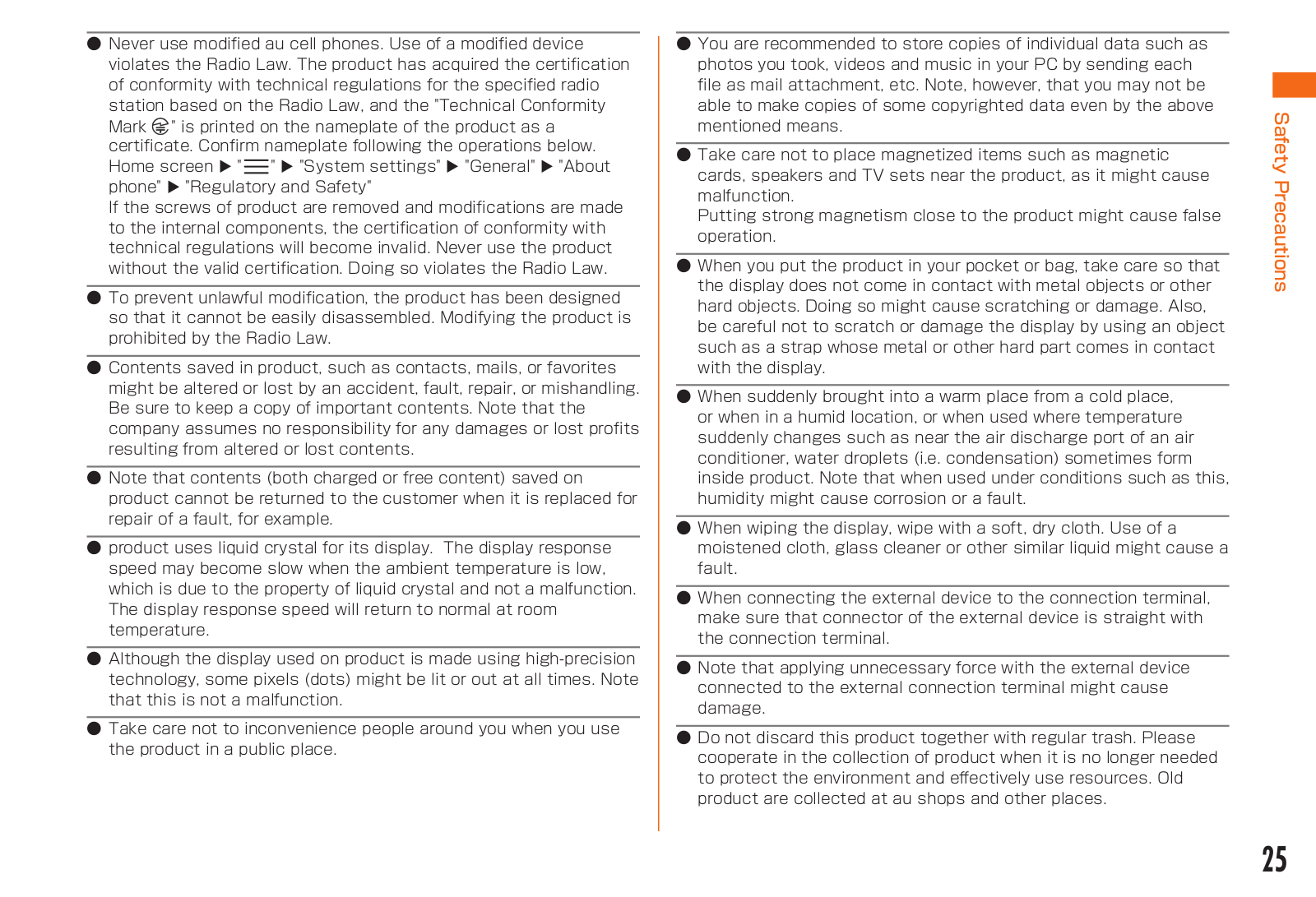

	Handling Precautions ………………………………………………… 23
		Troubleshooting ………………………………………………………… 70

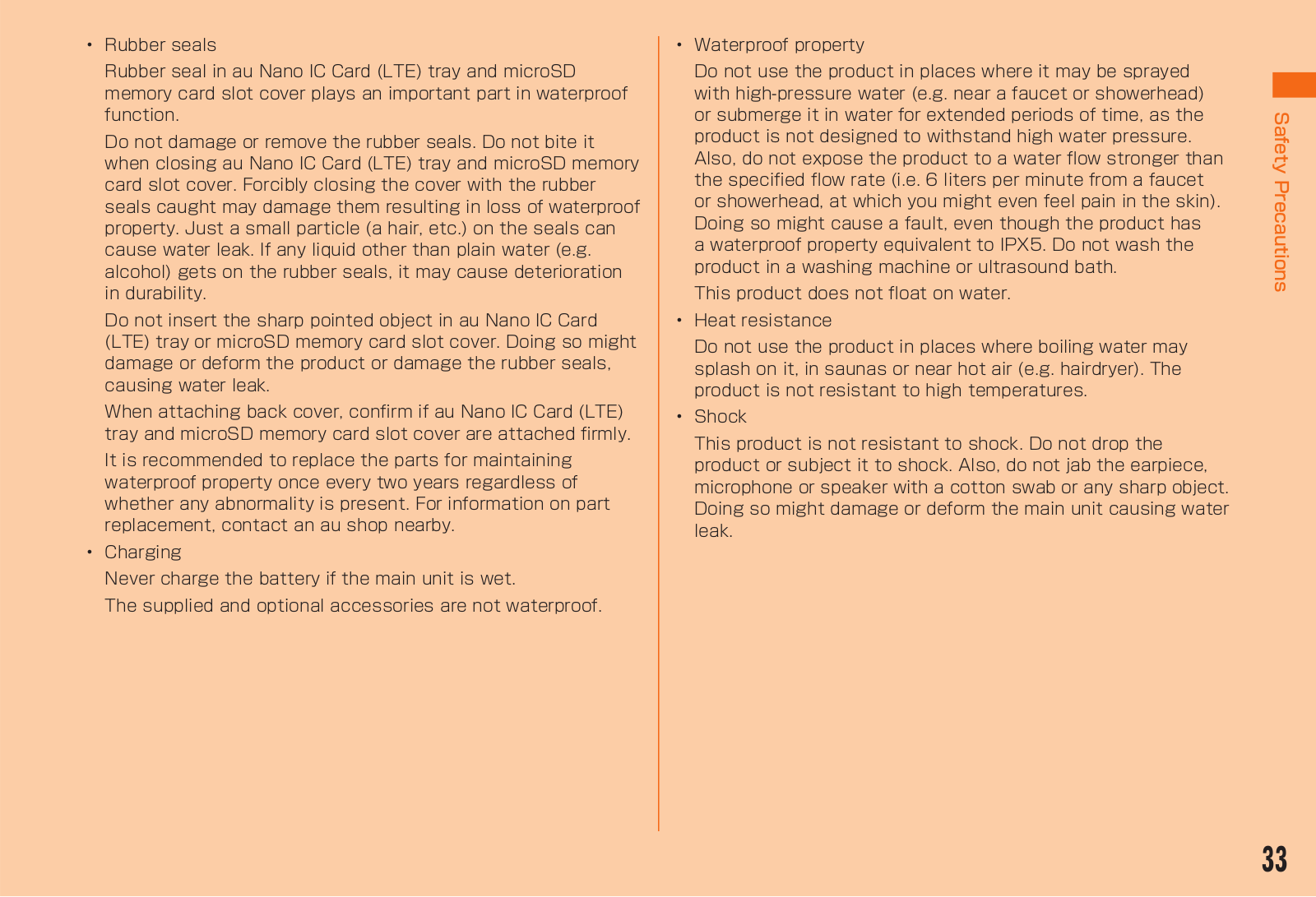

	Notes on Waterproof Properties …………………………………… 30
		Using Stereo Earphone with Microphone (Sample) …………… 71
	Bluetooth®/Wireless LAN (Wi-Fi®) Function……………………… 35
	Notes on Packet Communication Charge ……………………… 37	Updating Software ……………………………………………………… 71

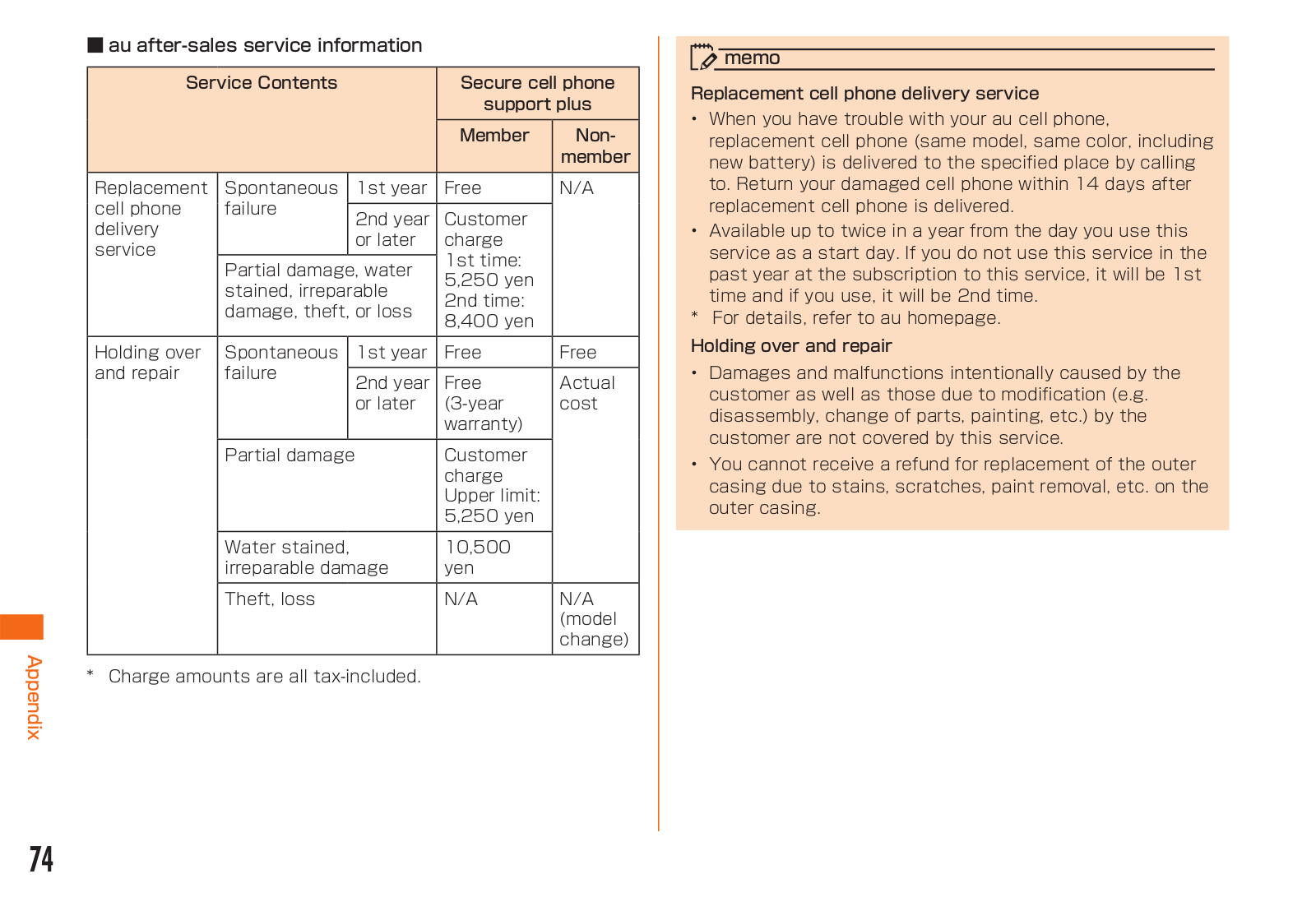

		After-sales Service……………………………………………………… 72
	Applications ……………………………………………………………… 38
		Main Specifications …………………………………………………… 75
	Before Using the LGL24
		Specific Absorption Rate (SAR) of Cell Phones ……………… 77
	Names and Functions of Parts……………………………………… 39
		Declaration of Conformity …………………………………………… 78
	Attaching/Removing Back Cover…………………………………… 40
		European Union Directives Conformance Statement ………… 79
	Using au Nano IC Card (LTE) ……………………………………………… 41	Important Safety Information………………………………………… 80
	Attaching/Removing au Nano IC Card (LTE) ……………………… 42	FCC Notice………………………………………………………………… 81
	Charging …………………………………………………………………… 44	FCC RF Exposure Information ……………………………………… 81

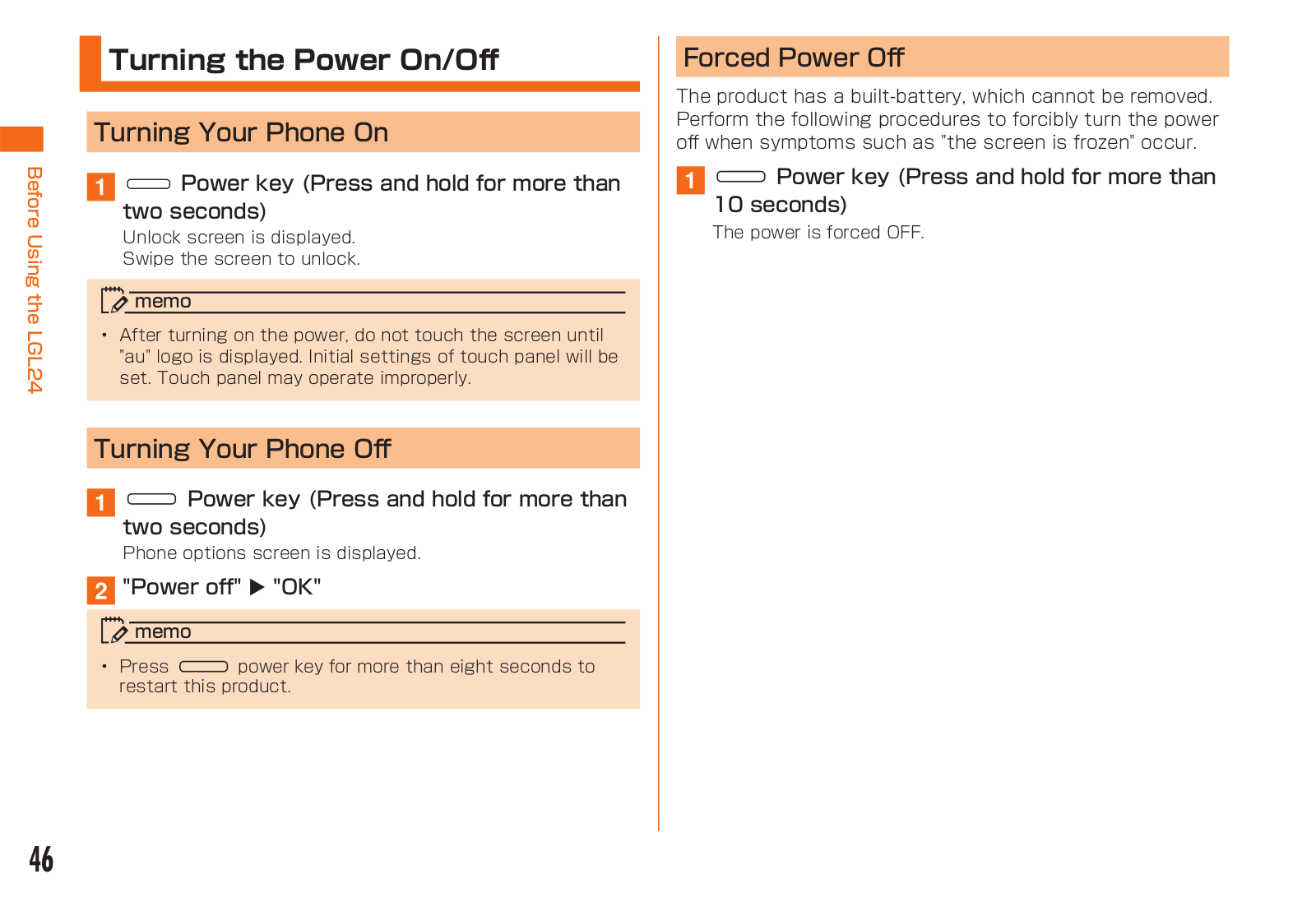

	Turning the Power On/O …………………………………………… 46	Body-worn Operation …………………………………………………… 82
	Initial Settings …………………………………………………………… 47	Certificate and Standard ……………………………………………… 82

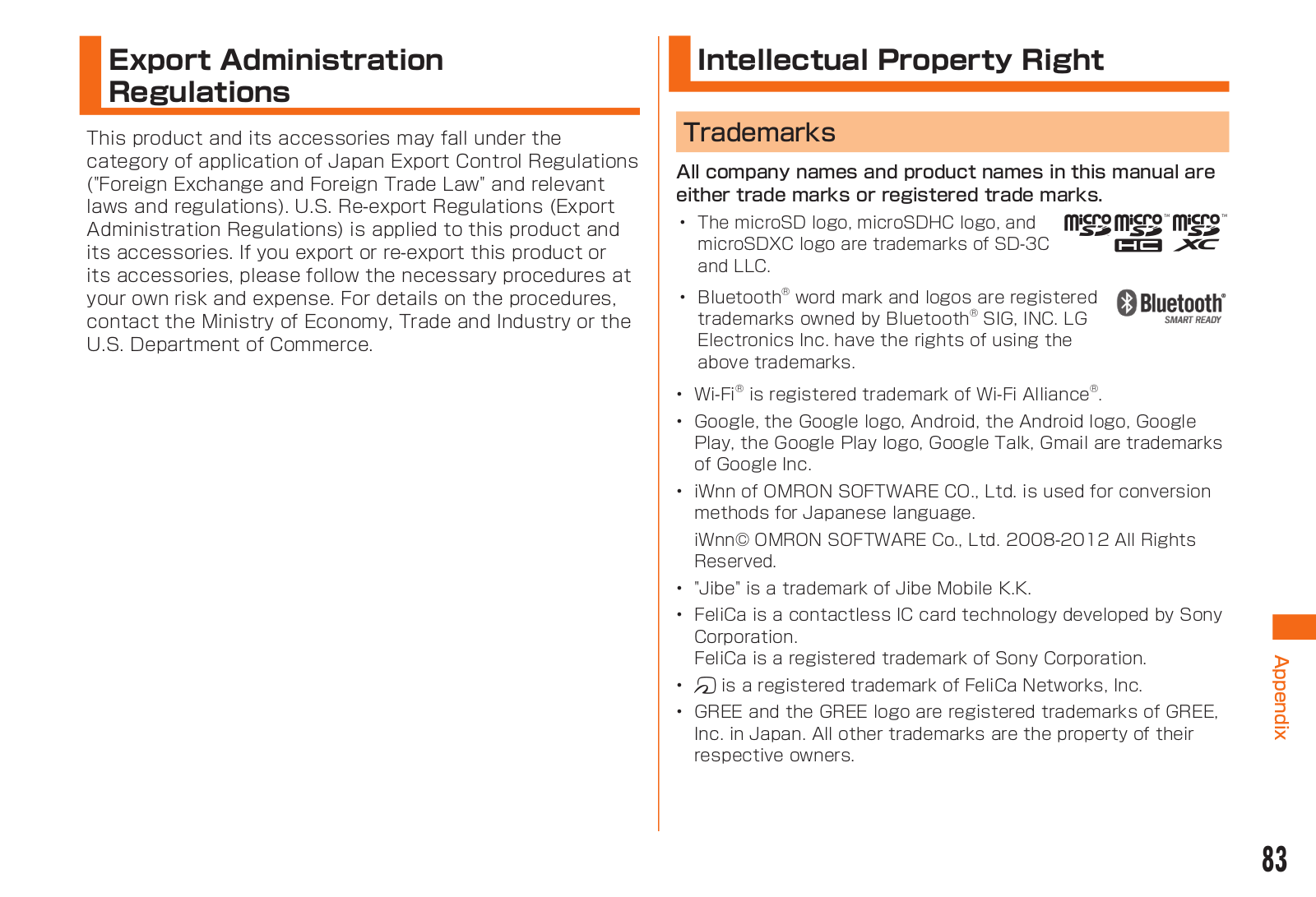

	Basic Operations	Export Administration Regulations ………………………………… 83
	Using the Touch Panel………………………………………………… 48	Intellectual Property Right …………………………………………… 83
	Using the Home Screen ……………………………………………… 49
	Checking product state ……………………………………………… 53
	LED Notification ………………………………………………………… 56
	Capturing a Screenshot ……………………………………………… 56
	Using QMemo Function ……………………………………………… 57
	Character Input
	Entering Text……………………………………………………………… 58

8

Regarding Notations Used in This

Manual

■Key indications used in this manual

In this manual, keys are represented by simplified illustrations as shown below.

■Indications used for the operation of selecting items/ icons/keys, etc.

Notations used for operation procedures in this manual are as follows.

Tap means to lightly touch and release the button or icon shown on the display to select it.

Notation Description

Home screen "Phone" Tap " (Phone)" on the bottom of "1" "4" "1" "" Home screen. Tap "" "" ""

and "".

Home screen " "	Tap " " on the Home screen. Tap
"System settings"	"System settings".

memo

•Descriptions in this manual are based on the operations of portrait screen. Items, icons, or the keys on the screen may look di erent with horizontal screen.

•Items, title levels, and icons in this manual may look di erent based on di erent functions you use or di erent conditions, etc.

•In this manual, "microSDTM memory card", "microSDHCTM memory card" or "microSDXCTM memory card" is called "microSD memory card" or "microSD" for short.

■Illustrations and screen displays used in this manual

Illustrations and screens shown in this manual may look di erent from the actual product or screen.

In some cases, minor details or a part of a screen may be omitted.

Precautions Safety

9

Precautions Safety

Exemptions

•The Company is not liable for any damages arising from earthquakes, lightning, storms, floods, or other natural disasters, as well as fires, actions by third parties, other accidents, intentional or mistaken operation by the customer, or use under other unusual conditions outside the responsibility of the Company.

•The Company is not liable for any incidental damages (change/disappearance of described content, loss of business income, disruption of business, etc.) arising from use of or inability to use product.

•The Company is not liable for any damages arising from improper usage not written in "Basic Manual" (this manual).

•The Company is not liable for any damages arising, for example, from malfunction caused by combination with connected devices or software not related to the Company.

•Captured image data or downloaded data may sometimes be altered or lost due to faults, repair, or other handling of product. The Company is not liable for any damages or lost income resulting from recovery of these data.

•It is recommended you keep a copy of important data in your PC's hard disk, etc. Whatever the cause of fault or malfunction may be, the Company assumes no

responsibility for alteration or loss of saved information.

*"The Company" as appears in this manual refers to the following companies:

Sold by: KDDI CORPORATION,

OKINAWA CELLULAR TELEPHONE COMPANY

Imported by: LG Electronics Japan Inc.

Manufactured by: LG Electronics Inc.

memo

•Reproduction of the content of this manual in part or in whole is prohibited.

•The content of this manual is subject to change without notice.

•Every e ort has been made in the preparation of this manual. Should you notice any unclear points, omissions, etc., feel free to contact us.

•Wrong page order or missing pages will be replaced.

10

Safety Precautions (Observe

Strictly)

■Before using the product, thoroughly read these safety precautions for proper use. After reading, store the precautions in a safe place.

●These "Safety Precautions" describe instructions that should be observed to prevent damage to property or injury to the customer or others using product.

●These instructions are divided into the following categories.

■Explanation of indications used in this manual

This symbol indicates the potential and imminent danger of death or serious injury*1 to a person.

This symbol indicates the possibility of death or serious injury*1 to a person.

This symbol indicates the possibility of personal injury*2 to a person or physical damage*3.

*1 Serious injury: This refers to loss of sight, injury, burns (highand low-temperature), electric shock, broken bones, injuries with residual aftere ects from poisoning, etc., and injuries requiring hospital admission for treatment or longterm hospital attendance as an outpatient.

*2 Injury: This refers to injuries, burns (highand lowtemperature), electric shock, etc. that do not require hospital admission for treatment or long-term hospital attendance as an outpatient.

*3 Physical damage: This refers to extended damage to buildings, furniture, livestock, or pets.

■Explanation of graphic symbols used in this manual

Don’t	Indicates an action that is not allowed.
	Indicates that handling with wet hands is not
No	allowed.
wet hands
Not	Indicates that disassembly is not allowed.
disassembly
	Indicates that use in a place where the product
	is likely to get wet or allowing the product to
Not liquids	get wet is not allowed.
Do	Indicates an action that must be done.
	Indicates that the power plug must be
Unplug	disconnected from the power outlet.

Precautions Safety

11

Precautions Safety

■Precautions common to the main unit, built-in battery, charging equipment, au Nano IC Card (LTE), peripheral devices

Be sure to read the following hazards before use.

	Be sure to use only the specified peripheral devices.
	Use of other peripheral devices might cause
Do	overheating, fire, rupture, fault, or leakage of liquid.
	Do not use, store, or leave the product in hot places
	(e.g. by the fire, near a heater, under a kotatsu, in
Don’t	direct sunlight, in a car in the hot sun). Doing so
	might cause ignition, rupture, fault, fire, or injury.
	Before entering an area where flammable gas is
	generated such as a gas station, be sure to turn
Do	o this product. Also, do not charge the product.
	Failure to observe these precautions might cause
	the gas to catch fire. In addition, when using Osaifu-
	Keitai® at a gas station, be sure to turn o the
	power in advance. (If Osaifu-Keitai® has been locked,
	cancel the lock before turning o the power.)
	Do not put the product in a cooking apparatus such
	as a microwave oven or a pressure vessel. Doing so
Don’t	might cause ignition, rupture, fault, fire, or injury.
	Do not throw the product into a fire or heat it. Doing
Don’t	so might cause fire, rupture, or fire.

Do not short-circuit the connection terminals. Do not allow conductive foreign objects (metal

Don’t fragments, pencil leads, etc.) to come into contact with or get inside the connection terminals. Doing so might cause fire, or a fault.

When using metal accessories, etc., make sure not to allow the metal part come in contact with

Don’t the connection terminals or power outlet. Doing so might cause electric shock, fire, injury, or a fault.

Do not expose the camera lens to direct sunlight for an extended period. Doing so might cause ignition, Don’t rupture, or fire by the light-collecting mechanism of

the lens.

The customer is not allowed to disassemble,

modify, or repair the product.

disassemblyNot Doing so might cause a fault, fire, electric shock, or injury. The Company is not liable even in the

event of any non-conformities arising on product or peripheral devices as a result of modification, etc. Modification of product is in violation of the Wireless Telegraphy Act.

12

Be sure to read the following warnings before use.

Do not drop or subject to strong impact, such as throwing. Doing so might cause rupture,

Don’t overheating, fire, or a fault.

Do not use this product outside when you can hear thunder. Doing so might risk lightning strikes and

Don’t electric shock.

Do not let your hands, fingers, and other parts of the body touch the connection terminals. Doing so

Don’t might cause electric shock, injury, or a fault.

If product is damaged because it is dropped or something, and its display is cracked or internal

Don’t parts are exposed, do not touch the cracked display or the exposed parts with your hands. Doing so might cause electric shock or injury from damaged parts. Contact an au shop or Secure cell phone support center.

Charging the battery when the main unit is wet

might lead to electric shock, short circuit or

Not liquids corrosion, causing fire or a fault due to overheating.

Do not splash with water or other liquids. Also,

never use in places subject to direct splashing with Not liquids water or pet urine, etc. or in humid places such as

bath areas, or use with wet hands. Doing so might cause electric shock, fault from short-circuiting, or No corrosion of electronic circuits. In the event that

wet hands the product is splashed with liquid, immediately disconnect the AC adapter's power plug. Faults caused by wetting with water or humidity are not covered by the warranty and charges will be incurred for repair.

Although this product model has waterproof

property, stop using it if liquid such as water gets Not liquids inside the main unit from the back cover. Continued

use of the product in this state might cause overheating, fire, or a fault.

No wet hands

When removing the back cover, do not exert more

than necessary force. Doing so might cause injury Don’t or a fault.

Do not operate the product while driving a car or motorbike, riding a bicycle, or walking. Doing so may

Don’t compromise tra c safety and cause an accident.

If charging is not completed after the specified charging time, stop charging. Failure to do so might

Don’t cause leakage of liquid, overheating, rupture, or fire.

Precautions Safety

13

Precautions Safety

Do not leave in places within the reach of small

children. Small children might swallow small parts, Don’t etc. by mistake and choke on them, or might drop

them by mistake and cause accidents or injury.

Be sure to read the following cautions before use.

Do not store the product in places subject to direct

sunlight (e.g. in cars), places that get hot, places Don’t that get extremely cold, and in humid or dusty

places. Doing so might cause overheating, fire, deformation, or a fault.

Do not leave on unstable places such as rocky stands or tilting surfaces. Dropping the product may

Don’t cause injury or damage. Pay su cient attention while vibrator is set to ON. Also, pay su cient attention to impact, etc.

Do not cover or wrap this product with bedding, etc. while using or charging the product. Doing so might

Don’t cause fire, fault, or injury.

Do not touch the main unit of the product and the specified AC adapter (sold separately) for a long Don’t time while power is being supplied from an external

source. Doing so might cause low-temperature burns.

Be careful when using this product in a high

temperature place for a long time. It might become Don’t hot. Use of it with your skin touching the product

for a long time might cause low-temperature burns.

Do not use power outlets or wiring apparatus beyond its rating. Also, exceeding rating, for

Don’t example, by connecting multiple devices to a single power strip might cause overheating and fire.

Do not use the product with the back cover

removed.

Don’t

Do not place near corrosive chemicals or in places where corrosive gas is generated. Doing so might

Don’t cause a fault or loss of internal data.

Do not leave or store with the back cover removed from the main unit. Doing so might allow dust or

Don’t other foreign objects to get inside and cause a fault.

14

	Do not use the product if there is smoke, abnormal
	odor or noise, excessive overheating, or other
Do	abnormalities. If an abnormality occurs, disconnect
	the specified charging equipment (sold separately)
	from the power outlet, make sure that the product
	is not overheating before turning the power o , and
	contact an au shop or Secure cell phone support
	center. Also, if you have dropped or damaged the
	product, do not continue to use it in that state, and
	contact an au shop or Secure cell phone support
	center.
	When inserting a Stereo earphone with Microphone
	(sample), etc. into product, adjust the volume to
Do	the proper level. Setting too loud a volume or using
	the earphone continuously for a long period of time
	might adversely a ect your ears.
	Also, raising the volume too high might prevent you
	from hearing sounds around you, which might in
	turn lead to a tra c accident at a railroad crossing
	or pedestrian crossing.
	When adjusting the volume with a Stereo earphone
	with Microphone (sample), etc. inserted into
Do	product, raise the volume a little at a time. If you
	raise the volume too much from the outset, sudden
	loud noise from the earphone, etc. might adversely
	a ect your ears.
	When using an charging equipment or external
	device, insert/remove the connector straight to/
Do	from the terminal. Make sure the orientation of the
	connector is correct. Failure to do so might cause
	damage or a fault.

■Main unit

Be sure to read the following warnings before use.

Do not use a cell phone while driving a car or riding

a motorbike or bicycle. Failure to do so might cause Don’t a tra c accident. Use of a cell phone while driving

a car or motorbike is prohibited by law. Use of a cell phone while riding a bicycle may be punishable by some regulations.

Do not use product while you are aboard an airplane. Use of electric devices transmitting radio

Don’t waves in airplane is prohibited by law. Some airline companies, however, allow their passengers to use cell phones. For details, contact the airline company you use.

This product sometimes a ects high-precision

electronic devices. So, turn it o near such devices. Do (Examples of electronic devices that might be

a ected by the product include cardiac pacemakers, hearing aids, other electronic medical devices,

fire alarms, and automatic doors. If you are using an electronic medical device, contact the device manufacturer or retailer for information about the possible a ect of radio waves.)

Precautions Safety

15

Precautions Safety

When using product near an implanted pacemaker, implanted cardioverter-defibrillator, or other electronic Do medical device, radio waves might a ect these units and devices. So, please observe the following.

1.Those with an implanted pacemaker or implanted cardioverter-defibrillator should carry or use product at least 15 cm away from the pacemaker or cardioverter-defibrillator applied part.

2.Set the product to airplane mode or turn o the power in advance in places where you cannot move freely or where you cannot secure a distance of more than 15 cm with one another, since there may be people with a implanted cardiac pacemaker or implanted cardioverter-defibrillator nearby.

3.Pay attention to the following points when using the product inside medical institutions.

•Do not bring product into operating theaters, intensive-care units (ICU) and coronary care units (CCU).

•Turn product o in hospital wards.

•Even if you are in a lobby, etc., be sure to turn product o when there are electronic medical devices nearby.

•When a medical institution has laid down designated areas where use of the product is prohibited or is not allowed to be brought in, abide by the instructions of that medical institution.

4.When using electronic medical devices other than an implanted pacemaker and implanted cardioverter-defibrillator outside a medical institution (e.g. home medical treatment), check individually with the manufacturer of the electronic medical device regarding the influence of radio waves.

Stay alert to your surroundings when calling,

messaging, browsing the Internet, shooting photos, Do playing games, watching TV (1Seg), or listening to music. Failure to do so might cause a fall or tra c

accident.

Do not send data by infrared communication with

the infrared port pointing toward eyes. Doing so Don’t might a ect eyes. Also, sending data with the

infrared port pointing toward some other infrared device might cause false operation, etc.

Do not use the photo light in front of a person's eye. Do not gaze at the light emitting part when the

Don’t photo light is on. Doing so may cause impairment of eyesight, etc. Be especially careful not to take pictures of small children from a very close distance.

Do not light the photo light toward a driver of a car, motorbike, or bicycle. If dazzled by the light, the

Don’t driver might become unable to drive and cause an accident.

Sometimes, very rarely some people demonstrate symptoms such as temporary muscle spasms,

Do loss of consciousness, etc. by watching repeatedly flickering screens. Those with a past history of this should consult with a physician beforehand.

16

Be sure to read the following cautions before use.

Use of the main unit in a car might sometimes

a ects on-vehicle electronic devices, though this Don’t rarely happens. If this happens, stop use since this

may impair safe travel.

If you feel any abnormality with your skin,

immediately consult a dermatologist. Itching,

Do rashes, eczema, etc. sometimes occurs depending on your physical constitution and condition.

■The materials of parts used on product are as follows.

Part		Material	Surface
			treatment
Outer case (display frame		PC resin	UV coating
part)
Outer case (side)		Aluminum alloy	Anode treatment
External case (outsider of		PBT resin	-
the external connection
terminal)
Back cover		PC+ABS+GF resin	IML
Power key		Aluminum alloy	Anode treatment
Volume key		Aluminum alloy	Anode treatment
Display		Hardened glass	Easy cleaning
			coating
Earpiece		PET	Vapor deposition
Out camera		Sapphire crystal	-
Camera lens	Silver	Stainless steel	Cr plating
decoration	Black		PVD coating
Flash and	Silver	PC resin	Vapor deposition
infrared port	Black		Print

	Do not bring the product close to magnetized
	objects such as cash cards, floppy disks, credit
Don’t	cards, and prepaid cards. Doing so might result in
	loss of recorded information.
	Do not allow liquids, metal objects, burnable items, and
	other foreign matter to get inside the microSD memory
Don’t	card slot. Failure to do so might cause fire, electric
	shock, or a fault.
	Do not swing product around by holding the Stereo
	earphone with Microphone (sample) etc. Doing so
Don’t	might cause an accident or damage.
	Do not use it with microSD memory card slot cover
	closed. Doing so might result in malfunction due to
Do	dust and water getting in.
	Be careful when setting vibrator (vibration) or
	ringtone if you heart is weak. Doing so might result
Do	in bad e ect to heart.
	Pay attention to items stuck to the main unit. The
	speaker uses magnets, and so thumbtacks and
Do	pins, craft knife blades, staples, and other metal
	objects sometimes become stuck to the main unit,
	and cause unexpected injury. Before using the
	product, be sure to check that there are no foreign
	objects on the speaker or other parts.

Precautions Safety

17

Precautions Safety

Do not place the product directly on sand at a beach, etc. Sand or other small particles might get

Don’t inside the earpiece, microphone, or speaker, causing the volume to drop. If sand gets inside product main unit, it might cause overheating or a fault.

When using the product for calling or data

communication, be careful not to keep the product Don’t in direct contact with your skin for a prolonged

period, or not to cover the product with paper, cloth, bedding, etc. The main unit might get hot, causing fire, burns, or a fault.

■Built-in battery

(The built-in battery of product is a lithium polymer

battery.)

Li-ion00 When you purchase your cell phone, it is not fully charged.

Charge the battery before using the product.

	Be sure to read the following hazards before
	use.
	If the leaked liquid gets on your skin or clothes,
	immediately rinse it o with water to avoid injury. If
Do	the liquid gets into your eyes, do not rub but wash
	your eyes with water, and immediately consult a
	doctor to avoid the risk of losing your eyesight.
	If the liquid gets on a device, wipe it o without
	touching it.
	The built-in battery is a consumable item. If the
	performance of a battery does not recover (e.g.
Do	the usable time after each charge has become
	extremely short), the battery is at the end of service
	life, so stop its use. Failure to do so might cause
	overheating, fire, rupture, or leakage. Because the
	battery is a built-in type, an au shop will accept
	holding over and repair for a charge. Note that the
	product may not be available for use for a certain
	period. Note that the length of service life varies
	depending on the usage condition, etc.

18

■Charging equipment

Be sure to read the following warnings before use.

Do not use at other voltages than the specified power supply voltage. Doing so might cause fire, Do overheating or electric shock. Use only a domestic

100 V AC power supply for use in Japan.

Do not use at other voltages than the specified power supply voltage. Doing so might cause fire,

Don’t overheating or electric shock.

•AC adapter (sold separately): 100 VAC to 240 VAC

•DC adapter (sold separately): 12/24 VDC (for negative grounded vehicles only)

Firmly insert the plug of the specified charging equipment (sold separately) into the power outlet Do or cigarette lighter socket down to the base of its

pins. Incomplete insertion of the power plug might result in electric shock or fire caused by overheating and fire. Do not use the damaged specified charger, power outlet or cigarette lighter socket with loose insertion connector.

If the fuse in the common DC adapter 03 (sold separately) blows, replace it with a fuse of the Do specified type (250 V, 1A). Replacing with a

di erent type of fuse might cause overheating or fire. (For information about fuse replacement, carefully read the manual for the common DC adapter 03 (sold separately).)

Do not damage, modify, twist, pull, or place a heavy object on the power cord of the specified charging Don’t equipment (sold separately). Do not use a damaged cord. Doing so might cause an electric shock, short

circuit, or fire.

Do not let your hands, fingers, and other parts of the body touch the connection terminals. Doing so

Don’t might cause electric shock, injury, or a fault.

If you hear thunder, do not touch the power plug. Doing so might cause an electric shock as a result

Don’t of a lightning strike.

Before cleaning the specified charging equipment (sold separately), unplug its power plug from the

Unplug outlet or cigarette lighter socket. If the plug remains plugged in when you clean the equipment, it might cause an electric shock or short circuit.

Wipe o dust on the power plug. Failure to do so

might cause fire, burns, or electric shock.

Do

Precautions Safety

19

Precautions Safety

	Install and position in-car devices where they do not
	hinder driving or safety equipment such as airbags.
Do	Failure to do so might cause a tra c accident.
	Install in-car devices following the instructions of
	their manuals.
	When the AC adapter is not to be used for a long
	time, disconnect the AC adapter's power plug from
Unplug	the power outlet. Failure to do so might cause
	electric shock, fire, or a fault.

Do not use in places subject to direct splashing

with water, pet urine, or other liquids. Doing so Not liquids might result in faults resulting from overheating,

fire, electric shock, or short-circuiting of electronic circuits. In the event that the product is splashed with liquid, immediately disconnect the AC adapter's power plug.

Be sure to read the following cautions before use.

Do not use in humid places such as bath areas, or

connect/disconnect the AC adapter with wet hands. Not liquids Doing so might cause electric shock or a fault.

No wet hands

	Charge the battery in a stable place. If placed on
	an inclined surface or wobbly stand, the product
Do	might fall causing injury or damage. Pay su cient
	attention while the vibrator is set to ON. In addition,
	do not cover or wrap the product with a cloth or
	bedding. Doing so might cause fire or a fault.
	When unplugging the plug of the specified charging
	equipment (sold separately) from the power outlet,
Do	hold and pull the power plug. Pulling on the cable
	might damage it.
	Do not use the common DC adapter 03 (sold
	separately) with the car engine stopped. Doing so
Don’t	might result in draining of the car battery.

20

■au Nano IC Card (LTE)

Be sure to read the following warnings before use.

Do not put the au Nano IC Card (LTE) in a cooking apparatus such as a microwave oven or a pressure Don’t vessel. Doing so might cause melting, overheating,

fuming, loss of data, or a fault.

Be sure to read the following cautions before use.

Be careful when attaching or removing au Nano

IC Card(LTE). Doing so might injure your hands or Do fingers.

Use only the devices specified by the Company to insert the au Nano IC Card (LTE) in. Using a device Do not specified by the Company might cause loss of data or a fault. For the specified devices, contact

an au shop or Customer Service Center.

Do not disassemble or modify the au Nano IC Card

(LTE). Doing so might cause loss of data or a fault.

Not disassembly

Do not use or leave the au Nano IC Card (LTE) in hot places such as by the fire or a heater. Doing so

Don’t might cause melting, overheating, fuming, loss of data, or a fault.

Do not throw the au Nano IC Card (LTE) into a fire or

heat it. Doing so might cause melting, overheating, Don’t fuming, loss of data, or a fault.

Do not touch the IC (metal) part of the au Nano IC

Card (LTE) or short-circuit it. Doing so might cause Don’t loss of data or a fault.

Do not drop the au Nano IC Card (LTE) or subject it

to strong impact. Doing so may cause a fault.

Don’t

Do not fold, bend or place a heavy object on the au

Nano IC Card (LTE). Doing so may cause a fault.

Don’t

Do not wet the au Nano IC Card (LTE). Doing so

may cause a fault.

Not liquids

Do not scratch the IC (metal) part of the au Nano IC

Card (LTE). Doing so may cause a fault.

Don’t

Do not store the au Nano IC Card (LTE) in dusty

places. Doing so may cause a fault.

Don’t

Do not store the au Nano IC Card (LTE) in places

exposed to direct sunlight or hot and humid places. Don’t Doing so may cause a fault.

Store the au Nano IC Card (LTE) out of reach of small children. Accidental swallow might cause su ocation, Do injury, etc.

Precautions Safety

21

Precautions Safety

■Stereo earphone with Microphone (sample)

Be sure to read the following warnings before use.

Stereo earphone with Microphone (sample) is not

waterproof. Do not splash with water or other

Not liquids liquids. Also, never use in places subject to direct splashing with water or pet urine, etc. or in humid places such as bath areas, or use with wet hands. Doing so might cause electric shock, fault from overheating, fire, electric shock or corrosion of electronic circuits.

While you are driving or riding a bicycle, do not play game or listen to music. Doing so may compromise

Don’t tra c safety and cause an accident.

Be sure to read the following cautions before use.

When playing game or music, adjust volume.

Setting too loud a volume or using the earphone Do continuously for a long period of time might

adversely a ect your hearing. Even the proper volume a ects your hearing if you listen for a long period of time. Also, raising the volume too high might prevent you from hearing sounds around you, which might in turn lead to a tra c accident at a railroad crossing or pedestrian crossing.

	Do not wrapthe cable on this product. Voice may
	get interrupted if sensitivity decreased and cause
Don’t	noise occurs Do not pull the cable. Also do not hold
	the cable to life this product. Doing so might cause
	the damage of the cable, connection plug and
	earphone jack.
	Do not make the connection plug dirty. Doing so
Do	may cause a fault.
	Insert or remove the connection plug into/from the
Do	earphone jack straightly.
	When you adjust the volume, adjust it little by little.
	If you raise the volume too much from the outset,
Do	sudden loud noise from the earphone, etc. might
	adversely a ect your ears.
	If you feel any abnormality with your skin,
	immediately consult a dermatologist. Itching,
Do	rashes, eczema, etc. sometimes occurs depending
	on your physical constitution and condition.

22

■The materials of each part of the Stereo earphone with Microphone (sample) is shown below.

Part	Material	Surface treatment
Ear pad	Silicon	-
Earphone exterior	PC resin	UV coating
Logo part	Aluminum	Anode treatment
Microphone button	PC resin	-
Microphone button	PC resin	-
case
Plug exterior	Rubber	-
Cable	Rubber	-
Plug	Ni (YR3541-2034)	Nickel plating

Handling Precautions

These precautions are provided to ensure that performance can be fully demonstrated.

Thoroughly read these precautions to ensure correct use.

■Precautions common to the main unit, built-in battery, charging equipment, au Nano IC Card (LTE), peripheral devices

●Do not apply excessive force to the product during use. Be sure not to put the product into a tightly packed bag or place a heavy object on the product in a bag. Sitting on the product in your pocket might damage the display or internal circuit board resulting in a malfunction.

Keeping an external device connected to the external connector or earphone jack might damage the connector resulting in a malfunction. Such damage and malfunction are not covered by the warranty, even if there is no external damage.

●To ensure waterproof property (equivalent to IPX5 and IPX7) of this product, use the product with the cover tightly closed.

Note that the waterproof property is not guaranteed in every usage condition. Do not allow water to get inside the product or splash water on charging equipment, or optional accessories. Do not attach/remove the back cover in the rain or with water drops on the surface of the product. Doing so might cause water intrusion resulting in internal corrosion.

Malfunctions determined to be caused by water intrusion are not covered by the warranty.

●Do not use the product in extremely hot, cold, or humid places. (Use within an ambient temperature range of 5 to 35 and humidity range of 35% to 85%.)

●Do not use in places subject to lots of dust or vibration.

●Clean the connection terminals with dry cotton swabs, etc. every now and then. Soiled terminals might cause poor connection. Do not exert a strong force to clean the connection terminals to prevent deformation.

Precautions Safety

23

Precautions Safety

●Clean the product with a soft dry cloth (such as the type used for eyeglasses). Forceful rubbing with a dry cloth may scratch the display. The display may be stained if splash or smear is left attached to the surface. Wiping the product using alcohol, thinner, benzene, detergent, etc. might erase the printing on the outer casing or cause discoloration.

●Use as far away as possible from land-line phones, TVs, and radios. Use nearby might a ect them.

●The product may become warm while charging etc., depending on the situations, but this is not abnormal.

●When the product is used by a child, guardians should thoroughly read the "Basic Manual" (this manual) and teach the child how to use it.

■Main unit

●Do not forcefully press, tap, or intentionally subject the display to strong impact. Doing so might cause scratching or damage.

●Do not forcefully press your fingernails, sharp objects, or hard objects against button or display surface. Doing so might cause scratching or damage.

The touch panel is designed to be lightly touched by fingers. Do not apply strong pressure with your fingers or sharp-pointed

objects (such as fingernails, ballpoint pens, and pins) on the touch panel.

In the following cases, the touch panel may not work even if you touch it. It may cause malfunction.

•Operation with gloved hands

•Operation with fingernails

•Operation with a foreign object placed on the touch panel

•Operation with a protective sheet or sticker on the touch panel

•Operation with water drops left or frozen on the surface

•Operation with wet or sweaty fingers

•Operation under water

●Do not remove the stickers printed with the IMEI that can be seen when the back pack is removed. These stickers prove that product and the communication module you are using comply with the Wireless Telegraphy Act and Telecommunications Operations Act.

24
