LGL21
Basic Manual ’12.XX
Preface
Thank you for buying the LGL21.
Before using the product, be sure to read the "Basic Manual" (this manual) to ensure correct use. After you have finished reading this manual, be sure to store it in a safe place so that you can retrieve it whenever needed. If you lose the "Basic Manual" (this manual), contact an au shop or Customer Service Center.
ii
About Operating Instructions
■■"Basic■Manual"■(this■manual)
In the "Basic Manual" (this manual), handles only basic operations for main features. For detailed descriptions of various functions, refer to the "Instruction Manual" application that can be used on your au mobile or "Full Instruction Manual" on au website.
•Company names and product names in this manual are either trade marks or registered trade marks.
■■"Instruction■Manual"■Application■(Japanese■only)
You can use the "Instruction Manual" application installed in the LGL21 to view detailed operational procedures. Certain functions can be directly activated from the application screens on which their operations are described.
AHome■screen■Manual" u■"Applications"■u■"Instruction■
•When using the application for the first time, you must download and install it following the on-screen instructions.
■■Downloading■Instruction■Manual
You can download "Instruction Manual" (Japanese only), " (Setting Guide)" (Japanese only) and "Instruction Manual" (Full version) (Japanese only) from au website. http://www.au.kddi.com/torisetsu/index.html
Safety precautions
Before you start using the LGL21, be sure to read the "Safety Precautions" to ensure correct use.
Before you assume that the product is malfunctioning, be sure to read "Troubleshooting" in this manual and check for possible remedies.
Check for possible remedies in the following au Customer Support site of au website. http://www.kddi.com/customer/service/au/trouble/kosho/ index.html
1
When using the product
•Communication is not possible even inside the service area in places where the signal does not reach (e.g. tunnels and basements). Also, communication is sometimes not possible in poor reception areas. Communication is sometimes interrupted if you move into a poor reception areas during communications.
•A feature of digital communications used on the LGL21 is that consistent, high communications quality continues to be maintained down to a weak signal limit. Accordingly, communication is sometimes interrupted if this limit is reached and exceeded during communications.
•Since the LGL21 uses radio waves, the possibility of communication intercepts by third parties cannot be eliminated. (Though CDMA system has highly secure confidential communication features.)
•The LGL21 is compatible with the international roaming service. Each network service described in this manual varies depending on the area and service content.
•Since the LGL21 is a radio station under the Radio Law, you may be asked to temporarily submit the LGL21 for inspection in accordance with the Radio Law.
•After inserting the au IC-Card in your cell phone, power on the LGL21. The product number of the cell phone is automatically sent to KDDI CORPORATION for maintenance and monitoring operational status of your cell phone.
•Take care not to disturb people around you by ringtone of an incoming call or when you make a call in a public place.
•When the product is used by a child, parents or guardians should thoroughly read the "Basic Manual" (this manual) and teach the child how to use it.
•Do not talk on the phone loudly.
•Ask for permission of other people before taking pictures of them by this cell phone.
•The same to PC, depending on the application used for installation, the operation of your LGL21 may get unstable, or your location information and other personal information registered in the LGL21 may get revealed and abused via Internet. Make sure to confirm the source and the operation conditions of the application you use.
Take■care■of■people■around■you!
•Turn the product off in crowded trains or other crowded places, since there may be people with a cardiac pacemaker nearby.
•When a medical institution has laid down designated areas where use of the product is prohibited or is not allowed
to be brought in, abide by the instructions of that medical institution.
Use■of■the■product■is■not■allowed■in■the■following■
places!
•Do not use a cell phone while driving a car or riding a motorbike or bicycle. It may cause a traffic accident. Use of a cell phone while driving a car or motorbike is prohibited by law. Use of a cell phone while riding a bicycle may be punishable by some regulations.
•Do not use the LGL21 while you are aboard an airplane. Use of electric devices transmitting radio waves in airplane is prohibited by law. Some airline companies, however, allow their passengers to use cell phones. For details, contact the airline company you use.
The LGL21 is automatically powered on when being connected with a PC by a microUSB cable. Therefore, do not connect it in airplane.
2
List of Packaged Items
Before you start using the product, make sure that you have all the following packaged with the product.
●LGL21 main unit
●Battery pack (LGI11UAA)
●microSD memory card (2GB) (Sample)
●microUSB cable (Sample)
●AC adapter (LGI11PQA)
●(Setting Guide)
●(Instruction Manual)
●(Warranty)
●(Precautions)
The■following■items■are■not■included■in■the■package.
● Earphone
memo
•Reproduction of the content of this manual in part or in whole is prohibited.
•The content of this manual is subject to change without notice.
•Every eff ort has been made in the preparation of this manual. Should you notice any unclear points, omissions, etc., feel free to contact us.
•Wrong page order or missing pages will be replaced.
•Screen illustrations used in this manual may look diff erent from the actual screens.
3
Contents
Preface ……………………………………………………………………… ii About Operating Instructions ………………………………………… 1 Safety precautions………………………………………………………… 1 When using the product ………………………………………………… 2 List of Packaged Items ………………………………………………… 3
Regarding notations used in this document ……………………… 5
Safety■precautions
Exemptions ………………………………………………………………… 6 Safety Precautions (Observe Strictly) ……………………………… 6 Handling precautions…………………………………………………… 17 Available Security Codes……………………………………………… 22 Privacy protected function …………………………………………… 23 PIN code …………………………………………………………………… 23 Notes on using Bluetooth®/wireless LAN functions ………… 24 Notes on packet communication charge ………………………… 27

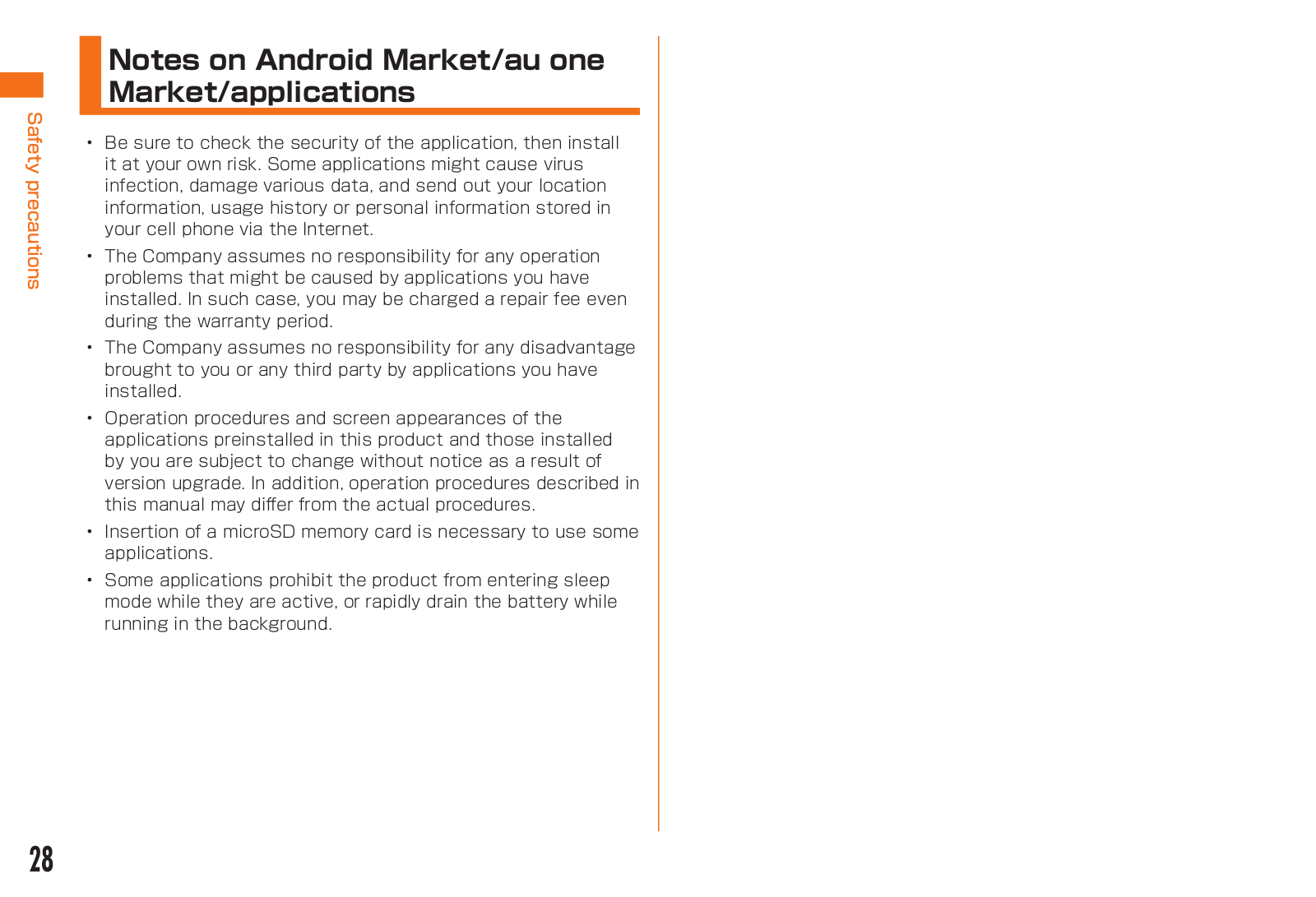

Notes on Android Market/au one Market/applications ……… 28
Before■using■the■LGL21
Names and functions of parts ……………………………………… 29 Attaching/removing the battery pack …………………………… 30 Using au IC-card ………………………………………………………… 32 Charging …………………………………………………………………… 34 Turning the power on/off ……………………………………………… 36

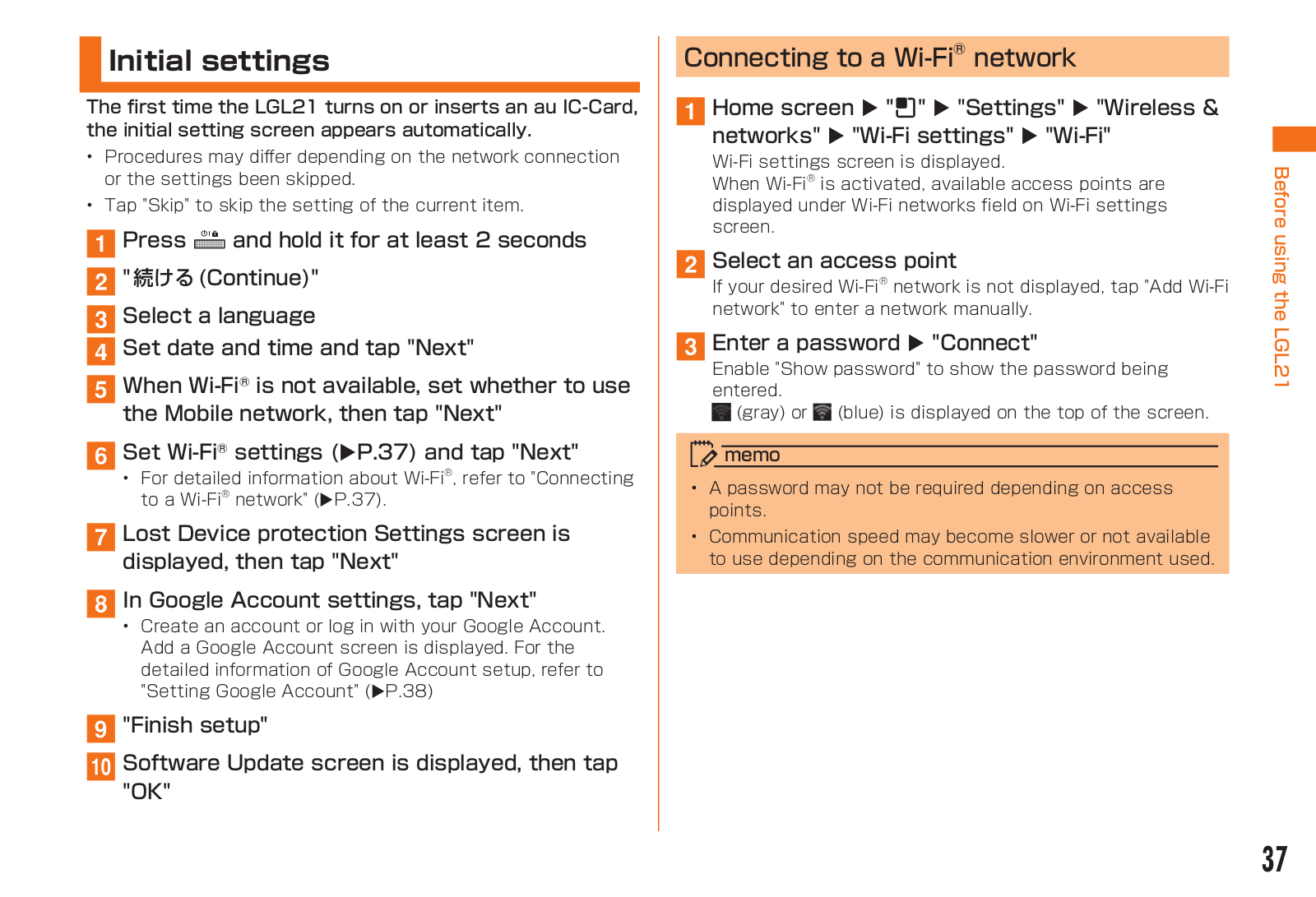

Initial settings …………………………………………………………… 37
Basic■operations
Using the Touch panel ………………………………………………… 40 Using the home screen ……………………………………………… 41
Monitoring LGL21's status…………………………………………… 41
Character■input

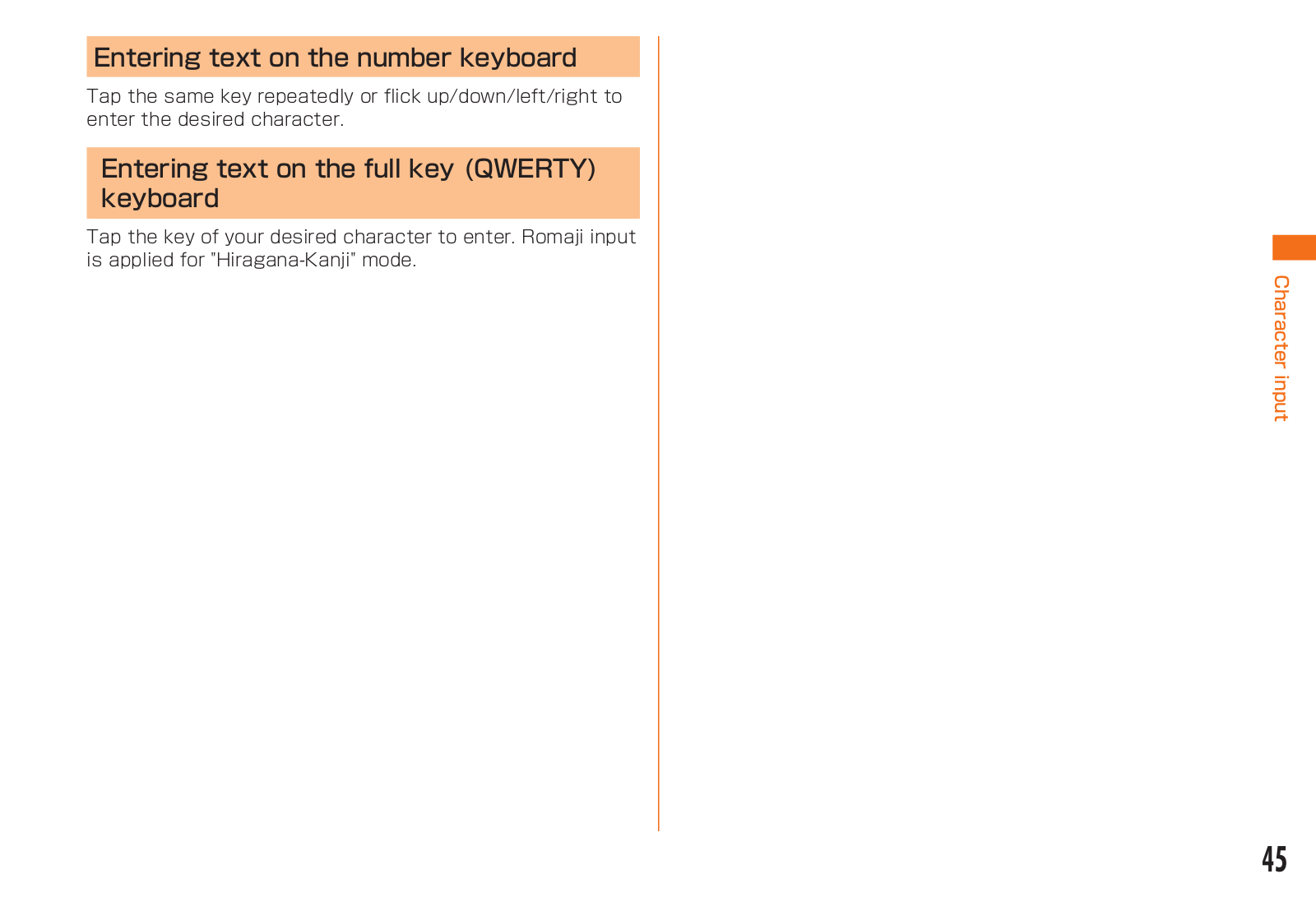

Entering text ……………………………………………………………… 44
Phone
Making calls ……………………………………………………………… 46 Receiving calls…………………………………………………………… 48

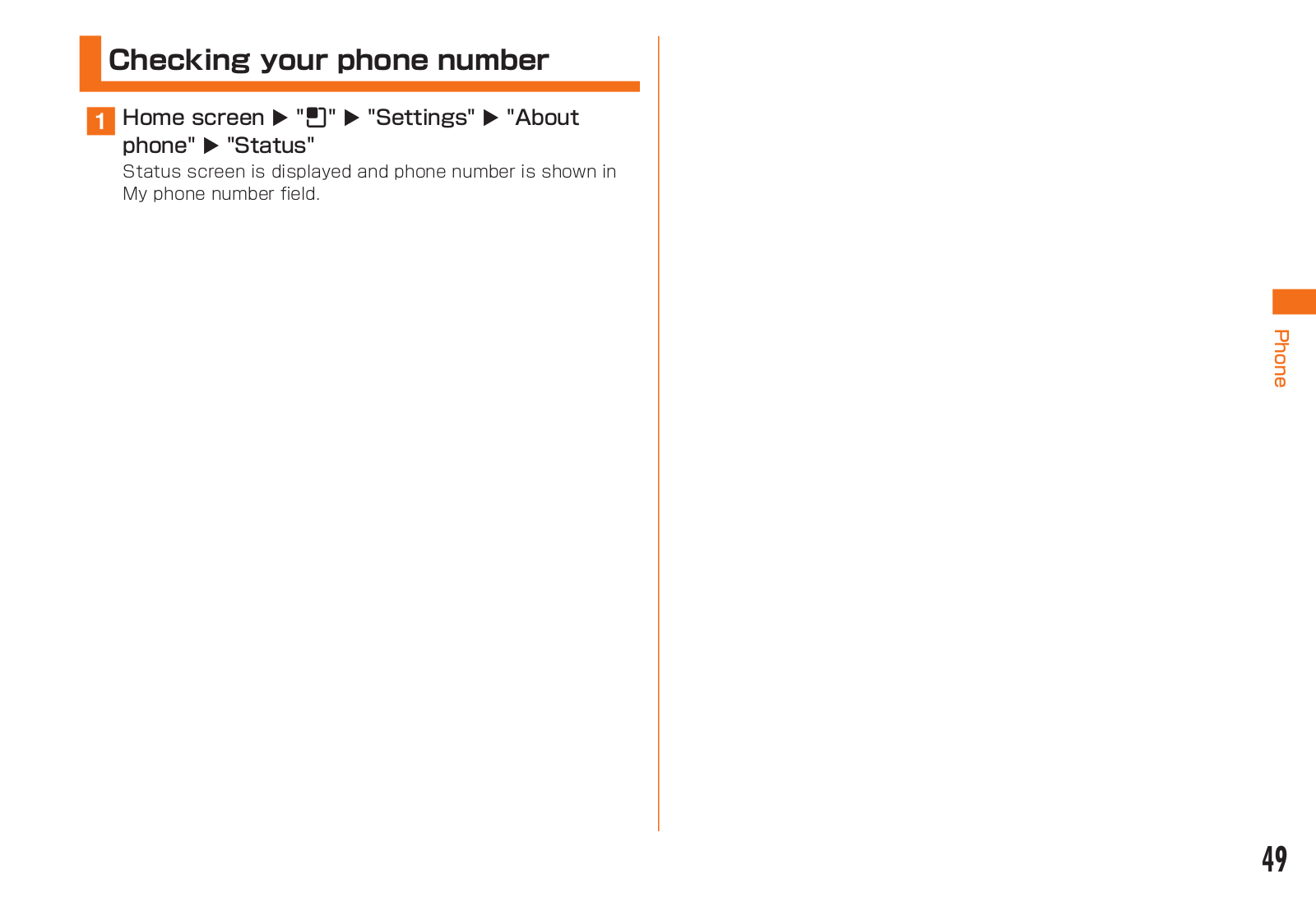

Checking your phone number………………………………………… 49
Contacts
Registering a contact ………………………………………………… 50
Using e-mail ……………………………………………………………… 51 Using SMS (C-mail) …………………………………………………… 51
Using au countermeasures-against-disaster application …… 52
Applications
Application ………………………………………………………………… 55
File■management
Using a microSD memory card ……………………………………… 56
Function■settings
Viewing the Setting Menu …………………………………………… 59
Appendix
Appendix …………………………………………………………………… 60
4
Regarding notations used in this document
■■Key■indications■used■in■this■manual
In this manual, keys are represented by simplifi ed illustrations as shown below.
■■Indications■used■for■the■operation■of■selecting■items/ icons/keys,■etc.Indications■used■for■the■operation■of■ selecting■items/icons/keys,■etc.
Notations used for operation procedures in this manual are as follows.
Notation |
|
Description |
|
|
|
||
Home screen u "Phone" |
Tap "Phone" at the bottom of the |
||
u "1" "4" "1" u " |
" |
Home screen. Tap " |
" " " " " |
|
|
in order and tap " |
". |
|
|
|
|
Home screen u " |
" u |
Tap " " on the Home screen. Tap |
|
"Notifi cations" |
|
"Notifi cations". |
|
|
|
|
|
memo
•Descriptions in this manual are based on the operations of portrait screen. Items, icons or the keys on the screen may look diff erent with horizontal screen.
•Items, title levels and icons in this manual may look
diff erent based on diff erent functions you use or diff erent conditions, etc.
•In this manual, refer to the method of entering lock No. for unlock method.
•In this manual, "microSDTM memory card" or "microSDHCTM memory card" is called "microSD memory card" or "microSD" for short.
■■Screen■displays■used■in■this■manual
Screen illustrations shown in this manual may look
diff erent from the actual screens. In some cases, minor details or a part of a screen may be omitted.
For the default settings of the respective functions, refer to "LGL21 Instruction Manual (Full version)".
Safety■precautions
5
Safety■precautions
Exemptions
•The Company is not liable for any damages arising from earthquakes, lightning, storms, floods or other natural disasters, as well as fires, actions by third parties, other accidents, intentional or mistaken misoperation by the customer, or use under other unusual conditions outside the responsibility of the Company.
•The Company is not liable for any incidental damages (change/disappearance of described content, loss of business income, disruption of business, etc.) arising from use of or inability to use the product. It is recommended that you keep a copy of important numbers, etc.
•The Company is not liable for any damages arising from improper usage not written in this manual.
•The Company is not liable for any damages arising, for example, from malfunction caused by combination with connected devices or software not related to the Company.
•Captured image data or downloaded data may sometimes be altered or lost due to faults, repair or other handling of the product. The Company is not liable for any damage or lost income resulting from recovery of these data.
•It is recommended you keep a copy of important data in your PC's hard disk, etc. Whatever the cause of fault or malfunction may be, the Company assumes no responsibility for alteration or loss of saved information.
* "The Company" as appears on the product refers to the following companies:
Sold by: KDDI CORPORATION,
OKINAWA CELLULAR TELEPHONE COMPANY Imported by: LG Electronics Japan Inc.
Manufactured by: LG Electronics Inc.
Safety Precautions (Observe
Strictly)
■■For■proper■use,■read■these■safety■precautions■before■ using■this■product.
●These "Safety Precautions" describe instructions that should be observed to prevent damage to property or injury to the customer or others using the LGL21.
●These instructions are divided into the following categories.
This symbol indicates the potential and imminent danger of death or serious injury*1 to a person.
This symbol indicates the possibility of death or serious injury*1 to a person.
This symbol indicates the possibility of personal injury*2 to a person or physical damage*3.
*1 Serious injury: This refers to loss of sight, injury, burns (highand low-temperature), electric shock, broken bones, injuries with residual aftereffects from poisoning, etc., and injuries requiring hospital admission for treatment or
longterm hospital attendance as an outpatient.
*2 Injury: This refers to injuries, burns (highand lowtemperature), electric shock, etc. that do not require hospital admission for treatment or long-term hospital
attendance as an outpatient.
*3 Physical damage: This refers to extended damage to buildings, furniture, livestock, or pets.
6
●Explanation of graphic symbols used in this manual are as follow.
Don’t |
Indicates an action that is not allowed. |
|
|
|
Indicates that handling with wet hands is not |
No |
allowed. |
wet hands |
|
Not |
Indicates that disassembly is not allowed. |
|
|
disassembly |
|
|
Indicates that use in a place where the product |
|
is likely to get wet or allowing the product to get |
Not liquids |
wet is not allowed. |
Indicates an action that must be done.
Do |
|
|
Indicates that the power plug must be |
Unplug |
disconnected from the power outlet. |
|
■■Precautions■common■to■the■main■unit■of■the■LGL21,■ battery■pack,■charging■equipment,■au■IC-Card,■peripheral■ devices
Be■sure■to■read■the■following■hazards■
before■use.
Be sure to use only the exclusive peripheral devices. Use of other peripheral devices might cause
Do overheating, fire, rupture, fault, or leakage of liquid.
Do not use, store or leave the product in hot places (e.g. by the fire, near a heater, under a kotatsu, in
Don’t direct sunlight, in a car in the hot sun). Doing so might cause ignition, rupture, fault, fire or injury.
Before entering an area where flammable gas is
generated such as a gas station, be sure to turn off Do the LGL21 and stop charging the battery. Failure to
do so might cause the gas to catch fire.
Do not put the product in a microwave oven or a pressure vessel. Doing so might cause ignition,
Don’t rupture, fault, fire or injury.
Do not throw the product into a fire or heat it. Doing so might cause fire, rupture or fire.
Don’t
Do not short-circuit the connection terminals. Do not allow conductive foreign objects (metal fragments,
Don’t pencil leads, etc.) to come into contact with or get inside the connection terminals. Doing so might cause fire or a fault.
Safety■precautions
7
Safety■precautions
|
|
|
When using a metal strap or accessory, take sure |
|
|
|
not to allow the metal part come in contact with |
Don’t |
the connection terminals or power outlet. Doing so |
||
|
|
|
might cause electric shock, fire, injury or a fault. |
|
|
|
|
|
|
|
When plugging the AC adapter into an outlet, do not |
|
|
|
allow a metal strap or accessory come in contact |
Don’t |
with the power plug. Doing so might cause fire, |
||
|
|
|
electric shock, injury or a fault. |
|
|
|
|
|
|
|
Do not expose the camera lens to direct sunlight. |
|
|
|
Doing so might cause ignition, rupture or fire by the |
Don’t |
light-collecting mechanism of the lens. |
||
|
|
|
|
|
|
|
The customer is not allowed to disassemble, modify |
|
|
|
or repair the product. Doing so might cause a fault, |
|
|
|
|
Not |
fire, electric shock, or injury. The Company is not |
||
disassembly |
liable even in the event of any nonconformities |
||
|
|
|
arising on the LGL21 or software as a result of |
|
|
|
modification, etc. Modification of cell phones is in |
|
|
|
violation of the Wireless Telegraphy Act. |
|
|
|
Be■sure■to■read■the■following■warnings■ |
|
|
|
|
|
|
|
before■use. |
|
|
|
|
|
|
|
Do not drop or subject to strong impact, such as |
|
|
|
throwing. Doing so might cause rupture, overheating, |
Don’t |
fire, or a fault. |
||
|
|
|
|
|
|
|
Do not use outside when you can hear thunder. |
|
|
|
Doing so might risk lightning strikes and electric |
Don’t |
shock. |
||
|
|
|
|
Do not let your hands, fingers and other parts of the body touch the connection terminals. Doing so
Don’t might cause electric shock, injury or a fault.
If the LGL21 is damaged because it is dropped or something, and its internal parts are exposed, do not
Don’t touch the exposed parts with your hands. Doing so might cause electric shock or injury from damaged parts. Contact an au shop or Customer Service Center.
In the event that the LGL21 is splashed with liquid,
immediately disconnect the power plug, battery pack Not liquids and microUSB cable. Also, faults may be caused
|
by humidity when you keep this product too close |
|
|
to your body. Faults caused by wetting with water |
|
No |
or humidity are not covered by the warranty and |
|
charges will be incurred for repair. |
||
wet hands |
When removing the battery cover, do not exert more than necessary force. The battery pack might jump
Don’t out, for example, and cause injury or a fault.
Do not operate the product while driving an automobile or motorized bicycle, riding a bicycle or
Don’t walking. Doing so may compromise traffic safety and cause an accident.
If charging is not completed after the specified charging time, stop charging. Failure to do so might
Don’t cause leakage of liquid, overheating, rupture or fire.
8
Be■sure■to■read■the■following■cautions■
before■use.
Do not store the product in places subject to direct sunlight (e.g. in automobiles), places that get hot,
Don’t places that get extremely cold, and in humid or dusty places. Doing so might cause overheating, fire, deformation or a fault.
Do not leave on unstable places such as rocky stands or tilting surfaces. Dropping the product may
Don’t cause injury or damage. Pay sufficient attention while vibrator is set to ON. Also, pay sufficient attention to impact, etc.
Do not cover or wrap the product with bedding, etc. while using or charging the product. Doing so might
Don’t cause fire, fault or injury.
Do not leave in places within the reach of small children. Small children might swallow small parts,
Don’t etc. by mistake and choke on them, or might drop them by mistake and cause accidents or injury. Also, pay attention while using TV antenna.
Do not touch the main unit of the LGL21, battery pack, or AC adapter for a long time while power is Don’t being supplied from an external source. Doing so
might cause low-temperature burns.
Do not use power outlets or wiring apparatus beyond its rating. Also, exceeding rating, for example, by
Don’t connecting multiple devices to a single power strip might cause overheating and fire.
Do not use the product with the battery cover removed.
Don’t
Do not place near corrosive chemicals or in places where corrosive gas is generated. Doing so might
Don’t cause a fault or loss of internal data.
Do not plug AC adapter when the battery pack is removed from the LGL21 main unit. Doing so might
Don’t cause fire or electric shock.
Do not leave or store with the battery cover or battery pack removed from the main unit. Doing
Don’t so might allow dust or other foreign objects to get inside and cause a fault.
The product may become hot by prolonged use especially in high-temperature environment. Be Do careful when using the product touching your skin
for a long time, as it might cause low-temperature burns.
Do not use if there is smoke, abnormal odor or noise, excessive overheating, or other abnormalities. If
Do an abnormality occurs, disconnect the AC adapter from the power outlet, make sure that the product is not overheating before turning the power off and removing the battery pack, and contact an au shop or Customer Service Center. Also, if you have dropped or damaged the product, do not continue to use it in that state, and contact an au shop or Customer Service Center.
Safety■precautions
9
Safety■precautions
When you use earphones purchased commercially, adjust it to a proper volume. Too loud or using them Do for a long time might cause hearing problem.
Surrounding sounds may not be heard clearly when you turn up the volume too much and therefore cause a traffic accident at railroad crossings and pedestrian crossings.
When using an AC adapter or external device,
insert/remove the connector straight to/from the Do terminal. Make sure the orientation of the connector
is correct. Failure to do so might cause damage or a fault.
■■Main■unit■of■the■LGL21
Be■sure■to■read■the■following■warnings■
before■use.
Do not use a cell phone while driving a car or riding a motorbike or bicycle. It may cause a traffic accident.
Don’t Use of a cell phone while driving a car or motorbike is prohibited by law. Use of a cell phone while riding a bicycle may be punishable by some regulations.
Turn off the LGL21 in airplane. The radio waves of the LGL21 might affect electronic devices Do and cause faults during a flight. The LGL21 is
automatically powered on when being connected with a PC by a microUSB cable. Therefore, do not connect it in airplane.
The LGL21 sometimes affects high-precision
electronic devices. So, turn it off near such devices. Do (Examples of electronic devices that might be
affected by the product include cardiac pacemakers, hearing aids, other electronic medical devices,
fire alarms, and automatic doors. If you are using an electronic medical device, contact the device manufacturer or retailer for information about the possible affect of radio waves.)
10
When using the LGL21 near an implanted
pacemaker, implanted cardioverter-defibrillator or Do other electronic medical device, radio waves might affect these units and devices. So, please observe
the following.
1.Those with an implanted pacemaker or implanted cardioverter-defibrillator should carry or use the
LGL21 at least 22 cm away from the pacemaker or cardioverter-defibrillator.
2.Turn off the LGL21 in crowded trains or other
crowded places, since there may be people with an implanted cardiac pacemaker or implanted cardioverter-defibrillator nearby.
3.Pay attention to the following points when using the product inside medical institutions.
•Do not bring the LGL21 into operating theaters,
intensive-care units (ICU) and coronary care units (CCU)
•Turn off the LGL21 in hospital wards. The
LGL21 is automatically powered on when being connected with a PC by a microUSB cable. Therefore, do not connect it in hospital wards.
•Even if you are in a lobby, etc., be sure to turn off the LGL21 when there are electronic medical devices nearby.
4.When using electronic medical devices other than an implanted pacemaker and implanted cardioverter-defibrillator outside a medical institution (e.g. home medical treatment), check individually with the manufacturer of the electronic medical device regarding the influence of radio waves.
Stay alert to your surroundings when calling,
messaging, browsing the Internet, shooting photos, Do playing games, watching TV (1Seg) or listening to music. Failure to do so might cause a fall or traffic
accident.
Sometimes, very rarely some people demonstrate symptoms such as temporary muscle spasms, Do loss of consciousness, etc. by watching strong
light or repeatedly flickering screens. Those with a past history of this should consult with a physician beforehand.
Be■sure■to■read■the■following■cautions■
before■use.
Use of the main unit in an automobile sometimes affects on-vehicle electronic devices, though this Don’t rarely happens. If this happens, stop use since this
may impair safe travel.
Do not leave the LGL21 in a extremely hot place such as an automobile with the windows closed in
Don’t summer.
The LGL21 might get hot, causing burns. Also, the battery capacity will drop and shorten the available battery usage time or deform the LGL21.
If you feel any abnormality with your skin,
immediately consult a dermatologist. Itching, rashes, Do eczema, etc. sometimes occurs depending on your
physical constitution and condition.
Safety■precautions
11
Safety■precautions
■The■materials■of■parts■used■on■the■LGL21■are■as■follows■.
Part |
Material |
Surface■treatment |
|
|
|
Outer case |
PC+GF resin |
Acrylic UV cured coating |
(display frame part) |
|
|
Outer case (side) |
PC resin |
Acrylic UV cured coating |
Battery cover |
PC resin |
Acrylic UV cured coating |
HDMI connector |
PC resin/ |
Acrylic UV cured coating |
|
urethane |
|
TV antenna |
PC resin |
Acrylic UV cured coating |
Power key |
Aluminum alloy |
Anode treatment |
Volume key |
Aluminum alloy |
Anode treatment |
(UP/DOWN) |
|
|
Display |
Hardened glass |
Easy Cleaning Coating |
Display decoration |
PC resin |
Acrylic UV cured coating |
Earpiece |
Stainless steel |
Acrylic urethane |
|
|
thermally-cured |
|
|
treatment |
Out camera lens |
Hardened glass |
None |
Camera lens |
Stainless steel |
Chrome plating |
decoration |
|
|
Do not use the LGL21 in crowded places. It might cause unexpected injury by hitting people.
Don’t
Do not bring the product close to magnetized objects such as cash cards, floppy disks, credit
Don’t cards, and prepaid cards. Doing so might result in loss of recorded information.
Do not allow liquids, metal objects, burnable items, and other foreign matter to get inside the
Don’t connection terminal and microSD memory card slot. Failure to do so might cause fire, electric shock or a fault.
Do not swing the product around by holding earphones purchased commercially, the hand strap,
Don’t or the TV antenna, etc. Doing so might cause an accident or damage.
Do not use the product with the cover of HDMI connector open. Dirt or water may get inside and Do cause a fault.
Stow the TV antenna when not watching TV (1Seg). If you operate the product for calling, etc. with the Do TV antenna extended, it might cause unexpected
injury by hitting your face, etc.
If you have a weak heart, be careful when setting the incoming vibration and ringtone volume to prevent Do adverse effects on your heart.
12
Pay attention to items becoming stuck to the earpiece or speaker. Magnets are used and so
Do thumbtacks and pins, craft knife blades, staples, and other metal objects sometimes become stuck to the main unit, and cause unexpected injury. Before using the product, be sure to check that there are no foreign objects on the earpiece or other parts.
Do not swing the LGL21 with extended TV antenna. Doing so might cause injury, damage of TV antenna
Don’t or deform the antenna.
Do not put the product directly on sand at a beach, etc. Sand or other small particles might get inside Do the earpiece, microphone or speaker, causing the
volume to drop. If sand gets inside the LGL21's main unit, it might cause overheating or a fault.
When using the product for calling or data
communication, be careful not to keep the product Do in direct contact with your skin for a prolonged
period, or not to cover the product with paper, cloth, bedding, etc. Doing so may cause fire, burns or a fault.
Do not use ballpoint pens, pencils or other sharppointed objects to operate the touch panel. Doing
Don’t so might cause damage to the display.
Do not operate the touch panel with fingernails. Doing so might result in split nails.
Don’t
■■Battery■pack
Li-ion00
The battery pack of the LGL21 is lithium-ion battery. It is not fully charged at the time of purchase. Charge the battery before using the product.
Mishandling■is■dangerous■as■it■might■
cause■overheating,■leakage■or■rupture.
Be■sure■to■read■the■following■hazards■
before■use.
Do not short-circuit the positive (+) and negative (-) terminals of the battery pack.
Don’t
Connect the battery pack to the LGL21 in the correct orientation. Connecting in an incorrect
Don’t orientation might cause rupture, fire or overheating. Do not try to forcibly connect the battery pack, instead thoroughly check the connection terminals before connection.
Do not puncture the battery pack with a nail, hit it with a hammer or step on it. Doing so might cause
Don’t fire or damage.
Do not allow metal objects (such as necklaces and hairpins) to come in contact with the connection
Don’t terminals when carrying or storing the battery pack. Doing so might cause fire or a fault due to a short circuit.
Safety■precautions
13
Safety■precautions
|
|
|
Do not disassemble, modify, repair or directly solder |
|
|
|
the battery pack. Doing so might cause spilling |
|
|
|
|
Not |
of the battery liquid resulting in an accident such |
||
disassembly |
as loss of eyesight if it gets into eyes, or cause |
||
|
|
|
overheating, fire or rupture. |
|
|
|
|
|
|
|
Do not use a battery pack that has been dropped, |
|
|
|
stepped on, damaged, or leaking battery liquid. |
Don’t |
Immediately move the battery pack away from fire if |
||
|
|
|
you notice leakage of liquid or unusual odor. Failure |
|
|
|
to do so might cause the leaked liquid to catch fire |
|
|
|
resulting in fire or rupture. |
|
|
|
|
|
|
|
Do not wet the battery pack with water, seawater, |
|
|
|
pet urine, etc. Do not charge the battery pack |
Not liquids |
when it gets wet. A wet battery pack might cause |
||
|
|
|
overheating, rupture or fire. If you drop the product |
|
|
|
into water by mistake, immediately turn off the |
|
|
|
power, remove the battery pack, and contact an au |
|
|
|
shop or Customer Service Center. Never charge the |
|
|
|
wet battery pack. |
|
|
|
|
|
|
|
If the liquid inside gets on your skin or clothes, |
|
|
|
immediately rinse it off with water to avoid injury. If |
Do |
the liquid gets into your eyes, do not rub but wash |
||
|
|
|
your eyes with water, and immediately consult a |
|
|
|
doctor to avoid the risk of losing your eyesight. |
|
|
|
|
|
|
|
When removing the battery pack from the LGL21, |
|
|
|
put your finger (nail, etc.) into the dimples of the |
Do |
LGL21 and pull up the battery pack to remove it. Do |
||
|
|
|
not insert sharp-pointed objects such as pens, etc. |
|
|
|
It might cause fire or damage when removing them. |
|
|
|
|
The battery pack is a consumable item. If the performance of a battery pack does not recover
Do (e.g. the usable time after each charge has become extremely short), the battery pack is at the end
of service life, so stop use and buy a new one of the specified type. Failure to do so might cause overheating, fire, rupture or leakage. Note that the length of service life varies depending on the usage condition, etc.
Be careful not to have the battery pack bitten by your pet. It might cause leakage, overheating, Do rupture or ignition of the battery pack.
■■Battery■charger
Mishandling■might■cause■overheating,■fire,■
electric■shock,■etc.
Be■sure■to■read■the■following■warnings■ before■use.
Do not use at other voltages than the specified power supply voltage. Doing so might cause fire,
Don’t overheating or electric shock.
• AC adapter: 100 VAC to 240 VAC
Firmly insert the AC adapter's power plug into the power outlet down to the base of its pins.
Do Incomplete insertion of the power plug might result in electric shock or fire caused by overheating and fire. Do not use when AC adapters get damaged or when power outlets become loose.
14
Do not damage, modify, twist, pull or place a heavy object on the power cord of the AC adapter. Do
Don’t not use a damaged cord. Doing so might cause an electric shock, short circuit or fire.
Do not let your hands, fingers and other parts of the body touch the connection terminals. Doing so Do might cause electric shock, injury or a fault.
If you hear thunder, do not touch the power plug. Doing so might cause an electric shock as a result
Don’t of a lightning strike.
Before cleaning the AC adapter, unplug its power plug from the outlet. If the plug remains plugged in Unplug when you clean the AC adapter, it might cause an electric shock or short circuit. Also, wipe off dust on the AC adapter's power plug. If the plug is left
covered with dust, it might cause fire.
When the AC adapter is not to be used for a long time, disconnect the AC adapter's power plug from Unplug the power outlet. Failure to do so might cause
electric shock, fire or a fault.
Do not use in places subject to direct splashing
with water, pet urine or other liquids. Doing so Not liquids might result in faults resulting from overheating,
fire, electric shock, or short-circuiting of electronic circuits. In the event that the product is splashed with liquid, immediately disconnect the AC adapter's power plug.
Thoroughly read this manual for proper use. Do not do the followings which might cause
Don’t overheating, fire, electric shock or injury.
•To charge other battery packs than those of the specified au cell phone
•To use at other voltages than 100 VAC to 240 VAC for home use
•Get the terminal shorted out.
•To disassemble or modify
•To get wet or used by wet hands
Mishandling■might■cause■overheating,■fire,■
electric■shock,■a■fault■or■damage.■Be■sure■
to■read■the■following■cautions■before■use.
Do not use in humid places such as bath areas, or connect/disconnect the AC adapter with wet hands.
Not liquids Doing so might cause electric shock or a fault.
Charge the battery in a stable place. If placed on an inclined surface or wobbly stand, the product Do might fall causing injury or damage. Pay sufficient
attention while the vibrator is set to ON. In addition, do not cover or wrap the product with a cloth or bedding. Doing so might cause fire or a fault.
Do not charge the battery pack when it gets wet.
Not liquids
When unplugging the AC adapter's power plug from the outlet, hold and pull the power plug. If you pull Do the cord, the cord might be damaged.
Safety■precautions
15
Safety■precautions
Do not leave the AC adapter connected to the main unit of the LGL21 with the battery pack removed.
Don’t Doing so might cause fire or electric shock.
If you feel any abnormality with your skin,
immediately consult a dermatologist. Itching, rashes, Do eczema, etc. sometimes occurs depending on your
physical constitution and condition.
The materials of parts used on the product are as follows.
Outer case: polycarbonate Plug part: Nickel plating
■■au■IC-Card
|
Be■sure■to■read■the■following■warnings■ |
|
|
|
before■use. |
|
|
|
Do not put the au IC-Card in a cooking apparatus |
|
such as a microwave oven or a pressure vessel. |
Don’t |
Doing so might cause melting, overheating, fuming, |
loss of data or a fault. |
Be■sure■to■read■the■following■cautions■
before■use.
Be careful not to injure your hand or fingers when attaching/removing the au IC-Card.
Do
Use only the devices specified by the Company to insert the au IC-Card in. Using a device not specified Do by the Company might cause loss of data or a fault.
For the specified devices, contact an au shop or Customer Service Center.
Do not disassemble or modify the au IC-Card. Doing
so might cause loss of data or a fault.
Not disassembly
Do not put the au IC-Card in a cooking apparatus such as a microwave oven or a pressure vessel.
Don’t Doing so might cause melting, overheating, fuming, loss of data or a fault.
Do not use or leave the au IC-Card in hot places such as by the fire or a heater. Doing so might
Don’t cause melting, overheating, fuming, loss of data or a fault.
Do not throw the au IC-Card into a fire or heat it. Doing so might cause melting, overheating, fuming,
Don’t loss of data or a fault.
Do not touch the IC (metal) part of the au IC-Card or short-circuit it. Doing so might cause loss of data or
Don’t a fault.
Do not drop the au IC-Card or subject it to strong impact. Doing so might cause a fault.
Don’t
16
Do not fold, bend or place a heavy object on the au IC-Card. Doing so might cause a fault.
Don’t
Do not scratch the IC (metal) part of the au IC-Card.
Doing so might cause a fault.
Not liquids
Do not store the au IC-Card in dusty places. Doing so might cause a fault.
Don’t
Do not store the au IC-Card in dusty places. Doing so might cause a fault.
Don’t
Do not store the au IC-Card in places exposed to direct sunlight or hot and humid places. Doing so
Don’t might cause a fault.
Store the au IC-Card out of reach of small children. Failure to do so might cause injury, etc. if they Do accidentally swallow and choke on it.
Handling precautions
These■precautions■are■provided■to■ensure■that■
performance■can■be■fully■demonstrated.■Thoroughly■read■
these■precautions■to■ensure■correct■use.
■■Precautions■common■to■the■main■unit■of■the■LGL21,■ battery■pack,■charging■equipment,■au■IC-Card,■peripheral■ devices
●Excessive force might damage the display or internal circuit board of the LGL21. Do not put the product in the pocket of your trousers or skirt in case you sit on it without attention. Also do not place a heavy object on the LGL21 in your bag. Keeping an external device connected to the external connector or earphone jack might damage the connector resulting in a malfunction. Such damage and malfunction are not covered by the warranty, even if there is no external damage.
●Do not use the product in extremely hot, cold or humid places. Use within an ambient temperature range of 5 to 35 and humidity range of 35% to 85%. Any malfunctions determined to be caused by using in a extremely hot, cold or humid place are not covered by the warranty.
●Do not use the LGL21 in a dusty or a shaking place.
●Clean the connection terminals with dry cotton swabs, etc. every now and then. Soiled terminals might cause poor connection. Do not exert a strong force to clean the connection terminals to prevent deformation.
●Clean the product with a soft dry cloth when getting dirty.
●Use as far away as possible from land-line phones, TVs and radios. Use nearby might affect them.
●The LGL21 may become warm while charging, speaking on the phone, using camera function or watching TV (1Seg), depending on the situations, but this is not abnormal.
Safety■precautions
17
Safety■precautions
●During use, some functions might automatically get deactivated temporarily when the LGL21 becomes hot in order to protect its main unit.
●When the product is used by a child, parents or guardians should thoroughly read the "Basic Manual" (this manual) and teach the child how to use it.
●Turn off the power before removing the battery pack. If you remove the battery pack with the power on, saved data might be altered or lost.
■■Main■unit■of■the■LGL21
●Depending on the situations, the LGL21 may become warm while charging, speaking on the phone, using camera function or watching TV (1Seg). Pay attention when your hands or face get close to the product.
●Do not forcefully press, tap or intentionally subject the display to strong impact. Doing so might cause scratching or damage.
●Do not forcefully press your fi ngernails, sharp objects or hard objects against display surface. Doing so might cause scratching or damage.
●Stop using the LGL21 right away when the display is damaged. Contact an au shop or Customer Service Center. Continued use in this state might cause injury.
●Do not remove the stickers printed with the serial numbers that can be seen when the battery cover is removed. These stickers prove that the LGL21 and the communication module you are using comply with the Wireless Telegraphy Act and Telecommunications Operations Act.
●Contents saved in the LGL21, such as contacts, mails, bookmarks and the data that you composed and saved, might be altered or lost by an accident, fault, repair or mishandling. Be sure to keep a copy of important contents. Note that the company assumes no responsibility for any damages or lost profi ts resulting from altered or lost contents.
●Note that mails or the downloaded data (both charged or free content) saved on the LGL21 cannot be returned to the customer when the au mobile is replaced for changing the model or repair of a fault, for example.
●The LGL21 uses liquid crystal for its display. The display response speed may become slow when the ambient temperature is low, which is due to the property of liquid crystal and not a malfunction. The display response speed will return to normal at room temperature.
●Although the display used on the LGL21 is made using highprecision technology, some pixels (dots) might be lit or out at all times. This is not a malfunction.
●Take care not to inconvenience people around you when you use the product in a public place.
●You are recommended to store copies of individual data such as photos you took, videos and music in your PC by sending each fi le as mail attachment, etc. Note, however, that you may not be
able to make copies of some copyrighted data even by the abovementioned means.
●To prevent unlawful modifi cation, the LGL21 has been designed so that it cannot be easily disassembled. Modifying the product is prohibited by the Radio Law.
●Do not operate the product while riding an automobile, etc. Use of functions (such as mails, camera, etc.) other than making a handsfree call is prohibited by law and might cause an accident.
●Do not put any stickers on the display or any side with keys. Doing so might cause false operations or reduce the usage time. Also, the LGL21 might get damaged.
●Never use modifi ed au cell phones. Use of a modifi ed device violates the Radio Law.
●The LGL21 has acquired the certifi cation of conformity with technical regulations for the specifi ed radio station based on the
Radio Law, and the "Technical Conformity Mark " is printed on the nameplate of the LGL21 as a certifi cate.
18
●If the screws of the LGL21 are removed and modifications are made to the internal components, the certification of conformity with technical regulations will become invalid. Never use the product without the valid certification. Doing so violates the Radio Law.
●While you are watching TV(1Seg), etc., make sure that the TV antenna does not hit or hurt other people's eyes if you have extended the TV antenna and are attempting to answer a call.
●When photo monitor screen is displayed continuously for a long time during photo shooting, or when camera function or TV (1Seg) is repeatedly activated within a long time, part of the LGL21 main unit might get hot. Note that touching it for a long time might cause low-temperature burns.
●When bringing the LGL21 close to magnetized objects or straps made from metal materials, you might hear electrical noise coming from part of the speaker. It is not abnormal.
●Do not bring the LGL21 close to a permanent magnet such as a magnetic necklace, a clasp on handbag, etc. or some electrical appliances with strong magnet such as a TV or a speaker, etc. Be aware that when the LGL21 itself is magnetized (called magnetizing), the accuracy of directional measuring might be affected.
●When you put the product in your pocket or bag, take care so that the display does not come in contact with metal objects or other hard objects, as it might cause scratching or damage. Also, be careful not to scratch or damage the display by using a strap whose metal or other hard part comes in contact with the display.
●When suddenly brought into a warm place from a cold place, or when in a humid location, or when used where temperature
suddenly changes, water droplets (i.e. condensation) sometimes are formed inside the LGL21. Note that when used under conditions such as this, humidity might cause a fault.
●Be careful when using the LGL21 in a high temperature place for a long time. It might become hot. Use of it with your skin touching the product for a long time might cause low-temperature burns.
●When wiping the display, wipe with a soft, dry cloth. Use of a moistened cloth, glass cleaner or other similar liquid might cause a fault.
●When connecting/disconnecting the external device to/from the connection terminal, make sure that the USB plug or connector of the external device is horizontal with the connection terminal.
●Note that applying unnecessary force with the device connected to the connection terminal might cause damage.
●Do not discard the LGL21 together with regular trash. Please cooperate in the collection of the LGL21 when it is no longer needed to protect the environment and effectively use resources. Old products are collected at au shops and other places.
●When hearing the other party's voice, make sure that the earpiece is placed at the center of your ear. If the earpiece (audio output port) is closed by the ear lobe, it may be hard to hear the voice.
●Even if you cover the microphone to make your voice inaudible to the other party, the other party can hear your voice.
●When using handsfree call, take care to keep the speaker at a safe distance from your ears, as the speaker volume may be too loud.
●Do not cover the light sensor with your finger or put a sticker on it. Doing so may hinder the light sensor from detecting the ambient brightness and functioning correctly.
●Screen background light turns off while you are making a call when you cover the proximity sensor with your fingers or put a sticker on the proximity sensor. In this case, touch panel and power key are no longer available to operate.
●Do not put the LGL21 near the air discharge port of an air conditioner. It might generate condensation when the temperature changes extremely fast. Malfunctions might get caused due to the corrosion inside.
●Be careful not to pull HDMI connector strongly or place excessive force on it. It might cause malfunctions.
●The LGL21 is not waterproof. Do not pure water on it.
Safety■precautions
19
Safety■precautions
●Make sure to stow the TV antenna before putting the LGL21 inside your pocket or bag. Also, do not pull or bend the TV antenna strongly on purpose. Doing so might cause injury or damage.
●The display might look unclear in direct sunlight. It is not a fault.
■■Touch■Panel
●Use your finger (two fingers for pinching) to operate the touch panel. Do not use sharp-pointed objects such as ballpoint pens, pencils, etc. or hard objects such as nails, metal, etc. Using such objects does not only hinder correct operation of the touch panel, but also might cause scratching or damage to the display.
●Do not put stickers or sheets (e.g. commercially available protective films, peep prevention sheets) on the display. Doing so might hinder correct operation of the touch panel.
●Do not operate the touch panel with fingernails. Doing so might result in split nails or jammed fingers.
●Do not press the touch panel strongly or operate it by wet fingers. Also, do not operate the product when the display has water drops or condensation on it. Doing so might cause improper reaction of touch panel.
●If the display surface is dirty or covered with dust, it may not function correctly. In such case, wipe the display surface with a dry, soft cloth. Be careful that cleaning the display with a dry cloth might cause injury.
●When carrying the product in your pocket or bag, take care not to put the touch panel close to metals or other conductive materials, as it might cause false operation of the touch panel.
■■Battery■pack
●Do not touch connection terminal with a cotton swab or other sharp-pointed items. Since the connection terminal is made of groove-shaped metal spring, materials other than terminal metal might deform when being inserted and might not available to use.
●Use in very hot or cold environments, for example, when left in an automobile with the windows closed in summer, will cause the battery capacity to drop and shorten the available battery usage time. This will also shorten the battery pack's service life. Try to use the battery pack as far as possible at room temperature.
●When the battery pack is not to be used for a long time, remove the battery pack from the main unit of the LGL21 and put it in a plastic bag. Store it away from hot and humid places.
●Charge the battery before using the product for the first time after purchase, or if you have not used the product for a long time.
●The battery pack is a consumable item. The available usage time gets shorter every time when it is charged. It is recommended to replace your battery pack when its length of service life becomes half of a new one even after being fully charged.
●Do not discard battery packs together with regular trash. Please cooperate in the collection of used battery packs to protect the environment and effectively use resources. au shops and other retailers collect used battery packs.
●Battery packs sometimes swell up as they approach the end of their service life. This is due to the properties of lithium-ion batteries, and is not a problem in terms of safety.
●When replacing battery pack, make sure to follow the specified method. Any methods not specified when attaching or removing battery pack might cause damage of battery pack or battery cover.
20
■■AC■adapter
●When not using the AC adapter, remove the AC adapter's power plug from the power outlet.
●Do not wrap the AC adapter's power cord around the adapter itself. Doing so might cause electric shock, overheating or fire.
●Do not forcibly bend the charging equipment's plug or the connection between the connector and power cord. Doing so might cause electric shock, overheating or fire.
■■au■IC-Card
●The au IC-Card is lent to you by au. In case of loss or damage, the card will be replaced at your expense. When malfunction is suspected, or in case of theft or loss, contact an au shop or PiPit.
●Do not forcibly remove or insert the au IC-Card. Be careful not to exert excessive force when inserting the card into your au cell phone.
●You are responsible for any damage caused by inserting your au IC-Card into some other IC card reader/writer, etc.
●The au IC-Card may become warm during use, but this is not a malfunction and you can continue to use the card.
●Keep the IC (metal) part of your au IC-Card clean. Wipe the card with a dry, soft cloth for cleaning.
●Do not put stickers, etc. on the au IC-Card.
●Use only the devices specified by the Company to insert the au ICCard in. Using a device not specified by the Company might cause loss of data or a fault. For the specified devices, contact an au shop or Customer Service Center.
●Do not store the au IC-Card in places exposed to direct sunlight or hot and humid places. Doing so might cause a fault.
●Store the au IC-Card out of reach of small children. Failure to do so might cause injury, etc. if they accidentally swallow and choke on it.
●Do not attach other cards into the LGL21 than the au IC-Card. It is not available to use other cards.
●Pay attention not to touch the IC (metal) part when attaching/ removing the au IC-Card.
■■Camera
●When using the camera, follow common rules of etiquette regarding camera use.
●Image data might be altered or lost due to malfunction, repair or mishandling of the LGL21. The Company takes no responsibility for recovery of altered or lost data, damages resulting from altered or lost data, and lost profits.
●When photographing important occasions (such as a wedding), take a trial shot and check the shot image and sound to make sure it is correctly shot and recorded.
●It might infringe on rights of portrait if you take pictures of other individuals and publish them.
●Do not use the camera for recording commercially available books or information of which photographing is not allowed.
●Pay attention not to touch the camera lens while shooting.
●Do not leave the camera lens exposed to direct sunlight. Imaging elements might be discolored or burnt.
Safety■precautions
21
Safety■precautions
■■Music,■videos■and■TV■(1Seg)
●Do not listen to music or watch videos and TV (1Seg) while driving a car or motorbike, or riding a bicycle. Surrounding sounds may not be heard clearly, and gazing at the screen might distract
your attention causing a traffic accident. Use of cell phones while driving a car or motorbike is prohibited by law. (Use of cell phones while riding a bicycle may also be punishable by law.) In addition, stay alert to the traffic around you even when walking. Be especially careful at railroad crossings and pedestrian crossings.
●Take care not to listen at ear-splitting volume for a long time, as it might affect hearing.
●Be careful of sound leakage from earphones (available commercially) in trains or other places with many people around you.
●Do not use the product in rain or a place where it can get wet.
■■Copyrights■and■rights■of■portrait
●You are not allowed to copy, modify or edit the data you shot or recorded using the LGL21 without consent of the copyright holder, except for personal use, under the copyright law. In addition,
do not use or modify portraits or names of other individuals without their consent, as it might infringe on rights of portrait. Note that shooting and recording may be restricted at some live performances, shows and exhibitions even for personal use.
●The transfer of images, etc. covered by copyright is not allowed excluding instances laid down separately by the Copyright Act.
●Be careful about the copyright and portrait right when posting photos you shot, etc. on Internet website.
Available Security Codes
The■LGL21■has■various■security■codes■that■you■can■use.■
The■available■security■codes■are■as■follows.■Do■not■forget■
the■various■security■codes■that■are■set■as■they■are■
necessary■for■various■operations■and■contracts.■ ●Security code
Example■of■ |
A To■do■remote■operation■of■voice■mail■and■call■ |
usage |
forwarding■services■from■a■landline■phone■ |
|
|
|
B To■use■Customer■Service■Center■and■ |
|
to■do■various■inquiries,■applications,■and■ |
|
modifications■on■the■au■website |
|
|
Initial■value |
A four digit number chosen by the customer and |
|
noted on the application form |
|
|
●Lock No. |
|
|
|
Example■of■ |
To set and release the screen lock |
usage |
|
|
|
Initial■value |
None |
|
|
●PIN code |
|
|
|
Example■of■ |
To prevent unauthorized use of the au IC-Card by |
usage |
third parties |
|
|
Initial■value |
1234 |
|
|
22
