OWNER’S MANUAL
FREE STANDING GAS COOKER
Please read this manual carefully before operating
your set and retain it for future reference.
LF98105SS
LF98100SS
LF98110SS
LF98110AS
P/No.: MFL62060310
www.lg.com
2
Contents
Introduction ................................................................................. 3
1. Instructions for safe and proper use .......................................3
Instructions for the installer ...................................................... 6
2. Installation of the appliance ....................................................6
3. Adaptation to different types of gas ...................................... 11
4. Final operations ....................................................................14
Instructions for the user .......................................................... 16
5. Description of controls ..........................................................16
6. Use of the hob ......................................................................18
7. Use of the oven ....................................................................20
8. Digital timer (certain models only) ........................................25
9. Analogue clock (Only on equipped models) .........................26
10. Available accessories .........................................................27
11. Cleaning and maintenance .................................................28
12. Extraordinary maintenance ................................................31
These instructions are valid only for the end user countries
whose identification symbols appear on the cover of this
manual.
INSTRUCTIONS FOR THE INSTALLER: these are for the
authorised person who must carry out a suitable check of the gas
system, install the appliance, set it functioning and carry out an
inspection test.
INSTRUCTIONS FOR THE USER: these contain user advice,
description of the commands and the correct procedures for
cleaning and maintenance of the appliance.
3
Introduction
1. Instructions for safe and proper use
This manual is an integral part of the appliance and therefore must
be kept in its entirety and in an accessible place for the whole
working life of the cooker. We advise reading this manual and all
the instructions therein before using the cooker. Also keep the
series of nozzles supplied. Installation must be carried out by
qualified personnel in accordance with the regulations in force. This
appliance is intended for domestic uses and conforms to current
regulations in force. The appliance has been built to carry out the
following functions: Cooking and heating-up of food. All other
uses are considered improper.
The manufacturer declines all responsibility for improper use.
Do not leave the packing in the home environment. Separate the
various waste materials and take them to the nearest special
garbage collection centre.
It is compulsory that the appliance be grounded according to the
methods required by safety rules.
The plug to be connected to the power cable and the socket must
be the same type and must conform to current regulations.
The socket must be accessible after the appliance has been built in.
Never unplug by pulling out the cable.
Immediately after installation carry out a brief inspection test of
the appliance, following the instructions below. Should the
appliance not function, disconnect it from the supply and call the
nearest technical assistance centre.
Never attempt to repair the appliance.
DO NOT USE OR STORE FLAMMABLE MATERIALS IN THE
APPLIANCE STORAGE DRAWER OR NEAR THIS
APPLIANCE.
4
Introduction
DO NOT MODIFY THIS APPLIANCE
When not in use, make sure that the control knobs are in the correct
(OFF) position .
Never put inflammable objects in the oven: They could be
accidentally catch fire and burn.
The I.D plate with technical date, serial number and brand name is
positioned visibly in the storage compartment.
The plate must not be removed.
Do not put pans without perfectly smooth and flat bottoms on the
hob grids.
During use the appliance becomes very hot. Take care not to
touch the heating elements inside the oven.
Do not use containers or broilers that extend beyond the outer
perimeter of the hob.
The appliance is designed for use by adults. Do not allow
children to go near or play with it.
When operating the grill all accessible parts could become very hot:
keep out of the way of children.
If the appliance is to be positioned on a platform it must be installed
in such a way as to prevent it from tilting off it.
This appliance is designed for cooking food and it shall not be used
as a space heater.
Do not spray aerosols in the vicinity of this appliance while it is in
operation.
5
Do not apply decorative panels to the lower part of the cooker as
they may prevent correct air circulation and cause overheating.
Before the appliance is put into operation, all the labels and
protective films applied inside or outside must be removed.
Lower the glass cover slowly and by hand.
Warning: The glass cover may shatter if it overheats. Switch off
all rings and wait for them to cool down before closing the
cover.
The manufacturer declines all responsibility for damage to
persons or things caused by non-observance of the above
prescriptions or by interference with any part of the appliance or
by the use of non-original spares.
6
Instructions for the installer
A B
A
B
2. Installation of the appliance
The appliance must be installed by a qualified technician and
according to the regulations in force.
This appliance may be installed next to a wall which is higher than
the appliance, with a minimum distance of 50 mm from the side of
the appliance, as shown in drawings A and B showing the correct
installation conditions. Any wall cupboards or shelves must be at a
distance of at least 75 cm above the work surface.
Built-in appliance Free-standing installation
7
2.1 Electrical connection
Make sure that the power line voltage matches the specifications
indicated on the rating plate located inside the storage compartment.
This rating plate must never be removed.
If the appliance is hooked-up to the supply by means of a fixed
connection, install a multipolar cut-out device on the line, with
contact opening distance equal to or greater than 3 mm, located
near the appliance and in an easily reachable position.
Hook-up to the supply may be fixed or with plug and socket. In the
latter case the plug and socket must be suitable for the cable
employed and conform with the regulations in force. Regardless of
the type of connection, earthing of the appliance is absolutely
obligatory. Before connection make sure that the supply line is
suitably earthed. Avoid the use of reducers, adapters or shunts.1
If the power cable is replaced, the wire
section on the new cable must not be less
than 1.5 mm2 (3 x 1.5 cable), keeping in
mind that the end to be connected to the
hob must have the ground wire (yellowgreen) longer by at least 20 mm. Use only H05V2V2-F cable or
similar which has a maximum temperature of 90°C. This must be
done by a specialised technician, who must connect the cooker to
the electricity supply according to the diagram shown here.
L = brown
N = blue
= yellow-green.
Warning: The values indicated above refer to the cross-section
of the internal conductor.
8
Instructions for the installer
2.2 Ventilation requirements
2.2.1 Room ventilation
The room containing the appliance should have an air supply in
accordance with the standards in force.
The room where the appliance is installed must have enough air
flow as required for the regular combustion of gas and by the
necessary air exchange of the same room. The air vent, protected
by grills, must be suitably dimensioned in compliance with the
current regulations and positioned so that no part of it is obstructed.
The cooker must be kept adequately ventilated in order to eliminate
the heat and humidity produced by cooking: in particular, after
prolonged use, it is recommended to open a window or to increase
the speed of any ventilators.
2.2.2 Extraction of the products of combustion
Extraction of the products of combustion must be ensured by
means of hoods connected to a natural draught chimney whose
efficiency is assured or via forced extraction. An efficient extraction
system requires precision planning by a specialist qualified in this
area and must comply with the positions and distances indicated by
the regulations. When the job is complete, the installer must issue a
certificate of conformity.
2.3 Connection to gas
At the end of the installation, check for any leaks with a soapy
solution, never with a naked flame.
2.3.1 Connection with a rubber hose
Installation of the standards-compliant rubber hose must be carried
out so that the hose length is no greater than 1.5 metres. Make
sure that the hose does not come into contact with moving parts or
is squashed. The inside diameter of the hose must be 8 mm for
LIQUID GAS and 13 mm for NATURAL GAS.
Verify that all the following conditions are met:
• the hose is fixed to the hose connection with safety clamps;
9
• no part of the hose is in contact with the hot walls (max. 50 °C);
• the hose is not under traction or tension and has no tight curves or
twists;
• the hose is not in contact with sharp objects or sharp corners;
• if the hose is not perfectly airtight and leaks gas, do not try and
repair it: replace it with a new hose;
• verify that the hose is not beyond its life cycle (serigraphed on the
hose itself).
Connection using rubber hoses complying with the current
regulations is only permitted if the hose can be inspected along
its entire length.
The tightening torque between connections that incorporate the
gasket must not exceed 10Nm.
2.3.2 Connection to natural gas
Make the connection to the gas mains using a rubber
hose whose specifications comply with the current
regulations (verify that the reference standard is
stamped on the hose).
Screw the hose connector A to the gas connector B of
the appliance, placing the seal C between them. Push
the rubber hose D onto the hose connector A and
secure it with the clamp E that is compliant with the
current standard.
10
Instructions for the installer
2.3.3 Connection to liquid gas
Use a standards-compliant pressure regulator and carry out the
connection to the gas cylinder in accordance with the regulations in
force.
Make sure that the supply pressure complies with the values
indicated in the paragraph “3.2/3.3 Burner and nozzle
characteristics table”.
Screw the small hose connector F onto the
large hose connector A; connect the block
that this makes to the gas connector B (or
use the hose connector G which must be
connected directly to the gas connector B)
and place the seal C in between them. Push
the end of the rubber hose D on to the hose
connector A+F (or G) and to the outlet
connection of the pressure reducer on the
gas cylinder. Secure the end of the hose D to the hose connector
A+F (or G) with the standards-compliant clamp E.
The hose connector G illustrated is not supplied with the
appliance. Only use standards-compliant hose connectors.
2.3.4 Connection with flexible steel hose (for all types of gas)
This type of connection can be made on both built-in
and free-standing appliances. Only use standardscompliant steel hoses whose length is not greater than
2 metres. Screw the end of the flexible hose L, with the
1
seal C positioned between the B threaded
gas connector (ISO 228-1).
At the end of the installation, check for any leaks
with a soapy solution, never with a flame.
For the connection between the cooker and the gas cylinder
use a portion of standards-compliant hose not less than 1.4 m
in length.
/2” external
11
3. Adaptation to different types of gas
Before performing any cleaning or maintenance work, detach the
appliance from the electrical socket.
The cooker hob is set for LPG G30/G31 at a pressure of 28-30/37
mbar for cookers with maxi oven In the case of functioning with
other types of gas the burner nozzles must be changed and the
minimum flame adjusted on the gas taps. To change the nozzles,
proceed as described below.
3.1 Replacement of nozzles on the hob
This operation requires no primary air regulation.
1. Extract the grids and remove all the caps and flame-spreader
crowns;
2. unscrew the burner nozzles with a 7 mm socket wrench;
3. replace the nozzles according to the type of gas to be used and
the description in paragraph “3.2 Burner and nozzle
characteristics table”.
4. Replace the burners in the correct position.
12
Instructions for the installer
3.2 Burner and nozzle characteristics table
Rated
Burner
heating
capacity
(kW)
LPG – G30/G31 28-30/37 mbar
Auxiliary
Semi-rapid
Rapid
Triple crown
Maxi oven
Grand grill
Auxiliary
Semi-rapid
Rapid
Triple crown
Maxi oven
Grand Grill
Nozzle
diameter
1/100 mm
1
1.75
3
3.2
5.2
4.0
Rated heating
capacity (kW)
50
65
85
91
110
100
1
1.75
3
3.5
5.2
4.0
Reduced
flowrate
(W)
350
450
800
1500
1200
//
NATURAL GAS – G20 20 mbarBurner
Nozzle diameter
1/100 mm
72
97
115
133
164
150
Flowrate
g/h G30
Flowrate
g/h G31
73
127
218
233
378
291
Reduced Flowrate
71
125
214
229
371
286
(W)
350
450
800
1500
1200
//
13
3.3 Arrangement of the burners on the hob
BURNERS
1. Auxiliary
2. Semi rapid
3. Rapid
4. Triple crown
3.4 Adjustment of the oven burner
To adjust the oven burners follow the procedure
described below from inside the oven:
• Open the oven door;
• Remove the oven dish and shelf.
• Lift up the oven floor and remove.
3.4.1 Replacement of the oven and grill burner nozzles
• Loosen the fixing screws A on the oven burner.
• Push the burner B towards the right to get to the nozzle.
• Use a 13 socket wrench to change the
nozzle, fitting the one for the type of gas
to be used (see point “3.2/3.3 Table of
burner and nozzle characteristics”).
3.4.2
• Loosen the register screws “A” on the air regulation coupling.
• Turn the register coupling “B” to the position
• Tighten the register screws and mount the seals.
• Once the operation is completed reassemble the
X = 5 mm 10 mm
Regulation of the primary air on the oven and grill burners
corresponding to the type of gas to be used
according to the table below.
burner correctly.
NATURAL GAS
G30/G31 (LPG)
14
Instructions for the installer
4. Final operations
After replacing the nozzles, reposition the flame-spreader
crowns, the burner caps and the grids.
Following adjustment to a gas other than the preset one, replace the
gas adjustment label fixed to the appliance with the one corresponding
to the new gas. This label is in the packet together with the nozzles.
4.1 Regulation of the hob burner minimum level for natural gas
Light the burner and turn it to the minimum position
Extract the gas tap knob and turn the adjustment
screw at the side of the tap rod until the correct
minimum flame is achieved.
Replace the knob and check burner flame stability:
(rapidly turning knob from maximum to minimum position, the flame
should not go out). Repeat the operation on all the gas taps.
For models with valves, keep the knob at minimum level for about
1 minute to keep the flame lit and to activate the safety device.
4.2 Regulation of the hob burner minimum level for LPG
For regulating the minimum with LPG, the screw at the side of the
tap rod must be turned clockwise all the way.
Once the regulation has been completed, replace the seal on the
by-passes using paint or similar materials.
4.3 Regulation of the oven burner minimum level
The oven thermostat is equipped with a by-pass to regulate the
minimum level, which is visible underneath the thermostat knob.
When the gas type is changed, the by-pass should be regulated as
follows:
Turn on the oven burner to maximum for 10/15 minutes with the
1.
door closed and without the floor. Turn the knob to the minimum
temperature, remove the knob and regulate using a flat screwdriver.
.
15
2. For LPG turn the by-pass screw clockwise as far as it will go.
For natural gas, regulate the by-pass so that turning the thermostat
3.
knob from minimum to maximum the flame remains stable and
constant. Once the regulation has been completed, replace the
seal on the by-pass using paint or similar materials. Close the oven
door and make sure that the burner stays on minimum.
4.4
Positioning and levelling of the appliance (Depending on models)
Having carried out the electricity and gas hook-up, level the
appliance using the four adjustable legs. For best cooking the
appliance must be perfectly level.
Depending on the model you have purchased, the foot height
adjustment range may vary from 70 to 95 mm and from 110 to 160
mm. These heights refer to the distance between the highest point
of the foot (fixed part) and the lowest point (movable part which
rests on the floor).
16
Instructions for the user
150
MIN
175
200
225
250
275
5. Description of controls
5.1 Front control panel
All the cooker controls and commands are on the front panel.
DESCRIPTION OF SYMBOLS
Front right burner
central burner
Gas oven thermostat
Back right burner
Back lefte burner
knob
Oven light / Rotisserie /
Grill switch
Front lefte burner
Oven light switch
HOB BURNER COMMAND KNOB
The flame is lit by pressing the knob and turning it
anticlockwise to minimum flame . To adjust the
flame turn the knob between maximum ( ) and
minimum ( ). The burner goes out when the knob
is returned to the position .
GAS OVEN THERMOSTAT KNOB
This knob is used to ignite the gas burner inside the
oven. The cooking temperature is selected by
turning the knob anticlockwise to the desired
setting, between Min. and 275°C.
For information on how to ignite the gas oven, see
point “7.2 Use of the gas oven”.
17
OVEN LIGHT / ROTISSERIE / GRILL SELECTOR KNOB
5
10
15
20
25
30
35
40
45
50
55
This knob allows the user to activate the Grill /
Rotisserie function or to switch on the light inside the
oven to check the point reached in cooking the food.
CAUTION: IT IS NOT POSSIBLE TO OPERATE
THE GAS OVEN AND THE GRILL / ROTISSERIE
SIMULTANEOUSLY.
MINUTE COUNTER KNOB (CERTAIN MODELS ONLY)
Turn clockwise to wind up the alarm and set to the
desired time.
Time is expressed in minutes (maximum 55 minutes).
Adjustment is continuous so that intermediate times
between markings can also be set. Alarm activation
at end of pre-set time does not turn off the oven (no
end of cooking).
18
Instructions for the user
6. Use of the hob
6.1 Lighting of the hob burners

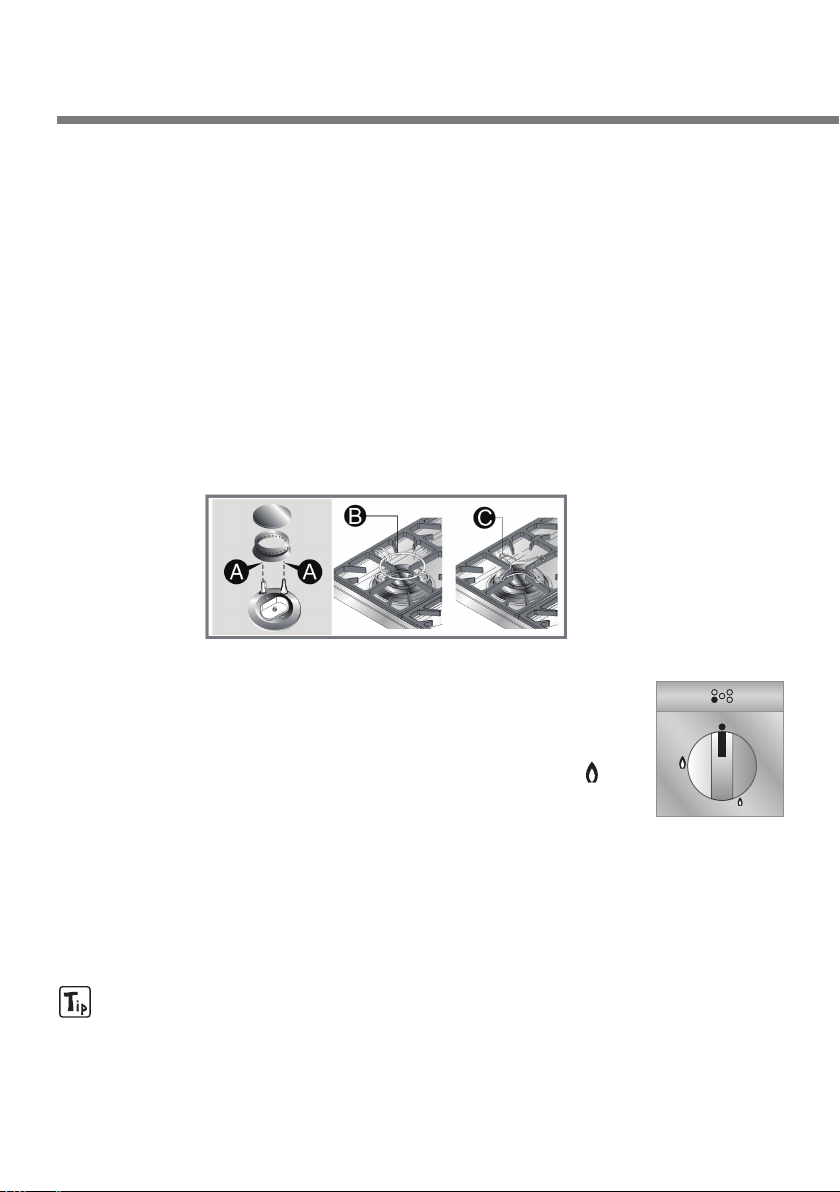

Before lighting the hob burners check that the flame caps are in the
correct position and that their burner caps are in place, making sure
that the holes A in the flame caps correspond to the spark plugs
and thermocouples.
The optional grid B is for use with “woks” (Chinese pans).
To prevent deterioration of the hob we have equipped the cooker
with a raised pan stand C to be placed underneath pans more than
26 cm in diameter.
The supplied reduction rest C is used also for small pans.
The drawing next to each knob shows the
corresponding burner. The appliance has an
electronic lighting device. Simply press and turn the
knob anticlockwise to the minimum flame symbol ,
until the flame is lit. Hold the knob down for a few
seconds to allow the thermocouples to heat up. The
burner may go out when the knob is released: this is because the
thermocouple has not been sufficiently heated. Repeat the
operation holding down the knob a little longer. This operation is not
necessary for burners without thermocouples.
For models with thermocouples, should the burner accidentally
go out, a safety device will be activated which stops the gas
flow even if the tap is open.
19
6.2 Practical advice for using the hob burners
For better use of the burners and lower gas consumption, use
covered vessel that are proportional in size to the burner to prevent
the flame from heating the sides (see paragraph “6.3 Diameter of
the vessels to be used on each burner”). When water reaches the
boiling point, lower the flame so that it doesn’t overflow. To avoid
burns or damage to the hob, all vessels or griddle plates must be
placed within the perimeter of the hob. All vessels must have a flat
and smooth bottom. When using fats or oils, be extremely careful
that they don’t overheat and catch fire.
If the flame accidentally goes out, turn off the control knob and wait
at least 1 minute before trying to re-light the burner.
6.3 Diameter of the vessels to be used on each burner
BURNERS
1. Auxiliary
2. Semi rapid
3. Rapid
4. Triple crown
Ø min. and max.
(in cm)
12-14
16-22
18-26
18-26
20
Instructions for the user
7. Use of the oven
7.1 Warnings and general advice
Using the oven and the grill for the first time, heat them to the
maximum temperature for as long as it takes to burn off any
production oil residues which could give a nasty flavour to the food.
After a power cut, the oven display will flash intermittently and show
0:00
. To adjust refer to paragraph "8 ELECTRONIC
PROGRAMMER(ONLY ON EQUIPPED MODELS)”.
During cooking, do not cover the bottom of the oven with aluminium or
tin foil and do not place pans or oven trays on it as this may damage
the enamel coating. If you wish to use greaseproof paper, place it so
that it will not interfere with the hot air circulation inside the oven.
The oven accessories which may come into contact with food are
made from materials which conform to the standing directives.
WARNING: the gas oven is lit with the door open.
The oven is equipped with a safety system which
stops the burners being lit when the door is
closed. If this is done wrongly, open the door and
wait for a few moments before lighting once more.
To prevent any steam in the oven creating problems, open the door
in two stages: half open (5 cm approx.) for 4-5 seconds and then
fully open. To access food, always leave the door open as short a
time as possible to prevent the temperature in the oven from falling
and ruining the food.
21
7.2 Use of the gas oven
150
MIN
175
200
225
250
275
150
MIN
175
200
225
250
275
7.2.1 Electronic spark lighting
Open the oven door completely, press the
thermostat knob and turn it clockwise to max.
temperature. The electronic spark lighting device
will be enabled automatically. Once the oven is lit,
hold the knob down for a few seconds to allow the
thermocouple to heat up.
This device should not be enabled for more than 15 seconds; if after
this time the burner has not come on, stop, fully open the oven door
and try again after one minute.

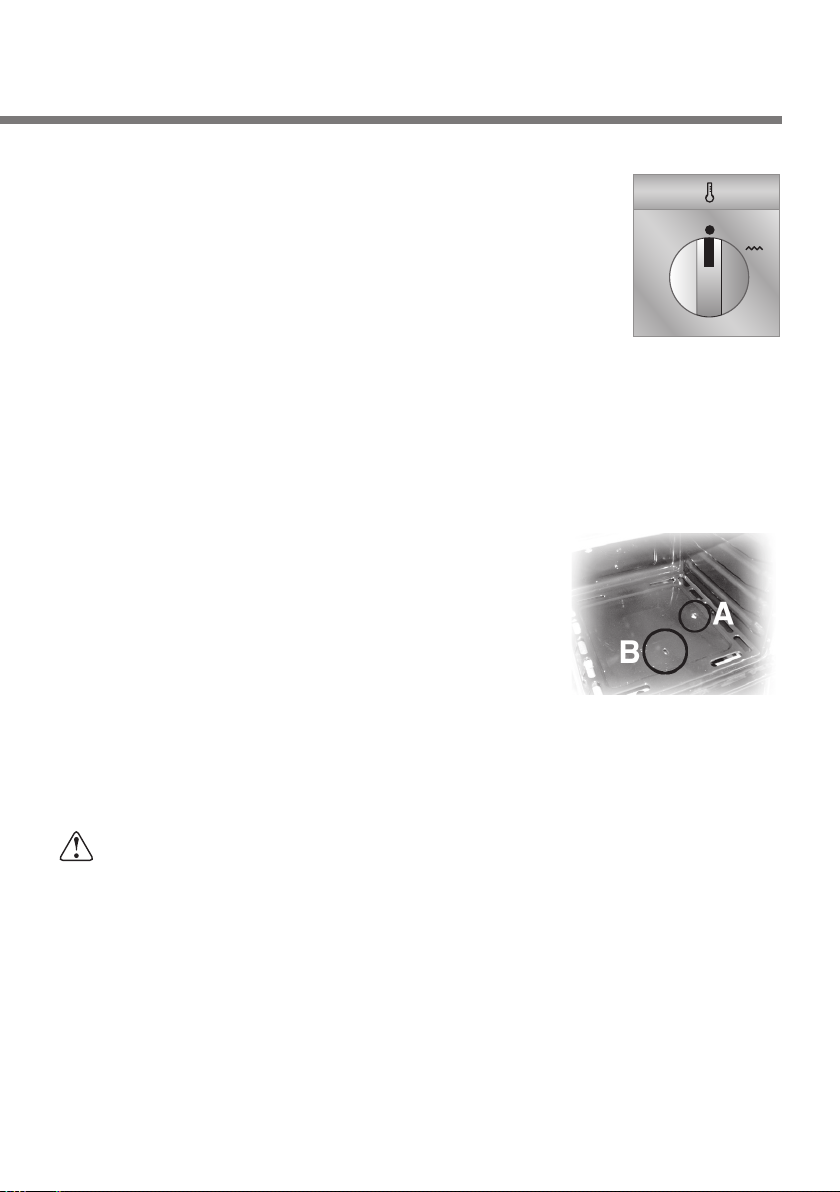

7.2.2 Manual lighting
Open the oven door completely and turn the
thermostat knob. Place a lit match to the
mouth of the flame pipe A in the centre of the
oven floor and press the thermostat knob.
Once the oven is lit, hold the knob down for a
few seconds to allow the thermocouple to
heat up and check that the oven is lit through the inspection hole B.
Choose the cooking temperature by turning the knob clockwise to
the desired temperature, between 50° and 275°C.
If the burner is accidentally switched off, turn the knob to the off
position () and wait for one minute before lighting again.
22
Instructions for the user
7.3 Use of the gas grill
7.3.1 Manual lighting of the gas grill burner
Having opened the oven door, press the knob and turn it clockwise
to the grill
of the oven.
Once the burner is lit, hold the knob down for about 10 seconds. If
the burner does not stay lit after this time, release the knob and wait
for at least one minute before trying again. If the burner accidentally
goes out, turn the knob to the off position () and wait at least one
minute before lighting again.
7.3.2 Electric lighting of the gas grill burner
Having opened the oven door, press the knob and turn it clockwise
to the grill
Once the burner is lit, hold the knob down for about 10 seconds. If
the burner has not come on by this time, release the knob and wait
for at least one minute before trying again. If the burner accidentally
goes out, turn the knob to the off position () and wait at least one
minute before lighting again.
During a power cut the burner can always be lit with a match.
position, placing a lit match to the burner on the roof
position.
CAUTION: IT IS NOT POSSIBLE TO OPERATE THE GAS
OVEN AND THE GAS GRILL SIMULTANEOUSLY.
23
7.4 Use of the rotisserie
7.4.1 Using the rotisserie in cookers with maxi oven
Fit the supporting frame onto the
second runner up from the bottom so
that the seat to take the rod projects
outside the oven. Place the rod as
shown in the diagram (1) and push
the frame into the oven until the end
of the rod reaches the hole in the
rotisserie motor. Now push the
rotisserie rod to the left until it
reaches the position shown in the
diagram (2). To activate this function,
turn the switch to (
These operations must be carried out with the oven switched
off and cold.
When cooking is over, use the tool provided to extract the rod from
the hole (3) and remove the frame (4) to bring the rotisserie rod out
of the oven cavity.
).
How to use the grill
Once the grill is lit, the red warning light will come on. Leave the
oven to heat up for five minutes before placing the food inside.
Food should be flavoured and basted with oil or melted butter
before cooking. An oven dish should be used to contain the sauces.

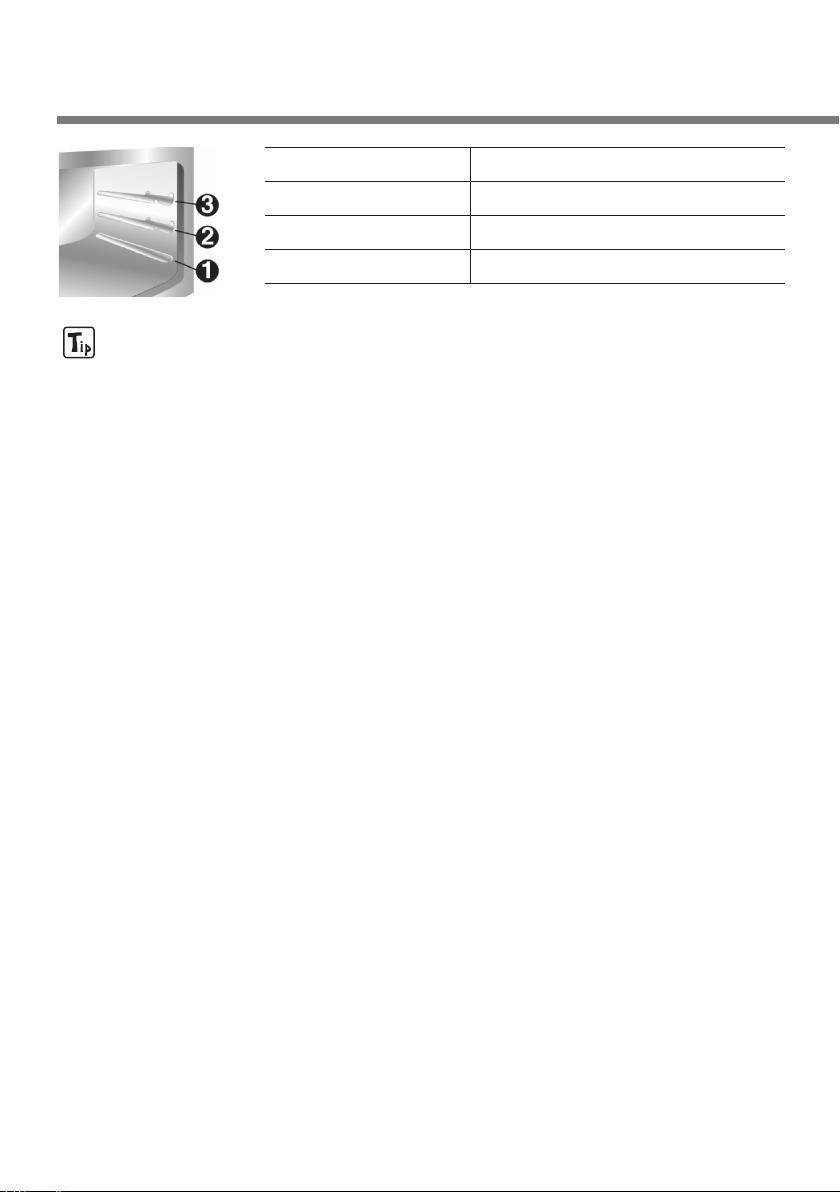

The food should be placed on the oven shelf which is positioned on
one of the guides supplied with the different ovens, following the
instructions below:
24
Instructions for the user
Flat or thin meat 3
Rolled roast joints 2 – 3
Poultry 2 – 3
• Cooking procedures in this mode must never last more
than 60 minutes.
• In models with gas oven, the door must be half-open on
the first catch during grilling and grill-rotisserie cooking.
• In models with gas grill, the door must be close during
grilling cooking.
• To avoid dangerous overheating when the oven or the
grill is used, the glass cover must always be up. The
electric grill and the gas oven cannot be used at the same
time.
• During and after use the accessible parts of the oven may
be very hot, and children must always be kept at a
distance.
• During cooking with the rotisserie, one of the oven trays
provided with the cooker should be placed in the bottom
of the oven, inserting it on the bottom runners, in order to
collect the grease and fats which may be formed.
• When using the oven, remove all unused baking sheets
and shelves from the interior.
FOOD GRILLE ON THE SHELF
25
8. Digital timer (certain models only)
This component allows an on-off beeper to be set to indicate the
end of the cooking time. It is therefore just a timer, with no
programming functions.
LIST OF FUNCTIONS
TIME-SETTING BUTTON
VALUE DECREASE BUTTON
VALUE INCREASE BUTTON
8.1 Setting the time
When the oven is used for the first time, or after a power blackout,
the display flashes on and off at regular intervals showing .
Press the
time.
key and use the
or
keys to set the current
0:00
8.2 Setting the timer
To set the timer, press the
required number of minutes is shown. When the key is released,
after 5 seconds the countdown will start; once this finishes, an
acoustic device will sound.
During the countdown the display will show the
the
key displays the current time for 5 seconds.
key and keep it pressed until the
symbol; pressing
26
Instructions for the user
5
10
15
20
25
30
35
40
45
50
55
8.3 Deactivating the acoustic device
The acoustic device stops sounding automatically after seven
minutes. It can be deactivated in manual mode by pressing the
key.
8.4 Adjusting the volume of the acoustic device
The volume can be adjusted (3 settings) while it is in operation by
pressing the
key.
8.5 Modifying the data set
The timer data set can be modified at any moment by pressing the
or
keys.
9. Analogue clock (Only on equipped models)
The mechanical timer is set by turning the knob
clockwise.
The timer can be set from 0 to 55 minutes. At the end
of the cooking time, an alarm signal will be heard: to
stop the alarm turn the external part of the knob to
position
The clock is set by pulling the knob and turning it
clockwise.
.
27
10. Available accessories
The oven has 4 support for positioning plates
and racks at various heights.
Oven grill: for cooking food on plates, small
cakes, roasts or food requiring light grilling.
Plate grill: for placing above plate for cooking
foods that might drip.
Oven plate: useful for catching fat from foods on
the grill above.
Spit support (certain models only): to be
inserted in the 2
using the spit.
Roasting spit (certain models only): useful for
cooking chicken, sausages and anything else
requiring uniform cooking over the whole surface.
nd
guides of the oven before
28
Instructions for the user
11. Cleaning and maintenance
11.1 Cleaning stainless steel and enamelled versions
To maintain stainless steel in good condition clean it regularly after
each use, once it has cooled down.
11.1.1 Ordinary daily cleaning
To clean and preserve the stainless steel surfaces, always use only
specific products that do not contain abrasives or chlorine-based
acids.
How to use: pour the product on a damp cloth and wipe the
surface, rinse thoroughly and dry with a soft cloth or deerskin.

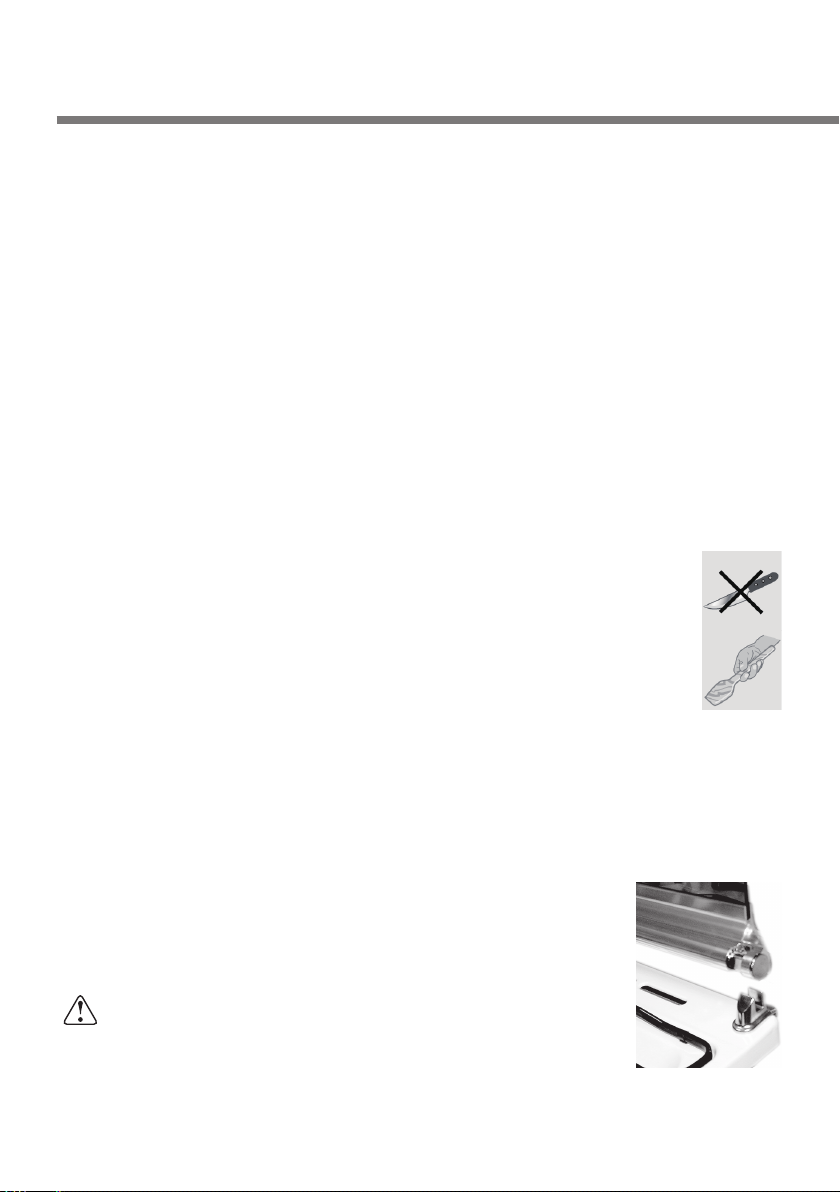

11.1.2 Food stains or residues
Do not use metallic sponges or sharp scrapers: they will
damage the surface.
Use normal non-abrasive products for steel, and a wooden
or plastic tool if necessary.
Rinse thoroughly and dry with a soft cloth or deerskin.
Do not allow residues of sugary foods (such as jam) to set
inside the oven. If left to set for too long, they might
damage the enamel lining of the oven.
11.2 Cleaning of cooking hob components
11.2.1 The glass cover
The cover can be removed from the hinges by lifting
it upwards when it is open. This makes cleaning
easier.
If liquids are spilt on the closed lid, remove them
thoroughly with a rag before opening it.
29
11.2.2 Grids
Remove the grids and clean them in warm water with a nonabrasive detergent, taking care to remove any incrustations.
Replace them on the cooking hob.
Continuous contact of the grids with the flame can cause the paint
near the hot areas to be altered. This is completely natural and
does not compromise the functionality of the component.
11.2.3 Burner caps and flame cap crowns
The caps and flame-spreader crowns are
extractable to facilitate cleaning. Wash them in hot
water with non-abrasive detergent, taking care to
remove any encrustations, and wait until they are
perfectly dry.
WARNING: do not wash these components in the
dishwasher.
Replace the flame-spreader crowns, checking that they are
positioned in their housing with their respective caps, taking care
that flame-spreader holes A correspond to the spark plugs and the
thermocouples.
11.2.4 The spark plugs and thermocouples
To function properly the spark plugs and thermocouples
must always be clean (on the models which are
equipped with them). Check them regularly and clean
with a damp cloth if necessary. Any dry residues can be
removed with a toothpick or a needle.
11.2.5 The burners
The burners can be left to soak in hot water and detergent.
30
Instructions for the user
11.3 Cleaning of oven
For best oven upkeep clean regularly after having allowed to cool.
Take out all removable parts.
• Clean the oven grill with hot water and non-abrasive detergent.
Rinse and dry.
• Do not allow residues of sugary foods (such as jam) to set inside
the oven. If left to set for too long, they might damage the enamel
lining of the oven.
11.4 Door glass
The door glass should always be kept clean. Use absorbent kitchen
paper to clean. In case of tough spots, clean with a damp sponge
using regular detergent.
When cleaning, the appliance must be dried thoroughly
since detergent and water drips might damage its operation
and appearance.
31
12. Extraordinary maintenance
The oven may require extraordinary maintenance or replacement of
parts subject to wear such as seals, bulbs, and so on. The following
instructions describe how to carry out these minor maintenance
operations.
Before any intervention, disconnect the power supply of the
device.
12.1 Replacement of light bulb
Remove cover A by twisting anticlockwise, replace bulb B with
another similar bulb (25 W).
Refit the cover A.
Only use oven bulbs (T 300°C).
12.2 Removing the door
Hold the door on both sides with both hands
near hinges A and raise levers B. Lift up the
door forming an angle of about 45° and
remove. To refit, slide the hinges A in the
grooves, drop the door and release levers B.
12.3 Oven door seal
To permit thorough cleaning of the oven, the seal may
be removed. Before removing the seal, take off the door
as described above. Once the door has been taken off,
lift the tabs at the corners as shown in the figure.
12.4 Lubrication of the taps and gas oven thermostat
In time the taps may be difficult to turn or may be blocked. Clean
them inside and replace the lubrication grease. This operation
should be carried out by a specialised technician.
Loading...
