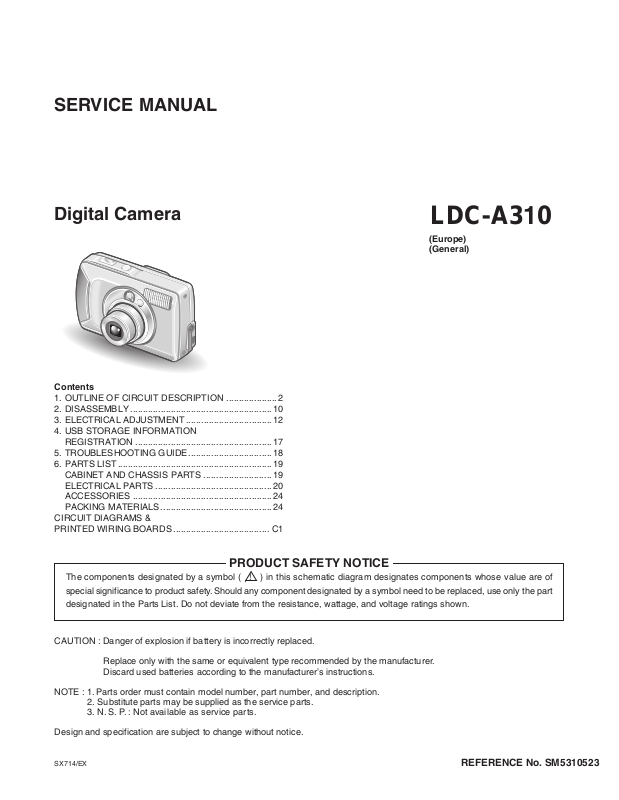

LG LDC-A310 SERVICE MANUAL
SERVICE MANUAL
Digital Camera
Contents |
|
1. OUTLINE OF CIRCUIT DESCRIPTION |
.................... 2 |
2. DISASSEMBLY ........................................................ |
10 |
3. ELECTRICAL ADJUSTMENT .................................. |
12 |
4. USB STORAGE INFORMATION |
|
REGISTRATION ...................................................... |
17 |
5. TROUBLESHOOTING GUIDE................................. |
18 |
6. PARTS LIST ............................................................. |
19 |
CABINET AND CHASSIS PARTS ........................... |
19 |
ELECTRICAL PARTS .............................................. |
20 |
ACCESSORIES ....................................................... |
24 |
PACKING MATERIALS............................................ |
24 |
CIRCUIT DIAGRAMS & |
|
PRINTED WIRING BOARDS ...................................... |
C1 |
LDC-A310
(Europe)
(General)
PRODUCT SAFETY NOTICE
The components designated by a symbol ( ! ) in this schematic diagram designates components whose value are of
special significance to product safety. Should any component designated by a symbol need to be replaced, use only the part
designated in the Parts List. Do not deviate from the resistance, wattage, and voltage ratings shown.
CAUTION : Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
Discard used batteries according to the manufacturer’s instructions.
NOTE : 1. Parts order must contain model number, part number, and description.
2.Substitute parts may be supplied as the service parts.
3.N. S. P. : Not available as service parts.
Design and specification are subject to change without notice.
SX714/EX |
REFERENCE No. SM5310523 |
