PG-100-2006-VER1

LG Electronics Canada Inc.

1-888-LG-Canada (542-2623)www.LG.ca

ELEGANT. EFFICIENT. EXTRAORDINARY.

PRODUCT GUIDE

Ductless Air Conditioning Systems

ARTCOOL™ • Mini-Split • Flex Multi Split

Floor Standing • Ceiling Cassette

PTAC

MINI-SPLIT ART COOL, SINGLE ZONE

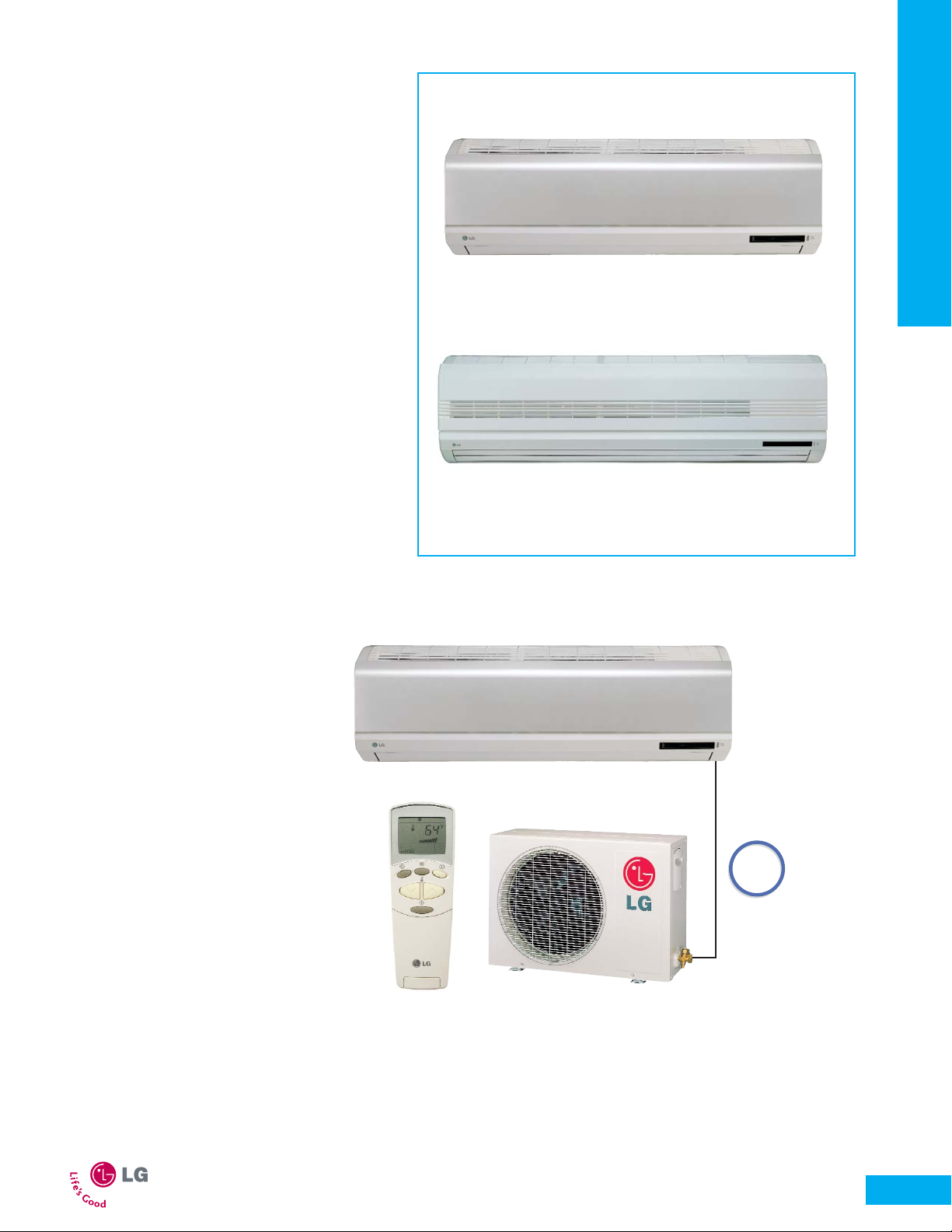

MINI-SPLIT STANDARD, SINGLE ZONE

FLEX MULTI SPLIT, DUAL & TRI-ZONE

9,000-24,000 BTUs

Cooling and Heat Pump

18,000 BTUs

Cooling

12,000 BTUs

Cooling, and Heat Pump

9,000 and 12,000 BTUs

Cooling, and Heat Pump

Dual Zone: Mix and match for 18,000 to 24,000 BTUs

Tri-Zone: Mix and match for 27,000 to 36,000 BTUs

Cooling and Heat Pump

30,000 BTUs

Cooling and Heat Pump

PACKAGED TERMINAL AIR CONDITIONERS

ENVIRONMENTALLY FRIENDLY

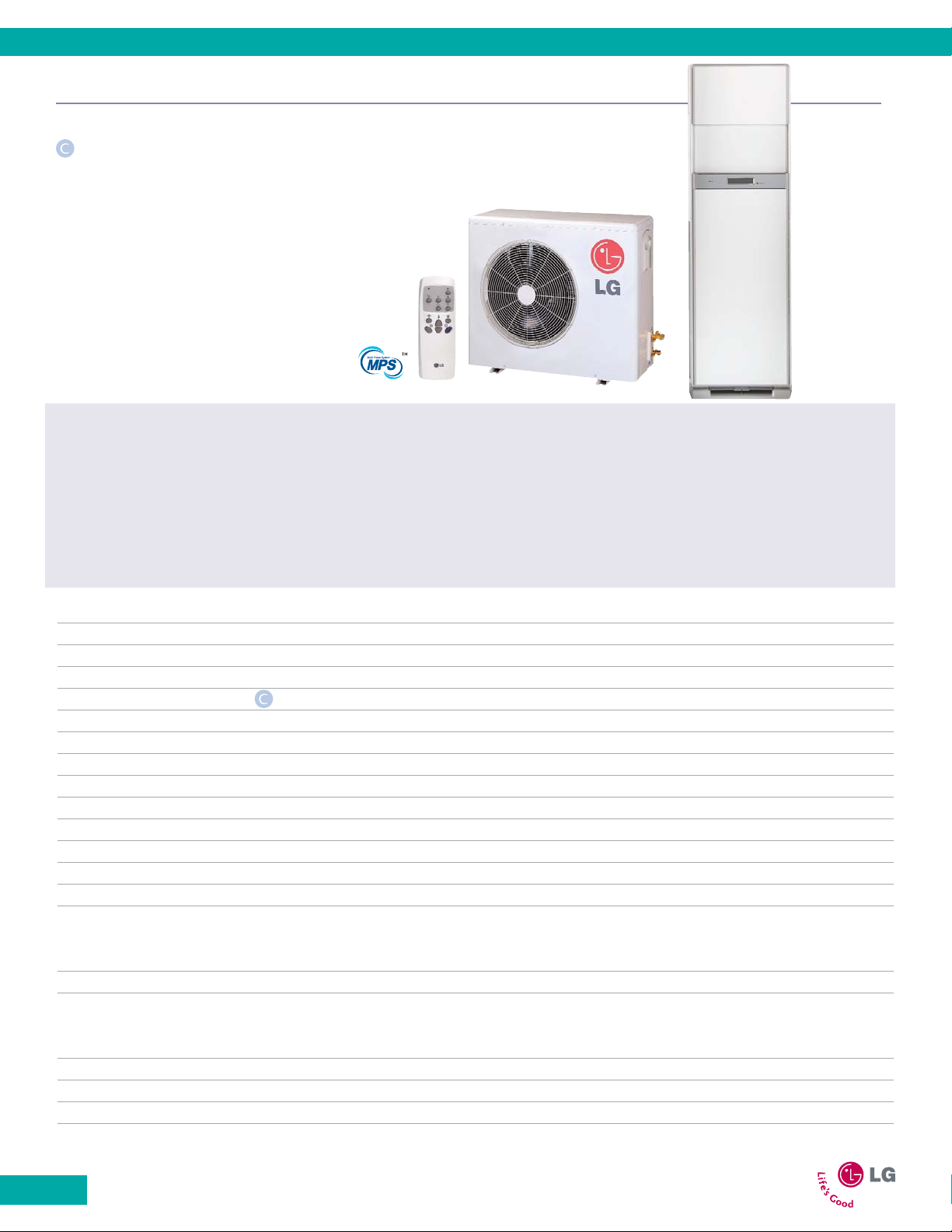

FLOOR STANDING & CEILING CASSETTE, SINGLE ZONE

7,000-15,000 BTUs

Heat/Cool

LG air conditioners are environmentally friendly and future-oriented.

To reduce Freon gas, a prime ozone destroyer, they adopt alternative refrigerant R-410A, and neo plasma air-purifying system for powerful sterilization for health-conscious customers.

Also, ARTCOOL™ series with outstanding designs have received International Forum Design Award and Reddot Design Award.

They have improved air flow innovatively to realize world’s lowest noise, and provide a more pleasant and convenient indoor environment.

24,000 and 34,000 BTUs

Cooling

28,000 BTUs

Cooling

48,000 BTUs

Cooling

Take advantage of our smart solutions for residential & commercial air conditioning applications.

LG HVAC systems offer a range of solutions that are cost-efficient, quiet, and attractive. They provide a smart alternative to both central HVAC and window-mounted air conditioners, and are available in a variety of configurations to suit different cooling and heating situations.

Split Systems

These innovative systems are “split” into indoor and outdoor units. The interior units are available in several different configurations: ARTCOOL™, standard wall-mounted, floor standing and ceiling cassettes. All interior units have remote controls for easy use. Installation by a qualified HVAC contractor is safe and easy—no duct work or sheet metal is needed. Single, dual and tri-zone systems, as well as cooling only and heat pump models are available.

PTAC Models

LG’s new PTAC units are perfect for lodging and healthcare applications. These units have an extremely low decibel level and outstanding sound ratings. Plus, LG models have efficiency ratings up to 12.7 EER, which translates into excellent energy savings.

Feature Advantages:

Look for these key features throughout the LG line.

• Attractive, customizable indoor units. ARTCOOL™

provides numerous options to compliment any décor. The ARTCOOL™ Customizable Art Panel works like a picture frame – any art or photograph can be displayed. Other ARTCOOL™ units come in a variety of beautiful colors and finishes to suit any room.

• Multi Power System.

™

Energy-saving twin compressors: one provides power at 60% capacity until the system reaches a desired

temperature. Then the smaller compressor takes over to provide sustained operation at 40% capacity, saving money and energy.

• R-410A Refrigerant. Environmentally friendly

refrigerant utilized in the majority of LG systems.

• Neo Plasma Air Purifying System. The 4-stage system

features a large, permanent filter and an electronic air purifier that captures microscopic contaminants like dust, mite, pollen, and pet fur.

• Triple-Filter Air Purifying System. An electrostatic filter removes

dust, pollen and smoke; an anti-fungal filter prevents bacteria and mold from forming; and a deodorizing filter freshens the air.

• ARTCOOL™ Self-Cleaning Indoor Coil. Drives dirt and

moisture from coil surface leaving it clean and fresh smelling.

• Dehumidifying Mode. Indoor unit accurately senses room

temperature and controls humidity by shutting down the compressor before a room is over-cooled.

• Chaos Swing. Electronically controlled louvers and fan speeds

create a more natural, random flow of air, reducing temperature stratification.

• ARTCOOL™ Three-way Cooling. Air flows out of the unit

from three directions, creating more natural circulation.

• Jet Cool. Operates at high speed for up to 30 minutes to

quickly cool a room down to 65° F.

• Swirl Wind. Four-way controlled louvers and fan speeds create

a stronger, wider air flow and reduces temperature stratification.

• Auto Operation. Provides three levels of comfort from which to

choose. Temperature and fan speed will set automatically.

• Manual Power Switch. Easily accessed button that allows for

continued operation if the remote control is misplaced.

• Defrost Control. Shuts down the indoor fan to prevent cold air

from being blown into the house. Removes frost from outdoor coil when the outdoor temperature is low (Heat Pump only).

• Temperature Display. Shows room temperature of interior

unit.

• Auto Sleep Mode. Automatically increases the temperature

setting 2° F twice (after 1/2 hour and one hour). The interior unit shuts off when the timer setting is reached.

• Auto Restart. Automatically restarts a unit to programmed

setting when the electricity comes on after a power failure.

The LG HVAC Advantage

NOTE: All features are not available on all models.

See product pages for details.

The LG HVAC Advantage

Chaos Swing

A natural air flow system. Computer-controlled vanes create a more natural flow of air, reducing temperature stratification.

Wind-up Effects: The Wind-up Effect is controlled by the Vane Angle Control to evenly distribute nature-like air throughout the room.

Up speed :12ms(Slow)

Down speed :6ms(fast)

It swings at an angle twice wider than that in conventional air conditioners, thus minimizing differences in indoor temperatures, and allowing air to circulate in every corner of the room.

Chaos Swing Auto Swing

Indoor Temperature Distribution Chart

Even & Fast Cooling

Have an even and fast air flow with the Twin Air Vane™, which regulates cool and warm air.

Cooling mode

Co., A

0.5hr 1hr 2hr

Co., B

Ultra Silent Operation

Cross-flow fan operates at low speed but generates more air. The special fan housing creates a smooth and quiet air flow.

1 2

The Quiet operation has a three-layer and new design

Less noise with a three-layer, anti-noise mechanism

A three-layer, anti-noise mechanism covers the noise coming from the fan and the motor.

50dB

55dB

78dB

Typing

Conveniently attaches to the wall

Office

Conversation

40dB

Library

28dB

Indoor Unit

20dB

Empty Studio

The double-tubing cover minimizes space between the wall and the air conditioner in order to reduce the noise caused by motor vibration.

4-Way Auto Swing

Air flows in 4 directions, creating more natural circulation.

The LG HVAC Advantage

Perfect Finishing

Additional wide cover to hold tubing assembly

Wide area for piping & drain hose arrangement, wide cover to hold piping & drain hose.

Installation fully and strongly Inserted structure

Additional wide cover to hold tubing assembly

- Gap from the wall : 1~2mm

New LG

- Gap from the wall : 5~8mm

Conventional

1 2 3

Optimum Effective Cooling

LG Wall Mounted Split models feature a Dehumidification mode to remove uncomfortable humidity from the room without over cooling.

Conventional

Since the surrounding temperature is measured after the air from the unit is widely distributed, an accurate assessment of the air is not possible.

Jet Cool Operation

Jet Cool operates at a high speed for up to 30 minutes to quickly cool a room down to 18°C. It can cool a certain area up to 10 meters away.

By increasing the vane angle, a better assessment of the actual temperature is possible to prevent over cooling.

35ºC

10m

26ºC

ART COOL

™

LOW

36V DC

INDOOR UNIT

OPERATION

LOW

36V DC

INDOOR UNIT

OPERATION

Outstanding

air purification

The wall unit features LG’s Neo Plasma Air Purifying System that provides excellent indoor air quality. Freshen the air anytime, whether cooling a room or operating in fan only mode.

ART COOL MINI-SPLIT SINGLE ZONE

Customized good looks

The slim, contemporary styling of the Art Cool™ models

will appeal to today’s discerning customer. The 9,000 and

12,000 BTU picture models come with a frame that allows

the customer to modify and personalize the unit with their

own artwork or photography – the ultimate in custom

design. Other indoor units are available in popular

finishes and colors to compliment any décor.

Ductless Mini-Split Air conditioning Systems from LG

maximize the efficiency and economics of ductless

technology. Now you can bring more attractive, cost

effective solutions to your commercial and residential

customers, providing single zone systems in both air

conditioning and heat pump models.

Indoor Unit with Remote

Outdoor Unit

Available styles and finishes

Mini-Split

ARTCOOL™ Indoor Unit

Customizable Art Panel

Mini-Split

ARTCOOL™ Indoor Unit

Metal Finish

Mini-Split

ARTCOOL™ Indoor Unit

Mirror Finish

Neo Plasma

System Model # LA090CP LA090HP

Indoor Model # LA090CPI LA090HPI Outdoor Model # LA090CPO LA090CPO

Performance

Capacity (BTUs) 9,000 9,000

9,000 SEER 13 13 Air Circulation (CFM H/M/L) 283/230/177 283/230/177 Fan Speeds 4/Auto/Chaos 4/Auto/Chaos Dehumidification (pts/hour) 2.6 2.6 Indoor dB(A)* 35/30/25 35/30/25 Outdoor dB(A)* 48 48

Electrical

Rated Voltage Outdoor 115-60-1 115-60-1 Rated Voltage Indoor 36V DC 36V DC

Indoor Dimensions 23 5/8 x 23 5/8 x

W x H x D (inches) 23 5/8 x 23 5/8 x

5 3/4 5 3/4

Weight (lbs.) 30.9 30.9

Outdoor Dimensions 30 5/16 x 30 5/16 x

W x H x D (inches) 21 5/16 x 21 5/16 x

9 5/8 9 5/8

Weight (lbs.) 66.1 66.1

Thermostat Range

Cooling / Heating (°F) 64-86 64-86/60-86

*LG verified sound ratings

9,000 BTUs

LA090CP (A/C Model)

9,000 BTUs Cooling

LA090HP (H/P Model)

9,000 BTUs Cooling 9,000 BTUs Heating

12,000 BTUs

LA120CP(A/C Model)

12,000 BTUs Cooling

LA120HP (H/P Model)

12,000 BTUs Cooling 12,000 BTUs Heating

Features:

• Customizable art panel

• R-410A Refrigerant

• Neo Plasma Air Purifying

System

• Self-cleaning indoor coil

• Dehumidifying mode

• Chaos Swing

• Three-way cooling

• Jet Cool

• Cooling mode

• Heating mode (H/P model only)

• Fan mode

• Auto operation

• Manual power switch

• Auto sleep mode

• Auto restart

• 24-Hour on/off timer

• Evaporator frost control

Interior Unit Includes:

• Wall unit

• Installation plate & hardware

• Remote control, batteries,

holder & holder hardware

• Installation manual

Exterior Unit Includes:

• Exterior unit

• Exterior unit has sufficient

refrigerant for charging indoor coil and a 25’ line set

Warranty: 2 years parts and labour; 5 years compressor. See page 10 for electrical specifications, refrigerant line requirements & formulas.

HIGH WALL DUCTLESS • ART COOL MINI-SPLIT SINGLE ZONE

LA120CP LA120HP

LAN120CPI LAN120HPI LAU120CPO LAU120HPO

12,000 12,000

12,000 13 13 330/261/194 330/261/194 4/Auto/Chaos 4/Auto/Chaos

3.0 3.0 41/35/29 41/35/29 48 48

115-60-1 115-60-1 36V DC 36V DC 23 5/8 x 23 5/8 x 23 5/8 x 23 5/8 x 5 3/4 5 3/4

30.9 30.9 30 5/16 x 30 5/16 x 21 5/16 x 21 5/16 x 9 5/8 9 5/8

70.5 70.5

64-86 64-86/60-86

Warranty: 2 years parts and labour; 5 years compressor.

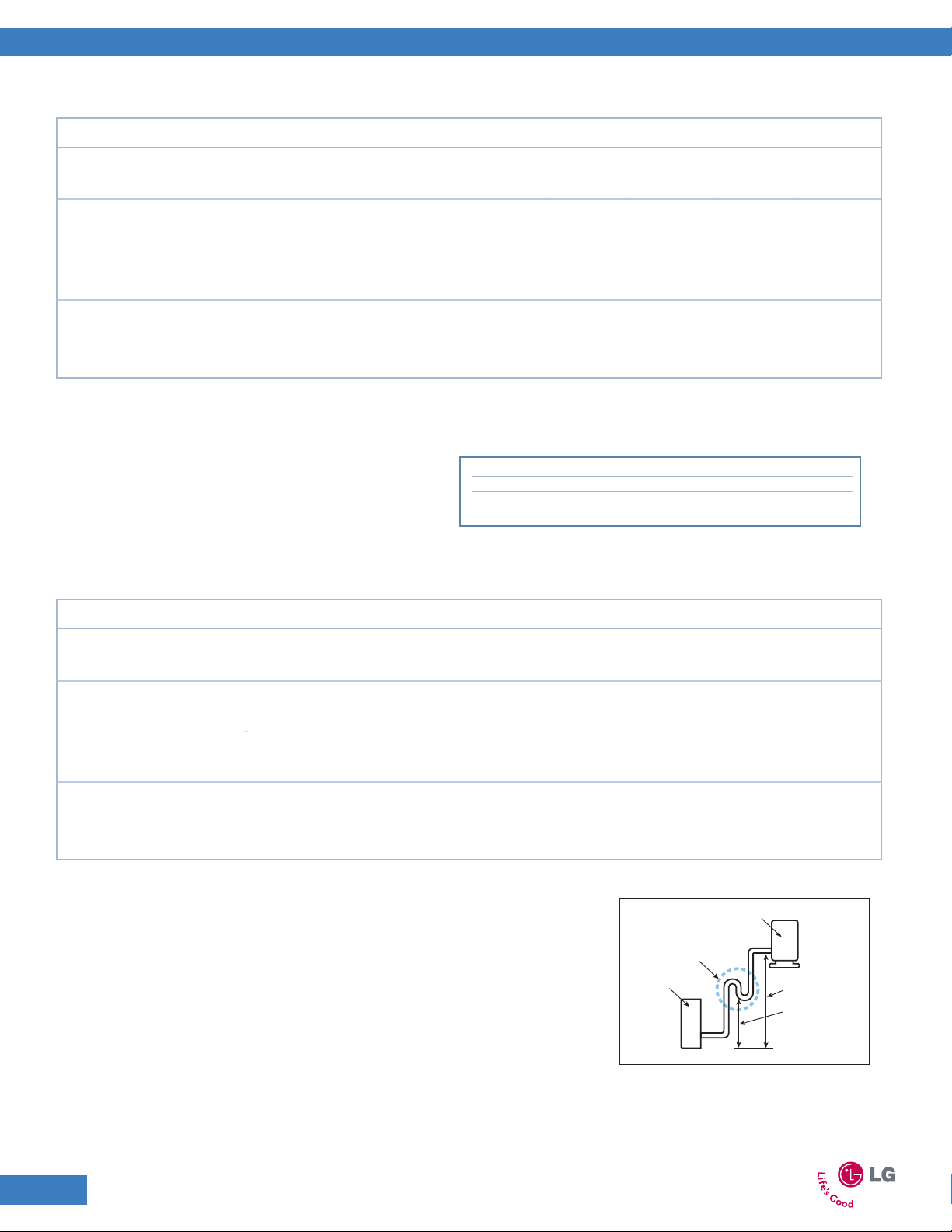

See page 10 for electrical specifications, refrigerant line requirements & formulas.

4. Slide the new picture under the panel, and press the front panel shut.

5. Secure the tabs on the bottom of the front panel

6. Your new picture should now be displayed in your LG

ARTCOOL™.

How to replace the picture in your customizable ARTCOOL

™

air conditioning unit:

1. Turn off the power.

2. Pull open the top part of the front panel.

3. Pull out tabs from the bottom of the front panel, then pull the bottom of the panel

forward, until it is secured. Take out the existing picture from under the panel.

4. Slide the new picture under the panel, and press the front panel shut.

5. Secure the tabs on the bottom of the front panel

6. Your new picture should now be displayed

in your LG ARTCOOL™.

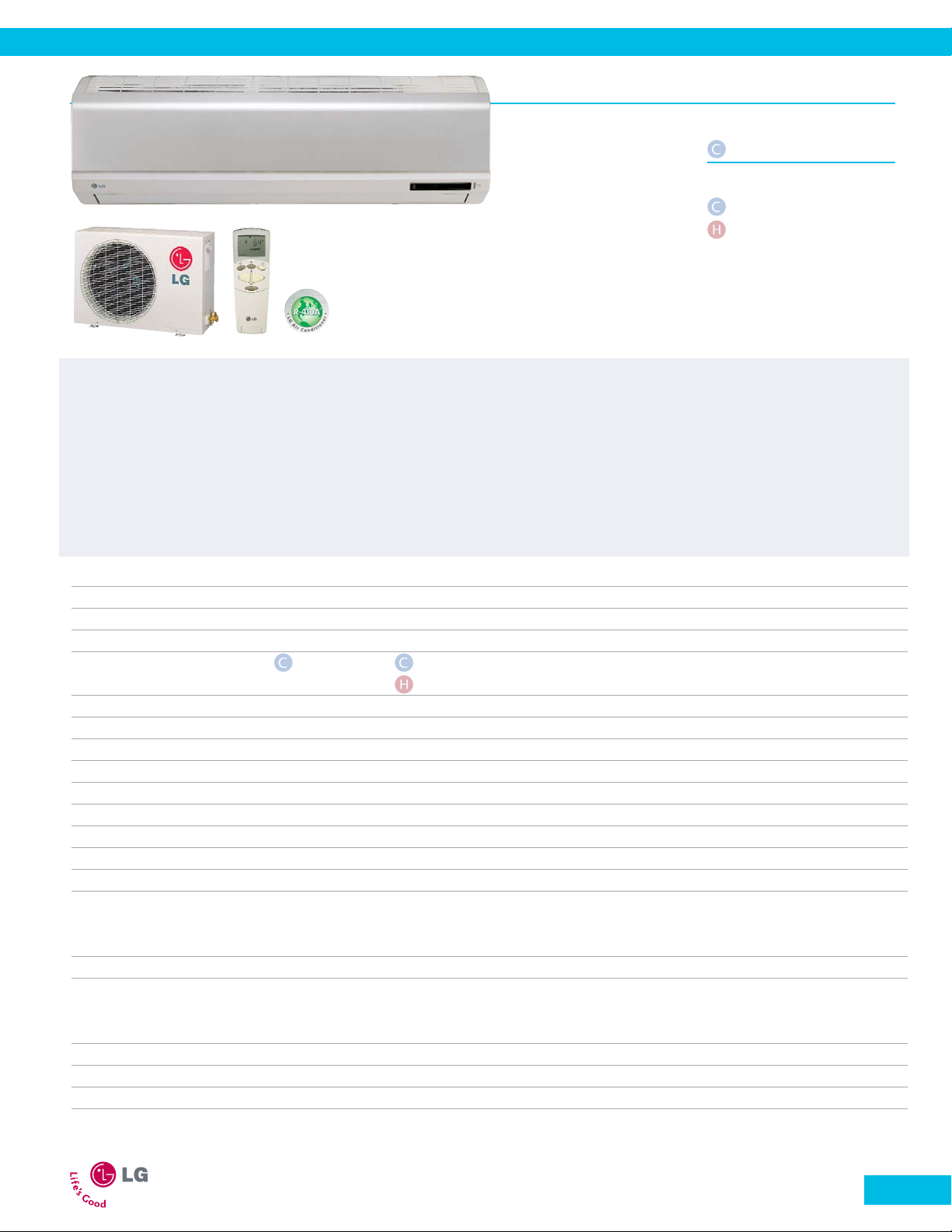

HIGH WALL DUCTLESS • ART COOL MINI-SPLIT SINGLE ZONE

LA121CPM (A/C Model)

11,500 BTUs Cooling

LA121HPM (H/P Model)

11,500 BTUs Cooling 11,500 BTUs Heating

12,000 BTUs

System Model # LA121CPM LA121CPM

Indoor Model # LAN121CPMI LAN121CPMI Outdoor Model # LAU121CPMO LAU121CPMO

Performance

Capacity (BTUs) 11,500 11,500

11,500 SEER 13 13 Air Circulation (CFM H/M/L) 330/261/194 330/261/194 Fan Speeds 4/Auto/Chaos 4/Auto/Chaos Dehumidification (pts/hour) 3.0 3.0 Indoor dB(A)* 41/38/34 41/38/34 Outdoor dB(A)* 48 48

Electrical

Rated Voltage Outdoor 115-60-1 115-60-1 Rated Voltage Indoor 36V DC 36V DC

Indoor Dimensions 36 x 36 x

W x H x D (inches) 11 3/32 x 11 3/32 x

6 1/2 6 1/2

Weight (lbs.) 20.5 20.5

Outdoor Dimensions 30 5/16 x 30 5/16 x

W x H x D (inches) 21 5/16 x 21 5/16 x

9 5/8 9 5/8

Weight (lbs.) 70.5 70.5

Thermostat Range

Cooling / Heating (°F) 64-86 64-86/60-86

*LG verified sound ratings

Features:

• R-410A Refrigerant

• Neo Plasma Air Purifying

System

• Self cleaning indoor coil

• Dehumidifying mode

• Chaos Swing

• Jet Cool

• Cooling mode

• Heating mode (H/P model only)

• Fan mode

• Auto operation

• Manual power switch

• Defrost control (H/P model only)

• Auto sleep mode

• Auto restart

• 24-Hour on/off timer

• Evaporator frost control

• Ultra-quiet operation

Interior Unit Includes:

• Wall unit

• Installation plate & hardware

• Remote control, batteries,

holder & holder hardware

• Installation manual

Exterior Unit Includes:

• Exterior unit

• Exterior unit has sufficient

refrigerant for charging indoor coil and a 25’ line set

Warranty: 2 years parts and labour; 5 years compressor. See page 10 for electrical specifications, refrigerant line requirements & formulas.

Warranty: 2 years parts and labour; 5 years compressor.

See page 10 for electrical specifications, refrigerant line requirements & formulas.

18,000 BTUs

System Model # LA180CP

Indoor Model # LAN180CPI Outdoor Model # LAU180CPO

Performance

Capacity (BTUs) 18,000/17,800 SEER 13 Air Circulation (CFM H/M/L) 460/353/247 Fan Speeds 4/Auto/Chaos Dehumidification (pts/hour) 5.3 Indoor dB(A)* 44/40/36 Outdoor dB(A)* 55

Electrical

Rated Voltage Outdoor 230/208-60-1 Rated Voltage Indoor 36V DC

Indoor Dimensions 36 1/2 x

W x H x D (inches) 20 19/32 x

5 25/32

Weight (lbs.) 37.5

Outdoor Dimensions 34 5/16 x

W x H x D (inches) 25 13/16 x

12 5/8

Weight (lbs.) 149.9

Thermostat Range

Cooling / Heating (°F) 64-86

*LG verified sound ratings

LA180CP (A/C Model)

18,000 BTUs Cooling

Features:

• Multi Power System

™

• R-410A Refrigerant

• Neo Plasma Air Purifying

System

• Self cleaning indoor coil

• Dehumidifying mode

• Chaos Swing

• Three-way cooling

• Jet Cool

• Cooling mode

• Fan mode

• Auto operation

• Manual power switch

• Temp. display on indoor unit

• Auto sleep mode

• Auto restart

• 24-Hour on/off timer

• Evaporator frost control

Interior Unit Includes:

• Wall unit

• Installation plate & hardware

• Remote control, batteries,

holder & holder hardware

• Installation manual

Exterior Unit Includes:

• Exterior unit

• Exterior unit has sufficient

refrigerant for charging indoor coil and a 25’ line set

HIGH WALL DUCTLESS • ART COOL MINI-SPLIT SINGLE ZONE

***Each system is pre-charged with enough refrigerant to charge 25 ft. of line and the interior unit.

NOTE: Systems having the outdoor unit mounted above the indoor unit (e.g. basement installations) have the following additional requirement: For systems with maximum elevation of 25 ft. (see Figure A), refrigerant lines must be oil trapped between 8 ft. and 12 ft. of elevation. For systems with elevation of greater than 25 ft. Refrigerant lines must be oil trapped at least every 12 ft. of elevation.

* Each system should have a 6-8 inch inverted trap at the condensing unit if mounted above

indoor unit.

Figure A. Example: 25 ft. maximum elevation.

ART COOL MINI-SPLIT SINGLE ZONE

ELECTRICAL & REFRIGERATION • QUICK REFERENCE

NOTE: Recommend shielded cable for low voltage wiring. Please see local electrical codes for proper wire specifications.

All equipment single phase.

*Minimum Circuit Ampacity

**Maximum Overcurrent Protection

Wire Size

Minimum AWG 14-3 Indoor/Outdoor Connecting Cable Shielded 18-4

Refrigerant Line Specifications***

Electrical Specifications

Type Model BTUs Voltage Rated Amps MCA* MOP**

ARTCOOL ™ Indoor Outdoor

A/C LA090CP 9,000 36V DC 115 7.2 15 15 A/C

LA120CP 12,000

36V DC 115 9.3 15 20

A/C

LA121CPM 11,500

36V DC 115 10.5 15 20

A/C

LA180CP 18,000

36V DC 230/208 9.8 15 20

H/P

LA090HP 9,000

36V DC 115 7.2 15 20

H/P

LA120HP 12,000

36V DC 115 9.3 15 20

H/P LA121HPM 11,500 36V DC 115 10.5 15 20

Type Model BTUs Pipe Size Additional Max. Pipe Max.

ARTCOOL

™ Liquid Suction Refrigerant Length

Elevation

A/C LA090CP 9,000 1/4" 3/8" 0.21 oz./ft. 50' 25'

A/C LA120CP 12,000 1/4" 1/2" 0.21 oz./ft. 50' 25'

A/C LA121CPM 11,500 1/4" 1/2" 0.21 oz./ft. 50' 25'

A/C LA180CP 18,000 1/4" 1/2" 0.21 oz./ft. 100' 50'

H/P LA090HP 9,000 1/4" 3/8" 0.21 oz./ft. 50' 25'

H/P LA120HP 12,000 1/4" 1/2 " 0.21 oz./ft. 50' 25'

H/P

LA121HP 11,500 1/4" 1/2 " 0.21 oz./ft. 50' 25'

Single Zone

OUTDOOR UNIT

OIL TRAP

INDOOR UNIT

25' maximum

8' minimum 12' maximum

MINI-SPLIT STANDARD

MINI-SPLIT STANDARD AIR CONDITIONERS SINGLE ZONE

Mini-Split Standard systems utilize the same

ductless technology as ARTCOOL™ units, in a

streamlined, low profile design. Models are

available in a variety of sizes from 9,000

through 30,000 BTUs. LG’s Mini-split

standard air conditioners are easy-to-install,

efficient and cost effective.

LOW

36V DC

INDOOR UNIT

OPERATION

LOW

36V DC

INDOOR UNIT

OPERATION

Outdoor Unit

Indoor Unit

Mini-Split Standard Indoor Unit White

Cooling and Heat Pump

9,000-24,000 BTUs

Mini-Split Standard Indoor Unit White

Cooling and Heat Pump

30,000 BTUs

Available styles

LS090CP (A/C Model)

9,000 BTUs Cooling

LS090HP (H/P Model)

9,800 BTUs Cooling 9,800 BTUs Heating

9,000 BTUs

Standard Features:

• R-410A Refrigerant

• Dehumidifying mode

•

Neo Plasma Air Purifying System

• Chaos Swing

•

Jet Cool

•

Cooling mode

• Heating mode (H/P model only)

• Fan mode

• Auto operation

• Manual power switch

•

Defrost control (H/P model only)

• Temperature display on

indoor unit

•

Auto sleep mode

•

Auto restart

• 24-Hour on/off timer

• Built-in low ambient standard,

down to 0°F (cooling mode)

• Ultra-quiet operation

• Evaporator frost control

Interior Unit Includes:

• Wall unit

• Installation plate & hardware

• Remote control, batteries,

holder & holder hardware

• Installation manual

Exterior Unit Includes:

• Exterior unit

• Exterior unit has sufficient

refrigerant for charging indoor coil and a 25’ line set

System Model # LS090CP LS090HP

Indoor Model # LSO90CPI LSO90HPI Outdoor Model # LSO90CPO LSO90HPO

Performance

Capacity (BTUs) 9,000 9,800

9,800 SEER 13 13 Air Circulation (CFM H/M/L) 250/210/170 330/280/230 Fan Speeds 4/Auto/Chaos 4/Auto/Chaos Dehumidification (pts/hr) 2.6 3.0 Indoor dB(A)* 36/31/28 41/36/34 Outdoor dB(A)* 48 48

Electrical

Rated Voltage Outdoor 115-60-1 115-60-1 Rated Voltage Indoor 36V DC 36V DC

Indoor Dimensions 33 1/16 x 35 3/16 x

W x H x D (inches) 10 5/8 x 11 x

6 1/32 6 1/32

Weight (lbs.) 15.4 15.4

Outdoor Dimensions 30 5/16 x 30 5/16 x

W x H x D (inches) 21 5/16 x 21 5/16 x

9 19/32 9 19/32

Weight (lbs.) 66.1 72.8

Thermostat Range

Cooling / Heating (°F) 64-86 64-86/60-86

*LG verified sound ratings

HIGH WALL DUCTLESS • MINI-SPLIT STANDARD SINGLE ZONE

Warranty: 2 years parts and labour; 5 years compressor. See page 17 for electrical specifications, refrigerant line requirements & formulas.

12,000 BTUs

LS120CP (A/C Model)

12,000 BTUs Cooling

LS120HP (H/P Model)

11,500 BTUs Cooling 11,500 BTUs Heating

Standard Features:

• R-410A Refrigerant

• Dehumidifying mode

• Neo Plasma Air Purifying

System

•

Chaos Swing

•

Jet Cool

•

Cooling mode

• Heating mode (H/P model only)

• Fan mode

• Auto operation

•

Manual power switch

• Defrost control (H/P model only)

• Temperature display on

indoor unit

•

Auto sleep mode

• Auto restart

• 24-Hour on/off timer

• Built-in low ambient standard,

down to 0°F (cooling mode)

• Ultra-quiet operation

• Evaporator frost control

Interior Unit Includes:

• Wall unit

•

Installation plate & hardware

•

Remote control, batteries, holder & holder hardware

• Installation manual

Exterior Unit Includes:

•

Exterior unit

• Exterior unit has sufficient

refrigerant for charging indoor coil and a 25’ line set

System Model # LS120CP LS120HP

Indoor Model # LS120CPI LS120HPI Outdoor Model # LS120CPO LS120HPO

Performance

Capacity (BTUs) 12,000 11,500

11,500 SEER 13 13 Air Circulation (CFM H/M/L) 330/280/230 330/280/230 Fan Speeds 4/Auto/Chaos 4/Auto/Chaos Dehumidification (pts/hr) 3.0 3.0 Indoor dB(A)* 41/36/34 41/36/34 Outdoor dB(A)* 48 48

Electrical

Rated Voltage Outdoor 115-1-60 115-1-60 Rated Voltage Indoor 36V DC 36V DC

Indoor Dimensions 35 3/16 x 35 3/16 x

W x H x D (inches) 11 x 11 x

6 1/2 6 1/2

Weight (lbs.) 20.5 20.5

Outdoor Dimensions 30 5/16 x 30 5/16 x

W x H x D (inches) 21 5/16 x 21 5/16 x

9 19/32 9 19/32

Weight (lbs.) 70.5 72.8

Thermostat Range

Cooling / Heating (°F) 64-86 64-86/60-86

*LG verified sound ratings

HIGH WALL DUCTLESS • MINI-SPLIT STANDARD SINGLE ZONE

Warranty: 2 years parts and labour; 5 years compressor.

See page 17 for electrical specifications, refrigerant line requirements & formulas.

18,000 BTUs

LS180CP (A/C Model)

18,000 BTUs Cooling

LS180HP (H/P Model)

19,500 BTUs Cooling 19,500 BTUs Heating

Warranty: 2 years parts and labour; 5 years compressor. See page 17 for electrical specifications, refrigerant line requirements & formulas.

Standard Features:

• Multi Power System

™

• R-410A Refrigerant

• Neo Plasma Air Purifying

System

•

Dehumidifying mode

•

Chaos Swing

• Jet Cool

•

Cooling mode

• Heating mode (H/P model only)

• Fan mode

• Auto operation

• Manual power switch

• Defrost control (H/P model only)

•

Temperature display on indoor unit

• Auto sleep mode

•

Auto restart

• 24-Hour on/off timer

• Ultra-quiet operation

• Evaporator frost control

Interior Unit Includes:

• Wall unit

• Installation plate & hardware

• Remote control, batteries,

holder & holder hardware

• Installation manual

Exterior Unit Includes:

• Exterior unit

• Exterior unit has sufficient

refrigerant for charging indoor coil and a 25’ line set

System Model # LS180CP LS180HP

Indoor Model # LS180CPI LS180HPI Outdoor Model # LS180CPO LS180HPO

Performance

Capacity (BTUs) 18,000/17,800 19,500/19,000

19,500/19,000 SEER 13 13 Air Circulation (CFM H/M/L) 460/380/320 530/450/370 Fan Speeds 4/Auto/Chaos 4/Auto/Chaos Dehumidification (pts/hr) 5.3 6.6 Indoor dB(A)* 41/38/36 46/41/38 Outdoor dB(A)* 55 57

Electrical

Rated Voltage Outdoor 230/208-60-1 230/208-60-1 Rated Voltage Indoor 36V DC 36V DC

Indoor Dimensions 42 15/16 x 42 15/16 x

W x H x D (inches) 11 13/16 x 11 13/16 x

7 1/32 7 1/32

Weight (lbs.) 28.6 28.6

Outdoor Dimensions 34 5/16 x 34 5/16 x

W x H x D (inches) 25 13/16 x 25 13/16 x

12 5/8 12 5/8

Weight (lbs.) 149.9 169.6

Thermostat Range

Cooling / Heating (°F) 64-86 64-86/60-86

*LG verified sound ratings

HIGH WALL DUCTLESS • MINI-SPLIT STANDARD SINGLE ZONE

24,000 BTUs

LS240CP (A/C Model)

22,500 BTUs Cooling

LS240HP (H/P Model)

22,500 BTUs Cooling 22,500 BTUs Heating

Warranty: 2 years parts and labour; 5 years compressor.

See page 17 for electrical specifications, refrigerant line requirements & formulas.

Standard Features:

• Multi Power System

™

• R-410A Refrigerant

• Neo Plasma Air Purifying

System

•

Dehumidifying mode

•

Chaos Swing

• Jet Cool

• Cooling mode

• Heating mode (H/P model only)

• Fan mode

• Auto operation

• Manual power switch

• Defrost control (H/P model only)

•

Temperature display on indoor unit

• Auto sleep mode

•

Auto restart

• 24-Hour on/off timer

• Ultra-quiet operation

• Evaporator frost control

Interior Unit Includes:

• Wall unit

• Installation plate & hardware

• Remote control, batteries,

holder & holder hardware

• Installation manual

Exterior Unit Includes:

• Exterior unit

• Exterior unit has sufficient

refrigerant for charging indoor coil and a 25’ line set

System Model # LS240CP LS240HP

Indoor Model # LS240CPI LS240HPI Outdoor Model # LS240CPO LS240HPO

Performance

Capacity (BTUs) 22,500/22,100 22,500/22,100

22,500/22,100 SEER 13 13 Air Circulation (CFM H/M/L) 530/450/370 530/450/370 Fan Speeds 4/Auto/Chaos 4/Auto/Chaos Dehumidification (pts/hr) 6.6 6.6 Indoor dB(A)* 46/41/38 46/41/38 Outdoor dB(A)* 57 57

Electrical

Rated Voltage Outdoor 230/208-60-1 230/208-60-1 Rated Voltage Indoor 36V DC 36V DC

Indoor Dimensions 42 15/16 x 42 15/16 x

W x H x D (inches) 11 13/16 x 11 13/16 x

7 1/32 7 1/32

Weight (lbs.) 28.6 28.6

Outdoor Dimensions 34 5/16 x 34 5/16 x

W x H x D (inches) 31 1/2 x 31 1/2 x

12 5/8 12 5/8

Weight (lbs.) 166.6 169.6

Thermostat Range

Cooling / Heating (°F) 64-86 64-86/60-86

*LG verified sound ratings

HIGH WALL DUCTLESS • MINI-SPLIT STANDARD SINGLE ZONE

30,000 BTUs

LS302CP (A/C Model)

28,000 BTUs Cooling

LS302HP (H/P Model)

28,000 BTUs Cooling 29,000 BTUs Heating

Standard Features:

• Multi Power System

™

• R-410A Refrigerant

• Neo Plasma Air Purifying

System

•

Dehumidifying mode

•

Chaos Swing

• Jet Cool

•

Cooling mode

• Heating mode (H/P model only)

• Fan mode

• Auto operation

• Manual power switch

• Defrost control (H/P model only)

•

Temperature display on indoor unit

• Auto sleep mode

•

Auto restart

• 24-Hour on/off timer

• Ultra-quiet operation

• Evaporator frost control

Interior Unit Includes:

• Wall unit

• Installation plate & hardware

• Remote control, batteries,

holder & holder hardware

• Installation manual

Exterior Unit Includes:

• Exterior unit

• Exterior unit has sufficient

refrigerant for charging indoor coil and a 25’ line set

System Model # LS302CP LS302HP

Indoor Model # LS302CPI LS302HPI Outdoor Model # LS302CPO LS302HPO

Performance

Capacity (BTUs) 28,000/27,000 28,000/27,000

29,000/29,000 SEER 13 13 Air Circulation (CFM H/M/L) 740/630/520 740/630/520 Fan Speeds 4/Auto/Chaos 4/Auto/Chaos Dehumidification (pts/hr) 7.8 7.8 Indoor dB(A)* 48/44/40 48/44/40 Outdoor dB(A)* 63 63

Electrical

Rated Voltage Outdoor 230/208-60-1 230/208-60-1 Rated Voltage Indoor 36V DC 36V DC

Indoor Dimensions 47 19/32 x 47 19/32 x

W x H x D (inches) 13 5/8 x 13 5/8 x

8 1/16 8 1/16

Weight (lbs.) 37.5 37.5

Outdoor Dimensions 34 5/16 x 34 5/16 x

W x H x D (inches) 40 7/8 x 40 7/8 x

12 5/8 12 5/8

Weight (lbs.) 178.6 180.3

Thermostat Range

Cooling / Heating (°F) 64-86 64-86 /60-86

*LG verified sound ratings

Warranty: 2 years parts and labour; 5 years compressor. See page 17 for electrical specifications, refrigerant line requirements & formulas.

***Each system is pre-charged with enough refrigerant to charge 25 ft. of line and the interior unit.

NOTE: Systems having the outdoor unit mounted above the indoor unit (e.g. basement installations) have the following additional requirement: For systems with elevation of 25 ft. (see figure A), refrigerant lines must be oil trapped between 8 ft. and 12 ft. of elevation. For systems with elevation of greater than 25 ft. Refrigerant lines must be oil trapped at least every 12 ft. of elevation.

* Each system should have a 6-8 inch inverted trap at the condensing unit if mounted above

indoor unit.

Mini-Split

Standard

Single Zone

Type

A/C

H/P

System Model #

LS090CP

LS120CP

LS180CP

LS240CP

LS302CP

LS090HP

LS120HP

LS180HP

LS240HP

LS302HP

Indoor

36V DC

BTUs

9,000

11,500

18,000

22,500

28,000

9,800

11,500

19,500

22,500

28,000

Rated

Amps

7.0

10.5

8.6/9.5

11.5/12.5

14.5/15.6

10.5

11.5/12.5

11.5/13.0

14.5/15.6

MCA*

MOP**

Electrical Specifications

Outdoor

115

230/208

115

230/208

Voltage

All equipment single phase.

NOTE: Recommend shielded cable for low voltage wiring. Please see local electrical codes for proper wire specifications.

*Minimum Circuit Ampacity

**Maximum Overcurrent Protection

***For LS180HP, LS240CP/HP, LS302CP/HP

Wire Size

Minimum AWG 14-3

12-3***

Indoor/Outdoor Connecting Cable Shielded 18-4

Mini Split Standard Single Zone

Type

A/C

H/P

System Model #

LS090CP

LS120CP

LS180CP

LS240CP

LS302CP

LS090HP

LS120HP

LS180HP

LS240HP

LS302HP

Pipe size

Liquid Suction

1/4" 3/8"

1/4" 1/2 "

1/4" 5/8"

1/4" 1/2"

1/4" 1/2 "

1/4" 5/8 "

1/4" 5/8"

BTUs

9,000

11,500

18,000

22,500

28,000

9,000

11,500

19,500

22,500

28,000

Additional Refrigerant

0.25 oz./ft.

0.35 oz./ft.

0.25 oz./ft.

0.35 oz./ft.

Max. length each pipe

50'

100'

50'

100'

Max. elevation

25'

50'

25'

50'

Refrigerant Line & Formula Specifications***

MINI-SPLIT STANDARD SINGLE ZONE

ELECTRICAL & REFRIGERATION• QUICK REFERENCE

Figure A. Example: 25 ft. maximum elevation. Must install trap inverted.

INDOOR UNIT

OUTDOOR UNIT

OIL TRAP

25' maximum

8' minimum 12' maximum

ATTRACT YOUR ATTENTION

LG is the first company in the world to introduce the design concept of ARTCOOL™. We have introduced emotional elements to air conditioners beyond their functional features, and thus ARTCOOL™’s refined modern designs are created to highlight your own individuality and style.

We believe that everything in your home should offer you convenience and pleasure. ARTCOOL™ has thus won world-class design awards because of its remarkable concept.

If you’re looking for something innovative and attractive that fits you, put it up on a wall with a painting by a master. The classic ART COOL type lets you express your personality and also make an artistic statement.

CHANGE STYLES

LG ARTCOOL™ allows you to change the image of the

panel to match your interior’s color scheme.

This air conditioner can simulate the ambiance

you want, allowing you full control

to enjoy your life.

The panel, with mirror-like finish, will inject a more

modern and stylish sense in your interiors.

FLEX MULTI SPLIT AIR CONDITIONERS DUAL ZONE & TRI-ZONE

Flex Multi Split Systems

The larger, Flex Multi Split systems operate two or three interior

units that are mounted in separate rooms. Each indoor unit

comes with it’s own remote control, allowing the customer to set

the temperature individually in different rooms. These units are

connected to a single exterior unit.

9,000 and 12,000 Flex Multi indoor units can be combined to

achieve between 18,000 and 24,000 BTUs on a Dual Zone

system, and from 27,000 to 36,000 BTUs on a Tri-Zone system.

The interior units are available in a variety of styles including

ARTCOOL™ and Standard models. Both Dual Zone and Tri-Zone

are available in Cooling Only or Heat Pump systems.

FLEX MULTI SPLIT•DUAL ZONE•TRI-ZONE

Flex Multi Split

Standard Indoor Unit

9,000/12,000 BTU’s

Cooling only

or Heat Pump

Flex Multi Split

ARTCOOL™ Indoor Unit Metal

Finish

9,000/12,000 BTU’s

Cooling only

or Heat Pump

Available styles and finishes

Flex Multi Split

ARTCOOL™ Indoor Unit

Mirror Finish

12,000 BTU’s

Cooling only

or Heat Pump

18,000-24,000 BTUs Dual Zone

Model # LMIO90CP LMAO90CP LMI120CP LMA120CP LMA121CPM

Performance

Capacity (BTUs) 9,000/8,850 9,000/8,850 12,000/11,800 12,000/11,800 12,000/11,800 Air Circulation (CFM H/M/L) 250/210/170** 264/230/177** 330/280/230** 265/230/177** 330/261/194** Fan Speeds 4/Auto/Chaos 4/Auto/Chaos 4/Auto/Chaos 4/Auto/Chaos 4/Auto/Chaos Dehumidification (pts/hr) 2.3 2.3 2.5 3.0 2.5 Indoor dB(A)* 31/29/22 37/31/27 39/25/21 43/39/31 39/25/21 Outdoor dB(A)* 50 50 50 50 50

Electrical

Rated Voltage Outdoor 230/208-60-1 230/208-60-1 230/208-60-1 230/208-60-1 230/208-60-1 Rated Voltage Indoor 36V DC 36V DC 36V DC 36V DC 36V DC

Indoor Dimensions 33 1/16 x 22 13/32 x 35 3/16 x 22 13/32 x 36 x

W x H x D (inches) 10 5/8 x 22 13/32 x 11 x 22 13/32 x 11 3/32 x

6 1/32 5 3/8 x 6 1/2 5 3/8 x 6 1/2

Weight (lbs.) 15.4** 24.9** 20.5** 24.9** 20.5**

Outdoor Dimensions

Dual Zone 40 5/32 x 40 5/32 x 40 5/32 x 40 5/32 x 40 5/32 x W x H x D (inches) 34 3/16 x 34 3/16 x 34 3/16 x 34 3/16 x 34 3/16 x

17 5/16 17 5/16 17 5/16 17 5/16 17 5/16 Tri Zone 41 5/32 x 41 5/32 x 41 5/32 x 41 5/32 x 41 5/32 x W x H x D (inches) 44 7/8 x 44 7/8 x 44 7/8 x 44 7/8 x 44 7/8 x

17 5/16 17 5/16 17 5/16 17 5/16 17 5/16 Dual Zone Weight (lbs.) 139.0 139.0 139.0 139.0 139.0 Tri Zone Weight (lbs.) 172.0 172.0 172.0 172.0 172.0

Thermostat Range

TH-Zone Cooling / Heating (°F) 64-86 64-86 64-86 64-86 64-86

*LG verified sound ratings

**Per indoor unit

Warranty: 2 years parts and labour; 5 years compressor. See page 22 for electrical specifications, refrigerant line requirements & formulas.

HIGH WALL DUCTLESS • FLEX MULTI SPLIT

Choose any two indoor cooling units for a combined 18,000 - 24,000 BTUs cooling. Pick the same style, or mix and match.

Choose any two indoor heat pump units for a combined 18,000 - 24,000 BTUs heating/cooling. Pick the same style, or mix and match.

Outdoor Unit

LM0240C

Outdoor Unit

LM0240H

27,000-36,000 BTUs Tri-Zone

Choose any three indoor cooling units for a combined 27,000 - 36,000 BTUs cooling. Pick the same style, or mix and match.

Choose any three indoor heat units for a combined 27,000 - 36,000 BTUs heating/cooling. Pick the same style, or mix and match.

Outdoor Unit

LMO360C

Outdoor Unit

LMO360H

Outdoor Unit Cooling LMO240C Outdoor Unit Heat Pump LMO240H

Outdoor Unit Cooling LMO360C Outdoor Unit Heat Pump LMO360H

Warranty: 2 years parts and labour; 5 years compressor.

See page 22 for electrical specifications, refrigerant line requirements & formulas.

HIGH WALL DUCTLESS • FLEX MULTI SPLIT

18,000-24,000 BTUs Dual Zone 27,000-36,000 BTUs Tri-Zone

Features:

• Changeable front color panel

option

• Multi Power System

™

• R-410A Refrigerant

• Neo Plasma Air Purifying

System

• Self cleaning indoor coil

• Dehumidifying mode

• Chaos Swing

• Jet Cool

• Three-way cooling

•

Cooling mode

• Heating mode (H/P Model only)

• Fan mode

• Auto operation

• Manual power switch

• Defrost control (H/P model only)

• Temperature display on indoor

unit

• Auto sleep mode

• Auto restart

•

24-Hour on/off timer

• Evaporator frost control

• Ultra-quiet operation

Interior Unit Includes:

• 2 Wall units

• 2 Wall unit installation plates

& hardware

• 2 Remote controls w/batteries,

2 holders & holder hardware

• Installation manual

Exterior Unit Includes:

• Exterior unit

• Exterior unit has sufficient

refrigerant for charging 2 indoor coils and a 25’ line set per indoor unit

Model # LMI090HP LMA090HP LMI120HP LMA120HP LMA121HPM

Performance

Capacity (BTUs) 9,000/8,850 9,000/8,850 12,000/11,800 12,000/11,800 12,000/11,800

9,000/9,000 9,000/9,000 12,000/12,000 12,000/12,000 12,000/12,000 Air Circulation (CFM H/M/L) 250/210/170** 264/230/177** 330/280/230** 318/261/194** 330/261/194** Fan Speeds 4/Auto/Chaos 4/Auto/Chaos 4/Auto/Chaos 4/Auto/Chaos 4/Auto/Chaos Dehumidification (pts/hr) 2.3 2.3 2.5 3.0 2.5 Indoor dB(A)* 31/29/22 37/31/27 39/25/21 43/39/31 39/25/21 Outdoor dB(A)* 50 50 50 50 50

Electrical

Rated Voltage Outdoor 230/208-60-1 230/208-60-1 230/208-60-1 230/208-60-1 230/208-60-1 Rated Voltage Indoor 36V DC 36V DC 36V DC 36V DC 36V DC

Indoor Dimensions 33 1/16 x 22 13/32 x 35 3/16 x 22 13/32 x 36 x

W x H x D (inches) 10 5/8 x 22 13/32 x 11 x 22 13/32 x 11 3/32 x

6 1/32 5 3/8 x 6 1/2 5 3/8 x 6 1/2 Weight (lbs.) 15.4** 24.9** 20.5** 24.9** 20.5**

Outdoor Dimensions

Dual Zone 40 5/32 x 40 5/32 x 40 5/32 x 40 5/32 x 40 5/32 x W x H x D (inches) 34 3/16 x 34 3/16 x 34 3/16 x 34 3/16 x 34 3/16 x

17 5/16 17 5/16 17 5/16 17 5/16 17 5/16 Tri Zone 41 5/32 x 41 5/32 x 41 5/32 x 41 5/32 x 41 5/32 x W x H x D (inches) 44 7/8 x 44 7/8 x 44 7/8 x 44 7/8 x 44 7/8 x

17 5/16 17 5/16 17 5/16 17 5/16 17 5/16 Dual Zone Weight (lbs.) 139.0 139.0 139.0 139.0 139.0 Tri Zone Weight (lbs.) 172.0 172.0 172.0 172.0 172.0

Thermostat Range

Cooling / Heating (°F) 64-86/60-86 64-86/60-86 64-86/60-86 64-86/60-86 64-86/60-86

*LG verified sound ratings

**Per indoor unit

***Exterior unit has sufficient refrigerant for charging 25’ of line set to each indoor coil

9,000 BTUs Indoor Model #s: LMA090CP, LMA090HP

12,000 BTUs Indoor Model #s: LMA120CP, LMA120HP

ARTCOOL™ Metal Finish

12,000 BTUs Indoor Model #s:

LMA121CPM, LMA121HPM

Mirror Finish

9,000 BTUs Indoor Model #s: LMI090CP, LMI090HP

12,000 BTUs Indoor Model #s: LMI120CP, LMI120HP

Standard

Zone

Flex Multi Split Indoor Units

Outdoor Units

Model

LMI090CP LMA090CP LMI120CP LMA120CP LMA121CPM LMI090HP LMA090HP LMI120HP LMA120HP LMA121HPM LMO240C LMO360C LMO240H LMO360H

Indoor

36V DC 36V DC 36V DC 36V DC 36V DC 36V DC 36V DC 36V DC 36V DC 36V DC

BTUs

9,000 9,000 12,000 12,000 12,000 9,000 9,000 12,000 12,000 12,000 24,000 36,000 24,000 36,000

Electrical Specifications

Outdoor

— — — — — — — — — — 230/208 230/208 230/208 230/208

Voltage

*Minimum Circuit Ampacity

**Maximum Overcurrent Protection

Wire Size

Minimum AWG 14-3 Indoor/Outdoor Connecting Cable Shielded 18-4

Flex Multi Split

Type

A/C

H/P

Model

LMI090CP

LMA090CP

LMI120CP

LMA120CP

LMA121CPM

LMI090HP

LMA090HP

LMI120HP

LMA120HP

LMA121HPM

Pipe size

Liquid Suction

1/4"

BTUs

9,000

12,000

9,000

12,000

Additional Refrigerant

0.21 oz./ft.

Max. length each pipe

50'

Max. elevation

25'

Refrigerant Line & Formula Specifications***

3/8"

3/8 "

3/8"

HIGH WALL DUCT LESS • FLEX MULTI SPLIT • DUAL & TRI ZONE

ELECTRICAL & REFRIGERATION • QUICK REFERENCE

NOTE: Recommend shielded cable for low voltage wiring. Please see local electrical codes for proper wire specifications.

All equipment single phase.

Type

A/C A/C A/C A/C A/C H/P H/P H/P H/P H/P

A/C A/C H/P H/P

Rated Amps

0.5

1.3

0.5

1.3

0.5

1.3

0.5

1.3

0.5

11.1

16.6

11.1

16.6

MCA*

— — — — — — — — — — 20 20 20 20

MOP**

— — — — — — — — — — 20 30 20 30

***Dual Zone: exterior unit has sufficient refrigerant for charging two indoor coils and a 25 ft. line set per indoor unit.

Tri Zone: exterior unit has sufficient refrigerant for charging three indoor coils and a 25 ft. line set per indoor unit.

NOTE: Systems having the outdoor unit mounted above the indoor unit (e.g. basement installations) have the

following additional requirement: For systems with maximum elevation of 25 ft. (see Figure A), refrigerant lines must be oil trapped between 8 ft. and 12 ft. of elevation. For systems with elevation of greater than 25 ft. Refrigerant lines must be oil trapped at least every 12 ft. of elevation.

* Each system should have a 6-8 inch inverted trap at the condensing unit if mounted above indoor unit.

Figure A. Example: 25 ft. maximum elevation.

OIL TRAP

INDOOR UNIT

OUTDOOR UNIT

25' maximum

8' minimum 12' maximum

FLOOR STANDING & CEILING CASSETTE

DUCTLESS FLOOR STANDING & CEILING CASSETTE AIR CONDITIONERS

High Capacity Split Systems

The floor-standing and ceiling cassette models are ideal for

light commercial applications, and work well in large, open

spaces. The ceiling cassette is a useful alternative when

floor space is limited.

The outdoor unit for both operate on high-voltage

(230/208) power and utilize one or two compressors,

depending on the size.

Single Zone Split Systems

Floor Standing

24,000 BTUs48,000 BTUs28,000 BTUs

Single Zone Split Systems

Ceiling Cassette

Ductless Split

Floor Standing Indoor Units

White Finish

Ductless Split

Ceiling Cassette Indoor Units

White Finish

34,000 BTUs

28,000 BTUs

LF300CP (A/C Model)

28,000 BTUs Cooling

Warranty: 2 years parts and labour; 5 years compressor. See page 28 for electrical specifications, refrigerant line requirements & formulas.

System Model # LF300CP

Indoor Model # LF300CPI Outdoor Model # LF300CP0

Performance

Capacity (BTUs) 28,000/28,000 SEER 13 Air Circulation (CFM H/M/L) 671/565/459 Fan Speeds (Cooling/Fan) 4/3 Dehumidification (pts/hr) 7.8 Indoor dB(A)* 45/42/40 Outdoor dB(A)* 53

Electrical

Rated Voltage Outdoor 230/208-60-1 Rated Voltage Indoor 230/208

Indoor Dimensions 22 13/32 x

W x H x D (inches) 71 21/32 x

12 1/4

Weight (lbs.) 72.7

Outdoor Dimensions 34 5/16 x

W x H x D (inches) 25 13/16 x

12 19/32

Weight (lbs.) 136.6

Thermostat Range

Cooling (°F) 61-86

*LG verified sound ratings

Standard Features:

• Multi Power System

™

• R-22 Refrigerant

• Chaos Swing

• Three dimensional cooling

• Jet Cool

• Cooling mode

• Dehumidifying mode

• Evaporator frost control

• 7-Hour on/off timer

• Auto restart

• Auto operation

• Plasma Air Purifying System

• Temperature display on indoor

unit

• Built-in remote control holder

• Control lock function

• Ultra quiet turbo fan

Interior Unit Includes:

• Floor standing unit

• Remote control and batteries

• Installation manual

Exterior Unit Includes:

•

Exterior unit

• Exterior unit has sufficient

refrigerant for charging indoor coil and a 25’ line set

DUCTLESS FLOOR STANDING SINGLE ZONE

LF480CE (A/C Model)

48,000 BTUs Cooling

48,000 BTUs

Warranty: 2 years parts and labour; 5 years compressor.

See page 28 for electrical specifications, refrigerant line requirements & formulas.

System Model # LF480CE

Indoor Model # LF480CEI Outdoor Model # LF480CEO

Performance

Capacity (BTUs) 48,000/48,000 SEER 13 Air Circulation (CFM H/M/L) 1,236/1,059/882 Fan Speeds (Cooling/Fan) 3/3 Dehumidification (pts/hr) 8.7 Indoor dB(A)* 56/53/51 Outdoor dB(A)* 58

Electrical

Rated Voltage Outdoor 230/208-60-1 Rated Voltage Indoor 230/208

Indoor Dimensions 23 7/32 x

W x H x D (inches) 71 1/4 x

17 5/16

Weight (lbs.) 127.9

Outdoor Dimensions 35 7/16 x

W x H x D (inches) 48 7/32 x

14 9/16

Weight (lbs.) 198.4

Thermostat Range

Cooling (°F) 61-86

*LG verified sound ratings

Standard Features:

• Multi Power System

™

• Chaos Swing

• Jet Cool

• Cooling mode

• Dehumidifying mode

• Fan mode

• Evaporator frost control

• 7-Hour on/off timer

• Auto restart

• Auto operation

• Temperature display on

indoor unit

• Control lock function

• Ultra quiet turbo fan

Interior Unit Includes:

•

Floor standing unit

• Remote control and batteries

•

Installation manual

Exterior Unit Includes:

•

Exterior unit

• Exterior unit has sufficient

refrigerant for charging indoor coil and a 25’ line set

DUCTLESS FLOOR STANDING SINGLE ZONE

Warranty: 2 years parts and labour; 5 years compressor. See page 28 for electrical specifications, refrigerant line requirements & formulas.

24,000 BTUs

LC240CP (A/C Model)

24,000 BTUs Cooling

CEILING CASSETTE

System Model # LC240CP

Indoor Model # LC240CPI Outdoor Model # LC240CPO

Performance

Capacity (BTUs) 24,000/23,500 SEER 13 Air Circulation (CFM H/M/L) 650/600/550 Fan Speeds (Cooling/Fan) 5/4 Dehumidification (pts/hr) 6.3 Indoor dB(A)* 38/35/32 Outdoor dB(A)* 55

Electrical

Rated Voltage Outdoor 230/208-60-1 Rated Voltage Indoor 230/208

Indoor Dimensions 33 1/16 x

W x H x D (inches) 33 1/16 x

8 7/8

Weight (lbs.) 57.3

Outdoor Dimensions 34 1/4 x

W x H x D (inches) 31 1/2 x

12 5/8

Weight (lbs.) 160.0

Thermostat Range

Cooling (°F) 64-86

*LG verified sound ratings

Standard Features:

• Multi Power System

™

• R-410A Refrigerant

• Internal condensate pump

included

• Swirl Wind

• Four-way cooling

• Jet Cool

• Cooling mode

• Dehumidifying mode

• Fan mode

• Evaporator frost control

• 24-Hour on/off timer

• Auto restart

• Auto operation

• Plasma Air Purifying System

• Temperature display on remote

• Ultra quiet turbo fan

Interior Unit Includes:

• Ceiling unit

• Wired control and wireless

remote control with batteries

•

Installation manual

Exterior Unit Includes:

• Exterior unit

• Exterior unit has sufficient

refrigerant for charging indoor coil and a 25’ line set

Warranty: 2 years parts and labour; 5 years compressor.

See page 28 for electrical specifications, refrigerant line requirements & formulas.

CEILING CASSETTE

LC340CP (A/C Model)

34,000 BTUs Cooling

34,000 BTUs

System Model # LC340CP

Indoor Model # LC340CPI Outdoor Model # LC340CPO

Performance

Capacity (BTUs) 34,000/33,500 SEER 13 Air Circulation (CFM H/M/L) 883/812/742 Fan Speeds (Cooling/Fan) 5/4 Dehumidification (pts/hr) 7.8 Indoor dB(A)* 40/37/34 Outdoor dB(A)* 58

Electrical

Rated Voltage Outdoor 230/208-60-1 Rated Voltage Indoor 230/208

Indoor Dimensions 33 1/16 x

W x H x D (inches) 33 1/16 x

8 7/8

Weight (lbs.) 70.4

Outdoor Dimensions 35 7/16 x

W x H x D (inches) 45 7/8 x

14 9/16

Weight (lbs.) 57.3

Thermostat Range

Cooling (°F) 64-86

*LG verified sound ratings

Standard Features:

• Multi Power System

™

• R-410A Refrigerant

• Internal condensate pump

included

• Swirl Wind

• Four-way cooling

• Jet Cool

• Cooling mode

• Dehumidifying mode

• Fan mode

• Evaporator frost control

• 24-Hour on/off timer

• Auto restart

• Auto operation

• Plasma Air Purifying System

• Temperature display on remote

• Ultra quiet turbo fan

Interior Unit Includes:

• Ceiling unit

• Wired control and wireless

remote control with batteries

• Installation manual

Exterior Unit Includes:

• Exterior unit

•

Exterior unit has sufficient refrigerant for charging indoor coil and a 25’ line set

Floor Standing

Ceiling Cassette

Type

A/C

System #

LF300CP

LF480CE

LC240CP

LC340CP

Indoor

230/208

BTUs

28,000

48,000

24,000

34,000

Rated

Amps

11.5/11.5

20.0/20.0

11.5/12.4

15.1/16.5

MCA*

17***

28.9***

17.3

27.5

MOP**

25***

50***

Electrical Specifications

Outdoor

230/208

Voltage

All equipment single phase.

NOTE: Please see local electrical codes for proper wire specifications.

*Minimum Circuit Ampacity

**Maximum Overcurrent Protection

***Floor standing MCA + MOP calculated for indoor and outdoor

units connected to common breaker (Preferred method).

Wire Size

Minimum AWG 14-3 Indoor/Outdoor Connecting Cable Minimum AWG 14-3

Floor Standing

Ceiling Cassette

Type

A/C

System #

LF300CP

LF480CE

LC240CP

LC340CP

Pipe size

Liquid Suction

3/8" 5/8"

3/8" 3/4"

1/4" 1/2"

1/4" 5/8"

BTUs

28,000

48,000

24,000

34,000

Additional Refrigerant

0.32 oz./ft.

0.42 oz./ft.

0.32 oz./ft.

0.42 oz./ft.

Max. length each pipe

100'

131'

100'

115'

Max. elevation

66'

82'

50'

66'

Refrigerant Line Specifications

†

Each system is pre-charged with enough refrigerant to charge 25 ft. of line and the interior unit.

* Each system should have a 6-8 inch inverted trap at the condensing unit if mounted above

indoor unit.

DUCTLESS • FLOOR STANDING & CEILING CASSETTE • SINGLE ZONE

ELECTRICAL & REFRIGERATION • QUICK REFERENCE

Figure A. Example: 25 ft. maximum elevation.

OUTDOOR UNIT

OIL TRAP

INDOOR UNIT

25' maximum

8' minimum 12' maximum

PACKAGED TERMINAL AIR CONDITIONERS

Ultra quiet operation is the hallmark of LG’s new line of PTAC products. Low decibel levels and outstanding sound

prevention rating make this your best choice for a quiet environment. And with efficiency ratings up to 12.7 EER,

these units are also your energy efficient choice.

Other features include standard connections for remote thermostat and front desk controls. Gold Fin

™

technology

protects the unit from the corrosive effects of outside air and extends the operating life of PTAC models. And the

industry standard size makes installation easy and economical.

7,000 –15,000 BTUs

1-year full system warranty, parts and labor. Warranty on unit for years 2-5: parts only, exclusive of the refrigeration system. Warranty on sealed refrigeration system: 5 year, parts and labor. See page 31 for electrical specifications and accessories.

LP070CED (H/C Model)

7,600 BTUs Cooling & Heating

LP090CED (H/C Model)

9,000 BTUs Cooling & Heating

LP120CED (H/C Model)

11,800 BTUs Cooling & Heating

LP150CED (H/C Model)

14,300 BTUs Cooling & Heating

7,000-15,000 BTUs

PACKAGED TERMINAL AIR CONDITIONERS

System Model # LP070CED LP090CED LP120CED LP150CED Performance

Capacity (BTUs) 7,600/7,400 9,000/8,800 11,800/11,500 14,300/14,100 EER 12.7 11.7 11.2 10.0 Air Circulation (CFM H/L) 335/300 335/300 390/355 390/355 Fan Speeds (Cooling/Heating/Fan) 2/2/2 2/2/2 2/2/2 2/2/2 Dehumidification (pts/hr) 2.0 2.6 3.3 4.4 Indoor dB(A)* 45/43 45/43 49/47 49/47 Outdoor dB(A)* 60/58 60/58 63/61 63/61 STC 30 30 30 30

Electrical

Rated Voltage 230/208-60-1 230/208-60-1 230/208-60-1 230/208-60-1 Electric Heater (kW) 2.5 3.5 3.5 3.5

Dimensions 42 x 42 x 42 x 42 x

W x H x D (inches) 16 x 16 x 16 x 16 x

19 7/8 19 7/8 19 7/8 19 7/8

Weight (lbs.) 90.8 95.2 99.6 104.1

Thermostat Range

Cooling/Heating (°F)** 54-86/54-86 54-86/54-86 54-86/54-86 54-86/54-86

*LG verified sound rating

**Adjustable by temperature limiting with DIP switches on the unit

Standard Features:

• Gold Fin™anti-corrosion

treatment

• Cooling mode

• Heating mode

• Fan mode

• Energy saver mode

• Auto restart

•

Wall thermostat temperature

control

• Front desk control connection

• Dip switch settings

• Evaporator frost control

• Temperature display on unit

• Freeze room protection

System Includes:

• Wall unit

•

Installation manual

See page 9 for Art Cool electrical specifications, refrigerant line requirements & formulas.

Trim Molding (if desired)

Caulk (4 sides)

Room Side

Box and Receptacle

Outside

16 "

13 3/4"

42"

16 "

13 3/4"

Wall Sleeve

AYSVB01A

Stamped Aluminum Grille

AYRGALA01A

Architectural Grilles

Aluminum

AYAGALA01A

Dark Bronze

AYAGALB01A

Soft Dove

AYAGALC01A

PTAC

Type

A/C

BTUs

7,600

9,000

11,800

14,300

Rated

Amps

2.7/2.9

3.5/3.8

4.8/5.2

6.5/7.1

MCA*

11.3

13.2

MOP**

Electrical Specifications

Voltage

230/208 - 60-1

NOTE: Please see local electrical codes for proper wire specifications.

*Minimum Circuit Ampacity

**Maximum Overcurrent Protection

PACKAGED TERMINAL AIR CONDITIONERS

ACCESSORIES

ELECTRICAL & INSTALLATION • QUICK REFERENCE

Model #

LP070CED

LP090CED

LP120CED

LP150CED

Description Model #

Sub Base 20A 230/208V AYSB1101A

Sub Base 30A 230/208V AYSB2101A

Control Panel Key Lock AYCP101

Remote Escutcheon Kit - Ten Pack AYRE110

Electrical Wall Thermostat PYRCUCA0

Replacement Filter - 10 Pack AYFT110

Hard Wire Kit AYHW101

Condensate Drain Kit AYDR101

Fuse Holder Kit AYFH1401

Leveling Legs AYLL101

Condensate Disposal Kit 230/208V AYCD2101

yzne-oib level-21 htiw deppiuqe ,metsys gniyfirup-ria amsalp-oen euqinu ’scinortcelE GL

fo level hca

e hguorh

t sessap ria neh

W .

rewop noitazilirets

decnahne erom a serutaef ,sretli

e.romdna ,srodo yranid

ro ,sdlom ,tsud enif s’dlohesuoh eht ezilirets nac metsys eht ,sretlif

retliF amsalp ediW

regral semit 4

dlO

eziS

metsyS gniyfiruP riA amsalP oeN

,sre

tli

f e

myzne-oib

lev

el-21 ht

iw deppiuqe ,me

tsys gn

iyf

irup-ria amsalp-o

en euqinu ’s

cinor

tcelE GL

,sretlif fo l

el hcae hguorh

t sess

ap ria nehW

.rewop noitazilirets decnahne hcu

a seruta

,slle

doof ,s

rodo yranid

ro ,sdlom dna

tsud enif s’d

lohesuoh eht ezi

lir

ets

yllufrewop erom nac me

tsys

meht

nimile y

let

elpmo

c ot sllaw llec s’airetcab yortsed sa llew sa ,ekoms r

agic dna

retliF no

uF oiB onaN

cneicS latn

emnorivnE f

tneC hcraeseR otasati

)3,2

1_3110_

.oN( ecnamrofre

9 tlu

eR ts

mreG gnitavitc

seirotarobaL hc

eseR

ooF napaJ

)5,4,3,

100-368390

.oN

( ecnamrofr

%9.99

eR tseT smr

eG gnitavi

anI -

)3,2,10

32130402 .oN( suri

gni

lliK

)

1-553

910

12426 .oN( noi

adn

gni

snI sr

nni

pS napaJ

iruceS %89~%

seR tseT epy

4 gn

zir

BCN

)

0-A-591-4

315 .oN(

etneC ecne

noC aeroK ITI

tiruceS %

tluseR ts

,air

lliK

)B,A-739

62LI

N( )r

eC d

radnatS lac

nhc

anoitanretnI

(

tiruceS %

tluseR ts

ab gni

tavi

tcan

laB

nob

raC o

si tah

detsisno

erutc

lla

)

/1(onaN

detpod

nobr

ac ona

row

eht ni

tsrif

gniz

odoed s

sretl

F lanoitnevnoC m

orf

snoitcni

siD

eta

vitcani ylpmiS

retc

trap wolla

ub aire

b yortse

s ot

meht fo

ec s

sed emyzne oib eh

iretc

ab f

iel

un dna s

law

let

elpmoc suht ,snegrella dna

iretcab sll

retliF noi

suF oiB

ona

ano

nevnoC

negr

ell

retcab fo sllaw llec hguorht etarte

yltc

id ot semyz

ezis-onan r

eht wol

la sre

tli

noisuf oib

sti esop

ced

ts e

vita

ni siht

,sl

law l

c l

anretxe

yor

ed ro a

ret

ab etavitcani ylerem

sretll

f l

noitne

vnoc elihW.meh

t lli

k dna ielcu

nac

onhcet

noit

zili

.meht

lli

a ie

n l

s’a

retca

b es

opm

oced yle

lpmo

retliF amsalP

h se

vom

a tu

b ,t

sud

stna

ima

tno

cipo

csor

cim s

ome

ylno

yb y

inu

epolev

etsy

iyfiruP

riA AM

SALP

ehT dna ,n

p ,s

m esuo

.amhtsa ekil ses

grel

tnev

ot ruf

elcit

suri

,airetcaB

evi

tcA oi

noi

tare

neg

Rsi

syl

oiretca

atS

evitc

)

etatS

evit

cA(

evit

cel

eS air

etc

paC

005

~00

LG LA090HP, LA090CPI, LA090CPO, LA090HPI, LA090CP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
