LG L226WTQS Users manual

Test Report No.: GETEC-E3-07-025 FCC Class B Certification

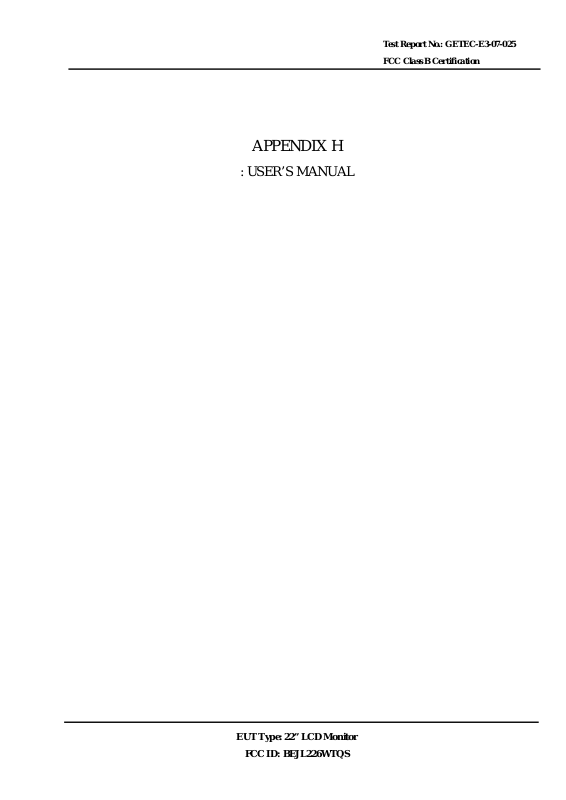

APPENDIX H

: USER’S MANUAL

EUT Type: 22” LCD Monitor

FCC ID: BEJL226WTQS

User’s Guide

L226WT

L226WTX L226WTQ L226WTG

L226WTM

Make sure to read the Important Precautions before using the product.

Keep the User's Guide(CD) in an accessible place for future reference.

See the label attached on the product and give the information to your

dealer when you ask for service.

Important Precautions

This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.

On Safety

Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement.

The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily accessible after installation.

Operate the display only from a power source indicated in the specifications of this manual or listed on the display. If you are not sure what type of power supply you have in your home, consult with your dealer.

Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement.

Do not Open the Display.

There are no user serviceable components inside. There are Dangerous High Voltages inside, even when the power is OFF. Contact your dealer if the display is not operating properly.

To Avoid Personal Injury :

Do not place the display on a sloping shelf unless properly secured. Use only a stand recommended by the manufacturer.

To Prevent Fire or Hazards:

Always turn the display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house. Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages. Do not add accessories that have not been designed for this display. During a lightning storm or when the display is to be left unattended for an extended period of time, unplug it from the wall outlet.

Important Precautions

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage.

Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER:

Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc. Place the display in a built-in enclosure unless proper ventilation is provided. Cover the openings with cloth or other material. Place the display near or over a radiator or heat source.

Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently.

Do not press the LCD screen with your finger for a long time as this may cause some afterimages.

Some dot defects may appear as Red, Green or Blue spots on the screen. However, this will have no impact or effect on the display performance.

If possible, use the recommended resolution to obtain the best image quality for your LCD display. If used under any mode except the recommended resolution, some scaled or processed images may appear on the screen. However, this is characteristic of the fixed-resolution LCD panel.

On Cleaning

Unplug the display before cleaning the face of the display screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display

screen because over-spraying may cause electrical shock.

On Repacking

Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material.

On Disposal

The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with general household waste.

Disposal of this product must be carried out in accordance to the regulations of your local authority.

Connecting the speakers

The feature is only for speaker models - L226WTM

Connecting the speaker

. Place the monitor with its front facing downward on a soft cloth.

2. Insert the protruding hook of the speaker in the direction of the slot in the back of the product.

Slot

Hook

Audio DC-In

Cable

AUDIO IN

3. After setting up the speaker, connect the Audio DC-In Cable to the back of the product.

DC-OUT

Connecting the Display

Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

Connecting the stand

1. Place the monitor with its front facing downward on a soft cloth.

2. Assemble the Stand Body into the product in the correct direction as shown in the picture.

Make sure you push it until you hear it “click”.

Hinge Body

Stand Body

3. Assemble the Stand Base(Front, Rear) into the Stand Body in the correct direction.

4. Once assembled take the monitor up carefully and face the front side

Stand Body

Stand Base

Important

This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture. Do not carry the product upside down holding only the stand base. The product may fall and get damaged or injure your foot.

Connecting the Display

Disassembling the stand Type. A

1. Put a cushion or soft cloth on aflat

surface.

2. Place the monitor face Down on

the cushion or soft cloth.

3. Pushing Latch inside, Take the stand base from stand body.

4. Separate the stand using a screwdriver as shown in the picture.

Note: Please keep the 4 screws in an accessible place for future use.

5. Pack up the product as shown in the picture.

Connecting the Display

Disassembling the stand Type. B

1. Put a cushion or soft cloth on aflat

surface.

2. Place the monitor face Down on

the cushion or soft cloth.

3. Change your hold on the product as it follows and turn the Stand Base in the arrow direction.

4. Pull out the Stand to remove.

5. Pushing Latch inside, Take the stand

base from stand body.

6. Pack up the product as shown in the

picture.

Connecting the Display

Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

Positioning your display

1. Adjust the position of the panel in various ways for maximum comfort.

Tilt Range : -5˚~20˚

Swivel : 355˚

Ergonomic

It is recommended that in order to maintain an ergonomic and comfortable viewing position, the forward tilt angle of the monitor should not exceed 5 degrees.

Connecting the Display

Using the Computer

1. Make sure to turn off the computer and product. Connect the cable as below sketch map

form to .

Connect DVI Cable

Connect Dsub Cable (PC)

Connect Dsub Cable (Mac)

Power Cord

Wall-outlet type

Analog signal

Digital signal

D-sub

DVI-D(This feature is not available in all countries.)

DVI

PC-outlet type

MAC

Mac adapter

For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-sub VGA connector on the supplied cable to a 15 pin 2 row connector.

2. Press button on the front switch panel to turn the power on.

When monitor power is turned on, the 'Self Image Setting Function' is executed automatically.

(Only Analog Mode)

NOTE

‘ Self Image Setting Function’? This function provides the user with optimal display settings.When the user

connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals. If you want to adjust the monitor while in use, or wish to manually run this function once again, push the ‘AUTO/SET’ button on the front panel of the monitor. Otherwise, you may execute the ‘ Factory reset’ option on the OSD adjustment menu. However, be aware that this option initializes all the menu items except ‘Language’.

Using the speakers -

The feature is only for speaker models - L226WTM

Side Jack

Rear

AUDIO

Headphone/Earphone Input

Connects to the *LINE OUT jack of the PC sound card.

Speaker Out

*Line Out

Control Panel Functions

(-) (+)

Front Panel Controls

Control Function

ZOOMING

Recommend resolution are 1680 x 1050, 1280 x 1024, 1024 x 768, 800 x 600. The setting method can differ by O/S or video card. In this case, Please ask to the computer or the video card manufacturer.

MENU Button

At the current display, Use 'ez Zooming' Key, then the display resolution is transferred to the one step low resolution. Use 'ez Zooming' Key one more, the display is back to the original display.

*Only One touch of ez-zoom, you can fine the best resolution you want and it is possible to magnify the size of characters and pictures for the old not having good eye sight, housewives not dealing with computer well and children.

Use this button to enter or exit the On Screen Display.

OSD LOCKED/UNLOCKED

This function allows you to lock the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button for several seconds. The message "OSD LOCKED" should appear.

You can unlock the OSD controls at any time by pushing the MENU button for several seconds. The message "OSD UNLOCKED" should appear.

A10
