LG L1732T, L1732TQ, L1932T, L1932TQ Schematic

Download

Service Guide Specification

담 당 관리자

Model Description

MODEL

SUFFIX

L1732TQ,TX-BFQ L1932TQ,TX-BFQ

KXUSQPT

Printing Specification

1. Trim Size (Format) : 215mm x 280 mm

2. Printing Colors

• Cover : 2 COLORS (M100%, BLACK)

• Inside : 1 COLORS (Black)

3. Stock (Paper)

• Cover : 백상지 100 g/㎡

• Inside : 백상지 100 g/㎡

4. Printing Method :

5. Bindery : Saddle stitch

6. Language : English

7. Number of pages : 32 (Including blank 4pages)

BRAND

Product Name

FLATRON L1732TQ,TX FLATRON L1932TQ,TX

LEE H.J

06.02.16

Part No.

KIM J.O

06.02.16

38289S0041U

Special Instructions3.

(1) Origin Notification

* LGEDI : Printed in Indonesia * LGEWA : Printed in U.K. * LGESP : Printed in Brazil * LGEMX : Printed in Mexico * LGENT : Printed in China * LGEIL : Printed in India

Changes

7 6

5 4 3 2

REV.

MM/DD/YY

NO.

SIGNATURE

CHANGE NO.

CHANGE CONTENTS

Pagination sheet

P/NO. 38289S0041U Total pages :32pages

Cover

Front cover

Inside

blank

English….English

English

blank

English

….

English

blank

English

…..

Rear cover

Inside

blank

Rear

Cover

Website:http://biz.LGservice.com

E-mail:http://www.LGEservice.com/techsup.html

COLOR MONITOR

SERVICE MANUAL

CHASSIS NO. : LM51B

MODEL: L1732TQ (L1732TQ-BFQ.AW**QP, AX**QP)

L1732TX (L1732TX-BFQ.AX**QP) L1932TQ (L1932TQ-BFQ.AW**QP, AX**QP)

L1932TX (L1932TX-BFQ.AX**QP)

( ) **Same model for Service

CAUTION

BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

*To apply the MSTAR Chip.

Blank Page1

CONTENTS

SPECIFICATIONS ................................................... 2

PRECAUTIONS ....................................................... 3

TIMING CHART ....................................................... 7

DISASSEMBLY ........................................................ 8

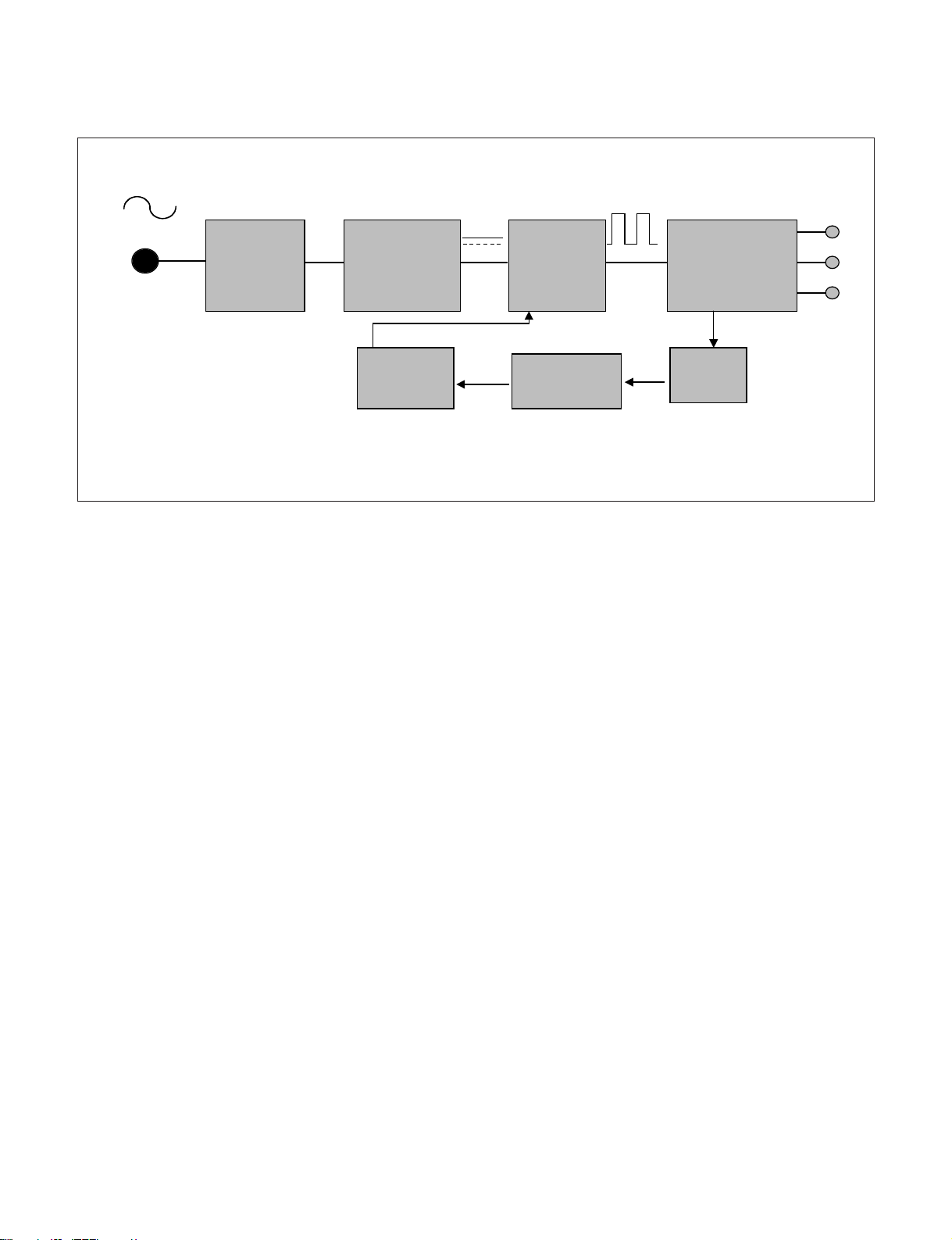

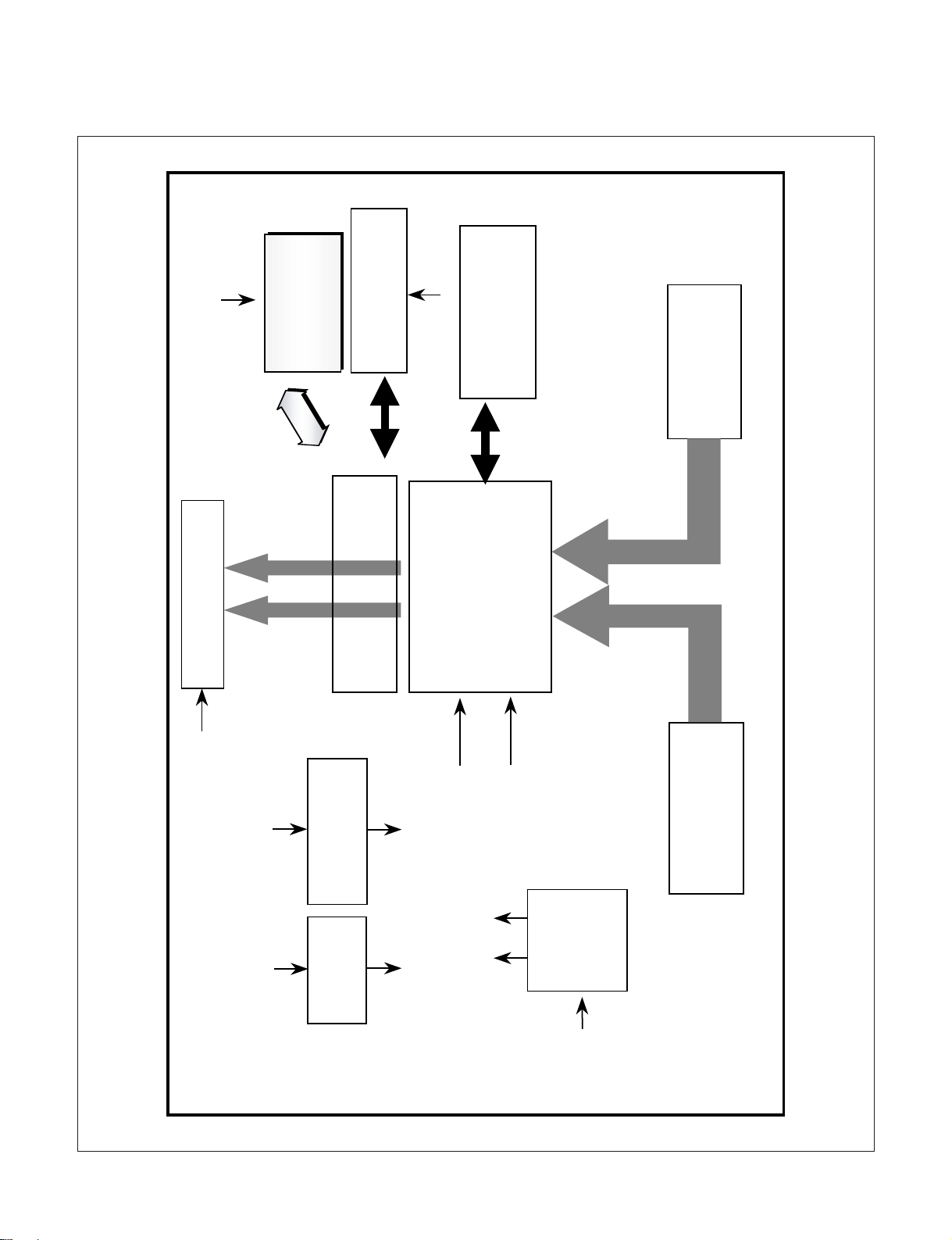

BLOCK DIAGRAM.....................................................9

DISCRIPTION OF BLOCK DIAGRAM .................. 10

ADJUSTMENT ...................................................... 12

SPECIFICATIONS

1. LCD CHARACTERISTICS

Type : TFT Color LCD Module Active Display Area : 17 inch - L1732TQ,TX

Pixel Pitch : Color Depth : 8bits, 16.2M colors

Size : Electrical Interface : LVDS

Surface Treatment : Hard-coating(3H), Anti-Glare Operating Mode : Backlight Unit : 4-CCFL

2. OPTICAL CHARACTERISTICS

2-1. Viewing Angle by Contrast Ratio ≥ 10

L1732TQ,TX

Left : -70° min., -80°(Typ) Right : +70° min., +80°(Typ) Top :+60° min., +75°(Typ) Bottom : -70° min., -85°(Typ)

: 19 inch - L1932TQ,TX

0.264 (H) x 0.264 (V) - L1732TQ,TX

0.294 (H) x 0.294 (V) - L1932TQ,TX

358.5 (H) x 296.5 (V) x 17.0(D) - L1732TQ,TX

396 (H) x 324 (V) x 17.5(D) - L1932TQ,TX

Normally White, Transmissive mode

SERVICE OSD........................................................13

TROUBLESHOOTING GUIDE .............................. 14

WIRING DIAGRAM ............................................... 18

EXPLODED VIEW...................................................19

REPLACEMENT PARTS LIST ...............................21

SCHEMATIC DIAGRAM......................................... 24

4. Max. Resolution

D-sub Analog : 1280 x 1024@75Hz Digital : 1280 x 1024@60Hz

5. POWER SUPPLY

5-1. Power : AC 100~240V, 50/60Hz , 0.6A 5-2. Power Consumption

MODE

POWER ON (NORMAL)

STAND-BY

SUSPEND

DPMS OFF

POWER S/W Off

H/V SYNC

ON/ON

OFF/ON ON/OFF OFF/OFF

VIDEO

POWER CONSUMPTION less than 35 W -L1732TQ,TX

ACTIVE

less than 39 W -L1932TQ,TX

OFF OFF OFF

less than 1 W less than 1 W less than 1 W less than 1 W

LED COLOR

BLUE

AMBER AMBER AMBER

OFF

L1932TQ,TX

Left : -65° min., -70°(Typ) Right : +65° min., +70°(Typ) Top :+70° min., +75°(Typ) Bottom : -55° min., -60°(Typ)

2-2. Luminance :

2-3. Contrast Ratio :

3. SIGNAL (Refer to the Timing Chart)

3-1. Sync Signal

• Type : Separate Sync, Composite, Digital, SOG (Sync On Green)

3-2. Video Input Signal

1) Type : R, G, B Analog

2) Voltage Level : 0~0.71 V

a) Color 0, 0 : 0 Vp-p b) Color 7, 0 : 0.467Vp-p c) Color 15, 0 : 0.714Vp-p

3) Input Impedance : 75Ω

3-3. Operating Frequency

Horizontal : 30 ~ 83kHz Vertical : 56 ~ 75Hz

) (Full White pattern, 0.73V) -6500K

200(cd/m 150(cd/m2) (Full White pattern, 0.73V) -9300K 75%(min)

500(min), 700(Typ) 1400(DCR applied)-L1732TQ,TX 350(min), 550(Typ) 1400(DCR applied)-L1932TQ,TX

6. ENVIRONMENT

6-1. Operating Temperature : 10°C~35°C (50°F~95°F)

(Ambient) 6-2. Relative Humidity : 10%~80% (Non-condensing) 6-3. MTBF : 50,000 HRS with 90% Confidence

Lamp Life : 50,000 Hours(Min)

7. DIMENSIONS (with TILT/SWIVEL) L1732TQ,TX

Width : 390 mm (15.35'') Depth : 242 mm (9.53'') Height : 406 mm (15.98'')

L1932TQ,TX

Width : 430 mm (16.93'') Depth : 232 mm (9.13'') Height : 429 mm (16.89'')

8. WEIGHT (with TILT/SWIVEL) L1732TQ,TX

Net. Weight : 4.1 kg (9.04 lbs) Gross Weight : 4.5 kg (9.92 lbs)

L1932TQ,TX

Net. Weight : 4.6 kg (10.14 lbs) Gross Weight : 5.1 kg (11.25 lbs)

- 2 -

PRECAUTION

1.5 Kohm/10W

To Instrument’s exposed METALLIC PARTS

Good Earth Ground such as WATER PIPE, CONDUIT etc.

AC Volt-meter

WARNING FOR THE SAFETY-RELATED COMPONENT.

• There are some special components used in LCD monitor that are important for safety. These parts are

marked on the schematic diagram and the replacement parts list. It is essential that these critical

parts should be replaced with the manufacturer’s specified parts to prevent electric shock, fire or other hazard.

• Do not modify original design without obtaining written permission from manufacturer or you will void the original parts and labor guarantee.

TAKE CARE DURING HANDLING THE LCD MODULE WITH BACKLIGHT UNIT.

• Must mount the module using mounting holes arranged in four corners.

• Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

• Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel.

WARNING

BE CAREFUL ELECTRIC SHOCK !

• If you want to replace with the new backlight (CCFL) or inverter circuit, must disconnect the AC adapter because high voltage appears at inverter circuit about 650Vrms.

• Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take fire.

Leakage Current Hot Check Circuit

• Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

• Make certain that treatment person’s body are grounded through wrist band.

• Do not leave the module in high temperature and in areas of high humidity for a long time.

• The module not be exposed to the direct sunlight.

• Avoid contact with water as it may a short circuit within the module.

• If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.)

CAUTION

Please use only a plastic screwdriver to protect yourself from shock hazard during service operation.

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this

service manual and its supplements and addenda, read and follow the SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit

board module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical

plug or other electrical connection.

c. Connecting a test substitute in parallel with an

electrolytic capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

d. Discharging the picture tube anode.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Discharge the picture tube anode only by (a) first connecting one end of an insulated clip lead to the degaussing or kine aquadag grounding system shield at the point where the picture tube socket ground lead is connected, and then (b) touch the other end of the insulated clip lead to the picture tube anode button, using an insulating handle to avoid personal contact with high voltage.

4. Do not spray chemicals on or near this receiver or any of its assemblies.

5. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cottontipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required.

6. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

7. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

8. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

9. Use with this receiver only the test fixtures specified in

this service manual.

CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "antistatic" can generate electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.)

- 4 -

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip

temperature within the range or 500。F to 600。F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire-bristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal

temperature.

(500。F to 600。F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static,

suction-type solder removal device or with solder

braid.

CAUTION: Work quickly to avoid overheating the

circuitboard printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal

temperature (500。F to 600。F)

b. First, hold the soldering iron tip and solder the strand

against the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of

the component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any

excess or splashed solder with a small wire-bristle brush.

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

- 5 -

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

- 6 -

TIMING CHART

VIDEO

SYNC

MODE

1 H(Pixels) + 25.175 31.469 800 640 16 96 48 640 x 350

2 H(Pixels) - 28.321 31.468 900 720 18 108 54 720 X 400

3 H(Pixels) - 25.175 31.469 800 640 16 96 48 640 x 480

4 H(Pixels) - 31.5 37.5 840 640 16 64 120 640 x 480

5 H(Pixels) + 40.0 37.879 1056 800 40 128 88 800 x 600

6 H(Pixels) + 49.5 46.875 1056 800 16 80 160 800 x 600

7 H(Pixels) +/- 57.283 49.725 1152 832 32 64 224 832 x 624

8 H(Pixels) - 65.0 48.363 1344 1024 24 136 160 1024 x 768

9 H(Pixels) - 78.75 60.123 1312 1024 16 96 176 1024 x 768

10 H(Pixels) +/- 100.0 68.681 1456 1152 32 128 144 1152 x 870

11 H(Pixels) +/- 92.978 61.805 1504 1152 18 134 200 1152 x 900

12 H(Pixels) + 108.0 63.981 1688 1280 48 112 248 1280 x 1024

13 H(Pixels) + 135.0 79.976 1688 1280 16 144 248 1280 x 1024

H / V

V(Lines) - 70.09 449 350 37 2 60

V(Lines) + 70.08 449 400 12 2 35

V(Lines) - 59.94 525 480 10 2 33

V(Lines) - 75 500 480 1 3 16

V(Lines) + 60.317 628 600 1 4 23

V(Lines) + 75.0 625 600 1 3 21

V(Lines) +/- 74.55 667 624 1 3 39

V(Lines) - 60.0 806 768 3 6 29

V(Lines) - 75.029 800 768 1 3 28

V(Lines) +/- 75.062 915 870 3 3 39

V(Lines) +/- 65.96 937 900 2 4 31

V(Lines) + 60.02 1066 1024 1 3 38

V(Lines) + 75.035 1066 1024 1 3 38

Sync

Polarity

Dot

Clock

Frequency

Total

Period

( E )

Video

Active

Time ( A )

Sync

Duration

( D )

Front

Porch

( C )

Blanking

Time

( B )

Resolution

- 7 -

DISASSEMBLY

# 1 # 2

Disassembly back door. Disassembly stand rear cover.

# 3 # 4

Remove the screws.

# 5 # 6

Pull up the cabinet corner side.

- 8 -

Remove the screws.

Disassemble back cover.

X 4

BLOCK DIAGRAM

3.3V

LVDS

(Low V oltage

LCD Module

R,G,B

SDRAM

Differential

Signaling)

differential

3.3V

M25P10

(flash memory)

4ms)

VASTVIEW

including

TSUM56AWL

(OVER DRIVE CIRCUIT

1.8V

M25P10

(flash memory)

/TMDS/MICOM

/INPUT SWITCHING

(ADC/LVDS/SCALER

3.3V

DVI-D

Digital Signal

R,G,B, H/V Sync

3.3V

1.8V Reg.

LD1117S18

78D33

3.3V Reg.

1.8V

3.3V

D-SUB

LIPS

12V

AC Input

- 9 -

DESCRIPTION OF BLOCK DIAGRAM

1. Video Controller Part.

This part amplifies the level of video signal for the digital conversion and converts from the analog video signal to the digital video signal using a pixel clock.

The pixel clock for each mode is generated by the PLL. The range of the pixel clock is from 25MHz to 135MHz.

This part consists of the Scaler, ADC and TMDS receiver . The Scaler gets the video signal converted analog to digital, interpolates input to 1280 X 1024 resolution signal and outputs 8-bit R, G, B signal to transmitter.

2. Power Part.

This part consists of the 3.3V regulator to convert power which is provided 12V, 5V in Power board and Micom.

5V is provided for LCD panel.

Also, 5V is converted 3.3V by regulator and 3.3V is converted 1.8V by regulator.

Converted power is provided for IC in the main board.

3. MICOM Part.

This part consists of EEPROM IC which stores control data and the Micom.

The Micom distinguishes polarity and frequency of the H/V sync are supplied from signal cable.

The controlled data of each modes is stored in EEPROM.

- 10 -

LIPS Board Block Diagram

50 ~ 60Hz

LINE

100 ~ 240V

EMI

COMPONENTS

INPUT RECTIFIER

AND FILTER

PWM

CONTROL

CIRCUIT

HVDC

ENERGY

TRANSFER

PHOTO-COUPLER

ISOLATION

100KHz

OUTPUT RECTIFIER

AND FILTER

SIGNAL

COLLENT-

ION

15V

GND

PRIMARY SECONDARY

Operation description_LIPS

1. EMI components.

This part contains of EMI components to comply with global marketing EMI standards like FCC, VCCI CISPR, the circuit included a line-filter, across line capacitor and of course the primary protection fuse.

2. Input rectifier and filter.

This part function is for transfer the input AC voltage to a DC voltage through a bridge rectifier and a bulk capacitor.

3. Energy Transfer.

This part function is for transfer the primary energy to secondary through a power transformer.

4. Output rectifier and filter.

This part function is to make a pulse width modulation control and to provide the driver signal to power switch, to adjust the duty cycle during different AC input and output loading condition to achieve the dc output stabilized, and also the over power protection is also monitor by this part.

5. Photo-Coupler isolation.

This part function is to feed back the DC output changing status through a photo transistor to primary controller to achieve the stabilized DC output voltage.

6. Signal collection.

This part function is to collect the any change from the DC output and feed back to the primary through photo transistor.

- 11 -

ADJUSTMENT

Windows EDID V1.0 User Manual

Operating System: MS Windows 98, 2000, XP Port Setup: Windows 98 => Don’t need setup

Windows 2000, XP => Need to Port Setup.

This program is available to LCD Monitor only.

1. Port Setup a) Copy “UserPort.sys” file to

“c:\WINNT\system32\drivers” folder

b) Run Userport.exe

c) Remove all default number d) Add 300-3FF

2. EDID Read & Write

1) Run WinEDID.exe

2) Edit Week of Manufacture, Year of Manufacture, Serial Number a) Input User Info Data b) Click “Update” button c) Click “ Write” button

e) Click Start button. f) Click Exit button.

- 12 -

SERVICE OSD

1) Turn off the power switch at the front side of the display.

2) Wait for about 5 seconds and press MENU, POWER switch with 1 second interval.

3) The SVC OSD menu contains additional menus that the User OSD menu as described below.

a) Auto Color : W/B balance and Automatically sets the gain and offset value. b) NVRAM INIT : EEPROM initialize.(24C08) c) CLEAR ETI : To initialize using time. d) AGING : Select Aging mode(on/off). e) R/G/B-9300K : Allows you to set the R/G/B-9300K value manually.

f) R/G/B-6500K : Allows you to set the R/G/B-6500K value manually. g) R/G/B-Offset : Allows you to set the R/G/B-Offset value manually.(Analog Only) h) R/G/B-Gain : Allows you to set the R/G/B-Gain value manually.(Analog Only)

i) MODULE : To select applied module.

Video Signal Generator

Control Line

IBM Compatible PC

PARALLEL PORT

Not used

RS232C

PARALLEL

Power inlet (required)

220

VGS

MONITOR

POWER

V-SYNC

Power Select Switch (110V/220V)

Power LED

ST Switch

V-Sync On/Off Switch (Switch must be ON.)

OFF ON

OFF

4.7K

74LS06

4.7K

Figure 1. Cable Connection

- 13 -

TROUBLESHOOTING GUIDE

NO POWER

(POWER INDICATOR OFF)

1. NO POWER

CHECK J302

PIN5, PIN6 (5V)?

U202 PIN 3 VOLTAGE

CHECK KEY CONTROL

CONNECTOR ROUTINE

PIN76 (3.3V)

VOLTAGE ?

CHECK U101 PIN 96

VOLTAGE

YES

CHECK (3.3V) ?

YES

IS U101

YES

PULSE

CHECK POWER BOARD, AND FIND OUT A SHORT POINT AS OPENING EACH POWER LINE

CHECK 3.3V LINE

(OPEN CHECK)

NO PROBLEM

CHECK 3.3V LINE

CHECK X-TAL

U101-#96

YES

CHECK U201

Waveforms

- 14 -

2. NO RASTER (OSD IS NOT DISPLAYED) – LIPS

NO RASTER

(OSD IS NOT DISPLAYED)

J302

PIN5, PIN6

5V?

YES

J705 PIN9

5V?

YES

J705 PIN10

5V?

YES

CHECK

PULSE AS

CONTACTING SCOPE

PROBE TO CAUTION LABEL.

(CONTACT PROBE TO

CAUTION LABEL.

CAN YOU SEE PULSE

AT YOUR

SCOPE?

CHECK POWER BOARD, AND FIND OUT A SHORT POINT AS OPENING EACH POWER LINE

CHECK MICOM INV ON/OFF PORT.

1. CONFIRM BRIGHTNESS OSD CONTRL STATE.

2. CHECK MICOM DIM-ADJ PORT

LIPS

YES

REPLACE CCFL LAMP

IN THE LCD MODULE

- 15 -

3. NO RASTER (OSD IS NOT DISPLAYED) – MSTAR

NO RASTER

(OSD IS NOT DISPLAYED)

U201

PIN 16, 76

3.3V? YES

U201

PIN96, 97

OSCILLATE AS

14.31MHZ? YES

U101

PIN27 IS 48KHz H-SYNC?

PIN28 IS 60Hz V-SYNC?

IS PULSE APPEARED

AT SIGNAL PINS?

AT MODE 12?

YES

TROUBLE IN CABLE

OR LCD MODULE

CHECK U202

1. CHECK C108, C109 SOLDERING CONDITION

2. CHECK X101

3. TROUBLE IN U101

CHECK CONNECTION LINE FROM D-SUB TO U101

Waveforms

1 2

U201-#96, 97 U101-#27 H-SYNC

- 16 -

U101-#28 V-SYNC

TROUBLE IN DPM

4. TROUBLE IN DPM

CHECK

R332, R333

YES

CHECK

U101 PIN 27,28

SYNC PULSE ?

YES

TROUBLE IN U101

CHECK PC PC IS NOT GOING INTO DPM OFF MODE

CHECK H/V SYNC LINE

R332 H-Sync

Waveforms

R333 V-Sync

- 17 -

WIRING DIAGRAM

11P

30P

6631T20023A

6631T11012W

or 6631T11020W

6631T12006L

- 18 -

030

EXPLODED VIEW

180

170

160

190

010

020

150

140

120

130

110

100

150

050

040

090

080

070

060

- 19 -

* Note: Safety mark

EXPLODED VIEW PARTS LIST

Ref. No.

010

020

030

040 050 060 070 080 090 100 110 120 130 140 150 160

Part No.

3091TKL186V CABINET ASSEMBLY, L1732T BRAND L159A BK. PC+ABS, F-ENGINE+TCO03 30919C0024E CABINET ASSEMBLY, L1932T BRAND 160A PC+ABS BK, TCO03 A-CKD 6304FLP278A

or 6304FLP339A

6304FAU012N

6304FLP310A or 6304FLP355A or 6304FLP337A or 6304FLP336A or 6304FLP313A or 6304FLP312A

6304FAU013H 3809TKL128N BACK COVER ASSEMBLY, L1732T NON BK, PC+ABS, DUAL CORE, S-TYPE CORE 3809TKL129N BACK COVER ASSEMBLY, L1932T NON BK, PC+ABS, DUAL CORE, S-TYPE CORE M-CKD 3043TKK274A TILT SWIVEL ASSEMBLY, L1732 . BODY 3043TKK275E TILT SWIVEL ASSEMBLY, LX32 . BASE ASSY FOR LX32T

49509K0016A METAL, SHIELD L1732 CHASSIS BRACKET

68719ST965B PWB(PCB) ASSEMBLY,SUB, SUB T.T CL82 L1732TQ KNUSQPT CONTROL CKD

4940TKT272A KNOB, TACT CONTROL LXX32 4950TKA407A METAL, SUPPORT METAL STAND LXX32 3940TKK122V SPONGE, CUSHION GAP PAD (10*20*6T) 3550TKK989A COVER, LXX32 PIECE INSULATOR LIPS

6871TPT312J

33139L7025B MAIN TOTAL ASSEMBLY, L1732T BRAND LM56A CKD

3550TKK995A COVER, LXX32 PIECE INSULATOR VESA

48149K0001A SHIELD, SIDE LXX32 CAP

4951TKS242B METAL ASSEMBLY, SHIELD ASSY L1732P DUAL 4951TKS242D METAL ASSEMBLY, SHIELD ASSY L1932PDAUL

LCD(LIQUID CRYSTAL DISPLAY), LM170E01-TLB1 LG PHILPS TFT COLOR P5,645CH,300NITS,8MS,700/1,LPL NJ/KUMI,PB FREE,EGI,OKI S D-IC,EGI, LCD(LIQUID CRYSTAL DISPLAY), LM170E01-TLB5 LG PHILPS TFT COLOR DOT FREE OF LM170E01-TLB1,P5,645CH,300NITS,8MS,700/1,LPL NJ/KUMI,P LCD(LIQUID CRYSTAL DISPLAY), M170EG01-VA AUO TFT COLOR 300NITS 8MS EG0-V8 GEN.6 PSWG ROHS LCD(LIQUID CRYSTAL DISPLAY), LM190E03-TLB5 LG PHILPS TFT COLOR P4,645CH,300NITS,TN,8MS,LPL KUMI,PB FREE,EGI,OKI S D-IC,SXGA,LVDS LCD(LIQUID CRYSTAL DISPLAY), LM190E03-TLBC LG PHILIPS TFT COLOR DOT FREE OF LM190E03-TLB7,P4,645CH,300NITS,TN,8MS,LPL NJ,PB FREE, LCD(LIQUID CRYSTAL DISPLAY), LM190E03-TLBB LG PHILPS TFT COLOR DOT FREE OF LM190E03-TLB7,P4,645CH,300NITS,TN,8MS,LPL KUMI,PB FREE LCD(LIQUID CRYSTAL DISPLAY), LM190E03-TLBA LG PHILPS TFT COLOR DOT FREE OF LM190E03-TLB5,P4,645CH,300NITS,TN,8MS,LPL KUMI,PB FREE LCD(LIQUID CRYSTAL DISPLAY), LM190E03-TLB8 LG PHILPS TFT COLOR P3,645CH,300NITS,TN,8MS,LPL KUMI,PB FREE,EGI,NEC S D-IC,SXGA,LVDS LCD(LIQUID CRYSTAL DISPLAY), LM190E03-TLB7 LG PHILPS TFT COLOR P4,645CH,300NITS,TN,8MS,LPL KUMI,PB FREE,EGI,NEC S D-IC,SXGA,LVDS LCD(LIQUID CRYSTAL DISPLAY), M190EN04-V5 AUO TFT COLOR TN 270 NITS 8MS LVDS SXGA 4 CCFL

PWB(PCB) ASSEMBLY,POWER, POWER T.T TOTAL BRAND 4-LAMP(17/19) SOCKET TYPE+NO REGULATOR (TCO-03),SCAILER DIMMING

Description

170 180

190

3550TKK991A COVER, LXX32 STAND BODY BACK

35509K0007A COVER, L1732 BACK DOOR

35509K0008B COVER, L1932 BACK DOOR-CKD

6410TUW008A POWER CORD, LP31+LS13 LONGWELL UL/CSA 1870MM WALL CD/PB FREE BLACK

- 20 -

REPLACEMENT PARTS LIST

CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS,

READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL.

* NOTE : S SAFETY Mark

AL ALTERNATIVE PARTS

DATE: 2006. 01. 03.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

MAIN BOARD

CAPACITORS

C101 0CK473CH56A 0.047UF 1608 25V 10% R/TP X7 C102 0CK473CH56A 0.047UF 1608 25V 10% R/TP X7 C103 0CK473CH56A 0.047UF 1608 25V 10% R/TP X7 C104 0CK473CH56A 0.047UF 1608 25V 10% R/TP X7 C105 0CK473CH56A 0.047UF 1608 25V 10% R/TP X7 C106 0CK473CH56A 0.047UF 1608 25V 10% R/TP X7 C107 0CK473CH56A 0.047UF 1608 25V 10% R/TP X7 C108 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C109 0CC220CK41A 22PF 1608 50V 5% R/TP NP0 C111 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C112 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C113 0CE106CK610 "10UF SHL,SD 50V 20% BULK FL" C114 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C116 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C117 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C118 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C119 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C120 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C121 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C122 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C124 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C125 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C127 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C128 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C129 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C130 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C131 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C223 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C224 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C225 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C226 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK" C227 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C228 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C229 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C230 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C231 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0 C232 0CK102CK56A 1000PF 1608 50V 0.1 R/TP X7R C233 0CK102CK56A 1000PF 1608 50V 0.1 R/TP X7R C234 0CK102CK56A 1000PF 1608 50V 0.1 R/TP X7R C235 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C301 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C302 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C303 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C304 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C305 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C306 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C307 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C308 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C309 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C310 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C311 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C312 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R

DATE: 2006. 01. 03.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C313 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C314 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C315 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C316 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C317 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C320 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C321 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C322 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C323 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C324 0CC101CK41A 100PF 1608 50V 5% R/TP NP0 C325 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C330 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C331 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C332 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C333 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C334 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C401 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C402 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C403 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C404 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C405 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C406 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C407 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C408 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C409 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C410 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C411 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C412 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C413 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C414 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C415 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C416 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C417 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C418 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C419 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C420 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C421 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C422 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C423 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C424 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C425 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C426 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C427 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C428 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C429 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C430 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C431 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C432 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C433 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C434 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C435 0CK105CD56A 1UF 1608 10V 10% R/TP X7R C436 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C437 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C438 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R

- 21 -

DATE: 2006. 01. 03.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

DATE: 2006. 01. 03.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C439 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C440 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C441 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C442 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C443 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C445 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C446 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C447 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C449 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C450 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C451 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C452 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C453 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y C454 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C455 0CE107EF610 "100UF KMG,RD 16V 20% FL BULK"

DIODEs

D301 0DS226009AA KDS226 TP KEC - 80V - - 4NSE D302 0DS226009AA KDS226 TP KEC - 80V - - 4NSE D303 0DS226009AA KDS226 TP KEC - 80V - - 4NSE D304 0DS226009AA KDS226 TP KEC - 80V - - 4NSE D305 0DS226009AA KDS226 TP KEC - 80V - - 4NSE D306 0DS226009AA KDS226 TP KEC - 80V - - 4NSE D307 0DS226009AA KDS226 TP KEC - 80V - - 4NSE D308 0DS226009AA KDS226 TP KEC - 80V - - 4NSE D309 0DS226009AA KDS226 TP KEC - 80V - - 4NSE D310 0DS226009AA KDS226 TP KEC - 80V - - 4NSE D311 0DS226009AA KDS226 TP KEC - 80V - - 4NSE D312 0DS226009AA KDS226 TP KEC - 80V - - 4NSE D313 0DD184009AA KDS184 TP KEC - 85V - - - 30 D314 0DD184009AA KDS184 TP KEC - 85V - - - 30 ZD301 0DZ560009GB "BZT52C5V6S-(F),LF DIODES R/T" ZD302 0DZ560009GB "BZT52C5V6S-(F),LF DIODES R/T" ZD303 0DZ560009GB "BZT52C5V6S-(F),LF DIODES R/T" ZD304 0DZ560009GB "BZT52C5V6S-(F),LF DIODES R/T" ZD305 0DZ560009GB "BZT52C5V6S-(F),LF DIODES R/T" ZD306 0DZ560009GB "BZT52C5V6S-(F),LF DIODES R/T" ZD307 0DZ560009GB "BZT52C5V6S-(F),LF DIODES R/T" ZD308 0DZ560009GB "BZT52C5V6S-(F),LF DIODES R/T"

ICs

U101 0IPRP00705A FE2031-LF(TSUM56AWL) MSTAR 1 U102 0IZZ9H0175A 1 SGS THOMSON SSOP 8PIN FLAS U103 0ICS240813B "CAT24WC08J-TE13 8P,SOIC R/TP" U202 0IPMGKE011A KIA78D33F KEC DPAK R/TP 3.3V U203 0IPMGSG019A "LD1117S18TR,LF STM SOT223 R/" U301 0IMMRSG036A "M24C02-WMN6T(P),LF SGS-THOMS" U302 0IMMRSG036A "M24C02-WMN6T(P),LF SGS-THOMS" U401 0IZZ9H0176A 0IMMRSG050A SGS THOMSON SSOP U402 0IPRP00680A NVI-S5001 VASTVIEW TECHNOLO U403 0IMMR00080A HY57V161610ETP-6 HYNIX 50PIN U404 0IMMR00080A HY57V161610ETP-6 HYNIX 50PIN U405 0IMMR00080A HY57V161610ETP-6 HYNIX 50PIN U406 0IMMR00080A HY57V161610ETP-6 HYNIX 50PIN U407 0IPMGKE011A KIA78D33F KEC DPAK R/TP 3.3V

FILTERs

L101 0LCML00003B MLB-201209-0120P-N2 5A MAG L L201 0LCML00003B MLB-201209-0120P-N2 5A MAG L

L202 0LCML00003B MLB-201209-0120P-N2 5A MAG L L401 0LCML00003B MLB-201209-0120P-N2 5A MAG L L402 0LCML00003B MLB-201209-0120P-N2 5A MAG L

TRANSISTOR

Q301 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q302 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q303 0TR390609FA FAIRCHILD KST3906-MTF TP SOT Q304 0TR390609FA FAIRCHILD KST3906-MTF TP SOT Q402 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q403 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q404 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q405 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP U204 0TFVI80067A SI3865BDV(E3) VISHAY R/TP TS

RESISTORs

R101 0RJ0562D677 56 OHM 1/10 W 5% 1608 R/TP R102 0RJ0562D677 56 OHM 1/10 W 5% 1608 R/TP R103 0RJ0562D677 56 OHM 1/10 W 5% 1608 R/TP R104 0RJ0562D677 56 OHM 1/10 W 5% 1608 R/TP R105 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R106 0RJ0562D677 56 OHM 1/10 W 5% 1608 R/TP R107 0RJ0562D677 56 OHM 1/10 W 5% 1608 R/TP R108 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R109 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R110 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R111 0RJ3900D677 390 OHM 1/10 W 5% 1608 R/TP R113 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R115 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R118 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R120 0RJ4702D677 47000 OHM 1/10 W 5% 1608 R/T R121 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R124 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R125 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R126 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R128 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R129 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R130 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R131 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R133 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R134 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R135 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R136 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R137 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R138 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R139 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R140 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R205 0RJ5600D677 560 OHM 1/10 W 5% 1608 R/TP R206 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP R207 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R208 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R209 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R301 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R302 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R303 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP R304 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R305 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R306 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R307 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R308 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP

- 22 -

DATE: 2006. 01. 03.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

DATE: 2006. 01. 03.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R309 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R310 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R311 0RJ0122D677 12 OHM 1/10 W 5% 1608 R/TP R312 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R313 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP R314 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP R315 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R317 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R318 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R320 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R321 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R322 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R323 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R325 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R327 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R328 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R329 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R330 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R331 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/TP R332 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R333 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP R336 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R337 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R343 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R345 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R346 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP R353 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R354 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R355 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R356 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R357 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R358 0RJ0102D677 10 OHM 1/10 W 5% 1608 R/TP R359 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R360 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R361 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R362 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R363 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R364 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R365 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R366 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP R403 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R404 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R405 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R406 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R407 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R408 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP R409 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R410 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R411 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R412 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP R413 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R414 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R415 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R416 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R417 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R418 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP RA421 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY RA422 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY RA423 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY RA424 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY RA425 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY RA426 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY

RA427 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY RA428 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY RA429 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY RA430 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY RA431 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY RA432 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY RA433 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY RA434 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY RA436 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY RA437 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY RA438 0RJ0332C687 33 OHM 1/16 W 5% 3216 ARRAY

OTHERs

X101 6202TST001A "SX-1 SUNNY ,SMS, 14.31818MHZ"

CONTROL BOARD

SW1 140-058E SKHV10910B LGEC NON 12V 20A SW2 140-058E SKHV10910B LGEC NON 12V 20A SW3 140-058E SKHV10910B LGEC NON 12V 20A SW4 140-058E SKHV10910B LGEC NON 12V 20A SW5 140-058E SKHV10910B LGEC NON 12V 20A C1 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R C2 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R LED1 0DLBE0248AA BRIGHT LED ELECTRONICS BL-HB LED2 0DLBE0248AA BRIGHT LED ELECTRONICS BL-HB Q1 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP Q2 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP R1 0RJ7501D677 7.5K OHM 1/10 W 5% 1608 R/TP R10 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R11 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP R2 0RJ7501D677 7.5K OHM 1/10 W 5% 1608 R/TP R3 0RJ1201D677 1200 OHM 1/10 W 5% 1608 R/TP R4 0RJ1201D677 1200 OHM 1/10 W 5% 1608 R/TP R5 0RJ1801D677 1.8K OHM 1/10 W 5% 1608 R/TP R6 0RJ8200D677 820 OHM 1/10 W 5% 1608 R/TP R7 0RJ8200D677 820 OHM 1/10 W 5% 1608 R/TP R8 0RJ8200D677 820 OHM 1/10 W 5% 1608 R/TP R9 0RJ8200D677 820 OHM 1/10 W 5% 1608 R/TP

- 23 -
