Page 1
OWNER’S MANUAL
DVD Receiver System
MODEL
HT355SD (HT355SD, SH35SD-S/W)
P/NO : MFL63284729
Please read this manual carefully before operating your set and retain it for future reference.
Page 2

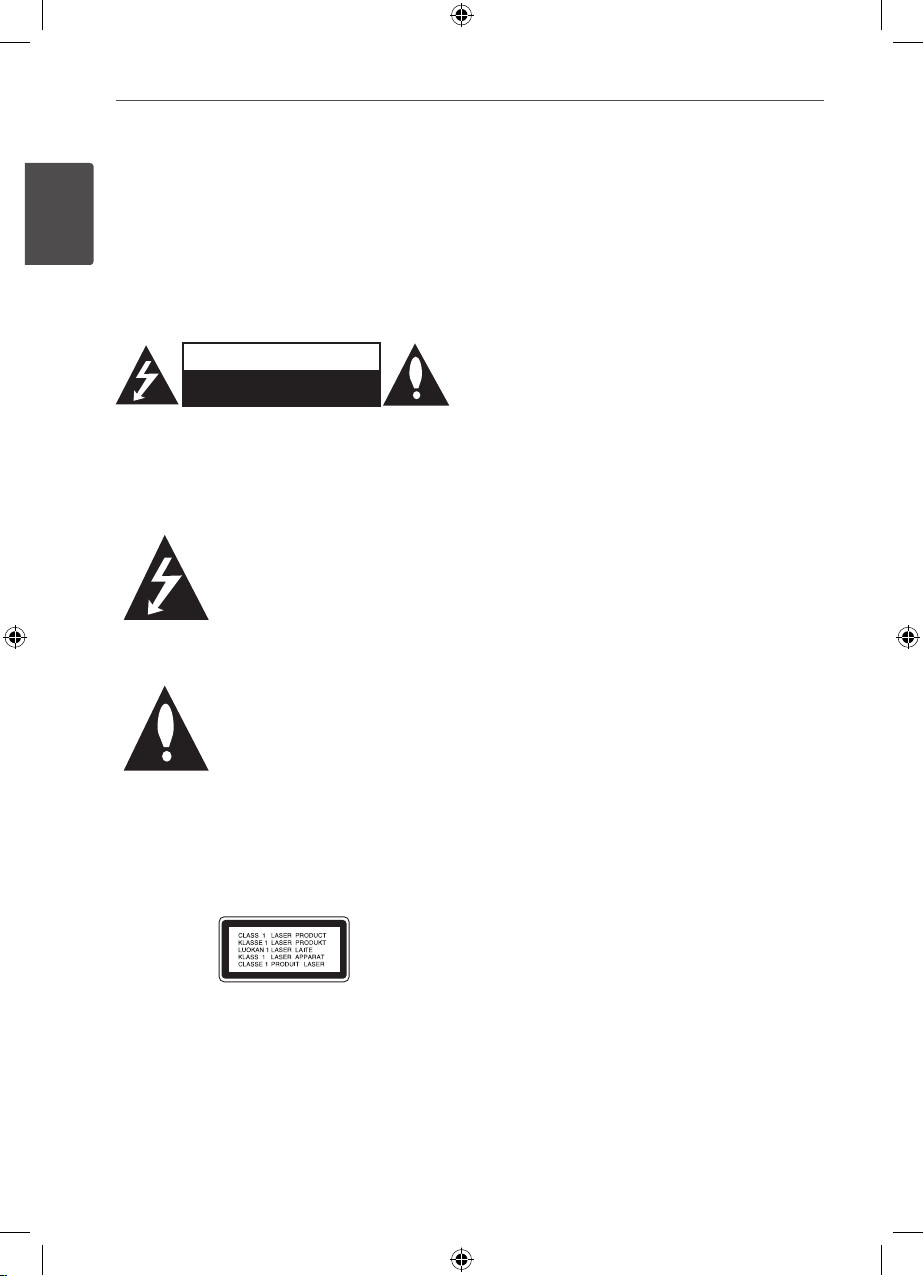

2 Safety Information
Safety Information
1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER­SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sucient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
WARNING: Do not install this equipment in a conned space such as a book case or similar unit.
CAUTION: This product employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center.
Use of controls, adjustments or the performance of procedures other than those specied herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try
to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.
CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects lled with liquids, such as vases, shall be placed on the apparatus.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit;
That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specication page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or re. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.
1 Safety Information
Page 3
3Safety Information
1
Safety Information
This device is equipped with a portable battery or accumulator.
Safe way to remove the battery or the battery from the equipment:
Remove the old battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimburse ment system batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, re or the like.
Disposal of your old a ppliance
1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city oce, waste disposal service or the shop where you purchased the product.
LG Electronics hereby declares that this/these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC, 2006/95/EC, and 2009/125/EC.
European representative :
LG Electronics Service Europe B.V. Veluwezoom 15, 1327 AE Almere, The Netherlands (Tel : +31–(0)36–547–8888)
Copyrights
It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION ’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p UNIT, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.
You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players. (Mastered/ Live File System : Disc format system for Windows Vista)
Page 4
4 Contents
1
2
3
4
5
6
7
1
Safety Information
2 CAUTION
3 Copyrights
2
Preparation
6 Unique Features
6 Accessories
6 Playable Discs
7 Playable file Requirement
9 Front panel
9 Rear panel
10 Remote control
3
Installation

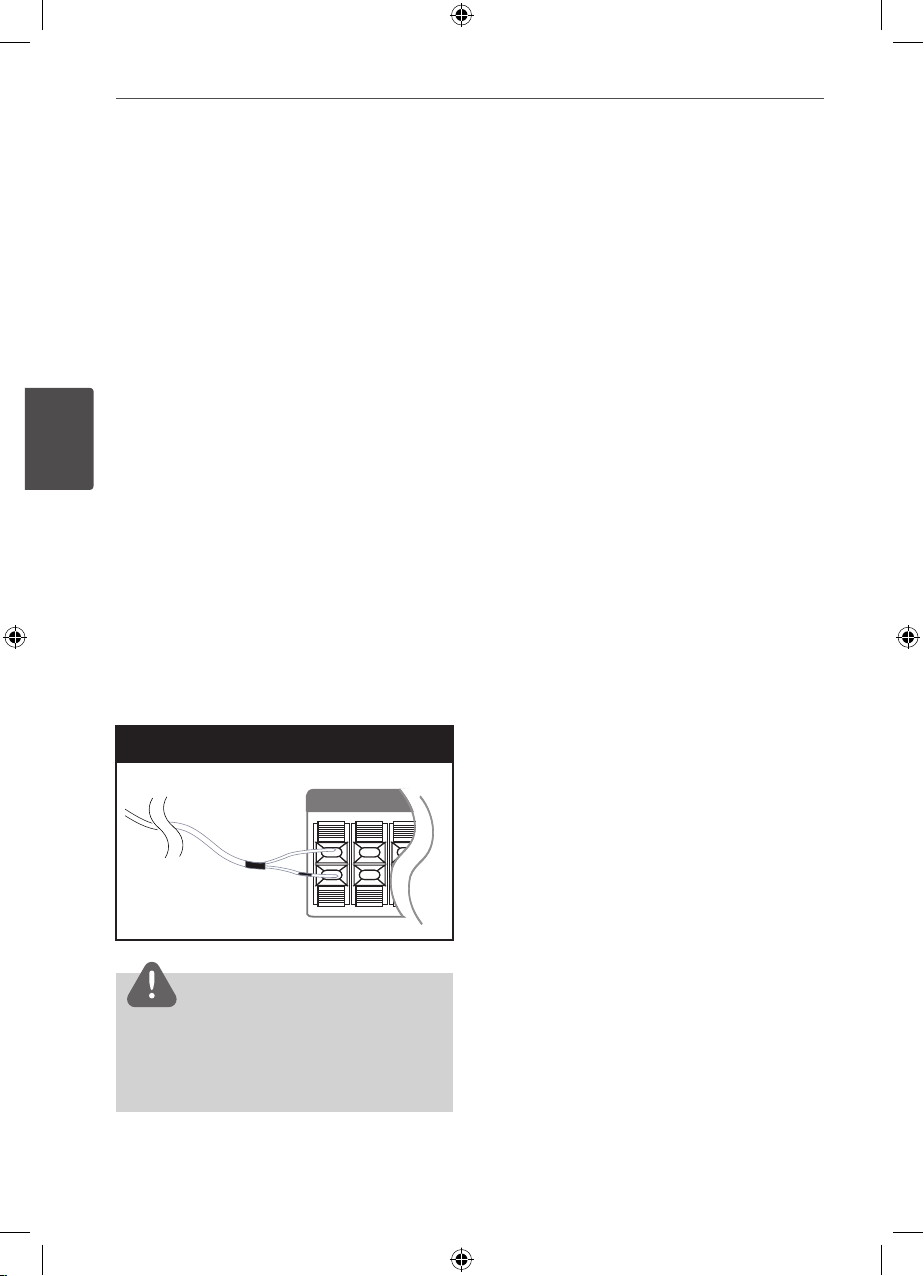

12 Connecting the speakers
12 Attaching the speakers to the
unit

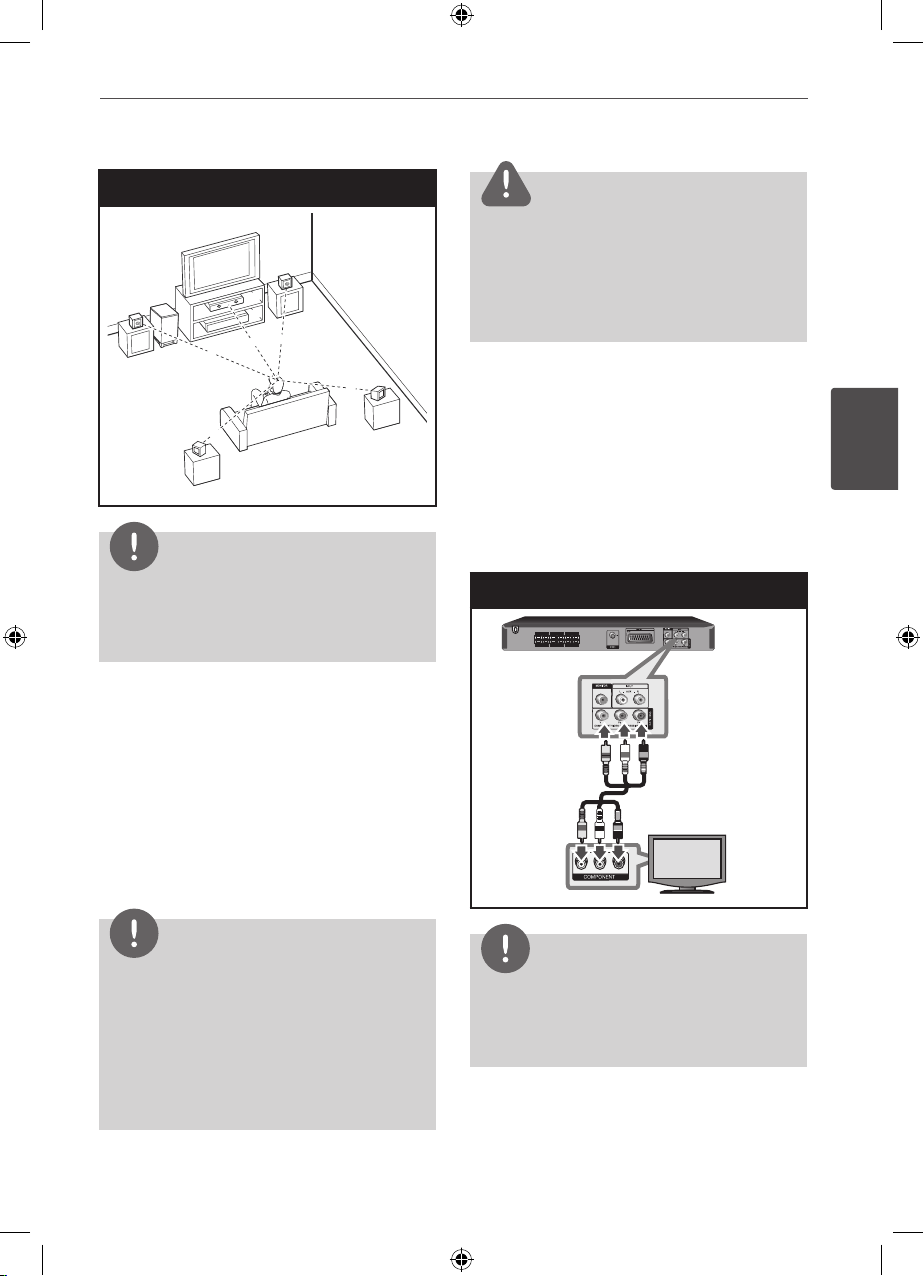

12 Positioning the System

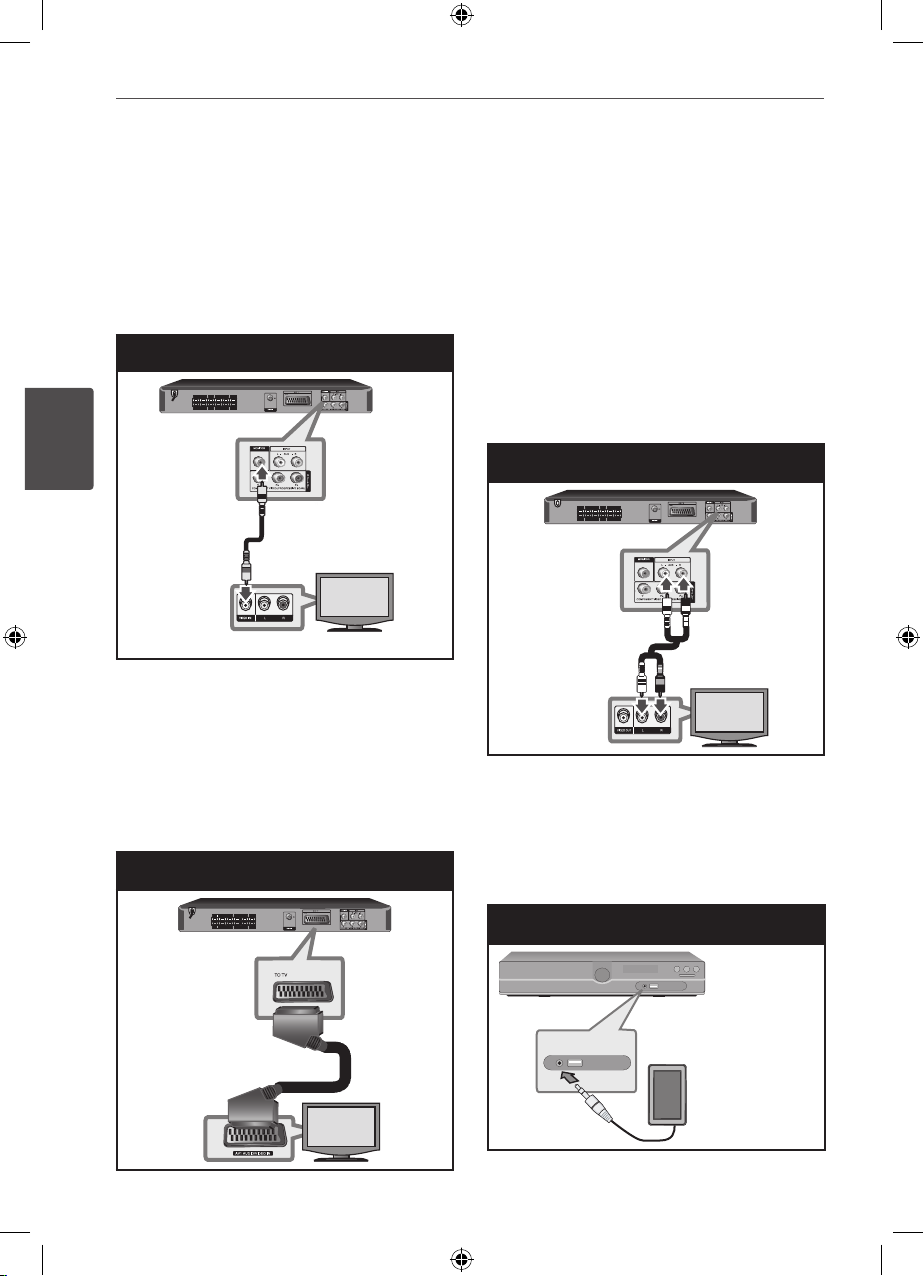

13 Connections to your TV
13 Component Video Connection
14 Video Connection
14 SCART Connection
14 Optional Equipment Connection
14
AUX IN Connection
14 AUDIO IN (Portable IN)
Connection

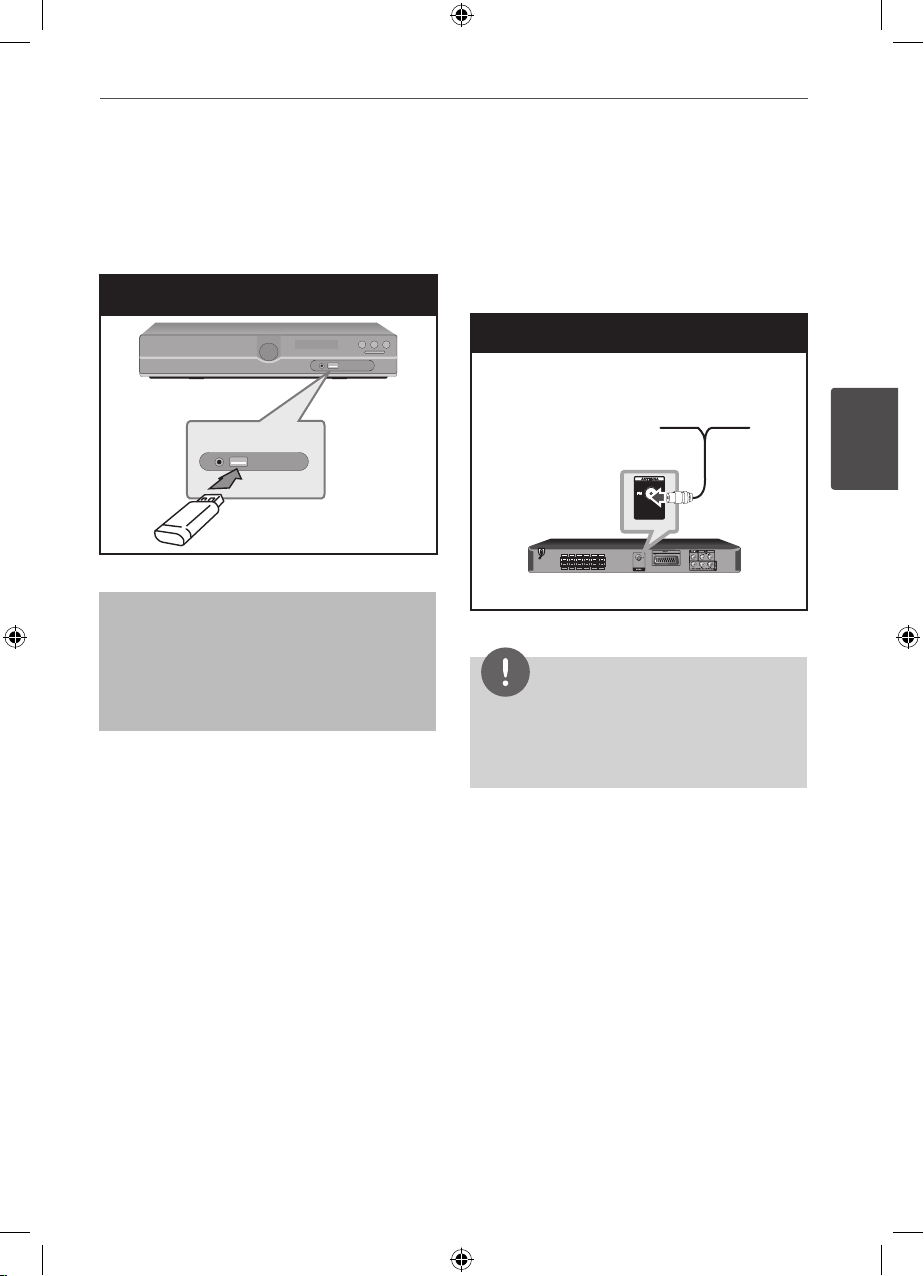

15 USB Connection
15 Antenna Connection
16 Adjust the Setup settings
16 OSD Initial language settings
- Optional
16 To display and exit the Setup
Menu
16 LANGUAGE
17 DISPLAY
17 AUDIO

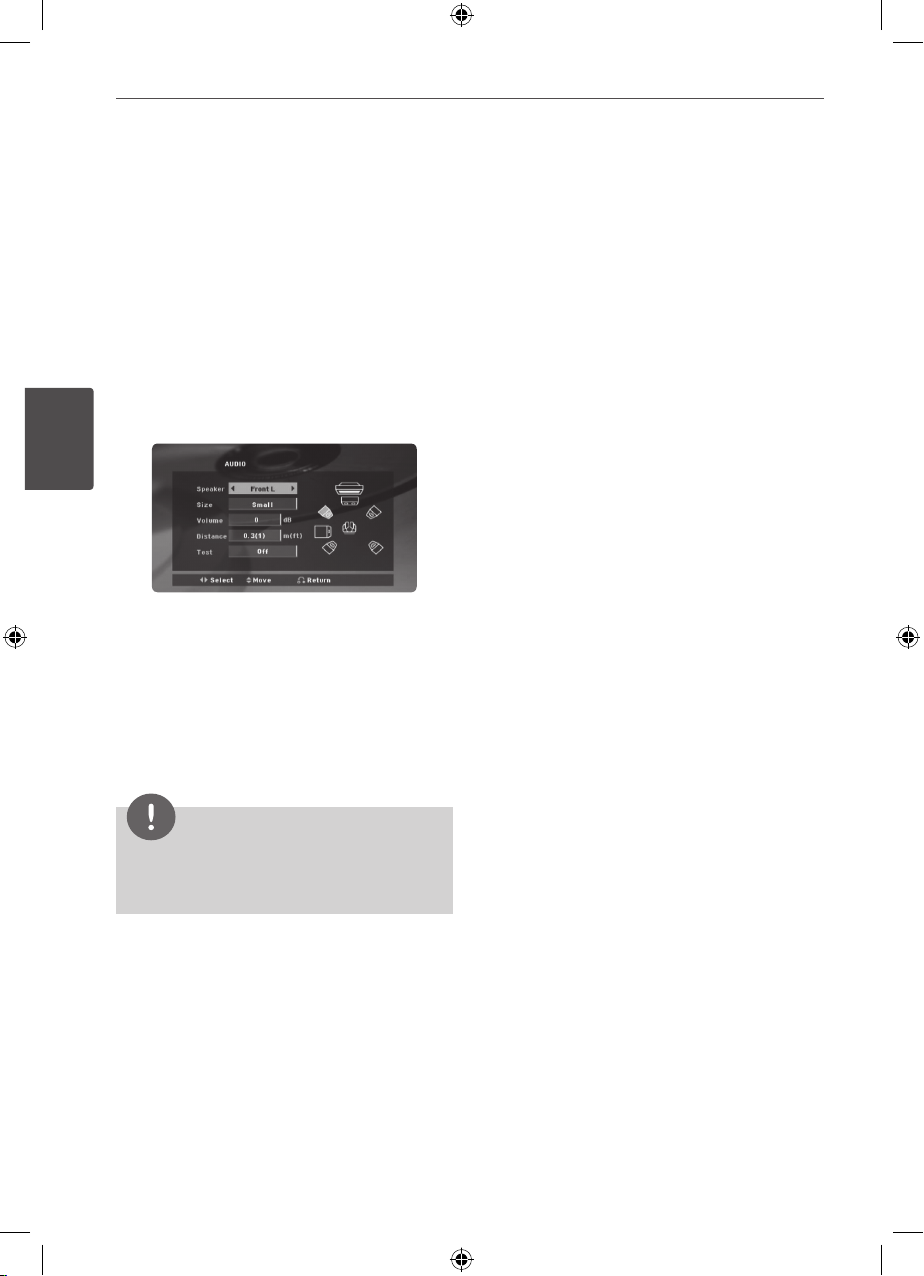

18 5.1 Speaker Setup
18 LOCK (Parental control)
19 OTHERS
4
Operation
20 Basic Operations
21 Other Operations
21 Displaying Disc Information on-
screen
21 To display the DVD Menu
21 To display the DVD Title
21 Selecting a subtitle language
21 1.5 times speed playback
22 Starting play from selected time
22
Last Scene Memory
22 Changing the character set to
display DivX® subtitle correctly
22 Programmed Playback
Page 5
5Contents
1
2
3
4
5
6
7
23 Viewing a PHOTO file
23 Viewing photo files as a slide
show
23 Listening to music during slide
show
23 Sleep Timer Setting
24 Dimmer
24 Turn off the sound temporarily
24 Screen Saver
24 System Select - Optional
24 Displaying file information
(ID3 TAG )
24 Radio Operations
24 Listening to the Radio
24 Presetting the Radio stations
24 Deleting all the saved stations
25 Improving poor FM reception
25 Seeing information about a radio
station
26 Sound adjustment
26 Setting the surround mode
27 Advanced Operations
27 Listening to music from your
portable player or external device
27 Recording to USB
5
Maintenance
28 Handling the Unit
28 When shipping the Unit
28 Keeping the exterior surfaces
clean
28 Cleaning the Unit
28 Maintaining the Unit

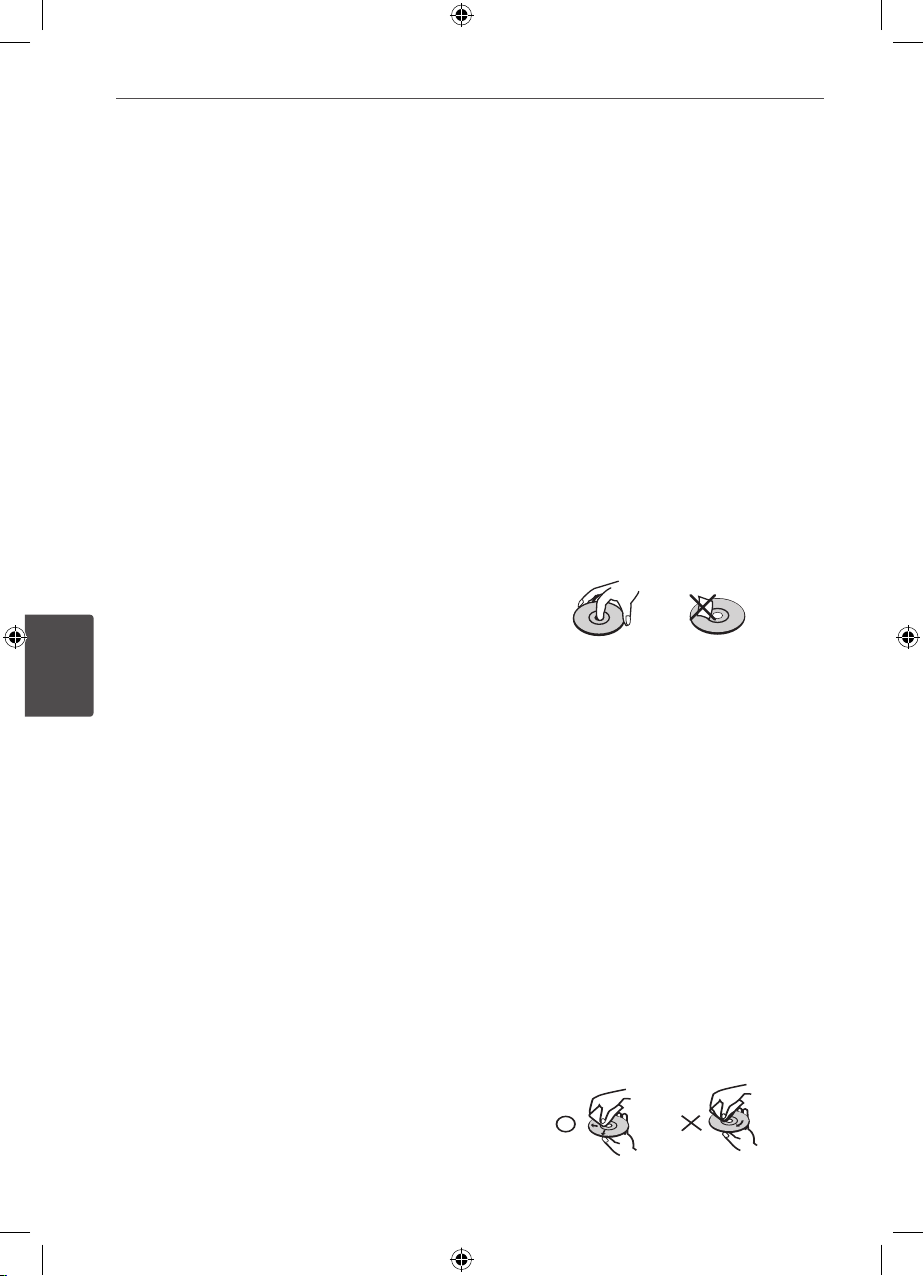

28 Notes on Discs
28 Handling Discs
28 Storing Discs
28 Cleaning Discs
6
Troubleshooting
29 Troubleshooting
7
Appendix
30 Language Codes
31 Area Codes
32 Specifications
Page 6
6 Preparation
Preparation
2
2
Preparation
Unique Features
Portable In
Listens to music from your portable device. (MP3, Notebook, etc)
USB Direct Recording
Records music from CD to your USB device.

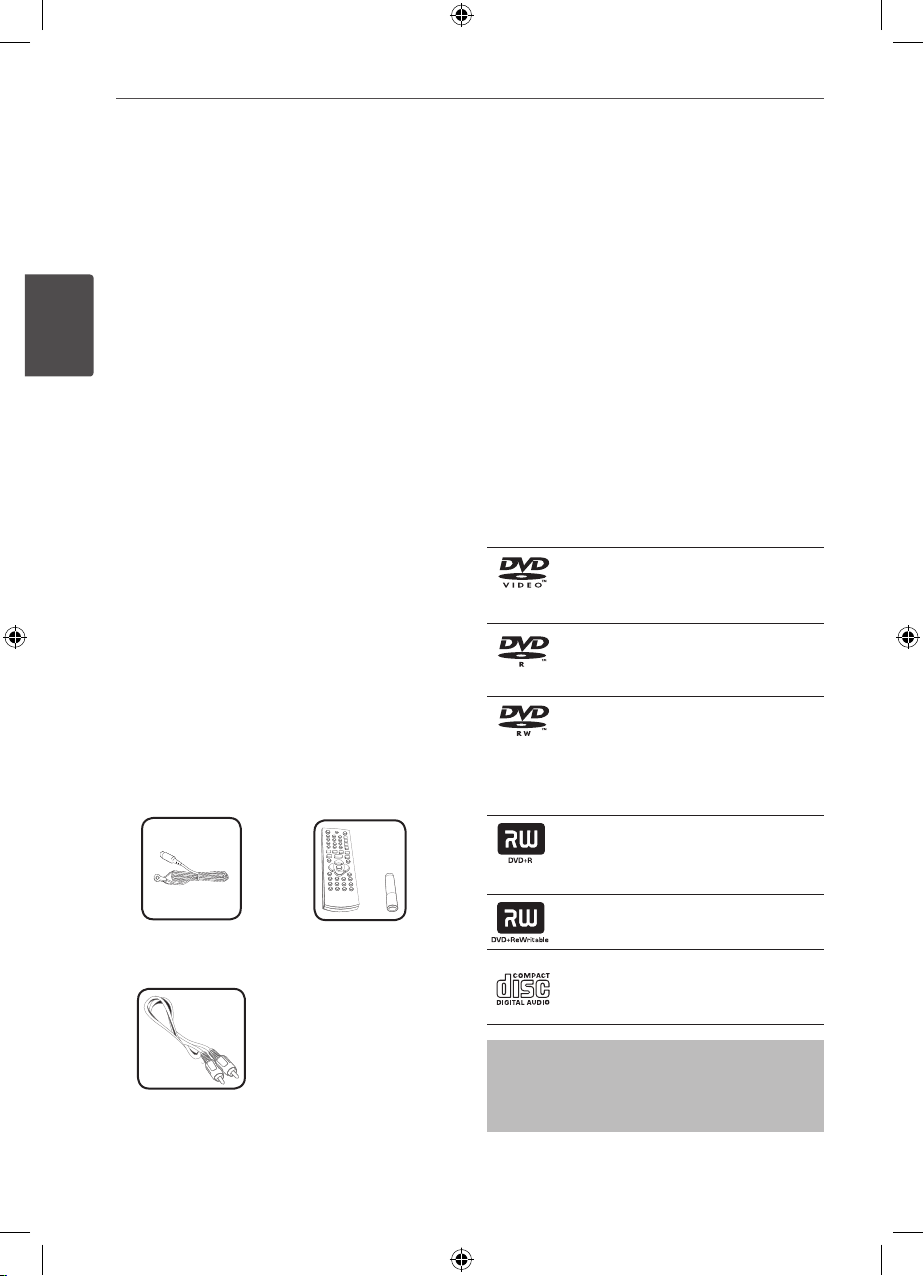

Accessories
Please check and identify the supplied accessories.
FM Antenna (1)
Remote Control (1)/
Battery (1)
Video Cable (1)
Playable Discs
This unit plays DVD±R/RW and CD-R/RW that contains audio titles, DivX, MP3, WMA and/or JPEG les. Some DVD±RW/DVD±R or CD­RW/CD-R cannot be played on this unit due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software.
DVD-VIDEO (8 cm / 12 cm disc) Discs such as movies that can be purchased or rented.
DVD±R (8 cm / 12 cm disc) Video mode and nalized only.
DVD-RW (8 cm / 12 cm disc) Video mode and nalized only. DVD VR format that have been nalized can not be played in this unit.
DVD+R: Video mode only. Supports the double layer disc also.
DVD+RW (8 cm / 12 cm disc) Video mode and nalized only.
Audio CD: Music CDs or CD-R/CD­RW in music CD format that can be purchased.
“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories.
Page 7
7Preparation
2
Preparation
About the Symbol Display
“  ” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that disc.
Symbol Used in this Manual
All discs and le listed below
ALL
MP3 les
MP3
DVD and nalized DVD±R/RW
DVD
WMA les
WMA
DivX les
DivX
Audio CDs
ACD
JPG les
JPG
Regional Codes
This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labeled same as the rear of the unit or “ALL”.
• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unit’s regional code; or the disc cannot play.
• If you try to play a DVD with a dierent regional code from your unit, the message “Check Regional Code” appears on the TV screen.
Playable file Requirement
MP3/ WMA music file requirement
MP3/ WMA le compatibility with this unit is limited as follows :
• Sampling frequency : within 32 kHz to 48 kHz (MP3), within 32 kHz to 48 kHz (WMA)
• Bit rate : within 32 kbps to 320 kbps (MP3), 40 kbps to 320 kbps (WMA)
• Support Version : v2, v7, v8, v9
• Maximum les : Under 999
• File extensions : “.mp3”/ “.wma”
• CD-ROM le format : ISO9660/ JOLIET
• We recommend that you use Easy-CD Creator, which creates an ISO 9660 le
system.
Photo file requirement
JPEG disc compatibility with this unit is limited as follows :
• Max pixel in width : 2 760 x 2 048 pixel
• Maximum les : Under 999
• Some discs may not operate due to a dierent recording format or the condition of disc.
• File extensions: “.jpg”
• CD-ROM le format : ISO9660/ JOLIET
Page 8
8 Preparation
Preparation
2
DivX file requirement
DivX le compatibility with this unit is limited as follows :
• Available resolution: within 720x576 (W x H) pixels.
• The le name of the DivX subtitle should be entered within 45 characters.
• If there is impossible code to express in the DivX le, it may be displayed as " _ " mark on the display.
• Frame rate : less than 30 fps
• If the video and audio structure of recorded les is not interleaved, either video or audio is outputted.
• Playable DivX le : ".avi", ".mpg", ".mpeg", ".divx"
• Playable Subtitle format : SubRip (*.srt/ *.txt), SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt), MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/ *.txt)
• Playable Codec format : "DIVX3.xx", "DIVX4. xx", "DIVX5.xx", "MP4V3", "3IVX".
• Playable Audio format : "AC3", "PCM", "MP3", "WMA".
• For Discs formatted in Live le system, you can not it on this unit.
• If the name of movie le is dierent from that of the subtitle le, during playback of a DivX le, subtitle may not be display.
• If you play a DivX le dier from DivXspec, it may not operate normally.
Compatible USB Devices
• MP3 Player : Flash type MP3 player.
• USB Flash Drive : Devices that support USB2.0 or USB1.1.
• The USB function of this unit does not
support some USB devices.
USB device requirement
• Devices which require additional program
installation connected to a computer, are not supported.
• Do not extract the USB device while in
operation.
• For a large capacity USB, it may take longer
than a few minute to be searched.
• To prevent data loss, back up all data.
• If you use a USB extension cable or USB
hub, the USB device is not recognized.
• Using NTFS le system is not supported.
(Only FAT(16/32) le system is supported.)
• This unit is not supported when the total
number of les is 1 000 or more.
• External HDD, Card readers, Locked devices,
or hard type USB devices are not supported.
• USB port of the unit cannot be connected
to PC. The unit can not be used as a storage device.
Page 9
9Preparation
2
Preparation
a
DVD/CD Disc Drawer
b
Power (
1/ )
)
c
Open/Close (
Z
)
d
Display window
e
Play/Pause (B/X), MONO/ST.
f
Stop (x)
g
Function (F)
Selects the function or input source.
h
TUNING (-/+)(
.>
), Skip/Search You can search by pressing and holding TUNING.
i
USB port You can play video, image and sound les by connecting the USB device.
j
P.(Portable) IN port
You can enjoy music from portable device on your unit.
k
Volume (VOL.)

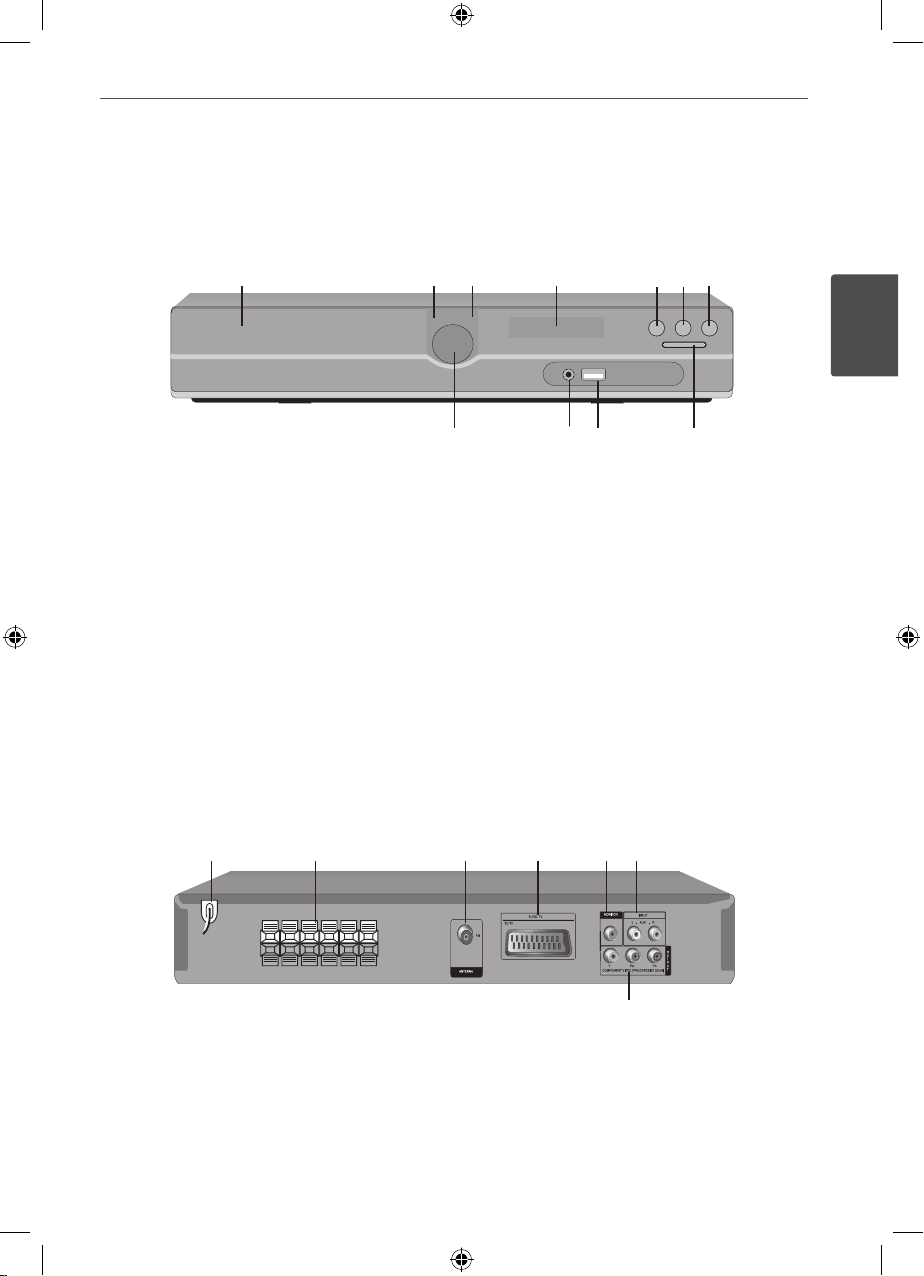

Front panel
a b c d efg
k ji  h
Rear panel
a
Power cord
b
Speaker terminal
c
ANTENNA connector (FM)
d
SCART connector
e
VIDEO OUT connector
Connect to a TV with video inputs.
f
AUX connector
g
COMPONENT VIDEO OUT (Y PB PR)
Connect to a TV with Y Pb Pr inputs.
a b c d ef
g
Page 10
10 Preparation
Preparation
2

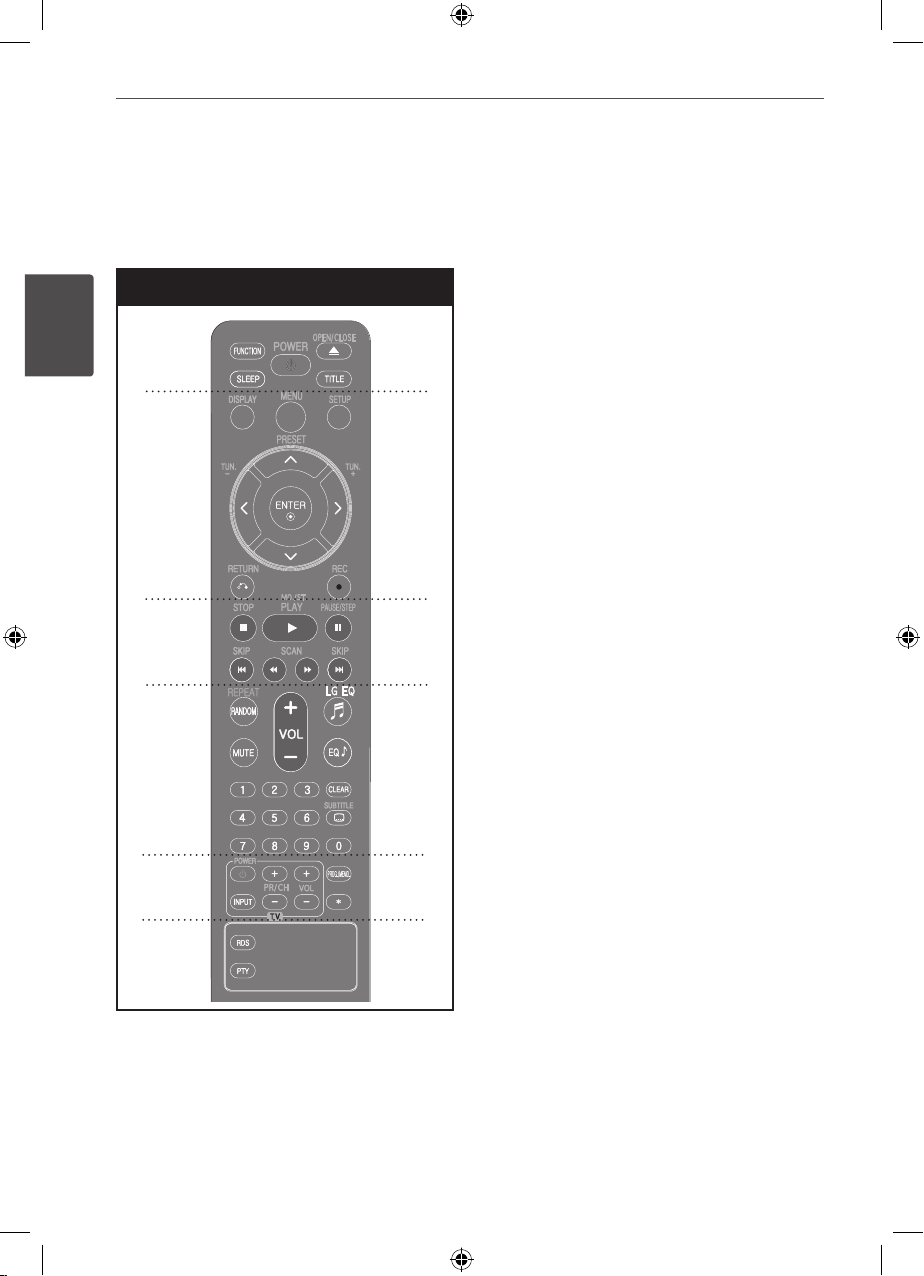

Remote Control

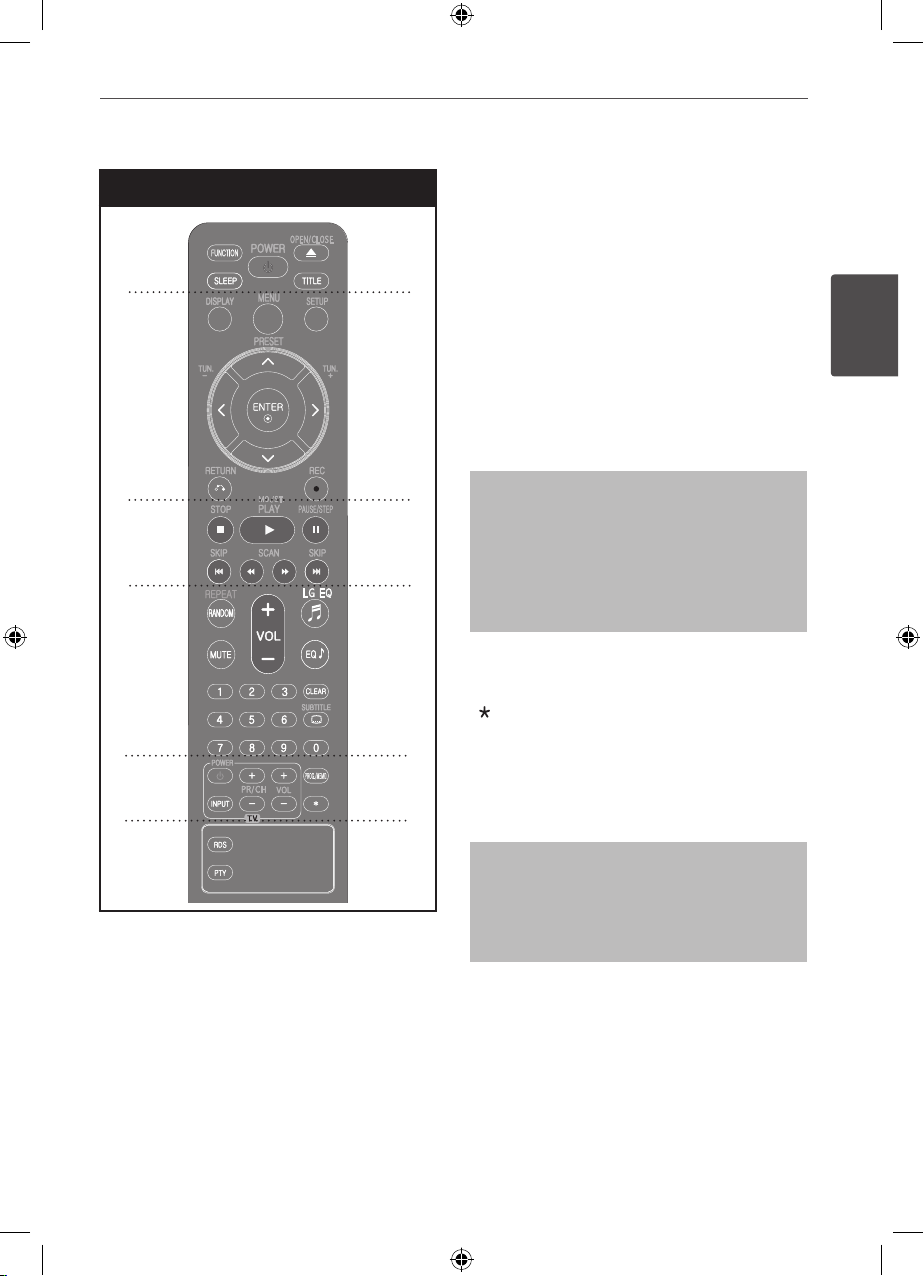

Remote control
a
b
c
d
e
f
• • • • • • • • • a • • • • • • • •
FUNCTION : Selects the function and input source. (DVD/CD, USB, AUX, PORTABLE, FM)
SLEEP : Sets the system to turn o automatically at a specied time. (Dimmer : The display window will be darken by half.)
POWER : Switches the unit ON or OFF.
OPEN/CLOSE : Opens and closes the disc
Drawer.
TITLE : If the current DVD title has a menu, the title menu appears on the screen. Otherwise, the disc menu may not appear.
• • • • • • • • • b • • • • • • • • •
DISPLAY : Accesses On-Screen Display.
MENU : Accesses the menu on a DVD disc.
SETUP : Accesses or removes setup menu.
PRESET (
U u
) : Selects programme of Radio.
TUN. (-/+) : Tunes in the desired radio station.
U/u/I/i
(up/ down/ left/ right): Used to
navigate on-screen displays.
ENTER : Acknowledges menu selection.
RETURN (O) : Moves backwards in the menu
or exits the setup menu.
REC (z) : USB Direct Recording.
• • • • • • • • • c • • • • • • • • •
STOP (x) : Stops playback or recording.
PLAY (B), MO./ST. : Starts playback. Selects
Mono/ Stereo.
PAUSE/STEP (X) : Pauses playback.
SKIP (
. / >
) : Goes to next or previous
chapter/ track/ le.
SCAN (bb/BB) : Searches backward or forward.
Page 11
11Preparation
2
Preparation
Remote control
a
b
c
d
e
f
• • • • • • • • • d • • • • • • • •
REPEAT/RANDOM : Selects a play mode.(Random, repeat)
MUTE : Mutes the sound.
VOL (Volume) (+/-) : Adjusts speaker volume.
LG EQ : Selects a Natural or Local Specialization
equalizer eect by using LG EQ.
EQ (EQUALIZER eect) : Chooses sound impressions.
CLEAR : Removes a track number on the Program List.
SUBTITLE : During playback, press SUBTITLE repeatedly to select a desired subtitle language .
0 to 9 numerical buttons : Selects numbered options in a menu.
• • • • • • • • • e • • • • • • • •
TV Control buttons : Controls the TV. (LG TV only)
Controlling the TV
You can control the sound level, input source, and power switching of LG TVs as well. Hold POWER ( TV ) and press PR/CH (+/–) button repeatedly until the TV turns on or off.
PROG./MEMO. : Accesses or removes Program menu.
: This button is not available.
• • • • • • • • • f • • • • • • • •
RDS : Radio Data System.
PTY : Views the various displays of the RDS.
Put the battery into the remote control
Make sure for the + (plus) and – (minus) on the battery to be matched on the remote control.
Page 12
12 Installation
Installation
3
Connecting the speakers
Attaching the speakers to the unit
To connect the cable to the unit, press each plastic nger pad to open the connection terminals on the unit. Insert the wire and release the nger pad.
Connect the black end of each wire to the terminals marked - (minus) and the other end to the terminals marked + (plus).
Speaker connection
CAUTION
Be careful to make sure children do not put their hands or any objects into the *speaker duct. *Speaker duct : A hole for plentiful bass sound on speaker cabinet (enclosure).
Positioning the System
The following illustration shows an example of positioning the system.
Note that the illustrations in these instructions dier from the actual unit for explanation purposes.
For the best possible surround sound, all the speakers other than the subwoofer should be placed at the same distance from the listening position (A).
A
Front left speaker (L)/
B
Front right speaker (R): Place the front speakers to the sides of the monitor or screen and as ush with the screen surface as possible.
C
Center speaker: Place the center speaker
above or below the monitor or screen.
D
Surround left speaker (L)/
E
Surround right speaker (R): Place these speakers behind your listening position, facing slightly inwards.
F
Subwoofer: The position of the subwoofer
is not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front speakers. Turn it slightly toward the center of the room to reduce the wall reections.
G
Unit
3 Installation
Page 13
13Installation
3
Installation
Speaker Positioning
A
B
D
E
F
A
A
A
A
A
G
C
NOTE
If the picture on nearby TV sets becomes magnetically distorted, keep the speaker away from your TV
Connections to Your TV
Make one of the following connections, depending on the capabilities of your existing equipment.
NOTE
• Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Use only one of the connections described in this manual.
• Please refer to the manuals of your TV, Stereo System or other devices as necessary to make the best connections.
CAUTION
• Make sure the unit is connected directly to the TV. Tune the TV to the correct video input channel.
• Do not connect your unit via your VCR. The image could be distorted by the copy
Component Video Connection
Connect the COMPONENT VIDEO (PROGRESSIVE SCAN) OUTPUT jacks on the unit to the corresponding input jacks on the TV using Y Pb Pr cables.
You can hear the sound through the system’s speakers.
Component Video Connection
NOTE
If your TV accepts progressive format signals, you must use this connection and set [Progressive Scan] in [Display] setup to [On] (See page 17).
Page 14
14 Installation
Installation
3
Video Connection
Connect the VIDEO OUT (MONITOR) jack on the unit to the video in jack on the TV using a video cable.
You can hear the sound through the system’s speakers.
Video Connection
SCART Connection
Connect the SCART jack on the unit to the SCART in jack on the TV using a video cable.
You can hear the sound through the system’s speakers.
SCART Connection
Optional Equipment Connection
AUX IN Connection
Connect an Output of auxiliary device to the AUX Input (L/R) Connector. If your TV has only one output for audio (mono), connect it to the left (white) audio jack on the unit.
AUX IN Connection
AUDIO IN (Portable IN) Connection
Connect an OUTPUT of portable device (MP3 or PMP etc) to the P. IN connector.
AUDIO IN Connection
MP3 player, etc...
Page 15
15Installation
3
Installation
USB Connection
Connect the USB port of USB Memory (or MP3 player, etc.) to the USB port on the front of the unit.
USB Connection
Removing the USB Device from the unit
1. Choose a dierent function mode or press STOP (
x
) twice in a row.
2. Remove the USB device from the unit.
Antenna Connection
Connect the supplied FM antenna for listening to the radio.
Connect the FM Wire antenna to the FM antenna connector.
Antenna Connection
NOTE
Be sure to fully extend the FM wire antenna. After connecting the FM wire antenna, keep it as horizontal as possible.
Page 16

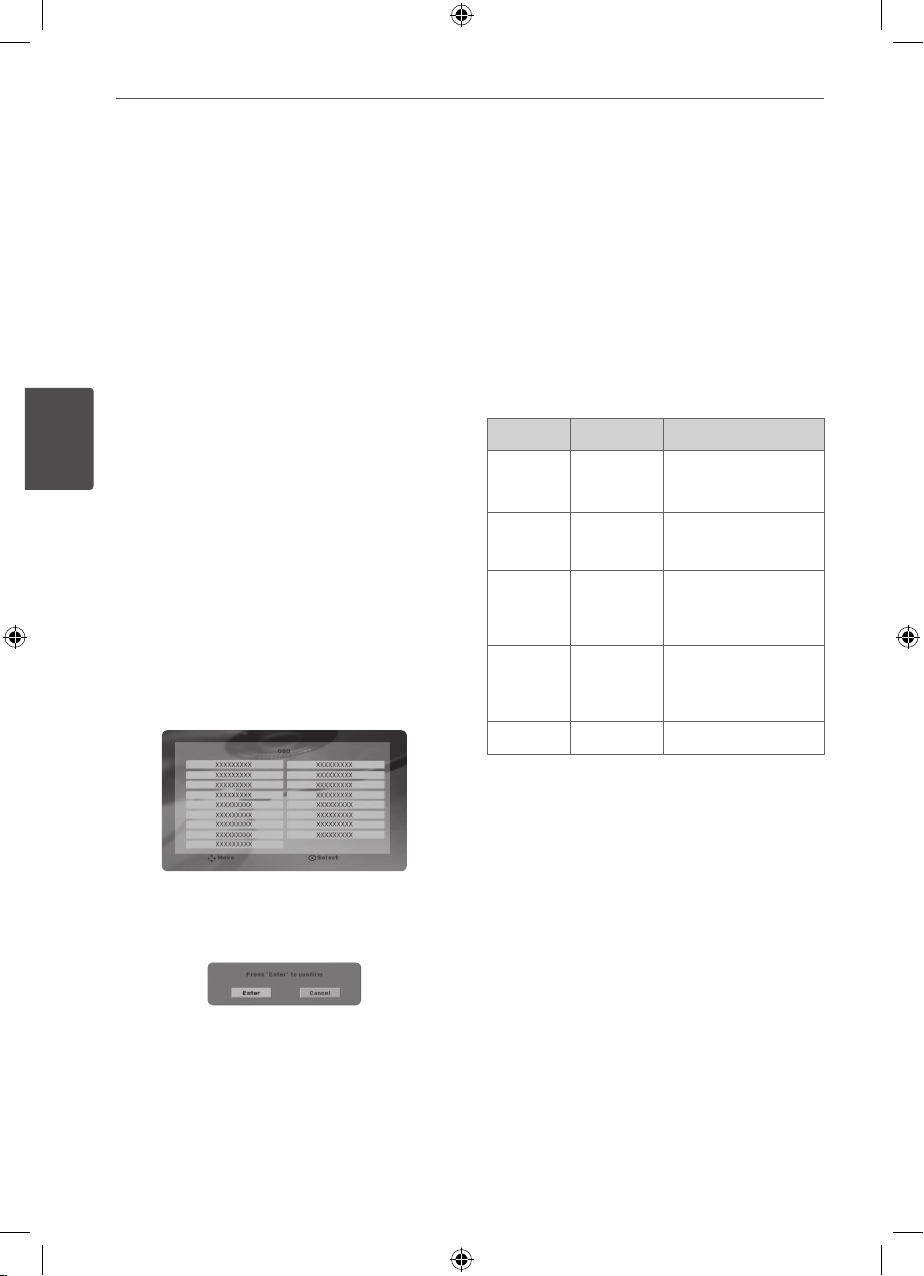

16 Installation
Installation
3
Adjust the Setup settings
By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 16 to 19.
OSD Initial language settings ­Optional
During the rst use of this unit, the initial language setup menu appears on your TV screen. You must complete initial language selection before using the unit. English will be selected as the initial language.
1. Press
POWER to turn the unit on. The language setup menu will appear on the screen.
2. Use
U u I i
to select a language then press ENTER. The conrm menu will appear.
3. Use
I i
to select the [Enter] then press
ENTER to nish the language setup.
To display and exit the Setup Menu
1. Select the DVD/CD or USB function by pressing FUNCTION.
2. Press
SETUP.
Displays the [SETUP] Menu.
3. Press
SETUP or RETURN to exit in the
[SETUP] Menu.
About help menu for Setup
Menu Buttons Operation
v/V
Move
U u
Moving to another menu.
b
Prev.
<
Moving to previous level.
B
Select
>
Moving to next level or selecting menu.
O
RETURN
To exit the [Setup] menu or [ 5.1 Speaker Setup].
ENTER To conrm menu.
LANGUAGE
Menu Language
Select a language for the Setup menu and then on screen display.
Disc Audio / Disc Subtitle / Disc Menu
Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.
Original – Refers to the original language in which the disc was recorded.
Page 17
17Installation
3
Installation
Other – To select another language, press numeric buttons and then ENTER to enter the corresponding 4-digit number according to the language code list on the page 30. If you enter the wrong language code, press CLEAR.
O (for Disc Subtitle) – Turn o Subtitle.
DISPLAY
TV Aspect
Select which screen aspect to use based on the shape of your TV screen.
4:3 – Select when a standard 4:3 TV is connected.
16:9 – Select when a 16:9 wide TV is connected.
Display Mode
The Display Mode setting works only when the TV Aspect mode is set to 4:3.
Letterbox – Displays a wide picture with bands on the upper and lower portions of the screen.
Panscan – Automatically displays the wide picture on the entire screen and cuts o the portions that do not t. (If the disc/le is not compatible with Pan Scan, the picture is displayed at Letterbox ratio.)
Progressive Scan (For Component Video connections)
Selects whether the COMPONENT VIDEO(PROGRESSIVE SCAN) OUTPUT jacks output progressive signal. If your TV accepts progressive format signals, you will enjoy accurate color reproduction and high quality image by selecting [On]. If your TV does not accept progressive format signals, select [O]. If you set Progressive Scan to [On] in error, you must reset the unit. First, remove the disc in the unit. Next, press and hold STOP for ve
seconds. The video output will be restored to the standard setting, and a picture will be visible on your TV.
TV Output Select
Select an option according to the TV connection type.
RGB – When your TV is connected with the SCART jack.
YPbPr – When your TV is connected with the COMPONENT/ PROGRESSIVE SCAN jacks on the unit.
NOTE
If you change TV Output Select to RGB from YPbPr on the setup menu especially when connecting the unit in the way of component video connection, the screen turns black. In that case, connect the video cable to MONITOR jack and select YPbPr on the setup menu again.
AUDIO
DRC (Dynamic Range Control)
Make the sound clear when the volume is turned down (Dolby Digital only). Set to [On] for this eect.
Vocal
Select [On] to mix karaoke channels into normal stereo.
This function is eective for multi-channel karaoke DVDs only.
Page 18
18 Installation
Installation
3
5.1 Speaker Setup
Make the following settings for the built-in 5.1 channel surrounds decoder.
1. Press
SETUP.
2. Use
U u
to select AUDIO menu and then
press
i
.
3. Use
U u
to select [5.1 Speaker setup] menu
and then press i.
4. Press
ENTER
The [5.1 Speaker setup] appears.
5. Use
I i
to select the desired speaker.
6. Adjust options using
U u I i
buttons.
7. Press
RETURN to conrm your selection.
Return to the previous menu.
Speaker selection
Select a speaker that you want to adjust.
NOTE
Certain speaker settings are prohibited by the Dolby Digital licensing agreement.
Size – Since the speaker settings are xed, you cannot change the settings.
Volume – Press
I i
to adjust the output level
of the selected speaker.
Distance – After you connected speakers to your unit, set the Distance between the speakers and your listening point if the distance of Center or Rear speakers is bigger than the distance of Front speakers. This allows the sound from each speaker to reach the listener at the same time. Press
I i
to adjust the Distance of the selected speaker. This distance is equivalent to a dierence of the distance between Center or Rear speaker and Front speakers.
Test – Press
I i
to test the signals of each speaker. Adjust the volume to match the volume of test signals memorized in the system.
LOCK (Parental Control)
Initial Setting of the Area Code:
When you use this unit for the rst time, you have to set the Area Code.
1. Select the [LOCK] menu and then press
i
.
2. Press
i
. To access the [LOCK] options, you must input the password you have created. Input a password and press ENTER. Enter it again and press ENTER to verify. If you make a mistake before pressing ENTER, press CLEAR.
3. Select the rst character using
U u
buttons.
4. Press
ENTER and select the second
character using
U u
buttons.
5. Press
ENTER to conrm your Area code
selection.
Page 19
19Installation
3
Installation
Rating
Blocks playback of rated DVDs based on their contents. Not all discs are rated.
1. Select [Rating] on the [LOCK] menu then press i.
2. Input a password and press
ENTER.
3. Select a rating from 1 to 8 using the
U u
buttons.
Rating 1-8 – Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.
Unlock – If you select unlock, parental control is not active and the disc plays in full.
4. Press
ENTER to conrm your rating
selection.
Password
You can enter or change password.
1. Select [Password] on the [LOCK] menu and then press i.
2. Input a password and press
ENTER.
To change the password, press
ENTER when the [Change] option is highlighted. Input a password and press ENTER. Enter it again and press ENTER to verify.
3. Press
SETUP to exit the menu.
NOTE
If you forget your password, you can clear it using the following steps:
1. Press
SETUP to display the Setup menu.
2. Input the 6-digit number “210499” and press ENTER. The password is cleared.
Area Code
Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 31.
1. Select [Area Code] on the [LOCK] menu then press i.
2. Input a password and press
ENTER.
3. Select the rst character using
U u
buttons.
4. Press
ENTER and select the second
character using
U u
buttons.
5. Press
ENTER to conrm your Area code
selection.
OTHERS
DivX(R) VOD
We provide you with the DivX® VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX® VOD service.
For more information, visit www.divx.com/vod.
Press ENTER when [DivX(R) VOD] is highlighted and you can view the registration code of the unit.
NOTE
All the downloaded videos from DivX® VOD can only be played back on this unit.
Page 20
20 Operation
Operation
4
Basic Operations
1. Insert the disc by Pressing OPEN/CLOSE or connect the USB device to the USB port.
2. Select the DVD/CD or USB function by pressing FUNCTION.
3. Select a le (or track/ title) you want to play by pressing
U u I i
.
.
NOTE
When playing a disc or USB Flash Drive containing with DivX, MP3/ WMA and JPEG les together, you can select menu of les which you would like to play by pressing MENU. If “This le has non-supported type on the unit” pops up, select an appropriate le by pressing MENU.
To Do this
Stop
Press
x
Playback
Press
B
Pause Press PAUSE/STEP
Frame-
by-Frame
playback
Press PAUSE/STEP repeatedly to play title Frame-by-Frame.
Skipping to
the next/
previous
chapter/ track/
le
During playback, press
.
or > to go to the next chapter/track or to return to the beginning of the current chapter/track. Press . twice briey to step back to the previous chapter/track.
Locating a
point quickly
by playing
a le in fast
forward or fast
reverse
During playback, press bb or BB repeatedly to select the required scan speed. To return to normal speed, press PLAY.
Playing
repeatedly or
randomly
Press REPEAT/RANDOM repeatedly, and the current title, chapter or track will be played back repeatedly or randomly.
- Random play mode : only music les.
Slowing down
the playing
speed
In the pause mode, press SLOW (bb or BB) to select the required speed.
4 Operation
Page 21
21Operation
4
Operation
Other Operations
Displaying Disc Information on-screen
You can display various information about the disc loaded on-screen.
1. Press
DISPLAY to show various playback information. The displayed items dier depending on the disc type or playing status.
2. You can select an item by pressing
U u
and
change or select the setting by pressing
I i
.
Title – Current title number/ total
number of titles.
Chapter – Current chapter number/
total number of chapters.
Time – Elapsed playing time.
Audio – Selected audio language
or channel.
Subtitle – Selected subtitle.
Angle – Selected angle/total
number of angles.
Sound – Selected sound mode
NOTE
If any button is not pressed for a few seconds, the onscreen display disappears.
To display the DVD Menu
DVD
When you play a DVD which contains several menus, you can select the menu you want using the Menu.
1. Press
MENU.
The disc’s menu appears.
2. Select the menu by using
U u I i
.
3. Press
PLAY to conrm.
To display the DVD Title
DVD
When you play a DVD which contains several titles, you can select the title you want using the Menu.
1. Press
TITLE.
The disc’s title appears.
2. Select the menu by pressing
U u I i
.
3. Press
PLAY to conrm.
Selecting a subtitle language
DVD DivX
During playback, press SUBTITLE( ) repeatedly to select a desired subtitle language.
1.5 times speed playback
DVD
The 1.5 speed allows you to watch the pictures and listen to the sound quicker than playing at a normal speed.
1. During playback, press
PLAY(B ) to play at 1.5 times speed. “BX1.5” appears on the screen.
2. Press
PLAY(B) again to exit.
Page 22
22 Operation
Operation
4
Starting play from selected time
DVD DivX
To start playing at any chosen time on the le or title.
1. Press
DISPLAY during playback.
2. Press
U u
to select the time clock icon and
“--:--:--” appears.
3. Input the required start time in hours, minutes, and seconds from left to right. If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then input the correct numbers. For example, to nd a scene at 1 hour, 10 minutes, and 20 seconds, enter “11020” by using numerical buttons.
4. Press
ENTER to conrm. Playback starts
from the selected time.
Last Scene Memory
DVD
This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the player or switch o (Stand-by mode) the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.
Changing the character set to display DivX® subtitle correctly
DivX
If the subtitle does not display properly during playback press and hold SUBTITLE for about 3 seconds then press
I i
or SUBTITLE to select another language code until the subtitle is displayed properly and then press ENTER.
Programmed Playback
ACD MP3
WMA
The program function enables you to store your favourite les from any disc or USB device.
A program can contain 30 tracks/ les.
1. Select the DVD/CD or USB function by pressing FUNCTION.
2. To add a music(s) on the program list, press PROG./MEMO. to enter the program edit mode (
E
mark appears on the menu).
3. Select a desired music on the [List] by using the
U u
then press ENTER to add the
music to the program list.
4. Select music from the program list then press ENTER to start programmed playback.
Erasing a file from Program List
1. Use
U u
to select the track that you wish to
erase from the Program list.
2. Press
CLEAR.
Erasing the Complete Program List
Use
U u I i
to select [Clear All] then press
ENTER.
NOTE
The programs are also cleared when the disc or USB device is removed, the unit is switched to power o or the function is switched to others.
Page 23
23Operation
4
Operation
Viewing a PHOTO file
JPG
This unit can play discs with photo les.
1. Select the DVD/CD or USB function by pressing FUNCTION.
2. Press
U u
to select a folder, and then press ENTER. A list of les in the folder appears. If you are in a le list and want to return to the previous folder list, use the
U u
buttons on the remote to highlight and press ENTER.
3. If you want to view a particular le, press
U u
to highlight a le and press ENTER or PLAY. While viewing a le, you can press STOP to move to the previous menu (JPEG
menu).
Viewing photo files as a slide show
JPG
1. Highlight the le (not folder) which you like beginning slide show.
2. Use
U u I i
to highlight the Speed. Then,
use
I i
to select the (>/ >>/ >>>) option
you want to use and then press ENTER.
3. Use
U u I i
to highlight the (Slide Show)
then press ENTER.
About help menu for slide show
Menu Buttons Operation
v/V
U/u
Rotating the
./ >
Prev./ Next
I/i
Moving to
another le
x
STOP
Closing the
slide show
O
RETURN
Hiding the help
menu
Listening to music during slide show
JPG
You can listen to music during slide show, if the disc contain music and photo les together.
Use
U u I i
to highlight ( ) icon then
press ENTER to start slide show.
NOTE
This function is available only in disc.
Sleep Timer Setting
Press SLEEP one or more times to select delay time between 10 and 180 minutes, after the unit will turn o.
To check the remaining time, press SLEEP.
To cancel the sleep function, press SLEEP repeatedly until “SLEEP 10” appears, and then press SLEEP once again while “SLEEP 10” is displayed.
NOTE
You can check the remaining time before the unit turns o.
Page 24
24 Operation
Operation
4
Dimmer
Press SLEEP once. The display window will be darken by half. To cancel it, press SLEEP repeatedly until dim o.
Turn off the sound temporarily
Press MUTE to mute your unit.
You can mute your unit, for example, to answer the telephone, the “MUTE” displayed in the display window.
Screen Saver
The screen saver appears when you leave the unit in Stop mode for about ve minutes.
System Select - Optional
You must select the appropriate system mode for your TV system. If “NO DISC” appears in the display window, press and hold PAUSE/STEP (X) for more than ve seconds to be able to select a system. (AUTO/ PAL/ NTSC)
Displaying file information (ID3 TAG )
While playing an MP3/ WMA le containing le information, you can display the information by pressing DISPLAY.
Radio Operations
Be sure that both FM aerials are connected. (Refer to the page 15)
Listening to the Radio
1. Press FUNCTION until FM appears in the display window. The last received station is tuned in.
2. Press and hold
TUN.(-/+) for about two seconds until the frequency indication starts to change, then release. Scanning stops when the unit tunes in a station.
or
Press
TUN.(-/+) repeatedly.
3. Adjust the volume by rotating
VOL. on the front panel or by pressing VOL + or - on the remote control repeatedly.
Presetting the Radio Stations
You can preset 50 stations for FM. Before tuning, make sure that you have turned down the volume.
1. Press
FUNCTION until FM appears in the
display window.
2. Select the desired frequency by using
TUN.(-/+).
3. Press
PROG./MEMO. a preset number will
ash in the display window.
4. Press
PRESET (-/+) to select the preset
number you want.
5. Press
PROG./MEMO.
The station is stored.
6. Repeat the steps 2 to 5 to store other stations.
Page 25
25Operation
4
Operation
Deleting all the saved stations
1. Press and hold PROG./MEMO. for two seconds. “ERASE ALL” will ash up on the unit display.
2. Press
PROG./MEMO. to erase all of the
saved radio stations.
Improving poor FM reception
Press PLAY (B) (MO./ST.) on the remote control. This will change the tuner from stereo to mono and usually improve the reception.
Seeing information about a radio station
The FM tuner is supplied with the RDS (Radio Data System) facility. This shows information about the radio station being listened to. Press RDS repeatedly to cycle through the various data types. :
PS (Programme Service Name)
The name of the channel will appear in the display
PTY (Programme Type Recognition)
The programme type (e.g. Jazz or News) will appear in the display.
RT (Radio Text)
A text message contains special information from the broadcast station. This text may scroll across the display.
CT (Time controlled by the channel)
This shows the time and date as broadcast by the station.
You can search the radio stations by programme type by pressing RDS. The display will show the last PTY in use. Press PTY one or more times to select your preferred programme type. Press and hold
I/i
. The tuner will search automatically. When a station is found the search will stop.
Page 26
26 Operation
Operation
4
Sound adjustment
Setting the surround mode
This system has a number of pre-set surround sound elds. You can select a desired sound mode by using EQ/ LG EQ. You can change the EQ/ LG EQ using
I i
arrow key while the
EQ/ LG EQ information is displayed on.
The displayed items for the Equalizer may be dierent depending on sound sources and eects.
On Display Description
NAT PLUS
You can enjoy the natural sound eect same as a
5.1-channel.
NATURAL
You can enjoy comfortable and natural sound.
Local
Specialization
equalizer
Regionally optimized sound eect. (DANGDUT/ ARABIC/ PERSIAN/ INDIA/ REGUETON/ MERENGUE/ SALSA/ SAMBA/ CUMBIA/ AFRO)
AUTO EQ
Realizes the sound equalizer that is the most similar to the genre of which is included in the MP3 ID3 tag of song les.
POP
CLASSIC
JAZZ
ROCK
This program lends an enthusiastic atmosphere to the sound, giving you the feeling you are at an actual rock pop, jazz or classic concert.
MP3 OPT
This function is optimized for compressible MP3 le. It improves the treble sound.
On Display Description
BASS
During playback, Reinforces the treble, bass and surround sound eect.
VIRTUAL
You can enjoy more virtual surround sound.
PLII MOVIE PLII MUSIC
Dolby Pro Logic II enables you to play stereo source on
5.1-channel.
BYPASS
You can enjoy the sound without equalizer eect.
NOTE
• In some of surround modes, on some speakers, there’s no sound or low sound. it, depends on the mode of surround and the source of audio, it is not defective.
• You may need to reset the surround mode, after switching the input, sometimes even after the sound track changed.
Page 27
27Operation
4
Operation
Advanced Operations
Listening to music from your portable player or external device
The unit can be used to play the music from many types of portable player or external devices. (Refer to the page 14)
1. Connect the portable player to the P. IN(PORTABLE IN) connector of the unit.
Or
Connect the external device to the AUX
connector of the unit.
2 Turn the power on by pressing
POWER.
3 Select the PORTABLE or AUX function by
pressing FUNCTION.
4 Turn the portable player or external device
and start it playing.
Recording to USB
1. Connect the USB device to the unit.
2. Select a DVD/ CD function by pressing
FUNCTION.
One track recording - You can record to USB after play you want le.
All tracks recording - You can record to USB after stop.
Program list recording - After moving to the programmed list and you can record it to USB.
3 Start the recording by pressing
z
REC.
4 To stop recording, press
x
STOP.
NOTE
• You can check the recording percentage rate for the USB record on the screen during the recording.
• When you stop recording during playback, the le that has been recorded at that time will be stored.
• Do not remove the USB device or turn o the unit during USB recording. If not, an incomplete le may be made and not deleted on PC.
• If USB recording does not work, the message like “NO USB”, “ERROR”, “USB FULL” or “NO REC” is displayed on the display window.
• When you stop recording during playback, the le will not be stored.
• In the state CD-G, DTS disc USB record is not operated.
• You may not store more than 999 les.
• It’ll be stored as TRK_001 on CD FOLDER.
The making of unauthorized copies of copy­protected material, including computer programs, les, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal oense. This equipment should not be used for such purposes.
Be responsible
Respect copyrights
Page 28
28 Maintenance
Maintenance
5
Handling the Unit
When shipping the Unit
Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.
Keeping the exterior surfaces clean
• Do not use volatile liquids such as insecticide spray near the unit.
• Wiping with strong pressure may damage the surface. Do not leave rubber or plastic products in contact with the unit for a long period of time.
Cleaning the Unit
To clean the unit, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzene, or thinner, as these might damage the surface of the unit.
Maintaining the Unit
The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be
diminished. For details, please contact your nearest authorized service center.
Notes on Discs
Handling Discs
Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out. Do not use strong solvents such as alcohol, benzene, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.
5 Maintenance
Page 29
29Troubleshooting
6
Troubleshooting
6 Troubleshooting
PROBLEM CAUSE CORRECTION
No Power
The power cord is disconnected. Plug the power cord into the wall outlet securely.
No Picture
The TV is not set to receive the DVD signal.
Select the appropriate video input mode on the TV so the picture from the DVD Receiver appears on the TV screen.
The video cables are not connected securely.
Connect the video cables securely to both the TV and DVD Receiver.
There is little or no sound
Equipment connected via the audio cable is not set to receive DVD signal output.
Select the correct input mode of the audio receiver so you can hear the sound from the DVD receiver.
The audio cables are not connected to the speakers or receiver securely.
Connect the audio cables into the connection terminals correctly.
If not, connect speaker cables correctly. Speaker cables connected correctly.
The DVD picture quality is poor
The disc is dirty.
Clean the disc using a soft cloth with outward strokes.
A DVD/CD will not play
No disc is inserted. Insert a disc.
An unplayable disc is inserted.
Insert a playable disc (check the disc type, colour system and regional code).
The disc is inserted upside down.
Place the disc with the label or printed side facing upwards.
The menu is open on screen. Press SETUP to close the menu screen.
There is a parental lock which prevents the playback of DVDs with a certain rating.
Enter your password or change the rating level.
Humming noise heard while a DVD or CD is playing
The disc is dirty.
Clean the disc using a soft cloth with outward strokes.
The DVD receiver is located too close to the TV, causing feedback.
Move DVD receiver and audio components further away from your TV.
Radio stations can’t be tuned in properly
The antenna is positioned or connected poorly.
Check the antenna connection and adjust its position.
Attach an external aerial if necessary.
The signal strength of the radio station is too weak. Tune to the station manually.
No stations have been preset or preset stations have been cleared (when tuning by scanning preset channels).
Preset some radio stations, see page 24 for details.
The remote control doesn’t work well / at all
The remote is not pointed directly at the unit. Point the remote directly at the unit.
The remote is too far from the unit.
Use the remote within 23 feet (7m) of the DVD receiver.
There is an obstacle in the path between the remote control and the unit.
Remove the obstacle.
The battery in the remote control are flat. Replace the battery with an new ones.
Page 30
30 Appendix
Appendix
7
7 Appendix
Language Codes
Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.
Language Code Language Code Language Code Language Code
Afar 6565 Afrikaans 6570 Albanian 8381 Ameharic 6577 Arabic 6582 Armenian 7289 Assamese 6583 Aymara 6588 Azerbaijani 6590 Bashkir 6665 Basque 6985 Bengali; Bangla 6678 Bhutani 6890 Bihari 6672 Breton 6682 Bulgarian 6671 Burmese 7789 Byelorussian 6669 Chinese 9072 Croatian 7282 Czech 6783 Danish 6865 Dutch 7876 English 6978 Esperanto 6979 Estonian 6984 Faroese 7079 Fiji 7074 Finnish 7073
French 7082 Frisian 7089 Galician 7176 Georgian 7565 German 6869 Greek 6976 Greenlandic 7576 Guarani 7178 Gujarati 7185 Hausa 7265 Hebrew 7387 Hindi 7273 Hungarian 7285 Icelandic 7383 Indonesian 7378 Interlingua 7365 Irish 7165 Italian 7384 Javanese 7487 Kannada 7578 Kashmiri 7583 Kazakh 7575 Kirghiz 7589 Korean 7579 Kurdish 7585 Laothian 7679 Latin 7665 Latvian, Lettish 7686 Lingala 7678
Lithuanian 7684 Macedonian 7775 Malagasy 7771 Malay 7783 Malayalam 7776 Maori 7773 Marathi 7782 Moldavian 7779 Mongolian 7778 Nauru 7865 Nepali 7869 Norwegian 7879 Oriya 7982 Panjabi 8065 Pashto, Pushto 8083 Persian 7065 Polish 8076 Portuguese 8084 Quechua 8185 Rhaeto-Romance 8277 Rumanian 8279 Russian 8285 Samoan 8377 Sanskrit 8365 Scots Gaelic 7168 Serbian 8382 Serbo-Croatian 8372 Shona 8378 Sindhi 8368
Singhalese 8373 Slovak 8375 Slovenian 8376 Spanish 6983 Sudanese 8385 Swahili 8387 Swedish 8386 Tagalog 8476 Tajik 8471 Tamil 8465 Telugu 8469 Thai 8472 Tonga 8479 Turkish 8482 Turkmen 8475 Twi 8487 Ukrainian 8575 Urdu 8582 Uzbek 8590 Vietnamese 8673 Volapük 8679 Welsh 6789 Wolof 8779 Xhosa 8872 Yiddish 7473 Yoruba 8979 Zulu 9085
Page 31
31Appendix
7
Appendix
Area Codes
Choose a area code from this list.
Afghanistan AF Argentina AR Australia AU Austria AT Belgium BE Bhutan BT Bolivia BO Brazil BR Cambodia KH Canada CA Chile CL China CN Colombia CO Congo CG Costa Rica CR Croatia HR Czech Republic CZ Denmark DK Ecuador EC Egypt EG El Salvador SV Ethiopia ET Fiji FJ Finland FI France FR Germany DE Great Britain GB Greece GR Greenland GL
Hong Kong HK Hungary HU India IN Indonesia ID Israel IL Italy IT Jamaica JM Japan JP Kenya KE Kuwait KW Libya LY Luxembourg LU Malaysia MY Maldives MV Mexico MX Monaco MC Mongolia MN Morocco MA Nepal NP Netherlands NL Netherlands Antilles AN New Zealand NZ Nigeria NG Norway NO Oman OM Pakistan PK Panama PA Paraguay PY Philippines PH
Poland PL Portugal PT Romania RO Russian Federation RU Saudi Arabia SA Senegal SN Singapore SG Slovak Republic SK Slovenia SI South Africa ZA South Korea KR Spain ES Sri Lanka LK Sweden SE Switzerland CH Taiwan TW Thailand TH Turkey TR Uganda UG Ukraine UA United States US Uruguay UY Uzbekistan UZ Vietnam VN Zimbabwe ZW
Area Code Area Code Area Code
Page 32
32 Appendix
Appendix
7
Specifications
General
Power supply Refer to main label.
Refer to main label. Power consumption 45 W Net Weight 2.5 kg External dimensions (W x H x D) 360 x 65 x 320 mm Bus Power Suply (USB) DC 5 V 500 mA Operating conditions Temperature 5 °C to 35 °C,
Operation status: Horizontal Operating humidity 5 % to 85 % Laser Semiconductor laser,
wavelength 650 nm
Tuner FM
FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz FM Intermediate Frequency 128 kHz
Amplier
Stereo mode 45 W + 45 W (4 Ω at 1 kHz, THD 10 %) Surround mode Front 45 W + 45 W (THD 10 %) Center 45 W Surround 45 W + 45 W (4 Ω at 1 kHz, THD 10 %) Subwoofer 75 W (8 Ω at 30 Hz, THD 10 %)
Speakers
Front/Rear/Center Speaker Passive Subwoofer
Type 1 Way 1 Speaker 1 Way 1 Speaker
Impedance 4 Ω 8 Ω
Rated Input Power 45 W 75 W
Max. Input Power 90 W 150 W
Net Dimensions (W x H x D) 103 x 111 x 94 mm 156 x 325 x 320 mm
Net Weight 0.39 kg 3.6 kg
Designs and specifications are subject to change without prior notice.
Page 33
Page 34
As an ENERGY STAR® Partner, LG has determined that this product or product models meet the ENERGY STAR® guidelines for energy efficiency.
ENERGY STAR® is a U.S. registered mark.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
