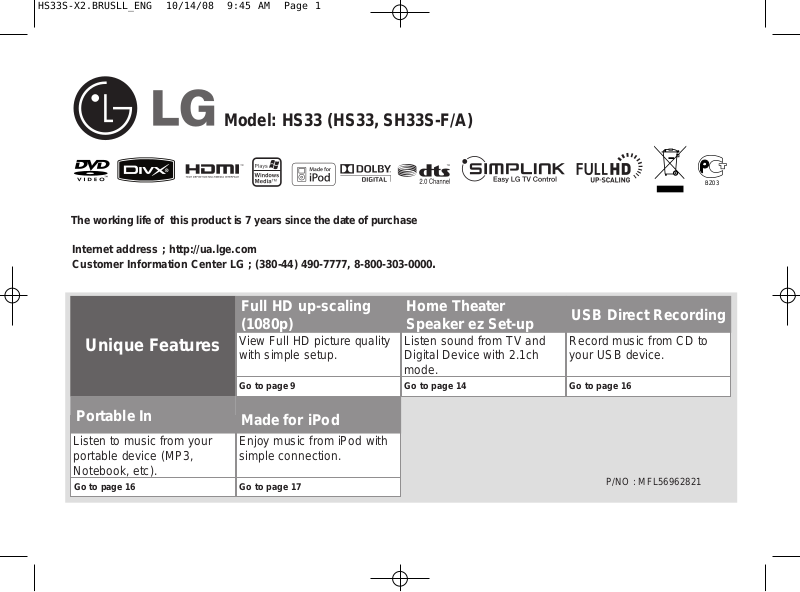

LG HS33 User guide

Model: HS33 (HS33, SH33S-F/A)

Unique Features

P/NO : MFL56962821

USB Direct Recording

Record music from CD to
your USB device.

Go to page 16

Home Theater
Speaker ez Set-up

Listen sound from TV and
Digital Device with 2.1ch
mode.

Go to page 14

Full HD up-scaling
(1080p)

View Full HD picture quality
with simple setup.

Go to page 9

Portable In

Listen to music from your
portable device (MP3,
Notebook, etc).

Go to page 16

Made for iPod

Enjoy music from iPod with
simple connection.

Go to page 17

The working life of this product is 7 years since the date of purchase

Internet address ; http://ua.lge.com
Customer Information Center LG ; (380-44) 490-7777, 8-800-303-0000

.

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 1

BZ03

2

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE

COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT
EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a confined space such as a book case or
similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
Slots and openings in the cabinet are provided for ventilation and to ensure reliable
operation of the product and to protect it from over heating. The openings should be
never be blocked by placing the product on a bed, sofa, rug or other similar surface.
This product should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer's instruction has been
adhered to.

CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read this owner’s
manual carefully and retain it for future reference. Should the
unit require maintenance, contact an authorized service center.
Use of controls, adjustments or the performance of procedures
other than those specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure. Visible
laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION: The apparatus should not be exposed to water (dripping or splashing) and
no objects filled with liquids, such as vases, should be placed on the apparatus.

CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional
outlets or branch circuits. Check the specification page of this owner's manual to be
certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets,
extension cords, frayed power cords, or damaged or cracked wire insulation are
dangerous. Any of these conditions could result in electric shock or fire. Periodically
examine the cord of your appliance, and if its appearance indicates damage or
deterioration, unplug it, discontinue use of the appliance, and have the cord replaced
with an exact replacement part by an authorized service center.

Protect the power cord from physical or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs,
wall outlets, and the point where the cord exits the appliance.

To disconnect power from the mains, pull out the mains cord plug. When installing the
product, ensure that the plug is easily accessible.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it
means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from
the municipal waste stream via designated collection facilities appointed by
the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please
contact your city office, waste disposal service or the shop where you
purchased the product.

Safety Precaution

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 2

3

Contents

Main unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Making system connections . . . . . . . . . . . . . . . . . .6-7

Listening to the sound from your analog component . .7

OSD Initial language settings . . . . . . . . . . . . . . . . . . .8

Initial Setting the Area Code . . . . . . . . . . . . . . . . . . . .8

Adjust the settings . . . . . . . . . . . . . . . . . . . . . . . .8-10

Setting the sound mode . . . . . . . . . . . . . . . . . . . . . .10

Displaying Disc Information . . . . . . . . . . . . . . . . . . .11

Playing a disc or file . . . . . . . . . . . . . . . . . . . . . .11-13

Viewing photo files . . . . . . . . . . . . . . . . . . . . . . . . . .13

Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . .14

Home Theater Speaker ez Set-up . . . . . . . . . . . . . .14

Listening to music from your USB device . . . . . . . . .15

Recording music from CD to your USB device . . . . .16

Listening to music from your portable player . . . . . . .16

Listening to music from your iPod . . . . . . . . . . . . . . .17

Language Codes . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Types of Playable Discs . . . . . . . . . . . . . . . . . . . . . .20

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

What is SIMPLINK?

Some functions of this unit are controlled by TV’s remote control when this unit and
LG TV with SIMPLINK are connected through HDMI connection.

• Controllable functions by LG TV’s remote control; Play, Pause, Scan, Skip, Stop,
Power Off, etc.

• Refer to the TV owner’s manual for the details of SIMPLINK function.

• LG TV with SIMPLINK function has the logo as shown above.

• Use a higher version cable than 1.2A HDMI cable.

iPod is a trademark of Apple Inc., registered in the U.S.
and other countries.

Welcome to your new
stylish home theater system

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 3

*Touch sensor

This unit has sensitive controls that respond to the
touch of your fingers.
You can also change the volume by moving your finger
around the touch wheel.

Main Unit

4

a POWER
b DISC SLOT
c EJECT
d REMOTE SENSOR
e DISPLAY WINDOW
f TUNING DOWN & SKIP (

.

)

g STOP
h TUNING UP & SKIP (

>

)

i PLAY/PAUSE (N/ X)
j MIC
k USB PORT
l PORTABLE IN JACK

m SYSTEM JACK
n COMPONENT VIDEO OUT

JACKS

o HDMI OUT JACK
p OPTICAL IN JACK
q iPod DOCK

Precautions in using the touch buttons

• Use the touch buttons with clean and dry hands.

- In a humid environment, wipe out any moisture
on the touch buttons before using.

• Do not press the touch buttons hard to make it
work.

- If you apply too much strength, it can damage the
sensor of the touch buttons.

• Touch the button that you want to work in order to
operate the function correctly.

• Be careful not to have any conductive material such
as metallic object on the touch buttons. It can cause
malfunctions.

qponm

fg

l

k

j

i

h

a

*

bcde

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 4

5

        a        

INPUT :

Changes the input source( AUX, AUX OPT,

PORTABLE, USB, OSD IPOD, IPOD

)

SLEEP :

Sets a certain period of time after which the unit

will switch to standby.

- Press SLEEP repeatedly to select the desired time period
options (in minutes): (Dimmer on

tt

Sleep timer value

tt

Dimmer off)

Dimmer on: The display window becomes dark and the
touch wheel turns off.

-To view the time countdown to the standby mode, press
SLEEP again.

-To deactivate the sleep timer, press SLEEP until the
previous status is displayed or press POWER to switch the
unit to standby.

POWER: Switches the unit ON or OFF.
FUNCTION : Selects the function (DVD/CD, FM)
TITLE : If the current DVD title has a menu, the title menu

appears on the screen. Otherwise, the disc menu may not
appear.

DISPLAY: Accesses On-Screen Display.
MENU : Accesses the menu on a DVD disc.
SETUP : Accesses or removes setup menu

        b        

PRESET(v/V): Selects programme of Radio.
TUN.(-/+): Tunes in the desired radio station.

b / B / v / V (left/right/up/down):Used to navigate
on-screen displays.

ENTER : Acknowledges menu selection.
RETURN (O): Press to move backwards in the menu.

REC (z) : USB Direct Recording

        c        

STOP (x): Stops playback or recording.
PLAY (B): Starts playback. Mono/Stereo.
PAUSE/STEP (X): Pause playback.

SKIP(../ >>): Go to next or previous chapter/ track.
SCAN(bb/BB) : Search backward or forward.

        d        

TVttHT SPK (Home theater Speaker ez Set-up):

Press TV

tt

HT SPK to select the AUX OPT directly.

MUTE : Press MUTE to mute your unit. You can mute your
unit in order, for example, to answer the telephone.

VOLUME (+/-) : Adjusts speaker volume.
EQ

: You can choose 6 (or 7) fixed sound impressions.
VSM : Press VSM to set the VIRTUAL sound.
REPEAT: Repeats a Chapter/ Track/ Title/ all.

SUBTITLE: During playback, SUBTITLE repeatedly to

select a desired subtitle language .
0-9 numerical buttons: Selects numbered options in a

menu.

        e        

TV Control buttons : Controls the TV. (LG TV only)
PROG./MEMO. : Accesses or removes Program menu.

CLEAR: Removes a track number on the Program List.

        f        

MIC VOL : Adjusts microphone volume.
ECHO VOL : Adjusts echo volume.
VOCAL FADER : You can enjoy the function as karaoke,

by reducing singer vocal of music in the various source.
(MP3/WMA/CD/DTS/Dolby Digital etc.)

Put the batteries into the remote control

Make sure that the + (plus) and – (minus) on the batteries
match those on the remote control.

Controlling the TV.

You can control the sound level, input source, and
power switching of LG TVs as well. Hold POWER (TV)
and press PR (+/–) button repeatedly until the TV turns
on or off.

Remote control

a

b

c

d

e

f

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 5

Connecting the main unit, speakers, and FM
antenna to the active subwoofer.

a Connect the system jack marked MAIN to the main unit (SYSTEM).

Secure the jack by tightening the two screws.

b Connect the system jack marked SPK to the active subwoofer (SYSTEM).

Secure the jack by tightening the two screws.

cd Connect the speakers to the active subwoofer (SPEAKERS).

Connect the red end of each wire to the terminals marked+ (plus) and
black end to the terminals maked - (minus).

Active subwoofer The bottom of the speaker

e Connect the FM antenna for listening to the radio.

• Be sure to fully extend the FM antenna.

• After connecting the FM antenna, keep it as horizontal as possible.

c

a

e

b

d

Making system connections

Front speaker (R)

Front speaker (L)

6

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 6

Connecting the video out to your TV.

Check the jacks of your TV, and choose the , , or connection.
Picture quality improves in order from to .

To connect to a TV with the video in jack

Connect the video cable from the VIDEO OUT on the rear of the active
subwoofer to the video in jack on your TV.

or

To connect to a TV with the SCART jack

Connect the RCA to SCART cable from the VIDEO OUT on the rear of the
active subwoofer to the SCART jack on your TV.

To connect to a TV with the component video in jacks

If your TV has component video in, connect a component video cable from
COMPONENT VIDEO OUT (Y, P

B and PR) jacks on the rear of the main unit

to the component video in jacks on your TV.

To connect to a TV with the HDMI jack

Connect the HDMI cable from the HDMI OUT jack on the rear of the main
unit to the HDMI IN jack on your TV.

• If your TV does not accept your resolution setting, abnormal picture
appears on the screen.

• Use the HDMI Cable within 5 meters.

• If the volume bar is not displayed on TV screen, when you select Simplink
to off on TV, restart the unit.

Available resolution according to connection
[HDMI OUT] : Auto, 1080p, 1080i, 720p and 480p (or 576p)
[COMPONENT VIDEO OUT] : 480p (or 576p) and 480i (or 576i)
[VIDEO OUT] : 480i (or 576i)

C

B

A

CA

CBA

B

C

A

Making system connections

7

Listening to the sound from
your analog component

1 Connect the audio out of your analog component

to the AUX IN (AUDIO L/R) on the rear of the
active subwoofer:

or

Connect the SCART jack of your analog component

to the AUX IN (AUDIO L/R) on the rear of the active
subwoofer. -

2 Select the AUX function: INPUT

Analog signal components such as VCR and TV.

ON REMOTE

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 7

Adjust the settings - more you can do

Adjust the language settings

OSD – Select a language for the Setup menu and on-screen display.

There is displayed as “-” or other error mark on display when you
change OSD, do as follows;

- Restart the unit

- Change function

- Disconnect and connect USB device.

Disc Audio/Disc Subtitle/Disc Menu– Select a language for the
Menu/Audio/Subtitle.

[Original]: Refers to the original language in which the disc was recorded.
[Other]: To select another language, press number buttons then ENTER to
enter the corresponding 4-digit number according to the language code list in
the reference chapter (see page 18). If you make a mistake before pressing
ENTER, press CLEAR.
[Off] (for Disc Subtitle): Turn off Subtitle.

8

Adjust the settings

ON REMOTE

1Display setup menu : SETUP
2 Select a desired option on the first level:

vv VV

3 Move to second level:

BB

4 Select a desired option on the second level:

vv VV

5 Move to third level:

BB

6 Change the setting:

vv VV

, ENTER

Initial Setting the Area Code

1Display setup menu: SETUP
2Select LOCK menu on the first level: v V
3 Move to second level:

The activated Area Code appears on the
second level.: B

4 Move to third level: B
5 Enter the new password: numerical buttons

(0-9) and ENTER

6 Recheck entered new password:

numerical buttons
(0-9) and ENTER

7 Select a code for a geographic area:

After select, Rating and Password will be
activated.(page 18) vV b B

8To confirm press: ENTER

Make sure to finish setting the Area Code
before leaving the setup menu if you cannot
set the Rating and Password.

The first time you use this unit, to set the Area Code you have to as below.

ON REMOTE

OSD Initial language settings

1Turn the power on:

The language list appears. POWER

2 Select the language: vV b B
3 Press: ENTER
4To confirm press:

bB and ENTER

Before using the unit for the first time, you have to adjust OSD initial
language.

ON REMOTE

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 8

9

Adjust the display settings

TV Aspect – Select which screen aspect to use based on the shape of your TV

screen.

[4:3]: Select when a standard 4:3 TV is connected.
[16:9]: Select when a 16:9 wide TV is connected.

Display Mode – If you selected 4:3, you’ll need to define how you would like
widescreen programs and films to be displayed on your TV screen.

[Letterbox]: This displays a widescreen picture with black bands at the top
and bottom of the screen.
[Panscan]: This fills the entire 4:3 screen, cropping the picture as necessary.

Video Resolution - Use vV to select the desired resolution then press ENTER
to confirm your selection.

You can set 1080p video resolution to enjoy Full HD picture quality.
(Full HD up-scaling)

The number in 480p (or 576p), 720p, 1080p and 1080i indicates the number of
lines of video. The “i” and “p” indicate interlaced and progressive scan,
respectively.

[Auto] If your HDMI jack is connected to TVs providing display information
(EDID), automatically selects the resolution best suited to the connected TV
(1080p, 1080i, 720p or 480p (or 576p)). (only for HDMI connection)
[1080p] Outputs 1080 lines of progressive video. (only for HDMI connection)
[1080i] Outputs 1080 lines of interlaced video.(only for HDMI connection)
[720p] Outputs 720 lines of progressive video.(only for HDMI connection)
[480p (or 576p)] Outputs 480 (or 576) lines of progressive video.
[480i (or 576i)] Outputs 480 (or 576) lines of interlaced video.

Notes on Video Resolution

• Only resolutions supported by the TV are available.

• Depending on your TV, certain HDMI output resolutions may not work.

• If your TV does not accept your resolution setting, an abnormal picture
appears on the screen. Please read TV’s owner’s manual then set the
resolution that your TV can accept.

• If the HDMI jack is connected for TVs providing display information (EDID),
you can not select resolutions that the TV does not accept.

• If the picture does not appear on the screen, change the TV’s input source.

• If you turn off the TV or disconnect the HDMI cable during playback of the
device, the playback may pause. You have to click on the play button to play
back again. For some TVs, when you change the TV mode, such condition
specified above may happen.

Adjust the audio settings

2.1 Speaker Setup - Adjust 2.1 Speaker Setup menu for amplifier’s output.

[Speaker]: Select a speaker that you want to adjust.
[Volume]: Adjust the output level of the selected speaker. (-5dB ~ 5dB)
[Test]: Press b / B to test the signals of each speaker. Adjust the volume to
match the volume of test signals memorized in the system.

DRC (Dynamic Range Control) – Make the sound clear when the volume is
turned down (Dolby Digital only). Set to [On] for this effect.

Vocal – Select [On] to mix karaoke channels into normal stereo. This function is
effective for multi-channel karaoke DVDs only.

HD AV Sync - Sometimes Digital TV encounters a delay between picture and
sound. If this happens you can compensate by setting a delay on the sound so
that it effectively ‘waits’ for the picture to arrive: this is called HD AV Sync. Use vV
to scroll up and down through the delay amount, which you can set at anything
between 0 and 300m sec.
The delay will vary depending on which digital TV channel you are on. If you
change channel you may need to readjust the HD AV Sync.

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 9

Adjust the lock settings

To access the lock options, you must enter the 4-digit password. If you have not
yet entered a password you are prompted to do so. Enter a 4-digit password.
Enter it again to verify. If you make a mistake while entering number, press
CLEAR to delete numbers.

If you forget your password you can reset it. Press SETUP to display the Setup
menu. Input ‘210499’ and press ENTER. The password has now been cleared.

Rating – Select a rating level. The lower the level, the stricter the rating. Select
[Unlock] to deactivate the rating.

Password – Sets or changes the password for lock settings.

[New]: Enter a new 4-digit password using the numerical buttons then press
ENTER. Enter the password again to confirm.

[Change]: Enter the new password twice after entering the current password.

Area Code – Select a code for a geographic area as the playback rating level.
This determines which area’s standards are used to rate DVDs controlled by the
parental lock. See the Area Codes on page 18.

Adjust the others settings
PBC (Playback Control) – Playback control provides special navigation fea-

tures that are available on some disc.
DivX(R) Registration – We provide you with the DivX® VOD (Video On

Demand) registration code that allows you to rent and purchase videos using
the DivX® VOD service.
For more information, visit www.divx.com/vod.
Press ENTER when [Select] icon is highlighted and you can view the registration
code of the unit.

Semi Karaoke – When a chapter / title / track is fully finished, this function
shows the score in the screen with a fanfare sound.

Available discs for the Semi Karaoke function: DVD discs / DVD Karaoke Discs

[On]: When you finished singing a score will appear on the screen.
[Off]: Fanfare and score do not appears on the screen.

- This function operate on the DVD/CD mode.

-

The Semi Karaoke function is available only when a microphone is connected.

- In case that a fanfare or score appears when a chapter of a movie file is
changed during playback, set the Semi Karaoke to Off at the setup menu or
disconnect the microphone.

Bit Rate – You can set the quality of the recorded file.
Bit rate refers to the amount of data used to store each second of audio.
Generally, higher bit rates provide better sound quality, but require more storage
space for the same length of audio.

Setting the sound mode

VSM (VIRTUAL SOUND MATRIX)

You can select the Virtual sound. Press VSM to set the virtual sound. (This
function does not operate when you select AUX or Tuner functions. VSM is not
available during DivX file playback.)

[BYPASS] mode : Software with multichannel surround audio signals is played
according to the way it was recorded.

2Ch source

[ON STAGE] mode: Simulates a large Concert hall
[VIRTUAL] mode: Realtime 3D positioned sound rendering technology with

stereo sources, optimized for stereo speakers. Listeners may experience
amazing virtual surround effects with their own multimedia players.

5.1Ch source

[VIRTUAL] mode: Apatent pending downmix technology converts 5.1 channel
to 2 channel sound having directional information of audio.

Set a pre-programmed sound field

This system has a number of pre-set surround sound fields. Select the one
which best suits the programme you are watching by pressing EQ repeatedly to
cycle through the options : NORMAL, NATURAL, AUTO EQ, POP, CLASSIC,
ROCK, JAZZ

[AUTO EQ]: AUTO EQ operates only in the MP3/ WMA files which include
the information. (ID3 Tag is operated ver.1 only.) WMAfile operates to Normal
EQ regardless of Tag information.

10

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 10

11

Displaying Disc Information - more you can do

You can select an item by pressing vV and change or select the setting by
pressing bB.

Current title (or track)
number/total number of titles (or tracks)
Current chapter number/total number of chapters

Elapsed playing time
Selected audio language or channel

Selected subtitle
Selected angle/total number of angles

Selected sound mode

Symbol Used in this Manual

All discs and file listed below MP3 files
DVD and finalized DVD±R/RW WMA files
DivX files

Audio CDs

Playing a Disc or file - more you can do

Playing a DVD that has a menu

Most DVD now have menus which load first before the film begins to play. You
can navigate these menus using vV b B to highlight an option.
Press ENTER to select.

Skip to the next/previous chapter/track

Press SKIP (>) to move to the next chapter/track.
Press SKIP (.) to return to the beginning of the current chapter/track.
Press SKIP (.) twice briefly to step back to the previous chapter/track.

Pause playback

Press PAUSE/STEP (X) to pause playback. Press PLAY(B) to continue
playback.

Frame-by-Frame playback

Press PAUSE/STEP (X) repeatedly to play title Frame-by-Frame.

Playing repeatedly

Press REPEAT repeatedly to select a desired repeat mode: track, all and off.
The current title, chapter or track will be played back repeatedly. To return to
normal playback, press REPEAT repeatedly to select [Off].

ALL

DivXDVD

ALL

ALL

DVD

ACDDivX

WMA

DVD

MP3ALL

Displaying Disc Information

1 Press DISPLAY: DISPLAY
2 Select a item:

vv VV

3 Adjust the Display menu settings:

bb BB

4To return the exit: DISPLAY

ON REMOTE

Playing a Disc or file

ON REMOTE

1 Insert a Disc in the slot: (On unit) ­2 Select the DVD/CD function: FUNCTION
3 Adjust the menu settings:

vV b B

or Select a file from the menu:

vv VV

4Start the Disc playing: B PLAY
5To stop the Disc playing:

xx

STOP

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 11

1/6

4/26

1 ENG

D

3/2.1CH

1 KOR

1/3

12

Fast forward or fast reverse

Press SCAN (m or M) to play fast forward or fast reverse during playback.
You can change the playback speed by pressing SCAN (m or M) repeatedly.
Press PLAY (B) to continue play at normal speed.

Selecting a subtitle language

During playback, press SUBTITLE ( ) repeatedly to select a desired subtitle
language.

Slow down the playing speed

While playback is paused, press SCAN (bb or BB) to slow down forward or
reverse playback. You can change the various playback speed by pressing
SCAN (m or M) repeatedly. Press PLAY (B) to continue play at normal
speed.

Watch and listen 1.5 times faster

Press PLAY when a DVD is already playing to watch and listen to a DVD 1.5
times faster than normal playback speed. B x1.5 will appear in the top right
corner of the screen. Press PLAY again to return to normal playback speed.

Viewing the Title menu

Press TITLE to display the disc's title menu, if available.

Viewing the DVD MENU

Press MENU to display the disc menu, if available.

Starting play from selected time

Searches for the starting point of entered time code. Press DISPLAY during
playback and select the time clock icon. Input the required start time in hours,
minutes, and seconds and press ENTER. If you enter the wrong number, press
CLEAR to enter again.

Last Scene Memory

This unit memorizes the last scene from the last disc that is viewed. The last
scene remains in memory even if you remove the disc from the player or switch
off(Stand-by mode) the unit. If you load a disc that has the scene memorized,
the scene is automatically recalled.

Mixed disc or USB Flash Drive – DivX, MP3/WMA and JPEG

When playing a disc or USB Flash Drive containing with DivX, MP3/WMA and
JPEG files together, you can select which menu of files you would like to play
by pressing TITLE. Press ENTER after selecting MUSIC, PHOTO, or MOVIE by
pressing bB.

Changing the character set to display DivX®subtitle correctly

If the subtitle does not display properly during playback, press and hold SUBTITLE
for about 3 seconds then press SUBTITLE to select another language code until
the subtitle is displayed properly

DivX file requirement

DivX disc compatibility with this player is limited as follows:

•Available resolution size: 800x600 (W x H) pixel

• The file name of the DivX subtitle is available by 45 characters.

• If there is impossible code to express in the DivX file, it may be displayed as
" _ " mark on the display.

• If the number of the screen frame is over 30 per 1 second, this unit may not
operate normally.

• If the video and audio structure of recorded files are not interleaved, either
video or audio is outputted.

• If the name of movie file is different from that of the subtitle file,during
playback of a DivX file, subtitle may not be display.

•

MPEG4 file extensions: “.avi”, “.mpg”, “.mpeg”

• Playable DivX subtitle: SubRip(*.srt/*.txt), SAMI(*.smi), SubStation
Alpha(*.ssa/*.txt) MicroDVD(*.sub/*.txt) SubViewer 2.0(*.sub/*.txt)
TMPlayer(.txt), DVD Subtitle System(.txt) (Files (VobSub(.sub)) included with
USB device is not supported)

• Playable Codec format: “DIVX3.xx”, “DIVX4.xx “, “DIVX5.xx”, “MP43”, “3IVX”

• Playable Audio format: “AC3”, “DTS”, “PCM”, “MP3”, “WMA”

• Sampling frequency: within 32 - 48 kHz (MP3), within 24 - 48kHz (WMA)

• Bit rate: within 32 - 320kbps (MP3), 40 - 192kbps (WMA)

• CD-R/RW, DVD±R/RW Format: ISO 9660

• Maximum Files/Disc: Less than 999 (total number of files and folders)

Displaying file information (ID3 TAG )

While playing an MP3 file containing file information, you can display the information
by pressing DISPLAY repeatedly.

Screen Saver

The screen saver appears when you leave the unit in Stop mode for about five
minutes.

MP3

DivX

DivX

DVD

DivXDVD

DVD

DVD

WMAMP3ACDDVD

DVD

DivXDVD

ALL

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 12

13

Creating your own program

You can play the contents of a disc in the order you want by arranging the order
of the music files on the disc. The program is cleared when the disc is removed.
Select a desired music file then press PROG./MEMO. or select “ “ and then
press ENTER to add the music file to the program list. To add all music files on
the disc, select “ ” and then press ENTER. Select a music file from the
program list then press ENTER to start programmed playback.To clear a music
file from the program list, select the music file you want to clear then press

CLEAR or select “

”

icon and then press ENTER. To clear all music files

from the program list, select " " then press ENTER.

MP3/WMA music file requirement

MP3/WMA compatibility with this unit is limited as follows:

• File extensions: “.mp3”, “.wma”.

• Sampling frequency: within 32 - 48 kHz (MP3), within 24 - 48kHz (WMA)

•Bit rate: within 32 - 320kbps (MP3), 40 - 192kbps (WMA)

• CD-R/RW, DVD±R/RW Format: ISO 9660

• Maximum Files/Disc: Less than 999 (total number of files and folders)

System Select

You must select the appropriate system mode for your TV system. If “NO DISC”
appears in the display window, press and hold PAUSE/STEP (X) on the remote
control for more than five seconds to be able to select a system.

VOCAL FADER

You can enjoy the function as karaoke, by reducing singer vocal of music in the
various source.(MP3/WMA/CD/ DTS/Dolby Digital etc.)

- This function available to use only when a microphone is connected.
Press VOCAL FADER button then you can see “FADE ON”or “FADE OFF” on
the front display.

- The quality of the VOCAL FADER may be different depending on the record­ing conditions of music files.

- This function is not available on the MONO mode.

Viewing photo files - more you can do

Viewing photo files as a slide show

Use vV b B to highlight ( ) icon then press ENTER to start slide show.
You can change slide show speed using bBwhen ( ) icon is highlighted.
If X is selected, the slide show dose not operate.

Skip to the next/previous photo

Press SKIP (. or >) to view the previous/next photo.

Rotate a photo

Use vV b B to rotate the photo in full screen mode.

Pause a slide show

Press PAUSE/STEP (X) to pause a slide show. Press PLAY (B) to continue the
slide show.

Photo file requirement

JPEG file compatibility with this unit is limited as follows:

• File extensions: “.jpg”

• Photo size: Normal - within 5120 x 3840 (W x H) pixels.
Progressive

- within 2048 x 1536 (W x H) pixels

• CD-R/RW, DVD±R/RW Format: ISO 9660

• Maximum Files/Disc: Less than 999 (total number of files and folders)

WMAMP3ACD

Viewing photo files

ON REMOTE

1 Insert a Disc in the slot: (On unit) ­2 Select a photo file:

vv VV

3Display the selected file in full screen: ENTER
4To return to the menu:

xx

STOP

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 13

14

Listening to the radio - more you can do

Look for radio stations automatically

Press and hold TUN.-/TUN.+ for more than a second. The tuner will scan auto­matically and stop when it finds a radio station.

Choose a preset number for a radio station

When storing a radio station, the preset number can be chosen. When this unit
automatically shows a preset number, press PRESET v/V to change it. Press
PROG./MEMO. to save your chosen number.

Delete all the saved stations

Press and hold PROG./MEMO. for two seconds. ERASE ALL will flash up on
the display. Press PROG./MEMO. to erase all saved radio stations.

Improve poor FM reception

Press PLAY (B) on the remote control. This will change the tuner from stereo to
mono and usually improve the reception.

Listening to the radio

1Turn the power on: POWER
2 Select FM: FUNCTION
3 Select a radio station: TUN.-/+
4To save a radio station: PROG./MEMO.

A preset number will show in the display.
Up to 50 radio stations can be saved.

5To confirm press: PROG./MEMO.
6To select a saved station: PRESET

v/V

Be sure that FM antenna is connected.

ON REMOTE

Home Theater Speaker ez Set-up

1 Connect the main unit’s OPTICAL IN jack

to jack on optical out of your TV (or Digital
Device etc.).:-

2 Select the AUX OPT function:

To select the AUX OPT directly TV

tt

HT SPK
3 Listen sound with 2.1ch speaker.: ­4To escape from AUX OPT: TVttHT SPK,

FUNCTION, or INPUT

Listen to sound from TV and Digital Device with 2.1ch mode.
Even in power off mode, if you press TVtHT SPK, then power is on
and automatically changed to AUX OPT mode.

ON REMOTE

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 14

15

Listening to music from your USB device ­more you can do

Compatible USB Devices

• Devices which require additional program installation when you have con­nected it to a computer, are not supported.

• MP3 Player : Flash type MP3 player.
T

he MP3 player requiring installation of a driver is not supported.

• USB Flash Drive : Devices that support USB2.0 or USB1.1. (In case USB 2.0,

it operates at the same speed as that of USB 1.1)

USB device requirement

• Do not extract the USB device while in operation.

•To prevent data loss, back up all data.

• If you use a USB extension cable or USB hub, the USB device might not be
recognized.

•Adevice using NTFS file system is not supported. (Only FAT (16/32) file
system is supported.)

• The USB function of this unit does not support all USB devices.

• Digital camera and mobile phone are not supported.

• This unit is not supported when the total number of files is 1000 or more.

• If the connected USB device has two or more folders, a drive folder is
displayed on the screen. If you want to move to the previous menu after you
select a folder, press RETURN.

• In case of Multi card reader, video files can not be played.

Listening to music from your
USB device

1 Connect the USB device to the unit: ­2 Select the USB function: INPUT
3 Select a file from the menu:

vv VV

4 Start your music playing: BPLAY
5Before disconnecting the portable USB

device, change to any other function by
pressing: FUNCTION or INPUT

6 Remove the USB device:-

The advantage of connecting your portable USB player through the sys­tem’s USB port is that the USB device can be controlled from the system.

ON REMOTE

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 15

16

Recording music from CD to your USB device

- more you can do

Record Audio CD source to USB

One track recording - If the USB recording is started during playback of the

CD, the only track would be recorded into the USB.
All track recording - If the REC button is pressed at the CD stop, all track
would be recorded.
Program list recording - USB Records after selecting the tracks pressing the
PROG./MEMO. button if you want to record the track you want. (Refer to
“Creating your own program” on page 13.)

When you are recording, look out for the following

• Do not remove the USB device during USB recording. If not, an incomplete
file may be made and not deleted on PC.

• When you start the USB direct recording, you can check the recording
percentage rate on the screen.

• During the recording is no sound and not operate for volume .

• When you stop recording, the file that has been recorded at that time will be
stored.

• Playable USB REC. Bit rate : 96/128kbps (Refer to “Bit Rate” on page 10.)

•PAUSE/STEP (X) button does not operate during USB recording.

• USB port of the unit cannot be connected to PC. The unit cannot be used as
a storage device.

• If the USB recording is not available, “NO USB”,.“ERROR”, “USB FULL”,
“NO REC” appear on the display window.

• File will be stored to CD_REC folder as a format “TRK-001.MP3”.

• CD-G disc and the disc encoded with DTS are not recorded to USB.

• If you record more 999 files on CD_REC folder, “ERROR” appears on the
display window.

• New files are numbered in numeric sequence. If the total number of the files
are more than 999, delete some or store some in PC.

• External HDD, Multi Card reader, Locked device and MP3 player is not
supported.

• If you turn off and then on TV when the connected TV is HDMI mode,
nothing may be displayed on screen during USB recording. To solve the
problem, stop the USB direct recording.

The making of unauthorized copies of copy-protected material, including

computer programs, files, broadcasts and sound recordings, may be an

infringement of copyrights and constitute a criminal offense. This

equipment should not be used for such purposes.

Be responsible

Respect copyrights

Recording music from CD to
your USB device

ON REMOTE

1 Connect the USB device to the unit:­2 Select the DVD/CD function: FUNCTION
3 Start the recording:

zz

REC
If you want to record a desired music file
in disc to USB, record after playing

vv VV

, PLAY (

N

) and

back the file.

zz

REC

4To stop a recording:

xx

STOP

Listening to music from your
portable player

1 Connect the headphone (or line out ) jack

of the portable player into the PORT. IN on
the right side of the main unit: -

2Turn the power on: POWER
3 Select the PORTABLE function: INPUT
4Turn the portable player on and start it

playing: -

The player can be used to play the music from many types of portable
player

ON REMOTE

3.5mm stereo
miniplug cable

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 16

17

Listening to music from your iPod - more you
can do

Pause playback

Press PAUSE/STEP (X) to pause playback. Press PLAY(B) to continue
playback.

Skip to the next/previous file

Press SKIP (>) to move to the next file.
Press SKIP (.) to return to the beginning of the current file.
Press SKIP (.) twice briefly to step back to the previous file.

Fast forward or fast reverse

During playback, press and hold SCAN (m or M) and then release at a
point you want.

Playing repeatedly

Press REPEAT repeatedly to select a desired repeat mode : track, all and off.

iPod message

“Please, check your iPod” - If the power of your iPod is insufficient or the

iPod is misconnected or unknown device. Reset the iPod if the iPod is not
operating normally (Refer to http://www.apple.com/support/)

Compatible iPod

• Compatibility with your iPod may vary depending on the type of your iPod.

• Depending on your iPod’s software version, it may not be possible to control
your iPod from the unit. We recommend installing the latest software version.

When you use iPod, look out for the following

•

Interference may happen depending on iPod devices.

• The video or photo file is not displayed.

• When iPod is connected with dock connector, it may result in malfunctions of this
unit.

OSD iPod mode

iPod modeOSD iPod mode

iPod modeOSD iPod mode

iPod modeOSD iPod mode

iPod modeOSD iPod mode

Listening to music from your
iPod

1 Connect your iPod to the Dock on the top of

the main unit: -

2Turn the power on: POWER
3 Select the iPod or OSD iPod function: INPUT
4Select the menu: v V ENTER
5 Select a file:

vv VV

6 Start the file playing: B PLAY or ENTER
7To stop the file playing:

xx

STOP

To move the previous mode, press MENU
on the remote control.

8 Before disconnecting the iPod, change to

any other function by pressing: FUNCTION or INPUT

9 Remove the iPod:-

iPod mode: You can operate your iPod by using the supplied remote

control and controls on your iPod. TV screen is turned off. iPod will not be
charged when selecting the iPod mode. But you can enjoy better sound
quality.
OSD iPod mode: You can operate your iPod by controlling OSD menu
on the TV screen with supplied remote control. The controls on your iPod
are not operational in the OSD iPod mode. If you want to charge the iPod
while listening to music, selects the OSD iPod mode.

ON REMOTE

To open the iPod dock door:
Press the marked iPod

vv

on
the iPod dock door and push
it backwards.

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 17

18

Language Codes

Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.

Area Codes

Choose a area code from this list.

Language Code

Afar 6565
Afrikaans 6570
Albanian 8381
Ameharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Aymara 6588
Azerbaijani 6590
Bashkir 6665
Basque 6985
Bengali; Bangla 6678
Bhutani 6890
Bihari 6672
Breton 6682
Bulgarian 6671
Burmese 7789
Byelorussian 6669
Chinese 9072

Language Code

Croatian 7282
Czech 6783
Danish 6865
Dutch 7876
English 6978
Esperanto 6979
Estonian 6984
Faroese 7079
Fiji 7074
Finnish 7073
French 7082
Frisian 7089
Galician 7176
Georgian 7565
German 6869
Greek 6976
Greenlandic 7576
Guarani 7178
Gujarati 7185

Language Code

Hausa 7265
Hebrew 7387
Hindi 7273
Hungarian 7285
Icelandic 7383
Indonesian 7378
Interlingua 7365
Irish 7165
Italian 7384
Javanese 7487
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kirghiz 7589
Korean 7579
Kurdish 7585
Laothian 7679
Latin 7665
Latvian, Lettish 7686

Language Code

Lingala 7678
Lithuanian 7684
Macedonian 7775
Malagasy 7771
Malay 7783
Malayalam 7776
Maori 7773
Marathi 7782
Moldavian 7779
Mongolian 7778
Nauru 7865
Nepali 7869
Norwegian 7879
Oriya 7982
Panjabi 8065
Pashto, Pushto 8083
Persian 7065
Polish 8076
Portuguese 8084

Language Code

Quechua 8185
Rhaeto-Romance 8277
Rumanian 8279
Russian 8285
Samoan 8377
Sanskrit 8365
Scots Gaelic 7168
Serbian 8382
Serbo-Croatian 8372
Shona 8378
Sindhi 8368
Singhalese 8373
Slovak 8375
Slovenian 8376
Spanish 6983
Sudanese 8385
Swahili 8387
Swedish 8386
Tagalog 8476

Language Code

Tajik 8471
Tamil 8465
Telugu 8469
Thai 8472
Tonga 8479
Turkish 8482
Turkmen 8475
Twi 8487
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapük 8679
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 7473
Yoruba 8979
Zulu 9085

Area Code

Afghanistan AF
Argentina AR
Australia AU
Austria AT
Belgium BE
Bhutan BT
Bolivia BO
Brazil BR
Cambodia KH
Canada CA
Chile CL
China CN
Colombia CO
Congo CG

Area Code

Costa Rica CR
Croatia HR
Czech Republic CZ
Denmark DK
Ecuador EC
Egypt EG
El Salvador SV
Ethiopia ET
Fiji FJ
Finland FI
France FR
Germany DE
Great Britain GB
Greece GR

Area Code

Greenland GL
Hong Kong HK
Hungary HU
India IN
Indonesia ID
Israel IL
Italy IT
Jamaica JM
Japan JP
Kenya KE
Kuwait KW
Libya LY
Luxembourg LU
Malaysia MY

Area Code

Maldives MV
Mexico MX
Monaco MC
Mongolia MN
Morocco MA
Nepal NP
Netherlands NL
Netherlands Antilles AN
New Zealand NZ
Nigeria NG
Norway NO
Oman OM
Pakistan PK
Panama PA

Area Code

Paraguay PY
Philippines PH
Poland PL
Portugal PT
Romania RO
Russian Federation RU
Saudi Arabia SA
Senegal SN
Singapore SG
Slovak Republic SK
Slovenia SI
South Africa ZA
South Korea KR
Spain ES

Area Code

Sri Lanka LK
Sweden SE
Switzerland CH
Taiwan TW
Thailand TH
Turkey TR
Uganda UG
Ukraine UA
United States US
Uruguay UY
Uzbekistan UZ
Vietnam VN
Zimbabwe ZW

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 18

19

Troubleshooting

No power
No picture

There is little or no sound

The DVD picture quality is poor
A DVD/CD will not play

Humming noise heard while a
DVD or CD is playing

Radio stations can’t be tuned in
properly

The remote control doesn’t
work well / at all

The display window becomes
dark and the touch wheel turns
off.

The power cord is disconnected.
The TV is not set to receive the DVD signal.

The video cables are not connected securely.

Equipment connected via the audio cable is not set to
receive DVD signal output.
The audio cables are not connected to the speakers or
receiver securely.
The audio cables are damaged.
The disc is dirty.
No disc is inserted.
An unplayable disc is inserted.

The disc is inserted upside down.

The menu is open on screen.
There is a parental lock which prevents the playback of DVDs
with a certain rating.
The disc is dirty.
The DVD receiver is located too close to the TV, causing
feedback.
The antenna is positioned or connected poorly.

The signal strength of the radio station is too weak.
No stations have been preset or preset stations have
been.cleared(when tuning by scanning preset channels).
The remote is not pointed directly at the DVD receiver.
The remote is too far from the DVD receiver.
There is an obstacle in the path between the remote control
and the unit.
The batteries in the remote control are flat.

The dimmer function is activated.

Plug the power cord into the wall outlet securely.
Select the appropriate video input mode on the TV so the
picture from the DVD Receiver appears on the TV screen.
Connect the video cables securely to both the TV and DVD
Receiver.
Select the correct input mode of the audio receiver so you can
hear the sound from the DVD receiver.
Connect the audio cables into the connection terminals
correctly.
Replace with a new audio cable.
Clean the disc using a soft cloth with outward strokes.
Insert a disc
Insert a playable disc (check the disc type, colour system
and regional code).
Place the disc with the label or printed side facing
upwards.
Press SETUP to close the menu screen.
Enter your password or change the rating level.

Clean the disc using a soft cloth with outward strokes.
Move DVD receiver and audio components further away from
your TV.
Check the antenna connection and adjust its position.
Attach an external aerial if necessary.
Tune to the station manually.
Preset some radio stations, see page 14 for details.

Point the remote directly at the unit.
Use the remote within 23 feet (7m) of the DVD receiver.
Remove the obstacle.

Replace the batteries with new ones.

Switch off dimmer. (Refer to SLEEP on page 5)

CAUSE

PROBLEM

CORRECTION

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 19

20

About the Symbol Display

“ ” may appear on your TV display during operation and indicates that the
function explained in this owner’s manual is not available on that specific DVD
video disc.

Regional Codes

This unit has a regional code printed on the rear of the unit. This unit can play
only DVD discs labeled same as the rear of the unit or “ALL”.

• Most DVD discs have a globe with one or more numbers in it clearly visible
on the cover. This number must match your unit’s regional code or the disc
cannot play.

• If you try to play a DVD with a different regional code from your player, the
message “Check Regional Code” appears on the TV screen.

Copyrights

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in
public, or rent copyrighted material without permission. This product features
the copy protection function developed by Macrovision. Copy protection signals
are recorded on some discs. When recording and playing the pictures of these
discs picture noise will appear. This product incorporates copyright protection
technology that is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by
Macrovision Corporation, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION
TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND
MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF
525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS
RECOMMENDED THATTHE USER SWITCH THE CONNECTION TO THE
‘STANDARD DEFINITION’OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND
625p UNIT, PLEASE CONTACTOUR CUSTOMER SERVICE CENTER.

You have to set the disc format option to [Mastered] in order to make the discs
compatible with the LG players when formatting rewritable discs. When setting
the option to Live File System, you cannot use it on LG players.
(Mastered/Live File System : Disc format system for Windows Vista)

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674;
5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued &
pending. DTS is a registered trademark and the DTS logos, Symbol and DTS

2.0 Channel are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights
Reserved.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trade­marks or registered trademarks of HDMI licensing LLC.

Manufactured under license from Dolby Laboratories. “Dolby” and the
double-D symbol are trademarks of Dolby Laboratories.

Types of Playable Discs

DVD-VIDEO: Discs such as movies that can

be purchased or rented.

DVD-R: Video mode and finalized only

DVD-RW: Video mode and finalized only

DVD VR format that have been finalized can not be
played in this unit

DVD+R: Video mode only
Supports the double layer disc also

DVD+RW: Video mode only

Audio CD:

This unit plays DVD±R/RW and CD-R/RW that contains audio titles,
DivX, MP3,WMA and/or JPEG files. Some DVD±RW/DVD±R or CD­RW/CD-R cannot be played on this unit due to the recording quality or
physical condition of the disc, or the characteristics of the recording
device and authoring software.

Logo

Type

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 20

Specifications

21

Designs and specifications are subject to change without
prior notice.

General

Power supply Refer to main label.
Power consumption Refer to main label.
Net Weight 2.15 kg
External dimensions (W x H x D) 360 x 78 x 216 mm
Operating conditions Temperature 5°C to 35°C,

Operation status: Horizontal
Operating humidity 5% to 85%
Laser Semiconductor laser,

wavelength 650 nm

Tuner FM

FM Tuning Range 87.50 - 108.00 MHz
FM Intermediate Frequency 10.7 MHz

Amplifier

Stereo mode 75 W + 7 5 W (4Ωat 1 kHz, THD 10 %)

Subwoofer : 150 W (3Ωat 80 Hz, THD 10 %)

Speakers

Front Active
Speaker Subwoofer

Type 2 Way 2 Speaker 1Way 1Speaker
Impedance 4 Ω 3 Ω
Rated Input Power 75 W 150 W
Max. Input Power 150 W 300 W
Net Dimensions (W x H x D)

110 x 330 x 130 mm 200 x 401 x 445 mm

Net Weight 1.2 kg 10.9 kg

Notice (the date of the production of goods).
First figure ( of the left ) of series number means Year, next 2 figures

- Month of the production of this goods.

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 21

HS33S-X2.BRUSLL_ENG 10/14/08 9:45 AM Page 22
