LG GR-B501GLQ1, GR-B631GLQ, GR-S507GSP1, GR-S501GLP1, GR-B631GLQ1 User Guide

...
OWNER’S MANUAL
REFRIGERATOR­FREEZER
Please read this owner's manual thoroughly before operating and keep it handy for reference at all times.
P/No. : MFL67085701
www.lg.com
PORTUGUÊS
2
IMPORTANT SAFETY INFORMATION
.............. 3
INSTALLATION ................................................... 11
INNER PARTS ..................................................... 12
OPERATIONS ...................................................... 16
Starting
Before Setting The Temperature
Self Test
Controls For Refrigerator Compartment
Fast Freezing
Child Lock
Controls For Freezer Compartment
Home Bar
Ice Making (Optional)
Fast Freezing Zone
Vita Light Drawer (Optional)
Vegetable Drawer
Refreshment Center (Optional)
Water Dispenser (Optional)
SUGGESTIONS ON FOOD STORAGE ............ 22
CLEANING ........................................................... 23
GENERAL INFORMATION ................................ 25
ww
WARNING ........................................................ 26
BEFORE CALLING FOR SERVICE ................... 27
CONTENTS
IMPORTANT SAFETY INFORMATION
3
ww
WARNING
w Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
w Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
w Do not damage the refrigerant circuit.
w Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
w The refrigerant and insulation blowing gas used in the appliance require special
disposal procedures. When disposal, please consult with service agent or a similarly qualified person.
IMPORTANT SAFETY INFORMATION
4
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word WARNING, or CAUTION. These words mean:
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
BASIC SAFETY PRECAUTIONS
1. When connecting the power
You can be killed or seriously injured if you don’t follow instructions.
To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following. Read all instructions before using this appliance.
Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.
WARNING
WARNING
CAUTION
The dedicated outlet should be used.
• Using several devices at
one outlet may cause fire.
• The electric leakage
breaker may damage food and the dispenser may be leaked.
Do not allow the power plug to face upward or to be squeezed at the back of the refrigerator.
Water may be flown into or the plug may be damaged, which causes fire or electric shock.
Prevent the power cord from being squeezed or imprinted if the refrigerator is pushed in after the power plug is extracted during the installation.
It becomes the cause of fire or electric shock.
Do not allow the power cord bent or pressed by the heavy object to be damaged.
It may damage the power cord to cause fire or electric shock.
IMPORTANT SAFETY INFORMATION
5
1. When connecting the power
Unplug the power plug when cleaning, handling or replacing the interior lamp of the refrigerator.
• It may cause electric shock or injury.
• When replacing the interior lamp of the refrigerator, make sure that the rubber ring for preventing the electric spark within the socket is not taken off.
Do not pull out the cord or touch the power plug with wet hands.
It may cause electric shock or injury.
Remove water or dust from the power plug and insert it with the ends of the pins securely connected.
Dust, water or unstable connection may fire or electric shock.
Make sure of grounding.
The incorrect grounding may cause breakdown and electric shock.
When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them.
It may cause electric shock or short circuit to make fire.
Ground
Wire
Copper
Flat
More than
30 inches
Be sure to use grounded exclusive proper voltage consent for the power plug.
Be sure to use grounded extension consents when extension consents are used.
It becomes the cause of fire.
Wait for 5 minutes or longer when reconnecting the plug.
It may cause the operation of the freezer to fail.
Pull out the power plug not by grasping the cord but the plug of its end.
It may cause electric shock or short circuit to fire.
Do not extend or modify the length of the power plug.
It causes electric shock or fire by the electric damage of the power cord or others.
IMPORTANT SAFETY INFORMATION
6
2. When using the refrigerator
Do not install the refrigerator in the wet place or the place which water or rain splashes.
Deterioration of insulation of electric parts may cause electric leakage.
Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas, spray or cosmetics near or in the refrigerator.
It may cause explosion or fire.
Prevent children from entering the product.
It may endanger the life of a child if the child enters the refrigerator.
Opening and closing the door of the refrigerator vigorously may cause the stored food in the refrigerator basket to fall by shock and hurt the foot, so take precautions.
Benzene
Ether
Thinner
Do not store the medicine or the academic materials at the refrigerator.
When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.
The Academic
Medicine
The Medicine
Do not place the heavy object or the dangerous object (container with liquid) on the refrigerator.
It may be dropped to cause injury, fire or electric shock when opening or closing the door.
Do not cling to the door or the shelves of the door or the Homebar or the cool chamber.
It may make the refrigerator fallen down or damage the hands. Especially, do not allow the children to do the above.
Do not place flower vase, cup, cosmetics, medicine or any container with water on the refrigerator.
It may cause fire, electric shock or injury by dropping down.
IMPORTANT SAFETY INFORMATION
7
2. When using the refrigerator
Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner.
Deterioration of insulation of electric parts may cause electric shock or fire.
ThinnerThinner
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately.
• The explosion by spark may cause fire or burn.
• Because this refrigerator uses natural gas as the environment-friendly refrigerant, even a small amount (130~140g) is combustible. When the gas is leaked by the severe damage during delivering, installing or using the refrigerator, any spark may cause fire or burn.
In case of thunder and lightning, or not in use for a long period of time, detach the power plug.
There is a danger of electric shock or fire.
Do not use drier to dry the inside, nor light a candle to remove odor.
It may cause explosion or fire.
Do not use the combustible spray near the refrigerator.
It may cause fire.
Install in places away from the fire such as the place where flammable gas is leaked.
It may cause fire.
Use the submerged refrigerator after checking it.
It may cause electric shock or fire.

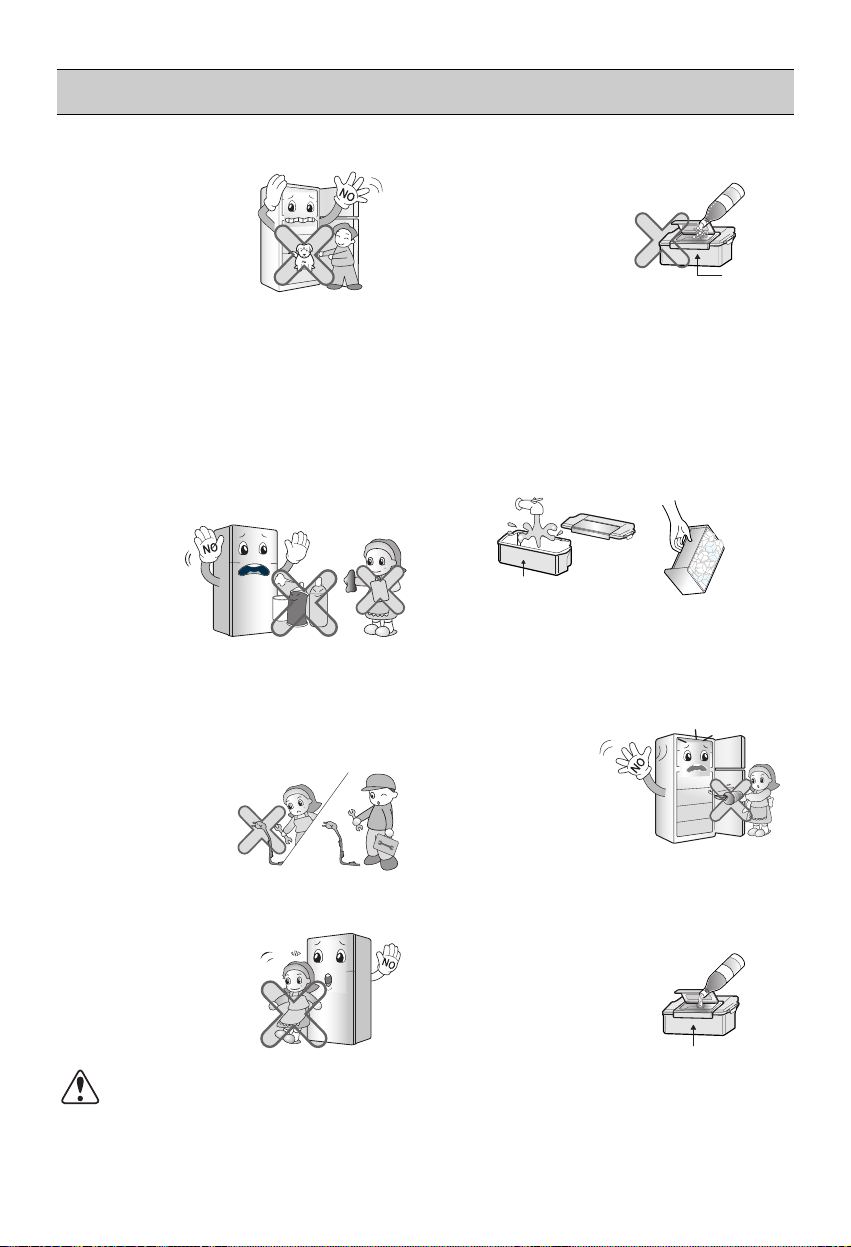

IMPORTANT SAFETY INFORMATION
8
2. When using the refrigerator
Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the refrigerator, the heatproof grill (exhaust hole) at the backside.
It may cause electric shock or injury.
Completely empty inside before taking out the container from the door.
What to do with your oldrefrigerator
Your refrigerator contains liquids (refrigerant, lubricant) made of recyclable materials. Allthese materials must be sent to a recyclingwaste disposal site as they can be reused aftera specific recycling process. Contact localauthorities.
When any strange smell or smoke is detected from the refrigerator, disconnect the power plug immediately and contact to the service center.
It may cause fire.
Service
center
Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.
It may cause injury, electric shock or fire.
Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).
It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.
When disposing the refrigerator, remove the packing materials from the door.
It may cause to lock out the child.
Install the refrigerator on the solid and level floor.
Installing it on the unstable place may cause death by falling down the refrigerator when opening or closing the door.
IMPORTANT SAFETY INFORMATION
2. When using the refrigerator
Place all the components in the right places before connecting the power.
OK
Don not use an Adapter.
CAUTION
Violating this direction may cause injury or damage house or furniture. Always be careful, please.
Do not insert the hands into the bottom of the refrigerator.
The iron plate of the bottom may cause injury.
Carry the refrigerator with the handle bar at the bottom of the front and the top of the rear.
Otherwise, your hands may be slipped to cause injury. Because the product is heavy, carrying it alone may hurt people or accidents may occur.
Because opening or closing the door or the home bar of the refrigerator may cause injury to the person around it, be careful, please.
Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.
Do not put bottle in the freezer.
It may freeze the contents to break the bottle to cause injury.
Do not touch food or containers at the freezer with wet hands.
It may cause frostbite.
Do not place the food in disorder inside the refrigerator.
The food may fall during opening and closing the door of the refrigerator and hurt people.
9
Do not remove the cover on the back.
Never leave lit candles or incense on the fridge, at risk of causing fire or product damage.
IMPORTANT SAFETY INFORMATION
10
WARNING
Please do not use a dishwasher to clean the lower drawers; the high temperature may cause damage to the baskets which make them unusable.
Do not put any living animal in the refrigerator.
Do not use the carbonated water. The gas pressure may cause leakage.
Water Tank
Carbonated
Water
Avoid the contact of oil or fat on the plastic parts. They may cause damage.
Do not apply oil in the door connection part in any circumstances. It may cause damage to the plastic parts.
oiloiloil
When the power cord is damaged, let a technician to replace it to remove the danger of an accident.
Do not lean on the doors. Hinges may deregulate Themselves, harming seal cooler and compromising performance.
Technician
Use only water. If any other liquid is used, the operation of the system may be deteriorated. If a problem occurs by using any liquid other than water, the manufacturer will not be responsible.
Only water
Water Tank
Do not use products such as grinding sponge, brush, iron, or even special products to clean stainless steel, soap products such as alcohol, kerosene, gasoline, wax, or solvent, or strong chemicals such as chlorine, detergent, or vinegar, for the purpose of gloss. These products may damage the protective lacquer, and they may cause risk or stain on the surface of the refrigerator.
ProductsProducts
for steelfor steel
Strong
Chemicals
Clean the water tank according to the instruction before using the Ice Maker. Throw away the initial ice cubes. These may be the ice made of the water contacted parts before cleaning. Throw away at least 30 ice cubes before using it.
Water Tank
11
INSTALLATION
1. Select a good location.
Place your refrigerator where it is easy to use.
2. After placing the refrigerator in the definitive
location, wait at least 30 minutes to connect it to the power supply, so the fluid from the compressor back to normal after transportation.
3. Avoid placing the unit near heat sources,
direct sunlight or moisture.
4. To ensure proper air circulation around the
fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
5. To avoid vibrations, the unit must be level.
If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws clockwise( ) to raise the unit, counterclockwise( ) to lower it.
6. Don't install this appliance below 5 °C. It may
cause the debasement of the refrigerator.
NEXT
1. Clean your refrigerator thoroughly and wipe
off all dust accumulated during shipping.
2. Install accessories such as ice cube box, etc.,
in their proper places.They are packed together to prevent possible damage during shipment.
3. You have a model with bar-type handle,
assemble the handle according to instruction card.
4. Connect the power supply cord (or plug) to
the outlet. Don't double up with other appliances on the same outlet.
5. Prior to storing food, leave your refrigerator
on for 2 or 3 hours. Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.
THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE, AND UTILIZES THE LATEST IN TECHNOLOGY. WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH IT'S PERFORMANCE
AND RELIABILITY. BEFORE YOU START YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY. IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION AND MAINTENANCE, AND ALSO SUPPLIES SOME USEFUL HINTS.
INNER PARTS
12
• This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.
NOTE
SUGGESTION FOR ENERGY SAVING
• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

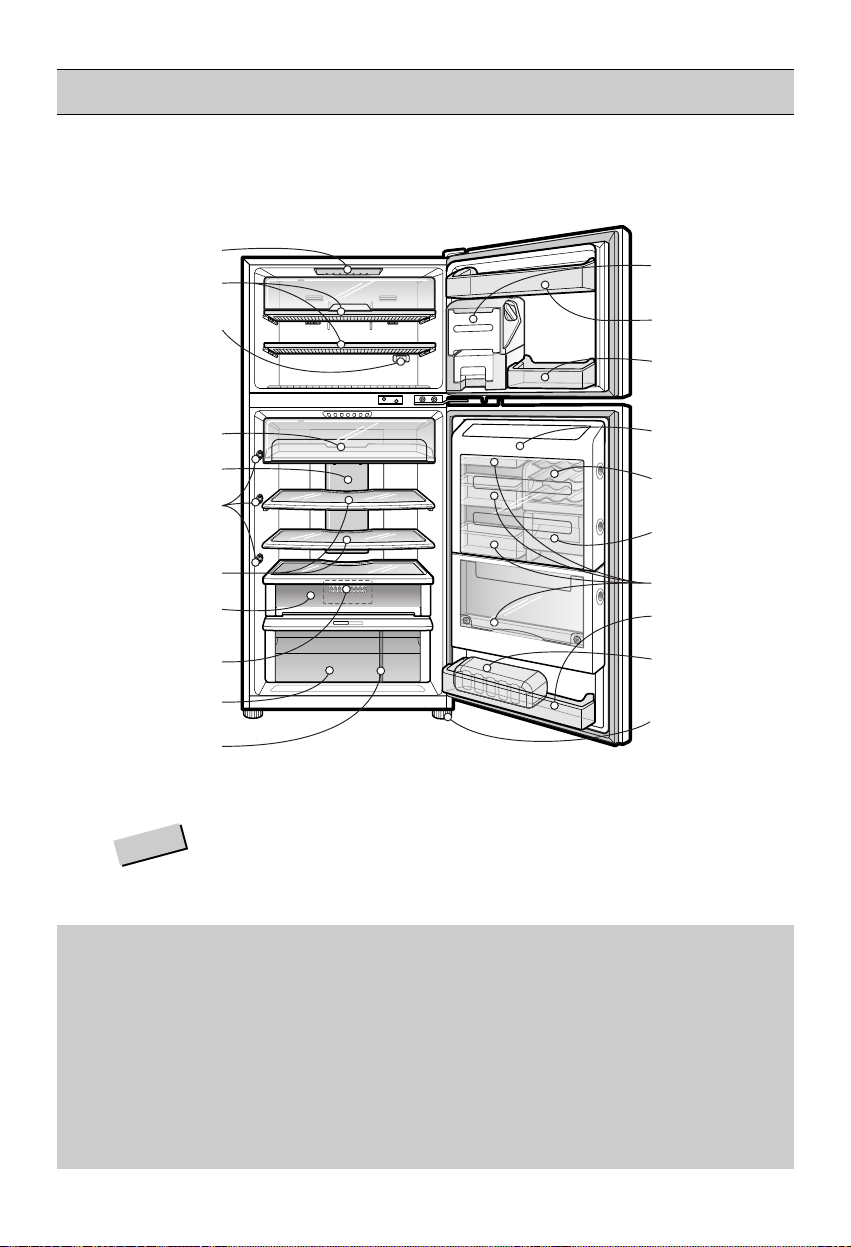

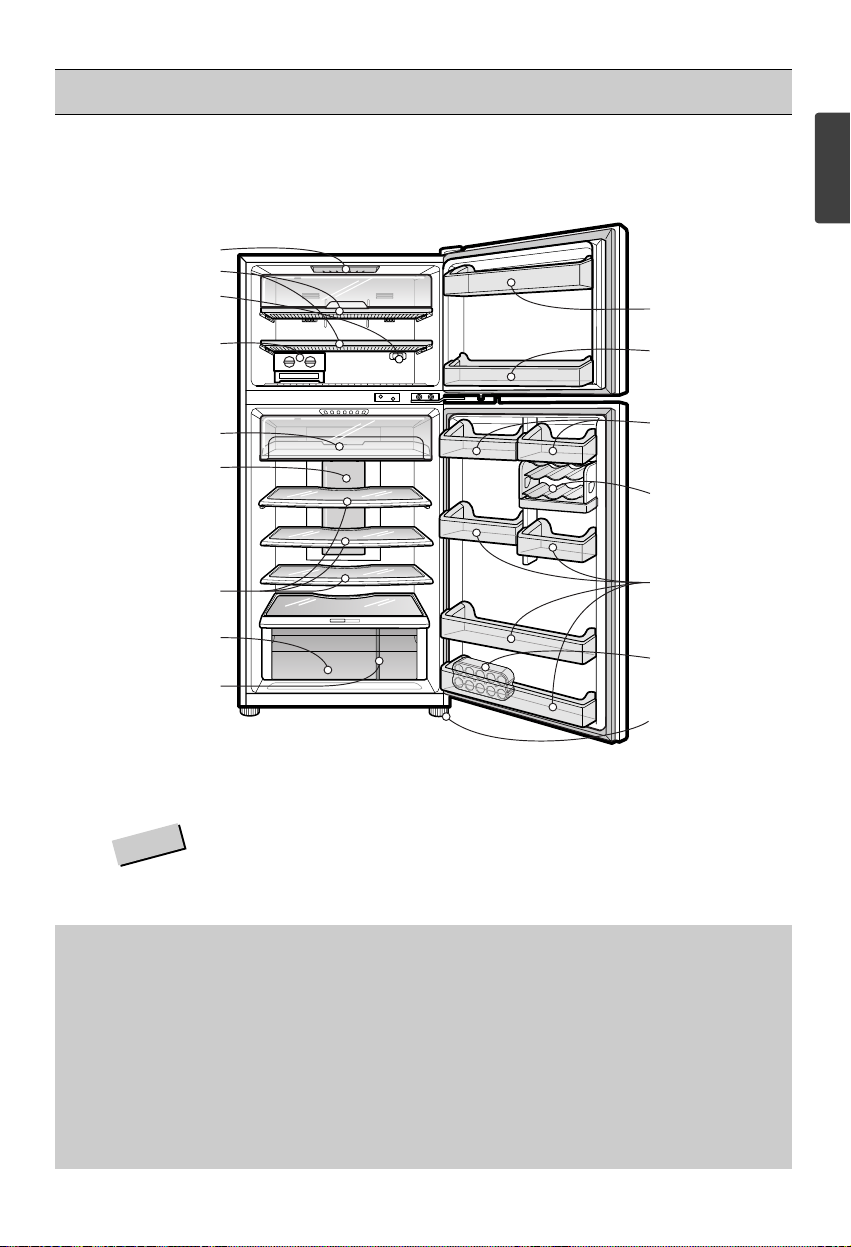

Freezer Door Rack(**)
Freezer Door Rack
Vita Light Drawer
FREEZER
COMPARTMENT
REFRIGERATOR
COMPARTMENT
Lamp
In-Door Ice Maker
Home Bar
Can Server
Refreshment center
Leveling Screw
Egg Tray
Refrigerator Door Rack
Home Bar Rack
Vegetable Drawer
Vegetable Partitioner
Vita Light
Shelf
Freezer Temperature
Control Dial
Fresh Room
Drawer
Lamp
Shelf
Side Cooling
Model Name : GR-S63*G*M
INNER PARTS
13
SUGGESTION FOR ENERGY SAVING
• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature
sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and
lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause
temperature to rise.
FREEZER
COMPARTMENT
REFRIGERATOR
COMPARTMENT
Lamp
In-Door Ice Maker
Freezer Door Rack(**)
Freezer Door Rack
Water Tank
Refrigerator Door Rack
Leveling Screw
Refrigerator Door Rack
Egg Tray
Vegetable Drawer
Vita Light
Shelf
Freezer Temperature
Control Dial
Fresh Room
Drawer
Lamp
Shelf
Side Cooling
Vita Light Drawer
Can Server
Refreshment center
Vegetable Partitioner
Model Name : GR-S63*G*P
• This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.
NOTE
INNER PARTS
14
SUGGESTION FOR ENERGY SAVING
• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.
FREEZER
COMPARTMENT
REFRIGERATOR
COMPARTMENT
Lamp
Freezer Door Rack
Freezer Door Rack(**)
Water Tank
Refrigerator Door Rack
Leveling Screw
Refrigerator Door Rack
Egg Tray
Vegetable Drawer
Vita Light
Shelf
Freezer Temperature
Control Dial
Twisting Ice Serve
Type Ice Making
Fresh Room
Drawer
Lamp
Shelf
Side Cooling
Vita Light Drawer
Can Server
Vegetable Partitioner
Model Name : GR-S50*G*P
• This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.
NOTE
INNER PARTS
15
Freezer Temperature
Control Dial
Twisting Ice Serve
Type Ice Making
FREEZER
COMPARTMENT
REFRIGERATOR
COMPARTMENT
Lamp
Freezer Door Rack
Freezer Door Rack(**)
Refrigerator Door Rack
Leveling Screw
Refrigerator Door Rack
Egg Tray
Vegetable Drawer
Shelf
Fresh Room
Drawer
Lamp
Shelf (Optional)
Can Server
Vegetable Partitioner
SUGGESTION FOR ENERGY SAVING
• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.
Model Name : GR-B63*G*Q/B50*G*Q
• This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.
NOTE
CONTROLS FOR REFRIGERATOR COMPARTMENT
Press 'REFRIGERATOR' button to control refrigerator temperature.
Whenever pressing the button, the LED emits light.
The number showing up on the LED luminesce indicate the temperature of refrigerator compartment.
You can select the desired setting point seven steps, from '0°C' to '6°C'.
- Press ⓐ button, refrigerator temperature will be down each 1°C
- Press button, refrigerator temperature will be up each 1°C.
OPERATIONS
16
STARTING
When your refrigerator is first installed, allow it 2-3 hours to stabilize at normal operating temperatures prior to filling it with fresh or frozen foods.
If operation is interrupted, wait 5 minutes before restarting.
BEFORE SETTING THE TEMPERATURE
The temperature of the refrigerator is kept constant regardless of changes in room temperature. It is recommended that, once set, the temperature settings(the controls for the refrigerator and freezer compartments) not be changed unless necessary.
This refrigerator has one temperature control button for the refrigerator compartment and one temperature control dial for the freezer compartment.
The default setting of the temperature control button for the refrigerator compartment is ‘3°C’.
The default setting of the temperature control dial for the freezer compartment is '5'.
This refrigerator has a temperature sensor in the refrigerator compartment. It will start and stop the compressor automatically as needed.
DOOR ALARM
When the door of the refrigerator or the freezer is open for 1 minute, an alarm will sound three times. It the door remains open, the alarm will repeat every 30 seconds.
SELF TEST
Your refrigerator contains a built in diagnostic capability. If it develops a malfunction in certain areas, it will display an error code to assist the repair technician. While an error code is displayed, other control and display functions will not operate.
If an error code is displayed, contact a service center. Do not disconnect the power cord from the outlet.
a
b
OPERATIONS
17
FAST FREEZING
The FAST FREEZING feature operates when the refrigerator is first turned on. The compressor and circulating fan operate at maximum cooling capacity to quickly lower the refrigerator temperature. It shuts off automatically.
If warm food is placed into the refrigerator, FAST FREEZING can be started with the button on the control panel. FAST FREEZING will shut off when the temperature reaches the proper level or it can be shut off manually by pressing the FAST FREEZING button.
CHILD LOCK
Press and hold the CHILD LOCK button for 3 seconds to lock the child lock. When it is locked, the Lock LED will be on and the other button will not operate. To unlock, press and hold the CHILD LOCK button for 3 seconds again.
CONTROLS FOR FREEZER COMPARTMENT
To lower the temperature in the freezer, turn the knob counter-clockwise and set to a higher number. To raise the temperature in the freezer, turn the knob clockwise and set to a smaller number.
When the freezer compartment is not cold enough in winter, adjust the control for the freezer to High(6~7).
Knob 8 is for quick freezing in the freezer compartment. The refrigerator can be operated continuously or the refrigerator compartment can be warmer. When the quick freezing is finished, please return to set the Knob at Normal.
465
CHILD LOCK
OPERATIONS
18

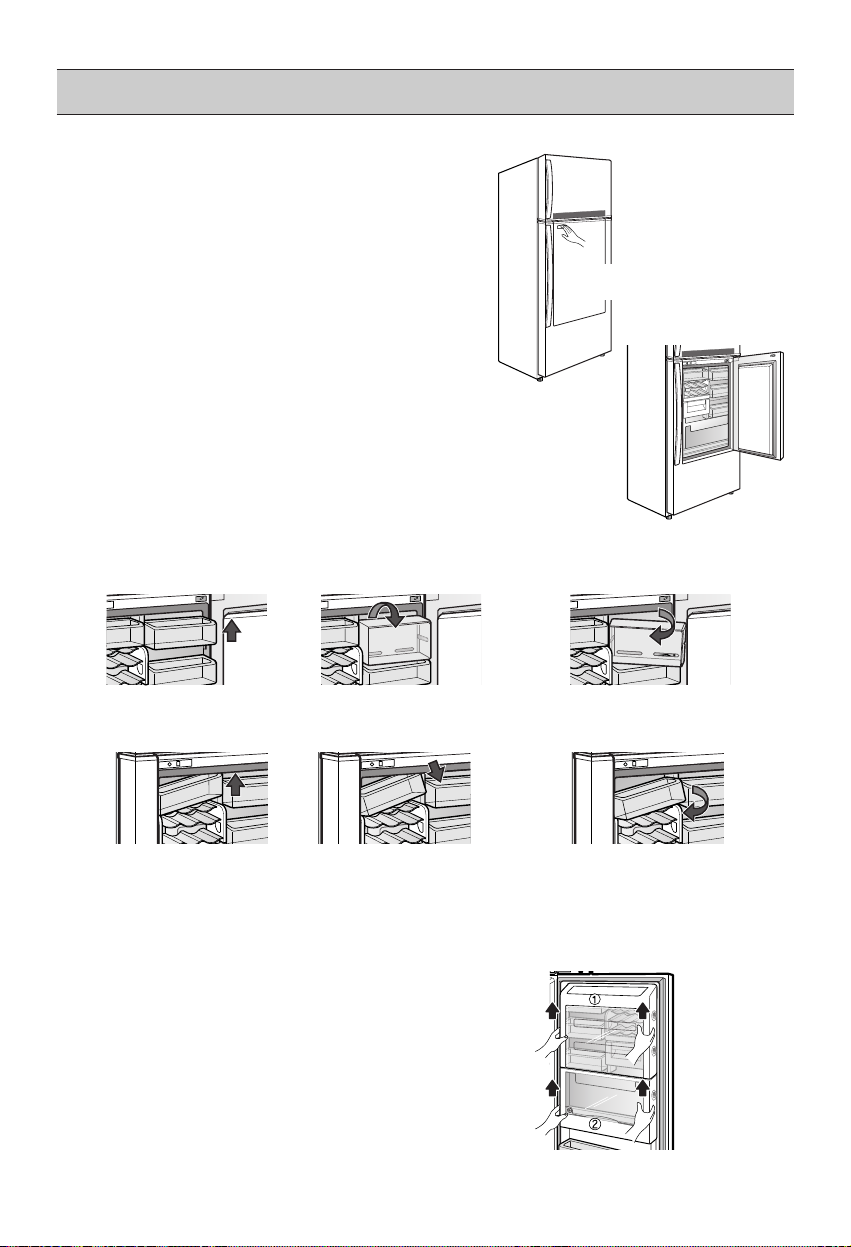

How to disassemble Home Bar cover.
After pulling upward to separate the curve above Home Bar, pull up the cover below, and and take out.
HOME BAR (GR-S63*G*M)
How to Use Home Bar
Press the button on the left in the center of Home Bar until “Click” sounds.
Home Bar became larger to store more contents.
Food can be stored systematically with many storage spaces inside Home Bar.
Do not use the button when closing Home Bar.
When closing Home Bar, press Home Bar firmly until you hear the sound.
Store food to be taken out frequently.
Electricity is saved with no need to open the door.
LED lamp is lighted when Home Bar door is open to easily take out the contents.
When closing, also press until “Click” sounds.
Do not cling to Home Bar for safety reasons.
ww
CAUTION
Press until “Click” sounds.
Please follow the instruction. Otherwise, it might be broken.
How to disassembly Home bar basket
1. Lift basket from the rack. 2. Flip it 90 degree toward front. 3. Detach one side first and another.
1. Lift basket from slot of the Right side.
2. Pull basket toward your body. 3. Turn basket toward left side and detach.
OPERATIONS
ICE MAKING (OPTIONAL)
Choose the type of Ice Making you have.
In Door Ice Maker
Take out ice tray and fill it with water, then slowly push it back into the original position.
It take 5 hours to make ice cubes at least. Check the condition of ice through the window.
To remove ice cubes, hold the lever of the tray and pull it turn gently. Then, ice cubes drop in to the ice cube box.
ICE BANK
Twisting Ice Serve Type
To make ice cubes, fill the ice tray with water and insert in its position.
To remove ice cubes, hold the lever of the tray and pull turn gently. Then, ice cubes drop in to the ice cube box.
Ice Cube Box
Ice Trays
19
You can disassemble the Ice Maker to secure space in the freezer.
• Indoor Ice Maker Type: Remove 1 and 2.
• Twisting Ice Serve Type: Remove 1 and 2.
1. Ice Tray
2. Ice Cube Box.
NOTE
1
2
<Twisting Ice Serve Type><Indoor Ice Maker Type>
Do not use anything other than water.
Fill the water up to the marked line.
ww
WARNING
ww
CAUTION
In the case of GR-S50*G*P and GR-B50*G*Q, loading cannot exceed Storage limit line and Extension. It may cause low freezing performance.
OPERATIONS
20
VITA LIGHT DRAWER (OPTIONAL)
Inserted Vita Light Drawer must be placed at its position. If door is opened, it can’t fill the role of it.
Vita Light (Optional)
• LED lamp is operated automatically for all day. It makes vegetable to photosynthesize.
VEGETABLE DRAWER
Vegetable Partitioner
• Fix the partitioner by inserting it at the rear side of vegetable box as shown in the figure.
How to use
• Vegetable drawer can be used through the control of knob.
• Check the position of knob prior to store the food.
• Do not locate the knob on the middle point.
Partitioner
REFRESHMENT CENTER (OPTIONAL)
1. Tilting: Grasp the front pocket and slightly lift it up. Then pull it forward to tilt the transparent door bin.
2. Closing: Then place the door bin in its original position until you hear a "click"
Flap-up Cover
Storage limit extension
(To flap up foaming)
Storage limit line
Flap up foaming
or
FAST FREEZING ZONE
It is space that can freeze the product fast.
If it is used for general usages, use it after lifting and pushing, or removing flap-up cover.
OPERATIONS
21
WATER DISPENSER (OPTIONAL)
Putting water in the water tank
1. Open the cover cap and pour water into the water tank.
2. Close the cover cap.
3. You can use the upper basket after removing the water tank and closing up the hole with a plug. The plug is enclosed with the egg tray.
Disassembly
Lift the water tank, gripping a side and bottom of water tank.
Note: When disassemble Water Tank, use all water inside dispenser first.
Assembly
If by some cause removes the water tank, place again the water tank on its original position. Verify that the valve assembly correctly in the hole of the door. Once assembled push down and check the tank position with line.
Drinking
1. Press the dispenser pad with cup.
2. The water is released when the dispenser pad is pressed. The pad returns to its original position when the cup is removed and the water stops its flow.
ww
CAUTION
Do not use anything other than water including. Hot water needs to be cooled before being put
in the water tank.
Put water after the water tank being in position. Necessarily separate the water tank to clean it or not to use it.
When the water tank is not in position after filling it with water, water can leak out by the valve pushed.
NOTE
Cover Cap
WATER
PUSH
line
Push down
①②
SUGGESTIONS ON FOOD STORAGE
22
STORING FOOD
Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food, and lead to higher electric bills!
When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.
FREEZER COMPARTMENT
Do not store bottles in the freezer compartment - they may break when frozen.
Do not refreeze food that has been thawed. This causes loss of taste and nutrition.
When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.
REFRIGERATOR COMPARTMENT
Avoid placing moist food on deep interior refrigerator shelves, it could freeze upon direct contact with chilled air. To avoid this it is better to store food in the covered container.
It is desirable to store moist food (especially vegetable and fruit) in the vegetable storage compartment. If it is necessary to store on a shelf of the refrigerator, put it close to the door away from the back wall of the refrigerator to avoid being frozen by the cool circulating in the refrigerator.
Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean, to prevent adjacent food from spoiling.
When storing eggs in their storage rack, ensure that they are fresh, and always store them in a up­right position, which keeps them fresh longer.
23
CLEANING
It is important that you refrigerator be kept clean to prevent undesirable odors. Spilled food should be wipe up immediately, since it may acidify and stain plastic surfaces if allowed to settle.
Never use metallic scouring pads, brushes, coarse abrasive cleaners or strong alkaline solutions on any surface.
Before you clean, however, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.
EXTERIOR - Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.
INTERIOR - Regular cleaning of the interior and interior parts is recommended. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.
INTERIOR PARTS - Wash compartment shelves, door racks, storage trays and magnetic door seals etc. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.
IN DOOR ICE MAKER Ice Tray Kit -
• After taking out the ice tray, wash it with running water and dry with a dry cloth.
• After taking out the Ice cube box, wash it with running water and dry with a dry cloth.
• During the assembly of Ice tray, place the Lever at the correct position and re-assemble.
w WARNING
Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts(lamps, switches, controls, etc.). Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing electric shock. Do not use flammable or toxic cleaning liquids.
• Caution for Cleaning Not in use : Surface active agent, Car wax, Anticorrosive, All sorts of oil, Gasoline, Acids, Wax.
• Usable Detergent Vegetable dish washable solution, Soapy water
• When careless using, it can occur a color change.
CLEANING
24
WATER DISPENSER Grille -
Wipe with a wet cloth, and dry with a dry cloth.
Water Tank -
1. Remove the tank cover.
2. Clean the inside and outside of the water tank with dishwashing detergent and rinse thoroughly under running water. Dry the water with a cloth.
3. Clean the inside and outside of the cover cap with dishwashing detergent and rinse thoroughly under running water. Dry the water with a cloth.
ww
CAUTION
Use lukewarm water when cleaning. Do not use anything other than water. If it is
used with soft drinks, put water in the water tank and discharge three or four cups of water shortly.
WATER
PUSH
GENERAL INFORMATION
25
VACATION TIME
During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.
POWER FAILURE
Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.
IF YOU MOVE
Remove or securely fasten down all loose items inside the refrigerator. To avoid damaging the leveling screw(s), turn them all the way into the base.
ANTI-CONDENSATION PIPE
The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation. Don't be alarmed. This is due to the anti­condensation pipe, which pumps hot refrigerant to prevent "sweating" on the outer cabinet wall.
ww
CAUTION
Electrical Shock Hazard
Before replacing a burned-out light bulb, either unplug the refrigerator or turn off power at the circuit breaker or fuse box.
NOTE: Moving the control to the OFF position does not remove power to the light circuit.
ww
WARNING
26
DO NOT USE AN EXTENSION CORD
If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage.
ACCESSIBILITY OF SUPPLY PLUG
The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection when accident happens.
SUPPLY CORD REPLACEMENT
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
ABOUT GROUNDING (EARTHING)
In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.
In order to prevent possible electric shock, this appliance must be grounded.
Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.
DO NOT MODIFY OR EXTEND THE POWER CORD LENGTH.
It will cause electric shock or fire.
VERY DANGEROUS ATTRACTION
An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.
This appliance must be grounded (earthed).
DON'T WAIT! DO IT NOW!
Do not store inflammable materials, explosives
or chemicals in the refrigerator.
Disposal of the old appliance
This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.
All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.
BEFORE CALLING FOR SERVICE
27
SERVICE CALLS CAN OFTEN BE AVOIDED! IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE
CAUSES FIRST :
PROBLEM POSSIBLE CAUSES
REFRIGERATOR DOES NOT OPERATE
REFRIGERATOR OR FREEZER COMPARTMENT TEMPERATURE TOO WARM
ABNORMAL NOISE(S)
REFRIGERATOR HAS ODOR
DEW FORMS ON THE CABINET SURFACE
Has a house fuse blown or circuit breaker tripped?
Has the power cord plug been removed or loosened from the electrical wall outlet?
Temperature control not set on proper position.
Appliance is placed close to wall or heat source.
Warm weather-frequent door openings.
Door left open for a long time.
Large amount of foods are kept in the refrigerator.
Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting.
Unnecessary objects placed in the back side of the refrigerator.
Foods with strong odors should be tightly covered or wrapped.
Interior needs cleaning.
Not unusual during periods of high humidity.
Door may have been left ajar.
Disposal of your old appliance
1. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
2. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
3. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.
Loading...
