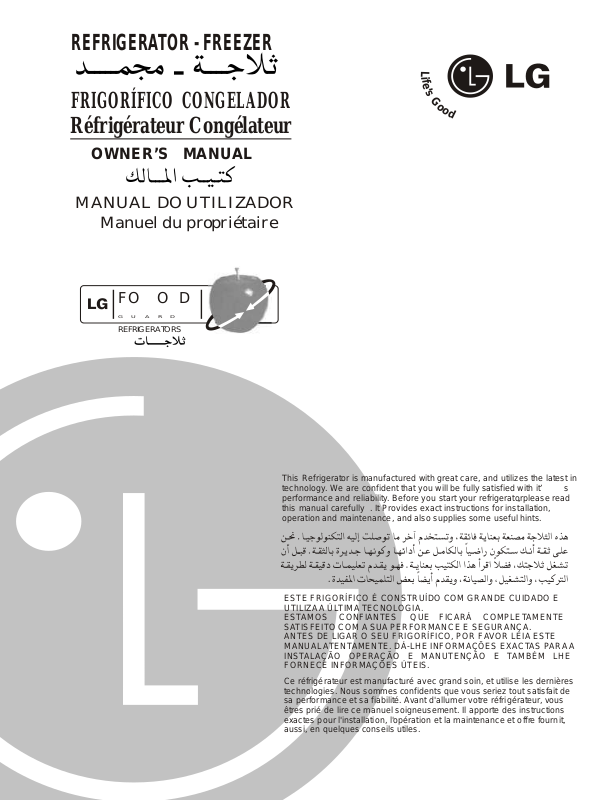

REFRIGERATOR - FREEZER
FRIGORÍFICO CONGELADOR
Réfrigérateur Congélateur
MANUAL DO UTILIZADOR
Manuel du propriétaire
FO O D
G U A R D
REFRIGERATORS
L
i
f
e
s
G
o
o
d
This Refrigerator is manufactured with great care, and utilizes the latest in technology. We are confident that you will be fully satisfied with it’ s performance and reliability. Before you start your refrigerator, please read this manual carefully . It Provides exact instructions for installation, operation and maintenance, and also supplies some useful hints.
ESTE FRIGORÍFICO É CONSTRUÍDO COM GRANDE CUIDADO E UTILIZA A ÚLTIMA TECNOLOGIA. ESTAMOS CONFIANTES QUE FICARÁ COMPLETAMENTE SATISFEITO COM A SUA PERFORMANCE E SEGURANÇA. ANTES DE LIGAR O SEU FRIGORÍFICO, POR FAVOR LEIA ESTE MANUAL ATENTAMENTE. DÁ-LHE INFORMAÇÕES EXACTAS PARA A INSTALAÇÃO OPERAÇÃO E MANUTENÇÃO E TAMBÉM LHE FORNECE INFORMAÇÕES ÚTEIS.
Ce réfrigérateur est manufacturé avec grand soin, et utilise les dernières technologies. Nous sommes confidents que vous seriez tout satisfait de sa performance et sa fiabilité. Avant d'allumer votre réfrigérateur, vous êtres prié de lire ce manuel soigneusement. Il apporte des instructions exactes pour l'installation, l'opération et la maintenance et offre fournit, aussi, en quelques conseils utiles.
Page 2
Page 3
Table of Contents
Introduction
Installation
Operation
Entry Important Safety Instruction Identification of Parts
Where to Install
Before setting the temperature Control for refrigerator compar tment Refrigerator temperature Super Cool Fuzzy Logic Memory Back-ups Temperature Control (Refrigerator) Energy Saver Child Lock Door Open Alarm RT-Sensor Temperature Control (Freezer) Ice Making Instruction for Bank Ice Icebeam Door Cooling Chiller Compartment Defrosting Deodorizer F.I.R. Lamp
3 3
4
5
6 6 7 7
7 7 7 9 9
10 10 10 11 11 11 11
11 11 12
8
, ,
8
,
9
,
9
,
10
,
10
Suggestions on
Food Storage
Care and
maintenance
l Feature l Operating
Lamp Replacement Location of Food
Storing Food General Information
Cleaning BEFORE CALLING FOR SERVICE
2
12 12
12 13
14 15
15
Page 4
Introduction
Entry
The model and serial number of this refrigerator are unique to this unit and not available to others. You should r ecord requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here.
Date of Purchase : Dealer Purchased From : Dealer Address : Dealer Phone No. : Model No. : Serial No. :
Important Safety Instruction
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
Don’t use an
extension cord
Power cord
replacement
Before use, this refrigerator must be properly installed and located in accordance with the installation instructions in this document.
Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull it straight out from the outlet.
When moving your appliance away from the wall, be careful not to roll over the power cord or to damage it in any way.
After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment, particularly when your hands are damp or wet. Skin could adhere to these extremely cold surfaces.
Unplug the power cord from the power outlet for cleaning or other requirements. Never touch it with wet hands because you can get an electric shock or be hurt.
Never damage, process, severely bend, pull out, or twist the power cord because damage the power cord may cause a fire or electric shock.
Never place glass products in the freezer because they may be broken due to expansion when their contents are frozen.
If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage.
If the supply cord is damaged, it must be replaced by a special cord or assembly from the manufacturer or its service agent.
3
Page 5
Introduction
Don’t store
Grounding (Earthing)
Don’t store or use gasoline or other flammable vapor and liquids in the vicinity of this or any other appliance.
In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current. In order to prevent possible electric shock, this appliance must be grounded Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.
Identification of Parts
Freezer Shelf *
FREEZER COMPARTMENT
* Triple Twist
Ice Trays
(optional)
*
Bank Ice
(optional)
Door Switch
*
Door Tray
Fresh Room
(optional)
*
Tray Fresh Room
(optional)
REFRIGERATOR COMPARTMENT
Temperature
Sensor
Refrigerator
Temperature
Control Dial
*
Side Cooling
(optional)
Normal
Lamp
*
F.I.R. Lamp
(optional)
*
Shelves
Moisture
Controller
Maintains
humidity
inside tray
vegetable for
lasting freshness
of vegetable
and fruits.
Freezer Temperature
Control Dial
COLD COLDEST
*
Freezer Lamp (optional)
Freezer Door
55 4466
SUPER COOL
Basket
Egg Storage Shelf
Deco Duct, Door Cooling
(Optional) Door Cooling helps in Cooling the refrigerator compartment faster & maintains uniform temperature inside.
Door Baskets
*
De-odorizer
(optional)
*
Multi Utility Basket
(optional)
Leveling Leg
Cover Lower (optional)
Tray Vegetable (Used to keep fruits and
vegetables, etc. fresh and crisp.)
* In view of any policy or continuous improvements, the above technical specifications are subject to change
E
* If you find out some parts which are not in your unit, the parts are applied to other models.
OT
N
4
Page 6
Installation
Where to lnstall
Fixing the leg
Strong
and even floor
A proper
distance from
adjacent items
Where is free
from heat or coal
gas
Take the leg from the refrigerator and fix to the base by rotating it in clock wise direction.
Unstable installation may cause vibration and noise. If the floor to install the refrigerator on
is not even, make the refrigerator level by rotating
the leveling leg clockwise ( ) to raise the unit, anticlockwise ( ) to lower it.
Carpet or floorcloth on which a refrigerator is
installed may be discolored by heat from the bottom of the refrigerator. So, it is necessary to place a thick pad below the refrigerator.
Please keep the refrigerator at a proper distance from other things. Too small a distance from adjacent items may result in lowered freezing capability and increased electricity charges consumption.
Places where ambient temperature are high, freezing capability is deteriorated and electric charge is increased. Coal gas and smoke may discolor the appearanceof refrigerator.
5
Use a three pin
6 Amp socket
Select a three pin 6 Amp socket having proper. Earthing & protection device (Fuse or MCB) for ensuring the long save operating.
NOTE
Install the refrigerator at a place where the ambient temperature is 5ºC~43ºC. Too high or low ambient temperature may cause functional troubles.
5
Page 7
Operation
Before setting
the temperature
l When your refrigerator is first installed, allow it 24 hrs to stabilize at normal operating
temperature prior to filling it with fresh or frozen foods. Then adjust the knobs to get satisfactory results as per instruction given below. If operation is interrupted, allow 5 minutes delay before restarting.
l The default setting of the control button for the refrigerator compartment is middle
(3 LEDs are ON).
CONTROLS FOR REFRIGERATOR COMPARTMENT :
SUPER COOL
This Feature enables quick cooling of the foods. When button is pressed for 5 seconds super cool LED is on, this mode is off automatically, once the refrigerator temperature
gets specified degrees
5 46 5 46
SUPER COOL
COLD COLDEST
REF TEMP
This key allows you to change the refrigerator temperature manually, the LEDs are “ON” & “OFF” according to the temp setting .
COLD COLDEST
SUPER COOL
COLD COLDEST
6
Applicable For GL-392 DM, GL-432 DM
Page 8
Operation
Refrigerator
temperature
Super cool
You can set refrigerator temperature using the button. Whenever pressing the button, the LED emit light. The temperature of the compartment is lowered as the LED luminance from “Cold” to “coldest” . You can select the desired setting point by pressing the button, LED glows from cold to coldest point. If three LED glow, it means that refrigerator operates in normal position. For economic electricity set the LED to the cold position.
If button is pressed for 5 second refrigerator goes to Super Cool mode, in this case super cool LED glows. This function allows you to gear up for any urgent cooling needs. In this mode the compressor runs continuously for a few hour giving you cold water and ice when you need it. This function is very helpful for parties and special occasion, where the refrigerator is subjected to heavy load and you need instant cooling of the food. The super cool system released when the temperature of refrigerator compartment get specified degree.
SUPER COOL
COLD COLDEST
SUPER COOL
COLD COLDEST
Press this button for 5 seconds and super cool button will turn on
Fuzzy Logic
Memory back-ups
Temperature control
Fuzzy logic is a special function which keeps refrigerator temperature constant and not let it warm whenever the ambient temperature change or refrigerator is subjected to frequent door open/close. Refrigerator with fuzzy logic will automatically compensate the refrigerator inside temperature as per ambient change or frequency of frequent door open/close.
In case of power failures, your refrigerator setting will keep in memory and as soon as the power on, your last refrigerator settings will be restored.
– Refrigerator
Your refrigerator has two controls that let you regulate the temperature in freezer and refrigerator compartments.
COLD COLDEST
You can set the refrigerator temperature using the refrigerator temperature control, whenever pressing the button, the LED emit light. The temperature of the compartment goes down as the LED luminesce from cold to coldest.
You can select the desired set point in five (5) steps between cold to coldest.
7
Applicable For GL-392 DM, GL-432 DM
Page 9
Before Setting
the temperature
Operation
Since the temperature of the refrigerator is automatically kept constant regardless of the season, it is recommended not to change the settings (the controls for the refrigerator and freezer compartments) unless it is necessary.
When your refrigerator is first installed, allow it 24 hours to stabilize at normal operating temperatures prior to filling it with fresh or frozen foods. Then adjust the knobs to get satisfactory results as per instruction given below. If operation is interrupted, allow 5 minutes delay before restarting.
The default setting of the temperature control button for the refrigerator compartment is middle (3 LEDs are ON).
CONTROLS FOR REFRIGERATOR COMPARTMENT
ENERGY SAVER
If you push the ENERGY SAVER/CHILD LOCK button, your refrigerator enters into Energy Save mode and Energy Saver Icon will be ON ,this function facilitates you to save energy while maintaining uniform cooling for long hours. Pressing any other key (Except Child Lock) or opening the door will release the refrigerator from Energy Saver mode.
CHILD LOCK
If you push the ENERGY SAVER/CHILD LOCK button continuously for 5 seconds, all functions/settings of your refrigerator will be locked and the lock icon will be ON. To release this function press again this key for 5 seconds.
REF TEMP
This key allows you to change the refrigerator temperature manually. The bar Icons on the\ display are “ON” and “OFF” according to the temperature settings
Door Cooling Indicator Lamp
Since Refrigerator door is open, the lamp starts fluctuating and remain fluctuating 2 minutes after the door is closed.
SUPER COOL
This Feature enables quick cooling of food kept in the refrigerator. When the SUPER COOL button is pressed super cool Icon will be ON. This mode is off automatically once the refrigerator temperature reaches specified degrees.
8
Applicable For GL-432 DMX
Page 10
Operation
Refrigerator
Temperature
Super Cool
You can set Refrigerator temperature using the REF. TEMP. button, whenever pressing the button, the LED emit light. The temperature of the compartment is lowered as the LED luminance from “Cold" to “Colder". You can select the desired setting point five steps
(from the Cold to the Colder).
For the economic electricity, set
the led to the ‘Cold' position.
When SUPER COOL button is pressed, refrigerator goes to super cool mode, and super cool icon will ON. This function allows you to gear up for any urgent cooling needs. In this case, compressor runs continuously for few hours giving you cold water and ice when you need it . This function is very helpful for parties and special occasions , where the refrigerator is subjected to heavy load and you need instant cooling of the food. The super cool system released when the temperature of refrigerator gets specified degrees.
Energy Saver
Child Lock
If you push the ENERGY SAVER/CHILD LOCK key, your refrigerator enters into Energy Save mode and Energy Saver Icon will be ON. Energy Saver mode facilitates you to save energy while maintaining uniform cooling for long hours. It is recommended that once you ensure that your refrigerator is
not going to get disturbed for long time like one or two days you can save your electric power by forcing the Energy saver function.
Pressing any other key (Except Child Lock) or opening the door will release the refrigerator from Energy Saver mode.
If you push the ENERGY SAVER/CHILD LOCK key continuously for 5 seconds, all functions/settings of your refrigerator will be locked if previously unlocked and the lock icon will be ON. During lock mode your settings are not subjected to change. If you again push the same key for 5 seconds, then all refrigerator functions or settings will be unlocked, lock icon will be OFF and settings are subjected to change.
9
Press this button for 5 seconds and The CHILD LOCK lamp will turn ON. Press the button for 5 seconds again and the CHILD LOCK lamp will turn OFF.
Applicable For GL-432 DMX
Page 11
Operation
Door Open Alarm
Memory back-ups
RT-Sensor
Temperature
control
If door is open and not closed within 1 Minutes, a buzzer will annunciate. This buzzer sound indicate that your refrigerator door is left open or not properly closed.
After 1 minute of door opening, the buzzer sounds three times at an interval of 0.5 second. After that, every 30 seconds , the buzzer sounds three times until the door is closed properly.
The alarming is cancelled immediately after the refrigerator door is closed. In case of power failure, your refrigerators settings will be kept in memory and as soon as
the power reinstall your last refrigerator settings will be restored.
RT Sensor
Your refrigerator is equipped with Room Temperature sensor. Depends on the room temperature, your refrigerator automatically sets the internal temperature to keep your food fresh. For example every time when your room temperature increases up to certain level your refrigerator compensates the room temperature changes automatically by decreasing the inside refrigerator temperature.
– Refrigerator
Your refrigerator has two controls that let you regulate the temperature in freezer and refrigerator compartments.
You can set the refrigerator temperature using the refrigerator temperature control, whenever pressing the 'REF.TEMP.' button, the LED emits light. The temperature of the compartment goes down as the LED luminesce from cold to colder.
You can select the desired set point in five (5) steps between cold to colder.
Temperature
control
– Freezer
COLD AIR CONTROL
FRIDGE MAX
1
NORMAL
5
FREEZER MAX
9
l Freezer Temp Control - 1, 2, 3, 4, 5, 6, 7,
8, 9 Setting at “9” the freezer compartment
becomes coldest, but the refrigerator
– Freezer
COLD AIR CONTROL
FRIDGE MAX
1
NORMAL
3
FREEZER MAX
9
becomes warmer because less cold air
GL-392 GL-432
will flow into the refrigerator compartment.
l In cold weather the unit operates less and the freezer compartment has a tendency to
warm up. For colder freezer, turn the freezer temp. control to “6” - “7” & refrigerator temp. control to cold.
l In hot weather or to load more food in refrigerator, refrigerator compartment has a
tendency to warm up for colder refrigerator turn the freezer temp. control to “1” - “3” to direct more cold air into the refrigerator compartment, and the refrigerator temp. control to “Coldest” / “ Colder”.
l If you load lot of food in the freezer or open its door frequently, its temperature could go
warmer. In this case, set the freezer temp. control dial between “7” and “9” to cool it. Return the freezer temp. control dial to the original position after usage.
10
Applicable For GL-432 DMX
Page 12
Operation
Ice making
Instruction to
use bank ice
Ice beam
Door cooling
Your refrigerator has Triple twist ice tray
l to make ice cubes,
fill the ice tray with water upto the water level mark and insert in its position.
l to remove ice cubes,
hold the knob of the tray and turn gently in the clock wise direction, ice cubes drop in the bank ice.
Use bank ice only to store ice cubes. Do not make ice in it, as it may break.
Cool air vent is placed on the refrigerator door to
l
provide cool air to door shelves.
If foreign substances enters the cool air vent while
l
cleaning, efficiency will be lowered. In addition, if gasket is damaged, efficiency may be lowered due to the escape of cool air. So care should be taken during cleaning.
Water Level
Ice Trays Bank Ice
Cool air Vent
Chiller Compartment
Defrosting
Deodorizer
How to Use
When the door is opened, the warmer air doesn’t influence the cooling of chiller compartment. So you can keep food fresher in it.
Defrosting takes place automatically in every 8 hours of
l
actual compressor running. The defrost water flows down to the evaporating tray
l
which is located in the lower back side of the refrigerator and is evaporated automatically.
By using a catalyst, deodorizing performance is
l
guaranteed. Unpleasant odor of food in fresh food compartment is
l
deodorized with no harm to you and the food.
l
As the catalyst is located in cooling air outlet in fresh food compartment, there is no need for any handling.
l
Do not prick the cooling air outlet with a sharp tip because the deodorizer catalyst may be damaged.
l
When storing food with a strong odor, wrap it or store it in a container with lid because odor may be passed to other food.
11
Page 13
Operation
F.I.R. Lamp (Optional)
Feature
Operating
Refrigerator Lamp
l
Far infrared rays emitted Far Infrared Ray lamp restrains the dryness of the food and keeps moisture without deteriorating nutrition value.
By increasing the nucleic acid, Far Infrared Rays also
l
keeps the smell and taste of the food for long time.
When the refrigerator begins to operate, F.I.R. lamp
l
turns on. During the refrigerator’s operating, the on and off of the F.I.R. lamp is atomically controlled by the refrigerator inner temperature. Therefore it is not necessary to handle F.I.R. lamp.
If you store the food wrapped in the vinyl or wrapper,
l
not in the vessel with lid, the food will get more effective F.I.R. results.
Lamp Replacement
Unplug the power cord from the outlet.
l
Remove refrigerator shelves.
l
To remove the lamp cover, insert a slotted driver at
l
the one of the under hole of the lamp cover and pull it out forward.
Turn the lamp counterclockwise.
l
Assemble the reverse order of disassembly.
l
Replacement bulb must be the same specifications as original.
Caution
Freezer Lamp
12
If you want to check the F.I.R. Lamp operation, do not
l
touch the F.I.R. lamp, because you may burn your fingers with the high temperature of its surface.
Unplug the power cord from the outlet.
l
To remove the lamp cover, reach behind the lamp
l
cover and pull it forward as shown in Flg. Turn the lamp counterclockwise.
l
Assemble the reverse order of disassembly.
l
Replacement bulb must be the same specifications as original.
Page 14
Suggestion on Food storage
Location of Food
(Refer to page 4 for Identification of Parts)
Ice bank
Freezer
compartment
shelf
Utility box
Tray
fresh room
Freezer
compartment
door basket
Ice cubes will drop in the ice bank.
Store various frozen food such as meat, fish, frozen snacks, etc.
Store meat, fish, chicken, ice cream, etc.
Store small food such as bread, snacks, etc.
Store small packaged frozen food. Temperature is likely to increase as door opens. such as ice cream.
So, do not store long-term food
Egg
Storage basket
Refrigerator
compartment
shelf
Refrigerator
compartment
door basket
Tray Vegetable
Place this egg box in the proper location.
Store side dishes or other food at a proper distance from each other for effective cooling.
Store water bottles, small packaged food or beverages such as milk, juice, beer, etc..
Store vegetables or fruits.
13
Page 15
Suggestion on Food storage
Storing Food
Store fresh food in the refrigerator compartment. Do not store food which becomes unusable easily at low temperatures, such as bananas,
and melons. Allow hot food to cool prior to storing, placing hot food in the refrigerator could spoil
other food, and lead to higher energy consumption. When storing the food, cover it with vinyl wrap or store in a container with a lid. This
prevents moisture from evaporating, and helps food to keep its taste and nutrients. Please keep food at a distance of at least 15 mm from the air vents. Do not open the door frequently. Opening the door lets warm air enter the refrigerator,
and cause temperatures to rise. Do not block air vents with food. Smooth circulation of chilled air keeps
refrigerator temperatures even. To adjust the temperature control easily, do not store food near the temperature
control dial.
Freezer
compartment
Refrigerator
compartment
Do not store bottles in the freezer compartment, they may break when frozen. When storing frozen food like ice cream for a long period, place it on the freezer
shelf or in utility box, not in the door basket.
Avoid placing moist food in top refrigerator shelves, it could freeze from direct contact with chilled air.
Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped, to prevent adjacent food from spoiling.
When storing eggs in their storage rack or box, ensure that they are fresh, and always store them in an upright position, which keeps them fresh longer.
NOTE
If you keep the refrigerator in a hot and humid place, and frequently open the door or put a lot of vegetables in it, moisture may form in it which has no effect on its performance. Just wipe the moisture with a clean cloth.
14
Page 16
Care and Maintanance
General Information
Vacation time
Power failure
If you move
Anti
condensation
pipe
During average length vacations, you will probably find it best to leave the refrigerator in operation with Place freezable itemsRefrigerator Temp. Control at “Cold” position.
in freezer for longer storage. When you plan not to operate, remove all food, disconnect
the power cord, clean the interior thoroughly, and leave each door “OPEN” to prevent odor formation.
Power failures for an hour or two will not affect your refrigerator temperatures.
However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.
Remove or securely fasten down all loose items inside the refrigerator. To avoid damaging the height adjusting screws, turn them all the way into the base.
The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation. Don’t be alarmed. This is due to the anti-condensation pipe, which pumps hot air to the refrigerator to prevent “sweating” on the outer cabinet wall.
Cleaning
Exterior
Interior
After cleaning
Warning
It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if left uncleaned.
Use a lukewarm solution of mild soap or detergent to clean the durable finish of your refrigerator. Wipe with a clean damp cloth and then dry.
Regular cleaning is recommended. Wash all compartments with a baking soda solution or a mild detergent and warm water. Rinse and dry.
Please verify that the power cord is not damaged, power outlet is not overheated, or power plug is inserted well into the power outlet.
Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts (lamps, switches, controls, etc.). Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing an electric shock. Never use metallic scouring pads, brushes, coarse abrasive cleaners, strong alkaline solutions, flammable or toxic cleaning liquids on any surface. Do not touch frozen surfaces with wet or damp hands, because damp object will stick or adhere to extremely cold surfaces.
15
Page 17
General Instructions
Before Calling
for Service
SERVICE CALLS CAN OFTEN BE AVOIDED ! IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY CHECK THESE POSSIBLE CAUSES
FIRST :
PROBLEM POSSIBLE CAUSES
REFRIGERATOR DOES l Has a house fuse blown or circuit breaker tripped ? NOT OPERATE l Has the power cord plug been removed or loosened from
the electrical wall outlet. REFRIGERATOR OR FREEZER l Temperature control not set on proper position. COMPARTMENT TEMPERATURE l Appliance is placed close to wall or near source TO WARM l Warm weather frequent door openings. Door is not
closed entirely.
l Door left open for a long time.
l Large amount of food is kept in refrigerator.
ABNORMAL NOISE(S) l Refrigerator is installed in a weak or uneven place or
leveling screw need adjusting
l Unnecessary objects placed in the back side of refrigerator.
REFRIGERATOR HAS ODOR l Food with strong odors should be tightly covered or
wrapped.
l Interior needs cleaning.
DEW FORMS ON THE CABINET SURFACE l Not unusual during periods of high humidity.
l Door may have been left ajar.
16
Loading...
