Owner’s Manual
REFRIGERATOR
FREEZER
Please read this manual carefully before operating
your set and retain it for future reference
P/NO : MFL63747417 |
www.lg.com |
CONTENTS
IMPORTANT SAFETY INFORMATION |
............... 3 |
INSTALLATION ........................................................ |
9 |
INNER PARTS ......................................................... |
10 |
OPERATIONS .......................................................... |
11 |
Starting
Before Setting The Temperature
Door Alarm
Lamp Auto Off Feature
Self Test (For External Controller Model)
Controls For Refrigerator Compartment
Super Cool
Child Lock (Optional)
Controls For Freezer Compartment
Ice Making
Fresh Zone
Vegetable Drawer
Defrosting
Deodorizer (Optional)
Green Ion Door Cooling (Optional)
Dairy Corner (Optional)
SUGGESTIONS ON FOOD STORAGE .............. |
16 |
CLEANING ................................................................ |
17 |
GENERAL INFORMATION ................................... |
17 |
LAMP REPLACEMENT .......................................... |
18 |
IMPORTANT WARNINGS ...................................... |
19 |
BEFORE CALLING FOR SERVICE ...................... |
20 |
2
IMPORTANT SAFETY INFORMATION
BASIC SAFETY PRECAUTIONS
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of hazard that can kill or hurt you or others or cause damage to the product. All safety messages will be
preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:
DANGER
WARNING
CAUTION
You will be killed or seriously injured if you don't follow instructions.
You will be killed or seriously injured if you don't follow instructions.
indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what canhappen if the instructions are not followed.
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following.
Read all instructions before using this appliance.
1. When connecting the power
The dedicated outlet should be used.
• Using several devices at
one outlet may cause fire.
• The electric leakage breaker may damage food and thedispenser may be leaked.
Do not allow the power cord bent or pressed by the heavy object to
be damaged.
It may damage the power cord to cause fire or electric shock.
Do not allow the power plug to face upward or to be squeezed at
the back of the
refrigerator.
Water may be flown into or the plug may be damaged, which causes fire or electric shock.
Do not extend or modify the length of the power plug.
It causes electric shock or fire by the electric damage of the power cord or others.
3
IMPORTANT SAFETY INFORMATION
1. When connecting the power
Unplug the power plug when cleaning, handling or replacing the interior lamp of the refrigerator.
•It may cause electric shock or injury.
•When replacing the interior lamp
of the refrigerator, make sure that the rubber ring for preventing the electric spark within the socket is not taken off.
Remove water or dust from the power plug and insert it with the ends of the pins securely connected.
Dust, water or unstable connection may fire or
electric shock.
When the power cord or the power plug is damaged or the holes of
the outlet are loosed, do
not use them.
It may cause electric shock or short circuit to make fire.
2. When using the refrigerator
Do not place the heavy object or the dangerous object
(container with liquid) on
the refrigerator.
It may be dropped to cause injury, fire or electric shock when opening or closing the door.
Do not pull out the cord or touch the power plug with wet hands.
• It may cause electric shock or injury.
Make sure of grounding.
The incorrect grounding may cause breakdown and electric shock.
Ground
Wire
More than
Copper 30 inches
Flat
Do not cling to the door or the shelves of the door or the home bar of the freezer or the cool chamber.
It may make the refrigerator fallen down or damage the hands. Especially, do not allow the children to do the above.
4
IMPORTANT SAFETY INFORMATION
2. When using the refrigerator
Do not install the refrigerator in the wet place or the place which
water or rain splashes.
Deterioration of insulation of electric parts may cause electric leakage.
Do not place the lit candle within the refrigerator to deodorize.
It may cause explosion or fire.
Do not use the combustible spray near the refrigerator.
It may cause fire.
Do not place flower vase, cup, cosmetics, medicine or any container
with water on the refrigerator.
It may cause fire, electric shock or injury by dropping down.
Do not use or store inflammable materials |
|
|
ether, benzene, alcohol, medicine, LP gas, |
|
|
spray or cosmetics |
|
|
near or in the |
|
|
refrigerator. |
|
|
It may cause explosion |
|
|
or fire. |
|
<![if ! IE]> <![endif]>Thinner |
<![if ! IE]> <![endif]>Benzene |
<![if ! IE]> <![endif]>Ether |
Do not store the medicine or the academic materials at the refrigerator.
When the material with the strict temperature
control is stored, it may be deteriorated or it may make an unexpected
reaction to cause any risk.
The Academic Medicine
The |
Medicine |
Avoid the heating devices.
It may cause fire.
Use the submerged refrigerator after checking it.
It may cause electric shock or fire.
5
IMPORTANT SAFETY INFORMATION
2. When using the refrigerator
Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or
thinner.
Deterioration of insulation of |
|
electric parts may cause |
T |
electric shock or fire. |
hinne |
r |
When any strange smell or smoke is detected from the refrigerator, disconnect the power plug
immediately and
contact to the service center.
It may cause fire.
Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.
It may cause injury, electric shock or fire.
When disposing the refrigerator, remove the packing materials from
the door.
It may cause to lock out the child.
Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).
It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.
Install the refrigerator on the solid and level floor.
Installing it on the unstable place may cause death by falling down the refrigerator when opening or closing the door.
6
IMPORTANT SAFETY INFORMATION
2. When using the refrigerator
Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the refrigerator, the heatproof grill (exhaust hole) at the
backside.
It may cause electric shock or injury.
When you want to dispose the refrigerator, contact to the down-block office.
When you want to dispose the large living waste such as electric home appliance and furniture, you'd better contact the local downblock office.
Down-block
office
CAUTION
Violating this direction may cause injury or damage house or furniture. Always be careful, please.
Do not touch food or containers at the freezer with wet
hands.
It may cause frostbite
Do not put bottle in the freezer.
It may freeze the contents to break the bottle to cause injury.
Wait for 5 minutes or longer when reconnecting the plug.
It may cause the operation of the freezer to fail.
After 5minutes
Pull out the power plug not by grasping the cord but the plug of its
end.
It may cause electric shock or short circuit to fire.
7
IMPORTANT SAFETY INFORMATION
CAUTION
Violating this direction may cause injury or damage house or furniture. Always be careful, please.
Do not install the refrigerator in the wet place or the place which water or rain splashes.
Deterioration of insulation of electric parts may cause electric leakage.
Carry the refrigerator with the handle bar at the bottom of the front and the top of the rear.
Otherwise, your hands may be slipped to cause
injury.
Do not put any living animal in the refrigerator.
Do not insert the hands into the bottom of the refrigerator.
The iron plate of the bottom may cause injury.
Because opening or closing the door of the refrigerator may cause injury to the person around it, be careful, please.
Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.
8
THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE, AND UTILIZES THE LATEST IN TECHNOLOGY.
WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH IT'S PERFORMANCE AND RELIABILITY.
BEFORE YOU START YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY. IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION AND MAINTENANCE, AND ALSO SUPPLIES SOOME USEFUL HINTS.
INSTALLATION
1.Select a good location.
Place your refrigerator where it is easy to use.
2.Avoid placing the unit near heat sources, direct sunlight or moisture.
3.To ensure proper air circulation around the fridge - freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
4.To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing.
Leveling screws can be turned easily by tipping the cabinet slightly.
Turn the leveling screws clockwise( ) to raise the unit, counterclockwise(
) to lower it.
5.Don't install this appliance below 5°C. It may cause the debasement of the refrigerator.
NEXT
1.Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.
2.Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.
3.Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
4.Prior to storing food, leave your refrigerator on for 2 or 3 hours.
Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.
9
INNER PARTS
►DOOR COOLING MODEL
FREEZER |
Twisting Ice Serve |
|
COMPARTMENT |
Type Ice Making |
|
Lamp |
|
|
Shelf |
|
|
Freezer Temperature |
Freezer Door Rack |
|
Control Dial |
||
|
||
REFRIGERATOR |
|
|
COMPARTMENT |
Dairy Corner |
|
Deodorizer (Optional) |
(Optional) |
|
|
||
Fresh Zone |
Egg Storage Rack |
|
|
||
Shelves |
Green Ion Door |
|
|
Cooling (Optional) |
|
Lamp |
|
|
Vitamin Kit (Optional) |
Refrigerator Door |
|
|
Rack |
|
Vegetable Drawer |
|
|
|
Levelling Screw |
|
|
Base Cover |
NOTE
●This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer
is the most efficient usage for energy saving.
Suggestion for energy saving
-Please do not keep the door open for a long time, close door in the shortest time.
-Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
-Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
-Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
-Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
-Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.
10
OPERATIONS
STARTING
When your refrigerator is first installed, allow it 2-3 hours to stabilize at normal operating temperatures prior to filling it with fresh or frozen foods.
If operation is interrupted, wait 5 minutes before restarting.
BEFORE SETTING THE TEMPERATURE
●The temperature of the refrigerator is kept constant regardless of changes in room temperature. It is recommended that, once set, the temperature settings(the controls for the refrigerator and freezer compartments) not be changed unless necessary.
●This refrigerator has one temperature control button for the refrigerator compartment and one temperature control dial for the freezer compartment.
●The default setting of the temperature control button for the refrigerator compartment is ‘3°C’.
●The default setting of the temperature control dial for the freezer compartment is '5'.
●This refrigerator has a temperature sensor in the refrigerator compartment. It will start and stop the compressor automatically as needed.
DOOR ALARM
When the door of the refrigerator is open 1 minute, an alarm will sound three. If the door remains open, the alarm will repeat every 30 seconds.
LAMP AUTO OFF FEATURE
When the door is open for 7 minutes or longer, the lamp inside goes off automatically to save energy and prevent overheating. However, the alarm sound continues until the door is closed.
SELF TEST (FOR EXTERNAL CONTROLLER MODEL)
●Your refrigerator contains a built in diagnostic capability. If it develops a malfunction in certain areas, it will display an error code to assist the repair technician. While an error code is displayed, other control and display functions will not operate.
●If an error code is displayed, contact a service center. Do not disconnect the power cord from the outlet.

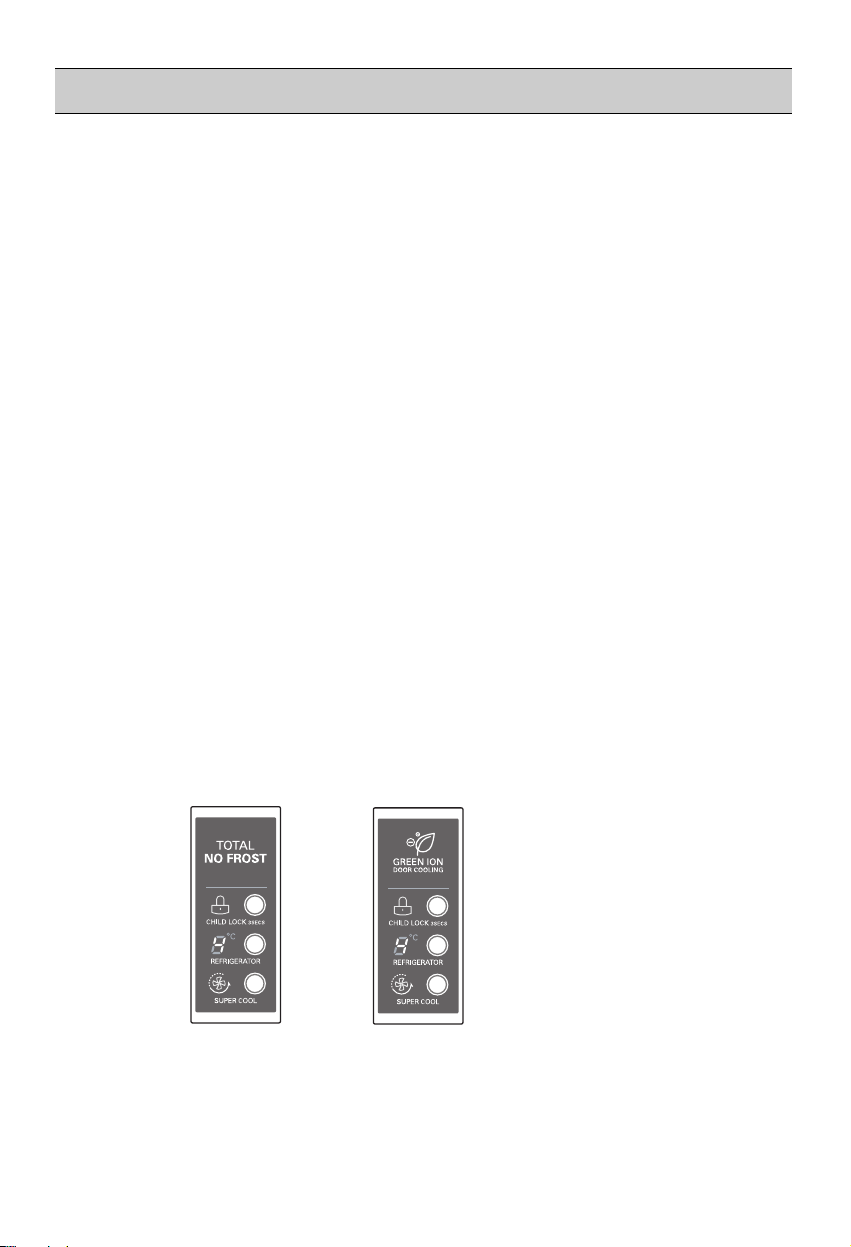

CONTROLS FOR REFRIGERATOR COMPARTMENT
Display graphic can be different, depend on the type of your refrigerator.
<A type> |
<B type> |
●Press 'REFRIGERATOR' button to control refrigerator temperature.
●Whenever pressing the button, the LED emits light.
●The number showing up on the LED luminesce indicate the temperature of refrigerator compartment.
●You can select the desired setting point seven steps, from '0oC' to '6oC'.
11
OPERATIONS
SUPER COOL
●The Super Cool feature operates when the when the refrigerator first turn on. The compressor and circulating fan operate at maximum cooling capacity to quickly lower the refrigerator temperature. It shuts off automatically.
●If warm food is placed into the refrigerator, Super Cool can be started with the button on the control panel. Super Cool will shut off when the temperature reaches the proper level or it can be shut off manually by pressing the Super Cool button.
CHILD LOCK (OPTIONAL)
● CHILD LOCK
Press and hold the CHILD LOCK button for 3 seconds to lock the child lock. When it is locked, the Lock LED will be on and the other button will not operate. To unlock, press and hold the CHILD LOCK button for 3 seconds again.
CONTROLS FOR FREEZER COMPARTMENT
FREEZER CONTROL
1FREEZER MIN
5NORMAL
8FREEZER MAX
7
6
5
4
3
●The higher number the control setting is, the lower the temperature of the freezer compartment becomes.
●Since the temperature of the refrigerator and freezer compartments is controlled with a fixed amount of cooled air, the refrigerator compartment will be warmer if the freezer compartment becomes colder.
●When the freezer compartment is not cold enough in winter, adjust the control for the freezer to High(6~8).
●Setting the Freezer Knob at will satisfy 4 STAR. Setting the Freezer Knob at NORMAL will have sufficient freezing effect, so it is recommended to set the Knob at NORMAL.
12
OPERATIONS
ICE MAKING
Twisting Ice Serve Type
●To make ice cubes, fill the ice tray with water and insert in its position.
Ice Trays |
Ice Cube Box |
●To remove ice cubes, hold the lever of the tray and pull turn gently. Then, ice cubes drop in to the ice cube box.
FRESH ZONE
● When the door is opened, the warmer air don't influence in the fresh zone. So you can store food more fresh in it.
VEGETABLE DRAWER
Magic Crispers
• Magic Crispers provide fresher-tasting fruit and vegetables by letting you easily keep humidity inside the drawer.
• A lattice on the underside of the cover to efficiently hold or release moisture.
• Sealing structure keep the humidity.
Absorb |
Release |
moisture |
moisture |
Overly |
Humid |
humid |
deficiency |
Vitamin Kit (Optional) |
Vitamin Kit |
|
|
• Vitamin Kit used to keep fruits more fresher. |
|
• Please try to keep the kit from getting wet as this would |
|
decrease its effectiveness. |
|
13
OPERATIONS
DEFROSTING
●Defrosting takes place automatically.
●The defrosted water flows down to the evaporating tray which located in the lower back side of the refrigerator and is evaporated automatically.
DEODORIZER (OPTIONAL)
● Unpleasant odor of food in fresh food compartment is deodorized with no harm to you and the food.
How to use
•As Deodorizer is located in cooling air inlet for circulating air in fresh food compartment, there is no need for any handling.
•Do not prick the cooling air inlet with a sharp tip because Deodorizer may be damaged.
•When storing food with a strong odor, wrap it or store it in a container with a lid because odor may be passed on to other foods.
Re-Using of Deodorizer
• Used some length and the odor is strong, Deodorizer can be revived and re-used.
• Separate Deodorizer in ceiling of refrigerator compartment, using hair drier to remove moisture or malodor and oxidize under sunlight to decomposing malodor by ultraviolet.
14
OPERATIONS
GREEN ION DOOR COOLING (OPTIONAL) |
Cool Air Vent |
|
● The anion coating in the duct cover purifies the air and helps stored foods remain fresh longer.
● If water of foreign substances enter the cool air vent while cleaning, efficiency will be lowered. In addition, if gasket is damaged, efficiency may be lowered owing to the escape of cool air.
DAIRY CORNER (OPTIONAL)
● Use the moving by pushing right the left with protruded handle.
How to remove the cover when you clean
● Push the cover and move it to the center of basket
● Move the cover at the middle of basket and align the hole with bothsides of the basket
● After aligning,turn basket from back to front and pull out with both hands.
15
SUGGESTIONS ON FOOD STORAGE
STORING FOOD
●Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
●Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
●Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food, and lead to higher electric bills!
●When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
●Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
●Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.
FREEZER COMPARTMENT
●Do not store bottles in the freezer compartment - they may break when frozen.
●Do not refreeze food that has been thawed. This causes loss of taste and nutrition.
●When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.
●It is recomended to load food at least 15mm against freezer wall, it will keep good air circulation in the freezer compartment.
●Loading for Freezing - It is recommended to load newly introduced foods on the following
position for freezing:
●Freezer Door Basket, marked ( ) is -12°C compartment, that is suitable for short term storage of frozen food (optional).
REFRIGERATOR COMPARTMENT
● Avoid placing moist food on deep interior refrigerator shelves, it could freeze upon direct contact with chilled air. To avoid this it is better to store food in the covered container.
● It is desirable to store moist food (especially vegetable
and fruit) in the vegetable storage compartment. If it is necessary to store on a shelf of the refrigerator, put it close to the door away from the back wall of the
refrigerator to avoid being frozen by the cool circulating in the refrigerator.
●Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean, to prevent adjacent food from spoiling.
●When storing eggs in their storage rack, ensure that they are fresh, and always store them in a up-right position, which keeps them fresh longer.
16
CLEANING
It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wipe up immediately, since it may acidify and stain plastic surfaces if allowed to settle.
Never use metallic scouring pads, brushes, coarse abrasive cleaners or strong alkaline solutions on any surface.
Before you clean, however, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.
EXTERIOR - Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.
INTERIOR - Regular cleaning of the interior and interior parts is recommended. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.
INTERIOR PARTS - Wash compartment shelves, door racks, storage trays and magnetic door seals etc. Use a lukewarm solution of mild soap or dish washable solution to clean
the durable finish of your refrigerator. Wipe with a clean damp cloth and then dry.
WARNING
Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts(lamps, switches, controls, etc.). Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing electric shock. Do not use flammable or toxic cleaning liquids.
•Caution for Cleaning Not in use : Surface active agent, Car wax, Anticorrosive, All sorts of oil, Gasoline, Acids, Wax.
•Usable Detergent Vegetable dish washable solution, Soapy water.
•When careless using, it can occur a color change.
GENERAL INFORMATION
VACATION TIME |
ANTI-CONDENSATION PIPE |
During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.
POWER FAILURE
Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.
IF YOU MOVE
Remove or securely fasten down all loose items inside the refrigerator.
To avoid damaging the leveling screw(s), turn them all the way into the base.
The outside wall of the refrigerator cabinet may sometimes get warm, especially just after
installation.
Don't be alarmed.
This is due to the anti-
condensation pipe, which
pumps hot refrigerant to prevent "sweating" on the outer cabinet wall.
Caution
Electrical Shock Hazard
Before replacing a burned-out light bulb, either unplug the refrigerator or turn off power at the circuit breaker or fuse box.
NOTE:Moving the control to the OFF position does not remove power to the light circuit.
17
LAMP REPLACEMENT
NOTE |
● Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with one |
|
of the same size, shape and wattage. |
||
|
FREEZER LAMP
●Unplug the power cord from the outlet.
●Remove the room lamp lid by loosening 1 screw and take down while pulling it forward with both hands as shown in figure.
●Remove the lamp by turning it counterclockwise.
REFRIGERATOR LAMP
●Unplug the power cord from the outlet.
●Remove refrigerator shelves.
● To remove the lamp cover insert type driver at the corner of under hole of the lamp cover and pull it out forwards
●Turn the lamp counterclockwise.
●Assemble in reverse order of diassembly. Replacement bulb must be the same specification as original.
18
IMPORTANT WARNINGS
DO NOT USE AN EXTENSION CORD
If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage.
ACCESSIBILITY OF SUPPLY PLUG
The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection when accident happens.
ABOUT GROUNDING (EARTHING)
In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.
In order to prevent possible electric shock, this appliance must be grounded.
Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.
SUPPLY CORD REPLACEMENT
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
VERYDANGEROUSATTRACTION
An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.
DO NOT MODIFY OR EXTEND THE POWER CORD LENGTH.
It will cause electric shock or fire.
This appliance must be grounded (earthed).
DON'TWAIT! DOITNOW!
Do not store inflammable materials, explosives or chemicals in the refrigerator.
WARNING
This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
DISPOSAL OF THE OLD APPLIANCE
This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.
All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.
19
