Instructions for preparing the
installation connections
LG Giant-C electric dryer
View and selection of the appropriate location
The machine should be installed on a solid floor, strong and rigid enough to withstand
the weight of the machine, even when fully loaded, without bending or bouncing. If
the floor bends too much, it will be necessary to stiffen it further. If the floor is not
firm enough, strong vibrations and sounds will occur. Be sure to choose a firm and
smooth floor.
Sufficient space must be left between the machine and the surrounding walls for
installation.
Sufficient space must be left for the connecting cables, for the ventilation duct and for
clean air to enter the machine.
Dryer size:
W686xL767xH983mm
The height of the dryer mounted on the LG
Giant-C washer or dryer
1954mm
Total length od the dryer with a open-door:
1370mm
Minimum side space:
25mm
Minimum rear space:
150mm
Picture of the device itself and mounted on the
LG Giant-C washing machine or LG Giant-C
dryer:
Power connection
Connection method:
Fixed connection to Single-phase cam
switch
Installation height:
min. 1000mm
Voltage:
220V/50Hz
Total power:
5,4kW
Cable thickness:
min. 2,5mm²
Fuse in junction box:
25A
Picture of cam comb:
NOTE: The dryer is connected exclusively via a cam switch, not a Schuko type plugs
and sockets.
Ventilation
Ventilation pipe diameter:
100mm
Extraction speed:
270m³/h
Pipe type:
Rigid metal pipe
Air extraction:
Outside the room
Connecting several dryers in one pipe:
Not allowed
Pipe height from floor:
400mm
Pipe height from floor if it is installed
on the washer or another dryer:
1400mm
Picture of the outer lamella:
Only lamellas without mesh and fan allowed
Pictures of pipes with a diameter of 100mm and
a height of 100mm
The maximum length of the ventilation pipe depends on the number of elbows
Number of knees at 90 °
Maximum length of metal pipe
0
8m
1
7m
2
5,5m
3
4,5m
NOTE: Longer pipe lengths and more elbows can reduce airflow and thus reduce
device efficiency.

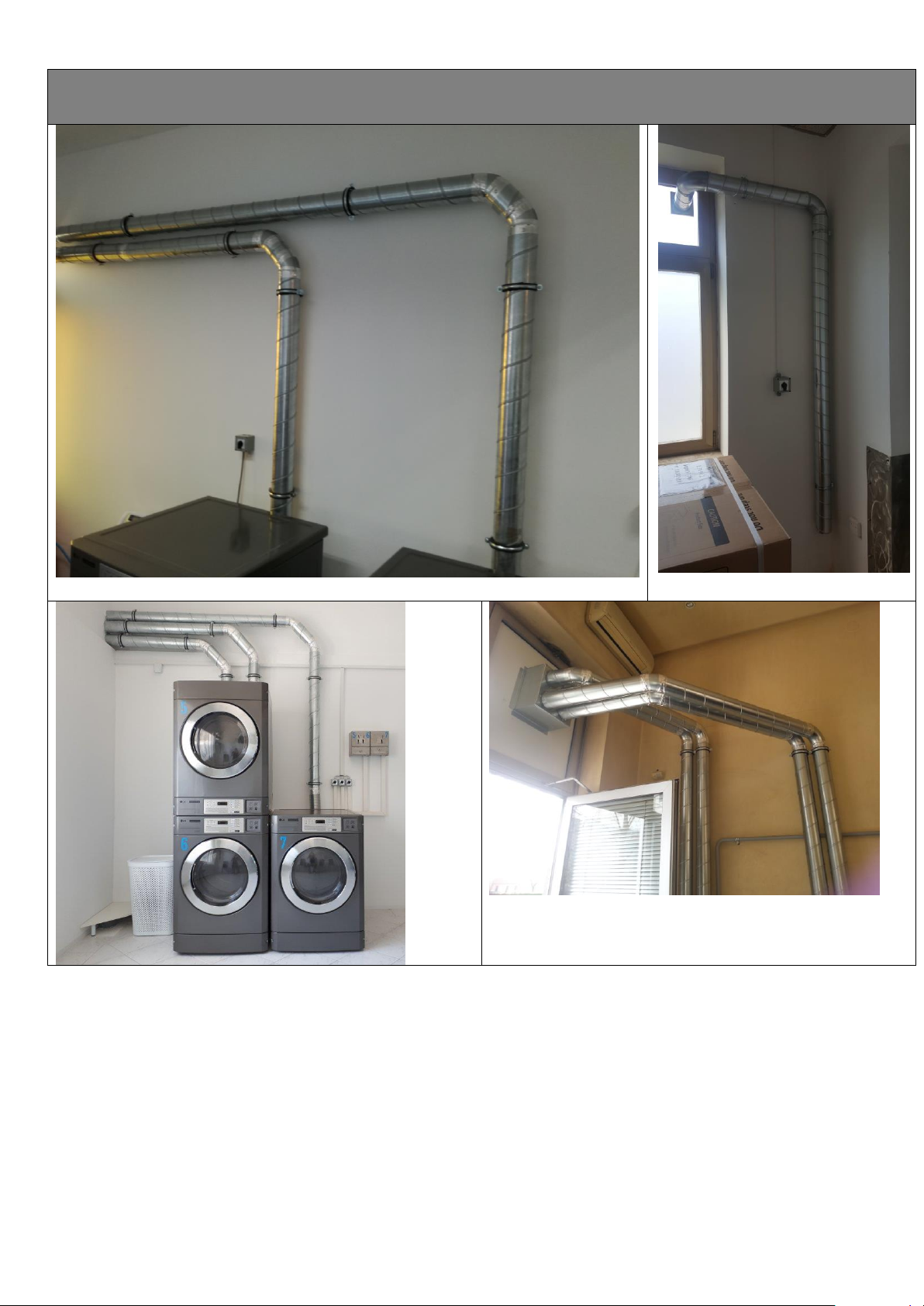

Pictures of prepared installations
Check list
Setting up the tumble dryer
YES/NO
Comments
Minimum dimensions for the dryer
W700xD1300xH983 mm
The floor on which the dryer is
mounted is solid and stable
Power connection
YES/NO
Comments
Voltage 220V / 50Hz
Power 5.4 kW
Comb switch connection
Fuse 25A (in junction box)
Cable thickness 2.5mm2
Ventilation
Description/Comments
Ventilation material
Pipe length
Number of knees
Pipe material
Exhaust
OBLIGATORY: Before installation, the "Check list” must be filled out, and photos of
finished installations must be forwarded.
