Introduction
Installation
Operation
Appendix
Contents
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Location and Function of Controls . . . . . . . . . . . . . . . . . . . 5
Installing the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Device Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
How to Use the Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
■ Microsoft®and Windows®are trademarks registered in the United
States and other countries by the Microsoft Corporation.
■ The company names and product names written in this manual are
trademarks or registered trademarks of the respective companies.
DirectCD
TM
v2.5b(s)
Introduction
2
Thank you for
purchasing this
CD-RW/DVD-
ROM Drive.
Package Items
Features
• Enhanced-IDE (ATAPI) interface.
• Power tray loading and ejection of disc.
(The disc can also be ejected manually.)
• Combination CD-R/RW and DVD-ROM Drive functions into one drive.
• Supports UDF for easy writing to CD-RW discs.
• Supports Region playback control Phase II.
• Supports Windows 95, 98, 2000, ME & XP/NT4.0.
• Supports Mt. Rainier.
• Automatic buffer underrun error prevention technology-SuperLink
• 48X max Writing (CD-R), 24X max ReWriting (CD-RW),
16X max Reading (DVD-ROM), and 48X max Reading (CD-ROM)*.
* Writing speed depends on capabilities of discs.
As a result, for ultra speed write/rewrite, you should use media
labelled Ultra Speed Write/ReWritable discs
Item Quantity
- Internal CD-RW/DVD-ROM Drive 1
- CD Recording Software 1
- MPEG-2 Software(Power DVD) 1
- E-IDE (ATAPI) cable 1
- Audio Cable 1
- Mounting Screws 4
- Manual for CD-RW/DVD-ROM Drive 1
- Quick Manual for CD Recording Software 1
DirectCD
TM
v2.5b(s)
Introduction
3
Precautions
Installation
Operation
Important Precautions
Follow these precautions when handling the drive or discs.
• Please take notice that the manufacturer of this equipment does not
offer any warranty against data loss due to inappropriate installation
or handling, or direct or indirect damages.
• Please take notice that the manufacturer will bear no responsibility
for direct or indirect damages caused by the use of this product or its
malfunction.
• Please take notice that the manufacturer will bear no responsibility for
damage to data caused by this product.
• Please backup (copy) all important data as protection against data
loss.
• Avoid placing the drive in a location subject to:
- high humidity
- high temperature
- excessive dust
- mechanical vibration
- direct sunlight
We recommend using the drive in a horizontal or vertical position.
Do not use it in tilted position.
• Don’t move the drive suddenly from a cold place to a warm one or
raise the room temperature suddenly. Condensation may occur,
causing abnormal operation.
• Make sure to remove the disc before moving the drive.The disc may
be damaged, causing data loss.
• Be careful to prevent foreign objects, such as liquids or metal, from
entering the drive. In case a foreign object enters the drive, please
consult the dealer where the drive was purchased.
• Don’t interrupt the electric power while the drive is operating.
• When connecting two IDE devices to the Primary or Secondary
connectors, make sure that the two devices are not configured as
both Master, or both Slave. If they are both set the same, Windows
may fail to run or recognize the drives.
• The total length of the IDE cable should be no more than 18 inches
(about 45 cm).
DirectCD
TM
v2.5b(s)
Introduction
4
Computer
Software
❏ Occasionally the CD-R and CD-RW discs written by the CD-R/RW drive cannot be
read by other CD drives*.These unreadable discs may need to be read using the
CD-R/RW drive on which they were written.
* The disc written using the CD-R/RW drive might not be readable by CD-ROMs
other than Multi-read compatible (UDF compatible) CD-ROMs.
Multiread compatible (UDF compatible) CD-ROMs are:
1. CD-ROMs that can read low reflectance.
2. CD-ROMs that support Packet Write.
❏ Please note: Certain software (i.e. particularly those including Video playback)
may require a considerably increased specification PC to give acceptable
results. While this CD-RW/DVD-ROM drive can read DVD-video discs, decoding
them to display on your pc’s monitor requires separate MPEG decoding that is
done by separate hardware (either an MPEG decoder card or MPEG decoding
done by your video card), or separate software that you install to do MPEG
decoding. For further details, refer to the documentation that comes with MPEG
software.
Install the supplied CD Recording Software before using this unit.
System Environment
This unit can be operated in the system environment explained here.
350MHz (or faster) Pentium (for high speed,
500MHz or faster recommended)
75MB or more free space.
(The free space needed for writing depends on the
quantity of data.)
Enhanced-IDE interface (as Primary Slave,
Secondary Master or Slave)
5.25-inch half-height bay required
+5V/+12V power socket required
Windows 95/98/2000/ME/XP, Windows NT
Workstation Ver.4.0 or later*
CD-R : LG, Ricoh, Mitsubishi Chemical, Verbatim,
Taiyo Yuden, Mitsui Toatsu, TDK, Kodak, or
SKC discs are recommended.
CD-RW : Ricoh, Mitsubishi chemical, Verbatim,
Imation, Sony discs are recommended.
System
requirements
Hard disk
Interface
Drive bay
Power
Software Required OS
CD-R, CD-RW discs
CPU
Memory
Windows 95/98 : 64MB or greater.
Windows NT Workstation Ver. 4.0: 64MB or greater
(128MB or over recommended)
Windows 2000:64MB or greater(128MB or over
recommended)
DirectCD
TM
v2.5b(s)
Introduction
5

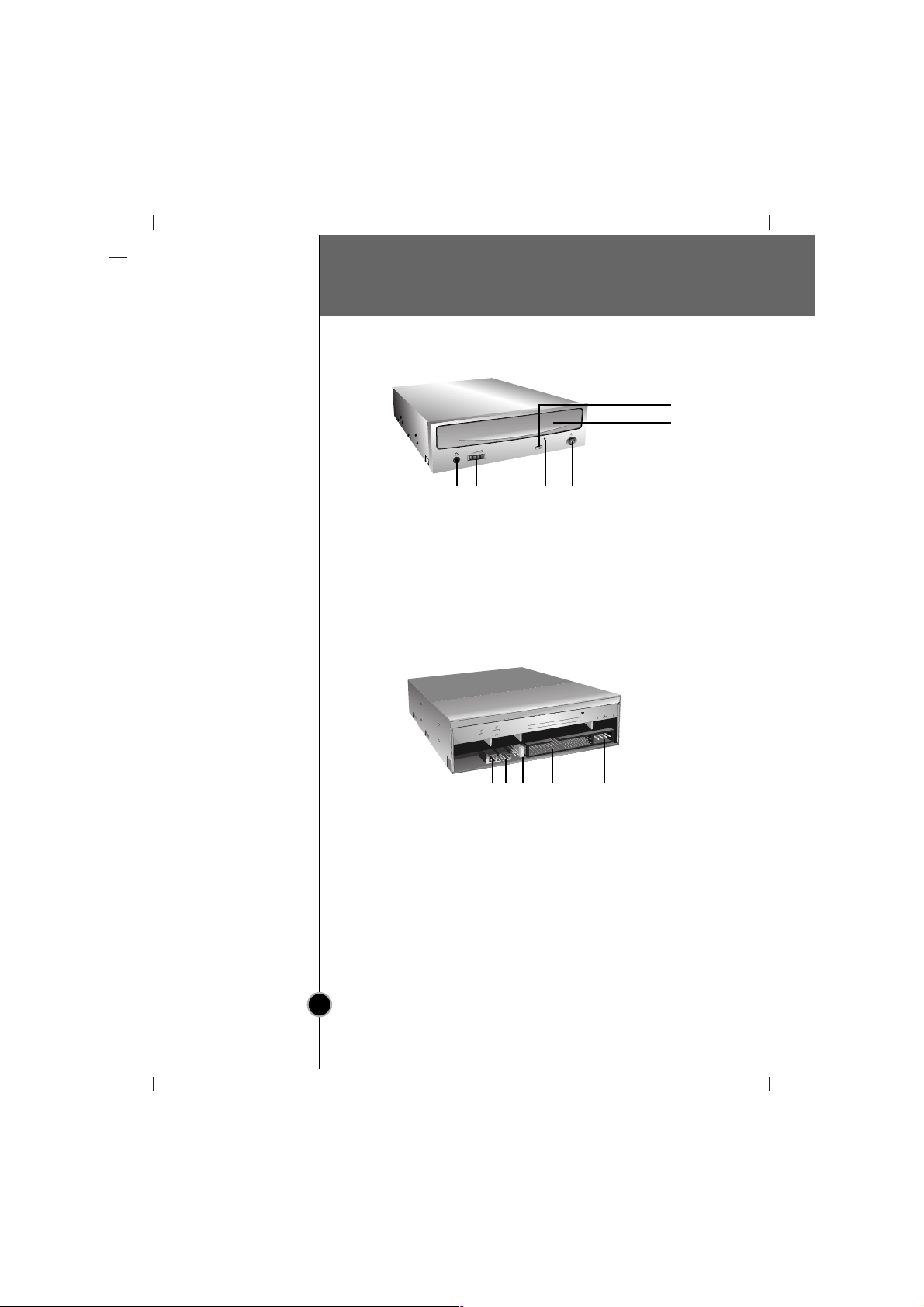

Front Panel
Rear Panel
Location and Function of Controls
D
IG
IT
A
L
A
U
D
IO
A
N
A
L
O
G
A
U
D
IO
IN
T
E
R
F
A
C
E
P
O
W
E
R
D
G
3
9
4
0
1
+
5
G
N
D
+
1
2
2
C
S
M
S
L
A
R G L
1 2 3 4 5
1. Digital Audio Output Connector
2. Analog Audio Output Connector
3. Jumper Connector
This jumper determines whether the drive is configured as a master or slave.
Changing the master-slave configuration takes effect after power-on reset.
4. IDE Interface Connector
Connect to the IDE (Integrated Device Electronics) Interface using a 40-pin
flat IDE cable.
NOTE : Do not connect or disconnect the cable when the power is on, as this
could cause a short circuit and damage the system. Always turn the power
OFF when connecting or disconnecting the cable.
5. Power Connector
1. Headphone Jack
2. Volume Control
3. Emergency Eject Hole
4. Stop/Eject Button
5. Disc Tray
6. Drive activity indicator (Read/Write)
5
6
12
43
DirectCD
TM
v2.5b(s)
Installation
6
Before
Installation
Removing the
Computer
Cover
Mounting the
Drive
Installing the Drive
Before installing the drive, please note the following points.
■ You will need the following:
• A screw driver of a suitable size to fit the securing screws
for the drive unit.
• The manual for the computer, so you can find the mounting
positions for the IDE controller cable.
■ Turn off all peripheral appliances of the computer and the computer
itself, and disconnect their power cords from the wall sockets.
■
Discharge any static electricity on your person by touching the
computer covers, etc.
Make sure all peripheral devices of the computer and the computer itself
are turned off, and then remove the cover. Refer to the manual for the
computer for details about removing the cover.
NOTE : There may be sharp edges inside the computer so take care to
avoid injury.
1. Remove the 5
1
/4″ drive bay panel from the computer. Refer to the
manual for the computer for details.
2. Insert the drive unit into the bay. Do not apply excessive pressure to
the cables inside the computer.
3. Secure the drive with the screws provided. If there is not enough
space behind the drive, connect the IDE and other cables before
securing the drive.
NOTE : This is a general installation guide. If your PC hardware appears
different, please consult your hardware manual for installing peripheral
devices.
R
R
E
E
A
A
D
D
W
R
I
T
E
R
R
E
E
A
A
D
D
W
R
I
T
E
DirectCD
TM
v2.5b(s)
Installation
7
Jumper Setup
Before installation, set the jumper connector on the rear panel.
The drive can be connected as the Master or Slave on an EIDE (ATAPI)
interface. When several (up to four) EIDE devices are connected, each
must be set in a unique way. Specific knowledge of hardware and
software is necessary to install the drive.
NOTE : If two peripheral devices with the same settings are both connected to the Primary or to the Secondary EIDE bus, the host computer
may fail to run or may malfunction. Careful attention is necessary.
AL
O
R G L
C S M
S L A
39
40
ANALOG
AUDIO
CS: Cable Select (CSEL)
SL: Slave
MA: Master
NOTE : Only one jumper should be installed on the jumper connector.
If more than one jumper is installed, the drive may malfunction or be
damaged.
Master/Slave setting is determined by jumper installation on the Jumper
Connector. The following table shows the possible jumper settings.
If you use CSEL setting, the MASTER/SLAVE setting will be made
automatically, depending on the hardware configuration.
For details refer to the manual of your computer.
Name Function
Drive set as Master
Drive set as Slave
Drive mode set by CSEL on the
host IDE interface
MA
(Master)
SL
(Slave)
CS
(Cable Select)
C
S
S
L
M
A
G
O
L
A
N
A
L
9
A
3
T
I
O
I
G
I
D
D
U
A
0
4
O
I
D
U
M
A
S
C
L
G
A
R
L
S
G
D
R
E
W
O
P
2
1
+
D
N
G
5
+
1
E
C
A
F
R
E
T
N
I
2
DirectCD
TM
v2.5b(s)
Installation
8
PC Connection
To Install as a
Master Drive
The CD-RW/DVD-ROM drive connects to the motherboard of the host
computer using an IDE interface cable.You may connect the CD-RW/DVDROM Drive as a Slave or Master device, depending on your computer.
NOTE : A hard disk is normally installed as the Primary Master on the
EIDE (ATAPI) interface. Other EIDE peripheral devices such as hard
drives and CD-RW/DVD-ROMs are then set differently.
To install the drive as a Master, the jumper can be left as supplied from
the factory.
Master drive
(Booting hard disk)
Primary
connector
Secondary
connector
Master drive
(CD-RW/DVDROM drive)
(Jumper left as
MAster)
Motherboard
- OR -
Master drive
(Booting hard disk)
Primary
connector
Master drive
(CD-RW/DVDROM drive)
(Jumper left as
MAster)
Slave drive
(Other IDE drive)
Secondary
connector
D
I
G
I
T
A
L
A
N
A
A
U
L
O
D
I
G
O
A
U
D
I
O
D
G
R
G
L
I
N
C
T
E
S
R
M
F
A
C
E
3
9
S
L
A
4
0
P
O
W
E
R
+
1
5
G
N
D
+
1
2
2
D
I
G
I
T
A
L
A
N
A
A
U
L
O
D
I
G
O
A
U
D
I
O
D
G
R
G
L
I
N
CS
T
E
R
M
F
A
C
E
3
9
S
L
A
4
0
P
O
W
E
R
+
1
5
G
N
D
+
1
2
2
D
I
G
I
T
A
L
A
N
A
A
U
L
O
D
I
G
O
A
U
D
I
O
D
G
R
G
L
I
N
C
T
E
S
R
M
F
A
C
E
3
9
S
L
A
4
0
P
O
W
E
R
+
1
5
G
N
D
+
1
2
2
DirectCD
TM
v2.5b(s)
Installation
9
To Install as a
Slave Drive
Connecting
the Power
Connector
To install the drive as a Slave, change the jumper setting on the rear
panel to SL.
D
I
G
I
T
A
L
A
N
A
L
O
G
INTE
R
FA
CE
PO
WE
R
D
R
CS
M
S
L
A
G
LG3
9
1
+
5
+
1
2
G
N
D
4
0
2
A
U
D
I
O
A
U
D
I
O
Master drive
(Booting hard disk)
Slave drive
(CD-RW/DVD-ROM
drive)
(Jumper set to
SLave)
D
I
G
I
T
A
L
A
N
A
L
O
G
INTERFA
CE
POW
ER
D
R
C
S
M
S
L
A
G
L
G
3
9
1
+
5
+
1
2
G
N
D
4
0
2
A
U
D
I
O
A
U
D
I
O
D
I
G
I
T
A
L
A
N
A
L
O
G
INTE
RFACE
PO
W
ER
D
R
C
S
M
S
L
A
G
L
G
3
9
1
+
5
+
1
2
G
N
D
4
0
2
A
U
D
I
O
A
U
D
I
O
Master drive
(Booting hard disk)
Primary connector
Slave drive
(CD-RW/DVD-ROM
drive)
(Jumper set to
SLave)
Secondary
connector
Master drive
(Other IDE drive)
- OR -
Connect the power cable from the computer’s power supply to the socket
on the drive unit, fitting the connector firmly into the power in connector.
If there is no spare power cable available in the computer, you will have
to purchase a splitter cable of a suitable type.
DIGITAL
AUDIO
ANALOG
AUDIO
INTERFACE
POWER
D
G
3
9
4
0
1
+
5
G
N
D
+
1
2
2
C
S
M
S
L
A
R
G
L
+5
GND
+12
POWER
Beveled edge up
NOTE : Improper connection may damage the drive and void the
warranty. Generally, the power connector can only fit one way.
DirectCD
TM
v2.5b(s)
Installation
10
Connecting
the Interface
Connector
Connecting
the Sound
Card
Replacing the
Computer
Cover
Connect the 40-pin IDE cable to the back of the CD-RW/DVD-ROM
Drive, making sure the coloured (red) stripe on the IDE cable is
connected to pin 1 on the CD-RW/DVD-ROM drive. Pin 1 is closest to
the Power Connector.
NOTE : Generally, the IDE connector is keyed and will only fit one way.
D
I
G
I
T
A
L
A
U
D
I
O
A
N
A
L
O
G
A
U
D
I
O
I
N
T
E
R
F
A
C
E
P
O
W
E
R
D
G
3
9
4
0
1
+
5
G
N
D
+
1
2
2
C
S
M
S
L
A
R G
L
Pin1
Red-edge
If the computer is using a sound card, the drive is connected to the sound
card with an audio cable. The supplied analog audio cable fits most sound
cards or one can be purchased at a local computer store.
Refer to the manual for the sound card for detailed
information regarding connection.
DIGITAL
AUDIO
D G
R G L
C S M
S L A
39
40
12+5
GND
+12
ANALOG
AUDIO
INTERFACE
POWER
LR
D
IG
IT
A
L
A
U
D
IO
A
N
A
L
O
G
A
U
D
IO
IN
T
E
R
D
G
3
9
4
0
C
S
M
S
L
A
R
G
L
marking L-R
Sound card
When the installation of the drive unit is complete, replace the computer
cover
DirectCD
TM
v2.5b(s)
Installation
11
For Windows
95/98/2000/ME/
XP Users
For Windows
NT
Workstation
Ver.4.0 Users
Device Drivers
When using Windows 95/98/2000/Me/XP or Window NT Workstation
Ver.4.0, no special device driver is required.
Your system, upon Power On and bootup after installing and connecting
the new CD-RW/DVD-ROM drive, will recognize and load native software
drivers automatically.
The DOS and Windows 3.1 users can download the DOS Device drivers
anytime via internet.
For your information, please consult the following internet sites:
http://www.lge.com
http://www.lgeservice.com/drivers.html
■ In order to ensure normal drive operation, please check the following:
• The drive is displayed in
Windows 95/98/ME : [Control Panels]-[System]-[Device Manager]-
[CD-ROM]
Windows 2000/XP : [Control Panels]-[System]-[Hardware]-
[Device Manager]-[DVD/CD-ROM-Drive]
• 32-bit is displayed in
[Control Panels]-[System]-[Performance]
■ If the drive is not recognized by your computer, please check the
following items.
• If a indicator is displayed on the IDE controller in [Control
Panels]-[System]-[Devices Manager]-[Hard Disk Controller], you
will need to contact your PC’s manufacturer or the motherboard’s
manufacturer and get the appropriate IDE controller driver.
■ Run Add New Hardware in Control Panel to let PC search again for
new device.
■ In order to ensure normal drive operation, please check to see
if the drive is displayed on the IDE controller in [Control Panels][SCSI Adapter]-[Devices]
■ If the drive is not recognized by your computer, a indicator is
displayed on the IDE controller in [Control Panels]-[SCSI Adapter][Devices], you will need to contact your PC’s manufacturer or the
motherboard’s manufacturer and get the appropriate IDE controller
driver.
DirectCD
TM
v2.5b(s)
Operation
12
Emergency
Eject
How to Use the Discs
When using CD-ROM discs, CD-R discs, DVD discs or CD-RW discs,
don’t attach any stickers or labels to the discs. Using discs with them
attached not only causes read and write errors, but data on the disc may
be lost due to damage to the disc itself.
The Discs in this unit operate at a very high speed!
DO NOT use damaged, cracked or warped discs. The drive’s optical unit
may be damaged if they break.
DO NOT use non-standard discs. NON-standard discs may not play or
store data properly.
This drive has a feature that allows the CD to be ejected manually if this
becomes necessary in an emergency, such as failure of the drive or a
power outage.
NOTE: Don’t use this feature except in an emergency.
1) Turn the power to OFF.
2) Poke a fine-tipped object (such as a straightened heavy duty paper
clip) into the small hole above the eject button.The front door will
pop open and the disk tray will come partway out.
3) Pull the front door to open it all the way, then grip the disc tray
between thumb and forefinger and gently pull it straight out.
NOTE: This feature is a last measure to be used only in an emergency.
Using it excessively will cause malfunction.
* If you cannot get a good grip on the disc tray with your fingers, use a
steel binder clip or spring clamp to pull it out.
DirectCD
TM
v2.5b(s)
Appendix
13
Before
Requesting
Service
Troubleshooting
Before calling for service, check this list.
• The drive doesn’t have power.
• Is the power supply cable from the host computer plugged in?
• Is the Power Connector to the drive securely attached?
• The system doesn’t start.
• Are the Primary and Secondary connections and the Master and
Slave settings correct?
• Is the total length of the IDE cable 18 inches or less?
• Is each connector completely attached?
Movement of the PC may loosen connections.
• Cannot Read or Write Discs.
• Is the condition of everything else in the system (CPU, hard disc, and
others) as it should be? (See system environment page 4.)
• Does the CD-R, DVD or CD-RW disc have dirt or scratches?
• Did a screen saver or other application operate while writing to the
disc?
• Is there enough free space on the CD-R/RW disc?
• Does writing fail even using the simulation test?
• Is the disc loaded in the drive with the read/write surface facing the
right direction? (label up)
• Is the drive installed in the correct orientation?
• Was the drive or disc moved from a low temperature environment to a
high temperature environment? (There is a possibility of condensation on the lens in the drive or on the surface of the disc.)
When you call for service, be prepared to give as much information as
possible of your system, environment, and the specific problem. (What
happened? When? How long? What was going on? Were there any error
messages displayed? etc.)
Please Note: Since this product supports Region Playback Control
Phase II, a certain MPEG decoder card or Software without regional code
setting may cause this drive not to read DVD-ROM discs. This Drive
enables you to change the regional code up to 5 times.
14
Specifications
The drive’s appearance and specifications may change without prior notice.
CD/DVD/CD-RW
CD-ROM, CD-ROM XA, Audio CD, Mixed Mode (Audio and
Data Combined), CD-I FMV, Video CD, Photo CD (Single
and Multi -Session), CD-Plus/CD-Extra, CD-Text
DVD-Single/Dual, DVD-R/RW, DVD+R/RW
CD-ROM, CD-ROM XA, Audio CD, CD-I FMV, Video CD,
CD-Plus/CD-Extra
12cm/ 8cm, standard size CD's
E-IDE/ATAPI
Write (CD-R) : 4X, 8X, 16X, 24X, 32X, 40X, 48X
Write (CD-RW) : 4X, 10X, 16X, 24X
Read (CD-ROM) : max 48X Read (DVD) : max 16X
Horizontal/Vertical
CD: R/RW: 2550 to 6000 KB/s (17X-40X CAV)
ROM: 3000 to 7200 KB/s (20X-48X CAV)
DVD: Dual: Data: 4460 to 10800 KB/s (3.3X-8X CAV)
Movie: 3370 to 8100KB/s (2.5X-6X CAV)
Single: Data: 8700 to 21600 KB/s (6.5X-16X CAV)
Movie: 4460 to 10800 KB/s (3.3X-8X CAV)
-R/RW, +R/RW: 3370 to 8100KB/s (2.5X-6X CAV)
16.67 MB/s (PIO Mode 4), 16.67 MB/s (Multi DMA Mode 2)
33.34 MB/s (Ultra DMA Mode 2)
CD-RW/CD-ROM: 110ms(Typical)
DVD(Single Layer) : 120ms(Typical)
2 Mbytes
125000 Power On Hours (Duty Cycle 10%)
0.7 Vrms at 47 kohm
0.6 Vrms at 32 kohm
Temperature:5 °C to 45 °C Humidity: 10% to 80% R.H.
Temperature: -20 °C to 60 °C Humidity: 5% to 90% R.H.
5.75"x7.27"x1.63" (146 x 184.7 x 41.3 mm)
Less than 2lbs.(0.90Kg)
DC 5V, DC 12V
Items
General Supported Discs
*Read Function
*Write Function
Disc Diameter
Host Interface
Read/Write Speed
Mounting direction
Performance Data transfer rate
*Sustained
*Burst(ATAPI)
Average Access
Time (Random)
Buffer capacity
MTBF
Audio Output Line Output
Headphone
Environmental When operating
When not operating
Dimensions Dimensions
& Mass (WxHxD)
Weight
Electrical Power
Level
Conditions
Website ; http://www.lge.com
http://www.LGEservice.com
P/NO. 3828HM1038A
Caution!
The disc rotates at high speed in the drive unit.
Use of worn, damaged, or non-standard CD-ROM discs
can only adversely affect the drive and cause the disc to
shatter or crush while in use.
Disc crush can only occur when you use a damaged
CD-ROM disc in the drive. It is an extremely rare
occurrence, but there are steps which can be taken to
prevent it.
Always check your discs before inserting them into
the drive.
1. Take care not to use worn, cracked, damaged,
warped or poor quality CD-ROMs, as this may
cause damage to your drive.
2. Check the clear plastic on the center of the disc,
cracks here are the main cause of disc crush.
3. Do not play CD-ROMs which are a non-standard
(I.e. non-circular)shape, such as heart shaped
discs, or discs in the shape of a business card.
How can you keep your discs from becoming
damaged?
1. When not in use, remove discs from the drive.
2. Keep discs in the packaging supplied with them
and out of direct sunlight and away from heat
sources.
Excessive vibration or a sudden jolt to the drive during
operation may cause a malfunction.
Avoid exposing the drive to sudden changes in
temperature as it may cause condensation to collect
inside the drive.
Copyright ©2002
LG Electronics U.S.A. Inc.
1000 Sylvan Ave.
Englewood Cliffs NJ 07632
U. S. A.
or http://www.lgeus.com
LG Electronics Canada Inc.
550 MATHESON Blvd. East Mississauga.
Ontario L4Z4G3 CANADA
LG Electronics Deutschland GMBH
Jakob-Kaiser-Straße 12,
D-47877 Willich, Germany
LG Electronics U. K. Ltd.
LG House, 264 Bath Road,
Slough Berkshire SL1 4DT
United Kingdom
Goldstar France S.A.R.L
Paris Nord II 22, Avenue des
Nations-B.P.50372 VILLEPINTE
95945 ROISSY CDG CEDEXLG France
LG Electronics Italia S.P.A.
Centro Direzione “IL Quadrate” Via
Modigliani, 20090 Segrate (MI) Italy
LG Electronics España
Complejo Europa Empressaries (Edif.Bruselas)
Ctra. N-VI 28230 Las Rozas Madrid Spain
LG Electronics Australia Pty Ltd.
23, pike st Rydalmere NSW 2116
or http://www.lge.com.au
©
2002 Made by
Loading...
