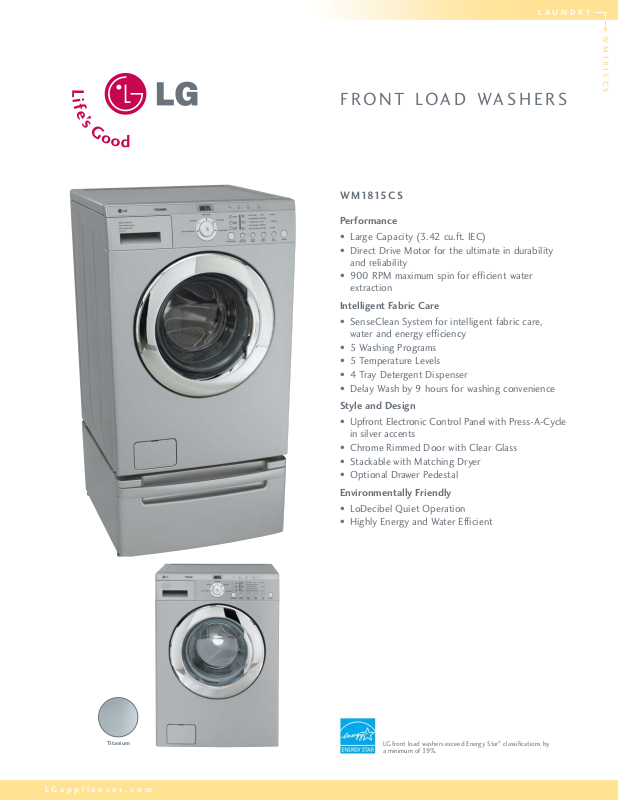

FRONT LOAD WASHERS
WM1815CS
Performance
• Large Capacity (3.42 cu.ft. IEC)
• Direct Drive Motor for the ultimate in durability
and reliability
• 900 RPM maximum spin for efficient water
extraction
Intelligent Fabric Care
• SenseClean System for intelligent fabric care,
water and energy efficiency
• 5 Washing Programs
• 5 Temperature Levels
• 4 Tray Detergent Dispenser
• Delay Wash by 9 hours for washing convenience
Style and Design
• Upfront Electronic Control Panel with Press-A-Cycle
in silver accents
• Chrome Rimmed Door with Clear Glass
• Stackable with Matching Dryer
• Optional Drawer Pedestal
Environmentally Friendly
• LoDecibel Quiet Operation
• Highly Energy and Water Efficient
Titanium
WM1815CS
LGappliances.com
LAUNDRY
LG front load washers exceed Energy Star®classifications by
a minimum of 39%.
Printed in December 2005 SS-WM1815CS
WM1815CS
TYPE
Front Loader
Design Look Front Panel
Intelligent Electronic Controls Press-A-Cycle
Capacity 3.42 cu.ft. (IEC)
ENERGY
Energy Star Compliant
WASH PROGRAMS
5 Programs Cotton/Towels,
Normal, Perm Press,
Delicates,
Hand Wash
5 Wash/Rinse Temperature Levels Hot/Cold, Warm/Warm,
Warm/Cold, Cold/Cold, Tap Cold/Cold
6 Spin Speeds 900 RPM, 800 RPM, 700 RPM,
600 RPM, 400 RPM, No Spin
No. of Water Levels Automatically adjusts to size of load
No. of Soil Levels 3 (Heavy, Normal, Light)
5 Options Prewash, Quick Cycle,
Extra Rinse, Rinse & Spin,
Delay Wash (Time Up to 9 hours)
FABRIC CARE FEATURES
SenseClean
CONVENIENCE FEATURES
4 Tray Dispenser (Prewash, Wash, Bleach, Softener)
End of Cycle Beeper
Child Lock
Self Diagnosis
Auto Balancing
Auto Sud Removal
Forced Drain System
Remaining Time Display/Status Indicator
Leveling Legs 4 Adjustable Legs
LoDecibel Quiet Operation
MOTOR AND AGITATOR
Motor Type / Motor Speed Direct Drive / Variable
Agitator Type Horizontal Axis
MATERIALS AND FINISHES
NeveRust Stainless Steel Drum
Cabinet Top Painted
Transparent Glass Window Door
Door Rim Chrome
Cabinet Painted Steel
Control Panel Plastic
Colors Titanium
POWER SOURCE
Ratings / Requirements UL Listed / 120V, 60Hz, 5 Amps
Type Electric
DIMENSIONS
Product (WxHxD) 27" x 39" x 30 1/32"
(50 13/16"D with door open)
Carton (WxHxD) 29 7/8" x 44 7/8" x 31 1/4"
Weight (lbs): Net / Gross 173 / 196
OPTIONS
Pedestal WDP3S
Pedestal (WxHxD) 27" x 13 3/5" x 28 2/5"
Stacking Kit SSTK1
WARRANTY
1 year (parts and labor)
2 years (control board)
7 years (motor)
Lifetime on drum
UPC CODE
WM1815CS 048231 008754
WDP3S 048231 008570
All trademarks are property of their respective owners.
Design and specifications are subject to change without notice.
FRONT LOAD WASHERS
LG ELECTRONICS INC.
1000 Sylvan Ave., Englewood Cliffs, NJ 07632
800.243.0000 LGappliances.com
Stackable or Side by Side?
Your Choice. Less space? Try stacking the washer and dryer.
More space? Place them side by side or under a counter.
Don’t want to bend down so far to load or unload clothing?
Add our 13.7" high drawer pedestals. It also doubles as a
great place to store laundry products.
Electronic Control Panel with Press-A-Cycle
Intuitive controls allow you to "press and go".
Direct Drive Motor
Power is delivered right to the drum from the motor
without belts, resulting in a highly durable, powerful and
quiet washing machine.
SenseClean System
The water level and wash time are set automatically
based on the weight and size of each load for optimal
washing care.
LoDecibel Quiet Operation
Direct Drive and auto balancing reduced noise dramatically
compared to conventional motors.
