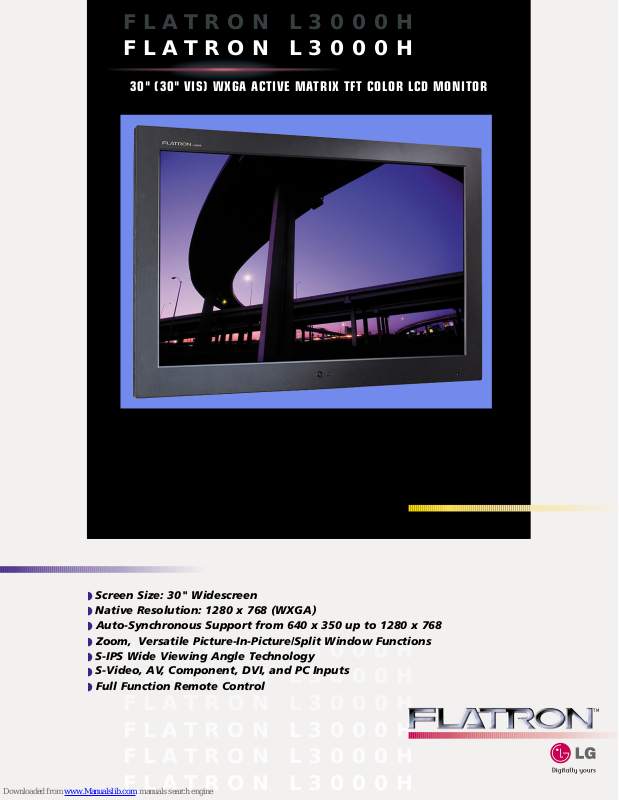

Page 1
FLATRON L3000H
FLATRON L3000H
30" (30" VIS) WXGA ACTIVE MATRIX TFT COLOR LCD MONITOR
◗ Screen Size: 30" Widescreen
◗ Native Resolution: 1280 x 768 (WXGA)
◗ Auto-Synchronous Support from 640 x 350 up to 1280 x 768
◗ Zoom, Versatile Picture-In-Picture/Split Window Functions
◗ S-IPS Wide Viewing Angle Technology
◗
◗ Full Function Remote Control
FLATRON L3000H
S-Video, AV, Component, DVI, and PC Inputs
FLATRON L3000H
FLATRON L3000H
FLATRON L3000H
FLATRON L3000H
FLATRON L3000H
TM
Page 2
FLATRON L3000H
FLATRON L3000H
A large screen, coupled with maximum resolution, makes for an impressive
30" (30" VIS) WXGA ACTIVE MATRIX TFT COLOR LCD MONITOR
FLATRON L3000H
SCREEN TYPE/SIZE 30" (30"VIS) WXGA Active Matrix TFT Color LCD
DISPLAY AREA 25.3" x 15.2" (643mm x 386mm)
VIDEO Aspect Ratio: 15:9 Pixel Clock: 108Mhz
AUTO-SYNC SUPPORT 640 x 350 up to 70Hz, 640 x 480 up to 85Hz,
www.LGeus.com
Contrast Ratio: 400:1 Response Time: 25ms (Max.)
Peak Brightness: 450 cd/m
Native Display Resolution: 1280 x 768 (WXGA) Rise Time: 12ms (Typical)
Cell Pitch (HxV): 0.5025mm x 0.1675mm x RGB Input Freq. Range: For PC: Autoscanning
Backlighting: 16 CCFL Lamps Hf: 31~66kHz Vf: 56~85Hz
Displayable Colors: 16.77 Million (24 Bit) Surface Treatment: Hard Coating 3H,Anti-Glare
Viewing Angle: 176°/176 S-IPS Technology Electronic Interface: LVDS
2
720 x 400 up to 70Hz, 800 x 600 up to 85Hz, 832 x 624 up to 75Hz,
1024 x 768 up to 75Hz (Analog only), 1280 x 768 up to 60Hz (Analog only),
1280 x 1024 up to 60Hz (Analog only)
showing in the office or home theater. The FLATRON L3000H is digital ready,
and with Picture-in-Picture and a LightView function, it brings the big picture
to life - beautifully.
Fall Time: 12ms (Typical)
INPUT TERMINALS PC and RGB DTV/Audio: DVI-I (24 Pin), Video/Audio: NTSC Composite (RCA Phono Jacks)
D-Sub 15 (VGA Type)/RCA Phono Jacks
Component/DVD/DTV: RCA Jacks Y, Pb/Cb, Pr/Cr
Video/Audio: NTSC Composite (RCA Phono Jacks)
S-Video: Mini DIN 4-Pin
OUTPUT TERMINALS Audio Out
MEMORY MODES 13 Factory Pre-Set
POWER REQUIREMENTS 90V~264V, 47/63HZ
DPMS POWER CONSUMPTION On: 145W Max., Standby: < 5W
MONITOR CONTROLS Source, Menu, Adjust(Down, Up, Left, Right), Auto-Set/Select, Power
ON-SCREEN CONTROLS Brightness, Coontrast, Color Temp., H/V Position, Clock, Phase, Image Size, OSD Position,
S-Video: Mini DIN 4-Pin
OSD Lock, OSD Transparency, Information (Elapsed Time, Mode), Language Select,
Auto Adjust, PIP Menu (PIP /On/Off, PIP Source, PIP Size, PIP Position, PIP),
Audio Menu (Volume, Treble, Bass, Mute, Sound, Mono/Stereo),
PSM Menu (User, Game, Standard, Dynamic, Mild)
DIMENSIONS (WxHxD) 28.9" x 19.2" x 3.9" (734mm x 487mm x 99mm) Monitor Only,
SHIPPING DIMENSIONS (WxHxD) 33.5" x 26.3" x 11.1" (852mm x 667mm x 283mm)
WEIGHT 36.2 lbs (16.4 kg)
SHIPPING WEIGHT 48.5 lbs (22 kg)
SAFETY/REGULATORY UL, FCC, EPA Energy Star, SEMKO, CSA, IEC, CB
ACCESSORIES Remote Control, Power Cord, A/V Cable, PC VGA Cable, PC Audio Cable,
DVI-D 19-Pin Cable, 2 (AAA) Batteries, User's Manual
OTHER FEATURES Advanced Picture in Picture and Side by Side Twin Picture, Image Zoom Function
PRODUCT WARRANTY 3 Year Limited Warranty on parts, labor, and backlights
MOUNTING OPTIONS Standard VESA Mounting, 200mm x 100mm Screw Spacing
UPC# 719192176812
LG ELECTRONICS U.S.A., INC.
HEADQUARTERS
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 ◗ Tel: (201) 816-2000, Fax: (201) 816-2188 ◗ www.LGeus.com
©2003 LG Electronics U.S.A., Inc. All trademarks are property of their respective owners. Design and specifications subject to change without notice. 10/03
