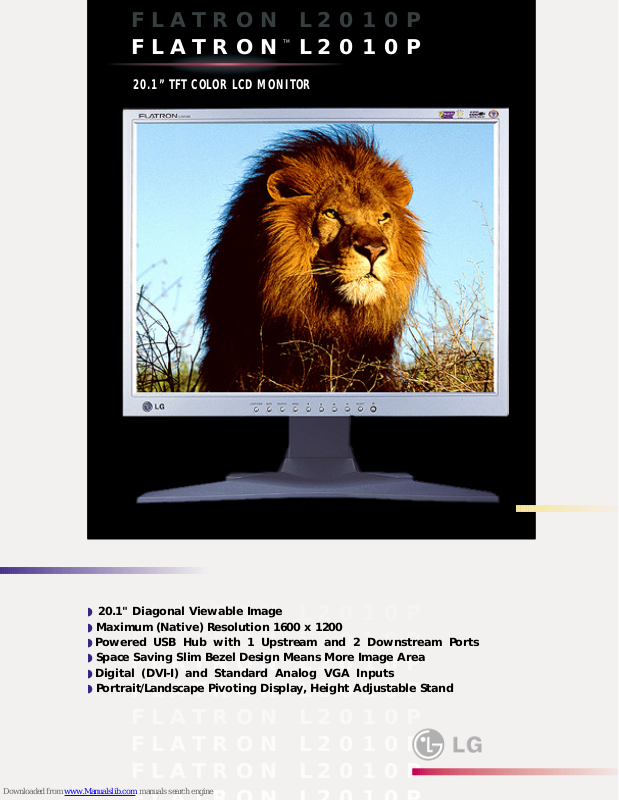

Page 1
FLATRON L2010P
TM
FLATRON L2010P
20.1” TFT COLOR LCD MONITOR
FLATRON L2010P
FLATRON L2010P
FLATRON L2010P
◗ 20.1" Diagonal Viewable Image
◗ Maximum (Native) Resolution 1600 x 1200
◗ Powered USB Hub with 1 Upstream and 2 Downstream Ports
◗ Space Saving Slim Bezel Design Means More Image Area
◗ Digital (DVI-I) and Standard Analog VGA Inputs
◗ Portrait/Landscape Pivoting Display, Height Adjustable Stand
FLATRON L2010P
FLATRON L2010P
FLATRON L2010P
FLATRON L2010P
FLATRON L2010P
FLATRON L2010P
FLATRON L2010P
Page 2
FLATRON L2010P
EPA POLLUTION PREVENTER
FLATRON L2010P
A slim look with all the features you need. In addition to a sleek profile, the
FLATRON L2010P TFT-LCD has both digital (DVI-I) and standard analog
20.1” TFT COLOR LCD MONITOR
VGA input. Plus a powered USB hub with 1 upstream and 2 downstream,
up to 1600 x 1200 resolution, 35
FLATRON L2010P
DISPLAY SIZE AND TYPE 20.1" TFT Color LCD (20.1" VIS)
DISPLAY AREA 16.1" x 12.1"
DISPLAY COLORS 16.7 million
PIXEL PITCH 0.255 mm x 0.255 mm pixel
SURFACE TREATMENT Hard coating 3H, anti-glare
ELECTRONIC INTERFACE LVDS
BACKLIGHTING 6 CCFL lamps
NATIVE RESOLUTION (MAX.RES.) 1600 x 1200
BRIGHTNESS 250 cd/m
CONTRAST RATIO 350:1 (typical)
PIXEL CLOCK 202.5 MHz (analog)
RESPONSE TIME 16 ms (typical)
www.LGusa.com
2
(typical)
Rise Time 10 ms (typical)
Fall Time 6 ms (typical)
VIEWING ANGLE H: 176º , V: 176º S-IPS Technology
HORIZONTAL SCANNING FREQUENCIES 30~96 kHz (autoscanning)
VERTICAL SCANNING FREQUENCIES 56~85 Hz (autoscanning)
AUTO SYNC SUPPORT 640 x 350 ~ 1600 x 1200
remarkable viewing experience. The FLATRON L2010P from LG.
Simply the best.
0:1 contrast, fine pixel pitch for a
CONTROL TYPE On-screen display of adjustments
INPUT SIGNALS RGB analog (0.7V pp) and DVI-D
INPUT TERMINALS 15-pin D-sub, DVI-D 24-pin
SYNC SIGNALLING Separate, digital signal
VESA PLUG AND PLAY LEVEL DDC2B
UNIVERSAL SERIAL BUS HUB Powered, 1 upstream, 2 downstream
DIGITAL ON-SCREEN CONTROLS Brightness, Contrast, Color: (9300K,6500K), user (RGB)
Horiz/Vert position , Clock, Phase, Language,
Zoom, Image size , OSD transparency, OSD lock, LightView Menu
Front Panel Controls Power, Lightview, Auto Adjust, Source, Menu, Left/Right/Up/Down, Select
POWER REQUIREMENTS 90~264 VAC (47~63 Hz)
DPMS POWER CONSUMPTION On: 60 W; Suspend: <5 W
TILT CAPABILITY Tilt: 5~30º
VESA WALL/SPECIAL MOUNTING TYPE Standard VESA, 100mm x 100mm Screw Spacing
DIMENSIONS WITH BASE (WXDXH) 17.6" x 9.3" x 17.6" (446mm x 237mm x 446mm)
SHIPPING DIMENSIONS (WxDxH) 22.4" x 13.2" x 21.2" (568mm x 335mm x 538mm)
WEIGHT Net: 21.8 lbs., 28.2 lbs. shipping weight
SAFETY/REGULATORY UL, FCC-B, EPA Energy Star, MPR-II, CSA, TUV-GS, SEMCO, CE, TCO-99, ISO-9241-3, C-Tick, GOST
ACCESSORIES D-Sub15-pin cable, DVI-D 19-pin cable, Power cord,
USB cable, Colorific Software/Manual Disk
LGEUS WARRANTY 3 year limited warranty on parts, labor and backlights
UPC# 719192165304
LG ELECTRONICS U.S.A., INC.
HEADQUARTERS
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 ◗ Tel: (201) 816-2000, Fax: (201) 816-2188
© 2004 LG Electronics U.S.A., Inc. All other trademarks are the property of their respective owners. Design and specifications subject to change without notice.
The Energy Star emblem does not represent EPA endorsement of any product or service.
