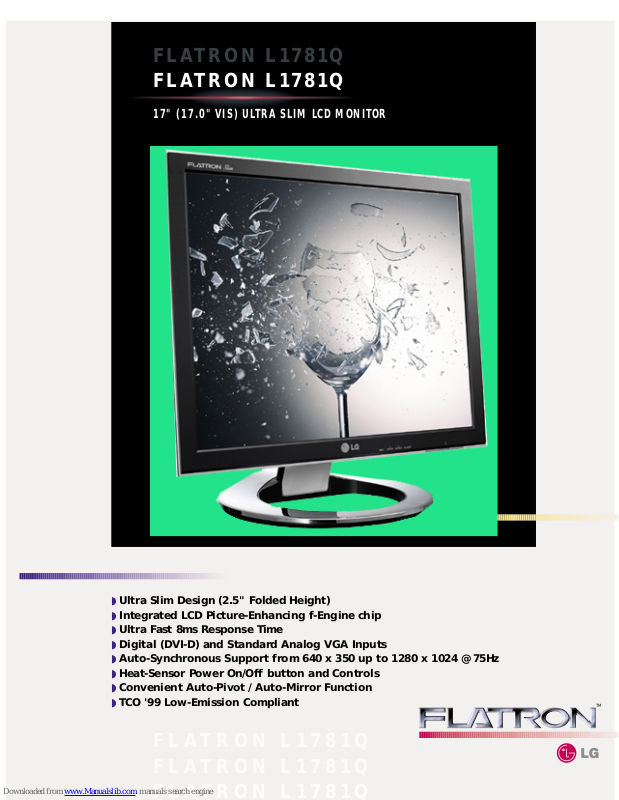

FLATRON L1781Q
FLATRON L1781Q
17" (17.0" VIS) ULTRA SLIM LCD MONITOR
F
◗ Ultra Slim Design (2.5" Folded Height)
◗ Integrated LCD Picture-Enhancing f-Engine chip
◗ Ultra Fast 8ms Response Time
◗ Digital (DVI-D) and Standard Analog VGA Inputs
◗ Auto-Synchronous Support from 640 x 350 up to 1280 x 1024 @ 75Hz
◗ Heat-Sensor Power On/Off button and Controls
◗ Convenient Auto-Pivot / Auto-Mirror Function
◗ TCO '99 Low-Emission Compliant
FLATRON L1781Q
FLATRON L1781Q
FLATRON L1781Q
TM
Page 2
FLATRON L1781Q
FLATRON L1781Q
17" (17.0" VIS) ULTRA SLIM LCD MONITOR
www.LGusa.com
Introducing the new L1781Q monitor from LG; the slimmest flatscreen in its
class. Its f-ENGINE technology features the first LCD picture-enhancing chip to
provide not only astounding color, but superb contrast and image quality. Plus
it has many other features, like heat-sensor power on/off button, DVI-D input,
and auto-pivot/mirror function. L1781Q LCD monitor from LG. Superior
performance in a slim package.
DISPLAY TYPE 17.0" (17.0" VIS) Color Active Matrix TFT LCD Screen
DISPLAY AREA 13.3" x 10.6" (338mm x 270mm)
DISPLAY COLORS 16.2 Million (6 Bits + FRC)
PIXEL PITCH 0.264mm x 0.264mm Pixel
PIXEL CONFIGURATION RGB Stripe
SURFACE TREATMENT Hard Coating 3H, Anti-Glare
ELECTRONIC INTERFACE LVDS
BACKLIGHTING 4 CCFL
MAXIMUM RESOLUTION 1280 x 1024
BRIGHTNESS 250cd/m
2
(Typical)
CONTRAST RATIO 500:1 (Typical)
RESPONSE TIME 8ms (Typical)
VIEWING ANGLE H: 160º, V: 160º
HORIZONTAL SCANNING
FREQUENCIES
30-83kHz, Auto-Synchronous
VERTICAL SCANNING
FREQUENCIES 56-75Hz, Auto-Synchronous
AUTO-SYNC SUPPORT 640 x 350 up to 70Hz, 640 x 480 up to 75Hz,
720 x 400 up to 70Hz, 800 x 600 up to 75Hz,
832 x 624 up to 75Hz, 1024 x 768 up to 75Hz
1280 x 1024 up to 75Hz
CONTROL TYPE On-Screen Display of Adjustments
INPUT SIGNAL RGB Analog
INPUT TERMINALS 15-Pin D-SUB and DVI-D
SYNC SIGNALING Separate, Composite, SOG, Digital Signal
MEMORY MODES 13 Factory Preset, 10 User-Settable
VESA PLUG AND PLAY LEVEL DDC2B
DIGITAL ON-SCREEN CONTROLS Brightness, Contrast, Gamma, Horizontal/Vertical Position, Clock, Phase, OSD Position, f-Engine(Pre-set modes)
Color Temp (9300K, 6500K, User), Language, Factory Reset, ADC Calibration, Auto Input
FRONT PANEL CONTROLS Power, Menu (-, +), Set/Auto, f-Engine, Source
POWER REQUIREMENTS 90-264 VAC, 47-63Hz
DPMS POWER CONSUMPTION On: 40 Watts, Standby: 2 Watts, DPMS Off: 2 Watts
TILT/SWIVEL Tilt: Down 0º/Up 157º
VESA MOUNTING COMPLIANCE Standard VESA Mounting, 100mm x 100mm Screw Spacing
DIMENSIONS WITH BASE (WxDxH) 14.7" x 9.5" x 14.9" (374mm x 240mm x 378mm); Folded 14.7" x 2.5" x 12.2"
SHIPPING DIMENSIONS (WxDxH)
18.7" x 5.5" x 15.6" (476mm x 140mm x 396mm)
WEIGHT 9.5 lbs (4.3 kg) Net; 13.4 lbs (6.1 kg) Shipping
SAFETY/REGULATORY TCO ‘99, UL, FCC-B, CE, EPA Energy Star, CSA,
SEMKO, GOST, TUV-GS, ISO 13406-2, VCCI-2, C-TICK
ACCESSORIES Power Cord, Signal Cable, DVI Cable, Manual, Install Disk
LGEUS WARRANTY 3 Year QuickSwap Replacement Program
UPC# 719192179905
