LG Flatron L1720P Specifications

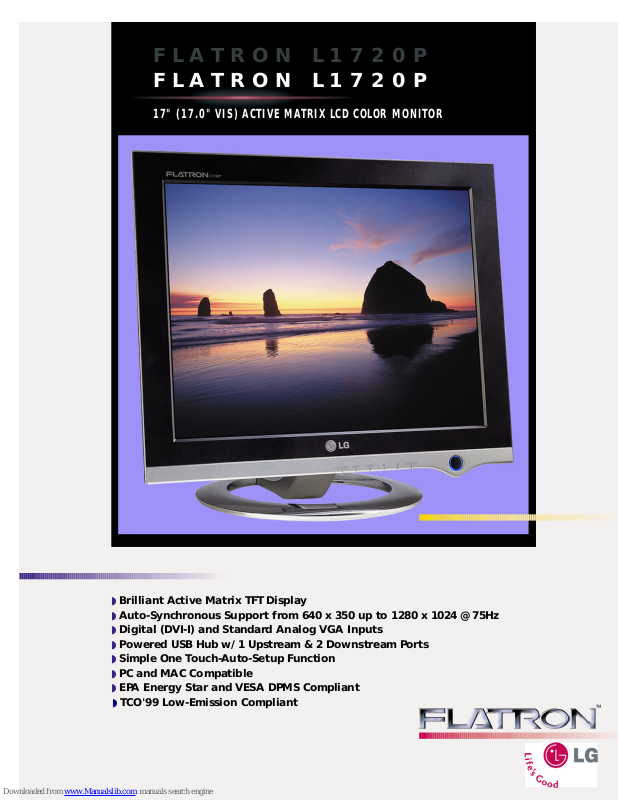

FLATRON L1720P
FLATRON L1720P
17" (17.0" VIS) ACTIVE MATRIX LCD COLOR MONITOR
◗ Brilliant Active Matrix TFT Display
◗ Auto-Synchronous Support from 640 x 350 up to 1280 x 1024 @ 75Hz
◗ Digital (DVI-I) and Standard Analog VGA Inputs
◗ Powered USB Hub w/ 1 Upstream & 2 Downstream Ports
◗ Simple One Touch-Auto-Setup Function
◗ PC and MAC Compatible
◗ EPA Energy Star and VESA DPMS Compliant
◗ TCO'99 Low-Emission Compliant
TM
FLATRON L1720P
EPA POLLUTION PREVENTER
T
H
R
E
E
Y
E
A
R
Q
U
I
C
K
S
W
A
P
R
E
P
L
A
C
E
M
E
N
T
P
R
O
G
R
A
M
FLATRON L1720P
Digital input, Super sharp imaging and an incredibly bright picture make the
17" (17.0" VIS) ACTIVE MATRIX LCD COLOR MONITOR
FLATRON L1720P
DISPLAY TYPE 17.0" (17.0" VIS) Active Matrix TFT Color LCD Screen
DISPLAY AREA 13.3" x 10.6" (338mm x 270mm)
DISPLAY COLORS More than 16.1 Million (6 Bit + FRC)
PIXEL PITCH 0.264mm x 0.264mm Pixel
PIXEL CONFIGURATION RGB Stripe Arrangement
SURFACE TREATMENT Hard Coating 3H,Anti-Glare
ELECTRONIC INTERFACE LVDS
BACKLIGHTING 4CCFL
MAXIMUM RESOLUTION 1280 x 1024
BRIGHTNESS 300cd/m
CONTRAST RATIO 500:1 (Typical)
RESPONSE TIME 12 ms (Typical)
www.LGusa.com
2
(Typical)
L1720P LCD monitor an especially attractive option. Its design is based on
the award winning L2320A LCD monitor, offering a sleek footprint and
finished back, that's sure to be a perfect fit for any size office.
VIEWING ANGLE H: 160°, V: 160°
HORIZONTAL SCANNING
FREQUENCIES 30-83kHz, Auto-Synchronous
VERTICAL SCANNING FREQUENCIES 56-75Hz,Auto-Synchronous
AUTO-SYNC SUPPORT 640 x 350 up to 70Hz, 640 x 480 up to 70Hz, 720 x 400 up to 70Hz,
800 x 600 up to 75Hz, 832 x 624 up to 75Hz, 1024 x 768 up to 75Hz, 1280x1024 up to 75Hz
CONTROL TYPE On-Screen Display of Adjustments
INPUT SIGNAL RGB Analog
INPUT TERMINALS Digital (DVI-I) and Standard VGA D-Sub 15-pin Connector
SYNC SIGNALING Separate H/V
MEMORY MODES 13 Factory Preset, 10 User-Settable
VESA PLUG AND PLAY LEVEL DDC2B, DDC1
DIGITAL ON-SCREEN CONTROLS Brightness, Contrast, Horizontal/Vertical Position, Clock, Phase (+/-), 5 Language Select, Image Size
Auto-Adjust, OSD Position, Color Temp (9300K, 6500K, User), Information, LightView Menu
FRONT PANEL CONTROLS Menu, Adjust (Up/Down/Left/Right), Auto-Set/Select, Power
POWER REQUIREMENTS 90-264 VAC, 50-60Hz
DPMS POWER CONSUMPTION On: 40 Watts, Standby: 3 Watts, DPMS Off: 3 Watts
TILT/SWIVEL Tilt: Down 0°/Up 25°
VESA MOUNTING COMPLIANCE Standard VESA Mounting, 100mm x 100mm Screw Spacing
DIMENSIONS WITH BASE (WxDxH) 15.5" x 5.0" x 16.2" (394mm x 128mm x 412mm)
SHIPPING DIMENSIONS (WxDxH) 18.3" x 7.5" x 18.7" (465mm x 191mm x 475mm)
WEIGHT 10.6 lbs (4.8 kg) Net; 15.0 lbs (6.8 kg) Shipping
SAFETY/REGULATORY TCO‘99, UL1950, FCC-B, EPA Energy Star, IEC950, CSA, CE,
TUV-GS, SEMKO, GOST, ISO 9241-3,7,8, C-TICK, VCCI-2
ACCESSORIES Power Cord, Signal Cable, DVI Cable, USB Cable, Manual, Install Disk,
LGEUS WARRANTY 3 Year QuickSwap Replacement Program
UPC# 719192166585
LG ELECTRONICS U.S.A., INC.
HEADQUARTERS
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 ◗ Tel: (201) 816-2000, Fax: (201) 816-2188 ◗
©2003 LG Electronics U.S.A., Inc. All trademarks are property of their respective owners. Design and specifications subject to change without notice. 9/03
www.LGusa.com
