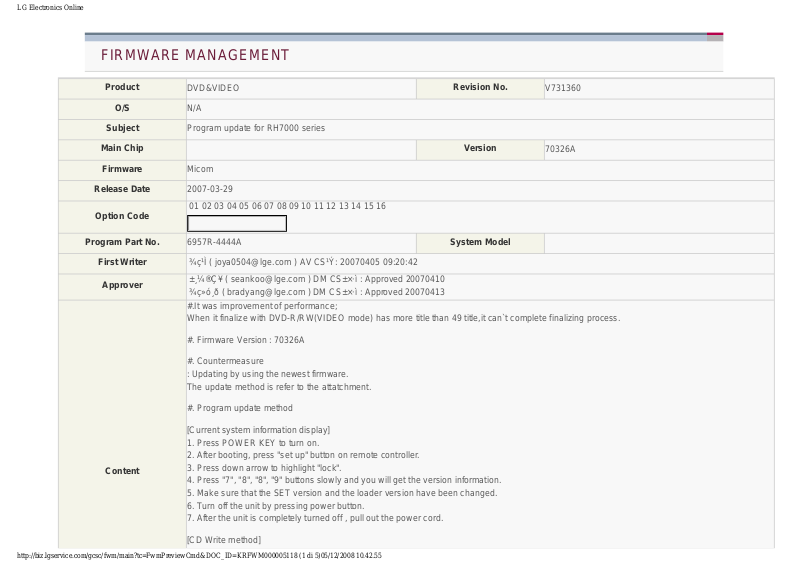

FIRMWARE MANAGEMENT
Product
DVD&VIDEO
Revision No.
V731360
O/S
N/A
Subject
Program update for RH7000 series
Main Chip Version
70326A
Firmware
Micom
Release Date
2007-03-29
Option Code
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16
Program Part No.
6957R-4444A
System Model
First Writer
¾ç¹Ì ( [email protected] ) AV CS¹Ý: 20070405 09:20:42
Approver
±¸¼®Ç¥ ( [email protected] ) DM CS±×·ì : Approved 20070410
¾ç»ó¸ð ( [email protected] ) DM CS±×·ì : Approved 20070413
Content
#.It was improvement of performance;
When it finalize with DVD-R/RW(VIDEO mode) has more title than 49 title,it can`t complete finalizing process.
#. Firmware Version : 70326A
#. Countermeasure
: Updating by using the newest firmware.
The update method is refer to the attatchment.
#. Program update method
[Current system information display]
1. Press POWER KEY to turn on.
2. After booting, press "set up" button on remote controller.
3. Press down arrow to highlight "lock".
4. Press "7", "8", "8", "9" buttons slowly and you will get the version information.
5. Make sure that the SET version and the loader version have been changed.
6. Turn off the unit by pressing power button.
7. After the unit is completely turned off , pull out the power cord.
[CD Write method]
http://biz.lgservice.com/gcsc/fwm/main?tc=FwmPreviewCmd&DOC_ID=KRFWM000005118 (1 di 5)05/12/2008 10.42.55
Page 2
LG Electronics Online
1. Write disc Volume Label : RH7000_UP
2. Rename the attached file name as below.
-. LG_HDR_UPDATE_70326A.004-> LG_HDR_UPDATE.004
3. Two program files (LG_HDR_UPDATE.004) write it does in Root directory of blank CD.
[ Update method ]
1. First of all, Turn on the Set and then insert the disk in the set.
2. Follow a screen's instructions.
Factory Factory Model Suffix Model No. Factory Factory Model Suffix Model No.
EAIN RH7520NP2L AA8SLL RH7500 EAIN RH7521CP1L AA5ILL RH7500
EAIN RH7521CP1L AA5TUL RH7521C EKHQ RH7521CP1L AA6GLL RH7500
EAIN RH7521CP1L AA6GLL RH7500 EAIN RH7521CP2L AA1ALL RH7500
EAIN RH7521CW1L AA2ALL RH7521W EAIN RH7521CW1L AA2ILL RH7521W
EAIN RH7521CW1L AA3ILL RH7521W EAIN RH7521CW1L AA4TLL RH7521W
EKHQ RH7521CW1L AA2ALL RH7521W EAIN RH7521JP1L AA3GLL RH7500
EKHQ RH7521JP1L AA3GLLB RH7500B EKHQ RH7521JP1L AA3GLL RH7500
EAIN RH7521JP1L AA3GLLB RH7500B EAIN RH7521NP1L AA6PLL RH7500
EAIN RH7521NP1L AA6SHL RH7500 EAIN RH7521NP1L AA6SLL RH7500
EKHQ RH7521NP1L AA6PLL RH7500 EAIN RH7521NP2L AA2RLL RH7500
EAIN RH7521NP2L AA5HLL RH7500 EAIN RH7521NP2L AA8PLL RH7500
EKHQ RH7521NP2L AAACLL RH7500 EAIN RH7521NP2L AAACLL RH7500
EAIN RH7521NSL AA3FLL RH7500 EAIN RH7521NSL AA7BLL RH7500
EKHQ RH7521NSL AA3FLL RH7500 EKHQ RH7521NSL AA9SSL RH7521
EKHQ RH7521NSL AA7BLL RH7500 EAIN RH7521NSL AA9SSL RH7521
EAIN RH7521NW1L AAASLL RH7521W EAIN RH7521NW4L AA3SLL RH7521W
EAIN RH7521TP1L AA4ULL RH7500 EKHQ RH7521TP1L AA4ULL RH7500
EAIN RH7522NW1L AA4MLL RH7522W EAIN RH7522NW4L AA4MLL RH7522W
EAIN RH7523CP1L AA5TUL RH7523C EAIN RH7610NP2L AA8SLI DVDHDR-15I
EAIN RH7611JP1L AA3GLL RH7000 EAIN RH7621CW1L AA2ANN NDH-80
http://biz.lgservice.com/gcsc/fwm/main?tc=FwmPreviewCmd&DOC_ID=KRFWM000005118 (2 di 5)05/12/2008 10.42.55
Page 3
LG Electronics Online
Applicable Model
EAIN RH7621NP1L AA6SLL RH7600 EAIN RH7621NW4L AA4MLL RH7621W
EAIN RH7622CP2L AA1ASG HDR 8076 CR EAIN RH7622CP2L AA1ASS DHR 7680
EAIN RH7622CP2L AA1ASS1 HDR 8076 CR EAIN RH7623CW1L AA2ANN NDH-160
EAIN RH7623NP2L AA8SLI DVDHDR-55I EKHQ RH7623NP4L AA3RML HDR576X
EAIN RH7624NW1L AAASLL RH7624W EAIN RH7821CP3L AA5NLL RH7821C
EKHQ RH7821TW4L AA4HLL RH7821W EAIN RH7822CW1L AA8LBL RH7822W
EAIN RH7822JP1L AA3GQU DVD-HDD-R 4361 EAIN RH7823CP1L AA5ILL RH7800
EKHQ RH7823CP1L AA5ILL RH7800 EAIN RH7823CW1L AA2ALL RH7823W
EAIN RH7823CW1L AA3ULL RH7823W EKHQ RH7823CW1L AA2ALL RH7823W
EAIN RH7823CW1L AA5PNL RH7823W EAIN RH7823NP1L AA6PLL RH7800
EAIN RH7823NP1L AA6SHL RH7800 EKHQ RH7823NP1L AA6PLL RH7800
EAIN RH7823NP1L AA6SLL RH7800 EAIN RH7823NP2L AA5HLL RH7800
EKHQ RH7823NP2L AAACLL RH7800 EKHQ RH7823NP2L AA8SLL RH7800
EAIN RH7823NP2L AA8PLL RH7800 EAIN RH7823NP2L AA8SLL RH7800
EAIN RH7823NP2L AAACLL RH7800 EAIN RH7823NSL AA3FLL0 RH7800
EAIN RH7823NSL AA9SSL RH7800 EKHQ RH7823NSL AA3FLL0 RH7800
EKHQ RH7823NSL AA9SSL RH7800 EAIN RH7823NW1L AA2KHL RH7823W
EAIN RH7823NW1L AA4ISL RH7823NW1L EAIN RH7823NW1L AA5SAL RH7823W
EAIN RH7823NW1L AA7MDL RH7823W EAIN RH7823NW1L AAASLL RH7823W
EAIN RH7823NW1L AABSNL RH7823W EAIN RH7823NW4L AA3SLL RH7823W
EAIN RH7823TP1L AA4ULL RH7800 EKHQ RH7823TP1L AA4ULL RH7800
EKHQ RH7823TW4L AA4HJL RH7823W EAIN RH7824CP3L AA8MLL RH7824P
EAIN RH7824JP1L AA3GQU DVD-HDD-R 4362 EKHQ RH7824NP4L AA3RML HDR578X
EAIN RH7825CP1L AA6GLL RH7800H EAIN RH7825CW1L AA3ULL RH7825W
ECSH RH7825CW4L AS8CLL RH-728 EAIN RH7825NP2L AA8SLL RH7800H
EAIN RH7825NSL AA3FLL RH7800H EAIN RH7825TP1L AA4ULL RH7800H
http://biz.lgservice.com/gcsc/fwm/main?tc=FwmPreviewCmd&DOC_ID=KRFWM000005118 (3 di 5)05/12/2008 10.42.55
Page 4
LG Electronics Online
EKHQ RH7826TW4L AA4HLL RH7826W EAIN RH7828NSL AA7BLL RH7850H
EAIN RH7923JP1L AA3GLL RH7900 EAIN RH7923NSL AA7BLL RH7900
EAIN RH7925NSL AA7BLL RH7900H EAIN RH7926CW1L AA2ALL RH7926W
EAIN RH7926CW1L AA4TLL RH7926W EKHQ RH7926CW1L AA2ALL RH7926W
EKHQ RH7926NP4L AA3RML HDR589X EKHQ RH7926NP4L AA3RMLV HDRV589X
EAIN RH7926NW1L AA3ILL RH7926W EAIN RH7926NW4L AA3SLL RH7926W
EAIN RH7927NP1L AA6PLL RH7900M EAIN RH7927NP2L AAACLL RH7900M
EKHQ RH7927NSL NA9SSL RH7900M EAIN RH7928NSL AA3FLL RH7900H
EAIN RH7928TP1L AA4ULL RH7900H EAIN RH7929CP1L AA5ILL RH7900MH
EAIN RH7929CP1L AA6GLL RH7900MH EAIN RH7929JP1L AA3GLL RH7900MH
EAIN RH7929NP1L AA6PLL RH7900MH EAIN RH7929NP1L AA6SLL RH7900MH
EAIN RH7929NP2L AA5HLL RH7900MH EAIN RH7929NP2L AA8PLL RH7900MH
EAIN RH7929NP2L AA8SLL RH7900MH EAIN RH7929NSL AA9SSL RH7900MH
Buyer Name Buyer Code Buyer Name Buyer Code Buyer Name Buyer Code
LGEGF AE000001 LGEME AE000002 FORTUNE AE001262
LGEAF AE001405 SILVA SCHNEIDER AT000101 SILVA AT000669
LGEAG AT000871 LGEAG AT000979 LGEAP AU000001
NEC-AT AU000729 LG Electronics Antwerp Logisti BE000001 STUHLING CH000200
LGESH CN000003 LGBTSC CN006644 LGECZ CZ000710
LGEDG DE000001 QUELLE DE000533 LGEES ES000001
HISPANO ES000750 LGEFS FR000001 SOMIGA GA000570
LGEUK GB000001 LGEHS GR000263 LGEHK HK000001
JEB HK001095 LGEMK HU000001 LGEDI ID000001
LGEIN ID000002 SAN-ISR IL000553 HYC IL000788
LGEIL IN000001 LGEIS IT000001 Bangkok JA15
http://biz.lgservice.com/gcsc/fwm/main?tc=FwmPreviewCmd&DOC_ID=KRFWM000005118 (4 di 5)05/12/2008 10.42.55
Page 5
LG Electronics Online
Applicable Buyer
Singapore JA44 Amsterdam JE14 Budapest JE19
Paris JE40 Vienna JE52 Warsaw JE54
Abidjan JF10 Johanesburg JF31 Lagos JF60
Amman JM13 Dubai JM22 Jeddah JM30
Karachi JM32 LGELF JO000694 H.POINT KE000610
LGE KR000001 LGEAK KZ000001 ALMATY KZ000002
BROTHERS LB000101 ABANS LIMITED LK000101 LGEMC MA000001
GENCO ML000610 ARTESA MQ000101 DRAGON MU000600
LGEML MY000001 FOUANI NIGERIA NG000721 AFROVISION NG NG000748
LGELS NL000001 LGEBN NL000010 N.ALLIED PK000624
ADVANCE CORPORATION PK000836 LGEPL PL000001 LGEPT PT000183
LGERO RO000758 MOSCOW RU000001 PETERSBURG RU000002
LGERU RU000010 LGERI RU000549 NAGHI SA000101
HASSAN SA000615 LGESW SE000001 LGESL SG001062
LGEMT TH000001 LGETH TH000002 UFOTEK TR000712
UFOTEK TR000787 LGETK TR000848 LGEUR UA000523
LGESA ZA000001
Attach
LG_HDR_UPDATE_70326A.zip
