OWNER’S MANUAL

WASHING

MACHINE

Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference.

FH4U2VDN1

MFL69330907
ver.25092015.00	www.lg.com

TABLE OF CONTENTS

This manual is produced for a group of products and may contain images or content different from the model you purchased.

This manual is subject to revision by the manufacturer.

SAFETY INSTRUCTIONS ......................................	03
Important Safety Instructions...............................................................	05
INSTALLATION.......................................................	08
Specifications ......................................................................................	08
Accessories.........................................................................................	08
Installation Place Requirements..........................................................	09
Unpacking and Removing Shipping Bolts...........................................	10
Using Non-Skid Pads (Optional)..........................................................	11
Wooden Floors (Suspended Floors)....................................................	11
Leveling the Washing Machine............................................................	12
Connecting Inlet Hose.........................................................................	12
Installation of Drain Hose ....................................................................	15
Electrical Connections (In the UK Only)..............................................	15
OPERATION ...........................................................	16
Using the Washing Machine................................................................	16
Sorting Iaundry....................................................................................	17
Adding Cleaning Products...................................................................	18
Control Panel.......................................................................................	20
Programme Table ................................................................................	21
Option Cycle........................................................................................	25
Using Smart Function (Optional).........................................................	28
MAINTENANCE......................................................	29
Cleaning your Washing Machine.........................................................	29
Cleaning the Water Inlet Filter.............................................................	29
Cleaning the Drain Pump Filter ...........................................................	30
Cleaning the Dispenser Drawer...........................................................	31
Tub Clean (Optional) ...........................................................................	31
Caution on Freezing During Winter.....................................................	32
Using the Smart Diagnosis™ Function ...............................................	34
TROUBLESHOOTING............................................	35
Diagnosing Problems ..........................................................................	35
Error Messages...................................................................................	37

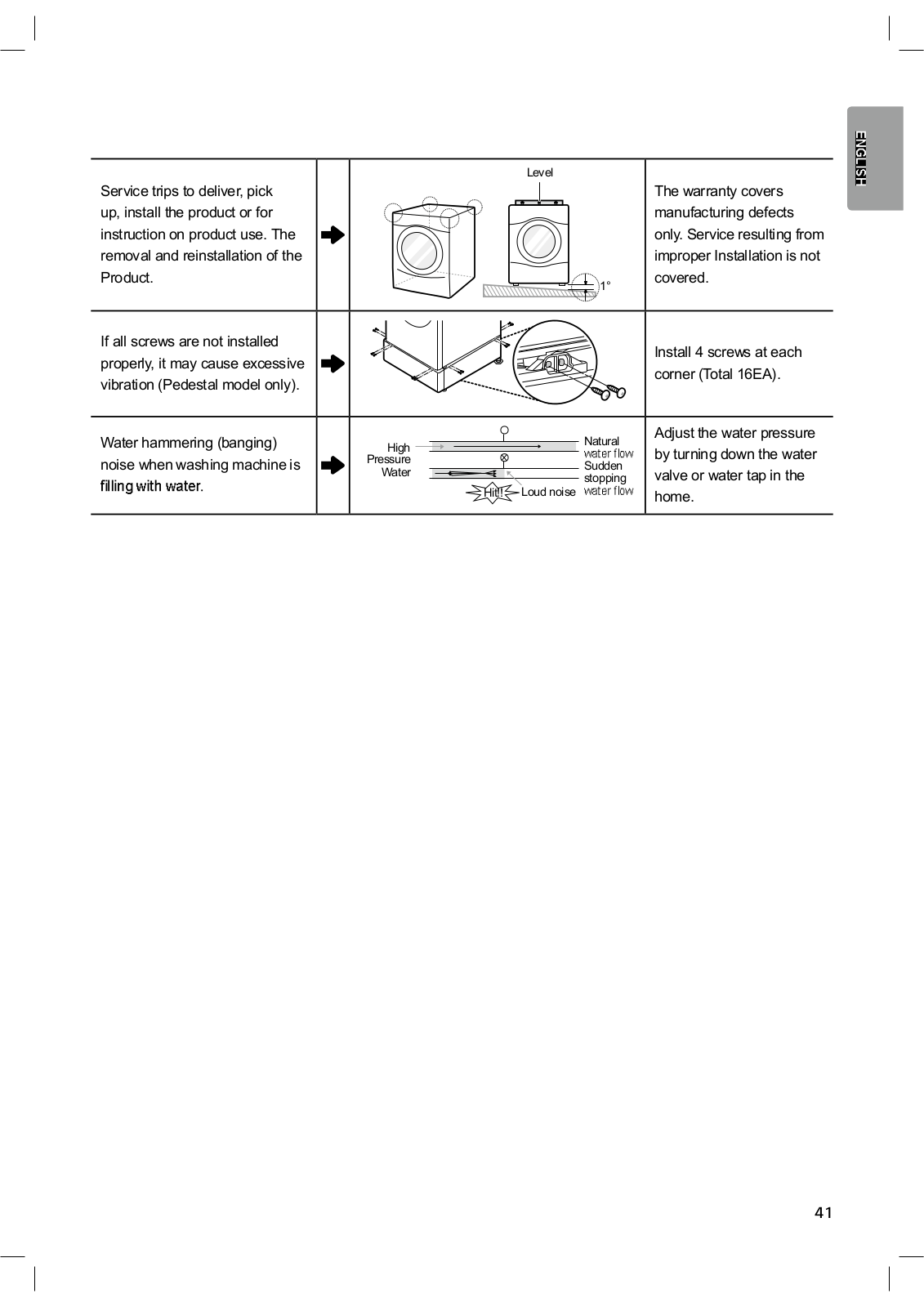

WARRANTY............................................................	39
OPERATING DATA.................................................	42

SAFETY INSTRUCTIONS

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the product.

The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below.

This symbol is displayed to the indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.

WARNING - This indicates that the failure to follow the instructions can cause serious injury or death.

CAUTION - This indicates that the failure to follow the instructions can cause the minor injury or damage the product.

WARNING

your product, basic safety precautions should be followed, including the following.

CHILDREN IN THE HOUSEHOLD

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

For use in Europe:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

03

GROUNDING REQUIREMENTS

WARNING

For your safety, the information in this manual must be followed to

property damage, injury to persons, or death.

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.

This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Improper connection of the equipment-grounding conductor can result in risk of electric

whether the appliance is properly grounded.

DISPOSAL OF YOUR OLD APPLIANCE

1.All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

2.The correct disposal or your old appliance will help prevent potential negative consequences for the environment and human health.

3.For more detailed information about disposal of your old appliance, please purchased the product.

04

Important Safety Instructions

WARNING

your product, basic safety precautions should be followed, including the following.

Installation

Operation

Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug. It can cause electric shock or injury.

This appliance is heavy. Two or more people may be needed to install and move the appliance. Failure to do so can result in injury.

Store and install this appliance where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions. Failure to do so can result in leakage.

Tighten the drain hose to avoid separation. Splashing of water may cause electric shock.

If the supply cord is damaged, it must be replaced by the manufacturer or

person in order to avoid a hazard.

The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

Do not use a sharp object like drill or pin to press or separate an operation unit. It can cause the electric shock or injury.

Only an authorized repair person from LG Electronics service centre should disassemble, repair, or modify the product. Improper service may cause

Do not spray the water inside or outside the product to clean it. Water can damage the insulation, causing electric

Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemicals, etc. Improper use can cause

Do not put living animals, such as pets into the product. It may cause injury.

Do not leave this appliance door open. Children may hang on the door or crawl inside the appliance, causing damage or injury.

05

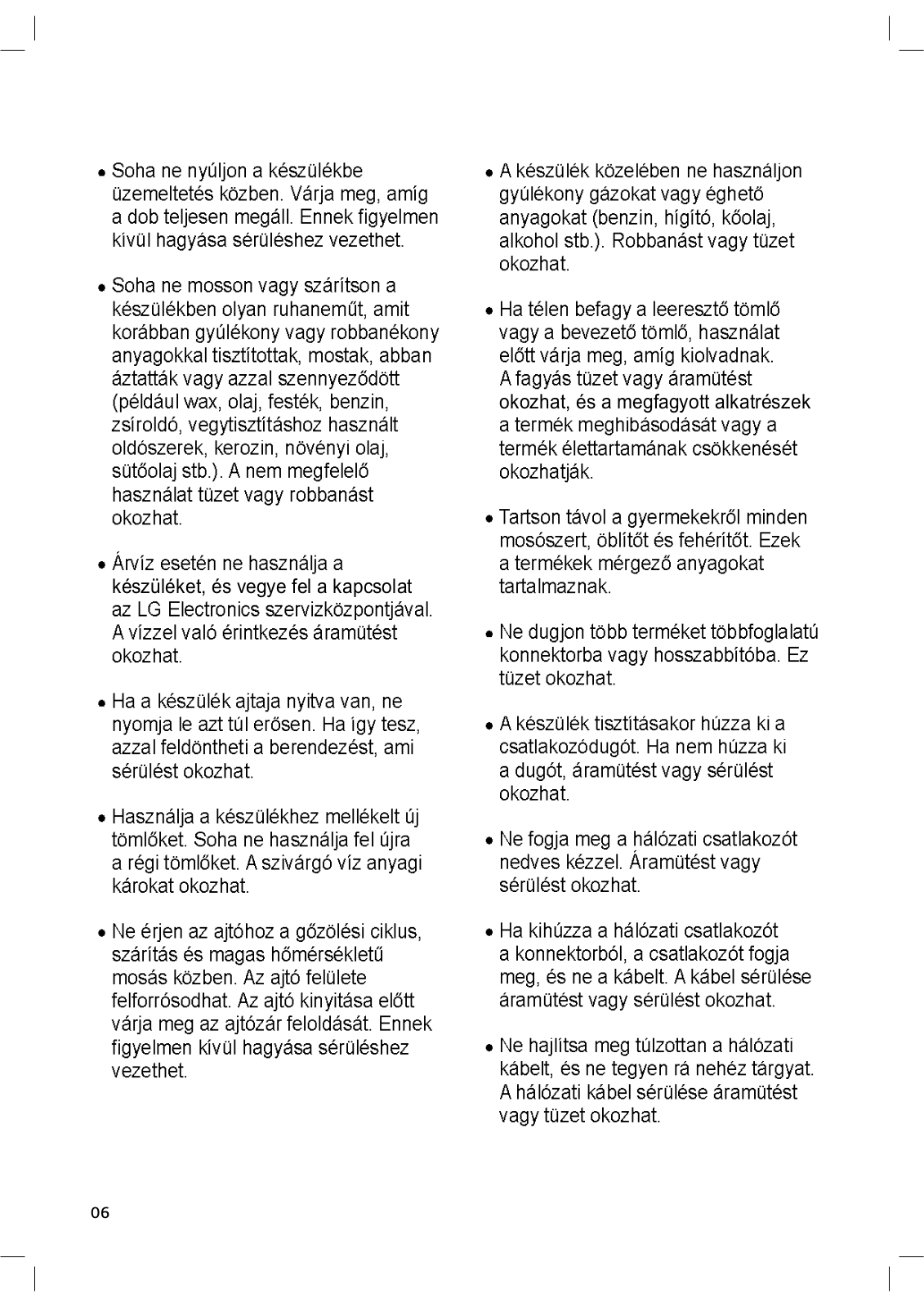

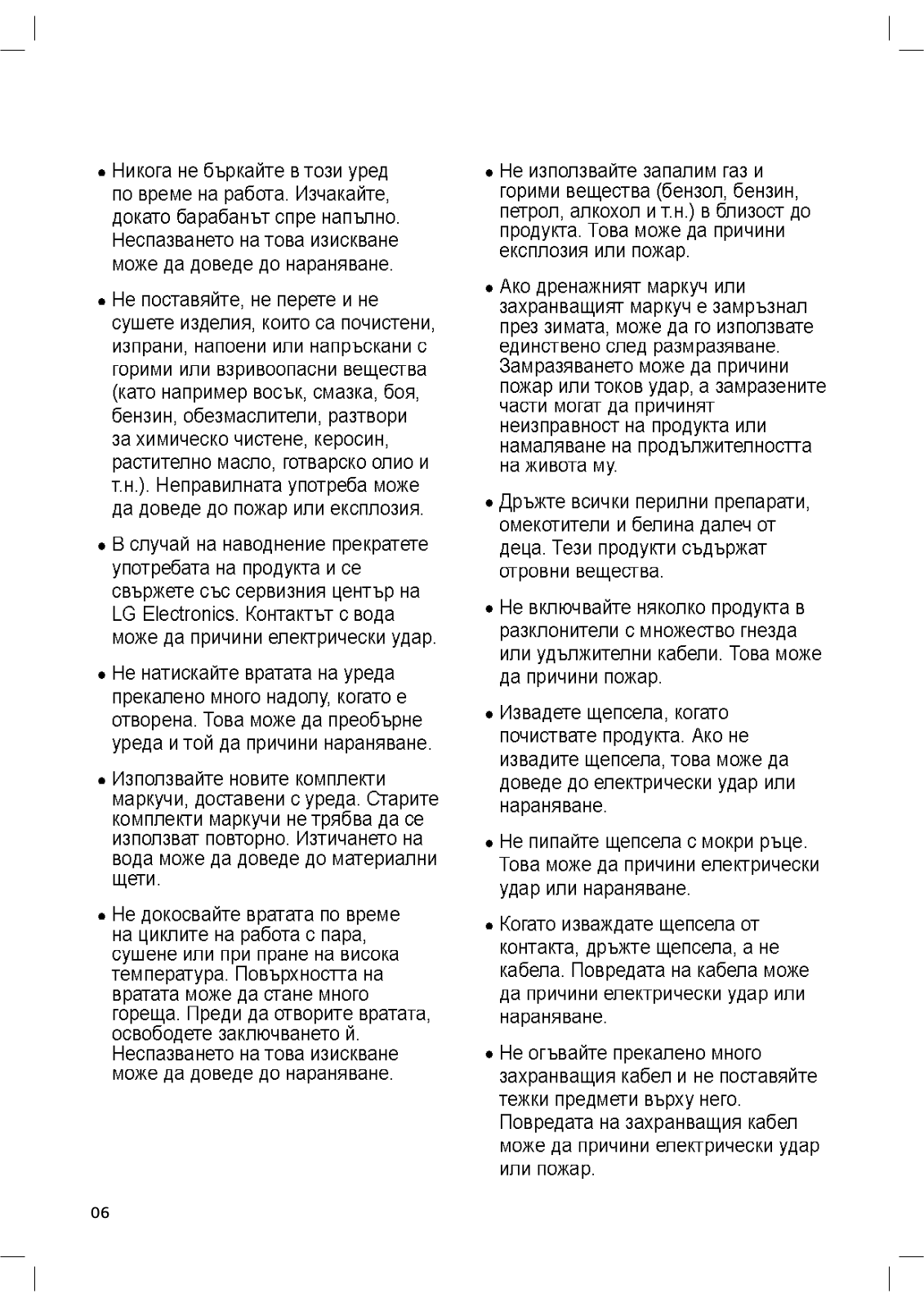

Never reach into this appliance while it is operating. Wait until the drum has completely stopped. Failure to do so may result in injury.

Do not put in, wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, drycleaning solvents, kerosene,

vegetable oil, cooking oil, etc.). Improper

and contact the LG Electronics service centre. Contact with water can cause electric shock.

Do not push down the door excessively, when the appliance door is open. Doing so may topple over the appliance and it can cause the injury.

Use new hose-sets supplied with the appliance. Old hose-sets should not be reused. Water leakage may cause property damage.

Do not touch the door during steam cycles, drying or high-temperature washing. The door surface can become very hot. Allow the door lock to release before opening the door. Failure to do so may result in injury.

combustible substances (benzene, gasoline, thinner, petroleum, alcohol, etc.) around the product. It may cause

If the drain hose or inlet hose is frozen during winter, use it only after thawing.

shock, and frozen parts may cause product malfunction or reduction in product life span.

Keep all washing detergents, softener and bleach away from children. These products contain poisonous materials.

Do not plug multiple products into multiple socket-outlets or extension

Remove the power plug when you clean the product. Not removing the plug may result in electric shock or injury.

Do not touch the power plug with wet hands. It can cause the electric shock or injury.

When pulling out the power plug from an outlet, hold the power plug, not the cable. Damage of the cable can cause the electric shock or injury.

Do not bend the power cable excessively or place a heavy object on top of it. Damage of the power cable

06

Disposal

Before discarding an old appliance, unplug it. Render the plug useless. Cut off the cable directly behind the appliance to prevent misuse.

Dispose of the packaging material (such as vinyl and styrofoam) away from children. The packaging material can suffocate a child.

Remove the door to the washing compartment before this appliance is removed from service or discarded to avoid the danger of children or small animals getting trapped inside. Failure to do so can result in serious injury to persons or death.

07

INSTALLATION

Transit bolts

Power plug

Drawer

Control panel

Drum

Door

Drain hose

Drain plug

Cover cap (Location may vary depending on products)

Adjustable feet

Size : 600 mm (W) X 560 mm (D) X 850 mm (H)

Product weight : 62 kg

Wash Capacity : kg

Permissible water pressure : 0.1 - 1.0 MPa (1.0 - 10.0 kgf / cm2)

the quality of the product.

Accessories

Inlet hose (1EA)	Spanner	Caps for covering shipping	Anti–slip sheets (2EA)
(Option: Hot (1EA))		bolt holes	(Optional)

08

Installation Place Requirements

Location

10 cm

2 cm

2 cm

Allowable slope under the entire washing machine is 1°.

Power outlet : Must be within 1.5 meters of either side of the location of the washing machine.

Do not overload the outlet with more than one appliance.

Additional Clearance : For the wall, 10 cm: rear /2 cm: right & left side

Do not place or store laundry products on top of the washing machine at any time.

Positioning

Make sure that air circulation around the washing machine is not impeded by carpets, rugs, etc.

pieces of wood, cardboard or similar materials under the washing machine.

If it is impossible to avoid positioning the washing machine next to a gas cooker or coal burning insulation (85x60 cm) covered with aluminum foil on the side facing the cooker or stove must be inserted between the two appliances.

Do not install your washing machine in rooms where freezing temperatures may occur. Frozen hoses may burst under pressure. The reliability of the electronic control unit may be impaired at temperatures below freezing point.

Please ensure that when the washing machine is installed, it is easily accessible for an engineer in the event of a breakdown.

With the washing machine installed, adjust all four feet using the transit bolt spanner provided to ensure the appliance is stable, and a clearance of approximately 20 mm is left between the top of the washing machine and the underside of any work-top.

This equipment is not designed for maritime use or for use in mobile installations such as caravans, aircraft etc.

Electrical Connection

Do not use an extension cord or double adapter.

Always unplug the washing machine and turn off the water supply after use.

Connect the washing machine to an earthed socket in accordance with current wiring regulations.

The washing machine must be positioned so that the plug is easily accessible.

Repairs to the washing machine must only be carried

inexperienced persons may cause injury or serious malfunctioning. Contact your local service centre.

If the washing machine is delivered in winter and temperatures are below freezing, place the washing machine at room temperature for a few hours before putting it into operation.

09

Unpacking and Removing

Shipping Bolts

1 Lift the washing machine off the foam base.

After removing the carton and shipping material, lift the washing machine off the foam base. Make sure the tub support comes off with the base and is not stuck to the bottom of the washing machine.

If you must lay the washing machine down to remove the carton base, always protect the side of the washing machine and lay it carefully on its side. DO NOT lay the washing machine on its front or back.

Tub Support	Carton base
(Optional)

2 Remove the bolt assemblies.

Starting with the bottom two shipping bolts, use the spanner (included) to fully loosen all shipping bolts by turning them counterclockwise. Remove the bolt assemblies by wiggling them slightly while pulling them out.

Retainer

Shipping

bolt

3 Install the hole caps.

Locate the hole caps included in the accessory pack and install them in the shipping bolt holes.

Cap

NOTE

Save the bolt assemblies for future use. To prevent damage to internal components, DO NOT transport the washing machine without reinstalling the shipping bolts.

Failure to remove shipping bolts and retainers may cause severe vibration and noise, which can lead to permanent damage to the washing machine. The cord is secured to the back of the washing machine with a shipping bolt to help prevent operation with shipping bolts in place.

10

Using Non-Skid Pads (Optional)

If you install the washing machine on a slippery surface, it may move because of excessive vibration. Incorrect leveling may cause malfunction through noise and vibration. If this occurs, install the non-skid pads under the leveling feet and adjust the level.

1

	Use a dry rag to remove and clean foreign
	objects and moisture. If moisture remains, the
	non-skid pads may slip.
2	Adjust the level after placing the washing machine
	in the installation area.
3	Place the adhesive side of the non-skid pad on the
	It is most effective to install the non-skid pads

pads under the front legs, place them under the back legs.

This side up

Adhesive side

4 Ensure the washing machine is level.

Push or rock the top edges of the washing machine gently to make sure that the washing machine does not rock. If the washing machine rocks, level the washing machine again.

Wooden Floors (Suspended

Floors)

To prevent vibration we recommend you place rubber cups at least 15 mm thick of the each foot of the

with screws.

Rubber Cup

If possible install the washing machine in one of the

Fit the rubber cups to reduce vibration.

You can obtain rubber cups (p/no.4620ER4002B) from the LG Service Centre.

NOTE

Proper placement and leveling of the washing machine will ensure long, regular, and reliable operation.

The washing machine must be 100% horizontal

It must not ‘Seesaw’ across corners under the load.

The installation surface must be clean, free from

Do not let the feet of the washing machine get wet. Failure to do so may cause vibration or noise.

11

Leveling the Washing Machine

(Do not insert pieces of wood etc. under the feet). Make

and then check that the appliance is perfectly level (Use a spirit level).

Once the washing machine is level, tighten the lock nuts up towards the base of the washing machine. All lock nuts must be tightened.

Connecting Inlet Hose

Water supply pressure must be between 0.1 MPa and 2).

Do not strip or crossthread when connecting inlet hose to the valve.

If the water supply pressure is more than 1.0 MPa, a decompression device should be installed.

Periodically check the condition of the hose and replace the hose if necessary.

Raise Lower

Lock Nut

Tighten all 4 lock nuts securely

Diagonal Check

When pushing down the edges of the washing machine top plate diagonally, the washing machine should not move up and down at all (Check both directions). If the washing machine rocks when pushing the machine top plate diagonally, adjust the feet again.

NOTE

to excessive vibration and unbalance.

If the washing machine is installed on a raised platform, it must be securely fastened in order to eliminate the risk of falling off.

Checking Rubber Seal Inlet Hose

Two rubber seals are supplied with the water inlet hoses. They are used for preventing water leaks. Make sure the

Hose connector

Rubber seal

Hose connector

Rubber seal

12

Connecting Hose to Water Tap

Connecting screw-type hose to tap with thread

Screw the hose connector onto the water supply tap.

3 Push the inlet hose vertically upwards so that the rubber seal within the hose can adhere completely to the tap and then tighten it by screwing it to the right.

Plate

Inlet hose

Connecting screw-type hose to tap without

thread

1

Upper								Rubber
								seal
connector

Fixing screw

2 Push the adapter onto the end of the tap so that the rubber seal forms a watertight connection.

Connecting one touch type hose to tap without

thread

1 Unscrew the adapter ring plate and loose the four

Ring plate

2

the adapter.

Guide plate

13

3 Push the adapter onto the end of the tap so that the rubber seal forms a watertight connection.

screws.

4 Pull the connector latch plate down, push the inlet hose onto the adapter, and release the connector latch plate. Make sure the adapter locks into place.

Latch plate

NOTE

After connecting the inlet hose to the water

substances (dirt, sand, sawdust, etc.) in the water lines. Let the water drain into a bucket, and check the water temperature.

Connecting Hose to Washing Machine

Make sure that there are no kinks in the hose and that they are not crushed.

When your washing machine has two valves.

The Inlet hose with the red connector is for the hot water tap.

NOTE

After completing connection, if water leaks from the hose, repeat the same steps.

Use the most conventional type of tap for the water supply. In case the tap is square or too big, remove the guide plate before inserting the tap into the adaptor.

Using the horizontal tap

Horizontal tap

Extension tap

Square tap

14

Installation of Drain Hose

The drain hose should not be placed higher than 100

may not drain or may drain slowly.

from damage due to water leakage.

If the drain hose is too long, do not force it back into the washing machine. This will cause abnormal noise.

about 100 cm

about 145 cm

about 105 cm

When installing the drain hose to a sink, secure it tightly with string.

from damage due to water leakage.

Laundry tub

Hose retainer

Tie strap

Electrical Connections (In the UK

Only)

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow: Earth

Blue: Neutral

Brown: Live

This appliance must be earthed.

Green and

Yellow (Earth)

Brown (Live)	Fuse

Blue (Neutral)

Cord grip

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol ( ) or coloured Green or Green and Yellow.

The blue wire must be connected to the terminal which is marked with the letter N or coloured Black.

The brown wire must be connected to the terminal which is marked with the letter L or coloured Red.

1362 fuse.

15

OPERATION

Using the Washing Machine				4
a half load of detergent), allow the washing machine
to wash without clothing. This will remove residue and
water from the drum that may have been left during
manufacturing.
1 Sort laundry and load items.
Sort laundry by fabric type, soil level, colour and
load size as needed. Open the door and load				5
items into the washing machine.

2 Add cleaning products and/or detergent and

softener.
Add the proper amount of detergent to the
detergent dispenser drawer. If desired, add
bleach or fabric softener to the appropriate areas	6
of the dispenser.

3 Turn on the washing machine.

Press the Power button to turn ON the washing machine.

Choose the desired washing cycle.

Press the Cycle button repeatedly or turn the cycle selector knob until the desired cycle is selected.

Begin cycle.

Press the Start/Pause button to begin the cycle.

water to measure the weight of the load. If the Start/Pause button is not pressed within 5 minutes, the washing machine will shut off and all settings will be lost.

End of cycle.

Immediately remove your clothing from the washing machine to reduce wrinkling. Check around the door seal when removing the load for small items that may be caught in the seal.

16

	Sorting Iaundry	3 Caring before loading.
	1 Look for a care label on your clothes.	Combine large and small items in a load. Load
	This will tell you about the fabric content of your	Large items should not be more than half the
	garment and how it should be washed.
		total wash load. Do not wash single items. This
	Symbols on the care labels.
		may cause an unbalanced load. Add one or two
	Wash temperature	similar items.
	Normal machine wash	Check all pockets to make sure that they are
	Permanent press	empty. Items such as nails, hair clips, matches,
		pens, coins and keys can damage both your
	Delicate	washing machine and your clothes.
	Hand wash
	Do not wash

2 Sorting laundry.

To get the best results, sort clothes into loads that can be washed with the same wash cycle.

Different fabrics need to be washed at varying temperatures and spin speeds.

Always sort dark colours from pale colours and whites. Wash separately as dye and lint transfer can occur causing discolouration of white and pale garments. If possible, do not wash heavily soiled items with lightly soiled ones.

–Soil (Heavy, Normal, Light)

Separate clothes according to amount of soil.

–Colour (White, Lights, Darks)

Separate white fabrics from coloured fabrics.

–Lint (Lint producers, Collectors) Wash lint producers and lint collectors separately.

Close zippers, hooks and strings to make sure that these items don’t snag on other clothes.

Pre-treat dirt and stains by brushing a small amount of detergent dissolved water onto stains to help lift dirt.

remove any small articles.

Check inside the drum and remove any items from a previous wash.

gasket to prevent clothing and gasket damage.

17

Adding Cleaning Products

Detergent Dosage

Detergent should be used according to the instruction of the detergent manufacturer and selected according to type, colour, soiling of the fabric and washing temperature.

If too much detergent is used, too many suds can occur and this will result in poor washing results or cause heavy load to the motor.

If you wish to use liquid detergent follow the guidelines provided by the detergent manufacturer.

You can pour liquid detergent directly into the main detergent drawer if you are starting the cycle immediately.

Do not use liquid detergent if you are using Time delay, or if you have selected Pre Wash, as the liquid may harden.

If too many suds occur, reduce the detergent amount.

Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. For best results, avoid oversudsing.

Refer to the label of the clothes, before chooseing the detergent and water temperature:

When using the washing machine, use designated detergent for each type of clothing only:

–General powdered detergents for all types of fabric

–Powdered detergents for delicate fabric

–Liquid detergents for all types of fabric or designated detergents only for wool

For better washing performance and whitening, use detergent with the general powdered bleach.

beginning of the cycle.

NOTE

Do not let the detergent harden.

Doing so may lead to blockages, poor rinse performance or odour.

Full load : According to manufacturer’s recommendation.

Part load : 3/4 of the normal amount

Minimum load : 1/2 of full load

Adding Detergent and Fabric Softener

Adding detergent

NOTE

Too much detergent, bleach or softener may

Be sure to use the appropriate amount of detergent.

Adding fabric softener

cause early dispensing of the fabric softener, which may stain clothes. Close the dispenser drawer slowly.

18

Do not leave the fabric softener in the detergent			Using tablet
drawer for more than 2 days (Fabric softener may			1	Open the door and put tablets into the drum.
harden).
Softener will automatically be added during the last
rinse cycle.
Do not open the drawer when water is being supplied.
Solvents (benzene, etc) should not be used.
	NOTE
	Do not pour fabric softener directly on the clothes.		2	Load the laundry into the drum and close the door.

Adding water softener

Awater softener, such as Anti-limescale (e.g. Calgon) can be used to cut down on the use of detergent in extremely hard water areas. Dispense according to

detergent and then the water softener.

Use the quantity of detergent required for soft water.

19

Control Panel

Power button

Press thePower button to turn the washing machine on.

To cancel the Time Delay function, thePower button should be pressed.

Start/Pause button

This Start/Pause button is used to start the wash cycle or pause the wash cycle.

If a temporary stop of the wash cycle is needed, press the Start/Pause button.

Display

The display shows the settings, estimated time remaining, options, and status messages. When the product is turned on, the default settings in the display will illuminate.

The display shows estimate time remaining. While the size of the load is being calculated automatically, blinking or ‘Detecting’ appears.

Programme Dial

Programmes are available according to laundry type.

Lamp will light up to indicate the selected programme.

Options

This allows you to select an additional cycle and will light when selected.

Use these buttons to select the desired cycle options for the selected cycle.

20

Programme Table

Washing Programme

	Programme	Description	Fabric Type	Proper
				Temp.	Load
	Cotton	Provides better performance by	Coloured fast garments (shirts,	40°C
		combining various drum motions.		(Cold to 95°C)
			nightdresses, pajamas, etc)		Rating
		Provides optimised washing
			and normally soiled cotton load	60°C
	Cotton Large
		performance for large amount of	(underwear).
				(Cold to 60°C)
		laundry with less energy consumption.
	Easy Care	This cycle is suitable for casual shirts	polyamide, acrylic, polyester	40°C
		that do not need ironing after washing.		(Cold to 60°C)
		Enables various fabrics to be washed	Various kind of fabrics except special	40°C
			garments (silk/delicate, sports wear,
		simultaneously.		(Cold to 40°C)
			dark clothes, wool, duvet/curtains).
	Hygiene	Washes laundry in a hot cycle	cotton, underwear, pillow covers,	60°C
			bed sheets, baby wear
		Provides less noise and vibration	Color fast garments (shirts,
			nightdresses, pajamas, etc)	40°C
	Silent Wash	and saves money by using overnight
			and lightly soiled white cotton	(Cold to 60°C)
		electricity.
			(underwear).
					4.5 kg
	Baby Care	Removes solid and protein stains,	Lightly soiled baby wear.	60°C
		provides better rinse performance.		(95°C)
			Cotton bedding except special
	Duvet	This cycle is for large items such as	garments (delicates, wool, silk, etc.)		1 single
		bed covers, pillows, sofa covers, etc.			size
				40°C
				(Cold to 40°C)
		This cycle is suitable for sports wear
	Sports Wear	such as jogging clothes and running	sympatex
		wear.
		If it's possible for clothes to			2.0 kg
		decolourate, please use this cycle.	Dark garments made from cotton or	20°C
	Dark Wash	The cycle prevent decolorization.
			mixed fabrics.	(Cold to 40°C)
		(Please use detergent for colored
		fabrics.)

21

	Programme	Description	Fabric Type	Proper
				Temp.	Load
			Coloured laundry which is lightly
		This cycle provides fast washing	soiled fast.	20°C
	Speed 14	time for small loads and lightly soiled	CAUTION : Use less than 20g of	(20°C to	2.0 kg
		clothes.	detergent (for 2.0kg load) otherwise	40°C)
			detergent may remain on the clothes.
		This cycle is for hand and machine
		washable delicate clothes such as	wool, hand washable clothes,	20°C
	Gentle Care	washable wool, lingerie, dresses etc.			1.5 kg
			delicate, easily damaged laundry	(Cold to 0°C)
		(Use detergent for machine washable
		woolens).
		Wash off several kinds of stain		40°C
		such as wine, juice, dirt, etc. (Water	cotton blended fabrics, NO delicate
	Stain Care			(30°C to	3.0 kg
		temperature is increased step by step	clothes
				60°C)
		for washing various stains.)

Download

For downloadable cycles. If you did not download any cycles, the default is Rinse+Spin.

Cycle

Water Temperature: Select the appropriate water temperature for chosen wash cycle.Always follow garment manufacturer’s care label or instructions when washing.

Set program at "Cotton Large 40°C (Half Load)", "Cotton Large 60°C (Half Load)", "Cotton Large 60°C(Full Load)" option for test in conformity with EN60456 and Regulation 1015/2010.

- Standard 60°C cotton program : Cotton Large	+ 60°C		(Full Load)
- Standard 60°C cotton program : Cotton Large	+	60°C	(Half Load)
- Standard 40°C cotton program : Cotton Large	+	40°C	(Half Load)

(They are suitable to clean normally soiled cotton laundry.)

type of cotton laundry.)

* Actual water temperature may differ from the declared cycle temperature.

The test results depend on water pressure, water hardness, water inlet temperature, room temperature, type and

options.

NOTE

Neutral detergent is recommended.

22

Extra Options

Programme	Turbo			Intensive	Rinse	Crease
		Pre Wash Rinse+			Hold		Delay
	Wash					Care
Cotton
Cotton Large
Easy Care
Mix
Hygiene
Silent Wash
Baby Care
Duvet
Sports Wear
Dark Wash
Speed 14
Gentle Care
Stain Care

: This optionis automatically included in the cycle and can not be deleted. : This option is automatically included in the cycleandcanbe deleted.

23

Operating Data

Programme

Cotton	1400
Cotton Large	1400
Easy Care	1 00
	1400
Hygiene	1400
Silent Wash	1000
Baby Care	1000
Duvet	1000
Sports Wear	800
Dark Wash	1400
Speed 14	800
Gentle Care	800
Stain Care	1 00

NOTE

Information of main washing programmes at half load.

Program	Time in minutes	Remaining moisture content	Water in Liter	Energy in kWh
Cotton (40°C)	96	44 %	52	0.40
Cotton Large (60°C)	235	44 %	38	0.61

24

Option Cycle

Delay ()

You can set a time delay so that the washing machine

interval.

1	Press the Power button.
2	Select a washing programme.
3	Press the Time Delay button and set time required.
4	Press the Start/Pause button.

NOTE

The delay time is the time to the end of the programme, not the start. The actual running time may vary due to water temperature, wash load and other factors.

Crease Care ( )

If you want to prevent creasing, select Crease Care option.

1	Press the Power button.
2	Select a cycle.
3	Press the Crease Care button.
4	Press the Start/Pause button.

Pre Wash ( )

If the laundry is heavily soiled, the Pre Wash cycle is recommended.

1	Press the Power button.
2	Select a washing programme.
3	Press the Pre Wash button.
4	Press the Start/Pause button.

Wash ( )

Turbo Wash ( )

Wash cycle in under 1 hour with energy and water saving. (based on half of laundry)

Intensive ( )

If the laundry is normal and heavily soiled, the Intensive option is effective.

1	Press the Power button.
2	Select a washing programme.
3	To choose Turbo Wash or Intensive
	touch the Wash button.
4	Press the Start/Pause button.

25

Temp.

The Temp. buttonselects the wash and rinse temperature combinationfor the selected cycle. Press this button until the desiredsetting is lit. All rinses use cold tap water.

Select the water temperature suitable for the typeof load you are washing. Follow the garment fabric care labels for best results.

Spin

Spin speed levelcan beselectedby pressingtheSpin button repeatedly.

Spin Only

1	Press thePower button.
2	Press theSpin buttonto select RPM.
3	Press theStart/Pause button.
	NOTE

When you select ‘No Spin ()’, it will still rotate for a short time to drain quickly.

Rinse ( )

Rinse+ ()

Add rinse once.

Rinse Hold ( )

The cycle is paused until start button is pressed again

Child Lock ( )

Select this function to lock the buttons on thecontrol assembly to prevent tampering.

Locking the control panel

1	Press and hold theChild Lock buttonfor 3
	seconds.
2	Abeeper will sound, and ‘ ’ will appear on the
	display.

When the child lock is set, all buttons are locked except the Power button.

NOTE

Turning off the power will not reset thechild lock function. You must deactivatechild lock before you can access any other functions.

Unlocking the control panel

Press and hold theChild Lock buttonfor 3 seconds.

Abeeper will sound and the remainingtime for the current programme will reappear on the display.

26

Beep On / Off

1

2

Press the Power button.

Press the Start/Pause button.

3 Press and hold the Temp. and Rinse button simultaneously for 3 seconds to set the Beep on/off function.

NOTE

Once the Beep on/off function is set, the setting is memorized even after the power is turned off.

If you want to turn the Beeper off, simply repeat this process.

27

Using Smart Function (Optional)

Using the Tag On Function

The Tag On function allows you to conveniently use the LG Smart Diagnosis™ and Cycle Download features to communicate with your appliance right from your own smart phone.

The Tag On function can only be used with most smart phones equipped with the NFC function and based on the Android operating system (OS).

Installation of the application

Search "LG Smart Laundry" on the Google Play Store from your smart phone.

LG Smart

Using the Application

LG Smart Laundry application allows you to use various features for your convenience.

Cycle Download

Smart Diagnosis™

Tag On Cycle Set

Laundry Stats

NOTE

Press in the LG Smart Laundry application for a more detailed guide on how to use the Tag On function.

Depending on the smart phone manufacturer and Android OS version, the NFC activation process may differ. Refer to the manual of your smart phone for details.

Because of the characteristics of NFC, if the transmission distance is too far, or if there is a metal sticker or a protective case on the phone, transmission will not be good. In some cases, NFC-equipped phones may be unable to transmit successfully.

The content found in this manual may differ depending on the version of "LG Smart Laundry"

informing customers.

EU Conformity Notice

LG Electronics hereby declares that this product is in compliance with the following Directives.

R&TTE Directive 1999/5/EC

28

MAINTENANCE

WARNING

Unplug the washing machine before cleaning to avoid the risk of electric shock. Failure to follow

electric shock, or death.

Never use harsh chemicals, abrasive cleaners, or solvents to clean the washing machine. They may

Cleaning your Washing Machine

Care After Wash

Care and Cleaning of the Interior

Use a towel or soft cloth to wipe around the washing machine door opening and door glass.

Always remove items from the washing machine as soon as the cycle is complete. Leaving damp items in the washing machine can cause wrinkling, colour transfer, and odour.

Run the Tub Clean cycle once a month (or more often if needed) to remove detergent buildup and other residue.

of the door seal to remove any moisture.

Leave the door open to dry the drum interior.

Wipe the body of the washing machine with a dry cloth to remove any moisture.

Proper care of your washing machine can extend its life.

Door:

Wash with a damp cloth on the outside and inside and then dry with a soft cloth.

Immediately wipe off any spills.

Wipe with a damp cloth.

Do not press the surface or the display with sharp objects.

Cleaning the Water Inlet Filter

Turn off the stopclock if the washing machine is to be left for any length of time (e.g. holiday), especially if

‘’ icon will be displayed on the control panel when water is not entering the detergent drawer.

If water is very hard or contains traces of lime deposit,

therefore a good idea to clean it occasionally.

1 Turn off the water tap and unscrew the water inlet hose.

2

29

Cleaning the Drain Pump Filter

4

ensure smooth running of your washing machine.

Allow the water to cool down before cleaning the drain pump, carrying out emergency emptying, or opening the door in an emergency.

1 Open the cover cap and pull out the hose.

5

drain plug.

Close the cover cap.

2

3

it to the left.

Container to

collect the drained water.

Remove any extraneous matter from the pump

CAUTION

First drain using the drain hose and then open the

Be careful when draining, as the water may be hot.

30
