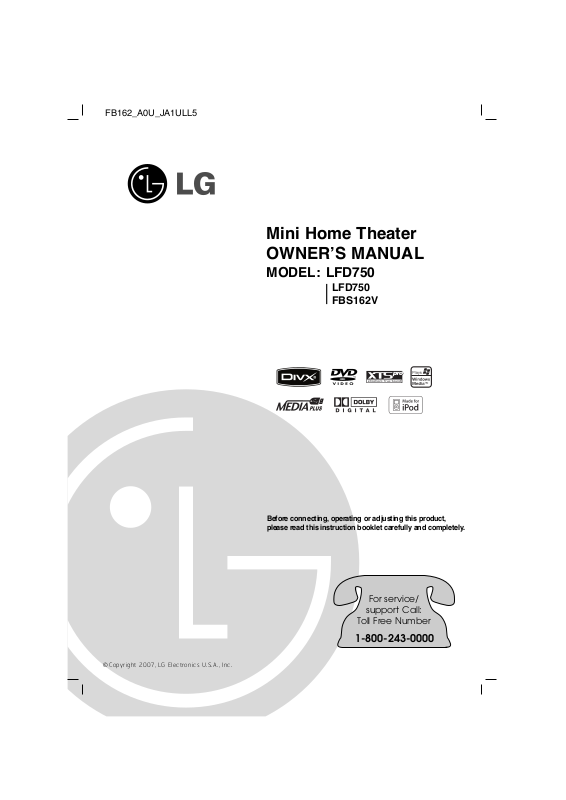

LG FBS162V, LFD750 User Manual

Mini Home Theater
OWNER’S MANUAL

MODEL: LFD750

LFD750
FBS162V

Before connecting, operating or adjusting this product,
please read this instruction booklet carefully and completely.

FB162_A0U_JA1ULL5

© Copyright 2007, LG Electronics U.S.A., Inc.

For service/

support Call:

Toll Free Number

1-800-243-0000

2

This lightning flash with arrowhead symbol within
an equilateral triangle is intended to alert the user
to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the product.

WARNING: Do not install this equipment in a confined space
such as a bookcase or similar unit.

CAUTION: Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to protect
it from over heating.
The openings should never be blocked by placing the
product on a bed, sofa, rug or other similar surface. This
product should not be placed in a built-in installation such as
a bookcase or rack unless proper ventilation is provided or
the manufacturer's instruction have been adhered to.

CAUTION:

This product employs a Laser System.
To ensure proper use of this product, please read this
owner’s manual carefully and retain it for future reference.
Should the unit require maintenance, contact an authorized
service center.
Use of controls, adjustments or the performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open
the enclosure. Visible laser radiation when open. DO NOT
STARE INTO BEAM.

CAUTION: The apparatus should not be exposed to water
(dripping or splashing) and no objects filled with liquids, such
as vases, should be placed on the apparatus.

FCC WARNING: This equipment may generate or use
radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the
modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is
made.

REGULATORY INFORMATION: FCC Part 15

This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and
receiver.

• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV
technician for help.

FCC COMPLIANCE: The responsible party for this
product’s compliance is:

Marketed and Distributed by LG Electronics U.S.A., Inc.,
1000 Sylvan Avenue, Englewood Cliffs, NJ.
Phone: [phone].

CAUTION concerning the Power Cord

Most devices are should be placed on a dedicated
circuit;

That is, a single outlet circuit which powers only that
electronic device and has no additional outlets or branch
circuits. Check the specification page of this owner's manual
to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose
or damaged wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric shock or fire.
Periodically examine the cord of your appliance, and if its
appearance indicates damage or deterioration, unplug it,
discontinue use of the appliance, and have the cord replaced
with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse,
such as being twisted, kinked, pinched, closed in a door, or
walked upon. Pay particular attention to plugs, wall outlets,
and the point where the cord exits the appliance.
To disconnect power from the mains, pull out the mains cord
plug. When installing the product, ensure that the plug is
easily accessible.

CLASS 1 LASER PRODUCT
KLASSE 1

LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1

LASER APPARAT
CLASSE 1

PRODUIT LASER

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.

3

1. Read these instructions. - All these safety and

operating instructions should be read before the product
is operated.

2. Keep these instructions. - The safety, operating and

use instructions should be retained for future reference.

3. Heed all warnings. - All warnings on the product and in

the operating instructions should be adhered to.

4. Follow all instructions. - All operating and use

instructions should be followed.

5. Do not use this apparatus near water. – For example:

near a bath tub, wash bowl, kitchen sink, laundry tub, in
a wet basement; or near a swimming pool; and other
areas located near water.

6. Clean only with dry cloth. – Unplug this product from

the wall outlet before cleaning. Do not use liquid
cleaners.

7.

Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions. -

Slots
and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to
protect it from over-heating. The openings should never
be blocked by placing the product on a bed, sofa, rug or
other similar surface. This product should not be placed
in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.

8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The
wide blade or the third prong are provided for your
safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the
obsolete outlet.

10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.

11.Only use attachments/accessories specified by the
manufacturer.

12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or
when unused for long periods of time.

14.

Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION:

PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL. AND
THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or
fire hazard. The safeguards incorporated in this product will protect you if you observe the following procedures for
installation, use, and servicing.
This product does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

4

Introduction

Maintenance and Service . . . . . . . . . . . . . . . . . .4

Before use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Front Panel/Back Panel . . . . . . . . . . . . . . . . . . . .6

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . .7

Installation and Setup

TV Connection . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Antenna (Aerial) Connections . . . . . . . . . . . . . .8

Auxiliary Function . . . . . . . . . . . . . . . . . . . . . . . .9

Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . .9

To Adjust ECHO Volume . . . . . . . . . . . . . . . . . . .9

Using Microphone . . . . . . . . . . . . . . . . . . . . . . . .9

iPod connection . . . . . . . . . . . . . . . . . . . . . . . . . .9

USB Function . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Compatible Devices . . . . . . . . . . . . . . . . . . . . . .10

Speaker System Connection . . . . . . . . . . . . . .10

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . .11

Timer Function . . . . . . . . . . . . . . . . . . . . . . . . . .11

Sleep Timer Function . . . . . . . . . . . . . . . . . . . . .11

Displaying Disc Information on-screen . . . . . .12

Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .12

General Operation . . . . . . . . . . . . . . . . . . . . . . .12

Language . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Lock (Parental Control) . . . . . . . . . . . . . . . . . .14

Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Operation

General features . . . . . . . . . . . . . . . . . . . . . . . . .16

Additional features . . . . . . . . . . . . . . . . . . . . . . .17

Playing an Audio CD or MP3/WMA file . . . . . .18

Programmed Playback . . . . . . . . . . . . . . . . . . .18

Viewing a JPEG file . . . . . . . . . . . . . . . . . . . . . .19

Playing a DivX Movie file . . . . . . . . . . . . . . . . . .20

Using iPod . . . . . . . . . . . . . . . . . . . . . . . . . . .21-22

Presetting the Radio Stations . . . . . . . . . . . . . .23

Listening to the Radio . . . . . . . . . . . . . . . . . . . .23

Dimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Sound Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

EQUALIZER Effect . . . . . . . . . . . . . . . . . . . . . . .24

DEMO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

DISPLAY MODE . . . . . . . . . . . . . . . . . . . . . . . . .24

XDSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

MP3 Optimizer . . . . . . . . . . . . . . . . . . . . . . . . . .24

XTS Pro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

VIRTUAL sound . . . . . . . . . . . . . . . . . . . . . . . . .24

REFERENCE

Language Codes . . . . . . . . . . . . . . . . . . . . . . . .25

Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Troubleshooting . . . . . . . . . . . . . . . . . . . . . .26-27

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Maintenance and Service

Refer to the information in this chapter before
contacting a service technician.

Handling the unit

When shipping the unit

Please save the original shipping carton and packing
materials. If you need to ship the unit, for maximum
protection, re-pack the unit as it was originally packed
at the factory.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide spray
near the unit.

•Do not leave rubber or plastic products in contact
with the unit for a long period of time. since they
leave marks on the surface.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution.
Do not use strong solvents such as alcohol, benzine,
or thinner, as these might damage the surface of the
unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the optical
pick-up lens and disc drive parts are dirty or worn, the
picture quality could be diminished.
Depending on the operating environment, regular
inspection and maintenance are recommended after
every 1,000 hours of use.
For details, please contact your nearest authorized
service center.

The manual largely contains detailed explanation
items about how to operate the unit with the
Remote Control.

Precautions in using the touch buttons

• Use the touch buttons with clean and dry hands.

- In a humid environment, wipe out any moisture on
the touch buttons before using.

• Do not press the touch buttons hard to make it work.

- If you apply too much strength, it can damage the
sensor of the touch buttons.

• Touch the button that you want to work in order to

operate the function correctly.

• Be careful not to have any conductive material such

as metallic object on the touch buttons. It can cause
malfunctions.

5

Before use

To ensure proper use of this product, please read this
owner’s manual carefully and retain it for future
reference.
This manual provides information on the operation
and maintenance of your unit. Should the unit require
service, contact an authorized service location.

About the Symbol Display

“ ” may appear on your TV display during
operation and indicates that the function explained in
this owner’s manual is not available on that specific
DVD video disc.

Symbol Used in this Manual

Note:

Indicates special notes and operating features.

Tip:

Indicates tips and hints for making the task easier.

A section whose title has one of the following symbols
is applicable only to the disc represented by the
symbol.

Indicates hazards likely to cause harm to the
unit itself or other material damage.

DVD and finalized DVD±R/RW

Audio CDs

MP3 files

WMA files

JPEG files

DivX files

Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are
trademarks of Dolby Laboratories. Confidential Unpublished
works. Copyright 1992-1997 Dolby Laboratories. All rights
reserved.

Types of Playable Discs

DVD
(8 cm / 12 cm disc)

Audio CD
(8 cm / 12 cm disc)

In addition, this unit can play a DVD±R/RW, and CD-R
or CD-RW that contains audio titles, MP3, WMA,
JPEG or DivX files.

Note:

• Depending on the conditions of the recording
equipment or the CD-R/RW (or DVD±R/RW) disc
itself, some CD-R/RW (or DVD±R/RW) discs may
not be played on the unit.

• Do not attach any seal or label to either side (the
labeled side or the recorded side) of a disc.

•

Do not use irregularly shaped CDs (e.g., heart­shaped

or octagonal). It may result in malfunctions.

Regional Code

This unit has a regional code printed on the bottom of
the unit. This unit can play only DVD discs labelled as
the same as the rear of the unit or “ALL”.

Note on Regional Codes

• Most DVD discs have a globe with one or more
numbers in it clearly visible on the cover. This
number must match your DVD player’s regional
code or the disc cannot play.

• If you try to play a DVD with a different regional
code from your player, the message “Check
Regional Code” appears on the TV screen.

DivX

JPEG

WMA

MP3

ACD

DVD-V

POWER SAVE MODE

You can set up the unit into an economic power save
mode.
In power-on status, press and hold 1(POWER)
button for about 3 seconds.

- Nothing is displayed in the display window when
the unit goes into the power save mode.

To cance power save mode, press 1(POWER).

Introduction

6

Front Panel/ Back Panel

1.1 (POWER)

2. VOLUME*

3. FUNC. (FUNCTION)
(FM, AM, DVD/CD, USB, AUX, OSD iPod)

4. .(SKIP)
TUN. (-) (TUNER)

5. XTS pro

6.x(STOP)
MO./ ST. (MONO/ STEREO)

7. DISC TRAY

8. EQ master/ DEMO button

9. CLOCK button

10. TIMER button

11. SET button

12. PHONES
(Headphone jack : 3.5mm)

13. MIC1/ MIC2 (MIC Jacks)

14. USB connector

15. Z (OPEN/CLOSE)

16. > (SKIP)
TUN. (+) (TUNER)

17. XDSS plus / (MP3 Optimizer)

18.BB/[](PLAY/PAUSE)

19. Display window

20. Power cord

21. Antenna terminal

22. AUX IN (Auxiliary input) connector

23. COMPONENT VIDEO OUT
(PROGRESSIVE SCAN) connector (Y P

b Pr)

24. VIDEO OUT Jack

25. iPod connector

26. Speaker terminal

*VOLUME Adjustment

Move your finger around the touch
wheel.

MIC1 MIC2

3

7

6

8

1

2

19

18

14

12

4

5

15

17

16

9

10
11

OPEN

13

20

22

21

26

24

23

25

7

Remote Control

1. POWER button

2. FUNCTION SELECT buttons
(TUNER/ BAND,DVD, AUX, USB)

3. NUMERIC buttons (0-9)

4.

EQ master, XDSS plus, XTS Pro, VSM

buttons

5. SETUP button

6. • ARROW buttons (v / V / b / B )

(Selects an option in the menu.)

• PRESET (-/+) buttons (v / V )

• TUN. (-/+) buttons (b / B)

7. SELECT/ ENTER button

8. MENU button
(Use the MENU button to display the menu screen

included on DVD video discs.)

9. PROG./MEMO. button

10. REPEAT button

11. REPEAT A-B button

12. • SCAN (

FF/GG

) buttons

• SLOW (t/T) buttons

• SKIP (./>) buttons

• STOP (x)/MO.ST. button

• PAUSE([])/ STEP button

• PLAY (

G

) button

13. • DIMMER button

• DISP.MODE button

14. ECHO VOL. ( / ), MIC VOL. ( / ) buttons

15. • CLEAR button

• ZOOM button

• MARKER, SEARCH buttons

16. VOLUME -/+ buttons

17. TITLE button
(Use the TITLE button to display the title screen

included on DVD video discs.)

18. DISPLAY button

19. • SOUND MODE button

• AUDIO ( ) button

• SUBTITLE ( ) button

• RETURN ( ) button - optional

20. SLEEP button

21. iPod button

22. MUTE ( )button

iPod

1

6

5

4

3

2

8

9

18

20

17

16

19

7

10

12

15

11

22

14

13

Remote Control Operation Range

Point the Remote Control at the Remote Sensor and press
the buttons.

• Distance: About 23 ft (7 m) from the front of the Remote

Sensor

• Angle: About 30° in each direction in front of the Remote

Sensor

Remote Control battery installation

Remove the battery cover on the rear of
the Remote Control, and insert two R03

(size AAA) batteries with and
aligned correctly.

Caution

Do not mix old and new batteries. Never mix different
types of batteries (standard, alkaline, etc.).

Introduction

21

8

Installation and Setup

TV Connection

Make one of the following connections, depending on
the capabilities of your existing equipment.

Tip:

• Depending on your TV and other equipment you
wish to connect, there are various ways you could
connect the

unit

. Use one of the connections

described below.

• Please refer to the manuals of your TV, VCR,
Stereo System or other devices as necessary to
make the best connections.

Caution:

•

Make sure the unit is connected directly to the TV.
Select the correct AV input on your TV.

• Do not connect your

unit

to the TV via your VCR.
The DVD image could be distorted by the copy
protection system.

Video connection

Connect the VIDEO OUT jack from the unit to the
VIDEO IN jack on the TV using the video cable
supplied (V).

Component Video connection

Connect the COMPONENT VIDEO OUT jacks from
the unit to the corresponding jacks on the TV using a
YP

b Pr cable (C).

Antenna (Aerial) Connections

Connect the supplied FM/AM antennas for listening to
the radio.

Note:

•To prevent noise pickup, keep the AM loop antenna
away from the unit and other components.

• Be sure to fully extend the FM wire antenna.

• After connecting the FM wire antenna, keep it as
horizontal as possible.

V

C

Y

Pb Pr

COMPONENT VIDEO / 

PROGRESSIVE SCAN INPUT

L

VIDEO 
INPUT

Rear of TV

FM wire antenna (supplied)

AM(MW) loop antenna

(aerial) (supplied)

For AM(MW) reception,connect
the loop antenna (aerial) to the
terminal marked AM

9

Installation and Setup

Auxiliary Function

Connect an auxiliary device such as a TV or VCR via
the rear mounted AUX connector and press AUX [Refer
to the example image(1) shown below].
When you connect each end of the bundled portable in
cable with both the AUX connector and the headphone
jack of a portable device (like MP3 player, cassette tape
player, CD player, etc.), you can hear the sound of the
device through the speakers [Refer to the example
image(2) shown below].

Note:

Turn the unit off and then connect an auxiliary device
before you connect an auxiliary device.
Because it may be made a noise.

Headphone Jack

Connect a stereo headphone plug ( 3.5mm) into the
headphone jack.

The speakers are automatically disconnected when you
plug in the headphones (not supplied).

To Adjust ECHO Volume

You can give an echo effect to the sound from the
microphones.

Press ECHO VOL. (/) on the Remote Control to
increase the echo volume or decrease it.
(MIN,1 - 14, MAX steps)

Using Microphone

You can sing to a music source by connecting a
microphone to the unit.

1. Connect your microphone to the MIC1/ MIC 2
Jacks.

“” will be shown in the display window.

2. Play a music you want.

3. Sing along with the accompaniment.
Adjust the microphone volume by pressing MIC

VOL. button.(MIN,1 - 14, MAX steps)

Note:

• When not using the microphone, set the MIC VOL. to

minimum or turn off the MICs and remove the
microphone from the MIC Jacks.

• If the microphone is set too near the speaker, a
howling sound may be produced. In this case, move
the microphone away from the speaker or decrease
the sound level by using MIC VOL..

• If sound through the microphone is extremely loud, it
may be distorted. In this case, decrese MIC volume.

iPod connection

Connect the iPod connector on the rear of the unit to
the dock connector of iPod using an iPod cable (I).

Note:



Depending on the type of iPod, you may need to
insert one of the dock adapters into the dock slot
before you station your iPod.



Adjust the volume to a moderate level before you
connect your iPod and this unit.

Auxiliary Device

To AUDIO out

Portable in cable

To AUDIO in

Example (1)

Example (2)

Portable Device

MENU

iPod

I

10

USB Function

You can enjoy the media files such as tunes
(MP3/WMA/PHOTO/VIDEO file) saved in an MP3
player or USB memory by connecting the storage
device to the USB port of this unit.

Compatible Devices

1. Devices which require additional program
installation when you have connected it to a
computer, are not supported.

2. MP3 Player : Flash type MP3 player.

•

T

he MP3 player requiring installation of a driver

is not supported.

3. USB Flash Drive : Devices that support USB2.0 or

USB1.1.

To Remove the USB from the unit

1. Choose the other functions except USB
function in order to remove the USB.

2. Remove the USB from the unit.

Note:

If you want to operate other functions, see the CD
Playback section. Refer to the page 16, 17, and 18.

Note:

• Do not extract the USB device in operating.

•Aback up demands to prevent a data damage.

• If you use a USB extension cable or USB hub, the

USB device might not be recognized.

•Adevice using NTFS file system is not supported.

(Only FAT (16/32) file system is supported.)

• The USB function of this unit does not support all

USB devices.

• Digital camera and mobile phone are not supported.

• This unit is not supported when the total number of

files is 1000 or more.

Speaker System Connection

Connect the speaker wires cables to the speaker
terminals.

Note:

• Be sure to match the speaker wire to the
appropriate terminal on the components: + to + and
– to –. If the cords are reversed, the sound will be
distorted and will lack bass.

• Connect the Left/ Right speaker correctly. If it
reversed, the sound may be distorted.

Front
speaker (L)

Front

speaker (R)

11

Installation and Setup

Setting the Clock

1. Press CLOCK.

2. Select a 24 hour time system or a 12 hour time

system by tapping ./>.

3. Press SET to confirm the selected hour time

system.

4. Tap ./> on the front panel to set the correct

hours.

5. Press SET.

6. Tap ./> on the front panel to set the correct

minutes.

7. Press SET and the correct time is shown on the

display window.

8. Press CLOCK at any time to display the time for

about 5 seconds.

Note:

If you want to reset the clock, press and hold CLOCK
for more than 2 seconds.

Timer Function

With the TIMER function, you can have the radio
reception, CD play and USB play turned on and off at
the desired time.

1. Press CLOCK to check the current time.

(If you don’t set clock, the timer function doesn’t
work.)

2. Press TIMER to enter the timer setting mode. If

you want to correct the previous memorized
TIMER setting, press and hold the TIMER for
more than 2 seconds.

- The previously memorized timer on the time and
“” indicator appears in the display window.

3. Each function (TUNER → DVD/CD → USB)

flashes in the display window in turn. Press SET
when the desired function is flashing.

4. a. When you select the TUNER function, select
the previously memorized preset number by
tapping ./ > on the front panel and press
SET.

- “ON TIME” indicator appears for about

0.5 seconds in the display window and
then disappears.

b.

When you select the

DVD/CD

or USB function,

- “ON TIME” indicator appears for about 0.5

seconds in the display window and then
disappears.

5. Set the hour to switch on by tapping ./> on

the front panel.

6. Press SET.

7. Set the minute to switch on by tapping ./>

on the front panel.

8. Press SET.

- “OFF TIME” indicator appears for about 0.5
seconds in the display window and then
disappears.

9. Set the hour to switch off by tapping ./> on

the front panel.

10. Press SET.

11. Set the minute to switch off by tapping ./>

on the front panel.

12. Press SET.

13. Adjust the volume level by tapping ./> on

the front panel.

14. Press SET.

“”

appears in the display window and the timer

setting has been completed.

15. Switch the system off.
The selected function is automatically switched on
and off at the time set.

Note:

If you insert the DVD,VCD or DivX except audio
CD/MP3/WMA on the unit, the timer function will be
operated to the TUNER.

To cancel or check the timer

Each time the TIMER is pressed you can select the
timer set or cancel. You can also check the timer
setting status.

To activate or check the timer, press the TIMER that
“” appears in the display window.
To cancel the TIMER, press the TIMER that “ ”
disappears in the display window.

Sleep Timer Function

When the sleep timer is used, the power is
automatically turned off after the specified time has
elapsed.

1. Press SLEEP to set the desired sleep time.

The SLEEP indicator and sleep time appears in
the display window.

2. Each time you press SLEEP the setting changes

in the following order.
SLEEP 180

→

150 → 120 →90 →80 → 70

→

60 → 50 → 40 → 30 →20 → 10 → OFF (No

display)

Note:

If you press SLEEP while the sleep time is
displayed, the SLEEP time is reset.

To cancel the sleep timer mode

If you have to stop the function, press the SLEEP
repeatedly until “SLEEP 10” appears, and then press
SLEEP once again while “SLEEP 10” is displayed.

(12HR)

(24HR)

or

12

Displaying Disc Information
On - screen

You can display various information about the disc
loaded on-screen.

1. Press DISPLAY to show various playback

information.
The displayed items differ depending on the disc
type or playing status.

2. You can select an item by pressing v / V and
change or select the setting by pressing b / B.



Title (Track) – Current title (or track) number/

total number of titles (or tracks).



Chapter – Current chapter number/total number

of chapters.



Time – Elapsed playing time.



Audio – Selected audio language or channel.



Subtitle – Selected subtitle.



Angle – Selected angle/ total number of angles.



Sound – Selected sound mode.

Note:

If any button is not pressed for a few seconds,
the on-screen display disappears.

Initial Settings

By using the Setup menu, you can make various
adjustments to items such as picture and sound. You
can also set a language for the subtitles and the
Setup menu, among other things. For details on each
Setup menu item, see the pages 12 to 15.

To display and exit the Menu:

Press SETUP to display the menu. A second press of
SETUP will take you back to initial screen.

To go to the next level: Press B.
To go back to the previous level: Press b.

GENERAL OPERATION

1. Press SETUP. The Setup menu appears.

2. Use v / V to select the desired option then press
B to move to the second level. The screen shows
the current setting for the selected item, as well as
alternate setting(s).

3. Use v / V to select the second desired option and
then press B to move to the third level.

4.

Use v / V to select the desired setting then press
SELECT/ENTER to confirm your selection. Some
items require additional steps.

5. Press SETUP or PLAY to exit the Setup menu.

LANGUAGE

OSD

Select a language for the Setup menu and the on­screen display.

Disc Audio / Subtitle / Menu

Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.

Original – Refers to the original language in which

the disc was recorded.

Other – To select another language, press

numeric buttons and then
SELECT/ENTER to enter the
corresponding 4-digit number according to
the language code list on the page 25. If
you enter the wrong language code, press

CLEAR.

13

Installation and Setup

DISPLAY

TV Aspect

4:3 – Select when a standard 4:3 TV is connected.

16:9 – Select when a 16:9 wide TV is connected.

Display Mode

The display Mode setting works only when the TV
Aspect mode is set to “4:3”.

Letterbox – Displays a wide picture with bands on

the upper and lower portions of the
screen.

Panscan – Automatically displays the wide picture

on the entire screen and cuts off the
portions that do not fit.

Progressive Scan

Progressive Scan Video provides the highest quality
pictures with less flickering.

If you are using the COMPONENT VIDEO OUT jacks,
but are connecting the unit to a standard (analog)
television, set Progressive Scan to Off.

If you are using the Component Video jacks for
connection to a TV or monitor that is compatible with
a progressive scan signal, set Progressive Scan to
On.

To Turn ON progressive scan:

Connect component out of the unit to the input of your
monitor/television, set your television or monitor to
Component Input.

1. Select “Progressive Scan” on the DISPLAY menu

then press B.

2. Select “On” using v / V.

3. Pressing SELECT/ENTER will set the player to

Progressive scan mode.

Caution:

Once the setting for progressive scan output is
entered, an image will only be visible on a progressive
scan compatible TV or monitor. If you set Progressive
Scan to On in error, you must reset the unit. First,
remove the disc in the unit. Next, press STOP( x )
and hold it for five seconds before releasing it. The
video output will be restored to the standard setting,
and a picture will once again be visible on a
conventional analog TV or monitor.

14

AUDIO

Each DVD disc has a variety of audio output options.
Set the unit’s AUDIO options according to the type of
audio system you use.

Dynamic Range Control (DRC)

With the DVD*

1

format, you can hear a program’s
soundtrack in the most accurate and realistic
presentation, thanks to digital audio technology.
However, you may wish to compress the dynamic
range of the audio output (the difference between the
loudest sounds and the quietest ones). Then, you may
listen to a movie at a lower volume without losing
clarity of sound. Set DRC to On for this effect.
*1: Dolby Digital only

Vocal

Set Vocal to On only when a multi-channel karaoke
DVD is playing. The karaoke channels on the disc will
mix into normal stereo sound.

LOCK (Parental Control)

Rating

Blocks playback of rated DVDs based on their
contents. Not all discs are rated.

1. Select “Rating” on the LOCK menu then

press B.

2. To access the LOCK options, you must input the

password you have created. If you have not yet
entered password, you are prompted to do so.

Input a password and press SELECT/ENTER.
Enter it again and press SELECT/ENTER to verify.
If you make a mistake before pressing
SELECT/ENTER, press CLEAR.

3. Select a rating from 1 to 8 using v / V.

Rating 1-8: Rating one (1) has the most

restrictions and rating eight (8) is the
least restrictive.

Unlock: If you select unlock, parental control is

not active and the disc plays in full.

4. Press SELECT/ENTER to confirm your rating
selection, then press SETUP to exit the menu.

Password

You can enter or change password.

1. Select “Password” on the LOCK menu and then
press B.

2. Follow the step 2 as shown above (Rating).

To change the password, press SELECT/ENTER
when the “Change” option is highlighted. Input a
password and press SELECT/ENTER. Enter it
again and press SELECT/ENTER to verify.

3. Press SETUP to exit the menu.

If you forget your password

If you forget your password, you can clear it using the
following steps:

1. Press SETUP to display the Setup menu.

2. Input the 6-digit number “210499” and press

SELECT/ENTER. The password is cleared.

Area Code

Enter the code of the area whose standards were
used to rate the DVD video disc, based on the list on
page 25.

1. Select “Area Code” on the LOCK menu then

press B.

2. Follow step 2 as shown in rating section.

3. Select the first character using v / V.

4. Press B and select the second character using

v / V.

5. Press SELECT/ENTER to confirm your Area code

selection.

US

15

Installation and Setup

OTHERS

DivX(R) Registration

We provide you the DivX

®

VOD (Video On Demand)
registration code that allows you to rent and purchase
videos based on the DivX

®

VOD service. For more

information, visit www.divx.com/vod.

1. Select “DivX(R) Registration” option and then

press B.

2. Press SELECT/ENTER while “Select” is selected

and the registration code will appear.
Use the registration code to purchase or rent the
videos from DivX

®

VOD service at
www.divx.com/vod. Follow the instructions and
download the video onto a disc for playback on
this unit.

3. Press SELECT/ENTER to exit.

Note:

All the downloaded videos from DivX

®

VOD can only

be played back on this unit.

Semi Karaoke

When a chapter/ title / track is fully finished ,this
function shows the score in the screen with a fanfare
sound.

on : Turn the “Semi Karaoke”function on.

When you finished singing a score will appear
on the screen.

off : Turn the “ Semi Karaoke” function off.

Fanfare and score do not appears on the
screen

Available discs for the Semi Karaoke function:

• DVD discs

• DVD Karaoke Discs

Note:

• This function operate on the DVD/CD mode.

• The Semi Karaoke function is available only when a

microphone is connected.

• Watching movies, “off” the Semi Karaoke or enjoy it

without connecting the MIC at the SET UP menu if
the fanfare or score appears during changing a
chapter.

16

Operation

General features

Buttons Operations

Z (OPEN / CLOSE) Opens or closes the disc tray.
X (PAUSE) During playback, press X to pause playback.

Press X repeatedly to play Frame-by-Frame.

SKIP (. / >) During playback, press SKIP (. or >) to go to the

next chapter/track or to return to the beginning of the
current chapter/track.

Press SKIP . twice briefly to step back to the previous
chapter/track.

SCAN (m / M) During playback, press SCAN (m or M) repeatedly to

select the required scan speed.
DVD : bb, bbb, bbbb, bbbbb, bbbbbb

or

BB, BBB, BBBB, BBBBB, BBBBBB

DivX disc : bb, bbb, bbbb, bbbbb

or

BB, BBB, BBBB, BBBBB

WMA/MP3, Audio CD : m (X2, X4, X8) or M (X2, X4, X8)

REPEAT During playback, press REPEAT repeatedly to select a

desired repeat mode.
DVD Video discs: Chapter/Title/Off
Audio CD, DivX/MP3/WMA discs: Track/All/Off

REPEAT A-B During playback, press REPEAT A-B to select a point A

and a point B and repeats a sequence from point A
(Starting point) to point B (End point).
Press REPEAT A-B to exit.

ZOOM During playback or in the pause mode, press ZOOM to

the video image (3 steps).
You can move through the zoomed picture using bBv
V.

TITLE If the current DVD title has a menu, the title menu

appears on the screen. Otherwise, the disc menu may
appear.

MENU The disc menu appears on the screen.

(SUBTITLE) During playback, press SUBTITLE repeatedly to select a

desired subtitle language.

(AUDIO language) During playback, press AUDIO repeatedly to hear a

different audio language or audio track.

SLOW

In the pause mode, press SLOW (t or T) to select
required speed.
DVD : t (1/2, 1/4, 1/8, 1/16) or T (1/2, 1/4, 1/8, 1/16)

Note on general features:

• Zoom may not work on some DVDs.

• The A-B repeat function is available only in the current title.

Discs

DVD

DivXDVD

DivXDVD

DVD

DVD

DVD

DVD

WMA

MP3

ACDDivXDVD

ALL

DivXDVD

ALL

ALL

DVD

DivX

ACD

MP3

WMA

17

Additional features

Time Search

To start playing at any chosen time on the disc:

1. Press DISPLAY during playback.

2. Press v / V to select the time clock icon and

“--:--:--” appears.

3. Input the required start time in hours, minutes, and
seconds from left to right. If you enter the wrong
numbers, press CLEAR to remove the numbers
you entered. Then input the correct numbers.

4. Press SELECT/ENTER to confirm. Playback starts
from the selected time.

Marker Search

To enter a Marker

You can start playback from up to nine memorized
points. To enter a marker, press MARKER at the
desired point on the disc. The Marker icon appears on
the TV screen briefly. Repeat to enter up to nine
markers.

To Recall or Clear a Marked Scene

1. During disc playback, press SEARCH. The marker
search menu appears on the screen.

2. Within 10 seconds, press b / B to select a marker
number that you want to recall or clear.

3. Press SELECT/ENTER and playback starts from
the marked scene. Or press CLEAR and the
marker number is erased from the list.

4. You can play any marker by inputting its number
on the marker search menu.

Screen Saver

The screen saver appears when you leave the unit in
Stop mode for about five minutes.

Last Scene Memory

This unit memorizes the last scene from the last disc
that is viewed. The last scene remains in the memory
even if you remove the disc from the unit or switch off
the unit. If you load a disc that has the scene
memorized, the scene is automatically recalled.

Note:

This unit does not memorize the scene of a disc if you switch
off the unit before commencing to play the disc.

1.5 speed playback

You can quickly enjoy a movie and music.
The 1.5 speed allows you to watch the pictures and
listen to the sound quicker than playing at a normal
speed on the disc.

1. Press PLAY during the normal playback. The

screen will appear at 1.5 speed with sound .

2. To return to normal PLAY, press PLAY.

ACD

WMA

MP3DVD

DVD

DivXDVD

DivXDVD

Operation

18

Playing an Audio CD or MP3/WMA
file

This unit can play Audio CDs or MP3/WMA files.

MP3/ WMA/ Audio CD

Once you insert a cd with MP3/WMA files or Audio, a
menu appears on the TV screen.
Press v / V to select a track/file and then press PLAY
or SELECT/ENTER, and playback starts. You can use
variable playback functions. Refer to the page 16, 17.

ID3 TAG

When playing a file containing information such as
track titles, you can see the information by pressing
DISPLAY repeatedly. The information [ Folder and file
name, Song, Artist, Album, Genre, Comment, Time
information ] of the MP3/WMA file will be shown in the
display window and TV screen.

To move next or previous files, press the SKIP (. /
>) button.

Tip:

• Press MENU to move to the next page.

• On a CD with MP3/WMA and JPEG, you can switch

MP3/WMA and JPEG. Press TITLE, and MUSIC or
PHOTO top of the menu is highlighted.

Programmed Playback

The program function enables you to store your
favorite tracks from any disc in the unit memory. A
program can contain 300 tracks.

1. Insert a disc.
Audio CD and MP3/WMA discs:

2. Select a track on the “List”, and then press
PROG.MEMO. or select “ (Add)” icon and then

press SELECT/ENTER to place the selected track
on the “Program” list. Repeat to place additional
tracks on the list.

Note:

You can add all tracks in the disc. Select “(Add All)” icon
then press SELECT/ENTER.

3. Select the track you want to start playing on the
“Program” list. Press MENU to move to the next
page.

4. Press PLAY or SELECT/ENTER to start. Playback
begins in the order in which you programmed the
tracks. Playback stops after all of the tracks on the
“Program” list have played once.

5. To resume normal playback from programmed
playback, select a track of AUDIO CD (or
MP3/WMA) list and then press PLAY.

Repeat Programmed Tracks

1. Press REPEAT when playing a disc. The repeat
icon appears.

2. Press REPEAT to select a desired repeat mode.

• TRACK: repeats the current track

• ALL: repeats all the tracks on programmed list.

• Off(No display): does not play repeatedly.

Erasing a Track from “Program” List

1. Use vVto select the track that you wish to erase
from the Program list.

2. Press CLEAR. Alternatively, select “ (Delete)”
icon then press SELECT/ENTER to place the
selected track on the Program list. Repeat to
erase additional tracks on the list.

Erasing the Complete Program List

Use v / V to select “ (Del all)” and then press
SELECT/ENTER.

Note:

The programs are also cleared when the disc is removed.

MP3 / WMA disc compatibility with this player is
limited as follows:

• Sampling frequency: within 32 - 48 kHz (MP3),
within 24 - 48kHz (WMA)

• Bit rate: within 32 - 320kbps (MP3), 40 - 192kbps (WMA)

• The unit cannot read an MP3/WMA file that has a file
extension other than “.mp3” / “.wma”.

• CD-R physical format should be ISO 9660

• If you record MP3 / WMA files using software that
cannot create a file system (eg. Direct-CD) it is
impossible to playback MP3 / WMA files.We recommend
that you use Easy-CD Creator, which creates an ISO
9660 file system.

• File names should have a maximum of 8 letters and
must incorporate an .mp3 or .wma extension.

• They should not contain special letters such as / ? * : “
< > l etc.

• The total number of files on the disc should be less than

999.

This unit requires discs and recordings to meet certain
technical standards in order to achieve optimal playback
quality. Pre-recorded DVDs are automatically set to these
standards. There are many different types of recordable
disc formats (including CD-R containing MP3 or WMA files)
and these require certain pre-existing conditions (see
above) to ensure compatible playback.

Customers should note that permission is required in
order to download MP3 / WMA files and music from the
Internet. Our company has no right to grant such
permission. Permission should always be sought from
the copyright owner.

19

Operation

Viewing a JPEG file

This unit can play discs with JPEG files.
Before playing JPEG recordings, read the note on
JPEG Recordings on the right.

1. Insert a disc and close the tray.
The PHOTO menu appears on the TV screen.

2. Press v / V to select a folder, and then press
SELECT/ENTER. A list of files in the folder
appears.
If you are in a file list and want to return to the

previous Folder list, use v / V to highlight and
press SELECT/ENTER or PLAY.

3. If you want to view a particular file, press v / V to
highlight a file and press SELECT/ENTER or
PLAY. While viewing a file, you can press STOP
to move to the previous menu (JPEG menu).

Slide Show

Use vVbBto highlight the (Slide Show) then
press SELECT/ENTER or PLAY.

Tip:

•

There are four Slide Speed options :

> (Slow), >> (Normal), >>> (Fast) and II (off).
Use v /V /b /B to highlight the Speed. Then, use b / B to
select the option you want to use and then press
SELECT/ENTER.

• If you set Speed option to Off, the slide is not active.

Still Picture

1. Press PAUSE/STEP during the slide show.
The unit will now go into the PAUSE mode.

2. To return to the slide show, press PLAY or press

PAUSE/STEP again.

Moving to another File

Press SKIP (. or >) once during viewing a
picture to advance to the next or previous file.

Rotating the picture

Press v /V /b /B during showing a picture to rotate
the picture clockwise or counter-clockwise.

Zoom

Each time ZOOM is pressed the setting changes in
the following order.

Zoom on y Zoom off

Press v, B or M to enlarge the video image.
Press V, b or m to reduce the video image.

Preview

List

JPEG Folder 1

JPEG Folder 2

JPEG Folder 3

JPEG Folder 4

JPEG Folder 5

JPEG Folder 6

JPEG Folder 7

JPEG Folder 8


JPEG file compatibility with this player is limited
as follows:

• Depending upon the size and the number of
JPEG files, it could take a long time for the unit to
read the disc’s contents. If you don’t see an on­screen display after several minutes, some of the
files may be too large — reduce the resolution of
the JPEG files to less than 2M pixels as 2760 x
2048 pixels and burn another disc.

• The total number of files and folders on the disc
should be less than 999.

• Some discs may not operate due to a different
recording format or the condition of disc.

• Ensure that all the selected files have the “.jpg”
extensions when copying into the CD layout.

• If the files have “.jpe” or “.jpeg” extensions,
please rename them as “.jpg” file.

• File names without “.jpg” extension will not be
able to be read by this unit. Even though the files
are shown as JPEG image files in Windows
Explorer.

20

Playing a DivX Movie file

Using this unit you can play DivX file.

1. Insert a disc and close the tray. The MOVIE menu
appears on the TV screen.

2. Press v / V to select a folder and then press
SELECT/ENTER. A list of files in the folder
appears. If you are in a file list and want to return

to the Folder list, use v / V to highlight and
press SELECT/ENTER or PLAY.

3. If you want to view a particular file, press
v / V to highlight a file and press SELECT/ENTER
or PLAY.

4. Press STOP to exit.

Tip:

• Press MENU to move to the next page.

• On a CD with MP3/WMA, JPEG and MOVIE file,

you can switch MUSIC, PHOTO and MOVIE menu.
Press TITLE and MUSIC, PHOTO and MOVIE word
on top of the menu is highlighted.

Note:

• Be sure to select “SUBTITLE ON” mode by pressing

the subtitle file every time before playing a DivX file.

• When the subtile has more than two languages in

the file, original subtile is only available.

•You can not adjust sound mode and VIRTUAL

sound during the DivX file playing.

•The DivX subtitle file name has to be identified with

the DivX file name to display by this unit.

Notice for displaying the Divx subtitle

If the subtitle does not display properly during playback,
press and hold SUBTITLE for about 3 seconds then
press SUBTITLE to select another language code until
the subtitle is displayed properly

List

Movie Folder 1

Movie Folder 2

Movie Folder 3

Movie Folder 4

Movie Folder 5

Movie Folder 6

Movie Folder 7

Movie Folder 8

0:00:00

MOVIE

1 / 5

DivX file compatibility with this player is limited
as follows:

•Available resolution size of the DivX file is under
800x600 (W x H) pixel.

• The file name of the DivX subtitle is available by
45 characters.

• If there is impossible code to express in the DivX
file, it may be displayed as " _ " mark on the
display.

• If the number of the screen frame is over 30
per 1 second, this unit may not operate
normally.

• If the video and audio structure of recorded
files is not interleaved, either video or audio is
outputted.

Playable DivX file

• ".avi ", ".mpg ", ".mpeg ", ".divx"

Playable Subtitle format

SubRip(*.srt/*.txt)
SAMI(*.smi)
SubStation Alpha(*.ssa/*.txt)
MicroDVD(*.sub/*.txt)
SubViewer 2.0(*.sub/*.txt)
VobSub(*.sub)

Playable Codec format

• "DIVX3.xx ", "DIVX4.xx ", "DIVX5.xx ", "MP43 ",

"3IVX ".

Playable Audio format

• "AC3 ", "PCM ", "MP3 ", "WMA ".

• Sampling frequency: within 32 - 48 kHz (MP3),

within 24 - 48kHz (WMA)

• Bit rate: within 32 - 320kbps (MP3),

40 - 192kbps (WMA)

21

Operation

Using iPod

You can enjoy playback of your iPod using the
supplied remote control.

iPod is a trademark of Apple Computer, Inc, registered
in the U.S. and other countries.

General operation

1. Connect your iPod and the unit with iPod cable.
Refer to the page 9.
Your iPod is automatically turned on.

2. Turn the unit on.

3. Press iPod on the remote control to enter the iPod
mode.
The iPod menu appears on the TV screen.
The initial screen of iPod menu is the OSD iPod
mode.

4. Use v / V and ENTER on the Remote Control to
display the list of menu.

5. Press ENTER to play.

General features

Note:

• It works with all iPod models that have a dock
connector.

• Compatibility with your iPod may vary depending
on the type of your iPod.

• Depending on your iPod’s software version, it may
not be possible to control your iPod from the unit.
We recommend installing the latest software
version.

• Adjust the volume to a moderate level before you
connect your iPod and this unit.

• MIC function is not suppoted on the iPOD mode.

Playing the iPod in the Remote iPod
mode

You can operate your iPod by using the supplied
remote control and controls on your iPod.

1. Press iPod on the Remote Control until “IPOD”
appears in the display window.

Note:

You can select the Remote iPod mode or OSD
iPod mode by pressing repeatedly iPod on the
remote control.

2. Use v / V and ENTER on the Remote Control or
controls on your iPod to display the list of menu by
viewing your iPod.

3. Press ENTER to play.

Note:

• When you connect the unit and TV to VIDEO
IN/OUT, TV screen is turned off temporarily.

•

Connect the VIDEO OUT jack on the rear of the
unit to the VIDEO IN jack on the TV using the video
cable if you want to view the video or photo file.

•

The images of video or photo files are outputted
only when you connect the unit to the VIDEO OUT
connector.

Operations

During pause, press B to
resume playback.

During playback, press X
to pause playback.

During playback, press

xx

to stop playback. Press
ENTER to resume
playback.

During playback, press
SKIP (. or >) to go to
the next track or to return
to the beginning of the
current track. Press SKIP
. twice briefly to step
back to the previous track.

Music file: During playback,
press and hold SCAN (m or
M) and then release at a
point you want.

Video file: During playback,
press and hold

SKIP (.

or >)

and then release at

a point you want.

During playback, press
REPEAT repeatedly to
select a desired repeat
mode. (Track/All/Off)

Moves to the previous
menu.

Remote Control
buttons

B (PLAY)

X (PAUSE)

xx

(STOP)

SKIP
(./>)

SCAN
(m / M)

REPEAT

MENU

iPod

buttons

B X

B X

-

./>

REPEAT

MENU

22

Playing the iPod in the OSD iPod
mode

You can operate your iPod by controlling OSD menu
on the TV screen with the supplied remote control.
The controls on your iPod are not operational in the
OSD iPod mode.

1. Press iPod on the Remote Control until “OSD
IPOD” appears in the display window.

2. Use v / V and ENTER on the Remote Control to
display the list of menu.

3. Press ENTER to play.

Music

Classifies and plays the files by Playlists, Artists,
Albums, Genres, Songs, and Composers.

Photos / Videos

The video or photo file is not played in the OSD iPod
mode.
If you want to play the video or photo file, change to
the Remote iPod mode.

Now Playing

Displays and plays the last played music file.

iPod message

Remote iPod

Please use Monitor output

for viewing Video and photo

from iPod.

When you connect the unit and
TV to COMPONENT VIDEO
IN/OUT in the

Remote iPod
mode, the screen on the left
appears.
Connect the unit and TV to
VIDEO

IN/OUT

.

When you select the Photos or
Videos menu in the

OSD iPod
mode, the screen on the left
appears. Change the unit to the
Remote iPod mode.

When you connect the iPod that
is not supported on this unit, the
screen on the left appears.
Depending on your iPod’s
software version, it may not be
possible to control your iPod
from the unit. We recommend
installing the latest software
version.

If the power of your iPod is
insufficient or the iPod is
misconnected or unknown
device, the screen on the left
appears.

23

Presetting the Radio Stations

You can preset 50 stations for FM and AM. Before
tuning, make sure that you have turned down the
volume to the minimum.

1.

Press TUNER/BAND to select the frequency (AM or
FM) you want.

2. Select a station you want by pressing

TUN. (-/+)

.

Tuning in automatically

-

P

ress TUN. (-/+) for more than 0.5 second.

Scanning stops when the unit tunes in a station.

Tuning in manually

-

P

ress

TUN. (-/+)

briefly and repeatedly.

3. Press PROG./MEMO..

A preset number will flash in the display window.

4. Press PRESET (v/V) to select the preset number

you want.

5. Press PROG./ MEMO. again.

The station is stored.

6. Repeat the steps 1 (or 2) to 5 to store other
stations.

To delete all the memorized stations

Press and hold PROG./ MEMO. for about two
seconds, “ERASE ALL” appears in the display window
and then PROG./ MEMO. again, the stations are
deleted.

For your reference

If all stations have already been entered, “FULL”
message will appear in the display window for a
moment and then a preset number will flash. To
change the preset number, follow steps 4-5.

To recall presets

Press and hold PRESET (v/V) until the desired preset
number appears or press it repeatedly.

Listening to the Radio

1.

Press TUNER/BAND to select the frequency (AM or
FM) you want.
The last received station is tuned in.

2. Press PRESET (v/V) repeatedly to select the

preset station you want.

- Each time you press the button, the unit tunes in
one preset station at a time.

3. Adjust the volume by pressing VOLUME (-/+)

repeatedly.

To listen to non-preset radio stations

• For manual tuning, see “Tuning in manually” in the
step 2 on left.

• For automatic tuning, see “Tuning in automatically”
in the step 2 on left.

To turn off the radio

Press 1(POWER) to turn the unit off or select another
function mode (DVD/CD, USB, AUX, OSD iPod).

For your reference

•

If an FM program is noisy;
Press MO./ ST. that “MONO” appears in the display
window. There will be no stereo effect, but the
reception will be improved.
Press MO./ ST. again to restore the stereo effect.

•

To improve reception;
Reposition the supplied antennas.

Operation

24

Dimmer

This function will change the brightness of the display
window on the front panel during in power-on status.

Press the DIMMER repeatedly.

Mute

Press MUTE to mute your unit.

You can mute your unit in order, for example, to
answer the telephone.

Sound Mode

You can enjoy surround sound simply by selecting
one of the pre-programmed sound fields according to
the program you want to listen to (2 ch. sound only).

Press SOUND MODE repeatedly.

BYPASS

→ ON STAGE → STUDIO → CLUB → HALL

→ THEATER 1 → CHURCH → BYPASS...

Note:

Initial sound mode is BYPASS.

EQUALIZER Effect

You can choose 7 fixed sound impressions and adjust
the BASS, MIDDLE and TREBLE.

- You can select a desired sound mode by using EQ
master.

NORMAL USER EQ POP CLASSIC

JAZZ DRAMA ROCK

- Press EQ master to select USER EQ.

1. When USER EQ is displayed, press SET.

“

BASS

0” will appear the display window.

2. Tap the

./ > on the front panel to select the

setting you want (MIN, -4 ~ +4, MAX steps).

3. Select the BASS, MIDDLE or TREBLE you want
by tapping B/]]or x on the front panel.

4. Adjust the MIDDLE and TREBLE

as shown above.

DEMO

Press EQ master on the front panel in power off state
to demonstrate the function in the display window. To
cancel it, press POWER or EQ master again.

DISPLAY MODE

Whenever you press DISP. MODE (DISPLAY MODE),
you can enjoy the spectrum change with 6 types in
the display window.

XDSS
(Extreme Dynamic Sound
System)

Press XDSS plus to reinforce treble, bass and the
surround effect. The “XDSS ON” or “NORMAL”
indicator lights.
DVD/DivX/Audio CD : XDSS ON ↔ NORMAL
MP3/WMA : XDSS ON t MP3 -- OPT ON

t NORMAL t XDSS ON ...

MP3 Optimizer

This function is an optimizer for compressible MP3
files. It improves the bass sound to make sweet
sound.
Each time you press XDSS Plus.
The setting changes in the following order.
XDSS ON t MP3 -- OPT ON t NORMAL

XTS Pro

This unique sound quality developed by our
technology creates the optimum sound for you to play
the perfect playback of the original sound and to feel
the living sound source.
Each time you press XTS Pro the setting changes in
the following order.
XTS -- P ON ↔ NORMAL

Note:

The XTS Pro function will not be operated when a
headphone has been connected.

VIRTUAL sound

Press VSM to set the VIRTUAL sound.



3D STEREO

Realtime 3D positioned sound rendering
technology with stereo sources, optimized for
stereo speakers. Listeners may experience
amazing virtual surround effects with their own
multimedia players.



VIRTUAL sound

A pending downmix technology converts 5.1
channel to 2 channel sound having directional
information of audio. And it makes a 2 channel or

2.1 channel feel 5.1 channel sound.

Source Display Effect

2.1 ch. VIRTUAL 3D STEREO

5.1 ch VIRTUAL VIRTUAL sound

→→→

→

→

→

→

25

Area Code

Afghanistan AF
Argentina AR
Australia AU
Austria AT
Belgium BE
Bhutan BT
Bolivia BO
Brazil BR
Cambodia KH
Canada CA
Chile CL
China CN
Colombia CO
Congo CG
Costa Rica CR
Croatia HR
Czech Republic CZ
Denmark DK
Ecuador EC
Egypt EG
El Salvador SV

Area Code

Ethiopia ET
Fiji FJ
Finland FI
France FR
Germany DE
Great Britain GB
Greece GR
Greenland GL

Heard and McDonald Islands

HM
Hong Kong HK
Hungary HU
India IN
Indonesia ID
Israel IL
Italy IT
Jamaica JM
Japan JP
Kenya KE
Kuwait KW
Libya LY
Luxembourg LU

Area Code

Malaysia MY
Maldives MV
Mexico MX
Monaco MC
Mongolia MN
Morocco MA
Nepal NP
Netherlands NL
Netherlands Antilles AN
New Zealand NZ
Nigeria NG
Norway NO
Oman OM
Pakistan PK
Panama PA
Paraguay PY
Philippines PH
Poland PL
Portugal PT
Romania RO
Russian Federation RU

Area Code

Saudi Arabia SA
Senegal SN
Singapore SG
Slovak Republic SK
Slovenia SI
South Africa ZA
South Korea KR
Spain ES
Sri Lanka LK
Sweden SE
Switzerland CH
Taiwan TW
Thailand TH
Turkey TR
Uganda UG
Ukraine UA
United States US
Uruguay UY
Uzbekistan UZ
Vietnam VN
Zimbabwe ZW

Area Codes

Choose a area code from this list.

Language Code

Abkhazian 6566
Afar 6565
Afrikaans 6570
Albanian 8381
Ameharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Aymara 6588
Azerbaijani 6590
Bashkir 6665
Basque 6985
Bengali; Bangla 6678
Bhutani 6890
Bihari 6672
Breton 6682
Bulgarian 6671
Burmese 7789
Byelorussian 6669
Cambodian 7577
Catalan 6765
Chinese 9072
Corsican 6779
Croatian 7282
Czech 6783
Danish 6865
Dutch 7876
English 6978
Esperanto 6979
Estonian 6984
Faroese 7079

Language Code

Fiji 7074
Finnish 7073
French 7082
Frisian 7089
Galician 7176
Georgian 7565
German 6869
Greek 6976
Greenlandic 7576
Guarani 7178
Gujarati 7185
Hausa 7265
Hebrew 7387
Hindi 7273
Hungarian 7285
Icelandic 7383
Indonesian 7378
Interlingua 7365
Irish 7165
Italian 7384
Japanese 7465
Javanese 7487
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kirghiz 7589
Korean 7579
Kurdish 7585
Laothian 7679
Latin 7665
Latvian, Lettish 7686

Language Code

Lingala 7678
Lithuanian 7684
Macedonian 7775
Malagasy 7771
Malay 7783
Malayalam 7776
Maltese 7784
Maori 7773
Marathi 7782
Moldavian 7779
Mongolian 7778
Nauru 7865
Nepali 7869
Norwegian 7879
Oriya 7982
Panjabi 8065
Pashto, Pushto 8083
Persian 7065
Polish 8076
Portuguese 8084
Quechua 8185
Rhaeto-Romance 8277
Rumanian 8279
Russian 8285
Samoan 8377
Sanskrit 8365
Scots Gaelic 7168
Serbian 8382
Serbo-Croatian 8372
Shona 8378
Sindhi 8368

Language Code

Singhalese 8373
Slovak 8375
Slovenian 8376
Somali 8379
Spanish 6983
Sudanese 8385
Swahili 8387
Swedish 8386
Tagalog 8476
Tajik 8471
Tamil 8465
Tatar 8484
Telugu 8469
Thai 8472
Tibetan 6679
Tigrinya 8473
Tonga 8479
Turkish 8482
Turkmen 8475
Twi 8487
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapük 8679
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 7473
Yoruba 8979
Zulu 9085

Language Codes

Use this list to input your desired language for the following initial settings:
Disc Audio, Disc Subtitle, Disc Menu.

Reference

REFERENCE

26

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptom

No power.

The power is on, but
the unit does not work.

No picture.

There is no sound or
only a very low-level
sound is heard.

The playback picture is
poor.

The unit does not start
playback.

Loud hum or noise is
heard.

Cause

• The power cord is disconnected.

• No disc is inserted.

• The TV is not set to receive DVD signal
output.

•The video cable is not connected
securely.

•The connected TV power is turned off.

• The equipment connected with the
audio cable is not set to receive DVD
signal output.

• The audio cables are not connected
securely.

• The power of the equipment connected
with the audio cable is turned off.

• The audio connecting cable is damaged.

• The disc is dirty.

• No disc is inserted.

• An unplayable disc is inserted.

• The disc is placed upside down.

•The disc is not placed within the guide.

• The disc is dirty.

•Amenu is on the TV screen.

• The Rating level is set.

• The disc is dirty.

• The speakers and components are
connected poorly.

• The unit is located too close to the TV.

Correction

• Plug the power cord securely into the
wall outlet.

• Insert a disc. (Check that the DVD or,
audio CD indicator in the DVD display
is lit.)

• Select the appropriate video input
mode on the TV so the picture from
the unit appears on the TV screen.

• Connect the video cable into the
jacks securely.

•Turn on the TV.

• Select the correct input mode of the
audio receiver so you can hear the
sound from the unit.

• Connect the audio cable into the
jacks securely.

•Turn on the equipment connected
with the audio cable.

• Replace it with new one.

• Clean the disc.

• Insert a disc. (Check that the DVD, or
audio CD indicator in the DVD display
is lit.)

• Insert a playable disc. (Check the
disc type, color system and Regional
code.)

• Place the disc with the playback side
down.

• Place the disc on the disc tray
correctly inside the guide.

• Clean the disc.

• Press the SETUP button to turn off
the menu screen.

• Cancel the Rating function or change
the rating level.

• Clean the disc.

• Connect the speakers and
components securely.

• Move your TV away from the audio
components.

27

Symptom

Radio stations cannot
be tuned in.

The Remote Control
does not work
properly.

The front panel
display is too dim.

Cause

• The antenna is positioned or connected
poorly.

• The signal strength of the stations is too
weak (when tuning in with automatic
tuning).

• No stations have been preset or preset
stations have been cleared (when
tuning by scanning preset stations).

• The Remote Control is not pointed at
the Remote Sensor of the unit.

• The Remote Control is too far from the
unit.

• There is an obstacle in the path of the
Remote Control and the unit.

• The batteries in the Remote Control are
flat.

• Nothing is displayed on the front panel
display.

Correction

• Connect the antenna securely.

•Adjust the antennas and connect an
external antenna if necessary.

•Tune in the station manually.

• Preset the stations (page 23).

• Point the Remote Control at the Remote
Sensor of the unit.

• Use the Remote Control within about 23
ft (7 m).

• Remove the obstacle.

• Replace the batteries with new ones.

• Press DIMMER.

REFERENCE

28

GeneralCD/DVD

Amplifier

Speakers

Tuner

FM

AM

[MW]

Specifications

Video

Power supply Refer to main label
Power consumption Refer to main label
Net Weight 3.31 kg
External dimensions (W x H x D) 170 x 253 x 265 mm
Operating conditions Temperature: 5°C to 35°C, Operation status: Horizontal
Operating humidity 5% to 85%
Laser Semiconductor laser, wavelength 650 nm
Signal system NTSC 525/60
Frequency response (audio) 40 Hz to 2 kHz
Signal-to-noise ratio (audio) More than 75 dB (1 kHz, NOP -3 dB, 20 kHz LPF/A-Filter)
Dynamic range (audio) More than 75 dB
Harmonic distortion (audio) 0.5 % (1 kHz, at 1W position) (20 kHz LPF)
Video output 1.0 V (p-p), 75 Ω, negative sync./

RCA jack x 1

COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 ohms, negative sync, RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 ohms, RCA jack x 1
Tuning Range 87.5 - 108.0 MHz or 65.0 - 74.0 MHz, 87.5 - 108.0 MHz
Intermediate Frequency 10.7 MHz
Signal-to Noise Ratio 60/55 dB (Mono)
Frequency Response 50 - 10,000 Hz
Tuning Range 522 - 1,620 kHz or 520 - 1,720 kHz
Intermediate Frequency 450 kHz
Stereo mode 80 W + 80 W
Output Power 80 W + 80 W
T.H.D 0.5 %
Frequency Response 40 - 20000 Hz
Signal-to-noise ratio 75 dB
Type 3 Way 3 Speaker
Impedance 4 Ω
Frequency Response 70 - 20,000 Hz
Sound Pressure Level 83 dB/W (1m)

Rated Input Power 80 W
Max. Input Power 160 W

Net Dimensions (W x H x D) 128 x 295 x 240 mm
Net Weight 4.1kg

❋ Designs and specifications are subject to change without notice.

This LG Electronics product, will be repaired or replaced, at LG’s option, if it proves to be defective in material or
workmanship, under normal use, during the warranty period (“Warranty Period”) listed below, effective from the date
(“Date of Purchase”) of original consumer purchase of the product. This warranty is good only to the original purchaser
of the product and effective only when used in the United States, excluding U.S. Territories.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED
WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. LG
ELECTRONICS WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNITIVE
DAMAGES OF ANY NATURE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, INCLUDING WITHOUT
LIMITATION, LOST REVENUES OR PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA, OR ANY OTHER DAMAGE
WHETHER BASED IN CONTRACT, TORT OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or

consequential damages or limitation on how long an implied warranty lasts, so the above exclusion or limitation may not apply to
you. This warranty gives you specific legal rights and you may also have other rights that may vary from state to state.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

•

Damages or operating problems that result from shipping, installation, adjustment of user controls,
calibration, maintenance or failure to maintain, or separate system components; and

• Damages or operating problems that result from normal wear and tear, misuse, abuse, operation outside

environmental specifications or contrary to the requirements or precautions in the Operating Guide, accident,
lightning strikes or other natural causes, unauthorized modification or alteration, incorrect electrical current
or voltage, signal reception or input, software not licensed directly by LG, software errors that do not disable
functionality, operating and software protocols adopted after the date of manufacture or for outside the US,
institutional or commercial use, or other causes not arising out of defect in material or workmanship.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

CUSTOMER INTER-ACTIVE CENTER NUMBERS:

LG Electronics, Inc.

Limited Warranty - USA

For Warranty Service, Where to buy, Product
Assistance, or Customer Assistance

Call 1-800-243-0000 (24 hours a day, 365 days per year)

and select appropriate options from the menu.

Or visit our website at http://www.lgservice.com

LG ELECTRONICS U.S.A., INC.
1000 SYLVAN AVENUE
ENGLEWOOD CLIFFS, NJ

P/N : MFL35424727

Printed in China

Issue O
