Page 1
- 21 -

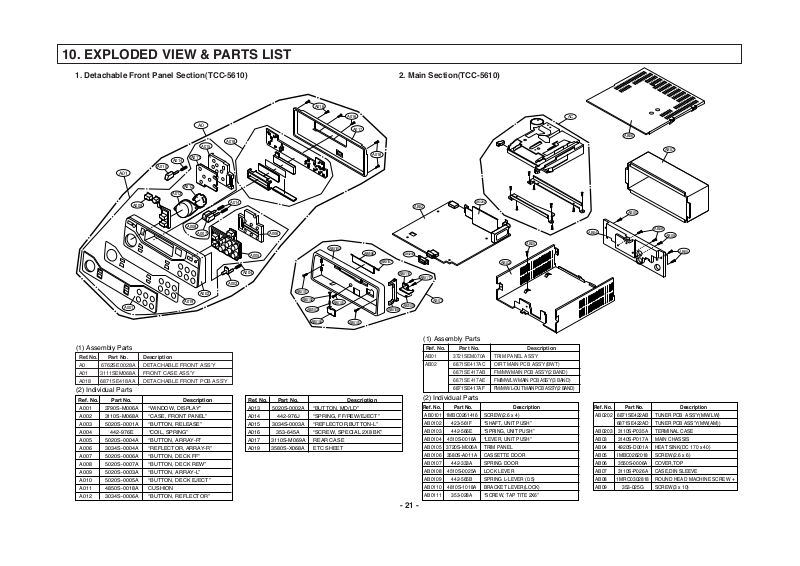

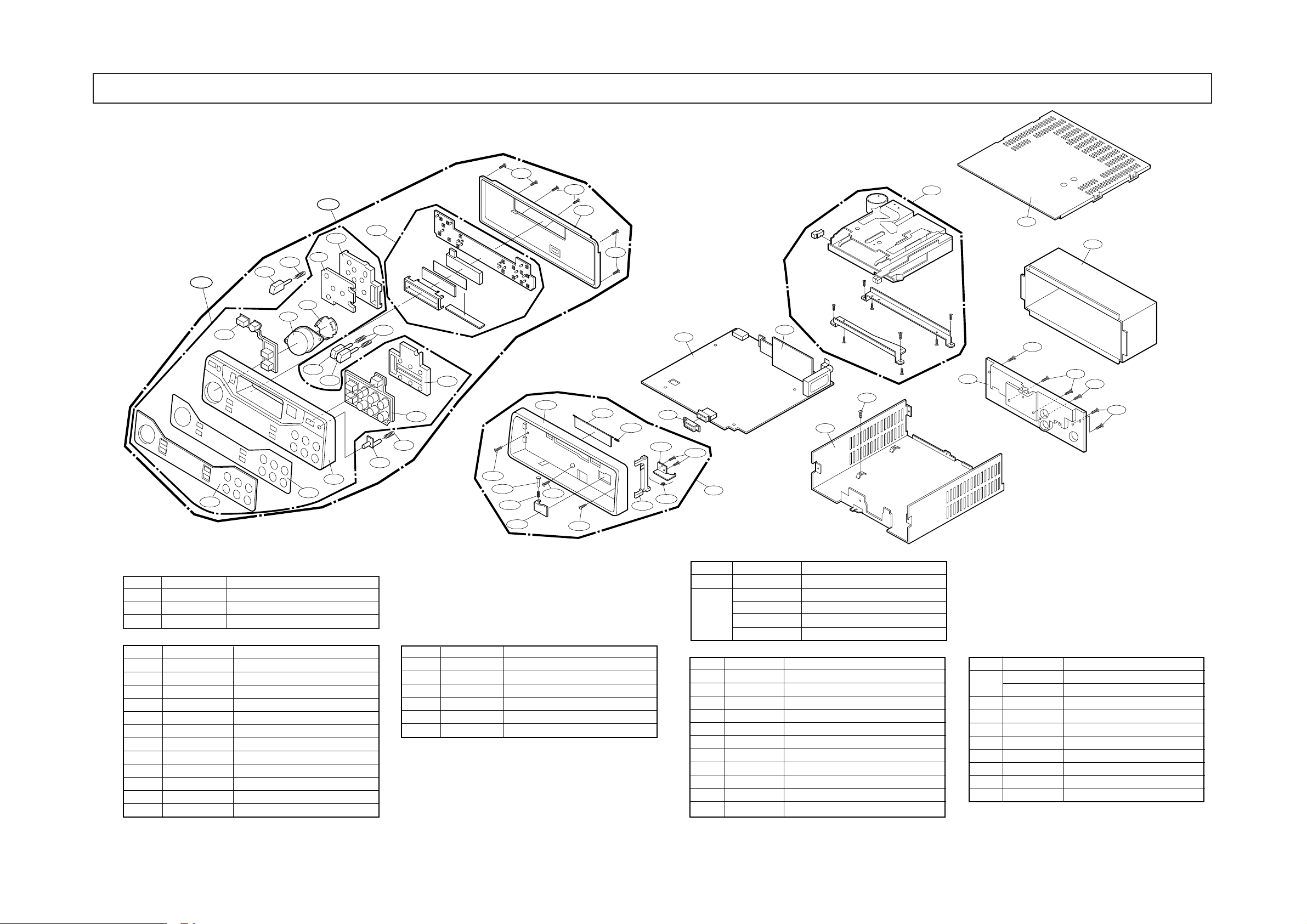

1. Detachable Front Panel Section(TCC-5610) 2. Main Section(TCC-5610)
10. EXPLODED VIEW & PARTS LIST
Ref.No. Part No. Description
A0 6762SE0028A DETACHABLE FRONT ASSÕY
A01 3111SEM068A FRONT CASE ASSÕY
A018 6871SE418AA DETACHABLE FRONT PCB ASSÕY
Ref. No. Part No. Description
AB01 3721SEM070A TRIM PANEL ASSÕY
AB02 6871SE417AC OIRT MAIN PCB ASSÕY(BWT)
6871SE417AB FM/MW MAIN PCB ASSÕY(2 BAND)
6871SE417AE FM/MW/LW MAIN PCB ASSÕY(3 BAND)
6871SE417AF
FM/MW/ L-OUT MAIN PCB ASSÕY(2 BAND)
Ref. No. Part No. Description
A013 5020S-0002A ÒBUTTON, MD/LDÓ
A014 442-976J ÒSPRING, FF/REW/EJECTÓ
A015 3034S-0003A ÒREFLECTOR,BUTTON-LÓ
A016 353-645A ÒSCREW, SPECIAL 2X8 BKÓ
A017 3110S-M069A REAR CASE
A019 3580S-X068A ETC SHEET
(1) Assembly Parts
(2) Individual Parts
Ref. No. Part No. Description
AB0202 6871SE422AB TUNER PCB ASSÕY(MW/LW)
6871SE422AD TUNER PCB ASSÕY(MW(AM))
AB0203 3110S-P035A TERMINAL CASE
AB03 3140S-P017A MAIN CHASSIS
AB04 4920S-D001A HEAT SINK(DC 170 x 40)
AB05 IMBC0262018 SCREW(2.6 x 6)
AB06 3550S-0006A COVER,TOP
AB07 3110S-P026A CASE,DIN SLEEVE
AB08 1MRC0302818 ROUND HEAD MACHINE SCREW +
AB09 353-025G SCREW(3 x 10)
(1) Assembly Parts
Ref. No. Part No. Description
A001 3790S-M006A ÒWINDOW, DISPLAYÓ
A002 3110S-M068A ÒCASE, FRONT PANELÓ
A003 5020S-0001A ÒBUTTON, RELEASEÓ
A004 442-976E ÒCOIL, SPRINGÓ
A005 5020S-0004A ÒBUTTON, ARRAY-RÓ
A006 3034S-0004A ÒREFLECTOR, ARRAY-RÓ
A007 5020S-0006A ÒBUTTON, DECK FFÓ
A008 5020S-0007A ÒBUTTON, DECK REWÓ
A009 5020S-0003A ÒBUTTON, ARRAY-LÓ
A010 5020S-0005A ÒBUTTON, DECK EJECTÓ
A011 4850S-0018A CUSHION
A012 3034S-0006A ÒBUTTON, REFLECTORÓ
Ref. No. Part No. Description
AB0101 1MBC0261416 SCREW(2.6 x 4)
AB0102 423-561F ÒSHAFT, UNIT PUSHÓ
AB0103 442-566E ÒSPRING, UNIT PUSHÓ
AB0104 4510S-0016A ÒLEVER, UNIT PUSHÓ
AB0105 3720S-M006A TRIM PANEL
AB0106 3580S-A011A CASSETTE DOOR
AB0107 442-333A SPRING DOOR
AB0108 4510S-0025A LOCK LEVER
AB0109 442-565B SPRING L-LEVER (0.5)
AB0110 4810S-1018A BRACKET LEVER(LOCK)
AB0111 353-028A ÒSCREW, TAP TITE 2X6Ó
(2) Individual Parts
AB07
AB06
AB0106
AB0101
AB0101
AB0102
AB0101
AB0105
AB0107
AB0108
AB0109
AB0111
AB0110
AB02
AB0202
AB03
AB04
AB05
AB08
AB09
AB0103
AB0104
AC
AB01
AB05
AB05
AB0203
A001
A002
A019
A005
A006
A003
A004
A007
A008
A010
A014
A014
A015
A0
A01
A016
A016
A017
A016
A018
A009
A012
A013
A011
Page 2
A003
A001
A002
A017
A007
A008
A010
A020
A020
A015
A0
A01
A016
A016
A019
A016
A018
A009
A011
A006
A012
A013
A014
A021
A004
A005

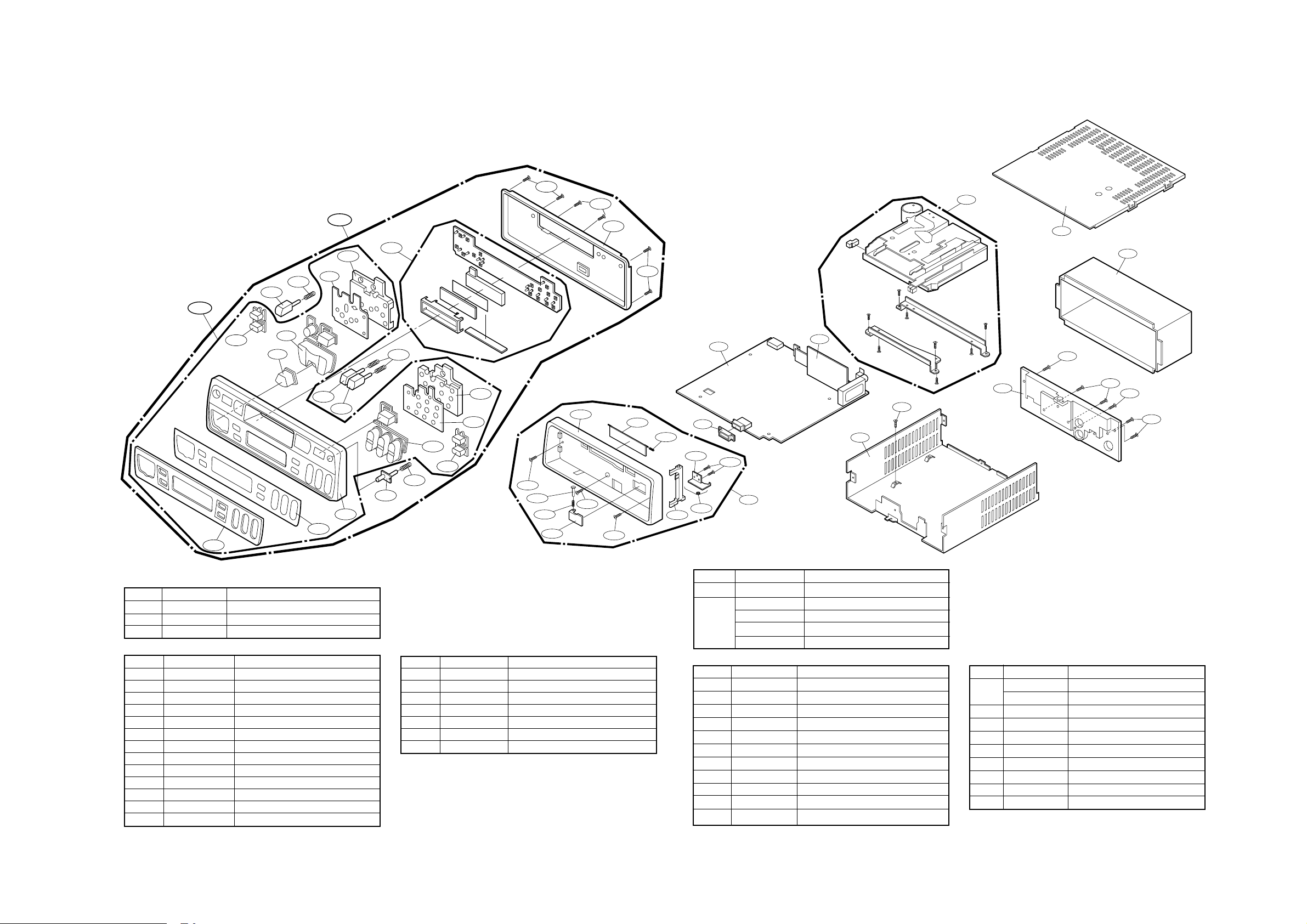

3. Detachable Front Panel Section(TCC-5620)
AB07
AB06
AB0106
AB0101
AB0101
AB0102
AB0101
AB0105
AB0107
AB0108
AB0109
AB0111
AB0110
AB02
AB0202
AB03
AB04
AB05
AB08
AB09
AB0103
AB0104
AC
AB01
AB05
AB05
AB0203
4. Main Section(TCC-5620)
Ref.No. Part No. Description
A0 6762SE0029A DETACHABLE FRONT ASSÕY
A01 3111SEM072A FRONT CASE ASSÕY
A018 6871SE41DAB DETACHABLE FRONT PCB ASSÕY
Ref. No. Part No. Description
A014 4850S-0020A RIGHT CUSHION
A015 3034S-0009A LEFT REFLECTOR
A016 353-645A SCREW( 2X8 )
A017 3858S-X069A ETC SHEET
A019 3110S-M069A REAR CASE
A020 442-976J SPRING, FF/REW/EJECT
A021 5020S-0024A BUTTON AS/PS(R)
(1) Assembly Parts
(2) Individual Parts
Ref. No. Part No. Description
AB0202 6871SE422AB TUNER PCB ASSÕY(MW/LW)
6871SE422AD TUNER PCB ASSÕY(MW(AM)
AB0203 3110S-P035A TERMINAL CASE
AB03 3140S-P017A MAIN CHASSIS
AB04 4920S-D001A HEAT SINK
AB05 IMBC0262018 SCREW(2.6 x 6)
AB06 3550S-0006A COVER,TOP
AB07 3110S-P026A CASE,DIN SLEEVE
AB08 IMRC0302818 SCREW (3 x 12)
AB09 353-025G SCREW(3 x 10)
Ref. No. Part No. Description
A001 3790S-M016A ÒWINDOW,DISPLAYÓ
A002 3110S-M072A ÒCASE,FRONT PANELÓ
A003 5020S-0016A ÒBUTTON,RELEASEÓ
A004 442-976E ÒCOIL,SPRINGÓ
A005 5020S-0021A ÒBUTTON,PRESET(R)Ó
A006 3034S-0010A RIGHT REFLECTOR
A007 5020S-0019A ÒBUTTON,DECK FF Ò
A008 5020S-0018A ÒBUTTON,DECK REW Ò
A009 5020S-0023A ÒBUTTON,TUNE(L) Ò
A010 5020S-0017A ÒBUTTON,EJECT Ò
A011 4850S-0019A LEFT CUSHION
A012 5020S-0020A ÒBUTTON,POWER(L) Ò
A013 5020S-0022A ÒBUTTON,MODE Ò
Ref. No. Part No. Description
AB0101 1MBC0261416 SCREW(2.6 x 6)
AB0102 423-561F ÒSHAFT,UNIT PUSHÓ
AB0103 442-566E ÒSPRING,UNIT PUSHÓ
AB0104 4510S-0016A ÒLEVER,UNIT PUSHÓ
AB0105 3720S-M006A TRIM PANEL
AB0106 3580S-A013A CASSETTE DOOR
AB0107 442-333A SPRING DOOR
AB0108 4510S-0025A LOCK LEVER
AB0109 442-565B SPRING L-LEVER (0.5)
AB0110 4810S-1018A BRACKET L-LEVER
AB0111 353-028A ÒSCREW,TAP TITE 2X6Ó
(2) Individual Parts
- 22 -
Ref. No. Part No. Description
AB01 3721SEM070A TRIM PANEL ASSÕY
AB02 6871SE417AC OIRT MAIN PCB ASSÕY(BWT)
6871SE417AB FM/MW MAIN PCB ASSÕY(2 BAND)
6871SE417AE FM/MW/LW MAIN PCB ASSÕY(3 BAND)
6871SE417AF
FM/MW/ L-OUT MAIN PCB ASSÕY(2 BAND)
(1) Assembly Parts
Page 3

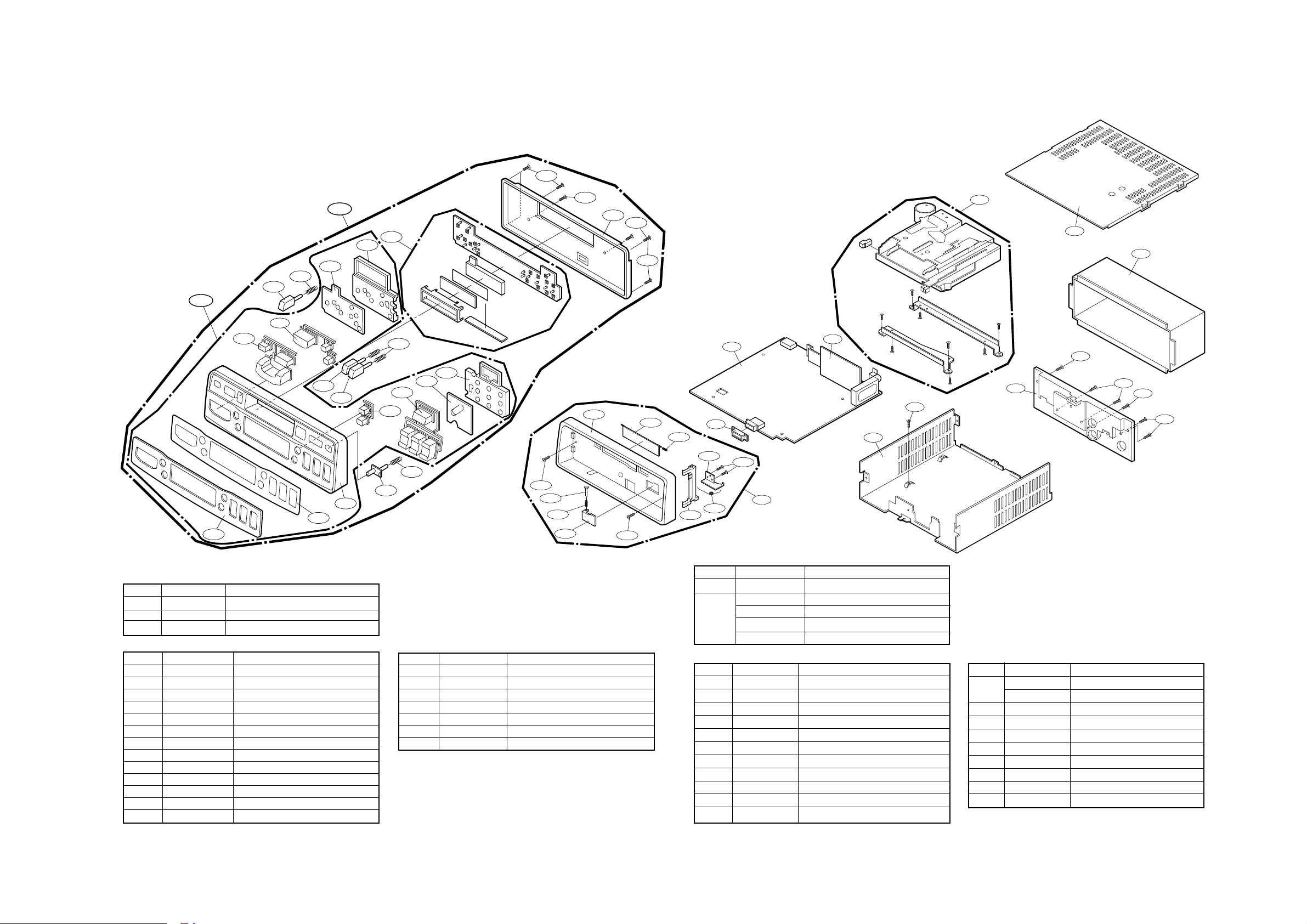

5. Detachable Front Panel Section(TCC-5630)
6. Main Section(TCC-5630)
Ref. No. Part No. Description
A014 5020S-0026A AS/PS (R) BUTTON
A012 5020S-0020A ÒBOTTON,POWER (L)Ó
A015 3034S-0021A LEFT REFLECTOR
A016 353-645A SCREW( 2X8 )
A017 3858S-X155A ETC SHEET
A019 3110S-M069B REAR CASE
A020 4850S-0022A LEFT CUSHION
(2) Individual Parts
Ref. No. Part No. Description
AB0202 6871SE422AB TUNER PCB ASSÕY(MW/LW)
6871SE422AD TUNER PCB ASSÕY(MW(AM)
AB0203 3110S-P035A TERMINAL CASE
AB03 3140S-P017A MAIN CHASSIS
AB04 4920S-D001A HEAT SINK
AB05 IMBC0262018 SCREW(2.6 x 6)
AB06 3550S-0006A COVER,TOP
AB07 3110S-P026A CASE,DIN SLEEVE
AB08 1MRC0302818 SCREW (3 x 12)
AB09 353-025G SCREW(3 x 10)
Ref. No. Part No. Description
A001 3790S-M068A ÒWINDOW,DISPLAYÓ
A002 3110S-M073A ÒCASE,FRONT PANELÓ
A003 5020S-0028A ÒBUTTON,RELEASEÓ
A004 442-976E ÒSPRING,COILÓ
A005 5020S-0029A ÒBUTTON,PRESET(R)Ó
A006 3034S-0020A ÒREFLECTOR,ARRAY-RÓ
A007 5020S-0013A ÒBUTTON,DECK FFÓ
A008 5020S-0014A ÒBUTTON,DECK REW Ó
A009 5020S-0027A ÒBUTTON,MUTE Ó
A010 5020S-0012A ÒBUTTON,EJECT Ó
A011 4850S-0023A RIGHT CUSHION
A012 442-976J ÒSPRING,FF / REW / EJECTÓ
A013 5020S-0025A ÒBUTTON,MODE Ó
Ref. No. Part No. Description
AB0101 1MBC0261416 SCREW(2.6 x 6)
AB0102 423-561F ÒSHAFT,UNIT PUSHÓ
AB0103 442-566E ÒSPRING,UNIT PUSHÓ
AB0104 4510S-0016A ÒLEVER,UNIT PUSHÓ
AB0105 3720S-M006A TRIM PANEL
AB0106 3580S-A014A CASSETTE DOOR
AB0107 442-333A SPRING DOOR
AB0108 4510S-0025A LOCK LEVER
AB0109 442-565B SPRING L-LEVER (0.5)
AB0110 4810S-0018A BRACKET L-LEVER
AB0111 353-028A ÒSCREW,TAP TITE 2X6Ó
(2) Individual Parts
- 23 -
AB0106
AB0101
AB0102
AB0101
AB0105
AB0107
AB0108
AB0109
AB0111
AB0110
AB0103
AB0104
AB01
AB07
AB06
AB02
AB0202
AB03
AB04
AB05
AB08
AB09
AC
AB05
AB05
AB0203
A001
A002
A017
A014
A003
A004
A007
A008
A010
A012
A020
A012
A015
A0
A01
A016
A016
A019
A016
A016
A018
A009
A013
A006
A005
A021
Ref.No. Part No. Description
A0 6762SE0030B DETACHABLE FRONT ASSÕY
A01 3111SEM073A FRONT CASE ASSÕY
A018 6871SE41EBA DETACHABLE FRONT PCB ASSÕY
(1) Assembly Parts
Ref. No. Part No. Description
AB01 3721SEM070A TRIM PANEL ASSÕY
AB02 6871SE417AC OIRT MAIN PCB ASSÕY(BWT)
6871SE417AB FM/MW MAIN PCB ASSÕY(2 BAND)
6871SE417AE FM/MW/LW MAIN PCB ASSÕY(3 BAND)
6871SE417AF
FM/MW/ L-OUT MAIN PCB ASSÕY(2 BAND)
(1) Assembly Parts
