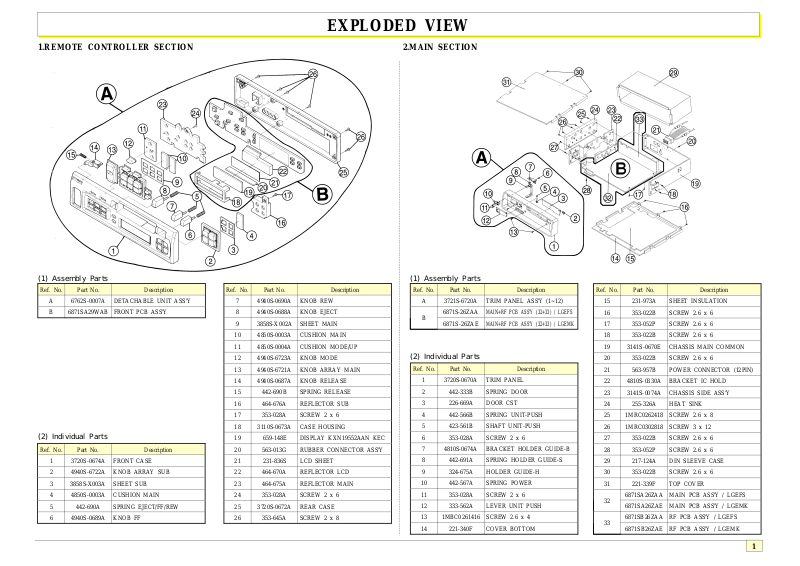

Page 1

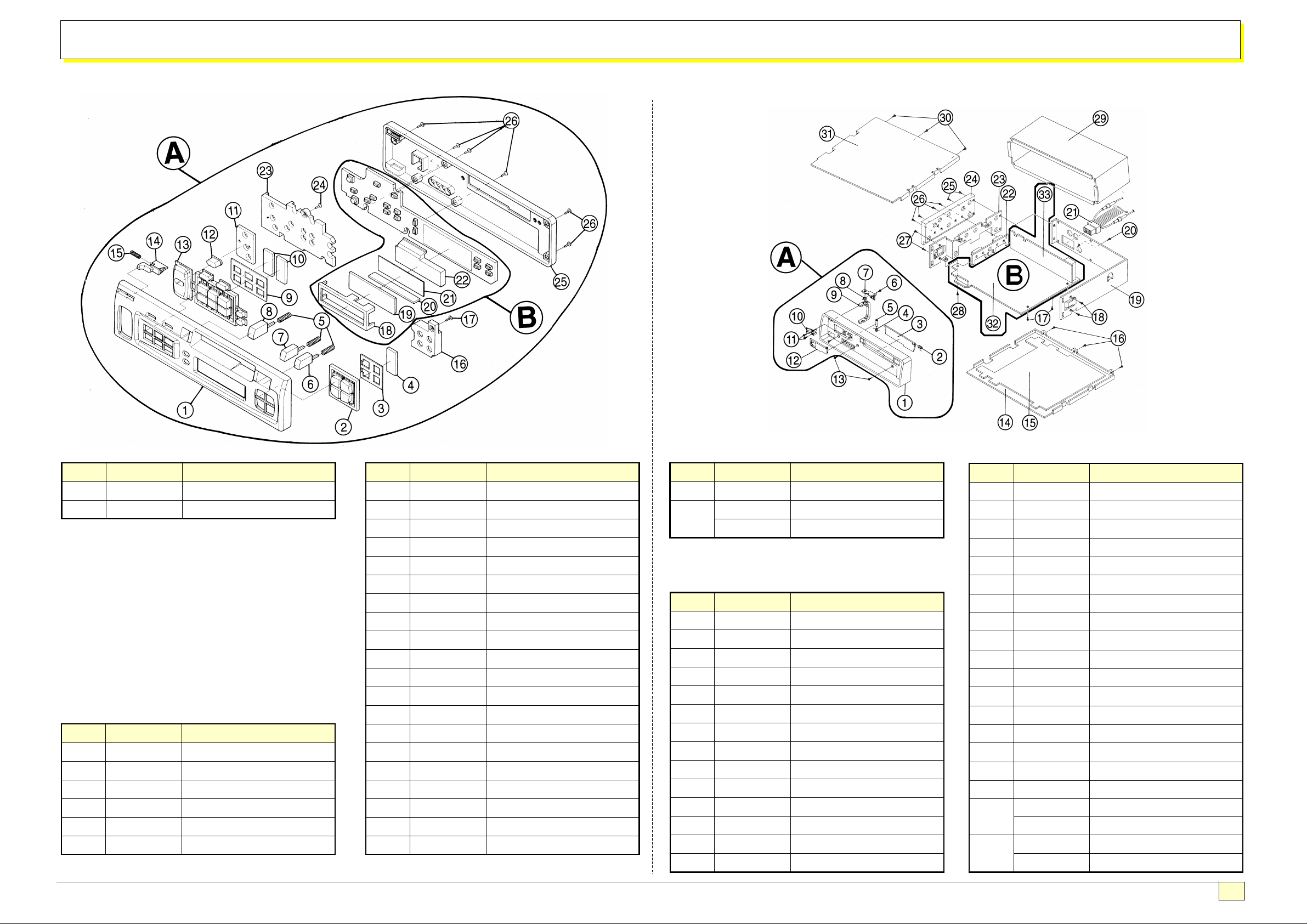

EXPLODED VIEW
1.REMOTE CONTROLLER SECTION 2.MAIN SECTION
(1) Assembly Parts
Ref. No. Part No. Description
A 6762S-0007A DETACHABLE UNIT ASS'Y
B 6871SA29WAB FRONT PCB ASS'Y
(2) Individual Parts
Ref. No. Part No. Description
1 3720S-0674A FRONT CASE
2 4940S-6722A KNOB ARRAY SUB
3 3858S-X003A SHEET SUB
4 4850S-0003A CUSHION MAIN
5 442-690A SPRING EJECT/FF/REW
6 4940S-0689A KNOB FF
Ref. No. Part No. Description
7 4940S-0690A KNOB REW
8 4940S-0688A KNOB EJECT
9 3858S-X002A SHEET MAIN
10 4850S-0003A CUSHION MAIN
11 4850S-0004A CUSHION MODE/UP
12 4940S-6723A KNOB MODE
13 4940S-6721A KNOB ARRAY MAIN
14 4940S-0687A KNOB RELEASE
15 442-690B SPRING RELEASE
16 464-676A REFLECTOR SUB
17 353-028A SCREW 2 x 6
18 3110S-0673A CASE HOUSING
19 659-148E DISPLAY KXN19552AAN KEC
20 563-013G RUBBER CONNECTOR ASS'Y
21 231-836S LCD SHEET
22 464-670A REFLECTOR LCD
23 464-675A REFLECTOR MAIN
24 353-028A SCREW 2 x 6
25 3720S-0672A REAR CASE
26 353-645A SCREW 2 x 8
(1) Assembly Parts
Ref. No. Part No. Description
A 3721S-6720A TRIM PANEL ASS'Y (1~12)
B
6871S-26ZAA
6871S-26ZAE
MAIN+RF PCB ASS'Y (32+33) / LGEFS
MAIN+RF PCB ASS'Y (32+33) / LGEMK
(2) Individual Parts
Ref. No. Part No. Description
1 3720S-0670A TRIM PANEL
2 442-333B SPRING DOOR
3 226-669A DOOR CST
4 442-566B SPRING UNIT-PUSH
5 423-561B SHAFT UNIT-PUSH
6 353-028A SCREW 2 x 6
7 4810S-0674A BRACKET HOLDER GUIDE-B
8 442-691A SPRING HOLDER GUIDE-S
9 324-675A HOLDER GUIDE-H
10 442-567A SPRING POWER
11 353-028A SCREW 2 x 6
12 333-562A LEVER UNIT PUSH
13 1MBC0261416 SCREW 2.6 x 4
14 221-340F COVER BOTTOM
Ref. No. Part No. Description
15 231-973A SHEET INSULATION
16 353-022B SCREW 2.6 x 6
17 353-052P SCREW 2.6 x 6
18 353-022B SCREW 2.6 x 6
19 3141S-0670E CHASSIS MAIN COMMON
20 353-022B SCREW 2.6 x 6
21 563-957B POWER CONNECTOR (12PIN)
22 4810S-0330A BRACKET IC HOLD
23 3141S-0074A CHASSIS SIDE ASS'Y
24 255-326A HEAT SINK
25 1MRC0262418 SCREW 2.6 x 8
26 1MRC0302818 SCREW 3 x 12
27 353-022B SCREW 2.6 x 6
28 353-052P SCREW 2.6 x 6
29 217-124A DIN SLEEVE CASE
30 353-022B SCREW 2.6 x 6
31 221-339F TOP COVER
32
33
6871SA26ZAA MAIN PCB ASS'Y / LGEFS
6871SA26ZAE MAIN PCB ASS'Y / LGEMK
6871SB26ZAA RF PCB ASS'Y / LGEFS
6871SB26ZAE RF PCB ASS'Y / LGEMK
1
Page 2

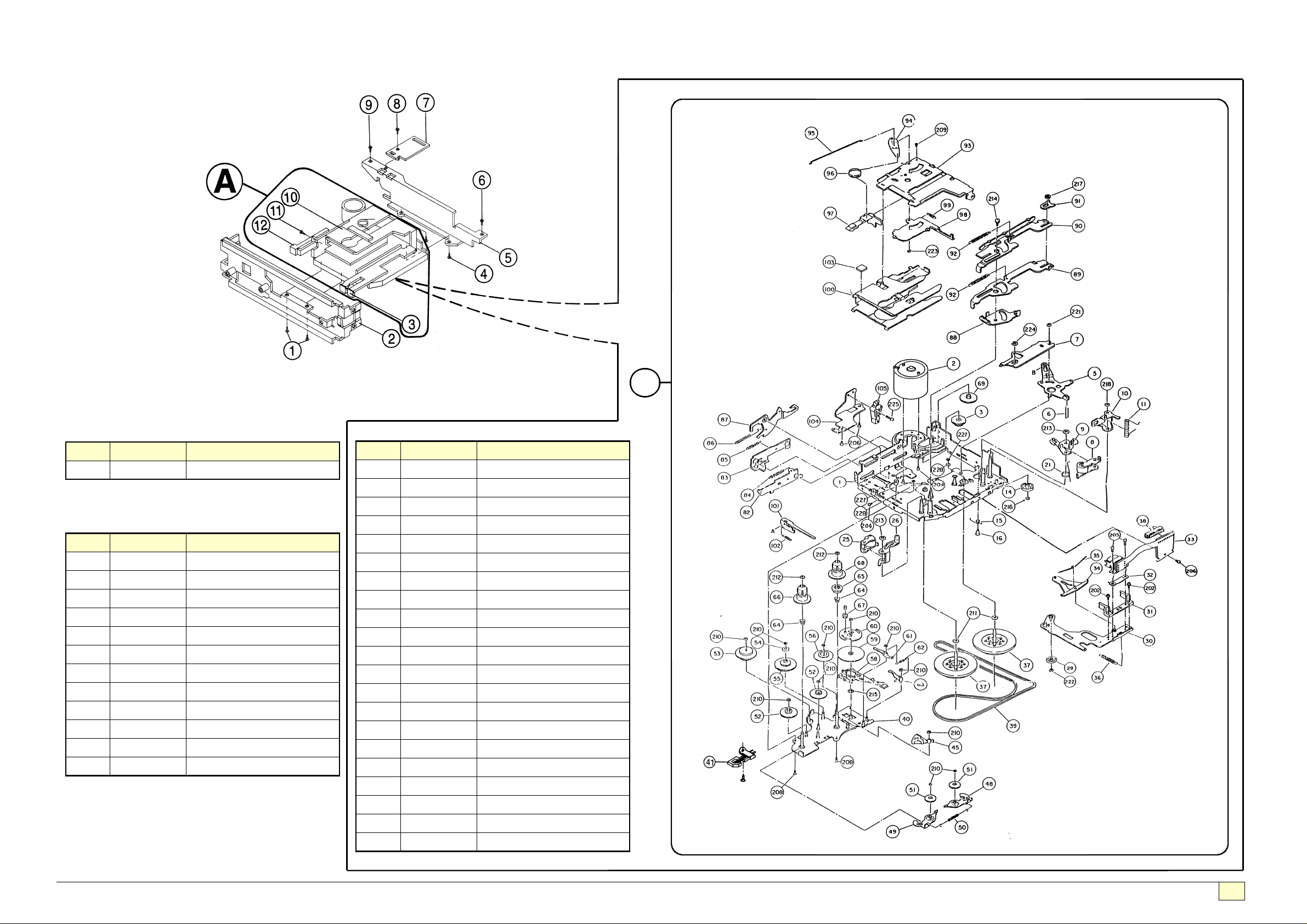

3.DECK SECTION
B
(1) Assembly Parts
Ref. No. Part No. PART NAME
A 410-670A DECK ASS'Y (3+10+11+12)
(2) Individual Parts
Ref. No. Part No. PART NAME
1 1MPC0301418 SCREW 3 x 4
2 3140S-0673A CHASSIS FRONT-C
3 324-674A HOLDER FF/REW-H
4 1MPC0301418 SCREW 3 x 4
5 4810S-0673A BRACKET DECK-B
6 1MPC0301418 SCREW 3 x 4
7 4810S-0675A BRACKET PCB
8 353-022B SCREW 2.6 x 6
9 1MPC0301418 SCREW 3 x 4
10 419-020P DECK TN-717MH-231
11 353-022B SCREW 2.6 x 6
12 324-673A HILDER EJECT-H
Ref. No. Part No. PART NAME
B 419-020P DECK TN-717MH-231
2 99T-0848 MOTOR ASS'Y
3 99T-0849 MAIN GEAR
8 99T-0850 P.R ARM ASS'Y-F
14 99T-0851 CENTER PULLEY B
25 99T-0852 P.R ARM ASS'Y-R
33 99T-0853 HEAD P5044SD-99H
37 99T-0854 FLYWHEEL CAP ASS'Y
38 99T-0855 MODE SW MIS-AC-3-2S
39 99T-0856 MAIN BELT
41 99T-0868 MUTE SW MSW-1547N
60 99T-0857 TURN OVER GEAR
67 99T-0858 TURN OVER GEAR COLARR
69 99T-0859 CENTER GEAR
92 99T-0860 F.R LEVER SPRING
96 99T-0862 TURN OVER SPRING
97 99T-0863 PACK SLIDER
105 99T-0864 SKELTON SW SKD-12AR
210 99T-0865 WASHER 1.2 x 3.0 x 0.25
211 99T-0866 WASHER 2.1 x 5.0 x 0.13
216 99T-0867 WASHER 0.85 x 2.8 x 0.2
2
