LG DLGX4201B User Manual

OWNER'S MANUAL

DRYER

Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times.

ENGLISH ESPAÑOL

DLE3600*, DLG3601* DLEX4000*, DLGX4001* DLEX4200*, DLGX4201* DLEX4500*, DLGX4501*

MFL70442647

Rev.03_070620

www.lg.com

TABLE OF CONTENTS

3 PRODUCT FEATURES

4 SAFETY INSTRUCTIONS

5 IMPORTANT SAFETY INSTRUCTIONS

9 PRODUCT OVERVIEW

9 Parts 9 Accessories

10 INSTALLATION

10 Installation Overview 10 Product Specifications 11 Installation Location Requirements 12 Clearances 14 Leveling the Dryer 15 Reversing the Door 16 Installing the Side Vent Kit 17 Stacking the Dryer 18 Venting the Dryer 20 Connecting the Inlet Hose

(Steam Models) 21 Connecting Gas Dryers 23 Connecting Electric Dryers 28 Special Electrical Requirements 28 Final Installation Check 29 Installation Test (Duct Check)

44 SMART FUNCTIONS

44 LG ThinQ Application 47 Smart Diagnosis™ Function

48 MAINTENANCE

48 Regular Cleaning

49 TROUBLESHOOTING

49 FAQs: Frequently Asked Questions 49 User Support Videos 50 Before Calling for Service

56 WARRANTY

31 OPERATION

31 Using the Dryer 32 Check the Lint Filter Before Every Load 32 Sorting Laundry 32 Loading the Dryer 33 Control Panel 36 Cycle Guide 40 Cycle Modifier Buttons 40 Option Buttons 41 Special Functions 41 Steam Functions

(Steam Models)

PRODUCT FEATURES

3PRODUCT FEATURES

Easy-to-Use Control Panel

Rotate the cycle selector knob to select the desired dry cycle. Add cycle options or adjust settings with the touch of a button.

Easy-Access Reversible Door

The wide-opening door provides easy access for loading and unloading. The door hinge can be reversed to adjust for installation location.

Steam Functions (Steam Models)

LG’s steam technology allows you to inject fabrics with a swirling jet of hot steam to refresh clothes, reduce static, and make ironing easier. Simply select the Steam Fresh™ cycle, or you can add a Steam option to selected cycles.

Flow Sense™ Duct Blockage Sensing System Indicator

The Flow Sense™ duct blockage sensing system detects and alerts you to restrictions in the installed household ductwork that reduce exhaust airflow through the dryer. If you see the alert: Clean or repair the ducts to remove the restrictions. Keep your ducts clean to help increase efficiency and reduce long drying times caused by blocked ducts.

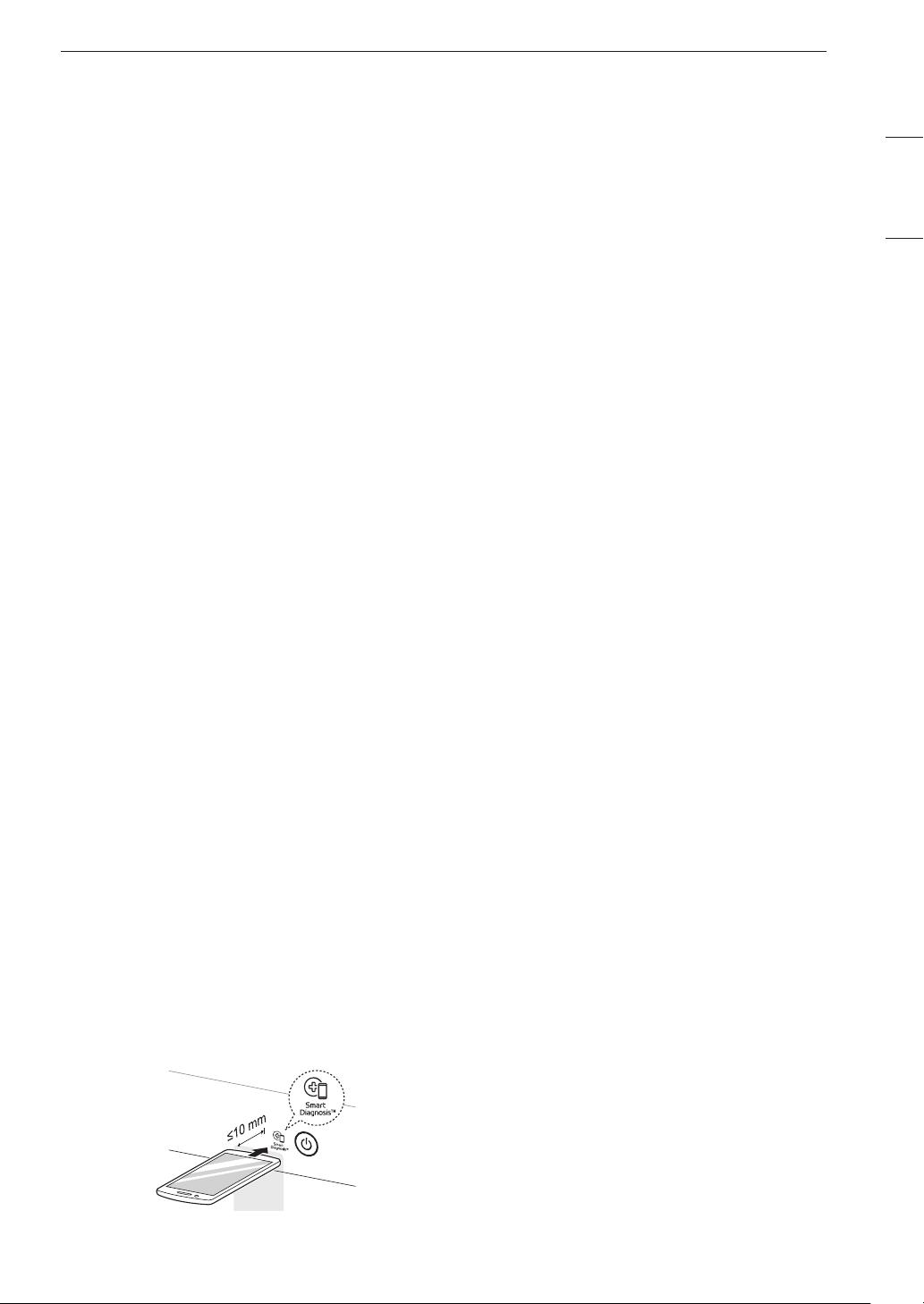

Smart Diagnosis™

Should you experience any technical difficulty with your dryer, it has the capability of transmitting data via your telephone to the Customer Information Center. The call center agent records the data transmitted from your machine and uses it to analyze the issue, providing a fast and effective diagnosis.

ENGLISH

LG ThinQ

Download the new LG smart phone app to set options, self-diagnose and troubleshoot problems with the appliance, and other useful features. This function uses Wi-Fi.

4 SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.

These words mean:

WARNING

You may be killed or seriously injured if you do not follow instructions.

CAUTION

You may be slightly injured or cause damage to the product if you do not follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what may happen if the instructions are not followed.

WARNING- Risk of Fire

Install the clothes dryer according to the manufacturer’s instructions and local codes.

• Clothes dryer installation must be performed by a qualified installer.

• Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.

• To reduce the risk of severe injury or death, follow all installation instructions.

• Save these instructions.

WARNING

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in serious injury, death or property damage.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

• WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance.

- Do not touch any electrical switch; do not use any phone in your building.

- Clear the room, building or area of all occupants.

- Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

- If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer, service agency or your gas supplier.

IMPORTANT SAFETY INSTRUCTIONS

5SAFETY INSTRUCTIONS

WARNING

To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this product, follow basic precautions, including the following:

INSTALLATION

• Before use, the appliance must be properly installed as described in this manual.

• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload.

• To reduce the risk of severe injury or death, follow all installation instructions.

• The appliance must be installed and electrically grounded by qualified service personnel in accordance with local codes.

• Disconnect the power cord, house fuse or circuit breaker before installing or servicing the appliance.

• When moving or installing the product in a different location, call qualified service personnel for installation and service.

• Keep packing materials out of the reach of children. Packaging material can be dangerous for children. There is a risk of suffocation.

• Moving or installation of the appliance requires two or more people.

• This appliance is not designed for maritime use or for mobile installations such as in RVs, trailers, or aircraft.

• Store and install the appliance where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions.

• This appliance must be positioned near to an electrical power supply.

• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

• When installing or moving the appliance, be careful not to pinch, crush, or damage the power cord.

• Do not install the appliance in humid spaces.

• Destroy the carton, plastic bag, and other packing materials after the appliance is unpacked. Children might use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight chambers.

• Adhere to all industry recommended safety procedures including the use of long sleeved gloves and safety glasses.

• Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

ENGLISH

6 SAFETY INSTRUCTIONS

• Place the dryer at least 18 inches above the floor for a garage installation.

• Do not use sheet metal screws or other fasteners which extend into the duct that could catch lint and reduce the efficiency of the exhaust system. Secure all joints with duct tape.

• Use only rigid, semi-rigid or flexible metal 4-inch diameter duct inside the dryer cabinet or for exhausting to the outside. Use of plastic or other combustible ductwork may cause a fire. Punctured ductwork may cause a fire if it collapses or becomes otherwise restricted in use or during installation.

• The exhaust duct must be 4 inches (10.2 cm) in diameter with no obstructions. The exhaust duct should be kept as short as possible. Make sure to clean any old ducts before installing your new dryer.

• Rigid, semi-rigid or flexible metal ducting is recommended for use between the dryer and the wall. All non- rigid metal transition duct must be UL-listed. Use of other materials for transition duct could affect drying time.

• Ductwork is not provided with the dryer, and you should obtain the necessary ductwork locally. The end cap should have hinged dampers to prevent backdraft when the dryer is not in use.

• Gas dryers MUST be exhausted to the outside.

• The dryer exhaust system must be exhausted to the outside of the dwelling. If the dryer is not exhausted outdoors, some fine lint and large amounts of moisture will be expelled into the laundry area. An accumulation of lint in any area of the home may create a health and fire hazard.

• Do not install near another heat source such as a stove, oven or heater.

• Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.

• The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

OPERATION

• Repair or immediately replace all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.

• If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug it immediately, and contact an LG Electronics customer information center.

• Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

• Do not use an extension cord or adapter with this appliance.

• Do not grasp the power cord or touch the appliance controls with wet hands.

• Do not modify or extend the power cord.

• If the product has been submerged, contact an LG Electronics customer information center for instructions before resuming use.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

• Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags, etc.), gasoline, chemicals and other flammable vapors and liquids.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• Read all instructions before using the appliance and save these instructions.

• Use this appliance only for its intended purpose.

• Do not abuse, sit on, or stand on the door of the appliance.

• Do not allow children to play on, in or with the appliance. Close supervision of children is necessary when the appliance is used near children.

• Do not tamper with controls.

• In the event of a gas leak (propane gas, LP gas, etc.) do not operate this or any other appliance. Open a window or door to ventilate the area immediately.

• Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the appliance turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

• Fix the drain hose securely in place.

• Do not put oily or greasy clothing, candles or flammable materials on top of the appliance.

• Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

• Do not reach into the appliance if the drum is moving.

• Do not dry articles that have been previously cleaned in, washed in, soaked in, soiled with or spotted with gasoline, dry cleaning solvents, vegetable oil, cooking oil or other flammable or explosive substances, as they give off vapors that could ignite or explode.

• Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.

• Do not store plastic, paper, or clothing that may burn or melt on top of the dryer during operation.

• Always check the inside of the appliance for foreign objects.

• Gas appliances can cause minor exposure to four potentially hazardous substances, namely benzene, carbon monoxide, formaldehyde, and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.

• Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized further by properly venting the dryer to the outdoors.

• Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire. To reduce the risk of fire due to contaminated loads, the final part of a tumble dryer cycle occurs without heat (cool down period). Avoid stopping a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

• Do not let children or pets climb inside the dryer drum.

• Do not put living animals such as pets inside the product.

• Do not put any part of your body, such as your hands or feet, or metal objects under the product.

• Do not let your hand get pinched when opening or closing the dryer door.

7SAFETY INSTRUCTIONS

ENGLISH

STEAM (Steam Models)

• Do not open the dryer door during steam cycles.

• Do not touch the steam nozzle in the drum during or after a steam cycle.

8 SAFETY INSTRUCTIONS

MAINTENANCE

• Do not repair or replace any part of the appliance. All repairs and servicing must be performed by qualified service personnel unless specifically recommended in this Owner’s Manual. Use only authorized factory parts.

• Do not disassemble or repair the appliance by yourself.

• Remove any dust or foreign matter from the power plug pins.

• Disconnect this appliance from the power supply before cleaning and attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply.

• Remove the door before the appliance is removed from service or discarded to avoid the danger of children or small animals getting trapped inside.

• Unplug the appliance before cleaning to avoid the risk of electric shock.

• Clean the lint filter before or after each load.

• The interior of the appliance and exhaust duct should be cleaned periodically by qualified service personnel.

GROUNDING INSTRUCTIONS

• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service personnel if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

• The appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

• This dryer must be plugged into a properly grounded outlet. Electrical shock may result if the dryer is not properly grounded. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. Failure to follow these instructions may create an electric shock hazard and/or a fire hazard.

WARNING

Fire Hazard Failure to follow safety warnings exactly could result in serious injury, death or property damage.

• Do not install a booster fan in the exhaust duct.

• Install all clothes dryers in accordance with the installation instructions of the manufacturer of the dryer.

SAVE THESE INSTRUCTIONS

PRODUCT OVERVIEW

9PRODUCT OVERVIEW

Parts

Control panel

Lint filter

Leveling feet

Accessories

Included Accessories

Reversible door

Power Cord (gas models)

Gas connection (gas models)

ENGLISH

Terminal Block Access Panel (electric models)

Exhaust Duct Outlet

Y connector

(Steam Models)

Optional Accessories

Hoses

(Steam Models)

Drying Rack

(sold separately)

Pedestal

(sold separately)

Stacking kit

(sold separately)

Side vent kit

(sold separately)

Kit No. 383EEL9001B

NOTE

• For your safety and extended product life, use only authorized components. The manufacturer is not responsible for product malfunction or accidents caused by the use of unauthorized components or parts.

• The images in this manual may be different from the actual components and accessories which are subject to change by the manufacturer without prior notice for product improvement purposes.

10 INSTALLATION

INSTALLATION

Installation Overview

Please read the following installation instructions first after purchasing this product or transporting it to another location.

Check and choose the proper location

(steam models)

Electric dryerGas dryer

Plug in the power cord

Level the dryer Vent the dryer

Connect the Electric dryerConnect the Gas dryerConnect the inlet hose

DLEX4200*, DLGX4201*, DLEX4000*, DLGX4001*, DLEX4500*, DLGX4501*

DLE3600*, DLG3601*

Test runInstallation test

Product Specifications

The appearance and specifications listed in this manual may vary due to constant product improvements.

Dryer Models

Description

Electrical requirements Please refer to the rating label for detailed information.

Gas requirements

Dimensions

Net weight

Drying capacity

Steam Cycle - IEC 7.4 cu.ft. (8 lb/3.6 kg)

Normal Cycle IEC 7.4 cu.ft. (22.5 lb/10.2 kg)

DLE3600*,

DLG3601*

Non-steam Dryer

NG: 4 - 10.5-inch (10.2 - 26.7 cm) WC LP: 8 - 13-inch (20.4 - 33.1 cm) WC

27” (W) X 30 1/8” (D) X 39” (H), 51 3/8” (D with door open)

68.6 cm (W) X 76.5 cm (D) X 99 cm (H),

130.5 cm (D with door open)

Gas : 136.03 lb (61.7kg) - 139.34 lb (63.2kg) Electric : 121.9 lb (55.3kg) - 125.3 lb (56.8kg)

DLEX4000*,

DLGX4001*

Steam Dryer Steam Dryer

DLEX4200*,

DLGX4201*

DLEX4500*, DLGX4501*

27” (W) X 30” (D) X 39” (H), 51” (D with door open)

68.6 cm (W) X 76.1 cm (D) X 99 cm (H),

129.7 cm (D with door open)

Gas : 140.4 lb (63.7 kg)

Electric : 133.4 lb (60.5 kg)

NOTE

Model numbers can be found on the cabinet inside the door.

Installation Location Requirements

11INSTALLATION

WARNING

• Read all installation instructions completely before installing and operating your dryer. It is important that you review this entire manual before installing and using your dryer. Detailed instructions concerning electrical connections, gas connections, and exhaust requirements are provided on the following pages.

WARNING

To reduce the risk of serious injury or death, follow basic precautions, including the following:

• Use long-sleeved gloves and safety glasses.

• The appliance is heavy. Two or more people are required when installing the dryer.

The installation requires:

• A location that allows for proper exhaust installation. A gas dryer must be exhausted to the outdoors. See Venting the Dryer.

• A grounded electrical outlet located within 2 ft. (61 cm) of either side of the dryer. See Connecting Electric Dryers.

• A sturdy floor to support the total dryer weight of 200 lb (90.7 kg). The combined weight of a companion appliance should also be considered.

• No other fuel-burning appliance can be installed in the same closet as a dryer.

• Additional clearances might be required for wall, door and floor moldings.

• Companion appliance spacing should also be considered.

ENGLISH

NOTE

• The floor must be level, with a maximum slope of 1 inch (2.5 cm) under the entire dryer. Clothes may not tumble properly, and automatic sensor cycles may not operate correctly if the dryer is not level.

• For garage installation, you will need to place the dryer at least 18 inches (45.7 cm) above the floor. The standard pedestal height is 15 inches (38 cm). You will need 18 inches (45.7 cm) from the garage floor to the bottom of the dryer.

• Do not operate your dryer at temperatures below 45 °F (7 °C). At lower temperatures, the dryer might not shut off at the end of an automatic cycle. This can result in longer drying times.

• The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.

• Check code requirements that limit, or do not permit, installation of the dryer in garages, closets, mobile homes or sleeping quarters. Contact your local building inspector.

12 INSTALLATION

(761 - 765mm)

(

(25 mm)

(686 mm)

Clearances

48 in.

(310 cm

24 in.

155 cm

)

(25 mm)

Closet Door Vent Requirements

1"*

(76 mm)

30 - 30

14" max.* (356 mm)

18" min.* (457 mm)

1/8"

5"**

(127 mm)

27"

0" (0 mm)

39"

(990 mm)

1"*

(25 mm)

14" max.* (356 mm)

18" min.* (457 mm)

30 - 30

5"**

1/8"

(761 - 765mm)

1" (25 mm)

(127 mm)

27" (686 mm)

1" (25 mm)

Installation Spacing for Recessed Area or Closet Installation

The following clearances are recommended for this dryer. This dryer has been tested for clearances of 1 inch (2.5 cm) on the sides and rear. Recommended clearances should be considered for the following reasons:

• Additional clearances should be considered for ease of installation and servicing.

• Additional clearances should be considered on all sides of the dryer to reduce noise transfer. For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilation openings are acceptable.

Closet Ventilation Requirements

Closets with doors must have both an upper and lower vent to prevent heat and moisture buildup in the closet. One upper vent opening with a minimum opening of 48 sq. in. (310 cm2) must be installed no lower than 6 feet above the floor. One lower vent opening with a minimum opening of 24 sq. in. (155 cm2) must be installed no more than one foot above the floor. Install vent grilles in the door or cut down the door at the top and bottom to form openings. Louvered doors with equivalent ventilation openings are also acceptable.

NOTE

• There should be at least a little space around the dryer (or any other appliance) to eliminate the transfer of vibration from one appliance to another. If there is enough vibration, it could cause appliances to make noise or come into contact, causing paint damage and further increasing noise.

Installation Spacing for Recessed Area or Closet, with Stacked Washer and

(155 cm

(25 mm)

(686 mm)

7" *

Dryer

6" (152 mm)

77 ½" (1968 mm)

27"

48 in.

(310 cm

24 in.

)

(76 mm)

3" (76 mm)

(25 mm)

5 ½"

(140 mm)

* Required spacing

** For side or bottom venting, 2-inch (5.1 cm) of spacing is allowed.

Installation Spacing for Cabinet

For cabinet installation with a door, minimum ventilation openings in the top of the cabinet are required.

* Required spacing

13INSTALLATION

ENGLISH

(178 mm)

5"*

(127 mm)

(178 mm)

30 - 30 1/8"

(761 - 765mm)

1"*

(25 mm)

1" (25 mm)

27" (686 mm)

9" *

1" (25 mm)

(229 mm)

14 INSTALLATION

Leveling the Dryer

NOTE

• Adjust the leveling feet only as far as necessary to level the dryer. Extending the leveling feet more than necessary may cause the dryer to vibrate.

• To ensure that the dryer provides optimal drying performance, it must be level. To minimize vibration, noise, and unwanted movement, the floor must be a perfectly level, solid surface.

Position the dryer in the final location. Place a

level across the top of the dryer.

Level

Leveling Feet

• All four leveling feet must rest solidly on the floor. Gently push on the top corners of the dryer to make sure that the dryer does not rock from corner to corner.

Use an adjustable wrench to turn the leveling

feet. Unscrew the legs to raise the dryer or screw in the legs to lower it. Adjust the leveling feet until the dryer is level from side to side and front to back. Make sure that all four leveling feet are in firm contact with the floor.

NOTE

• If you are installing the dryer on the optional pedestal, you must use the leveling feet on the pedestal to level the dryer. The dryer leveling feet should be fully retracted.

15INSTALLATION

Reversing the Door

Tools Required

• Phillips screwdriver

• Large flat blade screwdriver (recommended for hinge screws if they are tight or your Phillips screwdriver is worn)

• Small flat blade screwdriver (for lifting out parts)

WARNING

To reduce the risk of damage to the dryer, property damage or personal injury, follow basic precautions, including the following:

• Support the door with a stool or box that fits under the door, or have an assistant support the weight of the door.

• Avoid dropping the door.

• Unplug the dryer or turn off power at the main circuit breaker before beginning door reversal.

• Always reverse the door BEFORE stacking the dryer on top of the washer.

While supporting the door, remove the 2 screws

on the door hinge. Remove the door.

Turn the door upside down and line up the holes

in the hinge with the holes on the opposite side of the cabinet. Reinstall the door with the screws removed in step 2.

ENGLISH

Door Reversal Instructions

The instructions here are for changing the door swing from a right to a left side hinge. If the door has been reversed, and it is necessary to change it back, use care when following these instructions. Some of the illustrations and the left/right references will be reversed, and you will need to read the instructions carefully.

WARNING

• Be sure to support the weight of the door before removing the hinge screws.

Open the door and remove the two decorative

screws, two latch screws, and the latch on the catch side with a screwdriver. Save these for step 4.

WARNING

• Be sure to support the weight of the door before installing the hinge screws.

Install the two decorative screws, the latch,

and two latch screws removed in step 1 on the opposite side from which they were removed.

Check that the door closes properly.

16 INSTALLATION

Installing the Side Vent Kit

WARNING

To reduce the risk of serious injury, death or property damage, follow basic precautions, including the following:

• Use long-sleeved gloves and safety glasses.

• Use a heavy metal vent.

• Do not use plastic or thin foil ducts.

• Clean old ducts before installing this dryer.

Your new dryer is configured to vent to the rear. It can also vent to the bottom or side (right-side venting is not available on gas models).

An adapter kit, part number 383EEL9001B, may be purchased from your LG retailer. This kit contains duct components necessary to change the dryer vent location.

Remove the rear exhaust duct retaining screw.

Pull out the exhaust duct.

Retaining Screw

Preassemble a 4-inch (10.2 cm) elbow to the

next 4-inch (10.2 cm) duct section, and secure all joints with duct tape. Be sure that the male end of the elbow faces AWAY from the dryer. Insert the elbow/duct assembly through the side opening and press it onto the adapter duct. Secure it in place with duct tape. Be sure that the male end of the duct protrudes 1.5 inches (3.8 cm) to connect the remaining ductwork. Attach the cover plate to the back of the dryer with the included screw.

Cover Plate

Elbow

1½" (38 mm)

Option 2: Bottom Venting

Press the adapter duct onto the blower housing

and secure it to the base of the dryer as shown.

Rear Exhaust Duct

Option 1: Side Venting

Press the tabs on the knockout and carefully

remove the knockout for the desired vent opening (right-side venting is not available on gas models). Press the adapter duct onto the blower housing and secure to the base of the dryer as shown.

Adapter Duct

Bracket

Knockout

Adapter Duct

Bracket

Insert the 4-inch (10.2 cm) elbow through the

rear opening and press it onto the adapter duct. Be sure that the male end of the elbow faces down through the hole in the bottom of the dryer. Secure it in place with duct tape. Attach the cover plate to the back of the dryer with the included screw.

Cover Plate

Elbow

17INSTALLATION

Stacking the Dryer

Stacking Kit Installation

This stacking kit includes:

• Two (2) side rails

• One (1) front rail

• Four (4) screws

Tools Needed for Installation:

• Phillips screwdriver

WARNING

To reduce the risk of electrical shock, fire, explosion, property damage, serious injury or death, follow basic precautions, including the following:

• The weight of the dryer and the height of installation make this stacking procedure too risky for one person. Two or more people are required when installing the stacking kit.

• Do not use the stacking kit with a gas dryer in potentially unstable conditions such as a mobile home.

• Place the washer on a solid, stable, level floor capable of supporting the weight of both appliances.

• Do not stack the washer on top of the dryer.

• If appliances are already installed, disconnect them from all power, water, or gas lines and from draining or venting connections.

To ensure safe and secure installation, please observe the following instructions.

Make sure the surface of the washer is clean

and dry. Remove paper backing from the tape on one of the stacking kit side brackets.

Fit the side bracket to the side of the washer top

as shown in the below illustration. Firmly press the adhesive area of the bracket to the washer surface. Secure the side bracket to the washer with a screw on the back side of the bracket. Repeat steps 1 and 2 to attach the other side bracket.

Place the dryer on top of the washer, fitting the

dryer feet into the side brackets as illustrated. Avoid finger injuries; do not allow fingers to be pinched between the washer and dryer.

Slowly slide the dryer toward the back of the washer until the side bracket stoppers catch the dryer feet.

Insert the front rail between the bottom of the

dryer and the top of the washer. Push the front rail toward the back of the washer until it comes in contact with the side rail stoppers.

Install the two remaining screws to secure the front rail to the side rails.

ENGLISH

18 INSTALLATION

Venting the Dryer

WARNING

To reduce the risk of fire or explosion, electric shock, property damage, injury to persons or death when using this appliance, follow basic safety precautions, including the following:

• Do not crush or collapse ductwork.

• Do not allow ductwork to rest on or contact sharp objects.

• If connecting to existing ductwork, make sure it is suitable and clean before installing the dryer.

• Venting must conform to local building codes.

• Gas dryers MUST exhaust to the outdoors.

• Use only 4-inch (10.2 cm) rigid, semi-rigid or flexible metal ductwork inside the dryer cabinet and for venting outside.

• To reduce the risk of fire, combustion, or accumulation of combustible gases, DO NOT exhaust dryer air into an enclosed and unventilated area, such as an attic, wall, ceiling, crawl space, chimney, gas vent, or concealed space of a building.

• To reduce the risk of fire, DO NOT exhaust the dryer with plastic or thin foil ducting.

• The exhaust duct must be 4-inch (10.2 cm) in diameter with no obstructions. The exhaust duct should be kept as short as possible. Make sure to clean any old ducts before installing your new dryer.

• Rigid, semi-rigid or flexible metal ducting is recommended for use between the dryer and the wall. All non-rigid metal transition duct must be UL-listed. Use of other materials for transition duct could affect drying time.

• DO NOT use sheet metal screws or other fasteners which extend into the duct that could catch lint and reduce the efficiency of the exhaust system. Secure all joints with duct tape.

• Do not exceed the recommended duct length limitations noted in the chart. Failure to follow these instructions may result in extended drying times, fire or death.

WARNING

• Ductwork is not provided with the dryer. You should obtain the necessary ductwork locally. The vent hood should have hinged dampers to prevent backdraft when the dryer is not in use.

• The total length of flexible metal duct must not exceed 8 ft. (2.4 m).

Ductwork

Number

Wall Cap Type

of 90°

Elbows

Recommended

a: 4" (10.2 cm)

Use only for short

run installations

b: 2.5" (6.35 cm)

0 65 ft.(19.8 m)

1 55 ft.(16.8 m)

2 47 ft.(14.3 m)

3 36 ft.(11.0 m)

4 28 ft.(8.5 m)

0 55 ft.(16.8 m)

1 47 ft.(14.3 m)

2 41 ft.(12.5 m)

3 30 ft.(9.1 m)

4 22 ft.(6.7 m)

NOTE

• Deduct 6 ft. (1.8 m) for each additional elbow. Do not use more than four 90° elbows.

• In Canada, only those foil-type flexible ducts, if any, specifically identified for use with the appliance by the manufacturer should be used. In the United States, only those foil-type flexible ducts, if any, specifically identified for use with the appliance by the manufacturer and that comply with the Outline for Clothes Dryer Transition Duct, Subject 2158A, should be used.

Maximum

length of 4-inch

diameter rigid

metal duct

19INSTALLATION

Routing and Connecting Ductwork

NOTE Follow the guidelines below to maximize drying performance and reduce lint buildup and condensation in the ductwork. Ductwork and fittings are NOT included and must be purchased separately.

• Use 4-inch (10.2 cm) diameter rigid, semi-rigid or flexible metal ductwork.

• The exhaust duct run should be as short as possible.

• Use as few elbow joints as possible.

• The male end of each section of exhaust duct must point away from the dryer.

• Use duct tape on all duct joints.

• Insulate ductwork that runs through unheated areas in order to reduce condensation and lint buildup on duct surfaces.

• Incorrect or inadequate exhaust systems are not covered by the dryer warranty. Dryer failures or service required because of such exhaust systems will not be covered by the dryer warranty.

Correct Venting

ENGLISH

Incorrect Venting

+ 44 hidden pages
