LG DC09RQ UL2, DC09RQ NSJ User Manual

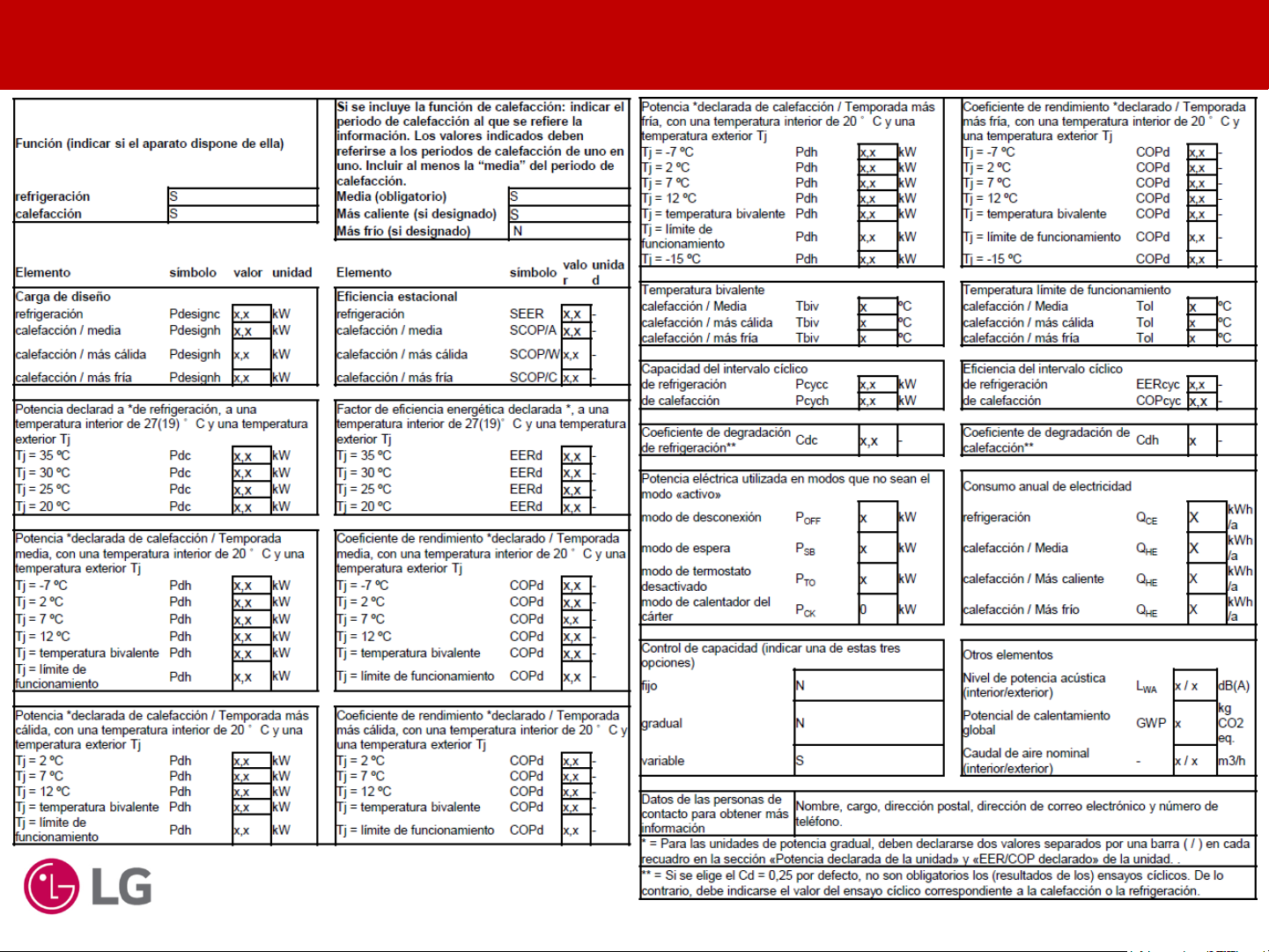

Model name

DC09RQ UL2 (Outdoor unit) / DC09RQ NSJ (Indoor unit)

Function (indicate if present)

cooling	Y
heating	Y
Item	symbol	value	unit

Design load
cooling	Pdesignc	2,5	kW
heating / Average	Pdesignh	2,8	kW
heating / Warmer	Pdesignh	1,5	kW
heating / Colder	Pdesignh		kW
heating / Colder	Pdesignh	x,x	kW

Declared capacity* for cooling, at indoor temperature 27(19)ºC and outdoor temperature Tj

Tj=35ºC	Pdc	2,50	kW
Tj=30ºC	Pdc	1,84	kW
Tj=25ºC	Pdc	1,20	kW
Tj=20ºC	Pdc	1,11	kW

Declared capacity* for heating / Average climate, at indoor temperature 20ºC and outdoor temperature Td

Tj=-7ºC	Pdh	2,48	kW
Tj=2ºC	Pdh	1,53	kW
Tj=7ºC	Pdh	0,98	kW
Tj=12ºC	Pdh	1,21	kW
Tj=bivalent temperature	Pdh	2,80	kW
Tj=operating limit	Pdh	2,80	kW

Declared capacity* for heating / Warmer climate, at indoor temperature 20ºC and outdoor temperature Tj

Tj=2ºC	Pdh	1,50	kW
Tj=7ºC	Pdh	1,01	kW
Tj=12ºC	Pdh	1,21	kW
Tj=bivalent temperature	Pdh	1,50	kW
Tj=operating limit	Pdh	1,50	kW

If the function includes heating: Indicate the heating season the information relates to. Indicated values should relate to one heating season at a time. Include at least the heating season 'Average'.

Average (mandatory)	Y
Warmer (if designated)	Y
Colder (if designated)	N
Item	symbol	valu	unit
Item	symbol	e	unit
Seasonal efficiency
cooling	SEER	7,9	-
heating / Average	SCOP/A	4,6	-
heating / Warmer	SCOP/W	5,4	-
heating / Colder	SCOP/C		-
heating / Colder	SCOP/C	x,x	-

Declared Energy efficiency ratio* for cooling, at indoor temperature 27(19)ºC and outdoor temperature Tj

Tj=35ºC	EERd	4,37	-
Tj=30ºC	EERd	6,50	-
Tj=25ºC	EERd	9,90	-
Tj=20ºC	EERd	14,67	-

Declared Coefficient of performance* for heating / Average climate, at indoor temperature 20ºC and outdoor temperature Tj

Tj=-7ºC	COPd	3,22	-
Tj=2ºC	COPd	4,62	-
Tj=7ºC	COPd	5,55	-
Tj=12ºC	COPd	7,00	-
Tj=bivalent temperature	COPd	2,79	-
Tj=operating limit	COPd	2,79	-

Declared Coefficient of performance* / Warmer climate, at indoor temperature 20ºC and outdoor temperature Tj

Tj=2ºC	COPd	4,50	-
Tj=7ºC	COPd	5,50	-
Tj=12ºC	COPd	6,90	-
Tj=bivalent temperature	COPd	4,50	-
Tj=operating limit	COPd	4,50	-

Declared capacity* for heating / Colder climate, at indoor temperature 20ºC and outdoor temperature Tj

Tj=-7ºC		Pdh	x,x	kW
Tj=2ºC		Pdh	x,x	kW
Tj=7ºC		Pdh	x,x	kW
Tj=12ºC		Pdh	x,x	kW
Tj=bivalent temperature		Pdh	x,x	kW
Tj=operating limit		Pdh	x,x	kW
Tj=-15ºC		Pdh	x,x	kW

Bivalent temperature
heating / Average		Tbiv	-10	ºC
heating / Warmer		Tbiv	2	ºC
heating / Colder		Tbiv	x	ºC

Cycling interval capacity
for cooling		Pcycc	x,x	kW
for heating		Pcych	x,x	kW

Degradation	co-efficient Cdc		0,25	-
cooling**

Electric power input in power modes other than 'active mode'

off mode	POFF	0.003	kW
standby mode	PSB	0,003	kW
thermostat-off mode	PTO	0,013	kW
crankcase heater mode	PCK	0	kW

Capacity control (indicate one of three options)
fixed	N

staged	N

variable	Y

Declared Coefficient of performance* / Colder climate, at indoor temperature 20ºC and outdoor temperature Tj

Tj=-7ºC		COPd		x,x	-
Tj=2ºC		COPd		x,x	-
Tj=7ºC		COPd		x,x	-
Tj=12ºC		COPd		x,x	-
Tj=bivalent temperature		COPd		x,x	-
Tj=operating limit		COPd		x,x	-
Tj=-15ºC		COPd		x,x	-

Operating limit temperature
heating / Average		Tol		-10	ºC
heating / Warmer		Tol		2	ºC
heating / Colder		Tol		x	ºC

Cycling interval efficiency
for cooling		EERcyc		x,x	-
for heating		COPcyc		x,x	-

Degradation	co-efficient Cdh			0,25	-
heating**

Annual electricity consumption
cooling		QCE			kWh/a
cooling		QCE		111	kWh/a
heating / Average		QHE		852	kWh/a
heating / Warmer		QHE		389	kWh/a
heating / Colder		QHE		xx	kWh/a

Other items
Sound power level		LWA	60		dB(A)
(indoor/outdoor)		LWA	/ 65		dB(A)
Global warming potential		GWP	675		kgCO
Global warming potential		GWP	675		2 eq.
					2 eq.
Rated air flow (indoor/outdoor)		-	780		m3/h
Rated air flow (indoor/outdoor)		-	/2100		m3/h
			/2100

			Christianna PAPAZAHARIOU
			Internal communicator - Energy & environment regulations expert
Contact	details	for	, LG Electronics
obtaining more information			Paris Nord II – 117 avenue des Nations
			BP 59372 Villepinte – 95942 Roissy CDG Cedex
			chris.papazahariou@lge.com
			Tel. +33 1 49 89 57 41, +33 6 83 077 455

*= For staged capacity units, two values divided by a slash (‘/’) will be declared in each box in the section “Declared capacity of the unit” and "declared EER/COP" of the unit.

**= If default Cd=0.25 is chosen then (results from) cycling tests are not required. Otherwise either the heating or cooling cycling test value is required.
