LG CM4335T User guide

OWNER’S MANUAL

Mini Hi-Fi System

Please read this manual carefully before operating
your set and retain it for future reference.

CM4635T (CM4635T, CMS4630F)
CM4535T (CM4535T, CMS4530F, CMS4530W)
CM4435T (CM4435T, CMS4530F)
CM4335T (CM4335T, CMS4330F)

ENGLISH

CM4330-FB_DRUSLLK_ENG_6486.indd 1 2014-08-01  3:30:04

1 Getting Started

Getting Started2

Safety Information

1

Getting Started

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.

WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built­in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This lightning ash with arrowhead
symbol within an equilateral
triangle is intended to alert the
user to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be of
sucient magnitude to constitute a
risk of electric shock to persons.

The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instructions
in the literature accompanying the
product.

CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not
try to open the enclosure.

CAUTION concerning the Power cord

Most appliances recommend they be placed upon
a dedicated circuit;

That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.

CM4330-FB_DRUSLLK_ENG_6486.indd 2 2014-08-01  3:30:05

Getting Started 3

This device is equipped with a portable battery or
accumulator.

Safety way to remove the battery or the
battery from the equipment: Remove the

old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, re or the like.

CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.

Disposal of your old appliance

1. When this crossed-out wheeled bin
symbol is attached to a product it
means the product is covered by
the European Directive 2002/96/EC.

2. All electrical and electronic products
should be disposed of separately
from the municipal waste stream
via designated collection facilities
appointed by the government or
the local authorities.

3. The correct disposal of your
old appliance will help prevent
potential negative consequences
for the environment and human
health.

4. For more detailed information about
disposal of your old appliance,
please contact your city office,
waste disposal service or the shop
where you purchased the product.

Disposal of waste batteries/accumulators

1. When this crossed-out wheeled
bin symbol is attached to batteries/
accumulators of Your product
it means they are covered by
European Directive 2006/66/EC.

2. This symbol may be combined with
chemical symbols for mercury(Hg),
cadmium(Cd) or lead(Pb) if the
battery Contains more that 0.0005%
of mercury,0.002% of cadmium or

0.004% of lead.

3. All batteries/accumulators should
be disposed separately from
the municipal waste stream via
designated collection facilities
appointed by the government or
the local authorities.

4. The correct disposal of Your old
batteries/accumulators will help
to prevent potential negative
consequences for the environment,
animal and human health.

5. For more detailed information
about disposal of Your old batteries/
accumulators, please contact Your
city office, waste disposal service or
the shop where You purchased the
product.

1

Getting Started

CM4330-FB_DRUSLLK_ENG_6486.indd 3 2014-08-01  3:30:05

Table of Contents4

Table of Contents

1 Getting Started

2 Safety Information
6 Unique Features
6 Accesories
6 Playable file Requirement
6 – MP3/WMA music file requirement
7 – Compatible USB Devices
7 – USB device requirement
8 Remote Control
9 Front Panel
11 Rear Panel(CM4535T)
12 Rear Panel(CM4635T)
13 Rear Panel(CM4435T/CM4335T)

2 Connecting

14 Connecting to speakers
14 – Attaching the speakers to the unit
15 Antenna Connection
15 Optional Equipment Connection
15 – AUX IN Connection
16 – USB Connection

3 Operating

17 Basic Operations
17 – CD/USB Operations
17 Other Operations
17 – Programmed Playback
17 – Displaying file information
17 – Searching for a folder
18 – Turn off the sound temporarily
18 – Deleting an MP3/WMA file
18 – DEMO
18 – AUTO DJ playback
19 Radio Operations
19 – Listening to the radio
19 – Presetting the Radio Stations
19 – Deleting all the saved stations
19 – Improving poor FM reception
20 Sound adjustment
20 – Setting the surround mode
20 Setting the Clock
20 – Setting the alarm
21 – Sleep Timer Setting
21 – Dimmer
21 Advanced Operations
21 – Listening to the sound from your

external device
22 Using a Bluetooth wireless technology
22 – Listening to music of a Bluetooth

device

CM4330-FB_DRUSLLK_ENG_6486.indd 4 2014-08-01  3:30:05

4 Troubleshooting

24 Troubleshooting

Table of Contents 5

5 Appendix

25 Specifications
26 Speaker specifications
27 Maintenance
27 – Handling the Unit
27 – Notes on Discs
27 Trademarks and Licenses

1

2

3

4

5

CM4330-FB_DRUSLLK_ENG_6486.indd 5 2014-08-01  3:30:05

Getting Started6

Unique Features

AUTO DJ

1

Getting Started

Blends the end of one song into the beginning of
another for seamless playback.

USB

Listens to music from your USB device.

Radio

Listens to the radio.

Bluetooth®

Listens to music stored on your bluetooth device.

Accesories

Please check and identify the supplied accessories.

Remote Control (1) Batteries (2)

Playable file
Requirement

MP3/WMA music file
requirement

MP3/WMA le compatibility with this unit is limited
as follows.

ySampling frequency : within 32 to 48 kHz (MP3),

within 32 to 48 kHz (WMA)

y Bit rate : within 32 to 320 kbps (MP3),

40 to 192 kbps (WMA)

y Maximum les : Under 999

y File extensions : “.mp3”/“.wma”

y CD-ROM le format : ISO 9660/JOLIET

y We recommend that you use Easy-CD Creator,

which creates an ISO 9660 le system.

yYou have to set the disc format option to

[Mastered] in order to make the discs compatible
with the LG players when formatting rewritable
discs. When setting the option to Live File
System, you cannot use it on LG players.
(Mastered/Live File System : Disc format system

for Windows Vista)

FM Antenna (1)

CM4330-FB_DRUSLLK_ENG_6486.indd 6 2014-08-01  3:30:06

Compatible USB Devices

y MP3 Player : Flash type MP3 player.

y USB Flash Drive :

Devices that support USB2.0 or USB1.1.

y The USB function of this unit does not support

all USB devices.

USB device requirement

y Devices which require additional program

installation when you have connected it to a
computer, are not supported.

y Do not extract the USB device while in operation.

y For a large capacity USB, it may take longer than

a few minute to be searched.

y To prevent data loss, back up all data.

y If you use a USB extension cable or USB hub, the

USB device is not recognized.

y Using NTFS le system is not supported.

(Only FAT(16/32) le system is supported.)

y This unit is not supported when the total

number of les is 1 000 or more.

y External HDD, Card readers, Locked devices, or

hard type USB devices are not supported.

yUSB port of the unit cannot be connected to PC.

The unit cannot be used as a storage device.

Getting Started 7

1

Getting Started

CM4330-FB_DRUSLLK_ENG_6486.indd 7 2014-08-01  3:30:06

Getting Started8

Remote Control

1

Getting Started

Battery Installation

• • • • • • a • • • • • •

(Power) : Switches the unit ON

1

or OFF.

(Open/Close) : Opens and

B

closes the disc tray.

PRESETFOLDER W/S :

-Searches for a folder of MP3/
WMA les. When a CD/USB
containing MP3/WMA les in
several folders is being played,
press PRESETFOLDER W/S
to select the folder you want to
play.

-Chooses a preset number for a
radio station.

FUNCTION : Selects the function
and input source.

MUTE@ : Mutes the sound.

VOL +/- : Adjusts speaker volume.

• • • • • • b • • • • • •

PROGRAM/MEMORY :

- Stores radio stations.

- Creates a playlist you want to
listen to.

: The button is not available for

?

any function.

USB SKIP : Switches between USB
1 and USB 2.

REPEAT(MENU) :
REPEAT : Listens to your tracks/les
repeatedly or randomly.

MENU : This key have function
only in the case of the SET have
ipod function.

C/V

TUNING-/+ : Selects the radio
station.

Z

d/M

SOUND EFFECT : Chooses sound
impressions.

AUTO DJ : Selects the AUTO DJ
mode. (For more information refer
to the page 18)

DELETE : Deletes MP3/WMA les.

• • • • • • c • • • • • •

0 to 9 numerical buttons : Selects
numbered tracks/les, or preset
number.

INFO : Sees informations about
your music.

SLEEP : Sets the system to turn o
automatically at a specied time.
(Dimmer : The display window
will be darkened by half.)

• • • • • • d • • • • • •

?

any function.

(Skip/Search) :

-Skips Fast backward or Forward.

-Searches for a section within a
track/le.

ENTER :

-Stops playback.

-Cancels DELETE function.

(Play/Pause) :

-Starts or pauses playback.

-Selects STEREO/MONO.

: The button is not available for

Remove the battery cover on the
rear of the Remote Control, and
insert two (size AAA) batteries
with 4 and 5 matched correctly

CM4330-FB_DRUSLLK_ENG_6486.indd 8 2014-08-01  3:30:06

Front Panel

Getting Started 9

1

Getting Started

CM4330-FB_DRUSLLK_ENG_6486.indd 9 2014-08-01  3:30:06

Getting Started10

Getting Started

Disc tray

a

Roads a disc.

AUTO DJ

b

1

Selects the AUTO DJ mode.
(For more informaion refer to the page 18)

TIMER

c

Uses your unit as an alarm clock.

(Skip/Search)

d Y

- Searches forward.

- Skips to the previous track/le.

BASS BLAST

e

Reinforces the treble, bass and surround eect.

(Stop)

f I

g

h 1/!

i

Stops playback.

SET

Conrms the setting.

(Power)

Switches the unit ON or OFF.

Display window

USB

j

Plays the audio les by connecting the USB
device.

FUNC.

k

Selects the function or input source.

DEMO

l

Demonstrates each of functions.

ST./MO.

m T

- Starts or pauses playback.

- Selects Stereo/Mono.

Volume knob

n

Adjusts volume of speaker.

LG EQ

o

Chooses sound impression.

(Skip/Search)

p U

- Searches backward.

- Skips to the next track/le.

CLOCK

q

Sets the clock and checks the time.

(Open/Close)

r R

Opens and closes the disc tray.

CM4330-FB_DRUSLLK_ENG_6486.indd 10 2014-08-01  3:30:06

Rear Panel(CM4535T)

Getting Started 11

1

Getting Started

AUX IN (L/R) connectors

a

ANTENNA (FM)

b

POWER IN

c

CM4330-FB_DRUSLLK_ENG_6486.indd 11 2014-08-01  3:30:06

Cooling fan

d

SPEAKERS terminal/Cord

e

Getting Started12

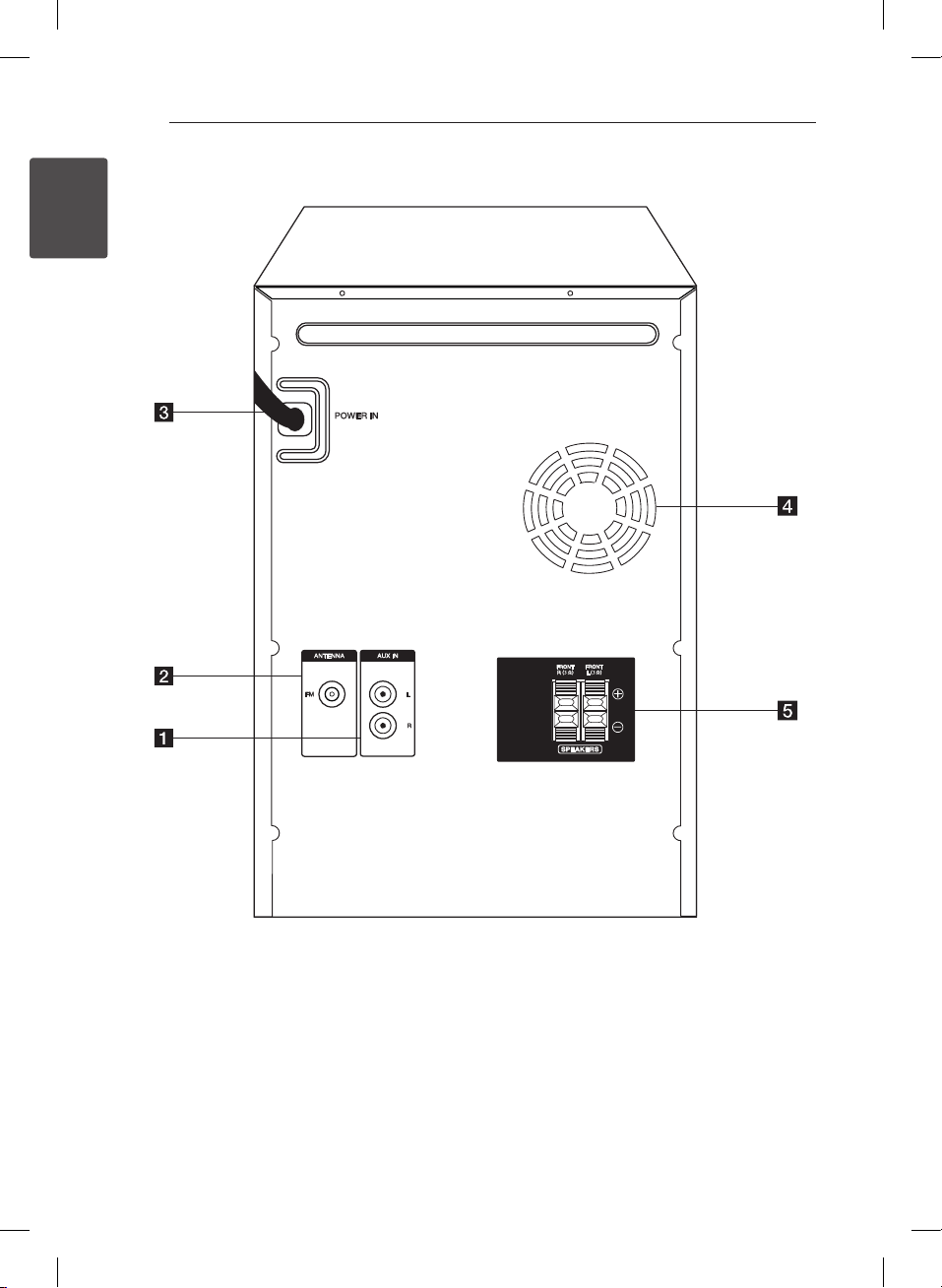

Rear Panel(CM4635T)

1

Getting Started

AUX IN (L/R) connectors

a

ANTENNA (FM)

b

POWER IN

c

CM4330-FB_DRUSLLK_ENG_6486.indd 12 2014-08-01  3:30:07

Cooling fan

d

SPEAKERS terminal

e

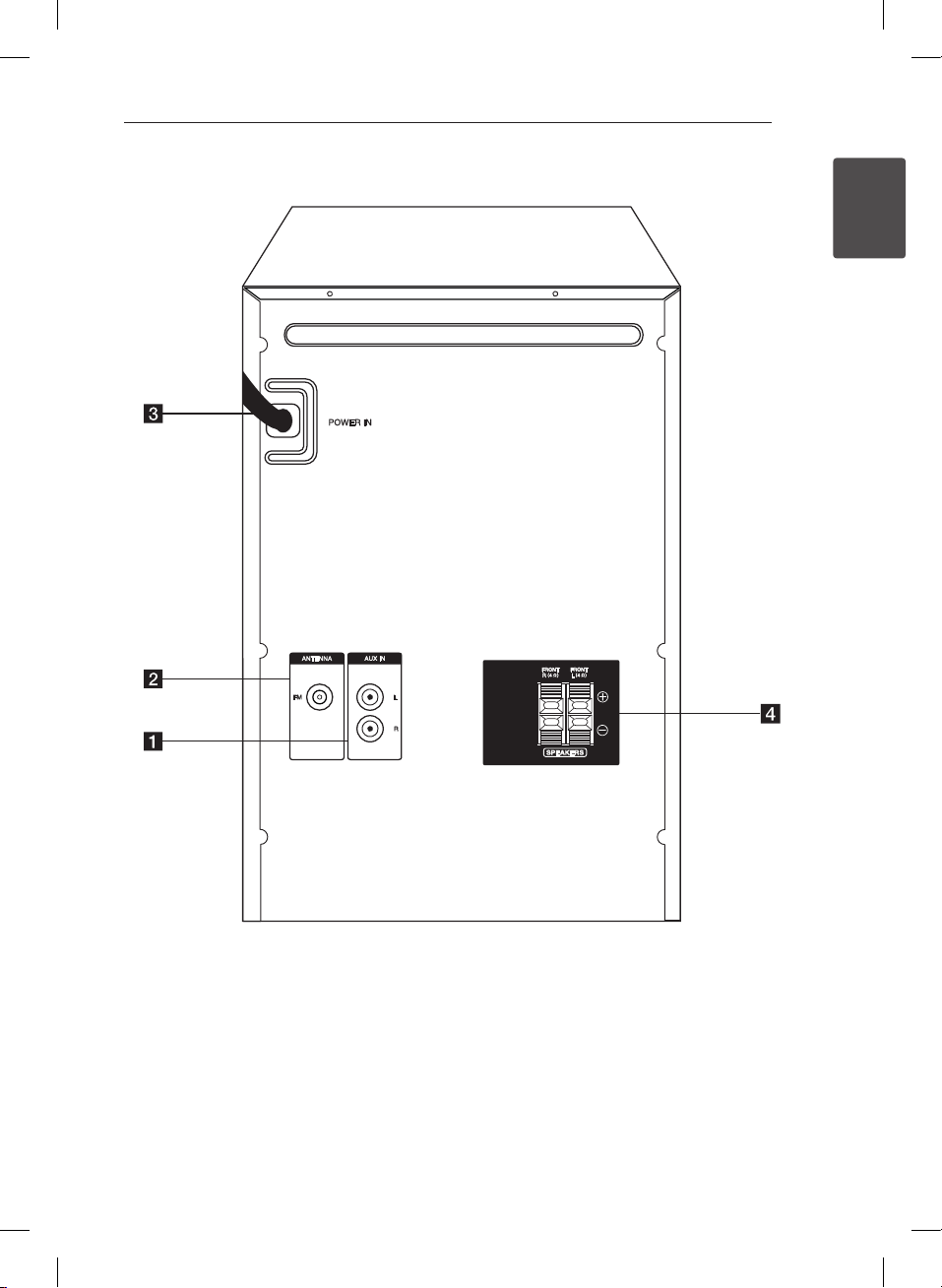

Rear Panel(CM4435T/CM4335T)

Getting Started 13

1

Getting Started

AUX IN (L/R) connectors

a

ANTENNA (FM)

b

CM4330-FB_DRUSLLK_ENG_6486.indd 13 2014-08-01  3:30:07

POWER IN

c

SPEAKERS terminal

d

Connecting14

Connecting to
speakers

Attaching the speakers to the
unit

To connect the cable to the unit, press each plastic

2

nger pad to open the connection terminals on the

Connecting

unit. Insert the wire and release the nger pad.

Connect the black stripe of each wire to the
terminals marked - (minus) and the other end to
the terminals marked + (plus).

Connect a woofer cord to the player.
When connecting a woofer cord to the player,
insert the connector until it clicks.

Caution

>

yBe careful to make sure children do not put

their hands or any objects into the *speaker
duct.
*Speaker duct: A hall for plentiful bass
sound on speaker cabinet (enclosure)

yThe speakers contain magnet parts, so color

irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.

yDo not connect any other speaker except

sub woofer speaker to the sub woofer
connection terminal on the rear of the unit.

CM4535T

Color Speaker

Orange Sub woofer

Red Front

White Front

CM4635T/CM4435T/CM4335T

Color Speaker

Red Front

White Front

CM4330-FB_DRUSLLK_ENG_6486.indd 14 2014-08-01  3:30:07

Connecting 15

Antenna Connection

Connect the supplied FM antenna for listening to
the radio.

Connect the FM wire antenna to the FM antenna
connector.

Note

,

Be sure to fully extend the FM wire antenna.

Optional Equipment
Connection

AUX IN Connection

Connect an output of auxiliary device(Camcoder,
TV, Player, etc) to the AUX IN(L/R) connector.

If your device has only one output for audio(mono),
connect it to the left (white) audio jack on the unit.

Red

Red

White

White

To the audio output jacks

To the audio output

of your component

jacks of your component

(TV, VCR, etc.)

(TV, VCR, etc)

2

Connecting

CM4330-FB_DRUSLLK_ENG_6486.indd 15 2014-08-01  3:30:08

Connecting16

USB Connection

Connect the USB port of USB Memory (or MP3
player, etc.) to the USB port on the front of the unit.

2

Connecting

Note

,

Removing the USB Device from the unit.

1. Choose a different function/mode or
press I(Stop) twice in a row.

2. Remove the USB device from the unit.

CM4330-FB_DRUSLLK_ENG_6486.indd 16 2014-08-01  3:30:08

Operating 17

Basic Operations

CD/USB Operations

1. Insert the disc by pressing B on the remote
control or R on the unit.
Connect the USB device to the USB 1/2 port.

2. Select the CD or USB function by pressing
FUNCTION on the remote control or FUNC. on
the unit.

3. Select a track/file you want to play by pressing

C/V

on the unit.

Stop Press Z ENTER or I.

Playback Press d/M or TST./MO..

Pause

Skipping to

the next/

previous
track/le

Selecting

a track/le

directly

Searching

for a section

within

a track/le

Playing

repeatedly or

randomly

on the remote control or

To Do this

During playback, Press d/M or

ST./MO..

T

During playback, press C/

or

V

Y/U

next track/le or to return to the
beginning of the current track/le.

Playing less than 2 seconds, press

or Y to go to the previous

C

track/le.

Playing after 3 seconds, press C
or Y to go to the beginning of
the track/le.

Press 0 to 9 numerical buttons
to go to the desired le or track
directly.

Press and hold C/V or

during playback and release it

U

at the point you want to listen to.

Press REPEAT(MENU) repeatedly.
The display will be changed in the
following order.
RPT1 -> RPT *DIR (only MP3/WMA)

-> RPT ALL -> RANDOM -> OFF.
*DIR : Directory

to go to the

Y/U

Y/

Other Operations

Programmed Playback

The program function enables you to store your
favorite les from any disc or USB device.

A program can contain 20 tracks/les.

1. Insert a CD or connect your USB and wait for it
to be ordered.

2. Press PROGRAM/MEMORY on the remote
control in stop status.

3. Press C/V on the remote control to select
a track/file.

4. Press PROGRAM/MEMORY again to save and
select a next track/file.

5. Repeat steps 3-4 to select a next track/file.

6. Press d/M to play the programmed music
tracks/files.

7. To clear your selection, press Z ENTER twice.

Note

,

The programs are also cleared when the disc
or USB device is removed, the unit is powered
o or the function is switched to others.

Displaying file information

While playing an MP3 le containing le
information, you can display the information by
pressing INFO.

Searching for a folder

1. Press PRESET·FOLDER W/S on the remote
control repeatedly until a desired folder appears
in the display window.

2. Press d/M to play it. The first file of the folder
will be played.

3

Operating

CM4330-FB_DRUSLLK_ENG_6486.indd 17 2014-08-01  3:30:08

Operating18

Turn off the sound temporarily

Press MUTE@ on the remote control to mute
your sound.

You can mute your sound, for example, to answer
the telephone, the “MUTE” will appear and blink in
the display window.

To cancel it, press MUTE @ again or change the
volume level.

Deleting an MP3/WMA file

You can delete a le, folder or format by pressing
DELETE. (USB only)

1. Press DELETE repeatedly while selecting the

3

Operating

MP3/WMA file. This function is supported
only in stop status. The display changes in the
following order.

- DEL FILE : Deletes file.

- DEL DIR : Deletes folder.

- FORMAT : Formats USB.

2. To delete file/folder or format, press
on the remote control or press T ST./MO. on
the unit.

3. If you want to exit the current mode,
press Z ENTER on the remote control or
press I on the unit.

Caution

>

yDo not extract the USB device during

operation.(play, delete, etc.)

yRegular back up is recommended to

prevent data loss.

yThe delete function may not be supported

according to the USB status.

DEMO

In power o state, press DEMO on the unit once.
The unit will power on and display the each of
functions in the display window. To cancel the
DEMO function, press DEMO once more.

Note

,

You can enjoy other functions during the
DEMO. Then the DEMO will pause temporarily.

- Without input key in 10 sec, the DEMO
will play back automatically.

d/M

AUTO DJ playback

Auto DJ blends the end of one song into the
beginning of another for seamless playback. It
equalizes volume across tracks for uninterrupted
playback.

Press AUTO DJ on the remote control or unit
repeatedly, the display changes as followings.
RANDOM (AUTO DJ RANDOM) -> RPT (AUTO DJ
SEQUENTIAL) -> (AUTO DJ OFF)

Mode

OFF

RANDOM

REPEAT

ySearching for a section within a track/le

or playing repeatedly or randomly is not
supported on the AUTO DJ mode.

yDuring AUTO DJ mode, it is not available to

search le by pressing PRESETFOLDER

W/S

yIf you move to other functions or stop the

music using I on the unit (or Z ENTER on
the remote control) on AUTO DJ mode,
AUTO DJ function will be disable.

yAUTO DJ function is not supported in the

music le whose length is less than 60
seconds.

yDuring recording, AUTO DJ function is not

available.

yIf you change a disc while the AUTO DJ

function is activated, the function is
deactivated.

Display

Window

-

(AUTO DJ OFF)

RANDOM
(AUTO DJ

RANDOM)

RPT

(AUTO DJ

SEQUENTIAL)

Note

,

on the remote control.

Description

-

The music is

played randomly

on this mode.

The music is

played repeatedly

on this mode.

CM4330-FB_DRUSLLK_ENG_6486.indd 18 2014-08-01  3:30:08

Operating 19

Radio Operations

Be sure that FM aerial is connected.
(Refer to the page 15)

Listening to the radio

1. Press FUNCTION on the remote control or
FUNC. on the unit until FM appears in the

display window.
The last received station is tuned in.

2. Auto tuning : Press TUNING -/+ on the remote
control or
seconds until the frequency indication starts
changing, then release. scanning stops when
the unit tunes in a station.

Manual tuning: Press TUNING -/+ on the

remote control or
repeatedly.

3. Adjust the volume by pressing VOL +/- on the
remote control or by rotating volume knob on
the unit repeatedly.

Y/U

on the unit for about 2

Y/U

on the unit

Presetting the Radio Stations

You can preset 50 stations for FM.

Before tuning, make sure to turn down the volume.

1. Press FUNCTION on the remote control or
FUNC. on the unit until FM appears in the
display window.

2. Select the desired frequency by pressing
TUNING-/+ on the remote control or

Y/U

3. Press PROGRAM/MEMORY. A preset number
will blink in the display window.

4. Press PRESET·FOLDER W/S to select the
preset number you want.

5. Press PROGRAM/MEMORY. The station is
stored.

6. Repeat steps 2 to 5 to store other stations.

7. To listen to a preset station, press
PRESET·FOLDER W/S or 0 to 9 numerical
buttons.

on the unit.

Deleting all the saved stations

1. Press and hold PROGRAM/MEMORY for two
seconds. “ERASEALL” will blink in the unit display.

2. Press PROGRAM/MEMORY to erase all saved
radio stations.

3

Operating

Improving poor FM reception

Press d/M on the remote control or T ST./MO.
on the unit. This will change the tuner from stereo
to mono. Then the reception will be better than
before.

CM4330-FB_DRUSLLK_ENG_6486.indd 19 2014-08-01  3:30:08

Operating20

Sound adjustment

Setting the surround mode

This system has a number of pre-set surround
sound elds. You can select a desired sound mode
by using SOUND EFFECT on the remote control or
LG EQ on the unit.

The displayed items for the Equalizer may be
dierent depending on sound sources and eects.

On Display Description

NATURAL

3

Operating

AUTO EQ

POP

CLASSIC

JAZZ

ROCK

MP3 -- OPT

BASS

LOUDNESS

BYPASS

y On some speakers, sound may not be heard

or heard in low sound depending on the
sound mode.

y Maybe you need to reset the surround

mode, after switching the input, sometimes
even after the sound track changed.

yBy pressing BASS BLAST on the unit you

can directly select the BYPASS or BASS
BLAST sound.

You can enjoy comfortable and
natural sound.

Realizes the sound equalizer that
is the most similar to the genre
of which is included in the MP3
ID3 tag of song les.

This program lends an
enthusiastic atmosphere to the
sound, giving you the feeling
you are at an actual rock pop,
jazz or classic concert.

This function is optimized
for compressible MP3 le. It
improves the treble sound.

Reinforces the treble, bass and
surround sound eect.

Improves the bass and treble
sound.

You can enjoy the sound
without equalizer eect.

Note

,

Setting the Clock

1. Turn the unit on.

2. Press CLOCK.

3. Choose time mode by pressing

- AM 12:00 (for an AM and PM display)
or 0:00 (for a 24 hour display)

4. Press SET to confirm your selection.

5. Select the hours by pressing

6. Press SET.

7. Select the minutes by pressing

8. Press SET.

9. If you want to reset the clock, press and hlod
CLOCK. Then repeat steps 3-8.

Y/U

Y/U

Y/U

Setting the alarm

You can use the unit as an alarm clock.
You have to set the clock before setting the alarm.

1. Turn the unit on.

2. Press TIMER.

3. Each of functions will blink. Press SET to select a
sound source you want.

4. “ON TIME” will be displayed. This is your desired
time to the unit turns on. Press
change the hours and minutes and press
SET to save.

5. The “OFF TIME” will be displayed. This is your desired
time to the unit turns off. Press
the hours and minutes and press SET to save.

6. Press

Y/U

press SET to save. The clock icon "(“ shows
that the alarm is set.

7. Press TIMER. You can check the setting status.

8. If you want to reset the clock, press and hold
TIMER. Then repeat step 3-6.

to change the volume and

Y/U

Y/U

.

.

.

to

to change

CM4330-FB_DRUSLLK_ENG_6486.indd 20 2014-08-01  3:30:08

Operating 21

Sleep Timer Setting

Press SLEEP on the remote control repeatedly to select
delay time between 10 and 180 minutes. After delay time,
the unit will turn o. (You can see the following order,
180 ->150 -> 120 -> 90 -> 80 -> 70 -> 60 -> 50 -> 40 ->
30 -> 20 -> 10). To cancel the sleep function, press SLEEP
repeatedly until the display window get bright.

Note

,

• Press SLEEP. The remaining time appears in the
display window.

• Sleep function will work after dimmer function.

Dimmer

Press SLEEP once. The display window will
be darkened by half. To cancel it, press SLEEP
repeatedly until the display window get bright.

Note

,

• After setting a clock function, you can set
alarm function.

• If you set the clock and alarm, you can check
the time and alarm icon “(“ by pressing
CLOCK although the unit is turned o.

• During playback, press TIMER two times
when the alarm icon “(“ is displayed. You
can check the setting state.

• If you activate the alarm, the alarm icon “(“
will appear in the display window.

• If you deactivate the alarm, the alarm icon
“(“ will disappear in the display window.

• Alarm function only works when the unit is
turned o.

• If the time you set is up, the unit will be
turned on automatically.

Advanced Operations

Listening to the sound from
your external device

The unit can be used to play the sound from many
types of external device. (Refer to the page 15)

1. Connect the external device to the AUX IN(L/R)
connector of the unit.

2. Turn the power on by pressing

3. Select the AUX function by pressing FUNC. on
the unit.

4. Turn the external device and start playing it

1/!

(Power).

3

Operating

CM4330-FB_DRUSLLK_ENG_6486.indd 21 2014-08-01  3:30:08

Operating22

Using a Bluetooth
wireless technology

About Bluetooth

Bluetooth® is wireless communication technology
for short range connection.

The available range is within 10 meters.

(The sound may be interrupted when the
connection is interfered by the other electronic
wave or you connect the bluetooth in the other
rooms.)
Connecting individual devices under
Bluetooth® wireless technology does not incur any

3

Operating

charges. A mobile phone with
Bluetooth® wireless technology can be operated
via the Cascade if the connection was made via
Bluetooth® wireless technology.
Available Devices : Mobile phone, MP3, Laptop,
PDA.

Bluetooth Profiles

In order to use Bluetooth wireless technology,
devices must be able to interpret certain proles.
This unit is compatible with following prole.

A2DP (Advanced Audio Distribution Prole)

Listening to music of a
Bluetooth device

Before you start the pairing procedure, make
sure the Bluetooth feature is turned on in to your
Bluetooth device. Refer to your Bluetooth device’s
user guide. Once a pairing operation is performed,
it does not need to be performed again.

1. Select the Bluetooth function by using the
FUNCTION on the remote control or FUNC.
on the unit. “BT READY” appears in the display
window.

2. Operate the Bluetooth device and perform the
pairing operation. When searching for this unit
with the Bluetooth device, a list of the devices
found may appear in the Bluetooth device
display depending on the type of Bluetooth
device.Your unit dispalys as “LG MINI (XX:XX)”.

Note

,

XX:XX means the last four digits of BT address.
For example, if your unit has a BT address such
as 9C:02:98:4A:F7:08, you will see “LG MINI
(F7:08)” on your Bluetooth device.

3. Enter the PIN code.
PIN code : 0000

4. When this unit is successfully paired with your
Bluetooth device, “BT PAIR” appears in the
display window.

Note

,

Depending on the Bluetooth device type,
some devices have a dierent pairing way.

5. Listening to music.
To play a music stored on your Bluetooth
device, refer to your Bluetooth device’s user
guide. According to your Bluetooth device’s
volume level, the volume level of Bluetooth will
be adjusted.

Note

,

ySound from the main set can be distorted

if you raise the volume of Bluetooth device
up to two-thirds or more.

yWhen you use the Bluetooth function,

adjust the volume of a Bluetooth device to
a proper level to listen to.

CM4330-FB_DRUSLLK_ENG_6486.indd 22 2014-08-01  3:30:09

Note

,

yAfter searching for this unit on your

Bluetooth device, connect the Bluetooth
device with this unit. Then play the le you
want.

yThe sound may be interrupted when

the connection interfered by the other
electronic wave.

yYou cannot control the Bluetooth device

with this unit.

yPairing is limited one Bluetooth device per

one unit and multi-pairing is not supported.

yAlthough the distance between your

Bluetooth and the set is less than 10m, if
there are obstacles between both, your
Bluetooth device cannot be connected.

yDepending on the type of the device,

you may not be able to use the Bluetooth
function.

yYou can enjoy wireless system using phone,

MP3, Notebook, etc..

yWhen not connected the Bluetooth, “BT

READY” appears in the display window.

yThe Electrical malfunction due to devices

using same frequency such as Medical
equipment, Microwaves or wireless
LAN devices, the connection will be
disconnected.

yWhen someone stands and interrupts

communication between Bluetooth device
and the player, the connection will be
disconnected.

yIf the gotten away of the distance between

Bluetooth and the unit, the sound quality
is lower and lower. The connection will be
disconnected when the space between
the Bluetooth and the unit gets out of the
operating range of Bluetooth.

yThe device with Bluetooth wireless

technology is disconnected, if you turn o
the main unit or put the device away from
the main unit more than 10m.

yIf the Bluetooth device is disconnected, you

should connect the Bluetooth device to
your unit.

Operating 23

3

Operating

CM4330-FB_DRUSLLK_ENG_6486.indd 23 2014-08-01  3:30:09

Troubleshooting24

Troubleshooting

Problem Cause & Correction

No Power.

No sound.

The unit does not start
playback.

4

Troubleshooting

Radio stations cannot be
tuned in properly.

yThe power cord is not plugged in. Plug in the power cord.

yCheck whether electricity failed.Check the condition by operating other

electronic devices.

yCheck whether you select a right function. Press FUNC. and check the

selected function.

ySpeaker cables are not connected correctly. Connect speaker cables correctly.

yAn unplayable disc is inserted. Insert a playable disc.

yNo disc is inserted. Insert a disc.

yThe disc is dirty. Clean the disc. (Refer to the 27 page)

yThe disc is inserted upside down. Place the disc with the label or printed side

facing upwards.

yThe antenna is positioned or connected poorly. Connect the antenna securely.

yThe signal strength of the radio station is too weak. Tune to the station

manually.

yNo stations have been preset or preset stations have been cleared (when

being tuned by scanning preset channels). Preset some radio stations, see
page 19 for details.

yThe remote control is too far from the unit. Operate the remote control within

about 23 ft (7 m).

The remote control does
not work properly.

CM4330-FB_DRUSLLK_ENG_6486.indd 24 2014-08-01  3:30:09

yThere is an obstacle in the path of the remote control and the unit. Remove

the obstacle.

yThe batteries in the remote control are exhausted. Replace the batteries with

new ones.

Appendix 25

Specifications

General

Model CM4635T CM4535T CM4435T CM4335T

Power requirements Refer to the main label.

Power consumption Refer to the main label.

Dimensions (W x H x D) 202 x 307 x 315 mm

Net Weight (Approx.) 3.15 kg

Operating temperature 5 °C to 35 °C (41 °F to 95 °F)

Operating humidity 5 % to 90 %

Bus Power Supply DC 5 V 0 500 mA

Inputs

AUX IN 2.0 Vrms (1 kHz, 0 dB), 75 Ω, RCA jack (L, R) x 1

Tuner

FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz

Amplier

Model CM4635T CM4535T CM4435T CM4335T

Stereo mode

Front

Surround
mode

Subwoofer -

CD

Frequency Response 100 to 20 000 Hz

Signal-to-noise ratio 75 dB

Dynamic range 80 dB

250 W + 250 W
(3 Ω at 1 KHz,
THD 10 %)

250 W + 250 W
(3 Ω at 1 KHz,
THD 10 %)

160 W + 160 W
(4 Ω at 1 KHz,
THD 10 %)

160 W + 160 W
(4 Ω at 1 KHz,
THD 10 %)

180 W
(3 Ω at 1 KHz,
THD 10 %)

150 W + 150 W
(4 Ω at 1 KHz,
THD 10 %)

150 W + 150 W
(4 Ω at 1 KHz,
THD 10 %)

- -

90 W + 90 W
(4 Ω at 1 KHz,
THD 10 %)

90 W + 90 W
(4 Ω at 1 KHz,
THD 10 %)

5

Appendix

CM4330-FB_DRUSLLK_ENG_6486.indd 25 2014-08-01  3:30:09

Appendix26

Speaker specifications

Front speaker

Model CMS4630F

Type 2 Way 2 Speaker

Impedance 3 Ω 4 Ω

Rated Input Power 250 W 160 W 150 W 90 W

Max. Input power 500 W 320 W 300 W 180 W

Net Dimensions (W x H x D)

Net Weight 5.55 kg 3.32 Kg 3.32 Kg 2.48 Kg

Subwoofer speaker

Model CMS4530W

Type 1 Way 1 Speaker

Impedance 3 Ω

Rated Input Power 180 W

Max. Input power 360 W

5

Appendix

Net Dimensions (W x H x D) 250 x 352 x 327 mm

Net Weight 5.58 kg

yDesign and specications are subject to change without notice.

CMS4530F
(CM4535T)

245 x 452 x 275 mm232 x 352 x 262 mm232 x 352 x 262 mm204 x 301 x 235

CMS4530F
(CM4435T)

CMS4330F

mm

CM4330-FB_DRUSLLK_ENG_6486.indd 26 2014-08-01  3:30:09

Appendix 27

Maintenance

Handling the Unit

When shipping the unit

Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.

Keeping the exterior surfaces clean

Do not use volatile liquids such as insecticide spray
near the unit.

Wiping with strong pressure may damage the
surface.

Do not leave rubber or plastic products in contact
with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty
or worn, the picture quality could be diminished.
For details, please contact your nearest authorized
service center.

Notes on Discs

Handling Discs

Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.

Cleaning Discs

Do not use strong solvents such as alcohol,
benzine, thinner, commercially available cleaners,
or anti-static spray intended for old vinyl records.

Trademarks and
Licenses

5

Appendix

Bluetooth® wireless technology is a system
which allows radio contact between electronic
devices within a max. range of 10 meters.

Connecting individual devices under Bluetooth®
wireless technology does not incur any charges.
A mobile phone with Bluetooth® wireless
technology can be operated via the Cascade
if the connection was made via Bluetooth®
wireless technology.

The Bluetooth® word mark and logos are owned
by the Bluetooth® SIG, Inc. and any use of such
marks by LG Electronics is under license.

Other trademarks and trade names are those of
their respective owners.

CM4330-FB_DRUSLLK_ENG_6486.indd 27 2014-08-01  3:30:09

Символ «не для пищевой продукции» применяется
в соответствие с техническим регламентом
Таможенного союза «О безопасности упаковки»
005/2011 и указывает на то, что упаковка данного
продукта не предназначена для повторного
использования и подлежит утилизации. Упаковку
данного продукта запрещается использовать для
хранения пищевой продукции.

Символ Кедендік одақтың 005/2011
техникалық регламентіне сәйкес
қолданылады және осы өнімнің қаптамасын
екінші рет пайдалануға арналмағанын және
жоюға жататынын көрсетеді. Осы өнімнің
қаптамасын азық-түлік өнімдерін сақтау үшін
пайдалануға тыйым салынады.

Символ «петля Мебиуса» указывает на
возможность утилизации упаковки. Символ может
быть дополнен обозначением материала упаковки
в виде цифрового и/или буквенного обозначения.

Символ қаптаманы жою мүмкіндігін көрсетеді.
Символ сандық код және/немесе әріп
белгілері түріндегі қаптама материалының
белгісімен толықтырылуы мүмкін.

 

Импортер ООО “ЛГ Электроникс Рус”

Адрес импортера: 143160 Российская Федерация, Московская область, Рузский район, сельское поселение Дороховское,

Адрес производителя : ЛГ Электроникс (Хужоу) Инк., завод Хатаи, 516006, Китай, пров. ГуанДонг, г. Хужоу, Промышленная
зона Жонгкай, Индустриальный парк Хутаи, ХуФенг Донг Уи Роуд, 13.

86 км. Минского шоссе, д.9

  



Найменування та адреса імпортера
ПІІ «ЛГ ЕЛЕКТРОНІКС Україна» вул.
Басейна, 6, м. Київ, 01004,
Тел. : [phone]

Қазақстан Республикасы

Импорттаушы АҚ “ЭЛ Джи Электроникс Алматы Қазақстан”, 050061, Алматы қ., к. Көкорай, 2А

Өндірушінің мекенжайы: 516006, Қытай, ГуанДонг ауданы, Хужоу қаласы, Жонгкай өнеркәсіптік аймағы, Хутай

Қазақстан Республикасы территориясында тұтынушылардан келіп түскен талаптар мен ұсыныстарды
қарайтын және тауарды жөндеу мен техникалық қызмет көрсететін ұжым:

АҚ «Эл Джи Электроникс Алматы Казахстан», 050061, Қазақстан Республикасы, Алматы қ., Көкорай, 2А. Басқа
сервис орталықтары жайында мағлұматты “Тұтынушыға қызмет көрсету орталығына” телефон шалу арқылы
білуге болады.

Индустриялық саябағы, ХуФенг Донг Уи Роуд, 13.

Қытайда жасалған

CM4330-FB_DRUSLLK_ENG_6486.indd 28 2014-08-01  3:30:10
