LG CM2630, CM2630B User Manual

ENGLISH

DEUTSCH

FRANÇAIS

NEDERLANDS

SLOVENŠČINA

ITALIANO ESPAÑOL

OWNER’S MANUAL

Micro Hi-Fi System

ΕΛΛΗΝΙΚΑ

Please read this manual carefully before operating
your set and retain it for future reference.

CM2630B (CM2630B, CMS2630FH)

CM2630-DR_DDEULLK_ENG.indd 1 2013-03-19  8:12:58

PORTUGUÊS

1 Getting Started

Getting Started2

Safety Information

1

Getting Started

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

enclosure that may be of sucient magnitude to
constitute a risk of electric shock to persons.

instructions in the literature accompanying the
product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.

WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built­in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This lightning ash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s

The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)

CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not
try to open the enclosure.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon
a dedicated circuit;

That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.

CM2630-DR_DDEULLK_ENG.indd 2 2013-03-19  8:12:59

Getting Started 3

This device is equipped with a portable battery or
accumulator.

Safety way to remove the battery or the
battery from the equipment: Remove the

old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, re or the like.

CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.

Disposal of your old appliance

1. When this crossed-out wheeled bin
symbol is attached to a product it
means the product is covered by
the European Directive 2002/96/EC.

2. All electrical and electronic products
should be disposed of separately
from the municipal waste stream
via designated collection facilities
appointed by the government or
the local authorities.

3. The correct disposal of your
old appliance will help prevent
potential negative consequences
for the environment and human
health.

4. For more detailed information about
disposal of your old appliance,
please contact your city office,
waste disposal service or the shop
where you purchased the product.

Disposal of waste batteries/accumulators

1. When this crossed-out wheeled
bin symbol is attached to batteries/
accumulators of Your product
it means they are covered by
European Directive 2006/66/EC.

2. This symbol may be combined with
chemical symbols for mercury(Hg),
cadmium(Cd) or lead(Pb) if the
battery Contains more that 0.0005%
of mercury,0.002% of cadmium or

0.004% of lead.

3. All batteries/accumulators should
be disposed separately from
the municipal waste stream via
designated collection facilities
appointed by the government or
the local authorities.

4. The correct disposal of Your old
batteries/accumulators will help
to prevent potential negative
consequences for the environment,
animal and human health.

5. For more detailed information
about disposal of Your old batteries/
accumulators, please contact Your
city office, waste disposal service or
the shop where You purchased the
product.

1

Getting Started

CM2630-DR_DDEULLK_ENG.indd 3 2013-03-19  8:12:59

Getting Started

Getting Started4

LG Electronics hereby declares that this/these
product(s) is/are in compliance with the essential

1

requirements and other relevant provisions of
Directive 1999/5/EC, 2004/108/EC, 2006/95/EC,
2009/125/EC and 2011/65/EU.

Please contact to the followingaddress for
obtaining a copy of the DoC (Declaration of
Conformity).

Contact oce for compliance of this product:

LG Electronics Inc.
EU Representative, Krijgsman 1,
1186 DM Amstelveen, The Netherlands

yPlease note that this is NOT a Customer

Service contact point. For Customer Service
Information, see Warranty Card or contact the
dealer that you purchased this product.

In door use only.

RF Radiation Exposure Statement

This equipment should be installed and operated
with minimum distance 20cm between the
radiator and your body.

LG Bluetooth Remote

You can control this player with your iPhone or
Android phone via Bluetooth. This player and your
phone must be connected to Bluetooth. Visit

“ Apple App Store” or “Google Android Market
(Google Play Store)” . And use this QR code to
search for “LG Bluetooth Remote” app. For detailed
information, refer to the 24 page.

CM2630-DR_DDEULLK_ENG.indd 4 2013-03-19  8:12:59

Table of Contents 5

Table of Contents

1 Getting Started

2 Safety Information
6 Unique Features
6 Accessories
7 Playable file Requirement
8 Remote Control
9 Front Panel
10 Rear Panel

2 Connecting

11 Connecting to speakers
11 – Attaching the speakers to the unit
11 Antenna Connection
12 Optional Equipment Connection
12 – USB Connection
12 – PORT. IN Connection
13 – PHONES Connection
14 Basic Operations
14 – CD/USB Operations
14 – Selecting a folder and an MP3/WMA

20 – Sleep Timer Setting
20 – Dimmer
20 Advanced Operation
20 – Recording on USB
20 – To select recording bit rate and speed
22 Using a Bluetooth wireless technology
22 – Listening to music of a Bluetooth

device

24 Using LG Bluetooth Remote app

4 Troubleshooting

26 Troubleshooting

5 Appendix

27 Trademarks and Licenses
28 Specifications
29 Maintenance
29 – Notes on Discs
29 – Handling the Unit

1

2

3

4

5

3 Operating

15 Other Operation
15 – Programmed Playback
15 – Deleting an MP3/WMA file
16 – Displaying file information
16 – Turn off the sound temporarily
16 – DEMO
16 – Auto Power Down
16 Radio Operations
16 Listening to the radio
16 – Improving poor FM reception
17 – Presetting the Radio Stations
17 – Deleting all the saved stations
17 – Seeing information about a Radio

station
18 Sound adjustment
18 – Setting the sound mode
19 Setting the Clock
19 – Using your player as an alarm clock

CM2630-DR_DDEULLK_ENG.indd 5 2013-03-19  8:12:59

Getting Started6

Unique Features

USB Direct Recording

1

Getting Started

Records music to your USB device.

Portable In

Listens to music from your portable device. (MP3,
Notebook, etc)

Timer

Sets alarm which go o at desired time.

Bluetooth®

Listens to music stored on your Bluetooth device.

Time Sync

Sets your unit’s clock automatically by using your
Bluetooth device. (LG Bluetooth Remote app)

Accessories

Please check and identify the supplied accessories.

Remote Control (1) Battery (2)

FM Antenna (1)

CM2630-DR_DDEULLK_ENG.indd 6 2013-03-19  8:13:00

Getting Started 7

Playable file
Requirement

MP3/ WMA music file requirement

MP3/ WMA le compatibility with this unit is limited
as follows :

y Sampling frequency : within 8 to 48 kHz (MP3),

within 8 to 48 kHz (WMA)

y Bit rate : within 8 to 320 kbps (MP3),

40 to 192 kbps (WMA)

yMaximum les : Under 999

yFile extensions : “.mp3”/ “.wma”

yCD-ROM le format : ISO9660/ JOLIET

yYou have to set the disc format option to

[Mastered] in order to make the discs compatible
with the LG players when formatting rewritable
discs. When setting the option to Live File
System, you cannot use it on LG players.
(Mastered/ Live File System : Disc format system
for Windows Vista)

Compatible USB Devices

yMP3 Player : Flash type MP3 player.

y USB Flash Drive :

Devices that support USB2.0 or USB1.1.

y The USB function of this unit does not support

all USB devices.

USB device requirement

y Devices which require additional program

installation when you have connected it to a
computer, are not supported.

y Do not extract the USB device while in operation.

y For a large capacity USB, it may take longer than

a few minutes to be searched.

yTo prevent data loss, back up all data.

y If you use a USB extension cable or USB hub, the

USB device is not recognized.

y Using NTFS le system is not supported. (Only

FAT(16/ 32) le system is supported.)

y This unit is not supported when the total

number of les is 1 000 or more.

y External HDD, Card readers, Locked devices, or

hard type USB devices, mobile phone are not
supported.

y USB port of the unit cannot be connected to PC.

The unit cannot be used as a storage device.

ySome USB may not work with this unit.

1

Getting Started

CM2630-DR_DDEULLK_ENG.indd 7 2013-03-19  8:13:00

Getting Started8

Remote Control

1

Getting Started

Battery Installation

Remove the battery cover
on the rear of the Remote
Control, and insert two (size
AAA) batteries with 4 and 5
matched correctly

USB REC

DELETE

TIMER

• • • • • • a • • • • •

(Power): Switches the unit

1

ON or OFF.

(Open/Close) : Ejects the disc

B

from slot loader.

PRESETFOLDER W/S :

-Searches for a folder of MP3/
WMA les. When a CD/USB
containing MP3/WMA les in
several folders is being played,
press PRESETFOLDER W/S
to select the folder you want
to play.

-Chooses a preset number for
a radio station.

FUNCTION : Selects the
function and input source.

MUTE @ : Mutes the sound.

VOL +/- : Adjusts speaker

volume.

• • • • • • b • • • • •

PROGRAM/MEMORY :

- Stores radio stations.

- Creates a playlist you want to
listen to.

SOUND EFFECT : Chooses
sound impressions.

INFO : Sees information about
your music. MP3 les often
come with ID3 tags. The tag
gives the Title, Artist, Album or
Time information.

REPEAT (MENU) : Listens to
your tracks/les repeatedly or
randomly.

C/V

-Skips Fast backward or Forward.

-Searches for a section within a

track/file.
TUNING -/+ :
Selects the radio stations.

(Skip/Search) :

ENTER :

Z

- Stops playback or recording.

- Cancels DELETE function.

- Conrms the clock and the
alarm setting

(Play/Pause) :

d/M

- Starts or pauses playback.

- Starts or pauses playback.
SLEEP : Sets the system to turn
off automatically at a specified
time.(Dimmer : The display
window will be darkened by
half.)

USB REC : Starts recording

DELETE : Deletes MP3/WMA

files. (USB only)

• • • • • • c • • • • •

0 to 9 numerical buttons :
Selects numbered tracks, les, or
preset number.

CLOCK : Sets a clock and checks
a time.

TIMER : Uses your player as an
alarm clock.

• • • • • • d • • • • •

RDS/SET :

- RDS (Radio Data System)

- Conrms the clock and the
alarm setting
PTY : Searches radio stations by
radio type.

CM2630-DR_DDEULLK_ENG.indd 8 2013-03-19  8:13:00

Front Panel

Getting Started 9

1

Getting Started

(Power)

a 1/!

Switches the unit ON or OFF.

Display Window

b

(Insert/Eject)

c B

Inserts or ejects a disc.

(Play/Pause)

d T

- Starts and pauses playback.

- Selects STEREO/MONO.

FUNC.

Selects the function and input source.

e Y/U

- Searches backward or forward.

- Skips to the previous/next track/le.

VOL.+/-

Adjusts volume level.

f I

- Stops playback or recording.

- Cancels DELETE function.

Disc slot

g

Loads a disc.

(Skip/Search)

(Stop)

yUse top buttons after open the cover.

PORT.IN

h

Listens to music from your portable device.

PHONES
Listens to music with your headphone.
(3.5 mm)

USB Port

Plays and records the audio les by

connecting the USB device.

EQ

Chooses sound impressions.

SET/DEMO/RDS

- Conrms the setting.

- Demonstrates each of functions.

- RDS (Radio Data System)

TIMER

Uses your player as an alarm clock.

CLOCK

Sets the clock and checks the time.

SLEEP

Sets the system to turn off automatically at

a specified time.

(Dimmer : The display window will be

darkened by half.)

CM2630-DR_DDEULLK_ENG.indd 9 2013-03-19  8:13:00

Getting Started10

Rear Panel

1

Getting Started

ANTENNA FM

a

Connects the FM wired antenna.

SPEAKERS terminal (R/L)

b

Cooling fan

c

Power cord

d

Caution

>

Precautions in using the touch buttons

yUse the touch buttons with clean and dry

hands.

- In a humid environment, wipe out any
moisture on the touch buttons before
using.

yDo not press the touch buttons hard to

make it work.

- If you apply too much strength, it can
damage the sensor of the touch buttons.

yTouch the button that you want to work in

order to operate the function correctly.

yBe careful not to have any conductive

material such as metallic object on the
touch buttons. It can cause malfunctions.

CM2630-DR_DDEULLK_ENG.indd 10 2013-03-19  8:13:01

2 Connecting

Connecting 11

Connecting to
speakers

Attaching the speakers to the
unit

To connect the cable to the unit, press each plastic
nger pad to open the connection terminals on the
unit. Insert the wire and release the nger pad.

Connect the black wire to the terminals marked ­(minus) and the other end to the terminals marked
+ (plus).

Caution

>

The speakers contain magnet parts, so color
irregularity may occur on the TV screen or PC
monitor screen. Please use the speakers far
away from either TV screen or PC monitor.

Antenna Connection

Connect the FM Wire antenna to ANTENNA FM
connector.

Note

,

Be sure to fully extend the FM wire antenna.

2

Connecting

Color Position

Red Front right

White Front left

CM2630-DR_DDEULLK_ENG.indd 11 2013-03-19  8:13:01

Connecting12

Optional Equipment
Connection

USB Connection

Connect the USB port of USB Memory (or MP3
player, etc.) to the USB port on the unit.

2

Connecting

Note

,

Removing the USB Device from the unit

1. Choose a different function/mode or
press ZENTER or I twice in a row.

2. Remove the USB device from the unit.

PORT. IN Connection

The unit can be used to play the music from many
types of external device. (Portable cable is not
supplied as an accessory with this unit.)

1. Connect the external device to the PORT. IN
connector of the unit.

2. Turn the power on by pressing 1 or 1/!.

3. Select the PORTABLE function by pressing
FUNCTION or FUNC.

4. Turn the external device on and start playing it.

CM2630-DR_DDEULLK_ENG.indd 12 2013-03-19  8:13:01

PHONES Connection

Connect a pair of stereo headphones ( 3.5 mm
phone plug) to PHONES jack on the unit for private

listening.(Headphones are not supplied as an
accessory with this unit.)

Note

,

You can’t hear any sound from speakers,
while the headphones plug is inserted in the
PHONES jack.

Connecting 13

2

Connecting

CM2630-DR_DDEULLK_ENG.indd 13 2013-03-19  8:13:02

3 Operating

Connecting14

Basic Operations

CD/USB Operations

1. Insert a disc by pressing B or connect the USB
device to the USB port.

2. Select the CD or USB function by pressing

2

Connecting

FUNCTION on the remote control or FUNC. on
the unit.

3. Select a track/file you want to play by pressing

C/V

on the remote control or

on the unit.

To Do this

Stop Press ZENTER or I.

Playback Press d/M or T.

Pause

During playback, Press d/M or

.

T

During playback, press V or
to go to the next track/le.

Skipping to

the next/

previous

track/ le

Playing less than 2 seconds, press

or Y to go to the previous

C

track/le.

Playing after 3 seconds, press C
or Y to go to the beginning of
the track/le.

Searching

for a section

within a track/

Searching

for a section

within a folder

Press and hold C/V or

during playback and release it

U

at the point you want to listen to.

le

Press PRESETFOLDER W/S on
the remote control.

Press REPEAT(MENU) on the

Playing

repeatedly or

randomly

remote control repeatedly, the
display window will be changed in
the following order,
RPT1 -> RPT DIR (only MP3/ WMA)

-> RPT ALL -> RANDOM -> OFF

Y/U

U

Y/

Selecting a folder and an
MP3/WMA

1. PRESETFOLDER W/S on the remote control
repeatedly until a desired folder appears.

2. Press d/M to play it. The first file of folder will
be played. (During playback, if you selecting a
folder you want, this step is not necessary.)

Note

,

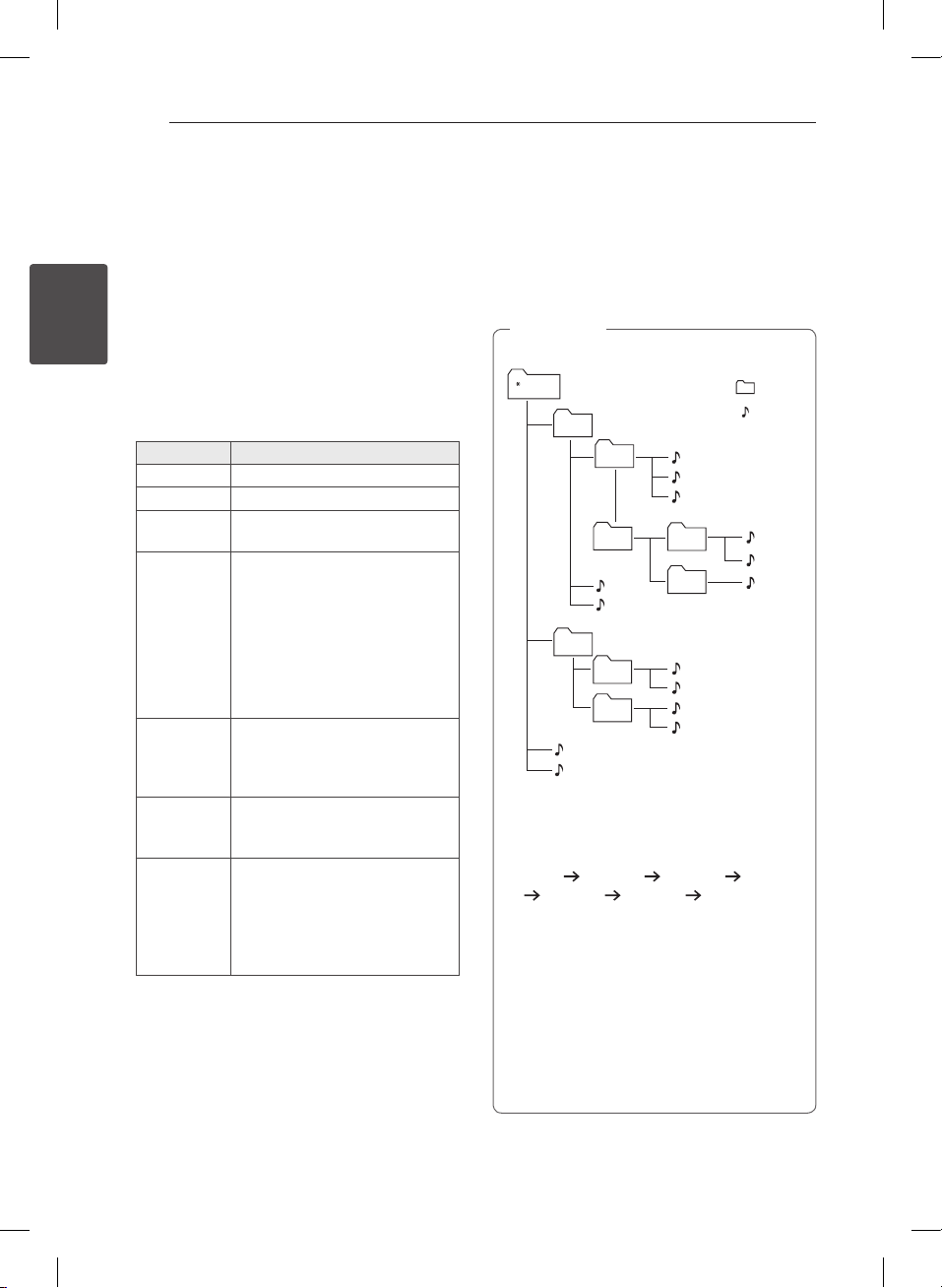

yUSB Folders/Files are recognized as below

ROOT FOLDER

FOLDER 1

FOLDER3

FOLDER4

FILE 3

FILE 4

FOLDER 2

FOLDER5

FOLDER6

FILE 1

FILE 2

FILE 5

FILE 6

FILE 7

FOLDER7

FOLDER8

FILE 11

FILE 12

FILE 13

FILE 14

yIf there is no le in a folder, the folder will

not appear

yFolders will be presented as the following

order;
ROOT

FOLDER1 FOLDER3 FOLDER7

FOLDER8 FOLDER5 FOLDER6

yFile will be played from $ le No.1 to $ le

No.14 one by on.

yFiles and folders will be presented in order

recorded and may be presented dierently
according to the record circumstances.

y*ROOT : the rst screen you can see when a

computer recognize the USB is “ROOT”.

yThe DTS is not supported. In case of DTS

audio format, audio is not output.

FILE

FILE 8

FILE 9

FILE 10

CM2630-DR_DDEULLK_ENG.indd 14 2013-03-19  8:13:02

3 Operating

Operating 15

Other Operation

Programmed Playback

The program function enables you to store your
favourite tracks/les from any disc or USB device.

A program can contain 20 tracks/les.

1. Insert a CD or connect USB and wait for it to be
loaded.

2. Press PROGRAM/MEMORY on the remote
control in stop state.

3. Press C/V or
track/file.

4. Press PROGRAM/MEMORY again to save and
select a next track/file.

5. Press d/M or T to play the programmed
music tracks/files.

6. To clear your selection, press and hold

ENTER or I.

Z

Note

,

The programs are also cleared when the disc
or USB device is removed, the unit is powered
o or the function is switched to others.

Y/U

to select a next

Deleting an MP3/WMA file

You can delete file, folder or format by pressing
DELETE on the remote control. This function is
supported only in stop state. (USB only)

1. - Select the file you want to delete by using

C/V

- Select the folder you want to delete by
pressing PRESETFOLDER W/S on the remote
control. Then press DELETE.

- Press and hold DELETE to format the USB
device.

Press DELETE repeatedly while searching a file.

The display window will be changed in the
following order.

- DEL FILE? : Deletes file

- DEL FOLDER : Deletes folder

- FORMAT? : Formats USB

2. To delete file/folder or format, press d/M or

T

3. If you want to exit the current mode, press

Z

y Do not extract the USB device during

operation. (play, delete, etc.)

y Regular back up is recommended to

prevent data loss.

y The delete function may not be supported

according to the USB state. (lock, etc.)

or

.

ENTER or I.

Caution

>

Y/U

Or

. And press DELETE.

3

Operating

CM2630-DR_DDEULLK_ENG.indd 15 2013-03-19  8:13:02

Operating16

Displaying file information

While playing an MP3 le containing le
information, you can display the information by
pressing INFO on the remote control.

Turn off the sound temporarily

Press MUTE@ on the remote control to mute
your sound.

You can mute the sound in order, for example, to
answer the telephone. the mute symbol “ ” will
appear in the display window. To cancel mute
function, press MUTE@ again or adjust volume
level by pressing VOL+/-.

3

DEMO

Operating

In power o state, press SET/DEMO/RDS on the
unit once. The unit will power on and display the
each of functions in the display window. To cancel
DEMO function, press SET/DEMO/RDS again.

Auto Power Down

This unit will be o itself to save electronic
consumption in the case main unit is not
connected to external device and is not used for 25
minutes. So does this unit after 6 hours since Main
unit has been connected to other device using
analog input.

Radio Operations

Listening to the radio

1. Press FUNCTION or FUNC. until FM appears in
the display window.
The last received station is tuned in.

2. Auto tuning : Press and hold TUNING -/+ on
the remote control for about 2 seconds until
the frequency indication starts changing, then
release. Scanning stops when the unit tunes in
a station.

Manual tuning : Press TUNING -/+ repeatedly.

3. Adjust the volume by pressing VOL+/-.

Improving poor FM reception

Press d/M or T. This will change the tuner from
stereo to mono. Then the reception will be better
than before.

CM2630-DR_DDEULLK_ENG.indd 16 2013-03-19  8:13:02

Operating 17

Presetting the Radio Stations

You can preset 50 stations for FM. Before tuning,
make sure to turn down the volume.

1. Press FUNCTION or FUNC. until FM appears in
the display window.

2. Select the desired frequency by pressing
TUNING -/+.

3. Press PROGRAM/MEMORY on the remote
control. A preset number will blink in the display
window.

4. Press PRESETFOLDER W/S on the remote
control to select the preset number you want.

5. Press PROGRAM/MEMORY. The station is
stored.

6. Repeat steps 2 to 5 to store other stations.

7. To listen a preset station, press
PRESETFOLDER W/S.

Deleting all the saved stations

1. Press and hold PROGRAM/MEMORY on the
remote control for two seconds. “ERASE ALL” will
blink on the display window.

2. Press PROGRAM/MEMORY to erase all saved
radio stations.

Seeing information about a
Radio station

The FM tuner is supplied with the RDS (Radio Data
System) facility. This shows information about the
radio station being listened to. Press RDS/SET on
the remote control repeatedly to cycle through the
various data

PS (Programme Service Name)

PTY (Programme Type Recognition)

RT (Radio Text)

CT (Time controlled by the channel)

You can search the radio stations by programme
type by pressing RDS/SET. The display will show
the last PTY in use. Press PTY one or more times
to select your preferred programme type. Press
and hold TUNING -/+. The tuner will search
automatically. When a station is found, the search
will stop.

types. :

The name of the channel will appear in
the display

The programme type (e.g. Jazz or News)
will appear in the display.

A text message contains special
information from the broadcast station.
This text may scroll across the display.

This shows the time and date as
broadcast by the station.

3

Operating

CM2630-DR_DDEULLK_ENG.indd 17 2013-03-19  8:13:02

Operating18

Sound adjustment

Setting the sound mode

This system has a number of pre-set sound elds.
You can select a desired sound mode by using
SOUND EFFECT or EQ.

The displayed items for the Equalizer may be
dierent depending on sound sources and eects.

On Display Description

NATURAL

3

Operating

AUTO EQ

POP

CLASSIC

JAZZ

ROCK

MP3 -- OPT

BASS BLAST

(BASS)

LOUDNESS

BYPASS

You can enjoy comfortable and
natural sound.

Sets the sound equalizer on the
mode that is the most similar to
the genre which is included in
the MP3 ID3 tag of song les.

This program lends an
enthusiastic atmosphere to the
sound, giving you the feeling
you are at an actual rock, pop,
jazz or classic concert.

This function is optimized
for compressible MP3 le. It
improves the treble sound.

Reinforces the treble, bass and
surround sound eect.

Improves the bass and treble
sound.

You can enjoy the sound
without equalizer eect.

Note

,

Maybe you need to reset the sound mode,
after switching the input, sometimes even
after the sound track/le is changed.

CM2630-DR_DDEULLK_ENG.indd 18 2013-03-19  8:13:02

Operating 19

Setting the Clock

You have two ways to set the clock.

ySetting the clock by connecting the BT.App.

Set time you desired on Bluetooth device and
connect the Bluetooth device to your unit via BT
app. Then the clock setting in the display window
will be synchronized with the Bluetooth device
automatically.

ySetting the clock by pressing the buttons.

1. Turn the unit on.

2. Press and hold CLOCK.

3. Choose time mode by pressing C/V.

- 12:00 (for an AM and PM display) or 0:00 (for a

24 hour display)

4. Press RDS/SET or SET/DEMO/RDS to confirm
your selection.

5. Select the hours by pressing C/V.

6. Press RDS/SET or SET/DEMO/RDS.

7. Select the minutes by pressing C/V.

8. Press RDS/SET or SET/DEMO/RDS.

9. If you want to reset the clock, press and hold
CLOCK.Then repeat steps 3-8.

Using your player as an alarm
clock

1. Turn the unit on.

2. Press and hold TIMER on the remote conrol to
set the alarm function.

3. Alarm sound sources will blink. While each of
sound sources blink, select the one you want by
pressing RDS/SET or SET/DEMO/RDS.

4. “ON TIME” will blink. This is your desired time to
turns unit on. Press C/V to change the
hours and minutes and press RDS/SET or
SET/DEMO/RDS to save.

5. “OFF TIME” will blink. This is your desired time
to turn unit off. Press C/V to change the
hours and minutes and press RDS/SET or
SET/DEMO/RDS to save.

6. The volume setting will blink. Press C/V
to change the volume and press RDS/SET or
SET/DEMO/RDS to save.

7. Press TIMER to check the alarm information.

8. If you want to reset the clock, press and hold
TIMER.Then repeat step 3-6.

Note

,

yIf you unplug the cord from an outlet, the

clock setting you set won’t be stored.

yIf you synchronize the unit with your BT

device for clock by using BT app, you can
set 12 - Hour Time (ex - PM 11 : 00) or 24 ­Hour Time (ex - 23 : 00).(Android O/S only)

y If you set the clock, you can check the time

by pressing CLOCK although the unit is
turned o.

y If you set the clock and alarm, you can

check setting informaiton by pressing
TIMER although the unit is turned o. Then
this function will work in everyday.

yAlarm function only works when the unit is

turned o.

yWhen the alarm rings, you can deactivate

the alarm by pressing 1/! or 1.

3

Operating

CM2630-DR_DDEULLK_ENG.indd 19 2013-03-19  8:13:03

Operating20

Sleep Timer Setting

Press SLEEP repeatedly to select delay time
between 10 and 180 minutes. After delay time, the
unit will turn o. (You can see the following order,
180 -> 150 ->120 -> 90 -> 80 -> 70 -> 60 -> 50 ->
40 -> 30 -> 20 -> 10)
To cancel the sleep function, press SLEEP
repeatedly until the display window get bright.

Note

,

yPress SLEEP. The remaining time appears in

the display window.

ySleep function will work after dimmer

function.

3

Operating

Dimmer

Press SLEEP once. The display window will
be darkened by half. To cancel it, press SLEEP
repeatedly until the display window get bright.

Advanced Operation

Recording on USB

1. Connect the USB device to the unit.

2. Select a function by pressing FUNCTION or

FUNC.

One track/le recording - You can record a track/

a le on USB while playing the le you want.
All tracks/les recording - You can record tracks/
les on USB in stop state.
Program list recording - After making program
list, you can record it on USB.
(Refer to the page 15)

3. Start the recording by pressing USB REC on the
remote control.

4. To stop recording, press ZENTER.

Pausing recording

During recording, press USB REC to pause
recording. Press it again to restart recording. (Only
Radio/ Portable function)

To select recording bit rate
and speed

1. Press USB REC for longer than 3 seconds.

2. Use C/V to select the bit rate.

3. Press USB REC again to select the recording
speed.

4. Press C/V to select a desired recording
speed. (CD Function Only)

X1 SPEED

- You can listen to music while recording it.

(Audio CD Only)

X2 SPEED

- You can just record the music file.

5. Press USB REC to finish the setting.

CM2630-DR_DDEULLK_ENG.indd 20 2013-03-19  8:13:03

Note

,

yYou can check the recording percentage

rate for the USB record on the display
window during the recording. (MP3/ WMA
CD Only)

yDuring recording MP3/ WMA, there is no

sound.

yWhen you stop recording during playback,

the le that has been recorded at that time
will be stored. (Except MP3/WMA les)

yDo not remove the USB device or turn

o the unit during USB recording. If not,
an incomplete le may be made and not
deleted on PC.

yIf USB recording does not work, the

message lik e “NO USB”, “ERROR”, “FULL” or “NO
REC” is displayed on the display window.

yMulti card reader device, External HDD,

mobile phone can not be used for USB
recording.

yA le is recorded by about 512 Mbyte when

you record for a long term.

yYou may not store more than 999 les.

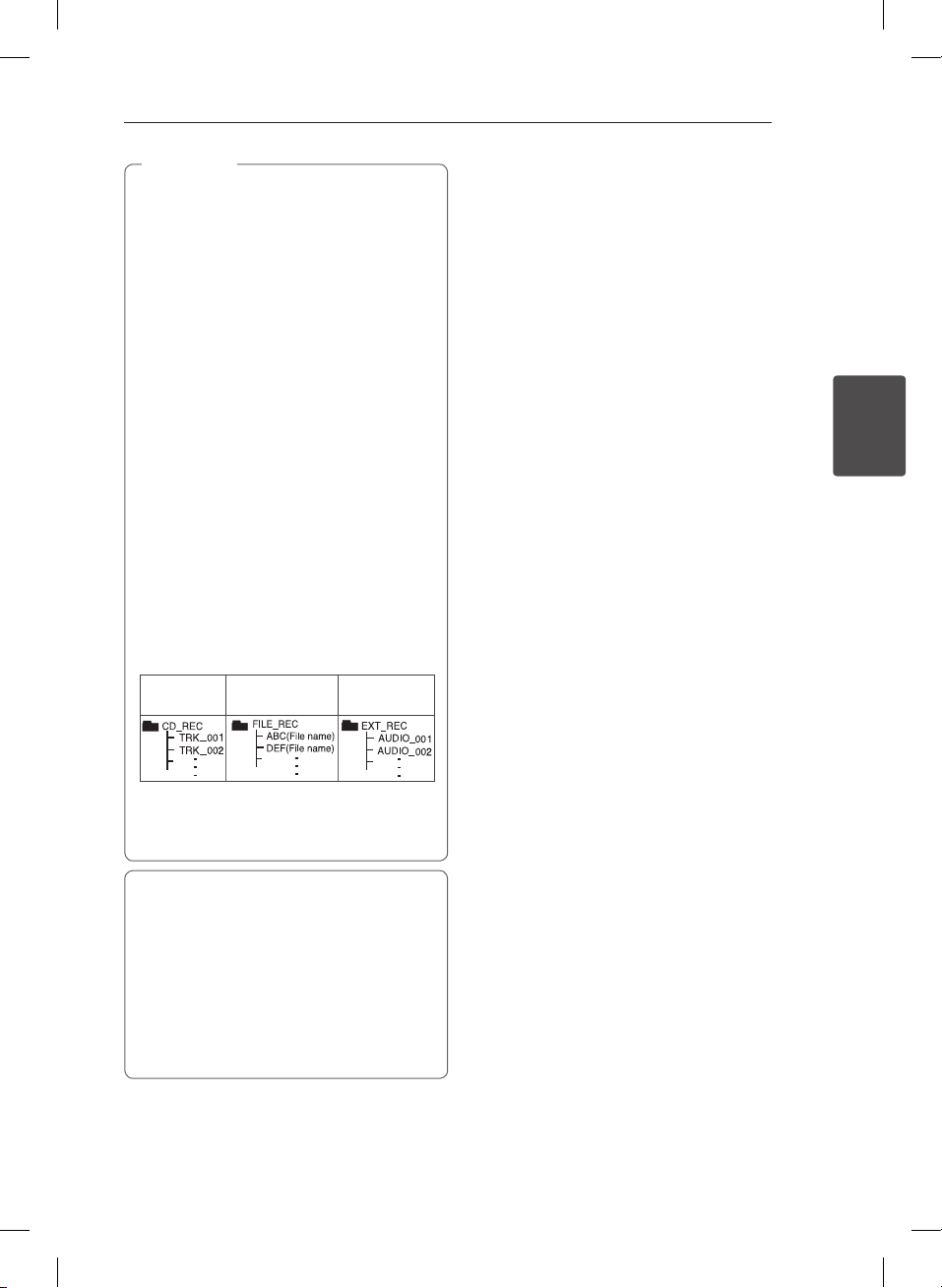

yIt’ll be stored as follows.

Operating 21

3

Operating

AUDIO CD MP3/ WMA

* : FM, PORTABLE and the like.

BT are not suppoted.

The making of unauthorized copies of copy-

protected material, including computer

programs, les, broadcasts and sound

recordings, may be an infringement of
copyrights and constitute a criminal oense.
This equipment should not be used for such

purposes.

Be responsible

Respect copyrights

The other

source*

CM2630-DR_DDEULLK_ENG.indd 21 2013-03-19  8:13:03

Operating22

Using a Bluetooth
wireless technology

About Bluetooth

Bluetooth® is wireless communication technology
for short range connection.

The available range is within 10 meters.

(The sound may be interrupted when the
connection is interfered by the other electronic
wave or you connect the bluetooth in the other
rooms.)
Connecting individual devices under

3

Bluetooth® wireless technology does not incur any

Operating

charges. A mobile phone with
Bluetooth® wireless technology can be operated
via the Cascade if the connection was made via
Bluetooth® wireless technology.
Available Devices : Mobile phone, MP3, Laptop,
PDA.

Bluetooth Profiles

In order to use Bluetooth wireless technology,
devices must be able to interpret certain proles.
This unit is compatible with following prole.

A2DP (Advanced Audio Distribution Prole)

Listening to music of a
Bluetooth device

Before you start the pairing procedure, make
sure the Bluetooth feature is turned on in to your
Bluetooth device. Refer to your Bluetooth device’s
user guide. Once a pairing operation is performed,
it does not need to be performed again.

1. Select the Bluetooth function by using the
FUNCTION on the remote control or FUNC.
on the unit. “BT READY” appears in the display
window.

2. Operate the Bluetooth device and perform the
pairing operation. When searching for this unit
with the Bluetooth device, a list of the devices
found may appear in the Bluetooth device
display depending on the type of Bluetooth
device.Your unit dispalys as “LG MICRO(XX:XX)”.

Note

,

XX:XX means the last four digits of BT address.
For example, if your unit has a BT address such
as 9C:02:98:4A:F7:08, you will see “LG MICRO
(F7:08)” on your Bluetooth device.

3. Enter the PIN code.
PIN code : 0000

4. When this unit is successfully paired with
your Bluetooth device, “BT CONN” and “BT
PAIR”appears in the display window.

Note

,

Depending on the Bluetooth device type,
some devices have a dierent pairing way.

5. Listening to music.
To play a music stored on your Bluetooth
device, refer to your Bluetooth device’s user
guide. According to your Bluetooth device’s
volume level, the volume level of Bluetooth will
be adjusted.

Note

,

ySound from the main set can be distorted

if you raise the volume of Bluetooth device
up to two-thirds or more.

yWhen you use the Bluetooth function,

adjust the volume of a Bluetooth device to
a proper level to listen to.

CM2630-DR_DDEULLK_ENG.indd 22 2013-03-19  8:13:03

Note

,

yAfter searching for this unit on your

Bluetooth device, connect the Bluetooth
device with this unit. Then play the le you
want.

yThe sound may be interrupted when

the connection interfered by the other
electronic wave.

yYou cannot control the Bluetooth device

with this unit.

yPairing is limited one Bluetooth device per

one unit and multi-pairing is not supported.

yAlthough the distance between your

Bluetooth and the set is less than 10m, if
there are obstacles between both, your
Bluetooth device cannot be connected.

yDepending on the type of the device,

you may not be able to use the Bluetooth
function.

yYou can enjoy wireless system using phone,

MP3, Notebook, etc..

yWhen not connected the Bluetooth, “BT

READY” appears in the display window.

yThe Electrical malfunction due to devices

using same frequency such as Medical
equipment, Microwaves or wireless
LAN devices, the connection will be
disconnected.

yWhen someone stands and interrupts

communication between Bluetooth device
and the player, the connection will be
disconnected.

yIf the gotten away of the distance between

Bluetooth and the unit, the sound quality
is lower and lower. The connection will be
disconnected when the space between
the Bluetooth and the unit gets out of the
operating range of Bluetooth.

yThe device with Bluetooth wireless

technology is disconnected, if you turn o
the main unit or put the device away from
the main unit more than 10m.

yIf the Bluetooth device is disconnected, you

should connect the Bluetooth device to
your unit.

Operating 23

3

Operating

CM2630-DR_DDEULLK_ENG.indd 23 2013-03-19  8:13:03

Operating24

Using LG Bluetooth
Remote app

About LG Bluetooth Remote app

LG Bluetooth Remote app bring a suite of new
features to your unit. To enjoy more features, you
are recommended to download and install free “ LG
Bluetooth Remote”.

Install “ LG Bluetooth Remote app”
through “ Apple App Store” or
“Google Android Market”

3

1. Tap the Apple App Store icon or Google

Operating

Android Market(Google Play Store) icon.

2. In the search bar, type in the “LG Bluetooth
Remote” and search it.

3. In the search result list, find and tap “LG
Bluetooth Remote” to start downloading
Bluetooth app.

4. Tap an icon for installation.

5. Tap an icon for downloading.

Note

,

yMake sure that your powered Bluetooth

device is connected to the Internet.

y Make sure that your powered Bluetooth

device is equipped with “ Apple App Store”
or “Google Android Market(Google Play
Store)”

Install “ LG Bluetooth Remote app ”
by using QR code

1. Install “ LG Bluetooth Remote app” by using QR
code. Use the scaning software to scan the QR
code.

2. Tap an icon for installation.

3. Tap an icon for downloading.

Note

,

yMake sure that your powered Bluetooth

device is connected to the Internet.

y Make sure that your powered Bluetooth

device has a scanning software application.
If you don’t have one, download one from
“Google Android Market(Google Play Store)”
or “Apple App Store”

Activate Bluetooth with LG
Bluetooth Remote app

LG Bluetooth Remote app helps to connect your
powered Bluetooth device to the unit.

1. Tap LG Bluetooth Remote app icon on the
home screen to open LG Bluetooth Remote app
application, and go to the main menu.

2. Tap [Setting] and select the unit you want.

3. If you want to get more information to operate,
tap [Setting] and [Help].

CM2630-DR_DDEULLK_ENG.indd 24 2013-03-19  8:13:03

Note

,

yBT app will be available in the software version

as follow;
Android O/S : 2.3.3(or late)
iOS O/S : 4.3(or late)

yWhile using Bluetooth, you may not operate

BT app. Disconnect Bluetooth device you have
connected before to use BT app properly.

yIf you use BT app for operation, there would

be some dierences between BT app and the
supplied remote control. Use the supplied
remote control as necessary.

yIf you operate BT app with Bluetooth device

connected, the Blutooth connection you
have connected before may be disconnected.
(Depending on the smartpone’s O/S, this
process has a dierence.)

yDepending on the Bluetooth device, BT.app

may not work.

yIn Bluetooth function, if you use BT app, the

supplied remote control may not work.

yWhen using BT app for remote control, the

operation may dier from the supplied
remote control.

yAccording to the smartphone’s operating

system, you have some dierences for BT app’s
operation.

yWhen your Bluetooth device have been

already connected with other unit, disconnect
the Bluetooth connection rst. Then you can
control your player through BT app.

yThe connection you’ve made may be

disconnected if you select other application or
change the setting of the connected device
via BT app.In such case, please check the
connection status.

yAfter connection of BT app, music may be

output from your device. In this case, try
connecting procedure again.

Operating 25

3

Operating

CM2630-DR_DDEULLK_ENG.indd 25 2013-03-19  8:13:03

4 Troubleshooting

Troubleshooting26

Troubleshooting

Problem Correction

No Power.

No sound.

The unit does not start
playback.

4

Radio stations cannot be

Troubleshooting

tuned in properly.

The remote control does
not work properly.

Clock is not displayed.

yPlug in the power cord.

y Check the condition by operating other electronic devices.

Press FUNCTION or FUNC. and check the selected function.

yInsert a playable disc.

yClean the disc. (Refer to the 29 page)

yInsert the disc with the label or printed side facing upward.

y Connect the antenna securely.

y Tune to the station manually.

y Preset some radio stations, see page 17 for details.

yOperate the remote control within about 23 ft (7 m).

yRemove the obstacle in the path of the remote control and the unit.

yReplace the batteries with new ones.

Connect your Bluetooth device to your unit through BT app for time sync.

CM2630-DR_DDEULLK_ENG.indd 26 2013-03-19  8:13:03

5 Appendix

Trademarks and
Licenses

Bluetooth® wireless technology is a system which
allows radio contact between electronic devices
within a max. range of 10 meters.

Connecting individual devices under Bluetooth®
wireless technology does not incur any charges.
A mobile phone with Bluetooth® wireless
technology can be operated via the Cascade if
the connection was made via Bluetooth® wireless
technology.

The Bluetooth® word mark and logos are owned
by the Bluetooth® SIG, Inc. and any use of such
marks by LG Electronics is under license.

Other trademarks and trade names are those of
their respective owners.

Appendix 27

5

Appendix

CM2630-DR_DDEULLK_ENG.indd 27 2013-03-19  8:13:04

Appendix28

Specifications

General

Power supply Refer to the main label.

Power consumption Refer to the main label.

Dimensions (W x H x D) 286 x 135 x 293 mm

Net Weight (Approx.) 3.8 kg

Operating temperature 5 °C to 35 °C (41 °F to 95 °F)

Operating humidity 5 % to 90 %

Bus Power Supply DC 5 V 0 500 mA

Inputs

PORT. IN 0.5 Vrms (3.5 mm stereo jack)

Tuner

FM Tuning Range 87.5 MHz to 108.0 MHz or 87.50 MHz to 108.00 MHz

Amplier

Stereo mode 80 W + 80 W

5

Appendix

T.H.D 10 %

CD

Frequency Response 30 to 20000 Hz

Signal-to-noise ratio 80 dB

Dynamic range 80 dB

Speakers

Type 3 Way 4 Speaker

Impedance 4 

Rated Input Power 80 W

Max. Input Power 160 W

Net Dimensions (WxHxD) 132 x 286 x 304 mm

Net Weight (1EA) 4 kg

yDesign and specications are subject to change without notice.

CM2630-DR_DDEULLK_ENG.indd 28 2013-03-19  8:13:04

Appendix 29

Maintenance

Notes on Discs

Handling Discs

Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.

Cleaning Discs

Do not use strong solvents such as alcohol,
benzine, thinner, commercially available cleaners,
or anti-static spray intended for older vinyl records.

Handling the Unit

When shipping the unit

Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.

Keeping the exterior surfaces clean

Do not use volatile liquids such as insecticide spray
near the unit.

Wiping with strong pressure may damage the
surface.

Do not leave rubber or plastic products in contact
with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty
or worn, the picture quality could be diminished.
For details, please contact your nearest authorized
service center.

5

Appendix

CM2630-DR_DDEULLK_ENG.indd 29 2013-03-19  8:13:04

CM2630-DR_DDEULLK_ENG.indd 30 2013-03-19  8:13:04
