OWNER’S MANUAL
LG Digital
Signage
(MONITOR SIGNAGE)
Please read this manual carefully before operating your set and retain it for future reference.
98LS95D
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
2
TABLE OF CONTENTS
ENGLISH
IMPORTANT PRECAUTIONS .........3
- Electrical Power Related Precautions ....................3
- Precautions for installing the Product ..................5
- Precautions for Moving the Product ......................6
- Precautions for Using/Cleaning the Product .....7
- Product Disposal (Only, Hg lamp used LCD
Monitor) .................................................................................7
LICENSES .......................................8
ASSEMBLY AND PREPARATION ..9
- Optional Accessories ....................................................10
- Parts and Buttons .........................................................11
- Connecting Wi-Fi Dongle ..........................................12
- Connecting IR and Light Sensor ............................13
- Portrait Layout ................................................................13
- Connecting the Eye-Bolt Bracket .........................14
- Attaching the detachable logo ...............................15
- Installing on a Wall ........................................................16

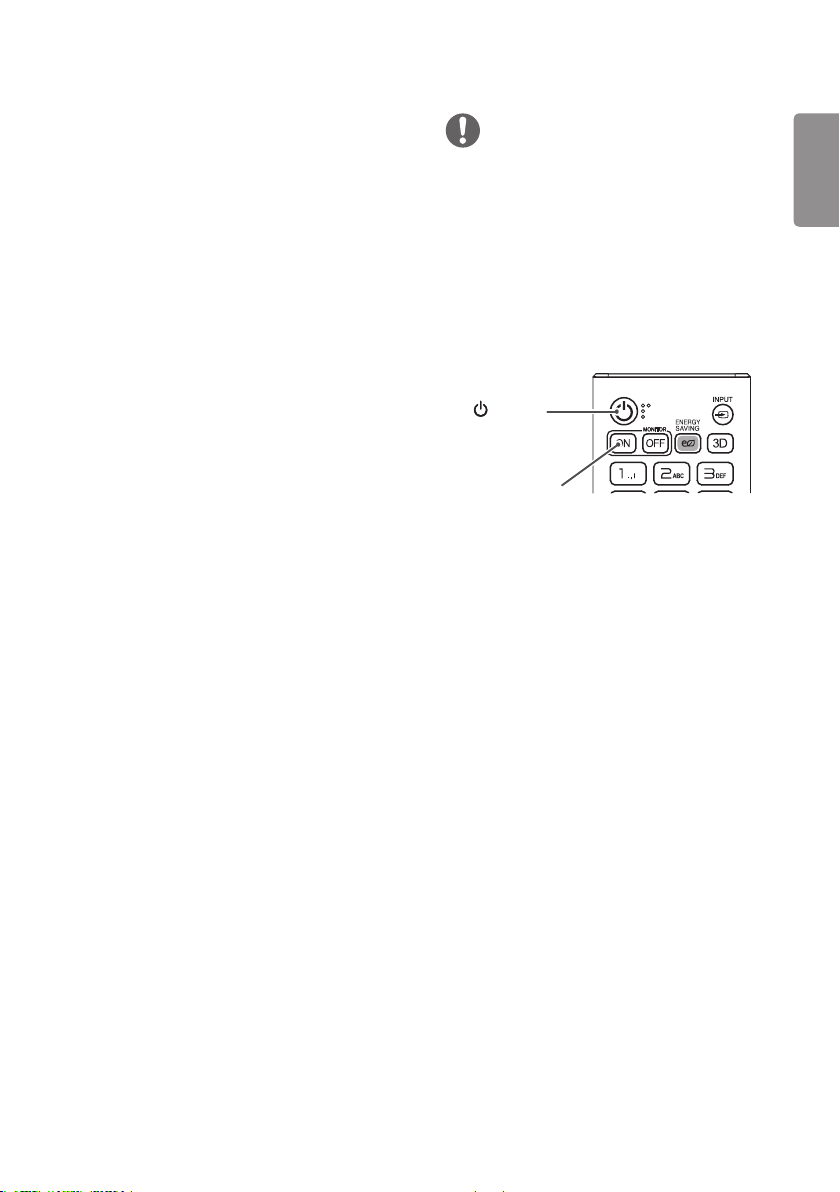

REMOTE CONTROL .................... 18
MAKING CONNECTIONS ........... 20
- Connecting to a PC.......................................................20
- External Device Connection .....................................20

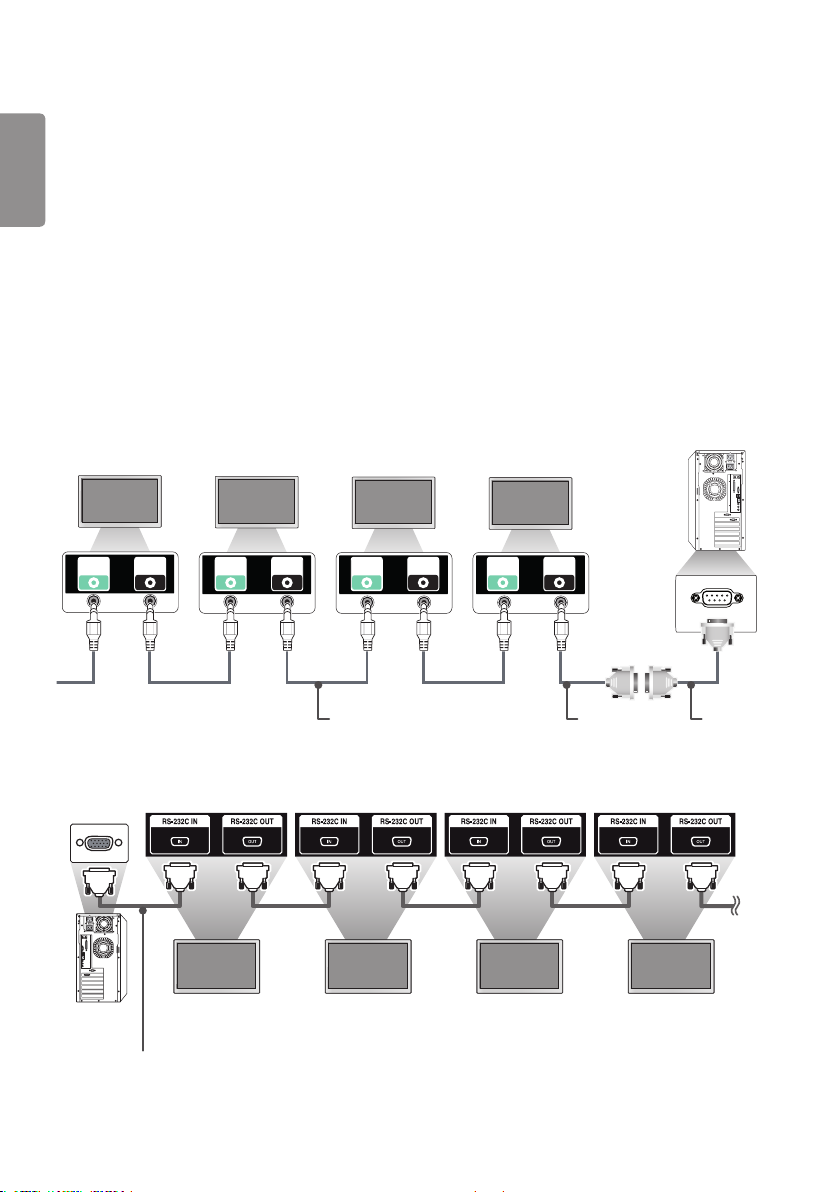

- Connecting Multiple Monitors ................................22
- Using the Input List ......................................................23
TROUBLESHOOTING .................. 24
PRODUCT SPECIFICATIONS ...... 27
3
WARNING - This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may
cause radio interference.
IMPORTANT PRECAUTIONS
Please read these safety precautions carefully before using the product.
WARNING
Failure to follow those warnings may result in death, serious injury or damage to the product or other property.
CAUTION
If you ignore the caution message, you may be slightly injured or the product may be damaged.
WARNING
Indoor Use Only.
Electrical Power Related Precautions
WARNING
Use only the power cord supplied with the unit or another manufacturer’s authorized cord.
- Failure to do so may result in fire or electrical shock or damage to the product.
Use only a properly grounded plug and receptacle.
- If you do not you may be electrocuted or injured. Or the product might be damaged.
Do not use a damaged or loose plug.
- This may cause electrical shock or fire.
Operate the display only from a power source(i.e. voltage) indicated in the product specification.
- Otherwise the product can be damaged, fire can occur or you may be electrocuted. If you are not sure what type of
power supply you have, consult a certified electrician.
In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very
dangerous.
- It can cause electric shock.
Do not connect several extension cords, electrical appliances or electrical heaters to a single outlet. Use a power strip
with a grounding terminal designed for exclusive use with the computer.
- A fire can break out due to overheating.
Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power
plug completely or wipe dust off before plugging in the cord.
- You may be electrocuted due to excess moisture.
ENGLISH
4
If you don’t intend to use the product for a long time, unplug the power cable from the product.
ENGLISH
- Layers of dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.
Insert the power plug firm so it cannot come loose.
- A loose connection can cause fire.
Hold the plug when pulling out the power cable. Do not pull the plug out by the wire. Do not bend the power cord
with excessive force or put heavy objects on the power cord.
- The power line can be damaged, which may cause electric shock or fire.
Do not insert metal or other conductive materials into the product openings. Additionally, do not touch the power
cable right after plugging into the wall input terminal.
- You may be electrocuted.
Use an appliance coupler as a disconnect device.
Please make sure the device is installed near the wall outlet to which it is connected and that the outlet is easily
accessible.
Do not unplug the power cord while the product is in use.
- Electrical shock can damage the product.
As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the
unit is turned off.
5
Precautions for installing the Product
WARNING
Keep away from heat sources like heaters or open flames.
- Electrical shock, fire, malfunction or deformation may occur.
Keep the packing anti-moisture material or vinyl packing out of the reach of children.
- Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the
nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
Do not put heavy objects on the product or sit upon it.
- If the product collapses or is dropped, you may be injured. Prevent Children from climbing or pulling on the unit.
Do not leave the power or signal cable where someone can trip over it.
- Pedestrians may become entangled in the cables and cause the device to become damaged causing electrical shock,
fire, or serious injury.
Install the product in a neat and dry place. Do not use near water.
- Dust or moisture can cause electrical shock, fire or product damage.
Do not add accessories that have not been designed for this display.
If you smell smoke or other odors or hear a strange sound from the product unplug the power cord and contact LG
Customer Service.
- If you continue to use without taking proper measures, electrical shock or fire can occur.
If you dropped the product or the case is broken, turn off the product and unplug the power cord.
- If you continue to use without taking proper measures, electrical shock or fire can occur. Contact LG Customer
Service.
Do not drop an object on or apply impact to the product. Do not throw any toys or objects at the product.
- It can cause injury to humans, problems to the product and damage the display.
Keep out of reach of children and do not place toys near the product.
Make sure the product ventilation hole is not blocked. Install the product more than 100 mm (3.9 inches) from the
wall.
- If you install the product too close to the wall, it may be deformed or fire can break out due to internal heat buildup.
Do not cover the product with cloth or other material (eg. plastic) while plugged in.
- The product can be deformed or fire can break out due to internal overheating.
Place the product on a flat and stable surface that is large enough to support the product.
- If the product is dropped, you may be injured or the product may be broken.
Install the product where no Electromagnetic Interference occurs.
Keep the product away from direct sunlight.
- The product can be damaged.
Do not place the product on the floor.
- Small Children and others may trip over it.
Do not install this product on a wall if it could be exposed to oil or oil mist.
- This may damage the product and cause it to fall.
For displays with glossy bezels the user should consider the placement of the display as the bezel may cause
unwanted reflections from surrounding light and bright surfaces.
ENGLISH
6
Precautions for Moving the Product
ENGLISH
WARNING
Make sure to turn off the product.
- You may be electrocuted or the product can be damaged.
Make sure to remove all cables before moving the product.
- You may be electrocuted or the product can be damaged.
When lifting or moving the product, do not hold it upside down while holding only the stand.
- This may cause the product to fall resulting in damage or injury.
Do not shock the product when moving it.
- You may be electrocuted or the product can be damaged.
Make sure the panel faces forward and hold it with both hands to move.
- If you drop the product, the damaged product can cause electric shock or fire.
Do not place the product face down.
- This may damage the TFT-LCD screen.
7
Precautions for Using/Cleaning the Product
WARNING
Do not attempt to disassemble, repair or modify the product yourself.
- Fire or electric shock can occur.
- Contact LG Customer Service for repair.
When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not
clean with a wet cloth or spray water or other liquids directly onto the product. An electric shock may occur. (Do not
use chemicals such as benzene, paint thinners or alcohol.)
Keep the product away from water.
- Fire or electric shock accident can occur.
Avoid high temperatures and humidity.
Do not put or store flammable substances near the product.
- There is a danger of explosion or fire.
Keep the product clean at all times.
Take a comfortable and natural position when working with the product.
Take a regular break when working with the product for a long time.
Do not press on the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it.
Keep proper distance from the product and rest from time-to-time.
- Your vision may be impaired if you look at the product too closely or for too long.
Set the appropriate resolution by referring to the User’s Guide.
Keep small accessories out of the reach of children.
Displaying a still image for long time on the monitor may leave persistent image or stain on the monitor screen. To
avoid this problem, use a screen saver and power off when this product is not used. Persistent image or stain caused
by long time usage are not covered by the warranty on this product.
Do not use products using high voltage around the Monitor. (ex. Electrical Swatter)
- Monitor may have malfunction as its electrical shock.
Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame;wipe in one direction only. Too much
moisture may cause staining.
ENGLISH
WATER
CHEMICALS
Product Disposal (Only, Hg lamp used LCD Monitor)
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of your local authority.
8
LICENSES
ENGLISH
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered
trademarks of HDMI Licensing LLC in the United States and other countries.
This DivX Certified® device has passed rigorous testing to ensure it plays DivX® video.
To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD
section of your device setup menu.
DivX Certified® to play DivX® video up to HD 1080p, including premium content.
DivX®, DivX Certified® and associated logos are trademarks of DivX, LLC and are used under license.
Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents]
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol,
& DTS and the Symbol together, DTS 2.0 Channel, DTS 2.0+Digital Out, DTS-HD, and DTS Virtual:X are registered
trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.
9
ASSEMBLY AND PREPARATION
CAUTION
Always use genuine components to ensure safety and product performance.
The product warranty will not cover damage or injury caused by the use of counterfeit components.
NOTE
The accessories provided with your product may vary depending on the model or region.
Product specifications or contents in this manual may be changed without prior notice due to upgrade of product
functions.
SuperSign Software & Manual
- Downloading from the LG Electronics website.
- Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your model.
The warranty will not cover any damage caused by using the product in an excessively dusty environment.
ENGLISH
10
Optional Accessories
ENGLISH
Without prior notice, optional accessories are subject to change to improve the performance of the product, and new
accessories may be added. The illustrations in this manual may differ from the actual product and accessories.
Speaker kit
Speakers
SP-2200
Media Player Screws CD (Owner’s Manual) / Cards
MP500 / MP700
Cable Holders/
Cable Ties
Media Player kit
Screws
Diameter 4.0 mm
(0.02 inches) x Length
(including spring washer)
Diameter 4.0 mm
(0.06 inches) x Length
NOTE
Optional accessories are available for some models. If necessary, please purchase them separately.
Before you attach Media Player, connect the cable to the port.
Pixel sensor is sold separately. You can obtain additional accessories from your local retail store.
Screws
11
Parts and Buttons
: Adjusts up and down.
: Moves left and right.
: Displays the current signal and mode.
ENGLISH
Buttons
: Accesses the main menus, or saves your input and exits the menus.
: Change the input signal.
: Turns the power on or off.
12
Connecting Wi-Fi Dongle
ENGLISH
1 Attach the Velcro tape provided with the Wi-Fi dongle to the back of the set.
2 Connect the Wi-Fi dongle and the set using a USB cable and then attach the dongle to the set before using.
NOTE
Refer to the manual of the Wi-Fi dongle.
Please turn off the power before connecting or removing the Wi-Fi dongle kit.
Bluetooth is not supported.
Refer to the Installation Menu for region settings.
The wireless reception may be affected by the location of the product.
If there is poor reception in the recommended location, please change the location before use.
Use only the provided Wi-Fi dongle. Other Wi-Fi dongles may not work properly.
13
Connecting IR and Light Sensor
When you connect the cable to the product, the feature for receiving remote control signals is activated. The IR and
light sensor is magnetic. Attach it to the front edge of the product for use.
Basic installation
[Front]
NOTE
The signal strength of the IR and Light sensor will decrease if the sensor is not placed in front of the product.
Portrait Layout
When installing in a portrait layout, rotate the monitor counterclockwise 90 degrees (when facing the screen).
ENGLISH
14
Connecting the Eye-Bolt Bracket
ENGLISH
The eye-bolt bracket is designed to be used to lift the set up. Attach the bracket to the product using the two screws
provided.
Installing in Landscape Position Installing in Portrait Position
15
Attaching the detachable logo
Use one screw, inserted from behind, to attach the detachable logo to the monitor. You can position the logo according
to the monitor’s direction.
When the monitor is in the horizontal position When the monitor is in the vertical position
ENGLISH
16
Installing on a Wall
ENGLISH
For proper ventilation, allow a clearance of 100 mm (3.9 inches)on each side and from the wall. Detailed installation
instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.
100 mm (3.9 inches)
100 mm
100 mm
100 mm
To install your monitor on a wall, attach a wall mounting bracket (optional part) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.
100 mm
1 Use only screws and wall mounting brackets that conform to VESA standards.
2 Screws which are longer than standard length may damage the inside of the monitor.
3 A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for
any accidents related to the use of non-standard screws.
4 Please use VESA standard as below.
785 mm (30.9 inches) and above
* Fixing screws: Diameter 8.0 mm x Pitch 1.25 mm x Length 14 mm (0.3 inches x 0.04 inches x 0.5 inches)
785 mm (30.9 inches)
17
CAUTION
Disconnect the power cord before moving or installing the monitor to avoid risk of electric shock.
If you install the monitor on a ceiling or slanted wall, it may fall and result in injury. Use an authorized LG wall mount
and contact your local dealer or qualified personnel to assist with the installation.
Do not over tighten the screws as this may damage the monitor and void your warranty.
Use only screws and wall mounting brackets that meet the VESA standard. Any damage or injuries caused by misuse
or use of improper accessories are not covered by the warranty.
To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions.
(This pertains only to Australia and New Zealand.)
NOTE
The wall mount kit includes the installation guide and all necessary parts.
The wall mounting bracket is optional. You can obtain additional accessories from your local dealer.
The length of screws required may differ depending on the wall mount. Be sure to use the correct length.
For more information, please refer to the guide provided with the wall mount.
ENGLISH
18
REMOTE CONTROL
ENGLISH
The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to
use the monitor correctly. To install batteries, open the battery cover, place batteries (1.5 V AAA) matching and
terminals to the labels inside the compartment, and close the battery cover. To remove the batteries, perform the
installation actions in reverse. The illustrations may differ from the actual accessories.
CAUTION
Do not mix old and new batteries, as this may damage the remote control.
Be sure to point the remote control toward the remote control sensor on the monitor.
Some features of the remote control may not be supported in certain models.
(POWER) Turns the monitor on or off.
MONITOR ON Turns the monitor on.
MONITOR OFF Turns the monitor off.
ENERGY SAVING Adjusts the brightness of the picture to reduce
energy consumption.
INPUT Selects the input mode.
3D Used for viewing 3D videos.
1/a/A Toggles between numerical and alphabetical.
Number and Alphabet buttons
Enters numerical or alphabetical characters depending upon the setting.
CLEAR Deletes the entered numerical or alphabetical character.
Volume Up/Down Button Adjusts the volume.
ARC Selects the Aspect Ratio mode.
AUTO Automatically adjusts picture position and minimizes image
instability (available for RGB input only).
MUTE Mutes all sounds.
BRIGHTNESS Adjusts the brightness of the display. PAGE function is
not supported in this model.
19
PSM Selects the Picture Mode.
HOME Activates the Launcher.
W.BAL Enters the White Balance menu.
SETTINGS Accesses the main menus or saves your input and exit menus.
S.MENU SuperSign menu key.
Navigation Buttons Scrolls through menus or options.
OK Selects menus or options and confirms your input.
BACK Allows you to move back one step in the user interaction function.
EXIT Quit all OSD tasks and applications.
Allows you to control various multimedia devices to enjoy
multimedia simply by using the remote control through the SimpLink
menu.
TILE Selects the TILE Mode.
PICTURE ID ON/OFF When the Picture ID number matches the Set ID
number, you can control whichever monitor you want in multi-display
format.
USB Menu Control Buttons Controls media playback.
ENGLISH
20
MAKING CONNECTIONS
ENGLISH
You can connect various external devices to your monitor. Change the input mode and select the external device you
want to connect. For more information about external device connections, see the user manual provided with each
device.
Connecting to a PC
Some of the cables are not provided. This monitor supports the Plug and Play* feature.
* Plug and Play: a feature that enables a PC to recognize devices attached by the user without device configuration or
user intervention when powering up.
External Device Connection
Some of the cables are not provided. Connect a HD receiver, DVD, or VCR player to the monitor and select an
appropriate input mode.
For the best picture and sound quality, connecting external devices to your monitor using HDMI cables is recommended.
21
NOTE
For the best image quality, using the monitor with HDMI connection is recommended.
To comply with the specifications of the product, use a shielded interface cable with ferrite core, such as a DVI-D/
HDMI cable.
If you turn the monitor on when the set is cold, the screen may flicker. This is normal.
Sometimes red, green, or blue spots may appear on the screen. This is normal.
Use a High Speed HDMI®/TM cable (shorter than 3 meters).
Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not
display or a connection error may occur.
Recommended HDMI Cable Types
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet
If you cannot hear any sound in HDMI mode please check your PC settings. Some PCs require you to manually change
the default audio output to HDMI.
If you want to use HDMI-PC mode, you must set your PC/DTV to PC mode.
You may experience compatibility issues if you use HDMI-PC mode.
Make sure the power cable is disconnected.
If you connect a gaming device to the monitor, use the cable provided with the gaming device.
CAUTION
Connect the signal input cable and tighten it by turning the screws clockwise.
Do not press the screen with your finger for a prolonged period as this may result in temporary distortion on the
screen.
Avoid displaying static images on the screen for a long period of time to prevent image burn. Use a screensaver if
possible.
A wireless communication device near your monitor can affect the image.
ENGLISH
22
Connecting Multiple Monitors
ENGLISH
To use multiple monitors connected to each other, connect the end of the signal input cable (DP cable) to the DP OUT
connection in one monitor and connect the other end to the DP IN connection of the other monitor.
* DP Cable: Use a DP cable that is certified to a DP 1.1a (SST) standard or higher.
MONITOR 1 MONITOR 2 MONITOR 3 MONITOR 4
NOTE
In general, up to 100 monitors can be connected via the DP OUT port (at the recommended resolution) if the signal is
stable and there is no cable loss. To connect more than 100 monitors, it is recommended to use a distributor.
When tile mode is configured via HDMI3/DVI-D or DVI-D, HDCP-encrypted content cannot be displayed.
If the signal cable connecting the product to your PC is too long, make sure to use a booster or optical cable.
HDMI1/2 inputs do not support daisy chaining monitors.
23
Using the Input List
HOME
ENGLISH
24
ENGLISH
TROUBLESHOOTING
No image is displayed.
Problem Action
Is the product power cord connected? Check if the power cord is correctly plugged into the power outlet.
Does the “Invalid Format” message
appear?
Does the “No Signal” message appear? The signal cable between PC and product is not connected. Check the
The Unknown Product message appears when the product is connected.
Problem Action
Did you install the driver? Check if the Plug and Play function is supported by referring to the
The screen image looks abnormal.
The signal from the PC (Graphic card) is out of the vertical or horizontal
frequency range of the product. Adjust the frequency range by referring
to the Specifications in this manual.
signal cable.
Access the input menu to check the input signal.
graphic card user manual.
Problem Action
Is the screen position wrong? Check if the graphic card resolution and frequency are supported by
the product. If the frequency is out of range, set to the recommended
resolution in the Control Panel Display Setting menu.
The screen is displayed abnormally. The proper input signal is not connected to the signal port. Connect the
signal cable that matches with the source input signal.
25
After-image appears on the product.
Problem Action
After-image appears when the product is
turned off.
The audio function does not work.
Problem Action
No sound? See if the audio cable is connected properly.
Sound is too dull. Select the appropriate equalizer sound.
Sound is too low. Adjust the volume.
Screen color is abnormal.
Problem Action
Screen has poor color resolution (16
colors).
Screen color is unstable or mono-colored. Check the connection status of the signal cable. Or, re-insert the PC
Do black spots appear on the screen? Several pixels (red, green, white, or black color) may appear on the
If you use a fixed image for a long time, the pixels may be damaged.
Use the screen-saver function.
When a dark image is displayed on the screen after an image with high
contrast (black and white or gray), this may cause image sticking. This
is normal for LCD screen products.
Adjust the volume.
See if the sound is set properly.
Set the number of colors to more than 24 bits (true color). Select
Control Panel - Display - Settings - Color Table menu in Windows.
graphic card.
screen, which can be attributable to the unique characteristics of the
LCD panel. This is not a malfunction of the LCD.
ENGLISH
The operation does not work normally.
Problem Action
The power suddenly turned off. Is the Timer set?
Check the power control settings. Power interrupted.
26
ENGLISH
CAUTION
Image sticking does not occur when using constantly changing images but may occur when using a fixed image for an
extended period of time. Therefore, it is recommended that you use the instructions below to decrease the likelihood
of image sticking occurring when using a fixed image. It is recommended that you change the screen at least once
every 12 hours at the very minimum; if done more frequently, the prevention of image sticking is more effective.
Recommended operating conditions
1 Change the background and the character colors using the same time interval.
ID: UPM 123
PW: ****
When changing colors, using complementary colors helps to prevent image sticking.
BM BM BM
CF
ITO or MoTi Pixel Layer
Glass
OC
PI
LC
PI
TFT Layers
Glass
ID: UPM 123
PW: ****
CFCFCF
2 Change the image using the same time interval.
Make sure that the characters or images before changing the image remain in the same location after changing the
image.
What is image sticking?
When the LCD panel displays a static image for an extended period of time, it can cause a voltage difference between
the electrodes that operate the liquid crystals. When the voltage difference between the electrodes builds up over
time, liquid crystals have a tendency to remain aligned in one direction. During this process, a previously displayed image
remains visible. This phenomenon is referred to as image sticking.
27
PRODUCT SPECIFICATIONS
The product specifications below may be changed without prior notice due to upgrade of product functions.
“ ” refers to alternating current (AC), and “ ” refers to direct current (DC).
LCD screen Screen type Thin Film Transistor (TFT)
Liquid Crystal Display (LCD) Screen
Video signal Maximum resolution HDMI1/ HDMI2: 3840 x 2160 @ 60 Hz
HDMI3/ DisplayPort: 3840 x 2160 @ 30 Hz
DVI-D: 1920 x1080 @ 60 Hz
- This may not be supported on some OS or graphic card types.
Recommended resolution HDMI1/ HDMI2: 3840 x 2160 @ 60 Hz
HDMI3/ DisplayPort: 3840 x 2160 @ 30 Hz
DVI-D: 1920 x1080 @ 60 Hz
- This may not be supported on some OS or graphic card types.
Horizontal frequency HDMI1/ HDMI2: 30 kHz to 136 kHz
DVI-D/ HDMI3/ DisplayPort: 30 kHz to 83 kHz
Vertical frequency DVI-D: 56 Hz to 62 Hz
HDMI/ DisplayPort: 30 Hz to 62 Hz
Synchronization Digital
Input/ Output ports SPEAKER OUT, LAN, AUDIO IN/OUT, DP IN/OUT, DVI-D IN, PIXEL
SENSOR, IR & LIGHT SENSOR, HDMI IN 1, HDMI IN 2, HDMI IN 3,
USB 3.0 IN, USB 2.0 IN, SD, RS-232C IN/OUT
Embedded battery Applied
Environmental
Conditions
Audio Input Sensitivity 0.7 Vrms
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 10 % to 80 %
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Storage Humidity 5 % to 85 %
ENGLISH
28
ENGLISH
LCD Panel Pixel Pitch 0.5622 mm (H) X 0.5622 mm (V)
Power Rated Voltage AC 100-240 V~ 50/60 Hz 6.6 A
Dimensions (Width x Height x Depth) / Weight 2191.8 mm x 1246.8 mm x 69.4 mm / 87.3 kg
HDMI/ DVI-D/ DisplayPort (PC) Support mode
Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark
800 x 600 37.879 60.317
1024 x 768 48.363 60.0
1280 x 720 44.772 59.855
1366 x 768 47.712 60
1280 x 1024 63.981 60.02
1920 x 1080 67.5 60
3840 x 2160 67.5 30 HDMI1/2/3, DisplayPort
3840 x 2160 135 60 HDMI1/2
98LS95D
Power Consumption On Mode: 450 W (Typ.)
(86.2 inches x 49.0 inches x 2.7 inches / 192.4 lbs)
HDMI/ DisplayPort (DTV) Support Mode
Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark
480/60p 31.5 60
576/50p 31.25 50
720/50p 37.5 50
720/60p 45 60
1080/50i 28.1 50
1080/60i 33.75 60
1080/50p 56.25 50
1080/60p 67.432 59.94
1080/60p 67.5 60
2160/30p 67.5 30 HDMI1/2/3, DisplayPort
2160/50p 112.5 50 HDMI1/2
2160/60p 135 60 HDMI1/2
29
Multi-screen (PC) Support mode
Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark
1280 x 720 44.772 59.855
1920 x 1080 67.5 60
3840 x 2160 67.5 30
Multi-screen (DTV) Support Mode
Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark
720/50p 37.5 50
720/60p 45 60
1080/50p 56.25 50
1080/60p 67.5 60
2160/30p 67.5 30
HDMI1/2/3, DisplayPort
PIP (Main)
HDMI1/2/3, DisplayPort
PIP (Main)
NOTE
Resolutions available for the Input Label option in HDMI/ DVI-D/ DISPLAYPORT input modes.
- PC resolutions: 1280 x 720 / 60 Hz, 1920 x 1080 / 60 Hz, 3840 x 2160 / 60 Hz
- DTV resolutions: 480p, 720p, 1080p and 2160p
Vertical frequency: The product display functions by the screen image changing dozens of times every second like a
fluorescent lamp. The vertical frequency or refresh rate is the number of image displays per second. The unit is Hz.
Horizontal frequency: The horizontal interval is the time taken to display one horizontal line. When 1 is divided by
the horizontal interval, the number of horizontal lines displayed every second can be tabulated as the horizontal
frequency. The unit is kHz.
ENGLISH
Make sure to read the Safety Precautions before using the
product.
The model and serial numbers of the SET are located on the
back and one side of the SET. Record it below should you ever
need service.
MODEL
SERIAL
Temporary noise is normal when powering ON or OFF this
device.
USER GUIDE
LG Digital
Signage
(MONITOR SIGNAGE)
Please read this manual carefully before operating your set and retain it
for future reference.
webOS 2.0
www.lg.com
2
ENGLISH
TABLE OF CONTENTS
USER SETTINGS ............................3
- Main Menu Settings ........................................................ 3
Picture Settings
Sound Settings
Network Settings
General Settings
ENTERTAINMENT ...................... 13
- Using My Media .............................................................. 13
Connecting USB/SD Storage Devices
Files Supported by My Media
Viewing Videos
Viewing Photos
Listening to Music
Settings
Moving, Copying, or Deleting a File
- SuperSign Contents .....................................................21
- Information ...................................................................... 21
- Local Contents Scheduler .........................................22
- Screen Share ....................................................................23
- SuperSign EZ .................................................................... 25
- Multi-Screen .....................................................................27
- PICTURE ID Settings ....................................................29
IR CODES .................................... 30
TO CONTROL MULTIPLE
PRODUCTS .................................. 32
- Connecting the Cable .................................................. 32
- Communication Parameter ......................................33
- Command Reference List ..........................................34
- Transmission/Reception Protocol .........................37
To obtain the source code under GPL, LGPL,
MPL, and other open source licenses, that is
contained in this product, please visit
http://opensource.lge.com.
In addition to the source code, all referred
license terms, warranty disclaimers and
copyright notices are available for download.
LG Electronics will also provide open source
code to you on CD-ROM for a charge covering
the cost of performing such distribution (such
as the cost of media, shipping, and handling)
upon email request to opensource@lge.com .
This offer is valid for three (3) years from the
date on which you purchased the product.
3
NOTE
• The software-related contents may be changed without prior notice due to upgrade of the product
functions.
• Some features described in the Installation manual may not be supported in certain models.
• SNMP 2.0 is supported.
User Settings
Main Menu Settings
Picture Settings
To Select Picture Mode
Advanced Picture Picture Mode Settings Picture Mode
Select the picture mode that is best suited to the video type.
• Vivid: adjusts the video image for a retail environment by enhancing the contrast, brightness, and
sharpness.
• Standard: adjusts the video image for a normal environment.
• APS: APS (Auto power saving ) mode reduces power consumption by dimming control.
• Cinema: optimizes the video image for watching movies.
• Sports: optimizes the video image for watching sports. Even fast actions such as kicking or throwing a ball
are rendered clearly on the screen.
• Game: optimizes the video image for playing videogames.
• Photo: Optimizes the screen for viewing photos. (This feature is available only with certain models.)
• Expert/Calibration: allows an expert, or anyone interested in high quality pictures, to manually tune the
picture for the best picture quality.
ENGLISH
NOTE
• Depending on the input signal, the available Picture Modes may differ.
• Expert is an option that allows a picture quality expert to fine-tune the picture quality using a specific
image. Thus, it may not be effective for a normal picture.
4
To fine-tune the picture mode
ENGLISH
Advanced Picture Picture Mode Settings Customize
• Backlight: adjusts the brightness of the screen by controlling the LCD backlight. The closer the value is to
100, the brighter the screen is.
• Contrast: adjusts the difference between the light and dark areas of the picture. The closer the value is to
100, the greater the difference is.
• Brightness: adjusts the overall brightness of the screen. The closer the value is to 100, the brighter the
screen is.
• Sharpness: adjusts the sharpness of the edges of objects. The closer the value is 50, the clearer and the
sharper the edge becomes.
• H Sharpness: adjusts the sharpness of the contrast edges on the screen from a horizontal point of view.
• V Sharpness: adjusts the sharpness of the contrast edges on the screen from a vertical point of view.
• Color: softens or deepens the tints on the screen. The closer the value is 100, the deeper the colors become.
• Tint: adjusts the balance between red and green levels displayed on the screen. The closer the value is to
Red 50, the deeper the color red becomes, and the closer the value is to Green 50, the deeper the color
green becomes.
• Color Temperature: adjusts the tints of the screen to evoke feelings of warmth or coolness.
• Advanced Controls/Expert Control: customizes the advanced options.
– Dynamic Contrast: Optimizes the difference between the light and dark parts of the screen according to the
– Super Resolution: Sharpens the blurry or indistinguishable parts of the picture.
– Color Gamut: Selects the range of colors to display.
– Dynamic Color: Adjusts the tint and saturation of the image for a more vivid and lively display.
– Edge Enhancer: Provides much sharper and clearer edges to the picture.
– Color Filter: Accurately adjusts color and tint by filtering a specific color area of RGB space.
– Preferred Color: Adjusts the skin tint, grass tint, and sky tint to your preference.
– Gamma: Adjusts the medium brightness of the image.
– White Balance: Adjusts the overall tint of the picture to your preference. In Expert mode, you can fine-tune the
– Color Management System: Experts use the color management system when they adjust the colors by using
brightness of the image.
picture using the Method/Pattern options.
the test pattern. The color management system allows you to make an adjustment
by selecting from among 6 different color spaces (Red/Yellow/Blue/Cyan/Magenta/
Green) without affecting other colors. You may not see tints change in a normal
picture even after adjustment.
5
• Picture Options: customizes the picture options.
– Noise Reduction: Removes irregularly generated tiny dots for a clear picture.
– MPEG Noise Reduction: Reduces the noise produced while creating digital video signals.
– Black Level: Adjusts the black level of the picture to correct the brightness and contrast of the picture.
– Real Cinema: Optimizes the video image for a cinematic look.
– TruMotion: Reduces image shaking and image sticking that can occur with moving images.
• Reset: resets the picture settings.
NOTE
• You can adjust advanced settings only in the User mode.
• Depending upon the input signal or the selected picture mode, the available options may differ.
To set the aspect ratio,
(Some features may not be supported in certain models.)
Advanced Picture Aspect Ratio
Changes the aspect ratio to view the image in its optimal size.
• 16:9: displays the image with a 16:9 aspect ratio.
• Just Scan: displays the image in the original size without cutting off the edges.
Original is available in HDMI (720p or higher) mode. (On 58:9 models, this option can be selected
regardless of the input signal.)
• Set By Program: automatically changes the aspect ratio to 4:3 or 16:9 depending on the input video signal.
• 4:3: displays the image with a 4:3 aspect ratio.
• Zoom: expands the image to fit to the width of the screen. The top and bottom of the image may be
cropped.
• Cinema Zoom: enlarges the image to have a cinemascope ratio of 2.35:1 without distortion.
• 58:9: Displays the screen with a 58:9 aspect ratio.
ENGLISH
CAUTION
• If a fixed image is displayed on the screen for a long period of time, it will be imprinted and become a
permanent disfigurement on the screen. This image burn or burn-in is not covered by the warranty.
• If the aspect ratio is set to 4:3 for a long period of time, image burn may occur on the letterboxed area of the
screen.
• The options may differ depending on the model.
• Depending on the input signal, the available aspect ratio may differ.
• You can select only 4:3 and 16:9 aspect ratios in HDMI-PC/ DVI-D/ DISPLAYPORT-PC/ OPS-PC/ RGB input
mode. (This does not apply to 58:9 models.)
• When you adjust Zoom or Cinema Zoom, the screen may flicker for some input signals.
6
To use the Energy Saving function
ENGLISH
Advanced Picture Energy Saving
Reduces power consumption by adjusting peak screen brightness.
• Auto: adjusts the brightness of the monitor according to ambient light. (This feature is available only with
certain models.)
• Off: disables the Energy Saving mode.
• Minimum/Medium/Maximum: uses the Energy Saving according to the Energy Saving level specified for
your monitor.
• Screen Off: turns off the screen. You will only hear audio. You can turn on the screen again by pressing any
button on the remote control except the power button.
To use the Smart Energy Saving function
Advanced Picture Smart Energy Saving
According to picture brightness, the brightness of the monitor will be adjusted automatically to save energy.
• Off: disables the Smart Energy Saving function.
• On: enables the Smart Energy Saving function.
To use the SCREEN(RGB-PC) function
(Only applies to certain models.)
Advanced Picture SCREEN(RGB-PC)
Customizes the PC display options in RGB mode.
• Set Automatically: Sets to adjust the screen position, clock, and phase automatically.
• Resolution: Selects a proper resolution.
• Position/Size/Phase: Adjusts the options when the picture is not clear, especially when characters are
• Reset: Restores the options to the default setting.
The displayed image may be unstable for a few seconds while the configuration is in
progress.
shaky, after the auto configuration.
7
To run a Picture Test
(Only applies to certain models.)
Advanced Picture Picture Test
Run a Picture Test to check that picture signals are outputted normally, then solve any problems by selecting
the relevant option on the screen. If there are no problems with the Test Picture, check connected external
devices.
How to Use HDMI ULTRA HD Deep Colour
[For Ultra HD models only]
Advanced Picture HDMI ULTRA HD Deep Colour
If you connect an HDMI device to one of the Deep Colour adjustable ports, you can select Deep Colour On (6G)
or Off (3G) in the HDMI ULTRA HD Deep Colour settings menu.
If a compatibility issue occurs with a graphics card when the Deep Colour option is set to On at 3840 x 2160 @
60 Hz, set the Deep Colour option to Off.
• HDMI specifications may vary depending on the input port. Check the specifications of each device before
connecting.
• HDMI input port 1,2 are best suited for 4K at 60 Hz (4:4:4, 4:2:2) to enjoy high definition video. However,
video or audio may not be supported depending on the specifications of the external devices. In that case,
please connect to another HDMI port.
ENGLISH
8
Sound Settings
ENGLISH
• Only applies to certain models.
To select a Sound Mode
Advanced Sound Sound Mode
The best sound quality will be selected automatically depending on the video type currently being watched.
• Standard: this sound mode works well for content of all types.
• Cinema: optimizes sound for watching movies.
• News: optimizes sound for watching news.
• Sports: optimizes sound for watching sports.
• Music: optimizes sound for listening to music.
• Game: optimizes sound for playing videogames.
To use the Sound Effects function
Advanced Sound Sound Effects
• Clear Voice ll: enjoy clearer sound with the three-level adjustment.
• Equalizer: manually adjust sound by using the equalizer.
• Balance: adjust the output volume for the left speaker and the right speaker.
• Reset: reset the sound settings.
To select a Volume Increase Rate,
Advanced Sound Volume Increase Amount
you can set the volume range by selecting any of Low/ Medium/ High.
To sync audio with video
Advanced Sound AV Sync Adjustment
• Speaker: adjusts the sync between video and audio coming from external speakers, such as those
connected to the digital audio output port, LG audio equipment, or headphones. From the default
value, the closer the value is to -, the faster the sound output becomes, and the closer the value is
to +, the slower the sound output becomes.
• Bypass: audio coming from external devices without delay. Audio may be outputted earlier than video due
to the processing time for video that is inputted into the monitor.
To Run a sound test
Advanced Sound Sound Test
Run a sound test to check that sound signals are outputted normally, then solve any problems by selecting the
relevant option on the screen. If there are no problems with the Sound Test, check connected external devices.
9
Network Settings
To Set a Signage Monitor Name
Advanced Network Signage Name
You can set a name for Signage Monitor that will be used on the network by using the on-screen keyboard.
To Set Your Wired Network
Advanced Network Wired Connection (Ethernet)
• Connecting to a wired network: Connect your monitor to a local area network (LAN) via the LAN port,
and configure the network settings. Only wired network connections
are supported. After making a physical connection, a small number of
networks may require the display network settings to be adjusted. For
most networks, the display will automatically make a connection without
any adjustments. For detailed information, contact your Internet provider
or consult your router manual.
Setting a Wireless Network
Advanced Network Wi-Fi Connection
If you have set the monitor up for a wireless network, you can check and connect to the available wireless
Internet networks.
• Add a Hidden Wireless Network: If you input the name of network directly, you can add a wireless network.
• Connect via PBC: Connects easily when the button of a wireless AP supporting PBC is pressed.
• Connect via PIN: Connects easily when the PIN of the wireless AP that you wish to connect to is entered in to
the AP configuration webpage.
• Advanced Settings: If you input the information of network directly, you can enter a wireless network.
If there is no wireless network available, click Advanced Settings. You can add a
network.
ENGLISH
Setting up a SoftAP
Advanced Network SoftAP
If you set up a SoftAP, you can connect many devices via a Wi-Fi connection without a wireless router and use
wireless Internet.
• To use SIGNAGE, you must have an Internet connection.
• You cannot use the SoftAP feature and the Screen Share feature at the same time.
• On models that support Wi-Fi dongles, the SoftAP menu is enabled only when a Wi-Fi dongle is connected
to the product.
• SoftAP connection information
– SSID: A unique identifier necessary to make a wireless Internet connection
– Security key: The security key you enter to connect to the desired wireless network
– Number of connected devices: Shows the number of devices currently connected to your Signage device via a
Wi-Fi connection. Up to 10 devices are supported.
10
Tips for Network Setting
ENGLISH
• Use a standard LAN cable (Cat5 or higher with a RJ45 connector) with this display.
• Many network connection problems during set-up can often be fixed by re-setting the router or modem.
After connecting the display to the home network, quickly power off and/or disconnect the power cable of
the home network router or cable modem, then power on and/or connect the power cable again.
• Depending on the Internet Service Provider (ISP), the number of devices that can receive Internet service
may be limited by the applicable terms of service. For details, contact your ISP.
• LG is not responsible for any malfunction of the display and/or the Internet connection feature due
to communication errors/malfunctions associated with your Internet connection, or other connected
equipment.
• LG is not responsible for problems with your Internet connection.
• You may experience undesired results if the network connection speed does not meet the requirements of
the content being accessed.
• Some Internet connection operations may not be possible due to certain restrictions set by the Internet
Service Provider (ISP) supplying your Internet connection.
• Any fees charged by an ISP including, without limitation, connection charges are your responsibility.
NOTE
• If you want to access the Internet directly on your display, the Internet connection should always be on.
• If you cannot access the Internet, check the network conditions from a PC on your network.
• When you use Network Setting, check the LAN cable or check if DHCP in the router is turned on.
• If you do not complete the network settings, the network may not function correctly.
CAUTION
• Do not connect a modular telephone cable to the LAN port.
• Since there are various connection methods, please follow the specifications of your telecommunication
carrier or Internet Service Provider.
• Network Setting menu will not be available until the display is connected to a physical network.
Tips for Wireless Network Setting
• Wireless networks can be subject to interference from other devices operating at a frequency of 2.4 GHz
(wireless phones, Bluetooth devices or microwave ovens). There may also be interference from devices with
a frequency of 5 GHz, same as other Wi-Fi devices.
• The surrounding wireless environment can cause the wireless network service to run slowly.
• If you do not turn off the entire local home network, network traffic may occur on some devices.
• For an AP connection, an access point device that supports wireless connection is required and the wireless
connection feature must be enabled on the device. Contact your service provider regarding availability of
wireless connection on your access point.
• Check the SSID and security settings of the AP for AP connection. Refer to the appropriate documentation
for SSID and security settings of the AP.
• Invalid settings on network devices (wired/wireless line sharer, hub) can cause the monitor to run slowly or
not operate properly. Install the devices correctly according to the appropriate manual and set the network.
• Connection method may differ according to the AP manufacturer.
11
General Settings
To configure the language
Advanced General Menu Language
Select one of the languages on the menu displayed on the screen.
• Menu Language: sets a language for Signage.
Setting up the keyboard language
Advanced General Keyboard Languages
Select the language you wish to show on the keyboard.
• Keyboard Languages: Sets the keyboard language.
To set the time/date
Advanced General Time & Date
You can check or change the time.
• Set Automatically : You can set Time and Date.
• Daylight Saving Time: You can set Start Time and End Time for Daylight Saving Time. The DST start/end
settings work only when you set them more than one day apart from each other.
• Time zone: You can change the settings for Continent, Country/Territory, and City.
To turn your monitor on or off automatically
Advanced General Timers
You can set the On/Off Timer for your monitor.
• On Timer: you can set the time when your monitor turns on.
• Off Timer: you can set the time when your monitor turns off.
• No Signal Power Off (15Min): When there is no input source, the monitor will automatically turn off after
15 minutes. If you don’t want it to turn off automatically, set No Signal Power
Off to Off.
• Auto Power Off: When there is no key input, the monitor will automatically turn off.
ENGLISH
NOTE
• On Time/Off Time can be saved for up to seven schedules; the monitor is turned on or off at the preset time
in the schedule list. If multiple preset times are stored in the schedule list, this function works at the nearest
time from the current time.
• Once the on or off time is set, these functions operate daily at the preset time.
• The scheduled power-off function works properly only when the device time is set correctly.
• When the scheduled power-on and power-off times are the same, the power-off time has priority over the
power-on time if the set is turned on, and vice versa if the set is turned off.
12
To reset your monitor settings
ENGLISH
Advanced General Reset to Initial Settings
Resets all monitor settings.
13
ENTERTAINMENT
Using My Media
Connecting USB/SD Storage Devices
Connect a USB storage device such as a USB flash memory, SD storage devices or an external hard drive to the
display and use multimedia features.
CAUTION
• Do not turn off the monitor or remove a USB storage device when the My Media screen is activated. This
could result in loss of files or damage to the USB storage device.
• Back up files you have saved on a USB storage device frequently, as loss or damage to the files may be not
covered by the warranty.
ENGLISH
14
Tips for using USB/SD storage devices
ENGLISH
• Only a USB storage device can be recognized.
• A USB device does not work effectively when it is connected via a USB hub.
• A USB storage device using an automatic recognition program may not be recognized.
• A USB storage device using its own driver may not be recognized.
• The recognition speed of a USB storage device may depend on each device.
• Please do not turn off the display or unplug the USB storage device when the connected device is working. If
the USB storage device is suddenly disconnected, the stored files or the device itself may be damaged.
• Please do not connect a USB storage device which was modified to work on a PC. The device may cause
the monitor to malfunction or the content fail to be played. Use only a USB storage device which contains
normal music, image or video files.
• A USB storage device formatted as a utility program not supported by Windows may not be recognized.
• A USB storage device (over 0.5 A) which requires an external power supply must be connected to a power
supply separately. If it is not, the device may not be recognized.
• Please connect the USB storage device using the cable provided by the device manufacturer.
• Some USB storage devices may not be supported or operate smoothly.
• File alignment method of USB storage devices is similar to that of Window XP and filenames can recognize
up to 100 English characters.
• Back up important files regularly as data stored on a USB storage device may be damaged. We will not be
responsible for any data loss.
• If the USB HDD does not have an external power source, the USB device may not be detected. To ensure the
device is detected, connect the external power source.
- Please use a power adapter for an external power source. We do not provide a USB cable for an external
power source.
• If your USB storage device has multiple partitions, or if you use a USB multi-card reader, you can use up to
four partitions or USB storage devices.
• If a USB storage device is connected to a USB multi-card reader, its volume data may not be detected.
• If the USB storage device does not work properly, disconnect and reconnect it.
• Detection speed differs from device to device.
• If the USB storage device is connected in Standby Mode, the specific hard disk will automatically be loaded
when the display is turned on.
• The recommended capacity is 1 TB or less for a USB external hard drive and 32 GB or less for USB memory
stick.
• Any device with more than the recommended capacity may not work properly.
• If a USB external hard drive with an “Energy Saving” function does not work, try turning the hard drive off
and on again.
• USB storage devices below USB 2.0 are also supported but may not function correctly in the Videos.
• A maximum of 999 sub-folders or files can be recognized under one folder.
• The SDHC type for SD cards is supported. To use an SDXC card, format it to the NTFS file system first.
• The exFAT file system is not supported for SD cards and USB storage devices.
15
Files Supported by My Media
Supported External Subtitle Format
(Subtitles are not supported in certain models.)
• *.smi, *.srt, *.sub (MicroDVD, SubViewer 1.0/2.0), *.ass, *.ssa, *.txt (TMPlayer), *.psb (PowerDivX), *.dcs (DLP
Cinema)
To use Select Play
Photos/ Videos/ Music/ All
• Play Selection: plays back selected content.
To set FILTER
Photos/ Videos/ Music/ All
• FILTER: import contents from the selected device.
To set Scheduled Playing
Photos/ Videos/ Music/ All
• Scheduled Playing: You can play the selected content at the scheduled time.
ENGLISH
16
Supported Internal Subtitle Format
ENGLISH
• FULL HD Video
1920 x 1080: XSUB (Supports internal subtitles generated from DivX6)
• [For Ultra HD models only] Ultra HD image: Does not support internal subtitles.
Supported Video Codec
Extension Codec
.asf
.wmv
.divx
.avi
.mp4
.m4v
.mov
.3gp
.3g2
.mkv Videos H.264/AVC
.ts
.trp
.tp
.mts
.m2ts
.mpg
.mpeg
.vob Videos MPEG-1, MPEG-2
Videos VC-1 Simple and Main Profiles
Audio WMA Standard, WMA 10 Professional
Videos DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC, Motion Jpeg, MPEG-4 Part2
Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, LPCM, ADPCM, DTS
Videos H.264/AVC, MPEG-4 Part2
Audio AAC, MPEG-1 Layer III (MP3)
Videos H.264/AVC, MPEG-4 Part2
Audio AAC, AMR-NB, AMR-WB
Audio HE-AAC, Dolby Digital
Videos H.264/AVC, MPEG-2
Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, PCM
Videos MPEG-1, MPEG-2
Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), AAC
Audio Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM
17
Supported Audio File
File Format Item Information
.MP3 Bit rate 32 Kbps to 320 Kbps
Sample freq. 16 KHz to 48 KHz
Support MPEG1, MPEG2, Layer2, Layer3
channels mono, stereo
.ogg Bit rate 64 Kbps to 500 Kbps
Sample freq. 8 kHz to 48 kHz
Support Vorbis
channels mono, stereo
.wma Bit rate ~1.5 Mbps
Sample freq. 8 kHz to 192 kHz
Support WMA
channels up to 6 ch
Supported Photo File
File Format Format Item
.jpeg, .jpg, .jpe JPEG y Minimum : 64 x 64
y Maximum
- Normal Type: 15360 (W) x 8640 (H)
- Progressive Type: 1920 (W) x 1440 (H)
.png PNG y Minimum : 64 x 64
y Maximum: 5760 (W ) x 5760 (H)
.bmp BMP y Minimum : 64 x 64
y Maximum: 1920 (W ) x 1080 (H)
ENGLISH
Supported Files and Formats for Content (with SuperSign Manager)
File extension *.cts, *.sce
Video file
extension
Video format MPEG1, MPEG2, MPEG4,H.264, DivX 3.11, DivX 4, DivX 5, DivX 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03,
Audio format MP3, Dolby Digital, LPCM, AAC, HE-AAC, AMR-NB, AMR-WB
Web page Only web pages that support iframe can be displayed.
*.mpg, *.mpeg, *.dat, *.ts, *.trp, *.tp, *.mp4, *.mkv, *.avi, *. avi(motion JPEG), *. mp4(motion JPEG),
*.mkv(motion JPEG)
Xvid 1.10-beta1/2, Motion JPEG
18
Viewing Videos
ENGLISH
Play video files on display. All of the saved video files are shown in your display.
To play video files on display
Videos
Tips for Playing Video Files
• Some user-created subtitles may not work properly.
• Some special characters in subtitles are not rendered.
• HTML tags are not supported in subtitles.
• Subtitles in languages other than the supported languages are not available.
• The screen may suffer temporary interruptions (image stoppage, faster playback, etc.) when the audio
language is changed.
• A damaged video file may not play correctly, or some player functions may not be usable.
• Video files produced with some encoders may not be played correctly.
• If the video and audio structure of a recorded file is not interleaved, either video or audio is outputted.
• Video files other than the specified types and formats may not play correctly.
• Maximum bit rate of playable video file is 20 Mbps. (Motion JPEG: 10 Mbps only)
• We cannot guarantee smooth playback of files encoded level 4.1 or higher in H.264 / AVC.
• Video files more than 30 GB in file size are not supported.
• A DivX video file and its subtitle file must be located in the same folder.
• A video file and its subtitle file must be located in the same folder. A video file name and its subtitle file
name must be identical in order to display the subtitle properly.
• Playing a video via a USB connection that does not support high-speed connection may not function
correctly.
• Subtitles on a Network Attached Storage (NAS) device may not be supported depending on the
manufacturer and model.
• Streaming of files encoded by GMC (Global Motion Compensation) or Qpel (Quarterpel Motion Estimation)
is not supported.
• [For Ultra HD models only] Ultra HD image: 3840 X 2160
Some HEVC-encoded Ultra HD videos other than the content officially provided by LG Electronics may not
be played. Some codecs can be used after upgrading software.
Extension Codec
.mkv
.mp4
.ts
• Playable file sizes may vary depending on the encoding condition.
• The AAC Main profile is not supported.
• Video files created by some encoders may not play.
Video H.264/AVC, HEVC
Audio Dolby Digital, Dolby Digital Plus, AAC, HE-AAC
19
NOTE
• Option values changed in Videos do not affect the Photos and Music. and in turn are not affected by option
values changed in Photos or Music.
• Option values changed in Photos and Music do affect each other.
• When restarting a video file after stopping it, you can play from the point at which it was stopped.
• Only 10,000 sync blocks can be supported within the subtitle file.
• When playing a video, you can adjust the picture size by pressing the ARC button.
• Korean subtitle is supported only when the OSD menu is in Korean.
• The code page options may be disabled depending on the language of the subtitle files.
• Select the appropriate code page for the subtitle files.
ENGLISH
20
Viewing Photos
ENGLISH
The displays on the screen may differ from the
model.
Viewing image files
Photos
Listening to Music
Viewing music files
Music
NOTE
• Files with unsupported extensions are not
displayed.
• If a file is invalid, a broken image and the
message "unrecognizable file" are displayed.
• Damaged music files are displayed as 00:00 and
will not be played.
• A music file downloaded from a paid service
with copyright protection will not play, and
incorrect information may be displayed during
playback.
• You can use , , , , buttons on
the remote control also in this mode.
• You can use the button to select the next
track and the button to select the previous
track.
• If you press the button within 5 seconds
after playing the song, you will return to the
previous song; if you press the same button
after 5 seconds, you will return to the start of
the song.
Settings
You must register your product to play a DRMprotected DivX video.
In order to register/deregister purchased or
rented DivX® VOD contents
Videos DivX® VOD
In order to play purchased or rented DivX® VOD
contents, you should register your device with 10
digit DivX registration code from your device at
www.divx.com/vod.
• Registration: view the registration code of your
display.
• Deregistration: cancel the registration.
NOTE
• While you are checking the registration code,
some buttons may not work.
• If you use the DivX registration code of another
device, you cannot play rented or purchased
DivX files. Use only the DivX registration code
assigned to your product.
• Video or audio files that are not converted using
the standard DivX codec may be corrupted or
not play.
• The DivX® VOD code allows you to activate up to
6 devices under one account.
• After deregistration, you must register your
device again to see DivX® VOD contents.
21
Moving, Copying, or Deleting a File
You can move, copy, or delete files.
To move, copy, or delete files
Devices
• You can move or copy files or folders from
internal to external memory.
• You can move or copy files or folders from
external to internal memory.
• You can delete files or folders from internal or
external memory.
NOTE
• Those files bigger than internal remaining
memory aren`t allowed to be copied or moved
to the internal memory.
SuperSign Contents
Plays stored files using the Export option in
SuperSign Editor.
To play back the stored files using the Export
option
Only contents distributed by SuperSign Manager
are displayed and selectable. If there is a USB/SD
storage device connected, the image on the USB/
SD device is outputted additionally.
NOTE
• If there is an AutoPlay folder in the USB storage
device and its files are in supported formats,
they will be played back automatically when the
USB storage device is connected to the monitor.
ENGLISH
Information
To check the basic information of Signage
Monitor
You can see the basic information on Signage
Monitor.
You can also switch to Smart Energy Saving
Mode or configure Fail Over settings. (You can
switch to Smart Energy Saving Mode only when
Energy Saving Mode is set to Off.)
22
Local Contents Scheduler
ENGLISH
• Only applies to certain models.
You can view or delete any scheduled playing
created in MY MEDIA.
To access Local Contents Scheduler
Go to Local Contents Scheduler to check the list
of the scheduled playing created in MY MEDIA.
NOTE
• By default, Local Contents Scheduler lists the
scheduled playing created by the currently
connected devices.
To add new a scheduled playing
• NEW SCHEDULED PLAYING: In the pop-up
window, click the GO TO MY MEDIA button and
enter MY MEDIA to create new a scheduled
playing.
To configure FILTER
• FILTER: You can view the list by sorting it based
on the type of device used for creating
the scheduled playing.
To view detailed information about a
scheduled playing
Select Scheduled Playing
• From list of the scheduled playing, select a
specific scheduled playing and view its detailed
information.
To play scheduled playing instantly
Select Scheduled Playing
Play Button
• In the detailed information page of the
scheduled playing, click the Play button above
the thumbnail to play the scheduled playing
instantly.
NOTE
• To play a scheduled playing instantly rather than
at the scheduled time, the scheduled playing
must be in a playable status. In other words, the
device used for creating the scheduled playing
must be connected, and all the content included
in the scheduled playing must be valid.
Editing a Scheduled Playing
Select the desired scheduled
Playing
To delete a scheduled playing
• DELETE: You can select a scheduled playing and
delete it.
• EDIT: Click the EDIT button at the top left of the
Details page of your desired scheduled
Playing, and then you will be directed to
My Media where you can edit information
about the scheduled Playing including its
content and other details.
NOTE
• You can edit the scheduled Playing only when
the device used for creating the scheduled
playback is connected.
23
Screen Share
• Only applies to certain models.
Allows the screen of a user's device such as a mobile or PC Windows to be shared with a display using a wireless
connection such as WiDi or Miracast.
To use Screen Share
When the Screen Share app is running, the wireless connection such as WiDi or Miracast is automatically set to
ON and the display is automatically changed to the connection ready mode. In this state, you can use Screen
Share by turning on the wireless connection on the device and selecting the display to establish a connection
between the device and the display.
NOTE
Configuring WiDi (Wireless Display)
WiDi, which is short for Wireless Display, is a system that wirelessly transmits video and sound files from a
laptop that supports Intel WiDi to the display.
This is available only in certain input modes (Composite/Component/RGB/HDMI/DP/OPS/DVI-D).
Other than these modes, LG Signage cannot be detected by your PC.
1 Connect your laptop to an AP. (This feature can be used without an AP, but it is recommended that you
connect to it for optimal performance.)
Run the Intel WiDi ( ) program on your laptop.
2 Any nearby LG Signages supporting WiDi are detected. In the list of detected displays, select a Signage to
connect to and then, click Connect.
Enter the 8-digit PIN number (a) displayed on the Signage in the input eld of your laptop (b) and click
Continue.
ENGLISH
[Intel Notebook] Connection Request
Enter the PIN below.
PIN********
a
Time remaining: 92 seconds
Cancel
********
b
Signage screen Laptop screen
3 The laptop screen appears in the Signage screen within 10 seconds. The wireless environment may aect
the screen from displaying.
If the connection is poor, the Intel WiDi connection may be lost.
• LG Signage does not need to be registered.
• For more information on how to use Intel WiDi, visit
• This works normally with WiDi 3.5 or later versions.
http://intel.com/go/widi
.
24
To select connection mode
ENGLISH
Listen Mode
You can select between On and Off.
If it is set to On, even when the app is not running,
you can turn on a wireless connection feature such
as WiDi or Miracast and select a display to connect
the device and display. Then, Screen Share will be
available for use.
NOTE
• If the Screen Share app has been deleted from
the HOME screen, Screen Share cannot be used
even if Listen Mode is set to On.
To set the transfer speed
Transfer Speed
Transfer speed can be set to Fast or Normal. When
Screen Share is running, this option adjusts the
time difference of the image output between
the device and the display. Adjusting the transfer
speed can repair any interruptions in displays
when mirroring is used.
25
SuperSign EZ
• Only applies to certain models.
SuperSign EZ enables you to produce and play Signage content. This feature enables you to edit Signage
content based on templates and set its playback time. In addition, this feature also enables you to access
SuperSign EZ from your mobile device or PC and create/edit content.
CAUTION
• A maximum of 5,000 images stored on a USB drive/SD card can be displayed from your PC or mobile device.
Images more than 5,000 cannot be displayed from your PC or mobile device. In addition, we recommend
you store no more than 1,000 images for use on your USB drive or SD card. If you use more than 1,000
images, the images may not be displayed smoothly depending on your environment.
• Supported devices (Some features may not be available depending on the type or version of your device or
browser.)
–Android 4.4 or later (Chromium v.38.0)
–iOS 8 or later (Safari v.600.1.4 or later)
–PC: Chromium v.38.0
• Supported resolutions (this program is optimized for the following resolutions):
– 360 x 640, 600 x 960, 375 x 667, 768 x 1024 and 1920 x 1080
• Content playback time: The minimum playback time is set to 5 seconds. If you set the content playback time
to less than 5 seconds, it is automatically reset to 5 seconds.
• If you play UHD videos on a UHD model, videos with a high bitrate may not play properly due to the
limitations of the processing speed.
Features
• Add/edit (images and texts)/delete Signage content/change playback times and names.
• Add images and videos on mobile devices.
• You can use images added from USB/SD storage devices and internal memory.
How to Use
• Monitors: Run the app in the Launcher bar and add/edit/delete the desired content.
• Mobile devices: Run the app in the Launcher bar and get access using the QR code or URL provided.
ENGLISH
NOTE
• If you use a mobile device, you need to go through an authorization process using a PIN code. The default
PIN code is '0000'.
• When using a PC, use the full screen (F11) feature in 1920 x 1080 (Full HD) resolution to view the same
screen as the monitor.
Photo Supported File
File Format Format Item
.jpeg, .jpg, .jpe JPEG y Minimum : 64 x 64
.png PNG y Minimum : 64 x 64
y Maximum
- Normal Type: 15360 (W) x 8640 (H)
- Progressive Type: 1920 (W) x 1440 (H)
y Maximum: 5760 (W ) x 5760 (H)
26
Supported Video Codec
ENGLISH
Extension Codec
.asf
.wmv
.divx
.avi
.mp4
.m4v
.mov
.3gp
.3g2
.mkv Videos H.264/AVC
.ts
.trp
.tp
.mts
.m2ts
.mpg
.mpeg
.vob Videos MPEG-1, MPEG-2
Videos VC-1 Simple and Main Profiles
Audio WMA Standard, WMA 10 Professional
Videos DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC, Motion Jpeg, MPEG-4 Part2
Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, LPCM, ADPCM, DTS
Videos H.264/AVC, MPEG-4 Part2
Audio AAC, MPEG-1 Layer III (MP3)
Videos H.264/AVC, MPEG-4 Part2
Audio AAC, AMR-NB, AMR-WB
Audio HE-AAC, Dolby Digital
Videos H.264/AVC, MPEG-2
Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, PCM
Videos MPEG-1, MPEG-2
Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), AAC
Audio Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM
Tips for Playing Video Files
• A damaged movie file may not play correctly, or some player features may not be usable.
• Movie files produced with some encoders may not be played correctly.
• Movie files other than the specified types and formats may not work properly.
• Max bit rate of playable movie file is 20 Mbps. (For Motion JPEG: 10 Mbps only)
• We do not guarantee smooth playback of profiles encoded level 4.1 or higher in H.264 / AVC.
• Video files larger than 50 MB may not upload properly from mobile devices. We recommend that you play
such files via USB/SD storage devices.
• [For Ultra HD models only] Ultra HD image: 3840 X 2160
Some HEVC-encoded Ultra HD videos other than the content officially provided by LG Electronics may not
be played.
Extension Codec
.mkv
.mp4
.ts
Video H.264/AVC, HEVC
Audio Dolby Digital, Dolby Digital Plus, AAC, HE-AAC
• Some codecs can be used after upgrading software.
27
Multi-Screen
yOnly applies to certain models.
This feature allows you to view multiple external
inputs and videos on a single screen.
Accessing Multi-Screen
Enter Multi-screen to select the screen layout.
NOTE
yWhen entering Multi-screen, the screen
may flicker and the picture may appear
abnormal on certain devices while the
optimal resolution is selected automatically.
If this happens, please restart the monitor.
Selecting Screen Layout
When you enter Multi-screen without having
set any screen layout, the screen layout selection
menu appears.
If the screen layout menu does not appear, you can
press the up arrow key on the remote control to go
to the screen layout menu bar and select it to show
the screen layout menu.
Changing Screen Input
Press the button on the top right of each split
screen to select the desired input.
NOTE
yInputs which have already been selected for
other split screens cannot be selected again.
To select them, press the RESET button to
reset the inputs for all screens first.
Playing Videos on Split Screens
Press the button on the upper right of each
split screen, select Video File, and then select
a storage device to view the list of videos in the
selected device. Next, select your desired video
from the list to play it.
ENGLISH
Closing Screen Layout Menu
From the screen layout menu, press the up arrow
key on the remote control to go to the screen
layout menu bar and select it or press the BACK
key to close the screen layout menu.
28
Tips for playing Multi-Screen files
ENGLISH
yThe number of split screens available may
differ by model.
ySome tips on playing video files are
included.
ySubtitles are not supported.
yAudio is only supported for the main screen.
yThe following video types are supported in
split mode.
Codec MPEG-2, H.264, HEVC, VP9
Scan Type Progressive
Frame rate 24, 25, 30
Resolution PIP mode supports 3840 x 2160
(main screen only), 1920 x 1080
and 1280 x 720.
PBP mode supports 1920 x 1080
and 1280 x 720.
yCertain videos may not play normally
depending on codec, resolution, frame rate
and scan type.
NOTE
yCertain models may not support the
following codec combinations when playing
3840 x 2160 resolution videos on the main
screen in PIP mode.
Main (3840 x 2160) Sub
HEVC HEVC
H.264 HEVC
VP9 VP9
yWhen the 4-section screen has been
selected in PBP mode, up to two H.264 and
MPEG2 codecs can be used on condition
that the HEVC codec is in use on one screen
only.
Resolutions supported on external input split
screens
The following resolutions are supported when
external input is selected.
Mode Resolution Frame
PIP Main 2160p 30
1080p, 720p 50, 60
Sub 1080p, 720p
PBP 1080p, 720p
960 x 600, 1280 x 600, 1920
x 300
(Only applies to the models
that support the resolutions)
Rate
60
yThe resolutions supported on the split
screens may differ depending on the
resolutions supported by the model being
used.
29
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
PICTURE ID Settings
• Only applies to certain models.
PICTURE ID is used to change the settings of a
specific set (display) using a single IR receiver for
multi-vision. Communication is possible between
a monitor with an IR receiver and other monitors
using RS-232C cables. Each monitor is identified
by a Set ID. If you assign the PICTURE ID using
the remote control, only displays with matching
PICTURE ID and Set ID can be controlled remotely.
1 Assign the Set ID to the installed monitors as
shown below.
IR & Light Sensor
RS-232C cables
PICTURE ID
NOTE
• If PICTURE ID is set to 2, only the upper
right monitor, which has a Set ID of 2, can be
controlled by IR signals.
• If you press the green OFF button for PICTURE
ID, the PICTURE IDs for all monitors are turned
off. If you then press any button on the remote
control, all monitors can be controlled by IR
signals regardless of Set ID.
ENGLISH
2 Press the red ON button on the remote control
to assign the PICTURE ID.
3 Assign the Set ID to the selection of your
choice.
• A set with a different Set ID from the PICTURE
ID cannot be controlled by IR signals.
30
ENGLISH
IR CODES
All models do not support the HDMI/USB function.
Some key codes may not be supported depending on the model.
Code (Hex) Function Remarks
08
C4 MONITOR ON Remote control button
C5 MONITOR OFF Remote control button
95 Energy Saving Remote control button
0B INPUT Remote control button
10 Number Key 0
11 Number Key 1 Remote control button
12 Number Key 2
13 Number Key 3
14 Number Key 4 Remote control button
15 Number Key 5 Remote control button
16 Number Key 6
17 Number Key 7 Remote control button
18 Number Key 8 Remote control button
19 Number Key 9 Remote control button
02
03
E0
E1
DC 3D Remote control button
32 1/a/A Remote control button
2F CLEAR Remote control button
7E Remote control button
79 ARC(MARK) (Aspect Ratio) Remote control button
4D PSM (Picture Mode)
09 MUTE Remote control button
43 SET TINGS (Menu) Remote control button
99 Auto Config. Remote control button
40 Up Remote control button
41 Down Remote control button
06 Right Remote control button
07 Left Remote control button
44 OK Remote control button
28 BACK Remote control button
POWER
Volume
Volume
BRIGHTNESS (Page Up)
BRIGHTNESS (Page Down)
Remote control button
Remote control button
Remote control button
Remote control button
Remote control button
Remote control button
Remote control button
Remote control button
Remote control button
Remote control button
31
Code (Hex) Function Remarks
7B TILE Remote control button
5B
72
71
63
61
B1
B0
BA
8F
8E
5F
3F
7C
EXIT Remote control button
PICTURE ID ON (RED) Remote control button
PICTURE ID OFF (GREEN) Remote control button
YELLOW Remote control Button
BLUE Remote control button
Remote control button
Remote control button
Remote control button
Remote control button
Remote control button
W.BAL Remote control button
S.MENU Remote control button
HOME Remote control button
* Some key codes are not supported depending on the model.
ENGLISH
32
ENGLISH
TO CONTROL MULTIPLE PRODUCTS
• Only applies to certain models.
Use this method to connect several products to a single PC. You can control several products at a time by
connecting them to a single PC.
In the Option menu, the Set ID must be between 1 and 1000 without being duplicated.
Connecting the Cable
• The image may be different according to the model.
Connect the RS-232C cable as shown in the picture.
The RS-232C protocol is used for communication between the PC and product. You can turn the product on or
off, select an input source or adjust the OSD menu from your PC.
Monitor 1 Monitor 2 Monitor 3Monitor 4
RS-232C
RS-232C
OUT
IN
RS-232C
OUT
RS-232C
IN
RS-232C
OUT
RS-232C
IN
RS-232C
OUT
RS-232C
IN
PC
PC
Monitor 1 Monitor 2 Monitor 3 Monitor 4
RS-232C Cable (not included)
4P Cable
(not included)
RS-232C Gender
RS-232C Cable
(not included)
33
Communication Parameter
Baud Rate: 9600 BPS
Data Length: 8 bit
Parity Bit: None
Stop Bit: 1 bit
Flow Control: None
Communication Code: ASCII code
NOTE
• When using three-wire connections (non-
standard), an IR daisy chain cannot be used.
• Be sure to only use the provided gender to
connect properly.
• When monitors connected via Daisy Chain (that
controls multiple monitors) are turned off and
on successively, some monitors may not turn
on. In this case, you can turn those monitors on
by pressing the MONITOR ON button, not the
POWER button.
(POWER)
MONITOR ON
ENGLISH
34
Command Reference List
ENGLISH
COMMAND
1 2
01 Powe r k a 00 to 01
02 Select input x b See Select Input
03 Aspect Ratio k c See Aspect Ratio
04 Energy Saving j q See Energy Saving
05 Picture Mode d x See Picture Mode
06 Contrast k g 00 to 64
07 Brightness k h 00 to 64
08 Sharpness k k 00 to 32
09 Color k i 00 to 64
10 Tint k j 00 to 64
11 Color temperature x u 00 to 64
12 Balance k t 00 to 64
13 Sound Mode d y See Sound Mode
14 Mute k e 00 to 01
15 Volume Control k f 00 to 64
16 Time 1 (year/month/day) f a See Time 1
17 Time 2 (hour/minute/second) f x See Time 2
18 Off time schedule f c 00 to 01
19 On Time Schedule f b 00 to 01
20 O ff Timer (Repeat/Time) f e See Off Timer
21 On Timer (Repeat/Time) f d See On Timer
22 On Timer Input f u Refer to On Timer Input.
23 No Signal Power Off (15Min) f g 00 to 01
24 Auto Power Off (4 Hours) m n 00 to 01
25 Language f i See Language
26 Reset f k 00 to 02
27 Current Temperature d n FF
28 Key m c See Key
29 Time Elapsed d l FF
30 Product Serial Number f y FF
31 Sof tware Version f z FF
32 White Balance Red Gain j m 00 to FE
33 White Balance Green Gain j n 00 to FE
34 White Balance Blue Gain j o 00 to FE
35 White Balance Red Offset s x 00 to 7F
36 White Balance Green Offset s y 00 to 7F
37 White Balance Blue Offset s z 00 to 7F
38 Backlight m g 00 to 64
39 Screen off k d 00 to 01
DATA
(Hexadecimal)
35
COMMAND
1 2
40 Tile Mode d d 00 to FF
41 Check Tile Mode d z FF
42 Tile ID d i See Tile ID
43 Natural Mode d j 00 to 01
44 DPM Select f j 00 to 07
45 Remote Control/Local Key Lock k m 00 to 01
46 Power On Delay f h 00 to FA
47 Fail Over Select m i 00 to 02
48 Fail Over Input Select m j See Fail Over Input Select
49 IR Operation t p 00 to 02
50 Local Key Operation t o 00 to 02
51 Check the status s v See Check the status
52 Check Screen t z 00 to 01
53 Speakers d v 00 to 01
54 Daylight Saving Time s d Refer to ‘Daylight Saving Time’
55 PM Mode s n, 0c 00 to 03
56 ISM Method j p See ISM Method
57 Network Settings s n, 80(81)(82) See Network Settings
58 Auto-adjustment j u 01
59 H Position f q 00 to 64
60 V Position f r 00 to 64
61 H Size f s 00 to 64
62 Power On Status t r 00 to 02
63 Wake On LAN f w 00 to 01
64 Intelligent Auto t i 00 to 01
65 OSD Portrait Mode t h 00 to 02
66 Reset to Initial Settings t n 00 to 01
67 Time Sync s n, 16 00 to 01
68 Contents Sync t g 00 to 01
69 Pivot Mode t a 00 to 01
70 Studio Mode s n, 83 00 to 01
71 LAN Daisy Chain s n, 84 00 to 01
72 Content Rotation s n, 85 00 to 02
73 DPM Wake up Control s n, 0b 00 to 01
74 Scan Inversion s n, 87 00 to 01
75 Beacon s n, 88 00 to 01
76 Aspect Ratio(Rotation) s n, 89 00 to 01
DATA
(Hexadecimal)
ENGLISH
36
ENGLISH
77 Easy Brightness Control Mode s m 00 to 01
78 Easy Brightness Control Schedule s s See Easy Brightness Control Schedule
79 MultiScreen Mode & Input x c See MultiScreen Mode & Input
80 Aspect Ratio(MultiScreen) x d See Aspect Ratio(MultiScreen)
81 Screen Mute(MultiScreen) x e See Screen Mute(MultiScreen)
82 Screen Off Always s n, 0d 00 to 01
83 Screen Video Freeze k x 00 to 01
84 Wireless Wake On LAN s n, 90 00 to 01
85 OSD Display k l 00 to 01
86 UPnP Mode s n, 9c 00 to 01
COMMAND
1 2
DATA
(Hexadecimal)
* Note: Commands may not work when the external input is not used. Some commands may not be supported
depending on the model.
37
Transmission/Reception Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
* [Command1]: identifies between the factory setting and the user setting modes.
* [Command2]: controls monitor sets.
* [Set ID]: Used for selecting a set you want to control. A unique Set ID can be assigned to each set ranging
from 1 to 1000(01H~3E8H) under Settings in the OSD menu.
Selecting '00H' for Set ID allows the simultaneous control of all connected monitors.
(The maximum value may differ depending on the model.)
* [Data]: Transmits command data.
Data count may increase depending on the command.
* [Cr]: Carriage Return. Corresponds to '0x0D' in ASCII code.
* [ ]: White Space. Corresponds to '0x20' in ASCII code.
Acknowledgement
[Command2][ ][Set ID][ ][OK/NG][Data][x]
* The Product transmits ACK (acknowledgement) based on this format when receiving normal data. At this
time, if the data is FF, it indicates the present status data. If the data is in data write mode, it returns the data of
the PC computer.
* If a command is sent with Set ID '00' (=0x00), the data is reflected to all monitor sets and each monitor set
does not send an acknowledgement (ACK).
* If the data value 'FF' is sent in control mode via RS-232C, the current setting value of a function can be
checked (only for some functions).
*Some commands are not supported depending on the model.
ENGLISH
38
01. Power (Command: k a)
ENGLISH
Controls the power on/off of the set.
Transmission
[k][a][ ][Set ID][ ][Data][Cr]
Data 00: O ff
01: On
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data][x]
*The acknowledgement signal is returned properly only when
the monitor is fully powered on.
* There may be a delay between the transmission and
acknowledgement signals.
02. Select Input (Command: x b)
Selects an input signal.
Transmission
[x][b][ ][Set ID][ ][Data][Cr]
Data 20: AV
40: COMPONENT
60: RGB
70: DVI-D (PC)
80: DVI-D (DTV )
90: HDMI1 (DTV )
A0: HDMI1 (PC)
91: HDMI2/OPS (DTV )
A1: HDMI2/OPS (PC)
92: OPS/HDMI3/DVI-D (DTV )
A2: OPS/HDMI3/DVI-D (PC)
95: OPS/DVI-D (DTV )
A5: OPS/DVI-D (PC)
96: HDMI3/DVI-D (DTV )
A6: HDMI3/DVI-D (PC)
C0: DISPLAYPORT (DTV)
D0: DISPLAYPORT (PC)
E0: SuperSign webOS Player
E1: Others
E2: Multi Screen
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
* Some input signals may not be supported depending on the
model.
** If it is not distributed from SuperSign W, webOS Player
returns NG.
03. Aspect Ratio (Command: k c)
Adjusts the aspect ratio.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Data 01: 4:3
02: 16:9
04: Zoom
06: Set by Program
09: Just Scan (720p or higher)
10 to 1F: Cinema Zoom 1 to 16
21: 58:9
30: Vertical Zoom
31: All-Direction Zoom
* Available data types differ depending on the input signal. For
more information, see the aspect ratio section of the owner’s
manual.
* The aspect ratio may differ depending on the model’s input
configuration.
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
04. Energy Saving (Command: j q)
Sets the Energy Saving.
Transmission
[j][q][ ][Set ID][ ][Data][Cr]
Data 00: O ff
01: Minimum
02: Medium
03: Maximum
04: Automatic
05: Screen off
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
** This may not be supported depending on the model.
05. Picture Mode (Command: d x)
Selects a picture mode.
Transmission
[d][x][ ][Set ID][ ][Data][Cr]
Data 00: Vivid
01: Standard
02: Cinema
03: Sports
04: Game
05: Expert 1
06: Expert 2
08: APS
09: Photos
10: Touch
11: Calibration
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data][x]
* Depending on the model, some picture modes may not be
supported.
39
06. Contrast (Command: k g)
Adjusts the screen contrast.
Transmission
[k][g][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Contrast 0 to 100
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
07. Brightness (Command: k h)
Adjusts the screen brightness.
Transmission
[k][h][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Brightness 0 to 100
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
08. Sharpness (Command: k k)
Adjusts the screen sharpness.
Transmission
[k][k][ ][Set ID][ ][Data][Cr]
Data 00 to 32: Sharpness 0 to 50
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
10. Tint (Command: k j)
Adjusts the screen tint.
Transmission
[k][j][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Tint red 50 to green 50
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
11. Color Temperature (Command: x u)
Adjusts the screen color temperature.
Transmission
[x][u][ ][Set ID][ ][Data][Cr]
Data 00 to 64: warm 50 to cool 50
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
ENGLISH
09. Color (Command: k i)
Adjusts the screen color.
Transmission
[k][i][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Color 0 to 100
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
12. Balance (Command: k t)
Adjusts the sound balance.
Transmission
[k][t][ ][Set ID][ ][Data][Cr]
Data 00 to 64: left 50 to right 50
Acknowledgement
[t][ ][Set ID][ ][OK/NG][Data][x]
40
13. Sound mode (Command: d y)
Selects a sound mode.
ENGLISH
Transmission
[d][y][ ][Set ID][ ][Data][Cr]
Data 01: Standard
02: Music
03: Cinema
04: Sports
05. Game
07: News (Clear Voice III)
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
14. Mute (Command: k e)
Mutes/unmutes the sound.
Transmission
[k][e][ ][Set ID][ ][Data][Cr]
Data 00: Mute
01: Unmute
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][x]
15. Volume Control (Command: k f )
Adjusts the playback volume.
Transmission
[k][f][ ][S et ID][ ][Data][Cr]
Data 00 to 64: Volume 0 to 100
Acknowledgement
[f][ ][S et ID][ ][OK/NG][Data][x]
2. Setting the Auto time
Data1 00: Auto
01: Manual
* To view the set value of the Auto time, enter “fa [Set ID] 00 ff”.
Acknowledgement
1. [a][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
2. [a][ ][Set ID][ ][OK/NG][0][0][Data1][x]
17. Time 2 (hour/minute/second) (Command: f x)
Adjusts the Time 2 (hour/minute/second) value.
Transmission
[f][x][ ][S et ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1 00 to 17: 00 to 23 hours
Data2 00 to 3B: 00 to 59 minutes
Data3 00 to 3B: 00 to 59 seconds
* Enter “fx [Set ID] ff” to view the Time 2 (hour/minute/second)
settings.
** This function is only available when Time 1 (year/month/
day) is set.
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
18. Off Time Schedule (Command: f c)
Enables/disables the Off Time Schedule.
Transmission
[f][c][ ][S et ID][ ][Data][Cr]
Data 00: O ff
01: On
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
16. Time 1 (year/month/day) (Command: f a)
Sets the values of the Time 1 (year/month/day), or sets the Auto
time.
Transmission
1. [f][a][ ][S et ID][ ][Data1][ ][Data2][ ][Data3][Cr]
2. [f][a][ ][S et ID][ ][0][0][ ][Data1][ ][Cr]
1. Setting the Time 1 (year/month/day)
Data1 04~1B: year 2014 to 2037
Data2 01 to 0C: January to December
Data3 01 to 1F: 1st to 31st
* Enter "fa [Set ID] ff" to view the Time 1 (year/month/day)
settings.
19. On Time Schedule (Command: f b)
Enables/disables the On Time schedule.
Transmission
[f][b][ ][Set ID][ ][Data][Cr]
Data 00: O ff
01: On
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
41
20. Off Timer (Repeat/Time) (Command: f e)
Configures Off Timer (Repeat/Time) settings.
Transmission
[f][e][ ][S et ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
1. f1h to f7h (reading data)
F1: reads the 1st Off Timer data
F2: reads the 2nd Off Timer data
F3: reads the 3rd Off Timer data
F4: reads the 4th Off Timer data
F5: reads the 5th Off Timer data
F6: reads the 6th Off Timer data
F7: reads the 7th Off Timer data
2. e1h-e7h (delete one index), e0h (delete all indexes)
E0: erases all Off Timer settings
E1: erases the 1st Off Timer setting
E2: erases the 2nd Off Timer setting
E3: erases the 3rd Off Timer setting
E4: erases the 4th Off Timer setting
E5: erases the 5th Off Timer setting
E6: erases the 6th Off Timer setting
E7: erases the 7th Off Timer setting
3. 01h to 0Ch (sets the day of the week for the Off Timer)
01: Once
02. Daily
03: Mon - Fri
04: Mon - Sat
05: Sat - Sun
06. Every Sunday
07. Every Monday
08. Every Tuesday
09. Every Wednesday
0A. Every Thursday
0B. Every Friday
0C. Every Saturday
Data2 00 to 17: 00 to 23 hours
Data3 00 to 3B: 00 to 59 minutes
* To read or delete the Off Time Schedule list, [Data2][Data3]
must be set to FFH.
Example 1: fe 01 f1 ff ff – reads the first index data in Off Timer.
Example 2: fe 01 e1 ff ff - deletes the first index data from Off
Timer.
Example 3: fe 01 04 02 03 - sets Off Timer to 02:03 from Monday
to Saturday.
* This function is only available when Time 1 (year/month/day)
and Time 2 (hour/minute/second) are set.
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
21. On timer (Repeat/Time) (Command: f d)
Configures On Timer (Repeat/Time) settings.
Transmission
[f][d][ ][S et ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
1. f1h to f7h (reading data)
F1: reads the 1st On Timer data
F2: reads the 2nd On Timer data
F3: reads the 3rd On Timer data
F4: reads the 4th On Timer data
F5: reads the 5th On Timer data
F6: reads the 6th On Timer data
F7: reads the 7th On Timer data
2. e1h-e7h (delete one index), e0h (delete all indexes)
E0: erases all On Timer settings
E1: erases the 1st On Timer setting
E2: erases the 2nd On Timer setting
E3: erases the 3rd On Timer setting
E4: erases the 4th On Timer setting
E5: erases the 5th On Timer setting
E6: erases the 6th On Timer setting
E7: erases the 7th On Timer setting
3. 01h to 0Ch (sets the day of the week for the On Timer)
01: Once
02. Daily
03: Mon - Fri
04: Mon - Sat
05: Sat - Sun
06. Every Sunday
07. Every Monday
08. Every Tuesday
09. Every Wednesday
0A. Every Thursday
0B. Every Friday
0C. Every Saturday
Data2 00 to 17: 00 to 23 hours
Data3 00 to 3B: 00 to 59 minutes
* To read or delete an On Time schedule list, [Data2][Data3]
must be set to FF.
Example 1: fd 01 f1 ff ff - reads the first index data from On
Timer.
Example 2: fd 01 e1 ff ff - deletes the first index data from On
Timer.
Example 3: fd 01 04 02 03 - sets On Timer to 02:03 from Monday
to Saturday.
* This function is only available when Time 1 (year/month/day)
and Time 2 (hour/minute/second) are set.
*** This feature works properly only when the values for 22.
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
ENGLISH
42
22. On Timer Input (Command: f u)
Select an external input for the current On Time setting and add
ENGLISH
a new schedule.
Transmission
[f][u][ ][S et ID][ ][Data1][Cr]
[f][u][ ][S et ID][ ][Data1][][Data2][Cr]
Data (Add schedule)
40: COMPONENT
60: RGB
70: DVI-D
A0: HDMI1
A1: HDMI2/OPS
A2: OPS/HDMI3/DVI-D
A5: OPS/DVI-D
A6: HDMI3/DVI-D
D0: DISPLAYPORT
Data1 (Read schedule)
1. f1h to f7h (Read data)
F1: Select the 1st schedule input
F2: Select the 2nd schedule input
F3: Select the 3rd schedule input
F4: Select the 4th schedule input
F5: Select the 5th schedule input
F6: Select the 6th schedule input
F7: Select the 7th schedule input
Data2 (Read schedule)
FF
* To read the schedule input, enter FF for [Data2].
If no schedule is available for [Data1] when attempting to
read the schedule data, the text ‘NG’ will be displayed and the
operation will fail.
(Example 1: fu 01 90 - Move each schedule input down one row
and save the 1st schedule input in HDMI mode.)
(Example 2: fu 01 f1 ff - Read the 1st schedule input.)
* This function is supported only when 1 (Year/Month/Day), 2
(Hour/Minute/Second), On Time (Repeat Mode/Time) are set.
** When in DTV input mode, the input is switched to PC mode.
** It may not be supported depending on the model.
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
[u][ ][Set ID][ ][OK/NG][Data1][Data2][x]
23. No Signal Power Off (15Min) (Command: f g)
Sets the monitor to enter Automatic Standby mode if there is
no signal for 15 minutes.
Transmission
[f][g][ ][S et ID][ ][Data][Cr]
Data 00: O ff
01: On
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
24. Auto Power Off (4 Hours) (Command: m n)
Sets the monitor to enter Auto Power Off after 4 hours.
Transmission
[m][n][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: 4 hours
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
25. Language (Command: f i)
Sets the OSD language.
Transmission
[f][i][ ][S et ID][ ][Data][Cr]
Data 00: Czech
01: Danish
02: German
03: English
04: Spanish (Europe)
05: Greek
06: French
07: Italian
08: Dutch
09: Norwegian
0A: Portuguese
0B: Portuguese (Brazil)
0C: Russian
0D: Finnish
0E: Swedish
0F: Korean
10: Chinese (Mandarin)
11: Japanese
12: Chinese (Cantonese)
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
43
26. Reset (Command: f k)
Performs the reset function.
Screen Reset can only be performed in RGB input mode.
Transmission
[f][k][ ][S et ID][ ][Data][Cr]
Data 00: Picture Reset
01: Screen reset
02: Initial Settings
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
** It may not be supported depending on the model.
27. Current temperature (Command: d n)
Checks the inside temperature.
Transmission
[d][n][ ][Set ID][ ][Data][Cr]
Data FF: Check the status
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
* Temperature is displayed as a hexadecimal value.
29. Time Elapsed (Command: d l)
Checks the elapsed time.
Transmission
[d][l][ ][Set ID][ ][Data][Cr]
Data FF: Read status
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
* The data received is shown as a hexadecimal value.
30. Product serial number (Command: f y)
Checks the serial number of the product.
Transmission
[f][y][ ][S et ID][ ][Data][Cr]
Data FF: Check product serial number
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
* Data is in ASCII code.
ENGLISH
28. Key (Command: m c)
Sends a key code for the IR remote control.
Transmission
[m][c][ ][Set ID][ ][Data][Cr]
Data IR_KEY_CODE
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
For key codes, see IR Codes.
* Some key codes are not supported depending on the model.
31. Software Version (Command: f z)
Checks the software version of the product.
Transmission
[f][z][ ][S et ID][ ][Data][Cr]
Data FF: Check soft ware version
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
44
32. White balance red gain (Command: j m)
Adjusts the white balance red gain value.
ENGLISH
Tran smission
[j][m][ ][Set ID][ ][Data][Cr]
Data 00 to FE: Red Gain 0 to 254
FF: checks the red gain value
Acknowledgement
[m][ ][Set ID][ ][OK/NG][Data][x]
33. White Balance Green Gain (Command: j n)
Adjusts the white balance green gain value.
Transmission
[j][n][ ][Set ID][ ][Data][Cr]
Data 00 to FE: Green Gain 0 to 254
FF: checks the green gain value
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
35. White Balance Red Offset (Command: s x)
Adjusts the white balance red offset value.
Transmission
[s][x][ ][Set ID][ ][Data][Cr]
Data 00 to 7F: Red Offset 0 to 127
FF: checks the red offset value
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data][x]
36. White Balance Green Offset (Command: s y)
Adjusts the white balance green offset value.
Transmission
[s][y][ ][Set ID][ ][Data][Cr]
Data 00 to 7F: Green Offset 0 to 127
FF: checks the green offset value
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
34. White Balance Blue Gain (Command: j o)
Adjusts the white balance blue gain value.
Transmission
[j][o][ ][Set ID][ ][Data][Cr]
Data 00 to FE: Blue Gain 0 to 254
FF: checks the blue gain value
Acknowledgement
[o][ ][Set ID][ ][OK/NG][Data][x]
37. White Balance Blue Offset (Command: s z)
Adjusts the white balance blue offset value.
Transmission
[s][z][ ][Set ID][ ][Data][Cr]
Data 00 to 7F: Blue Offset 0 to 127
FF: checks the blue offset value
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
45
38. Backlight (Command: m g)
Adjusts the backlight brightness.
Transmission
[m][g][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Backlight 0 to 100
Acknowledgement
[g][][set ID][][OK/NG][Data][x]
39. Screen Off (Command: k d)
Turns the screen on or off.
Transmission
[k][d][ ][Set ID][ ][Data][Cr]
Data 00: turns the screen on
01: turns the screen off
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data][x]
41. Check Tile Mode (Command: d z)
Checks the tile mode.
Transmission
[d][z][ ][Set ID][ ][Data][Cr]
Data FF: checks the tile mode
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
Data1 00: tile mode off
01: tile mode on
Data2 00 to 0F: tile column
Data3 00 to 0F: tile row
42. Tile ID (Command: d i)
Sets the tile ID value of the product.
Transmission
[d][i][ ][Set ID][ ][Data][Cr]
Data 01 to E1: Tile ID 1 to 225**
FF: checks the tile ID
** The data value cannot exceed the value of row x column.
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
* When a data value that exceeds the value of row x column
is entered (except 0xFF),
ACK becomes NG.
ENGLISH
40. Tile Mode (Command: d d)
Sets the Tile Mode and sets values for the tile rows and
columns.
Transmission
[d][d][ ][Set ID][ ][Data][Cr]
Data 00 to FF: The first byte - tile column
The second byte - tile row
* 00, 01, 10, and 11 mean that the tile mode is off
** The maximum value may differ depending on the model.
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data][x]
43. Natural Mode (in Tile mode) (Command: d j)
When displaying the image naturally, the part of the image
that would normally be displayed in the gap between the
monitors is omitted.
Transmission
[d][j][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
46
44. DPM Select (Command: f j)
To set the DPM (Display Power Management) function.
ENGLISH
Transmission
[f][ j][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: 5 seconds
02: 10 seconds
03: 15 seconds
04: 1 minutes
05: 3 minutes
06: 5 minutes
07: 10 minutes
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
45. Remote Control/Local Key Lock (Command: k m)
Adjusts the remote control/local key (front) lock.
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Data 00: Off (Lock Off )
01: On (Lock On)
* When the monitor is turned off, the power key works even
in On (01) mode.
Acknowledgement
[m][ ][Set ID][ ][OK/NG][Data][x]
46. Power On Delay (Command: f h)
Sets the schedule delay when the power turns on. (unit:
seconds).
Transmission
[f][h][ ][S et ID][ ][Data][Cr]
Data 00 to FA: min. 0 to maximum 250 (seconds)
* The maximum value may differ depending on the model.
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x
47. Fail Over Select (Command: m i)
Selects an input mode for auto switch.
Transmission
[m][i][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: Auto
02: Manual
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
48. Fail Over Input Select (Command: m j)
Selects an input source for auto switch.
* This command is only available when the Fail O ver (auto)
mode is set to Custom.
Transmission
[m][j][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][ ]
[Data4]...[ ][DataN][Cr]
Data 1 to N-1 (Input priority: 1 to N-1)
40: COMPONENT
60: RGB
70: DVI-D
90: HDMI1
91: HDMI2/OPS
92: OPS/HDMI3/DVI-D
95: OPS/DVI-D
96: HDMI3/DVI-D
C0: DISPLAYPORT
Data N: E0: INTERNAL Memory
E1: USB
E2: SD CARD
Acknowledgement
[j][ ][SetID][ ][OK/NG][Data1][Data2][Data3][Data4]
...[DataN] [x
Data 1 to N-1 (Input priority: 1 to N-1)
40: COMPONENT
60: RGB
70: DVI-D
90: HDMI1
91: HDMI2/OPS
92: OPS/HDMI3/DVI-D
95: OPS/DVI-D
96: HDMI3/DVI-D
C0: DISPLAYPORT
Data N: E0: INTERNAL Memory
E1: USB
E2: SD CARD
* Some input signals may not be available with certain
** The data number (N) may vary depending on the model.
(The data number depends on the number of supported
input signals.)
*** Only the value of E0, E1, or E2 is acceptable for the last
data.
]
models.
47
49. IR Operation (Command: t p)
Configures the IR operation settings of the product.
Transmission
[t][p][ ][Set ID][ ][Data][Cr]
Data 00: locks off all of the keys
01: locks on all of the keys except the Power key
02: locks on all of the keys
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data][x]
* When the monitor is turned off, the power key works even
in the locks on all of the keys (02) mode.
50. Local Key Operation (Command: t o)
Configures the local key operation settings of the product.
Transmission
[t][o][ ][Set ID][ ][Data][Cr]
Data 00: locks off all of the keys
01: locks on all of the keys except the Power key
02: locks on all of the keys
Acknowledgement
[o][ ][Set ID][ ][OK/NG][Data][x]
* When the monitor is turned off, the power key works even
in the locks on all of the keys (02) mode.
** It may not be supported depending on the model.
52. Check Screen (Command: t z)
Sets Check Screen.
Transmission
[t][z][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
** It may not be supported depending on the model.
53. Speaker (Command: d v)
Sets the speaker function.
Transmission
[d][v][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[v][ ][Set ID][ ][OK/NG][Data][x]
** It may not be supported depending on the model.
ENGLISH
51. Status (Command: s v)
Checks the current signal status of the product.
Transmission
[s][v][ ][Set ID][ ][Data][ ][FF][Cr]
Data 02: checks whether there is a signal or not
03: check the PM mode.
10: RGB sensing OK/NG (Check Screen)
Acknowledgement
[v][ ][Set ID][ ][OK/NG][Data][Data1][x]
Data: 02 (when a signal is found)
Data1 00: no signal
01: there is a signal
Data: 03 (when checking the PM mode)
Data1 00: The PM mode is set to Screen On
01: The PM mode is set to Screen Off
02: The PM mode is set to Screen Off Always
Data: 10 (Check Screen)
Data1 00: Check Screen result NG
07: Check Screen result OK
* Sets to NG when Check Screen is set to Off or not supported.
** It may not be supported depending on the model.
54. Daylight Saving Time (Command: s d)
To set theDaylight Saving Time function.
Transmission
[s][d][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][ ][Data4]
[ ][Data5][Cr]
Data 00: Off (Data2~5: FFH)
01: Start Time
02: End Time
Data2 01~0C: January to December
Data3 01~06: 1 ~ 6th week
* The maximum number of [Data3] differs depending on
Date.
Data4 00~06 ( Sun. ~ Sat. )
Data5 00~17: 00 ~ 23 hours
* To read the Star t Time/End Time, enter FFH for
[Data2]~[Data5].
(ex1: sd 01 01 ff ff ff ff - To check the Star t Time
ex2: sd 01 02 ff ff ff ff - To check the End Time)
* This function is supported only when 1 (Year/Month/ Day)
and 2 (Hour/Minute/Second) are set.
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][Data4]
[Data5][x]
** It may not be supported depending on the model.
48
55. PM Mode (Command: s n, 0c)
ENGLISH
Selects the desired PM mode option.
Transmission
[s][n][ ][Set ID][ ][0c][ ][Data][Cr]
Data 00: Sets the Power Off mode.
01: Sets the Sustain Aspect Ratio mode.
02: Sets the Screen Off mode.
03: Sets the Screen Off Always mode.
Acknowledgement
[n][ ][Set ID][ ][OK/NG][0c][Data][x]
* It may not be supported depending on the model.
56. ISM Method (Command: j p)
Selects the ISM Method option.
Transmission
[j][p][ ][Set ID][ ][Data][Cr]
Data 01: I nversion
02: Orbiter
04: White Wash
08: Normal
20: Color Wash
80: Washing Bar
90: User Image
91: User Video
** The jp command works when Timer is set to Immediately.
Acknowledgement
[p][ ][Set ID][ ][OK/NG][Data][x]
* It may not be supported depending on the model.
57. Network Settings (Command: s n, 80 or 81 or 82)
Configures network and DNS settings.
Transmission
[s][n][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][ ][Data4][ ]
[Data5][Cr]
Data1 80: Configures/views the temporary IP mode
81: Configures/views the temporary DNS address.
82: Saves temporary settings and views
* If Data1 is 80,
Data2 00: Auto
01: Manual
FF: Views the temporary IP mode (Auto/Manual),
** If Data2 is 01 (Manual),
Data3 : Manual IP address
Data4 : Subnet mask address
Data5 : Gateway address
(Auto/Manual), subnet mask, and gateway.
information about the current network.
subnet mask, and gateway.
* If Data1 is 81,
Data2 : DNS address
FF: Views the temporary DNS address.
* If Data1 is 82,
Data2 80: Applies the temporarily saved IP mode (Auto/
81: Applies the temporary DNS address
FF: Information on the current network (IP, subnet
*** Examples of settings
1. Auto: sn 01 80 00
2. Manual: sn 01 80 01 010177223241 255255254000
3. Network read: sn 01 80 ff
4. DNS setting: sn 01 81 156147035018
5. Applying the settings: sn 01 82 80 (applies the saved IP
**** Each IP address contains 12 decimal digits .
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data1][Data][x]
* It may not be supported depending on the model.
** This feature is available only for wired net works.
58. Auto-adjustment (Command: j u)
Automatically corrects the position and shaking of the picture.
(Works only in RGB-PC input mode.)
Transmission
[j][u][ ][Set ID][ ][Data][Cr]
Data 01: Execution
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x
* It may not be supported depending on the model.
59. H Position (Command: f q)
Adjusts the horizontal position of the screen. This feature only
works when the Tile Mode is set to Off.
* The operational range varies depending on the RGB input
resolution. (Works only in RGB-PC input mode.)
Transmission
[f][q][ ][S et ID][ ][Data][Cr]
Data 00-64: M in -50 (Lef t) to Max 50 (Right)
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
* It may not be supported depending on the model.
Manual), subnet mask, and gateway.
gateway, DNS)
010177222001 (IP: 10.177.223.241, subnet:
255.255.254.0,
gateway: 10.177.222.1)
(DNS: 156.147.35.18)
mode (auto/manual), subnet mask,
and gateway)
sn 01 82 81 (applies the saved
DSN)
]
49
60. V Position (Command: f r)
Adjusts the vertical position of the screen. This feature only
works when the Tile Mode is set to Off.
* The operational range varies depending on the RGB input
resolution. (Works only in RGB-PC input mode.)
Transmission
[f][r][ ][S et ID][ ][Data][Cr]
Data 00-64: M in -50 (Down) to Max 50 (Up)
Acknowledgement
[r][ ][Set ID][ ][OK/NG][Data][x]
* It may not be supported depending on the model.
61. H Size (Command: f s)
Adjusts the horizontal size of the screen. This feature only works
when the Tile Mode is set to Off.
* The operational range varies depending on the RGB input
resolution. (Works only in RGB-PC input mode.)
Transmission
[f][s][ ][S et ID][ ][Data][Cr]
Data 00-64: M in -50 (Small) to Max 50 (Large)
Acknowledgement
[s][ ][Set ID][ ][OK/NG][Data][x]
* It may not be supported depending on the model.
62. Power On Status (Command: t r)
Selects the desired Power On status option.
Transmission
[t][r][ ][Set ID][ ][Data][Cr]
Data 00: LST (Stays in the previous status)
01: STD (Stays powered off )
02: PWR (Stays powered on)
Acknowledgement
[r][ ][Set ID][ ][OK/NG][Data][x]
63. Wake On LAN (Command: f w)
Selects the desired Wake On LAN option.
Transmission
[f][w][ ][S et ID][ ][Data][Cr]
Data 00: O ff
01: On
Acknowledgement
[w][ ][Set ID][ ][OK/NG][Data][x]
64. Intelligent Auto (Command: t i)
Selects the desired Intelligent Auto option.
Transmission
[t][i][ ][Set ID][ ][Data][Cr]
Data 00: O ff
01: On
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
* It may not be supported depending on the model.
65. OSD Portrait Mode (Command: t h)
Selects the desired Portrait mode option.
Transmission
[t][h][ ][Set ID][ ][Data] [Cr]
Data 00: O ff
01: 90 degrees
02: 270 degrees
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data] [x]
* It may not be supported depending on the model.
ENGLISH
50
66. Reset to Initial Settings (Command: t n)
ENGLISH
Enables/disables the Reset to Initial settings.
Transmission
[t][n][ ][Set ID][ ][Data] [Cr]
Data 00: Disables the settings.
01: Enables the settings.
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data] [x]
* It may not be supported depending on the model.
67. Time Sync (Command: s n, 16)
Configures the Time Sync.
Transmission
[s][n][ ][Set ID][ ][1][6][ ][Data][Cr]
Data 00: O ff
01: On
* This feature works in the Master mode.
** This feature does not work if the current time is not set.
Acknowledgement
[n][ ][Set ID][ ][OK/NG][ ][1][6][ ][Data][x]
* It may not be supported depending on the model.
68. Contents Sync (Command: t g)
Configures the Contents Sync.
Transmission
[t][g][ ][Set ID][ ][Data][Cr]
Data 00: O ff
01: On
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
* It may not be supported depending on the model.
69. Pivot Mode (Command: t a)
Sets Pivot Mode to on/off.
Transmission
[t][a][ ][Set ID][ ][Data][Cr
Data 00: O ff
01: On
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data][x]
* This feature may not be supported in certain models.
70. Studio Mode (Command: s n, 83)
Sets Studio Mode to on/off.
Transmission
[s][n][ ][Set ID][ ][8][3][ ][Data][Cr]
Data 00: O ff
01: On
Acknowledgemen
[n][ ][Set ID][ ][OK/NG][8][3][Data][x]
* This feature may not be supported in certain models.
71. LAN Daisy Chain (Command: s n, 84)
Sets LAN Daisy Chain to on/off.
Transmission
[s][n][ ][Set ID][ ][8][4][ ][Data][Cr]
Data 00: O ff
01: On
Acknowledgement
[n][ ][Set ID][ ][OK/NG][8][4][Data][x]
* This feature may not be supported in certain models.
]
t
72. Content Rotation (Command: s n, 85)
Sets Content Rotation to on/off.
Transmission
[s][n][ ][Set ID][ ][8][5][ ][Data][Cr]
Data 00: O ff
01: 90 degrees
02: 270 degrees
03: 180 degrees
Acknowledgement
[n][ ][Set ID][ ][OK/NG][8][5][Data][x]
* This feature may not be supported in certain models.
51
73. DPM Wake up Control (Command: s n, 0b)
Sets the DPM Wake up Control Mode.
Transmission
[s][n][ ][Set ID][ ][0][b][ ][Data][Cr]
Data 00: Clock
01: Clock+DATA
Acknowledgement
[n][ ][Set ID][ ][OK/NG][0][b][Data][x]
* This feature may not be supported in certain models.
74. Scan Inversion (Command: s n, 87)
Sets Scan Inversion to on/off.
Transmission
[s][n][ ][Set ID][ ][8][7][ ][Data][Cr]
Data 00: O ff
01: On
Acknowledgement
[n][ ][Set ID][ ][OK/NG][8][7][Data][x]
* This feature may not be supported in certain models.
75. Beacon (Command: s n, 88)
Sets Beacon to on/off.
Transmission
[s][n][ ][Set ID][ ][8][8][ ][Data][Cr]
Data 00: O ff
01: On
Acknowledgement
[n][ ][Set ID][ ][OK/NG][8][8][Data][x]
* This feature may not be supported in certain models.
77. Easy Brightness Control Mode (Command: s m)
Selects whether to turn on/off Easy Brightness Control Mode.
Transmission
[s][m][ ][Set ID][ ][Data][Cr]
Data 00: Easy Brightness Control off
01: Easy Brightness Control on
* This feature does not work if the current time is not set.
** This may not be supported on some models.
Acknowledgement
[m][ ][Set ID][ ][OK/NG][Data][x]
ENGLISH
76. Aspect Ratio (Rotation) (Command: s n, 89)
Controls the Aspect Ratio (Rotation) screen.
(This command works only when Content Rotation is on.)
Transmission
[s][n][ ][Set ID][ ][8][9][ ][Data][Cr]
Data 00: Full
01: Original
Acknowledgement
[n][ ][Set ID][ ][OK/NG][8][9][Data][x]
* This feature may not be supported in certain models.
52
78. Easy Brightness Control Schedule (Command: s s)
ENGLISH
Sets Easy Brightness Control schedules.
Transmission
[s][s][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
1. F1–F6 (reads data)
F1: Reads the 1st data from the Easy Brightness Control
F2: Reads the 2nd data from the Easy Brightness Control
F3: Reads the 3nd data from the Easy Brightness Control
F4: Reads the 4th data from the Easy Brightness Control
F5: Reads the 5th data from the Easy Brightness Control
F6: Reads the 6th data from the Easy Brightness Control
2. FF: Reads all stored lists
3. e1-e6 (deletes one index); e0 (deletes all indexes)
E0: Deletes all Easy Brightness Control.
E1: Deletes the 1st Easy Brightness Control.
E2: Deletes the 2nd Easy Brightness Control.
E3: Deletes the 3rd Easy Brightness Control.
E4: Deletes the 4th Easy Brightness Control.
E5: Deletes the 5th Easy Brightness Control.
E6: Deletes the 6th Easy Brightness Control.
4. 00 to 17: 00th to 23th hour
Data2 00 to 3B: 00th to 59th minute
Data3 00 to 64: Backlight, 0 to 100
* If you want to read or delete the configured Easy Brightness
Control lists, set [Data2][Data3] to FF.
* If you want to import all the configured Easy Brightness
Control lists through FF, do not enter any values in [Data2]
[Data3].
* When all the configured Easy Brightness Control lists are
imported through FF, OK is acknowledged even if there is
no stored list.
Example 1: ss 01 f1 ff ff - Reads the first index data from the Easy
Brightness Control.
Example 2: ss 01 ff - Reads all index data from the Easy
Brightness Control.
Example 3: ss 01 e1 ff ff - Deletes the first index data from the
Easy Brightness Control.
Example 4: ss 01 07 1E 46 - Adds a schedule whose time is 07:30
and whose backlight is 70.
Acknowledgement
[s][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
* This feature may not be supported in certain models.
79. MultiScreen Mode & Input (Command: x c)
Saves or controls the MultiScreen Mode and input.
Transmission
[x][c][ ][Set ID][ ][Data1][ ][Data2][ ][Data3[ ][Data4]
[ ][Data5[ ]Cr]
Data1 (sets the MultiScreen Mode)
10: PIP
22: PBP2
23: PBP3
24: PBP4
Data2 (sets the MultiScreen Main Input)
Data3 (sets the MultiScreen Sub1 Input)
Data4 (sets the MultiScreen Sub2 Input)
Data5 (sets the MultiScreen Sub3 Input)
20: AV
40: COMPONENT
60: RGB
80: DVI-D
90: HDMI1
91: HDMI2/OPS
92: OPS/HDMI3/DVI-D
95: OPS/DVI-D
96: HDMI3/DVI-D
C0: DISPLAYPORT
Acknowledgement
[c][ ][Set ID][ ][OK/NG][ ][Data1][Data2][Data3]
[Data4] [Data5][x]
* This feature may not be supported in certain models.
** Only the input modes supported by the model works.
80. Aspect Ratio (MultiScreen) (Command: x d)
Saves or controls the Aspect Ratio (MultiScreen) screen.
Transmission
[x][d][ ][Set ID][ ][Data1][ ][Data2][Cr]
Data1 01: Controls the Main input
02: Controls the Sub1 input
03: Controls the Sub2 input
04: Controls the Sub3 input
Data2 00: Full
01: Original
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data1][Data2][x]
* This feature may not be supported in certain models.
53
81. Screen Mute (MultiScreen) (Command: x e)
Turns on/off each screen in MultiScreen.
Transmission
[x][e][ ][Set ID][ ][Data1][ ][Data2][Cr]
Data1 01: Controls the Main input
02: Controls the Sub1 input
03: Controls the Sub2 input
04: Controls the Sub3 input
Data2 00: Turns the screen on.
01: Turns the screen off.
* This function works when the Multi Screen App is running.
** This function may not work properly if there is no signal.
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data1][Data2][x]
* This feature may not be supported in certain models.
82. Screen Off Always (Command: s n, 0d)
Screen Off Always has the same effect as entering the Screen
Off menu regardless of the PM Mode setting.
Transmission
[s][n][ ][Set ID][ ][0][d][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[n][ ][Set ID][ ][OK/NG][0][d][Data][x]
* This feature may not be supported in certain models.
83. Screen Video Freeze (Command: k x)
Turns on/off the video freeze function.
Transmission
[k][x][ ][Set ID][ ][Data][Cr]
Data 00: Turns on the freeze function.
01: Turns off the freeze function.
* Available in single input mode.
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data][x]
* This feature may not be supported in certain models.
84. Wireless Wake-on-LAN (Command: s n, 90)
Sets Wireless Wake-on-LAN.
Transmission
[s][n][ ][Set ID][ ][9][0][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[n][ ][Set ID][ ][OK/NG][9][0][Data][x]
* This feature may not be supported in certain models.
85. OSD Display (Command: k l)
Selects the desired OSD Display option.
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Data 00: No (Off)
01: Yes (On)
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
* This feature may not be supported for certain models.
86. UPnP Mode (Command: s n, 9c)
Selects the desired UPnP mode option.
Transmission
[s][n][ ][Set ID][ ][9][c][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[n][ ][Set ID][ ][OK/NG][9][c][Data][x]
* This feature may not be supported for certain models.
* If UPnP Mode is changed, a reboot will occur.
ENGLISH
INSTALLATION MANUAL
LG Digital
Signage
(MONITOR SIGNAGE)
Please read this manual carefully before operating your set and retain it
for future reference.
webOS 2.0
www.lg.com
2
TABLE OF CONTENTS
ENGLISH
ACCESSING
INSTALLATION MENU ..................4
INSTALLATION MENU ..................5
- Signage Setup Menu ....................................................... 5
Power On Status
IR Operation
Local Key Operation
Wake On LAN
LAN Daisy Chain
No Signal Power Off (15 Min)
Auto Power Off
Beacon
DPM
DPM Wakeup Control
Baudrate (9600/115200)
OSD Portrait Mode (Off, 90, 270)
Power On Delay (0 ~ 250)
Check Screen
Digital Audio Input
Speaker
USB Auto Playback
Set ID
PM Mode
Interface Selection
OPS Power Control, OPS/PC Power Control
Master/Slave Mode
Sync Mode
Content Rotation
Aspect Ratio(Rotation)
Intelligent Auto
Studio Mode
Pivot Mode
Scan Inversion
White Balance
Applications
Crestron
Factory Reset
Status Message
SIMPLINK Setup
Multi-screen Resolution
Guide to Using Content Rotation/Pivot Mode/
Scan Inversion
- USB Cloning Menu ........................................................ 16
Send To USB
Receive From USB
Logo Image Download
3
ENGLISH
- Password Change Menu ............................................16
- Tile Mode Menu .............................................................. 17
Row (1-15)
Column (1-15)
Tile ID (1-225)
Natural
Reset
- Fail Over Menu ................................................................19
Off
Auto
Manual
- ISM Method Menu ........................................................ 20
Mode
Repeat
Wait
Duration
Action Cycle
Bar Image
Bar Color
Transparency
Direction
Bar Image Download
User Image Download
User Video Download
* How to reset or delete downloaded bar
images/user images/user videos
- Server Menu .....................................................................23
Set Automatically
Server IP
Server Status
Link Server IP
Link Server Port
Link Server Status
- Lock Mode Menu ........................................................... 24
USB
OSD
Reset to Initial Settings
WiFi
4
ACCESSING INSTALLATION MENU
ENGLISH
1 Press and hold the SETTINGS button for 5 seconds.
2 When Input ID (The top right corner ) is displayed, enter your password.
(The default value is 0, 0, 0, 0 • )
3 When the Installation Menu is displayed, select the desired option.
- Signage Setup
- USB Cloning
- Password Change
- Tile Mode
- Fail Over
- ISM Method
- Server
- Lock Mode
NOTE
• Images in the manual may look different from the actual product.
5
INSTALLATION MENU
NOTE
• Some features described in the Installation manual may not be supported in certain models.
Signage Setup Menu
Use this menu to configure the digital signage after installation.
Power On Status
• You can select the operating status of the monitor when the main power is switched on.
• You can select from among PWR, STD, and LST.
• PWR sets the status of the monitor to On whenever the main power is switched on.
• STD sets the status of the monitor to Standby when the main power is switched on.
• LST sets the status of the monitor back to its previous status.
IR Operation
• If you set IR Operation to Normal, you can use the remote control.
• If you set IR Operation to Power Key Only, you can only use the Power Key.
• If you set IR Operation to Block All, you cannot use the remote control. (Power On feature is available.)
Local Key Operation
• If you set Local Key Operation to Normal, you can use the Local Key.
• If you set Local Key Operation to Power Key Only, you can only use the Power Key.
• If you set Local Key Operation to Block All, you cannot use the Local Key. (Power On feature is available.)
ENGLISH
Wake On LAN
• You can set whether to use the Wake On LAN feature.
• You can set this option to On or Off.
• If you set this option to On, the Wake On LAN feature is enabled and you can turn on the product remotely via LAN.
• If you set this option to Off, the Wake On LAN feature is disabled.
LAN Daisy Chain
• LAN Daisy Chain forms a daisy chain of LAN ports so that even if you connect only one monitor set to a network, the
other sets in the daisy are connected to the network.
• The first set in the daisy chain must be connected to a network through a port that is not being used for the daisy
chain.
6
No Signal Power Off (15 Min)
ENGLISH
• You can choose whether to use the 15 Min Force Off feature.
• You can set this option to On or Off.
• If you set this option to On, the product turns off when it has remained in No Signal status for 15 minutes.
• If you set this option to Off, the 15 Min Force Off feature is disabled.
• Set this option to Off when you use the product for a long period of time.
Auto Power Off
• You can choose whether to use the 4 Hours Off feature.
• You can set this option to 4 Hours or Off.
• If you set this option to 4 Hours, the product turns off when you have not pressed any buttons on the remote control
for 4 hours.
• If you set this option to Off, the 4 Hours Off feature becomes disabled.
• Set this option to Off when you use the product for a long period of time.
Beacon
• Enables BLE Beacon, one of Bluetooth 4.0's features.
• Beacon Mode (on/off toggle): Enables the Beacon feature.
• Beacon UUID (hex): Sets the universally unique identifier (UUID) that will be used for Beacon. A UUID consists of 32
digits, and each digit has a hexadecimal value (0–FF) converted from a decimal number ranging from 0 to 255.
• Major (0–65535): Sets the main category value that matches the UUID.
• Minor (0–65535): Sets the subcategory value that matches the Major value.
• OK: Confirmation button to apply the four values above once they are set.
• Some models do not support background scanning services in iOS.
DPM
• You can configure the DPM (Display Power Management) function.
• Off: you can set this option to Off, 5 sec./10 sec./15 sec./1 min./3 min./5 min./10 min.
• If this option is not set to Off, the monitor set enters the DPM mode when there is no input signal.
• If you set this option to Off, the DPM function is disabled.
• In the cases below, 5 sec. and 10 sec. options will be disabled for DPM. If DPM is already set to 5 sec. or 10 sec., it
will be changed to 15 sec.
- When USB Auto Playback is set to Photo or Movie
- When Fail Over is set to Auto or Manual
• If you set this option to 10 sec. or less, the monitor set enters the DPM mode before automatic play of SuperSign
contents.
7
DPM Wakeup Control
• Turns on the monitor set according to the digital signal processing of the connected DVI/HDMI port.
• Setting this option to Clock only checks for the signals from the digital clock. If there is a clock signal, the monitor set
is turned on.
• Setting this option to Clock+DATA turns on the monitor set only when there are both digital clock signal and data
signal inputs.
Baudrate (9600/115200)
• You can change the RS-232 communication speed for controlling your monitor.
• You can choose 9600 or 115200.
• If you set this option to 9600, the RS-232 communication speed is set at 9600 bps.
• If you set this option to 115200, the RS-232 communication speed is set at 115200 bps.
OSD Portrait Mode (Off, 90, 270)
• This feature allows you to rotate the OSD clockwise.
• You can set this feature to Off/90/270.
• If you set this feature to Off, the feature is disabled.
• If you set this feature to 90, the OSD rotates 90 degrees clockwise. In this case, the mouse cannot be used.
• If you set this feature to 270, the OSD rotates 270 degrees clockwise. In this case, the mouse cannot be used.
• Depending on the model, you can set this feature to Off/On. If you set this feature to On, the OSD rotates 90 degrees
clockwise.
• The set must be restarted for the changed settings to be applied in some models.
Power On Delay (0 ~ 250)
• This feature delays power on in order to prevent overload when multiple monitor sets are turned on simultaneously.
• You can set the delay interval in the range of 0 to 250 seconds.
ENGLISH
Check Screen
• The Check Screen feature judges whether there are abnormalities at the edges of the screen. R, G, and B OSDs are
formed on the screen at one second intervals and an RGB Sensor tests the areas.
• If set to On, the Check Screen feature is enabled.
• If set to Off, the Check Screen feature is disabled.
• If Portrait mode or Pivot mode is set to On, Check Screen is changed to Off and disabled.
Digital Audio Input
• HDMI/DISPLAYPORT/OPS: You can hear the sounds of the digital signals carried by HDMI, DISPLAYPORT, or OPS
through the monitor speakers.
• Audio In: you can hear sounds through the monitor speaker by connecting HDMI, or OPS or DISPLAYPORT ports to
the Audio In port.
• If Digital is selected in DVI-D when using OPS/HDMI3/DVI-D or OPS/DVI-D input, there will be no sound.
• Models that do not support internal speakers require external speakers.
8
Speaker
ENGLISH
• If you set this option to On, you can hear sounds through the monitor speaker. (* The monitor speaker is sold
separately.)
• If you set this option to Off, you cannot hear sounds through the monitor speaker.
USB Auto Playback
• This is a feature that auto-playbacks photos and videos when a USB device is connected. You can view photos and
videos without manually selecting the View Photos/Movies menu. However, this feature is unavailable while the
SuperSign contents are played.
• If you select Movie for USB Auto Playback, then the video files in the top level folder on the USB device will
automatically play in sequence. When switched on, Signage automatically searches and plays video files from a USB.
• If you select Photo for USB Auto Playback, then the image files in the top level folder on the USB device will
automatically play in sequence. When switched on, Signage automatically searches and plays photos from a USB.
Set ID
• Set ID (1 ~ 1000) : When several products are connected for display, you can assign a unique Set ID No. to each
product. Assign numbers ranging from 1 to 1000 and exit the option. You can control each product separately by
using the Set ID you assigned to each product.
• Auto Set ID : Automatically assigns a unique set ID number to each set when several products are connected for
display.
• Reset Set ID :You can reset the Set ID of the product to 1.
PM Mode
• Power Off : Normal DC off status.
• Sustain Aspect Ratio : Normal DC off status except that Switching IC stays on. On certain models, this applies only to
a specific input mode (DisplayPort) and has the same effect as Screen Off Always in other input modes.
• Screen Off : Automatically changes to Screen Off status when entering the DPM mode, Auto Off (15 mins, 4 hours),
or Abnormal Shut Down.
• Screen Off Always : Automatically changes to Screen Off status when entering the DPM mode, Auto Off (15 mins,
4 hours), Off Timer, Abnormal Shut Down, or when there is input from the remote control's Power button or the
monitor's Off button.
• To change the screen from Off to On status, there must be input from the remote control's Power or Input button, or
the monitor's On button.
Interface Selection
• You can set communication with the connected OPS.
• DISPLAY : Enables communication with external devices via the serial port.
• OPS : Enables communication via the OPS connected to the product.
9
OPS Power Control, OPS/PC Power Control
• You can control the power of the OPS.
• Disable: Disables the OPS Power Control.
• Sync (on) : Synchronizes the power status of the monitor and the OPS only when monitor is on.
• Sync (on/off ) : Always synchronizes the power status of the monitor and the OPS.
Master/Slave Mode
• Master/Slave Mode: Syncs the products to the time and content of one product. These monitors can be set to Master
or Slave. When multiple monitors are connected by RS-232C, only one monitor should be set to Master mode for this
feature to work properly.
• Time Sync : To set Time Sync to On, the current time of the master monitor is sent to multiple slave monitors
connected by RS-232C to sync the time. The monitors are synced every hour after the initial sync when Time Sync
was set to On. (If any change occurs, there is an initial sync, and then the sync continues every hour.)
• Contents Sync : To set Content Sync to On, the content of the master monitor is sent to multiple slave monitors
connected by RS-232C to sync content. All monitors must have Content Sync set to On with a single video or image
for this feature to work properly. This feature supports content types only. Schedule types are not supported.
Sync Mode
• Syncs the products to the time and content of one product.
• Off: Sync is disabled.
• RS232C: Syncs multiple monitors connected via RS-232C.
- Master/Slave: These monitors can be set to Master or Slave. Only one monitor should be set to Master mode for
this feature to work properly.
- Time Sync: When Time Sync is set to On, the current time of the Master monitor is sent to multiple Slave monitors
connected via RS-232C to sync the time. The monitors are synced every hour after the initial sync when Time Sync
was set to On. (If any change occurs, there is an initial sync, and then the sync continues every hour.)
- Contents Sync: When Contents Sync is set to On, the Contents of the Master monitor are sent to multiple Slave
monitors connected via RS-232C to sync the Contents. This feature is only available for the monitors with Contents
Sync set to On and operates normally with a single video or image in the Contents.
• Network: Syncs monitors connected to the same network. The monitor that authorized the SYNC NOW button
becomes the Master.
- How many connected screens: Enter the number of Slaves. A number from 1 to 225 can be entered and the default
value is 1.
- Select storage device: You can select Internal Memory or USB device.
- Select the file name: Up to 10 files can be selected from the List of files in the selected device. Selecting the files
will activate the SYNC NOW button at the top and make the next step available.
- Only MP4 files are supported, and all files must be located in the SyncPlay folder in the root directory of the device.
- Before using Network Sync, set the proxy server settings to Off.
ENGLISH
10
• UPnP: Opens or blocks UDP port 1900, which is used for UPnP.
ENGLISH
- The default is On. Setting this to Off blocks UDP port 1900, making the UPnP function unavailable.
- If this is set to Off, the ‘Network’ item of Sync Mode becomes inactive.
- If this is set to Off and Sync Mode was set to ‘Network’, Sync Mode is switched to ‘Off’ and the ‘Network’ item
becomes inactive.
- If the UPnP value is changed, the function is not applied without a reboot.
Content Rotation
• Rotates the image 90 or 270 degrees clockwise.
• It is recommended that you use content designed to be used in Portrait mode.
• As for ARC, setting Content Rotation to On (90 or 270) adjusts the size of a video to the full screen size.
• With WiDi, it is recommended that you set Aspect Ratio to Original if you intend to use Content Rotation. If you set
Aspect Ratio to Full, the displayed position of the mouse pointer may not be accurate.
• Image quality degradation is not a product issue when setting Content Rotation using external input.
Aspect Ratio(Rotation)
• Selects an aspect ratio option that will be applied to Content Rotation. (Original/Full)
Intelligent Auto
• Adjusts the size, position, and phase of the monitor's screen automatically at the recognized resolution. This feature
is available only in RGB input mode.
Studio Mode
• Outputs the images with a lower color temperature.
• You can set this feature to On or Off.
• Setting this feature to On lowers the color temperature of the images.
Pivot Mode
• This feature allows you to rotate the screen 180 degrees.
• Both the input signal and OSD are rotated.
• You can set this feature to On or Off.
• If you set this feature to Off, the feature is disabled.
• If you set this feature to On, the screen rotates 180°.
• If any changes are made, they are applied after reboot.
11
Scan Inversion
• This feature reduces the level differences of displayed images whose top and bottom adjoin each other during high-
speed image output.
• You can set this feature to On or Off.
• Setting this feature to On scans the image from the bottom to the top to minimize level differences. The displayed
image will be inverted vertically and horizontally.
• We recommend that you use Scan Inversion together with Pivot mode.
White Balance
• Adjusts the R-Gain, G-Gain, B-Gain, and Backlight values.
• Reset: Resets the White Balance value.
Applications
• Adds/deletes applications in the Launcher bar.
• We recommend that if you are to remove the Screen Share app from the home launcher by unchecking the Screen
Share item, you should reboot your system after removal.
• If you set Content Rotation or OSD Portrait Mode to On, the SuperSign EZ app will be deleted from the launcher and
the SuperSign EZ item will be disabled.
Crestron
• This function allows synchronization with an application provided by Crestron.
• Server: This menu sets the IP for the network connection with the server (equipment provided by Crestron).
• Port: This menu sets the port for the network connection with the server. The default port number is 41794.
• IP ID: This menu sets a unique ID for synchronizing with the application.
ENGLISH
Factory Reset
• You can reset the product to factory settings.
12
Status Message
ENGLISH
• Sets up a feature that sends the status of Signage to users' email addresses.
• The administrator can set Status Message to On or Off.
• Messaging Period: Sets a time interval to send messages. You can select either When Failure Status or Weekly.
• Select Date: Available if you have set Messaging Period to Weekly. Select your desired day of the week for message
transmission.
• Select Time: Available if you have set Messaging Period to Weekly. Select your desired time for message transmission.
• User E-mail Address: Enter the sender's email address.
• Type: Fixed as POP3.
• Sending Server (SMTP): Enter the mail server address of POP3.
• ID: Enter the mail server's user ID.
• Password: Enter the mail server's user password.
• Receiver E-Mail Address: Enter the recipient's email address for status messages.
• If the status regarding any of the following items changes or becomes abnormal, a status message can be sent.
- 1. Temperature: If the monitor set reaches a dangerous temperature, its current temperature is recorded, and an
email containing such information is sent.
- 2. Validity of the temperature sensor: An email is sent if there is no temperature sensor connected, if the
communication status of the temperature sensor is unknown, or if the information provided by the chip provider is
abnormal.
- 3. Network Status (Wireless/Wired): An email is sent when the network's connection status is changed. The
maximum number of network status changes that can be saved is limited to 50. The saved value is reset once the
power turns off.
- 4. RGB Sensor: An email is sent if the execution of Check Screen by the RGB sensor fails.
- 5. No Signal Check: Checks whether there is a signal. If there are no signals for more than 10 seconds, an email is
sent.
- 6. Local Contents Schedule: An email is sent if it becomes impossible to play content between the start time and
end time of the playback schedule registered in Signage. However, this does not apply when termination was made
using the remote control.
- 7. SuperSign Schedule: An email is sent if it becomes impossible to play content between the start time and end
time of the playback schedule distributed to SuperSign. However, this does not apply when termination was made
using the remote control.
- Some of the features above may not be supported on certain models.
• Only SMTP Port 25, 587 is supported; Naver is not supported.
13
SIMPLINK Setup
• When the SIMPLINK Setup is set to On, you can use the SIMPLINK provided by LG Signage.
• Device ID: S ets the ID of the device connected via CEC wiring. You can choose a value between 'All' and 'E'.
• StandBy: Sets the scenarios for sending and receiving the OpStandBy (0x0c) command. Detailed scenarios are as
follows:
Send Receive
Send Only O X
Receive Only X O
All O O
Multi-screen Resolution
• This feature allows you to change the recommended resolution for the connected device according to the selected
split screen mode in Multi-screen. You can set the recommended resolution to change automatically or be fixed at the
recommended resolution according to a specific split screen mode. The screen may flicker when changing settings.
• Fit to Screen: The recommended resolution for the connected device automatically changes to the optimal resolution
for the selected split screen mode in Multi-screen. If you select a resolution other than the recommended resolution
for the connected device, the selected resolution remains fixed, even when the split screen mode is changed.
• On some graphics cards capable of both HDTV signal output and PC signal output, the HDTV output resolution is
adjusted to 1080p or lower, and the PC output resolution is adjusted for two, three, or four screens automatically.
• For some graphics cards and operating systems, it may be necessary to set the recommended resolution for each split
mode.
• One Screen: The recommended resolution for the connected device is set to the optimal resolution for a single screen.
When using Multi-screen, the screen may not work properly. To use the device in the Multi-screen environment,
the settings must be changed according to the selected mode. To run the multi-screen app, the resolution of the
connected device must be set to the supported resolution of the multi-screen mode or lower.
• Two Screens: The recommended resolution for the connected device is set to the optimal resolution for twoscreen
split screen mode in Multi-screen.
• Three Screens: The recommended resolution for the connected device is set to the optimal resolution for threescreen
split screen mode in Multi-screen.
• Four Screens: The recommended resolution for the connected device is set to the optimal resolution for fourscreen
split screen mode in Multi-screen.
ENGLISH
2
2
2
2
14
Guide to Using Content Rotation/Pivot Mode/Scan Inversion
ENGLISH
If you have enabled both Pivot Mode and Scan Inversion, the logo screen that appears when the monitor is turned on
will be inverted vertically as well as horizontally.
[Portrait installation setting]
In the original image or in Pivot mode, you can turn the image into a portrait image using Content Rotation.
When installing the display rotated 90 degrees: Set Content Rotation to 270.
When installing the display rotated 270 degrees: Set Content Rotation to 90.
Example) When installing the display rotated 90 degrees
Original
Pivot Mode
Content Rotation
270
Rotating displays
(90 degrees)
22
2
15
[Video wall installation setting]
You can implement a landscape and portrait video wall using Pivot mode, Scan Inversion, and Content Rotation.
Example) Tile mode 2 x 2
* Landscape video wall
- Set Scan Inversion and Pivot Mode to On for the displays in row 2.
* Portrait video wall
- Set Scan Inversion to On and set Content Rotation to 90 for the displays in column 1.
- Set Content Rotation to 270 for the displays in column 2.
Original
2
2
2
Rotating displays
Row 2 Scan Inversion Row 2 Pivot Mode Tile Mode
2
222
2
2
22
(90 degrees)
2
2
2
2
Contents Rotation Column 1: 90,
2
2
2
Column 2: 270
<Landscape>
Tile Mode
2
<Portrait>
ENGLISH
16
USB Cloning Menu
ENGLISH
You can copy the product settings to other sets.
Send To USB
• You can save the current settings in file format to a USB device.
• Select the file name and press the OK button to complete
• You cannot save the following items: HDMI ULTRA HD Deep Color, Advanced settings under Picture, Clock, Power On
Delay, Set ID, items under Network, White Balance, Tile ID, Signage setup menu - master/slave mode, timer sync, all
menus in the ISM method menu (except for mode, repeat, wait, and duration), and menu items in My Media.
Receive From USB
• You can import configuration files from a USB device and change the settings for the current set.
• Using a settings file from a different model may not work properly on this product.
• When import is complete, the power reboots after 5 seconds.
Logo Image Download
• You can download and apply the boot images.
• The image you want to apply must be stored in the LG_MONITOR folder at the top level of a USB device.
• When downloading is complete, the set reboots and the boot image will be applied.
CAUTION
• To use the Configuration Cloning function, be sure to use a USB storage device formatted using the FAT32 file
system. If the USB storage device has been formatted with another file system, it may not work correctly.
Password Change Menu
You can change your password in the Installation menu.
You can change your password for security purposes. Enter a new 4-digit password. Enter the same password again in
Confirm Password for confirmation.
