Page 1

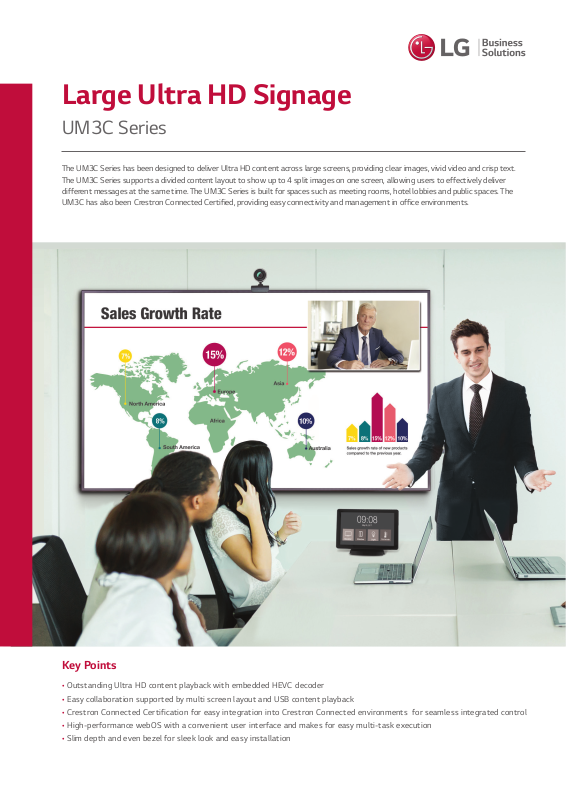

Large Ultra HD Signage
UM3C Series
The UM3C Series has been designed to deliver Ultra HD content across large screens, providing clear images, vivid video and crisp text.
The UM3C Series supports a divided content layout to show up to 4 split images on one screen, allowing users to effectively deliver
different messages at the same time. The UM3C Series is built for spaces such as meeting rooms, hotel lobbies and public spaces. The
UM3C has also been Crestron Connected Certified, providing easy connectivity and management in office environments.
Key Points
• Outstanding Ultra HD content playback with embedded HEVC decoder
• Easy collaboration supported by multi screen layout and USB content playback
• Crestron Connected Certification for easy integration into Crestron Connected environments for seamless integrated control
• High-performance webOS with a convenient user interface and makes for easy multi-task execution
• Slim depth and even bezel for sleek look and easy installation
Page 2
Ultra HD Large Display
UM3C Series
Key Features
Outstanding
Quality
Convenience
& Connectivity
Features
Ultra HD Resolution
Ultra HD large screen delivers an immersive viewing
experience with 4 times higher denition picture quality
than FHD, which enables to describe ne details without
distortion. Especially UM3C series ensures stable UHD
video playback by supporting HEVC* that offers double
data compression ratio at the same level of video quality
compared to the conventional H.264.
*HEVC: High Efficiency Video Coding
Multiple screen by PBP/PIP
PBP (Picture-By-Picture) features multi screen in a single
display with upto 4 input sources, thus maximizing the
usability of large UHD display. In addition, PIP (Picture-InPicture) supports playing both main screen and sub screen
at the same time with various layouts, so that users can
arrange many different usage scenarios efciently.
Ultra HD
3,840 X 2,160
Full HD
1,920 X 1,080
PIPPBP - Landscape
Crestron
Connectivity
USB Content Playback and Scheduling
Content can be played and scheduled simply through USB,
so additional server connection is not required, enabling easy
content management.
Video
Crestron Connected Certication
The UM3C Series is Crestron Connected Certied, meaning
that you can seamlessly integrate it into Crestron Connected
environments.
Audio
Wireless Solution
The UM3C Series supports wireless services for more optimized
user experience with built-in Wi-Fi(802.11n). Mirroring supports
sharing content among devices on a Wi-Fi network and Soft AP
makes the display operate as a wireless access point for other
digital devices.
Page 3
Ultra HD Large Display
UM3C Series
OPS Media
Player
Compatibility
Smart
Platform
OPS / HDBaseT Connectivity
The UM3C provides an OPS (Open Pluggable
Specication) Kit to connect a third-party OPS player or
HDBaseT box. Users have the exibility to choose any
media player as long as it complies with the OPS.
High-Performance SoC with webOS
Quad Core SoC* can execute several tasks at the same time
without a separate media player player. Due to its internal
memory (8GB), pre-loaded pre-loaded content is displayed
without the need for external inputs and/or content
displayed without external inputs. In addition, the webOS
platform enhances user convenience with intuitive UI and
simple app development tools.
*System on Chip
With 41pin
Screen
defects
Contents
Download
App Execution
Connect
UM3C
App
Piggy back
OPS Kit
(Optional)
+
Connect
with 80pin
OPS Player
(Third-party)
or
HDBaseT Box
(EB-B100)
Sleek
Design
Slim
Connectivity
LAN
1
AUDIO IN
2
AUDIO OUT
3
(FIXED LEVEL ONLY)
DP OUT
4
DVI-D IN
5
PIXEL SENSOR
6
IR & LIGHT SENSOR
7
Slim Depth & Even Bezel
The slim depth and even bezel helps with easy installation
and has a sleek look.
57.9mm*
Even Bezel
DepthBezel
DP IN
8
HDMI IN 3
9
HDMI IN 2
10
HDMI IN 1
11
USB 3.0 IN
12
SD CARD
13
RS-232C IN
14
RS-232C OUT
15
86UM3C
Bottom
Side
75UM3C
Bottom
1
8 9
Detachable Logo
The detachable logo allows for installation in landscape or
portrait mode*.
*86UM3C only supports landscape mode.*based on 75UM3C model
2 3 4 5 6 7
10 11 12 13 14 15
2 3 4 5 6 71
Side
8 10 11 12 13 14 15
Page 4
Specications
UM3C Series
Screen Size
86UM3C 75UM3C
86" (87.35" diagonal) 75" (76.33" diagonal)
Panel Technology IPS IPS
Aspect Ratio 16 : 9 16 : 9
Native Resolution 3,840 x 2,160 (UHD) 3,840 x 2,160 (UHD)
Brightness 350cd/m
2
350cd/m2
Contrast Ratio 1,200:1 1,200:1
PANEL
Dynamic CR 500,000:1 2,000,000:1 (DTV Label only)
Viewing Angle (H x V) 178 x 178 178 x 178
Response Time 8ms (G to G) 6ms (G to G)
Surface Treatment Low Haze 3% Low Haze 3%
Life time (Min.) 30,000 Hrs 50,000 Hrs
Guaranteed Operation Hours 16 Hrs 24 Hrs
CONNECTIVITY
PHYSICAL
SPECIFICATION
Orientation
Input
HDMI(3), DP, DVI-D, Audio, USB 3.0, SD Card HDMI(2), DP, DVI-D, Audio, USB 3.0, SD Card
Output DP, Audio (Fixed Level) DP, Audio (Fixed Level)
External Control
RS232C, RJ45, IR Receiver, Pixel Sensor RS232C, RJ45, IR Receiver, Pixel Sensor
Bezel Color
Bezel Width
Monitor Dimension (W x H x D)
1,926.2 x 1,097.2 x 60.6mm / 75.83 x 43.20 x 2.39 in
Weight (Head) 49kg / 108.03 lbs 41.5 kg / 91.49 lbs
Landscape Portrait & Landscape
Black Black
On: 15.6mm, Off: 14.3mm On: 15.8mm, Off: 14.9mm
(without logo & handle)
1,682.37 x 960.3 x 57.9mm / 75.83 x 43.20 x 2.39 in
(without logo & handle)
Carton Dimensions (W x H x D) 2,073 x 1,260 x 292mm / 81.61 x 49.60 x 11.50 in 1,816 x 1,123 x 228mm / 71.5 x 44.21 x 8.98 in
Packed Weight 61.1kg / 134.70 lbs 49kg / 108.03 lbs
TM
VESA
SPECIAL FEATURES
ENVIRONMENT
CONDITIONS
POWER
STANDARD
(CERTIFICATION)
MEDIA PLAYER
COMPATIBILITY
Standard Mount Interface
Operation Temperature Range
Operation Humidity Range
Power Supply
Power Type Built-In Power Built-In Power
Power
Consumption
Typ. 315W 160W
Smart Energy Saving
Safety
EMC FCC Class "A" / CE / KCC FCC Class "A" / CE / KCC
ErP / Energy Star
OPS type compatible
External Media player Attachable
600 x 400mm 600 x 400mm
Temperature Sensor, Auto Brightness Sensor, Tile Mode (up to 15x15), Natural Mode@Tile Mode,
ISM Method, Internal Memory (8GB, System 4GB), Wi-Fi built-in (802.11n), USB Cloning, Content Scheduling,
Sync mode, PM mode, Fail Over, Wake on LAN, BEACON (On/Off), Embedded Template, PIP/PBP (2/3/4)
º F
32
to 104º F 32º F to 104º F
10 % to 80 % 10 % to 80 %
100-240V~, 50/60Hz 100-240V~, 50/60Hz
220W 115W
UL / cUL / CB / TUV / KC UL / cUL / CB / TUV / KC
No / No No / No
Yes Ye s
Yes (MP500 / MP700) Yes (MP500/MP700)
SOUND Speakers Yes - 2 x 10W Yes - 2 x 10W
SOFTWARE
COMPATIBILITY
ACCESSORIES
Content Management Software
Control and Monitoring Software
Basic
Optional
Remote Controller (include battery 2ea),
Power Cord, QSG, DP cable (2.6M), Regulation Book,
Phone to RS232C Gender, Memory Cover
Pixel Sensor (KT-SP0), Media Player, OPS Kit (KT-OPSA),
HDBaseT (EB-B100), LSW640A/B(Wall Mount)
SuperSign W SuperSign W
SuperSign C SuperSign C
Remote Controller (include 2ea batteries),
Power Cord, QSG, DP Cable (1.8M),
Regulation Book, Phone to RS232C Gender, Memory Cover
Pixel sensor (KT-SP0), Media player, OPS Kit (KT-OPSA),
HDBaseT (EB-B100)
Dimension
86"
1,926.2 x 1,101.2* x 63.3*mm, 75.83 x 43.20 x 2.39 in / 49kg, 108.03lbs (Without handle)
1,926.2 x 1,101.2* x 78.3*mm, 75.83 x 43.20 x 3.08 in (With handle)
*With LG logo
1926.2
14.3
14.3
600
VENT HOLE VENT HOLE
400
VENT HOLE
VENT HOLEVENT HOLE
http://www.lg.com/us/business/commercial-display
http://www.twitter.com/LGCommDisplays
http://www.facebook.com/LGcommercialdisplays
http://www.linkedin.com/company/lg-commercial-displays-usa
http://www.youtube.com/lgcommercialdisplayusa
LG may make changes to specifications and product descriptions without notice. Copyright © 2018 LG Electronics Inc. All rights reserved.
“LG Life’s Good” is a registered trademark of LG Corp. The names of products and brands mentioned here may be the trademarks of their respective owners.
SPEC_UM3C_041803_PR
1101.18 (Outline with LG logo)
40.8
60.6
78.3
63.3
(with LG logo)
75"
1682.4 x 963.3* x 59.5*mm, 75.83 x 43.20 x 2.39 in / 41.5kg, 91.49 lbs (Without Handle)
1682.4 x 963.3* x 73.9*mm, 75.83 x 43.20 x 2.9 in (With Handle)
* With LG logo
14.9
14.9
VENT HOLE
400
1682.4
600
VENT HOLE
VENT HOLE VENT HOLE
960.3 (Outline without LG logo)
963.3 (Outline with LG logo)
39.7
31.9
57.9
73.9
59.5
(with LG logo)
