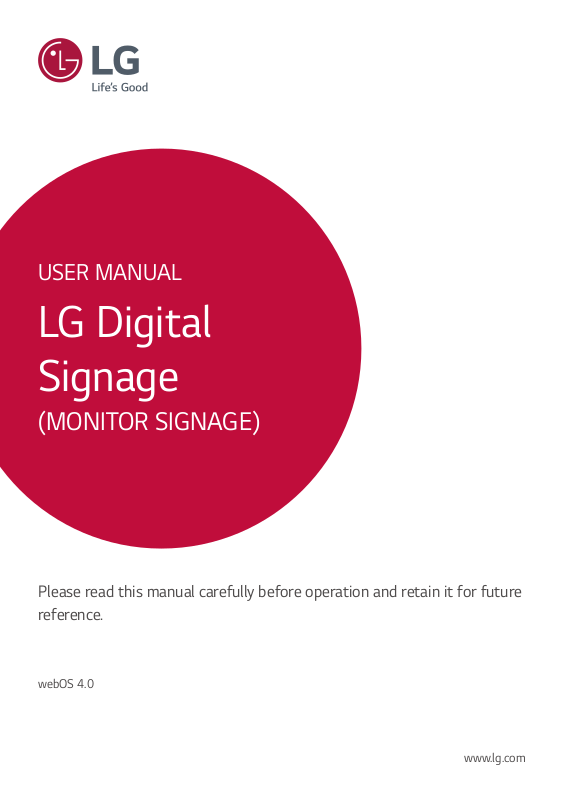

LG 86UL3E User Guide

Download

USER MANUAL

LG Digital Signage

(MONITOR SIGNAGE)

Please read this manual carefully before operation and retain it for future reference.

webOS 4.0

www.lg.com

CONTENTS

ENGLISH

SETTINGS ......................................4

- Home ....................................................................................... 4

Global Buttons

Dashboard

[Content Manager]

- Ez Setting ............................................................................. 5

[Video Wall]

[On/Off Scheduler]

[SI Server Setting]

[Server Setting]

[Fail Over]

[Status Mailing]

[Play via URL]

[Setting Data Cloning]

[Sync Mode]

[Signage 365 Care]

[Multi Screen]

- General ................................................................................13

[Language]

[System Information]

[Set ID]

[Time Setting]

[Power]

[Network]

[Safety Mode]

[Advanced Setting]

- Display .................................................................................26

[Picture Mode]

[Aspect Ratio]

[Rotation]

[Advanced Setting]

Video Output Resolution

- Sound ................................................................................... 34

[Sound Mode]

[Sound Out]

[Audio Out]

[AV Sync Adjustment]

[Digital Audio Input]

- Admin ................................................................................... 37

[Lock Mode]

[Change Password]

[Enterprise Settings]

[HDCP Dynamic output control]

[Factory Reset]

CONTENT MANAGER ................ 39

- Web Login ..........................................................................39

- Content Manager ..........................................................39

[Player]

[Scheduler]

[Template]

- Group Manager 2.0 ......................................................46

- ScreenShare ......................................................................49

- LG Presenter.....................................................................50

Connect

Screen Share

Handover

MANAGEMENT TOOLS .............. 54

- Admin ................................................................................... 54

- Picture ID ............................................................................55

TOUCH ........................................ 56

- Touch Assistive Menu ..................................................56

TO CONTROL AN EXTERNAL PC

USING TOUCH SCREEN ............. 57

- Connecting to a PC.......................................................57

- Prioritized Tasks on the Touch Screen ................57

SMART CALIBRATION ............... 58

- How to Run .......................................................................58

[Manual Calibration]

IR CODE ...................................... 60

ENGLISH

CONTROLLING MULTIPLE

PRODUCTS .................................. 62

- Connecting cables .........................................................62

- Communication Parameter ......................................63

- Command Reference List ..........................................64

- Transmission/Reception Protocol .........................68

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge. com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

ENGLISH

NOTE

• Software-related content may be changed without prior notice due to upgrades of the product functions.

• Some features described in the User Manual may not be supported in certain models and countries.

• SNMP 2.0 is supported.

SETTINGS

Home

Global Buttons

• [Position]: Navigate to the OSD Output Position Selection screen.

• [MOBILE URL]: Provides information necessary to access the monitor set through an external device's browser.

With this feature, you can view QR code and URL information. In addition, by accessing the URL, you can also run Content Manager and Group Manager 2.0, and Control Manager. (This featured is optimized for Google Chrome.)

• [Input]: Navigate to the external input selection screen

• [Setting]: Navigate to the Settings screen

Dashboard

• This feature displays key information about your Signage monitor in the center of the home screen. In the Dashboard,

you can manually change settings by selecting the corresponding items.

• [Manual Download]: Downloads a manual by scanning a QR code.

NOTE

• If the dashboard is locked, the focus does not move.

• Depending on the QR Code app on your mobile device, you may not be able to access the page. (Use the address

provided to access the manual download page.)

[Content Manager]

• [Player]: Play a variety of content including images, videos, and SuperSign content.

• [Scheduler]: Manage schedules for content that will be played at different times.

• [Template]: You can create your own content using templates and media files.

• [Group Manager 2.0]: Distribute content schedules and setting data to the connected device.

Ez Setting

[Video Wall]

[Ez Setting] [Video Wall]

Set Video Wall options to create a wide visual canvas.

• [Tile Mode]: Turn [Tile Mode] on or off.

• [Tile Mode Settings]: Display a single integrated screen on multiple Signage monitors.

• [Natural Mode]: Display the image excluding the area that overlaps with the monitor's bezel so that the image

displayed has a more natural feel to it.

• [Frame Control]: Adjust the sets that run [Scan Inversion] and frame deviation.

- When running [Scan Inversion], please run [Frame Control] for the sets that do not run [Scan Inversion].

• [Scan Inversion]: Reduce screen deviation between adjoining video walls by changing screen scanning method.

• [White Balance]: Configure white balance settings (White Pattern, R/G/B-Gain, and Backlight).

• [Reset]: Reset to initial settings.

• [Reboot to Apply]: Reboot the set to configure a changed Frame Control/Scan Inversion value.

NOTE

• When Tile Mode is enabled, automatically set [Frame Control] for odd numbered rows and [Scan Inversion] for even

numbered rows.

[On/Off Scheduler]

[Ez Setting] [On/Off Scheduler]

Set a schedule to use your signage by time and day of the week.

• [On/Off Time Setting]: Set on/off times for each day of the week.

• [Holiday Setting]: Set holidays by date and by day of the week.

ENGLISH

[SI Server Setting]

[Ez Setting] [SI Server Setting] [SI Server Setting]

Set up to connect your signage to an external SI server. Set up a server environment for SI app installation.

[Ez Setting] [SI Server Setting] [Developer Mode & Beanviser] This feature provides great convenience to the app developers. Set up to install and activate the Developer mode and BEANVISER app.

ENGLISH

NOTE

• To use these features, an account (ID/PASSWORD) for webOS Signage developer website (http://webossignage.

developer.lge.com/) is required.

[Server Setting]

[Ez Setting] [Server Setting]

Set up to connect your signage to a SuperSign server.

• CMS Server

• Control Server

[Fail Over]

[Ez Setting] [Fail Over]

Set the priority of the input devices when a fault occurs. Automatically play the content stored in the device or run the set app.

• [On/Off]: Turns [Fail Over] on or off.

• [Input Priority]: Set the priority of input sources for fail over.

• [Backup via storage]: When there is no input signal, this feature automatically plays the content stored in the device

or runs the set app. When set to [On], [Auto], [Manual], [SuperSign Contents] items are activated.

- [Auto]: When the automatic input switches due to taking screenshots of an image or video that is playing at regular intervals, this feature will play back the file. (OLED model is not supported.)

>- Capture time Interval: The time interval can be set to 30 min, 1 hour, 2 hours and 3 hours.

- [Manual]: When the automatic input switches due to the image and video file being uploaded, the feature will play back the file.

>- [Backup media select]: Using the settings button, you can upload a single file in the internal / external memory. >- [Preview]: You can preview the uploaded file.

- [SuperSign Contents]: When the automatic input switches, this feature will play the file(s) distributed in SuperSign CMS.

• [reset]: Reset to initial settings.

[Status Mailing]

[Ez Setting] [Status Mailing]

This feature configures the system so that the status of the device is assessed and then notified to the administrator by e-mail.

• [On/Off]: Turns [Status Mailing] on or off.

• [Mailing Option], [Scheduling]: Sets the email sending interval.

• [User E-mail Address]: Set the user email address of the sender.

• [Sending Server(SMTP)]: Set the address of the SMTP server.

• [ID]: Enter the account ID of the sender.

• [Password]: Enter the password for the sender's account.

• [Receiver E-mail Address]: Set the email address of the recipient.

• [Send message]: Immediately assess the status of the device and deliver the information to the specified email

address.

• [reset]: Reset to initial settings.

NOTE

• If the status regarding any of the following items changes or becomes abnormal, a status message can be sent.

- 1. Temp. Sensor: If the set reaches a dangerous temperature, its current temperature is recorded, and an email containing such information is sent.

- 2. Temp. Sensor Validation: An email is sent if there is no temperature sensor connected, if the communication status of the temperature sensor is unknown, or if the information provided by the chip provider is abnormal.

- 3. LAN Status, WiFi Status: An email is sent when the network's connection status is changed. The maximum number of network status changes that can be saved is limited to 50. The saved value is reset once the power turns of f.

- 4. No Signal Check: Checks whether there is a signal. If there are no signals for more than 10 seconds, an email is sent.

- 5. Schedule Play Status: An email is sent if content cannot be played between the scheduled start time and end time in either Content Management Schedule status or SuperSign Content status. However, this does not apply when terminated using the remote control.

- 6. Fail Over Status: An email is sent if input switching occurred due to an error. (Excludes input switching initiated by the user (RC, RS232C, SuperSign))

• Only SMTP ports 25, 465, and 587 are supported.

• The occurrence of internal input switches, excluding external input switches (RC, RS232C, SuperSign), are considered

as Fail Over Status.

• One email containing the “Failover status : Failover” message is sent when switching to Fail Over Status, and the

following status emails sent regularly or upon status changes contain the message “Failover status : None”.

ENGLISH

[Play via URL]

ENGLISH

Play content you want to play automatically through the built-in web browser.

• [URL Loader]: Turns [Play via URL] on or off.

• [Set URL]: Enter the URL address to display automatically.

• [Preview]: Preview your desired website by accessing the specified URL.

• [Save]: Save the specified URL.

• [Reboot to Apply]: Restarts the monitor set after saving the specified URL.

• [Reset]: Reset to initial settings.

[Ez Setting] [Play via URL]

NOTE

• This feature does not apply when [Screen Rotation] is enabled, and using this feature disables [Preview].

• If [Time Setting] is not set to [Set Automatically], website navigation may be difficult.

- Check [General] [Time Setting ] [Set Automatically]

[Setting Data Cloning]

[Ez Setting] [Settings Data Cloning]

This feature is used to copy and import the settings of the device to other devices.

• [Export Setting Data]: Export the settings of the device to another device.

• [Import Setting Data]: Import the settings of another device into the device.

[Sync Mode]

[Ez Setting] [Sync Mode]

Sync up time and content among multiple signage.

• [RS-232C Sync]: Sync up multiple signage connected by RS-232C.

• [Backlight Sync]: Shares values to control backlights using illumination sensors between devices connected by RS-

232C.

• [Network contents sync]: Sync up multiple signage connected to the same network.

[Signage 365 Care]

[Ez Setting] [Signage 365 Care]

You can install the Signage 365 Care (fault diagnosis) solution for fault diagnosis and prediction service.

• [Install]: Installs the Signage 365 Care solution.

1) [ENTER ACCOUNT NUMBER]: Enters the 6-digit account number to install the Signage 365 Care solution.

- Account Number: The number assigned when the Signage 365 Care solution is registered. When the account number is entered, the account name corresponding to the number is obtained.

2) [CONFIRM ACCOUNT NUMBER]: Displays the account number and the account name corresponding to the account number and validates the account number.

- If the account number is registered, the account name corresponding to the account number is displayed, and you can continue to install the Signage 365 Care solution.

- If the account number is not registered, “Unknown” is displayed as the account name, and you cannot continue to install the solution.

• [Enable]/[Disable]: Sets whether to Enable/Disable the Signage 365 Care solution.

• [Account]: Displays user’s currently connected account number and name.

• [Version]: Displays the version of the Signage 365 Care solution.

• [Check for Update]: Checks for available updates in the server.

• [Update]: Updates the Signage 365 Care solution to the latest version.

• [Server Status]: Displays the status of connection between the set and server.

- [Connected]: Displayed when the set and server are connected.

- [Not Connected]: Displayed when the set and server are disconnected.

- [Waiting for Approval]: Displayed when the server is waiting for approval.

- [Rejected]: Displayed when the server rejected the connection.

• [Reset]: Deletes the installed Signage 365 Care solution.

ENGLISH

[Multi Screen]

ENGLISH

This feature allows you to view multiple external inputs and videos on a single screen.

[Ez Setting] [Multi Screen]

PIP Mode PBP Mode

3-Screen Split Mode 4-Screen Split Mode

2-Screen Split Mode (1:1)

3-Screen Split Mode (1:1:1)

3-Screen Split Mode (1:2:1)

4-Screen Split Mode (1:1:1:1)

NOTE

• In multi-screen mode, the DP daisy chain feature is not supported.

• The available number/shape of split screens may vary depending on the model.

ENGLISH

Selecting Screen Layout

When you enter multi-screen mode without having set any screen layout, the screen layout selection menu appears. When the screen layout selection menu is not displayed on the screen, go to the screen layout menu bar by pressing the up arrow key on your remote control and select your desired screen layout. If you want to close the screen layout menu, press the back key.

Closing Screen Layout Menu

From the screen layout menu, press the up arrow key on the remote control to go to the screen layout menu bar and select it or press the back key to close the screen layout menu.

Changing Screen Input

ENGLISH

Press the button on the top right of each split screen to select the desired input.

NOTE

• Inputs which have already been selected for other split screens cannot be selected again. To select them, press the

RESET button to reset the inputs for all screens first.

• The PIP mode works only when External Input Rotation is set to Off and Screen Rotation is set to Off or 180.

• In the PIP mode, supported resolutions for subscreen are as follows: Other resolutions are not supported.

- 1680 x 1050 / 1920 x 1080

• Interlaced formats are not supported. E.g. 1080i

• This applies to both AV/Media.

• Models with 4-screen split mode support external input resolution of 3840 x 2160 on PIP Sub screens.

• According to the model If there is no button, enter the Change Input button in the screen configuration menu to

select the screen and select the desired input.

Playing Videos on Split Screens

Press the button on the upper right of each split screen, select Video File, and then select a storage device to view the list of videos in the selected device. Next, select your desired video from the list to play it.

NOTE

• Videos created with HEVC, MPEG-2, H.264, or VP9 codecs can be played on split screens. When using PIP mode, the

following combinations cannot be used.

Main Sub

HEVC HEVC

H.264 HEVC

MPEG2 HEVC

VP9 VP9

H.264 4K MPEG2

H.264 4K VP9

• The limitations of 3 and 4-screen split are as below.

When Using 4K It supports only up to 2 videos.

A combination of max. 4K @ 60 fps + 2K @ 60 fps is available.

However, H.264 4K supports max. 30 fps.

When Using Only 2K 60fps You can combine up to 1 MPEG2, 2 H.264, and 4 other codecs.

30fps You can combine up to 2 MPEG2 and 4 other codecs.

• Recommended Framerate: 24, 25, 30, 60 (including 23.9, 24.9, 29.9, 59.9)

We do not guarantee performance when you play contents with other framerates.

• According to the model If there is no button, enter the Change Input button in the screen configuration menu to

select the screen and then select the desired video.

General

[Language]

[General] [Language]

You can select the menu language to be displayed on the screen.

• [Menu Language]: Sets the language of your Signage monitor.

• [Keyboard Language]: Sets the language of the keyboard displayed on the screen.

[System Information]

[General] [System Information]

This feature displays information such as the device name, software version, and storage space.

[Set ID]

[General] [Set ID]

• [Set ID] (1-1000): Assigns a unique Set ID number to each product when several products are connected via RS-

232C. Assign numbers ranging from 1 to 1000 and exit the option. You can control each product separately by using the Set ID you assigned to each product.

• [Auto Set ID]: Automatically assigns a unique Set ID number to each product when several products are connected

for display.

• [Reset Set ID]: Reset the Set ID of the product to 1.

[Time Setting]

[General] [Time Setting]

This feature enables you to view and change the time and date on the device.

• [Set Automatically]: Set [Time] and [Date].

• [Daylight Saving Time]: Set the start and end times for Daylight Saving Time. The DST start/end times function only

when you set them more than one day apart from each other.

• [NTP Server Setting]: Allows you to set other NTP servers other than the basic NTP server.

• [Time Zone]: Allows you to change the time zone based on continent, country/region, city or user settings.

ENGLISH

[Power]

ENGLISH

Power-related feature settings

[General] [Power]

[No Signal Power Off (15 Min)]

Set whether to use the 15 Min Auto Off feature.

• You can set this option to [On] or [Off].

• If you set this feature to [On], the product turns off after it’s remained in No Signal status for 15 minutes.

• If you set this feature to [Off], the 15 Min Force Off feature is disabled.

• It is recommended that you set this feature to [Off] if you intend to use the product for long periods of time as the

feature turns the power of the product off.

[No IR Power Off (4hour)]

Set whether to use 4 Hours Off feature.

• You can set this option to [On] or [Off].

• If you set this feature to [On] the product turns off if there is no input from the remote control for 4 hours.

• If you set this feature to [Off], the 4 Hours Off feature is disabled.

• It is recommended that you set this feature to [Off] if you intend to use the product for long periods of time as the

feature turns the power of the product off.

[DPM]

Set the Display Power Management (DPM) mode.

• If this feature is not set to [Off], the monitor will enter DPM mode when there is no input signal.

• If you set this feature to [Off], [DPM] is disabled.

[DPM Wake Up Control]

Turns on the set according to the digital signal processing of the connected DVI-D/HDMI port.

• When set to [Clock], the set only checks for digital clock signals and turns on once it finds the clock signal.

• When set to [Clock+DATA], the set turns on if the digital clock and data signals are both input.

[PM Mode]

• [Power Off (Default)]: Set the normal DC off mode.

• [Sustain Aspect Ratio]: The PC retains the Extended Display Identification Data (EDID) even when the power is off.

• [Screen Off]: Switches to [Screen Off] status when entering DPM, Auto Power Off (15 min, 4 hours), or Abnormal

Shut Down mode.

• [Screen Off Always]: Switches to [Screen Off] status when entering DPM, Auto Power Off (15 min, 4 hours), Off

Time Scheduling, or Abnormal Shut Down mode, or when there is input from the remote control's Power button or the monitor's Off button.

• [Screen Off & Backlight On]: Partially turns on the backlight to keep the display at a proper temperature when in

Screen Off status.

NOTE

• In order for the screen to switch from [Screen Off] to On status, there must be input from the remote control's

Power or Input button, or the monitor's On button.

[Power On Delay](0-250)

• This feature prevents overload by implementing a power-on delay when multiple monitor sets turn on.

• You can set the delay interval in the range of 0 to 250 seconds.

[Power On Status]

• Select the operating status of the monitor when the main power has turned on.

• You can choose from among [PWR (Power On)], [STD (Standby)], and [LST (Last Status)].

• [PWR (Power On)] keep the monitor powered on when the main power has turned on.

• [STD (Standby)] switch the monitor to Standby status when the main power has turned on.

• [LST (Last Status)] switches the monitor back to its previous status.

ENGLISH

[Wake On LAN]

• Set whether to use [Wake On LAN].

• You can set the feature to On or Off for each wired/wireless network.

• [Wired]: When set to [On], the [Wake On LAN] feature is enabled, letting you turn the product on remotely through

a wired network.

• [Wireless]: When set to [On], the [Wake On LAN] feature is enabled, letting you turn the product on remotely

through a wireless network.

[Power Indicator]

ENGLISH

• This function enables you to change the [Power Indicator] settings.

• Setting to [On] will turn on [Power Indicator].

• Setting to [Off] will turn off [Power Indicator].

• Regardless of [On] or [Off] settings in [Power Indicator], [Power Indicator] will be turned on for approximately 15

seconds.

[Power On/Off History]

Display the device's power on/off history.

[Network]

[General] [Network]

[Wired Connection (Ethernet)]

• Wired Connection: Connects the monitor to a local area network (LAN) via the LAN port and configures wired

network settings. Only wired network connections are supported. After setting up a physical connection, the display will automatically connect without any adjustments on most networks. A small number of networks may require the display settings to be adjusted. For detailed information, contact your Internet provider or consult your router manual.

[Wi-Fi Connection]

If you have set your monitor up for a wireless network, you can view and connect to available wireless Internet networks.

• [Add a Hidden Wireless Network]: You can add a wireless network by manually typing in its name.

• [Connect via WPS PBC]: Press the button on the wireless router that supports PBC to easily connect to the router.

• [Connect via WPS PIN]: Enter the PIN number in the web page of the PIN-supporting wireless router to connect to

the router in a simple manner.

• [Advanced Wi-Fi Settings]: You can change the settings of the connected wireless network.

NOTE

• On models that support Wi-Fi dongles, the Wireless Network Connection menu is enabled only when a Wi-Fi dongle

is connected.

• When connected to a network that supports IPv6, you can select IPv4 / IPv6 in the wired / wireless network

connection. But, IPv6 connection only supports automatic connection.

[LAN Daisy Chain]

• LAN Daisy Chain forms a daisy chain of LAN ports so that even if you connect only one monitor set to a network, the

other sets in the daisy chain are connected to the network.

• However, the first monitor set in the daisy chain must be connected to the network through a port that is not used

for the daisy chain connection.

[SoftAP]

If you set up a SoftAP, you can connect many devices via a Wi-Fi connection without a wireless router and use wireless Internet.

• The SoftAP and ScreenShare features cannot be used at the same time.

• On models that support Wi-Fi dongles, the SoftAP menu is enabled only when a Wi-Fi dongle is connected to the

product.

• Wi-Fi Channel: You can directly select a Wi-Fi channel.

• SoftAp Access Information

- SSID: A unique identifier necessary to make a wireless Internet connection

- Security Key: Security key: The security key you enter to connect to the desired wireless network

- Connected Devices Count: lumber of connected devices: Shows the number of devices currently connected to your Signage device via a Wi-Fi connection. Up to 10 devices are supported.

[UPnP]

Open and block UDP port 1900, which is used for UPnP.

• The default setting is [On]. Setting this feature to [Off] blocks UDP port 1900, making the UPnP function

unavailable.

• If you set this feature to [Off], Sync Mode's "Network" option will be deactivated. When the value for Sync Mode is

"Network," the value switches to "Off," deactivating the "Network" option.

• If you change the UPnP value, the change will not be applied before a [reboot].

• If you set UPnP to [Off], you cannot use Group Manager 2.0 properly.

ENGLISH

[Ping Test]

Check your network status with the ping test.

[Port Control]

Unused ports can be blocked for network security.

[Connection Domain]

Change domain for checking network connection.

NOTE

• A reboot is recommended for the settings to be applied properly.

Tips for Network Settings

ENGLISH

• Use a standard LAN cable (Cat5 or higher with an RJ45 connector) with this display.

• Many network connection problems during set up can often be fixed by re-setting the router or modem. After

connecting the display to the home network, quickly power off and/or disconnect the power cable of the home network router or cable modem, Then power on and/or connect the power cable again.

• Depending on the Internet service provider (ISP), the number of devices that can receive INTERNET service may be

limited by the applicable terms of service. For details, contact your ISP.

• LG is not responsible for any malfunction of the display or Internet connection failures due to communication errors/

malfunctions associated with your Internet connection or other connected equipment.

• LG is not responsible for problems within your INTERNET connection.

• You may experience undesired results if the network connection speed does not meet the requirements of the

content being accessed.

• Some INTERNET connection operations may not be possible due to certain restrictions set by the Internet service

provider (ISP) supplying your Internet connection.

• Any fees charged by an ISP including, without limitation, connection charges are your responsibility.

NOTE

• If you want to access the Internet directly on your display, the INTERNET connection should always be on.

• If you cannot access the Internet, check the network conditions from a PC on your network.

• When you use Network Setting, check the LAN cable or check if DHCP in the router is turned on.

• If you do not complete the network settings, the network may not function correctly.

CAUTION

• Do not connect a modular phone cable to the LAN port.

• Since there are various connection methods, please follow the specifications of your telecommunication carrier or

INTERNET service provider.

• Network setting menu will not be available until the display connected to physical network.

Tips for When Configuring Wireless Network Settings

• The wireless network may be affected by interference from a device that uses 2.4 GHz frequency, such as a wireless

telephone, Bluetooth device or microwave. Interference may also be caused by a device that uses 5 GHz frequency such as Wi-Fi devices.

• The wireless network service may run slowly depending on the surrounding wireless environment.

• Some devices may have a network traffic jam if any local home networks are turned on.

• To connect to a wireless router, a router that supports wireless connection is necessary; the wireless connection

function of the corresponding router must also be activated. Ask the router manufacturer whether the router supports wireless connection.

• To connect to a wireless router, verify the SSID and security settings of the wireless router. Please refer to the user

guide of the corresponding router regarding SSID and security settings of the wireless router.

• The monitor may not work properly if network devices (wire/wireless router or hub, etc.) are incorrectly set up. Be

sure to install the devices correctly by referring to their user guides before configuring the network connection.

• The connection method may vary according to the manufacturer of the wireless router.

ENGLISH

[Safety Mode]

ENGLISH

Set to this function for safe performance.

[General] [Safety Mode]

[ISM Method]

If a still image is displayed on the screen for an extended period of time, image sticking can occur. The ISM method is a feature that prevents image sticking.

[Mode]

• Sets the [ISM Method] mode.

• [Off]: Disable the Brightness Control function.

• [Orbiter]: To prevent afterimage on the screen, the screen location moves by 4 pixels in a regular order. (This item is

inactivated when the current input is No Signal.) (It only supports the models for exterior use.)

• [White Wash]: Displays a white pattern to remove image sticking.

• [User Image]: Plays your photos or movies using a USB storage device.

• [User Video]: Plays your photos or movies using a USB storage device.

Repeat Daily

• [Off, Just 1 Time]: Select this mode and click Complete to run the ISM function immediately.

• [On]: Performs the ISM function for the amount of time set in duration if the still image is maintained for the period

set in standby.

• [On, with moving detection]: It only applies in the [Orbiter] mode. When the still image remains for the [StandBy]

time, the afterimage prevention function works for the [Duration] time.

• [On, without moving detection]: It only applies in the [Orbiter] mode. When you tap the [DONE] button, the

afterimage prevention function immediately applies and operates continuously.

• [Schedule]: Enable the ISM feature from start time to end time on the set day.

[StandBy]

• You can set the period between 1 and 24 hours.

• This option is available only when [Repeat] is set to [Schedule].

• The ISM function is performed if the still image is maintained for the set period.

[Duration]

• You can select from among 1 - 10 min / 20 min / 30 min / 60 min / 90 min / 120 min / 180 min / 240 min.

• This option is available only when [Repeat] is set to [Schedule].

• The ISM function is performed for the set time.

[Select Day]

• You can set the date.

• This option is available only when [Repeat] is set to [Schedule].

[Start Time]

• Set the Start time.

• This option is available only when [Repeat] is set to [Schedule].

• You cannot set the same time for Start time and End time.

[End Time]

• Set the End time.

• This option is available only when [Repeat] is set to [Schedule].

• You cannot set the same time for Start time and End time.

[Action Cycle]

You can select from among 1 - 10 min / 20 min / 30 min / 60 min / 90 min / 120 min / 180 min / 240 min.

• This option is only available when [Orbiter] is selected.

• [Orbiter]: The screen location moves at every set interval.

[User Image Download]

• In order to download an image, there must be an image file in “ISM” folder on your USB storage device.

• Delete the existing images stored on internal memory before downloading a new image file.

• Supported image file formats: BMP, JPG, JPEG and PNG

• You can download up to 4 images. (The maximum resolution is 1920 x 1080.)

• If a bar image is deleted or does not exist, the default image is used. (The default image is a white background)

• This option is only available when [User Image] is selected.

[User Video Download]

• In order to download a video, there must be a video file in the “ISM” folder on your USB storage device.

• Delete the existing contents stored on the internal memory before downloading a new video file.

• Supported video file formats: “MP4”, “AVI”, “FLV”, “MKV”, “MPEG”, “TS”

• You can download only 1 video.

• If a video is deleted or does not exist, the default video is used. (The default video is a white background image)

• This option is only available when [User Image] is selected.

ENGLISH

* How to reset or delete User Image / User Video

• Reset using > [Admin] > [Factory Reset]

• Open the Player app > Click “Delete” button at the top right of the screen > Delete downloaded image / video

[Screen Fault Detection]

ENGLISH

• The screen fault detection feature determines whether there is an abnormality at the end of screen; R, G, and B

OSDs are created in the upper left-hand corner of the panel at intervals of about one second, and then a pixel sensor checks the area.

• Setting to [On] enables the screen fault detection feature.

• Setting to [Off] disables the screen fault detection feature.

[Advanced Setting]

[General] [Advanced Setting]

[Beacon]

• This option enables BLE Beacon, one of Bluetooth 4.0's features.

• Beacon Mode (On/Off Toggle): enables the Beacon feature.

• The LG Beacon/iBeacon/Eddystone Type Beacon features are supported.

• iBeacon

- Beacon UUID (hex): Set the UUID.

1. Field1: 4byte hex value (8 digits)

2. Field2: 2byte hex value (4 digits)

3. Field3: 2byte hex value (4 digits)

4. Field4: 2byte hex value (4 digits)

5. Field5: 6byte hex value (12 digits)

- Major (0–65535): Sets the Major value.

- Minor (0–65535): Sets the Minor value.

• Eddystone

- Frame: Frame: Set UUID or URL.

• 1. Setting the URL method

- Beacon UUID (hex): Set the UUID. 1 - Field1: 10byte hex value (20 digits) 2 - Field2: 6byte hex value (12 digits)

• 2. Setting the URL method

- URL Prefix: URL Prefix: Sets the prefix of the URL.

- URL Suffix: URL Suffix: Set the suffix of the URL.

- Play via URL URL: Enter the part of the URL that excludes the prefix and suffix.

- URL string length is limited to 15 characters.

• [Check] button: The button used to complete and apply the Beacon settings.

NOTE

• Some models do not support background screening services in iOS.

• A reboot is recommended for the settings to be applied properly.

• The UUID value is hexadecimal and the exact number of digits must be entered.

• The distance to Beacon may vary depending on the device.

• The distance to Beacon may vary depending on the application used in the device.

• The Beacon function is affected by radio waves because it employs the Bluetooth Low Energy (BLE) technology. It

may not function properly if the frequency range is not around 2.4GHz.

• When you set iBeacon, LG Beacon will be set to be the same as the value of iBeacon field. But the LG Beacon setting

item won’t be provided separately.

[Control Interface]

Devices connected to the display can be controlled via the interface.

• [PC/OPS Power Control]: Enable you to control the power of PC or OPS as you turn the display on and off.

- [Disable]: Disable [PC/OPS Power Control].

- [Sync(On)]: Set the PC/OPS power to be turned on when the display is turned on.

- [Sync(On/Off)]: Set the PC/OPS power to be turned on when the display is turned on and set the PC/OPS power to be turned off when the display is turned off.

• [Control Interface Selection]: Select the serial communication path between the display and the connected devices.

- [Display]: Serial communication is available via a display RS-232C IN terminal.

- [OPS]: Serial communication is available with the OPS installed in the display.

- [HDBaseT]: Serial communication is available with the display via HDBaseT equipment.

NOTE

• Depending on the model, it can be displayed as [PC/OPS Control].

• Depending on the supported interface, the sub-menu of [Control Interface Selection] may be different.

• The PC products that support the power control are MP500/MP700, and you have to purchase them separately if

necessary.

• If you change [Control Interface Selection], the [RS-232C Sync] feature of [Sync Mode] may be restricted.

ENGLISH

[Background Image]

ENGLISH

This feature enables you to set the default background image.

• [Booting Logo Image]: Change the logo image that appears when the device boots up. If you set this option to Off, no

logo image appears when the device boots up. Download or initialize an image file on the storage device.

• [No Signal Image]: Change the image that appears when there is no signal. If you set this option to Off, no image

appears when there is no signal. Download or initialize an image file on the storage device.

NOTE

• To download an image, an image file must exist in a folder named “LG_MONITOR” or “lg_monitor” in the external

memory (USB).

• Supported image file formats : “BMP”, “JPG”

• The maximum downloadable resolution is as follows, depending on the model.

Boot logo image No signal image

Full HD 1920x1080 1920x1080

Ultra HD 1920x1080 3840x2160

86 "Ultra Stretch 1920x300 3840x600

88 "Ultra Stretch 1920x540 3840x1080

[Input Manager]

You can set the PC or DTV label for each external input.

[SIMPLINK Setup]

• When the [SIMPLINK Setup] is set to [On], you can use the SIMPLINK provided by LG Signage.

• [Device ID]: Set the ID of the device connected via CEC wiring. You can choose a value between [All] and [E].

• [StandBy]: Sets the scenarios for sending and receiving the Standby command. Detailed scenarios are as follows:

Transmission Reception

All O O

Send Only O X

Receive Only X O

[Crestron]

This function enables synchronization with applications provided by Crestron.

• Server: This menu sets the server's IP address for the network connection with the server (equipment provided by

Crestron).

• Port (1024~65535): This menu sets the port for the network connection with the server. The default port number is

41794.

• IP ID (3-254): This menu sets a unique ID for synchronizing with the application.

[LED Controller]

Allows a specific LED display manufacturer to remotely control some features of the linked display.

[USB2 to HDBaseT]

This function transfers the data received from the USB2 terminal of the display to HDBaseT.

• [On]: Transfer the data of the device connected to USB2 to the HDBaseT equipment.

• [Off]: Receive the data of the HDBaseT equipment to Signage.

NOTE

• The HDBaseT function will be temporarily interrupted when the setting is changed.

ENGLISH

Display

ENGLISH

[Picture Mode]

[Display] [Picture Mode]

[Mode]

This feature enables you to choose the optimal picture mode for your installation environment.

• [Mall/QSR], [Transportation], [Education], [Gov./Corp.]: Display the picture optimally for your installation environment.

• [Normal]: Display the picture at normal contrast, brightness, and sharpness.

• [APS]: Adjust the screen brightness to reduce power consumption.

• [Expert], [Calibration]: Allow an expert, or anyone who loves picture quality, to manually tune to the best picture

quality.

• [Hospital]: An image setting mode optimized for medical images.

NOTE

• The type of [Picture Mode] you can select may vary depending on the model or input signal.

• [Expert] is an option that allows a picture quality expert to fine-tune the picture quality using a specific image. Thus,

it may not be effective for a normal picture.

[HDR]

This feature enables you to choose the optimal picture mode for your installation environment.

• [Mall/QSR]: sharpens the image by increasing the contrast, brightness and sharpness.

• [General]: In a normal viewing environment, it opens a screen that can properly show the expressiveness and

brightness of HDR.

• [Gov./Corp.]: The screen appears brighter and clearer than of the General screen.

• [Education]: Suitable picture for gameplay.

[Customize]

• [Backlight]: Adjust the brightness of the screen by adjusting the brightness of the backlight. The closer the value is to

100, the brighter the screen is.

• [OLED Light]: Adjusts the brightness of the LED panel to control the brightness of the screen.

• [LED Light]: Adjust screen brightness by tuning the LED Light. Higher values increase brightness.

• [Contrast]: Adjust the difference between the light and dark areas of the picture. The closer the value is to 100, the

greater the difference is.

• [Brightness]: Adjust the overall brightness of the screen. The closer the value is to 100, the brighter the screen is.

• [Sharpness]: Adjust the sharpness of the edges of objects. The closer the value is to 50, the clearer and the sharper

the edge becomes.

• [Color]: Soften or deepen the tints on the screen. The closer the value is to 100, the deeper the colors become.

• [Tint]: Adjust the balance between red and green levels displayed on the screen. The closer to Red 50, the redder the

color will be. The closer to Green 50, the greener the color will be.

• [Color Temperature]: The higher you set the color temperature, the cooler the colors on the screen will feel. The lower

you set the color temperature, the warmer the colors on the screen will feel.

• [Advanced Controls] / [Expert Controls]: Customize the advanced options.

- [Dynamic Contrast]: Optimize the difference between the light and dark parts of the screen according to the brightness of the image.

- [Super Resolution]: Sharpen the areas of the screen that are blurry or barely distinguishable.

- [Color Gamut]: Select the range of colors available.

- [Dynamic Color]: Adjust the tint and saturation of the image for a more vivid and lively display.

- [Color Filter]: Accurately adjust color and tint by filtering a specific color area of RGB space.

- [Preferred Color]: Adjust the skin tint, grass tint, and sky tint to your preference.

- [Gamma]: Adjust gamma settings to compensate for the brightness of the input signal.

- [White Balance]: Adjust the overall color fidelity of the screen to your liking. In Expert mode, you can fine-tune the picture using the Method/Pattern options.

- [Color Management System]: Experts use the color management system when they adjust the colors by using the test pattern. The color management system allows you to make an adjustment by selecting from among 6 different color spaces (Red/Yellow/Blue/Cyan/Magenta/Green) without affecting other colors. In a normal picture, you may not notice the color changes you have made.

- [Dynamic tone mapping]: Suitable contrast settings based on image brightness of the HDR content.

ENGLISH

• [Picture Option]: Customize the picture options.

ENGLISH

- [Noise Reduction]: Remove randomly popping dots to make the picture look clearer.

- [MPEG Noise Reduction]: Reduce the noise generated in the process of creating a digital video signal.

- [Black Level]: Adjust the brightness and contrast of the screen by adjusting the black level of the screen. (Recommended settings based on input signals: Backlight 0 - 255 High, RGB 16 - 235: Low, YCbCr: Low)

- [Real Cinema]: Optimize the video image for a cinematic look.

- [Motion Eye Care]: Reduce eye fatigue by adjusting brightness levels and lessening blurriness based on the displayed image.

- [LED Local Dimming]: Make the light areas of the screen lighter and the dark areas darker for maximum contrast. Setting this feature to Off may increase the monitor's power consumption.

- [TruMotion]: Reduce image shaking and image sticking that can occur with /moving images. (If you set the [External Input Rotation], this feature is unavailable.)

• [Apply to all inputs]: Copies the current value of the detailed setting menu to the entire input, and applies only to the

selected picture mode.

• [Reset]: Reset the picture settings. Because the picture settings are reset according to the monitor's picture mode,

please select the picture mode before resetting the picture settings.

[Aspect Ratio]

[Display] [Aspect Ratio]

This feature enables you to change the picture size to view the picture at its optimal resolution.

• [Full Wide]: Stretch the picture to fill the screen.

• [Original]: Display the picture at its original resolution.

[Rotation]

[Display] [Rotation]

[Screen Rotation]

• This feature rotates the screen clockwise.

• You can set this feature to Off/90/180/270.

• When set to off, this feature is deactivated.

• It is recommended that you use content designed to be used in Portrait mode.

• When the screen rotation is enabled, the PIP mode of the multi-screen is unavailable.

NOTE

• Depending on the model, the automatic screen rotation feature may not be supported.

[External Input Rotation]

• This feature rotates the screen clockwise.

• You can set this feature to Off/90/180/270.

• When this feature is set to On (90 or 270 degrees), as for ARC, the picture is resized to be [Full Wide].

• If [External Input Rotation] is enabled during WiDi operation, the position of the mouse cursor may not be displayed

accurately.

• Please note that the degradation of picture quality that occurs when you have enabled [External Input Rotation]

during the use of external input has nothing to do with the product itself.

• When External Input Rotation is set to On, Multi Screen's PIP mode is disabled.

• If External Input Rotation is enabled on models that support touch, touch may not work properly.

• To use Ultra Stretch products in optimum picture quality, please refer to the User Manual’s Contents Creation & Use

Guide.

• For Ultra Stretch products, content picture quality may be compromised depending on the conditions of content

creation and product settings (screen split/rotate).

ENGLISH

[Mirror mode]

• Set the screen to rotate 180 degrees.

[Advanced Setting]

ENGLISH

[Display] [Advanced Setting]

[UHD Deep Color]

If you connect an HDMI, DP, or OPS device to one of the Deep Color adjustable ports, you can select between UHD Deep Color On (6G) or Off (3G) in the UHD Deep Color settings menu.

If a compatibility issue occurs with a graphics card when the Deep Color option is set to On at 3840 x 2160 @ 60 Hz, set the Deep Color option back to Off.

• HDMI, DP, and OPS specifications may vary depending on the input port. Check the specifications of each device

before connecting.

• HDMI input port 2 is best suited for high definition videos that are 4K@60 Hz (4:4:4, 4:2:2). However, video or audio

may not be supported depending on the specifications of the external device. If this is the case, please connect the device to a different HDMI port.

• This feature may not be available on some models.

[OLED Panel Settings]

• [Clear Panel Noise]: Correct issues that may arise on the screen when it is turned on for a long period of time.

• [Screen Protection Mode Setting]: This feature analyzes the characteristics of the image from the external input to

prevent afterimages on the screen.

Master

Slave

When Master is selected When Slave is selected

No. Item Description

[Tiling Type] Select and set the mode according to the installation type of your Signage.

• Stand-alone: Select and use this mode when you use only one unit.

• Video Wall: Select and use this mode when using two or more multi-screen

configurations. This mode requires advanced settings.

[Detail Settings] Select Master or Slave.

• When Master is selected: Enter the number of rows and columns for the entire

multi-screen.

• When Slave is selected: Enter the multi-tile ID number for the individual set.

[Screen Protection Mode]

This feature enables you to set the content correction level and to set whether to use the Screen Switch feature.

•

[Content Luminance Compensation]: Select a high or low correction level to use.

•

[Screen Shift]: Set whether to use the Screen Switch feature.

NOTE

• The [Tiling Type] and [Detail Settings] menu items are not available for models that do not support the tile mode.

• The [Screen Protection Mode] function is supported for external input images.

- The [Screen Protection Mode] function is not enabled for playing images in USB devices.

- The [Screen Protection Mode] function is not enabled when interlaces signals are input.

• [Screen Protection Mode] does not work with the functions [TruMotion] / [Noise Reduction] / [MPEG Noise

Reduction].

- To enable the functions [TruMotion] / [Noise Reduction] / [MPEG Noise Reduction] in the DTV input mode, ensure that the [Screen Protection Mode] menu is set to (Off).

• It is recommended to use contents with 10 minutes of playback time. (The [Screen Protection Mode] function may

not work smoothly for the content with the duration longer than 10 minutes.)

• For the [Screen Protection Mode] feature to work normally, the Dithering feature should be turned OFF on the

external input player or the graphics chip/card you are using.

• To enable the [Screen Protection Mode] feature in Video Wall, the screens must be connected to the same network

through a LAN. However, some operations may not be available when the screens are connected to [LAN Daisy Chain]. In this case,

we recommend using a router or network switch.

• If [Screen Protection Mode Settings] is all set and in operation, and the settings are changed or the [Screen

Protection Mode] function is discontinued, the function restarts next time the product is turned on.

- To enable the [Screen Protection Mode] function, it needs time to recognize the pattern of the content. (The time may vary depending on the duration of the content.)

• The [Screen Shift] feature is supported only for the stand-alone configuration or for use in a single DP daisy chain.

That is, if [Tile Mode] is enabled, the [Screen Shift] feature only works properly when the values of [Row] and [Column] in [Tile Mode Setting] are the same as those of [Row] and [Column] in [Detail Settings].

• When [Content Luminance Compensation] is set to [High], there may be differences in brightness than when it is set

to [Low].

• Return to default settings by clicking [Admin] > [Factory Reset].

• When using the Screen Shift function, the location of the touched and operated area may be slightly different.

ENGLISH

[Energy Saving]

ENGLISH

• [Smart Energy Saving]: Automatically adjust the brightness of the screen according to the brightness of the picture

to save energy.

- [On]: Enable the Smart Energy Saving feature.

- [Off]: Disable the Smart Energy Saving feature.

• [Brightness Control]: Adjust the brightness of the screen to save energy.

- [Auto:] Automatically adjust the brightness of the screen according to ambient light.

- [Off]: Disable energy saving.

- Minimum/Medium/Maximum: Use energy saving according to the energy saving level set for the monitor.

• [Brightness Range Adjustment]: Sets the min/max values of the brightness range for the backlights adjusted by the

illumination sensors.

- [Min Backlight]: Sets the min value of the backlights.

- [Max Backlight]: Sets the max value of the backlights.

• [Brightness Scheduling]: Adjust the backlight at specified times.

- You can set this feature to [On/Off].

- Add schedule by setting the schedule time and backlight / OLED Light / LED Light value.

- If the current time has not been set, [Brightness Scheduling] is disabled.

- You can add up to six schedules, and they are sorted in ascending order by time.

- You can edit a schedule by selecting it from the list and pressing the [OK] button.

NOTE

• Return to default settings by clicking [Admin] > [Factory Reset].

[HDMI IT Content]

Set the HDMI IT Contents function.

• [Off]: Disable the HDMI IT Contents function.

• [On]: Enable the HDMI IT Contents function.

This feature automatically changes the monitor's picture mode based on HDMI Contents information when an HDMI signal is entered.

Even if the monitor's picture mode has been changed by the HDMI IT Contents feature, you can change the picture mode again manually.

As this has a higher priority than the picture mode set by the user, the existing picture mode may be changed when the HDMI signal changes.

[Color Calibration]

Sets the screen color to match the actual color temperature.

• [Off]: Disables the Color Calibration feature. The screen color is set to the default value.

• [On]: Enables the Color Calibration feature. The screen color is set to match the actual color temperature.

NOTE

• The screen color may change if you enable or disable the feature.

• If the Picture Mode is ‘Calibration’, this feature will not be available.

[LED Local Dimming]

Make the light areas of the screen lighter and the dark areas darker for maximum contrast.

NOTE

• Return to default settings by clicking [Admin] > [Factory Reset].

[Low Latency]

Reduces frame delay in the LED Signage.

[Factory Calibration]

Retrieves factory pixel calibration data of the LED Signage and reflects it on the screen. Calibration needs to be done once during the initial installation and should also be carried out when relocating or replacing the LDM.

Video Output Resolution

[Display] [Video Output Resolution]

You can set the resolution of webOS BOX.

ENGLISH

Sound

ENGLISH

[Sound Mode]

[Sound] [Sound Mode]

[Sound Mode]

The best sound quality will be selected automatically depending on the video type currently being watched.

• [Standard]: This sound mode works well for content of all types.

• [Cinema]: Optimize sound for watching movies.

• [Clear Voice III] Enhance voices so they can be heard more clearly.

• [Sports]: Optimize sound for watching sports.

• [Music]: Optimize sound for listening to music.

• [Game]: Optimize sound for playing video games.

[Balance]

• [Balance]: Adjust the output volume for the left speaker and the right speaker.

[Equalizer]

• [Equalizer]: Manually adjust sound by using the equalizer.

[Reset]

• [Reset]: Resets sound settings.

[Sound Out]

[Sound] [Sound Out]

• [Internal Speaker] / [External Speaker]: You can output audio either through your Signage monitor's internal speaker

or through an external speaker connected to it.

• [SIMPLINK External Speaker]: This function connects Home Theater device by SIMPLINK. When it is set to Home

Theater device input, it outputs voice through the connected device. This option is activated when SIMPLINK has been set to On.

• [LG Sound Sync / Bluetooth]: Enables you to connect Bluetooth audio devices or Bluetooth headsets wirelessly to

your monitor so that you can enjoy richer audio conveniently.

NOTE

• Some recently connected devices may automatically attempt to reconnect to the Signage monitor when it is turned

on.

• It is recommended that you set LG audio devices that support LG Sound Sync to LG TV mode or LG Sound Sync mode

before connecting.

• Press Device Selection to view the devices that are or that can be connected and connect other devices.

• You can use the signage remote control to adjust the volume of the connected device.

• If the audio device fails to connect, check that it is switched on and available for connection.

• Depending on the type of the Bluetooth device, the device may not connect correctly or an abnormal behavior may

occur such as unsynchronized video and audio.

• Sound may stutter or sound quality may be reduced if:

- The Bluetooth device is too far from the Signage monitor.

- There is an obstructing object between the Bluetooth device and the Signage monitor.

- The Bluetooth device is used together with radio equipment such as a microwave oven or wireless LAN.

ENGLISH

[Audio Out]

ENGLISH

• [Off]: Disables the use of [Audio Out]. (No audio outputted.)

• [Variable]: You can specify an output range for the external audio device connected to the monitor and adjust the

volume within the range. You can change the volume of an external audio device within the range of 0 to 100 (the same as the Signage speaker volume). However, there may be a difference in the actual volume level outputted.

• [Fixed]: Sets a fixed audio output level for the external audio device.

- If there is no external input, no external audio is outputted.

- The variable audio output level 100 is the same as the fixed audio output level.

[Sound] [Audio Out]

[AV Sync Adjustment]

[Sound] [AV Sync Adjustment]

This feature adjusts audio timing to synchronize video and audio.

• [External Speaker] (0~15): Adjust the sync between video and audio coming from external speakers, such as those

connected to the digital audio output port, LG audio equipment, or headphones. The larger the number is, the slower the voice output is than the default value.

• [Internal Speaker] (0~15): Adjust the sync of sound from the internal speakers. The larger the number is, the slower

the voice output is than the default value.

• [Bypass]: Output the broadcast signals or the sound from external devices without any audio delay. Audio may be

outputted earlier than video due to the processing time for video that is inputted into the monitor.

[Digital Audio Input]

[Sound] [Digital Audio Input]

This feature enables you to choose an input source for audio output.

• [Digital]: Output the audio contained in the digital signal inputted from the connected digital input source (HDMI,

DISPLAYPORT, OPS).

• [Analog]: Output audio from the digital input source (HDMI, DISPLAYPORT, OPS) connected to the monitor through

the Audio In port.

Admin

[Lock Mode]

[Admin] [Lock Mode]

[Home Dashboard Lock]

When you set the Home Dashboard Lock, you can limit the change in the settings of the Home Dashboard.

[USB Lock]

This feature enables you to configure the USB lock feature so that settings or content cannot be changed.

[OSD Lock]

This feature enables you to configure the OSD lock feature so that settings or content cannot be changed.

• Press and hold the Settings key for at least 10 seconds and enter password to access the settings menu in OSD Lock.

[IR Operation Lock]

• If you set this feature to [Off (Normal)], you can use your remote control.

• If you set this feature to [On (Power Key Only)], you can only use the power key.

• If you set this feature to [On (Block All)], you cannot use your remote control. (However, Power On feature is

available.)

• Press and hold the Settings key for at least 10 seconds and enter password to access the settings menu in IR

Operation Lock.

[Local Key Lock]

This feature enables you to configure the Local Key Operation Lock feature so that settings or content cannot be changed.

• If you set this feature to [Off (Normal)], you can use the local keys on the monitor.

• If you set this feature to [On (Power Key Only)], you can only use the power key. (When you use a joystick, press and

hold a local key to turn on/off the monitor.)

• If you set this feature to [On (Block All)], you cannot use the local keys. (However, Power On feature is available.)

ENGLISH

[Wi-Fi Lock]

This feature enables you to turn the Wi-Fi feature on or off.

[Screen Share Lock]

This feature enables you to turn the Screen Share feature on or off. If the Screen Share Lock value is changed, the function is not applied without a reboot.

[Change Password]

ENGLISH

This feature enables you to set the password you use to enter the Installation menu. (The default password: 000000)

1 Enter your current password. 2 Enter a new 6-digit password. 3 Enter the same password again in the Confirm Password field for confirmation.

[Enterprise Settings]

• Enter your company account code to apply the corresponding enterprise settings.

• When your code has been entered, the monitor set gets reset, thereby applying the corresponding enterprise

settings.

• This feature does not get activated if a code has already been entered.

[HDCP Dynamic output control]

• Only HDCP protected content will be encrypted delivered when you set ‘On’.

• Every content will be encrypted delivered when you set ‘Off’.

[Factory Reset]

Initializes all settings in [Setting] and files from the internal storage. The exceptions are RGB gain value of [Calibration] mode, [Video Wall]([Tile Mode], [Tile Mode Setting], [Natural Mode],

[Frame Control], [Scan Inversion]) and [Server Setting] items of [Ez Setting], and [Set ID] items of [General].

NOTE

• It keeps the existing settings because the Off / On button in the User menu only affects the active / inactive status

of the submenu.

CONTENT MANAGER

Web Login

• Different features are supported depending on the product.

This Signage product comes with a feature that enables you to access it on your PC or mobile device.

- Content Manager, Group Manager 2.0, Control Manager, Log Out, Change Password menus are provided.

• URL: https://set ip:443

• The default password: 00000000

CAUTION

• Supported resolutions (this program is optimized for the following resolutions):

- PC: 1920 x 1080 / 1280 x 1080

- Mobile: 360 x 640(1440 x 2560, 1080 x 1920), DPR

• Supported browsers (this program is optimized for the following browsers):

- Chrome 56 or later (recommended)

Content Manager

[Player]

(Player)

The Content Manager app's player feature enables you to play/manage contents of video, image, template, SuperSign and playlist in an integrated way. (The OLED models do not support the playback and management of image content and template content.)

ENGLISH

[Continuous Play]

1 Select your desired type of content from the tab on the left and then select your desired content. 2 Click [Play] in the upper right-hand corner of the screen and enjoy the content you have selected.

[Export]

1 Select your desired type of content from the tab on the left and click [Export] in the upper right-hand corner of the

screen.

2 Select the content you wish to export. 3 Click [Copy]/[Move] in the upper right-hand corner of the screen and select the device to which you wish to export

the content. (If a content file stored on the target device has been selected, the processing of the content file is skipped.)

4 You can see that the content has been moved/copied to the device.

[Delete]

ENGLISH

1 Select your desired type of content from the tab on the left and click [Delete] in the upper right-hand corner of the

screen.

2 Select the content you wish to delete. 3 Click [Delete] in the upper right-hand corner of the screen. 4 You can see that the content has been deleted.

[Filter / Sort]

1 Click [Filter / Sort] in the upper right-hand corner of the screen. 2 1) Choose your desired sort criterion to sort content files either by file name or in the order they have been played

(the most recently played file shown at the top of the list).

2) It is possible to only view the content stored on your desired device by filtering content files by device.

3) It is possible to only view the content of your desired type by filtering content files by content type.

[Create Playlist]

When creating a playlist, you cannot include characters that cannot be used in file names on Windows — such as \, /,:, *,?, ", <,>, and | — in the names of the files in the playlist. In addition, if the playlist contains content files whose names include such characters, you cannot move or copy the playlist.

1 Select the [Playlist] tap from the tab on the left and click [Create Playlist] in the upper right-hand of the screen. 2 Select the content you wish to add to the playlist and click [NEXT] in the upper right-hand of the screen. 3 Set a play time for each piece of content (applicable only for photo and template content), as well as other items

such as Conversion Effect, Ratio, and Auto Playback, and then click [DONE] button in the upper right-hand corner of the screen.

4 You can see a new [Playlist] has been created.

[Distribution]

1 Click [Distribute] in the upper right-hand corner of the screen. 2 Go to the Group Manager app to distribute the created playlists.

NOTE

• The Distribute button shows only when playlist is selected as media type.

[Scheduler]

(Scheduler)

The Content Manager app's scheduler feature enables certain content to be played at a scheduled time through a playlist or external input.

[Creating a Schedule]

1 Click [New Schedule] in the upper right-hand corner of the screen. 2 Choose between [Playlist] and [Input Source]. 3 1) If you have selected [Playlist], select the playlist you wish to schedule the playback of.

2) If you have selected [Input Source], select the external input source you wish to schedule the playback of.

4 Enter schedule information and create a new schedule. (When creating a schedule, you cannot include characters

that cannot be used in file names on Windows — such as \, /,:, *,?, ", <,>, and | — in the name of the schedule file. In addition, if the playlist linked to the schedule contains content files whose names include such characters, you cannot move or copy the playlist.)

5 Watch the playlist or external input you selected play back at its scheduled time.

[Importing a Schedule]

1 Click [Import] in the upper right-hand corner of the screen. 2 Select the external storage device from which you wish to import a schedule. 3 Select the schedule you wish to import to your monitor. (You can only choose a single schedule.) 4 Click [Select] in the upper right-hand corner of the screen. 5 Check that the schedule has been imported to the monitor's internal storage memory.

[Exporting a Schedule]

1 Click [Export] in the upper right-hand corner of the screen. 2 Select the external storage device to which you wish to export a schedule. 3 Select the schedule you wish to export from your monitor. (You can choose multiple schedules.) 4 Click [Select] in the upper right-hand corner of the screen. 5 Check that the schedule has been exported to the external storage device you selected.

ENGLISH

[Delete Schedule]

ENGLISH

1 Click [DELETE] in the upper right-hand corner of the screen. 2 Select the schedules you wish to delete. 3 Click [DELETE]. 4 Check that the schedules have been deleted.

[Calendar View]

1 When you have registered schedules, click [Calendar View]. 2 You can see that the schedules registered are displayed in the form of a timetable.

[Distribute]

1 Click [Distribute] in the upper right-hand corner of the screen. 2 Go to the Group Manager app to distribute the created schedules.

NOTE

• If the schedule creation time overlaps, the previously created schedule is deleted.

• When a schedule that has not been set repeatedly is completed, the schedule is automatically deleted.

• Schedule does not work while Scheduling list app is running.

[Template]

(Template)

The Content Manager app's editor feature enables you to add your desired templates.

1 Select the template of your desired format. (You can choose between Landscape mode and Portrait mode.) 2 Modify the template's text.

2-1. Apply your desired font style (Size, Weight, Underline, Italic)

3 Modify the media file.

3-1. Select and apply the rate you want.

4 Save the template by clicking [Save] in the top right-hand corner of the screen. 5 Check that the template you saved is shown in the template list.

Supported Photo & Video Files

NOTE

• Subtitles are not supported.

• The photo feature is not supported in OLED model.

Supported video codecs

Extension Codec

.asf, .wmv Video VC-1 Advanced Profile (except for WMVA), VC-1 Simple and Main Profiles

Audio WMA Standard (excluding WMA v1/WMA Speech)

.avi Video Xvid (excluding 3 warp-point GMC), H.264/AVC, Motion Jpeg, MPEG-4

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, LPCM, ADPCM,

DTS

.mp4, .m4v, .mov Video H.264/AVC, MPEG-4, HEVC

Audio Dolby Digital, Dolby Digital Plus, AAC, MPEG-1 Layer III (MP3)

.3gp

.3g2

.mkv Video MPEG-2, MPEG-4, H.264/AVC, VP8, VP9, HEVC

.ts, .trp, .tp, .mts Video H.264/AVC, MPEG-2, HEVC

.mpg, .mpeg, .dat Video MPEG-1, MPEG-2

.vob Video MPEG-1, MPEG-2

Video H.264/AVC, MPEG-4

Audio AAC, AMR-NB, AMR-WB

Audio Dolby Digital, Dolby Digital Plus, AAC, PCM, DTS, MPEG-1 Layer I, II, MPEG-1

Layer III (MP3)

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus,

AAC, PCM

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3)

Audio Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM

ENGLISH

Maximum transmit ratio

Full HD movie H.264 1920 x 1080@60P BP/MP/HP@L4.2 40Mbps

HEVC 1920 x 1080@60P Main/Main10@L4.1 40Mbps

ULTRA HD movie

(UHD models only.)

H.264 3840 x 2160@30P BP/MP/HP@L5.1 50Mbps HEVC 3840 x 2160@60P Main/Main10@L5.1 60Mbps

Supported Photo File Formats

ENGLISH

File type Format Resolution

.jpeg, .jpg, .jpe JPEG • Minimum: Min: 64 x 64

• Maximum: Normal Type: 15360 (W) x 8640 (H)

Progressive Type: 1920 (W) x 1440 (H)

.png PNG • Minimum: Min: 64 x 64

• Maximum: 5760 (W) x 5760 (H)

.bmp BMP • Minimum: Min: 64 x 64

• Maximum: 1920 (W) x 1080 (H)

Tips for using USB storage devices

• Only USB storage devices are recognized.

• USB storage devices connected to the monitor through a USB hub may not work properly.

• USB storage devices that use an automatic recognition program may not be recognized.

• USB storage devices that use their own drivers may not be recognized.

• The recognition speed of a USB storage device may depend on each device.

• Please do not turn off the display or unplug the USB device when the connected USB storage device is working.

When the device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.

• Please do not connect the USB storage device which was artificially maneuvered on the PC. The device may cause

the product to malfunction or fail to be played. Remember to only use USB storage devices that store normal music, image, and/or movie files.

• Storage devices formatted with utility programs that are not supported by Windows may not be recognized.

• Please connect power to a USB storage device (over 0.5 A) which requires an external power supply. Otherwise, the

device may not be recognized.

• Please connect a USB storage device with the cable offered by the device maker.

• Some USB storage devices may not be supported or operated smoothly.

• File alignment methods of the USB storage device is similar to Windows XP and filenames can include up to 100

English characters.

• Be sure to back up important files since data stored in a USB memory device may be damaged. We will not be

responsible for any data loss.

• If the USB HDD does not have an external power source, the USB device may not be detected. So make sure to

connect it to an external power source.

- Please use a power adapter for an external power source. No USB cable is provided for an external power source.

• If your USB storage device has multiple partitions, or if you use a USB multi-card reader, you can use up to four

partitions or USB memory devices.

• If a USB storage device is connected to a USB multi-card reader, its volume data may not be detected.

• If the USB storage device does not work properly, remove it and connect it again.

• If the USB storage device is connected in Standby Mode, a specific hard disk will automatically be loaded when the

display is turned on.

• The recommended capacity is 1 TB or less for a USB external hard disk and 32 GB or less for USB memory.

• Any device with more than the recommended capacity may not work properly.

• If a USB external hard disk with an energy saving feature does not work, turn the hard disk off and on again to make

it work properly.

• USB storage devices (USB 2.0 or below) are also supported. However, they may not work properly in the videos list.

• A maximum of 999 folders or files can be recognized under one folder.

• When distributing contents to USB while playing a video in UHD resolution, the video might experience temporary

stuttering.

• USB storage devices supported by a mobile device may not be recognized.

• Even if multiple USB storage devices are connected, only one USB storage device can be used.

ENGLISH

Group Manager 2.0

ENGLISH

This feature enables you to group together multiple monitor sets on a single network into the same group and to distribute content (schedules and playlists) or copy setting data on a group basis. This feature has two modes, Master and Slave, and it can access the browser on your PC or mobile device.

[Master]

• Add, edit, and delete group.

• Clone your device's settings data.

• Distribute [Schedule] and [Playlists] on a group basis.

• All monitor sets initially come in Master mode.

[Slave]

• Play [Schedule] and [Playlists] distributed in Master mode.

• Remove monitor sets for their groups.

• Monitor sets that have been added to a group are automatically switched to Slave mode. Conversely, when a monitor

set has been deleted from a group, it is automatically initialized and switched to Master mode.

• If a new Slave has been added to an existing group, or if the [Data Cloning] or the distribution of [schedule]/[Playlist]

has not been properly performed, the [Data Cloning] or [SYNCHRONIZE] button will be activated.

• You can duplicate the master device's setting data to the group by using [Data Cloning].

• You can re-download the content distributed to the group by using [Synchronıze].

[GROUP MANAGEMENT]

• Creating a New Group

1. Click [Add New Group].

2. Enter a group name.

3. Click [Add Device], select the devices you wish to add to the group, and add them.

4. Click [Done], and you will see that a new group has been created.

• Editing a Group

1. Click the group you wish to edit.

2. Add a new device by using [Add Device].

3. Delete a device by using [Delete Device].

4. Check whether the devices in the group are connected to a network by using [Device Check].

5. If there are any sets of devices in the group that are not [Data Cloning] or content synchronized, [Data Cloning] or

[Synchronıze] button will be activated.

6. You can re-copy the master device's setting data to the group by using [Data Cloning].

7. You can re-distribute the content distributed to the group by using [Synchronıze].

• Deleting a Group

1. Click [Delete Group].

2. Select the group you wish to delete and click [Delete].

3. Check that the group you selected has been deleted.

• ALL DEVICES VIEW: All Devices View: This page enables you to manage all slave monitor sets that are connected to

the same network.

1. Click [All Devices View].

2. Click [Reset Device Mode].

3. Select the slave monitor set whose device mode you wish to change and click [Reset].

ENGLISH

[Setting Data Cloning]

ENGLISH

1 Select your desired group and click Clone. 2 Check that the data have been copied on the slave sets.

[Content Distribute]

1 Select the type of content you wish to distribute (Schedules or Playlists). 2 Select the content you wish to distribute. 3 Select the group to which you wish to distribute the content and click [Distribute]. 4 Run the Content Manager app on the slave sets and check that the content has been distributed.

How to Use

• Monitor: Run, add, delete or edit app on the home screen.

• Mobile: Mobile devices: Run the app in the Launcher bar or access the app from a mobile device using the QR code or

URL provided.

CAUTION

• You can create up to 25 groups.

• You can add up to 12 slave devices to a group.

• You can distribute the schedules stored on external devices after executing Content Manager's import operation.

• Make sure to delete all schedules stored on the slave sets before distributing any schedules.

• A list of devices you can add to your desired group appears only when the following conditions have been met:

- The devices you wish to add must be on the same network as the master device.

- The devices you wish to add must be in Master mode, and they must not belong to any existing group.

- The UPnP feature must be enabled (go to [General] > [Network] > UPnP and set it to [On]).

• It may not work properly in wireless network environments. It is recommended you use a wired network.

• Run the initial settings for Slave function when deleting the group.

ScreenShare

This feature allows the screen of a user's device such as a mobile or PC Windows to be shared with a display using a wireless connection such as WiDi or Miracast.

How to Use [ScreenShare]

(INPUT) [ScreenShare]

1 Connect according to the instructions provided by the guide that can be accessed through the CONNECTION GUIDE

button in the upper right.

2 Once the connection is established, Screen Share between the user device and the monitor is enabled.

NOTE

Configuring WiDi (Wireless Display)

WiDi, which is short for Wireless Display, is a system that wirelessly transmits video and audio files from a laptop that supports Intel WiDi to the display.

This is available only in certain input modes (HDMI/DP/OPS/DVI-D). Other than these modes, LG Signage cannot be detected by your PC.

1 Connect your laptop to AP. (This feature can be used without an AP, but it is recommended that you connect to it

for optimal performance.) Go to “PC Settings” “PC and Devices” “Devices” on your laptop.

2 Click “Add Device” in the top center of the screen, and then you will see a list of nearby WiDi-capable LG Signage

monitors. From the list of detected Signage monitors, select one you wish to connect to and click Connect.

3 The screen of your laptop screen appears on the screen of the Signage monitor within 10 seconds. The wireless

environment may affect the screen from displaying. If the connection is poor, the Intel WiDi connection may be lost.

• Instructions for using Intel WiDi can be found on the homepage of the manufacturer of your PC or notebook.

• This feature only works properly with WiDi 3.5 or later versions.

• This feature only works on Windows 8.1 or later

ENGLISH

LG Presenter

ENGLISH

This feature is to display the PC (Windows or Mac OS) screen on the Signage monitor with wired/wireless connection to the PC. To use this feature, you need to install LG Presenter PC Client (“Client”) on the PC.

You can use LG Presenter in the following ways.

- Connect: Enter the PIN code to connect your Signage device to the Client.

- Screen Share: Share the PC screen of the connected Client with your Signage device.

- Hand over: If a Client is already connected and another Client needs to share screen, you can request for a hand over to the connected Client to get permission to share screen.

- Settings: You can see the information of the Client or change the language used by the Client.

NOTE

• This feature may not be available on some models.

• Only sharing PC screen is supported and not voice sharing.

Connect

On Signage

[LG Presenter]

On PC

1 Go to www.lge.com/LGP to download the Client. 2 Install and run the downloaded Client. 3 Enter the username you want and press the button. 4 When the list of Signage devices found in the network appears, select the one you want to connect to. 5 Enter the PIN code you see on your Signage device into the PIN code field on the Client.

ENGLISH

No. Item Description

Name User Name

List of devices It shows the list of Signage devices available to connect.

Pin Code To connect to the Signage device, enter the PIN code shown the Signage device.

CAUTION

• The Signage device and the PC must be on the same network.

• If a specific port (UDP 1900) of your LG Signage is blocked, the LG Presenter feature will not be available.

Screen Share

ENGLISH

1 Select the screen you want to share and press the Share button. 2 To leave Screen Share, press the Stop button.

No. Item Description

Connection status It shows the currently connected user's name and you can also disconnect here.

Screen list It shows the list of PC screens available to share.

[Share] Press this button to start Screen Share.

Thumbnail It shows a thumbnail of the screen currently shared.

[Stop] Stops Screen Share.

Switch screen It switches between screens to share.

CAUTION

• if Screen Share does not work or won’t connect to the Signage device, check the firewall settings on your PC.

Handover

PC1: The PC where the client currently connected to your Signage device is running. PC2: The PC you want to connect to the Signage device connected to PC1

On PC2

1 Run the Client and search for the Signage device on the same network. 2 From the list of the Signage devices found, select the one connected to PC1.

On PC1

1 When the hand over request pop-up appears on PC2, select whether to approve or deny the request. 2 If you approve the request for hand over, the Signage device will be disconnected, and the Client on PC2 will be

connected to the Signage device.

3 If you deny the request for hand over, the Signage device will remain connected, so you can continue to use the

features of LG Presenter.

ENGLISH

No. Item Description

Request for Handover

When there is a Client currently connected to your Signage device and the Client from another PC requests to connect to the same Signage device, you can determine whether to approve the request.

MANAGEMENT TOOLS

ENGLISH

Admin

Control and check the status of the display through the Web browser. This function is available for PCs and mobile devices. Different features are supported depending on the product.

Function

• [Dashboard]: Display a summary of the product's status and provides links to each page.

• [Display & sound]: Provides features such as Screen Brightness, Sound, Input, and Reboot.

• [Time Setting]: Enable/disable Set Automatically feature and displays/changes the time set for the product.

• [Network]: Set the name and IP address of your Signage monitor.

• [Tile Mode]: Display the tile mode settings of the product.

• [Fail Over]: Turns the Fail Over feature on or off and sets related items.

• [Play via URL]: Turn Play via URL on or off and set URLs.

• [S/W Update]: Update the firmware of the product.

• [Charts]: Output the product's status information such as its temperature and fan status.

• [Log]: Output product malfunction records.

• [System Information]: Output information such as the product's software version and model name.

AUDIO

(RGB/DVI)

REMOTE

CONTROL IN

RS-232C OUT

RS-232C IN

RS-232C OUT

RS-232C IN

RS-232C OUT

RS-232C IN

Picture ID

[Picture ID] is used to change the settings of a specific set (display) using a single IR receiver for multi-vision. Communication is possible between a monitor with an IR receiver and other monitors using RS-232C cables. Each monitor is identified by a Set ID. Setting [Picture ID] allows you to only use the remote control with monitors with a [Set ID] that matches the [Picture ID].

1 Assign [Set ID] to the installed monitors as shown below:

Press the red [Picture ID] [On] button on the remote control.

Make sure that the Picture ID you set is identical to the [Set ID] of the monitory you wish to control.

• A set with a [Set ID] that is different from the [Picture ID] cannot be controlled by IR signals.

NOTE

• If [Picture ID] has been set to 2, only the upper right monitor, which has a [Set ID] of 2, can be controlled by IR signals.

• If you press the green [Picture ID] [Off] button on your remote control, the [Picture ID] for all monitors are turned

off. If you then press any button on the remote control, all monitors can be controlled by IR signals regardless of their [Set ID]'s.

ENGLISH

TOUCH

ENGLISH

Touch Assistive Menu

This touch-exclusive feature allows the user to configure settings without a remote control. Touching the screen for a certain period of time or pressing the Touch Assistive Menu local key brings up the Touch

Assistive Menu on the screen. Different features are supported depending on the product.

Function

• : Navigates to the Home screen.

• : Navigate to the external input selection screen.

• : Navigates to the Settings screen.

• : Go to SI App Selection screen

- : Run SI Apps installed with ZIP Type

- : Run SI Apps installed with IPK Type

- : Go to Developer Mode

- : Go to SI Server Setting

• : Go to the volume control screen

TO CONTROL AN EXTERNAL PC USING TOUCH SCREEN

• This only applies to certain models.

Connecting to a PC

Connecting this product to a PC with a USB cable (Type A to Type B) allows you to control the connected PC by touching the screen of the product.

For a PC that supports USB-C, use a USB-C cable to connect this product to the PC and control the PC using the touch screen.

You can control the installed OPS by touching the screen of the product even with the OPS installed.

Prioritized Tasks on the Touch Screen

Device performing the

Priority States Operation Conditions

• External input rotation set to 90˚/180˚/270˚

• Menu, App, dashboard, etc. displayed

• Pop-up message displayed

• Equipped with OPS

• External input configured for OPS

• Connected to a PC with a USB-C cable

• External input configured for USB-C

• External input configured (except for OPS/

USB-C)

• PC connected to the front of the product with

a touch cable

• External input configured (except for OPS/

USB-C)

• PC connected to the rear of the product with a

touch cable

Only one of the states is shown

All states are shown OPS

All states are shown

task when the screen is

touched

Screen of the product

PC connected with USB-C

PC connected to the front of the product with a touch cable

PC connected to the rear of the product with a touch cable

ENGLISH

NOTE

• When connecting to an external PC and using it with a touch screen, it may take a while to recognize your touch on

the touch screen device upon switching the connection for the touch function between external PCs.

SMART CALIBRATION

ENGLISH

How to Run

[Smart Calibration]

1 Set the Set ID of each set. 2 Select the [Picture Mode] to execute Smart Calibration.

After selecting the [Calibration] mode, you can set [Color Temperature].

- [Optimal Target]: Set the optimal color value of the installed set as the target.

- Please set the target to 3,000K in the broadcasting station environment.

3 With [START SMART CALIBRATION], you can correct the color/brightness. 4 If you set the [Schedule Setting] menu, calibration is performed automatically on a regular basis.

RS-232C

[Manual Calibration]

You can manually adjust the color of the selected location.

• [Screen Split]: Set the manual adjustment area.

• [Calibration Position]: Select the manual adjustment location.

Screen Split: 4, Calibration Position: 3

ENGLISH

Screen Split: 9, Calibration Position: 5

IR CODE

ENGLISH

• All models do not support the HDMI/USB function.

• Some key codes may not be supported depending on the model.

Code (Hex) Function Remarks

C4 MONITOR ON Remote control button

C5 MONITOR OFF Remote control button

95 (Energy Saving) Remote control button

0B INPUT (Select input) Remote control button

10 Number Key 0

11 Number Key 1 Remote control button

12 Number Key 2

13 Number Key 3

14 Number Key 4 Remote control button

15 Number Key 5 Remote control button

16 Number Key 6

17 Number Key 7 Remote control button

18 Number Key 8 Remote control button

19 Number Key 9 Remote control button

E0 Brightness (Page Up)

E1 Brightness (Page Down)

DC (3D) Remote control button

32 1/a/A Remote control button

2F CLEAR Remote control button

7E Remote control button

79 ARC (Mark/Aspect Ratio) Remote control button

4D PSM (Picture Mode)

09 (MUTE) Remote control button

43 (Settings/Menu) Remote control button

99 Auto Configuration Remote control button

40 (Up) Remote control button

41 (Down) Remote control button

28 (BACK) Remote control button

(Power)

(Vol +)

(Vol -)

(Right)

(Left)

(OK)

Remote control button

Code (Hex) Function Remarks

7B Tile Remote control button

61 Blue Remote control button

97 Swap Remote control button 96 Mirror Remote control button

Exit Remote control button

Picture ID On (red) Remote control button

Picture ID Off (green) Remote control button

Yellow Remote control button

W.Bal Remote control button

(S.Menu) Remote control button

(Home) Remote control button

ENGLISH

CONTROLLING MULTIPLE PRODUCTS

ENGLISH

• This only applies to certain models.

Use this method to connect several products to a single PC. You can control several products at a time by connecting them to a single PC.

In the Option menu, the Set ID must be between 1 and 1000 without being duplicated.

Connecting cables

• Images may differ according to the model.

Connect the RS-232C cable as shown in the picture. The RS-232C protocol is used for communication between the PC and product. You can turn the product on/off, select

an input source and adjust the OSD menu from your PC.

Monitor 4 Monitor 3 Monitor 2 Monitor 1 PC

RS-232C

OUT

RS-232C

OUT

RS-232C

OUT

RS-232C

OUT

RS-232C

4P Cable (sold separately) RS-232C Gender RS-232C Cable

(sold separately)

PC Monitor 1 Monitor 2 Monitor 3 Monitor 4

RS-232C Cable (sold separately)

Communication Parameter

Baud Rate: 9600 BPS Data Length: 8 bits Parity Bit: None Stop Bit: 1 bit Flow Control: None Communication Code: ASCII

NOTE

• When using 3-wire connections (non-standard), an IR

daisy chain cannot be used.

• Be sure to only use the provided gender to connect

properly.

• When you have daisy-chained multiple Signage

products to control them simultaneously, if you attempt to turn on/off the master device in a continuous manner, some products may not turn on. In this case, you can turn those monitors on by pressing the MONITOR ON button, not the Power button.

(Power)

MONITOR ON

ENGLISH

Command Reference List

ENGLISH

Command

1 2

01 [Power] k a 00 to 02

02 Select Input x b See Select Input

03 [Aspect Ratio] k c See [Aspect Ratio]

04 [Brightness Control] j q 00 to 04

05 [Picture Mode] d x See [Picture Mode]

06 [Contrast] k g 00 to 64

07 [Brightness] k h 00 to 64 08 [Sharpness] k k 00 to 32 09 [Color] k i 00 to 64 10 [Tint] k j 00 to 64

11 [Color Temperature] x u 70 to D2

12 [Balance] k t 00 to 64

13 [Sound Mode] d y See [Sound Mode]

14 [Mute on] k e 00 to 01

15 Volume Control k f 00 to 64

[Current Time] 1 (year/month/

day) [Current Time] 2 (hour/minute/

second) 18 [No Signal Power Off (15 Min)] f g 00 to 01

19 [No IR Power Off (4hour)] m n 00 to 01

20 [Language] f i See [Language]

21 Default Settings f k 00 - 02

22 Current Temperature d n FF

23 [Key] m c See [Key]

24 Time Elapsed d l FF

25 Check product serial number f y FF

f a See [Current Time] 1

f x See [Current Time] 2

(Hexadecimal)

Data

Command

1 2

26 [Software Version] f z FF

27 [White Balance] Red Gain j m 00 to FE

28 [White Balance] Green Gain j n 00 to FE

29 [White Balance] Blue Gain j o 00 to FE

30 [White Balance] Red Offset s x 00 to 7F

31 [White Balance] Green Offset s y 00 to 7F

32 [White Balance] Blue Offset s z 00 to 7F

33 [Backlight] m g 00 to 64

34 [Screen Off] k d 00 to 01

35 [Tile Mode] d d 00 to FF

36 Check [Tile Mode] d z FF

37 [Tile ID] d i See [Tile ID]

38 [Natural Mode] d j 00 to 01

39 [DPM] f j See [DPM]

40 Remote Control/Local Key Lock k m 00 to 01

41 [Power On Delay] f h 00 to FA

42 Select [Fail Over] Mode m i 00 to 02

43 Select [Fail Over] Input m j See Select [Fail Over] Input 44 Remote Control Key Lock t p 00 to 02 45 Local Key Lock t o 00 to 02

46 [Status Check] s v See [Status Check]

47 [Daylight Saving Time] s d See [Daylight Saving Time]

48 [PM Mode] s n, 0c 00 to 04

49 [ISM Method] j p See [ISM Method]

50 [Network Setting] s n, 80(81)(82) See [Network Setting]

Data

(Hexadecimal)

ENGLISH

51 [Power On Status] t r 00 to 02

52 Wired [Wake On LAN] f w 00 to 01

53 [Screen Rotation] t h 00 to 03

54 [Time Sync] s n, 16 00 to 01

55 [Contents Sync] t g 00 to 01

56 [LAN Daisy Chain] s n, 84 00 to 01

57 [External Input Rotation] s n, 85 00 to 03

58 [Beacon] s n, 88 00 to 01

59 [Brightness Scheduling] Mode s m 00 to 01

60 [Brightness Scheduling] s s See [Brightness Scheduling]

61 [Multi Screen] Mode & Input x c See [Multi-screen] Mode & Input

62 See [Aspect Ratio] x d See [Aspect Ratio]

63 [Screen Off] (Multi screen) x e See [SCREEN OFF] (Multi screen)

64 [Screen Off Always] s n, 0d 00 to 01

65 Stop Video k x 00 to 01

66 Wireless [Wake On LAN] s n, 90 00 to 01

67 [OSD Lock] k l 00 to 01

68 [HDMI IT Content] s n, 99 00 to 01

69 [Holiday Setting] s n, 9b See [Holiday Setting]

70 [UPnP] s n, 9c 00 to 01

71 [Home Dashboard Lock] s n, 9d 00 to 01

72 [USB Lock] s n, 9e 00 to 01

73 [Wi-Fi Lock] s n, 9f 00 to 01

74 [Screen Share Lock] s n, a0 00 to 01

75 [Backup via Storage] s n, a1 See [Backup via Storage]

Command

1 2

(Hexadecimal)

Data

Command

1 2

76 [Digital Audio Input] s n, a2 00 to 01

77 [Booting Logo Image] s n, a3 00 to 01

78 [SoftAP] s n, a4 00 to 01

79 [Natural Size] s n, a5 00 to 64

80 Play Saved Internal Media s n, a8 See Playback of Saved Internal Media

81 [No Signal Image] s n, a9 00 to 01

82 [Audio Out] s n, aa 00 to 02

83 [DPM Wake Up Control] s n, 0b 00 to 01 84 Check [Fan] Failure d w FF 85 [Apply to all inputs] s n, 52 01 86 [Timer Power On] f d See [Timer Power On] 87 [Timer Power Off] f e See [Timer Power Off] 88 LCIN008 Control s n,b8 See LCIN008 Control 89 [Transfer Control] s n,cb See Transfer Control 90 Multichannel s n,76 01 to 09 91 Change Setid j x See Change Setid 92 [Gamma] s n,ad 00 to 03 93 [Black Level] s n,ae 00 to 02 94 [UHD Deep Color] s n,af See [UHD Deep Color] 95 [Sync Mode] s n,b0 00 to 01 96 [Input Manager] s n,b1 See [Input Manager] 97 [PC/OPS Power Control] s n,8b 00 to 02 98 [LED Local Dimming] s n,c1 00 to 01 99 [Scan Inversion] s n,87 00 to 01 100 [Frame Control] s n,b7 00 to 01

[Average Picture Level Auto

101

Control] 102 Read Brightness Value m u FF 103 [Screen Fault Detection] t z 00 to 01 104 [Stereo Mode] s n,c2 00 to 02 105 [HDR Picture Mode] s n,c4 See [HDR Picture Mode] 106 [Dynamic Tone Mapping] s n,c5 00 to 01 107 [LED Local Dimming] s n,c6 00 to 03 108 [USB2 to HDBaseT] s n,c3 00 to 01 109 [Change Password] s n,a7 See [Change Password] 110 [Brightness Range Adjustment] s n,ab See [Brightness Range Adjustment] 111 [Color Calibration] s n,d6 00 to 01

s n,be 00 to 01

Data

(Hexadecimal)

ENGLISH

* Note Commands may not work when there is no external input used.

* Some commands may not be supported on some models.

Transmission/Reception Protocol

ENGLISH

Transmission

(Command1)(Command2)( )(Set ID)( )(Data)(Cr)

* (Command1): This command is used to identify between the adjustment setting or the user adjustment modes.

* (Command2): This command is used to control the monitor.

* (Set ID): Used for selecting a set you want to control. A unique Set ID can be assigned to each set ranging from 1

to 1000 (01H to FFH) under Settings in the OSD menu. Selecting '00H' for Set ID allows the simultaneous control of all connected monitors. (The maximum value may differ depending on the model.)

* (Data): Transmits command data. Data count may increase depending on the command.

* (Cr): Carriage Return. This parameter corresponds to '0 x 0D' in ASCII code.

* ( ): White Space. This parameter corresponds to '0 x 20' in ASCII code.

Acknowledgment

(Command2)( )(Set ID)( )(OK/NG)(Data)(x)

* The product transmits an ACK (acknowledgment) based on this format when receiving normal data. At this point,

if the data is FF, it indicates the present status data. If the data is in data write mode, it returns the data of the PC computer.

* If a command is sent with Set ID '00' (=0 x 00), the data is reflected to all monitors and they do not send an

acknowledgment (ACK).

* If you send "FF" as the value of the data in control mode via RS-232C, you can check the value currently set for the

relevant feature (not applicable to some features).

* Some commands may not be supported on some models.

01. [Power] (Command: k a)

Controls the power on/off status of the monitor.

Transmission (k)(a)( )(Set ID)( )(Data)(Cr)

Data 00: [Off] 01: [On] 02: Restart

Acknowledgment (a)( )(Set ID)( )(OK/NG)(Data)(x)

* The Acknowledgment signal is returned properly only when

the monitor is fully powered on.

* There may be a delay between the Transmission and

Acknowledgment signals.

* This feature may not be available for all models.

02. Select Input (Command: x b)

Selects an input signal.

Transmission (x)(b)( )(Set ID)( )(Data)(Cr)

Data 20: AV 40: COMPONENT 60: RGB 70: DVI-D (PC) 80: DVI-D (DTV) 90: HDMI1 (DTV) A0: HDMI1 (PC) 91: HDMI2 (DTV) A1: HDMI2 (PC) 92: OPS/HDMI3/DVI-D (DTV) A2: OPS/HDMI3/DVI-D (PC) 95: OPS/DVI-D (DTV) A5: OPS/DVI-D (PC) 96: HDMI3/DVI-D (DTV) A6: HDMI3/DVI-D (PC) 97: HDMI3/HDMI2/DVI-D (DTV) A7: HDMI3/HDMI2/DVI-D (PC) 98: OPS (DTV) A8: OPS (PC) 99: HDMI2/OPS (DTV) A9: HDMI2/OPS (PC) C0: DISPLAYPORT (DTV) D0: DISPLAYPORT (PC) C1: DISPLAYPORT/USB-C (DTV) D1: DISPLAYPORT/USB-C (PC) C2: HDMI3 (DTV) D2: HDMI3 (PC) C3: HDBaseT (DTV) D3: HDBaseT (PC) E0: SuperSign webOS Player E1: Others E2: Multi Screen E3: Play via URL

Acknowledgment

(b)( )(Set ID)( )(OK/NG)(Data)(x) * Some input signals may not be available for all models. * If it is not distributed from SuperSign W, WebOS Player

returns NG.

* If it says “Read” from the IDB mode, it will respond as a PC

Label type.

03. [Aspect Ratio] (Command: k c)

Adjusts the aspect ratio of your monitor.

Transmission

(k)(c)( )(Set ID)( )(Data)(Cr)

Data 02: [Full Screen]

06: [Original]

Acknowledgment

(c)( )(Set ID)( )(OK/NG)(Data)(x) * The aspect ratio may differ depending on the model's input

configuration.

04. [Brightness] (Command: j q)

Sets the brightness of your monitor.

Transmission

(j)(q)( )(Set ID)( )(Data)(Cr)

Data 00: [Off]

01: [Minimum]

02: [Medium]

03: [Maximum]

04: [Auto]

Acknowledgment

(q)( )(Set ID)( )(OK/NG)(Data)(x) * This feature may not be available for all models.

05. [Picture Mode] (Command: d x)

Selects a picture mode.

Transmission

(d)(x)( )(Set ID)( )(Data)(Cr)

Data 00: [Mall/QSR]

01: [General]

02: [Gov./Corp.]

03: [Transportation]

04: [Education]

05: [Expert1]

08: [APS]

11: [Calibration]

12: [Hospital]

Acknowledgment

(x)( )(Set ID)( )(OK/NG)(Data)(x) * Some picture modes may not be available for all models.

ENGLISH

06. [Contrast] (Command: k g)

ENGLISH

Adjusts the screen contrast.

Transmission (k)(g)( )(Set ID)( )(Data)(Cr)

Data 00-64: Contrast 0-100

Acknowledgment (g)( )(Set ID)( )(OK/NG)(Data)(x)

07. [Brightness] (Command: k h)

Adjusts the screen brightness.

Transmission (k)(h)( )(Set ID)( )(Data)(Cr)

Data 00-64: Brightness 0-100

Acknowledgment (h)( )(Set ID)( )(OK/NG)(Data)(x)

08. [Sharpness] (Command: k k)

Adjusts the screen sharpness.

Transmission (k)(k)( )(Set ID)( )(Data)(Cr)

Data 00-32: Sharpness 0-50

Acknowledgment (k)( )(Set ID)( )(OK/NG)(Data)(x)

10. [Tint] (Command: k j)

Adjusts the screen tints.

Transmission (k)(j)( )(Set ID)( )(Data)(Cr)

Data 00-64: Tint Red 50-Green 50

Acknowledgment (j)( )(Set ID)( )(OK/NG)(Data)(x)

11. [Color Temperature] (Command: x u)

Adjusts the screen color temperature.

Transmission (x)(u)( )(Set ID)( )(Data)(Cr)

Data 70-D2: 3200K-13000K

Acknowledgment (u)( )(Set ID)( )(OK/NG)(Data)(x)

12. [Balance] (Command: k t)

Adjusts the sound balance.

Transmission (k)(t)( )(Set ID)( )(Data)(Cr)

Data 00-64: Left 50-Right 50

Acknowledgment (t)( )(Set ID)( )(OK/NG)(Data)(x)

* This feature may not be available for all models.

09. [Color] (Command: k i)

Adjusts the screen colors.

Transmission (k)(i)( )(Set ID)( )(Data)(Cr)

Data 00-64: Color 0-100

Acknowledgment (i)( )(Set ID)( )(OK/NG)(Data)(x)

13. [Sound Mode] (Command: d y)

Selects a sound mode.

Transmission (d)(y)( )(Set ID)( )(Data)(Cr)

Data 01: [Standard] 02: [Music] 03: [Cinema] 04: [Sports] 05: [Game] 07: [News (Clear Voice III)]

Acknowledgment (y)( )(Set ID)( )(OK/NG)(Data)(x)

* This feature may not be available for all models.

14. [Mute on] (Command: k e)

Mutes/unmutes audio.

Transmission (k)(e)( )(Set ID)( )(Data)(Cr)

Data 00: [Mute] (Volume off) 01: Mute off (Volume on)

Acknowledgment (e)( )(Set ID)( )(OK/NG)(Data)(x)

* This feature may not be available for all models.

15. Volume Control (Command: k f)

Adjusts the playback volume.

Transmission (k)(f)( )(Set ID)( )(Data)(Cr)

Data 00-64: Volume 0-100

Acknowledgment (f)( )(Set ID)( )(OK/NG)(Data)(x)

* This feature may not be available for all models.

16. [Current Time] 1 (year/month/day) (Command:

f a)

Sets the Clock 1 (year/month/day) values and Auto Time.

Transmission

1. (f)(a)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr)

2. (f)(a)( )(Set ID)( )(0)(0)( )(Data1)(Cr)

1. When setting Clock 1 (year/month/day)

Data1 00-: 2010 -

Data2 01-0C: January - December

Data3 01-1F: 1-31 * The minimum and maximum values for Data1 differ

depending on the product's release year.

* Enter "fa [Set ID] ff" to view Clock 1 (year/month/day)

settings.

2. When Setting Auto Time

Data1 00: [Auto]

01: [Manual] * To view the set value of the Auto time, enter “fa [Set ID] 00

f f ”.

Acknowledgment

1. (a)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)

2. (a)( )(Set ID)( )(OK/NG)(0)(0)(Data1)(x)

17. [Current Time] 2 (hour/minute/second)

(Command: f x)

Sets the Clock 2 values (hour/minute/second).

Transmission

(f)(x)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr)

Data1 00-17: 00-23 hours

Data2 00-3B: 00 - 59 minutes

Data3 00-3B: 00-59 seconds * Enter "fx [Set ID] ff" to view the Time 2 (hour/minute/

second) settings.

* This feature is only available when Clock 1 (year/month/day)

has been set.

Acknowledgment

(x)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)

ENGLISH

18. [No Signal Power Off(15Min)] (Command: f g)

ENGLISH

Sets the monitor to enter Automatic Standby mode if there is no signal for 15 minutes.

Transmission (f)(g)( )(Set ID)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment (g)( )(Set ID)( )(OK/NG)(Data)(x)

19. [No IR Power Off] (Command: m n)

Activates Auto Power Off when there is no IR signal for 4 hours.

Transmission (m)(n)( )(Set ID)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(Data)(x)

20. [Language] (Command: f i)

Sets the OSD language.

Transmission (f)(i)( )(Set ID)( )(Data)(Cr)

Data 00: Czech 01: Danish 02: German 03: English 04: Spanish (Europe) 05: Greek 06: French 07: Italian 08: Dutch 09: Norwegian 0A: Portuguese 0B: Portuguese (Brazil) 0C: Russian 0D: Finnish 0E: Swedish 0F: Korean 10: Chinese (Mandarin) 11: Japanese 12: Chinese (Cantonese) 13: Arabic 14: Turkish

Acknowledgment (i)( )(Set ID)( )(OK/NG)(Data)(x)

* Some languages may not be available for all models.

21. [Default] Settings (Command: f k)

Executes Reset. (Initialize Screen can only be executed in RGB input mode.)

Transmission (f)(k)( )(Set ID)( )(Data)(Cr)

Data 00: [Picture Reset] 02: [Reset to Initial Settings]

Acknowledgment (k)( )(Set ID)( )(OK/NG)(Data)(x)

* This feature may not be available for all models.

22. Current Temperature (Command: d n)

Checks the current temperature of the product.

Transmission (d)(n)( )(Set ID)( )(Data)(Cr)

Data FF: Status Check

Acknowledgment (n)( )(Set ID)( )(OK/NG)(Data)(x)

* The temperature is displayed in hexadecimal.

23. [Key] (Command: m c)

Sends a key code for the IR remote control.

Transmission (m)(c)( )(Set ID)( )(Data)(Cr)

Data IR_KEY_CODE

Acknowledgment

(c)( )(Set ID)( )(OK/NG)(Data)(x) * For key codes, see IR Codes. * Some key codes may not be supported depending on the

model.

24. Time Elapsed (Command: d l)

Displays the time that has elapsed after your monitor has turned on.

Transmission (d)(l)( )(Set ID)( )(Data)(Cr)

Data FF: Read status

Acknowledgment (l)( )(Set ID)( )(OK/NG)(Data)(x)

* The data received is displayed in hexadecimal.

25. Product Serial Number Check (Command: f y)

Checks the serial number of the product.

Transmission (f)(y)( )(Set ID)( )(Data)(Cr)

Data FF: Check product serial number

Acknowledgment (y)( )(Set ID)( )(OK/NG)(Data)(x)

* Data is in ASCII format.

26. [Software Version] (Command: f z)

Checks the software version of the product.

Transmission (f)(z)( )(Set ID)( )(Data)(Cr)

Data FF: Check the software version

Acknowledgment (z)( )(Set ID)( )(OK/NG)(Data)(x)

27. [White Balance] Red Gain (Command: j m)

Adjusts the red gain value for white balance.

Transmission (j)(m)( )(Set ID)( )(Data)(Cr)

Data 00-FE: Red Gain 0-254 FF: Checks red gain value

Acknowledgment (m)( )(Set ID)( )(OK/NG)(Data)(x)

28. [White Balance] Green Gain (Command: j n)

Adjusts the green gain value for white balance.

Transmission (j)(n)( )(Set ID)( )(Data)(Cr)

Data 00-FE: Green Gain 0-254 FF: Checks green gain value

Acknowledgment (n)( )(Set ID)( )(OK/NG)(Data)(x)

29. [White Balance] Blue Gain (Command: j o)

Adjusts the blue gain value for white balance.

Transmission (j)(o)( )(Set ID)( )(Data)(Cr)

Data 00-FE: Blue Gain 0-254 FF: Checks blue gain value

Acknowledgment (o)( )(Set ID)( )(OK/NG)(Data)(x)

ENGLISH

30. [White Balance] Red Offset (Command: s x)

ENGLISH

Adjusts the red offset value for white balance.

Transmission (s)(x)( )(Set ID)( )(Data)(Cr)

Data 00-7F: Red Offset 0-127 FF: Checks red offset value

Acknowledgment (x)( )(Set ID)( )(OK/NG)(Data)(x)

31. [White Balance] Green Offset (Command: s y)

Adjusts the green offset value for white balance.

Transmission (s)(y)( )(Set ID)( )(Data)(Cr)

Data 00-7F: Green Offset 0-127 FF: Checks green offset value

Acknowledgment (y)( )(Set ID)( )(OK/NG)(Data)(x)

32. [White Balance] Blue Offset (Command: s z)

Adjusts the blue offset value for white balance.

Transmission (s)(z)( )(Set ID)( )(Data)(Cr)

Data 00-7F: Blue Offset 0-127 FF: Checks blue offset value

Acknowledgment (z)( )(Set ID)( )(OK/NG)(Data)(x)

33. [Backlight] (Command: m g)

Adjusts the backlight brightness.

Transmission

(m)(g)( )(Set ID)( )(Data)(Cr)

Data 00-64: Backlight 0-100

Acknowledgment

(g)( )(set ID)()(OK/NG)(Data)(x)

34. [SCREEN OFF] (Command: k d)

Turns off/off the screen.

Transmission

(k)(d)( )(Set ID)( )(Data)(Cr)

Data 00: Screen On

01: Screen Off

Acknowledgment

(d)( )(Set ID)( )(OK/NG)(Data)(x) * This feature may not be available for all models.

35. [Tile Mode] (Command: d d)

Sets a tile mode and values for the tile rows and columns.

Transmission

(d)(d)( )(Set ID)( )(Data)(Cr)

Data 00-FF: The first byte - tile column

The second byte - tile row * 00, 01, 10, and 11 mean that the tile mode is off.

* The maximum value may differ depending on the model.

Acknowledgment

(d)( )(Set ID)( )(OK/NG)(Data)(x) * This feature may not be available for all models. * If you change the values on a Video Wall model, please reboot

for it to work normally.

36. [Tile Mode] Check (Command: d z)

Checks the tile mode.

Transmission (d)(z)( )(Set ID)( )(Data)(Cr)

Data FF: Check Tile Mode

Acknowledgment (z)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)

Data1 00: Tile Mode off 01: Tile Mode on Data2 00-0F: Tile column Data3 00-0F: Tile row

* This feature may not be available for all models.

37. [Tile ID] (Command: d i)

Sets the tile ID value of the product.

Transmission (d)(i)( )(Set ID)( )(Data)(Cr)

Data 01-E1: Tile ID 1-225 FF: Checks the Tile ID

* The data value cannot exceed the value of row x column.

Acknowledgment (i)( )(Set ID)( )(OK/NG)(Data)(x)

* If you enter a value that exceeds the value of row x column

for the Data parameter (except for 0xFF), Ack becomes NG. * This feature may not be available for all models. * If you change the values on a Video Wall model, please reboot

for it to work normally.

39. [DPM] (Command: f j)

Sets the DPM(Display Power Management) function.

Transmission (f)(j)( )(Set ID)( )(Data)(Cr)

Data 00: [Off] 04: 1 minute 05: 3 minutes 06: 5 minutes 07: 10 minutes

Acknowledgment (j)( )(Set ID)( )(OK/NG)(Data)(x)

* This feature may not be available for all models.

40. Remote Control/Local Key Operation Lock (Command: k m)

Adjusts the remote control/local key (front) lock.

Transmission (k)(m)( )(Set ID)( )(Data)(Cr)

Data 00: [Off] (Lock Off) 01: [On] (Lock On)

* When the monitor is turned off, the power key works even in

On (01) mode.

Acknowledgment (m)( )(Set ID)( )(OK/NG)(Data)(x)

* This feature may not be available for all models.

ENGLISH

38. [Natural Mode] (In Tile Mode) (Command: d j)

To display the image naturally, the part of the image that would normally be displayed in the gap between the monitors is omitted.

Transmission (d)(j)( )(Set ID)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment (j)( )(Set ID)( )(OK/NG)(Data)(x)

* This feature may not be available for all models.

41. [Power On Delay] (Command: f h)

Sets the schedule delay for when the power turns on. (Unit: seconds)

Transmission (f)(h)( )(Set ID)( )(Data)(Cr)

Data 00-FA: Min 0- Max 250 (sec)

Acknowledgment (h)( )(Set ID)( )(OK/NG)(Data)(x)

* The maximum value may differ depending on the model.

42. [Fail Over] Mode (Command: m i)

ENGLISH

Selects a sound mode.

Transmission (m)(i)( )(Set ID)( )(Data)(Cr)

Data 00: [Off] 01: [Auto] 02: [User Setting]

Acknowledgment (i)( )(Set ID)( )(OK/NG)(Data)(x)

43. [Fail Over] Input Select (Command: m j)

Selects an input source for fail over. (This feature is only available when Fail Over is set to Custom.)

Transmission (m)(j)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)( )(Data4) … ( )(DataN)(Cr)

Data1-N (Input priority 1-N) 60: RGB 70: DVI-D 90: HDMI1 91: HDMI2 92: OPS/HDMI3/DVI-D 95: OPS/DVI-D 96: HDMI3/DVI-D 97: HDMI3/HDMI2/DVI-D 98: OPS 99: HDMI2/OPS C0: DISPLAYPORT C1: DISPLAYPORT/USB-C C2: HDMI3 C3: HDBaseT

Acknowledgment (j)( )(SetID)( )(OK/NG)(Data1)(Data2)(Data3)(Data4)

… (DataN)(x) * Some input signals may not be available for all models. * The data number (N) may vary depending on the model. (The

data number depends on the number of supported input signals.)

* This feature operates as the last input, and supports data in

DTV format.

44. Remote Control Key Lock (Command: t p)

Configures the settings of the product's remote control key.

Transmission (t)(p)( )(Set ID)( )(Data)(Cr)

Data 00: Unlocks all keys 01: Locks all keys except Power key 02: Locks all keys

Acknowledgment (p)( )(Set ID)( )(OK/NG)(Data)(x)

* When the monitor is turned off, the power key works even in

the locks on all of the keys (02) mode.

45. [Local Key Operation Lock] (Command: t o)

Configures the local key operation settings of the product.

Transmission (t)(o)( )(Set ID)( )(Data)(Cr)

Data 00: Unlocks all keys 01: Locks all keys except Power key 02: Locks all keys

Acknowledgment (o)( )(Set ID)( )(OK/NG)(Data)(x)

* When the monitor is turned off, the power key works even in

the locks on all of the keys (02) mode.

* This feature may not be available for all models.

46. Status Check (Command: s v)

Checks the current signal of the product.

Transmission (s)(v)( )(Set ID)( )(Data)( )(FF)(Cr)

Data 02: Check whether there is a signal 03: The monitor is currently in PM Mode 07: Checks whether the Top, Bottom and Main

09: Fan Speed 10: RGB Sensing OK/NG (screen fault detection) 16: Check the humidity value 17: Check the value of the intensity of illumination 18: Check the status value of the slope of the

Acknowledgment (v)( )(Set ID)( )(OK/NG)(Data)(Data1)(x)

Data 02 (when a signal is found) Data1 00: No signal 01: Signal present

Data 03 (when the monitor is currently in PM mode) Data1 00: Screen is on 01: Screen is off 02: Screen Off Always is activated 03: Sustain Aspect Ratio is activated 04: Screen Off & Backlight On is activated

Data 07 (when checking whether the Top, Bottom

Data1 00: All temperature sensors are faulty 01: Top normal, Bottom faulty, Main faulty 02: Top faulty, Bottom normal, Main faulty 03: Top normal, Bottom normal, Main faulty 04: Top faulty, Bottom faulty, Main normal 05: Top normal, Bottom faulty, Main normal 06: Top faulty, Bottom normal, Main normal 07: All temperature sensors are normal Data 10 (when executing Screen Fault Detection) Data 1 00: Screen Fault Detection result NG 07: Screen Fault Detection result OK

* When screen Fault Detection is set to Off or not supported,

execution results are rendered “NG.”

Data 16 (for checking the humidity value) Data 1 0~100: Reads the %RH value of the current

humidity (indicated as a Hex value).

Data 17 (for checking the value of the intensity of

Data 1 1~1000: Reads the Lux value of the current intensity of illumination (indicated as a Hex value).

Data 18 (for checking the status value of the slope of

Data 1 00: 0 degrees 01: 90 degrees 02: 180 degrees 03: 270 degrees 04: Fallen forward 05: Fallen backward

temperature sensors are functioning normally.

product

and Main temperature sensors are working properly)

illumination)

the product)

Data 09 (when checking the fan speed)

Acknowledgement (v)( )(Set ID)( )(OK/NG)(Data)(Data1_1)(Data1_2) …(DataN_1)(DataN_2)(x)

Data1_1:00~ff: First fan speed top 1 Byte Data1_2: 00~ff: First fan speed bottom 1 Byte … DataN_1: 00~ff: Nth fan speed top 1 Byte DataN_2: 00~ff: Nth fan speed bottom 1 Byte

Fan Speed: Hex 0~2008, Decimal 0~8200

* The data number (N) may vary depending on the model. * This feature may not be available for all models.

47. [Daylight Saving Time] (Command: s d)

Sets Daylight Savings Time.

Transmission (s)(d)( )(Set ID)( )(Data1)( )(Data2)( ) (Data3)( )(Data4)( )(Data5)( )(Cr)

Data1 00: Off (Data2-5: FF) 01: Start Time 02: End Time Data2 01~0C: January - December Data3 01-06: Week 1 - 6

* The maximum value of [Data3] may vary depending on the

date.

Data4 00-06: (Sunday - Saturday) Data5 00-17: 00 - 23 hours

* If you wish to read the start/end times, enter FF for

parameters [Data2] through [Data5].

(Example 1: sd 01 01 ff ff ff ff - Checks the start time. Example 2: sd 01 02 ff ff ff ff - Checks the end time.)

* This feature only works when Clock 1 (year/month/day) and

Clock 2 (hour/minute/second) have been set.

Acknowledgment (d)( )(Set ID)( )(OK/NG)(Data1)(Data2) (Data3)(Data4)(Data5)(x)

* This feature may not be available for all models.

ENGLISH

48. [PM Mode] (Command: s n, 0c)

ENGLISH

Sets the PM mode.

Transmission

(s)(n)( )(Set ID)( )(0c)( )(Data)(Cr)

Data 00: [Power Off] (Basic)

01: [Sustain Aspect Ratio]

02: [Screen Off]

03: [Screen Off Always]

04: [Screen Off & Backlight On]

Acknowledgment

(n)( )(Set ID)( )(OK/NG)(0c)(Data)(x) * This feature may not be available for all models.

49. [ISM Method] (Command: j p)

Selects an ISM method.

Transmission

(j)(p)( )(Set ID)( )(Data)(Cr)

Data 04: [White Wash]

08: [Off]

90: [User Image]

91: [User Video]

Acknowledgment

(p)( )(Set ID)( )(OK/NG)(Data)(x) * This feature may not be available for all models.

50. [Network Setting] (Command: s n, 80 or 81 or

82)

Configures network and DNS settings.

Transmission (s)(n)( )(Set ID)( )(Data1)( )(Data2)( ) (Data3)( )(Data4)( )(Data5)(Cr)

Data1 80: Configures/views the temporary IP mode

81: Configures/views the temporary DNS address. 82: Saves temporary settings and views

* If Data1 is 80,

Data2 00: Auto 01: Manual FF: Views the temporary IP mode (Auto/Manual),

* If Data2 is 01 (Manual),

Data3 Manual IP address Data4 Subnet mask address Data5 Gateway address

* If Data1 is 81,

Data2 DNS address FF: Displays the temporary DNS address.

* If Data1 is 82,

Data2 80: Applies the temporary IP mode (Auto/

81: Applies the temporary DNS address FF: I nformation on the current network (IP, subnet

* An example of settings,

1. Auto: sn 01 80 00

2. Manual: sn 01 80 01 010177223241 255255254000

3. Network read: sn 01 80 ff

4. DNS setting: sn 01 81 156147035018 (DNS:

5. Applying the settings: sn 01 82 80 (applies the saved IP

* Each IP address contains 12 decimal digits.

Acknowledgment

(n)( )(Set ID)( )(OK/NG)(Data1)(Data)(x) * This feature is available only for wired networks. * This feature may not be available for all models.

(Auto/Manual), subnet mask, and gateway.

information about the current network.

subnet mask, and gateway.

Manual), subnet mask, and gateway.

gateway and DNS)

010177222001(IP:10.177.223.241, subnet:

255.255.254.0, gateway: 10.177.222.1)

156.147.35.18)

mode (auto/manual), subnet mask, and gateway), sn 01 82 81 (applies the saved DSN)

51. [Power On Status] (Command: t r)

Sets the Power On status of the monitor.

Transmission (t)(r)( )(Set ID)( )(Data)(Cr)

Data 00: [LST(Last Status)] 01: [STD(Standby)] 02: [PWR(Power On)]

Acknowledgment (r)( )(Set ID)( )(OK/NG)(Data)(x)

52. Wired [Wake On LAN] (Command: f w)

Selects a Wired Wake On LAN option.

Transmission (f)(w)( )(Set ID)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment (w)( )(Set ID)( )(OK/NG)(Data)(x)

53. [OSD Rotation] (Command: t h)

Sets the Screen Rotation feature.

Transmission (t)(h)( )(Set ID)( )(Data) (Cr)

Data 00: [Off] 01: 90 degrees 02: 270 degrees 03: 180 degrees

Acknowledgment (h)( )(Set ID)( )(OK/NG)(Data)(x)

* This feature may not be available for all models.

54. [Time Sync] (Command: s n, 16)

Sets Time Sync.

Transmission (s)(n)( )(Set ID)( )(1)(6)( )(Data)(Cr)

Data 00: [Off] 01: [On]

* This feature only works when the monitor is in Master mode. * This feature does not work if the current time is not set.

Acknowledgment (n)( )(Set ID)( )(OK/NG)(1)(6)(Data)(x)

* This feature may not be available for all models.

55. [Contents Sync] (Command: t g)

Sets Content Sync.

Transmission (t)(g)( )(Set ID)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment (g)( )(Set ID)( )(OK/NG)(Data)(x)

* This feature may not be available for all models.

56. [LAN Daisy Chain] (Command: s n, 84)

Turns on/off LAN Daisy Chain.

Transmission (s)(n)( )(Set ID)( )(8)(4)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(8)(4)(Data)(x)

* This feature may not be available for all models.

ENGLISH

57. [External Input Rotation] (Command: s n, 85)

ENGLISH

Sets the External Input Rotation feature.

Transmission (s)(n)( )(Set ID)( )(8)(5)( )(Data)(Cr)

Data 00: [Off] 01: 90 degrees 02: 270 degrees 03: 180 degrees

Acknowledgment (n)( )(Set ID)( )(OK/NG)(8)(5)(Data)(x)

* This feature may not be available for all models.

58. [Beacon] (Command: s n, 88)

Turns on/off Beacon.

Transmission (s)(n)( )(Set ID)( )(8)(8)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(8)(8)(Data)(x)

* This feature may not be available for all models.

59. [Brightness Scheduling] Mode (Command: s m)

Selects a Brightness Scheduling mode.

Transmission (s)(m)( )(Set ID)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment

(m)( )(Set ID)( )(OK/NG)(Data)(x) * This feature does not work if the current time is not set. * This feature may not be available for all models.

60. [Brightness Scheduling] (Command: s s)

Sets Brightness Scheduling.

Transmission (s)(s)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr)

Data 1

1. f1 to f6 (data reading) F1: Reads the 1st brightness schedule’s data F2: Reads the 2nd brightness schedule’s data. F3: Reads the 3rd brightness schedule’s data. F4: Reads the 4th brightness schedule’s data. F5: Reads the 5th brightness schedule’s data. F6: Reads the 6th brightness schedule’s data.

2. FF: Reads all stored lists

3. e1 to e6 (Deletes one index), e0 (Deletes all indexes) E0: Deletes all brightness schedules. E1: Deletes the 1st brightness schedule. E2: Deletes the 2nd brightness schedule. E3: Deletes the 3rd brightness schedule. E4: Deletes the 4th brightness schedule. E5: Deletes the 5th brightness schedule. E6: Deletes the 6th brightness schedule.

4. 00-17: 00 - 23 hours Data 2 00-3B: 00 - 59 minutes Data 3 00~64: Backlight 0 - 100

* To read or delete a brightness schedule you have set, (Data2)

(Data3) must be set to FF.

* If you want to read all configured brightness schedules

through FF, do not enter any values in (Data2)(Data3).

* When retrieving all items of the set Brightness Scheduling

list through FF, OK will be acknowledged (ACK) even if there is no saved list.

ex1: ss 01 f1 ff ff – Reads the 1st index data in Brightness

Schedule. ex2: ss 01 ff - Reads all index data in Brightness Schedule. ex3: ss 01 e1 ff ff – Deletes the 1st index data in Brightness

Schedule. ex4: ss 01 07 1E 46 - Adds a schedule whose time is 07:30

and whose backlight is 70.

Acknowledgement (s)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)

* This feature may not be available for all models.

61. [Multi Screen] Mode & Input (Command: x c)

Saves and controls Multi Screen modes and inputs.

Transmission (x)(c)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)( )(Data4) ( )(Data5)( )(Cr)

Data1 (Sets MultiScreen mode) 10: PIP 22: PBP2 23: PBP3 24: PBP4 25: PBP3 (1:2:1) Data2 (Sets the Main input of Multi screen) Data3 (Sets the Sub1 input of Multi screen) Data4 (Sets the Sub2 input of Multi screen) Data5 (Sets the Sub3 input of Multi screen) 80: DVI-D 90: HDMI1 91: HDMI2 92: OPS/HDMI3/DVI-D 95: OPS/DVI-D 96: HDMI3/DVI-D 97: HDMI3/HDMI2/DVI-D 98: OPS 99: HDMI2/OPS C0: DISPLAYPORT C1: DISPLAYPORT/USB-C C2: HDMI3 C3: HDBaseT

Acknowledgment (c)( )(Set ID)( )(OK/NG)( )(Data1)(Data2)(Data3)

(Data4)(Data5)(x) * This feature may not be available for all models. * Only the input modes supported by the model works. * This feature operates as the last input, and supports data in

DTV format.

62. [Aspect Ratio] (Multi screen) (Command: x d)

Controls the aspect ratio of Multi Screen.

Transmission (x)(d)( )(Set ID)( )(Data1)( )(Data2)(Cr)

Data1 01: Controls the Main input 02: Controls the Sub1 input 03: Controls the Sub2 input 04: Controls the Sub3 input Data2 00: Full Screen 01: Original

Acknowledgment (d)( )(Set ID)( )(OK/NG)(Data1)(Data2)(x)

* This feature may not be available for all models.

63. [SCREEN OFF] (Multi screen) (Command: x e)

Turns on/off each screen in the Multi Screen.

Transmission (x)(e)( )(Set ID)( )(Data1)( )(Data2)(Cr)

Data1 01: Controls the Main input 02: Controls the Sub1 input 03: Controls the Sub2 input 04: Controls the Sub3 input Data2 00: Screen On 01: Screen Off

* This feature only works when the Multi Screen app is running. * This feature does not work when there is no signal.

Acknowledgment (e)( )(Set ID)( )(OK/NG)(Data1)(Data2)(x)

* This feature may not be available for all models.

ENGLISH

64. [Screen Off Always] (Command: s n, 0d)

If you activate the Screen Off Always feature, the monitor enters Screen Off mode regardless of whether or not you have activated PM mode.

Transmission (s)(n)( )(Set ID)( )(0)(d)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(0)(d)(Data)(x)

* This feature may not be available for all models.

65. Stop Video (Command: k x)

ENGLISH

Controls Stop Video.

Transmission (k)(x)( )(Set ID)( )(Data)(Cr)

Data 00: The Stop Video feature is on. 01: The Stop Video feature is off.

* This feature only works in single input mode.

Acknowledgment (x)( )(Set ID)( )(OK/NG)(Data)(x)

* This feature may not be available for all models.

66. Wireless [Wake On LAN] (Command: s n, 90)

Sets the Wireless Wake-on-LAN feature.

Transmission (s)(n)( )(Set ID)( )(9)(0)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(9)(0)(Data)(x)

* This feature may not be available for all models.

67. [OSD Lock] (Command: k l)

Sets OSD Lock.

Transmission (k)(l)( )(Set ID)( )(Data)(Cr)

Data 00: OSD Lock 01: Unlock OSD Lock

Acknowledgment (l)( )(Set ID)( )(OK/NG)(Data)(x)

69. [Holiday Setting] (Command: s n, 9b)

Sets holidays.

Transmission

1. (s)(n)( )(Set ID)( )(9)(b)( ) (Data1)( )(Data2)( )(Data3)( ) (Data4)( )(Data5)( )(Data6)(Cr)

2. (s)(n)( )(Set ID)( )(9)(b)( )(Data1)( )(Data2)(Cr)

3. (s)(n)( )(Set ID)( )(9)(b)( )(Data1)(Cr)

1. Setting a Holiday Data1 Start year 00-: 2010Data2 Start month 01 - 0c: January - December Data3 Start date 01 - 1F: 01-31 Data4 For how long from the start year/month/date 01-07: For 1 to 7 days Data5 Repetition 00: None 01: Every month 02: Every Year Data6 Repeats the schedule on a date/day-of-the-week

basis. 01: On a date basis. 02: On a day-of-the-week basis.

* The minimum and maximum values for Data1 differ

depending on the product's release year.

* You can input a value for [Data 6] only when a value has

already been set for [Data 5] (every year or every month).

2. Checking a Schedule Data1 Select the desired schedule. F1: Reads the 1st schedule F2: Reads the 2nd schedule F3: Reads the 3rd schedule F4: Reads the 4th schedule F5: Reads the 5th schedule F6: Reads the 6th schedule F7: Reads the 7th schedule Data2 FF

68. [HDMI IT Content] (Command: s n, 99)

Automatically sets the picture mode based on HDMI data.

Transmission (s)(n)( )(Set ID)( )(9)(9)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(9)(9)(Data)(x)

* This feature may not be available for all models.

3. Deleting a Schedule E0: Deletes all holiday schedules E1: Deletes the 1st holiday schedule E2: Deletes the 2nd holiday schedule E3: Deletes the 3rd holiday schedule E4: Deletes the 4th holiday schedule E5: Deletes the 5th holiday schedule E6: Deletes the 6th holiday schedule E7: Deletes the 7th holiday schedule

* This feature does not work if the current time is not set.

Acknowledgment

1. (n)( )(Set ID)( )(OK/NG)(9)(b) (Data1)(Data2)(Data3)(Data4)(Data5)(Data6)(x)

2. (n)( )(Set ID)( )(OK/NG)(9)(b)(f)(1~7) (Data1)(Data2)(Data3)(Data4)(Data5)(Data6)(x)

3. (n)( )(Set ID)( )(OK/NG)(9)(b)(Data1)(x)

* This feature may not be available for all models.

70. [ISM Method] (Command: s n, 9c)

Sets UPnP.mode.

Transmission (s)(n)( )(Set ID)( )(9)(c)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment

(n)( )(Set ID)( )(OK/NG)(9)(c)(Data)(x) * This feature may not be available for all models. * Changing UPnP mode results in a reboot.

71. [Home Dashboard Lock] (Command: s n, 9d)

Sets Home Dashboard Lock.

Transmission

(s)(n)( )(Set ID)( )(9)(d)( )(Data)(Cr)

Data 00: Home Dashboard Unlock

01: Home Dashboard Lock

Acknowledgment

(n)( )(Set ID)( )(OK/NG)(9)(d)(Data)(x) * This feature may not be available for all models.

72. [USB Lock] (Command: s n, 9e)

Sets USB Lock.

Transmission

(s)(n)( )(Set ID)( )(9)(e)( )(Data)(Cr)

Data 00: USB Unlock

01: USB Lock

Acknowledgment

(n)( )(Set ID)( )(OK/NG)(9)(e)(Data)(x) * This feature may not be available for all models.

ENGLISH

73. [Wi-Fi Lock] (Command: s n, 9f)

ENGLISH

Sets Wi-Fi Lock.

Transmission (s)(n)( )(Set ID)( )(9)(f)( )(Data)(Cr)

Data 00: Wi-Fi Unlock 01: Wi-Fi Lock

Acknowledgment (n)( )(Set ID)( )(OK/NG)(9)(f)(Data)(x)

* This feature may not be available for all models.

74. [Screen Share Lock] (Command: s n, a0)

Sets Screen Share Lock.

Transmission (s)(n)( )(Set ID)( )(a)(0)( )(Data)(Cr)

Data 00: Screen Share Unlock 01: Screen Share Lock

Acknowledgment (n)( )(Set ID)( )(OK/NG)(a)(0)(Data)(x)

* This feature may not be available for all models.

75. See [Backup via Storage] (Command: s n, a1)

Sets Backup via Storage.

Transmission

1. (s)(n)( )(Set ID)( )(a)(1)( )(Data1)(Cr)

2. (s)(n)( )(Set ID)( )(a)(1)( )(Data1)(Data2)(Cr)

1. Disabling Backup via Storage. Data1 00: Off

2. Setting Backup via Storage to Auto Data1 01: Auto Data2 01: 30 minute 02: End time 03: End time 04: End time

3. Setting Backup via Storage to Manual Data1 02: Manual

4. Setting Backup via Storage to SuperSign Content Data1 03: SuperSign Contents

5. Set to SI App / Play via URL Data 1 04: [SI App / Play via URL]

Acknowledgment

1. (n)( )(Set ID)( )(OK/NG)(a)(1)(Data1)(x)

2. (n)( )(Set ID)( )(OK/NG)(a)(1)(Data1)(Data2)(x)

* This feature may not be available for all models.

76. [Digital Audio Input] (Command: s n, a2)

Sets Digital Audio Input.

Transmission (s)(n)( )(Set ID)( )(a)(2)( )(Data)(Cr)

Data 00: Digital 01: Analog

Acknowledgment (n)( )(Set ID)( )(OK/NG)(a)(2)(Data)(x)

* This feature may not be available for all models.

77. [Booting Logo Image] (Command: s n, a3)

Sets Booting Logo Image.

Transmission (s)(n)( )(Set ID)( )(a)(3)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(a)(3)(Data)(x)

* This feature may not be available for all models.

78. [SoftAP] (Command: s n, a4)

Sets SoftAP Mode.

Transmission (s)(n)( )(Set ID)( )(a)(4)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(a)(4)(Data)(x)

* This feature may not be available for all models.

79. [Natural Size] (Command: s n, a5)

Sets the Natural Size feature.

Transmission

(s)(n)( )(Set ID)( )(a)(5)( )(Data)(Cr)

Data 00-64: Natural Size 0 - 100

Acknowledgment

(n)( )(Set ID)( )(OK/NG)(a)(5)(Data)(x) * This feature may not be available for all models.

80. Play Saved Internal Media (Command: s n, a8)

Plays media files saved on internal storage. Internal storage media: videos and images stored on the monitor's internal storage after being exported via Contents Management Player. * Not applicable: Template content, SuperSign content, and

playlist content.

Transmission

(s)(n)( )(Set ID)( )(a)(8)( )(Data)(Cr)

Data 01: Play

Acknowledgment

(n)( )(Set ID)( )(OK/NG)(a)(8)( )(Data)(x) * This feature may not be available for all models.

81. [No Signal Image] (Command: s n, a9)

Sets the No Signal Image feature.

Transmission

(s)(n)( )(Set ID)( )(a)(9)( )(Data)(Cr)

Data 00: [Off]

01: [On]

Acknowledgment

(n)( )(Set ID)( )(OK/NG)(a)(9)(Data)(x) * This feature may not be available for all models.

ENGLISH

82. [Audio Out] (Command: s n, aa)

ENGLISH

Sets Audio Out to Off/Variable/Fixed.

Transmission (s)(n)( )(Set ID)( )(a)(a)( )(Data)(Cr)

Data 00: [Off] 01: [Variable] 02: [Fixed]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(a)(a)(Data)(x)

* This feature may not be available for all models.

83. [DPM Wake Up Control] (Command: s n, 0b)

Controls the DPM Wake Up Control settings.

Transmission (s)(n)( )(Set ID)( )(0)(b)( )(Data)(Cr)

Data 00: [Clock] 01: [Clock+DATA]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(0)(b)(Data)(x)

* This feature may not be available for all models.

84. [Fan] Failure Check (Command: d w)

Check the fan malfunction.

Transmission (d)(w)( )(Set ID)( )(Data)(Cr)

Data FF: Read status

Acknowledgment (w)( )(Set ID)( )(OK/NG)(Data1)(Data2)(x)

Data1 00: Fan failure 01: Fan normal Data2 00: 0 faults (Fan Normal) 01: 1 fault 02: 2 faults 03: 3 faults 04: 4 faults 05: 5 faults 06: 6 faults 07: 7 faults 08: 8 faults 09: 9 faults 0A: 10 faults

* This feature may not be available for all models.

85. [Apply to all inputs] (Command: n, 52)

Apply the video mode and low value of the current input to the same video value of all inputs.

Transmission (s)(n)( )(Set ID)( )(5)(2)( )(Data)(Cr)

Data 01: Apply

Acknowledgment

(n)( )(Set ID)( )(OK/NG)(5)(2)(Data)(x) * This feature may not be available for all models. * Other commands do not work for a certain time after

applying.

86. [Timer Power On] Scheduling (Command: f d)

Sets On Timer settings.

Transmission

(f)(d)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr)

Data1

1. f1h to f7h (data reading)

F1: Reads the 1st Timer Power On’s data

F2: Reads the 2nd Timer Power On’s data

F3: Reads the 3rd Timer Power On’s data

F4: Reads the 4thTimer Power On’s data

F5: Reads the 5th Timer Power On’s data

F6: Reads the 6th Timer Power On’s data

F7: Reads the 7th Timer Power On’s data

2. e1h to e7h (Deletes one index), e0h (Deletes all

indexes)

E0: Delete all Timer Power On’s

E1: Delete the 1st Timer Power On

E2: Delete the 2nd Timer Power On

E3: Delete the 3rd Timer Power On

E4: Delete the 4th Timer Power On

E5: Delete the 5th Timer Power On

E6: Delete the 6th Timer Power On

E7: Delete the 7th Timer Power On

3. 01h to 0ch (Timer Power On days setting) 02: Repeat Daily 03: Repeat from Monday to Friday 04: Repeat from Monday to Saturday 05: Repeat from Saturday to Sunday 06: Repeat on Sunday 07: Repeat on Monday 08: Repeat on Tuesday 09: Repeat on Wednesday 0A: Repeat on Thursday 0B: Repeat on Friday 0C: Repeat on Saturday Data2 00-17: 00 - 23 hours Data3 00-3B: 00 - 59 minutes

* To read or delete a Timer Power On you have set, [Data2]

[Data3] must be set to FFH.

Example 1: fd 01 f1 ff ff - Reads the 1st index data in Timer Power On.

Example 2: fd 01 e1 ff ff - Reads the 1st index data in Timer Power On.

Example 3: fd 01 04 02 03 - Sets the Timer Power On as Monday - Saturday 02:03.

* This feature only works when Clock 1 (year/month/day) and

Clock 2 (hour/minute/second) have been set.

Acknowledgment (d)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)

87. [Time to OFF] Scheduling (Command: f e)

Sets Off Timer settings.

Transmission (f)(e)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr)

Data1

1. f1h to f7h (data reading) F1: Reads the 1st Timer Power Off’s data F2: Reads the 2nd Timer Power Off’s data F3: Reads the 3rd Timer Power Off’s data F4: Reads the 4th Timer Power Off’s data F5: Reads the 5th Timer Power Off’s data F6: Reads the 6th Timer Power Off’s data F7: Reads the 7th Timer Power Off’s data

2. e1h to e7h (Deletes one index), e0h (Deletes all indexes)

E0: Delete all Timer Power Off’s E1: Delete the 1st Timer Power Off E2: Delete the 2nd Timer Power Off E3: Delete the 3rd Timer Power Off E4: Delete the 4th Timer Power Off E5: Delete the 5th Timer Power Off E6: Delete the 6th Timer Power Off E7: Delete the 7th Timer Power Off

3. 01h to 0ch (Timer Power Off days setting) 02: Repeat Daily 03: Repeat from Monday to Friday 04: Repeat from Monday to Saturday 05: Repeat from Saturday to Sunday 06: Repeat on Sunday 07: Repeat on Monday 08: Repeat on Tuesday 09: Repeat on Wednesday 0A: Repeat on Thursday 0B: Repeat on Friday 0C: Repeat on Saturday Data2 00-17: 00 - 23 hours Data3 00-3B: 00 - 59 minutes

* To read or delete a Timer Power Off you have set, [Data2]

[Data3] must be set to FFH.

Example 1: fe 01 f1 ff ff - Reads the 1st index data in Timer Power Off.

Example 2: fe 01 e1 ff ff - Reads the 1st index data in Timer Power Off.

Example 3: fe 01 04 02 03 - Sets the Timer Power Off as Monday - Saturday 02:03.

* This feature only works when Clock 1 (year/month/day) and

Clock 2 (hour/minute/second) have been set.

Acknowledgment (e)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)

ENGLISH

88. LCIN008 Control (Command: s n, b8)

ENGLISH

It controls the LCIN008 device.

Transmission (s)(n)( )(Set ID)( )(b)(8)( )(Data1)(Data2)(Cr)

Data 1 00: LCIN008 Power 01: LCIN008 Brightness Data 2

1. For Power 0 x 00: Off 0 x 01: On

2. For Brightness 0 x ff: Read 0 x 00 ~ 0 x 64: Applies a set value

Acknowledgement

(n)( )(Set ID)( )(OK/NG)(b)(8)(Data1)(Data2)(x) * This feature may not be available for all models. * Other commands do not work for a certain time after

applying.

89. [Transfer Control] (Command: s n, cb)

It transfers the command to RS232C out.

Transmission

(s)(n)( )(Set ID)( )(c)(b)( )(Data)(Cr)

Data Data that goes out to RS232C out

Acknowledgment

(n)( )(Set ID)( )(OK/NG)(c)(b)(Data)(x)

Data Response value of Data transferred to RS232C

* This feature may not be available for all models. * Other commands do not work for a certain time after

applying.

out

91. Change Setid (Command: j x)

Changes and checks Setid.

1. When it is a general LED model

Transmission (j)(x)( )(Set ID)( )(Data1)( )(Data2)(Cr)

Data1 Data2 : 00 01 ~ 03 e8 (1~1000)

Acknowledgment (x)( )(Set ID)( )(OK/NG)(Data1)(Data2)(x)

2. When it is another model (read only)

Transmission (j)(x)( )(Set ID)( )(Data)(Cr)

Data FF: Check the value of Setid The returned value is indicated as a value of hexadecimal

numbers corresponding to the ASCII code value. (Return when Setid is 1: x 01 OK31x Return when Setid is 1000: x 3e8 OK31303030x)

Acknowledgment (x)( )(Set ID)( )(OK/NG)(Data)(x)

* It works even if the Setid does not match.

92. [Gamma] (Command: s n, ad)

Sets Gamma Mode.

Transmission (s)(n)( )(Set ID)( )(a)(d)( )(Data)(Cr)

Data 00: [low](1.9) 01: [medium](2.2) 02: [High1](2.4) 03: [High2](BT.1886)

Acknowledgment (n)( )(Set ID)( )(OK/NG)(a)(d)(Data)(x)

* This feature may not be available for all models.

90. Multichannel (Command: s n, 76)

It changes the channel.

Transmission

(s)(n)( )(Set ID)( )(7)(6)( )(Data)(Cr)

Data 01 - 09: Channel to switch to

Acknowledgment

(n)( )(Set ID)( )(OK/NG)(7)(6)(Data)(x) * This feature may not be available for all models.

93. [Black Level] (Command: s n, ae)

It sets the Black Level mode.

Transmission (s)(n)( )(Set ID)( )(a)(e)( )(Data)(Cr)

Data 00: Low 01: High 02: Auto

Acknowledgment (n)( )(Set ID)( )(OK/NG)(a)(e)(Data)(x)

* This feature may not be available for all models.

94. [UHD Deep Color] (Command: s n, af)

It sets the UHD Deep Color mode for each input.

Transmission (s)(n)( )(Set ID)( )(a)(f)( )(Data1)( )(Data2)(Cr)

Data1 70: DVI-D 90: HDMI1 91: HDMI2 92: OPS/HDMI3/DVI-D 95: OPS/DVI-D 96: HDMI3/DVI-D 97: HDMI3/HDMI2/DVI-D 98: OPS 99: HDMI2/OPS C0: DISPLAYPORT C1: DISPLAYPORT/USB-C C2: HDMI3 C3: HDBaseT Data2 00: [Off] 01: [On]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(a)(f)(Data1)(Data2)(x)

* This feature may not be available for all models.

95. [Sync Mode] (Command: s n, b0)

Sets Sync Mode.

Transmission (s)(n)( )(Set ID)( )(b)(0)( )(Data)(Cr)

Data 00: [Slave Mode] 01: [Master Mode]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(b)(0)(Data)(x)

* This feature may not be available for all models.

96. [Input Manager] (Command: s n, b1)

It sets labels by input.

Transmission (s)(n)( )(Set ID)( )(b)(1)( )(Data1)( )(Data2)(Cr)

Data1 90: HDMI1 91: HDMI2 92: OPS/HDMI3/DVI-D 95: OPS/DVI-D 96: HDMI3/DVI-D 97: HDMI3/HDMI2/DVI-D 98: OPS 99: HDMI2/OPS C0: DISPLAYPORT C1: DISPLAYPORT/USB-C C2: HDMI3 C3: HDBaseT Data2 00: DTV 01: PC

Acknowledgment (n)( )(Set ID)( )(OK/NG)(b)(1)(Data1)(Data2)(x)

* This feature may not be available for all models.

97. [PC/OPS Power Control] (Command: s n, 8b)

It sets the OPS/PC Power Control mode.

Transmission (s)(n)( )(Set ID)( )(8)(b)( )(Data)(Cr)

Data 00: [Disable] 01: [Sync(On)] 02: [Sync(On/Off)]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(8)(b)(Data)(x)

* This feature may not be available for all models.

ENGLISH

98. [LED Local Dimming] (Command: s n, c1)

It sets [LED Local Dimming].

(A feature to set the LED Local Dimming in a sub-item under [Settings] [Display] [Expert Controls])

Transmission (s)(n)( )(Set ID)( )(c)(1)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(c)(1)(Data)(x)

* This feature may not be available for all models.

99. [Scan Inversion] (Command: s n, 87)

ENGLISH

It controls the on/off status of Scan Inversion.

Transmission

(s)(n)( )(Set ID)( )(8)(7)( )(Data)(Cr)

Data 00: Off

01: On

Acknowledgment

(n)( )(Set ID)( )(OK/NG)(8)(7)(Data)(x) * This feature may not be available for all models. * If you change the values on a Video Wall model, please reboot

for it to work normally.

100. [Frame Control] (Command: s n, b7)

It controls the Frame Control.

Transmission

(s)(n)( )(Set ID)( )(b)(7)( )(Data)(Cr)

Data 00: Off

01: On

Acknowledgment

(n)( )(Set ID)( )(OK/NG)(b)(7)(Data)(x) * This feature may not be available for all models. * If you change the values on a Video Wall model, please reboot

for it to work normally.

101. [Average Picture Level Auto Control] (Command: s

n, be)

Sets Average Picture Level Auto Control.

Transmission

(s)(n)( )(Set ID)( )(b)(e)( )(Data)(Cr)

Data 00: [Off]

01: [On]

Acknowledgment

(n)( )(Set ID)( )(OK/NG)(b)(e)(Data)(x) * This feature may not be available for all models.

102. Read Brightness Value (Command: m u)

Checks the brightness value.

Transmission (m)(u)( )(Set ID)( )(FF)(Cr)

Acknowledgment (u)()(SetID)()(OK/NG)(Data1)(Data2)(Data3)(Data4) (Data5)(Data6)(Data7)(x)

Data 1 00~64: Backlight PWM figure 0-100 Data 2 00~ff: The upper 1-byte of the value measured by

the CA210. Data 3 00~ff: The lower 1-byte of the value measured by

the CA210. The CA210 measurement is Hex: 0000~ffff, Decimal:

0 - 65535 Data 4 00~ff: The upper 1-byte of the value measured by

BLU 1 Sensor. Data 5 00~ff: The lower 1-byte of the value measured by

BLU 1 Sensor Data 6 00~ff: The upper 1-byte of the value measured by

BLU 2 Sensor Data 7 00~ff: The lower 1-byte of the value measured by

BLU 2 Sensor The BLU measurement is Hex: 0000~ffff, Decimal: 0 -

65535

* The CA210 measurement is entered as “Calibration” when

the product is released from the factory. It is Default 0 before the calibration.

* This feature may not be available for all models.

103. [Screen Fault Detection] (Command: t z)

Sets the Screen Fault Detection feature.

Transmission (t)(z)( )(Set ID)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment (z)( )(Set ID)( )(OK/NG)(Data)(x)

* This feature may not be available for all models.

104. [Stereo Mode] (Command: s n, c2)

Controls Stereo Mode.

Transmission (s)(n)( )(Set ID)( )(c)(2)( )(Data)(Cr)

Data 00: Left/Right 01: Left/Left 02: Right/Right

Acknowledgment (n)( )(Set ID)( )(OK/NG)(c)(2)(Data)(x)

* This feature may not be available for all models.

105. [HDR Picture Mode] (Command: s n, c4)

Selects a HDR Picture Mode.

Transmission (s)(n)( )(Set ID)( )(c)(4)( )(Data)(Cr)

Data 00: Mall/QSR 01: General 02: Gov./Corp. 04: Education

Acknowledgment (n)( )(Set ID)( )(OK/NG)(c)(4)(Data)(x)

* Depending on the model, some picture modes may not be

supported.

* It works only when the HDR content is running.

106. [Dynamic Tone Mapping] (Command: s n, c5)

Selects Dynamic Tone Mapping.

Transmission (s)(n)( )(Set ID)( )(c)(5)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(c)(5)(Data)(x)

* Depending on the model, some picture modes may not be

supported.

* It works only when the HDR content is running.

107. [LED Local Dimming] (Command: s n, c6)

Sets the LED Local Dimming. (A feature to set the LED Local Dimming in a sub-item under

[Settings] [Display] [Picture Mode] [Picture Options])

Transmission (s)(n)( )(Set ID)( )(c)(6)( )(Data)(Cr)

Data 00: [Off] 01: [low] 02: [Medium] 03: [High]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(c)(6)(Data)(x)

* This feature may not be available for all models.

108. [USB2 to HDBaseT] (Command: s n, c3)

Sets USB2 to HDBaseT.

Transmission (s)(n)( )(Set ID)( )(c)(3)( )(Data)(Cr)

Data 00: [Off] 01: [On]

Acknowledgment (n)( )(Set ID)( )(OK/NG)(c)(3)(Data)(x)

* This feature may not be available for all models.

109. [Change Password] (Command: s n, a7)

Changes password.

Transmission (s)(n)( )(Set ID)( )(a)(7)( )(Data1)(Data2)(Data3) (Data4)(Data5)(Data6)( )(Data7)(Data8)(Data9) (Data10)(Data11)(Data12)(Cr)

Data 1~6 : 0~9(Previously set password) Data 7~12 : 0~9(New password)

Acknowledgement (n)( )(Set ID)( )(OK/NG)(a)(7)( )(Data1)(Data2)(Data3) (Data4)(Data5)(Data6)( )(Data7)(Data8)(Data9) (Data10)(Data11)(Data12)(x)

* This feature may not be available for all models.

110. [Brightness Range Adjustment] (Command: s n, ab)

Adjust the brightness range.

Transmission (s)(n)( )(Set ID)( )(a)(b)( )(Data1)( )(Data2)(Cr)

Data 1 00: Minimum brightness control 01: Maximum brightness control Data 1 00~64: Range control

Acknowledgement

(n)( )(Set ID)( )(OK/NG)(a)(b)(Data1)(Data2)(x) * This feature may not be available for all models. * Data2 only supports Hex values that are multiples of 5. * The range of minimum brightness value cannot exceed the

range of maximum brightness, and the range of maximum brightness value cannot be less than the range of minimum brightness.

ENGLISH

111. [Color Calibration] (Command: s n, d6)

ENGLISH

Selects Color Calibration.

Transmission (s)(n)( )(Set ID)( )(d)(6)( )(Data)(Cr)

Data 00: Off 01: On

Acknowledgement (n)( )(Set ID)( )(OK/NG)(d)(6)(Data)(x)

* It may not be supported depending on the model.

LG 86UL3E User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

SETTINGS

Home

Global Buttons

Dashboard

[Content Manager]

Ez Setting

[Video Wall]

[On/Off Scheduler]

[SI Server Setting]

[Server Setting]

[Fail Over]

[Status Mailing]

[Play via URL]

[Setting Data Cloning]

[Sync Mode]

[Signage 365 Care]

[Multi Screen]

General

[Language]

[System Information]

[Set ID]

[Time Setting]

[Power]

[Network]

[Safety Mode]

[Advanced Setting]

Display

[Picture Mode]

[Aspect Ratio]

[Rotation]

[Advanced Setting]

Video Output Resolution

Sound

[Sound Mode]

[Sound Out]

[Audio Out]

[AV Sync Adjustment]

[Digital Audio Input]

Admin

[Lock Mode]

[Change Password]

[Enterprise Settings]

[HDCP Dynamic output control]

[Factory Reset]

CONTENT MANAGER

Web Login

Content Manager

[Player]

[Scheduler]

[Template]

Group Manager 2.0

ScreenShare

LG Presenter

Connect

Screen Share

Handover

MANAGEMENT TOOLS

Admin

Picture ID

TOUCH

Touch Assistive Menu

TO CONTROL AN EXTERNAL PC USING TOUCH SCREEN

Connecting to a PC

Prioritized Tasks on the Touch Screen

SMART CALIBRATION

How to Run

[Manual Calibration]

IR CODE

CONTROLLING MULTIPLE PRODUCTS

Connecting cables

Communication Parameter

Command Reference List

Transmission/Reception Protocol
