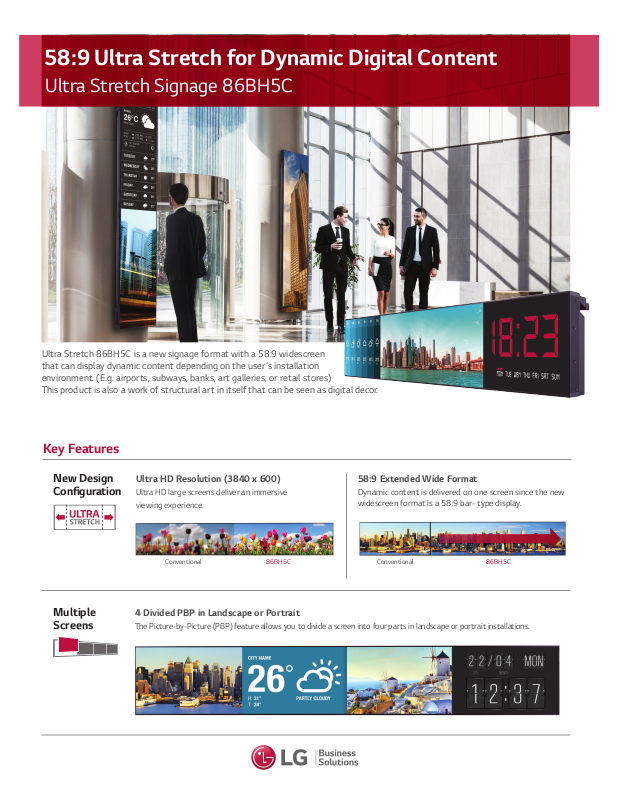

58:9 Ultra Stretch for Dynamic Digital Content
Ultra Stretch Signage 86BH5C
Ultra Stretch 86BH5C is a new signage format with a 58:9 widescreen
that can display dynamic content depending on the user's installation
environment. (E.g. airports, subways, banks, art galleries, or retail stores)
This product is also a work of structural art in itself that can be seen as digital decor.
Key Features
New Design
Conguration
Multiple
Screens
Ultra HD Resolution (3840 x 600)
Ultra HD large screens deliver an immersive
viewing experience.
86BH5CConventional
4 Divided PBP in Landscape or Portrait
The Picture-by-Picture (PBP) feature allows you to divide a screen into four parts in landscape or portrait installations.
58:9 Extended Wide Format
Dynamic content is delivered on one screen since the new
widescreen format is a 58:9 bar- type display.
Conventional 86BH5C
Page 2
58:9 Ultra Stretch for Dynamic Digital Contents
Ultra Stretch Signage 86BH5C
Other Features
Content
Management
58:9 Content Editing
With the LG SuperSign media editor, you can easily edit
images or video clips of original content without any
additional editing programs.
Video file or Still Image
Screen Size
86"
86BH5C
• Brightness : 500cd/m
• Bezel : 4.4mm (Left/Right),
5.9mm (Top/Bottom)
• Depth : 81.7mm
• Interface : HDMI, DP, RJ45, IR,
USB2.0, USB3.0,
Daisy-Chain (DP Out,
RS232C In/Out, RJ45)
2
Multiple Content Creation
Users can edit content that consists of one video and several
still images (up to 20) with SuperSign Editor.
Video Image Image Image
Convenient
Connectivity
Support
Easy
Installation
Tiling Scene with Daisy Chain
This product supports lateral tiling for 1x4 or 4x1
installations (landscape or portrait), and up to a 4x4
installation with a daisy chain conguration.
Media Player
LAN Daisy Chain
The LAN daisy chain allows you to control and monitor devices,
distribute content, and even update rmware.
...
Side Bracket / Classied Port
This product supports side brackets for buried installations. The
classified in/out port prevents errors when connecting a daisy chain.
LAN
(up to 15x15)
...
LAN LAN LAN
Mounting hole for
side bracket
Classified in/out port
- Input : White
- Output : Green
Page 3
Specications
BH5C
Screen Size
Panel Technology IPS
Aspect Ratio 58:9
Native Resolution 3,840 x 600 (UHD)
Brightness Typ: 500cd/m2, Min : 400cd/m
PANEL
CONNECTIVITY
PHYSICAL
SPECIFICATION
SPECIAL FEATURES
ENVIRONMENT
CONDITIONS
POWER
STANDARD
(CERTIFICATION)
MEDIA PLAYER
COMPATIBILITY
SOFTWARE
COMPATIBILITY
ACCESSORY
OTHER UPC TBD
WARRANTY
Contrast Ratio 1,100:1(Typ)
Dynamic CR 500,000:1 (Typ) : TBD
Viewing Angle(H x V) 178 x 178
Response Time 8ms (G to G BW) typ.
Surface Treatment
Life time
Orientation
Input
Output Analog Audio
External Control
Bezel Color
Bezel Width
Monitor Dimension (W x H x D) 85" x 13.7" x 3.2"
Weight (Head)
Carton Dimensions (W x H x D) 90.2" x 9" x 18.9"
Packed Weight 78lbs
VESATM Standard Mount Interface
Operation Temperature Range
Operation Humidity Range
Power Supply
Power Type Built-In Power
Power
Consumption
Safety
EMC FCC Class "A" / CE / KC
ErP / Energy Star
OPS type compatible
External Media player Attachable
SuperSign W/Lite
SuperSign C
Basic
Optional
Typ. / Max. 180W/220W
Smart Energy Saving
Temperature Sensor, Auto Brightness Sensor, Tile Mode, Natural Mode@Tile Mode, ISM Method,
Energy Saving, Smart Energy Saving, File Play with USB/SD/Internal Memory, PIP/PBP,
Remote Controller (2ea Batteries included), Power Cord, DP (3M), RS-232C Cable (3M)
AN-WF500 (WiFi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor) ** Stand is not available
HDMI, DP, OPS, DVI-D, USB2.0, USB3.0, SD Card
RS232C, RJ45, IR+B Receiver, Pixel Sensor, Analog Audio
8GB (System 4GB + Available 4GB), Wi-Fi Dongle Ready, 4K Up Scaling
3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available
86BH5C-BF
86" class (TBD") diagonal
AGP (10% Haze)
50,000 Hrs
Landscape / Portrait
Black
4.4mm (L/R), 5.9mm (T/B)
45.2lbs
200mm x 600mm
32 °F to 104 °F
10 % to 80 %
100-240V~, 50/60Hz
30% of typical
UL / cUL / CB / TUV / KC
NA / NA
Yes
No
Yes
Yes
Owner's Manual (Website upload)
2
Dimension
(unit : mm)
86"
85" x 13.7" x 3.2" / 45.2lbs
.2"
13.7"
2.9"2.9" 200mm
30.7"
Connectivity
AUDIO IN/OUT
DP OUT
DP IN
DVI-D IN
HDMI IN
85"
.2"
30.7"600mm
3.6"
3.2"
2.6"
USB
SD Card
LAN IN
LAN OUT
PIXEL SENSOR
IR & LIGHT SENSOR
RS-232C IN
RS-232C OUT
