LG 782LS User Manual

COLOR MONIT OR

SER VICE MANUAL

Website:http://biz.LGservice.com

E-mail:http://www.LGEservice.com/techsup.html

CAUTION

BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS NO. : CL-29
F ACTORY MODEL: LB782G

MODEL: LCD 782LS (LB782G-GD)

*( ) ID LABEL MODEL No.

CONTENTS

- 2 -

SPECIFICATIONS ................................................... 2

PRECAUTIONS ....................................................... 3

TIMING CHART ....................................................... 4

OPERATING INSTRUCTIONS ................................ 5

WIRING DIAGRAM ................................................. 6

DISASSEMBLY ....................................................... 7

BLOCK DIAGRAM AND DESCRIPTION ................ 8

ADJUSTMENT ....................................................... 11

TROUBLESHOOTING GUIDE .............................. 12

PRINTED CIRCUIT BOARD................................... 17

EXPLODED VIEW...................................................19

REPLACEMENT PARTS LIST ...............................21

PIN CONFIGURATION............................................25

SCHEMATIC DIAGRAM......................................... 26

SPECIFICATIONS

1. LCD CHARACTERISTICS

Type : TFT Color LCD Module
Size : 17.0 inch (43.2 cm diagonal)
Pixel Pitch : 0.264(H) x 0.264(V)
Elecctrical Interface : LVDS
Color Depth : 6-bits+FRC, 16,194,277 colors
Size (mm) : 383.5(H) x 306(V) x 21.0(D) Typ
Surface Treatment : Anti-Glare, Hard Coating (3H)
Operating Mode : Normally white
Backlight Unit : Four-CCFL (Cold Cathode

Fluorescent Lamp)

2. OPTICAL CHARACTERISTICS

2-1. Viewing Angle by Contrast Ratio

≥

10

Left : 70° Typ. , Right : -70° Typ.
Top : 45° Typ. , Bottom : -65° Typ.

2-2. Luminance : 200 (min.) 250 (typ.)

2-3. Contrast Ratio : 250 (min) 400 (typ.)

3. SIGNAL (Refer to the Timing Chart)

3-1. Sync Signal

• Type : Separate TTL (Positive/Negative)

3-2. Video Input Signal

1) Type : R, G, B Analog

2) Voltage Level : 0~0.714 V
a) Color 0, 0 : 0 Vp-p
b) Color 7, 0 : 0.467 Vp-p
c) Color 15, 0 : 0.714 Vp-p

3) Input Impedance : 75 Ω

3-3. Operating Frequency

Horizontal : 30 ~ 83 kHz
Vertical : 56 ~ 75 Hz

4. POWER SUPPLY

4-1. Power

AC 100~240V, 50/60Hz , 1.0A

4-2. Power Consumption

5. ENVIRONMENT

5-1. Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

(Ambient)

5-2. Relative Humidity : 5% ~ 95%

(Non-condensing)

6. DIMENSIONS (with TILT/SWIVEL)

Width : 419 mm (16.49'')
Depth : 205 mm (8.07'')
Height : 410 mm (16.14'')

7. WEIGHT (with TILT/SWIVEL)

Net. Weight : 6.8 kg (14.99 lbs)
Gross Weight : 8.4 kg (18.52 lbs)

MODE

POWER ON (NORMAL)

STAND-BY

SUSPEND

OFF

POWER OFF

H/V SYNC

ON/ON
OFF/ON
ON/OFF

OFF/OFF

-

POWER CONSUMPTION

less than 45 W

less than 3 W
less than 3 W

less than 3 W
less than 3 W

LED COLOR

GREEN
AMBER
AMBER
AMBER

OFF

VIDEO

ACTIVE

OFF
OFF
OFF

-

- 3 -

WARNING FOR THE SAFETY-RELATED COMPONENT.

• There are some special components used in LCD
monitor that are important for safety. These parts are

marked on the schematic diagram and the
replacement parts list. It is essential that these critical

parts should be replaced with the manufacturer’s
specified parts to prevent electric shock, fire or other
hazard.

• Do not modify original design without obtaining written
permission from manufacturer or you will void the
original parts and labor guarantee.

TAKE CARE DURING HANDLING THE LCD MODULE
WITH BACKLIGHT UNIT.

• Must mount the module using mounting holes arranged
in four corners.

• Do not press on the panel, edge of the frame strongly
or electric shock as this will result in damage to the
screen.

• Do not scratch or press on the panel with any sharp
objects, such as pencil or pen as this may result in
damage to the panel.

• Protect the module from the ESD as it may damage the
electronic circuit (C-MOS).

• Make certain that treatment person’s body are
grounded through wrist band.

• Do not leave the module in high temperature and in
areas of high humidity for a long time.

• The module not be exposed to the direct sunlight.

• Avoid contact with water as it may a short circuit within
the module.

• If the surface of panel become dirty, please wipe it off
with a softmaterial. (Cleaning with a dirty or rough cloth
may damage the panel.)

WARNING

BE CAREFUL ELECTRIC SHOCK !

• If you want to replace with the new backlight (CCFL) or
inverter circuit, must disconnect the AC adapter
because high voltage appears at inverter circuit about
650Vrms.

• Handle with care wires or connectors of the inverter
circuit. If the wires are pressed cause short and may
burn or take fire.

PRECAUTION

CAUTION

Please use only a plastic screwdriver to protect yourself
from shock hazard during service operation.

TIMING CHART

- 4 -

VIDEO

SYNC

B

D

C

F

E

A

H + 31.469 800 640 16 96 48
V – 70.09 449 350 37 2 60

H – 31.469 800 640 16 96 48
V – 59.94 525 480 10 2 33
H – 37.5 840 640 16 64 120
V – 75 500 480 1 3 16

H – 31.468 900 720 18 108 54
V + 70.08 449 400 12 2 35

H + 37.879 1056 800 40 128 88
V + 60.317 628 600 1 4 23
H + 46.875 1056 800 16 80 160
V + 75.0 625 600 1 3 21
H+/– 49.725 1152 832 32 64 224
V+/– 74.55 667 624 1 3 39
H – 48.363 1344 1024 24 136 160
V – 60.0 806 768 3 6 29

H – 60.123 1312 1024 16 96 176
V – 75.029 800 768 1 3 28

H+/– 68.681 1456 1152 32 128 144
V+/– 75.062 915 870 3 3 39
H+/– 61.805 1504 1125 18 134 200
V+/– 65.96 937 900 2 4 31
H + 63.981 1688 1280 48 112 248
V + 60.02 1066 1024 1 3 38

H + 79.976 1688 1280 16 144 248
V + 75.035 1066 1024 1 3 38

Mode

H/V

Sort

1

2

3

4

5

6

7

8

9

10

11

12

13

25.175

28.321

25.175

31.5

40.0

49.5

57.283

65.0

78.75

100.0

92.978

108.0

135.0

640x350

70Hz

640x480

60Hz

640x480

75Hz

720x400

70Hz

800x600

60Hz

800x600

75Hz

832x624

75Hz

1024x768

60Hz

1024x768

75Hz

1152x870

75Hz

1152x900

65Hz

1280x1024

60Hz

1280x1024

75Hz

<< Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... (µs), Vertical etc... (ms) >>

Sync

Polarity

Frequency

DOT

Clock

Total Period

(E)

Video Active

Time (A)

Sync Duration

(D)

Back Porch

(F)

Front Porch

(C)

Resolution

- 5 -

1. MENU Button

Use this button to enter or exit the on screen display.

2.

Use these buttons to choose or adjust items in the on
screen display

3.

AUTO Button

Use this button to enter a selection in the on screen
display.

4.

OPERATING INSTRUCTIONS

Front Control Panel

FRONT VIEW REAR VIEW

D

AUDIO
DC OUT

D-Sub Signal Port

Power Connector

AUDIO DC OUT

Power (DPMS) Indicator

Power ON/OFF Button

Button

AUTO Button

Power Button

MENU Button

Power Indicator

SET Button

Button

<Shortcut Keys>

• Brightness and Contrast can be
adjusted directly without entering the
On Screen Display (OSD) system.
Touch the buttons to adjust
the settings and then the OSD button
to save all changes. The Brightness
and Contrast functions are also
available in the On Screen Display
(OSD) menu.

100

100

* AUTO adjustment function

TO the AUTO button before
using OSD menu. This button is
for the automatic adjustment of the screen position, clock
and phase.
Note: Some signal from some graphics boards may not
function properly. If the results are unsatisfactory, adjust
your monitor’s Position, Clock and Phase manually.

PROCESSING

AUTO CONFIGURATION

MENU, Button

CONTROLS LOCKED

CONTROLS UNLOCKED

Press the hold the MENU button and

button for 3 seconds: the message

“CONTROLS LOCKED” appears.

You can unlock the OSD controls

at any time by pushing the MENU,

button for 3 seconds:

the message “CONTROLS UNLOCKED” will appear.

- 6 -

WIRING DIAGRAM

J801

PG4

J702

CN1

CN3

J1

CN2

Connector Ass’y P/No.:
6631T11012W

Connector Ass’y P/No.:

6631T25008R

Connector Ass’y P/No.:

6631T20015A

Connector Ass’y P/No.:

6631T20008P

J706

J710

- 7 -

DISASSEMBLY

(a)

(a)

(a)

(a)

1) Set the Monitor face downward.

2) Remove four screws (a).

BACK COVER REMOVAL

3) Set the Monitor as picture.

4) Release the bottom & side latch.

7) Release the center positon latch.

5) Set the Monitor face upward.

6) Release the up side latch.

8) Set the Monitor face downward.

9) Remove the Back cover.

※ Caution: When you open the Back cover, Be careful! Dont stress the Control Board Connector.

(b) Latch Point

(b)

(b)

(b)

(b)

(b)

(b)

(b)

(b)

(b)

(b)

BLOCK DIAGRAM

- 8 -

To

Inverter

12V

BRT-CTL

Tx+/-,Hs,Vs,CLK,DEN

INV-CTL

EEPROM

(SYSTEM)

Analog

Signal

ADC

+ PLL

OSD

Scaling

GM5020

DC/DC Block

Regulator

Regulator

2.5V

3.3V

MCU

L VDS Tx

POWER BOARD

DDC

(EDID)

12V(Inverter)

5.0V

90-264V

12V

Module Power (5V)

DSUB

(H/V Sync)

(R,G,B)

SDA, SCL

H SYNC

AC INPUT

DESCRIPTION OF BLOCK DIAGRAM

- 9 -

1. Input signal part.

There is one input which is analog.
It comes from 15 pin D-Sub connector.

2. Pre-amp/ ADC / PLL / Video Controller.

This part amplifies the level of video signal from the analog video signal to the digital video signal using a pixel
clock.
The pixel clock for each mode is generated by the PLL.
The range of the pixel clock is from 25MHz to 135.0MHz.
The Scaler gets the video signal converted analog to digital, interpolates input to 1280 X 1024 resolution signal
and outputs 8-bit R, G, B signal to LCD module.
Especially pre-amp / ADC / Video controller are merged to one chip ‘gm5020’ by Genesis.

3. Power Part.

This circuit is working of 90~260VAC(50/60Hz). The operation procedure is as follows:

1) AC Input voltage is rectified and smoothed by the bridge diodes(BD901) and the capacitor(C905).

2) The Rectified voltage(DC) is applied to the primary coil of the transformer(T901).

3) The control IC(IC901) generates switching pulse to turn on and turn off the primary coil of the
transformer(T901).

4) Depending on turn ratio of the transformer, the secondary voltages appear at the secondary coils of the
transformer(T901).

5) These secondary voltages(12V,5V) are rectified by each diodes(D903,D906) and operates other
circuit.(Inverter,Scaler…etc)

4. MICOM Part.

This part consists of EEPROM IC which stores control data, Reset IC and the Micom.
The Micom distinguishes polarity and frequency of the H/V sync are supplied from signal cable.
The controlled data of each modes is stored in EEPROM.

5. Inverter

The inverter converts from DC12V to AC 700V and operate back-light lamp of module.

BLOCK DIAGRAM

- 10 -

EMI

COMPONENTS

LINE

100 ~ 240V

INPUT RECTIFIE R

AND FILTER

ENERGY

TRANSFER

OUTPUT RECTIFIE R

AND FILTER

12V

5V

GND

SIGNAL

COLLENTION

PHOTO-COUPLER

ISOLATION

PWM CONTROL

CIRCUIT

HVDC

100KHz

PRIMARY

SECONDARY

50 ~ 60Hz

POWER BOARD

DESCRIPTION OF BLOCK DIAGRAM

1. EMI components.

This part contains of EMI components to comply with global marketing EMI standards like FCC the circuit included
a line-filter, across line capacitor and of course the primary protection fuse.

2. Input rectifier and filter.

This part function is for transfer the input AC voltage to a DC voltage through a bridge rectifier and a bulk capacitor.

3. Energy Transfer.

This part function is transfer the primary energy to secondary through a power transformer.

4. Output rectifier and filter.

This part function is to make a pulse width modulation control and to provide the driver signal to power switch, to
adjust the duty cycle during different AC input and output loading condition to achive the dc output stablize, and also
the over power protection is also monitor by this part.

5. Photo-Coupler isolation.

This part function is to feed back the dc output changing status through a photo transistor to primary controller to
achive the stablized dc output voltage.

6. Signal collection.

This part function is to collect the any change from the dc output and feed back to the primary through photo
transistor

ADJUSTMENT

- 11 -

All adjustment are thoroughly checked and corrected
when the monitor leaves the factory, but sometimes
several minor adjustment may be required.
Adjustment should be following procedure and after
warming up for a minimum of 10 minutes.

• Alignment appliances and tools.

- IBM compatible PC

- Programmable Signal Generator.
(eg. VG-819 made by Astrodesign Co.)

- E(E)PROM with each mode data saved.

1. Adjustment Start

1) Display any pattern at any Mode.

2) Run alignment program for LB782G on the IBM
compatible PC.

3) Select EEPROM → ALL INIT command and Enter.

4) This will make all data to default state.

5) Select COMMAND → PRESET START command
and Enter.

2. Adjustment for White Balance

1) Display Black pattern at SXGA/60Hz.

2) Set External Bright to MAX position and Contrast to
80 Position.

3) Select PRESET START → BIAS CAL command
and Enter.

4) No attempt to manually adjust, BIAS data is auto­matically adjusted and saved to the EEPROM.

5) Display Full White pattern at SXGA/60Hz.

6) Select DRIVE CAL command and Enter.

7) 9300K are automatically adjusted and
saved to the EEPROM.

8) Select PRESET EXIT command and Enter.

3. Adjustment for EDID

1) Use this procedure only when there is some
probelm on EDID data.

2) Connect the D-sub cable.

3) Select EEPROM → EDID(A) WR command and
Enter.

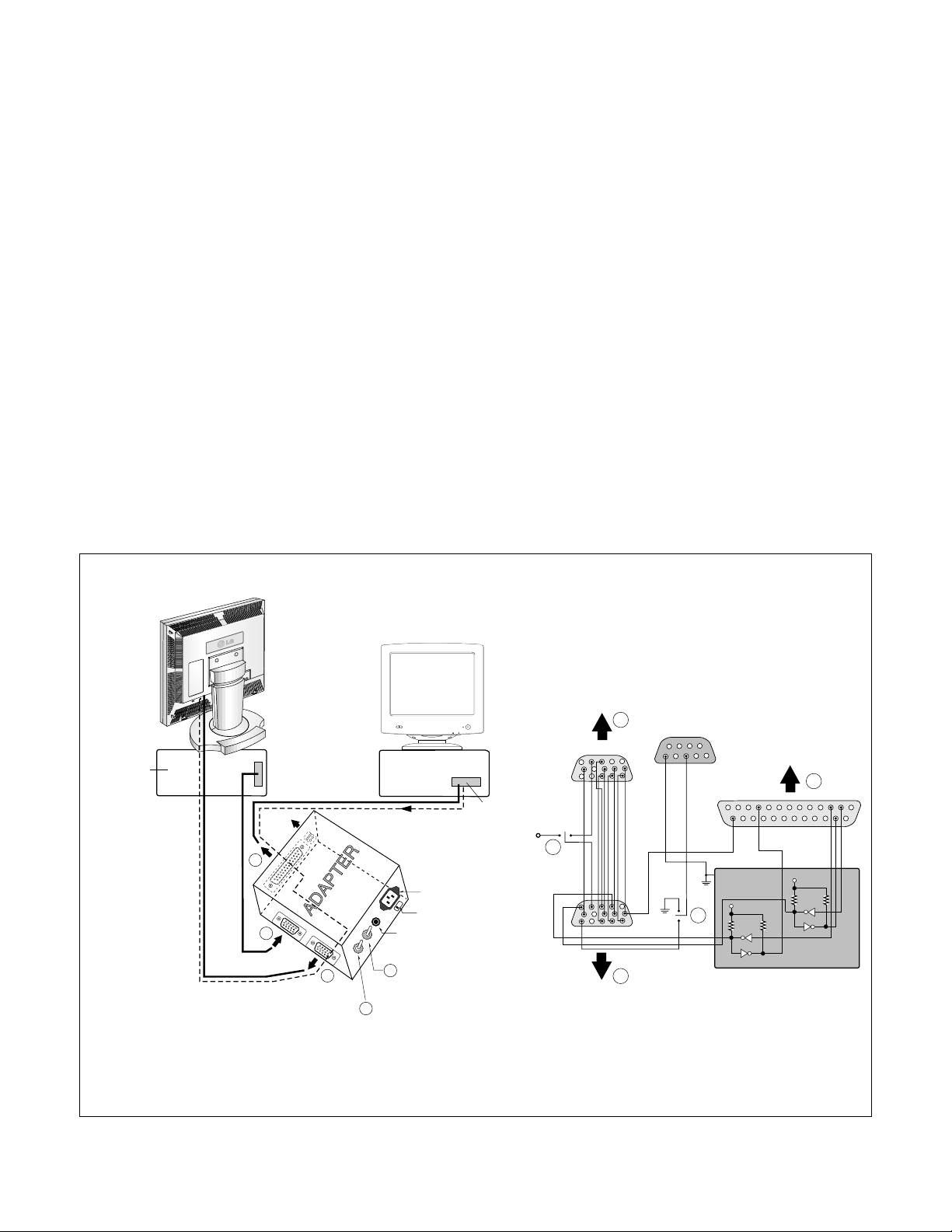

Figure 1. Cable Connection

D

AUDIO
DC OUT

220

IBM
Compatible PC

Video Signal
Generator

PARALLEL PORT

Power inlet (required)

Power LED

ST Switch

Power Select Switch
(110V/220V)

Control Line

Not used

RS232C

PARALLEL

V-SYNC

POWER

ST

VGS

MONITOR

E

E

V-Sync On/Off Switch
(Switch must be ON.)

F

F

A

A

B

B

C

C

15

10
5

5

69

1

1

1

14

13

25

6

5V

5V

5V

4.7K

4.7K

4.7K

74LS06

74LS06

OFF ON

OFF

ON

11

- 12 -

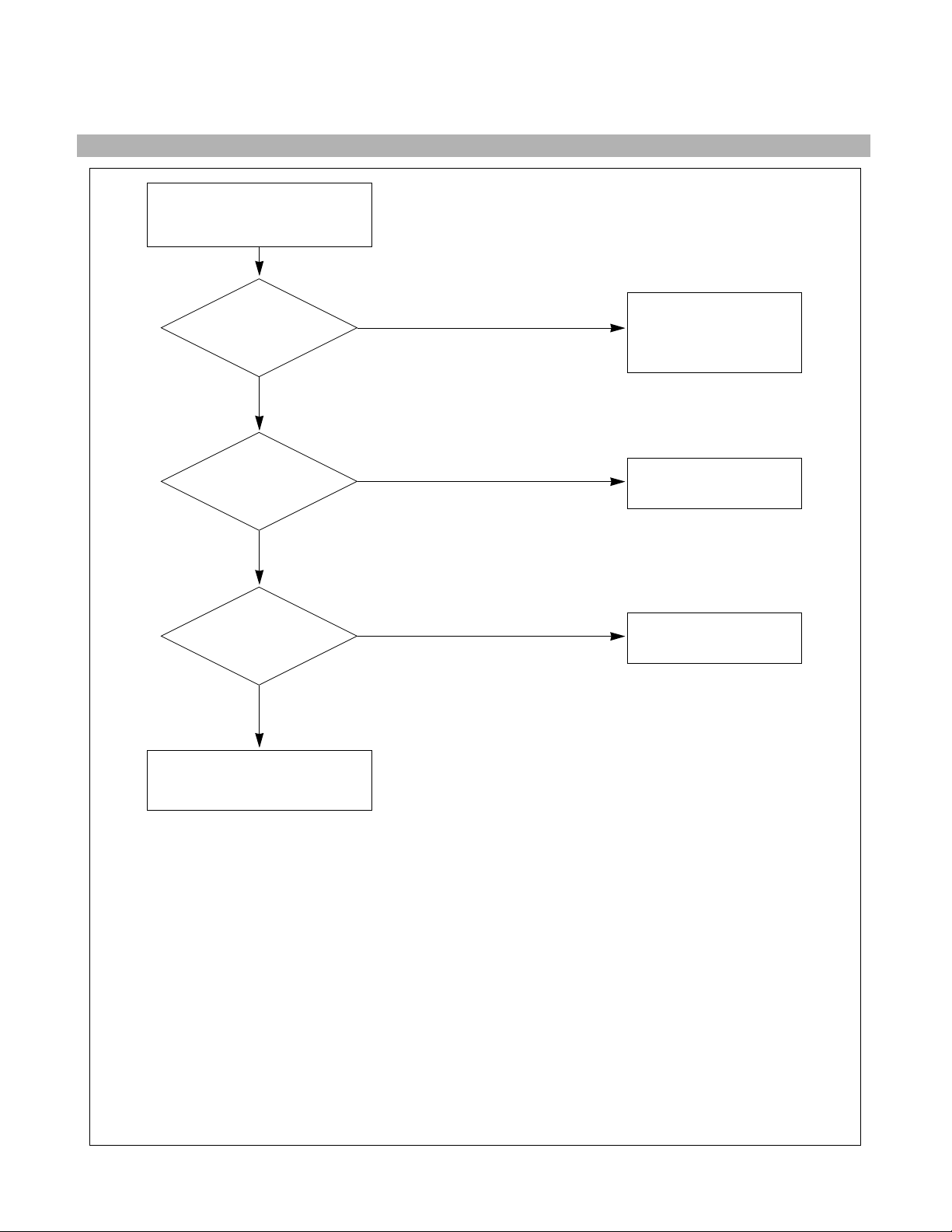

TROUBLESHOOTING GUIDE

1. NO POWER

TROUBLE IN
BULT-IN POWER

CHECK J801

5VST VOLTAGE

(5V) ?

NO

NO POWER

(POWER INDICATOR OFF)

TROUBLE

SOMEWHERE ELSE

TROUBLE IN
BULT-IN POWER

CHECK J801

INPUT VOLTAGE

(12V) ?

NO

TROUBLE IN
U501 or X501

NO

YES

YES

YES

CHECK

U501’s PIN 6.

IS THIS PIN

OSCILLATED?

- 13 -

2. NO RASTER

TROUBLE IN
INVON PATTERN

CHECK

J702 PIN 8 (5V) ?

NO

NO RASTER

TROUBLE IN
POWER ADATER
or L703, L704

CHECK

J702 PIN 1, 2, 3

(12V) ?

NO

TROUBLE IN
X501

CHECK

X501

H. PULSE ?

NO

TROUBLE IN
U201

CHECK

U201(GM5020) ?

NO

TROUBLE IN
U201

NO

YES

YES

YES

YES

CHECK

L201, L202, L203

PULSE?

- 14 -

CHECK DOT CLOCK
PATTERN

NO

TROUBLE IN
U201

NO

CHECK
DVS PATTERN

NO

CHECK
DHS PATTERN

NO

YES

YES

YES

YES

YES

TROUBLE IN

LCD MODULE

CHECK

U401 PIN 8

V.PULSE?

CHECK

U401 PIN 7

V.PULSE?

CHECK

U401 PIN 10

PULSE ?

CHECK

L204

PULSE ?

- 15 -

3. NO CLOCK (CLOCK GENERATOR)

NO DOT CLOCK

TROUBLE IN
X201

CHECK

X201 24MHz ?

NO

TROUBLE IN
U201

CHECK

L201

CLOCK ?

NO

YES

YES

- 16 -

4. TROUBLE IN DPM

TROUBLE IN DPM

TROUBLE IN PC

CHECK PC
PC IS NOT GOING
INTO DPM OFF MODE

NO

TROUBLE IN
X501

NO

TROUBLE IN
SIGNAL CABLE

NO

YES

YES

YES

CHECK

U501 PIN 6

WAVEFORM

(24MHz) ?

CHECK

R233, R234?

CHECK

U501 PIN 11

(0V) ?

PRINTED CIRCUIT BOARD

- 17 -

1. MAIN BOARD (Component Side)

C860

R526

L822

R809

C820

C506

U802

C819

J706

R732

J710

R707

Q705

R706

D730

R713

R705

C840

R531

C511

R529

R527

R580

R508

R511

R512

R513

R524
R525

C818

C504
C505

C507

C514
C515

R810

C408

L823

C405

C403

504030

C402

C401

1

C413

L403

ZD721

C730

R730

ZD722

C731

C729

R731

R708

R709

C703

C702

R714

R715

R716

D731

R704

D704D703

U502

C503C510

C513

1

C509

R528

R540

R523

R522

40

L401

70

60

20

10

R405

R403

R402

R401

C207

C220
C238

C257

L204

C216

C215

C214

C209

C211

C817

C738

R750

R751

Q703

R207

R205
R204
R203

L207

Q704

R208

R209

R213

C229

L206

R703

D702

L821

X501

L811

C501

R501

C522

R541

R520

R519

R518

R450

C516

R536

R537

R542

C410

C406

9080100

1

U401

C404

C236C232

R404

R236

C221

L201

L202
L203

C235

R206

R214

R216
R215

R211
R210

R212

U701

C265

R234

Y

C264

R233

J704

D701

ZD711 ZD703

ZD704

J801

R804

C502

10

C520

R516

R534

R535

R539

A

R543

L402

C407

RA218

RA214

RA216

C231

C258
C230

X201

P
R
T
U
V
W

C239

R235

D503

R711

R593

D504

C714

C715R712

R594

R595

R596

D801

C508

R805

R560

R562

R564

30

C519

R538

C809

C812

RA222

RA220

RA224

C219

N

M

L

K

J

H

C226

C240

C227

C548

C740

C710

L810

R561

R563

20

A

C517

R545

R544

R807

C811

C836

C835

RA204

RA202

G

F

E

D

C

B

C280

C278

C279

C228

C218

C259

C260

C261

R223
R224

R222

R225

R221

R220

U509

C845

C837

U501

C838

C531

R581

R582

U503

C834

RA208

RA206

C202

C201

C203

C234

C224

R201

R202

2019

U201

C204

C872

C873

181716151413121110987

C206

C205 C274

C276

A

C827

C826

C825

C701

C839

U801

C707

U821

MODEL:LG708G GM5020

P/N :6870T487A11

DATE :2002.04.03

R829

R830

RA212

C208

R826

R820

R819

R828

R827

RA210

C217

C222

C223

C210

C212

R831

U803

C822

C832
C833

L804

C831

C275

C272C273

U820

L805

C828

J702

C706

R702

R701

C830

C829

R817

R818

R813

R812

R815

R816

R814

C870

C871

R811

C823

C824

2. CONTROL BOARD (Component Side)

3. CONTROL BOARD (Solder Side)

- 18 -

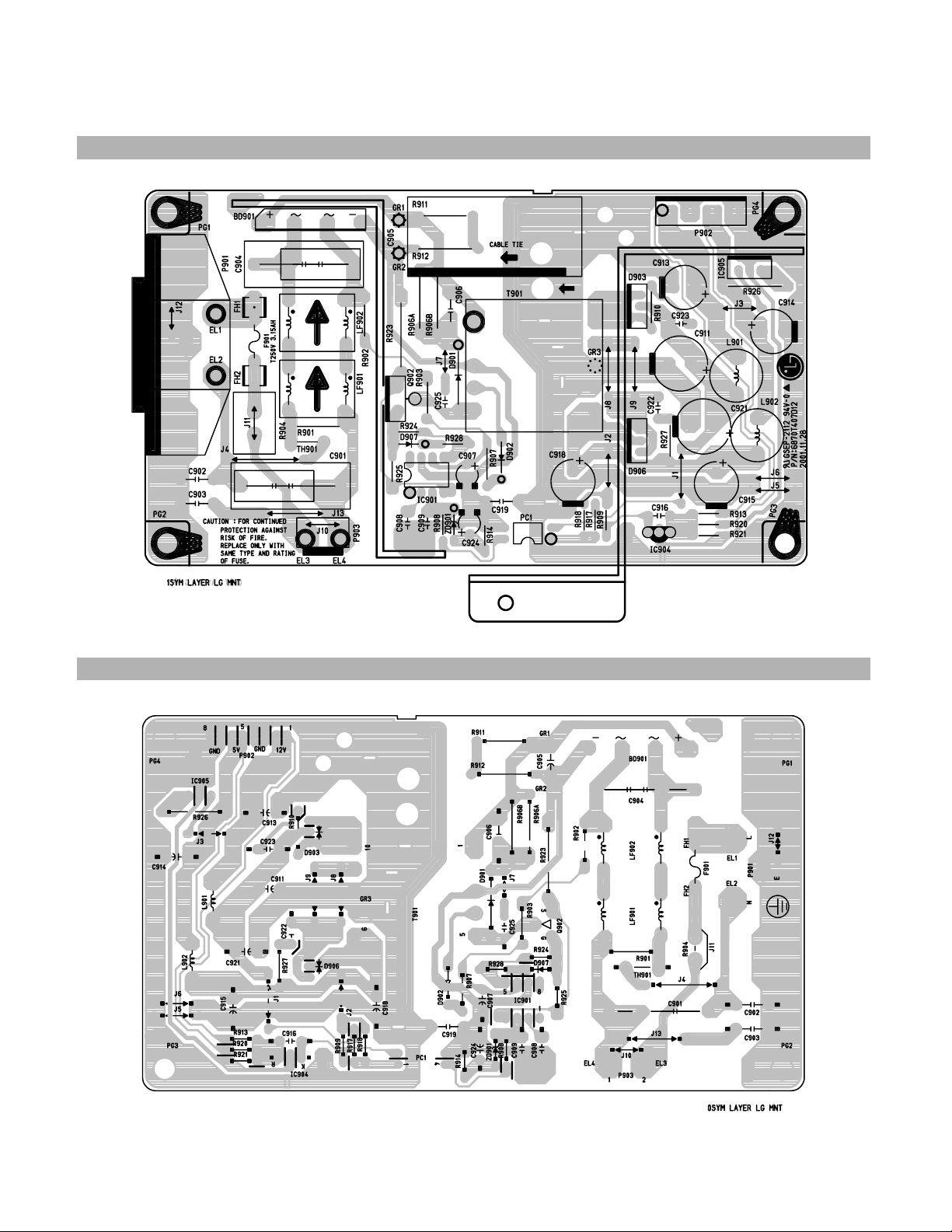

4. POWER BOARD (Component Side)

5. POWER BOARD (Solder Side)

- 19 -

1

2

5

6

13

3

9

14

4

12

10

8

7

11

15

a

b

c

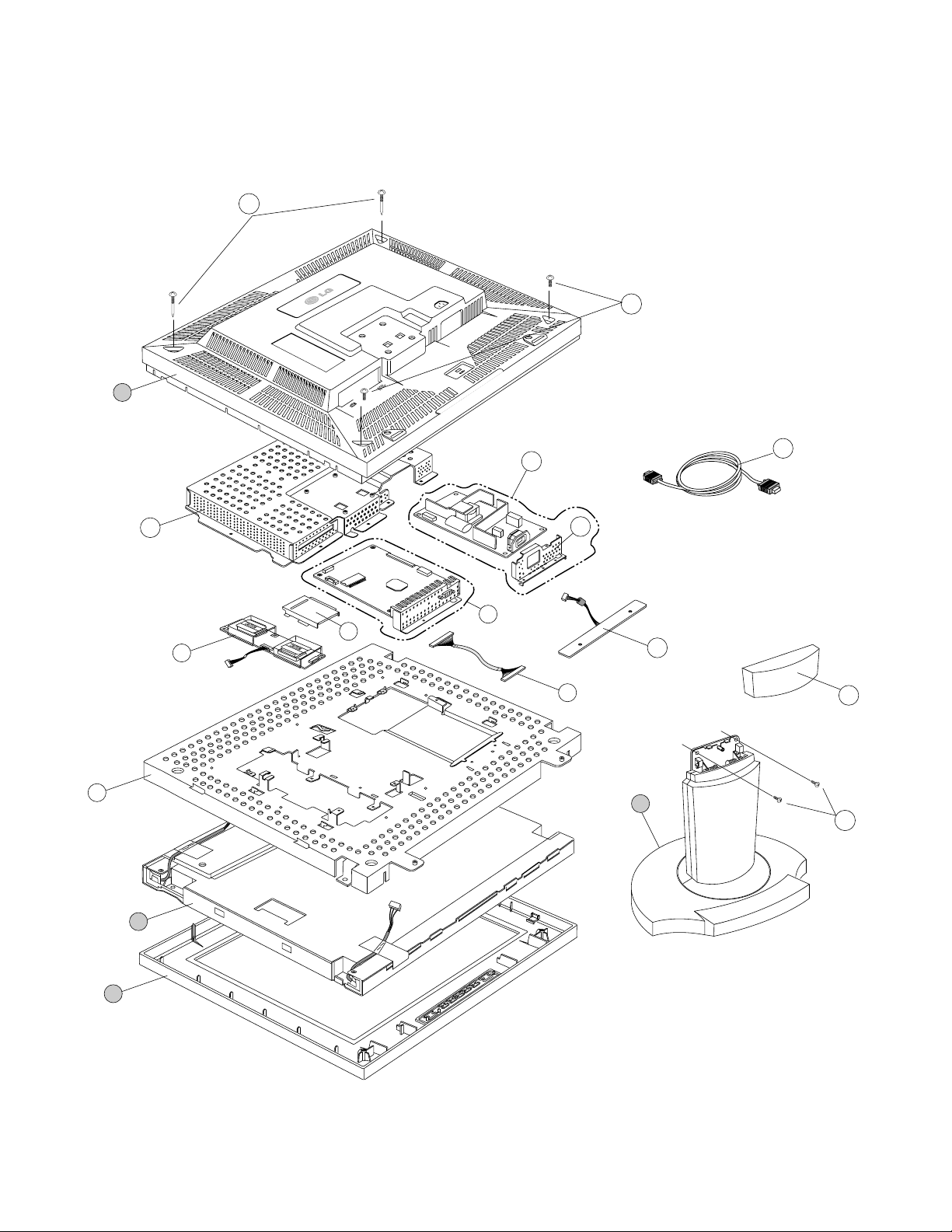

EXPLODED VIEW

EXPLODED VIEW PARTS LIST

- 20 -

Ref. No.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

a

b

c

Part No.

3091TKL031H

6304FHD004A

3809TKL021A

3043TKK037M

4951TKS082F
6633TZA011A

4814TKK200A

3313TL7004B

6631T11012W

6871TST276A

6871TPT220A
4814TKK187A
4950TKS189A
3550TKK053A

6850TD9001A
1SZZTAT001A

332-095C
332-105F

Description

CABINET ASSEMBLY, LB782G BRAND ANALOG ONLY EXPORT
LCD(LIQUID CRYSTAL DISPLAY) HT17E11-300 HYUNDAI TFT COLOR SXGA 17 INCH LVDS
BACK COVER ASSEMBLY, LB782F 3808TKL026 PC+ABS
TILT SWIVEL ASSEMBLYLB782F . NO USB
METAL ASSEMBLY, FRAME LB782G -HYDIS MODULE
INVERTER ASSEMBLY, LG-PHILIPS NMC1804,4-LAMP AU MODULE LB782
SHIELD INVERTER LB782F
MAIN TOTAL ASSEMBLY LB782G BRAND CL-36
CONNECTOR ASSEMBLY, 30P H-H 200MM UL20276 LG708G
PWB(PCB) ASSEMBLY,SUB, LB782F CONTROL TOTAL BRAND
PWB(PCB) ASSEMBLY,POWER, LB782F POWER TOTAL BRAND NO SWITCH
SHIELD REAR LB886F
METAL REAR LB782F
COVER LB880B HINGE BRAND 18.1" LCD
CABLE,D-SUB, UL 2990-9C(7.5) DT 1870MM GRAY(85964) BRAND DM
SCREW, DRAWING, D3.0 L28.0 MSWR/FZMY LB782F
SCREW, PZP+3*12 (MSWR/FZMY)STD
SCREW, DRAWING D4.0 L10.0 MSWR/FZMW

- 21 -

DATE: 2002. 6. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C201 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C202 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C203 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C204 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C205 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C206 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C207 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C208 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C209 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C210 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C211 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C212 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C214 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C215 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C216 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C217 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C218 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C219 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C220 0CC330CK41A 33PF 1608 50V 5% R/TP NP0
C221 0CC330CK41A 33PF 1608 50V 5% R/TP NP0
C222 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C223 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C224 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C226 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C227 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C228 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C229 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C230 0CC150CK41A 15PF 1608 50V 5% R/TP NP0
C231 0CC680CK41A 68PF 1608 50V 5% R/TP NP0
C232 0CC680CK41A 68PF 1608 50V 5% R/TP NP0
C234 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C235 0CC680CK41A 68PF 1608 50V 5% R/TP NP0
C236 0CC680CK41A 68PF 1608 50V 5% R/TP NP0
C258 0CC150CK41A 15PF 1608 50V 5% R/TP NP0
C259 0CH3682K516 6800PF 50V K B(Y5P) 2012 R/TP
C260 0CH3682K516 6800PF 50V K B(Y5P) 2012 R/TP
C261 0CH3682K516 6800PF 50V K B(Y5P) 2012 R/TP
C264 0CC221CK41A 220PF 1608 50V 5% R/TP NP0
C265 0CC470CK41A 47PF 1608 50V 5% R/TP NP0
C272 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C273 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C274 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C275 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C276 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C278 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C279 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C280 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C401 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C402 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C403 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C404 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C405 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)

DATE: 2002. 6. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C406 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C407 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C408 0CH8106F611 10UF 16V M 85STD(CYL) R/TP
C410 0CH8106F611 10UF 16V M 85STD(CYL) R/TP
C413 0CH8106F611 10UF 16V M 85STD(CYL) R/TP
C501 0CC180CK41A 18PF 1608 50V 5% R/TP NP0
C502 0CC180CK41A 18PF 1608 50V 5% R/TP NP0
C503 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C504 0CC470CK41A 47PF 1608 50V 5% R/TP NP0
C505 0CC470CK41A 47PF 1608 50V 5% R/TP NP0
C506 0CC470CK41A 47PF 1608 50V 5% R/TP NP0
C507 0CC470CK41A 47PF 1608 50V 5% R/TP NP0
C508 0CK222CK51A 2200PF 1608 50V 10% R/TP B(Y5P)
C509 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C510 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C511 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C513 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C514 0CC470CK41A 47PF 1608 50V 5% R/TP NP0
C515 0CC470CK41A 47PF 1608 50V 5% R/TP NP0
C516 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C517 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C519 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C520 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C522 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C531 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C548 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C701 0CE477EH618 470UF KMG 25V M FL TP 5
C702 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C706 0CC221CK41A 220PF 1608 50V 5% R/TP NP0
C707 0CH8106F611 10UF 16V M 85STD(CYL) R/TP
C710 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C714 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C715 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C729 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C730 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C731 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C738 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C740 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C809 0CH8107F611 100UF 16V M 85STD(CYL) R/TP
C811 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C812 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C817 0CH8107F611 100UF 16V M 85STD(CYL) R/TP
C818 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C819 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C820 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C822 0CH8107F611 100UF 16V M 85STD(CYL) R/TP
C823 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C824 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C825 0CH8107F611 100UF 16V M 85STD(CYL) R/TP
C826 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C827 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C828 0CH8107F611 100UF 16V M 85STD(CYL) R/TP
C829 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C830 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)

REPLACEMENT PARTS LIST

CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS,

READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL.

* NOTE : S SAFETY Mark

AL ALTERNATIVE PARTS

MAIN BOARD

CAPACITORS

DATE: 2002. 6. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C831 0CH8107F611 100UF 16V M 85STD(CYL) R/TP
C832 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C833 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C834 0CH8107F611 100UF 16V M 85STD(CYL) R/TP
C835 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C836 0CK103CK51A 0.01UF 1608 50V 10% R/TP B(Y5P)
C837 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C838 0CH8226F691 22UF 16V M 105STD (CYL) R/TP
C839 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7R
C840 0CE477EH618 470UF KMG 25V M FL TP 5
C845 0CE477EH618 470UF KMG 25V M FL TP 5
C860 0CK105CD56A 1UF 1608 10V 10% R/TP X7R
C870 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C871 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C872 0CC102CK41A 1000PF 1608 50V 5% R/TP NP0
C873 0CC101CK41A 100PF 1608 50V 5% R/TP NP0

D503 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 30
D504 0DS301109AA MMBD301LT1 TP MOTOROLA SOT23 30
D701 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D702 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D703 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D704 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D730 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D731 0DS226009AA KDS226 TP KEC SOT-23 80V 300MA
D801 0DS181009AA KDS181 TP KEC SOT-23 80V 300M
ZD703 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 200
ZD704 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 200
ZD711 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 200
ZD721 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 200
ZD722 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD323 200

U201 0IPRPGN001A GM5020 GENESIS 292P,PBGA TRAY S
U401 0ILNRTH001A THC63LVD823 THINE MICROSYSTEMS
U501 0IZZTSZ190A MOTOROLA 42P BK MICOM LB782G
U502 0IKE704200J KIA7042AF SOT-89 TP 4.2V VOLTAG
U503 0ICS240813B CAT24WC08J-TE13 8P,SOIC R/TP 8K
U509 0ISS524202B S524A40X21(SCT0) SAMSUNG ELECTR
U701 0ISTLFA058A 74F14SCX FAIRCHILD 14P,SOIC R/T
U801 0ISS780500H KA78M05-R 3P,D-PAK TP 5V 0.5A R
U802 0TF632509AA FDC6325L TP FAIRCHILD 8V 2.4A S
U803 0IPMGFA003B RC1117S-2.5 FAIRCHILD SOT-223 R
U820 0IRH033200A BA033FP-E2 MOLD-3 TP REGULATOR
U821 0IRH033200A BA033FP-E2 MOLD-3 TP REGULATOR

L201 6210TCE001P HB-1S2012-121JT CERATECH 2012MM
L202 6210TCE001P HB-1S2012-121JT CERATECH 2012MM
L203 6210TCE001P HB-1S2012-121JT CERATECH 2012MM
L204 6210TCE001P HB-1S2012-121JT CERATECH 2012MM
L206 6210TCE001P HB-1S2012-121JT CERATECH 2012MM
L207 6210TCE001P HB-1S2012-121JT CERATECH 2012MM
L401 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L402 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L403 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L804 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L805 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/

DATE: 2002. 6. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

L810 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L811 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L821 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/
L822 6210TCE001P HB-1S2012-121JT CERATECH 2012MM
L823 6210TCE001G HH-1M3216-501 CERATEC 3216MM R/

Q703 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP SO
Q704 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP SO
Q705 0TR390409AE FAIRCHILD KST3904(LGEMTF) TP SO

R201 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP
R202 0RJ2001D677 2K OHM 1/10 W 5% 1608 R/TP
R203 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R204 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R205 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R206 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R207 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R208 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R209 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R210 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R211 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R212 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R213 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R214 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R215 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R216 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R220 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R221 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R222 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R223 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP
R224 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP
R225 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP
R233 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP
R234 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP
R235 0RJ2201D677 2200 OHM 1/10 W 5% 1608 R/TP
R236 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R401 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R402 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R403 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R404 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R450 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP
R501 0RJ1004D677 1000000 OHM 1/10 W 5% 1608 R/TP
R508 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP
R511 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R512 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R513 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R516 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP
R518 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP
R519 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP
R522 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R523 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R524 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R525 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R526 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R527 0RJ1003D677 100K OHM 1/10 W 5% 1608 R/TP
R528 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP
R529 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R531 0RJ3302D677 33K OHM 1/10 W 5% 1608 R/TP

- 22 -

DIODEs

ICs

COILs & COREs

RESISTORs

TRANSISTOR

DATE: 2002. 6. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R534 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP
R535 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R536 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R537 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R538 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R539 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R540 0RJ0222D677 22 OHM 1/10 W 5% 1608 R/TP
R541 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/TP
R542 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R543 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R544 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R545 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R562 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R564 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R580 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R581 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R582 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R593 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R594 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R595 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R596 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R701 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R703 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R704 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R705 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R706 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP
R707 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R708 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP
R709 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP
R711 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R712 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/TP
R713 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP
R714 0RJ1801D677 1.8K OHM 1/10 W 5% 1608 R/TP
R715 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/TP
R716 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP
R730 0RJ2700D677 270 OHM 1/10 W 5% 1608 R/TP
R731 0RJ2700D677 270 OHM 1/10 W 5% 1608 R/TP
R804 0RJ0221D677 2.2 OHM 1/10 W 5% 1608 R/TP
R805 0RJ0221D677 2.2 OHM 1/10 W 5% 1608 R/TP
R807 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R809 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/TP
R810 0RJ6800D677 680 OHM 1/10 W 5% 1608 R/TP
R811 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R812 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R813 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R814 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R815 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R816 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R817 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R818 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R819 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R820 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R826 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R827 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R828 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R829 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R830 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP

X201 6202TST001E SX-1 SUNNY CHIP 24MHZ 30PPM 20P
X501 6202TST001E SX-1 SUNNY CHIP 24MHZ 30PPM 20P

DATE: 2002. 6. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

BD901 0DD360000DA D3SBA60 BK SHINDENGEN 600V 2.
C901 0CBZTBU002B BULK PCX2 335 474K
C902 0CKZTBU003C SC E 472M 14.0BW7 250V BK7.5 SA
C903 0CKZTBU003C SC E 472M 14.0BW7 250V BK7.5 SA
C904 0CBZTBU002C BULK PCX2 335 104M
C905 0CZZTAB002C KMF 18*40 SYE / SWE 400V 120UF
C906 0CK10302945 0.01UF 2KV Z F TR
C907 0CE476EK638 47UF KMG 50V M FM5 TP 5
C908 0CQ2721N419 2700PF 100V J PE NI TP
C909 0CK1020K515 1000PF 50V K B TR
C911 0CE228EF630 2200UF KMG 16V M FM5 BULK
C913 0CE108BF630 1000UF KME 16V M FM5 BULK
C914 0CE228ED630 2200UF KMG,RD 10V 20% BULK FM5
C915 0CE228ED630 2200UF KMG,RD 10V 20% BULK FM5
C916 181-288L MKT 100V 823JTR PHS26823
C918 0CE228ED630 2200UF KMG,RD 10V 20% BULK FM5
C919 0CKZTBU003C SC E 472M 14.0BW7 250V BK7.5 SA
C921 0CE228EF630 2200UF KMG 16V M FM5 BULK
C922 0CKZTTA002E EKR3A102K09FK5 SAMWHA 1KV 1000P
C923 0CKZTTA002E EKR3A102K09FK5 SAMWHA 1KV 1000P
C924 0CE336BH638 33UF KME 25V M FM5 TP5
D901 0DD400709CB UF4007 TP G.I DO204AL 1000V 1A
D902 0DR400409AB UF4004 TP G.I DO204AL 400V 1A 3
D903 0DRIR00011B 16CTQ100 I.R ST TO220 100V 16A
D906 0DRIR00021A 30CTQ060 I.R ST TO220 60V 30A 1
D907 0DS113309AA 1SS133 TP ROHM KOREA DO34 90V 0
F901 131-040C 3150MA 250V 5.2X20 CY/GL UL / C
FH1 430-858C AFC-520 BAE EUN TA
FH2 430-858C AFC-520 BAE EUN TA
IC901 0IPMGIH001A ICE2AS01 INFINEON 8P,DIP ST OFF
IC904 0IKE431000B KIA431 (TP)
IC905 0ISS780500F KA7805
L901 150-A85F LX31 GET BAR CHOKE,3.3UH,LB886F
L902 150-A85F LX31 GET BAR CHOKE,3.3UH,LB886F
LF901 6200TZZ001A - GO BK L/FILTER,9MH,LB886F
LF902 6200TZZ001A - GO BK L/FILTER,9MH,LB886F
P901 6620TKB002A BAE EUN AC UNIVERSAL 3PIN BLACK
PC1 0ILI817000E LTV-817M B 4P BK PHOTO COUPLER
Q902 0TFFN10003A INFINEON SPA07N60C2 ST TO220 65
R901 0RD6803A609 680K OHM 1/2 W (7.0) 5% TA52
R902 0RD3902A609 39K OHM 1/2 W (7.0) 5% TA52
R903 0RD3902A609 39K OHM 1/2 W (7.0) 5% TA52
R906A 0RX5102J609 51KOHM 1 W 5% TA52
R906B 0RX5102J609 51KOHM 1 W 5% TA52
R907 0RD0102Q609 10 1/4W(3 5% TA52
R908 0RD0222Q609 22 1/4W(3 5% TA52
R909 0RD1001Q609 1K 1/4W(3 5% TA52
R910 0RD0431A609 4.3 OHM 1/2 W (7.0) 5% TA52
R911 0RD1004A609 1.0M OHM 1/2 W (7.0) 5% TA52
R912 0RD1004A609 1.0M OHM 1/2 W (7.0) 5% TA52
R913 0RN1102F409 11K 1/6W 1% TA52
R914 0RD1002Q609 10K 1/4W(3 5% TA52
R917 0RD1201Q609 1.20K 1/4W(3 5% TA52
R918 0RD1000Q609 100 1/4W(3 5% TA52
R920 0RN4702F409 47K 1/6W 1% TA52
R921 0RN2701F409 2.70K 1/6W 1% TA52
R923 0RB0330K607 0.33 OHM 2 W 5% TA62
R924 0RD0752Q609 75 1/4W(3 5% TA52
R925 0RD1002Q609 10K 1/4W(3 5% TA52
R926 0RN0471H609 4.7 OHM 1/2 W 5% TA52
R927 0RD0102A609 10 OHM 1/2 W (7.0) 5% TA52

- 23 -

OTHERs

POWER BOARD

DATE: 2002. 6. 14.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R928 0RD0202Q609 20 1/4W(3 5% TA52
T901 6170TMZ125A EER3016 340UH V-10PIN LB886F SC
TH901 6322TA080AA TP8D13 DAEWOO +/- 15% 110/220V
ZD901 0DZ470009BC GDZ4.7B TP GRANDE DO34 0.5W 4.7

R1 0RD4701Q609 4.70K 1/4W(3 5% TA52
R2 0RD4701Q609 4.70K 1/4W(3 5% TA52
R3 0RD8200Q609 820 1/4W(3 5% TA52
R4 0RD8200Q609 820 1/4W(3 5% TA52
R5 0RD1501Q609 1.50K 1/4W(3 5% TA52
R6 0RD1501Q609 1.50K 1/4W(3 5% TA52
R7 0RD2201Q609 2.20K 1/4W(3 5% TA52
R8 0RD2201Q609 2.20K 1/4W(3 5% TA52
SW1 140-058E SKHV10910B LGEC NON 12V 20A HOR
SW2 140-058E SKHV10910B LGEC NON 12V 20A HOR
SW3 140-058E SKHV10910B LGEC NON 12V 20A HOR
SW4 140-058E SKHV10910B LGEC NON 12V 20A HOR
SW5 140-058E SKHV10910B LGEC NON 12V 20A HOR
SW6 140-058E SKHV10910B LGEC NON 12V 20A HOR
SW7 140-058E SKHV10910B LGEC NON 12V 20A HOR
SW8 140-058E SKHV10910B LGEC NON 12V 20A HOR
ZD1 0DZ560009CE MTZJ5.6B TP ROHM-K DO34 500MW
ZD2 0DZ560009CE MTZJ5.6B TP ROHM-K DO34 500MW

- 24 -

CONTROL BOARD

PIN CONFIGURATION

- 25 -

CAT24WC08J-TE13 8P

A

0

A

1

A

2

V

SS

V

CC

WP
SCL

SDA

A

0

A

1

A

2

V

SS

V

CC

WP
SCL

SDA

1
2
3
4

8
7
6
5

1
2
3
4

8
7
6
5

A

0

A

1

A

2

V

SS

V

CC

WP
SCL
SDA

1
2
3
4

8
7
6
5

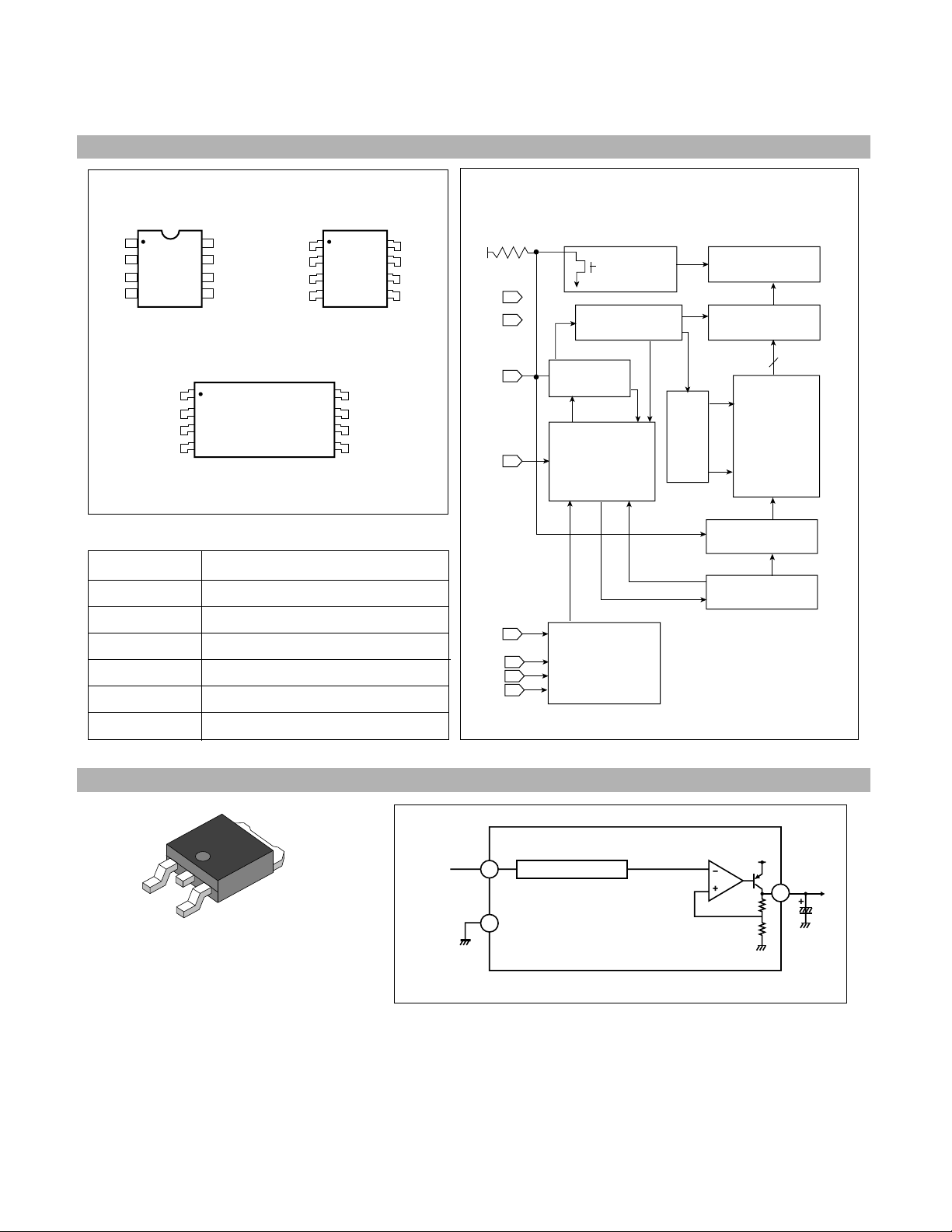

PIN CONFIGURATION

DIP Package(p) SOIX Package(J)

TSSOP Package(U)

BLOCK DIAGRAM

PIN FUNCTION

Pin Name

A0, A1, A2
SDA
SCL
WP
Vcc
Vss

Function

Device Adress Inputs
Serial Data/Address
Serial Clock
Write Protect
+1.8V to + 6.0V power Supply
Ground

BA033 Low Saturation Voltage type 3-terminal Regulator

OUT

Reference Voltage

Vcc

1

2

3

GND

1. Vcc

2. GND

3. OUTPUT

1

3

2

EXTERNAL LOAD

V

CC

V

SS

SDA

WP

SCL

D

OUT

ACK

WORD ADDRESS

BUFFERS

START/STOP

LOGIC

XDEC

CONTROL

LOGIC

STATE COUNTERS

A

0

A

1

A

2

SLAVE
ADDRESS
COMPARATORS

SENSE AMPS

SHIFT REGISTERS

COLUMN

DECODERS

2

E PROM

DATA IN STORAGE

HIGH VOLTAGE/

TIMING CONTROL

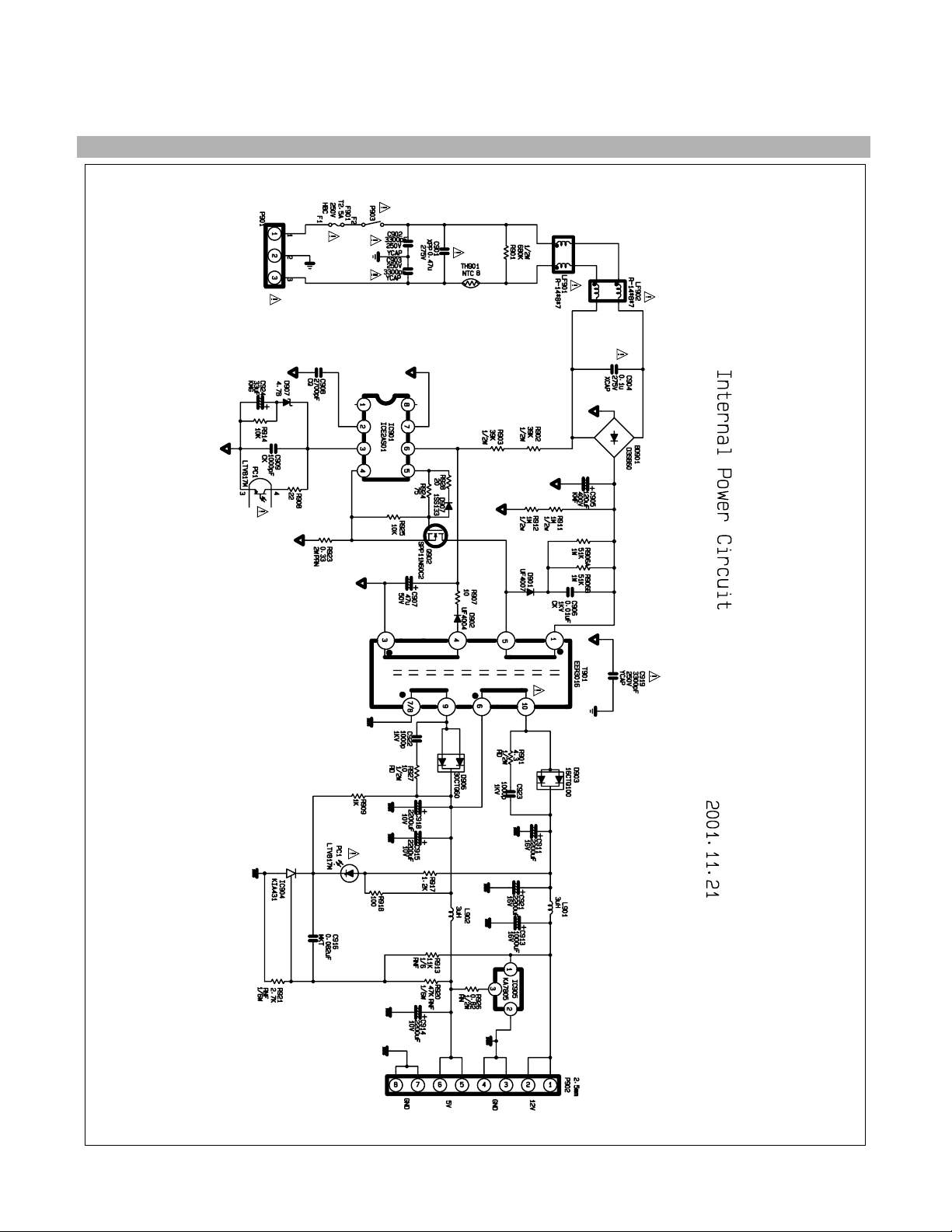

SCHEMATIC DIAGRAM

- 26 -

1. GM5020

- 27 -

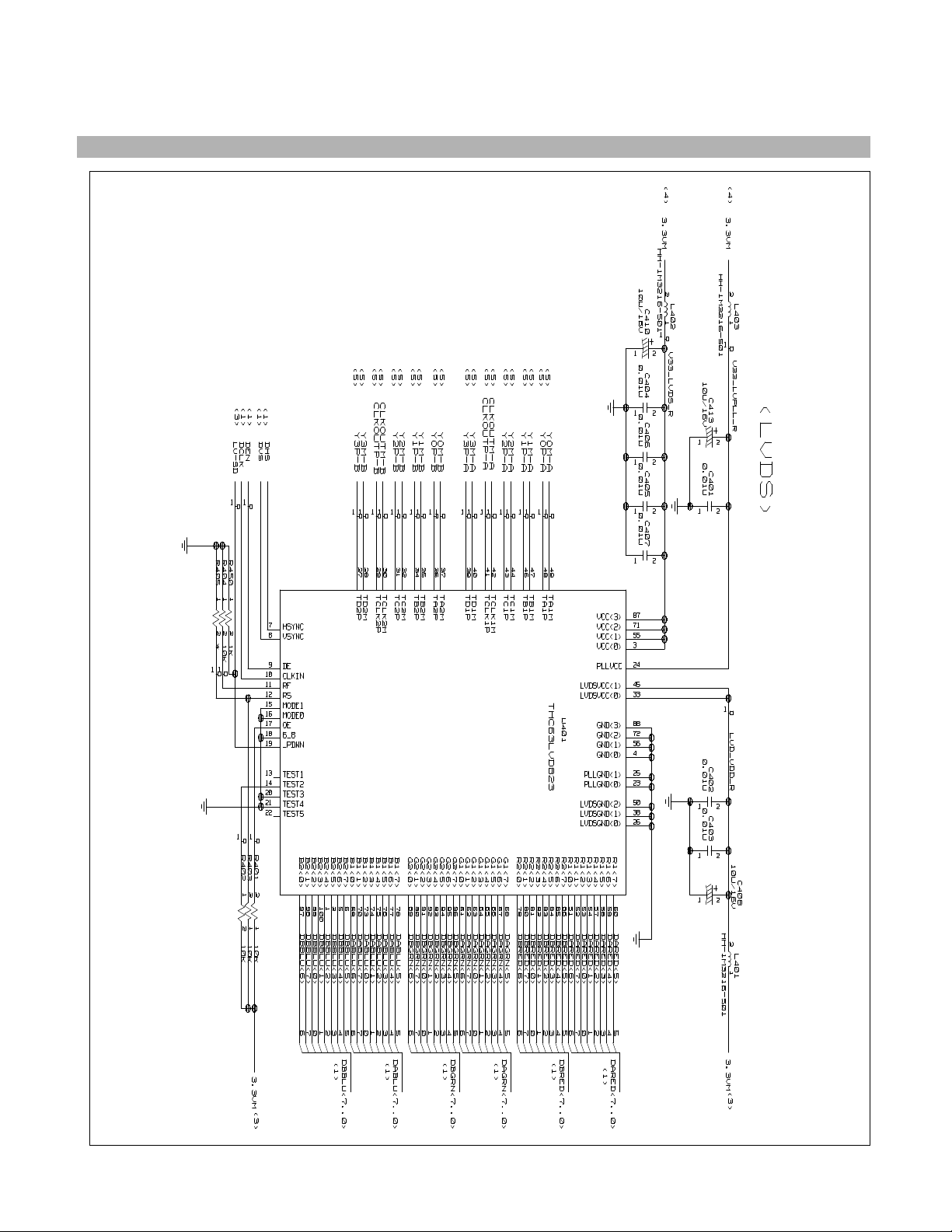

2. LVDS

- 28 -

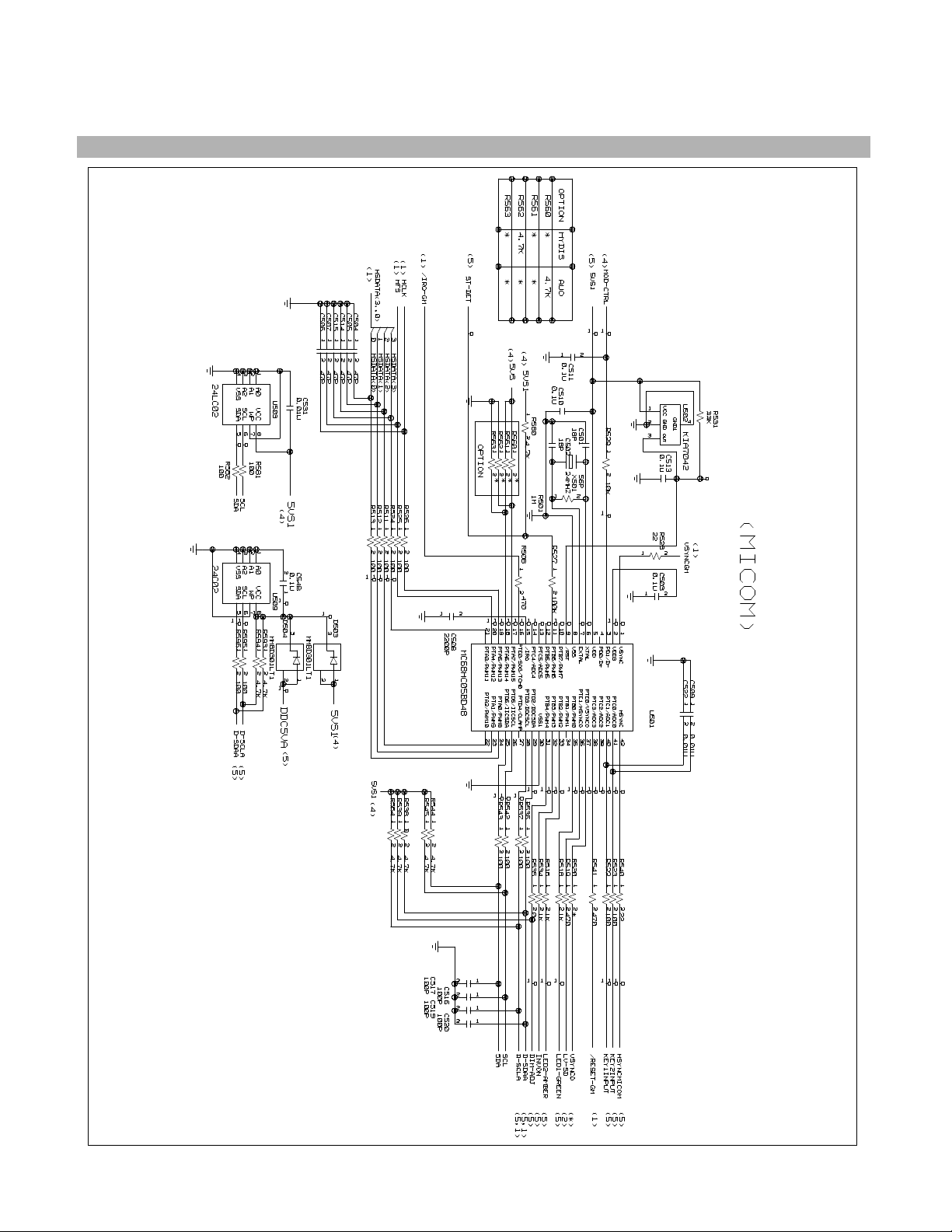

3. MICOM

- 29 -

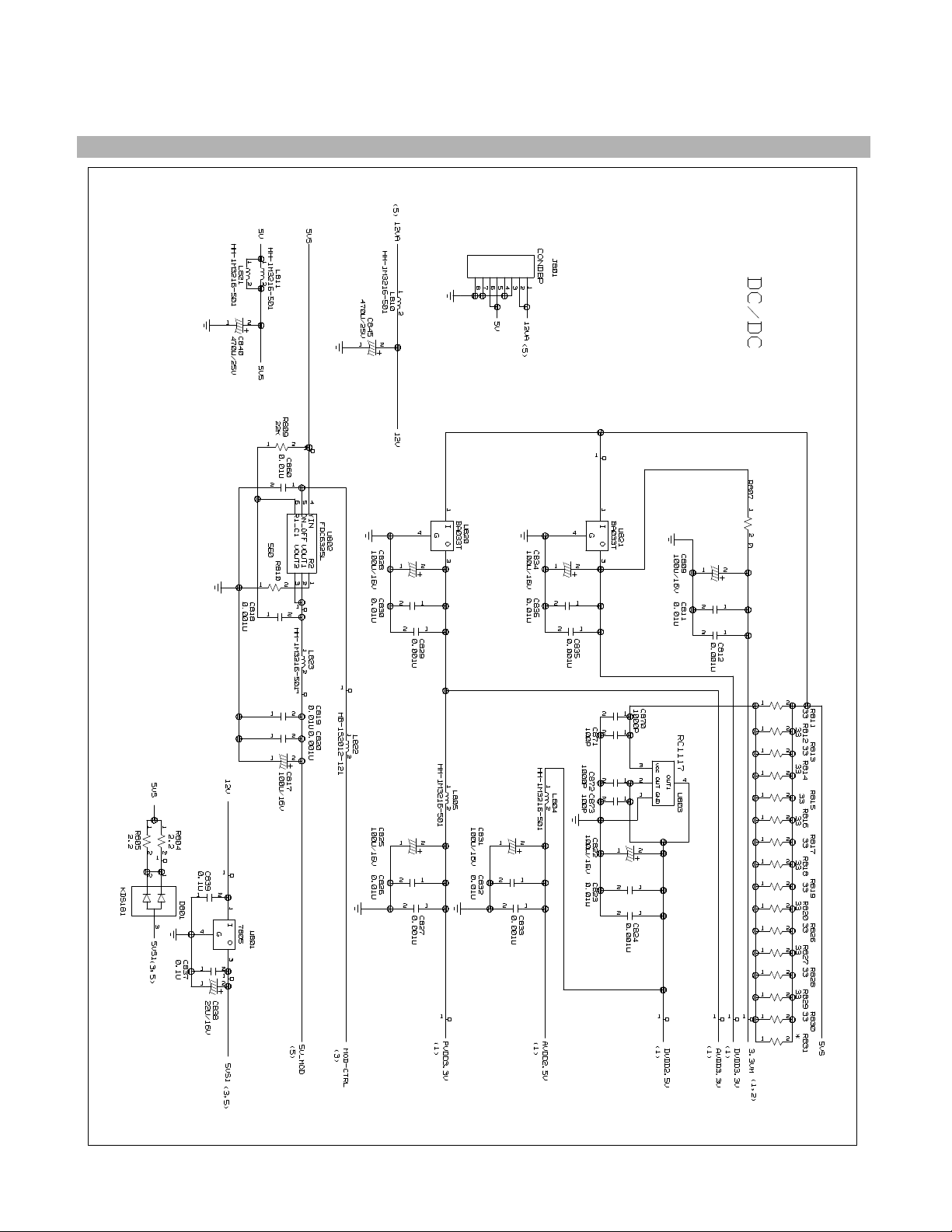

4. DC/DC

- 30 -

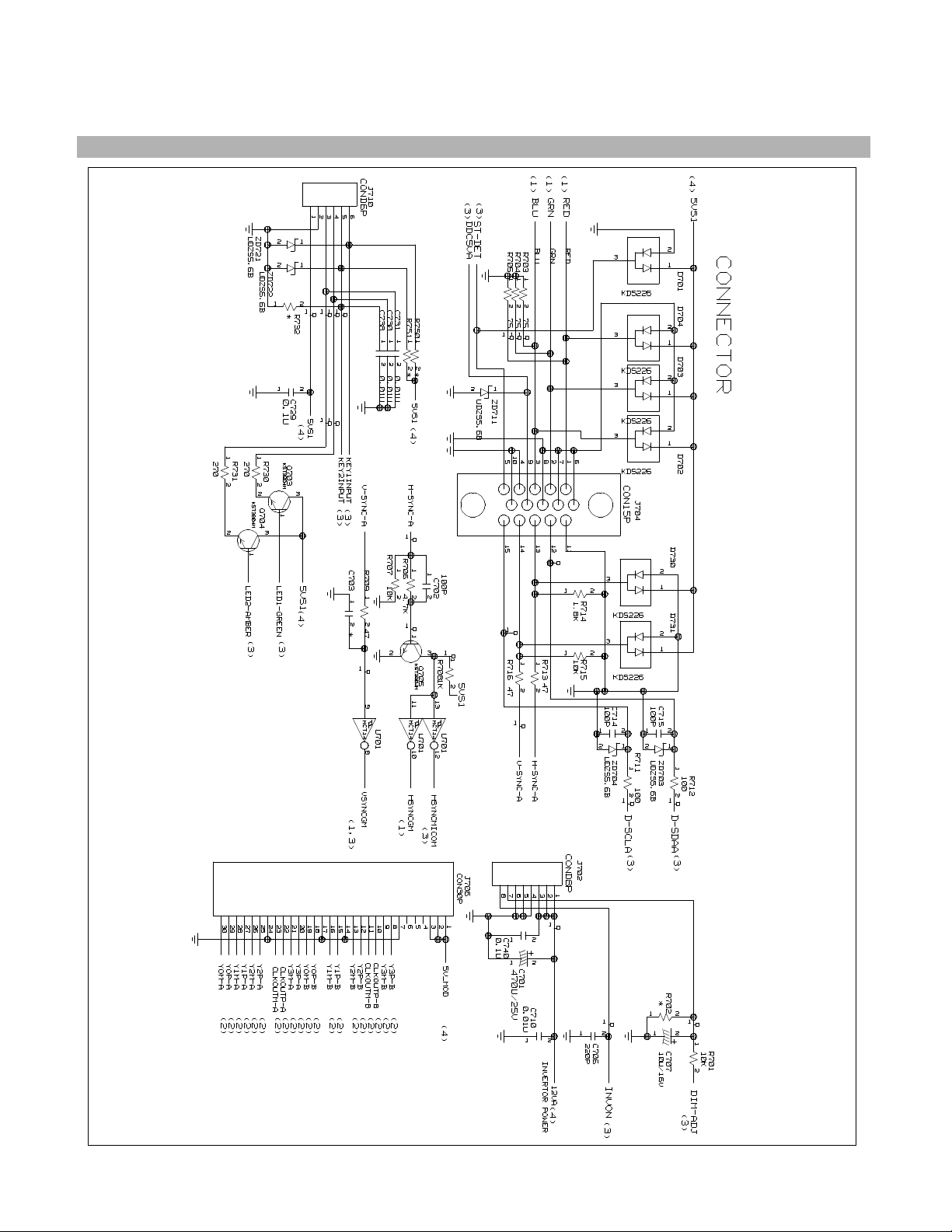

5. CONNECTOR

- 31 -

6. CONTROL

- 32 -

7. POWER

Jun. 2002

P/NO : 3828TSL074E Printed in Korea
