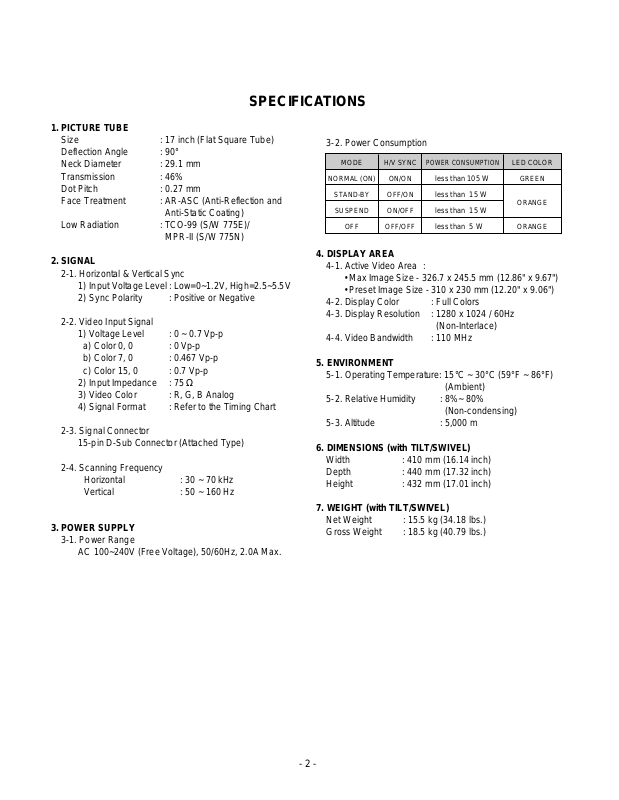

SPECIFICATIONS
1. PICTURE TUBE |
|
Size |
: 17 inch (Flat Square Tube) |
DefIection Angle |
: 90° |
Neck Diameter |
: 29.1 mm |
Transmission |
: 46% |
Dot Pitch |
: 0.27 mm |
Face Treatment |
: AR-ASC (Anti-Reflection and |
|
Anti-Static Coating) |
Low Radiation |
: TCO-99 (S/W 775E)/ |
|
MPR-II (S/W 775N) |
2.SIGNAL
2-1. Horizontal & Vertical Sync
1) |
Input Voltage Level : Low=0~1.2V, High=2.5~5.5V |
|
2) |
Sync Polarity |
: Positive or Negative |
2-2. Video Input Signal |
|
|
1) |
Voltage Level |
: 0 ~ 0.7 Vp-p |
a) Color 0, 0 |
: 0 Vp-p |
|
b) Color 7, 0 |
: 0.467 Vp-p |
|
c) Color 15, 0 |
: 0.7 Vp-p |
|
2) |
Input Impedance |
: 75 Ω |
3) |
Video Color |
: R, G, B Analog |
4) |
Signal Format |
: Refer to the Timing Chart |
2-3. |
Signal Connector |
|
|
15-pin D-Sub Connector (Attached Type) |
|
2-4. |
Scanning Frequency |
|
|
Horizontal |
: 30 ~ 70 kHz |
|
Vertical |
: 50 ~ 160 Hz |
3.POWER SUPPLY
3-1. Power Range
AC 100~240V (Free Voltage), 50/60Hz, 2.0A Max.
3-2. Power Consumption
MODE |
H/V SYNC |
POWER CONSUMPTION |
LED COLOR |
|
|
|
|
|
|
NORMAL (ON) |
ON/ON |
less than 105 W |
GREEN |
|
|
|
|
|
|
STAND-BY |
OFF/ON |
less than 15 W |
|
|
|
|
|
ORANGE |
|
SUSPEND |
ON/OFF |
less than 15 W |
||
|
||||
|
|
|
|
|
OFF |
OFF/OFF |
less than 5 W |
ORANGE |
|
|
|
|
|
4. DISPLAY AREA
4-1. Active Video Area :
•Max Image Size - 326.7 x 245.5 mm (12.86" x 9.67")
•Preset Image Size - 310 x 230 mm (12.20" x 9.06")
4-2. |
Display Color |
: Full Colors |
4-3. |
Display Resolution |
: 1280 x 1024 / 60Hz |
|
|
(Non-Interlace) |
4-4. |
Video Bandwidth |
: 110 MHz |
5.ENVIRONMENT
5-1. Operating Temperature: 15°C ~ 30°C (59°F ~ 86°F)
|
|
(Ambient) |
5-2. Relative Humidity |
: 8%~ 80% |
|
|
|
(Non-condensing) |
5-3. Altitude |
|
: 5,000 m |
6. DIMENSIONS (with TILT/SWIVEL) |
||
Width |
: 410 mm (16.14 inch) |
|
Depth |
: 440 mm (17.32 inch) |
|
Height |
: 432 mm (17.01 inch) |
|
7. WEIGHT (with TILT/SWIVEL) |
||
Net Weight |
: 15.5 kg (34.18 lbs.) |
|
Gross Weight |
: 18.5 kg (40.79 lbs.) |
