USER GUIDE

LG Digital Signage

(MONITOR SIGNAGE)

Please read this manual carefully before operating your set and retain it for future reference.

webOS 3.0

www.lg.com

ENGLISH

TABLE OF CONTENTS

USER SETTINGS ...................... 3

- Main Menu Settings ................................. 3

Picture Settings

Sound Settings

Network Settings

General Settings

ENTERTAINMENT .................. 14

- Using Multimedia Features .................... 14

Connecting USB/SD Storage Devices

- Photo & Video ........................................ 16

Supported Photo & Video Files

Viewing Photos and Videos

Scheduled Playing

Export

Delete

- Music ...................................................... 20

Supported Music Files

Playing Music

Delete

- SuperSign Contents ............................... 21

- Information ............................................. 21

- Local Contents Scheduler ...................... 22

Setting a Scheduled Playing

- Screen Share ......................................... 23

- Group Manager ...................................... 24

- Leveler Tool ............................................26

- Control Manager .................................... 27

How to Use

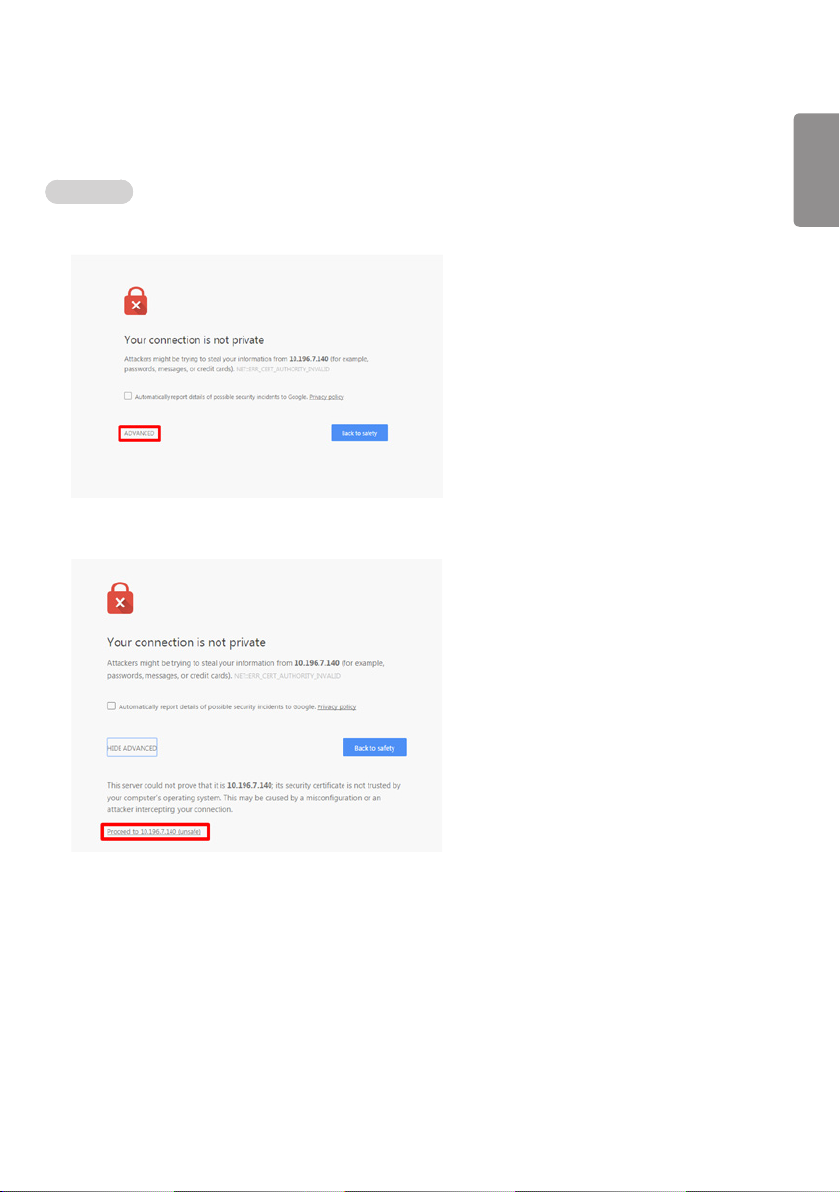

Follow the steps below if you encounter issues with your security certificate while attempting to access.

- Multi-Screen ........................................... 32

- PICTURE ID Settings ............................. 33

IR CODES ............................... 34

TO CONTROL MULTIPLE

PRODUCTS ............................ 36

- Connecting the Cable ............................ 36

- Communication Parameter .................... 37

- Command Reference List ...................... 38

- Transmission/Reception Protocol .......... 41

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit

http://opensource.lge.com

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to

opensource@lge.com

for three (3) years from the date on which you purchased the product.

. This offer is valid

NOTE

y The software-related contents may be changed without prior notice due to upgrade of the product

functions.

y Some features described in the User Guide may not be supported in certain models. y SNMP 2.0 is supported.

USER SETTINGS

Main Menu Settings

Picture Settings

To Select Picture Mode

/ Picture Picture Mode Settings Picture Mode

Select the picture mode that is best suited to the video type.

y Vivid: adjusts the video image for a retail environment by enhancing the contrast, brightness, and

sharpness.

y Standard: adjusts the video image for a normal environment. y APS: APS (Auto power saving ) mode reduces power consumption by dimming control. y Cinema: optimizes the video image for watching movies. y Sports: optimizes the video image for watching sports. Even fast actions such as kicking or throwing a ball

are rendered clearly on the screen.

y Game: optimizes the video image for playing videogames. y Photo: Optimizes the screen for viewing photos. (This feature is available only with certain models.) y Expert/Calibration: allows an expert, or anyone interested in high quality pictures, to manually tune the

picture for the best picture quality.

ENGLISH

NOTE

y Depending on the input signal, the available Picture Modes may differ. y Expert is an option that allows a picture quality expert to fine-tune the picture quality using a specific

image. Thus, it may not be effective for a normal picture.

To fine-tune the picture mode

ENGLISH

SETTINGS / Picture Picture Mode Settings Customize

y Backlight/OLED LIGHT: adjusts the brightness of the screen by controlling the LCD backlight. The closer

the value is to 100, the brighter the screen is.

y Contrast: adjusts the difference between the light and dark areas of the picture. The closer the value is to

100, the greater the difference is.

y Brightness: adjusts the overall brightness of the screen. The closer the value is to 100, the brighter the

screen is.

y Sharpness: adjusts the sharpness of the edges of objects. The closer the value is 50, the clearer and the

sharper the edge becomes.

y H Sharpness: adjusts the sharpness of the contrast edges on the screen from a horizontal point of view. y V Sharpness: adjusts the sharpness of the contrast edges on the screen from a vertical point of view. y Color: softens or deepens the tints on the screen. The closer the value is 100, the deeper the colors

become.

y Tint: adjusts the balance between red and green levels displayed on the screen. The closer the value is to

Red 50, the deeper the color red becomes, and the closer the value is to Green 50, the deeper the color green becomes.

y Color Temperature: adjusts the tints of the screen to evoke feelings of warmth or coolness. y Advanced Controls/Expert Control: customizes the advanced options.

– Dynamic Contrast: Optimizes the difference between the light and dark parts of the screen according to the

– Super Resolution: Sharpens the blurry or indistinguishable parts of the picture. – Color Gamut: Selects the range of colors to display. – Dynamic Color: Adjusts the tint and saturation of the image for a more vivid and lively display. – Edge Enhancer: Provides much sharper and clearer edges to the picture. – Color Filter: Accurately adjusts color and tint by filtering a specific color area of RGB space. – Preferred Color: Adjusts the skin tint, grass tint, and sky tint to your preference. – Gamma: Adjusts the medium brightness of the image. – White Balance: Adjusts the overall tint of the picture to your preference. In Expert mode, you can fine-tune the

– Color Management System: Experts use the color management system when they adjust the colors by using

brightness of the image.

picture using the Method/Pattern options.

the test pattern. The color management system allows you to make an adjustment by selecting from among 6 different color spaces (Red/Yellow/Blue/Cyan/Magenta/ Green) without affecting other colors. You may not see tints change in a normal picture even after adjustment.

y Picture Options: customizes the picture options.

– Noise Reduction: Removes irregularly generated tiny dots for a clear picture. – MPEG Noise Reduction: Reduces the noise produced while creating digital video signals. – Black Level: Adjusts the black level of the picture to correct the brightness and contrast of the picture.

– Real Cinema: Optimizes the video image for a cinematic look. – Motion Eye Care: Reduces eye fatigue by adjusting brightness levels and lessening blurriness based on the dis-

– LED Local Dimming: Brightens the brighter parts of the image and darkens the darker parts, maximizing contrast.

– TruMotion: Reduces image shaking and image sticking that can occur with moving images.

(Recommended settings according to input signal: RGB 0–255: High, RGB 16–235: Low, YCbCr: Low)

played image.

Turning this feature off may lead to increased power consumption. (Only applies to certain models.)

NOTE

y You can adjust advanced settings only in the User mode. y Depending upon the input signal or the selected picture mode, the available options may differ.

To set the aspect ratio,

(Some features may not be supported in certain models.)

SETTINGS / Picture Aspect Ratio

Changes the aspect ratio to view the image in its optimal size.

y 16:9: displays the image with a 16:9 aspect ratio. y Just Scan: displays the image in the original size without cutting off the edges.

Original is available in HDMI (720p or higher) mode. (On 58:9 models, this option can be selected regardless of the input signal.)

y Original: automatically changes the aspect ratio to 4:3 or 16:9 depending on the input video signal. y 4:3: displays the image with a 4:3 aspect ratio. y 58:9: Displays the screen with a 58:9 aspect ratio. y Vertical Zoom: Adjusts the height and vertical position of the displayed image. y All-Direction Zoom: Adjusts the horizontal/vertical/diagonal dimensions and horizontal/vertical position of

the displayed image.

ENGLISH

CAUTION

y If a fixed image is displayed on the screen for a long period of time, it will be imprinted and become a

permanent disfigurement on the screen. This image burn or burn-in is not covered by the warranty.

y If the aspect ratio is set to 4:3 for a long period of time, image burn may occur on the letterboxed area of

the screen.

y The options may differ depending on the model. y Depending on the input signal, the available aspect ratio may differ. y When you adjust Vertical Zoom or All-Direction Zoom, the screen may flicker for some input signals.

To use the Energy Saving function

ENGLISH

SETTINGS / Picture Energy Saving

Reduces power consumption by adjusting peak screen brightness.

y Auto: adjusts the brightness of the monitor according to ambient light. (This feature is available only with

certain models.)

y Off: disables the Energy Saving mode. y Minimum/Medium/Maximum: uses the Energy Saving according to the Energy Saving level specified for

your monitor.

y Screen Off: turns off the screen. You will only hear audio. You can turn on the screen again by pressing

any button on the remote control except the power button.

To use the Smart Energy Saving function

(Only applies to certain models.)

SETTINGS / Picture Smart Energy Saving

According to picture brightness, the brightness of the monitor will be adjusted automatically to save energy.

y Off: disables the Smart Energy Saving function. y On: enables the Smart Energy Saving function.

Configuring the OLED Display

[For OLED models only]

SETTINGS / Picture OLED Panel Settings

y Clear Panel Noise: Corrects issues that may arise when the screen is turned on for a long period of time.

To use the SCREEN(RGB-PC) function

(Only applies to certain models.)

SETTINGS / Picture SCREEN(RGB-PC)

Customizes the PC display options in RGB mode.

y Set Automatically: Sets to adjust the screen position, clock, and phase automatically.

y Resolution: Selects a proper resolution. y Position/Size/Phase: Adjusts the options when the picture is not clear, especially when characters are

y Reset: Restores the options to the default setting.

The displayed image may be unstable for a few seconds while the configuration is in progress.

shaky, after the auto configuration.

Sound Settings

y Only applies to certain models.

To select a Sound Mode

SETTINGS / Sound Sound Mode

The best sound quality will be selected automatically depending on the video type currently being watched.

y Standard: this sound mode works well for content of all types. y Cinema: optimizes sound for watching movies. y Clear Voice III: Enhances voices so they can be heard more clearly. y Sports: optimizes sound for watching sports. y Music: optimizes sound for listening to music. y Game: optimizes sound for playing videogames.

To use the Sound Effects function

SETTINGS / Sound Sound Mode Settings

y Equalizer: manually adjust sound by using the equalizer. y Balance: adjust the output volume for the left speaker and the right speaker. y Reset: reset the sound settings.

ENGLISH

Selecting Sound Output Device

ENGLISH

SETTINGS / Sound Sound Out

y Signage Speaker: You can output sound through the signage monitor ’s internal speakers. This feature is

available only for models with built-in signage speakers.

y LG Sound Sync / Bluetooth: You can connect Bluetooth audio devices or Bluetooth headsets wirelessly to

enjoy richer sound from the signage monitor conveniently.

NOTE

y Some recently connected devices may automatically attempt to reconnect to the Signage monitor when it

is turned on.

y It is recommended that you set LG audio devices that support LG Sound Sync to LG TV mode or LG

Sound Sync mode before connecting.

y This feature is only available on certain models. y Press Device Selection to view the devices that are or that can be connected and connect other devices. y You can use the signage remote control to adjust the volume of the connected device. y If the audio device fails to connect, check that it is switched on and available for connection. y Depending on the type of Bluetooth device, the device may not connect correctly or a malfunction such as

unsynchronized video and audio may occur.

y Sound may stutter or sound quality may be reduced if:

- The Bluetooth device is too far from the signage monitor.

- There are objects obstructing the Bluetooth device and signage monitor.

- The device is used in proximity to other radio devices such as a microwave oven or wireless LAN router.

To select a Volume Increase Rate,

SETTINGS / Sound Volume Mode Volume Increase Amount

You can set the volume range by selecting any of Low/ Medium/ High.

To sync audio with video

SETTINGS / Sound AV Sync Adjustment

y Signage Speaker: adjusts the sync between video and audio coming from external speakers, such as those

connected to the digital audio output port, LG audio equipment, or headphones. From the default value, the closer the value is to -, the faster the sound output becomes, and the closer the value is to +, the slower the sound output becomes.

y Bypass: audio coming from external devices without delay. Audio may be outputted earlier than video due

to the processing time for video that is inputted into the monitor.

Network Settings

To Set a Signage Monitor Name

SETTINGS / Network Signage Name

You can set a name for Signage Monitor that will be used on the network by using the on-screen keyboard.

To Set Your Wired Network

SETTINGS / Network Wired Connection (Ethernet)

y Connecting to a wired network: Connect your monitor to a local area network (LAN) via the LAN port,

and configure the network settings. Only wired network connections are supported. After making a physical connection, a small number of networks may require the display network settings to be adjusted. For most networks, the display will automatically make a connection without any adjustments. For detailed information, contact your Internet provider or consult your router manual.

Setting a Wireless Network

(Only applies to certain models.)

SETTINGS / Network Wi-Fi Connection

If you have set the monitor up for a wireless network, you can check and connect to the available wireless Internet networks.

y Add a Hidden Wireless Network: If you input the name of network directly, you can add a wireless

network.

y WPS PBS connection: Press the button on the wireless router that supports PBC to easily connect to the

router.

y WPS PIN Code connection: Enter the PIN number in the web page of the PIN-supporting wireless router

to connect to the router in a simple manner.

y Wi-Fi advanced settings: Manually input the network information to connect to a wireless network. When

a usable wireless network does not appear, press Wi-Fi advanced settings. You will be able to add a network.

Setting up a SoftAP

ENGLISH

(Only applies to certain models.)

SETTINGS / Network SoftAP

If you set up a SoftAP, you can connect many devices via a Wi-Fi connection without a wireless router and use wireless Internet.

y To use SIGNAGE, you must have an Internet connection. y You cannot use the SoftAP feature and the Screen Share feature at the same time. y On models that support Wi-Fi dongles, the SoftAP menu is enabled only when a Wi-Fi dongle is connected

to the product.

y SoftAP connection information

– SSID: A unique identifier necessary to make a wireless Internet connection – Security key: The security key you enter to connect to the desired wireless network – Number of connected devices: Shows the number of devices currently connected to your Signage device via a

Wi-Fi connection. Up to 10 devices are supported.

Tips for Network Setting

ENGLISH

y Use a standard LAN cable (Cat5 or higher with a RJ45 connector) with this display. y Many network connection problems during set-up can often be fixed by re-setting the router or modem.

After connecting the display to the home network, quickly power off and/or disconnect the power cable of the home network router or cable modem, then power on and/or connect the power cable again.

y Depending on the Internet Service Provider (ISP), the number of devices that can receive Internet service

may be limited by the applicable terms of service. For details, contact your ISP.

y LG is not responsible for any malfunction of the display and/or the Internet connection feature due

to communication errors/malfunctions associated with your Internet connection, or other connected equipment.

y LG is not responsible for problems with your Internet connection. y You may experience undesired results if the network connection speed does not meet the requirements of

the content being accessed.

y Some Internet connection operations may not be possible due to certain restrictions set by the Internet

Service Provider (ISP) supplying your Internet connection.

y Any fees charged by an ISP including, without limitation, connection charges are your responsibility.

NOTE

y If you want to access the Internet directly on your display, the Internet connection should always be on. y If you cannot access the Internet, check the network conditions from a PC on your network. y When you use Network Setting, check the LAN cable or check if DHCP in the router is turned on. y If you do not complete the network settings, the network may not function correctly.

CAUTION

y Do not connect a modular telephone cable to the LAN port. y Since there are various connection methods, please follow the specifications of your telecommunication

carrier or Internet Service Provider.

y Network Setting menu will not be available until the display is connected to a physical network.

Tips for Wireless Network Setting

y Wireless networks can be subject to interference from other devices operating at a frequency of 2.4 GHz

(wireless phones, Bluetooth devices or microwave ovens). There may also be interference from devices with a frequency of 5 GHz, same as other Wi-Fi devices.

y The surrounding wireless environment can cause the wireless network service to run slowly. y If you do not turn off the entire local home network, network traffic may occur on some devices. y For an AP connection, an access point device that supports wireless connection is required and the

wireless connection feature must be enabled on the device. Contact your service provider regarding availability of wireless connection on your access point.

y Check the SSID and security settings of the AP for AP connection. Refer to the appropriate documentation

for SSID and security settings of the AP.

y Invalid settings on network devices (wired/wireless line sharer, hub) can cause the monitor to run slowly or

not operate properly. Install the devices correctly according to the appropriate manual and set the network.

y Connection method may differ according to the AP manufacturer.

General Settings

To configure the language

SETTINGS / General Menu Language

Select one of the languages on the menu displayed on the screen.

y Menu Language: sets a language for Signage.

Setting up the keyboard language

SETTINGS / General Keyboard Languages

Select the language you wish to show on the keyboard.

y Keyboard Languages: Sets the keyboard language.

To set the time/date

SETTINGS / General Time & Date

You can check or change the time.

y Set Automatically: You can set Time and Date. y Daylight Saving Time: You can set Start Time and End Time for Daylight Saving Time. The DST start/end

settings work only when you set them more than one day apart from each other.

y Time zone: You can change the settings for Continent, Country/Territory, and City.

ENGLISH

To turn your monitor on or off automatically

SETTINGS / General Timers

You can set the On/Off Timer for your monitor.

y On Timer: you can set the time when your monitor turns on. y Off Timer: you can set the time when your monitor turns off. y No Signal Power Off (15Min): When there is no input source, the monitor will automatically turn off after

15 minutes. If you don’t want it to turn off automatically, set No Signal Power Off to Off.

y Auto Power Off: When there is no key input, the monitor will automatically turn off.

NOTE

y On Time/Off Time can be saved for up to seven schedules; the monitor is turned on or off at the preset time

in the schedule list. If multiple preset times are stored in the schedule list, this function works at the nearest time from the current time.

y Once the on or off time is set, these functions operate daily at the preset time. y The scheduled power-off function works properly only when the device time is set correctly. y When the scheduled power-on and power-off times are the same, the power-off time has priority over the

power-on time if the set is turned on, and vice versa if the set is turned off.

Configuring Set ID

ENGLISH

SETTINGS / General Set ID

y Set ID (1 to 1000): Assigns a unique Set ID number to each product when several products are connected

for display. Assign numbers ranging from 1 to 1000 and exit the option. You can control each product separately by using the Set ID you assigned to each product.

y Auto Set ID: Automatically assigns a unique Set ID number to each set when several products are

connected for display.

y Reset Set ID: Resets the Set ID of the product to 1.

NOTE

y When using automatic ID settings, the IR signal only needs to be transmitted to the first set. Malfunctions

could occur when the IR signal is transmitted to other sets.

Using Tile Mode

(Only applies to certain models.)

SETTINGS / General Tile Mode

You can configure the integrated screen in the same way as each screen is configured.

y Row (1 to 15): Sets the number of tile rows.

y Column (1 to 15): Sets the number of tile columns.

y Tile ID (1 to 225): Sets the Tile ID. The ID you selected will be displayed on the screen.

y Natural: For a more natural display, the image is partly omitted to account for the distance between the

screens.

y Natural Size: Sets the distance between screens for Natural mode.

y Reset: Resets the tile settings to 2 x 2.

NOTE

y If Tile mode is set to On, Smart Energy Saving mode will be disabled to provide the same picture quality as

other displays.

y The maximum number of columns and lines that can be set may differ by model. y To use this function, the product:

- Must be displayed with other products.

- Must be operated by connecting to each display via a distributor or DP daisy chain.

- Tile Mode: Horizontal x Vertical (Horizontal = 1 to 15, Vertical = 1 to 15)

- 15 x 15 is available

Configuring the Dual-View Screen

[For double-sided flat OLED models only]

SETTINGS / General Dual-View Screen Setting

y Front Screen Name: Sets the name of the front screen. y Back Screen Name: Sets the name of the back screen. y Screen Swap: Swaps the images on the front and back side of the screens. y Screen Mirroring: Copies the image of the current screen to the opposite screen. y Screen Off: Turns off the front or back screen. y Clone All Settings: Copies all settings for the front screen to those for the back screen. This option is only

enabled for the front screen.

To reset your monitor settings

SETTINGS / General Reset to Initial Settings

Resets all monitor settings.

Using UHD Deep Color

[For Ultra HD models only]

SETTINGS / General UHD Deep Color

If you connect an HDMI or DP device to one of the Deep Color adjustable ports, you can select between Ultra Deep Color On (6G) or Off (3G) in the UHD Deep Color settings menu. If a compatibility issue occurs with the graphics card when the Deep Color option is set to On at 3840 x 2160 @ 60 Hz, set the Deep Color option to Off.

y HDMI and DP specifications may vary depending on the input port. Check the specifications of each

device before connecting.

y HDMI input ports 1 and 2 are best suited for specifications for high definition 4K @ 60 Hz (4:4:4, 4:2:2)

video. However, video or audio may not be supported depending on the specifications of the external devices. If this is the case, please connect to a different HDMI port.

ENGLISH

ENTERTAINMENT

Using Multimedia Features

Connecting USB/SD Storage Devices

Connect a USB storage device such as a USB flash memory, SD storage devices or an external hard drive to the display and use multimedia features.

CAUTION

y Do not turn the monitor off or remove the USB storage device while Photo & Video or Music is playing. y Back up files you have saved on a USB storage device frequently, as loss or damage to the files may be

not covered by the warranty.

Tips for using USB/SD storage devices

y Only a USB storage device can be recognized. y A USB device does not work effectively when it is connected via a USB hub. y A USB storage device using an automatic recognition program may not be recognized. y A USB storage device using its own driver may not be recognized. y The recognition speed of a USB storage device may depend on each device. y Please do not turn off the display or unplug the USB storage device when the connected device is working.

If the USB storage device is suddenly disconnected, the stored files or the device itself may be damaged.

y Please do not connect a USB storage device which was modified to work on a PC. The device may cause

the monitor to malfunction or the content fail to be played. Use only a USB storage device which contains normal music, image or video files.

y A USB storage device formatted as a utility program not supported by Windows may not be recognized. y A USB storage device (over 0.5 A) which requires an external power supply must be connected to a power

supply separately. If it is not, the device may not be recognized.

y Please connect the USB storage device using the cable provided by the device manufacturer. y Some USB storage devices may not be supported or operate smoothly. y File alignment method of USB storage devices is similar to that of Window XP and filenames can recognize

up to 100 English characters.

y Back up important files regularly as data stored on a USB storage device may be damaged. We will not be

responsible for any data loss.

y If the USB HDD does not have an external power source, the USB device may not be detected. To ensure

the device is detected, connect the external power source.

- Please use a power adapter for an external power source. We do not provide a USB cable for an external power source.

y If your USB storage device has multiple partitions, or if you use a USB multi-card reader, you can use up to

four partitions or USB storage devices.

y If a USB storage device is connected to a USB multi-card reader, its volume data may not be detected. y If the USB storage device does not work properly, disconnect and reconnect it. y Detection speed differs from device to device. y If the USB storage device is connected in Standby Mode, the specific hard disk will automatically be loaded

when the display is turned on.

y The recommended capacity is 1 TB or less for a USB external hard drive and 32 GB or less for USB

memory stick.

y Any device with more than the recommended capacity may not work properly. y If a USB external hard drive with an “Energy Saving” function does not work, try turning the hard drive off

and on again.

y USB storage devices below USB 2.0 are also supported but may not function correctly in the Videos. y A maximum of 999 sub-folders or files can be recognized under one folder. y The SDHC type for SD cards is supported. To use an SDXC card, format it to the NTFS file system first. y The exFAT file system is not supported for SD cards and USB storage devices. y Certain models do not support SD cards.

ENGLISH

Photo & Video

ENGLISH

y The photo feature is not supported in OLED models.

Supported Photo & Video Files

Supported External Subtitle Format

y *.smi, *.srt, *.sub (MicroDVD, SubViewer 1.0/2.0), *.ass, *.ssa, *.txt (TMPlayer), *.psb (PowerDivX),

*.dcs (DLP Cinema)

NOTE

y Subtitles are not supported in certain models. y Embedded subtitles are not supported.

Supported Video Codecs

Extension Codec

.asf

.wmv

.avi

.mp4

.m4v

.mov

.3gp

.3g2

.mkv

.ts

.trp

.tp

.mts

.mpg

.mpeg

.dat

.vob

Video VC-1 Advanced Profile (excluding WMVA), VC-1 Simple and Main Profiles

Audio WMA Standard (excluding WMA v1 / WMA Speech)

Video Xvid (excluding 3 warp-point GMC), H.264/AVC, Motion Jpeg, MPEG-4

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, LPCM, ADPCM, DTS

Video H.264/AVC, MPEG-4, HEVC

Audio Dolby Digital, Dolby Digital Plus, AAC, MPEG-1 Layer III (MP3)

Video H.264/AVC, MPEG-4

Audio AAC, AMR-NB, AMR-WB

Video MPEG-2, MPEG-4, H.264/AVC, VP8, VP9, HEVC

Audio Dolby Digital, Dolby Digital Plus, AAC, PCM, DTS, MPEG-1 Layer I, II, MPEG-1 Layer III

(MP3)

Video H.264/AVC, MPEG-2, HEVC

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, PCM

Video MPEG-1, MPEG-2

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3)

Video MPEG-1, MPEG-2

Audio Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM

NOTE

3D videos are not supported.

Maximum data transfer rate

y Full HD video

H.264 1920 x 1080@60P BP/MP/HP@L4.2 40 Mbps HEVC 1920 x 1080@60P MP@L4.1, Main10 Profile@L4.1 40 Mbps

y Ultra HD [Applies only to Ultra HD models]

H.264 1920 x 1080@60P 4096 x 2160@30P BP/MP/HP@L5.1 50 Mbps HEVC 4096 x 2160@60P MP@L5.1, Main10 Profile@L5.1 50 Mbps

Supported Photo File

File Format Format Item

jpeg, jpg, jpe JPEG y Minimum : 64 x 64

y Maximum

- Normal Type: 15360 (W) x 8640 (H)

- Progressive Type: 1920 (W) x 1440 (H)

.png PNG y Minimum : 64 x 64

y Maximum: 5760 (W) x 5760 (H)

.bmp BMP y Minimum : 64 x 64

y Maximum: 1920 (W) x 1080 (H)

ENGLISH

Viewing Photos and Videos

ENGLISH

HOME /

1 Select your desired storage device. 2 Select and view your desired photo or video.

Tips for Playing Video Files

y Some user-created subtitles may not work properly. y Some special characters in subtitles are not rendered. y HTML tags are not supported in subtitles. y Subtitles in languages other than the supported languages are not available. y The screen may suffer temporary interruptions (image stoppage, faster playback, etc.) when the audio

language is changed.

y A damaged video file may not play correctly, or some player functions may not be usable. y Video files produced with some encoders may not be played correctly. y If the video and audio structure of a recorded file is not interleaved, either video or audio is outputted. y Video files other than the specified types and formats may not play correctly. y Maximum bit rate of playable video file is 20 Mbps. (Motion JPEG: 10 Mbps only) y We cannot guarantee smooth playback of files encoded level 4.1 or higher in H.264 / AVC. y Video files more than 30 GB in file size are not supported. y A video file and its subtitle file must be located in the same folder. A video file name and its subtitle file

name must be identical in order to display the subtitle properly.

y Playing a video via a USB connection that does not support high-speed connection may not function

correctly.

y Subtitles on a Network Attached Storage (NAS) device may not be supported depending on the

manufacturer and model.

y Streaming of files encoded by GMC (Global Motion Compensation) or Qpel (Quarterpel Motion Estimation)

is not supported.

y [For Ultra HD models only] Ultra HD image: 3840 X 2160

Some HEVC-encoded Ultra HD videos other than the content officially provided by LG Electronics may not be played. Some codecs can be used after upgrading software.

Extension Codec

.mkv

.mp4

.ts

y Playable file sizes may vary depending on the encoding condition. y The AAC Main profile is not supported. y Video files created by some encoders may not play.

Video

Audio

H.264/AVC, HEVC

Dolby Digital, Dolby Digital Plus, AAC, HE-AAC

Scheduled Playing

y Only applies to certain models.

You can schedule your selected content to play at a certain time. (Scheduled playing is available with external inputs.)

HOME /

ENGLISH

1 Select your desired storage device. 2 Enter the folder that contains the file you wish to schedule. 3 Click the NEW SCHEDULED PLAYING button in the upper right. 4 Select the content that you would like to schedule to play. 5 Enter schedule details to create a new schedule. 6 Watch your selected content play at the set time.

Export

y Only applies to certain models.

HOME /

1 Select your desired storage device. 2 Enter the folder that contains the file you wish to export. 3 Click the EXPORT button in the upper right. 4 Select the file you wish to export. 5 Click the COPY / MOVE button in the upper right and select the device to which you would like to export the

file.

6 Check that the file has been copied or moved to the selected device.

Delete

HOME /

1 Select your desired storage device. 2 Enter the path to the file you wish to delete. 3 Click the Delete button. 4 Select the file you wish to delete. 5 Click the Delete button at the top right. 6 Check that the file has been deleted from the list.

Music

ENGLISH

Supported Music Files

File Format Item Information

.mp3 Bit rate

Sample freq.

Support

Channels

.wav Bit rate

Sample freq.

Support

Channels

.ogg Bit rate

Sample freq.

Support

Channels

.wma Bit rate

Sample freq.

Support

Channels

32 Kbps to 320 Kbps

16 KHz to 48 KHz

MPEG1, MPEG2

Mono, Stereo

8 kHz to 48 kHz

PCM

Mono, Stereo

64 Kbps to 320 Kbps

8 kHz to 48 kHz

Vorbis

Mono, Stereo

128 Kbps to 320 Kbps

8 kHz to 48 kHz

WMA

Up to 6 channels

Playing Music

HOME /

1 Select your desired storage device. You can select the songs you would like to play across all storage

devices in My playlist.

2 Select the desired music content and enjoy.

Delete

HOME /

SuperSign Contents

Plays stored files using the Export option in SuperSign Editor.

To play back the stored files using the Export option

HOME /

Only contents distributed by SuperSign Manager are displayed and selectable. If there is a USB/SD storage device connected, the image on the USB/SD device is outputted additionally.

NOTE

y If a folder named normal or AutoPlay exists on the USB/SD card and there are playable files, the files will

play automatically when the USB/SD card is connected.

y OLED product types do not play content types other than single video or single flash files. Content

produced via SuperSign Editor is not played either.

Information

To check the basic information of Signage Monitor

HOME /

You can see the basic information on Signage Monitor.

You can also switch to Smart Energy Saving Mode or configure Fail Over settings. (You can switch to Smart Energy Saving Mode only when Energy Saving Mode is set to Off. The Smart Energy Saving mode is not available on OLED models.)

ENGLISH

Local Contents Scheduler

ENGLISH

y Only applies to certain models. y The recommended resolution for scheduled photo playback is 4096 x 2160 or below.

Setting a Scheduled Playing

You can create a scheduled playing using the Local Contents Scheduler and the Photo & Video app.

Scheduled Playing with Photo & Video

y 1st Method: Refer to the scheduled playing section in Photo & Video app.

y 2nd Method: HOME /

1 Press the NEW SCHEDULED PLAYING button in the upper right. 2 Press the LOCAL CONTENTS button.

3 Select the storage device that you would like to schedule to play. 4 Select the content that you would like to schedule to play after navigating to the Photo & Video app. 5 Enter schedule details to create a new schedule. 6 Watch your selected content play at the set time.

Scheduled Playing with External Input

HOME /

1 Press the NEW SCHEDULED PLAYING button in the upper right. 2 Select the INPUT SOURCE. 3 Enter schedule details to create a new schedule. 4 Watch your selected external input play at the set time.

Screen Share

y Only applies to certain models.

Allows the screens of devices such as a mobile device or Windows PC to be displayed on the monitor via wireless connections such as WiDi or Miracast.

Using Screen Share

HOME /

1 Connect according to the instructions provided by the guide that can be accessed through the

CONNECTION GUIDE button in the upper right.

2 Once the connection is established, Screen Share between the user device and the monitor is enabled.

NOTE

Configuring WiDi (Wireless Display)

WiDi, which is short for Wireless Display, is a system that wirelessly transmits video and sound files from a laptop that supports Intel WiDi to the display. This is available only in certain input modes (Composite/Component/RGB/HDMI/DP/OPS/DVI-D). Other than these modes, LG Signage cannot be detected by your PC.

1

Connect your laptop to an AP. (This feature can be used without an AP, but it is recommended that you connect to it for optimal performance.) Run the Intel WiDi ( ) program on your laptop.

2

Any nearby LG Signages supporting WiDi are detected. In the list of detected displays, select a Signage to connect to and then, click Connect. Enter the 8-digit PIN number (a) displayed on the Signage in the input eld of your laptop (b) and click Continue.



ENGLISH

[Intel Notebook] Connection Request

Enter the PIN below.

PIN********

Time remaining: 92 seconds

Cancel

********

Signage screen Laptop screen

The laptop screen appears in the Signage screen within 10 seconds. The wireless environment may aect the screen from displaying. If the connection is poor, the Intel WiDi connection may be lost.

y LG Signage does not need to be registered. y For more information on how to use Intel WiDi, visit http://intel.com/go/widi. y This works normally with WiDi 3.5 or later versions.

Group Manager

ENGLISH

y Only applies to certain models.

Using this template-based content editing program, you can produce, manage and play content. There are three modes: Master, Slave and StandAlone. The program can be used to distribute and play schedules between the Master and Slave. It also provides access from mobile device or PC.

CAUTION

y A maximum of 5,000 images stored on a USB drive/SD card can be displayed from your PC or mobile

device. Images more than 5,000 cannot be displayed from your PC or mobile device. In addition, we recommend you store no more than 1,000 images for use on your USB drive or SD card. If you use more than 1,000 images, the images may not be displayed smoothly depending on your environment.

y Supported devices (Some features may not be available depending on the type or version of your device or

browser.)

– Android 4.4 or later (Chromium v.38.0) – iOS 8 or later (Safari v.600.1.4 or later) – PC: Chromium v.38.0

y Supported resolutions (this program is optimized for the following resolutions):

– 360 x 640, 600 x 960, 375 x 667, 768 x 1024 and 1920 x 1080

y If you play UHD videos on a UHD model, videos with a high bitrate may not play properly due to the

limitations of the processing speed.

y You can select Slave mode in Master mode when the monitors are connected to the same network. y Video files larger than 50 MB may not upload properly from mobile devices. We recommend that you play

such files via USB/SD storage devices.

Function

The following functions are provided according to the mode selected by the user. However, Slave mode is automatically set to the monitor selected in Master mode.

y Master

–Group: Add / Edit / Delete / Control (Volume, Backlight, Reboot, Exit) –Content: Add / Edit / Delete –Schedule: Add / Edit / Delete / Distribute / Play –Edit PIN Number / Automatic USB Backup / USB Backup Restoration / Mail Settings / QR Code / Device Mode

y Slave

–Plays the schedule distributed by the Master

y StandAlone

–Content: Add / Edit / Delete –Schedule: Add / Edit / Delete / Distribute / Play –Edit PIN Number / QR Code / Device Mode

How to Use

y Monitors: Run the app in the Launcher bar and add/edit/delete the desired content. y Mobile devices: Run the app in the Launcher bar and get access using the QR code or URL provided.

NOTE

y If you use a mobile device, you need to go through an authorization process using a PIN code. The default

PIN code is ‘000000’.

y When using a PC, use the full screen (F11) feature in 1920 x 1080 (Full HD) resolution to view the same

screen as the monitor.

y To delete a distributed schedule, disable the schedule and redistribute.

Supported Photo Files

File Format Format Item

jpeg, jpg JPEG

.png PNG

Supported Video Codecs

Refer to the ‘Supported Video Codecs’ table of Photo & Video app.

Tips for Playing Video Files

Refer to the ‘Tips for Playing Video Files’ subsection of Photo & Video app.

y Minimum: 64 x 64

y Maximum: 1920 (W ) x 1080 (H)

y Minimum: 64 x 64

y Maximum: 1920 (W ) x 1080 (H)

ENGLISH

Leveler Tool

ENGLISH

y Only applies to certain models.

You can check whether the product is horizontally and vertically level when installing the product outdoors in an enclosure.

Accessing the Leveler Tool

HOME /

You can check whether the product is horizontally and vertically level.

Exiting the Leveler Tool

Exit the Leveler Tool by pressing the EXIT key on your remote control.

Checking the Angle of the Product

HOME /

y You can check the tilt of the product using the bubble in the leveler and the angle indication. y The left/right tilt is indicated by the leveler and angle indication on the left side of the screen. y The front/back tilt is indicated by the leveler and angle indication on the right side of the screen.

NOTE

If the product is tilted more than five degrees in any direction, an arrow will flash in the

direction the product needs to be adjusted to.

Control Manager

y Only applies to certain models.

You can control and check the status of the display through web browser.

This function is available on PC and mobile device.

CAUTION

y Supported resolutions (this program is optimized for the following resolutions):

– 1280 x 1024 / 375 x 667

y Supported browsers (this program is optimized for the following browsers):

– IE 11 or later / Chrome 50 or later / Firefox 38 or later

y If set to OSD Portrait Mode, the OSD menu that appears on the captured screen will be in Landscape

orientation.

Function

y Dashboard – Shows a summary of the product's status and provides links to each page. y Device Control – Adjusts screen brightness, sound and input, reboots, etc. y Virtual Controller – Shows the image displayed on the product in real time and enables remote control. y Picture – Sets Picture Mode, Energy Saving, OSD Portrait, etc. y Network – Sets Signage Name, IP Address, etc. y Time – Enables or disables Set Automatically and shows the current time set for the product. y Check Screen – Shows the product’s current image output. y Door Monitor – Shows whether the product is open or closed and provides controls for screen Mute for

each status.

y S/W update – Provides firmware updates. y Charts – Outputs information on the product's temperature, fan status, etc. in chart form. y Fan Status – Shows the status of the fan installed in the product. y Log – Displays product malfunction records. y System Information – Outputs the product's S/W version, model name, etc. y Media Library – Uploads media files to the product and outputs the uploaded file.

ENGLISH

How to Use

ENGLISH

On a PC

Enter ‘https://Product IP address:3737’ in the browser's address bar to access the Control Manager

Enter the password in the Password window (The default password is ‘000000’).

Click the

Click the face-shaped image to access the User Menu (Change Password, Logout).

On a Mobile Device (by entering IP address)

Enter 'https://Product IP address:3737' in the browser's address bar to access the Control Manager

Enter the password in the Password window (The default password is ‘000000’)

Click the

Click the Menu button in the upper left to expand the menu.

Click the face-shaped image to access the User Menu (

On a Mobile Device (by QR code recognition)

Launch the Control Manager App.

Scan the QR Code with your smartphone to access the Login Page.

Click the

Click the Menu button in the upper left to expand the menu.

Click the face-shaped image to access the User Menu (

button after entering the password to access the

Change Password, Logout

Dashboard

CAUTION

y For apps that do not support security protocols, access the Control Manager by entering the address

displayed on the app’s screen in your browser.

Follow the steps below if you encounter issues with your security certificate while attempting to access.

On Chrome

ADVANCED

Click

Proceed to product IP address (unsafe)

Click

ENGLISH

On FireFox

ENGLISH

Click

Advanced

Add Exception...

Click

Confirm Security Exception

On Internet Explorer

Continue to this website (not recommended).

Click

*The text of the links and buttons may differ depending on the OS (Operating System) or language settings used.

ENGLISH

Multi-Screen

ENGLISH

y Only applies to certain models.

This feature allows you to view multiple external inputs and videos on a single screen.

Accessing Multi-Screen

HOME /

Enter Multi-screen to select the screen layout.

NOTE

y When entering Multi-screen, the screen may

flicker and the picture may appear abnormal on

certain devices while the optimal resolution is

selected automatically. If this happens, please

restart the monitor.

Selecting Screen Layout

When you enter Multi-screen without having set any screen layout, the screen layout selection menu appears.

If the screen layout menu does not appear, you can press the up arrow key on the remote control to go to the screen layout menu bar and select it to show the screen layout menu.

Closing Screen Layout Menu

From the screen layout menu, press the up arrow key on the remote control to go to the screen layout menu bar and select it or press the BACK key to close the screen layout menu.

Changing Screen Input

Press the button on the top right of each split

screen to select the desired input.

NOTE

y Inputs which have already been selected for

other split screens cannot be selected again. To select them, press the RESET button to reset the inputs for all screens first.

y PIP mode is only available when Content

Rotation and OSD Portrait are set to 0.

Playing Videos on Split Screens

Press the button on the upper right of each

split screen, select Video File, and then select

a storage device to view the list of videos in the

selected device. Next, select your desired video

from the list to play it.

NOTE

yVideos created with HEVC, MPEG-2, H.264, or

VP9 codecs can be played on split screens.

When using PIP mode, the following combi-

nations cannot be used.

Main Sub

HEVC HEVC

H.264 HEVC

MPEG-2 HEVC

VP9 VP9

AUDIO

(RGB/DVI)

REMOTE

CONTROL IN

RS-232C OUT

RS-232C IN

RS-232C OUT

RS-232C IN

RS-232C OUT

RS-232C IN

PICTURE ID Settings

y Only applies to certain models.

PICTURE ID is used to change the settings of a specific set (display) using a single IR receiver for multi-vision. Communication is possible between a monitor with an IR receiver and other monitors using RS-232C cables. Each monitor is identified by a Set ID. If you assign the PICTURE ID using the remote control, only displays with matching PICTURE ID and Set ID can be controlled remotely.

Assign the Set ID to the installed monitors as shown below.

IR & Light Sensor

RS-232C cables

2 Press the red ON button on the remote control to

assign the PICTURE ID.

Assign the Set ID to the selection of your choice.

y A set with a different Set ID from the PICTURE

ID cannot be controlled by IR signals.

PICTURE ID

NOTE

y If PICTURE ID is set to 2, only the upper

right monitor, which has a Set ID of 2, can be controlled by IR signals.

y If you press the green OFF button for PICTURE

ID, the PICTURE IDs for all monitors are turned

off. If you then press any button on the remote control, all monitors can be controlled by IR signals regardless of Set ID.

ENGLISH

IR CODES

All models do not support the HDMI/USB function. Some key codes may not be supported depending on the model.

Code (Hex) Function Remarks

C4 MONITOR ON Remote control button

C5 MONITOR OFF Remote control button

95 Energy Saving Remote control button

0B INPUT Remote control button

10 Number Key 0

11 Number Key 1 Remote control button

12 Number Key 2

13 Number Key 3

14 Number Key 4 Remote control button

15 Number Key 5 Remote control button

16 Number Key 6

17 Number Key 7 Remote control button

18 Number Key 8 Remote control button

19 Number Key 9 Remote control button

DC 3D Remote control button

32 1/a/A Remote control button

2F CLEAR Remote control button

7E Remote control button

79 ARC(MARK) (Aspect Ratio) Remote control button

4D PSM (Picture Mode)

09 MUTE Remote control button

43 SETTINGS (Menu) Remote control button

99 Auto Config. Remote control button

40 Up Remote control button

41 Down Remote control button

06 Right Remote control button

07 Left Remote control button

44 OK Remote control button

28 BACK Remote control button

(POWER)

Volume

BRIGHTNESS (Page Up)

BRIGHTNESS (Page Down)

Remote control button

Code (Hex) Function Remarks

7B TILE Remote control button

EXIT Remote control button

PICTURE ID ON (RED) Remote control button

PICTURE ID OFF (GREEN) Remote control button

YELLOW Remote control Button

BLUE Remote control button

Remote control button

W.BAL Remote control button

S.MENU Remote control button

HOME Remote control button

SWAP Remote control button

MIRROR Remote control button

* Some key codes are not supported depending on the model.

ENGLISH

TO CONTROL MULTIPLE PRODUCTS

y Only applies to certain models.

Use this method to connect several products to a single PC. You can control several products at a time by connecting them to a single PC.

In the Option menu, the Set ID must be between 1 and 1000 without being duplicated.

Connecting the Cable

y The image may be different according to the model.

Connect the RS-232C cable as shown in the picture.

The RS-232C protocol is used for communication between the PC and product. You can turn the product on or off, select an input source or adjust the OSD menu from your PC.

RS-232C

OUT

RS-232C

Monitor 1 Monitor 2 Monitor 3Monitor 4

RS-232C

OUT

4P Cable (not included)

RS-232C

OUT

RS-232C

OUT

RS-232C

RS-232C Gender

RS-232C Cable (not included)

Monitor 1 Monitor 2 Monitor 3 Monitor 4

RS-232C Cable (not included)

Communication Parameter

Baud Rate: 9600 BPS

Data Length: 8 bit

Parity Bit: None

Stop Bit: 1 bit

Flow Control: None

Communication Code: ASCII code

NOTE

y When using three-wire connections (non-

standard), an IR daisy chain cannot be used.

y Be sure to only use the provided gender to

connect properly.

y When monitors connected via Daisy Chain (that

controls multiple monitors) are turned off and on successively, some monitors may not turn on. In this case, you can turn those monitors on by pressing the MONITOR ON button, not the POWER button.

(POWER)

MONITOR ON

ENGLISH

Command Reference List

ENGLISH

COMMAND

1 2

01 Power k a 00 to 01

02 Select input x b See Select Input

03 Aspect Ratio k c See Aspect Ratio

04 Energy Saving j q See Energy Saving

05 Picture Mode d x See Picture Mode

06 Contrast k g 00 to 64

07 Brightness k h 00 to 64

08 Sharpness k k 00 to 32

09 Color k i 00 to 64

10 Tint k j 00 to 64

11 Color temperature x u 00 to 64

12 Balance k t 00 to 64

13 Sound Mode d y See Sound Mode

14 Mute k e 00 to 01

15 Volume Control k f 00 to 64

16 Time 1 (year/month/day) f a See Time 1

17 Time 2 (hour/minute/second) f x See Time 2

18 Off time schedule f c 00 to 01

19 On Time Schedule f b 00 to 01

20 Off Timer (Repeat/Time) f e See Off Timer

21 On Timer (Repeat/Time) f d See On Timer

22 On Timer Input f u Refer to On Timer Input.

23 No Signal Power Off (15Min) f g 00 to 01

24 Auto Power Off (4 Hours) m n 00 to 01

25 Language f i See Language

26 Reset f k 00 to 02

27 Current Temperature d n FF

28 Key m c See Key

29 Time Elapsed d l FF

30 Product Serial Number f y FF

31 Software Version f z FF

32 White Balance Red Gain j m 00 to FE

33 White Balance Green Gain j n 00 to FE

34 White Balance Blue Gain j o 00 to FE

35 White Balance Red Offset s x 00 to 7F

36 White Balance Green Offset s y 00 to 7F

37 White Balance Blue Offset s z 00 to 7F

38 Backlight m g 00 to 64

DATA

(Hexadecimal)

COMMAND

1 2

39 Screen off k d 00 to 01

40 Tile Mode d d 00 to FF

41 Check Tile Mode d z FF

42 Tile ID d i See Tile ID

43 Natural Mode d j 00 to 01

44 DPM Select f j 00 to 07

45 Remote Control/Local Key Lock k m 00 to 01

46 Power On Delay f h 00 to FA

47 Fail Over Select m i 00 to 02

48 Fail Over Input Select m j See Fail Over Input Select

49 IR Operation t p 00 to 02

50 Local Key Operation t o 00 to 02

51 Check the status s v See Check the status

52 Check Screen t z 00 to 01

53 Speakers d v 00 to 01

54 Daylight Saving Time s d Refer to ‘Daylight Saving Time’

55 PM Mode s n, 0c 00 to 03

56 ISM Method j p See ISM Method

57 Network Settings s n, 80(81)(82) See Network Settings

58 Auto-adjustment j u 01

59 H Position f q 00 to 64

60 V Position f r 00 to 64

61 H Size f s 00 to 64

62 Power On Status t r 00 to 02

63 Wake On LAN f w 00 to 01

64 Intelligent Auto t i 00 to 01

65 OSD Portrait Mode t h 00 to 02

66 Reset to Initial Settings t n 00 to 01

67 Time Sync s n, 16 00 to 01

68 Contents Sync t g 00 to 01

69 Pivot Mode t a 00 to 01

70 Studio Mode s n, 83 00 to 01

71 LAN Daisy Chain s n, 84 00 to 01

72 Content Rotation s n, 85 00 to 02

73 DPM Wake up Control s n, 0b 00 to 01

74 Scan Inversion s n, 87 00 to 01

75 Beacon s n, 88 00 to 01

DATA

(Hexadecimal)

ENGLISH

76 Aspect Ratio(Rotation)

77 Easy Brightness Control Mode

78 Easy Brightness Control Schedule

79 MultiScreen Mode & Input

80 Aspect Ratio(MultiScreen)

81 Screen Mute(MultiScreen)

82 Screen Off Always

83 Screen Video Freeze

84 Wireless Wake On LAN

85 JustScan Toggle s n, 91 00 to 01

86 Holiday Schedule Mode s n, 1a 00 to 01

87 Holiday Schedule s n, 1b See Holiday Schedule section

88 Dual Screen Off s n, 92 00 to 02

89 Fan Control d o 00 to 03

90 Fan Failure Check d w FF

91 Luminance Value Read m u FF

92 BLU Maintenance m t 00 to 01

93 Power Indicator Settings f o 00 to 01

94 OSD Display k l 00 to 01

95 Semi-Transparent Brightness s n, 95 00 to 64

96 Hybrid Mode s n, 96

97 Return Interval s n, 97 00 to 0a

98 Proximity Sensitivity s n, 98 00 to 02

99 HDMI IT Contents s n, 99 00 to 01

100 UPnP Mode s n, 9c 00 to 01

101 Model Name check f v FF

102 No Signal Image s n, a9 00 to 01

COMMAND

1 2

s n, 89

s m

s s

x c

x d

x e

s n, 0d

k x

s n, 90

00 to 01

See Easy Brightness Control Schedule

See MultiScreen Mode & Input

See Aspect Ratio(MultiScreen)

See Screen Mute(MultiScreen)

00 to 01

00 to 02

* Note: Commands may not work when the external input is not used. ** Some commands may not be supported depending on the model.

DATA

(Hexadecimal)

Transmission/Reception Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

* [Command1]: identifies between the factory setting and the user setting modes.

* [Command2]: controls monitor sets.

* [Set ID]: Used for selecting a set you want to control. A unique Set ID can be assigned to each set ranging

from 1 to 1000(01H~3E8H) under Settings in the OSD menu. Selecting ‘00H’ for Set ID allows the simultaneous control of all connected monitors. (The maximum value may differ depending on the model.)

* [Data]: Transmits command data.

Data count may increase depending on the command.

* [Cr]: Carriage Return. Corresponds to ‘0x0D’ in ASCII code.

* [ ]: White Space. Corresponds to ‘0x20’ in ASCII code.

Acknowledgement

[Command2][ ][Set ID][ ][OK/NG][Data][x]

* The Product transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is FF, it indicates the present status data. If the data is in data write mode, it returns the data of the PC computer.

* If a command is sent with Set ID ‘00’ (=0x00), the data is reflected to all monitor sets and each monitor set does not send an acknowledgement (ACK).

* If the data value ‘FF’ is sent in control mode via RS-232C, the current setting value of a function can be checked (only for some functions).

*Some commands are not supported depending on the model.

ENGLISH

01. Power (Command: k a)

ENGLISH

Controls the power on/off of the set.

Transmission

[k][a][ ][Set ID][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgement

[a][ ][Set ID][ ][OK/NG][Data][x]

*The acknowledgement signal is returned properly only when the monitor is fully powered on.

* There may be a delay between the transmission and acknowledgement signals.

02. Select Input (Command: x b)

Selects an input signal.

Transmission

[x][b][ ][Set ID][ ][Data][Cr]

Data 20: AV

40: COMPONENT

60: RGB

70: DVI-D (PC)

80: DVI-D (DTV)

90: HDMI1 (DTV)

A0: HDMI1 (PC)

91: HDMI2/OPS (DTV)

A1: HDMI2/OPS (PC)

92: OPS/HDMI3/DVI-D (DTV)

A2: OPS/HDMI3/DVI-D (PC)

95: OPS/DVI-D (DTV)

A5: OPS/DVI-D (PC)

96: HDMI3/DVI-D (DTV)

A6: HDMI3/DVI-D (PC)

98: OPS (DTV)

A8: OPS (PC)

C0: DISPLAYPORT (DTV)

D0: DISPLAYPORT (PC)

E0: SuperSign webOS Player

E1: Others

E2: Multi Screen

Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

* Some input signals may not be supported depending on the model.

** Returns to NG if the webOS Player is not distributed from

SuperSign W or SuperSign Premium.

03. Aspect Ratio (Command: k c)

Adjusts the aspect ratio.

Transmission

[k][c][ ][Set ID][ ][Data][Cr]

Data 01: 4:3

02: 16:9

04: Zoom

06: Set by Program

09: Just Scan (720p or higher)

10 to 1F: Cinema Zoom 1 to 16

21: 58:9

30: Vertical Zoom

31: All-Direction Zoom

* Available data types differ depending on the input signal. For more information, see the aspect ratio section of the owner’s manual.

* The aspect ratio may differ depending on the model’s input configuration.

Acknowledgement

[c][ ][Set ID][ ][OK/NG][Data][x]

04. Energy Saving (Command: j q)

Sets the Energy Saving.

Transmission

[j][q][ ][Set ID][ ][Data][Cr]

Data 00: Off

01: Minimum

02: Medium

03: Maximum

04: Automatic

05: Screen off

Acknowledgement

[q][ ][Set ID][ ][OK/NG][Data][x]

** This may not be supported depending on the model.

05. Picture Mode (Command: d x)

Selects a picture mode.

Transmission

[d][x][ ][Set ID][ ][Data][Cr]

Data 00: Vivid

01: Standard

02: Cinema

03: Sports

04: Game

05: Expert 1

06: Expert 2

08: APS

09: Photos

10: Touch

11: Calibration

Acknowledgement

[x][ ][Set ID][ ][OK/NG][Data][x]

* Depending on the model, some picture modes may not be supported.

06. Contrast (Command: k g)

Adjusts the screen contrast.

Transmission

[k][g][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Contrast 0 to 100

Acknowledgement

[g][ ][Set ID][ ][OK/NG][Data][x]

08. Sharpness (Command: k k)

Adjusts the screen sharpness.

Transmission

[k][k][ ][Set ID][ ][Data][Cr]

Data 00 to 32: Sharpness 0 to 50

Acknowledgement

[k][ ][Set ID][ ][OK/NG][Data][x]

09. Color (Command: k i)

Adjusts the screen color.

Transmission

[k][i][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Color 0 to 100

Acknowledgement

[i][ ][Set ID][ ][OK/NG][Data][x]

10. Tint (Command: k j)

Adjusts the screen tint.

Transmission

[k][j][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Tint red 50 to green 50

Acknowledgement

[j][ ][Set ID][ ][OK/NG][Data][x]

ENGLISH

07. Brightness (Command: k h)

Adjusts the screen brightness.

Transmission

[k][h][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Brightness 0 to 100

Acknowledgement

[h][ ][Set ID][ ][OK/NG][Data][x]

11. Color Temperature (Command: x u)

Adjusts the screen color temperature.

Transmission

[x][u][ ][Set ID][ ][Data][Cr]

Data 00 to 64: warm 50 to cool 50

Acknowledgement

[u][ ][Set ID][ ][OK/NG][Data][x]

12. Balance (Command: k t)

ENGLISH

Adjusts the sound balance.

Transmission

[k][t][ ][Set ID][ ][Data][Cr]

Data 00 to 64: left 50 to right 50

Acknowledgement

[t][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

13. Sound mode (Command: d y)

Selects a sound mode.

Transmission

[d][y][ ][Set ID][ ][Data][Cr]

Data 01: Standard

02: Music

03: Cinema

04: Sports

05. Game

07: News (Clear Voice III)

Acknowledgement

[y][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

Transmission

[k][f][ ][S et ID][ ][Data][Cr]

Data 00 to 64: Volume 0 to 100

Acknowledgement

[f][ ][S et ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

16. Time 1 (year/month/day) (Command: f a)

Sets the values of the Time 1 (year/month/day), or sets the Auto time.

Transmission

1. [f][a][ ][S et ID][ ][Data1][ ][Data2][ ][Data3][Cr]

2. [f][a][ ][S et ID][ ][0][0][ ][Data1][ ][Cr]

1. Setting the Time 1 (year/month/day)

Data1 04~1B: year 2014 to 2037

Data2 01 to 0C: January to December

Data3 01 to 1F: 1st to 31st

* Enter "fa [Set ID] ff" to view the Time 1 (year/month/day) settings.

2. Setting the Auto time

Data1 00: Auto

01: Manual

* To view the set value of the Auto time, enter “fa [Set ID] 00 ff”.

Acknowledgement

1. [a][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

2. [a][ ][Set ID][ ][OK/NG][0][0][Data1][x]

14. Mute (Command: k e)

Mutes/unmutes the sound.

Transmission

[k][e][ ][Set ID][ ][Data][Cr]

Data 00: Mute

01: Unmute

Acknowledgement

[e][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

15. Volume Control (Command: k f)

Adjusts the playback volume.

17. Time 2 (hour/minute/second) (Command: f x)

Adjusts the Time 2 (hour/minute/second) value.

Transmission

[f][x][ ][S et ID][ ][Data1][ ][Data2][ ][Data3][Cr]

Data1 00 to 17: 00 to 23 hours

Data2 00 to 3B: 00 to 59 minutes

Data3 00 to 3B: 00 to 59 seconds

* Enter “fx [Set ID] ff” to view the Time 2 (hour/minute/second) settings.

** This function is only available when Time 1 (year/month/ day) is set.

Acknowledgement

[x][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

18. Off Time Schedule (Command: f c)

Enables/disables the Off Time Schedule.

Transmission

[f][c][ ][S et ID][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgement

[c][ ][Set ID][ ][OK/NG][Data][x]

19. On Time Schedule (Command: f b)

Enables/disables the On Time schedule.

Transmission

[f][b][ ][Set ID][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgement

[b][ ][Set ID][ ][OK/NG][Data][x]

20. Off Timer (Repeat/Time) (Command: f e)

Configures Off Timer (Repeat/Time) settings.

Transmission

[f][e][ ][S et ID][ ][Data1][ ][Data2][ ][Data3][Cr]

Data1

1. f1h to f7h (reading data)

F1: reads the 1st Off Timer data

F2: reads the 2nd Off Timer data

F3: reads the 3rd Off Timer data

F4: reads the 4th Off Timer data

F5: reads the 5th Off Timer data

F6: reads the 6th Off Timer data

F7: reads the 7th Off Timer data

2. e1h-e7h (delete one index), e0h (delete all indexes)

E0: erases all Off Timer settings

E1: erases the 1st Off Timer setting

E2: erases the 2nd Off Timer setting

E3: erases the 3rd Off Timer setting

E4: erases the 4th Off Timer setting

E5: erases the 5th Off Timer setting

E6: erases the 6th Off Timer setting

E7: erases the 7th Off Timer setting

3. 01h to 0Ch (sets the day of the week for the Off Timer)

01: Once

02. Daily

03: Mon - Fri

04: Mon - Sat

05: Sat - Sun

06. Every Sunday

07. Every Monday

08. Every Tuesday

09. Every Wednesday

0A. Every Thursday

0B. Every Friday

0C. Every Saturday

Data2 00 to 17: 00 to 23 hours

Data3 00 to 3B: 00 to 59 minutes

* To read or delete the Off Time Schedule list, [Data2][Data3] must be set to FFH.

Example 1: fe 01 f1 ff ff – reads the first index data in Off Timer.

Example 2: fe 01 e1 ff ff - deletes the first index data from Off Timer.

Example 3: fe 01 04 02 03 - sets Off Timer to 02:03 from Monday to Saturday.

* This function is only available when Time 1 (year/month/day) and Time 2 (hour/minute/second) are set.

ENGLISH

Acknowledgement

[e][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

21. On timer (Repeat/Time) (Command: f d)

ENGLISH

Configures On Timer (Repeat/Time) settings.

Transmission

[f][d][ ][S et ID][ ][Data1][ ][Data2][ ][Data3][Cr]

Data1

1. f1h to f7h (reading data)

F1: reads the 1st On Timer data

F2: reads the 2nd On Timer data

F3: reads the 3rd On Timer data

F4: reads the 4th On Timer data

F5: reads the 5th On Timer data

F6: reads the 6th On Timer data

F7: reads the 7th On Timer data

2. e1h-e7h (delete one index), e0h (delete all indexes)

E0: erases all On Timer settings

E1: erases the 1st On Timer setting

E2: erases the 2nd On Timer setting

E3: erases the 3rd On Timer setting

E4: erases the 4th On Timer setting

E5: erases the 5th On Timer setting

E6: erases the 6th On Timer setting

E7: erases the 7th On Timer setting

3. 01h to 0Ch (sets the day of the week for the On Timer)

01: Once

02. Daily

03: Mon - Fri

04: Mon - Sat

05: Sat - Sun

06. Every Sunday

07. Every Monday

08. Every Tuesday

09. Every Wednesday

0A. Every Thursday

0B. Every Friday

0C. Every Saturday

Data2 00 to 17: 00 to 23 hours

Data3 00 to 3B: 00 to 59 minutes

* To read or delete an On Time schedule list, [Data2][Data3] must be set to FF.

Example 1: fd 01 f1 ff ff - reads the first index data from On Timer.

Example 2: fd 01 e1 ff ff - deletes the first index data from On Timer.

Example 3: fd 01 04 02 03 - sets On Timer to 02:03 from Monday to Saturday.

* This function is only available when Time 1 (year/month/day) and Time 2 (hour/minute/second) are set.

* This feature functions normally only after 22. On Timer Input has been entered.

22. On Timer Input (Command: f u)

Select an external input for the current On Time setting and add a new schedule.

Transmission

[f][u][ ][S et ID][ ][Data1][Cr]

[f][u][ ][S et ID][ ][Data1][][Data2][Cr]

Data (adding schedule)

40: COMPONENT

60: RGB

70: DVI-D

A0: HDMI1

A1: HDMI2/OPS

A2: OPS/HDMI3/DVI-D

A5: OPS/DVI-D

A6: HDMI3/DVI-D

A8: OPS

D0: DISPLAYPORT

Data1 (Read schedule)

1. f1h to f7h (Read data)

F1: Select the 1st schedule input

F2: Select the 2nd schedule input

F3: Select the 3rd schedule input

F4: Select the 4th schedule input

F5: Select the 5th schedule input

F6: Select the 6th schedule input

F7: Select the 7th schedule input

Data2 (Read schedule)

* To read the schedule input, enter FF for [Data2].

If no schedule is available for [Data1] when attempting to read the schedule data, the text ‘NG’ will be displayed and the operation will fail.

(Example 1: fu 01 90 - Move each schedule input down one row and save the 1st schedule input in HDMI mode.)

(Example 2: fu 01 f1 ff - Read the 1st schedule input.)

* This function is only supported when 1 (year/month/date), 2 (hour/minute/second) and On Time (repeat mode/time) are set.

* This feature operates as the last input.

* Input is possible in PC or DTV format during transmission and output is in PC format for acknowledgment.

(e.g. For HDMI1, both 0x90 and 0xA can be input, while 0xA0 is printed for acknowledgment.)

** This may not be supported on some models.

Acknowledgement

[u][ ][Set ID][ ][OK/NG][Data][x]

[u][ ][Set ID][ ][OK/NG][Data1][Data2][x]

Acknowledgement

[d][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

23. No Signal Power Off (15Min) (Command: f g)

Sets the monitor to enter Automatic Standby mode if there is no signal for 15 minutes.

Transmission

[f][g][ ][S et ID][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgement

[g][ ][Set ID][ ][OK/NG][Data][x]

24. Auto Power Off (4 Hours) (Command: m n)

Sets the monitor to enter Auto Power Off after 4 hours.

Transmission

[m][n][ ][Set ID][ ][Data][Cr]

Data 00: Off

01: 4 hours

Acknowledgement

[n][ ][Set ID][ ][OK/NG][Data][x]

25. Language (Command: f i)

Sets the OSD language.

Transmission

[f][i][ ][S et ID][ ][Data][Cr]

Data 00: Czech

01: Danish

02: German

03: English

04: Spanish (Europe)

05: Greek

06: French

07: Italian

08: Dutch

09: Norwegian

0A: Portuguese

0B: Portuguese (Brazil)

0C: Russian

0D: Finnish

0E: Swedish

0F: Korean

10: Chinese (Mandarin)

11: Japanese

12: Chinese (Cantonese)

13: Arabic

Acknowledgement

[i][ ][Set ID][ ][OK/NG][Data][x]

ENGLISH

26. Reset (Command: f k)

ENGLISH

Performs the reset function.

Screen Reset can only be performed in RGB input mode.

Transmission

[f][k][ ][S et ID][ ][Data][Cr]

Data 00: Picture Reset

01: Screen reset

02: Initial Settings

Acknowledgement

[k][ ][Set ID][ ][OK/NG][Data][x]

** It may not be supported depending on the model.

27. Current temperature (Command: d n)

Checks the inside temperature.

Transmission

[d][n][ ][Set ID][ ][Data][Cr]

Data FF: Check the status

Acknowledgement

[n][ ][Set ID][ ][OK/NG][Data][x]

* Temperature is displayed as a hexadecimal value.

29. Time Elapsed (Command: d l)

Checks the elapsed time.

Transmission

[d][l][ ][Set ID][ ][Data][Cr]

Data FF: Read status

Acknowledgement

[l][ ][Set ID][ ][OK/NG][Data][x]

* The data received is shown as a hexadecimal value.

30. Product serial number (Command: f y)

Checks the serial number of the product.

Transmission

[f][y][ ][S et ID][ ][Data][Cr]

Data FF: Check product serial number

Acknowledgement

[y][ ][Set ID][ ][OK/NG][Data][x]

* Data is in ASCII code.

31. Software Version (Command: f z)

Checks the software version of the product.

Transmission

[f][z][ ][S et ID][ ][Data][Cr]

Data FF: Check software version

Acknowledgement

[z][ ][Set ID][ ][OK/NG][Data][x]

28. Key (Command: m c)

Sends a key code for the IR remote control.

Transmission

[m][c][ ][Set ID][ ][Data][Cr]

Data IR_KEY_CODE

Acknowledgement

[c][ ][Set ID][ ][OK/NG][Data][x]

For key codes, see IR Codes.

* Some key codes are not supported depending on the model.

32. White balance red gain (Command: j m)

Adjusts the white balance red gain value.

Tran smission

[j][m][ ][Set ID][ ][Data][Cr]

Data 00 to FE: Red Gain 0 to 254

FF: checks the red gain value

Acknowledgement

[m][ ][Set ID][ ][OK/NG][Data][x]

33. White Balance Green Gain (Command: j n)

Adjusts the white balance green gain value.

Transmission

[j][n][ ][Set ID][ ][Data][Cr]

Data 00 to FE: Green Gain 0 to 254

FF: checks the green gain value

Acknowledgement

[n][ ][Set ID][ ][OK/NG][Data][x]

34. White Balance Blue Gain (Command: j o)

Adjusts the white balance blue gain value.

Transmission

[j][o][ ][Set ID][ ][Data][Cr]

Data 00 to FE: Blue Gain 0 to 254

FF: checks the blue gain value

Acknowledgement

[o][ ][Set ID][ ][OK/NG][Data][x]

36. White Balance Green Offset (Command: s y)

Adjusts the white balance green offset value.

Transmission

[s][y][ ][Set ID][ ][Data][Cr]

Data 00 to 7F: Green Offset 0 to 127

FF: checks the green offset value

Acknowledgement

[y][ ][Set ID][ ][OK/NG][Data][x]

37. White Balance Blue Offset (Command: s z)

Adjusts the white balance blue offset value.

Transmission

[s][z][ ][Set ID][ ][Data][Cr]

Data 00 to 7F: Blue Offset 0 to 127

FF: checks the blue offset value

Acknowledgement

[z][ ][Set ID][ ][OK/NG][Data][x]

ENGLISH

35. White Balance Red Offset (Command: s x)

Adjusts the white balance red offset value.

Transmission

[s][x][ ][Set ID][ ][Data][Cr]

Data 00 to 7F: Red Offset 0 to 127

FF: checks the red offset value

Acknowledgement

[x][ ][Set ID][ ][OK/NG][Data][x]

38. Backlight (Command: m g)

Adjusts the backlight brightness.

Transmission

[m][g][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Backlight 0 to 100

Acknowledgement

[g][][set ID][][OK/NG][Data][x]

39. Screen Off (Command: k d)

ENGLISH

Turns the screen on or off.

Transmission

[k][d][ ][Set ID][ ][Data][Cr]

Data 00: turns the screen on

01: turns the screen off

Acknowledgement

[d][ ][Set ID][ ][OK/NG][Data][x]

** This may not be supported on some models.

** Dual-screen models must use the screen off commands in 88. Dual Screen Off.

40. Tile Mode (Command: d d)

Sets the Tile Mode and sets values for the tile rows and columns.

Transmission

[d][d][ ][Set ID][ ][Data][Cr]

Data 00 to FF: The first byte - tile column

The second byte - tile row

* 00, 01, 10, and 11 mean that the tile mode is off

** The maximum value may differ depending on the model.

Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

42. Tile ID (Command: d i)

Sets the tile ID value of the product.

Transmission [d][i][ ][Set ID][ ][Data][Cr]

Data 01 to E1: Tile ID 1 to 225**

FF: checks the tile ID

** The data value cannot exceed the value of row x column.

Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]

* When a data value that exceeds the value of row x column is entered (except 0xFF),

ACK becomes NG.

* It may not be supported depending on the model.

43. Natural Mode (in Tile mode) (Command: d j)

When displaying the image naturally, the part of the image that would normally be displayed in the gap between the monitors is omitted.

Transmission

[d][j][ ][Set ID][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgement

[j][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

41. Check Tile Mode (Command: d z)

Checks the tile mode.

Transmission [d][z][ ][Set ID][ ][Data][Cr]

Data FF: checks the tile mode

Acknowledgement [z][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

Data1 00: tile mode off

01: tile mode on

Data2 00 to 0F: tile column

Data3 00 to 0F: tile row

* It may not be supported depending on the model.

44. DPM Select (Command: f j)

To set the DPM (Display Power Management) function.

Transmission

[f][ j][ ][Set ID][ ][Data][Cr]

Data 00: Off

01: 5 seconds

02: 10 seconds

03: 15 seconds

04: 1 minutes

05: 3 minutes

06: 5 minutes

07: 10 minutes

Acknowledgement

[j][ ][Set ID][ ][OK/NG][Data][x]

45. Remote Control/Local Key Lock (Command: k m)

Adjusts the remote control/local key (front) lock.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Data 00: Off (Lock Off) 01: On (Lock On)

* When the monitor is turned off, the power key works even in On (01) mode.

Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]

46. Power On Delay (Command: f h)

Sets the schedule delay when the power turns on. (unit: seconds).

Transmission [f][h][ ][S et ID][ ][Data][Cr]

Data 00 to FA: min. 0 to maximum 250 (seconds)

* The maximum value may differ depending on the model.

Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x

48. Fail Over Input Select (Command: m j)

Selects an input source for auto switch.

* This command is only available when the Fail Over (auto) mode is set to Custom.

Transmission [m][j][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][ ] [Data4]...[ ][DataN][Cr]

Data 1 to N-1 (Input priority: 1 to N-1)

40: COMPONENT

60: RGB

70: DVI-D

90: HDMI1

91: HDMI2/OPS

92: OPS/HDMI3/DVI-D

95: OPS/DVI-D

96: HDMI3/DVI-D

98: OPS

C0: DISPLAYPORT

Data N: E0: INTERNAL Memory

E1: USB

E2: SD CARD

Acknowledgement [j][ ][SetID][ ][OK/NG][Data1][Data2][Data3][Data4]

...[DataN] [x

* Some input signals may not be supported on some models.

* The data number (N) may vary depending on the model.

(The data number depends on the number of supported input signals.)

* Only values under Data N (e.g. E0, E1, E2) are allowed as the last data value and may not be supported depending on the model.

* This feature operates as the last input and supports data in DTV format.

]

ENGLISH

47. Fail Over Select (Command: m i)

Selects an input mode for auto switch.

Transmission [m][i][ ][Set ID][ ][Data][Cr]

Data 00: Off

01: Auto

02: Manual

Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]

49. IR Operation (Command: t p)

ENGLISH

Configures the IR operation settings of the product.

Transmission [t][p][ ][Set ID][ ][Data][Cr]

Data 00: locks off all of the keys

01: locks on all of the keys except the Power key

02: locks on all of the keys

Acknowledgement [x][ ][Set ID][ ][OK/NG][Data][x]

* When the monitor is turned off, the power key works even in the locks on all of the keys (02) mode.

50. Local Key Operation (Command: t o)

Configures the local key operation settings of the product.

Transmission [t][o][ ][Set ID][ ][Data][Cr]

Data 00: locks off all of the keys

01: locks on all of the keys except the Power key

02: locks on all of the keys

Acknowledgement [o][ ][Set ID][ ][OK/NG][Data][x]

* When the monitor is turned off, the power key works even in the locks on all of the keys (02) mode.

51. Status (Command: s v)

Checks the current signal status of the product.

Transmission [s][v][ ][Set ID][ ][Data][ ][FF][Cr]

Data 02: checks whether there is a signal or not

03: check the PM mode.

05: Checks whether luminance sensors 1 and 2

06: Luminance sensor being used:

07: Checks whether the Top, Bottom and Main

08: The temperature of each temperature sensor

09: Fan Speed

10: RGB sensing OK/NG (Check Screen)

Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][Data1][x]

Data: 02 (when a signal is found)

Data1 00: no signal

01: there is a signal

work properly.

temperature sensors are functioning normally.

when the monitor set was last powered off.

Data: 03 (when checking the PM mode)

Data1 00: The PM mode is set to Screen On

01: The PM mode is set to Screen Off

02: The PM mode is set to Screen Off Always

03: In Sustain Aspect Ratio mode.

04: Screen Off & Backlight status (Outdoor mode)

Data: 05 (In the case of checking whether the luminance

sensors work properly)

Data1 00: All normal

01: BLU sensor 1 normal, BLU sensor 2 down

02: BLU sensor 1 down, BLU sensor 2 normal

03: All sensors down

Data: 06 (In the case of the luminance sensors being used)

Data1 00: Luminance sensor 1 is being used

01: Luminance sensor 2 is being used

Data: 07 (In the case of checking whether the Top, Bottom

and Main temperature sensors are functioning normally)

Data1 00: All temperature sensors are faulty.

01: Top normal, Bottom faulty, Main faulty

02: Top faulty, Bottom normal, Main faulty

03: Top normal, Bottom normal, Main faulty

04: Top faulty, Bottom faulty, Main normal

05: Top normal, Bottom faulty, Main normal

06: Top faulty, Bottom normal, Main normal

07: All temperature sensors are normal

Data: 10 (Check Screen)

Data1 00: Check Screen result NG

07: Check Screen result OK

*In 75XE3C models, the status will be displayed as normal if both the Top (Panel) and Top (PSU) are normal.

* Sets to NG when Check Screen is set to Off or not supported.

Data: 08 (In the case of checking the temperature of each

temperature sensor when the monitor set was last powered off)

Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][Data1][Data2]

[Data3][x]

Data1: The temperature of the Top sensor when the

monitor set was last powered off.

Data2: The temperature of the Bottom sensor when the

monitor set was last powered off.

Data3: The temperature of the Main sensor when the

monitor set was last powered off.

Data: 09 (In the case of Fan Speed)

Acknowledgement

[v][ ][Set ID][ ][OK/NG][Data][Data1][Data2][x]

Data1: 00-ff: The upper 1-byte of the fan speed

Data2: 00-ff: The lower 1-byte of the fan speed

Fan speed: 0 to 2008 in hexadecimal and 0 to 8200 in

** This may not be supported on some models.

decimal

52. Check Screen (Command: t z)

Sets Check Screen.

Transmission

[t][z][ ][Set ID][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgement [z][ ][Set ID][ ][OK/NG][Data][x]

** It may not be supported depending on the model.

53. Speaker (Command: d v)

Sets the speaker function.

Transmission [d][v][ ][Set ID][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]

** It may not be supported depending on the model.

54. Daylight Saving Time (Command: s d)

To set the Daylight Saving Time function.

Transmission [s][d][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][ ][Data4]

[ ][Data5][Cr]

Data 00: Off (Data2~5: FFH)

01: Start Time

02: End Time

Data2 01~0C: January to December

Data3 01~06: 1 ~ 6th week

* The maximum number of [Data3] differs depending on Date.

Data4 00~06 ( Sun. ~ Sat. )

Data5 00~17: 00 ~ 23 hours

* To read the Start Time/End Time, enter FFH for [Data2]~[Data5].

(ex1: sd 01 01 ff ff ff ff - To check the Start Time

ex2: sd 01 02 ff ff ff ff - To check the End Time)

* This function is supported only when 1 (Year/Month/ Day) and 2 (Hour/Minute/Second) are set.

Acknowledgement [d][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][Data4] [Data5][x]

** It may not be supported depending on the model.

55. PM Mode (Command: s n, 0c)

Selects the desired PM mode option.

Transmission

[s][n][ ][Set ID][ ][0c][ ][Data][Cr]

Data 00: Sets the Power Off mode.

01: Sets the Sustain Aspect Ratio mode.

02: Sets the Screen Off mode.

03: Sets the Screen Off Always mode.

04: Sets the Screen Off & Backlight mode

(Outdoor mode)

Acknowledgement

[n][ ][Set ID][ ][OK/NG][0c][Data][x]

* It may not be supported depending on the model.

56. ISM Method (Command: j p)

Selects the ISM Method option.

Transmission

[j][p][ ][Set ID][ ][Data][Cr]

Data 01: Inversion

02: Orbiter

04: White Wash

08: Normal

20: Color Wash

80: Washing Bar

90: User Image

91: User Video

** The jp command works when Timer is set to Immediately.

Acknowledgement

[p][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

ENGLISH

57. Network Settings (Command: s n, 80 or 81 or 82)

ENGLISH

Configures network and DNS settings.

Transmission [s][n][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][ ][Data4][ ] [Data5][Cr]

Data1 80: Configures/views the temporary IP mode

81: Configures/views the temporary DNS

82: Saves temporary settings and views

* If Data1 is 80,

Data2 00: Auto

01: Manual

FF: Views the temporary IP mode (Auto/Manual),

** If Data2 is 01 (Manual),

Data3 : Manual IP address

Data4 : Subnet mask address

Data5 : Gateway address

* If Data1 is 81,

Data2 : DNS address

FF: Views the temporary DNS address.

* If Data1 is 82,

Data2 80: Applies the temporarily saved IP mode (Auto/

81: Applies the temporary DNS address

FF: Information on the current

*** Examples of settings

1. Auto: sn 01 80 00

2. Manual: sn 01 80 01 010177223241 255255254000

3. Network read: sn 01 80 ff

4. DNS setting: sn 01 81 156147035018

5. Applying the settings: sn 01 82 80 (applies the saved

**** Each IP address contains 12 decimal digits .

Acknowledgement [n][ ][Set ID][ ][OK/NG][Data1][Data][x]

* It may not be supported depending on the model.

** This feature is available only for wired networks.

(Auto/Manual), subnet mask, and gateway.

address.

information about the current network.

subnet mask, and gateway.

Manual), subnet mask, and gateway.

network (IP, subnet gateway, DNS)

010177222001 (IP: 10.177.223.241, subnet:

255.255.254.0, gateway: 10.177.222.1)

(DNS: 156.147.35.18)

IP mode (auto/manual), subnet mask, and gateway) sn 01 82 81 (applies the saved DSN)

58. Auto-adjustment (Command: j u)

Automatically corrects the position and shaking of the picture. (Works only in RGB-PC input mode.)

Transmission

[j][u][ ][Set ID][ ][Data][Cr]

Data 01: Execution

Acknowledgement

[u][ ][Set ID][ ][OK/NG][Data][x

* It may not be supported depending on the model.

59. H Position (Command: f q)

Adjusts the horizontal position of the screen. This feature only works when the Tile Mode is set to Off. * The operational range varies depending on the RGB input resolution. (Works only in RGB-PC input mode.)

Transmission [f][q][ ][S et ID][ ][Data][Cr]

Data 00-64: Min -50 (Left) to Max 50 (Right)

Acknowledgement

[q][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

]

60. V Position (Command: f r)

Adjusts the vertical position of the screen. This feature only works when the Tile Mode is set to Off. * The operational range varies depending on the RGB input resolution. (Works only in RGB-PC input mode.)

Transmission

[f][r][ ][S et ID][ ][Data][Cr]

Data 00-64: Min -50 (Down) to Max 50 (Up)

Acknowledgement

[r][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

61. H Size (Command: f s)

Adjusts the horizontal size of the screen. This feature only works when the Tile Mode is set to Off. * The operational range varies depending on the RGB input resolution. (Works only in RGB-PC input mode.)

Transmission

[f][s][ ][S et ID][ ][Data][Cr]

Data 00-64: Min -50 (Small) to Max 50 (Large)

Acknowledgement

[s][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

63. Wake On LAN (Command: f w)

Selects the desired Wake On LAN option.

Transmission [f][w][ ][S et ID][ ][Data][Cr]

Data 00: Off 01: On

Acknowledgement [w][ ][Set ID][ ][OK/NG][Data][x]

64. Intelligent Auto (Command: t i)

Selects the desired Intelligent Auto option.

Transmission [t][i][ ][Set ID][ ][Data][Cr]

Data 00: Off 01: On

Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

ENGLISH

62. Power On Status (Command: t r)

Selects the desired Power On status option.

Transmission

[t][r][ ][Set ID][ ][Data][Cr]

Data 00: LST (Stays in the previous status) 01: STD (Stays powered off) 02: PWR (Stays powered on)

Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]

65. OSD Portrait Mode (Command: t h)

Selects the desired Portrait mode option.

Transmission [t][h][ ][Set ID][ ][Data] [Cr]

Data 00: Off 01: 90 degrees 02: 270 degrees

03: 180 degrees

Acknowledgement [h][ ][Set ID][ ][OK/NG][Data] [x]

* It may not be supported depending on the model.

66. Reset to Initial Settings (Command: t n)

ENGLISH

Enables/disables the Reset to Initial settings.

Transmission [t][n][ ][Set ID][ ][Data] [Cr]

Data 00: Disables the settings.

01: Enables the settings.

Acknowledgement [n][ ][Set ID][ ][OK/NG][Data] [x]

* It may not be supported depending on the model.

67. Time Sync (Command: s n, 16)

Configures the Time Sync.

Transmission [s][n][ ][Set ID][ ][1][6][ ][Data][Cr]

Data 00: Off

01: On

* This feature works in the Master mode. ** This feature does not work if the current time is not set.

Acknowledgement [n][ ][Set ID][ ][OK/NG][ ][1][6][ ][Data][x]

* It may not be supported depending on the model.

68. Contents Sync (Command: t g)

Configures the Contents Sync.

Transmission [t][g][ ][Set ID][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgement

[g][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

69. Pivot Mode (Command: t a)

Sets Pivot Mode to on/off.

Transmission

[t][a][ ][Set ID][ ][Data][Cr

Data 00: Off

01: On

Acknowledgement

[a][ ][Set ID][ ][OK/NG][Data][x]

* This feature may not be supported in certain models.

70. Studio Mode (Command: s n, 83)

Sets Studio Mode to on/off.

Transmission

[s][n][ ][Set ID][ ][8][3][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgemen [n][ ][Set ID][ ][OK/NG][8][3][Data][x]

* This feature may not be supported in certain models.

71. LAN Daisy Chain (Command: s n, 84)

Sets LAN Daisy Chain to on/off.

Transmission

[s][n][ ][Set ID][ ][8][4][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgement

[n][ ][Set ID][ ][OK/NG][8][4][Data][x]

* This feature may not be supported in certain models.

72. Content Rotation (Command: s n, 85)

Sets Content Rotation to on/off.

Transmission

[s][n][ ][Set ID][ ][8][5][ ][Data][Cr]

Data 00: Off

01: 90 degrees

02: 270 degrees

03: 180 degrees

Acknowledgement

[n][ ][Set ID][ ][OK/NG][8][5][Data][x]

* This feature may not be supported in certain models.

]

73. DPM Wake up Control (Command: s n, 0b)

Sets the DPM Wake up Control Mode.

Transmission

[s][n][ ][Set ID][ ][0][b][ ][Data][Cr]

Data 00: Clock

01: Clock+DATA

Acknowledgement

[n][ ][Set ID][ ][OK/NG][0][b][Data][x]

* This feature may not be supported in certain models.

74. Scan Inversion (Command: s n, 87)

Sets Scan Inversion to on/off.

Transmission

[s][n][ ][Set ID][ ][8][7][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgement

[n][ ][Set ID][ ][OK/NG][8][7][Data][x]

* This feature may not be supported in certain models.

75. Beacon (Command: s n, 88)

Sets Beacon to on/off.

Transmission

[s][n][ ][Set ID][ ][8][8][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgement

[n][ ][Set ID][ ][OK/NG][8][8][Data][x]

* This feature may not be supported in certain models.

77. Easy Brightness Control Mode (Command: s m)

Selects whether to turn on/off Easy Brightness Control Mode.

Transmission [s][m][ ][Set ID][ ][Data][Cr]

Data 00: Easy Brightness Control off

01: Easy Brightness Control on

* This feature does not work if the current time is not set.

** This may not be supported on some models.

Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]

ENGLISH

76. Aspect Ratio (Rotation) (Command: s n, 89)

Controls the Aspect Ratio (Rotation) screen.

(This command works only when Content Rotation is on.)

Transmission

[s][n][ ][Set ID][ ][8][9][ ][Data][Cr]

Data 00: Full

01: Original

Acknowledgement

[n][ ][Set ID][ ][OK/NG][8][9][Data][x]

* This feature may not be supported in certain models.

78. Easy Brightness Control Schedule (Command: s s)

ENGLISH

Sets Easy Brightness Control schedules.

Transmission [s][s][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]

Data1

1. F1–F6 (reads data)

F1: Reads the 1st data from the Easy Brightness Control

F2: Reads the 2nd data from the Easy Brightness Control

F3: Reads the 3nd data from the Easy Brightness Control

F4: Reads the 4th data from the Easy Brightness Control

F5: Reads the 5th data from the Easy Brightness Control

F6: Reads the 6th data from the Easy Brightness Control

2. FF: Reads all stored lists

3. e1-e6 (deletes one index); e0 (deletes all indexes)

E0: Deletes all Easy Brightness Control.

E1: Deletes the 1st Easy Brightness Control.

E2: Deletes the 2nd Easy Brightness Control.

E3: Deletes the 3rd Easy Brightness Control.

E4: Deletes the 4th Easy Brightness Control.

E5: Deletes the 5th Easy Brightness Control.

E6: Deletes the 6th Easy Brightness Control.

4. 00 to 17: 00th to 23th hour

Data2 00 to 3B: 00th to 59th minute

Data3 00 to 64: Backlight, 0 to 100

* If you want to read or delete the configured Easy Brightness

Control lists, set [Data2][Data3] to FF.

* If you want to import all the configured Easy Brightness

Control lists through FF, do not enter any values in [Data2] [Data3].

* When all the configured Easy Brightness Control lists are

imported through FF, OK is acknowledged even if there is no stored list.

Example 1: ss 01 f1 ff ff - Reads the first index data from the

Easy Brightness Control.

Example 2: ss 01 ff - Reads all index data from the Easy

Brightness Control.

Example 3: ss 01 e1 ff ff - Deletes the first index data from the

Easy Brightness Control.

Example 4: ss 01 07 1E 46 - Adds a schedule whose time is

07:30 and whose backlight is 70.

Acknowledgement [s][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

* This feature may not be supported in certain models.

79. MultiScreen Mode & Input (Command: x c)

Saves or controls the MultiScreen Mode and input.

Transmission [x][c][ ][Set ID][ ][Data1][ ][Data2][ ][Data3[ ][Data4] [ ][Data5[ ]Cr]

Data1 (sets the MultiScreen Mode)

10: PIP

22: PBP2

23: PBP3

24: PBP4

Data2 (sets the MultiScreen Main Input)

Data3 (sets the MultiScreen Sub1 Input)

Data4 (sets the MultiScreen Sub2 Input)

Data5 (sets the MultiScreen Sub3 Input)

20: AV

40: COMPONENT

60: RGB

80: DVI-D

90: HDMI1

91: HDMI2/OPS

92: OPS/HDMI3/DVI-D

95: OPS/DVI-D

96: HDMI3/DVI-D

98: OPS

C0: DISPLAYPORT

Acknowledgement [c][ ][Set ID][ ][OK/NG][ ][Data1][Data2][Data3] [Data4] [Data5][x]

* This feature may not be supported in certain models.

** Only the input modes supported by the model works.

*** This feature operates as the last input, and supports data in DTV format.

80. Aspect Ratio (MultiScreen) (Command: x d)

Saves or controls the Aspect Ratio (MultiScreen) screen.

Transmission [x][d][ ][Set ID][ ][Data1][ ][Data2][Cr]

Data1 01: Controls the Main input

02: Controls the Sub1 input

03: Controls the Sub2 input

04: Controls the Sub3 input

Data2 00: Full

01: Original

Acknowledgement [d][ ][Set ID][ ][OK/NG][Data1][Data2][x]

* This feature may not be supported in certain models.

81. Screen Mute (MultiScreen) (Command: x e)

Turns on/off each screen in MultiScreen.

Transmission [x][e][ ][Set ID][ ][Data1][ ][Data2][Cr]

Data1 01: Controls the Main input

02: Controls the Sub1 input

03: Controls the Sub2 input

04: Controls the Sub3 input

Data2 00: Turns the screen on.

01: Turns the screen off.

* This function works when the Multi Screen App is running.

** This function may not work properly if there is no signal.

Acknowledgement [e][ ][Set ID][ ][OK/NG][Data1][Data2][x]

* This feature may not be supported in certain models.

82. Screen Off Always (Command: s n, 0d)

Screen Off Always has the same effect as entering the Screen Off menu regardless of the PM Mode setting.

Transmission [s][n][ ][Set ID][ ][0][d][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgement [n][ ][Set ID][ ][OK/NG][0][d][Data][x]

* This feature may not be supported in certain models.

84. Wireless Wake-on-LAN (Command: s n, 90)

Sets Wireless Wake-on-LAN.

Transmission [s][n][ ][Set ID][ ][9][0][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgement [n][ ][Set ID][ ][OK/NG][9][0][Data][x]

* This feature may not be supported in certain models.

85. JustScan Toggle (Command: s n, 91)

Sets JustScan.

Transmission [s][n][ ][Set ID][ ][9][1][ ][Data][Cr]

Data 00 : Off

01 : On

Acknowledgement [n][ ][Set ID][ ][OK/NG][9][1][Data][x]

* This feature may not be supported in certain models.

ENGLISH

83. Screen Video Freeze (Command: k x)

Turns on/off the video freeze function.

Transmission [k][x][ ][Set ID][ ][Data][Cr]

Data 00: Turns on the freeze function.

01: Turns off the freeze function.

* Available in single input mode.

Acknowledgement [x][ ][Set ID][ ][OK/NG][Data][x]

* This feature may not be supported in certain models.

86. Holiday Schedule Mode (Command: s n, 1a)

Turns Holiday Schedule mode on or off.

Transmission [s][n][ ][Set ID][ ][1][a][ ][Data][Cr]

Data 00: Holiday Schedule off

01: Holiday Schedule on

* This feature does not work if the current time is not set.

** Depending on the model, this feature may not be supported.

Acknowledgement [n][ ][Set ID][ ][OK/NG][ ][1][a][ ][Data][x]

87. Holiday Schedule (Command: s n, 1b)

ENGLISH

Configures the Holiday Schedule.

Transmission [s][n][ ][Set ID] ][ ][1][a] [ ][Data1][ ][Data2][ ][Data3] [ ][Data4] [Cr]

Data1

1. f1–f7 (Data Reading Functions)

f1: Reads data of 1st Holiday Schedule

f2: Reads data of 2nd Holiday Schedule

f3: Reads data of 3rd Holiday Schedule

f4: Reads data of 4th Holiday Schedule

f5: Reads data of 5th Holiday Schedule

f6: Reads data of 6th Holiday Schedule

f7: Reads data of 7th Holiday Schedule

2. FF: Reads all stored lists

3. e1–e7 (Deletes one index), e0 (Deletes all indexes)

e0: Deletes all Holiday Schedules

e1: Deletes 1st Holiday Schedule

e2: Deletes 2nd Holiday Schedule

e3: Deletes 3rd Holiday Schedule

e4: Deletes 4th Holiday Schedule

e5: Deletes 5th Holiday Schedule

e6: Deletes 6th Holiday Schedule

e7: Deletes 7th Holiday Schedule

4. 01–0c: Month 01 to 12 (Start Month)

Data2 01–1F: Day 01 to 31 (Start Day)

Data3 01–0c: Month 01 to 12 (End Month)

Data4 01–1F: Day 01 to 31 (End Day)

* If you want to read or delete the configured Holiday Schedule lists, set [Data2][Data3][Data4] to FF.

* When reading all configured Holiday Schedule lists, set [Data1][Data2][Data3][Data4] to FF.

ex1: sn 01 1b f1 ff ff ff – Reads the 1st index data in the Holiday Schedule.

ex2: sn 01 1b ff ff ff ff – Reads all index data in the Holiday Schedule.

ex3: sn 01 1b e1 ff ff ff – Deletes the 1st index data in the Holiday Schedule.

ex4: sn 01 1b 01 07 0c 18 – Adds Holiday Schedule from January 7 to December 24.

* Schedules set beforehand are not added.

* This feature does not work if the current time is not set.

** Depending on the model, this feature may not be supported.

Acknowledgement [s][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

88. Dual Screen Off (Command: s n, 92)

Turn Dual Screen On or Off.

Transmission [s][n][ ][Set ID][ ][9][2][ ][Data][Cr]

Data 00 : MainScreen – On / SubScreen – On

01 : MainScreen – Off / SubScreen – On

02 : MainScreen – On / SubScreen – Off

Acknowledgement [n][ ][Set ID][ ][OK/NG][9][2][Data][x]

* This feature may not be supported in certain models.

89. Fan control (Command: d o)

Sets the fan mode.

Transmission [d][o][ ][Set ID][ ][Data][Cr]

Data 00: Auto

01: On

02: Manual

03: Off

** This may not be supported on some models.

Acknowledgement [o][ ][Set ID][ ][OK/NG][Data][x]

90. Fan Failure Check (Command: d w)

Checks for fan failures.

Transmission [d][w][ ][Set ID][ ][Data][Cr]

Data FF: Read status

Acknowledgement [w][ ][Set ID][ ][OK/NG][Data1] [Data2] [x]

Data 1 00: One or more fans are faulty.

01: All fans are normal.

02: The model has no fan.

Data2 00: No fan is faulty (all fans are normal).

01: 1 fan is faulty.

02: 2 fans are faulty.

03: 3 fans are faulty.

04: 4 fans are faulty.

05: 5 fans are faulty.

06: 6 fans are faulty.

07: 7 fans are faulty.

08: 8 fans are faulty.

09: 9 fans are faulty.

0A: 10 fans are faulty.

91. Luminance Value Read (Command: m u)

Reads luminance value.

Transmission [m][u][ ][Set ID][ ][FF][Cr]

Acknowledgement [u][][SetID][][OK/NG][Data1][Data2][Data3] [Data4][Data5][Data6][Data7][x]

Data1 00–64: The Backlight PWM value (0 to 100)

Data2 00–ff: The upper 1-byte of the value measured by

the CA210.

Data3 00–ff: The lower 1-byte of the value measured by

the CA210.

CA210 measurement: 0000 to ffff in hexadecimal and 0 to

65535 in decimal.

Data4 00–ff: The upper 1-byte of the value measured by

BLU 1 sensor.

Data5 00–ff: The lower 1-byte of the value measured by

BLU 1 sensor.

Data6 00–ff: The upper 1-byte of the value measured by

BLU 2 sensor.

Data7 00–ff: The lower 1-byte of the value measured by

BLU 2 sensor.

BLU measurement: 0000 to ffff in hexadecimal and 0 to 65535

in decimal.

* During final assembly, a CA210 measurement is entered through the calibration procedure. The default value, before calibration, is 0.

** This may not be supported on some models.

93. Power Indicator (Command: f o)

Sets the Power Indicator Settings.

Transmission [f][o][ ][Set ID][ ][Data][Cr]

Data 00: Off

01: On

** This may not be supported on some models.

Acknowledgement [o][ ][Set ID][ ][OK/NG][Data][x]

94. OSD Display (Command: k l)

Selects the desired OSD Display option.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 00: No (Off)

01: Yes (On)

Acknowledgement [l][ ][Set ID][ ][OK/NG][Data][x]

* This feature may not be supported for certain models.

ENGLISH

92. BLU Maintenance (Command: m t)

Selects whether to turn on/off BLU Maintenance.

Transmission [m][t][ ][Set ID][ ][Data][Cr]

Data 00: BLU Maintenance Off

01: BLU Maintenance On

** This may not be supported on some models.

Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]

95. Semi-Transparent Brightness (Command: s n, 95)

Controls semi-transparent mode LED brightness.

Transmission

[s][n][ ][Set ID][ ][9][5][ ][Data][Cr]

Data 00 to 64: LED brightness 0 to 100

Acknowledgment [n][ ][Set ID][ ][OK/NG][9][5][Data][x]

* This feature may not be supported for some models.

96. Hybrid Mode (Command: s n, 96)

ENGLISH

Sets display’s transparency mode.

Transmission

[s][n][ ][Set ID][ ][9][6][ ][Data][Cr]

Data 00 : Hybrid (effect: Off)

01 : Hybrid (effect: Full white)

02 : Semi-Transparent

Acknowledgment [n][ ][Set ID][ ][OK/NG][9][6][Data][x]

* This feature may not be supported for some models.

97. Return Interval (Command: s n, 97)

Controls length of time transparent mode is maintained.

Transmission [s][n][ ][Set ID][ ][9][7][ ][Data][Cr]

Data 00 to 0a: Time maintained 0 to 10

Acknowledgment

[n][ ][Set ID][ ][OK/NG][9][7][Data][x]

* This feature may not be supported for some models.

99. HDMI IT Contents (Command: s n, 99)

Uses HDMI data to automatically set Picture Mode.

Transmission [s][n][ ][Set ID][ ][9][9][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgment [n][ ][Set ID][ ][OK/NG][9][9][Data][x]

* This feature may not be supported for some models.

100. UPnP Mode (Command: s n, 9c)

Sets the desired UPnP mode.

Transmission

[s][n][ ][Set ID][ ][9][c][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgment

[n][ ][Set ID][ ][OK/NG][9][c][Data][x]

*This feature may not be supported on some models.

*If the UPnP Mode is changed, a reboot will occur.

98. Proximity Sensitivity (Command: s n, 98)

Sets proximity sensor sensitivity.

Transmission

[s][n][ ][Set ID][ ][9][8][ ][Data][Cr]

Data 00 : High

01 : Mid

02: Low

Acknowledgment

[n][ ][Set ID][ ][OK/NG][9][8][Data][x]

* This feature may not be supported for some models.

101. Model Name check (Command: f v)

Checks the Model Name.

Transmission

[f][v][ ][S et ID][ ][Data][Cr]

Data FF: Check product serial number

Acknowledgment

[v][ ][Set ID][ ][OK/NG][Data][x]

*Data is in hexadecimal ASCII code.

102. No Signal Image (Command: s n, a9)

Turns No Signal Image On or Off.

Transmission

[s][n][ ][Set ID][ ][a][9][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgment

[n][ ][Set ID][ ][OK/NG][a][9][Data][x]

*This feature may not be supported on some models.

ENGLISH

INSTALLATION MANUAL

LG Digital Signage

(MONITOR SIGNAGE)

Please read this manual carefully before operating the your set and retain it for future reference.

webOS 3.0

www.lg.com

CONTENTS

ENGLISH

ACCESSING INSTALLATION MENU

........................................................4

INSTALLATION MENU ..................5

- Signage Setup.....................................................................5

Power On Status Wake On LAN LAN Daisy Chain Power Off Management Rotation Beacon Baudrate (9600/115200) Power On Delay (0 ~ 250) Check Screen Digital Audio Input Speaker USB Auto Playback Power Indicator Interface Selection OPS Power Control Multi Display Mode Sync Mode Intelligent Auto Studio Mode White Balance HDMI IT Contents Application

Crestron Enterprise Settings No Signal Image Factory Reset Semi-Transparent Brightness (0–100) Hybrid Mode Return Interval (0–10) Proximity Sensitivity Status Message SIMPLINK Setup Local Dimming Holiday Schedule Easy Brightness Control Web Browser Guide to Using Content Rotation

- USB Cloning ...................................................................... 20

Send to USB Receive from USB Logo Image Download

ENGLISH

- Password Change ..........................................................20

- Fail Over ..............................................................................21

Off Auto Manual

- ISM Method ...................................................................... 22

Mode Repeat Wait Duration Repeat Day Start Time End Time Action Cycle Bar Image Bar Color Transparency Direction Bar Image Download User Image Download User Video Download * How to reset or delete downloaded bar

images/user images/user videos

- Server ...................................................................................26

Set Automatically Server IP Type Server IP Server Status Port Number Secured Connection Control Server IP Type Control Server IP Control Server Port Control Server Status

- Lock Mode ......................................................................... 27

USB OSD Wi-Fi Reset to Initial Settings IR Operation Local Key Operation

ACCESSING INSTALLATION MENU

ENGLISH

1 Press and hold the SETTINGS button for 5 seconds.

2 When Input ID (The top right corner ) is displayed, enter your password.

(The default value is 0, 0, 0, 0 )

3 When the Installation Menu is displayed, select the desired option.

- Signage Setup

- USB Cloning

- Password Change

- Fail Over

- ISM Method

- Server

- Lock Mode

NOTE

• Images in the manual may look different from the actual product.

INSTALLATION MENU

NOTE

• Some features described in the Installation manual may not be supported in certain models.

Signage Setup

Use this menu to configure the digital signage after installation.

Power On Status

• You can select the operating status of the monitor when the main power is switched on.

• You can select from among PWR, STD, and LST.

• PWR sets the status of the monitor to on whenever the main power is switched on.

• STD sets the status of the monitor to standby when the main power is switched on.

• LST sets the status of the monitor back to its previous status.

Wake On LAN

• You can set whether to use the Wake On LAN feature.

• You can set the feature to On or Off for each wired/wireless network.

• Wired: When set to On, the Wake On LAN feature is enabled, letting you turn the product on remotely through the

wired network.

• Wireless: When set to On, the Wake On LAN feature is enabled, letting you turn the product on remotely through the

wireless network.

LAN Daisy Chain

• LAN Daisy Chain forms a daisy chain of LAN ports so that even if you connect only one monitor set to a network, the

other sets in the daisy are connected to the network.

• The first set in the daisy chain must be connected to a network through a port that is not being used for the daisy

chain.

ENGLISH

Power Off Management

ENGLISH

• No Signal Power Off (15 Min)

- You can choose whether to use the 15 min force off feature.

- You can set this option to On or Off.

- If you set this option to On, the product turns off when it has remained in no signal status for 15 minutes.

- If you set this option to Off, the 15 min force off feature is disabled.

- Set this option to Off when you use the product for a long period of time.

• Auto Power Off

- You can choose whether to use the 4 hours off feature.

- You can set this option to 4 Hours or Off.

- If you set this option to 4 Hours, the product turns off when you have not pressed any buttons on the remote control for 4 hours.

- If you set this option to Off, the 4 hours off feature becomes disabled.

- Set this option to Off when you use the product for a long period of time.

• DPM

- You can configure the DPM (Display Power Management) function.

- Off: you can set this option to Off, 5 sec./10 sec./15 sec./1 min./3 min./5 min./10 min. (The settings may vary depending on the model.)

- If this option is not set to Off, the monitor set enters the DPM mode when there is no input signal.

- If you set this option to Off, the DPM function is disabled.

- In the cases below, 5 sec. and 10 sec. options will be disabled for DPM. If DPM is already set to 5 sec. or 10 sec., it will be changed to 15 sec.

1. When USB Auto Playback is set to Photo or Movie (OLED models support the Movie option only.)

2. When Fail Over is set to Auto or Manual

- If you set this option to 10 sec. or less, the monitor set enters the DPM mode before automatic play of SuperSign contents.

• DPM Wake up Control

- Turns on the monitor set according to the digital signal processing of the connected DVI-D/HDMI port.

- Setting this option to Clock only checks for the signals from the digital clock. If there is a clock signal, the monitor set is turned on.

- Setting this option to Clock+DATA turns on the monitor set only when there are both digital clock signal and data signal inputs.

• PM Mode

- Power Off: Normal DC off status.

- Sustain Aspect Ratio: Normal DC off status except that Switching IC stays on. On certain models, this applies only to a specific input mode (DisplayPort) and has the same effect as Screen Off Always in other input modes.

- Screen Off: Automatically changes to Screen Off status when entering the DPM mode, Auto Off (15 mins, 4 hours), or Abnormal Shut Down.

- Screen Off Always: Automatically changes to Screen Off status when entering the DPM mode, Auto Off (15 mins, 4 hours), Off Timer, Abnormal Shut Down, or when there is input from the remote control's Power button or the monitor's Off button.

- To change the screen from Off to On status, there must be input from the remote control's Power or Input button, or the monitor's On button.

- Screen Off & Backlight (Outdoor Mode): This feature allows the enclosure to function normally in temperatures below zero.

NOTE

• Set to Screen Off & Backlight (Outdoor Mode) when installing outdoors.

• When the Outdoor mode is set, you can reduce the cause for internal humidity and condensation in the product.

• When operating in low temperatures, the enclosure may not work for up to one hour to raise the internal

temperature of the enclosure.

• For compatibility of some media input devices, set the Sustain Aspect Ratio.

ENGLISH

Rotation

ENGLISH

• OSD Portrait Mode

- This feature allows you to rotate the OSD clockwise.

- You can set this feature to Off/90/180/270. (Some models only support certain settings.)

- If you set this feature to Off, the feature is disabled.

- If you set this feature to 90, the OSD rotates 90 degrees clockwise. In this case, the mouse cannot be used.

- If you set this feature to 180, the OSD rotates 180 degrees clockwise. In this case, the mouse cannot be used.

- If you set this feature to 270, the OSD rotates 270 degrees clockwise. In this case, the mouse cannot be used.

- Depending on the model, you can set this feature to Off/On. If you set this feature to On, the OSD rotates 90 degrees clockwise.

- Web Browser is deactivated while using OSD Portrait.

• Aspect Ratio (Rotation)

- Selects an aspect ratio option that will be applied to Content Rotation. (Original/Full)

• Content Rotation

- Rotates the image clockwise by 90 degrees, 180 degrees, or 270 degrees.

- When it is set to off, the operation will be disabled.

- It is recommended that you use content designed to be used in Portrait mode.

- As for ARC, setting Content Rotation to On (90 or 270) adjusts the size of a video to the full screen size.

- With WiDi, it is recommended that you set Aspect Ratio to Original if you intend to use Content Rotation. If you set Aspect Ratio to Full, the displayed position of the mouse pointer may not be accurate.

- Image quality degradation is not a product issue when setting Content Rotation using external input.

- Setting Content Rotation to On disables the Multi-screen PIP mode.

- If Content Rotation is set to On (90 or 270 degrees), some widgets and SWF files may not appear properly.

- If External Input Rotation is enabled on models that support touch, touch may not work properly.

Beacon

• Enables BLE Beacon, one of Bluetooth 4.0's features.

• Beacon Mode (on/off toggle): Enables the Beacon feature.

• Supports LG Beacon/iBeacon/Eddystone Type Beacon features.

• LG Beacon/iBeacon

- Beacon UUID (hex): Sets the UUID.

1. Field1: 4byte hex value (8 digits)

2. Field2: 2byte hex value (4 digits)

3. Field3: 2byte hex value (4 digits)

4. Field4: 2byte hex value (4 digits)

5. Field5: 6byte hex value (12 digits)

- Major (0–65535): Sets the Major value.

- Minor (0–65535): Sets the Minor value.

• Eddystone

- Frame: Sets UUID or URL.

1. Beacon UUID (hex): Sets the UUID. (1) Field1: 10byte hex value (20 digits) (2) Field2: 6byte hex value (12 digits)

2. Setting the URL

- URL Prefix: Sets the prefix of the URL.

- URL Suffix: Sets the suffix of the URL.

- URL: Enter the part of the URL that excludes the prefix and suffix.

- URL string length is limited to 17 characters.

• OK: Confirm button that applies the settings that you have entered.

• Some models do not support background scanning services in iOS.

• A reboot is recommended for the settings to be applied properly.

• The UUID value is hexadecimal and the exact number of digits must be entered.

ENGLISH

Baudrate (9600/115200)

• You can change the RS-232C communication speed for controlling your monitor.

• You can choose 9600 or 115200.

• If you set this option to 9600, the RS-232C communication speed is set at 9600 bps.

• If you set this option to 115200, the RS-232C communication speed is set at 115200 bps.

Power On Delay (0 ~ 250)

• This feature delays power on in order to prevent overload when multiple monitor sets are turned on simultaneously.

• You can set the delay interval in the range of 0 to 250 seconds.

Check Screen

ENGLISH

• The Check Screen feature judges whether there are abnormalities at the edges of the screen. R, G, and B OSDs are

formed on the screen at one second intervals and an Pixel Sensor tests the areas.

• If set to On, the Check Screen feature is enabled.

• If set to Off, the Check Screen feature is disabled.

• When OSD Portrait Mode is applied, Check Screen is turned off and deactivated.

• For enclosure models, the feature is activated regardless of the OSD Portrait setting.

Digital Audio Input

• HDMI/DISPLAYPORT/OPS: You can hear the sounds of the digital signals carried by HDMI, DISPLAYPORT, or OPS

through the monitor speakers.

• Audio In: you can hear sounds through the monitor speaker by connecting HDMI, or OPS or DISPLAYPORT ports to

the Audio In port.

• If Digital is selected in DVI-D when using OPS/HDMI3/DVI-D or OPS/DVI-D input, there will be no sound.

Speaker

• If you set this option to On, you can hear sounds through the monitor speaker. (* The monitor speaker is sold

separately.)

• If you set this option to Off, you cannot hear sounds through the monitor speaker.

USB Auto Playback

• This is a feature that auto-playbacks photos and videos when a USB device is connected. You can view photos and

videos without manually selecting the View Photos/Movies menu. However, this feature is unavailable while the SuperSign contents are played.

• If you select Movie for USB Auto Playback, then the video files in the top level folder on the USB device will

automatically play in sequence. When switched on, Signage automatically searches and plays video files from a USB.

• If you select Photo for USB Auto Playback, then the image files in the top level folder on the USB device will

automatically play in sequence. When switched on, Signage automatically searches and plays photos from a USB. (This feature is not supported in OLED models.)

Power Indicator

• Changes Power Indicator settings.

• If set to On, the Power Indicator is turned on.

• If set to Off, the Power Indicator is turned off.

• While the product is turned on, the Power Indicator is lit for about 15 seconds regardless of whether it is set to On

or Off.

Interface Selection

• You can set communication with the connected OPS.

• DISPLAY: Enables communication with external devices via the serial port.

• OPS: Enables communication via the OPS connected to the product.

• Interface Selection is enabled only when the OPS kit is connected.

OPS Power Control

• You can control the power of the OPS.

• Disable: Disables the OPS Power Control.

• Sync (on): Synchronizes the power status of the monitor and the OPS only when monitor is on.

• Sync (on/off): Always synchronizes the power status of the monitor and the OPS.

• When you set the OPS Power Control feature to on, you must set the sustain Aspect Ratio of the PM Mode to off.

Multi Display Mode

• The Multi Display Mode function displays a video signal received from DP In either in single mode (SST: Single Stream

Transport) or multi-mode (MST: Multi Stream Transport) through DP Out.

• If it is On, the image of each display is displayed in multi-mode.

• If it is Off, the image of each display is displayed in single mode.

• The multi-mode is available in a PC supporting DisplayPort 1.2.

• Multi-mode can connect up to only four monitors. (at the recommended resolution.)

• When this function is used, your monitor may not work properly depending on the video card. Reboot the PC after

setting the function to Off for stable screen output when not in use.

• In case of using DVI/HDMI Input to DP Daisy Chain, please set 'Multi Display mode function' to off.

ENGLISH

Sync Mode

ENGLISH

• Syncs the products to the time and content of one product.

• Off: Sync is disabled.

• RS-232C: Syncs multiple monitors connected via RS-232C.

- Master/Slave: These monitors can be set to Master or Slave. Only one monitor should be set to Master mode for this feature to work properly.

- Time Sync: When Time Sync is set to On, the current time of the Master monitor is sent to multiple Slave monitors connected via RS-232C to sync the time. The monitors are synced every hour after the initial sync when Time Sync was set to On. (If any change occurs, there is an initial sync, and then the sync continues every hour.)

- Contents Sync: When Contents Sync is set to On, the Contents of the Master monitor are sent to multiple Slave monitors connected via RS-232C to sync the Contents. This feature is only available for the monitors with Contents Sync set to On and operates normally with a single video or image in the Contents.

• Network: Syncs monitors connected to the same network. The monitor that authorized the SYNC NOW button

becomes the Master.

- How many connected screens: Enter the number of Slaves. A number from 1 to 225 can be entered and the default value is 1.

- Select storage device: You can select Internal Memory or USB device.

- Select the file name: Up to 10 files can be selected from the List of files in the selected device. Selecting the files will activate the SYNC NOW button at the top and make the next step available.

- Only MP4 files are supported, and all files must be located in the SyncPlay folder in the root directory of the device.

- Before using Network Sync, set the proxy server settings to Off.

• UPnP: Opens or blocks UDP port 1900, which is used for UPnP.

- The default is On. Setting this to Off blocks UDP port 1900, making the UPnP function unavailable.

- If this is set to Off, the ‘Network’ item of Sync Mode becomes inactive.

- If this is set to Off and Sync Mode was set to ‘Network’, Sync Mode is switched to ‘Off’ and the ‘Network’ item becomes inactive.

- If the UPnP value is changed, the function is not applied without a reboot.

Intelligent Auto

• Adjusts the size, position, and phase of the monitor's screen automatically at the recognized resolution. This feature

is available only in RGB input mode.

Studio Mode

• Outputs the images with a lower color temperature.

• You can set this feature to On or Off.

• Setting this feature to On lowers the color temperature of the images.

White Balance

• Adjusts the R-Gain, G-Gain, B-Gain, and Backlight values.

• Reset: Resets the White Balance value.

• White Pattern: Displays a White Pattern across the entire screen. (80IRE / 100IRE)

HDMI IT Contents

• Sets the HDMI IT Contents function.

• Disable: Does not use the HDMI IT Contents function.

• Enable: Uses the HDMI IT Contents function.

• This function automatically changes the Picture mode based on HDMI Contents information when an HDMI signal is

entered.

• Even if the HDMI IT Contents function has changed the Picture mode, you can change the Picture mode manually.

• As this has a higher priority than the Picture mode set by the user, the existing Picture mode may change when the

HDMI signal is changed.

Application

• Adds/deletes applications in the Launcher bar.

• We recommend that if you are to remove the Screen Share app from the home launcher by unchecking the Screen

Share item, you should reboot your system after removal.

• When Content Rotation or OSD Portrait Mode is set to On, the 'Group Manager' app is removed from the launcher

and the 'Group Manager' item is deactivated.

• When the Control Manager is set to On, the Control Manager app will be added to the Launcher bar.

• When the Leveler Tool is set to On, the Leveler Tool app will be added to the Launcher bar.

• If SuperSign Contents is set to On, the “SuperSign Contents” app is added to the Launcher Bar.

• If the SI Server is set to On, the “SI Server” app is added to the Launder Bar.

ENGLISH

Crestron

ENGLISH

• This function enables synchronization with applications provided by Crestron.

• Server: This menu sets the server's IP address for the network connection with the server (equipment provided by

Crestron).

• Port: This menu sets the port for the network connection with the server. The default port number is 41794.

• IP ID: This menu sets a unique ID for synchronizing with the application.

Enterprise Settings

• Enter your company account code to apply the corresponding enterprise settings.

• When your code has been entered, the monitor set gets reset, thereby applying the corresponding enterprise

settings.

• This feature does not get activated if a code has already been entered.

No Signal Image

• It changes the image that is output when there is no signal. If you set this feature to off, the no signal image is not

displayed.

Factory Reset

• You can reset the product to factory settings.

Semi-Transparent Brightness (0–100)

• Controls semi-transparency screen brightness.

Hybrid Mode

• Hybrid (Effect: Off): When the proximity sensor registers objects, the screen will become transparent and the video

will play repeatedly.

• Hybrid (Effect: Full White): When the proximity sensor registers objects, the screen will become transparent and

images will disappear for a short period of time. (The objects behind the transparent display will be more clearly visible.)

• Semi-transparent: Does not use the proximity sensor, and the screen always remains semi-transparent (the objects

behind the display will not be clearly visible and images will be more visible).

Return Interval (0–10)

• The proximity sensor registers objects, and sets the amount of time transparency is maintained (functions when

proximity sensor is being used).

Proximity Sensitivity

• Sets the sensitivity of the proximity sensor.

- High: High sensitivity

- Mid: Medium sensitivity

- Low: Low sensitivity

Status Message

• Sets up a feature that sends the status of Signage to users' email addresses.

• The administrator can set Status Message to On or Off.

• Messaging Period: Sets a time interval to send messages. You can select either When Failure Status or Weekly.

• Select Date: Available if you have set Messaging Period to Weekly. Select your desired day of the week for message

transmission.

• Select Time: Available if you have set Messaging Period to Weekly. Select your desired time for message transmission.

• User E-mail Address: Enter the sender's email address.

• Type: Fixed as POP3.

• Sending Server (SMTP): Enter the POP3 outgoing mail server address and port number.

• ID: Enter the mail server's user ID.

• Password: Enter the mail server's user password.

• Receiver E-Mail Address: Enter the recipient's email address for status messages.

• If the status regarding any of the following items changes or becomes abnormal, a status message can be sent.

- 1. Temperature: If the monitor set reaches a dangerous temperature, its current temperature is recorded, and an email containing such information is sent.

- 2. Validity of the temperature sensor: An email is sent if there is no temperature sensor connected, if the communication status of the temperature sensor is unknown, or if the information provided by the chip provider is abnormal.

- 3. Network Status (Wireless/Wired): An email is sent when the network's connection status is changed. The maximum number of network status changes that can be saved is limited to 50. The saved value is reset once the power turns off.

- 4. RGB Sensor: An email is sent if the execution of Check Screen by the RGB sensor fails.

- 5. No Signal Check: Checks whether there is a signal. If there are no signals for more than 10 seconds, an email is sent.

- 6. Local Contents Schedule: An email is sent if it becomes impossible to play content between the start time and end time of the playback schedule registered in Signage. However, this does not apply when termination was made using the remote control.

- 7. SuperSign Schedule: An email is sent if it becomes impossible to play content between the start time and end time of the playback schedule distributed to SuperSign. However, this does not apply when termination was made using the remote control.

- Some of the features above may not be supported on certain models.

• Only SMTP Port 25, 587 is supported; Naver is not supported.

ENGLISH

SIMPLINK Setup

ENGLISH

• When the SIMPLINK Setup is set to On, you can use the SIMPLINK provided by LG Signage.

• Device ID: S ets the ID of the device connected via CEC wiring. You can choose a value between 'All' and 'E'.

• StandBy: Sets the scenarios for sending and receiving the OpStandBy (0x0c) command. Detailed scenarios are as

follows:

Send Receive

Send Only O X

Receive Only X O

All O O

Local Dimming

• Sets whether to use the Local Dimming feature.

• You can set this option to On or Off.

• If set to On, Local Dimming is enabled.

• If set to Off, Local Dimming is disabled.

• If Local Dimming is set to Off on a model that supports the Local Dimming feature, the screen's brightness and

darkness may not display properly.

Holiday Schedule

• Sets the holidays when the product will not be used.

• Holidays are specified according to your schedule(s).

• You can set this option to On/Off.

• Holiday Schedule is disabled if the current time is not set.

• You can add up to 7 schedules.

• Duplicate schedules cannot be added.

• The On Timer does not work during the period set in Holiday Schedule.

Easy Brightness Control

• Adjusts the backlight according to the schedule you set.

• You can set this option to On/Off.

• Easy Brightness Control is disabled if the current time is not set.

• You can add up to 6 schedules, and they are sorted in ascending order by time.

• You can edit a schedule by selecting it from the list and pressing the OK button.

Web Browser

• Launches the Chromium browser app and supports simple browsing.

• The browser can perform basic tests for HTML-based apps and has the following properties:

- Supports basic web page browsing.

- Does not support additional features that aid the proper display of specific sites (UA Spoofing per site, etc.).

• The browser has the following constraints:

- Supports mouse and remote control 5-key browsing, but does not support touchpad browsing.

- Does not support PIP.

- Does not guarantee the reliability of HTML content outside of the SI app (YouTube, etc.) as it is to be used for test purposes.

ENGLISH

Guide to Using Content Rotation

ENGLISH

[Portrait installation setting]

You can turn the image into a portrait image using Content Rotation. When installing the display rotated 90 degrees: Set Content Rotation to 270. When installing the display rotated 270 degrees: Set Content Rotation to 90. Example) When installing the display rotated 90 degrees

Original

Content Rotation

(270 degrees)

Rotating displays

(90 degrees)

[Video wall installation setting]

You can implement a landscape and portrait video wall using Content Rotation. Example) Tile mode 2 x 2

* Landscape video wall * Portrait video wall

- Set Content Rotation to 90

Original

Tile Mode

Rotating displays

(90 degrees)

Content Rotation

(270 degrees)

ENGLISH

Tile Mode

USB Cloning

ENGLISH

You can copy the product settings to other sets.

Send to USB

• You can save the current settings in file format to a USB device.

• Select the file name and press the OK button to complete

• Items not saved: Current Time, Power On Delay, Set ID, items under Network, White Balance, Tile ID, current input

signal (Input), Signage setup menu - master/slave mode, time sync, all menus in the ISM method menu (except for mode, repeat, wait, and duration), Photo & Video and Music app menus such as picture or sound

Receive from USB

• You can import configuration files from a USB device and change the settings for the current set.

• Using a settings file from a different model may not work properly on this product.

• When import is complete, the power reboots after 5 seconds.

Logo Image Download

• You can download and apply the boot images.

• The image you want to apply must be stored in the LG_MONITOR folder at the top level of a USB device.

• When downloading is complete, the set reboots and the boot image will be applied.

CAUTION

• To use the Configuration Cloning function, be sure to use a USB storage device formatted using the FAT32 file

system. If the USB storage device has been formatted with another file system, it may not work correctly.

Password Change

You can change your password in the Installation menu. You can change your password for security purposes. Enter a new 4-digit password. Enter the same password again in

Confirm Password for confirmation.

Fail Over

The input source with the highest priority will be selected.

Off

• The Auto-Fail Over feature is disabled.

Auto

• The input source changes according to the specified order. When several input sources are found, the input source

with the highest priority will be selected.

• Priority

Case 1) 1. HDMI, 2. DVI-D, 3. DISPLAYPORT, 4. OPS, 5. RGB, 6. Internal Memory Case 2) 1. HDMI1, 2. HDMI2, 3. OPS/HDMI3/DVI-D or OPS/DVI-D, 4. DP, 5. Internal Memory

Manual

• The input source changes according to the specified order. When several input sources are found, the input source

with the highest priority will be selected.

• You can set Priority 1 - Priority 6.

NOTE

• If the input switches to internal memory, USB or SD card due to Fail Over, the videos or images saved in the top-level

directory of the internal memory, USB or SD card will be played.

• If there are both video files and image files in the same folder, then only the video files will be played.

• SuperSign content saved in the Normal or fail_over (FAIL_OVER) folder is played automatically due to Fail Over.

• The number of priorities may vary depending on the model.

ENGLISH

ISM Method

ENGLISH

If a still image is displayed on the screen for an extended period of time, image sticking can occur. The ISM method is a feature that prevents image sticking.

Mode

• Selects the desired ISM Method mode.

• Normal: Disables the ISM method.

• White Wash: Displays a white pattern to remove image sticking.

• Color Wash: Alternately displays a white pattern and a color pattern to remove image sticking.

• User Image: Displays your desired images using USB.

• User Video: Plays your desired video.

• Inversion: Inverts screen colors to remove image sticking. (This option is disabled when the current input source is No

Signal.)

• Washing Bar: Displays a bar on the screen to make the image move smoothly. You can download your desired image

and display it on the bar.

• Orbiter: For preventing an afterimage on the screen, when there is one step of movement, it moves by four pixels, and

it operates in up to seven steps. The screen moves in the order of left, right, up, and down, and in this case, a part of the outer parts of the screen may be hidden. (When the input is No Signal, it will be inactivated.)

Repeat

• Off, just 1 time: If you select the desired mode and press DONE, ISM operates immediately.

• On: If the screen remains still for a specified wait time, ISM operates for the specified duration time.

• On, with moving detection: Only applies to Orbiter mode. If the screen remains still for the specified Wait time, ISM

operates for the specified Duration time.

• On, without moving detection: Only applies to Orbiter mode. ISM immediately starts operating and continues to

operate as soon as the DONE button is clicked.

• Scheduling: Performs the ISM function according to settings in date, start time and end time.

Wait

• You can set the time between 1–24 hours.

• This option is available only when you have set Repeat to On.

• The ISM feature starts when the image freezes for a specified period of time.

Duration

• You can select from among 1–10 mins/20 mins/30 mins/60 mins/90 mins/120 mins/180 mins/240 mins.

• This option is available only when you have set Repeat to On.

• ISM operates for the specified time.

Repeat Day

• You can set the date.

• This option is available only when Repeat is set to Scheduling.

Start Time

• Set the Start time.

• This option is available only when Repeat is set to Scheduling.

• You cannot set the same time for Start time and End time.

ENGLISH

End Time

• Set the End time.

• This option is available only when Repeat is set to Scheduling.

• You cannot set the same time for Start time and End time.

Action Cycle

ENGLISH

• You can select from among 1–10 mins/20 mins/30 mins/60 mins/90 mins/120 mins/180 mins/240 mins.

• This option is available only when you have selected Inversion or Orbiter.

• Orbiter: Moves the position of the screen at specified intervals.

• Inversion: Inverts the screen color at specified intervals.

Bar Image

• Off: Displays a bar with a fixed resolution of 300 x 1080, then moves the bar.

• On: Displays and moves an image downloaded by the user. The image is displayed with a fixed height of 1080 and the

same width as downloaded. However, if the width of the image is below 300, it will have a fixed value of 300.

• This option is available only when you have selected Washing Bar.

• If you have downloaded only one image, the bar is moved and the image is displayed alone.

• If you have downloaded multiple images, up to four images are displayed in sequence per cycle.

Bar Color

• You can choose from six colors: red, green, blue, white, black, and gray.

• This feature is only applicable when Bar Image is set to Off.

• This option is available only when you have selected Washing Bar.

Transparency

• Off: Displays the bar opaquely.

• On: Displays the bar translucently. (Transparency: 50 %)

• This option is available only when you have selected Washing Bar.

Direction

• Left To Right: The bar is moved from left to right.

• Right To Left: The bar is moved from right to left.

• This option is available only when you have selected Washing Bar.

Bar Image Download

• To download an image, the image file must be located under the folder titled "ISM" on your USB drive.

• Make sure to delete the old images stored in the internal memory before downloading a new image file.

• Supported image file types: "BMP", "JPG", "JPEG", "PNG"

• You can download up to four images. (Resolution: 1920 x 1080 or lower)

• If there are no images, or if the existing images have been deleted, the default image is used. (The default image is an

image of a white bar.)

• This option is available only when Bar Image is On.

User Image Download

• To download an image, the image file must be located under the folder titled "ISM" on your USB drive.

• Make sure to delete the old images stored in the internal memory before downloading a new image file.

• Supported image file types: "BMP", "JPG", "JPEG", "PNG"

• You can download up to four images. (Resolution: 1920 x 1080 or lower)

• If there are no images, or if the existing images have been deleted, the default image is used. (The default image is a

white background image.)

• This option is available only when you have selected User Image.

User Video Download

• To download a video, the video file must be located under the folder titled "ISM" on your USB drive.

• Make sure to delete the old contents stored in the internal memory before downloading a new video file.

• Supported video file types: "MP4", "AVI", "FLV", "MKV", "MPEG", "TS"

• You can download up to one video.

• If there are no videos, or if the existing videos have been deleted, the default video is used. (The default video is a

white background image.)

• This option is available only when you have selected User Video.

• Audio is not supported.

ENGLISH

* How to reset or delete downloaded bar images/user images/user videos

• To reset, go to Installation > Signage Setup > Factory Reset.

• To delete, go to Internal Memory under My Media's Devices item and delete the desired downloaded content.

Server

ENGLISH

Set Automatically

• The monitor settings will be set automatically so that the SuperSign server can search it.

Server IP Type

• Select the IPv4 or the IPv6 type.

Server IP

• This is a menu where you can set an IP address for the SuperSign server.

Server Status

• Server Status displays the status of the connection between your monitor and the SuperSign server.

• Not Connected - indicates that your monitor is not connected to the SuperSign server.

• Waiting for Approval - indicates that your monitor is connected to the SuperSign server but not yet approved.

• Rejected - indicates that your monitor is connected to the SuperSign server but has been rejected.

• Connected - indicates that your monitor is connected to the SuperSign server and has been approved.

Port Number

• Sets the SuperSign server's port. (Supported on SuperSign Premium 1.0 or later)

Secured Connection

• You can choose whether to use security protocols when connecting to the SuperSign server. (Supported on

SuperSign Premium 1.0 or later)

Control Server IP Type

• Select the IPv4 or the IPv6 type.

Control Server IP

• This menu is to set the IP of the SuperSign Control Server.

Control Server Port

• This menu is to set the port of the SuperSign Control Server.

Control Server Status

• This displays the status of connection with the SuperSign Control Server.

• Not Connected: When not connected to the SuperSign Control Server

• Waiting for Approval: When connected to the SuperSign Control Server but not approved

• Connected: When connected to the SuperSign Control Server and approved

Lock Mode

USB

• You can prevent the use of USB devices.

OSD

• You can prevent OSD from displaying.

Wi-Fi

• This feature enables you to turn the Wi-Fi feature on or off.

Reset to Initial Settings

• You can restore the initial settings with this feature.

IR Operation

• If you set IR Operation to Normal, you can use the remote control.

• If you set IR Operation to Power Key Only, you can only use the Power Key.

• If you set IR Operation to Block All, you cannot use the remote control. (Power On feature is available.)

Local Key Operation

• If you set Local Key Operation to Normal, you can use the Local Key.

• If 'Local Key Operation' is set to Power Key Only, only the Power Key can be used. (The joystick will function as the

Power Key if you press and hold the Local Key.)

• If you set Local Key Operation to Block All, you cannot use the Local Key. (Power On feature is available.)

ENGLISH

LG 75XF3ES-B User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

USER GUIDE

INSTALLATION MANUAL
