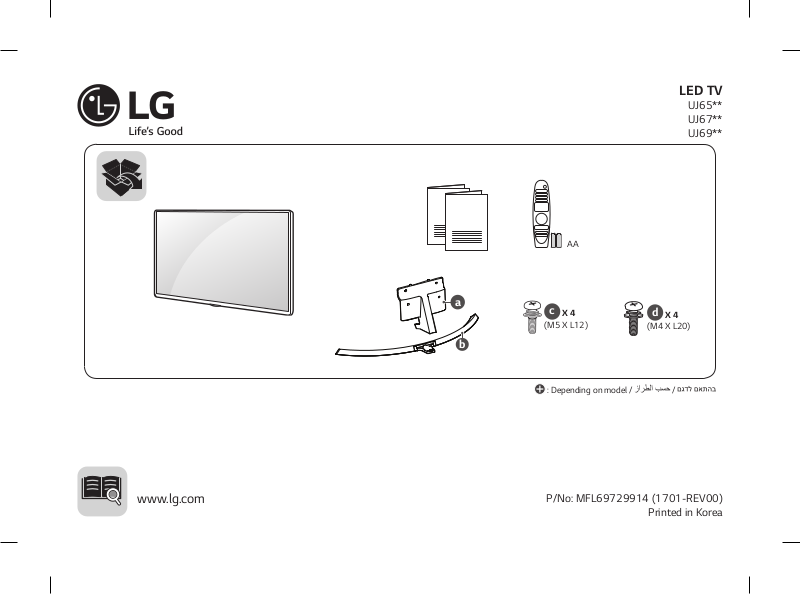

LG 70UJ675Y User guide

AA

LED TV

UJ65** UJ67** UJ69**

www.lg.com

a

c

X 4

(M5 X L12)

d

X 4

(M4 X L20)

b

: Depending on model / /

P/No: MFL69729914 (1701-REV00)

Printed in Korea

1

2

b

a

3

4

c

ba

+

65

d

7

8

HDMI IN

LAN

USB IN

ANTENNA/

CABLE IN

HDMI IN/ARC

LAN

Satellite IN

OPTICAL DIGITAL

AUDIO OUT

PCMCIA CARD SLOT

AUDIO OUT/

H/P OUT

VIDEO/Y P

B

PRL/MONO AUDIO R

COMPONENT IN AV IN

VIDEO L/MONO AUDIO R

VIDEO AUDIO

VIDEO/Y P

B

PRL/MONO AUDIO R

1

2

3

4

1

2

0

A

E

D

B

G

F

A

70UJ657T-TA 70UJ675V-TA 70UJ675Y-TA

75UJ657T-TA 75UJ675V-TA 75UJ675Y-TA 75UJ699T-TA

Power requirement /

1573 973 367.5 910 69.0 35.5 32.5

1697 1038 367.5 981 65.3 44.3 41.3

B

/

C

D

E

C

F

G

*MFL69729914*

OWNER’S MANUAL

Safety and Reference

LED TV* * LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

*MFL69726305*

www.lg.com

P/NO : MFL69726305 (1702-REV00)

Printed in Korea

Warning! Safety instructions

ENGLISH

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of

uninsulated “dangerous voltage” within the product’s enclosure that may be of sucient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING : TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

• Do not place the TV and/or remote control in the following environments:

- A location exposed to direct sunlight

- An area with high humidity such as a bathroom

- Near any heat source such as stoves and other devices that

produce heat

- Near kitchen counters or humidiers where they can easily be

exposed to steam or oil

- An area exposed to rain or wind

- Near containers of water such as vases

Otherwise, this may result in re, electric shock, malfunction or product deformation.

• Do not place the product where it might be exposed to dust. This may cause a re hazard.

• Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

• Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust o. You may be electrocuted due to excess moisture.

• Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

• Insert power cable plug completely into wall socket otherwise if not secured completely into socket, re ignition may break out.

• Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a re or an electric shock hazard.

• Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in re or electric shock.

• Bend antenna cable between inside and outside building to prevent rain from owing in. This may cause water damaged inside the Product and could give an electric shock.

• When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock /re hazard.

• Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in re due to overheating.

• Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

• Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suocation. Keep it out of the reach of children.

• Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

• Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries.

• Do not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver) into the end of power cable while the power plug is plugged into wall socket. Additionally, do not touch the power plug right after unplugging from the wall socket. You may be electrocuted.

• Do not put or store inammable substances near the product. There is a danger of combustion/explosion or re due to careless handling of the inammable substances.

• Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inammable objects such as paper and matches. Children must pay particular attention. Electrical shock, re or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

2

• Do not spray water on the product or scrub with an inammable substance (thinner or benzene). Fire or electric shock accident can occur.

• Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.

• Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.

• Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a re or a burn by a spark.

• Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.

• If any of the following occur, unplug the product immediately and contact your local service centre.

- The product has been damaged

- Foreign objects have entered the product

- The product produced smoke or a strange smell

This may result in re or electric shock.

• Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause re hazard and insulation deterioration can cause electric leakage/ shock/re.

• Apparatus shall not be exposed to dripping or splashing and no objects lled with liquids, such as vases, shall be placed on the apparatus.

• Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.

• If water enters or comes into contact with TV, AC adapter or power cord please disconnect the power cord and contact service centre immediately. Otherwise, this may result in electric shock or re.

• Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in re, electric shock, malfunction or product deformation.

• Never Disassemble the AC adapter or power cord. This may result in re or electric shock.

• Be careful in handling the adapter to prevent any external shocks to it. An external shock may cause damage to the adapter.

• Make sure the power cord is connected securely to the power plug on the TV.

• Install the product where no radio wave occurs.

• There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

• Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or ip over, which may cause injury or damage to the product.

• If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

• If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), x it carefully so as not to drop.

• Only use the attachments / accessories specied by the manufacturer.

• When installing the antenna, consult with a qualied service technician. If not installed by a qualied technician, this may create a re hazard or an electric shock hazard.

• We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

• Only use the specied type of battery. This could cause damage to the remote control.

• Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

• Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight, open replace and electric heaters.

• Signal from Remote Control can be interrupted due to external/ internal lighting eg Sunlight, uorescent lighting. If this occurs turn o lighting or darken viewing area.

• When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

• Do not turn the product On/O by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

• Please follow the installation instructions below to prevent the product from overheating.

- The distance between the product and the wall should be more

than 10cm.

- Do not install the product in a place with no ventilation (e.g., on

a bookshelf or in a cupboard).

- Do not install the product on a carpet or cushion.

- Make sure the air vent is not blocked by a tablecloth or curtain.

This may result in re.

ENGLISH

3

• Take care not to touch the ventilation openings when watching the

<

TV for long periods as the ventilation openings may become hot. This does not aect the operation or performance of the product.

• Periodically examine the cord of your appliance, and if its

ENGLISH

appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

• Prevent dust collecting on the power plug pins or outlet. This may cause a re hazard.

• Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

• Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may causedamage to screen.

• Avoid touching the screen or holding your nger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.

• As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn o this unit by SWITCH.

• When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don’t pull at the cord to unplug the power cord from the power board, as this could be hazardous.

• When moving the product, make sure you turn the power o rst. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a re hazard or cause electric shock.

• When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.

• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Do not use high voltage electrical goods near the TV (e.g. electric mosquito-swatter). This may result in product malfunction.

• When cleaning the product and its components, unplug the power rst and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in re, electric shock or product damage (Deformation, corrosion or breakage).

Preparing

• If the TV is turned on for the rst time after it was shipped from the factory, initialization of the TV may take a few minutes.

• Image shown may dier from your TV.

• Your TV’s OSD (On Screen Display) may dier slightly from that shown in this manual.

• The available menus and options may dier from the input source or product model that you are using.

• New features may be added to this TV in the future.

• The items supplied with your product may vary depending on the model.

• Product specications or contents of this manual may be changed without prior notice due to upgrade of product functions.

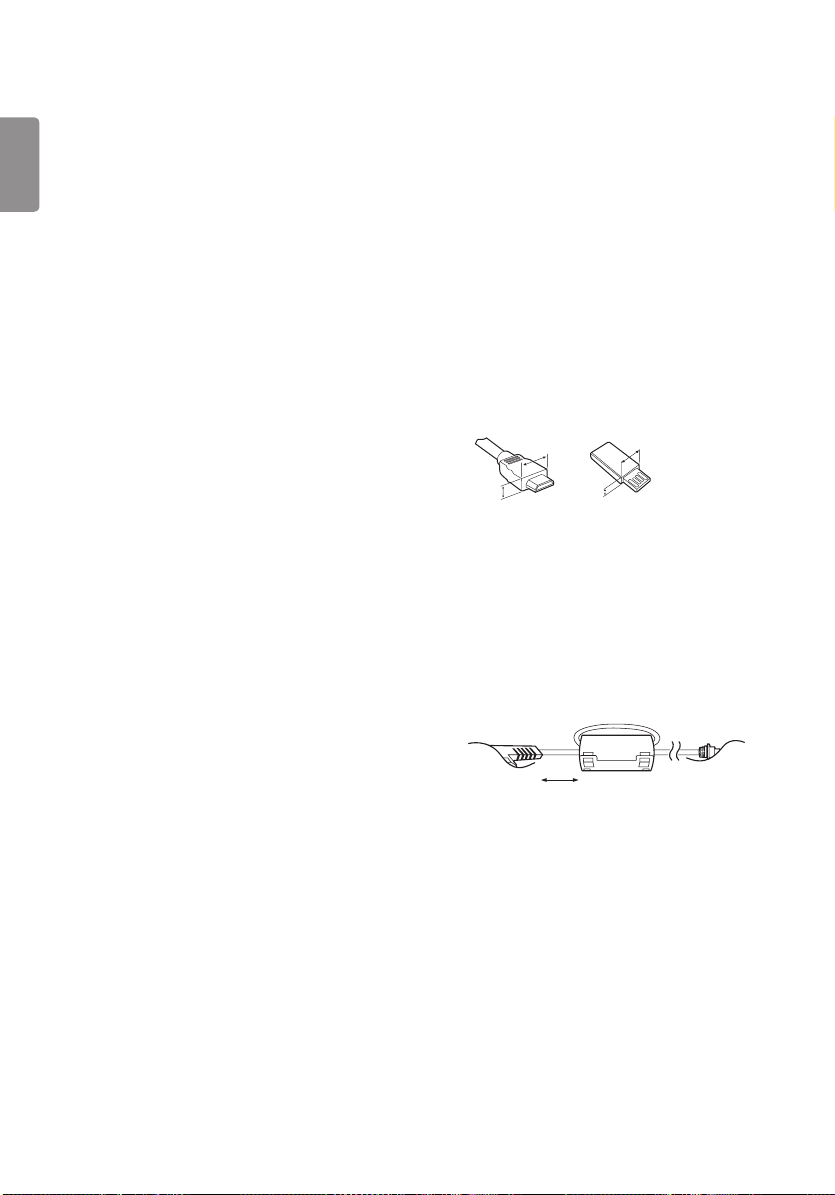

• For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not t into your TV’s USB port.

B

A

• Use a certied cable with the HDMI logo attached.

• If you do not use a certied HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types)

- High-Speed HDMI®/TM Cable (3m or less)

- High-Speed HDMI®/TM Cable with Ethernet (3m or less)

• How to use the ferrite core (Depending on model)

- Use the ferrite core to reduce the electromagnetic interference in

the power cord. Wind the power cord on the ferrite core once.

[Wall side]

10 cm (+ / -2 cm)

B

*A < 10 mm

18 mm

A

*B

[TV side]

4

• Do not use any unapproved items to ensure the safety and product life span.

• Any damage or injuries caused by using unapproved items are not covered by the manufacturer’s warranty.

• Some models have a thin lm attached on to the screen and this must not be removed.

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or at surface to protect the screen from scratches.

• Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

• Make sure to wring any excess water or cleaner from the cloth.

• Do not spray water or cleaner directly onto the TV screen.

• Make sure to spray just enough of water or cleaner onto a dry cloth to wipe the screen.

• When cleaning the product, be careful not to allow any liquid or foreign objects to enter the gap between the upper, left or right side of the panel and the guide panel. (Depending on model)

• You need to enable easy access for connecting and disconnecting electric cables fed from the mains.

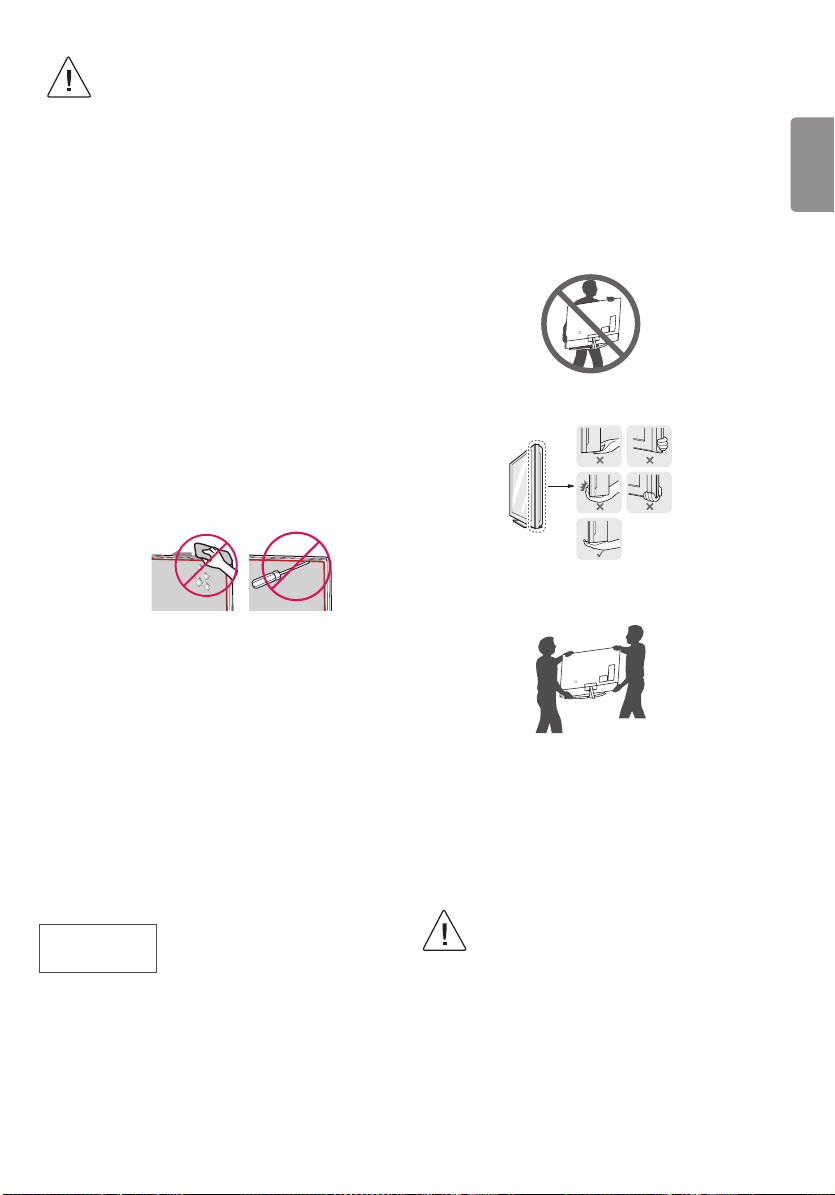

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

• It is recommended to move the TV in the box or packing material that the TV originally came in.

• Before moving or lifting the TV, disconnect the power cord and all cables.

• When holding the TV, the screen should face away from you to avoid damage.

• Hold the top and bottom of the TV frame rmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

• When transporting a large TV, there should be at least 2 people.

• When transporting the TV by hand, hold the TV as shown in the following illustration.

ENGLISH

Separate purchase

Separate purchase items can be changed or modied for quality improvement without any notication. Contact your dealer to buy these items. These devices only work with certain models. The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies.

(Depending on model)

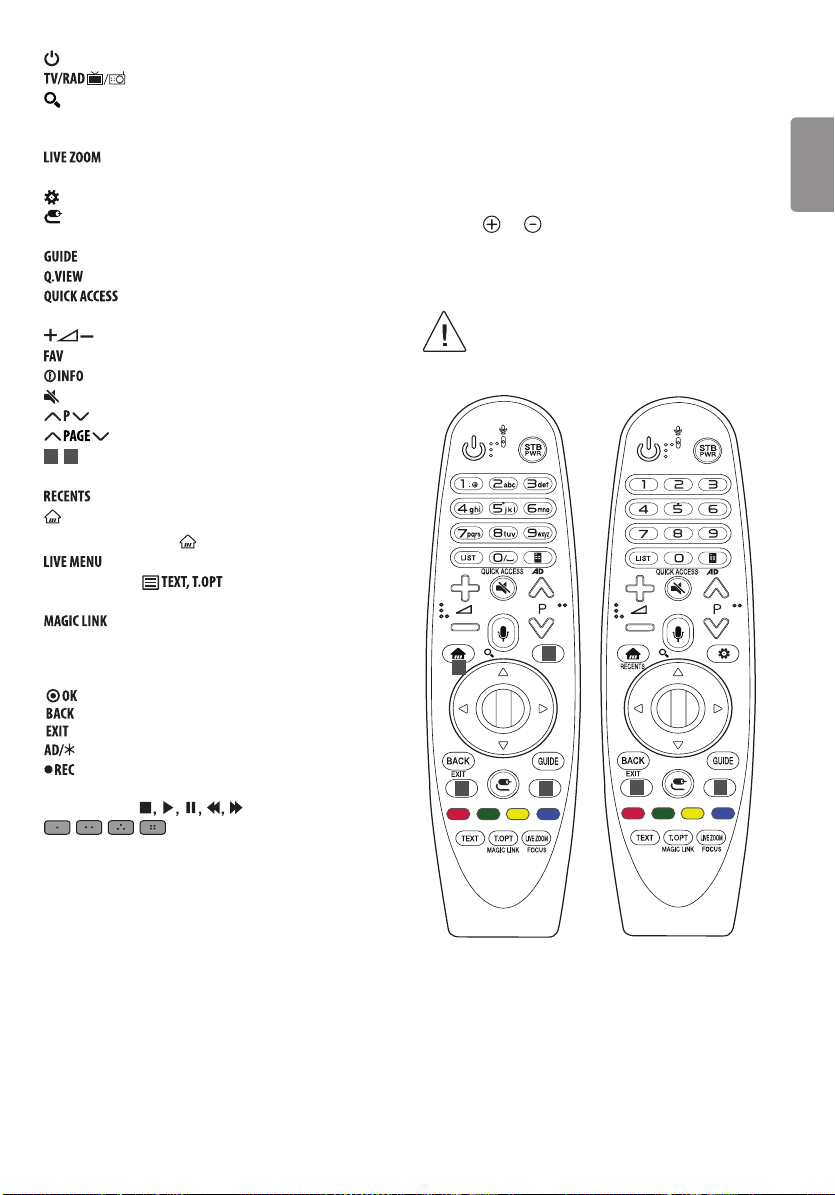

AN-MR650A

Magic Remote

• When transporting the TV, do not expose the TV to jolts or excessive vibration.

• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.

• Do not apply excessive pressure to cause exing / bending of frame chassis as it may damage screen.

• When handling the TV, be careful not to damage the protruding buttons.

• Avoid touching the screen at all times, as this may result in damage to the screen.

• Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV may occur.

5

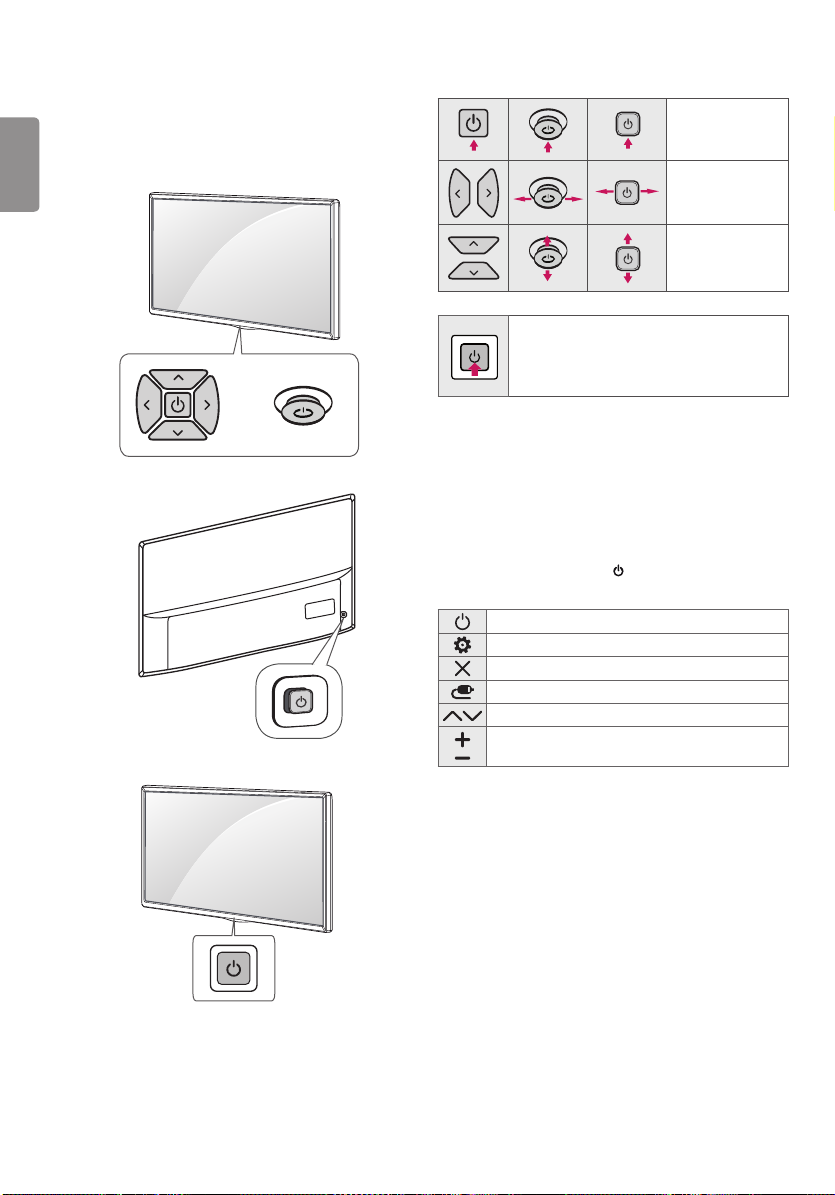

Using the button

(Depending on model)

ENGLISH

You can simply operate the TV functions, using the button.

Basic functions

Power On (Press) Power O 1 (Press and hold)

Volume Control

Programmes Control

Power On (Press) Power O 1 (Press and Hold) Menu Control (Press 2) Menu Selection (Press and Hold 3)

or

1 All running apps will close, and any recording in progress will stop.

2 You can access and adjust the menu by pressing the button when

TV is on.

3 You can use the function when you access menu control.

Adjusting the menu

(Depending on model)

When the TV is turned on, press the button one time. You can adjust the Menu items using the button.

Turns the power o.

Accesses the settings menu.

Clears on-screen displays and returns to TV viewing.

Changes the input source.

Scrolls through the saved programmes.

Adjusts the volume level.

6

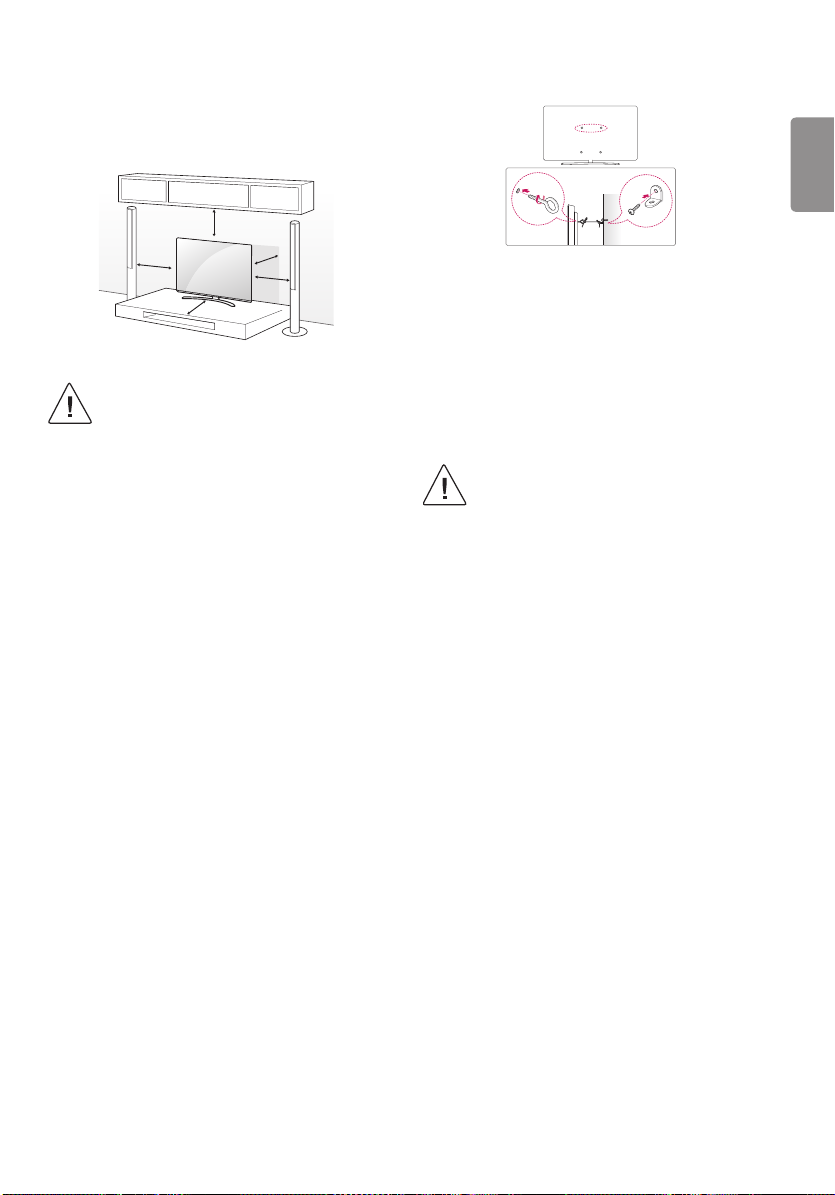

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

• Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm

2 Connect the power cord to a wall outlet.

• Do not place the TV near or on sources of heat, as this may result in re or other damage.

• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)

• If a television is not positioned in a suciently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

» Using cabinets or stands recommended by the

manufacturer of the television.

» Only using furniture that can safely support

the television.

» Ensuring the television is not overhanging the

edge of the supporting furniture.

» Not placing the television on tall furniture (for

example, cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.

» Not standing the televisions on cloth or other

materials placed between the television and supporting furniture.

» Educating children about the dangers of

climbing on furniture to reach the television or its controls.

10 cm

Securing the TV to a wall

(This feature is not available for all models.)

ENGLISH

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back

of the TV.

• If there are bolts inserted at the eye-bolts position, remove the bolts rst.

2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the at surface.

• Make sure that children do not climb on or hang on the TV.

• Use a platform or cabinet that is strong and large enough to support the TV securely.

• Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

7

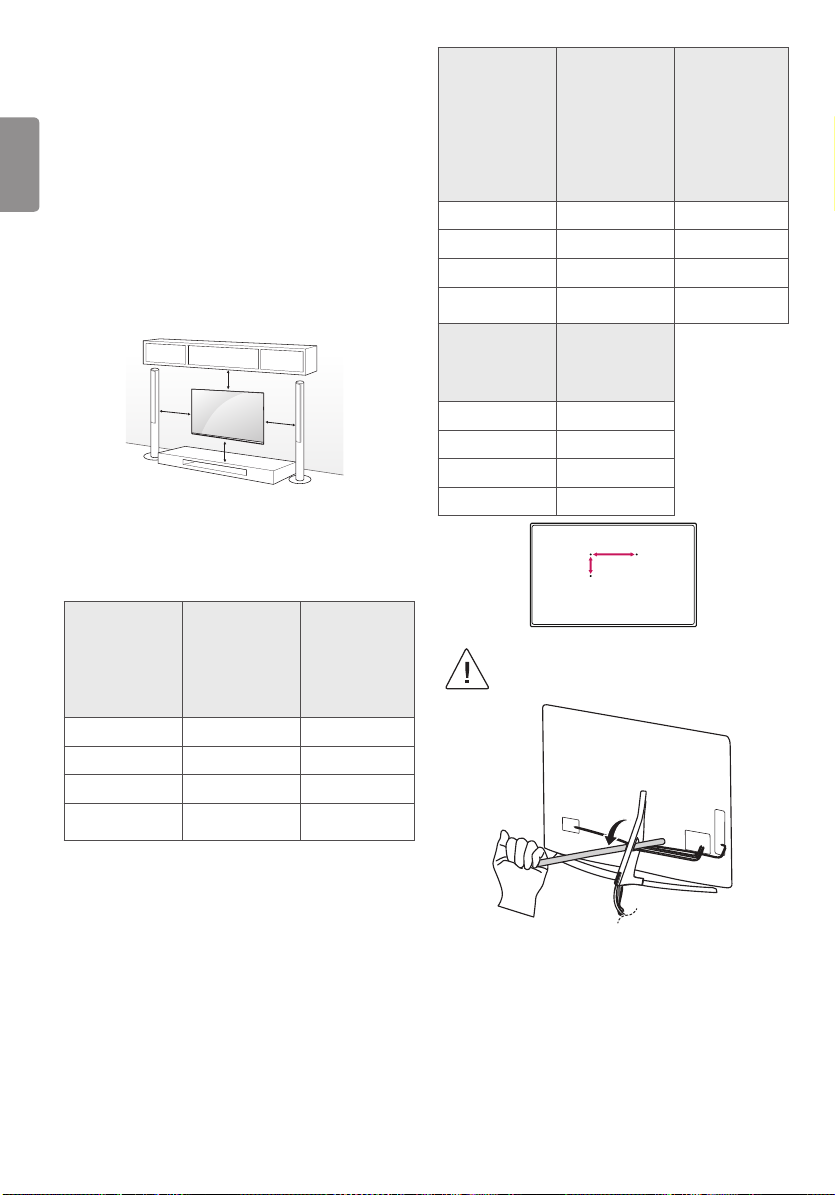

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully

ENGLISH

and install the wall mount bracket on a solid wall perpendicular to the oor. When you attach the TV to other building materials, please contact qualied personnel. LG recommends that wall mounting be performed by a qualied professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. It is advised to connect all the cables before installing xed wall mounts.

10 cm

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase (Wall mounting bracket)

Model

VESA (A x B) (mm) 200 x 200 300 x 200

Standard screw M6 M6

Number of screws 4 4

Wall mount bracket

10 cm

43UJ75** 43UJ69** 43UJ67** 43UJ66** 43UJ65** 43UJ63**

LSW240B MSW240

55/65SJ95**

OTW420B

55SJ85** 49/55SJ80** 49/55UJ75**

Model

VESA (A x B) (mm) 300 x 300 300 x 300

Standard screw M6 M6

Number of screws 4 4

Wall mount bracket

Model

VESA (A x B) (mm) 600 x 400

Standard screw M8

Number of screws 4

Wall mount bracket LSW640B

49/55UJ69** 49/55UJ67** 49/55UJ66** 49/55UJ65** 49/55UJ63**

LSW350B MSW240 75/86SJ95** 75UJ69** 70/75UJ67** 70/75UJ65**

A

B

• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

60/65SJ85** 65SJ80** 60/65UJ75** 65UJ69** 65UJ67** 60/65UJ66** 60/65UJ65** 60/65UJ63**

LSW350B

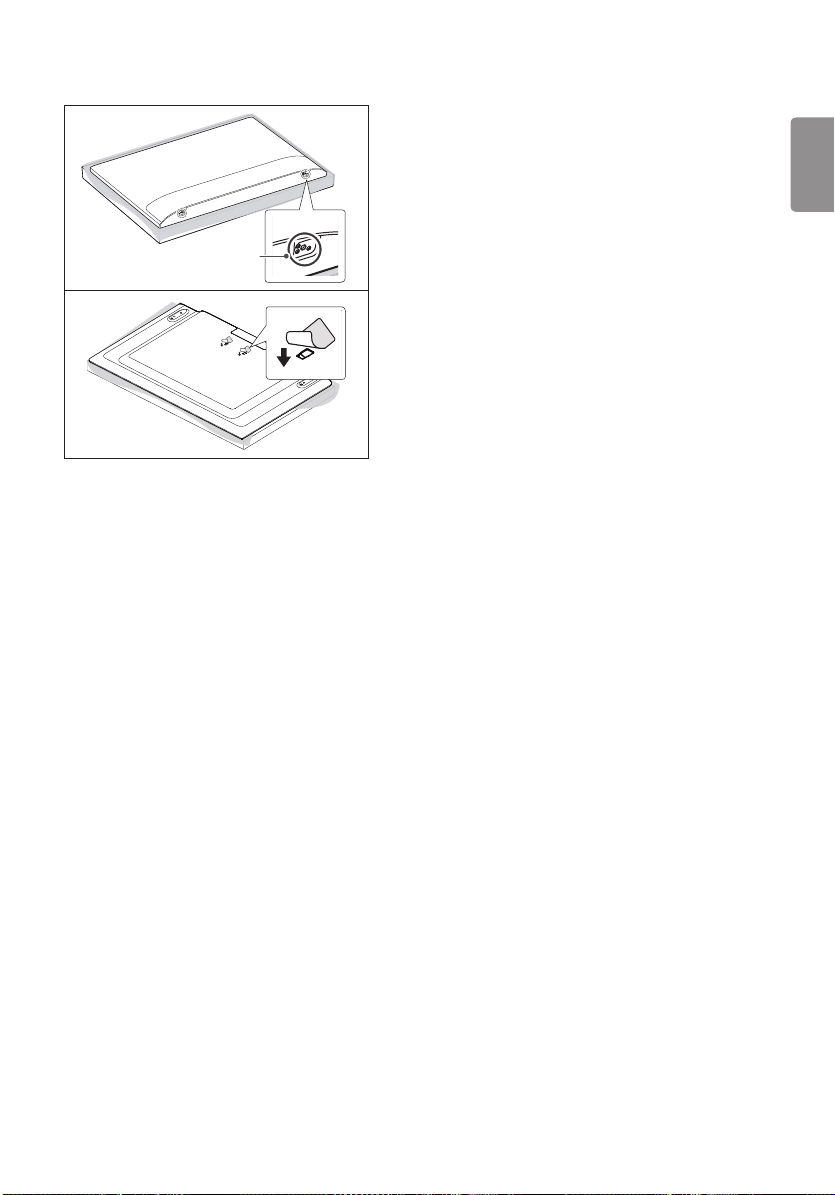

• Do not use a sharp object when you detached the cable cover. This could damage the cable or the cabinet. It may also cause personal harm. (Depending on model)

8

• When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the inux of dust and insects. (Depending on model)

Stand hole

Connections (notications)

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

• The external device connection may dier from the model.

• Connect external devices to the TV regardless of the order of the TV port.

• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.

• Refer to the external equipment’s manual for operating instructions.

• If you connect a gaming device to the TV, use the cable supplied with the gaming device.

• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.

• In PC mode, some resolution settings may not work properly depending on the graphics card.

• If ULTRA HD content is played on your PC, video or audio may become disrupted intermittently depending on your PC’s performance.

• When connecting via a wired LAN, it is recommended to use a CAT 7 cable.

ENGLISH

Antenna connection

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

• Use a signal splitter to use more than 2 TVs.

• If the image quality is poor, install a signal amplier properly to improve the image quality.

• If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.

• An antenna cable and converter are not supplied.

• Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC

• For a location that is not supported with ULTRA HD broadcasting, this TV cannot receive ULTRA HD broadcasts directly. This TV cannot receive ULTRA HD (3840 x 2160 pixels) broadcasts directly because the related standards have not been conrmed. (Depending on model)

9

Satellite dish connection

Magic Link

怾

割旃沋

QUICK APPS QUICK ACCESS

LIVE TV 怾

(Only satellite models)

Connect the TV to a satellite dish to a satellite socket with a satellite RF

ENGLISH

cable (75 Ω).

CI module connection

(Depending on model)

View the encrypted (pay) services in digital TV mode.

• Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.

• If the TV does not display any video and audio when CI+ CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator.

USB connection

Some USB Hubs may not work. If a USB device connected through a USB Hub is not detected, connect it directly to the USB port on the TV.

Other connections

Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Some separate cable is not provided.

• General HDMI ULTRA HD Deep Colour :

- On : Support 4K @ 50/60 Hz (4:4:4, 4:2:2, 4:2:0)

- Off : Support 4K @ 50/60 Hz 8 bit (4:2:0)

If the device connected to Input Port also supports ULTRA HD Deep Colour, your picture may be clearer. However, if the device doesn’t support it, it may not work properly. In that case, connect the device to a different HDMI port or change the TV’s HDMI ULTRA HD Deep Colour setting to Off.

• Supported HDMI Audio format : Dolby Digital / Dolby Digital Plus (32 kHz, 44.1 kHz, 48 kHz), DTS (44.1 kHz, 48 kHz), PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz) (Depending on model)

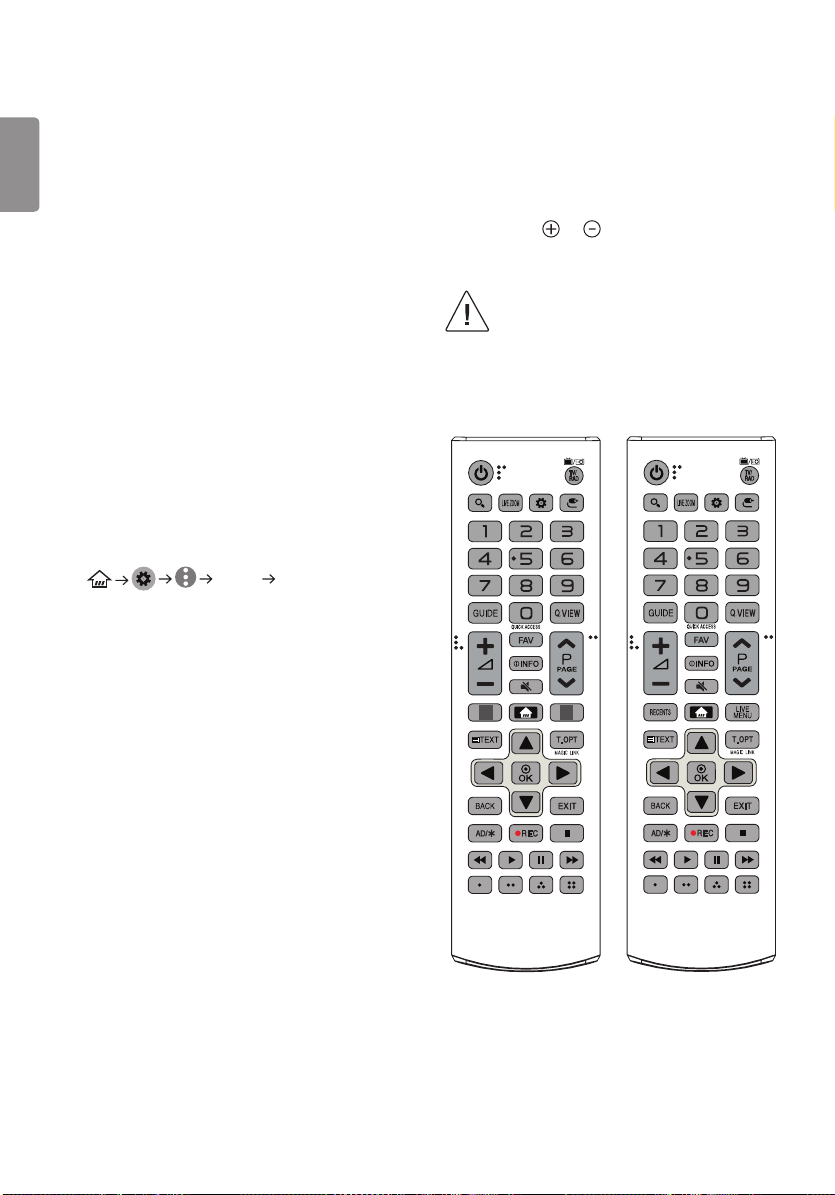

Remote control

(Some buttons and services may not be provided depending on models or regions.)

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse

• In Analogue TV and some countries, some remote control buttons may not work.

Make sure to point the remote control toward the remote control sensor on the TV.

* To use the button, press and hold for more than 3 seconds.

1 2

10

(POWER) Turns the TV on or o.

Selects Radio, TV and DTV programme.

(Search) Search for content such as TV programmes, movies and other videos, or perform a web search by entering text in the search bar.

By zooming in on the selected area, you can view it in

full screen.

(Q. Settings) Accesses the Quick Settings.

(INPUT) Changes the input source.

Number buttons Enters numbers.

Shows programme guide.

Returns to the previously viewed programme.

* You can access apps or Live TV using the number

buttons corresponding to the features.

Adjusts the volume level.

Accesses your favourite programme list.

Views the information of the current programme and screen.

(MUTE) Mutes all sounds.

Scrolls through the saved programmes.

Moves to the previous or next screen.

1, 2

Streaming Service buttons Connects to the Video

Streaming Service.

Shows the previous history.

(HOME) Shows Home menu.

- Pressing and holding the button shows previous history. Shows the list of Programmes and Recommended.

Teletext buttons ( ) These buttons are used for teletext.

* Provides content related to the programme you are

currently watching.

Navigation buttons (up/down/left/right) Scrolls through menus or options.

Selects menus or options and conrms your input.

Returns to the previous level.

Clears on-screen displays and returns to TV viewing.

Audio descriptions function will be enabled. Starts to record and displays record menu. (Only Time

Ready

Machine

supported model)

Control buttons ( ) Controls media contents.

, , , These access special functions in some

menus.

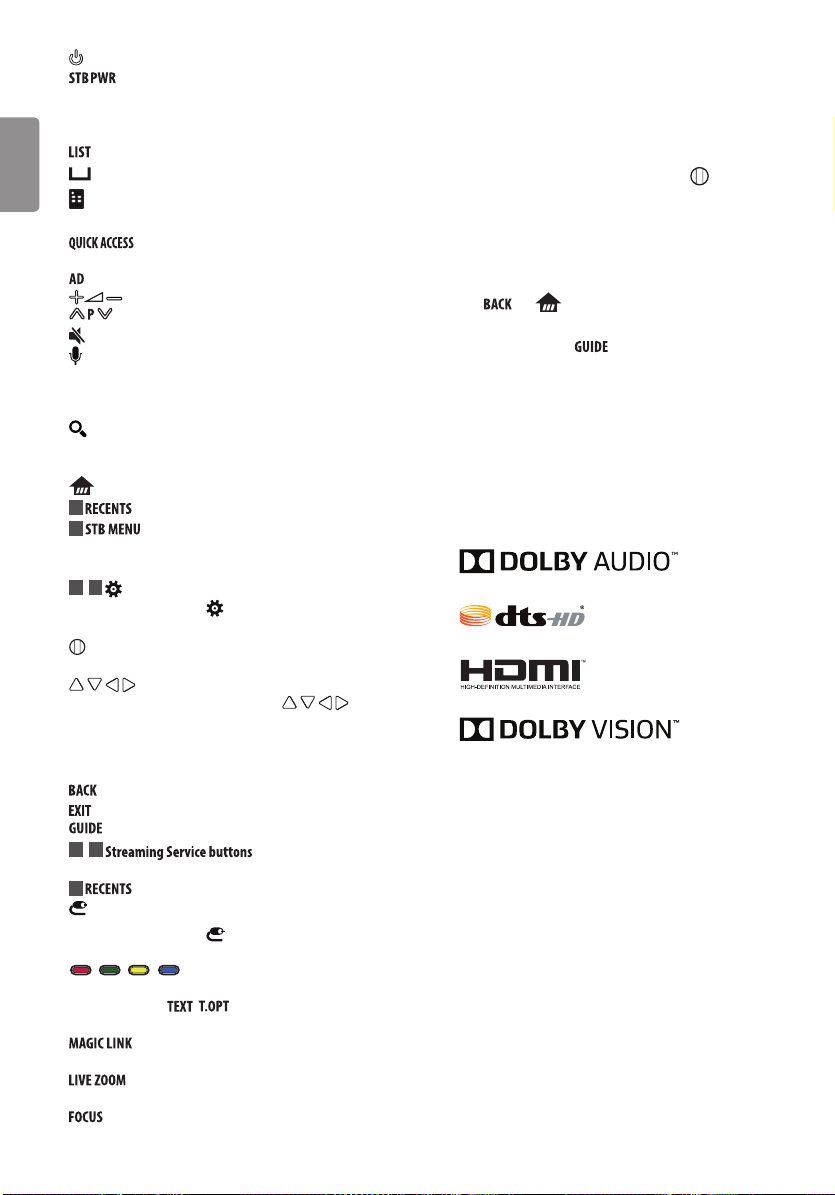

Magic remote functions

(Some buttons and services may not be provided depending on models or regions.)

When the message “Magic remote battery is low. Change the battery.” is displayed, replace the battery.

To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching the and ends to the label inside the compartment, and close the battery cover. Be sure to point the magic remote toward the remote control sensor on the TV. To remove the batteries, perform the installation actions in reverse.

• In Analogue TV and some countries, some remote control buttons may not work.

* To use the button, press and hold for more than 3 seconds.

1

3

2

4

3 4

ENGLISH

11

(POWER) Turns the TV on or o.

You can turn your set-top box on or o by adding the set-

top box to the universal remote control for your TV. Number buttons Enters numbers.

ENGLISH

Alphabet buttons Enters letters.

Accesses the saved programmes list.

(Space) Opens an empty space on the screen keyboard.

(Screen Remote) Displays the Screen Remote.

- Accesses the Universal Control Menu.

buttons corresponding to the features.

Network connection is required to use the voice recognition function.

1 Press the voice recognition button. 2 Speak when the voice display window appears on the TV screen.

and other videos, or perform a web search by entering text in the search bar.

menu. You can change programmes by using the Wheel button.

right button to scroll the menu. If you press buttons while the pointer is in use, the pointer will disappear from the screen and Magic Remote will operate like a general remote control. To display the pointer on the screen again, shake Magic Remote to the left and right.

Streaming Service.

menus.

Teletext buttons ( , ) These buttons are used for

teletext.

currently watching.

full screen.

pointed.

* You can access apps or Live TV using the number

* Audio descriptions function will be enabled.

Adjusts the volume level.

Scrolls through the saved programmes.

(MUTE) Mutes all sounds.

(Voice recognition)

(SEARCH)* Search for content such as TV programmes, movies

(HOME) Shows Home menu.

1

* Shows the previous history

2

Displays the set-top box Home menu.

- When you are not watching via a set-top box: the display changes

to the set-top box screen.

2, 4

(Q. Settings) Accesses the Quick Settings.

- Pressing and holding the button displays the All Settings

menu.

Wheel (OK) Press the center of the Wheel button to select a

(up/down/left/right) Press the up, down, left or

Returns to the previous level.

* Clears on-screen displays and returns to last input viewing.

Shows programme guide.

3, 4

Connects to the Video

3

Shows the previous history

(INPUT) Changes the input source.

- Pressing and holding the button displays all the lists of

external inputs.

, , , These access special functions in some

* Provides content related to the programme you are

By zooming in on the selected area, you can view it in

* You can zoom in on the area where the remote control is

12

Registering magic remote

How to register the magic remote

To use the Magic Remote, rst pair it with your TV.

1 Put batteries into the Magic Remote and turn the TV on.

2 Point the Magic Remote at your TV and press the Wheel (OK) on

the remote control.

* If the TV fails to register the Magic Remote, try again after turning

the TV off and back on.

How to deregister the magic remote

Press the and (HOME) buttons at the same time, for ve seconds, to unpair the Magic Remote with your TV.

- Pressing and holding the button will let you cancel and re-

register Magic Remote at once.

Licenses

Supported licenses may dier by model. For more information about licenses, visit www.lg.com.

(Only UJ75**, SJ80**, SJ85**, SJ95**)

Open source software notice information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource. lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected]. This oer is valid for three (3) years from the date on which you purchased the product.

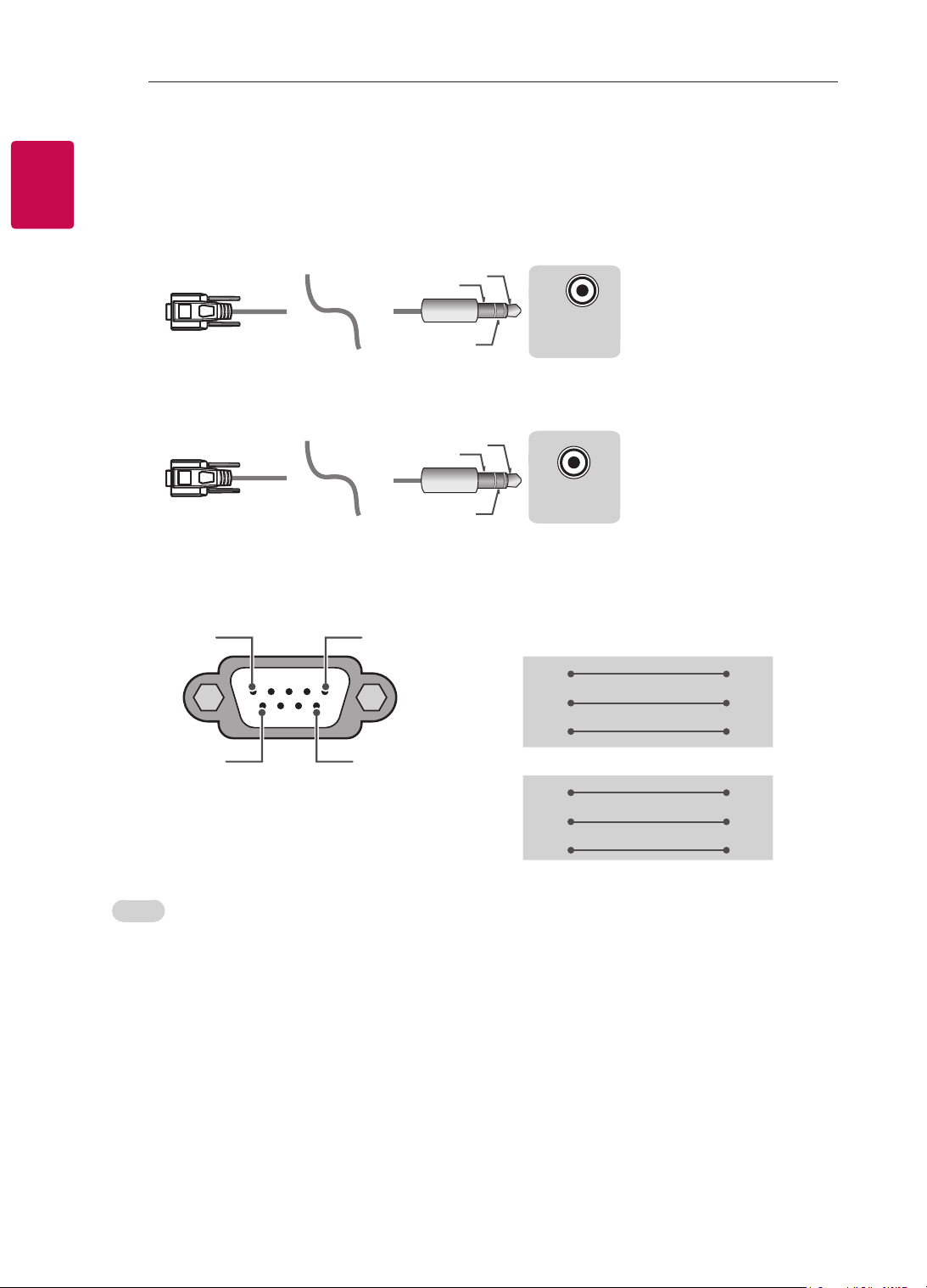

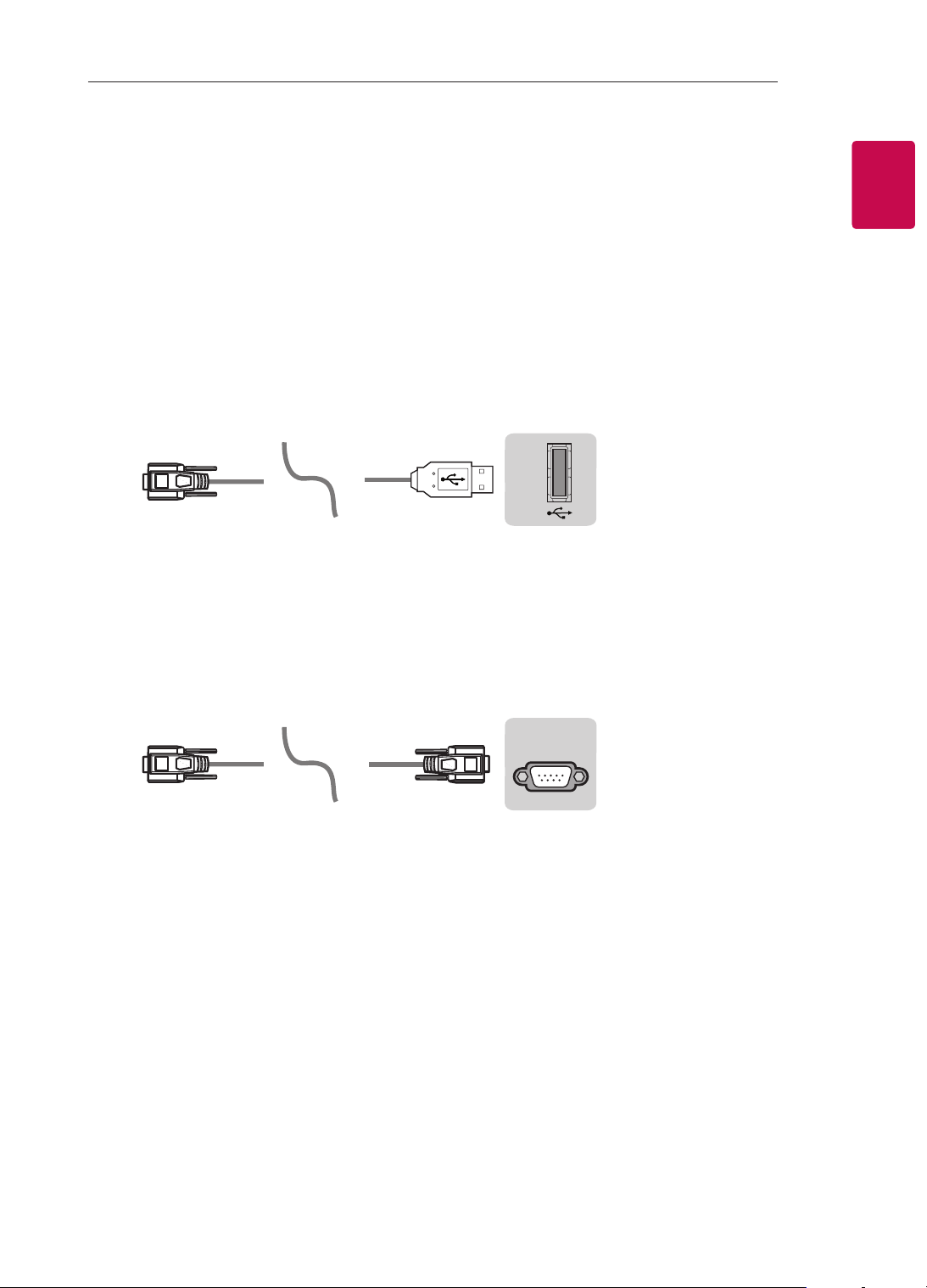

External control device setup

To obtain the external control device setup information, please visit www.lg.com.

Troubleshooting

Cannot control the TV with the remote control.

• Check the remote control sensor on the product and try again.

• Check if there is any obstacle between the product and the remote control.

• Check if the batteries are still working and properly installed ( to , to ).

No image display and no sound is produced.

• Check if the product is turned on.

• Check if the power cord is connected to a wall outlet.

• Check if there is a problem in the wall outlet by connecting other products.

The TV turns o suddenly.

• Check the power control settings. The power supply may be interrupted.

• Check if the Sleep Timer / Timer Power Off is activated in the Timers settings.

• Check if the Auto Power O is activated in the General Eco Mode settings. (Depending on model)

• If there is no signal while the TV is on, the TV will turn o automatically after 15 minutes of inactivity.

When connecting to the PC (HDMI), ‘No Signal’ or ‘Invalid Format’ is displayed.

• Turn the TV o/on using the remote control.

• Reconnect the HDMI cable.

• Restart the PC with the TV on.

Abnormal Display

• If the product feels cold to the touch, there may be a small “icker” when it is turned on. This is normal, there is nothing wrong with product.

• This panel is an advanced product that contains millions of pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1ppm on the panel. This does not indicate a malfunction and does not aect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

• You may nd dierent brightness and color of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

• Displaying a still image for a prolonged period of time may cause image sticking. Avoid displaying a xed image on the TV screen for a long period of time.

Generated Sound

• “Cracking” noise: A cracking noise that occurs when watching or turning o the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required.

• Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not aect the performance and reliability of the product.

ENGLISH

13

Specications

Wireless module specications

ENGLISH

• As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is congured for the regional frequency table.

• For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.

Wireless module(LGSBWAC72)specifications

Wireless LAN (IEEE 802.11a/b/g/n/ac)

Frequency range Output power(Max.)

2400 to 2483.5 MHz

5150 to 5725 MHz

5725 to 5850 MHz (Not for EU)

Bluetooth

Frequency range Output power(Max.)

2400 to 2483.5 MHz 8.5 dBm

* “IEEE 802.11ac” is not available in all countries.

CI Module Size1 (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm

Operating

Temperature

Operating

Environment

condition

1 Only Satellite models.

Humidity

Storage Tem-

perature

Storage

Humidity

14 dBm

16.5 dBm

11.5 dBm

0 °C to 40 °C

Less than 80 %

-20 °C to 60 °C

Less than 85 %

Television

system

Digital TV

(Depending on country)

1

DVB-T/T2

DVB-T/T2/C/S/S2

Analogue TV

(Depending on country)

PAL B/B, PAL B/G, PAL

2

SECAM B/G, SECAM D/K

D/K, PAL-I

NTSC-M

Programme

coverage

VHF, UHF

C-Band2, Ku-Band

2

VHF, UHF, CATV

Maximum number of

storable

DVB-T/T2 & Analogue TV : 3,000

DVB-S/S2 : 6,000

prgrammes

External antenna

75 Ω

impedance

1 Only DVB-T2 support models. (Despite DVB-T2 model, DVB-T/T2

function does not apply in Philippines.)

2 Only DVB-T2/C/S2 support models.

• The energy information provided with the product is indicated in accordance with the regulations of each country. (Depending on country)

- The Energy consumption is measured in accordance with IEC

62087.

• Actual Energy consumption may vary depending on factors such as the type of video content being played and TV settings.

14

Regulatory

WARNING!

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.

• Only using furniture that can safely support the television set.

• Ensuring the television set is not overhanging the edge of the supporting furniture.

• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

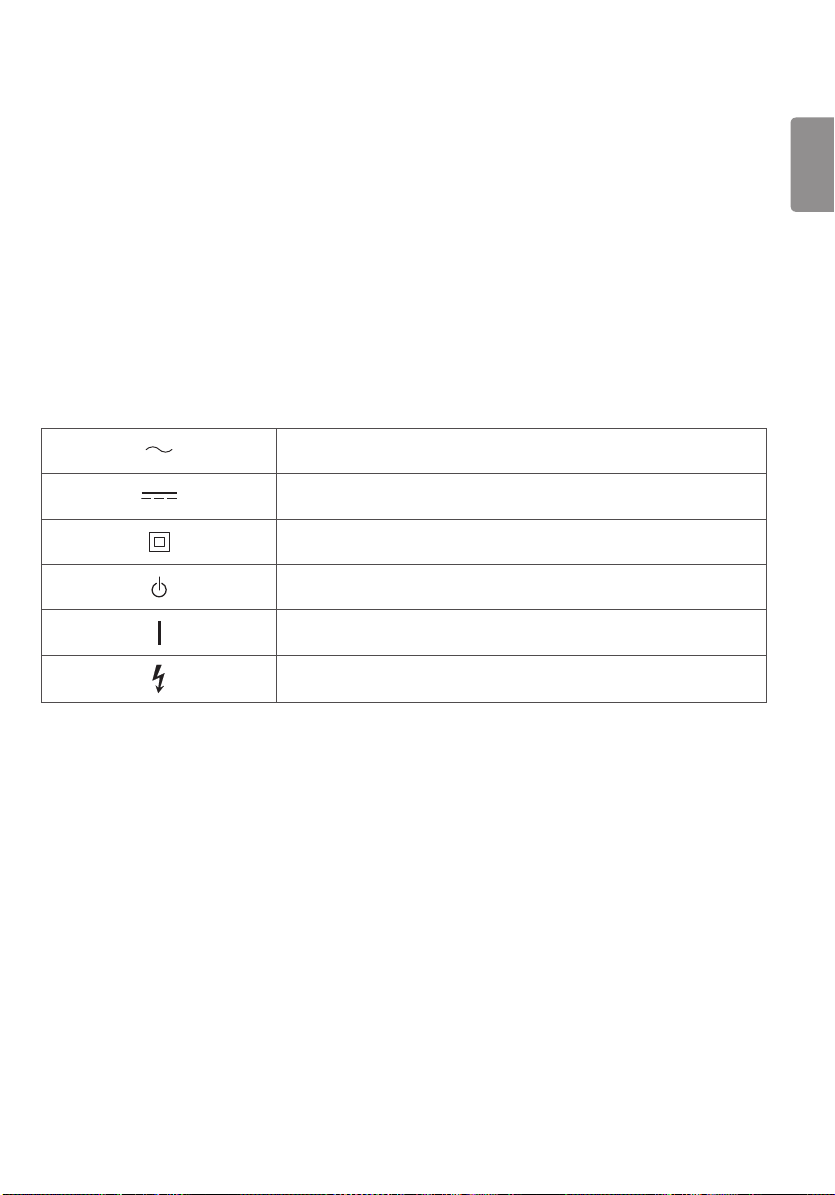

Symbols

Refers to alternating current(AC).

Refers to direct current(DC).

Refers to class II equipment.

Refers to stand-by.

Refer to “ON” (power).

Refers to dangerous voltage.

ENGLISH

15

Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

OWNER’S MANUAL

EXTERNAL CONTROL DEVICE SETUP

Please read this manual carefully before operating the set and retain it for future reference.

www.lg.com

2

ENG

ENGLISH

KEY CODES

2

KEY CODES

• This feature is not available for all models.

Code

(Hexa)

00 CH +, PR + R/C Button 53 List R/C Button

01 CH -, PR - R/C Button 5B Exit R/C Button

02 Volume + R/C Button 60 PIP(AD) R/C Button

03 Volume - R/C Button 61 Blue R/C Button

06 > (Arrow Key / Right Key) R/C Button 63 Yellow R/C Button

07 < (Arrow Key / Left Key) R/C Button 71 Green R/C Button

08 Power R/C Button 72 Red R/C Button

09 Mute R/C Button 79 Ratio / Aspect Ratio R/C Button

0B Input R/C Button 91 AD (Audio Description) R/C Button

0E SLEEP R/C Button 9E LIVE MENU R/C Button

0F TV, TV/RAD R/C Button 7A User Guide R/C Button

10 - 19 * Number Key 0 - 9 R/C Button 7C Smart / Home R/C Button

1A Q.View / Flashback R/C Button 7E SIMPLINK R/C Button

Function Note

Code

(Hexa)

Function Note

1E FAV (Favorite Channel) R/C Button 8E ►►(Forward) R/C Button

20 Text (Teletext) R/C Button 8F ◄◄(Rewind) R/C Button

21 T. Opt (Teletext Option) R/C Button AA Info R/C Button

28 Return (BACK) R/C Button AB Program Guide R/C Button

30 AV (Audio / Video) Mode R/C Button B0 ►(Play) R/C Button

39 Caption/Subtitle R/C Button B1 ꕗ (Stop / File List) R/C Button

40 Λ

41

42 My Apps R/C Button BB Soccer R/C Button

43 Menu / Settings R/C Button BD ꔄ (REC) R/C Button

44 OK / Enter R/C Button DC 3D R/C Button

45 Q.Menu R/C Button 99 AutoConfig R/C Button

4C List, - (ATSC Only) R/C Button 9F App / * R/C Button

4D PICTURE R/C Button 9B TV / PC R/C Button

52 SOUND R/C Button

* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel.

(For South Korea, Japan, North America, Latin America except Colombia models)

(Arrow Key / Cursor Up)

V (Arrow Key / Cursor

Down)

R/C Button B5 RECENT R/C Button

R/C Button BA

ꕘ (Freeze / Slow Play /

Pause)

R/C Button

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

(PC

USB IN

(TV)

(PC

(PC)

3

EXTERNAL CONTROL DEVICE SETUP

• Image shown may differ from your TV.

Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally.

Note: The type of control port on the TV can be different between model series.

* Please be advised that not all models support this type of connectivity.

* Cable is not provided.

USB to Serial converter with USB Cable

USB Type

)

• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter

which is not made nor provided by LG.

• It can be purchased from computer stores that carry accessories for IT support professionals.

USB IN

RS-232C With RS232C Cable

DE9 (D-Sub 9pin) Type

• You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C cable required

for the connection between the PC and the TV, which is specified in the manual.

(TV)

)

The connection interface may differ from your TV.

RS-232C IN

(CONTROL & SERVICE)

(TV)

4

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

USB IN

(TV)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(PC

USB IN

(TV)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(PC)

(PC

SERVICE ONLY

1

3

2

4

Phone jack Type

• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and

the TV, which is specified in the manual.

* For other models, connect to the USB port.

* The connection interface may differ from your TV.

1

3

(TV)

- or

)

2

1

3

SERVICE ONLY

)

RS-232C IN

2

(CONTROL & SERVICE)

Customer Computer RS-232C configurations

3-Wire Configurations(Not standard)

1

5

RXD 2 2 TXD

PC TV

TXD 3 1 RXD

GND 5 3 GND

6

RS-232C

(Serial port)

Set ID

For Set ID number, see "Real Data Mapping" on p.6

1. Press SETTINGS to access the main menus.

2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.

3. Press the Navigation buttons to scroll to SET ID and press OK.

4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.

5. When you are finished, press EXIT.

* (Depending on model)

9

RXD 3 2 TXD

TXD 2 1 RXD

GND 5 3 GND

D-Sub 9 Phone

OR

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

5

Communication Parameters

• Baud rate : 9600 bps (UART)

• Data length : 8 bits

• Parity : None

• Stop bit : 1 bit

• Communication code : ASCII code

• Use a crossed (reverse) cable.

Command reference list

(Depending on model)

COMMAND1 COMMAND2

01. Power* k a 00 to 01 15. Balance k t 00 to 64

02. Aspect Ratio

03. Screen Mute

04. Volume Mute

05. Volume Control

06. Contrast k g 00 to 64

07. Brightness

08. Color/ Colour

09. Tint k j 00 to 64

10. Sharpness

11. OSD Select

12. Remote Control Lock Mode

13. Treble k r 00 to 64

k c (p.7)

k d (p.7)

k e 00 to 01 18. Equalizer j v (p.8)

k f 00 to 64

k h 00 to 64

k i 00 to 64 22. Key m c Key Codes

k k 00 to 32

k l 00 to 01

k m 00 to 01

DATA

(Hexadecimal)

16. Color (Colour) Temperature

17. ISM Method (Only Plasma TV)

19. Energy Saving

20. Tune Command

21. Channel (Programme) Add/Del(Skip)

23. Control Backlight, Control Panel Light

24. Input select (Main)

25. 3D (Only 3D models)

26. Extended 3D (Only 3D models)

27. Auto Configure

COMMAND1 COMMAND2

x u 00 to 64

j p (p.8)

j q 00 to 05

m a (p.9)

m b 00 to 01

m g 00 to 64

x b (p.11)

x t (p.11)

x v (p.12)

j u (p.12)

DATA

(Hexadecimal)

14. Bass k s 00 to 64

* Note: During playing or recording media, all commands except Power (ka) and Key (mc) are not

executed and treated as NG. With RS232C cable, TV can communicate "ka command" in power-on or power-off status. but with USB-to-Serial converter cable, the command works only if TV is on.

6

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

6

Transmission / Receiving Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu.

Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set can be controlled.

* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on

transmission/receiving protocol. [DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command. [Cr] : Carriage Return - ASCII code ‘0x0D’ [ ] : Space – ASCII code ‘0x20’

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,

if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from

non-viable functions or communication errors.

Data 00: Illegal Code

Real data mapping (Hexadecimal b Decimal)

* When you enter the [data] in hexadecimal, refer to following conversion table.

* Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.

00 : Step 0 32 : Step 50 (Set ID 50) FE : Step 254 01 : Step 1 (Set ID 1) 33 : Step 51 (Set ID 51) FF : Step 255

... ... ...

0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256

... ... ...

0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998 10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999

... ... ...

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

* Commands may work differently depending on model and signal.

01. Power (Command: k a)

► To control Power *On or Off of the set.

Transmission[k][a][ ][Set ID][ ][Data][Cr]

Data 00 : Power Off 01 : *Power On

Ack [d][ ][Set ID][ ][OK/NG][Data][x]

* In case of video mute on only, TV will display On

Screen Display(OSD). But, in case of Screen mute on, TV will not display OSD.

7

Ack [a][ ][Set ID][ ][OK/NG][Data][x]

► To Show TV is Power On or *Off

Transmission [k][a][ ][Set ID][ ][FF][Cr]

Ack [a][ ][Set ID][ ][OK][Data][x]

* Similarly, if other functions transmit ‘FF’ data

based on this format, Acknowledgement feedback presents status about each function.

02. Aspect Ratio (Command: k c) (Main Picture Size)

► To adjust the screen format. (Main picture format)

You can also adjust the screen format using the Aspect Ratio in the Q.MENU. or PICTURE menu.

Transmission [k][c][ ][Set ID][ ][Data][Cr]

Data 01 : Normal screen

(4:3)

02 : Wide screen

(16:9) 04 : Zoom 05 : Zoom 2 (Latin America

except Colombia Only)

06 : Set by Program/

Original

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

07 : 14:9 (Europe, Colombia, Mid-East, Asia except South Korea and Japan) 09 : * Just Scan 0B : Full Wide (Europe, Colombia, MidEast, Asia except South Korea and Japan) 10 to 1F : Cinema Zoom 1 to 16 0c : 21:9 (Depending on model)

* Using the PC input, you select either 16:9 or 4:3

screen aspect ratio.

* In DTV/HDMI/Component mode (high-definition),

Just Scan is available.

* Full wide mode may work differently based on

model and is supported for DTV fully, and ATV, AV partially.

04. Volume Mute (Command: k e)

► To control volume mute on/off.

You can also adjust mute using the MUTE button on remote control.

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Data 00 : Volume mute on (Volume off) 01 : Volume mute off (Volume on)

Ack [e][ ][Set ID][ ][OK/NG][Data][x]

05. Volume Control (Command: k f)

► To adjust volume.

You can also adjust volume with the volume buttons on remote control.

Transmission [k][f][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [f][ ][Set ID][ ][OK/NG][Data][x]

06. Contrast (Command: k g)

► To adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission [k][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

07. Brightness (Command: k h)

► To adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

03. Screen Mute (Command: k d)

► To select screen mute on/off.

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Data 00 : Screen mute off (Picture on)

Video mute off 01 : Screen mute on (Picture off) 10 : Video mute on

Data Min : 00 to Max : 64

Ack [h][ ][Set ID][ ][OK/NG][Data][x]

8

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

8

08. Color/Colour (Command: k i)

► To adjust the screen Color(Colour).

You can also adjust colour in the PICTURE menu.

Transmission [k][i][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [i][ ][Set ID][ ][OK/NG][Data][x]

09. Tint (Command: k j)

► To adjust the screen tint.

You can also adjust tint in the PICTURE menu.

Transmission [k][j][ ][Set ID][ ][Data][Cr]

Data Red : 00 to Green : 64

Ack [j][ ][Set ID][ ][OK/NG][Data][x]

10. Sharpness (Command: k k)

► To adjust the screen sharpness.

You can also adjust sharpness in the PICTURE menu.

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 32

Ack [k][ ][Set ID][ ][OK/NG][Data][x]

13. Treble (Command: k r)

► To adjust treble.

You can also adjust in the AUDIO menu.

Transmission [k][r][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [r][ ][Set ID][ ][OK/NG][Data][x]

* (Depending on model)

14. Bass (Command: k s)

► To adjust Bass.

You can also adjust in the AUDIO menu.

Transmission [k][s][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [s][ ][Set ID][ ][OK/NG][Data][x]

* (Depending on model)

15. Balance (Command: k t)

► To adjust balance.

You can also adjust balance in the AUDIO menu.

Transmission [k][t][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [t][ ][Set ID][ ][OK/NG][Data][x]

11. OSD Select (Command: k l)

► To select OSD (On Screen Display) on/off when

controlling remotely.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 00 : OSD off 01 : OSD on

Ack [l][ ][Set ID][ ][OK/NG][Data][x]

12. Remote control lock mode (Command: k m)

► To lock the front panel controls on the monitor and

remote control.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 00 : Lock off 01 : Lock on

Ack [m][ ][Set ID][ ][OK/NG][Data][x]

* If you are not using the remote control, use this

mode. When main power is off & on (plug-off and plug-in, after 20 - 30 seconds), external control lock is released.

* In the standby mode (DC off by off timer or ‘ka’,

‘mc’ command), and if key lock is on, TV will not turn on by power on key of IR & Local Key.

16. Color(Colour) Temperature (Command: x u)

► To adjust colour temperature. You can also adjust

Color(Colour) Temperature in the PICTURE menu.

Transmission [x][u][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [u][ ][Set ID][ ][OK/NG][Data][x]

17. ISM Method (Command: j p) (Only Plasma TV)

► To control the ISM method. You can also adjust

ISM Method in OPTION menu.

Transmission [j][p][ ][Set ID][ ][Data][Cr]

Data Min : 02: Orbiter

08: Normal 20: Color(Colour) Wash

Ack [p][ ][Set ID][ ][OK/NG][Data][x]

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

9

18. Equalizer (Command : j v)

► Adjust EQ of the set.

Transmission [j][v][ ][Set ID][ ][Data][Cr]

MSB

0 0 0 0 0 0 0 0

LSB

Frequency Data

7 6 5

0 0 0

0 0 1

0 1 0

0 1 1

1 0 0

Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]

Frequency

1st Band

2nd Band

3rd Band

4th Band

5th Band

4 3 2 1 0 Step

0 0 0 0 0

0 0 0 0 1

... ... ... ... ...

1 0 0 1 1

1 0 1 0 1

0(decimal)

1(decimal)

...

19(decimal)

20(decimal)

* It depends on model, and can adjust when sound mode is EQ adjustable value.

19. Energy Saving (Command: j q)

► To reduce the power consumption of the TV. You

can also adjust Energy Saving in PICTURE menu.

Transmission [j][q][ ][Set ID][ ][Data][Cr]

Data 00 : Off 01 : Minimum 02 : Medium 03 : Maximum 04 : Auto (For LCD TV / LED TV) /

Intelligent sensor (For PDP TV)

05 : Screen off

* (Depending on model)

Ack [q][ ][Set ID][ ][OK/NG][Data][x]

20. Tune Command (Command: m a)

* This command may work differently depending on

model and signal.

• For Europe, Mid-East, Colombia, Asia except

South Korea and Japan Model

► Select channel to following physical number.

Transmission [m][a][ ][Set ID][ ][Data 00][ ]

[Data 01][ ][Data 02][Cr]

* Analog Antenna/Cable

[Data 00][Data 01] Channel Data Data 00 : High byte channel data Data 01 : Low byte channel data

- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)

Data 02 : Input Source (Analog)

- 00 : Antenna TV (ATV)

- 80 : Cable TV (CATV)

* Digital Antenna/Cable/Satellite

[Data 00][Data 01]: Channel Data Data 00 : High Channel data Data 01 : Low Channel data

- 00 00 ~ 27 0F (Decimal: 0 ~ 9999) Data 02 : Input Source (Digital)

- 10 : Antenna TV (DTV)

- 20 : Antenna Radio (Radio)

- 40 : Satellite TV (SDTV)

- 50 : Satellite Radio (S-Radio)

- 90 : Cable TV (CADTV)

- a0 : Cable Radio (CA-Radio)

* Tune Command Examples:

1. Tune to the Analog antenna (PAL) Channel 10. Set ID = All = 00 Data 00 & 01 = Channel Data is 10 = 00 0a Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00

2. Tune to the digital antenna (DVB-T) Channel 01. Set ID = All = 00 Data 00 & 01 = Channel Data is 1 = 00 01 Data 02 = Digital Antenna TV = 10 Result = ma 00 00 01 10

3. Tune to the satellite (DVB-S) Channel 1000. Set ID = All = 00 Data 00 & 01 = Channel Data is 1000 = 03 E8 Data 02 = Digital Satellite TV = 40 Result = ma 00 03 E8 40

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][x][a][ ][Set ID][ ][NG][Data 00][x]

• For South Korea, North/Latin America except

Colombia Model

► To tune channel to following physical/major/minor

number.

Transmission [m][a][ ][0][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

Digital channels have a Physical, Major, and Minor channel number. The Physical number is the actual digital channel number, the Major is the number that the channel should be mapped to, and the Minor is the sub-channel. Since the ATSC tuner automatically maps the channel from the Major / Minor number, the Physical number is not required when sending a command in Digital.

10

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

10

* Analog Antenna/Cable

Data 00 : Physical Channel Number

- Antenna (ATV) : 02~45 (Decimal: 2 ~ 69)

- Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)

[Data 01 ~ 04]: Major/Minor Channel Number Data 01 & 02: xx (Don't care) Data 03 & 04: xx (Don't care) Data 05: Input Source (Analog)

- 00 : Antenna TV (ATV)

- 01 : Cable TV (CATV)

* Digital Antenna/Cable

Data 00 : xx (Don't care)

[Data 01][Data 02]: Major Channel Number Data 01 : High byte Channel Data Data 02 : Low byte Channel Data

- 00 01 ~ 27 0F (Decimal: 1 ~ 9999) [Data 03][Data 04]: Minor Channel Number Data 03 : High byte Channel Data Data 04 : Low byte Channel Data

Data 05 : Input Source (Digital)

- 02 : Antenna TV (DTV) – Use Physical Channel Number

- 06 : Cable TV (CADTV) – Use Physical Channel Number

- 22 : Antenna TV (DTV) – Don’t Use Physical Channel Number

- 26 : Cable TV (CADTV) - Don’t Use Physical Channel Number

- 46 : Cable TV (CADTV) – Use Physical/Major Channel Number Only (One Part Channel)

- 66 : Cable TV (CADTV) – Use Major Channel Number Only (One Part Channel)

- 0b : Cable DTV Plus – Use Physical Channel Number

- 2b : Cable DTV Plus – Don’t Use Physical Channel Number

- 4b : Cable DTV Plus – Use Physical/Major Channel Number Only (One Part Channel)

- 6b : Cable DTV Plus – Use Major Channel Number Only (One Part Channel)

Two bytes are available for each major and minor channel data, but usually the low byte is used alone (high byte is 0).

* Tune Command Examples:

1. Tune to the Analog cable (NTSC) channel 35.

Set ID = All = 00 Data 00 = Channel Data is 35 = 23 Data 01 & 02 = No Major = 00 00 Data 03 & 04 = No Minor = 00 00 Data 05 = Analog Cable TV = 01 Total = ma 00 23 00 00 00 00 01

2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 = Don’t know Physical = 00 Data 01 & 02 = Major is 30 = 00 1E Data 03 & 04 = Minor is 3 = 00 03 Data 05 = Digital Antenna TV = 22 Total = ma 00 00 00 1E 00 03 22

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][Data 03][Data 04][Data 05]

[x][a][ ][Set ID][ ][NG][Data 00][x]

• For Japan Model

► To tune channel to following physical/major/minor

number.

Transmission [m][a][ ][0][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

* Digital Antenna/Satellite Data 00: xx (Don't care)

[Data 01][Data 02]: Major Channel Number Data 01: High byte Channel Data Data 02: Low byte Channel Data

- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)

[Data 03][Data 04]: Minor/Branch Channel Number

(Don’t care in Satellite) Data 03: High byte Channel Data Data 04: Low byte Channel Data

Data 05 : Input Source (Digital/Satellite for Japan)

- 02 : Antenna TV (DTV)

- 42 : Antenna TV (DTV) – Use Physical/Major

Channel Number Only (One Part Channel)

- 62 : Antenna TV (DTV) – Use Major Channel

Number Only (One Part Channel)

- 07 : BS (Broadcasting Satellite)

- 08 : CS1 (Communication Satellite 1)

- 09 : CS2 (Communication Satellite 2)

* Tune Command Examples: 1

Tune to the digital antenna (ISDB-T) channel 17-1 Set ID = All = 00 Data 00 = Don’t know Physical = 00 Data 01 & 02 = Major is 17 = 00 11 Data 03 & 04 = Minor/Branch is 1 = 00 01 Data 05 = Digital Antenna TV = 02 Total = ma 00 00 00 11 00 01 02

.

ENGENGLISH

EXTERNAL CONTROL DEVICE SETUP

11

2. Tune to the BS (ISDB-BS) channel 30. Set ID = All = 00 Data 00 = Don’t know Physical = 00 Data 01 & 02 = Major is 30 = 00 1E Data 03 & 04 = Don’t Care = 00 00 Data 05 = Digital BS TV = 07 Total = ma 00 00 00 1E 00 00 07

* This feature is varied based on the model.

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][Data 03][Data 04][Data 05]

[x][a][ ][Set ID][ ][NG][Data 00][x]

21. Channel(Programme) Add/Del(Skip)

(Command: m b)

► To skip current channel(programme) for next time.

Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 00 : Del(ATSC,ISDB)/Skip(DVB) 01 : Add

Ack [b][ ][Set ID][ ][OK/NG][Data][x]

* Set the saved channel status to del(ATSC, ISDB)/

skip(DVB) or add.

22. Key (Command: m c)

► To send IR remote key code.

Transmission [m][c][ ][Set ID][ ][Data][Cr]

Data Key code - p.2.

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

23. Control Backlight (Command: m g)

• For LCD TV / LED TV

► To control the backlight.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

Control Panel Light (Command: m g)

24. Input select (Command: x b) (Main Picture Input)

► To select input source for main picture.

Transmission [x][b][ ][Set ID][ ][Data][Cr]

Data 00 : DTV 02 : Satellite DTV

ISDB-BS (Japan) 03 : ISDB-CS1 (Japan) 04 : ISDB-CS2 (Japan) 11 : CATV

20 : AV or AV1 21 : AV2

40 : Component1 60 : RGB

90 : HDMI1 92 : HDMI3

Ack [b][ ][Set ID][ ][OK/NG][Data][x]

* This function depends on model and signal.

01 : CADTV 10 : ATV

41 : Component2

91 : HDMI2 93 : HDMI4

25. 3D(Command: x t) (only 3D models)

(Depending on model)

► To change 3D mode for TV.

Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01]

[ ][Data 02][ ][Data 03][Cr]

* (Depending on model)

Data Structure [Data 00] 00 : 3D On

01 : 3D Off 02 : 3D to 2D 03 : 2D to 3D

[Data 01] 00 : Top and Bottom

01 : Side by Side 02 : Check Board 03 : Frame Sequential 04 : Column interleaving 05 : Row interleaving

[Data 02] 00 : Right to Left

01 : Left to Right

[Data 03] 3D Effect(3D Depth): Min : 00 - Max : 14

(*transmit by Hexadecimal code)

• For Plasma TV

► To control the panel light.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [g][ ][Set ID][ ][OK/NG][Data][x]

12

ENG

ENGLISH

EXTERNAL CONTROL DEVICE SETUP

12

* [Data 02], [Data 03] functions depend on model

and signal.

* If [Data 00] is 00 (3D On), [Data 03] has no

meaning.

* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data

01], [Data 02] and [Data 03] have no meaning.

* If [Data 00] is 03 (2D to 3D), [Data 01] and

[Data 02] have no meaning.

* If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data

03] works when 3D Mode (Genre) is manual only.

* All 3D pattern options ([Data 01]) may not be

available according to broadcasting/video signal.

[Data 00] [Data 01] [Data 02] [Data 03]

00 O O O

01 X X X

02 X X X

03 X O O

X : don’t care

Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]

[Data03][x]

[t][ ][Set ID][ ][NG][Data00][x]

26. Extended 3D(Command: x v) (only 3D models) (Depending on model)

► To change 3D option for TV.

Transmission [x][v][ ][Set ID][ ][Data 00][ ]

[Data 01][Cr]

[Data 00] 3D option

00 : 3D Picture Correction 01 : 3D Depth (3D Mode is Manual Only) 02 : 3D Viewpoint 06 : 3D Color Correction 07 : 3D Sound Zooming 08 : Normal Image View 09 : 3D Mode (Genre)

3) When [Data 00] is 06, 07 00 : Off 01 : On

4) When [Data 00] is 08 00 : Revert to 3D video from 3D-to-2D

converted 2D video

01 : Change 3D video to 2D video, except

2D-to-3D video

* If conversion condition doesn’t meet, command is

treated as NG.

5) When [Data 00] is 09

00 : Standard 02 : Cinema 04 : Manual

Ack [v][ ][Set ID][ ][OK][Data00][Data01][x]

[v][ ][Set ID][ ][NG][Data00][x]

01 : Sport 03 : Extreme 05 : Auto

27. Auto Configure (Command: j u)

(Depending on model)

► To adjust picture position and minimize image

shaking automatically. It works only in RGB (PC) mode.

Transmission [j][u][ ][Set ID][ ][Data][Cr]

Data 01 : To set Auto Configure

Ack [u][ ][Set ID][ ][OK/NG][Data][x]

[Data 01] It has own range for each 3D option

determined by [Data 00].

1) When [Data 00] is 00 00 : Right to Left 01 : Left to Right

2) When [Data 00] is 01, 02

Data Min: 0 - Max: 14 (*transmit by Hexadecimal

code)

Data value range(0 - 20) converts Viewpoint range (-10 - +10) automatically (Depending on model) * This option works when 3D Mode (Genre) is manual

only.
