LG 65UH9500 Schematic

Internal Use Only

LED TV

SERVICE MANUAL

CHASSIS : UA62M

MODEL : 65UH9500 65UH9500-UA

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL69460605 (1602-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ........................................................................ 3

SERVICING PRECAUTIONS ................................................................... 4

SPECIFICATION ...................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 14

BLOCK DIAGRAM .................................................................................. 25

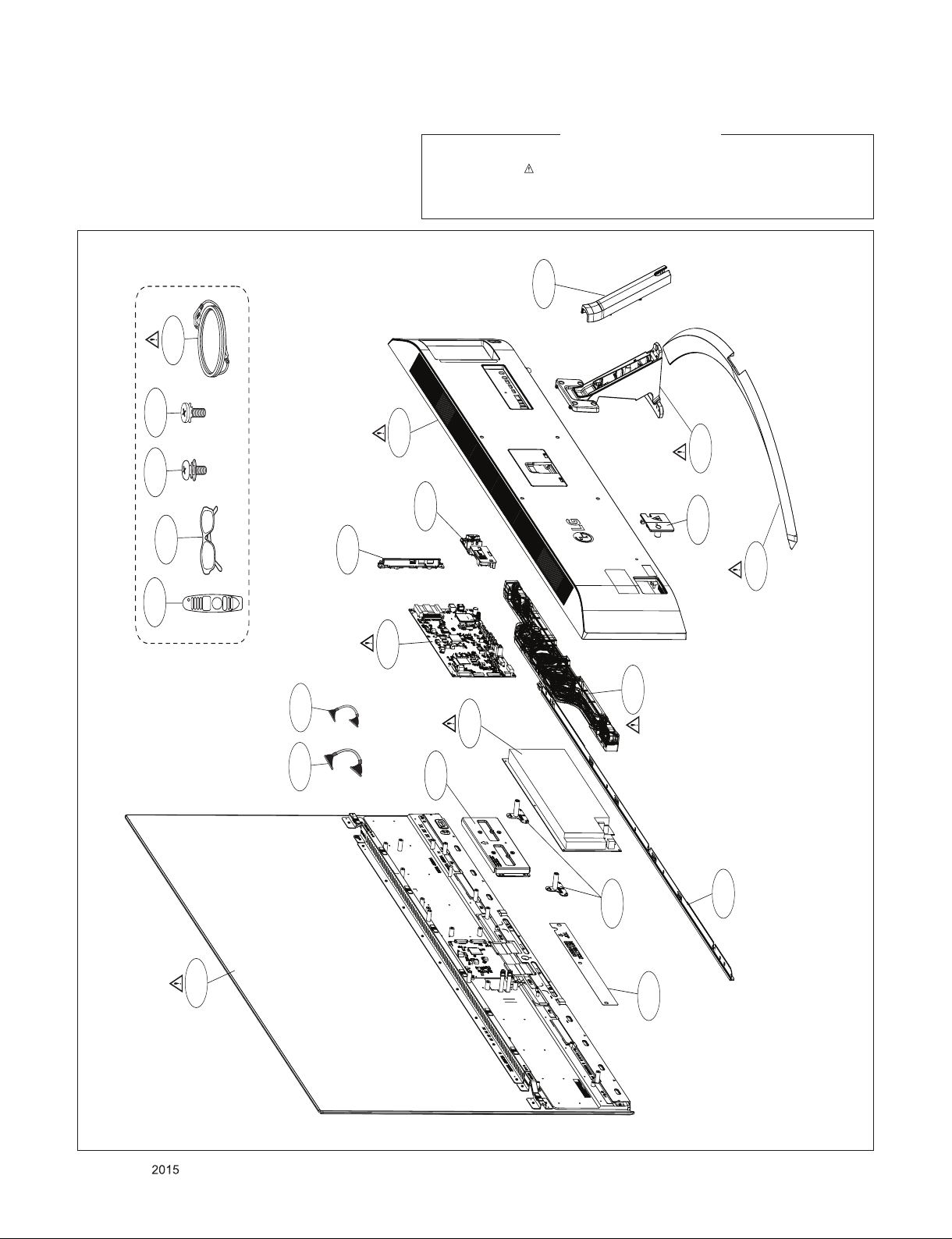

EXPLODED VIEW .................................................................................. 34

DISASSEMBLY ....................................................................................... 35

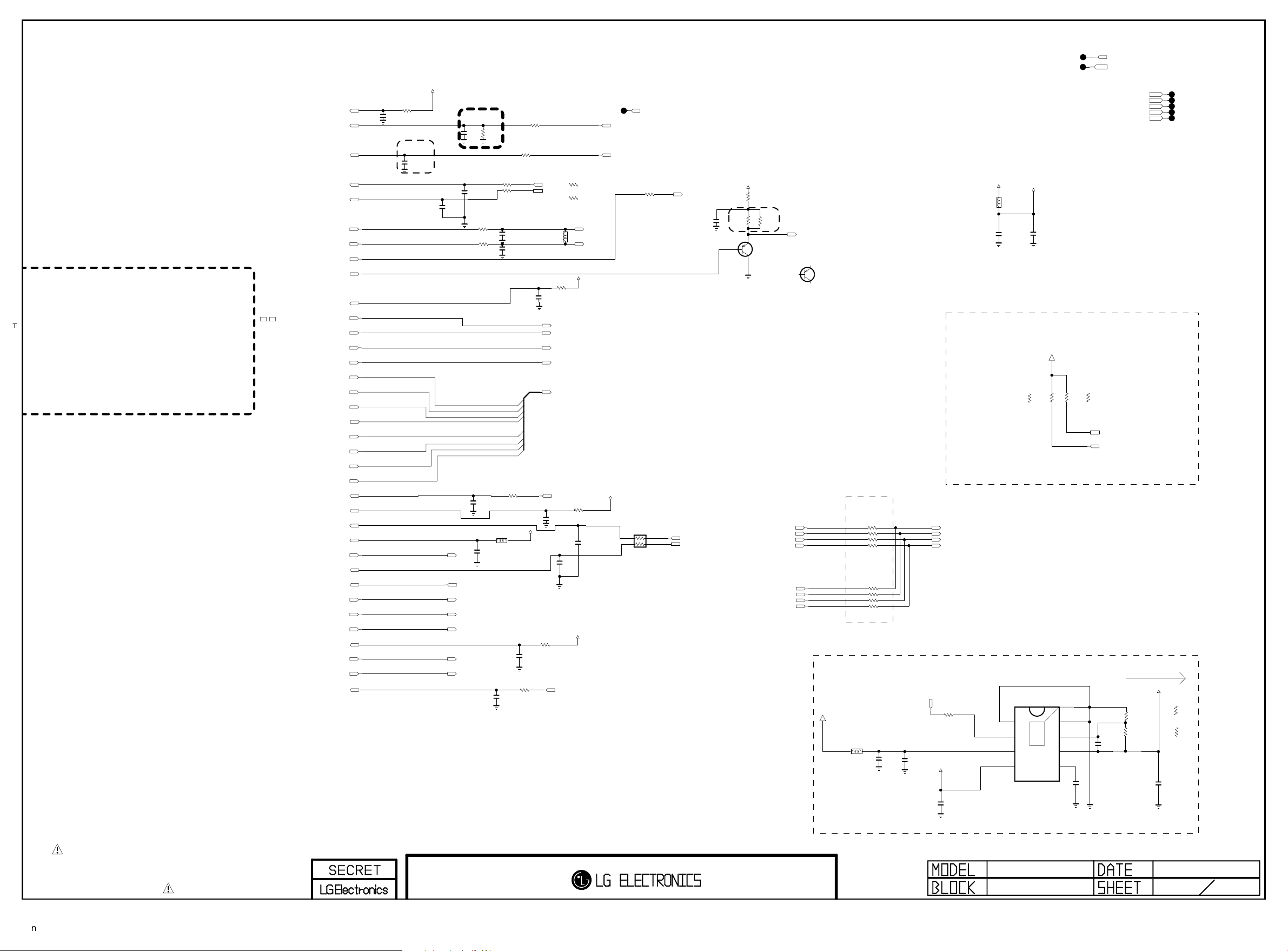

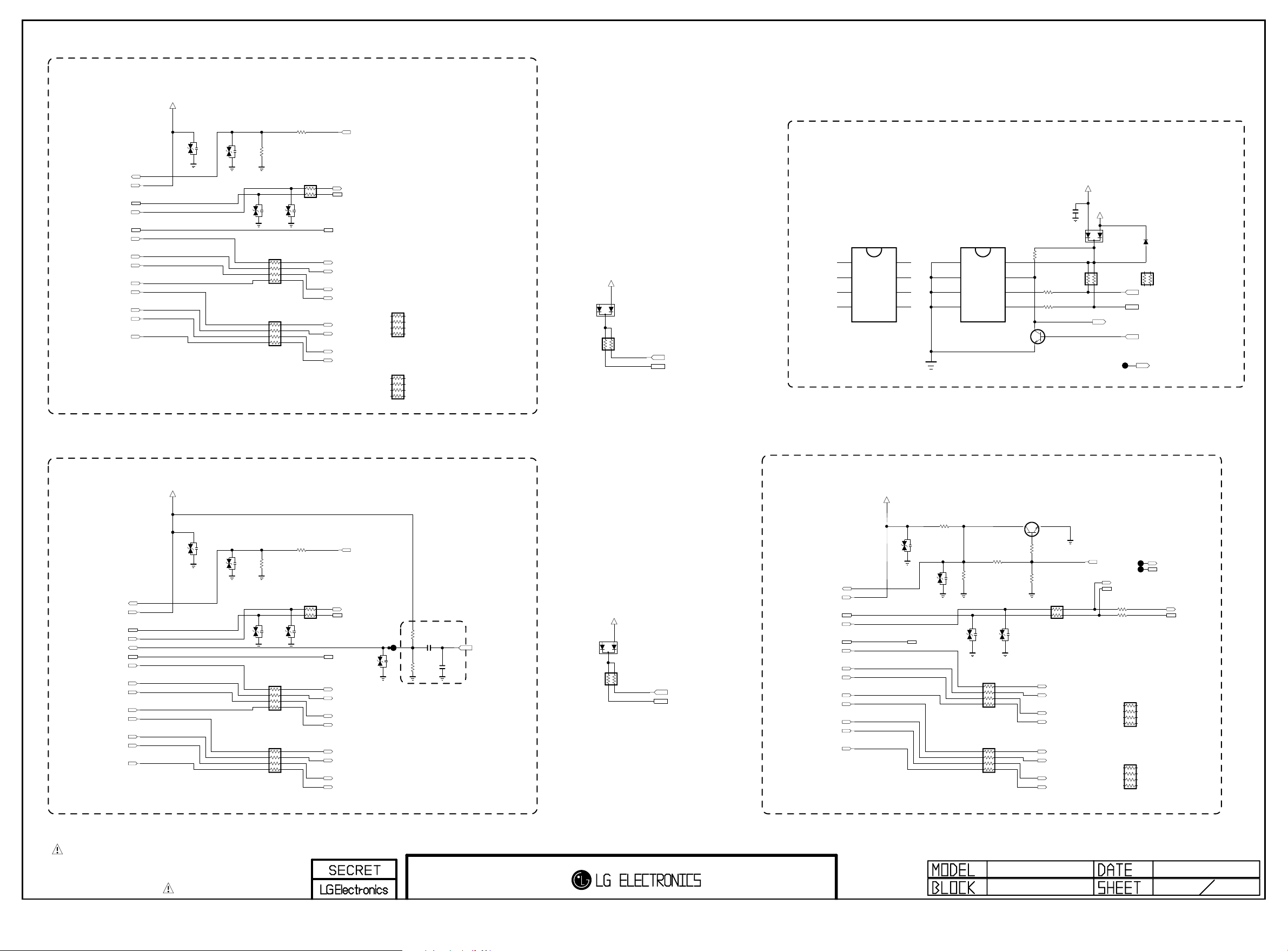

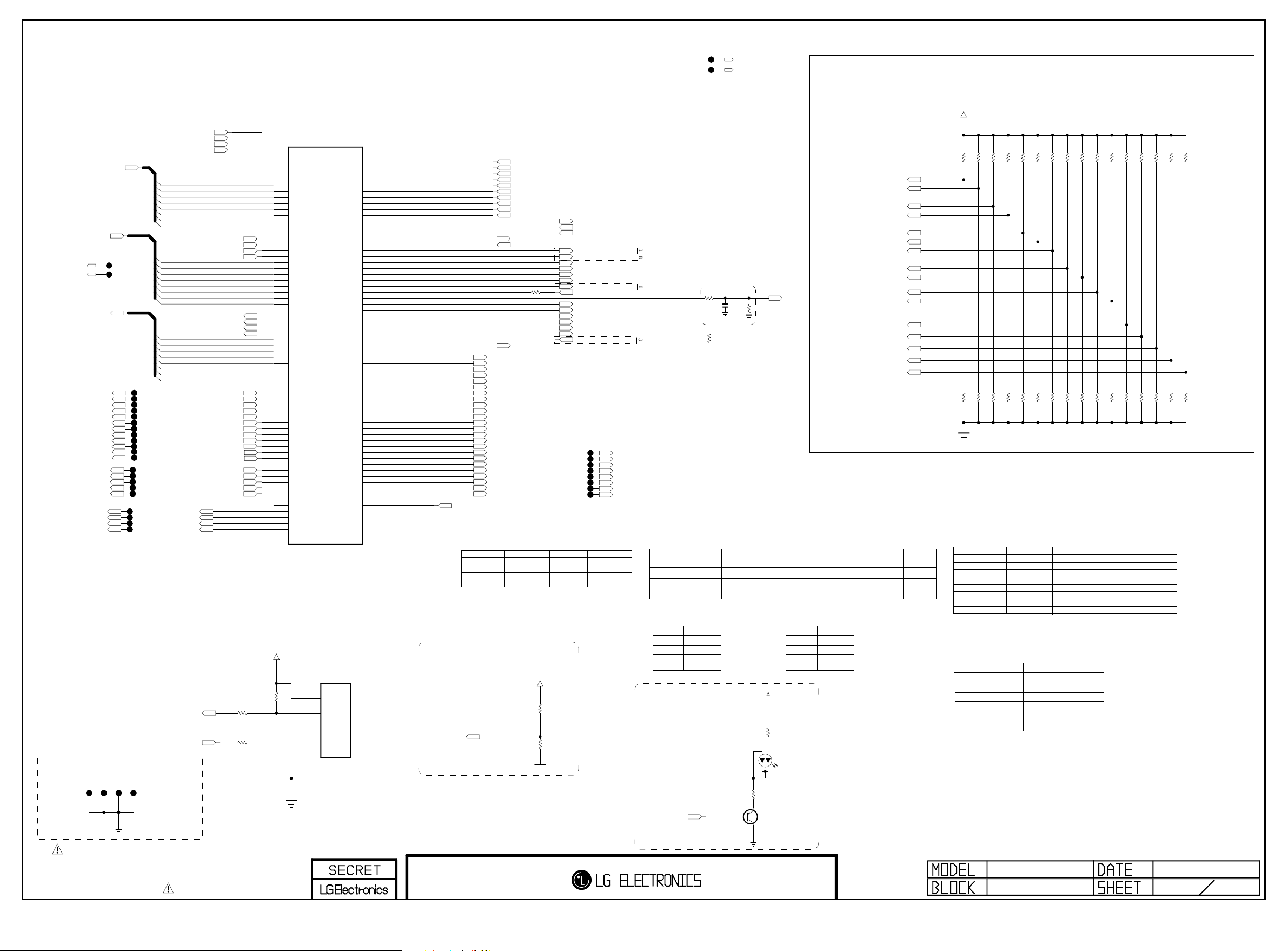

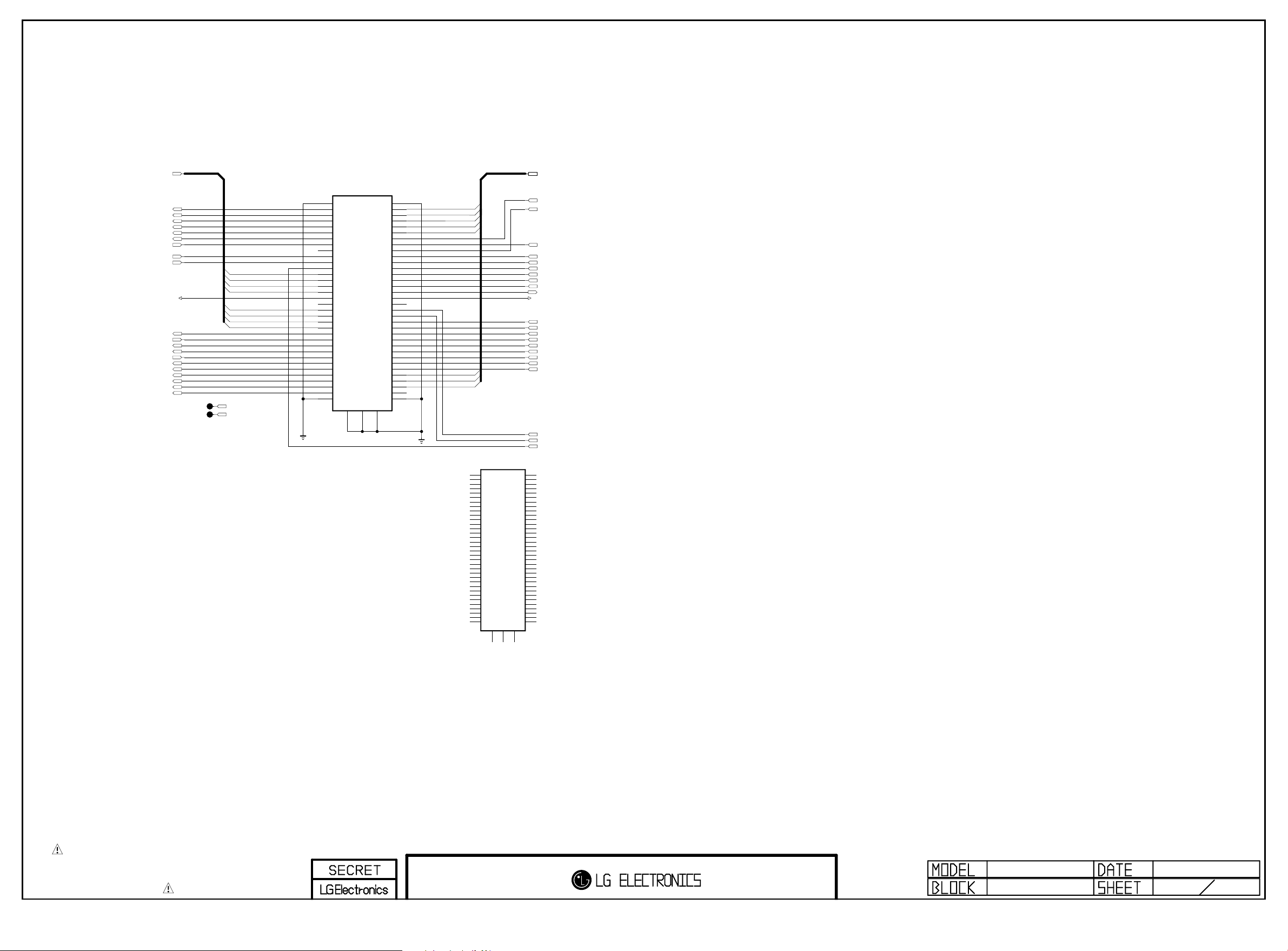

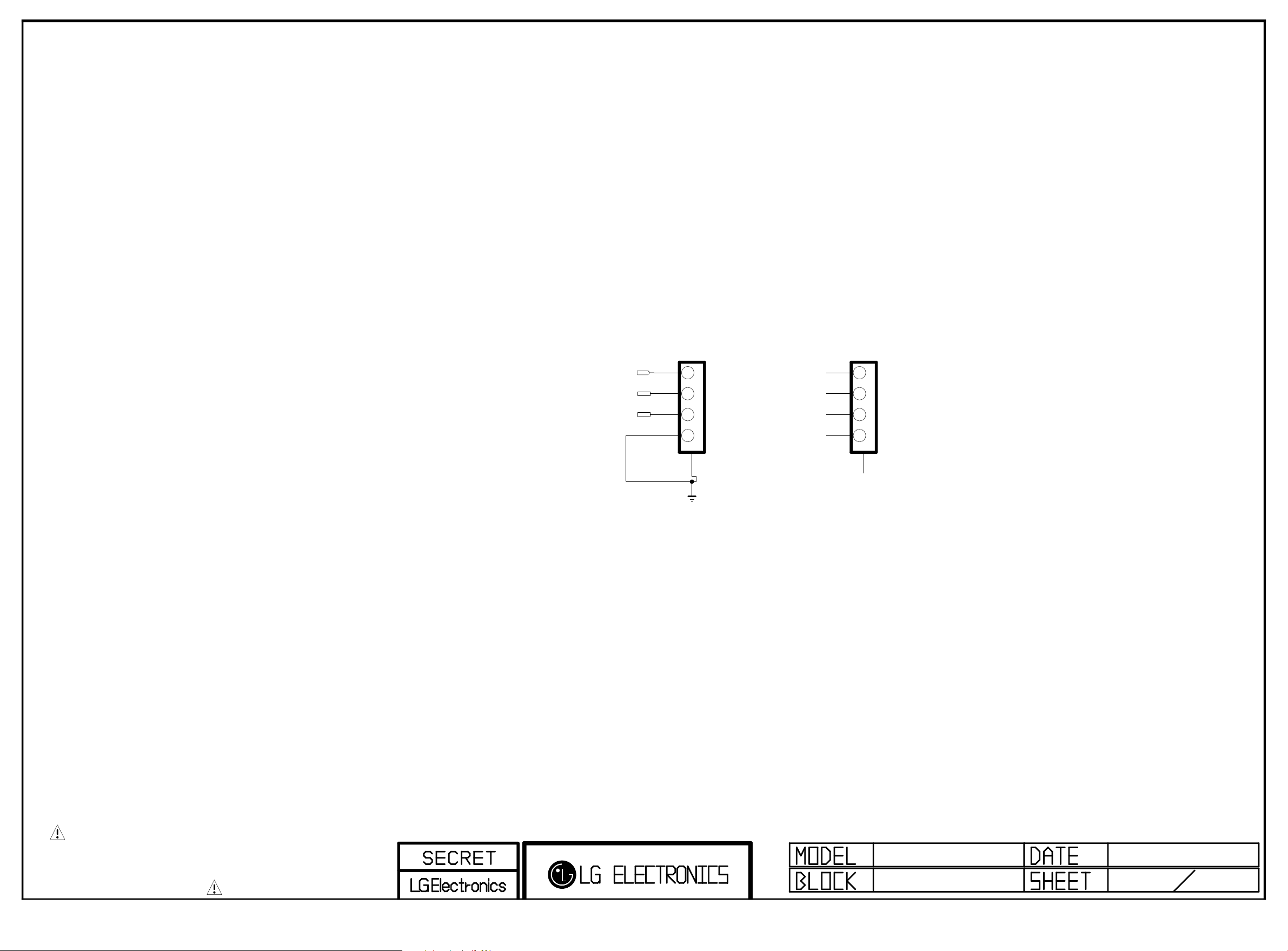

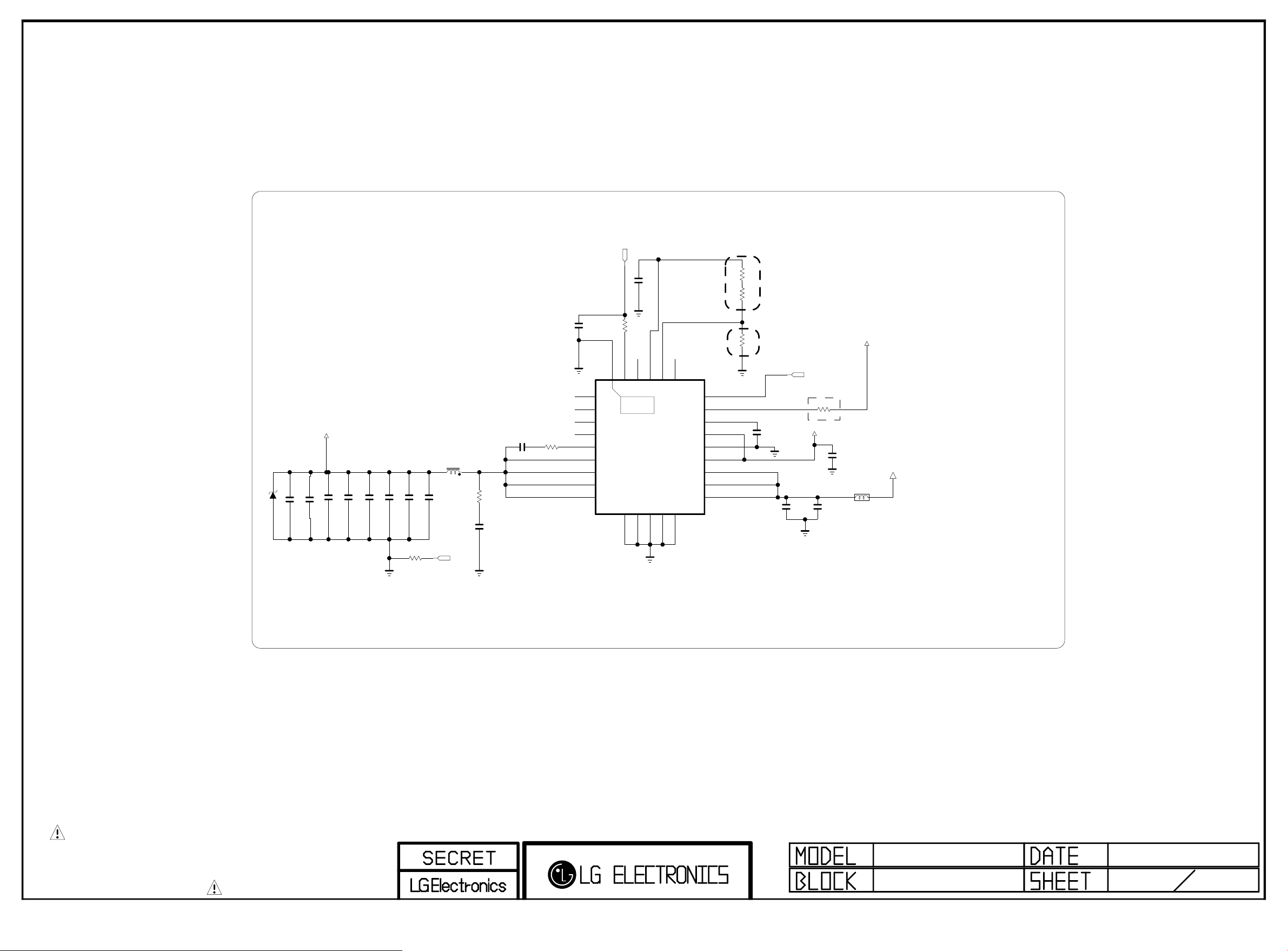

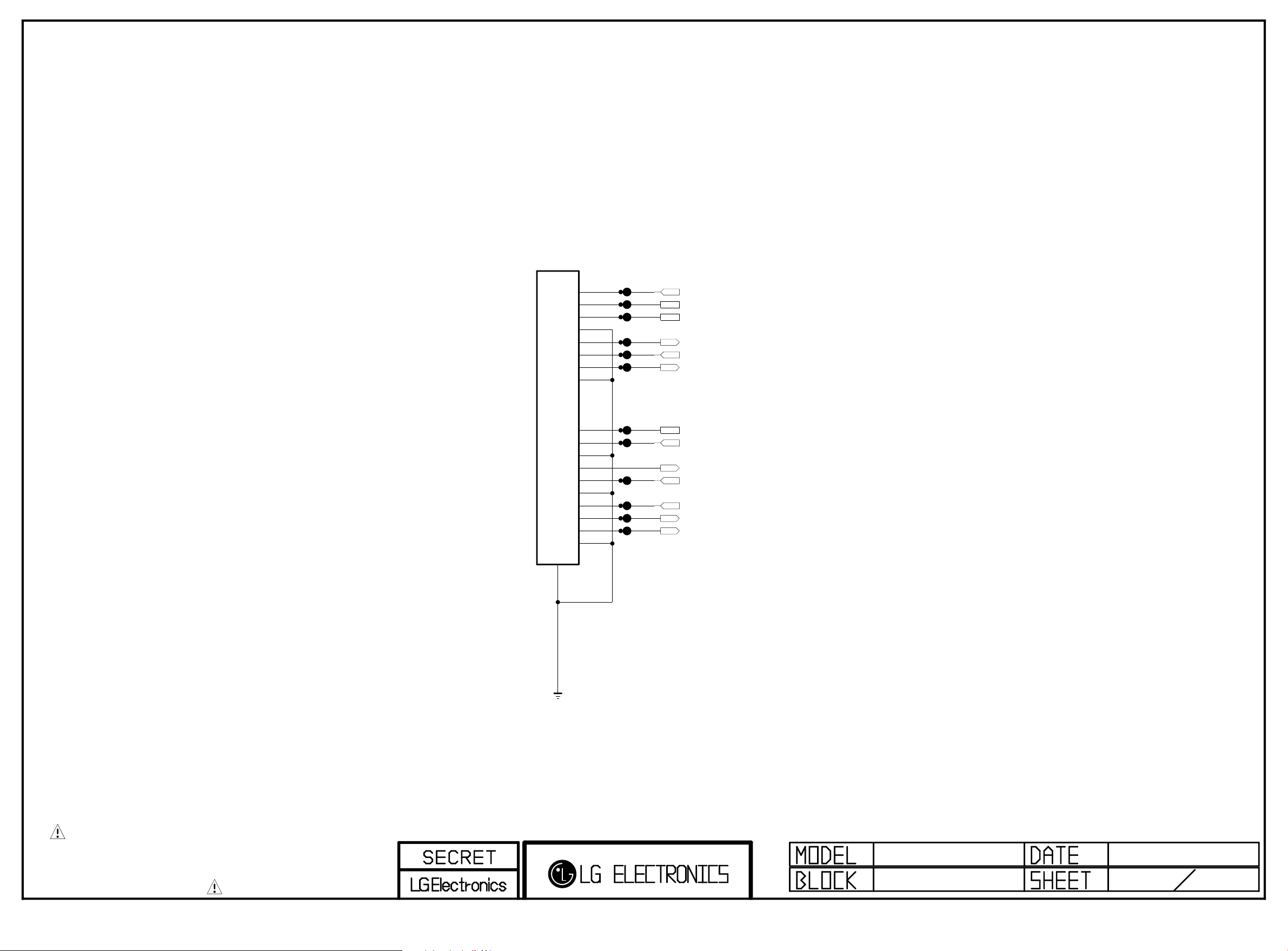

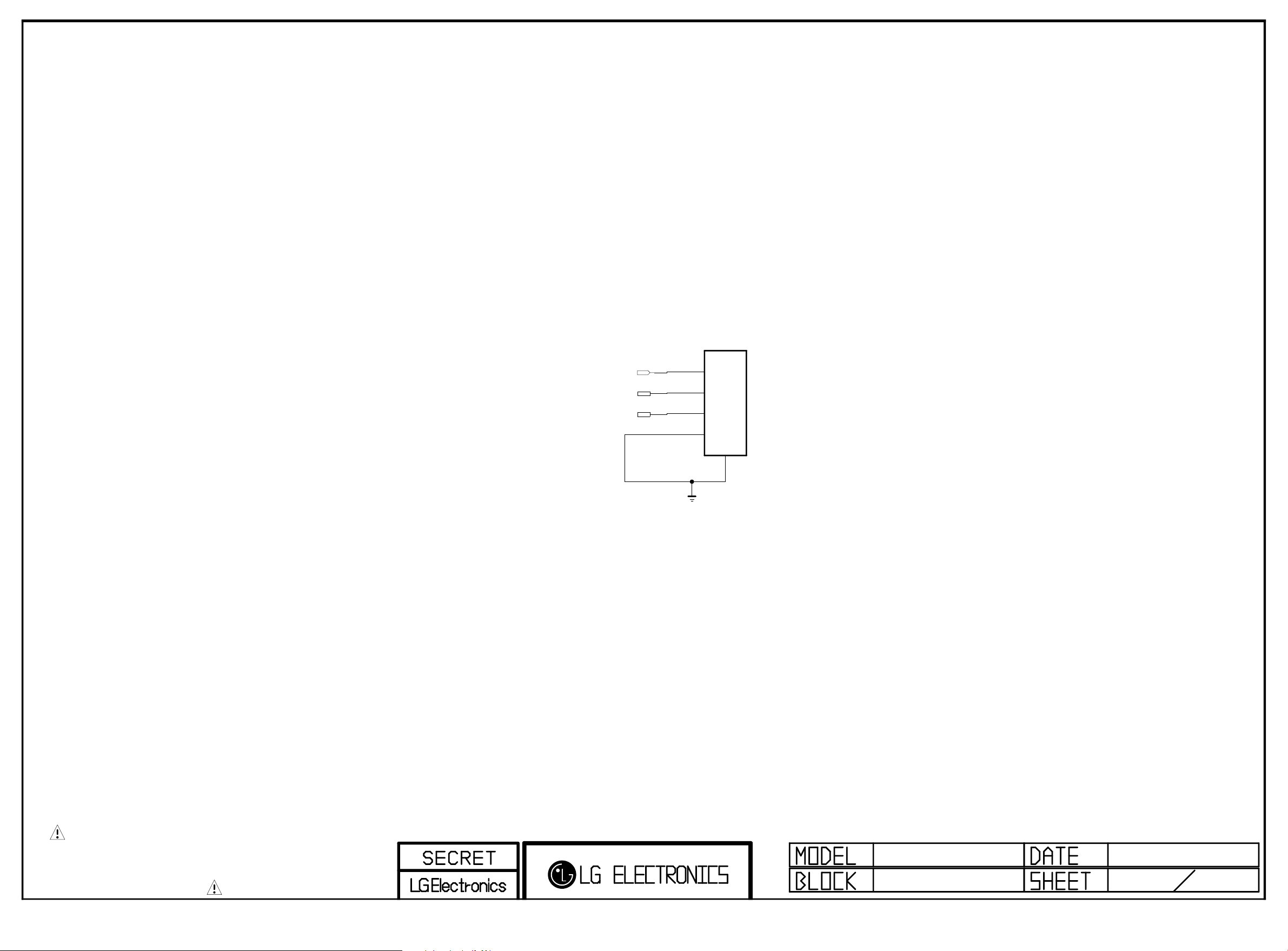

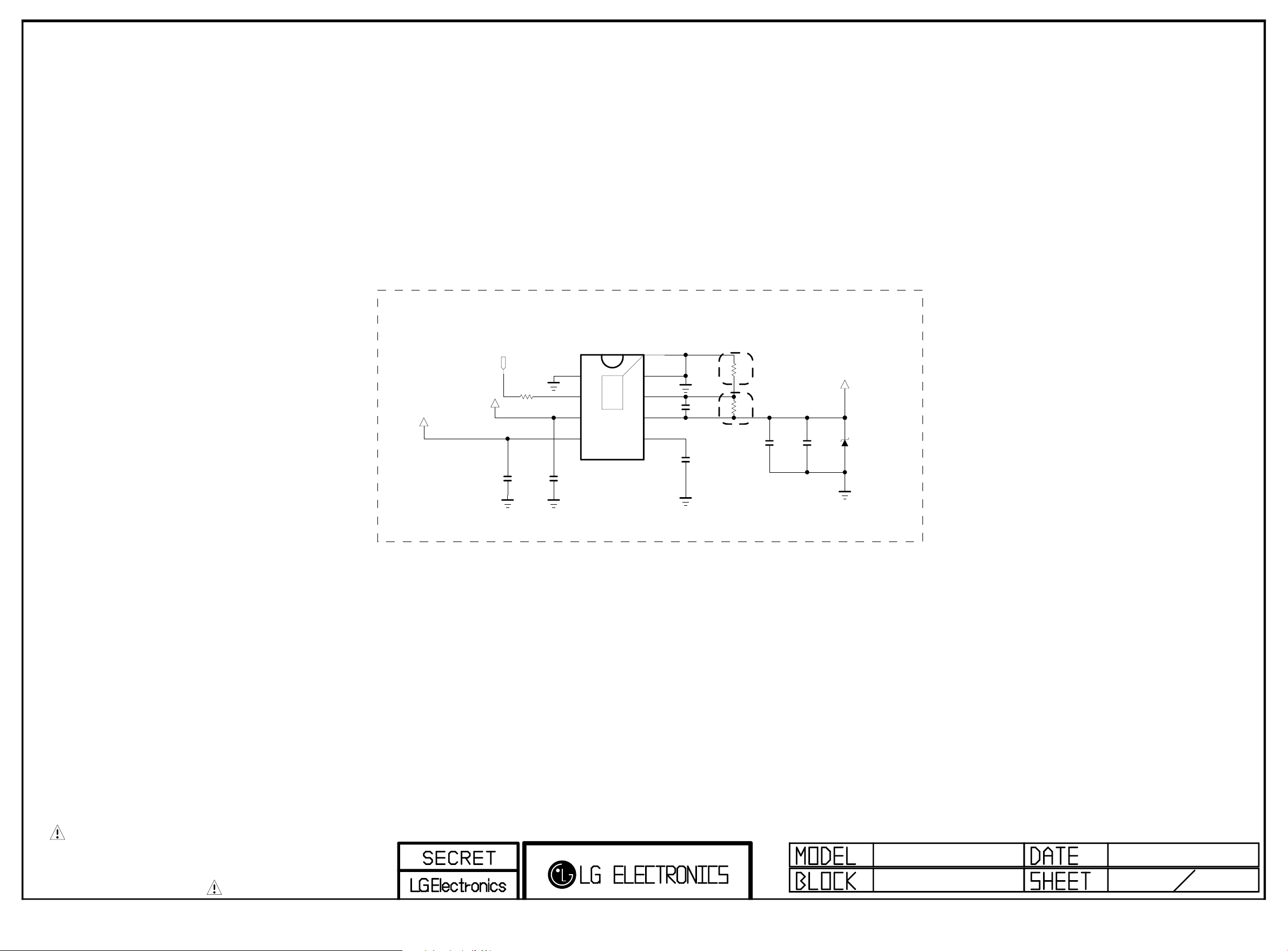

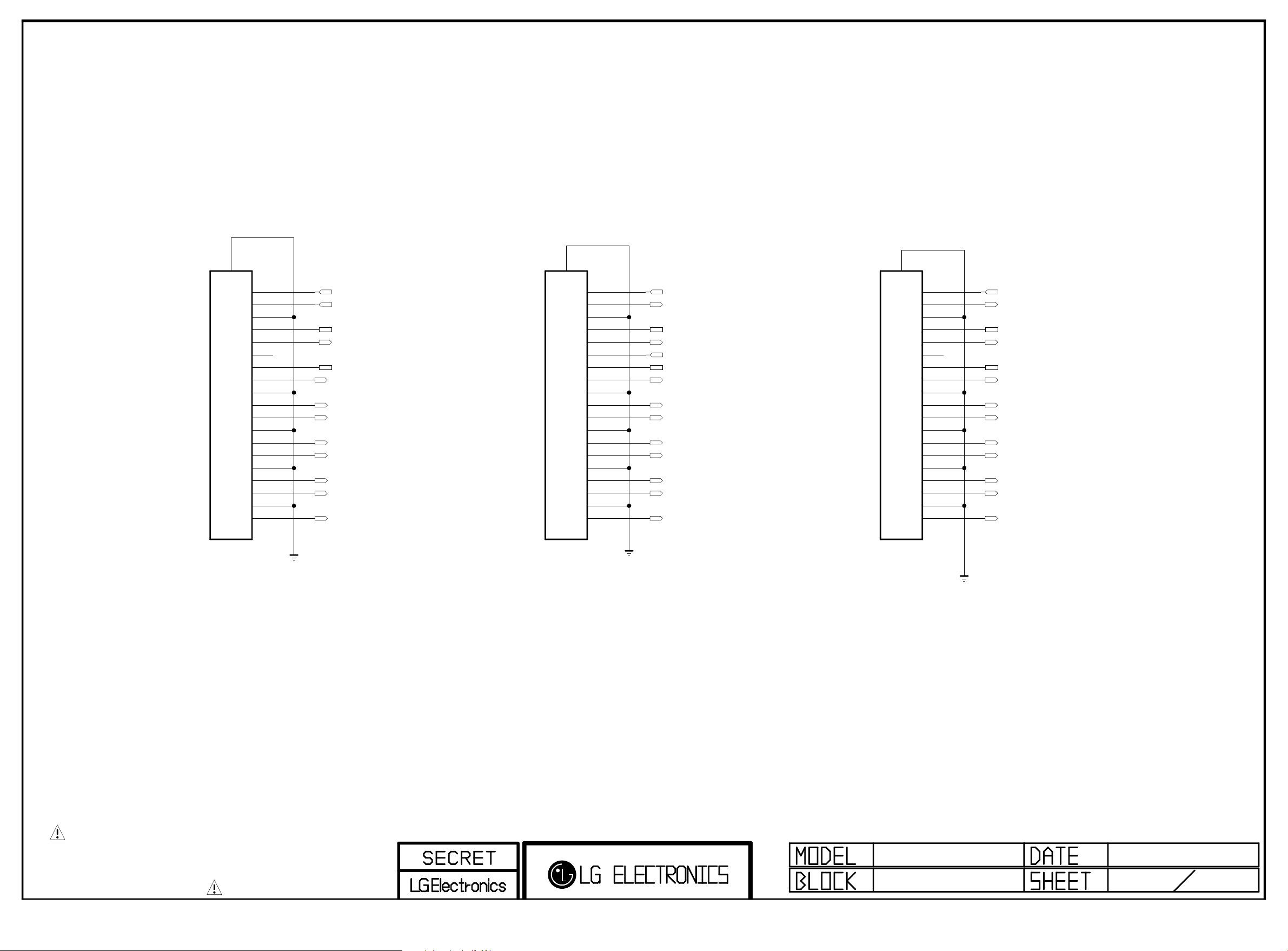

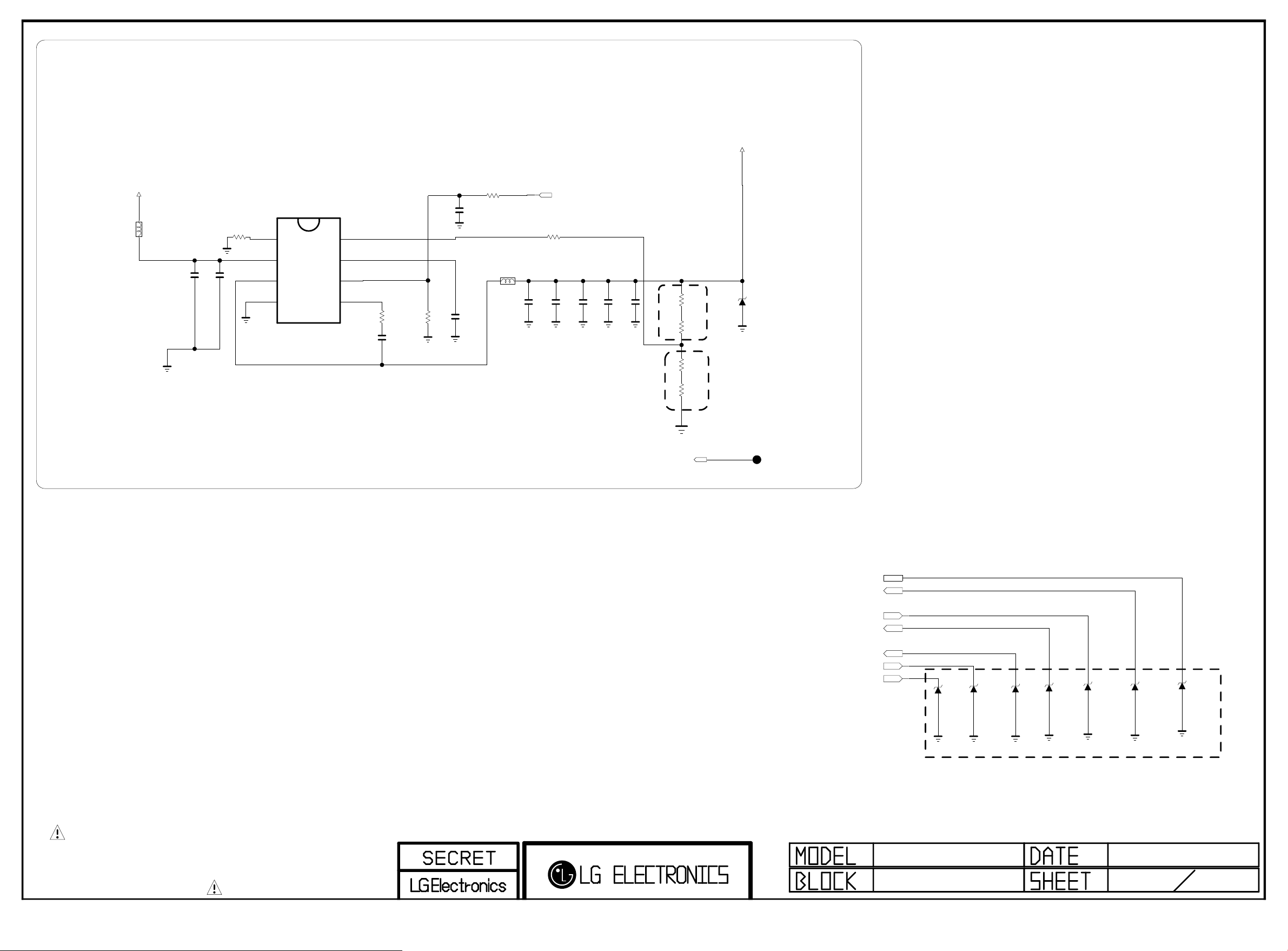

SCHEMATIC CIRCUIT DIAGRAM ........................................... APPENDIX

TROUBLE SHOOTING GUIDE ................................................ APPENDIX

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

1. Application range

This spec sheet is applied to the LED TV used UA62M chassis

2. Test condition

Each part is tested as below without special notice.

(1) Temperature : 25 ºC ± 5 ºC(77±9ºF), CST : 40 ºC±5 ºC (2) Relative Humidity: 65 % ± 10 % (3) Power Voltage

Standard input voltage (100~240V@ 50/60Hz) * Standard Voltage of each products is marked by models.

(4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

(5) The receiver must be operated for about 20 minutes prior

to the adjustment.

3. Test method

(1) Performance: LGE TV test method followed (2) Demanded other specification

- Safety : CE, IEC specification

- EMC : CE, IEC

4. General Specification

4.1. Model Specification

No Item Specication Remark

1 Market North America

2 Broadcasting system Digital : DVB-T2, ATSC /64 & 256 QAM, ATSC

Analog : NTSC-M / NTSC-M

3 Available Channel VHF : 2~13

UHF : 14~69

DTV : 2-69

CATV : 1 ~ 135

CADTV : 1 ~ 135

DTV(UHD) : 2 ~ 69

4 Receiving system Digital : ATSC

Analog : NTSC-M

5 Video Input NTSC-M Rear gender(1EA)

6 Component Input Y/Cb/Cr, Y/ Pb/Pr Rear gender(1EA)

7 HDMI Input HDMI 1 PC / DTV format Support 6Gbps

HDMI 2 PC / DTV format Support 6Gbps, Support ARC

HDMI 3 PC / DTV format Support 6Gbps

8 Audio Input Component / AV Audio / DVI Audio L/R Input ; Rear(Gender)

Component and av and DVI use same jack ; Rear (Gender)

9 SPDIF out(1EA) Optical Audio out Rear (1EA),

10 USB Input(3EA) EMF, DivX HD, For SVC (download) JPEG, MP3, DivX HD

Only for training and service purposes

- 6 -

4.2. Module Specification

No Item Specication Remark

1 Display Screen Device 49” wide Color Display Module Resolution: 3840*2160

55” wide color display module

60” wide color display module

65” wide color display module

75” wide color display module

79” wide color display module

86” wide color display module

2 Aspect Ratio 16:9 All

3 LCD Module 49” TFT QWUXGA LCD LC490EQH-DJF1 [UH93/UH85]

55” TFT QWUXGA LCD LC550EQH-DJF1[UH93/UH85]

LC550EQF-YJF1[UH96/UH95]

60” TFT QWUXGA LCD LC600EQF-DJF1[UH93/UH85]

65” TFT QWUXGA LCD LC650EQF-DJF1[UH93/UH85]

LC650EQF-YJF1[UH96/UH95]

75” TFT QWUXGA LCD LC750EQF-FJF1[UH93/UH85]

LC750EQF-FJM1[UH68/UH65]

79” TFT QWUXGA LCD LC790EQF-FJF1[UH96/UH95]

86” TFT QWUXGA LCD LC860EQD-FJF1[UH96/UH95]

4 Operating Environment TFT Temp. : 0 ~ 40 deg

Humidity : 0 ~ 85%

TFT Temp. : 0 ~ 50 deg

Humidity : 20 ~ 90%

5 Storage Environment TFT Temp. : -20 ~ 60 deg

Humidity : 10 ~ 90%

ALEF Temp. : -20 ~ 60 deg

Humidity : 10 ~ 90%

6 Input Voltage AC100 ~ 240V, 50/60Hz

LGE SPEC

Only for training and service purposes

- 7 -

5. External input format

5.1. 2D Mode

5.1.1. Component input(Y, PB, PR)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

1 720*480i 15.73 59.94 13.50 SDTV, DVD 480I(525I)

2 720*480i 15.75 60.00 13.51 SDTV, DVD 480I(525I)

3 720*576i 15.62 50.00 13.50 SDTV, DVD 576I(625I) 50Hz

4 720*480p 31.47 59.94 27.00 SDTV 480P

5 720*480p 31.50 60.00 27.02 SDTV 480P

6 720*576p 31.25 50.00 27.00 SDTV 576P 50Hz

7 1280*720 44.96 59.94 74.17 HDTV 720P

8 1280*720 45.00 60.00 74.25 HDTV 720P

9 1280*720 37.50 50.00 74.25 HDTV 720P 50Hz

10 1920*1080 28.12 50.00 74.25 HDTV 1080I 50Hz,

11 1920*1080 33.72 59.94 74.17 HDTV 1080I

12 1920*1080 33.75 60.00 74.25 HDTV 1080I

13 1920*1080 56.25 50 148.5 HDTV 1080P

14 1920*1080 67.43 59.94 148.5 HDTV 1080P

15 1920*1080 67.50 60.00 148.5 HDTV 1080P

5.1.2. HDMI Input (PC/DTV)

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed

HDMI-PC

1 640*350 31.46 70.09 25.17 EGA

2 720*400 31.46 70.08 28.32 DOS

3 640*480 31.46 59.94 25.17 VESA(VGA)

4 800*600 37.87 60.31 40 VESA(SVGA)

5 1024*768 48.36 60.00 65 VESA(XGA)

6 1360*768 47.71 60.01 84.75 VESA(WXGA)

7 1152*864 54.34 60.05 80 VESA

8 1280*1024 63.98 60.02 109.00 SXGA Support to HDMI-PC

9 1920*1080 67.5 60 158.40

10 3840*2160 54 24.00 297.00

11 3840*2160 56.25 25.00 297.00

12 3840*2160 67.5 30.00 297.00

13 4096*2160 53.95 23.97 296.70

14 4096*2160 54 24 297 UDTV 2160P

WUXGA(Reduced Blanking)

UDTV 2160P

Only for training and service purposes

- 8 -

HDMI-DTV

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel

Proposed Remarks

clock(MHz)

640*480 31.46 59.94 25.12 SDTV 480P

640*480 31.5 60.00 25.12 SDTV 480P

720*480 15.73 59.94 13.50 SDTV, DVD 480I(525I) Spec. out but display

720*480 15.75 60.00 13.51 SDTV, DVD 480I(525I)

720*576 15.62 50.00 13.50 SDTV, DVD 576I(625I) 50Hz

720*480 31.47 59.94 27 SDTV 480P

720*480 31.5 60.00 27.02 SDTV 480P

720*576 31.25 50.00 27 SDTV 576P

1280*720 44.96 59.94 74.17 HDTV 720P

1280*720 45 60.00 74.25 HDTV 720P

1280*720 37.5 50.00 74.25 HDTV 720P

1920*1080 28.12 50.00 74.25 HDTV 1080I

1920*1080 33.72 59.94 74.17 HDTV 1080I

1920*1080 33.75 60.00 74.25 HDTV 1080I

1920*1080 26.97 23.97 63.29 HDTV 1080P

1920*1080 27.00 24.00 63.36 HDTV 1080P

1920*1080 33.71 29.97 79.120 HDTV 1080P

1920*1080 33.75 30.00 79.20 HDTV 1080P

1920*1080 56.25 50.00 148.5 HDTV 1080P

1920*1080 67.43 59.94 148.35 HDTV 1080P

1920*1080 67.5 60.00 148.50 HDTV 1080P

3840*2160 53.95 23.98 296.70 UDTV 2160P

3840*2160 54 24.00 297.00 UDTV 2160P

3840*2160 56.25 25.00 297.00 UDTV 2160P

3840*2160 61.43 29.97 296.70 UDTV 2160P

3840*2160 67.5 30.00 297.00 UDTV 2160P

3840*2160 112.5 50.00 594 UDTV 2160P When HDMI1,2,3

3840*2160 134.86 59.94 593.40 UDTV 2160P

3840*2160 135 60.00 594 UDTV 2160P

4096*2160 53.95 23.98 296.70 UDTV 2160P

4096*2160 54 24.00 297 UDTV 2160P

4096*2160 56.25 25.00 297 UDTV 2160P

4096*2160 61.43 29.97 296.70 UDTV 2160P

4096*2160 67.5 30.00 297 UDTV 2160P

4096*2160 112.5 50.00 594 UDTV 2160P When HDMI1,2,3

4096*2160 134.86 59.94 593.40 UDTV 2160P

4096*2160 135 60.00 594 UDTV 2160P

UHD DEEP COLOUR ON

Only for training and service purposes

- 9 -

5.2. 3D Mode

5.2.1. HDMI Input 1.4b (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

(MHz)

1 640*480 31.46 / 31.5 59.94/ 60 25.17/25.2 1 Top-and-Bottom

62.93 / 63 59.94/ 60 50.35/50.4 1 Frame packing

31.46 / 31.5 59.94/ 60 50.35/50.4 1 Side-by-side(Full) (SDTV 480P)

2 720*480 31.46 / 31.5 59.94 / 60 27.00/27.03 2,3 Top-and-Bottom

62.93 / 63 59.94 / 60 54/54.06 2,3 Frame packing

3 720*576 31.25 50 27 17,18 Top-and-Bottom

62.5 50 54 17,18 Frame packing Secondary(SDTV 576P)

4 720*576 15.62 50 27 21 Frame packing

5 1280*720 37.50 50 74.25 19 Top-and-Bottom

44.96 / 45 59.94 / 60 74.17/74.25 4 Top-and-Bottom

75 50 148.5 19 Frame packing Primary(HDTV 720P)

89.91/90 59.94 / 60 148.35/148.5 4 Frame packing Primary(HDTV 720P)

6 1920*1080 28.12 50.00 74.25 20 Top-and-Bottom

33.72 / 33.75 59.94 / 60 74.17/74.25 5 Top-and-Bottom

56.25 50.00 148.5 20 Frame packing Primary(HDTV 1080I)

67.43/67.50 59.94 / 60 148.35/148.5 5 Frame packing Primary(HDTV 1080I)

7 1920*1080 26.97 / 27 23.97 / 24 74.17/74.25 32 Top-and-Bottom

28.12 25 74.25 33 Top-and-Bottom

33.71 / 33.75 29.97 / 30.00 74.18/74.25 34 Top-and-Bottom

43.94/54 23.97 / 24 148.35/148.5 32 Frame packing Primary(HDTV 1080P)

56.25 25 148.5 33 Frame packing Secondary(HDTV 1080P)

67.43 / 67.5 29.97 / 30.00 148.35/148.5 34 Frame packing Primary(HDTV 1080P)

56.250 50 148.5 31 Top-and-Bottom

67.43 / 67.5 59.94 / 60 148.35/148.50 16 Top-and-Bottom

VIC 3D input proposed

mode

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Top-and-Bottom Side-by-side(half)

Side-by-side(half)

Proposed

Secondary(SDTV 480P) Secondary(SDTV 480P)

Secondary(SDTV 480P) (SDTV 480P)

Secondary(SDTV 480P) Secondary(SDTV 480P)

Secondary(SDTV 480P) (SDTV 480P)

Secondary(SDTV 576P) Secondary(SDTV 576P)

Secondary(SDTV 576I) Secondary(SDTV 576I) Secondary(SDTV 576I)

Primary(HDTV 720P) Primary(HDTV 720P)

Secondary(HDTV 1080I) Primary(HDTV 1080I)

Primary(HDTV 1080P) Primary(HDTV 1080P)

Secondary(HDTV 1080P) Secondary(HDTV 1080P)

Primary(HDTV 1080P) Secondary(HDTV 1080P)

Only for training and service purposes

- 10 -

5.2.2. HDMI 1.4/2.0(3D Supported mode manaually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

1 720*480 31.5 60 27.03 SDTV 480P 2D to 3D, Side by Side(Half), Top & Bottom

2 720*576 31.25 50 27 HDTV 720P

3 1280*720 45.00 60.00 74.25 HDTV 1080I

37.50 50 74.25 HDTV 1080P

4 1920*1080 33.75 60.00 74.25 HDTV 1080P

28.125 50.00 74.25 HDTV 1080P

5 1920*1080 27.00 24.00 74.25 HDTV 1080P

28.12 25 74.25 HDTV 2160P

33.75 30.00 74.25 HDTV 2160P

67.50 60.00 148.5 HDTV 2160P

56.250 50 148.5 HDTV 2160P

6 3840*2160

4096*2160

53.95 23.97 296.70 HDTV 2160P

54 24.00 297.00 HDTV 2160P

(MHz)

Proposed 3D input proposed mode

2D to 3D, Top & Bottom, Side by Side(half)

56.25 25.00 297.00 HDTV 2160P

61.43 29.97 296.70 HDTV 2160P

67.5 30.00 297.00 HDTV 2160P

7 3840*2160 54 24.00 297.00 HDTV 2160P 2D to 3D, Top & Bottom(half), Side by

8 4096*2160 56.25 25.00 297.00 HDTV 2160P

Side(half), When HDMI1,2,3 UHD DEEP COLOUR ON

5.2.3. HDMI-PC Input (3D) (3D Supported Mode Manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

(MHz)

1 1024*768 48.36 60 65 HDTV 768P 2D to 3D,

2 1360*768 47.71 60 85.5 HDTV 768P 2D to 3D,

3 1920*1080 67.50 60 148.50 HDTV 1080P 2D to 3D,

4 3840*2160 54 24.00 297.00 HDTV 2160P 2D to 3D,

56.25 25.00 297.00

67.5 30.00 297.00

5 4096*2160 54 24 297.00 HDTV 2160P 2D to 3D,

6 Others - - - 640*350

Proposed 3D input proposed mode

Side by Side(half), Top & Bottom

Top & Bottom(half), Side by Side(half),

720*400 640*480 800*600

1152*864

2D to 3D, Side by Side(half), Top & Bottom

Only for training and service purposes

- 11 -

5.2.4. RF Input(3D supported mode manually)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1280*720 37.50 50 74.25 HDTV 720P 2D to 3D, Side by Side, Top & Bottom

2 1920*1080 28.12 50 74.25 HDTV 1080I 2D to 3D, Side by Side, Top & Bottom

5.2.5. RF Input (3D supported mode automatically)

No. Signal 3D input proposed mode

1 Frame Compatible Side by Side(Half), Top & Bottom

5.2.6. USB – Movie (3D) (3D supported mode manually)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 Under 704x480 - - - 2D to 3D

2 Over 704x480

Under 1080P

interlaced

- - - 2D to 3D, Side by Side(Half), Top & Bottom

3 Over 704x480

Under 1080P

progressive

4 Over 2160P - 24/25/30/60 - 2D to 3D, Side by Side(Half), Top & Bottom

- 50 - 2D to 3D, Side by Side(Half), Top & Bottom

- others - 2D to 3D, Side by Side(Half), Top & Bottom

5.2.7. USB -Photo (3D) (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 Under 320x240 - - - 2D to 3D, Side by Side(Half), Top & Bottom

2 Over 320x240 - - - 2D to 3D, Side by Side(Half), Top & Bottom

5.2.8. USB(3D) (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 1080p 33.75 30 74.25 Side by Side(Half), Top & Bottom, Side by Side(Full),

2 2160p 67.5 30 297

Frame Sequential, MPO(Photo), JPS(Photo)

Only for training and service purposes

- 12 -

5.2.9. Component Input(3D supported mode manually)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1280*720 37.5 50 74.25 HDTV 720P 2D to 3D,

2 1280*720 45.00 60.00 74.25 HDTV 720P

3 1280*720 44.96 59.94 74.17 HDTV 720P

4 1920*1080 33.75 60.00 74.25 HDTV 1080I

5 1920*1080 33.72 59.94 74.17 HDTV 1080I

6 1920*1080 28.12 50 74.25 HDTV 1080I

7 1920*1080 67.500 60 148.50 HDTV 1080P

8 1920*1080 67.43 59.94 148.35 HDTV 1080P

9 1920*1080 27.00 24.00 74.25 HDTV 1080P

10 1920*1080 28.12 25 74.25 HDTV 1080P

11 1920*1080 56.25 50 74.25 HDTV 1080P

12 1920*1080 26.97 23.97 74.17 HDTV 1080P

13 1920*1080 33.75 30.00 74.25 HDTV 1080P

14 1920*1080 33.71 29.97 74.17 HDTV 1080P

Side by Side(half), Top & Bottom

5.2.10. Miracast, Widi (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 1024X768p - 30 / 60 - 2D to 3D, Side by Side(Half), Top & Bottom

2 1280x720p - 30 / 60 -

3 1920X1080p 30 / 60

4 Others - 2D to 3D

**Remark: 3D Input mode

No. Side by Side Top & Bottom Checker-

board

Single Frame

Sequential

Frame Pack-

ing

Line

Interleaving

Column

Interleaving

2D to 3D

Only for training and service purposes

- 13 -

ADJUSTMENT INSTRUCTION

1. Application Range

This spec. sheet applies to UA62M Chassis applied LED TV all models manufactured in TV factory

2. Specification.

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25 ±5ºC of temperature and 65±10% of relative humidity if

there is no specific designation (4) The input voltage of the receiver must keep 100~240V,

50/60Hz (5) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15ºC

▪ In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2 hours

▪ In case of keeping module is in the circumstance of below

-20°C, it should be placed in the circumstance of above 15°C for 3 hours

* (Caution) When still image is displayed for a period of 20

minutes or longer (especially where W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area.

3. PCB assembly adjustment method

3.1. MAC Address, ESN Key, Wide-vine Key, HDCP 2.2 Download

▪ D/L Program : keydownload.exe

3.1.1. Equipment & Condition

(1) Play file: keydownload.exe (2) Key Write: Com 1,2,3,4 and 115200 (Baudrate) (3) Barcode: Com 1,2,3,4 and 9600 (Baudrate)

3.1.2. Download Process (MAC + WIDEVINE + ESN+HDCP2.2)

(1) Execute “keydownload.exe” on PC (2) Select the download items. (3) Mode check : Online only (4) Check the test process

- DETECT -> MAC_WRITE -> ESN_WRITE (only Colombia/Panama) -> WIDEVINE_WRITE

(5) Play: START (6) Check of result: Ready, Test, OK or NG

3.1.3. Inspection : InINSTART menu, check these keys.

3.2. LAN Test(Ping-test)

3.2.1. PING Test(LAN Operating Test)

3.2.1.1. Check PCBA

(1) Connect LAN to PCBA& Power On.(Default IP can be set

to automatic setting. When power ON, IP can be

Automatically be achieved from the router) (2) Push ADJ key on Adjust remote-controller. (3) Enter “13. ACAP PING TEST” & check Network.

3.2.1.2. Check Set(Manufacturer) (1) Connect TV-Set & PC with Cross LAN cable.(PC IP :

12.12.2.3)

(2) Execute “PINT Test program”, Check setting data of

program. (TV-Set IP : 12.12.2.2)

(3) Push Power Only key on Adjust remote-controlle. (4) Click “RUN”, Check “OK” or “NG”

Only for training and service purposes

- 14 -

3.3. Main S/W program download

3.3.1. Using the Memory Stick

** USB DOWNLOAD : Service Mode (1) Insert the USB memory Stick to the USB port (2) Automatically detect the SW Version.

-> S/W download process is executed automatically.

(3) Show the message “Copy the file from the Memory”

(4) After Finished the Download, Automatically DC Off -> On

(5) If the TV IS Turn On, Check the updated SW Version and

Tool Option.

3.4. Input tool option

Adjust tool option refer to the BOM.

▪ Tool Option Input : PCBA Check Process ▪ Area Option Input : Set Assembly Process

3.5. EDID D/L method

Recommend that don’t connect HDMI and RGB(D-SUB) cable when downloading the EDID. If not possible, recommend that connect the MSPG equipment. There are two methods of downloading the edid data

It is a VESA regulation. A PC or a MNT will display an optimal resolution through information Sharing without any necessity of user input. It is a realization of “Plug and Play”

3.5.1. 1st Method

EDID data’s are automatically downloaded when adjusting the Tool Options. Automatically downloaded when pushing the enter key in the EDID D/L menu. It takes about 2seconds.

3.5.2. 2nd Method

(Caution) Must be checked that the tool option is right or not. If tool option is wrong, HDMI edid data could not be downloaded well.

(1) Press the ADJ key (2) Move to the 13. EDID D/L and Press the right direction

key(►)

(3) Press the right direction key(►) at Start.

(4) After about a few seconds, appear “Waiting..” => “OK”,

then complete.

After Input Tool Option and AC off Before PCBA check, you have to change the Tool option and have to AC off/on (Plug out and in) (If missing this process, set can operate abnormally)

3.4.1.Profile

Must be changed the option value because being different with some setting value depend on module maker, inch and market

3.4.2. Equipment

adjustment remote control.

3.4.3. Adjustment method

- The input methods are same as other chassis.(Use ADJ Key on the Adjust Remocon.)

(If not changed the option, the input menu can differ the

model spec.)

Refer to Job Expression of each main chassis ass’y

(EBTxxxxxxxx) for Option value

(Caution) Don’t Press “IN-STOP” key after completing the function inspection.

3.5.3. RS-232C command Method

(1) Command : AE 00 10

(Caution) Don’t connect HDMI and RGB(D-SUB) cable when downloading the EDID. If the cables are connected, Downloading of edid could be failed.

3.5.4. EDID data

3.5.4.1. DTS

Input 3D

6G 3G

HDMI 1 9F 65 9F 8B

HDMI 2 9F 55 9F 7B

HDMI 3 9F 45 9F 6B

Only for training and service purposes

- 15 -

(1) 3D_6G

- HDMI1 6G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

A0 03 0C 00 10 00 B8 3C 20 C0 87 01 02 03 04 01 40 B0 01 FC 18 10 16 67 D8 5D C4 01 78 80 03 E3 05 C0 C0 00 E3 0F 01 10 E3 06 07 01 01 1D 80 18 71 1C 16 D0 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 B0 51 E0 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 65

- HDMI2 6G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

A0 03 0C 00 20 00 B8 3C 20 C0 87 01 02 03 04 01 40 B0 01 FC 18 10 16 67 D8 5D C4 01 78 80 03 E3 05 C0 C0 00 E3 0F 01 10 E3 06 07 01 01 1D 80 18 71 1C 16 D0 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 B0 51 E0 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 55

- HDMI3 6G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

A0 03 0C 00 30 00 B8 3C 20 C0 87 01 02 03 04 01 40 B0 01 FC 18 10 16 67 D8 5D C4 01 78 80 03 E3 05 C0 C0 00 E3 0F 01 10 E3 06 07 01 01 1D 80 18 71 1C 16 D0 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 B0 51 E0 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 45

(2) 3D_3G

- HDMI1 3G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F 80 02 03 3B F1 4E 5D 10 04 05 03 02 20 22 01 5E 5F 90 62 63 64 29 3D 06 C0 15 07 50 09 57 07 75 03 0C A0 00 10 00 B8 3C 20 C0 87 01 02 03 04 01 40 01 FC B0 18 10 16 E3 0E 61 66 E3 06 07 01 01 1D 80 18 71 C0 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 D0 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 8B

- HDMI2 3G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F 80 02 03 3B F1 4E 5D 10 04 05 03 02 20 22 01 5E 5F 90 62 63 64 29 3D 06 C0 15 07 50 09 57 07 75 03 0C A0 00 20 00 B8 3C 20 C0 87 01 02 03 04 01 40 01 FC B0 18 10 16 E3 0E 61 66 E3 06 07 01 01 1D 80 18 71 C0 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 D0 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 7B

- HDMI3 3G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F 80 02 03 3B F1 4E 5D 10 04 05 03 02 20 22 01 5E 5F 90 62 63 64 29 3D 06 C0 15 07 50 09 57 07 75 03 0C A0 00 30 00 B8 3C 20 C0 87 01 02 03 04 01 40 01 FC B0 18 10 16 E3 0E 61 66 E3 06 07 01 01 1D 80 18 71 C0 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 D0 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 6B

Only for training and service purposes

- 16 -

3.6. ADC Calibration

Video : NULL

Comp 480i/Comp 1080p/RGB

3.6.1. ADC Calibration : Internal Auto ADC

ADC calibration is not necessary because MAIN SoC (LGExxxx) is already calibrated from IC Maker

3.6.2. Manual ADC Calibration

3.6.2.1. Equipment & Condition (1) Adjustment Remocon (2) 801GF (802B, 802F, 802R) or MSPG925FA Pattern

Generator

- Resolution : 480i Comp1 (MSPG-925FA: model-209, pattern-65)

- Resolution : 1080p Comp1 (MSPG-925FA: model-225, pattern-65)

- Resolution : 1080p RGB (MSPG-925FA: model-225, pattern-65)

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level: 0.7±0.1 Vp-p

3.6.2.2. Adjust method

3.6.2.2.1. ADC 480i/1080p Comp (1) Check connected condition of Comp cable to the

equipment

(2) Give a 480i Mode, Horizontal 100% Color Bar Pattern to

Comp1. (MSPG-925FA -> Model: 209, Pattern: 65)

(3) Change input mode as Component1 and picture mode as

“Standard”

(4) Press the In-start Key on the ADJ remote after at least 1

min of signal reception. Then, select

(5) External ADC. And Press OK or Right Button for going to

sub menu. (6) Press OK in Comp 480i menu (7) Give a 1080p Mode, Horizontal 100% Color Bar Pattern to

Comp1. (MSPG-925FA -> Model: 225, Pattern: 65) (8) Press OK in Comp 1080p menu (9) If ADC Comp is successful, “ADC Component Success” is

displayed. (10) If ADC calibration is failure, “ADC Component Fail” is

displayed.

(11) If ADC calibration is failure, after rechecking ADC pattern

or condition, retry calibration

(12) If ADC calibration is failure, after recheck ADC pattern or

condition, retry calibration

3.7. Check SW Version

3.7.1. Method

(1) Push In-star key on Adjust remote-controller. (2) SW Version check

Model Name : 49UH9300-NA 1.Adjust Check

IN START

Serial Number : 012PTED6N500 2.ADC Data Country Group

S/W Version : 3.02.06.01 3.Power Off Status Country Group Code 1

MICOM Version : 3.05.3 4.System1 Country Group KR

BOOT Version : 1.02.22 5.System2 Country --

UHD BE Version : OK(40.00.1b.00) 6.System3 Area Option 18048

Chip Type : LG1312 7.Model Number D/L Tool Option

Wi-Fi Channel : 1 8.Test Option Tool Option1 99598

Wi-Fi MAC : E8:F2:E2:69:06:CA 9.Spread Spectrum Tool Option2 29902887

Wi-Fi Speed : USB 2.0 10.Stable Count Tool Option3 255827

MAC Address : 3C:CD:93:4F:CB:5D 11.SDP Se rver Selection Tool Option4 64814

IP Address : 0.0.0.0 12.RF Remocon Test Tool Option5 119176

SFU Key : OK 13.Access Code Tool Option6 134828

Widevine : LGTV10L000011618 14.Twin TV Tool Option7 922283

ESN Num. : LGTV20162=21001000272 Tool Option9 94338

HDCP1.4 : OK Tool CRC 57316

HDCP2(Miracast/HDMI) : OK/OK Adjust White Balance : OK

DTCP : OK Adjust ADC(OTP): OK

RF Receiver Version 1.3.4.18 Component OK

Wi-Fi/Magic Search : OK/OK EDID: OK

Camera Ver. : NULL HDMI1 OK(0x7F,0xCB)

Debug Status : Release HDMI2 OK(0x7F,0xBB)

SIGN Key : DEVELKEY HDMI3 OK(0x7F,0xAB)

Eye Check : OK

Control Key : OK

Access USB Status : 1 / -1(T) / -1(C)

UTT : 40 75

APP History Version 146(deathvalley)

PQL DB : LGD_EGDE_SI2178B_XXXX55

Adjust Check

3.8. Camera Port Inspection

(1) Objective : To check PCBA’s CAMERA Port. (2) How-it-works

1) Connect the PCBA like below Picture.

2) Send specific RS-232C Command for displaying Camera Preview.

* CAMERA need to be status of Slide up

Only for training and service purposes

3) RS-232C Command

RS-232C COMMAND

CMD D ATA ID

Ai 00 23 Camera Function Start.

Ai 00 24 Camera Function End.

- 17 -

Explanation

4. SET assembly adjustment method

* If TV internal pattern is used, not needed

4.1. Input Area-Option

4.1.1. Profile

Must be changed the Area option value because being different of each Country’s Language and signal Condition.

4.1.2. Equipment

adjustment remote control.

4.1.3. Adjustment method

- The input methods are same as other chassis.(Use IN-START Key on the Adjust Remocon.)

Refer to Job Expression of each main chassis ass’y

(EBTxxxxxxxx) for Option value.

4.2. Adjustment of White Balance

* In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2 hours

* In case of keeping module is in the circumstance of below

-20°C, it should be placed in the circumstance of above 15°C for 3 hours.

▪ Purpose : Adjust the color temperature to reduce the

deviation of the module color temperature.

▪ Principle : To adjust the white balance without the saturation,

Fix the one of R/G/B gain to 192 (default data) and decrease the others.

▪ Adjustment mode : Three modes – Cool / Medium / Warm

* Required Equipment

▪ Remote controller for adjustment ▪ Color Analyzer : CA100+ or CA-210 or same product (should

be used in the calibrated ch by CS-1000)

- LCD TV : CH-9

- PDP TV : CH-10

- White LED TV : CH-14

- ALEF : CH-18

- RGB LED(MNT) : CH-16

- Auto W/B adjustment instrument(only for Auto adjustment)

4.2.1. Adjustment of White Balance (For Automatic Adjustment)

Connecting diagram of equipment for measuring (For Automatic Adjustment)

Color Analyzer

Probe

RS-232C

Pattern Generator

Signal Source

(1) Set TV in ADJ mode using P-ONLY key (or POWER ON

key) (2) Place optical probe on the center of the display (3) It need to check probe condition of zero calibration before

adjustment. (4) Connect RS-232C Cable (5) Select mode in ADJ Program and begin a adjustment. (6) When WB adjustment is completed with OK message,

check adjustment status of pre-set mode (Cool, Medium,

Warm) (7) Remove probe and RS-232C cable.

▪ W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need

RS-232C

Computer

RS-232C

4.2.2. Adjustment of White Balance (for Manual adjustment)

4.2.1.1. Adj. condition and cautionary items (1) Lighting condition in surrounding area surrounding lighting

should be lower 10 lux. Try to isolate adj. area into dark surrounding.

(2) Probe location: Color Analyzer (CA-210) probe should be

within 10cm and perpendicular of the module surface (80°~ 100°)

(3) Aging time

1) After Aging Start, Keep the Power ON status during 5 Minutes.

2) In case of LCD, Back-light on should be checked using no signal or Full-white pattern.

Only for training and service purposes

4.2.2.2. Equipment (1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:

(2) Adj. Computer ( During auto adj., RS-232C protocol is

(3) Adjust Remocon (4) Video Signal Generator MSPG-925F 720p/216-Gray

(Model: 217, Pattern: 78)

- 18 -

CH14)

needed)

4.2.2.3. Adjustment (1) Set TV in Adj. mode using POWER ON (2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface.

(3) Press ADJ key -> EZ adjust using adj. R/C -> 6. White-

Balance then press the cursor to the right (KEY►). When KEY(►) is pressed 216 Gray internal pattern will be

displayed.

(4) One of R Gain / G Gain / B Gain should be fixed at 192,

and the rest will be lowered to meet the desired value.

(5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of

color temperature.

▪ If internal pattern is not available, use RF input. In EZ Adj.

menu 6.White Balance, you can select one of 2 Test-pattern: ON, OFF. Default is inner(ON). By selecting OFF, you can adjust using RF signal in 216 Gray pattern.

4.2.3. LED White balance table

4.2.3.1. Cool Mode (1) Purpose : Especially G-gain fix adjust leads to the

luminance enhancement. Adjust the color temperature to reduce the deviation of the module color temperature.

(2) Principle : To adjust the white balance without the

saturation, Adjust the G gain more than 172 ( If R gain or G gain is more than 255 , G gain can adjust less than 172 ) and change the others ( R/B Gain ).

(3) Adjustment mode : mode – Cool

5.2.3.2. Medium / Warm Mode (1) Purpose : Adjust the color temperature to reduce the

deviation of the module color temperature.

(2) Principle : To adjust the white balance without the

saturation,Fix the one of R/G/B gain to 192 (default data) and decrease the others.

(3) Adjustment mode : Two modes – Medium / Warm

▪ Standard color coordinate and temperature when using the

CA210 equipment(CH 14)

Mode

Cool 0.271±0.002 0.270±0.002 13000K 0.0000

Medium 0.286±0.002 0.289±0.002 9300K 0.0000

Warm 0.313±0.002 0.329±0.002 6500K 0.0000

Coordinate

X Y

Temp △uv

▪ The Time Table of color coordinates by SET Aging Time

(1) Edge LED Models(UH8/UH9)_nomarl line

Aging time

(Min)

1 0-2 282 289 297 308 324 348

2 3-5 281 287 296 306 323 346

3 6-9 279 284 294 303 321 343

4 10-19 277 280 292 299 319 339

5 20-35 275 277 290 296 317 336

6 36-49 274 274 289 293 316 333

7 50-79 273 272 288 291 315 331

8 80-119 272 271 287 290 314 330

9 Over 120 271 270 286 289 313 329

▪ In the SET applied LED module (LM9600), cause of the

physical characteristics of LED Module, sets are taken a 120 minutes by aging time to stabilize a color coordinates.

So White Balance Control equipments have to get the SET

Aging Time from the SET and then going to control the W/B by revise color coordinates at each time

- To check the Coordinates of White Balance, you have to measure at the below conditions.

Picture Mode : select Vivid and change

Dynamic Contrast : Off , Dynamic Colour : Off, Clear White : Off

-> Picture Mode change : Vidid -> Vivid(User)

( If you miss the upper condition, the coordinates of W/B can

be lower than the spec.)

Cool Medium Warm

X Y X Y X Y

271 270 286 289 313 329

4.4. LAN Inspection

(1) LAN Port connection with PCB (2) Network setting at MENU Mode of TV (3) Setting automatic IP (4) Setting state confirmation (5) If automatic setting is finished, you confirm IP and MAC

Address

Only for training and service purposes

- 19 -

4.5.WIDEVINE Key Inspection

(1) Confirm Key input Data at the “IN START” MENU Mode

4.6. Model name & Serial number D/L

4.6.1. Notice

(1) Serial number D/L is using of scan equipment. (2) Setting of scan equipment operated by Manufacturing

Technology Group.

(3) Serial number D/L must be conformed when it is produced

in production line, because serial number D/L is mandatory by D-book 4.0

(4) Check the model name In-start menu -> Factory name

displayed

(5) Check the Diagnostics (DTV country only) -> Buyer model

displayed

4.6.2. Method : Auto

(1) Press “Power on” key of service remocon.(Baud rate :

115200 bps) (2) Connect RS232 Signal Cable to RS-232 Jack (3) Write Serial number by use RS-232. (4) Must check the serial number at Instart menu.

4.6.3. Method : Manual

* If the TV set is downloaded By OTA or Service man,

Sometimes model name or serial number is initialized.

(Not always) It is impossible to download by bar code scan, so

It need Manual download. (1) Press the ‘instart’ key of ADJ remote controller. (2) Go to the menu ‘6.Model Number D/L’ like below photo. (3) Input the Factory model name or Serial number like photo.

4.7. Wi-Fi MAC Address Check

4.7.1. Using RS232 Command

Command Set ACK

Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]

4.7.2. Check the menu on in-start

4.8. Local Dimming Inspection (Optional)

4.8.1. ALEF models with local dimming

(1) Press ‘TILT” key of the Adj. R/C and check moving

patterns. The black bar patterns moves from top left to bottom right.

If local dimming function does not work, a whole screen

shows full white.

Only for training and service purposes

- 20 -

4.9. GND and Hi-Pot test

4.9.1. GND & HI-POT auto-check preparation

(1) Check the POWER CABLE and SIGNAL CABE insertion

condition

4.9.2. GND & HI-POT auto-check

(1) Pallet moves in the station. (POWER CORD / AV CORD is

tightly inserted) (2) Connect the AV JACK Tester. (3) Controller (GWS103-4) on. (4) GND Test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, execute next process (Hi-pot test). (Remove A/V CORD from A/V JACK BOX)

(5) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next process automatically.

4.9.3. Check point

(1) Test voltage

1)3 Poles

- GND: 1.5KVac/min at 100mA

- SIGNAL: 3KVac/min at 100mA (2) TEST time: 1 second (3) TEST POINT

1) 3 Poles

- GND Test = POWER CORD GND and SIGNAL CABLE

GND.

- Hi-pot Test = POWER CORD GND and LIVE &

NEUTRAL.

(4) LEAKAGE CURRENT: At 0.5mArms

4.12. 3D Function test

4.12.1. Equipment

Pattern Generator MSPG-3233, HDMI mode 37, pattern No. 81

4.12.2. Process

(1) Connect HDMI (HDMI mode 371, Pattern No. 81)

(2) Insert 3D Mode, Select side by side mode. (3) Without 3D-glasses, Like below figure.

(4) With 3D left-glass, Like below figure. (Center is RED)

4.10. Motion Remote controller Inspection

(1) Equipment : Motion remote controller for test, IR-KEY-

CODE remote controller for test

1) Check battery before test. (Recommend : Change battery for every Lot.)

(2) Process

1) If you select the ‘start key(wheel)’ on the controller, you can pairing with the TV SET.

2) You can check the cursor on the TV Screen, when select the ‘Wheel Key’ on the controller

3) You must remove the pairing with the TV Set by select ‘Back + Home Key’ on the controller

4.11. AUDIO output check

No Item Min Typ Max Unit Remark

1 Audio practical

max Output, L/R (Distortion=10% max Output)

Speaker

(8Ω Impedance)

*Measurement condition: (1) RF input: Mono, 1KHz sine wave signal, 100% Modulation (2) CVBS, Component: 1KHz sine wave signal (0.4Vrms) (3) RGB PC: 1KHz sine wave signal (0.7Vrms)

9.0

10.0

8.5

12.0

8.10

9.88WVrms

10.0 15.0 W Measurement

Measurement condition

condition

(5) With 3Dright-glass, Like below figure.(Center is Blue)

Only for training and service purposes

- 21 -

4.13. HDMI ARC Function Inspection

4.13.1. Test equipment

- Optic Receiver Speaker

- MSHG-600 (SW: 1220 ↑)

- HDMI Cable (for 1.4 version)

4.13.2. Test method

(1) Insert the HDMI Cable to the HDMI ARC port from the

master equipment (HDMI1)

(2) Check the sound from the TV Set

(3) Check the Sound from the Speaker or using AV & Optic

TEST program (It’s connected to MSHG-600)

* Remark: Inspect in Power Only Mode and check SW version

in a master equipment

4.14. Camera Port Inspection

(1) Objective : To check how it connects between Camera and

PCBA normally, and their Function

(2) Test Method : This Inspection is available only Power-Only

Status.

1) Push Camera Up

2) Camera’s Preview picture appears on TV Set

(3) Push Camera Down

4.15. PIP/W&R Function Inspection

(1) Objective : To check the connection between sub tuner and

PCBA, and their Function

(2) Test Method : This Inspection is available only Power-Only

Status.

1) Press exit key of the Adj. R/C and Press PIP key.

2) Check that the SUB TUNER pop up window on the TV Set.

(3) Check that the normal operation (picture, sound) of DTV on

the TV Set.

** Appendix **

A. DDC Adjustment Command set

Adjustment

content

1 Aging

On/Off

2 Input select F4 00 0x10 : TV

3 R GAIN 16 00 00 - C0 Gain Value Adjustment

4 G GAIN 18 00 - C0

5 B GAIN 1A 00 - C0

6 R GAIN 16 01 00 - C0 Gain Value Adjustment

7 G GAIN 18 00 - C0

8 B GAIN 1A 00 - C0

9 R GAIN 16 02 00 - C0 Gain Value Adjustment

10 G GAIN 18 00 - C0

11 B GAIN 1A 00 - C0

12 CSM mode F2 00 00 COOL

13 AUTO ADC F1 00 0, 1, 2

14 EEPROM

Read

15 EEPROM

Write

CMD

(HEX)

ADR VALUE detail

F3 00 FF/00 FF : ON / OO : OFF

0x20 : AV1

0x21 : AV2 0x40 : Component1 0x41 : Component2

0x60 : RGB 0x90 : HDMI1 0x91 : HDMI2

CSM COOL

CSM NORMAL

CSM WARM

01 NORMAL

02 WARM

0: Offset Value Adjustment

1: Gain Value Adjustment

2: Offset and Gain Value

Adjustment

E7 00 00 EEPROM read

E8 00 data EEPROM write

Only for training and service purposes

- 22 -

B. DDC command protocol

1. Signal TABLE

START 6E A 50 A 84 A 03 A CMD A ADR A VAL A CS A STOP

2. E

PROM Data Write

(1) Signal TABLE START 6E A 50 A 84+n A 03 A CMD A ADH A ADL A Data_1 A ... Data_n A CS A STOP Delay 20

LEN : 84h+Bytes CMD : E8h ADH : E2PROM Slave Address(A0,A2,A4,A6), Not 00h(Reserved by BufferToEEPROM) ADL : E2PROM Sub Address(00~FF) Data : Write data Delay : 20ms

(2) Command Set

Adjustment

content

1 EEPROM

2 (84+n)h n-byte Write

READ

3. E2PROM Data Read

(1) Command Sequential TABLE

CMD(hex) LEN Detail

E8h 94h 16-Byte Write

C. RS-232C Command Protocol

RS-232C COMMAND

CMD ID DATA

wb 00 00 White Balance Adjust Start.

wb 00 10 Gain Adjust Start

(Internal white pattern)

wb 00 1f Gain Adjust Stop.

wb 00 20 Offset Adjust Start.

(Internal white pattern)

wb 00 2f Offset Adjust Stop.

wb 00 ff White Balance Adjust Stop

(Internal pattern Exit )

xb 00 10 : Analog,

20 : Video 1, 21 : Video 2, 40 : Component 1, 41 : Component 2, 50 : RGB_DTV, 60 : RGB_PC 90 : HDMI 1, 91 : HDMI 2, 92 : HDMI

ad 00 10 ADC Start

Explanation

(2) COMMAND SET

No. Adjustment

content

1 EEPROM

READ

2 80 0-Page 80~FF Read

3 A2 0 1-Page 0~7F Read

4 80 1-Page 80~FF Read

5 A4 0 2-Page 0~7F Read

6 80 2-Page 80~FF Read

7 A6 0 3-Page 0~7F Read

8 80 3-Page 80~FF Read

CMD

ADH (hex)

ADL

(hex)

E7 A0 0 0-Page 0~7F Read

Detail

D. Bluetooth S/W Upgrade by using USB

drive Input

(1) Preparation Equipment

1) USB Memory Stick

2) New Bluetooth Software

3) Copy New File Copy Bluetooth software MCL389x.bin file to memory stick with out folder. (Caution) Do no t copy the file to the inside folder

Only for training and service purposes

- 23 -

3) Copy New File Copy Bluetooth software MCL389x.bin file to memory stick with out folder. (Caution) Do not copy the file to the inside folder

(2) Connection

- Plug-in USB Memory stick to the USB input of the set.

(3) USB input -> Automatically loading menu

(6) OSD – Bluetooth software updated successfully

▪ OSD Information Bluetooth software update success ▪ LCDTV Set will restart by automatically… ▪ Time Process to restart about 5seconds

(7) Check S/W Version

▪ Push “IN-START” button on service remote Controller ▪ Check Information Bluetooth S/W version will appear on

OSD Service Menu.

Example : Bluetooth SW version 2.05

* The OSD “USB Device loading” is appealed by

automatically…

(4) Selecting Window for Bluetooth Software update

▪ The Pop-up window appears for selecting to update

Bluetooth software and information about current Bluetooth software. (Ex : V2.02)

▪ Select “Yes”

(5) Bluetooth S/W Downloading Process

▪ Time Process Downloading new Bluetooth software about

10seconds

▪ Please Wait until finish and do not un-plug power cable

Only for training and service purposes

- 24 -

Block Diagram

Audio 2 AMP

(NTP7515)

M16

CI Slot

P_TS

IF (+/-)

USB1 (3.0)

OPTIC

LAN

HDMI1 HDMI 2.0

EEPROM(NVRAM)

(256Kb)

HDMI

Air/

Cable

TUNER

(T2/C/A)

TUNER

(S2)

DVB-S

DEMOD

(S2)

LNB

USB2 (2.0)

51P/41P

eMMC

(4GB)

Sub Micom

(RENESAS

R5F100GEAFB)

DDR3 1866X16

(512MB X 2EA)

P_TS

X_TAL

24MHz

T2/C/S2 W/O AD

X_TAL

32.768KHz

I2S Out

I2C 0

Vx1

USB

I2C 4

(HW Port)

COMP

OCP

YPbPr

CVBS/L/R

SPDIF OUT

ETHERNET

I2C 2

(HW Port)

SUB

ASSY

IR / KEY/EYE

WIFI/BT Combo

USB_WIFI

CVBS

SMARTCARD_I/F

B-CAS

(JAPAN)

DDR3 2133 X 16

(512MB X 2EA)

HDMI3(External EDID)

USB3 (2.0)

F16

DDR3 2133 X 16

(128MB X 3EA)

RS232C/HP

HDMI2(ARC) HDMI 2.0

S_TS for JP

RTL8

201F

Vx1

OCP

LOCAL DIMMING

VS/SCLK/MOSI

AMP

UART RX/TX

X_TAL

25MHz

I2C

1. M16 + F16 Circuit Block Diagram

Only for training and service purposes

- 25 -

2. M16 + F16 I2C Block Diagram

+3.3V_NORMAL

3.3KΩ

SCL0

SDA0

33Ω

3.3KΩ

1.8KΩ

33Ω

M16

TUNER

+3.3V_NORMAL

3.3KΩ

33Ω

NVRAM

+3.3V_NORMAL

+3.3_TU

+3.3V_NORMAL

33Ω

3.3KΩ

IC3000

RENESAS

MICOM

+3.3_TU

F16

33Ω

2.7KΩ

IC5600

NTP7515(Main AMP)

100Ω

33pF

SCL1

SDA1

T-CON

SCL2

SDA2

SCL3

SDA3

LNB

SCL4

SDA4

IC5900

NTP7515(WOOFER)

33pF

SCL5

SDA5

47pF

100Ω

IR/KEY/

EYE

+3.3V_ST

TUNER(Demod)

33Ω

100Ω

3.3KΩ

Only for training and service purposes

- 26 -

3. F16 Block Diagram

IC9000

F16

IC101

M16

Serial Flash

(8MB)

DDR3 1866 X 16

(128MB X 3EA)

X_TAL

24MHz

SPI_CS

SPI_DO

SPI_DI

SPI_CK

FLASH_W P

I2CS_SDA2/SC L2

SPI_CS

SPI_DO

SPI_DI

SPI_CK

Vx1_LOCKn_O/V

4K@60p Vx1 8 Lane Video

2K@30p Vx1 2 Lane OSD

[VBY1_RXN[0]~[7]

[VBY1_RXP[0]~[7]

[VBY1_RXN[8]~[9]

[VBY1_RXP[8]~[9]

[VBY1_TXN[0] ~[7]

[VBY1_R XP[0~[7]

[VBY1_TXN[8] ~[9]

[VBY1_R XP[8]~[9]

[SCL2]

[SDA2]

[I2C_SCL_s]

[I2C_SDA_S]

[V_Vx1_RXLOCKN]

[TX_LOCKN]

[XTAL I]

[XTAL O]

[GPIO02]

41P

Wafer

51P

Wafer

Vx1 8 Lane 41P

Vx1 8 Lane 51P

LOCKn_IN

IC3000

MICOM

F16_RESET_MICOM

(MICOM PORT #24)

[PORES_N]

[TC_VX1_TXLOCKN]

DATA_FORMAT_0/1

[GPIO30]

[GPIO31]

80P

Wafer

80P

Wafer

EPI 12 Lane 80P

[V_VX1_TX0N]

[V_VX1_TX11P]

[TC_VX1_TX0N]

[TC_VX1_TX11P]

EPI Tx.

Vx1 Tx.

EPI 12 Lane 80P

[TC_VX1_TXLOCKN]

[V_VX1_TXLOCKN]

[V_VX1_TX8N]

[V_VX1_TX15P]

[TC_VX1_TX0N]

[TC_VX1_TX7P]

LOCKAn

[VS/SCLK/MOSI]

LOCAL DIMMING

(to LPB)

Only for training and service purposes

- 27 -

4. M16 Power Block

LDODCDC

IC6701 / 2A

TJ2132GDP

+13V

+5V_NORMAL

IC2306 / 6A

BD86106EFJ

IC2303 /6A

BD86106EFJ

PANEL_VCC

IC2304 / 3A

TPS563200

NTP7514

EXT EDID

IC2303

M16 DDR PHY

DDR3

+3.3V_NORMAL

+3.5V_ST

IC2300 / 3.5A

RT7295CGJ6F

1.8V_IO

IC2502 / 3.5A

RT7295CGJ6F

+0.9V_CPU

IC2501 / 10A

TPS51362

+0.9V_CORE

+A13V/

+A24V

NTP7514

+0.9V_DDR & C4TX

USB3.0 OCP

USB2.0 OCP

M16

H/P AMP

+2.5_NORMAL

PANEL

+1.2V

TUNER

IC2302 / 3A

BD9A300MUV

1.5V_DDR

MICOM

NVRAM

IR_KEY

ETHERNET

WIFI

WOL_EN

WIFI_EN

M16_AVDD

EMMC

M16_CPU

M16_CORE

Main

Woofer

IC6700 / 2A

TJ2132GDP

IC2500 / 2A

TJ2132GDP

TUNER(JP)

LNB

IC8501 / 3.5A

RT7295CGJ6F

IC8500 / 10A

TPS51362

M16_CORE

F16_DDR

+0.9V_F16 CORE

+1.5V_F16_DDR

Only for training and service purposes

- 28 -

5. Tuner/CI Block Diagram

SCL3

SDA3

DMD_ADC_INP

DMD_ADC_INN

AAD_ADC_SIF

TDJN-H303F

[+3.3V_TUNER ] 11

[IF_P] 8

[IF_N] 7

FE_DEMOD 1_TS_D ATA[0] 18

FE_DEMOD 1_TS_D ATA[1] 19

FE_DEMOD 1_TS_D ATA[2] 20

FE_DEMOD 1_TS_D ATA[3] 21

FE_DEMOD 1_TS_D ATA[4] 22

FE_DEMOD 1_TS_D ATA[5] 23

FE_DEMOD 1_TS_D ATA[6] 24

FE_DEMOD 1_TS_D ATA[7] 25

[+3.3V_LNA_TU] 3

+3.3V_TUNER

[I2C_SCL5_TU] 1

[I2C_SDA5_TU] 2

[TU_SIF_TU] 6

[TU_CVBS_TU] 4

[IF_AGC_TU] 5

FILTER

FE_DEMOD1_TS_DAT A[0-7]

33 Ω

IF_P

IF_N

TUNER_SIF

TU_CVBS

IF_AGC

ADC_I_INP

ADC_I_INN

I2C_SCL5

I2C_SDA5

33 Ω

SCL5

SDA5

CVBS_IN1

IFAFC

+3.3V_TU

2.7KΩ

+3.3V_LNA_TU

1.8KΩ

M16

TP_DVB_D ATA0

TP_DVB_D ATA1

TP_DVB_D ATA2

TP_DVB_D ATA3

TP_DVB_D ATA4

TP_DVB_D ATA5

TP_DVB_D ATA6

TP_DVB_D ATA7

Only for training and service purposes

- 29 -

6. Video/Audio In Block Diagram

M16

Y2_IN

Tuner

Jack Side

SoCSide

JK3402

COMP2_Y

OMP2_Pb

OMP2_Pr

COMP2/ AV_R_IN

OMP2/ AV_L_IN

COMP2_Y_IN_SOC

COMP2_Pb_IN_SOC

AV1_CVBS_IN_SOC

COMP2_Pr_IN_SOC

AUAD_R_CH2_IN

AUAD_L_CH2_IN

TU_CVBS_TU

U_SIF_TU, IF_P/ N_TU

[CVBS1_IN]

AAD_ADC_SIF, DMD_ADC_IN P, DMD_ADC_INN

TU_CVBS

TU_SIF, IF_P/N

FE_DEMOD1/2_TS_CLK,SYNC,VAL

FE_DEMOD1/ 2_TS_CLK, SYNC,VAL

AV1_CVBS_IN

AV1_CVBS_IN_SOC

[TP_DVB_CLK ,VLD,SYNC]

JK3401

AUAD_L_CH2_IN

Pb_IN

Pr_IN

Only for training and service purposes

- 30 -

+ 104 hidden pages
