LG 65LA9709 User Manual

Page 1
OWNER’S MANUAL
*
LED TV
Please read this manual carefully before operating your set and retain it for future reference.
LA79** LA86** LA96** LA97** LA98** LM96**
P/NO : MFL67728105 (1308-REV04) Printed in Korea
www.lg.com
Page 2
TABLE OF CONTENTS
A-2
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand A-6 Tidying cables
A-8 MAKING CONNECTIONS
A-8 Antenna connection A-10 Satellite dish connection A-11 HDMI connection A-14 - ARC (Audio Return Channel) A-15 Headphone connection A-17 DVI to HDMI connection A-20 Component connection A-22 Composite connection A-23 MHL connection A-26 Audio connection A-26 - Digital optical audio connection A-28 USB connection A-30 CI module connection A-32 Euro Scart connection
COMMON
LANGUAGE LIST
English Deutsch Français Italiano Español Português Nederlands
Ελληνικά Slovenščina
B-1 SPECIFICATIONS
LANGUAGE
COMMON
Page 3
Setting up the TV
SETTING UP THE TV
A-3
Image shown may differ from your TV.
Attaching the stand
LA79**
1
Front
Stand Base
2
M4 x 14
4EA
Stand Body
LA860*, LA960*
1
Stand Base
2
3
3
M4 x 14
4EA
M4 x 16 4EA (LA860*)
M4 x 20 4EA (LA960*)
Page 4
SETTING UP THE TV
A-4
LA868*
1
2
LA965*
1
Stand Base
Stand Base
2
Stand Base
Attach the stand to the TV using the upper
mounting hole on the back of the TV.
Attach the stand to the TV using the lower
connection on the back of the TV.
NOTE
3
M4 x 16
4 EA
yBe sure to attach the upper mounting hole
first, and then attach the lower connection second.
3
M4 x 14
4 EA
Page 5
SETTING UP THE TV
A-5
LA97**
1
2
Front
LA98**, LM96**
1
Stand body
Front
Stand Base
Stand base
2
3
NOTE
yThe stand screws are already attached
at the back of the TV. Please use these attached screw to assemble the TV and stand. (Only 65LA97**)
M4 x 14 4 EA
6 EA M5 x 16
Front
3
Page 6
SETTING UP THE TV
⨲㘶ᖂ2
㏪ⱞ⋾#Ɐᴏ
A-6
4
4 EA M4 x 20
Tidying cables
(Only LA79**)
1 Gather and bind the cables with the Cable
Management.
2 Fix the Cable Management rmly to the TV.
Cable Holder
Cable Management
(Only LA860*, LA960*)
1 Gather and bind the cables with the Cable
Holder and the Cable Management.
2 Fix the Cable Management rmly to the TV.
Cable Holder
CAUTION
yWhen attaching the stand to the TV
set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
yMake sure that the screws are inserted
correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.
NOTE
yRemove the stand before installing the TV
on a wall mount by performing the stand attachment in reverse.
Cable Management
(Only LA98**, LM96**)
1 Gather and bind the cables with the Cable
Holder and the Cable Management.
2 Fix the Cable Management rmly to the TV.
Cable Holder
Cable Management
Page 7
SETTING UP THE TV
A-7
(Only LA965*)
1 Gather and bind the cables with the cable
holder on the back of the TV.
2 Fix the Cable Management rmly to the TV.
Cable Holder
Cable Management
(Only LA97**)
1 Gather and bind the cables with the cable
holder on the back of the TV.
Cable Holder
CAUTION
yDo not move the TV by holding the cable
holders, as the cable holders may break, and injuries and damage to the TV may occur.
(Only LA868*) 1 Gather and bind the cables with the cable
holder on the back of the TV.
Cable Holder
Page 8
A-8
MAKING CONNECTION
MAKING CONNECTIONS
This section on MAKING CONNECTIONS mainly uses diagrams for the LA79** models.
Antenna connection
IN
ANTENNA/
CABLE
English
Connect the TV to a wall antenna socket with an RF cable (75 ).
NOTE
yUse a signal splitter to use more than 2 TVs. yIf the image quality is poor, install a signal
amplifier properly to improve the image quality.
yIf the image quality is poor with an antenna
connected, try to realign the antenna in the correct direction.
yAn antenna cable and converter are not
supplied.
ySupported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
yDisplay of Ultra HD(3840 x 2160 pixels)
content compatible; additional device capable of processing Ultra HD source content (in 2D or 3D) may be required and will be sold separately. (Only LA965*, LA97**, LA98**, LM96**)
Deutsch
Schließen Sie das TV-Gerät mit einem HF-Kabel (75 ) an eine Wandantennenbuchse an.
HINWEIS
yBei Verwendung von mehr als 2 TV-Geräten
verwenden Sie einen Signalsplitter.
yIst das Bild schlecht, installieren Sie einen
Signalverstärker, um die Bildqualität zu verbessern.
yWenn die Bildqualität bei angeschlossener
Antenne schlecht ist, richten Sie die Antenne richtig aus.
yAntennenkabel und Wandler sind nicht im
Lieferumfang enthalten.
yUnterstützter DTV-Ton: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC
yDie Anzeige von Ultra HD Inhalten (3840
x 2160 Pixel) erfordert eventuell eine Ultra HD Zuspielquelle (in 2D oder 3D), welche separat zu beziehen ist. (Nur LA965*, LA97**,
LA98**, LM96**)
Français
Connectez la TV à une prise d’antenne murale avec un câble RF (75 ).
REMARQUE
yUtilisez un séparateur de signaux pour
utiliser plus de deux téléviseurs.
ySi la qualité d’image est mauvaise, installez
correctement un amplificateur de signaux pour l’améliorer.
ySi vous utilisez une antenne et que la qualité
d’image est mauvaise, essayez de réaligner l’antenne dans la bonne direction.
yLe câble et le convertisseur d’antenne ne
sont pas fournis.
yTechnologies audio TNT prises en charge :
MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC
yAffichage compatible Ultra HD (3840 x 2160
pixels) ; Un service supplémentaire pour le traitement des contenus source Ultra HD (en 2D ou 3D) peut être requis (vendu séparément). (Uniquement LA965*, LA97**, LA98**, LM96**)
Page 9
MAKING CONNECTION
A-9
Italiano
Collegare il televisore all’antenna centralizzata con un cavo RF (75 ).
NOTA
yUtilizzare uno sdoppiatore del segnale per
usare più di 2 televisori.
ySe la qualità dell’immagine è scarsa,
installare correttamente un amplificatore del segnale per migliorarla.
ySe la qualità dell’immagine è scarsa con
un’antenna collegata, provare a riallineare l’antenna nella direzione corretta.
yIl cavo e il convertitore dell’antenna non
sono in dotazione.
yAudio DTV supportato: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
yCompatibile per la visualizzazione di
contenuti Ultra HD (3840 x 2160 pixel); potrebbe essere necessario un dispositivo aggiuntivo venduto separatamente in grado di elaborare contenuti di origine Ultra HD (2D o 3D). (Solo LA965*, LA97**, LA98**, LM96**)
Português
Ligue a TV a uma tomada de antena de parede com um cabo RF (75 ).
NOTA
yUtilize um separador de sinal se quiser
utilizar mais de 2 TVs.
ySe a qualidade de imagem for fraca, instale
um amplificador de sinal para melhorar a qualidade de imagem.
ySe a qualidade de imagem for fraca mesmo
que tenha uma antena ligada, tente orientar a antena para a direcção correcta.
yO cabo da antena e o conversor não são
fornecidos.
yÁudio DTV suportado: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
yCompatível com a apresentação de
conteúdo Ultra HD (3840 x 2160 pixéis); poderá ser necessário um acessório adicional capaz de processar conteúdo de origem Ultra HD (em 2D ou 3D). Acessório vendido em separado. (Apenas LA965*, LA97**, LA98**, LM96**)
Español
Conecte la TV a una toma de pared de antena con un cable RF (75 ).
NOTA
yEmplee un divisor de señal cuando desee
utilizar más de dos TV.
ySi la imagen es de poca calidad, instale un
amplificador de señal correctamente para mejorar la calidad de imagen.
ySi la imagen es de poca calidad con una
antena conectada, intente volver a orientar la antena en la dirección adecuada.
yNo se suministran el cable de antena ni el
conversor.
yAudio DTV admitido: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
yCompatible con la visualización de
contenido Ultra HD (3840 x 2160 píxeles); es posible que necesite un dispositivo adicional con capacidad para procesar contenido de una fuente Ultra HD (en 2D o 3D), de venta por separado. (Solo LA965*, LA97**, LA98**, LM96**)
Nederlands
Sluit de TV met behulp van een RF-kabel (75 ) aan op een antenneaansluiting op de muur.
OPMERKING
yGebruik een signaalsplitter om meer dan
twee TV’s te gebruiken.
yAls de beeldkwaliteit slecht is, installeert u
een signaalversterker om de beeldkwaliteit te verbeteren.
yAls de beeldkwaliteit slecht is terwijl een
antenne is aangesloten, probeert u de antenne in de juiste richting te draaien.
yAntennekabel en converter worden niet
meegeleverd.
yOndersteunde DTV-audio: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC
yCompatibel met weergave van Ultra HD-
inhoud (3840 x 2160 pixels); een extra apparaat dat Ultra HD-inhoud kan verwerken (in 2D of 3D) is mogelijk vereist en wordt afzonderlijk verkocht. (Alleen LA965*, LA97**, LA98**, LM96**)
Page 10
A-10
IN
13/18V
700mA Max
LNB IN
Satellite
MAKING CONNECTION
Ελληνικά
Συνδέστε την τηλεόραση σε μια υποδοχή κεραίας στον τοίχο με ένα καλώδιο RF (75 Ω).
ΣΗΜΕΙΩΣΗ
yΧρησιμοποιήστε ένα διαχωριστή σήματος για
τη χρήση περισσότερων από 2 τηλεοράσεων.
yΑν η ποιότητα της εικόνας δεν είναι καλή,
εγκαταστήστε έναν ενισχυτή σήματος για τη βελτίωση της ποιότητας εικόνας.
yΑν η ποιότητα της εικόνας δεν είναι καλή
μετά τη σύνδεση της κεραίας, δοκιμάστε να αλλάξετε τον προσανατολισμό της κεραίας στη σωστή κατεύθυνση.
yΔεν παρέχεται καλώδιο κεραίας και
μετατροπέας.
yΥποστηριζόμενος ήχος DTV: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC
yΤηλεόραση συμβατή με περιεχόμενο Ultra
HD(3840 x 2160 pixels). Ενδέχεται να απαιτείται η πρόσθετη συσκευή (πωλείται ξεχωριστά) με δυνατότητα υποστήριξης περιεχομένου Ultra HD (σε 2D ή 3D). (Μόνο για τα μοντέλα LA965*, LA97**, LA98**,
LM96**)
Satellite dish connection
(Only satellite models)
Slovenščina
Televizor priključite v stensko antensko vtičnico s kablom RF (75 Ω).
OPOMBA
yČe želite uporabljati več kot 2 televizorja,
uporabite razcepnik za signal.
yČe je kakovost slike slaba, jo izboljšajte
tako, da ustrezno namestite ojačevalnik
signala.
yČe je kakovost slike slaba in uporabljate
anteno, usmerite anteno v ustrezno smer. yKabel antene in pretvornik nista priložena. yPodprte oblike zvoka za DTV: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC yZaslon je združljiv z ultra visoko ločljivostjo
(3840 x 2160 slikovnih pik); morda bo
zahtevana dodatna naprava, ki lahko
obdeluje izvorno vsebino ultra visoke
ločljivosti (v 2D ali 3D) in je na prodaj
posebej. (samo modeli LA965*, LA97**, LA98**,
LM96**)
English
Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 ).
Deutsch
Schließen Sie das TV-Gerät mit einem Satelliten­HF-Kabel (75 ) an eine Satellitenschüssel oder an eine Satellitenbuchse an.
Français
Connectez la TV à une parabole satellite ou à une prise satellite à l’aide d’un câble satellite RF (75 ).
Italiano
Collegare la TV a un’antenna satellitare e a una presa satellitare con un cavo RF satellitare (75 ).
Español
Para conectar la TV a una antena parabólica, enchufe un cable de RF de satélite a una toma de satélite (75 ).
Page 11
MAKING CONNECTION
A-11
Português
Ligue a TV a uma antena parabólica ou uma toma­da de satélite com um cabo RF para satélite (75 ).
Nederlands
Sluit de TV met behulp van een RF-satellietkabel (75 ) aan op een satellietschotel.
Ελληνικά
Συνδέστε την τηλεόραση σε μια δορυφορική κε­ραία, μέσω μιας δορυφορικής υποδοχής με δορυ­φορικό καλώδιο (75 Ω).
Slovenščina
S kablom RF za satelit povežite televizor s satelit­skim krožnikom prek vtičnice za satelit (75 Ω).
HDMI connection
(Only LA79**, LA86**, LA960*)
DVD/ Blu-Ray / HD Cable Box / HD STB / PC
(*Not Provided)
(MHL)
4
/ DVI IN
2 3 1
(ARC)
HDMI
(Only LA965*, LA97**, LA98**, LM96**)
(MHL)
/ DVI IN
2 3 1
DVD/ Blu-Ray / HD Cable Box / HD STB / PC
(ARC)
HDMI
(*Not Provided)
Page 12
A-12
MAKING CONNECTION
English
Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown. Choose any HDMI input port to connect. It does not matter which port you use.
NOTE
yIt is recommended to use the TV with the
HDMI connection for the best image quality. yUse the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function. yHigh Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p and higher. ySupported HDMI Audio format : Dolby Digital,
DTS, PCM (Up to 192 KHz, 32KHz/44.1KHz/
48KHz/88KHz/96KHz/176KHz/192KHz)
Deutsch
Überträgt digitale Video- und Audiosignale von einem externen Gerät an das TV-Gerät. Verbinden Sie das externe Gerät, wie in der folgenden Abbildung gezeigt, mithilfe des HDMI-Kabels mit dem TV-Gerät. Wählen Sie zum Anschließen einen beliebigen HDMI-Eingang. Es ist egal, welchen Port Sie wählen.
HINWEIS
yFür optimale Bildqualität wird empfohlen,
den HDMI-Anschluss des TV-Gerätes zu
verwenden. yVerwenden Sie das neueste
Hochgeschwindigkeits-HDMI™-Kabel
mit CEC-Funktion (Customer Electronics
Control). yHigh-Speed-HDMI™-Kabel sind für die
Übertragung von HD-Signalen bis zu 1080p
und höher getestet. yUnterstütztes HDMI-Audioformat:
Dolby Digital, DTS, PCM (bis
zu 192 KHz, 32 KHz/44,1 KHz/
/48 KHz/88 KHz/96 KHz/176 KHz/192 KHz)
Français
Permet de transmettre les signaux vidéo et audio numériques d’un périphérique externe vers la TV. Connectez le périphérique externe et la TV avec le câble HDMI comme indiqué sur l’illustration suivante. Choisissez un port d’entrée HDMI pour établir la connexion. Peu importe le port que vous utilisez.
REMARQUE
yPour obtenir une meilleure qualité d’image,
il est recommandé d’utiliser la TV avec une connexion HDMI.
yUtilisez le tout nouveau câble haut débit
HDMI™ avec la fonction CEC (contrôles électroniques client).
yLes câbles HDMI™ haut débit sont testés
pour transporter un signal HD de 1080p ou supérieur.
yFormats audio HDMI pris en charge : Dolby
Digital, DTS, PCM (jusqu’à 192 KHz, 32KHz/44 ,1KHz/48KHz/88KHz/96KHz/176KHz/192KHz)
Italiano
Il segnale digitale audio e video viene trasmesso da un dispositivo esterno al televisore. Collegare il dispositivo esterno e il televisore mediante il cavo HDMI come mostrato nell’illustrazione di seguito. Scegliere una porta di ingresso HDMI per il collegamento. La scelta della porta è libera.
NOTA
ySi consiglia di utilizzare il televisore con il
collegamento HDMI per ottenere la migliore qualità delle immagini.
yUtilizzare un cavo HDMI™ ad alta velocità
dotato dei requisiti più recenti con funzione CEC (Customer Electronics Control).
yI cavi HDMI™ ad alta velocità sono testati
per trasmettere un segnale HD fino a 1080p e superiore.
yFormato audio HDMI supportato: Dolby
Digital, DTS, PCM (fino a 192 KHz, 32 KHz/44,1 KHz/48 KHz/88 KHz/96 KHz/176 KHz/192 KHz)
Page 13
MAKING CONNECTION
A-13
Español
Transmite las señales de audio y vídeo digital de un dispositivo externo a la TV. Use el cable HDMI para conectar el dispositivo externo a la TV, tal y como se muestra en la siguiente ilustración. Seleccione un puerto de entrada HDMI. El puerto utilizado es irrelevante.
NOTA
ySe recomienda usar la conexión HDMI de la
TV para obtener la mejor calidad de imagen.
yUtilice el cable HDMI™ de alta velocidad
más reciente con la función CEC (control de electrónica de consumo).
yLos cables HDMI™ de alta velocidad están
preparados para transportar una señal HD de 1080p o superior.
yFormato de audio HDMI admitido: Dolby
Digital, DTS, PCM (hasta 192 KHz, 32KHz/4 4,1KHz/48KHz/88KHz/96KHz/176KHz/192K Hz)
Português
Nederlands
U kunt de digitale video- en audiosignalen vanaf een extern apparaat naar de TV zenden. Sluit het externe apparaat en de TV op elkaar aan met behulp van de HDMI-kabel, zoals aangegeven in de volgende afbeelding. Kies op welke HDMI-ingangspoort u wilt aansluiten. Het maakt niet uit welke poort u gebruikt.
OPMERKING
yWij raden u aan de TV aan te sluiten door
middel van een HDMI-verbinding voor de hoogste beeldkwaliteit.
yGebruik de nieuwste High Speed HDMI™-
kabel met CEC-functie (Customer Electronics Control).
yHDMI™-kabels van het type High Speed zijn
getest op het verzenden van HD-signalen tot 1080p en hoger.
yOndersteunde HDMI-audio-indeling: Dolby
Digital, DTS, PCM (maximaal 192 KHz, 32KHz/44.1KHz/48KHz/88KHz/96KHz/176K Hz/192KHz)
Transmite os sinais digitais de vídeo e áudio de um dispositivo externo para a TV. Ligue o dispositivo externo à TV com o cabo HDMI, conforme demonstrado na ilustração. Escolha qualquer porta de entrada HDMI para ligar. Pode utilizar qualquer porta.
NOTA
yRecomenda-se a utilização da TV com a
ligação HDMI para uma melhor qualidade de imagem.
yUtilize o mais recente cabo HDMI™ de alta
velocidade com função CEC (Customer Electronics Control).
yOs cabos HDMI™ de alta velocidade foram
testados para executar um sinal HD até 1080p e superior.
yFormato de áudio HDMI suportado: Dolby
Digital, DTS, PCM (até 192 KHz, 32KHz/44.1 KHz/48KHz/88KHz/96KHz/176KHz/192KHz.)
Ελληνικά
Μεταδίδει τα ψηφιακά σήματα εικόνας και ήχου από μια εξωτερική συσκευή στην τηλεόραση. Συνδέστε την εξωτερική συσκευή και την τηλεόραση με το καλώδιο HDMI, όπως φαίνεται στην παρακάτω εικόνα. Επιλέξτε οποιαδήποτε θύρα εισόδου HDMI για τη σύνδεση. Δεν έχει σημασία ποια θύρα θα χρησιμοποιήσετε.
ΣΗΜΕΙΩΣΗ
yΓια τη βέλτιστη ποιότητα εικόνας,
χρησιμοποιήστε την τηλεόραση με σύνδεση
HDMI.
yΧρησιμοποιήστε το καλώδιο HDMI™ υψηλής
ταχύτητας με λειτουργία CEC (Customer
Electronics Control).
yΤα καλώδια HDMI™ υψηλής ταχύτητας
έχουν ελεγχθεί για τη μετάδοση σήματος HD ανάλυσης έως 1080p ή υψηλότερης.
yΥποστηριζόμενη μορφή ήχου HDMI: Dolby
Digital, DTS, PCM (έως 192 KHz, 32KHz/44. 1KHz/48KHz/88KHz/96KHz/176KHz/192KHz)
Page 14
A-14
MAKING CONNECTION
Slovenščina
Prenaša digitalne video in zvočne signale iz zunanje naprave na televizor. Povežite zunanjo
napravo in televizor s HDMI-kablom, kot je prikazano na naslednji sliki. Izberite vhodna vrata HDMI za povezavo. Ni pomembno, katera vrata uporabite.
OPOMBA
yZa najboljšo kakovost slike priporočamo
uporabo televizorja s HDMI-povezavo. yUporabite najnovejši kabel HDMI™ za
hitri prenos s funkcijo CEC (Customer
Electronics Control). yKabli HDMI™ za hitri prenos so preizkušeni,
tako da lahko prenašajo signal visoke
ločljivosti do 1080p in več.
yPodprte oblike zvoka za HDMI: Dolby
Digital, DTS, PCM (do 192 KHz,
32 KHz/44,1 KHz/48 KHz/88 KHz/96 KHz/
176 KHz/192 KHz)
ARC (Audio Return Channel)
English
An external audio device that supports
y
SIMPLINK and ARC must be connected using HDMI/DVI IN 1 (ARC) port. When connected with a high-speed HDMI
y
cable, the external audio device that supports ARC outputs optical SPDIF without additional optical audio cable and supports the SIMPLINK function.
Deutsch
Ein externes Audiogerät, das SIMPLINK und
y
ARC unterstützt, muss über den HDMI/DVI IN 1 (ARC) angeschlossen werden. Wenn der Anschluss mit einem High-Speed-
y
HDMI-Kabel erfolgt, gibt das externe Audio­gerät, das ARC unterstützt, SPDIF ohne zusätzliches optisches Audiokabel aus und unterstützt die SIMPLINK-Funktion.
Français
Un périphérique audio externe qui prend en
y
charge les technologies SIMPLINK et ARC doit être connecté au port HDMI/DVI IN 1 (ARC). Si vous reliez un câble HDMI haut débit,
y
le périphérique audio externe qui prend en charge les sorties ARC, prend également en charge la sortie optique SPDIF sans câble audio optique supplémentaire, ainsi que la fonction SIMPLINK.
Italiano
Per il collegamento di un dispositivo
y
audio esterno che supporta le funzionalità SIMPLINK e ARC, usare la porta HDMI/DVI IN 1 (ARC). Se si effettua il collegamento con un cavo
y
HDMI ad alta velocità, il dispositivo audio esterno che supporta ARC trasmette il segnale SPDIF senza il cavo ottico aggiuntivo e supporta la funzione SIMPLINK.
Page 15
MAKING CONNECTION
A-15
Español
Hay que conectar un dispositivo de audio
y
externo que admita SIMPLINK y ARC utilizando el puerto HDMI/DVI IN 1 (ARC). Cuando esté conectado mediante un cable
y
HDMI de alta velocidad, el dispositivo de audio externo que admite ARC emite el SPDIF óptico sin necesidad de un cable óptico de audio adicional y admite la función SIMPLINK.
Português
É necessário ligar um dispositivo de áudio
y
externo que suporte SIMPLINK e ARC utili­zando a porta HDMI/DVI IN 1 (ARC). Quando ligado a um cabo HDMI de alta
y
velocidade, o aparelho de áudio externo que suporta ARC transmite SPDIF óptica sem um cabo de áudio óptico adicional e suporta a função SIMPLINK.
Nederlands
Een extern audioapparaat dat ondersteuning
y
biedt voor SIMPLINK en ARC, moet op de HDMI/DVI IN 1 (ARC) worden aangesloten. Bij aansluiting met een High Speed HDMI-
y
kabel zorgt het externe audioapparaat met ARC-ondersteuning ervoor dat optische SPDIF wordt uitgevoerd zonder extra optische audiokabel, en ondersteunt dit apparaat de SIMPLINK-functie.
Ελληνικά
Μια εξωτερική συσκευή ήχου η οποία υπο-
y
στηρίζει SIMPLINK και ARC πρέπει να συν­δεθεί με τη χρήση της θύρας εισόδου HDMI/
DVI IN 1 (ARC).
Κατά τη σύνδεση με καλώδιο HDMI υψηλής
y
ταχύτητας, η εξωτερική συσκευή ήχου που υποστηρίζει το ARC παρέχει οπτικό σήμα SPDIF χωρίς πρόσθετο οπτικό καλώδιο ήχου και υποστηρίζει τη λειτουργία SIMPLINK.
Slovenščina
Zunanja zvočna naprava, ki podpira funkciji
y
SIMPLINK in ARC, mora biti povezana z vho­dnimi vrati HDMI/DVI IN 1 (ARC).
Če jo povežete s kablom HDMI za hitri
y
prenos, zunanja zvočna naprava, ki podpira funkcijo ARC, oddaja optični zapis SPDIF brez dodatnega optičnega zvočnega kabla in
podpira funkcijo SIMPLINK.
Headphone connection
OUT
Ext.Speaker /
H/P
English
Transmits the headphone signal from the TV to an external device. Connect the external device and the TV with the headphone as shown on the following illustration.
NOTE
AUDIO menu items are disabled when
y
connecting a headphone. Optical Digital Audio Out is not available
y
when connecting a headphone. Headphone impedance: 16
y
Max audio output of headphone: 0.624mW
y
to 1.04 mW Headphone jack size: 0.35 cm
y
Deutsch
Überträgt das Kopfhörersignal vom TV-Gerät an ein externes Gerät. Verbinden Sie die Kopfhörer, wie in der folgenden Abbildung gezeigt, mit dem TV-Gerät.
HINWEIS
Bei angeschlossenem Kopfhörer sind die
y
AUDIO-Menüpunkte deaktiviert. Der optische digitale Audioausgang ist nicht
y
verfügbar, Kopfhörerimpedanz: 16
y
Max. Ausgangsleistung am Kopfhöreran-
y
schluss: 0,624 mW bis 1,04 mW Kopfhörerbuchsen: 0,35 cm
y
solange Kopfhörer angeschlossen sind.
(*Not Provided)
Page 16
A-16
MAKING CONNECTION
Français
Transmet le signal du casque de la TV au périphérique externe. Connectez le périphérique externe et la TV avec le casque comme indiqué sur l’illustration suivante.
REMARQUE
Les éléments du menu SON sont désactivés
y
lorsque vous branchez un casque. La sortie audio numérique optique n’est pas
y
disponible lorsque vous branchez un casque. Impédance du casque : 16
y
Sortie audio max. du casque : 0,624 mW à
y
1,04 mW Taille de la prise casque : 0,35 cm
y
Italiano
Consente la trasmissione del segnale delle cufe
dalla TV a un dispositivo esterno. Collegare il
dispositivo esterno e la TV con le cufe come
mostrato nell’illustrazione di seguito.
Português
Transmite o sinal dos auscultadores da TV para um dispositivo externo. Ligue o dispositivo externo à TV com os auscultadores, conforme demonstrado na ilustração.
NOTA
Os itens do menu ÁUDIO ficam inactivos
y
quando liga os auscultadores. A saída digital áudio óptico não está disponí-
y
vel quando liga auscultadores. Impedância dos auscultadores: 16
y
Saída de áudio máx. dos auscultadores:
y
0,624 a 1,04 mW Tamanho da tomada para auscultadores: 3.5 mm
y
Nederlands
U kunt het hoofdtelefoonsignaal vanaf de TV naar een extern apparaat zenden. Sluit het externe apparaat en de TV aan op de hoofdtelefoon, zoals aangegeven in de volgende afbeelding.
NOTA
Le voci del menu AUDIO sono disabilitate se
y
sono collegate le cuffie. L’uscita audio ottica digitale non è disponibile
y
se sono collegate le cuffie. Impedenza cuffie: 16
y
Uscita audio max delle cufe: da 0,624 mW
y
a 1,04 mW
Dimensioni jack per cufa: 0,35 cm
y
Español
Transmite la señal de auriculares de la TV a un dispositivo externo. Use el cable de los auriculares para conectar el dispositivo externo a la TV, tal y como se muestra en la siguiente ilustración.
NOTA
Al conectar los auriculares se desactivarán
y
las opciones del menú AUDIO. La salida óptica de audio digital no estará
y
disponible al conectar unos auriculares. Impedancia del auricular: 16
y
Salida de audio máxima de los auriculares:
y
de 0,624 mW a 1,04 mW. Tamaño de la clavija de los auriculares: 0,35 cm.
y
OPMERKING
Onderdelen in het menu GELUID worden
y
uitgeschakeld wanneer u een hoofdtelefoon aansluit. Optische Digitale Audio Uit is niet
y
beschikbaar bij het aansluiten van een hoofdtelefoon. Impedantie van hoofdtelefoon: 16
y
Maximale audio-uitvoer van hoofdtelefoon:
y
0,624 mW tot 1,04 mW Grootte van hoofdtelefoonaansluiting: 0,35 cm
y
Page 17
MAKING CONNECTION
A-17
Ελληνικά
Μεταδίδει το σήμα ακουστικών από την τηλεόραση σε μια εξωτερική συσκευή. Συνδέστε την εξωτερική συσκευή και την τηλεόραση με τα ακουστικά, όπως φαίνεται στην παρακάτω εικόνα.
ΣΗΜΕΙΩΣΗ
Τα στοιχεία του μενού ΗΧΟΣ απενεργοποι-
y
ούνται, όταν συνδέετε ακουστικά. Η οπτική ψηφιακή έξοδος ήχου δεν είναι
y
διαθέσιμη, όταν συνδέετε ακουστικά. Σύνθετη αντίσταση ακουστικών: 16 Ω
y
Μέγιστη έξοδος ήχου ακουστικών: 0,624 mW
y
έως 1,04 mW Μέγεθος υποδοχής ακουστικών: 0,35 cm
y
Slovenščina
Prenaša signal za slušalke iz televizorja na
zunanjo napravo. Povežite zunanjo napravo in
televizor s kablom za slušalke, kot je prikazano na naslednji sliki.
DVI to HDMI connection
(Only LA79**, LA86**, LA960*)
AV2
(*Not Provided)
(*Not Provided)
OPOMBA
Ko so priključene slušalke, ni mogoče upora-
y
bljati možnosti iz AVDIO menija. Ob priključenih slušalkah optični digitalni
y
avdio izhod ni na razpolago.
Impedanca slušalk: 16 Ω
y
Največji avdio izhod slušalke: 0,624–1,04 mW
y
Velikost vtiča slušalk: 0,35 cm
y
AUDIO OUT
DVD / Blu-Ray / HD Cable Box / PC
DVI OUT
Page 18
A-18
MAKING CONNECTION
(Only LA965*, LA97**, LA98**, LM96**)
(MHL)
/ DVI IN
2 3 1
AV2
(ARC)
(*Not Provided)
(*Not Provided)
AUDIO OUT
DVD / Blu-Ray / HD Cable Box / PC
DVI OUT
Deutsch
Überträgt digitale Videosignale von einem externen Gerät an das TV-Gerät. Verbinden Sie das externe Gerät, wie in der folgenden Abbildung gezeigt, mithilfe des DVI-HDMI-Kabels mit dem TV-Gerät. Schließen Sie ein Audiokabel an, um ein Audiosignal zu übertragen. Wählen Sie zum Anschließen einen beliebigen HDMI-Eingang. Es ist egal, welchen Port Sie wählen.
HINWEIS
yAbhängig von der Grafikkarte funktioniert
der DOS-Modus bei Einsatz eines HDMI-zu­DVI-Kabels möglicherweise nicht.
yBei Verwendung des HDMI/DVI-Kabels wird
nur eine einfache Verbindung unterstützt..
Français
Permet de transmettre les signaux vidéo d’un périphérique externe vers la TV. Connectez le périphérique externe et la TV avec le câble DVI­HDMI comme indiqué sur l’illustration suivante. Pour émettre un signal audio, raccordez un câble audio. Choisissez un port d’entrée HDMI pour établir la connexion. Peu importe le port que vous utilisez.
English
Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown. To transmit an audio signal, connect an audio cable. Choose any HDMI input port to connect. It does not matter which port you use.
NOTE
yDepending on the graphics card, DOS mode
may not work if a DVI to HDMI Cable is in use. yWhen using the DVI/HDMI cable, single link is
only supported.
REMARQUE
ySelon la carte graphique, le mode DOS peut
ne pas fonctionner si vous utilisez un câble pour établir la connexion HDMI-DVI.
yLors de l’utilisation du câble HDMI/DVI, seule
une liaison unique peut être prise en charge.
Page 19
MAKING CONNECTION
A-19
Italiano
Il segnale digitale video viene trasmesso da un dispositivo esterno al televisore. Collegare il dispositivo esterno e il televisore mediante il cavo DVI-HDMI come mostrato nell’illustrazione di seguito. Per trasmettere un segnale audio, collegare un cavo audio. Scegliere una porta di ingresso HDMI per il collegamento. La scelta della porta è libera.
NOTA
yA seconda della scheda grafica in uso, la
modalità DOS potrebbe non funzionare se si utilizza un cavo da HDMI a DVI.
yQuando si utilizza il cavo HDMI/DVI, è
supportata solo l’interfaccia Single link.
Español
Transmite la señal de vídeo digital de un dispositivo externo a la TV. Use el cable DVI­HDMI para conectar el dispositivo externo a la TV, tal y como se muestra en la siguiente ilustración. Para transmitir una señal de audio, conecte un cable de audio. Seleccione un puerto de entrada HDMI. El puerto utilizado es irrelevante.
NOTA
yEn función de la tarjeta gráfica, puede
que no funcione el modo DOS si se está utilizando un cable de HDMI a DVI.
ySi se utiliza un cable HDMI/DVI, solo se
admite un enlace.
Português
Transmite o sinal digital de vídeo de um dispositivo externo para a TV. Ligue o dispositivo externo à TV com o cabo DVI-HDMI, conforme demonstrado na seguinte ilustração. Para transmitir um sinal de áudio, ligue um cabo de áudio. Escolha qualquer porta de entrada HDMI para ligar. Pode utilizar qualquer porta.
NOTA
yDependendo da placa gráfica, o modo DOS
poderá não funcionar se utilizar um cabo HDMI para DVI.
yAo utilizar o cabo HDMI/DVI, apenas a Ligação
única é suportada.
Nederlands
U kunt het digitale videosignaal vanaf een extern apparaat naar de TV zenden. Sluit het externe apparaat en de TV op elkaar aan met behulp van de DVI-HDMI-kabel, zoals aangegeven in de volgende afbeelding. Om het audiosignaal van het externe apparaat naar de TV te zenden, moet u een audiokabel aansluiten. Kies op welke HDMI-ingangspoort u wilt aansluiten. Het maakt niet uit welke poort u gebruikt.
OPMERKING
yAfhankelijk van de grafische kaart werkt de
DOS-modus mogelijk niet bij het gebruik van een HDMI/DVI-kabel.
yBij gebruik van de HDMI/DVI-kabel wordt
alleen single link ondersteund.
Page 20
A-20
MAKING CONNECTION
Ελληνικά
Μεταδίδει το ψηφιακό σήμα εικόνας από μια εξωτερική συσκευή στην τηλεόραση. Συνδέστε την εξωτερική συσκευή και την τηλεόραση με το καλώδιο DVI-HDMI, όπως φαίνεται στην παρακάτω εικόνα. Για τη μετάδοση σήματος ήχου, συνδέστε ένα καλώδιο ήχου. Επιλέξτε οποιαδήποτε θύρα εισόδου HDMI για τη σύνδεση. Δεν έχει σημασία ποια θύρα θα χρησιμοποιήσετε.
ΣΗΜΕΙΩΣΗ
yΑνάλογα με την κάρτα γραφικών, η
λειτουργία DOS ενδέχεται να μην λειτουργεί,
εάν χρησιμοποιείται καλώδιο HDMI σε DVI.
yΌταν χρησιμοποιείτε το καλώδιο HDMI/DVI,
υποστηρίζεται αποκλειστικά η Μονή σύνδεση.
Slovenščina
Prenaša digitalni video signal iz zunanje naprave
na televizor. Povežite zunanjo napravo in televizor
s kablom DVI-HDMI, kot je prikazano na naslednji
sliki. Za prenos avdio signala priključite avdio
kabel. Izberite vhodna vrata HDMI za povezavo. Ni pomembno, katera vrata uporabite.
Component connection
IN
COMPONENT
AV2
YP
VIDEO
(Use the composite video cable provided.)
YELLOW
WHITE WHITE
AUDIO
AV2
B
P
R
GREENYELLOW (Use the component video cable provided.)
RED RED
RED
RED
BLUE
BLUE
(*Not Provided)
GREEN
GREEN
OPOMBA
yOdvisno od grafične kartice način DOS
morda ne bo deloval, če uporabljate kabel
HDMI-DVI. yKo uporabljate kabel HDMI/DVI, je podprta le
ena povezava.
RED
DVD / Blu-Ray / HD Cable Box
WHITE
L R
AUDIO
RED
VIDEO
BLUE
GREEN
English
Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component gender cable as shown.
NOTE
yIf cables are not installed correctly, it could
cause this image to display in black and white or with distorted colours.
Page 21
MAKING CONNECTION
A-21
Deutsch
Überträgt analoge Video- und Audiosignale von einem externen Gerät an das TV-Gerät. Verbinden Sie das externe Gerät, wie in der folgenden Abbildung gezeigt, mithilfe eines Komponenten­Kabels mit dem TV-Gerät.
HINWEIS
yWenn Kabel falsch angeschlossen werden,
kann dies dazu führen, dass ein Bild in Schwarz-Weiß oder in verzerrten Farben erscheint.
Français
Permet de transmettre les signaux audio et vidéo analogiques d’un périphérique externe vers la TV. Connectez le périphérique externe et la TV avec un câble composante comme indiqué sur l’illustration suivante.
REMARQUE
ySi les câbles sont mal installés, l’image
peut s’afficher en noir et blanc ou avec des couleurs de mauvaise qualité.
Português
Transmite sinais analógicos de vídeo e áudio de um dispositivo externo para a TV. Ligue o dispositivo externo à TV com um cabo de componente, conforme demonstrado na ilustração.
NOTA
ySe os cabos não forem devidamente
instalados, poderão causar uma exibição de imagem a preto e branco ou com cor distorcida.
Nederlands
U kunt analoge video- en audiosignalen vanaf een extern apparaat naar de TV zenden. Sluit het externe apparaat en de TV op elkaar aan met behulp van een componentkabel, zoals aangegeven in de volgende afbeelding.
OPMERKING
yAls kabels onjuist zijn geïnstalleerd, kan het
beeld worden weergegeven in zwart-wit of met vervormde kleuren.
Italiano
Il segnale audio e video analogico viene trasmesso da un dispositivo esterno al televisore. Collegare il dispositivo esterno al televisore usando un cavo component come mostrato nella
gura di seguito.
NOTA
yL’errato collegamento dei cavi può far sì che
le immagini vengano visualizzate in bianco e nero o con colori distorti.
Español
Transmite las señales de audio y vídeo analógico de un dispositivo externo a la TV. Use el cable de componentes para conectar el dispositivo externo a la TV, tal como se muestra en la siguiente ilustración.
NOTA
ySi los cables no se instalan correctamente,
puede que la imagen se visualice en blanco y negro o con los colores distorsionados.
Ελληνικά
Μεταδίδει τα αναλογικά σήματα εικόνας και ήχου από μια εξωτερική συσκευή στην τηλεόραση. Συνδέστε την εξωτερική συσκευή και την τηλεόραση με το καλώδιο Component, όπως φαίνεται στην παρακάτω εικόνα.
ΣΗΜΕΙΩΣΗ
yΑν τα καλώδια δεν έχουν συνδεθεί
σωστά, η εικόνα ενδέχεται να εμφανίζεται ασπρόμαυρη ή με αλλοιωμένα χρώματα.
Slovenščina
Prenaša analogne video in zvočne signale iz zunanje naprave na televizor. Povežite zunanjo
napravo in televizor s komponentnim kablom, kot je prikazano na naslednji sliki.
OPOMBA
yČe so kabli nepravilno nameščeni, se lahko
slika prikaže kot črnobela ali s popačeno
barvo.
Page 22
A-22
MAKING CONNECTION
Composite connection
IN
COMPONENT
COMPONENT
AV2
VIDEO
YELLOW (Use the composite video cable provided.)
YELLOW
YELLOW
AUDIO
AV2
P
R
WHITE
WHITE
PB
B
Y
YP
RED
RED
Deutsch
Überträgt analoge Video- und Audiosignale von einem externen Gerät an das TV-Gerät. Verbinden Sie das externe Gerät, wie in der folgenden Abbildung gezeigt, mithilfe des Composite-Kabels mit dem TV-Gerät.
Français
Permet de transmettre les signaux audio et vidéo analogiques d’un périphérique externe vers la TV. Connectez le périphérique externe et la TV avec le câble composite comme indiqué sur l’illustration suivante.
Italiano
Il segnale audio e video analogico viene trasmesso da un dispositivo esterno al televisore. Collegare il dispositivo esterno e il televisore mediante il cavo composite come mostrato nell’illustrazione di seguito.
Español
Transmite las señales de audio y vídeo analógico de un dispositivo externo a la TV. Use el cable compuesto para conectar el dispositivo externo a la TV, tal como se muestra en la siguiente ilustración.
(*Not Provided)
YELLOW
VCR / DVD / Blu-Ray / HD Cable Box
VIDEO
WHITE
( )
MONO
L R
RED
AUDIO
English
Transmits analog video and audio signals from an external device o the TV. Connect the external device and the TV with the composite cable as shown.
Português
Transmite sinais analógicos de vídeo e áudio de um dispositivo externo para a TV. Ligue o dispositivo externo à TV com o cabo composto, conforme demonstrado na ilustração.
Nederlands
U kunt analoge video- en audiosignalen vanaf een extern apparaat naar de TV zenden. Sluit het externe apparaat en de TV op elkaar aan met behulp van de composietkabel, zoals aangegeven in de volgende afbeelding.
Ελληνικά
Μεταδίδει τα αναλογικά σήματα εικόνας και ήχου από μια εξωτερική συσκευή στην τηλεόραση. Συνδέστε την εξωτερική συσκευή και την τηλεόραση με το καλώδιο Composite, όπως φαίνεται στην παρακάτω εικόνα.
Slovenščina
Prenaša analogne video in zvočne signale iz zunanje naprave na televizor. Povežite zunanjo
napravo in televizor s kompozitnim kablom, kot je prikazano na naslednji sliki.
Page 23
MAKING CONNECTION
3
/
N
(ARC)
2
/
N
A-23
MHL connection
(Only LA79**, LA86**, LA960*)
MHL passive cable
(*Not Provided)
(Only LA965*, LA97**, LA98**, LM96**)
(MHL)
(MHL)
4
DVI I
2
MHL passive cable
(*Not Provided)
3
DVI I
Mobile phone
Mobile phone
English
Mobile High-denition Link (MHL) is an interface
for transmitting digital audiovisual signals from mobile phones to television sets.
NOTE
Connect the mobile phone to the HDMI/DVI
y
IN 4 (MHL) or HDMI/DVI IN 3 (MHL) port to view the phone screen on the TV. The MHL passive cable is needed to connect
y
the TV and a mobile phone. This only works for the MHL-enabled phone.
y
Some applications can be operated by the
y
remote control. For some mobile phones supporting MHL,
y
you can control with the magic remote control. Remove the MHL passive cable from the TV
y
when:
- the MHL function is disabled
- your mobile device is fully charged in standby mode
Page 24
A-24
MAKING CONNECTION
Deutsch
Mobile High-denition Link (MHL) ist eine digitale
Schnittstelle, welche audiovisuelle Signale vom Mobiltelefon an ein TV-Gerät überträgt.
HINWEIS
Verbinden Sie das Mobiltelefon mit dem
y
HDMI/DVI IN 4 (MHL) oder HDMI/DVI IN 3 (MHL)-Anschluss, um den Bildschirm des Telefons auf dem Fernsehgerät anzuzeigen. Das passive MHL-Kabel dient dazu, das TV-
y
Gerät mit einem Mobiltelefon zu verbinden. Dies ist nur bei MHL-fähigen Telefonen
y
möglich. Einige Anwendungen können über die
y
Fernbedienung gesteuert werden. Einige MHL-fähige Mobiltelefone können mit
y
der Magic-Fernbedienung bedient werden. Entfernen Sie das passive MHL-Kabel vom TV-
y
Gerät, wenn:
- die MHL-Funktion deaktiviert ist
- Ihr Mobilfunkgerät im Standby-Modus vollständig geladen ist
Français
Mobile High-denition Link (MHL) est une
interface qui permet de transmettre des signaux audiovisuels numériques depuis des téléphones portables vers des téléviseurs.
Italiano
Mobile High-denition Link (MHL) è un’interfaccia
per la trasmissione di segnali audiovisivi digitali dai cellulari ai TV.
NOTA
Collegare il cellulare alla porta HDMI/DVI
y
IN 4 (MHL) o HDMI/DVI IN 3 (MHL) per visualizzare lo schermo del telefono sul TV. È necessario un cavo passivo MHL per
y
collegare il TV a un cellulare. Questa funzione è disponibile soltanto sui
y
telefoni che supportano l’interfaccia MHL. È possibile utilizzare alcune applicazioni
y
tramite il telecomando. Per alcuni cellulari che supportano la
y
tecnologia MHL, è possibile utilizzare il telecomando magico. Rimuovere il cavo passivo MHL dal TV quando:
y
- La funzione MHL è disattivata
- Il dispositivo mobile è completamente carico in modalità standby
Español
El enlace de alta denición móvil o MHL (del inglés “Mobile High-denition Link”) es una interfaz que
se utiliza para transmitir señales audiovisuales digitales de teléfonos móviles a equipos de televisión.
REMARQUE
Connectez le téléphone portable au port
y
d’entrée HDMI/DVI IN 4 (MHL) ou HDMI/DVI IN 3 (MHL) pour afficher l’écran du téléphone sur le téléviseur. Le câble passif MHL sert à connecter la TV à
y
un téléphone portable. Cette fonctionnalité est uniquement
y
disponible sur les téléphones prenant en charge la connexion MHL. Certaines applications peuvent être utilisées
y
depuis la télécommande. Vous pouvez utiliser la télécommande Magic
y
sur certains téléphones portables prenant en charge la connexion MHL. Retirez le câble passif MHL du téléviseur
y
uniquement si :
- la fonction MHL est désactivée,
- votre périphérique mobile est complètement chargé et en mode veille ou
NOTA
Conecte el teléfono móvil al puerto HDMI/DVI
y
IN 4 (MHL) o HDMI/DVI IN 3 (MHL) para ver la pantalla del teléfono en la TV. Se necesita un cable pasivo MHL para conectar
y
el televisor y el teléfono móvil. Esta función solo está disponible en teléfonos
y
compatibles con MHL. Algunas aplicaciones se pueden utilizar a través
y
del mando a distancia. Desde algunos teléfonos móviles compatibles
y
con MHL, se puede controlar el dispositivo por medio del mando a distancia Mágico. Extraiga el cable pasivo MHL de la TV cuando:
y
- la función MHL esté deshabilitada
- su dispositivo móvil esté completamente cargado y en modo de espera
Page 25
MAKING CONNECTION
A-25
Português
A Ligação de Alta Denição Móvel (MHL) é uma
interface para transmissão de sinais audiovisuais digitais do telemóvel para a televisão.
NOTA
Ligue o telemóvel à porta HDMI/DVI IN 4 (MHL)
y
ou HDMI/DVI IN 3 (MHL) para visualizar o ecrã do telemóvel na TV. O cabo passivo MHL é necessário para ligar a
y
TV a um telemóvel. Funciona apenas no telemóvel compatível com
y
MHL. É possível utilizar algumas aplicações através
y
do controlo remoto. Em alguns telemóveis que suportam MHL, é
y
possível controlar com o Comando Magic. Remova o cabo passivo MHL da TV quando:
y
- a função MHL está desactivada
- o seu dispositivo móvel está totalmente carregado no modo de espera
Nederlands
MHL (Mobile High-denition Link) is een interface
voor het verzenden van digitale audiovisuele signalen van mobiele telefoons naar televisies.
Ελληνικά
Το MHL (Mobile High-denition Link) είναι μια διασύνδεση για τη μετάδοση ψηφιακών οπτικοακουστικών σημάτων από κινητά τηλέφωνα προς τηλεοράσεις.
ΣΗΜΕΙΩΣΗ
Συνδέστε το κινητό τηλέφωνο στη θύρα
y
HDMI/DVI IN 4 (MHL) ή HDMI/DVI IN 3 (MHL) για προβολή της οθόνης του τηλεφώνου στην τηλεόραση. Το παθητικό καλώδιο MHL είναι απαραίτητο
y
για τη σύνδεση της τηλεόρασης με κινητό τηλέφωνο. Η λειτουργία αυτή υποστηρίζεται μόνο για
y
τηλέφωνα με δυνατότητα MHL. Ορισμένες εφαρμογές μπορούν να
y
χρησιμοποιηθούν μέσω του τηλεχειριστηρίου. Για ορισμένα κινητά τηλέφωνα που
y
υποστηρίζουν MHL, ο χειρισμός είναι δυνατός μέσω του Magic Remote Control (μαγικού τηλεχειριστηρίου). Πρέπει να αφαιρείτε το παθητικό καλώδιο MHL
y
από την τηλεόραση όταν:
- η λειτουργία MHL είναι απενεργοποιημένη
- η κινητή συσκευή είναι πλήρως φορτισμένη
και βρίσκεται σε κατάσταση αναμονής
Slovenščina
OPMERKING
Sluit de mobiele telefoon aan op de HDMI/
y
DVI IN 4 (MHL) of HDMI/DVI IN 3 (MHL) ­poort om het scherm van de telefoon op de TV weer te geven. De MHL passieve kabel is nodig om de
y
TV en een mobiele telefoon met elkaar te verbinden. Dit kan alleen met een MHL-telefoon.
y
Sommige toepassingen kunnen met de
y
afstandsbediening worden bediend. Bij sommige mobiele telefoons met MHL kunt
y
u de Magic-afstandsbediening gebruiken. Koppel de MHL-passieve kabel los van de TV
y
wanneer:
- de MHL-functie is uitgeschakeld
- uw mobiele apparaat volledig is opgeladen in standby-modus
Povezava MHL (Mobile High-denition Link) je vmesnik za oddajanje digitalnih zvočnih
in vizualnih signalov iz mobilnih telefonov v televizorje.
OPOMBA
Če želite zaslon telefona gledati na televizorju,
y
priklopite mobilni telefon v vrata HDMI/DVI IN 4 (MHL) ali HDMI/DVI IN 3 (MHL). Pasivni kabel MHL potrebujete za povezavo
y
televizorja in mobilnega telefona. To deluje samo pri telefonih s podporo za MHL.
y
Nekatere aplikacije lahko upravljate z daljinskim
y
upravljalnikom. Pri nekaterih telefonih, ki podpirajo MHL, lahko
y
predvajanje upravljate z daljinskim upravljalnikom Magic.
Pasivni kabel MHL odstranite s televizorja, ko:
y
- je funkcija MHL onemogočena
- je mobilna naprava popolnoma napolnjena
v načinu pripravljenosti
Page 26
A-26
MAKING CONNECTION
Audio connection
(*Not Provided)
OUT
OPTICAL
DIGITAL AUDIO
Deutsch
Sie können anstelle der integrierten Lautsprecher ein optionales externes Audiosystem verwenden.
Anschluss über ein digitales optisches Audiokabel
Überträgt ein digitales Audiosignal vom TV-Gerät an ein externes Gerät. Verbinden Sie das externe Gerät, wie in der folgenden Abbildung gezeigt, mithilfe des optischen Audiokabels mit dem TV­Gerät.
HINWEIS
yBlicken Sie nicht in den optischen
Ausgangsanschluss. Der Laserstrahl könnte Ihren Augen schaden.
yDie Funktion Audio mit ACP (Audio-
Kopierschutz) blockiert möglicherweise den digitalen Audioausgang.
OPTICAL
Digital Audio System
English
You may use an optional external audio system instead of the built-in speaker.
AUDIO IN
Digital optical audio connection
Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown.
NOTE
yDo not look into the optical output port.
Looking at the laser beam may damage your vision.
yAudio with ACP (Audio Copy Protection)
function may block digital audio output.
Français
Vous pouvez utiliser un système audio externe en option à la place d’un haut-parleur intégré.
Connexion audio optique numérique
Permet de transmettre un signal audio numérique de la TV au périphérique externe. Connectez le périphérique externe et la TV avec le câble audio optique comme indiqué sur l’illustration suivante.
REMARQUE
yNe regardez pas dans le port de sortie
optique. Le rayon laser risquerait de vous abîmer la vue.
yLa fonction Audio avec ACP (protection
copie audio) peut bloquer la sortie audio numérique.
Page 27
MAKING CONNECTION
A-27
Italiano
È possibile utilizzare un sistema audio esterno opzionale al posto dell’altoparlante integrato.
Collegamento audio ottico digitale
Il segnale audio digitale viene trasmesso dal televisore su un dispositivo esterno. Collegare il dispositivo esterno e il televisore con il cavo audio ottico come mostrato nell’illustrazione di seguito.
NOTA
yNon guardare nella porta dell’uscita ottica.
Guardare il raggio laser potrebbe provocare danni alla vista.
yContenuti audio con funzione anticopia
(ACP, Audio Copy Protection) possono bloccare l’uscita audio digitale.
Português
Pode utilizar um sistema de áudio externo opcional em vez das colunas incorporadas.
Ligação de áudio óptica digital
Transmite um sinal áudio digital da TV para um dispositivo externo. Ligue o dispositivo externo à TV com o cabo de áudio óptico, conforme demonstrado na ilustração.
NOTA
yNão olhe para a porta de saída óptica. Se
olhar para o feixe laser, poderá prejudicar a visão.
yO áudio com a função ACP (protecção áudio
anti-cópia) poderá bloquear a saída áudio digital.
Nederlands
Español
Puede emplear un sistema de audio externo opcional en vez de los altavoces integrados.
Conexión óptica de audio digital
Transmite una señal de audio digital de la TV a un dispositivo externo. Use el cable de audio óptico para conectar el dispositivo externo a la TV, tal y como se muestra en la siguiente ilustración.
NOTA
yNo mire directamente el puerto de salida
óptica. El haz de luz del láser puede dañar la vista.
yEl audio con función ACP (protección de
copia de audio) puede bloquear la salida de audio digital.
U kunt een optioneel extern audiosysteem gebruiken in plaats van de ingebouwde speaker.
Digitale, optische audioverbinding
U kunt een digitaal audiosignaal vanaf de TV naar een extern apparaat zenden. Sluit het externe apparaat en de TV op elkaar aan met behulp van de optische audiokabel, zoals aangegeven in de volgende afbeelding.
OPMERKING
yKijk niet in de optische uitgangspoort. De
laserstraal kan schadelijk zijn voor uw ogen.
yAudio met de ACP-functie (analoge
kopieerbeveiliging) kan digitale audio-uitvoer blokkeren.
Page 28
A-28
USB IN
1
2
3
HDD IN
(USB 3.0 IN)
USB IN
M
C
IA
C
ARD
S
L
O
T
USB IN
1
2
3
HDD IN
(USB 3.0 IN)
MAKING CONNECTION
Ελληνικά
Αντί για το ενσωματωμένο ηχείο, μπορείτε να χρησιμοποιήσετε ένα προαιρετικό εξωτερικό ηχοσύστημα.
Ψηφιακή οπτική σύνδεση ήχου
Μεταδίδει ένα ψηφιακό σήμα ήχου από την τηλεόραση σε μια εξωτερική συσκευή. Συνδέστε την εξωτερική συσκευή και την τηλεόραση με το οπτικό καλώδιο ήχου, όπως φαίνεται στην παρακάτω εικόνα.
ΣΗΜΕΙΩΣΗ
yΜην κοιτάτε μέσα στην οπτική έξοδο. Αν
κοιτάξετε τη δέσμη λέιζερ, υπάρχει κίνδυνος βλάβης στην όρασή σας.
yΗ λειτουργία Audio with ACP (Audio Copy
Protection) ενδέχεται να εμποδίζει την ψηφιακή έξοδο ήχου.
USB connection
(Only LA79**, LA86**, LA960*)
HUB
USB
HDD
(*Not Provided)
Slovenščina
Namesto vgrajenih zvočnikov uporabite izbirni zunanji zvočni sistem.
Digitalni optični avdio priključek
Prenaša digitalni zvočni signal iz televizorja na zunanjo napravo. Povežite zunanjo napravo in televizor z optičnim zvočnim kablom, kot je
prikazano na naslednji sliki.
OPOMBA
yNe glejte v optična izhodna vrata. Če
pogledate v laserski žarek, si lahko
poškodujete vid.
yZvok s funkcijo ACP (zaščita zvočne kopije)
lahko blokira izhodni digitalni zvok.
(Only LA965*, LA97**, LA98**, LM96**)
HUB
USB
HDD
(*Not Provided)
Page 29
MAKING CONNECTION
A-29
English
Connect a USB storage device such as a USB
ash memory, external hard drive, or a USB
memory card reader to the TV and access the
Smart Share menu to use various multimedia les.
NOTE
ySome USB Hubs may not work. If a USB
device connected using a USB Hub is not detected, connect it to the USB port on the TV directly.
yConnect the external power source if your
USB is needed.
Deutsch
Verbinden Sie ein USB-Speichergerät, z. B. USB-Flash-Speicher, eine externe Festplatte oder einen USB-Kartenleser für Speicherkarten mit dem TV-Gerät, und greifen Sie auf das Menü „Smart Share“ zu, um verschiedene Multimediadateien zu verwenden.
Français
Connectez un périphérique de stockage USB comme une clé USB, un disque dur externe ou une carte mémoire USB à la TV et accédez au
menu Smart Share pour utiliser divers chiers
multimédia.
REMARQUE
yCertains ports USB peuvent ne pas
fonctionner. Si un appareil USB branché sur un port USB n’est pas détecté alors connectez-le directement au téléviseur.
yConnectez la source d’alimentation externe
si une connexion USB est nécessaire.
Español
Conecte un dispositivo de almacenamiento USB,
como una memoria ash USB, un disco duro
externo o un lector de tarjetas de memoria USB a la TV y acceda al menú Smart Share para manejar diversos archivos multimedia.
HINWEIS
yEinige USB-Hubs funktionieren vielleicht
nicht. Falls ein über einen USB-Hub verbundenes USB-Gerät nicht gefunden wird, verbinden Sie es direkt mit dem USB­Anschluss am TV-Gerät.
ySchließen Sie eine externe Stromquelle an,
wenn eine USB-Verbindung erforderlich ist.
Italiano
Collegare una periferica di archiviazione USB, ad
esempio una memoria ash USB, un hard disk
esterno, o un lettore di schede di memoria USB al televisore e accedere al menu Smart Share per
utilizzare diversi le multimediali.
NOTA
yAlcuni hub USB potrebbero non funzionare.
Se una periferica USB collegata tramite un hub USB non viene rilevata, collegarla direttamente alla porta USB della TV.
yCollegarsi all’alimentazione esterna se il
dispositivo USB lo richiede.
NOTA
yEs posible que algunos concentradores
USB no funcionen. Si no se detecta un dispositivo USB conectado mediante un concentrador USB, conéctelo directamente al puerto USB de la TV.
yConecte la fuente de alimentación externa
si necesita el USB.
Português
Ligue um dispositivo de armazenamento USB,
como por exemplo uma memória ash USB, uma
unidade de disco rígido externa ou um leitor de cartões de memória USB, à TV e aceda ao menu
Smart Share para utilizar vários tipos de cheiros
multimédia.
NOTA
yAlguns hubs USB poderão não funcionar.
Se não for detectado um dispositivo USB ligado através de um hub USB, ligue o dispositivo directamente à porta USB na TV.
yLigue a fonte de alimentação externa do seu
equipamento USB se for necessário.
Page 30
A-30
MAKING CONNECTION
Nederlands
Sluit een USB-opslagapparaat, zoals een
USB-ashgeheugen, externe harde schijf of
een USB-geheugenkaartlezer, aan op de TV en open het menu Smart Share om diverse multimediabestanden te kunnen gebruiken.
OPMERKING
ySommige USB-hubs werken mogelijk niet.
Als een USB-apparaat dat via een USB-hub is aangesloten niet wordt gedetecteerd, sluit u het apparaat direct aan op de USB-poort van de TV.
ySluit het USB-apparaat, indien van
toepassing, op een stopcontact aan.
Ελληνικά
Συνδέστε μια συσκευή αποθήκευσης USB, όπως μια μνήμη ash USB, έναν εξωτερικό σκληρό δίσκο ή μια συσκευή ανάγνωσης καρτών μνήμης USB, στην τηλεόραση και μεταβείτε στο μενού Smart Share για τη χρήση διάφορων αρχείων πολυμέσων.
CI module connection
(*Not Provided)
PCMCIA CARD SLOT
ΣΗΜΕΙΩΣΗ
yΟρισμένοι διανομείς USB ενδέχεται να
μην λειτουργούν. Εάν δεν είναι δυνατή η ανίχνευση μιας συσκευής USB που έχει συνδεθεί μέσω διανομέα USB, συνδέστε την απευθείας στην υποδοχή USB της τηλεόρασης.
yΣυνδέστε την εξωτερική πηγή τροφοδοσίας
αν η εξωτερική συσκευή διαθέτει δικό της καλώδιο.
Slovenščina
Na televizor priključite pomnilniško napravo
USB, kot je pomnilnik USB Flash, zunanji trdi disk ali bralnik pomnilniških kartic USB in
odprite meni Smart Share, da uporabite različne večpredstavnostne datoteke.
OPOMBA
yNekatera zvezdišča USB morda ne bodo
delovala. Če naprava USB, povezana prek zvezdišča USB, ni zaznana, jo priključite
neposredno na vrata USB na televizorju.
yPriklopite vir zunanjega napajanja, če ga
naprava USB zahteva.
English
View the encrypted (pay) services in digital TV mode. This feature is not available in all countries.
NOTE
yCheck if the CI module is inserted into the
PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.
yIf the TV does not display any video and
audio when CI+ CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator.
Page 31
MAKING CONNECTION
A-31
Deutsch
Zeigen Sie verschlüsselte Dienste (Bezahldienste) im digitalen TV-Modus an. Diese Funktion ist in einigen Ländern nicht verfügbar.
HINWEIS
yÜberprüfen Sie, ob das CI-Modul richtig
herum in den PCMCIA-Kartensteckplatz gesteckt wurde. Falls das Modul nicht korrekt eingesetzt wurde, können TV-Gerät und PCMCIA-Kartensteckplatz beschädigt werden.
yWenn das Fernsehgerät keine Videos oder
Audio-Dateien abspielt, während es mit der CI+ CAM verbunden ist, wenden Sie sich an den Serviceanbieter für Terrestrik / Kabel / Satellit.
Français
Afchez les services cryptés (payants) en mode
TV numérique. Cette fonction n’est pas disponible dans tous les pays.
REMARQUE
yVérifiez si le module CI est inséré dans le
bon sens dans la fente de la carte PCMCIA. Si le module est mal inséré, la TV pourrait subir des dommages ainsi que la fente de la carte PCMCIA.
ySi le téléviseur n’affiche aucune vidéo et
n’émet aucun son lorsque l’entrée CI+ CAM est connectée, contactez votre opérateur de service terrestre/satellite/câble.
Español
Puede visualizar los servicios de abono (de pago) en el modo de DTV. Esta función no está disponible en todos los países.
NOTA
yCompruebe si el módulo CI se ha insertado
en la ranura para tarjeta PCMCIA en la dirección correcta. Si el módulo no se ha insertado correctamente, podría causar daños en la TV y en la ranura para tarjeta PCMCIA.
ySi la TV no reproduce vídeo ni audio cuando
se conecta CI+ CAM, póngase en contracto con el operador del servicio por satélite/ cable/digital terrestre.
Português
Visualizar os serviços encriptados (pagos) no modo de TV digital. Esta função não está disponível em todos os países.
NOTA
yVerifique se o módulo CI está inserido na
ranhura de cartão PCMCIA no sentido correcto. Se o módulo não estiver inserido correctamente, pode danificar a TV e a ranhura de cartões PCMCIA.
ySe a TV não exibir qualquer vídeo e áudio
com o CAM CI+ ligado, contacte o Operador de Serviços de satélite/por cabo/ terrestres.
Italiano
Consente la visione dei servizi codicati (a
pagamento) in modalità TV digitale. Questa funzione non è disponibile in tutti i paesi.
NOTA
yVerificare che il modulo CI sia inserito
nello slot della scheda PCMCIA nel verso corretto. Se il modulo non è inserito nel modo corretto, possono verificarsi danni alla TV e allo slot stesso.
ySe il TV non visualizza o riproduce alcun
contenuto video e audio quando è collegata la funzione CAM (modulo di accesso condizionale) con CI+ (Interfaccia comune plus), contattare l’operatore del servizio terrestre/via cavo/satellitare.
Nederlands
Bekijk gescrambelde services (betaalservices) in de digitale TV-modus. Deze functie is niet in alle landen beschikbaar.
OPMERKING
yControleer of de CI-module in de juiste
richting is geplaatst in de PCMCIA­kaartsleuf. Indien de module niet goed is geplaatst, kan dit schade veroorzaken aan de TV en de PCMCIA-kaartsleuf.
yAls de TV geen audio en video afspeelt
terwijl CI+ CAM is aangesloten, neem dan contact op met de ethernet-/kabel-/ satellietexploitant.
Page 32
A-32
IN/OUT
AV1
(RGB)
MAKING CONNECTION
Ελληνικά
Παρακολουθήστε κρυπτογραφημένες (συνδρομητικές) υπηρεσίες στη λειτουργία ψηφιακής τηλεόρασης. Αυτή η λειτουργία δεν είναι διαθέσιμη σε όλες τις χώρες.
ΣΗΜΕΙΩΣΗ
yΕλέγξτε αν η μονάδα CI έχει τοποθετηθεί
στην εσοχή κάρτας PCMCIA με τη σωστή κατεύθυνση. Αν δεν έχει τοποθετηθεί σωστά, μπορεί να προκαλέσει ζημιά στην τηλεόραση και στην υποδοχή κάρτας PCMCIA.
yΑν η τηλεόραση δεν υποστηρίζει εικόνα
και ήχο κατά τη σύνδεση CI+ CAM, επικοινωνήστε με τον πάροχο επίγειων/ καλωδιακών/δορυφορικών υπηρεσιών.
Slovenščina
Za ogled kodiranih (plačljivih) storitev v digitalnem televizijskem načinu.
OPOMBA
yPrepričajte se, da je CI modul pravilno
vstavljen v režo za PCMCIA kartice. Če
modul ni obrnjen pravilno, lahko pride do
poškodbe TV aparata in PCMCIA reže.
yČe se na televizorju ne predvaja video ali
zvok, ko je priklopljen modul CI+ CAM, se obrnite na ponudnika zemeljskih/kabelskih/ satelitskih storitev.
Euro Scart connection
(Use the scart gender cable provided.)
(*Not Provided)
English
Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable as shown.
Output
Type Current input mode
Digital TV Digital TV Analogue TV, AV
HDMI
1 TV Out : Outputs Analogue TV or Digital TV
signals.
AV1
(TV Out1)
Analogue TVComponent
NOTE
yAny Euro scart cable used must be signal
shielded.
yWhen watching digital TV in 3D imaging
mode, only 2D out signals can be output through the SCART cable. (Only 3D models)
yIf you set the 3D mode to On while a
scheduled recording is performed on digital TV, monitor out signals cannot be output through the SCART cable, and the recording cannot be performed.
Page 33
MAKING CONNECTION
A-33
Deutsch
Überträgt Video- und Audiosignale von einem externen Gerät an das TV-Gerät. Verbinden Sie das externe Gerät, wie in der folgenden Abbildung gezeigt, mithilfe des Euro-Scart-Kabels mit dem TV-Gerät.
Ausgangstyp
AV1 Aktueller Eingangsmodus
Digital-TV Digital-TV Analog-TV, AV
HDMI
1 TV-Ausgang: Ausgang für analoge und digitale
Fernsehsignale.
(TV-Ausgang1)
Analog-TVComponent
HINWEIS
yDas Euro-Scart-Kabel muss signaltechnisch
abgeschirmt sein.
yBei digitalem Fernsehen im 3D-Modus
können nur 2D-Ausgangssignale über ein SCART-Kabel ausgegeben werden. (Nur 3D-Modelle)
yWenn der 3D-Modus während einer
geplanten Aufnahme mit dem Digital­TV auf „Ein“ eingestellt ist, können die Monitorausgangssignale nicht über das SCART-Kabel ausgegeben werden. Die Aufnahme ist dann nicht möglich.
Français
Transmet les signaux audio et vidéo d’un appareil externe au téléviseur. Raccordez l’appareil externe et le téléviseur à l’aide d’un câble péritel comme illustré ci-dessous.
Type de sortie
AV1 Mode d'entrée actuel
TV numérique TV numérique TV analogique, AV
HDMI
1 Sortie TV : sortie de signaux en mode TV
analogique ou en mode TV numérique.
(sortie TV1)
TV analogiqueComposant
REMARQUE
yTous les câbles Euro scart utilisés doivent
être des câbles de signal blindés.
yQuand le mode 3D est sélectionné sur la
TV numérique, seuls les signaux de sortie 2D peuvent être émis via le câble péritel. (modèles 3D uniquement)
ySi vous activez le mode 3D pendant
l’exécution d’un enregistrement programmé sur la TV, les signaux de sortie ne peuvent pas être émis via le câble péritel et l’enregistrement est impossible.
Page 34
A-34
MAKING CONNECTION
Italiano
Consente la trasmissione dei segnali audio e video da un dispositivo esterno al televisore. Collegare il dispositivo esterno e il televisore con il cavo Euro Scart come mostrato nell’illustrazione di seguito.
Tipo di uscita
Modalità di ingresso corrente
TV digitale TV digitale TV analogica, AV
HDMI
1 Uscita TV: uscite segnali TV analogica o TV
digitale.
AV1
(Uscita TV1)
TV analogicaComponent
NOTA
yI cavi Euro Scart devono essere schermati. yQuando si guarda il TV digitale in modalità
immagini 3D, solo i segnali di uscita 2D possono passare attraverso il cavo SCART. (Solo modelli 3D)
ySe viene attivata la modalità 3D durante
l’esecuzione di una registrazione programmata sulla TV digitale, i segnali di uscita monitor non possono uscire attraverso il cavo SCART e la registrazione non può essere eseguita.
Español
Transmite las señales de audio y vídeo de un dipositivo externo a la TV. Use el cable euroconec­tor para conectar el dispositivo externo a la TV, tal y como se muestra en la siguiente ilustración.
Tipo de salida
AV1 Modo de entrada
TV digital TV digital TV analógica, AV
HDMI
1 Salida de TV: salida de señales de TV
analógica o digital.
(Salida de TV1)
TV analógicaComponent
NOTA
yTodo cable euroconector que se emplee
deberá estar blindado.
yCuando visualice la TV digital en modo de
imagen 3D, sólo podrá utilizar el euroconector para las señales de salida 2D. (Solo para los modelos 3D)
ySi activa el modo 3D mientras se realiza una
grabación de TV digital programada, no podrá utilizar el euroconector para las señales de salida del monitor, y la grabación no podrá realizarse.
Page 35
MAKING CONNECTION
A-35
Português
Transmite os sinais de vídeo e áudio de um dispositivo externo para a TV. Ligue o dispositivo externo à TV com o cabo Euro Scart, conforme demonstrado na ilustração.
Tipo de saída
AV1 Modo de entrada actual
TV Digital TV Digital TV Analógica, AV
HDMI
1 Saída TV: Sinais de Saída de TV Analógica ou
Digital.
(Saída TV1)
TV AnalógicaComponentes
NOTA
yQualquer cabo Euro scart utilizado terá de
ser blindado.
yQuando estiver a ver TV digital no modo de
imagem em 3D, apenas os sinais de saída 2D poderão ser emitidos através do cabo SCART. (Apenas em modelos com 3D)
yAo definir o modo 3D para Ligado enquanto
uma gravação agendada estiver em curso na TV digital, os sinais de saída do monitor não poderão ser emitidos através do cabo SCART e, por sua vez, a gravação não poderá ser realizada.
Nederlands
U kunt de video- en audiosignalen vanaf een etern apparaat naar de TV zenden. Sluit het externe apparaat en de TV op elkaar aan met behulp van de Scart-kabel, zoals aangegeven in de volgende afbeelding.
Uitvoertype
AV1 Huidige invoermodus
Digitale TV Digitale TV Analoge TV, AV
HDMI
1 TV Uit: voert analoge TV-signalen of Digitale
TV-signalen uit.
(TV Uit1)
Analoge TVComponent
OPMERKING
yVoor elke Scart-kabel moet het signaal zijn
afgeschermd.
yTijdens het kijken naar digitale TV in de
modus voor 3D-beelden kunnen alleen 2D-uitsignalen worden uitgevoerd via de SCART-kabel. (Alleen 3D-modellen)
yAls u de 3D-modus inschakelt terwijl er een
geplande opname plaatsvindt op de digitale TV, kunnen monitor uit-signalen niet worden uitgevoerd via de SCART-kabel en kan er niet verder worden opgenomen.
Page 36
A-36
MAKING CONNECTION
Ελληνικά
Μεταδίδει τα σήματα εικόνας και ήχου από μια εξωτερική συσκευή στην τηλεόραση. Συνδέστε την εξωτερική συσκευή και την τηλεόραση με το καλώ­διο Euro Scart, όπως φαίνεται στην παρακάτω ει- κόνα.
Τύπος εξόδου
Τρέχουσα λειτουργία εισόδου
Ψηφιακή τηλεόραση Ψηφιακή
Αναλογική τηλεόραση, AV
Component HDMI
1 Έξοδος TV : Έξοδοι αναλογικού σήματος
τηλεόρασης ή ψηφιακού σήματος τηλεόρασης.
AV1
(Έξοδος TV1)
τηλεόραση
Αναλογική
τηλεόραση
ΣΗΜΕΙΩΣΗ
yΚάθε καλώδιο Euro scart που
χρησιμοποιείται πρέπει να διαθέτει θωράκιση σήματος.
yΌταν παρακολουθείτε ψηφιακή τηλεόραση
στη λειτουργία απεικόνισης 3D, μόνο τα σήματα εξόδου 2D μεταδίδονται μέσω του καλωδίου SCART. (Μόνο σε μοντέλα 3D)
yΑν ρυθμίσετε τη λειτουργία 3D σε «Ενεργ/
νο» στη διάρκεια μιας προγραμματισμένης εγγραφής σε ψηφιακή τηλεόραση, τα σήματα εξόδου οθόνης (Monitor Out) δεν μπορούν να μεταδοθούν μέσω του καλωδίου SCART και η εγγραφή δεν μπορεί να πραγματοποιηθεί.
Slovenščina
Prenaša video in avdio signale iz zunanje naprave
na televizor. Povežite zunanjo napravo in televizor
z evro scart kablom, kot je prikazano na naslednji sliki.
Vrsta izhoda
AV1
Trenutni
način vhoda
Digitalna TV Digitalna TV Analogna TV, AV
HDMI
1 TV-izhod : Izhod za analogne in digitalne
televizijske signale.
(TV-izhod1)
Analogna TVKomponentni
OPOMBA
yKabel Euro Scart mora biti signalno zaščiten. yPri gledanju digitalne televizije v 3D-načinu
je mogoče po kablu SCART oddajati le
2D-izhodne signale. (samo 3D-modeli)
yČe med načrtovanim snemanjem na digitalni
televiziji nastavite 3D-način na Vklopljen, izhodnih signalov televizorja ni mogoče
oddajati po kablu SCART in snemanja ni
mogoče opraviti.
Page 37
MAKING CONNECTION
A-37
English
Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device. Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.
NOTE
yThe external device connection may differ
from the model.
yConnect external devices to the TV
regardless of the order of the TV port.
yIf you record a TV program on a DVD
recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
yRefer to the external equipment’s manual for
operating instructions.
yIf you connect a gaming device to the TV,
use the cable supplied with the gaming device.
yIn PC mode, there may be noise associated
with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
yIn PC mode, some resolution settings may
not work properly depending on the graphics card.
Deutsch
Verbinden Sie mehrere externe Geräte mit dem TV-Gerät, und wechseln Sie die Eingangsmodi, um ein externes Gerät auszuwählen. Weitere Informationen zum Anschluss von externen Geräten entnehmen Sie bitte dem Handbuch des jeweiligen Gerätes. Verfügbare externe Geräte sind: HD-Receiver, DVD-Player, Videorekorder, Audiosysteme, USB­Speichergeräte, PCs, Spielkonsolen und weitere externe Geräte.
HINWEIS
yDer Anschluss für externe Geräte kann von
Modell zu Modell unterschiedlich sein.
yVerbinden Sie externe Geräte unabhängig
von der Reihenfolge der Anschlüsse mit dem TV-Gerät.
yWenn Sie eine Fernsehsendung über DVD-
Player oder Videorekorder aufnehmen, vergewissern Sie sich, dass das TV-Gerät über das Eingangskabel für das TV-Signal mit dem DVD-Player oder Videorekorder verbunden ist. Weitere Informationen zu Aufnahmen entnehmen Sie bitte dem Handbuch des verbundenen Gerätes.
yAnweisungen zum Betrieb finden Sie im
Handbuch des externen Gerätes.
yWenn Sie eine Spielekonsole mit dem TV-
Gerät verbinden, verwenden Sie das mit der Konsole mitgelieferte Kabel.
yIm PC-Modus kann es hinsichtlich
Auflösung, vertikalem Muster, Kontrast oder Helligkeit zu Rauschen kommen. Wenn Rauschen auftritt, stellen Sie den PC auf eine andere Auflösung ein, ändern Sie die Bildwiederholrate, oder passen Sie Helligkeit und Kontrast im Menü „BILD“ an, bis das Bild optimal ist.
yAbhängig von der Grafikkarte
funktionieren im PC-Modus einige Auflösungseinstellungen möglicherweise nicht ordnungsgemäß.
Page 38
A-38
MAKING CONNECTION
Français
Connectez divers périphériques externes à la TV et changez de mode de source d’entrée pour sélectionner un périphérique externe. Pour en savoir plus sur le raccordement d’un périphérique externe, reportez-vous au manuel fourni avec ce dernier. Les périphériques externes disponibles sont les suivants : récepteurs HD, lecteurs DVD, VCR, systèmes audio, périphériques de stockage USB, PC, consoles de jeu et autres périphériques externes.
REMARQUE
yLe raccordement du périphérique externe
peut différer du modèle.
yConnectez des périphériques externes à la
TV sans tenir compte de l’ordre du port TV.
ySi vous enregistrez un programme TV sur un
enregistreur de DVD ou un magnétoscope, veillez à raccorder le câble de source d’entrée du signal de la TV à la TV via un enregistreur de DVD ou un magnétoscope. Pour en savoir plus sur l’enregistrement, reportez-vous au manuel fourni avec le périphérique connecté.
yVeuillez consulter le manuel de l’équipement
externe contenant les instructions d’utilisation.
ySi vous connectez une console de jeu à la
TV, utilisez le câble fourni avec la console de jeu.
yEn mode PC, un bruit peut être associé
à la résolution, au modèle vertical, au contraste ou à la luminosité. En présence de bruit, changez la résolution de la sortie PC, changez le niveau du taux de rafraîchissement ou réglez la luminosité et le contraste dans le menu IMAGE jusqu’à ce que l’image soit nette.
yEn mode PC, certains réglages de la
résolution peuvent ne pas fonctionner correctement en fonction de la carte graphique utilisée.
Italiano
Collegare diversi dispositivi esterni al televisore e
modicare la modalità di ingresso per selezionare
un dispositivo esterno. Per ulteriori informazioni sul collegamento di un dispositivo esterno, consultare il manuale fornito in dotazione con ciascun dispositivo. È possibile collegare i seguenti dispositivi esterni: ricevitori HD, lettori DVD, VCR, sistemi audio, periferiche di archiviazione USB, PC, console per videogiochi e altri dispositivi esterni.
NOTA
yIl collegamento del dispositivo esterno può
variare in base al modello.
yCollegare i dispositivi esterni al televisore
a prescindere dall’ordine della porta del televisore.
ySe si registra un programma TV su un
registratore DVD o VCR, accertarsi di collegare il cavo di ingresso del segnale al televisore attraverso un registratore DVD o VCR. Per ulteriori informazioni sulla registrazione, consultare il manuale fornito in dotazione con il dispositivo collegato.
yConsultare il manuale dell’apparecchiatura
esterna per le istruzioni operative.
ySe si collega una console per videogiochi
alla TV, utilizzare il cavo fornito con il dispositivo.
yIn modalità PC, possono essere presenti
interferenze relative alla risoluzione, schemi verticali, contrasto o luminosità. In caso di interferenze, modificare la modalità PC impostando un’altra risoluzione o modificando la frequenza di aggiornamento oppure regolare luminosità e contrasto sul menu IMMAGINE finché non si ottiene un’immagine nitida.
yA seconda della scheda grafica utilizzata,
alcune impostazioni di risoluzione potrebbero non essere adatte alla modalità PC.
Page 39
MAKING CONNECTION
A-39
Español
Puede conectar varios dispositivos externos a la TV y cambiar entre los modos de entrada para seleccionar un dispositivo externo. Para obtener más información sobre la conexión de dispositivos externos, consulte el manual que se incluye con cada dispositivo. Los dispositivos externos disponibles son: receptores HD, reproductores de DVD, vídeos, sistemas de audio, dispositivos de almacenamiento USB, PC, consolas de juegos, etc.
NOTA
yLa conexión de dispositivos externos puede
variar entre distintos modelos.
yConecte los dispositivos externos a la
TV independientemente del orden de los puertos de la TV.
ySi graba un programa de TV en un grabador
de DVD o un vídeo, asegúrese de conectar el cable de entrada de señal de TV a la TV a través del grabador de DVD o del vídeo. Para obtener más información sobre la grabación, consulte el manual que se incluye con el dispositivo que se conecte.
yConsulte el manual del equipo externo para
obtener las instrucciones de funcionamiento.
ySi conecta una consola de juegos a la
TV, emplee el cable proporcionado con el dispositivo en cuestión.
yEn el modo PC, puede que se genere
ruido asociado a la resolución, al patrón vertical, al contraste o a la luminosidad. Si se produce ruido, cambie la salida PC a otra resolución, cambie la frecuencia de actualización o ajuste la luminosidad y el contraste del menú IMAGEN hasta que la imagen se muestre más clara.
yEn el modo PC, puede que algunos ajustes
de la resolución no funcionen correctamente en función de la tarjeta gráfica.
Português
Ligue vários dispositivos externos à TV e mude os modos de entrada para seleccionar um dispositivo externo. Para mais informações sobre a ligação de dispositivos externos, consulte o manual fornecido com cada dispositivo. Os dispositivos externos disponíveis são: receptores HD, leitores de DVD, videogravadores, sistemas de áudio, dispositivos de armazenamento USB, PC, dispositivos de jogos e outros dispositivos externos.
NOTA
yA ligação do dispositivo externo pode ser
diferente da do modelo.
yLigue dispositivos externos à TV
independentemente da ordem da porta da TV.
ySe gravar um programa de televisão num
gravador de DVD ou num videogravador, não se esqueça de ligar o cabo do de entrada do sinal de TV à TV através do gravador de DVD ou do videogravador. Para mais informações sobre a gravação, consulte o manual fornecido com o dispositivo ligado.
yConsulte o manual do equipamento externo
sobre instruções de funcionamento.
ySe ligar um dispositivo de jogos à TV, utilize
o cabo fornecido com o dispositivo de jogos.
yNo modo PC, poderá ser produzido um
ruído associado à resolução, padrão vertical, contraste ou luminosidade. Se se verificar ruído, altere a saída do PC para outra resolução, altere a frequência de actualização para outra frequência ou ajuste a luminosidade e o contraste no menu IMAGEM até a imagem ficar nítida.
yNo modo PC, algumas definições
de resolução podem não funcionar correctamente, dependendo da placa gráfica.
Page 40
A-40
MAKING CONNECTION
Nederlands
U kunt diverse externe apparaten aansluiten op de TV en de invoerbron wijzigen om het externe apparaat te kiezen. Zie voor meer informatie over het aansluiten van externe apparaten de handleiding die bij elk extern apparaat is geleverd. De mogelijke externe apparaten zijn: HD­ontvangers, DVD-spelers, videorecorders, audiosystemen, USB-opslagapparaten, PC‘s, game-apparaten en andere externe apparaten.
OPMERKING
yDe aansluiting van externe apparaten kan
per model verschillen.
ySluit externe apparaten aan op de TV,
ongeacht de volgorde van de TV-poort.
yAls u een TV-programma opneemt op een
DVD-recorder of videorecorder, moet u ervoor zorgen dat de TV-signaalinvoerkabel via de DVD-recorder of videorecorder op de TV is aangesloten. Zie voor meer informatie over het opnemen de handleiding die bij het aangesloten apparaat is geleverd.
yRaadpleeg de handleiding bij het externe
apparaat voor bedieningsinstructies.
yAls u een game-apparaat aansluit op de
TV, gebruik dan de kabel die bij het game­apparaat is geleverd.
yHet is mogelijk dat in de PC-modus
ruis aan de resolutie, het verticale patroon, het contrast of de helderheid is gekoppeld. Wijzig in dat geval de PC­uitvoer in een andere resolutie, verander de vernieuwingsfrequentie in een andere frequentie of pas de helderheid en het contrast in het menu BEELD aan tot het beeld duidelijk is.
yAfhankelijk van de grafische kaart werken
bepaalde resolutie-instellingen in de PC­modus mogelijk niet juist.
Ελληνικά
Για να επιλέξετε μια εξωτερική συσκευή, συνδέστε διάφορες εξωτερικές συσκευές στην τηλεόραση και αλλάξτε λειτουργίες εισόδου. Για περισσότερες πληροφορίες σχετικά με τη σύνδεση εξωτερικών συσκευών, ανατρέξτε στο εγχειρίδιο που παρέχεται με κάθε συσκευή. Οι διαθέσιμες εξωτερικές συσκευές περιλαμβάνουν δέκτες HD, συσκευές αναπαραγωγής DVD, VCR, ηχοσυστήματα, συσκευές αποθήκευσης USB, υπολογιστές, παιχνιδομηχανές και άλλες εξωτερικές συσκευές.
ΣΗΜΕΙΩΣΗ
yΗ σύνδεση εξωτερικών συσκευών ενδέχεται
να διαφέρει ανάλογα με το μοντέλο.
yΜπορείτε να συνδέσετε εξωτερικές συσκευές
στην τηλεόραση, ανεξάρτητα από τη σειρά της θύρας της τηλεόρασης.
yΓια να εγγράψετε ένα τηλεοπτικό πρόγραμμα
σε μια συσκευή εγγραφής DVD ή VCR, βεβαιωθείτε ότι έχετε συνδέσει το καλώδιο εισόδου τηλεοπτικού σήματος στη συσκευή εγγραφής DVD ή VCR. Για περισσότερες πληροφορίες σχετικά με την εγγραφή, ανατρέξτε στο εγχειρίδιο που παρέχεται με τη συνδεδεμένη συσκευή.
yΓια οδηγίες λειτουργίας, ανατρέξτε στο
εγχειρίδιο του εξωτερικού εξοπλισμού.
yΓια να συνδέσετε μια παιχνιδομηχανή στην
τηλεόραση, χρησιμοποιήστε το καλώδιο που παρέχεται με την παιχνιδομηχανή.
yΣτη λειτουργία PC, ενδέχεται να υπάρχει
θόρυβος λόγω της ανάλυσης, του κάθετου πλέγματος, της αντίθεσης ή της φωτεινότητας. Εάν υπάρχει θόρυβος, αλλάξτε την ανάλυση στη λειτουργία PC ή το ρυθμό ανανέωσης ή ρυθμίστε τη φωτεινότητα και την αντίθεση στο μενού ΕΙΚΟΝΑ, μέχρι να είναι καθαρή η εικόνα.
yΣε λειτουργία PC, ορισμένες ρυθμίσεις
ανάλυσης ενδεχομένως να μην λειτουργούν σωστά, ανάλογα με την κάρτα γραφικών.
Page 41
Slovenščina
Priključite različne zunanje naprave na televizor in vklopite vhodne načine, da izberete zunanjo napravo. Za dodatne informacije o priključitvi
zunanje naprave glejte navodila za uporabo, ki so
priložena posamezni napravi.
Zunanje naprave, ki so na voljo, so: HD­sprejemniki, DVD-predvajalniki, videorekorderji,
zvočni sistemi, pomnilniki USB, računalniki, igralne
konzole in druge zunanje naprave.
OPOMBA
yPovezava z zunanjo napravo je lahko
odvisna od modela.
yZunanje naprave priključite na priključke
televizorja v poljubnem zaporedju.
yČe televizijski program snemate na DVD-
snemalnik ali videorekorder, morate DVD-
snemalnik ali videorekorder priključiti na
televizor s signalnim vhodnim kablom za televizor. Za dodatne informacije o snemanju
glejte navodila za uporabo, ki so priložena priključeni napravi.
yNavodila za uporabo si oglejte v priročniku
zunanje opreme.
yČe želite na televizor priključiti igralno
konzolo, uporabite kabel, ki je bil priložen
igralni konzoli.
yV načinu računalnika se lahko pojavi šum, ki
je povezan z ločljivostjo, navpičnim vzorcem, kontrastom ali svetlostjo. Če se pojavi šum, spremenite izhodno ločljivost računalnika, spremenite hitrost osveževanje ali v meniju
SLIKA prilagodite svetlost in kontrast, dokler slika ni jasna.
yV načinu računalnika nekatere nastavitve
ločljivosti morda ne bodo delovale pravilno (odvisno od grafične kartice).
MAKING CONNECTION
A-41
Page 42
Page 43
OWNER’S MANUAL
*
LED TV
Please read this manual carefully before operating your set and retain it for future reference.
www.lg.com
Page 44
TABLE OF CONTENTS
2
ENGLISH
ENG
TABLE OF CONTENTS
3 LICENSES
3 OPEN SOURCE SOFTWARE NOTICE
4 SAFETY INSTRUCTIONS
10 - Viewing 3D Imaging (Only 3D models)
12 INSTALLATION PROCEDURE
12 ASSEMBLING AND PREPARING
12 Unpacking 15 Separate purchase 16 Parts and buttons 18 Lifting and moving the TV 19 Mounting on a table 20 Mounting on a wall 22 Using Sliding Speaker 22 Using Built-in Camera
23 - Preparing Built-in Camera 23 Name of Parts of Built-in Camera
23 - Checking the Camera's Shooting Range
24 REMOTE CONTROL
25 MAGIC REMOTE CONTROL
FUNCTIONS
27 Registering Magic Remote Control 27 How to use Magic Remote Control
27 Precautions to Take when Using the Magic
Remote Control
28 USING THE USER GUIDE
29 MAINTENANCE
29 Cleaning your TV 29 - Screen, frame, cabinet and stand
29 - Power cord
29 TROUBLESHOOTING
30 EXTERNAL CONTROL DEVICE
SETUP
30 SPECIFICATIONS
WARNING
yIf you ignore the warning message, you may
be seriously injured or there is a possibility of accident or death.
CAUTION
yIf you ignore the caution message, you may
be slightly injured or the product may be damaged.
NOTE
yThe note helps you understand and use
the product safely. Please read the note carefully before using the product.
Page 45
LICENSES / OPEN SOURCE SOFTWARE NOTICE
3
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an ofcial DivX Certied® device that plays
DivX video. Visit divx.com for more information and software tools to convert your
les into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be registered
in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divx.com for more information on how to complete your registration.
“DivX Certied® to play DivX® video up to HD 1080p, including premium content.”
ENGENGLISH
“DivX®, DivX Certied® and associated logos are trademarks of Rovi Corporation or
its subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274”
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com . In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.
Page 46
SAFETY INSTRUCTIONS
4
ENGLISH
ENG
SAFETY INSTRUCTIONS
Please read these safety precautions carefully before using the product.
WARNING
Do not place the TV and/or remote control in the following environments:
y
» A location exposed to direct sunlight » An area with high humidity such as a bathroom » Near any heat source such as stoves and other devices that produce heat » Near kitchen counters or humidifiers where they can easily be exposed to steam or
oil » An area exposed to rain or wind » Near containers of water such as vases Otherwise, this may result in fire, electric shock, malfunction or product deformation.
Do not place the product where it might be exposed to dust.
y
This may cause a fire hazard
Mains Plug is the TV connecting/disconnecting device to AC mains electric supply.
y
This plug must remain readily attached and operable when TV is in use.
Do not touch the power plug with wet hands. Additionally, if the cord pin is
y
wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.
Make sure to connect Mains cable to compliant AC mains socket with Grounded
y
earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.
Insert power cable plug completely into wall socket otherwise if not secured
y
completely into socket, fire ignition may break out.
Ensure the power cord does not come into contact with hot objects such as a heater.
y
This may cause a fire or an electric shock hazard.
Do not place a heavy object, or the product itself, on power cables.
y
Otherwise, this may result in fire or electric shock.
Bend antenna cable between inside and outside building to prevent rain from flowing
y
in. This may cause water damaged inside the Product and could give an electric shock.
When mounting TV onto wall make sure to neatly install and isolate cabling from rear
y
of TV as to not create possibility of electric shock /fire hazard.
Page 47
SAFETY INSTRUCTIONS
Desiccant
5
Do not plug too many electrical devices into a single multiple electrical outlet.
y
Otherwise, this may result in fire due to over-heating.
Do not drop the product or let it fall over when connecting external devices.
y
Otherwise, this may result in injury or damage to the product.
Keep the anti-moisture packing material or vinyl packing out of the reach of children.
y
Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
Do not let your children climb or cling onto the TV.
y
Otherwise, the TV may fall over, which may cause serious injury.
Dispose of used batteries carefully to ensure that a small child does not consume
y
them. Please seek Doctor- Medical Attention immediately if child consumes batteries.
Do not insert any metal objects/conductors (like a metal chopstick/cutlery/
y
screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury. (Depending on model)
ENGENGLISH
Do not put or store inflammable substances near the product.
y
There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.
Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the
y
product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.
Do not spray water on the product or scrub with an inflammable substance (thinner
y
or benzene). Fire or electric shock accident can occur.
Do not allow any impact, shock or any objects to fall into the unit, and do not drop
y
anything onto the screen. You may be injured or the product can be damaged.
Never touch this product or antenna during a thunder or lighting storm.
y
You may be electrocuted.
Never touch the wall outlet when there is leakage of gas, open the windows and
y
ventilate. It may cause a fire or a burn by a spark.
Page 48
SAFETY INSTRUCTIONS
6
ENGLISH
ENG
Do not disassemble, repair or modify the product at your own discretion.
y
Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.
If any of the following occur, unplug the product immediately and contact your local
y
service centre. » The product has been impacted by shock » The product has been damaged » Foreign objects have entered the product » The product produced smoke or a strange smell This may result in fire or electric shock.
Unplug the TV from AC mains wall socket if you do not intend to use the TV for
y
a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.
Apparatus shall not be exposed to dripping or splashing and no objects filled with
y
liquids, such as vases, shall be placed on the apparatus.
Page 49
SAFETY INSTRUCTIONS
7
CAUTION
Install the product where no radio wave occurs.
y
There should be enough distance between an outside antenna and power lines to
y
keep the former from touching the latter even when the antenna falls. This may cause an electric shock.
Do not install the product on places such as unstable shelves or inclined surfaces.
y
Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.
If you install the TV on a stand, you need to take actions to prevent the product from
y
overturning. Otherwise, the product may fall over, which may cause injury.
If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts)
y
to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.
Only use the attachments / accessories specified by the manufacturer.
y
When installing the antenna, consult with a qualified service technician. If not
y
installed by a qualified technician, This may create a fire hazard or an electric shock hazard.
ENGENGLISH
We recommend that you maintain a distance of at least 2 to 7 times the diagonal
y
screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.
Only use the specified type of battery.
y
This could cause damage to the remote control.
Do not mix new batteries with old batteries.
y
This may cause the batteries to overheat and leak.
Batteries should not be exposed to excessive heat. For example, keep away from direct sunlight ,
y
open fireplace and electric heaters. Do not place non-rechargeable batteries in charging device.
y
Make sure there are no objects between the remote control and its sensor.
y
Signal from Remote Control can be interrupted due to external/internal lighting eg
y
Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.
When connecting external devices such as video game consoles, make sure the
y
connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.
Page 50
SAFETY INSTRUCTIONS
8
ENGLISH
ENG
Do not turn the product On/Off by plugging-in or unplugging the power plug to the
y
wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.
Please follow the installation instructions below to prevent the product from
y
overheating. » The distance between the product and the wall should be more than 10 cm. » Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a
cupboard). » Do not install the product on a carpet or cushion. » Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire.
Take care not to touch the ventilation openings when watching the TV for long
y
periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.
Periodically examine the cord of your appliance, and if its appearance indicates damage or
y
deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
Prevent dust collecting on the power plug pins or outlet.
y
This may cause a fire hazard.
Protect the power cord from physical or mechanical abuse, such as being twisted,
y
kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
Do not press strongly upon the panel with a hand or sharp object such as nail,
y
pencil or pen, or make a scratch on it, as it may cause damage to screen.
Avoid touching the screen or holding your finger(s) against it for long periods of time.
y
Doing so may produce some temporary or permanent distortion/damage to screen.
When cleaning the product and its components, unplug the power first and wipe it
y
with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).
As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source
y
even if you turn off this unit by SWITCH.
When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don’t
y
pull at the cord to unplug the power cord from the power board, as this could be hazardous.
When moving the product, make sure you turn the power off first. Then, unplug the
y
power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.
Page 51
SAFETY INSTRUCTIONS
9
When moving or unpacking the product, work in pairs because the product is heavy.
y
Otherwise, this may result in injury.
Contact the service centre once a year to clean the internal parts of the product.
y
Accumulated dust can cause mechanical failure.
Refer all servicing to qualified service personnel. Servicing is required when the
y
apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
If the product feels cold to the touch, there may be a small “flicker” when it is turned
y
on. This is normal, there is nothing wrong with product.
The panel is a high technology display product with resolution of two million to six
y
million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.
You may find different brightness and color of the panel depending on your viewing
y
position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.
ENGENGLISH
Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game)
y
for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking. Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel. This phenomenon also occurs in third-party products and is not subject to exchange or refund.
Generated Sound
y
“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not affect the performance and reliability of the product.
Page 52
SAFETY INSTRUCTIONS
10
ENGLISH
ENG
Viewing 3D Imaging (Only 3D models)
WARNING
Viewing Environment
yViewing Time
- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain.
Those that have a photosensitive seizure or chronic illness
ySome users may experience a seizure or other abnormal symptoms when they are exposed to a
ashing light or particular pattern from 3D contents.
yDo not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy,
cardiac disorder, or blood pressure disease, etc.
y3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double
images or discomfort in viewing may be experienced.
yIf you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble
sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.
yIf your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D
contents.
Symptoms which require discontinuation or refraining from watching 3D contents
yDo not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking. yWhen these symptoms are experienced, stop using/watching 3D contents and get enough rest until the
symptom subsides.
- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.
Page 53
SAFETY INSTRUCTIONS
11
CAUTION
Viewing Environment
y Viewing Distance
- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.
Viewing Age
yInfants/Children
- Usage/ Viewing 3D contents for children under the age of 6 are prohibited.
- Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents.
- Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.
yTeenagers
- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contens for a long time when they are tired.
yElderly
- The elderly may perceive less 3D effect compared to the young. Do not sit closer to the TV than the recommended distance.
ENGENGLISH
Cautions when using the 3D glasses
y Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly. y Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles. y Using modied 3D glasses may cause eye strain or image distortion. y Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation. y The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping
the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.
Page 54
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
A
A
12
ENGLISH
ENG
NOTE
y Image shown may differ from your TV. y Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual. y The available menus and options may differ from the input source or product model that you are using. y New features may be added to this TV in the future. y The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be
turned off if it will not be watched for some time, as this will reduce energy consumption.
y The energy consumed during use can be significantly reduced if the level of brightness of the picture is
reduced, and this will reduce the overall running cost.
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included. 2 Attach the stand to the TV set. 3 Connect an external device to the TV set. 4 Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.
CAUTION
y Do not use any unapproved items to ensure the safety and product life span. y Any damages or injuries by using unapproved items are not covered by the manufacturer’s warranty. y Some models have a thin film attached on to the screen and this must not be removed.
NOTE
y The items supplied with your product may vary depending on the model. y Product specifications or contents of this manual may be changed without prior notice due to upgrade of
product functions.
y For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and
18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.
B
B
A 10 mm B 18 mm
Page 55
ASSEMBLING AND PREPARING
Tag On
13
ENGENGLISH
Owner’s manual Magic remote control,
batteries (AA)
(Only LA79**, LA86**, LA960*, LA98**, LM96**) (See p. 25)
Dual play glasses
(Depending on model)
Cinema 3D Glasses
The number of 3D glasses may differ depending on the model or country.
Tag on
(Depending on model)
Component video cable
(See p. A-20)
Scart gender cable
(See p. A-32)
Composite video cable
(See p. A-20, A-22)
Stand Base / Stand Body
(Only LA79**) (See p. A-3)
Stand Screws
4EA, M4 x 16 (Only LA860*, LA868*) (See p. A-3, A-4)
Cable holder
(Depending on model) (See p. A-6, A-7)
Stand Screws
4EA, M4 x 20 (Only LA960*, LA98**, LM96**) (See p. A-3, A-6)
Cable Management
(Only LA79**) (See p. A-6, A-7)
Stand Base
(Only LA860*, LA960*) (See p. A-3)
Stand Screws
8EA, M4 x 14 (Only LA79**) (See p. A-3)
Power Cord
(Depending on model)
Page 56
ENGLISH
ENG
ASSEMBLING AND PREPARING
14
BACK SMART
/Q.MENU
P
Remote control, batteries (AAA)
(Depending on model) (See p. 24)
Stand Base
(Only LA965*) (See p. A-4)
Wall mount screw
4EA, M6 x 54 (Only 55LA97**) (See p. 21)
Stand Base
(Only LA868*) (See p. A-4)
Video call camera
(Only 70LA860*)
Wall mount screw
4EA, M8 x 44 (Only 65LA97**) (See p. 21)
Magic remote control, batteries (AA)
(Only LA965*, LA97**) (See p. 26)
Stand Screws
4EA, M4 x 14 (Only 55LA97**, LA965*) (See p. A-4, A-5)
Stand Base / Stand Body
(Only LA98**, LM96**) (See p. A-5)
Stand Base
(Only LA97**) (See p. A-5)
Wall mount inner spacers
4EA (Only LA97**) (See p. 21)
Stand Screws
6EA, M5 x 16 (Only LA98**, LM96**)
(See p. A-5)
Page 57
ASSEMBLING AND PREPARING
P
123
15
Separate purchase
Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models.
AG-F***DP
Dual play glasses
AN-VC5**
Video call camera
AG-F***
Cinema 3D glasses
AN-MR400
Magic remote
Tag On
LG Audio device Tag on
NB7530
Built-in sound bar
ENGENGLISH
Compatibility
AG-F***DP
Dual play glasses
AG-F***
Cinema 3D glasses
AN-MR400
Magic remote
AN-VC5**
Video call camera
LG Audio device
Tag on
NB7530
Built-in sound bar
The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies.
LA79**, LA965* LA86** LA960*, LA97** LA98**, LM96**
(Depending on
model)
(Depending on
model)
Page 58
ASSEMBLING AND PREPARING
SETTINGS
INPUT
OK
SETTINGS
INPUT
OK
SETTINGS
INPUT
OK
16
ENGLISH
ENG
Parts and buttons
A type : LA79**
Screen
Speakers
Remote control sensor LG Logo light
C type : LA868*
Buttons
B type : LA860*, LA960*
Video call camera (Only 42/47/55/60LA860*,
Screen
LA960*)
Speakers
Remote control sensor LG Logo light
D type : LA965*
Buttons
Screen
Video call camera
Speakers
Remote control sensor LG Logo light
Buttons
Screen
Speakers
Remote control sensor LG Logo light
Buttons
OK
SETTINGS
INPUT
Page 59
ASSEMBLING AND PREPARING
H
H
H
OK
SETTINGS
INPUT
SETTINGS
INPUT
OK
17
E type : LA97**
Screen
Button Description
S
Video call camera
Speakers
Remote control sensor Power Indicator
Scrolls through the saved programmes. Adjusts the volume level. Selects the highlighted menu option or confirms an input. Accesses the main menu, or saves your input and exits the menus. Changes the input source. Turns the power on or off.
Buttons
F type : LA98**, LM96**
Screen
Speakers
LG Logo light
Remote control and Intelligent sensors
ENGENGLISH
Buttons
1
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
CAUTION
yTo avoid possible SPEAKER damage or degradation in performance please
keep contact of TV /Speaker out of reach of children. (Only LA965*)
NOTE
yYou can set the
LG Logo Light
to on or off by selecting OPTION in the main menus. (Depending on model)
Page 60
ASSEMBLING AND PREPARING
18
ENGLISH
ENG
Lifting and moving the TV
Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.
CAUTION
yAvoid touching the screen at all times, as
this may result in damage to the screen.
yIt is recommended to move the TV in the box
or packing material that the TV originally came in.
yBefore moving or lifting the TV, disconnect the
power cord and all cables.
yWhen holding the TV, the screen should face
away from you to avoid damage.
yWhen transporting a large TV, there should be
at least 2 people.
yWhen transporting the TV by hand, hold the TV
as shown in the following illustration.
yWhen transporting the TV, do not expose the
TV to jolts or excessive vibration.
yWhen transporting the TV, keep the TV upright,
never turn the TV on its side or tilt towards the left or right.
yDo not apply excessive pressure to cause
exing /bending of frame chassis as it may
damage screen.
yHold the top and bottom of the TV frame rmly.
Make sure not to hold the transparent part, speaker, or speaker grill area.
Page 61
ASSEMBLING AND PREPARING
19

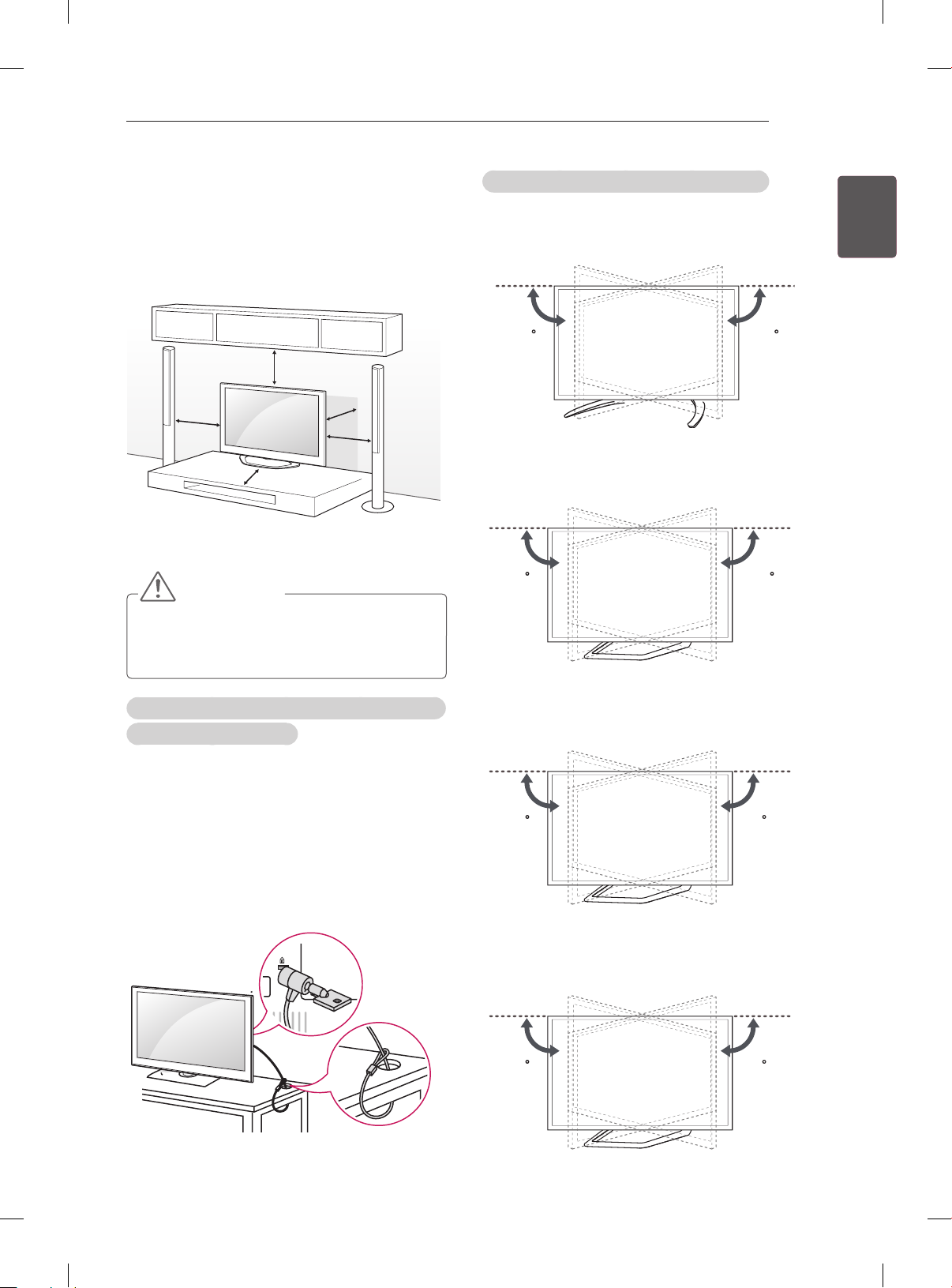

Mounting on a table
1 Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (minimum) space from the wall for proper ventilation.
10 cm
10 cm
10 cm
2 Connect the power cord to a wall outlet.
CAUTION
yDo not place the TV near or on sources
of heat, as this may result in fire or other damage.
10 cm
10 cm
Adjusting the angle of the TV to suit view
(This feature is not available for all models.) Swivel 15 degrees to the left or right and adjust the angle of the TV to suit your view. (Only LA79**)
1515
Swivel 10 degrees to the left or right and adjust the angle of the TV to suit your view. (Only 42/47LA860*)
1010
ENGENGLISH
Using the Kensington security system (This feature is
not available for all models.)
Image shown may differ from your TV.
y
The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit
http://www.kensington.com.
Connect the Kensington security system cable between the TV and a table.
Swivel 8 degrees to the left or right and adjust the angle of the TV to suit your view. (Only 55/60LA860*)
88
Swivel 7 degrees to the left or right and adjust the angle of the TV to suit your view. (Only LA98**, LM96**)
7 7
Page 62
ASSEMBLING AND PREPARING
20
ENGLISH
ENG
CAUTION
yWhen adjusting the angle adof the product,
watch out for your fingers.
»
Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.
<Rear> <Front>
Securing the TV to a wall
(This feature is not available for all models.)
CAUTION
yMake sure that children do not climb on or
hang on the TV.
NOTE
yUse a platform or cabinet that is strong and
large enough to support the TV securely.
yBrackets, bolts and ropes are not provided.
You can obtain additional accessories from your local dealer.
Mounting on a wall
Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the
oor. When you attach the TV to other building materials, please contact qualied personnel.
LG recommends that wall mounting be performed
by a qualied professional installer.
1 Insert and tighten the eye-bolts, or TV brackets
and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts posi­tion, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall. Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope. Make sure to keep the rope horizontal with the
flat surface.
10 cm
10 cm
10 cm
10 cm
Page 63
ASSEMBLING AND PREPARING
A
B
21
Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.
Separate purchase(Wall Mounting Bracket)
Model
VESA (A x B) 400 x 400 600 x 400 Standard screw M6 M8 Number of screws 4 4 Wall mount
bracket
Model
VESA (A x B) 400 x 400 400 x 400 Standard screw M6 M8 Number of screws 4 4 Wall mount
bracket
LSW430B
LSW430BX
42/47/55LA79** 42/47/55LA86** 47/55LA960* 55LA965*
MSW240 LSW430B
60LA86** 65LA965* 55LA97**
LSW430B LSW430BX
Wall mount bracket
LSW630B
65LA97** 84LA98** 84LM96**
LSW630B
70LA86**
MSW240
CAUTION
yDisconnect the power first, and then move
or install the TV. Otherwise electric shock may occur.
yIf you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.
yDo not over tighten the screws as this may
cause damage to the TV and void your warranty.
yUse the screws and wall mounts that meet
the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the manufacturer’s warranty.
NOTE
yUse the screws that are listed on the VESA
standard screw specifications.
yThe wall mount kit includes an installation
manual and necessary parts.
yThe wall mount bracket is not provided. You
can obtain additional accessories from your local dealer.
yThe length of screws may differ depending
on the wall mount. Make sure to use the proper length.
yFor more information, refer to the manual
supplied with the wall mount.
y When attaching the LG wall mount bracket
to the TV, do not use wall mount spacers and wall mount screws provided with the LG wall mount bracket. Please use wall mount inner spacers and wall mount screws provided with the TV accessory.
(Only LA97**)
ENGENGLISH
Wall Mount Inner Spacer
Page 64
ASSEMBLING AND PREPARING
22
ENGLISH
ENG
Using Sliding Speaker
(Only LA97**)
Sliding Speaker
1 When TV is turned ON - the hidden speaker
slides out from inside the TV.
2 Go to More ➡ Settings ➡ SOUND ➡ Sliding
Speaker to set Sliding Speaker.
- If you are mounting TV on entertainment table/unit please make sure there is enough clearance between yourself and foreign objects to allow operation of internal sliding speaker otherwise injury to yourself or damage to TV could occur.
- Please Do Not use excessive force during operation of internal sliding Speaker as it may cause it to malfunction.
- Make sure Speaker is in OPEN position when viewing TV as sound will be abnormal or distorted.
3 When transporting the TV, make sure that
the Sliding Speaker is closed. If the Sliding Speaker is open when being transported, it may become damaged, resulting in malfunction.
Using Built-in Camera
(Depending on model)
You can make a Skype video call or use the mo­tion recognition function using the built-in camera of the TV. This TV does not support the use of an external camera.
NOTE
Before using the built-in camera, you must
y
recognize the fact that you are legally responsible for the use or misuse of the camera by the relevant national laws including the criminal law. The relevant laws include the Personal
y
Information Protection law which regulates the processing and transferring of personal information and the law which regulates the monitoring by camera in a workplace and other places. When using the built-in camera, avoid
y
questionable, illegal, or immoral situations. Other than at public places or events, consent to be photographed may be required. We suggest avoiding the following situations : (1) Using the camera in areas where the use of camera is generally prohibited such as
restroom, locker room, tting room and
security area. (2) Using the camera while causing the infringement of privacy. (3) Using the camera while causing the violation of the relevant regulations or laws.
- To close the Sliding Speaker, go to SOUND
Sliding Speaker, select 'Opens when
TV is turned on' and press the POWER button.
Page 65

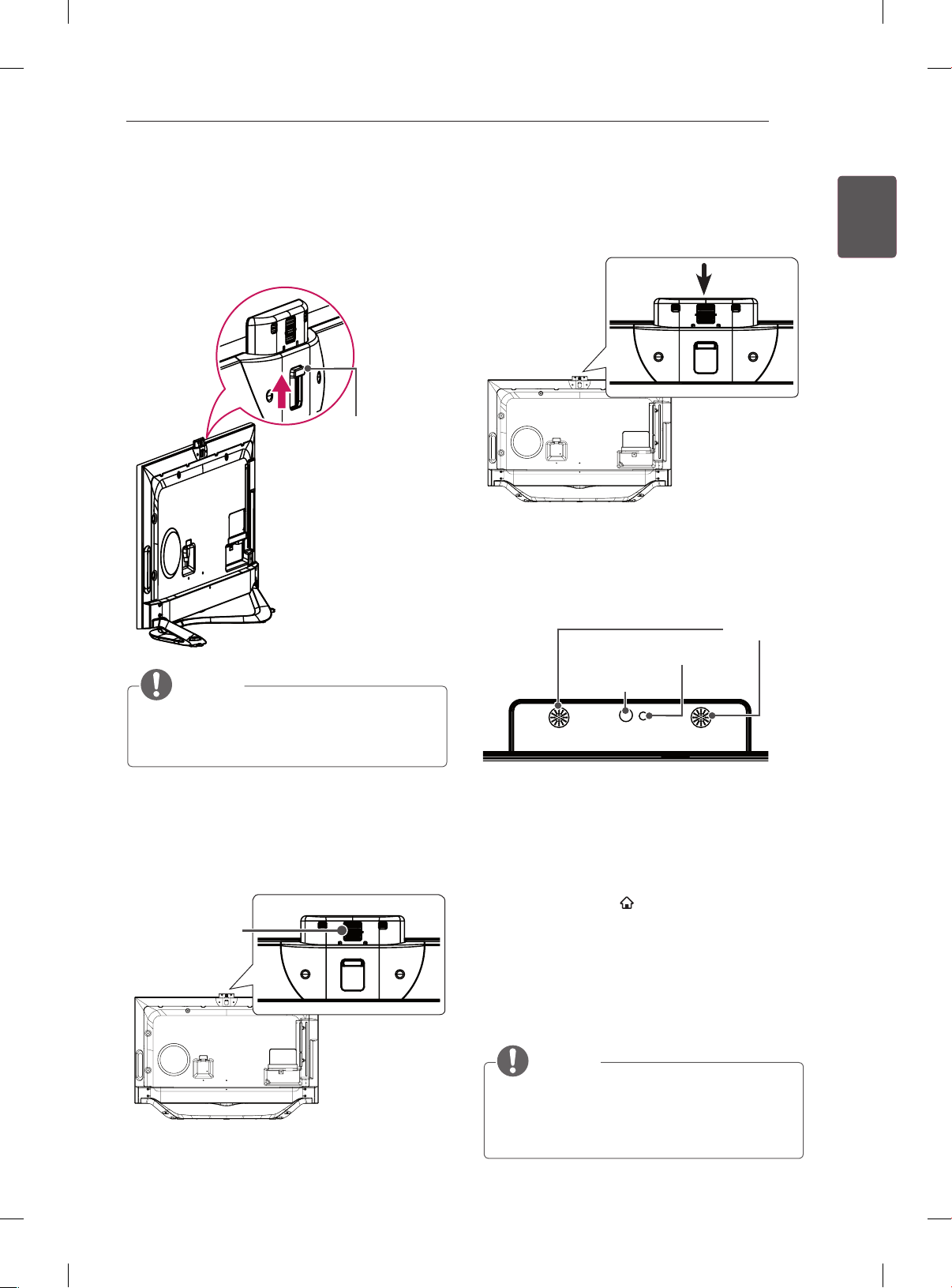

Preparing Built-in Camera
Pull up the slide at the back of the TV.
1
Slide
ASSEMBLING AND PREPARING
Pull down the built-in camera when you are not
3
using it.
Name of Parts of Built-in
23
ENGENGLISH
NOTE
Remove the protective film before using the
y
built-in camera.
You can adjust the angle of the camera with the
2
angle adjustment lever on the back of the built­in camera (within 5 degrees vertically).
Angle
Adjustment
Lever
Camera
Microphone
Indicator
Camera Lens
Checking the Camera's Shooting Range
1 Press the SMART button on the remote
control to display the More menu.
2 Select Settings from the More menu and then
press the wheel (OK) button.
3 Go to OPTION
press the wheel (OK) button
Camera Setting Help and
.
NOTE
The optimal distance from the camera to use
y
the motion recognition function is between 1.5 and 4.5 m.
Page 66
REMOTE CONTROL
AD/PIP
24
ENGLISH
ENG
1
2
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.
CAUTION
yDo not mix old and new batteries, as this may damage the remote control.
Make sure to point the remote control toward the remote control sensor on the TV.
(Depending on model)
Selects Radio, TV and DTV programme.
Recalls your preferred subtitle in digital mode.
Accesses the Quick menus.
Accesses the saved programme list.
Returns to the previously viewed programme.
Accesses your favourite programme list.
Select the MHP TV menu source. (Only Italy.)
*
Views the information of the current programme and
Clears on-screen displays and return to TV viewing.
Accesses the main menus.
Start to record and display record menu.
SUBTITLE
Q.MENU
1
RATIO
GUIDE
2 3 4 5 6
7 8 9
LIST
TEXT
SETTINGS
0
FAV
MUTE
INFO
TV / RAD
INPUT
Q.VIEW
T.OPT
EXIT
LIVE TV
GUIDE Shows programme guide.
RATIO Resizes an image.
Changes the input source.
Adjusts the volume level.
APP/
(Depending on model)
MUTE Mutes all sounds.
P Scrolls through the saved programmes. PAGE Moves to the previous or next screen.
TELETEXT buttons These buttons are used for teletext.
screen.
SMART Accesses the Smart Home menus. MY APPS Shows the list of Apps.
Navigation buttons (up/down/left/right) Scrolls through
menus or options.
Selects menus or options and conrms your input.
BACK Returns to the previous level.
EXIT
REC LIVE TV Return to LIVE TV. Control buttons ( ) Controls the Premium contents,
Time Machine or Smart Share menus or the SIMPLINK compat­ible devices (USB or SIMPLINK or Time Machine).
Coloured buttons These access special functions in some
menus. ( Red Green Yellow Blue)
Page 67
MAGIC REMOTE CONTROL FUNCTIONS
25
MAGIC REMOTE CONTROL FUNCTIONS
When the message “Magic Remote Control battery is low. Change the battery.” is displayed, replace the battery. To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching
and ends to the label inside the compartment, and close the battery cover. Be sure to point the remote control toward the remote control sensor on the TV. To remove the batteries, perform the installation actions in reverse.
CAUTION
yDo not mix old and new batteries, as this may damage the remote control.
(Only LA79**, LA86**, LA960*, LA98**, LM96**)
Pointer (RF transmitter)
(POWER)
Turns the TV on or off.
BACK
Returns to the previous level.
Wheel(OK)
Selects menus or options and
confirms your input.
Scrolls through the saved
programmes.
If you press the navigation
button while moving the pointer
on the screen, the pointer
disappears, and the Magic
Remote Control works as a
regular remote control.
To display the pointer again,
shake the Magic Remote Control from side to side.
+ -
Adjusts the volume level.
3D
Used for viewing 3D video.
SMART
Accesses the Smart Home.
Voice recognition
(Depending on model)
LIGHTING ON/OFF
Turns the light on and off. If you set it to ON, the light automatically turns off in 5 seconds
Navigation buttons (up/down/ left/right) Scrolls through menus or op­tions.
P
Scrolls through the saved programmes or channels.
/Q.MENU
Accesses the quick menus. Accesses the Universal Control. (This feature is not available in all countries.)
(MUTE)
Mutes all sounds.
ENGENGLISH
or
Voice recognition(Depending on model) Network connection is required to use the voice recognition function. The recognition rate may vary depending on the user’s characteristics (voice, pronunciation, intonation and speed) and the environment (noise and TV volume).
1. Press the Voice recognition button.
2. Speak when the voice display window appears on the left of the TV screen.
The voice recognition may fail when you speak too fast or too slow.
Use the Magic remote control no further than 10 cm from your face.
Page 68
MAGIC REMOTE CONTROL FUNCTIONS
26
ENGLISH
ENG
(Only LA965*, LA97**)
(POWER)
Turns the TV on or off.
BACK
Returns to the previous level.
Wheel(OK)
Selects menus or options and
confirms your input.
Scrolls through the saved
programmes.
If you press the navigation
button while moving the pointer
on the screen, the pointer
disappears, and the Magic
Remote Control works as a
regular remote control.
To display the pointer again,
shake the Magic Remote Control from side to side.
Used for viewing 3D video.
BACK SMART
/Q.MENU
P
Pointer (RF transmitter) Navigation buttons
(up/down/left/right) Scrolls through menus or op­tions.
SMART
Accesses the Smart Home menu.
Voice recognition
(Depending on model)
/Q.MENU
Accesses the quick menus. Accesses the Universal Control. (This feature is not available in all countries.)
+ -
Adjusts the volume level.
P
Scrolls through the saved programmes or channels.
(MUTE)
Mutes all sounds.
Voice recognition (Depending on model) Network connection is required to use the voice recognition function. The recognition rate may vary depending on the user’s characteristics (voice, pronunciation, intonation and speed) and the environment (noise and TV volume).
1. Press the Voice recognition button.
2. Speak when the voice display window appears on the left of the TV screen.
The voice recognition may fail when you speak too fast or too slow.
Use the Magic remote control no further than 10 cm from your face.
Page 69
MAGIC REMOTE CONTROL FUNCTIONS
HOME
27

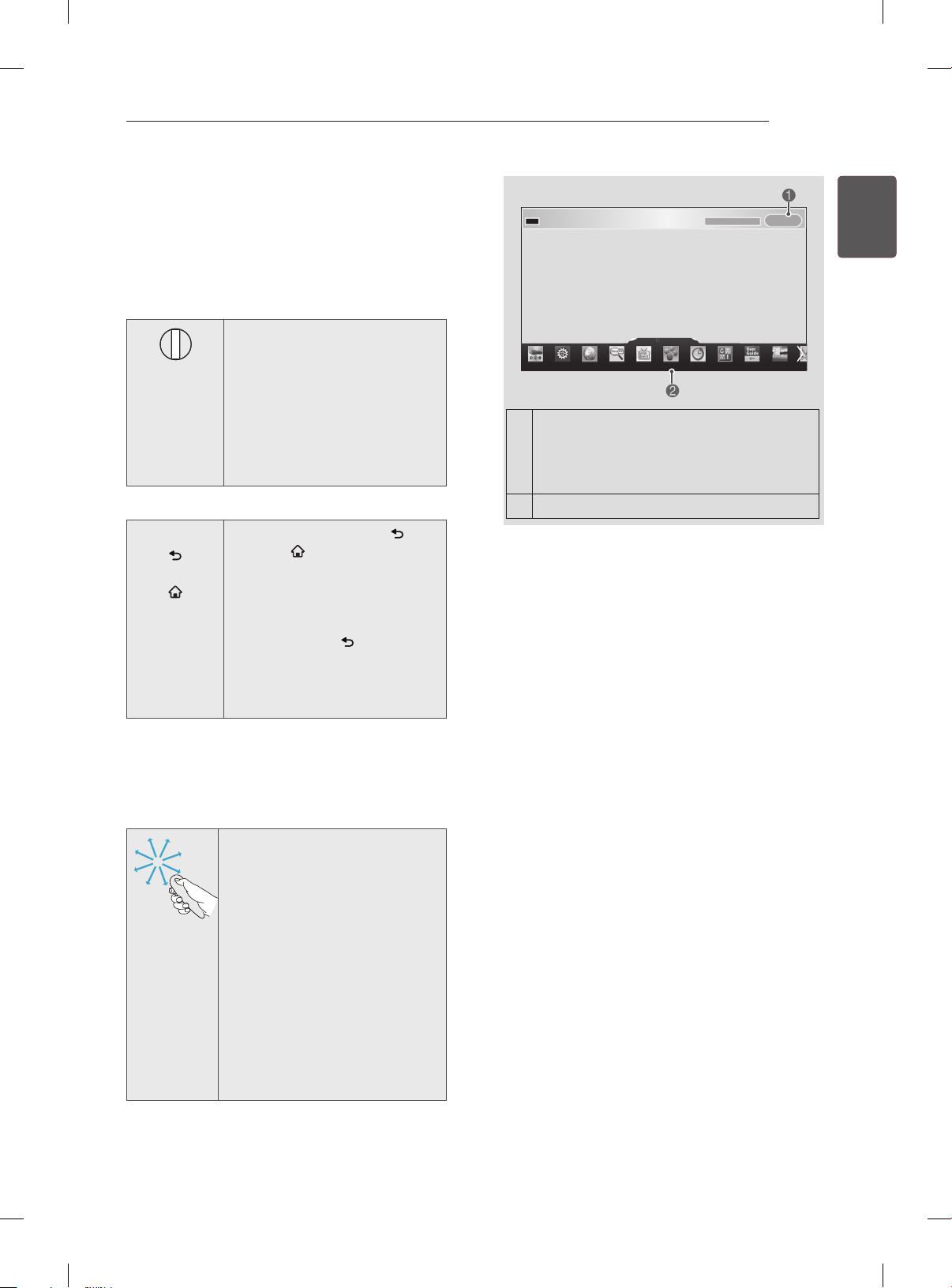

Registering Magic Remote Control
It is necessary to ‘pair’ (register) the magic remote control to your TV before it will work.
How to register the Magic Remote Control
1 To register automatically,
turn the TV on and press the Wheel(OK) button. When registration is completed, the completion message appears on the screen.
2 If registration fails, turn the TV
off and back on, then press the Wheel(OK) button to complete registration.
How to re-register the Magic Remote Control
BACK
SMART
1 Press and hold the BACK and
SMART buttons together for 5
seconds to reset, then register it by following “How to register the Magic Remote Control” above.
2 To re-register the Magic
Remote Control, press and hold the BACK button for 5 seconds toward the TV. When registration is completed, the completion message appears on the screen.
How to use magic remote control
How to use Magic Remote Control
1 If the pointer disappears, move
the Magic Remote Control slightly to left or right. Then, it will automatically appear on the screen.
»
If the pointer has not been used for a certain period of time, it will disappear.
2 You can move the pointer by
aiming the Pointer Receiver of the Magic Remote Control at your TV then move it left, right, up or down.
»
If the pointer does not work properly, leave the Magic Remote Control for 10 seconds then use it again.
More
If you press Wheel(OK) on the Magic Remote Control, the following screen appears.
1
Shows information about the current programme and screen.
You can select More Menu.
2
Precautions to Take when Using the Magic Remote Control
Use the Magic Remote Control within the
y
maximum communication distance (10 m). Using the Magic Remote Control beyond this distance, or with an object obstructing it, may cause a communication failure. A communication failure may occur due to
y
nearby devices. Electrical devices such as a microwave oven or wireless LAN product may cause interference, as these use the same bandwidth (2.4 GHz) as the Magic Remote Control. The Magic Remote Control may be damaged
y
or may malfunction if it is dropped or receives a heavy impact. Take care not to bump into nearby furniture
y
or other people when using the Magic Remote Control. Manufacturer and installer cannot provide
y
service related to human safety as the applicable wireless device has possibility of electric wave interference. It is recommended that an Access Point (AP)
y
be located more than 1 m away from the TV. If the AP is installed closer than 1 m, the Magic Remote Control may not perform as expected due to frequency interference.
ENGENGLISH
Page 70
USING THE USER GUIDE
28
ENGLISH
ENG
USING THE USER GUIDE
User Guide allows you to more easily access the detailed TV information.
1 Press the SMART button to access the Smart
Home menu.
2 Select User Guide and press Wheel(OK).
User Guide
1
PROGRAMME Setting
PICTURE, SOUND Setting
OPTION
LG SMART Function
Advanced Function
Information
3
To use input device
To set time options
To set TV lock options
To set language
To set country
Disabled Assistance
2
To set Magic remote control
User Guide
User Guide
Index
4 5
Online User Guide
OPTION > To set language
SMART Settings OPTION Language Selects Menu Language and Audio Language displayed on the screen.
Menu Language
Selects a language for the display text.
[In Digital Mode Only]
Audio Language
When watching a digital broadcast containing several audio languages, you can select the language you want.
[In Digital mode Only] Use the Subtitle function when two or more subtitle
Subtitle
languages are broadcast.
Language
If subtitle data in a selected language is not broadcast,
the default language subtitle will be displayed.
Shows the description of the selected menu.
1
You can use ꕌ/ꕍ to move between pages. Moves to the selected menu directly from the
2
User Guide.
1
2
Try Now
Close
Shows the current watching programme or
1
input source screen. Allows to select the category you want.
2
Allows to select the item you want.
3
You can use ꕌ/ꕍ to move between pages. Allows to browse the description of the
4
function you want from the index. Provides the detailed information on the
5
functions of LG Smart TV when the Internet is connected. (It may not be available depending on the country/language.)
Page 71
MAINTENANCE / TROUBLESHOOTING
29
MAINTENANCE
Cleaning your TV
Clean your TV regularly to keep the best performance and to extend the product lifespan.
CAUTION
yMake sure to turn the power off and disconnect the power cord and all other cables first. yWhen the TV is left unattended and unused for a long time, disconnect the power cord from the wall
outlet to prevent possible damage from lightning or power surges.
Screen, frame, cabinet and stand
yTo remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth. yTo remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a dry cloth.
CAUTION
yAvoid touching the screen at all times, as this may result in damage to the screen. yDo not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in
scratches and image distortions. yDo not use any chemicals as this may damage the product. yDo not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or
malfunction.
ENGENGLISH
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
TROUBLESHOOTING
Problem Solution
Cannot control the TV with the remote control.
No image display and no sound is produced.
The TV turns off suddenly.
When connecting to the PC (HDMI), ‘No signal’ or ‘Invalid Format’ is displayed.
yCheck the remote control sensor on the product and try again. yCheck if there is any obstacle between the product and the remote control. yCheck if the batteries are still working and properly installed ( to , to ).
yCheck if the product is turned on. yCheck if the power cord is connected to a wall outlet. yCheck if there is a problem in the wall outlet by connecting other products.
yCheck the power control settings. The power supply may be interrupted. yCheck if the Auto Standby or Off Time feature is activated in the TIME
settings.
yIf there is no signal while the TV is on, the TV will turn off automatically after
15 minutes of inactivity.
yTurn the TV off/on using the remote control. yReconnect the HDMI cable. yRestart the PC with the TV on.
Page 72
30
0197
EXTERNAL CONTROL DEVICE SETUP / SPECIFICATIONS
ENGLISH
ENG
EXTERNAL CONTROL DEVICE SETUP
To obtain the external control device setup information, please visit www.lg.com
SPECIFICATIONS
Wireless LAN module(TWFM-B006D) specification
Standard IEEE802.11a/b/g/n
2400 to 2483.5 MHz
Frequency Range
Output Power (Max.)
Bluetooth module (BM-LDS401) specification
5150 to 5250 MHz
5725 to 5850 MHz (for Non EU)
802.11a: 11 dBm
802.11b: 14 dBm
802.11g: 10.5 dBm
802.11n - 2.4GHz: 11 dBm
802.11n - 5GHz: 12.5 dBm
Standard Bluetooth Version 3.0
Frequency Range 2400 ~ 2483.5 MHz
Output Power (Max.) 10 dBm or lower
Because band channel used by the country could be different, the user can not change or adjust the
y
operating frequency and this product is set for the regional frequency table.
Page 73
BENUTZERHANDBUCH
*
LED-TV
* LG LED TV verwendet LCD-Bildschirme mit LED-Beleuchtung.
Bitte lesen Sie dieses Handbuch aufmerksam durch, bevor Sie Ihr Gerät zum ersten Mal verwenden, und bewahren Sie es zur späteren Verwendung auf.
www.lg.com
Page 74
INHALTSVERZEICHNIS
2
INHALTSVERZEICHNIS
DEUTSCH
DEU
3 LIZENZEN
3 ANMERKUNG ZU OPEN SOURCE-
4 SICHERHEITSHINWEISE
10 - Wiedergabe von 3D-Material (Nur
12 INSTALLATIONSVERFAHREN
12 MONTAGE UND VORBEREITUNG
12 Auspacken 15 Separat erhältlich 16 Gehäuse und Bedienelemente 18 Anheben und Bewegen des TV-Gerätes 19 Montage auf einem Tisch 20 Wandmontage 22 Verwenden des Ausfahrbare Lautsprecher 22 Verwendung der integrierten Kamera
23 - Vorbereitung der integrierten Kamera 23 Bezeichnungen der Teile der integrierten
23 - Überprüfung des Aufnahmebereichs der
29 FEHLERBEHEBUNG
30 EINRICHTUNG DER EXTERNEN
STEUERUNG
30 TECHNISCHE DATEN
SOFTWARE
3D-Modelle)
Kamera
Kamera
24 FERNBEDIENUNG
25 TASTENFUNKTIONEN DER MAGIC-
FERNBEDIENUNG
27 Registrieren der Magic-Fernbedienung 27 So wird die Magic-Fernbedienung
verwendet
27 Vorsichtsmaßnahmen bei der Verwendung
der Magic-Fernbedienung
28 DAS BENUTZERHANDBUCH
VERWENDEN
29 WARTUNG
29 Reinigung des TV-Gerätes 29 - Bildschirm, Rahmen, Gehäuse und
Standfuß
29 - Netzkabel
WARNUNG
yBei Nichtbeachtung drohen schwere
Verletzungen, Unfälle und Tod.
VORSICHT
yBei Nichtbeachtung drohen leichte
Verletzungen oder eine Beschädigung des Produkts.
HINWEIS
yDer Hinweis hilft Ihnen dabei, das Produkt
zu verstehen und sicher zu benutzen. Bevor Sie das Produkt zum ersten Mal verwenden, lesen Sie den Hinweis bitte aufmerksam durch.
Page 75
LIZENZEN / ANMERKUNG ZU OPEN-SOURCE-SOFTWARE
LIZENZEN
Die unterstützten Lizenzen sind von Modell zu Modell verschieden. Weitere Informationen zu den Lizenzen erhalten Sie unter www.lg.com.
3
Hergestellt unter Lizenz von Dolby Laboratories. „Dolby“ und das Doppel-D-Symbol sind Warenzeichen von Dolby Laboratories.
Die Begriffe HDMI und HDMI High-Definition Multimedia Interface sowie das HDMI­Logo sind Marken oder eingetragene Marken von HDMI Licensing, LLC in den Vereinigten Staaten und anderen Ländern.
Über DIVX-VIDEO: DivX® ist ein digitales Videoformat der Firma DivX, LLC, einem
Tochterunternehmen der Rovi Corporation. Dieses Gerät ist ofziell DivX Certied®
zur Wiedergabe von DivX-Videos. Weitere Informationen und Software-Tools zum
Konvertieren von Dateien in das DivX-Format nden Sie unter divx.com.
Über DIVX VIDEO-ON-DEMAND: Dieses DivX Certied® Gerät muss registriert
werden, damit Sie gekaufte DivX Video-on-Demand-Inhalte (VOD) wiedergeben können. Um einen Registrierungscode zu erhalten, rufen Sie im Einstellungsmenü des Gerätes den Bereich „DivX VOD“ auf. Weitere Informationen darüber, wie Sie
Ihre Registrierung abschließen, nden Sie unter vod.divx.com.
„DivX Certied® zur Wiedergabe von DivX®-Videos bis zu HD 1080p, einschließlich
Premium-Inhalten.“
„DivX®, DivX Certied® sowie die entsprechenden Logos sind Marken der Rovi
Corporation oder ihrer Tochterunternehmen und werden unter Lizenz verwendet.“
DEUDEUTSCH
„Geschützt durch eines oder mehrere der folgenden US-Patente: 7,295,673; 7,460,668; 7,515,710; 7,519,274”
Hergestellt unter Lizenz unter den US-Patentnummern: 5,956,674; 5,974,380; 6,487,535 und andere US- und weltweite Patente erteilt und angemeldet. DTS, das Symbol und DTS sowie das Symbol sind eingetragene Marken und DTS 2.0+Digital Out ist eine Marke von DTS, Inc. Das Produkt umfasst Software. © DTS, Inc. Alle Rechte vorbehalten.
ANMERKUNG ZU OPEN SOURCE-SOFTWARE
Den Quellcode unter GPL, LGPL, MPL sowie weitere Open-Source-Lizenzen, der in diesem Produkt enthalten ist, können Sie unter http://opensource.lge.com herunterladen. Neben dem Quellcode stehen dort noch alle Lizenzbedingungen, auf die verwiesen wird, Garantieausschlüsse sowie Urheberrechtshinweise zum Download bereit. LG Electronics stellt Ihnen gegen eine Gebühr (für Distribution, Medien, Versand und Verwaltung) auch den Quellcode auf CD-ROM bereit. Wenden Sie sich per E-Mail an LG Electronics: opensource@lge.com. Dieses Angebot ist drei (3) Jahre ab Kaufdatum des Produkts gültig.
Page 76
SICHERHEITSHINWEISE
4
SICHERHEITSHINWEISE
DEUTSCH
DEU
Bevor Sie das Produkt zum ersten Mal verwenden, lesen Sie diese Sicherheitshinweise bitte aufmerksam durch.
WARNUNG
Stellen Sie das TV-Gerät mit Fernsteuerung nicht in folgenden Umgebungen auf:
y
- Unter direkter Sonneneinstrahlung
- In Bereichen mit hoher Luftfeuchtigkeit, wie z. B. einem Badezimmer
- In der Nähe von Hitzequellen, wie z. B. Öfen und anderen hitzeerzeugenden Ge-
- In der Nähe von Küchenzeilen oder Befeuchtern, wo das Gerät leicht Dampf
- In Bereichen, die Regen oder Wind ausgesetzt sind
- In der Nähe von Behältern mit Wasser, wie z. B. Vasen Andernfalls kann es zu Bränden, Stromschlägen, Fehlfunktionen oder Produktver­formungen kommen.
Schützen Sie das Gerät vor Staub.
y
Es besteht Brandgefahr.
Wenn Sie das Gerät vom Stromnetz trennen möchten, müssen Sie den Netzsteck-
y
er aus der Steckdose ziehen. Dieser Stecker muss jederzeit gut zugänglich sein.
Berühren Sie den Netzstecker nicht mit nassen Händen. Wenn die Kontaktstifte
y
nass oder verstaubt sind, trocknen Sie den Netzstecker vollständig ab, bzw. befrei­en Sie ihn von Staub. Feuchtigkeit erhöht die Gefahr eines tödlichen Stromschlags.
Stellen Sie sicher, dass das Stromkabel geerdet ist. (Außer bei Geräten, die nicht
y
geerdet sind.) Bei Nichtbeachtung besteht die Gefahr von Verletzungen oder eines tödlichen Stromschlags.
Das Stromkabel muss vollständig in die Steckdose eingesteckt werden.
y
Ist das Stromkabel nicht fest in die Steckdose eingesteckt, besteht Brandgefahr.
räten
oder Öl ausgesetzt sein kann
Das Stromkabel darf nicht mit heißen Gegenständen wie einem Heizkörper in Be-
y
rührung kommen. Andernfalls bestehen Brandgefahr und die Gefahr von Stromschlägen.
Stellen Sie keinen schweren Gegenstand oder das Gerät selbst auf das Stromka-
y
bel. Andernfalls kann es zu Bränden und Stromschlägen kommen.
Platzieren Sie das Antennenkabel zwischen dem Innen- und Außenbereich des
y
Gebäudes so, dass kein Regen hereinfließen kann. Etwaiger Wassereintritt kann zu Schäden am Gerät und Stromschlag führen.
Falls das TV-Gerät an der Wand montiert wird, darf es nicht an den Strom- und
y
Signalkabeln auf der Rückseite des TV-Gerätes aufgehängt werden. Anderenfalls besteht die Gefahr von Bränden oder Stromschlägen.
Page 77
SICHERHEITSHINWEISE
Desiccant
Schließen Sie nicht zu viele Elektrogeräte an einer einzelnen Steckdose an.
y
Andernfalls kann es aufgrund von Überhitzung zu Bränden kommen.
Lassen Sie das Gerät beim Anschluss eines externen Gerätes nicht fallen.
y
Andernfalls können Verletzungen verursacht oder das Gerät beschädigt werden.
Bewahren Sie das Trockengranulat und die Vinyl-Verpackung außerhalb der
y
Reichweite von Kindern auf. Trockengranulat ist bei Verschlucken gesundheitsschädlich. Falls es verschluckt wurde, Erbrechen herbeiführen und die Person ins nächste Krankenhaus bringen. Außerdem besteht Erstickungsgefahr durch die Vinyl-Verpackung. Bewahren Sie sie außerhalb der Reichweite von Kindern auf.
Achten Sie darauf, dass sich Kinder nicht an das TV-Gerät hängen oder daran
y
hochklettern. Andernfalls kann das Gerät umfallen, wodurch schwere Verletzungen hervorgeru­fen werden können.
Leere Batterien müssen sicher entsorgt werden, um zu verhindern, dass Kinder sie
y
verschlucken. Wenn ein Kind eine Batterie verschluckt hat, sofort den Arzt aufsuchen.
Berühren Sie das Ende des Netzkabels nicht mit einem leitenden Gegenstand (wie
y
einer Gabel), während das Netzkabel mit der Steckdose verbunden ist. Berühren Sie das Netzkabel nicht, kurz nachdem Sie es mit der Steckdose verbunden ha­ben. Es besteht die Gefahr eines tödlichen Stromschlags. (Abhängig vom Modell)
Bringen Sie keine entflammbaren Stoffe in die Nähe des Gerätes.
y
Bei unsachgemäßem Umgang mit entflammbaren Stoffen besteht Explosionsge­fahr.
5
DEUDEUTSCH
Es dürfen keine Metallgegenstände wie Münzen, Haarnadeln, Besteck oder Draht
y
bzw. entzündliche Gegenstände wie Papier oder Streichhölzer in das Gerät gelan­gen. Achten Sie insbesondere auf Kinder. Es besteht die Gefahr von Stromschlag, Brand oder Verletzung. Wenn ein Gegen­stand in das Gerät gelangt, ziehen Sie das Stromkabel, und wenden Sie sich an den Kundendienst.
Sprühen Sie kein Wasser auf das Produkt, und bringen Sie es nicht mit entzünd-
y
lichen Stoffen (Verdünnungsmittel oder Benzol) in Verbindung. Es besteht Strom­schlag- und Brandgefahr.
Setzen Sie das Produkt keinen Schlägen und Stößen aus. Sorgen Sie dafür, dass
y
keine Gegenstände auf das Gerät oder den Bildschirm fallen. Es besteht Verletzungsgefahr. Außerdem kann das Produkt beschädigt werden.
Berühren Sie das Produkt oder die Antenne nicht während eines Gewitters.
y
Es besteht die Gefahr eines tödlichen Stromschlags.
Im Falle eines Gasaustritts berühren Sie keinesfalls die Steckdose. Öffnen Sie
y
zum Lüften die Fenster. Durch Funken können ein Brand oder Verbrennungen hervorgerufen werden.
Page 78
6
DEUTSCH
DEU
SICHERHEITSHINWEISE
Sie dürfen das Gerät nicht eigenmächtig auseinanderbauen, reparieren oder ver-
y
ändern. Es besteht Stromschlag- und Brandgefahr. Wenden Sie sich zur Überprüfung, Kalibrierung oder Reparatur an den Kunden­dienst.
Ziehen Sie in jedem der folgenden Fälle sofort den Netzstecker, und setzen Sie
y
sich mit Ihrem Kundendienst vor Ort in Verbindung.
- Das Gerät wurde einer Erschütterung ausgesetzt
- Das Gerät wurde beschädigt
- Fremdkörper sind in das Gerät gelangt
- Vom Gerät sind Rauch oder ungewöhnliche Gerüche ausgegangen Dies kann Brand oder Stromschlag verursachen.
Ziehen Sie das Stromkabel aus der Steckdose, wenn das Gerät für längere Zeit
y
nicht verwendet wird. Wenn das Gerät eingestaubt ist, besteht Brandgefahr. Ein Verschleiß der Isolation kann zu Kriechverlust, Stromschlag oder Brand führen.
Achten Sie darauf, dass keine Flüssigkeit auf das Gerät spritzt oder tropft. Stellen
y
Sie keine Gegenstände, die Flüssigkeiten enthalten (z. B. Vasen), auf dem Gerät ab.
Page 79
VORSICHT
Stellen Sie das Gerät nicht in der Nähe von Funkwellen auf.
y
SICHERHEITSHINWEISE
7
Der Abstand zwischen einer Außenantenne und Stromleitungen muss groß genug
y
sein, um eine Berührung der beiden zu verhindern, selbst wenn die Antenne herun­terfällt. Andernfalls besteht die Gefahr von Stromschlägen.
Stellen Sie das Produkt nicht auf unstabilen Regalen oder geneigten Oberflächen
y
auf. Vermeiden Sie außerdem Stellplätze, die vibrieren oder auf denen das Produkt keinen sicheren Halt hat. Andernfalls kann das Gerät herunter- oder umfallen, wodurch Verletzungen oder Beschädigungen am Gerät verursacht werden können.
Wenn Sie das TV-Gerät auf einem Standfuß aufstellen, müssen Sie durch vor-
y
beugende Maßnahmen ein Umkippen verhindern. Andernfalls kann das TV-Gerät umfallen, wodurch Verletzungen hervorgerufen werden können.
Wenn Sie das TV-Gerät an der Wand montieren, befestigen Sie eine VESA-Standardwandhalterung
y
(optional) an der Rückseite des Gerätes. Wenn Sie das TV-Gerät mit der optionalen Wandhalterung montieren möchten, befestigen Sie diese sorgfältig, um ein Herunterfallen zu vermeiden.
Verwenden Sie nur vom Hersteller empfohlenes Zubehör.
y
Konsultieren Sie bei der Installation der Antenne eine qualifizierte Fachkraft.
y
Andernfalls besteht Brandgefahr bzw. die Gefahr von Stromschlägen.
Wir empfehlen einen Abstand vom Gerät, der mindestens dem 2- bis 7-Fachen der
y
Bildschirmdiagonale entspricht. Das Fernsehen über einen langen Zeitraum hinweg kann zu Seheintrübung führen.
DEUDEUTSCH
Verwenden Sie nur den angegebenen Batterietyp.
y
Andernfalls könnte die Fernbedienung beschädigt werden.
Alte und neue Batterien dürfen nicht zusammen verwendet werden.
y
Andernfalls könnten die Batterien überhitzen und auslaufen.
Batterien dürfen keiner extremen Hitze, etwa durch Sonneneinstrahlung, offenes Feuer oder
y
Heizstrahler, ausgesetzt werden. Laden Sie nicht wiederaufladbare Batterien NICHT mit einem Ladegerät auf.
y
Es dürfen sich keine Gegenstände zwischen der Fernbedienung und dem Sensor
y
befinden.
Das Signal von der Fernbedienung kann durch Sonnenlicht oder andere starke
y
Lichteinstrahlung gestört werden. Verdunkeln Sie in diesem Fall den Raum.
Achten Sie beim Anschluss von externen Geräten, wie z. B. Videospielkonsolen,
y
darauf, dass die Anschlusskabel lang genug sind. Ansonsten kann das Gerät umfallen, wodurch Verletzungen oder Beschädigungen am Gerät verursacht werden können.
Page 80
8
DEUTSCH
DEU
SICHERHEITSHINWEISE
Schalten Sie das Gerät niemals ein oder aus, indem Sie den Stecker aus der
y
Steckdose ziehen. (Verwenden Sie das Stromkabel nicht als Ein- und Aus-Schal­ter.) Ein mechanischer Defekt oder Stromschlag können die Folge sein.
Folgen Sie den unten stehenden Installationsanweisungen, um ein Überhitzen des
y
Gerätes zu verhindern.
- Der Abstand des Gerätes zur Wand sollte mindestens 10 cm betragen.
- Montieren Sie das Gerät nur an Orten mit ausreichender Belüftung (d. h. weder
in einem Regal oder Schrank).
- Stellen Sie es nicht auf Kissen oder Teppichen ab.
- Achten Sie darauf, dass die Belüftungsschlitze nicht durch eine Tischdecke oder
einen Vorhang verdeckt werden.
Andernfalls kann es zu einem Brand kommen.
Berühren Sie nicht die Lüftungsöffnungen, wenn das TV-Gerät über längere Zeit
y
läuft, da die Lüftungsöffnungen heiß werden können. Dies hat keinen Einfluss auf den Betrieb oder die Leistung des Produkts.
Überprüfen Sie das Kabel an Ihrem Gerät regelmäßig. Weist es Anzeichen von Beschädigung oder
y
Abnutzung auf, trennen Sie das Stromkabel vom Netz, und verwenden Sie das Gerät nicht weiter. Lassen Sie das Kabel durch einen autorisierten Servicepartner ersetzen.
Sorgen Sie dafür, dass die Kontaktstifte und die Steckdose frei von Staub sind.
y
Es besteht Brandgefahr.
Schützen Sie das Netzkabel vor mechanischen Beschädigungen, wie z. B. Verdre-
y
hen, Knicken, Eindrücken, Einklemmen in einer Tür oder Drauftreten. Achten Sie besonders auf die Stecker, Steckdosen und den Bereich, an dem das Kabel aus dem Gerät tritt.
Üben Sie keinen starken Druck mit der Hand oder einem spitzen Gegenstand wie
y
einem Nagel, Bleistift oder Kugelschreiber auf das Gerät aus. Verkratzen Sie das Gerät nicht.
Vermeiden Sie es, den Bildschirm zu berühren oder mit den Fingern längere Zeit
y
auf den Bildschirm zu drücken. Dadurch kann es zu vorübergehenden Verzer­rungseffekten auf dem Bildschirm kommen.
Ziehen Sie vor der Reinigung des Gerätes den Netzstecker, und reinigen Sie das
y
Gerät mit einem weichen Tuch. Übermäßiger Druck kann Kratzer oder Verfärbun­gen verursachen. Benutzen Sie weder Sprühflaschen noch nasse Tücher. Verwen­den Sie vor allem keine Glasreiniger oder für Autos oder in der Industrie verwen­dete Reinigungsmittel, aggressive Mittel oder Wachs, Benzol, Alkohol usw. Diese Mittel können das Gerät und seinen Bildschirm beschädigen. Andernfalls kann es zu Bränden, Stromschlägen, Beschädigungen am Gerät (Ver­formung, Korrosion und Schäden) kommen.
Solange das Gerät an eine Wechselstrom-Steckdose angeschlossen ist, bleibt es auch dann mit der
y
Wechselstromquelle verbunden, wenn Sie es mit dem Schalter ausschalten.
Ziehen Sie das Netzkabel immer am Stecker aus der Steckdose.
y
Wenn die Kabel im Inneren des Netzkabels vom Stecker getrennt werden, kann dies einen Brand verursachen.
Schalten Sie das Gerät aus, bevor Sie es bewegen. Ziehen Sie dann das Stromka-
y
bel, Antennenkabel und alle anderen Anschlusskabel. Andernfalls kann das TV-Gerät oder das Stromkabel beschädigt werden, wodurch es zu einem Brand oder Stromschlag kommen kann.
Page 81
SICHERHEITSHINWEISE
Das Gerät ist schwer und sollte stets mit zwei Personen bewegt oder ausgepackt
y
werden. Andernfalls kann es zu Verletzungen kommen.
Wenden Sie sich einmal im Jahr an den Kundendienst, damit die innenliegenden
y
Bauteile des Produkts fachgerecht gereinigt werden. Angesammelter Staub kann mechanische Fehler verursachen.
Wenden Sie sich bei Problemen an einen qualifizierten Kundendienstmitarbeiter.
y
Bitte setzen Sie sich mit dem Kundendienst in Verbindung, wenn das Gerät in irgendeiner Weise beschädigt wurde, z. B. wenn das Stromkabel oder der Stecker defekt sind, wenn Flüssigkeit über das Gerät gegossen wurde oder Gegenstände in das Gerät gelangt sind, wenn das Gerät Regen oder Feuchtigkeit ausgesetzt wurde, wenn das Gerät nicht ordnungsgemäß funktioniert oder wenn das Gerät fallen gelassen wurde.
Wenn sich das Gerät kalt anfühlt, kann es beim Einschalten zu einem kurzen Flim-
y
mern kommen. Das ist normal und kein Fehler des Gerätes.
Der Bildschirm ist ein hochentwickeltes Gerät mit einer Auflösung von zwei bis
y
sechs Millionen Pixel. Unter Umständen sind winzige schwarze Punkte und/oder
bunte Punkte (rot, blau oder grün) von 1 ppm Größe auf dem Bildschirm zu sehen. Dies deutet nicht auf eine Fehlfunktion hin und beeinträchtigt nicht die Leistung und Zuverlässigkeit des Gerätes. Diese Erscheinung tritt auch bei Geräten von Fremdanbietern auf und wird nicht als Grund für Umtausch oder Rückerstattung anerkannt.
Je nach Ihrer Betrachtungsposition (von rechts, links, oben, unten) sind Helligkeit
y
und Farben auf dem Bildschirm möglicherweise unterschiedlich. Diese Erscheinung ist auf die besonderen Eigenschaften des Bildschirms zurück­zuführen. Es steht in keinem Zusammenhang mit der Leistung des Gerätes, und es handelt sich hierbei nicht um eine Fehlfunktion.
9
DEUDEUTSCH
Durch das Anzeigen eines Standbilds (z. B. ein Programmlogo, Bildschirmmenü, Szene eines Vi-
y
deospiels) über einen längeren Zeitraum kann der Bildschirm beschädigt werden, und das Bild wird eingebrannt. Das Einbrennen von Bildern wird bei diesem Gerät nicht von der Garantie gedeckt. Vermeiden Sie die Anzeige von Standbildern auf dem Fernsehbildschirm über einen längeren Zeit­raum (2 Stunden oder mehr bei LCD-Fernsehgeräten, 1 Stunde oder mehr bei Plasma-Fernsehge­räten). Wird das Format über einen längeren Zeitraum auf 4:3 eingestellt, kann es an den Rändern des Bildschirms zum Einbrennen kommen. Diese Erscheinung tritt auch bei Geräten von Fremdanbietern auf und wird nicht als Grund für Um­tausch oder Rückerstattung anerkannt.
Erzeugtes Geräusch
y
„Knacken“: Das beim Fernsehen oder Ausschalten des Gerätes zu hörende Knacken wird durch Wärmeschrumpfung von Kunststoffen aufgrund von Temperatur und Feuchtigkeit verursacht. Dieses Geräusch ist normal bei Geräten, bei denen die thermische Verformung erforderlich ist. Stromkreis­brummen/Bildschirmsummen: Der Hochgeschwindigkeitsschaltkreis, der eine große Menge Strom für den Betrieb des Gerätes bereitstellt, gibt ein leises Geräusch ab. Dieses Geräusch ist je nach Gerät anders. Es hat keinen Einfluss auf die Leistung und Zuverlässigkeit des Gerätes.
Page 82
SICHERHEITSHINWEISE
10
Wiedergabe von 3D-Material (Nur 3D-Modelle)
DEUTSCH
DEU
Betrachtungsumgebung
Personen mit dem Risiko eines photosensiblen Anfalls oder einer chronischen Erkrankung
WARNUNG
yBetrachtungszeit
- Unterbrechen Sie die Betrachtung von 3D-Inhalten jede Stunde für 5 bis 15 Minuten. Das Betrach­ten von 3D-Inhalten über einen längeren Zeitraum kann Kopfschmerzen, Schwindelgefühle, Müdig­keit oder Augenbelastungen verursachen.
yEinige Benutzer erleben Anfälle oder andere unnormale Symptome, wenn sie Blitzlicht oder bestimmten
Mustern von 3D-Inhalten ausgesetzt werden.
yBetrachten Sie keine 3D-Videos, wenn Sie Übelkeit verspüren, schwanger sind oder an einer
chronischen Krankheit, wie Epilepsie, Herzstörungen, blutdruckbedingten Krankheiten usw., leiden.
yAußerdem sollten 3D-Inhalte von Personen mit Stereoblindheit oder Störungen des räumlichen Sehens
gemieden werden. Diese Personen sehen 3D-Bilder häug als Doppelbilder oder fühlen ein Unbehagen
beim Betrachten.
yWenn Sie an Strabismus (Schielen), Amblyopie (Schwachsichtigkeit) oder Astigmatismus
(Hornhautverkrümmung) leiden, haben Sie unter Umständen Probleme bei der Tiefenerkennung und
fühlen aufgrund der Doppelbilder eine schnellere Ermüdung. In diesen Fällen wird empfohlen, häugere
Pausen als durchschnittliche Erwachsene einzulegen.
yWenn Ihre Sehstärke auf beiden Augen unterschiedlich ist, korrigieren Sie diese vor dem Betrachten
von 3D-Inhalten.
Symptome, bei denen Sie das Betrachten von 3D-Inhalten abbrechen bzw. von ihrer Betrachtung absehen sollten
yBetrachten Sie keine 3D-Inhalte, wenn Sie aufgrund von Schlafmangel, Überlastung oder
Alkoholkonsum müde sind.
yWenn die folgenden Symptome auftreten, stellen Sie die Betrachtung von 3D-Inhalten ein, und erholen
Sie sich so lange, bis die Symptome verklungen sind.
- Sprechen Sie mit Ihrem Hausarzt, falls die Symptome nicht nachlassen. Zu den Symptomen ge­hören Kopfschmerzen, schmerzende Augen, Schwindel, Übelkeit, Herzklopfen, verschwommene Wahrnehmung, Benommenheit, Unbehagen, Sehen von Doppelbildern, Sehmüdigkeit.
Page 83
SICHERHEITSHINWEISE
VORSICHT
Betrachtungsumgebung
Betrachtungsabstand
y
- Wenn Sie die 3D-Funktion nutzen, halten Sie stets einen Betrachtungsabstand ein, der mindestens dem 2-Fachen der Bildschirmdiagonalen entspricht. Wenn das Betrachten von 3D-Inhalten Unwohl­sein verursacht, vergrößern Sie Ihren Abstand zum TV-Gerät.
Betrachtungsalter
yKleinkinder/Kinder
- Die Verwendung bzw. das Betrachten von 3D-Inhalten ist für Kinder unter 6 Jahren verboten.
- Kinder unter 10 Jahren können überreagieren und übermäßig angeregt werden, da sich ihre Seh­kraft noch in der Entwicklung befindet (sie versuchen z. B. den Bildschirm zu berühren oder in den Bildschirm hineinzuspringen). Kinder sollten 3D-Inhalte daher nur unter Aufsicht und unter Anwen­dung besonderer Vorsicht betrachten.
- Kinder haben im Zusammenhang mit 3D-Darstellungen eine größere binokulare Disparität als Er­wachsene, da der Abstand zwischen ihren Augen kleiner ist. Daher ist ihre Fähigkeit zur stereosko­pischen Tiefenerkennung bei der Betrachtung eines 3D-Bildes ausgeprägter als bei Erwachsenen.
yJugendliche
- Jugendliche unter 19 Jahren reagieren möglicherweise sensibel gegenüber der Lichtstimulation bei 3D-Inhalten. Raten Sie ihnen, bei Müdigkeit nicht über längere Zeiträume 3D-Inhalte zu betrachten.
yÄltere Personen
- Ältere Personen erkennen möglicherweise einen geringeren 3D-Effekt als jüngere Personen. Sie halten zudem in der Regel den empfohlenen Mindestabstand zum TV-Gerät ein.
11
DEUDEUTSCH
Vorsicht bei der Verwendung der 3D-Brille
Verwenden Sie auf jeden Fall eine geeignete LG 3D-Brille. Andernfalls können Sie die 3D-Videos
y
möglicherweise nicht richtig sehen. y Verwenden Sie die 3D-Brille nicht anstelle Ihrer normalen Brille, Sonnenbrille oder Schutzbrille. y Die Verwendung abgeänderter 3D-Brillen kann die Augen überlasten oder eine Bildverzerrung zur Folge
haben. y Bewahren Sie die 3D-Brille nicht bei extrem hohen oder niedrigen Temperaturen auf. Dadurch kann es
zu Verformungen kommen. y Die 3D-Brille ist zerbrechlich und kann leicht zerkratzen. Verwenden Sie immer ein weiches, sauberes
Tuch, wenn Sie die Gläser säubern. Zerkratzen Sie die Oberäche der 3D-Brille nicht mit scharfen
Objekten, und verwenden Sie zum Reinigen keine Chemikalien.
Page 84
12
<
<
DEUTSCH
DEU
INSTALLATIONSVERFAHREN
1 Öffnen Sie die Packung, und stellen Sie sicher, dass alle Zubehörteile im Lieferumfang enthalten sind.
2 Befestigen Sie den Standfuß am TV-Gerät.
3 Verbinden Sie gegebenenfalls externe Zuspielgeräte mit dem TV-Gerät.
4 Stellen Sie sicher, dass eine Netzwerkverbindung vorhanden ist.
INSTALLATIONSVERFAHREN / MONTAGE UND VORBEREITUNG
HINWEIS
yIhr TV-Gerät kann von der Abbildung möglicherweise leicht abweichen. yDas OSD-Menü (am Bildschirm angezeigtes Menü) Ihres TV-Gerätes kann sich leicht von dem in
diesem Handbuch unterscheiden.
yDie verfügbaren Menüs und Optionen können sich je nach verwendeter Eingangsquelle bzw. je nach
Modell unterscheiden. yKünftig können diesem TV-Gerät neue Funktionen hinzugefügt werden. yDas TV-Gerät kann in den Standby-Modus gesetzt werden, um den Stromverbrauch zu verringern.
Wenn längere Zeit nicht ferngesehen wird, sollte das Gerät ausgeschaltet werden, um Strom zu
sparen. yDer Stromverbrauch des eingeschalteten TV-Gerätes kann erheblich verringert werden, wenn die
Helligkeit des Bildes vermindert wird.
Sie können die Netzwerkfunktionen des Fernsehgeräts nur dann nutzen, wenn eine Netzwerkverbindung hergestellt wurde.
MONTAGE UND VORBEREITUNG
Auspacken
Prüfen Sie, ob folgende Artikel in der Verpackung enthalten sind. Falls Zubehör fehlt, wenden Sie sich bitte an den Händler, bei dem Sie das Gerät erworben haben. Die Abbildungen im Handbuch unterscheiden sich möglicherweise von Ihrem Gerät.
VORSICHT
yUm die Sicherheit und Lebensdauer des Produkts sicherzustellen, verwenden Sie keine Fälschungen. yDurch Fälschungen verursachte Beschädigungen sind nicht von der Garantie abgedeckt. yBei einigen Modellen befindet sich ein dünner Film auf dem Bildschirm, der nicht entfernt werden darf.
HINWEIS
yDie im Lieferumfang enthaltenen Artikel sind modellabhängig. yÄnderungen an den Produktspezifikationen oder am Inhalt dieses Handbuchs sind im Zuge von
Aktualisierungen der Produktfunktionen vorbehalten. yFür eine optimale Verbindung sollte die Einfassung von HDMI-Kabeln und USB-Geräten höchstens
10 mm dick und 18 mm breit sein. Verwenden Sie ein Verlängerungskabel, das USB 2.0 unterstützt,
wenn das USB-Kabel oder der USB-Speicherstick nicht in den USB-Anschluss Ihres TV-Gerätes
passt.
B
A
B
*A
10 mm
=
*B
18 mm
A
=
Page 85
MONTAGE UND VORBEREITUNG
Tag On
13
DEUDEUTSCH
Benutzerhandbuch Magic-
Fernbedienung, Batterien (AA)
(Nur LA79**, LA86**, LA960*, LA98**, LM96**) (siehe S. 25)
Dual Play-Brille
(Abhängig vom Modell)
Cinema-3D-Brille
Je nach Modell oder Land kann die Anzahl der 3D-Brillen abweichen.
Tag on
(Abhängig vom Modell)
Komponenten­Videokabel
(siehe S. A-20)
SCART-Kabel
(siehe S. A-32)
Composite­Videokabel
(siehe S. A-20 , A-22)
Ständerplatte/ Standkörper
(Nur LA79**) (Siehe S. A-3)
Schrauben für Standfuß
4 Stk. M4 x 16
(Nur LA860*, LA868*) (Siehe S. A-3, A-4)
Kabelhalter
(Abhängig vom Modell) (Siehe S. A-6, A-7)
Schrauben für Standfuß
4Stk. M4 x 20
(Nur LA960*, LA98**, LM96**) (Siehe S. A-3, A-6)
Kabelhalter
(Nur LA79**) (Siehe S. A-6, A-7)
Ständerplatte
(Nur LA860*, LA960*)
(Siehe S. A-3)
Schrauben für Standfuß
8 Stk. M4 x 14
(Nur LA79**) (Siehe S. A-3)
Stromkabel
(Abhängig vom Modell)
Page 86
14
DEUTSCH
DEU
MONTAGE UND VORBEREITUNG
Fernbedienung und Batterien (AAA)
(Abhängig vom Modell)
Ständerplatte
(Nur LA868*) (Siehe S. A-4)
(Siehe S. 24)
BACK SMART
/Q.MENU
P
Magic­Fernbedienung, Batterien (AA)
(Nur LA965*, LA97**) (Siehe S. 26)
Ständerplatte
(Nur LA97**) (Siehe S. A-5)
Ständerplatte
(Nur LA965*) (Siehe S. A-4)
Schraube für die Wandhalterung
4Stk. M6 x 54 (Nur 55LA97**) (Siehe S. 21)
Kamera für Videogespräche (Nur
70LA860*)
Schraube für die Wandhalterung
4Stk. M8 x 44 (Nur 65LA97**) (Siehe S. 21)
Schrauben für Standfuß
4Stk. M4 x 14 (Nur 55LA97**, LA965*) (Siehe S. A-4, A-5)
Ständerplatte/ Standkörper
(Nur LA98**, LM96**) (Siehe S. A-5)
Distanzstücke für Wandhalterung
4Stk. (Nur LA97**) (Siehe S. 21)
Schrauben für Standfuß
6EA, M5 x 16 (Nur LA98**, LM96**)
(Siehe S. A-5)
Page 87
MONTAGE UND VORBEREITUNG
P
123
15

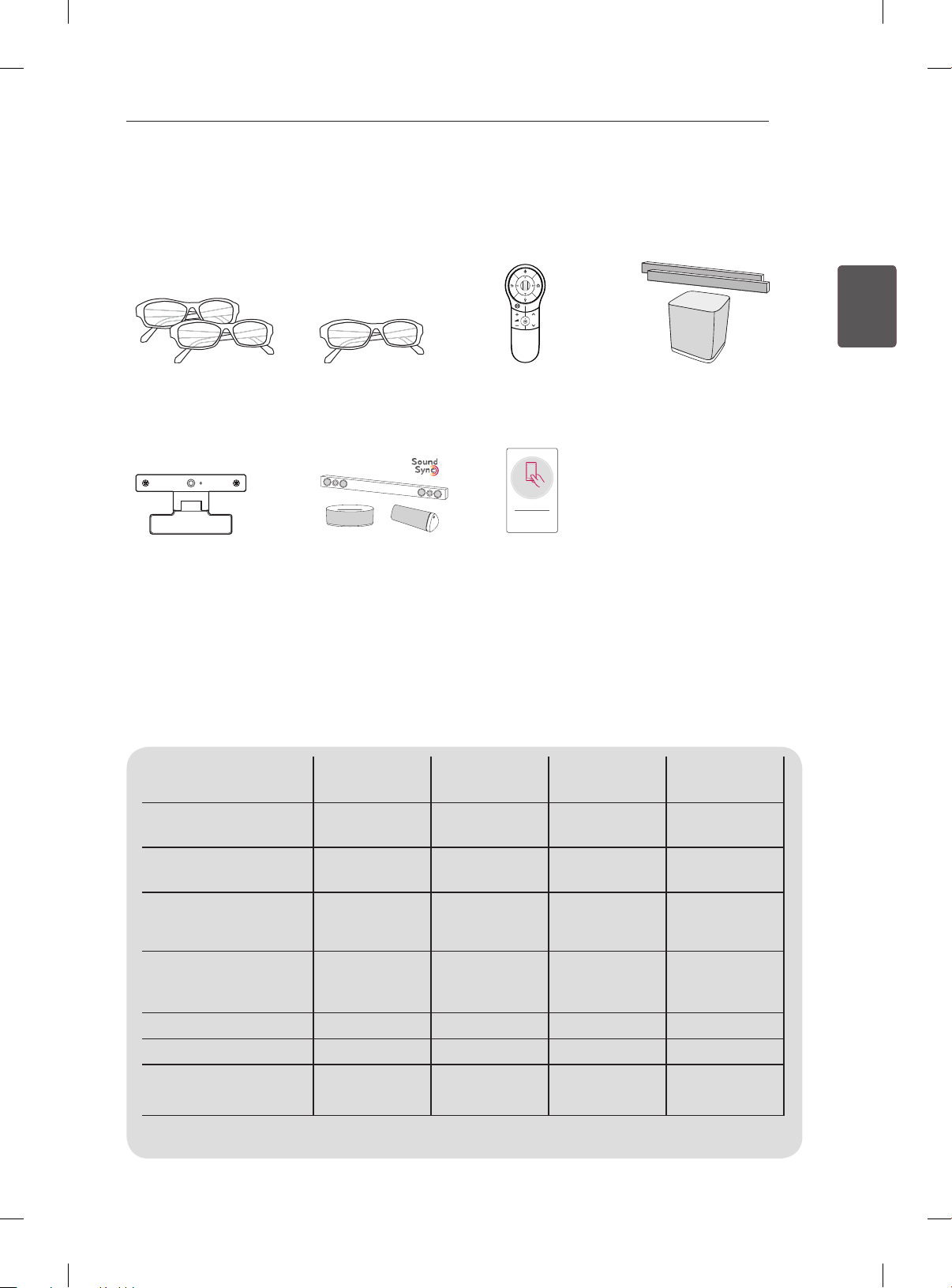

Separat erhältlich
Separat zu erwerbende Artikel können zur Qualitätsverbesserung geändert werden, ohne dass dies explizit
mitgeteilt wird. Diese Artikel können Sie über Ihren Fachhändler beziehen. Diese Geräte sind nur mit bestimmten Modellen kompatibel.
DEUDEUTSCH
AG-F***DP
Dual Play-Brille
AG-F***
Cinema-3D-Brille
AN-MR400
Magic Fernbedi-
NB7530
Integrierte Sound Bar
enung
Tag On
AN-VC5**
LG Audiogerät Tag on
Kamera für Videogespräche
Kompatibilität
AG-F***DP
Dual Play-Brille
AG-F***
Cinema-3D-Brille
LA79**, LA965* LA86** LA960*, LA97** LA98**, LM96**
AN-MR400
Magic-
Fernbedienung
AN-VC5**
Kamera für
Videogespräche
LG Audiogerät Tag on
NB7530
Integrierte Sound Bar
Produktbezeichnungen, Funktionalitäten und/oder Designs können im Zuge einer Qualitätsverbesserung durch
den Hersteller geändert werden, ohne dass dies explizit mitgeteilt wird.
(Abhängig vom
Modell)
(Abhängig vom
Modell)
Page 88
MONTAGE UND VORBEREITUNG
SETTINGS
INPUT
OK
SETTINGS
INPUT
OK
SETTINGS
INPUT
OK
16

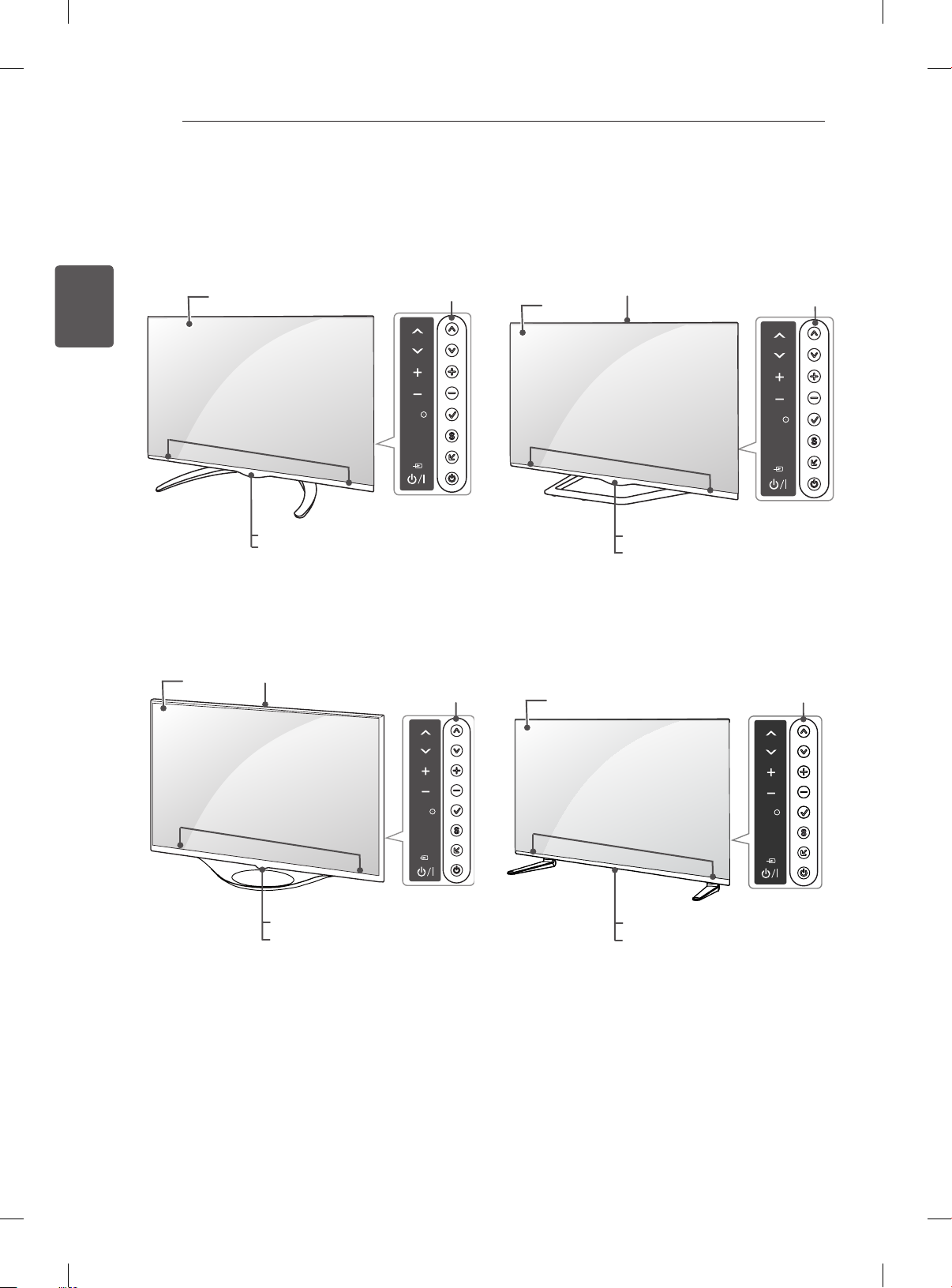

Gehäuse und Bedienelemente
A Option : LA79**
DEUTSCH
DEU
C Option : LA868*
Bildschirm
Lautsprecher
Bildschirm
Tasten
Fernbedienungssensor Beleuchtetes LG Logo
Kamera für Video gespräche
Tasten
B Option : LA860*, LA960*
Kamera für Video gespräche (Nur 42/47/55/60LA860*, LA960*)
Bildschirm
Lautsprecher
Fernbedienungssensor Beleuchtetes LG Logo
D Option : LA965*
Bildschirm
Tasten
Tasten
Lautsprecher
Fernbedienungssensor Beleuchtetes LG Logo
Lautsprecher
Fernbedienungssensor Beleuchtetes LG Logo
OK
SETTINGS
INPUT
Page 89
MONTAGE UND VORBEREITUNG
H
H
H
OK
SETTINGS
INPUT
SETTINGS
INPUT
OK
17
E Option : LA97**
Kamera für Video gespräche
Bildschirm
Lautsprecher
Taste Beschreibung
S Öffnet und schließt das Hauptmenü und speichert Ihre Eingaben.
Fernbedienungssensor Betriebsanzeige
Navigiert durch die gespeicherten Programme. Regelt die Lautstärke. Wählt die markierte Menüoption aus oder bestätigt eine Eingabe.
Ändert die Eingangsquelle. Schaltet den Strom ein und aus.
Tasten
F Option : LA98**, LM96**
Bildschirm
Lautsprecher
Beleuchtetes LG Logo
Fernbedienung und
intelligente Sensoren
Tasten
DEUDEUTSCH
1
1 Intelligenter Sensor - Einstellung der Bildqualität und Helligkeit entsprechend der Umgebungsbedingungen.
VORSICHT
yZur Vermeidung von Leistungseinbußen und Beschädigungen halten Sie bitte
Kinder fern von den Lautsprechern bzw. dem Gerät. (Nur LA965*)
HINWEIS
ySie können das LG Leuchtlogo über OPTION in den Hauptmenüs ein- und ausschalten. (Abhängig vom
Modell)
Page 90
MONTAGE UND VORBEREITUNG
18
Anheben und Bewegen des TV-Gerätes
DEUTSCH
DEU
Lesen Sie folgende Hinweise, bevor Sie das TV­Gerät bewegen oder anheben, um Kratzer oder Beschädigungen am TV-Gerät zu verhindern und um einen reibungslosen Transport unabhängig von Typ und Größe zu gewährleisten.
VORSICHT
yBerühren Sie nach Möglichkeit nicht den
Bildschirm, da er dadurch beschädigt
werden könnte.
yEs wird empfohlen, das TV-Gerät im
Originalkarton oder in der Originalverpackung zu bewegen bzw. zu transportieren.
yTrennen Sie das Netzkabel und alle weiteren
Kabel, bevor Sie das TV-Gerät bewegen oder anheben.
yHalten Sie das TV-Gerät so, dass sein
Bildschirm von Ihnen abgewendet ist, um Beschädigungen zu vermeiden.
yGroße TV-Geräte sollten stets von mindestens
2 Personen transportiert werden.
yWenn das TV-Gerät von Hand transportiert
wird, halten Sie es wie in der folgenden Abbildung gezeigt.
ySetzen Sie das TV-Gerät während des
Transports keinen ruckartigen Bewegungen oder starken Erschütterungen aus.
yHalten Sie das TV-Gerät beim Transport
aufrecht, drehen Sie es niemals auf die Seite, und kippen Sie es nicht nach links oder rechts.
yÜben Sie keinen übermäßigen Druck auf
den Gehäuserahmen aus, da dies zur Beschädigung des Bildschirms führen kann.
yHalten Sie das TV-Gerät oben und unten am
Rahmen gut fest. Halten Sie ihn nicht am transparenten Teil, am Lautsprecher oder am Lautsprechergrill fest.
Page 91
MONTAGE UND VORBEREITUNG
19
Montage auf einem Tisch
1 Heben Sie das TV-Gerät an, und kippen Sie es
auf einem Tisch in die aufrechte Position.
- Lassen Sie (mindestens) 10 cm Platz zur Wand, um eine gute Belüftung zu gewähr­leisten.
10 cm
10 cm
10 cm
2 Schließen Sie das Stromkabel an eine
Steckdose an.
VORSICHT
yStellen Sie das TV-Gerät nicht in die Nähe
von Wärmequellen, da dies einen Brand oder Beschädigungen verursachen könnte.
10 cm
10 cm
Einstellen des Fernsehgerätes für einen opti­malen Blickwinkel
(Diese Funktion steht nicht bei allen Modellen zur Verfügung.) Einstellen des TV-Gerätes für einen optimalen Blickwinkel Drehen Sie das TV-Gerät um 15 Grad nach links oder rechts, und stellen Sie den Blickwinkel optimal ein. (Nur LA79**)
1515
Drehen Sie das TV-Gerät um 10 Grad nach links oder rechts, und stellen Sie den Blickwinkel optimal ein. (Nur 42/47LA860*)
1010
DEUDEUTSCH
Verwenden des Kensington-Sicherheitssystems (Diese Funktion steht nicht bei allen Modellen zur Verfügung.)
Ihr TV-Gerät kann von der Abbildung abweichen.
y
Der Anschluss des Kensington-Sicherheitssystems befindet sich an der Rückseite des TV-Geräts. Weitere Informationen zur Installation und Verwen­dung finden Sie im Handbuch, das im Lieferum­fang des Kensington-Sicherheitssystems enthalten ist, oder auf der Website unter
ton.com.
Schließen Sie das Kabel des Kensington-Sicher­heitssystems am TV-Gerät und an einem Tisch an.
http://www.kensing-
Drehen Sie das TV-Gerät um 8 Grad nach links oder rechts, und stellen Sie den Blickwinkel optimal ein. (Nur 55/60LA860*)
88
Drehen Sie das TV-Gerät um 7 Grad nach links oder rechts, und stellen Sie den Blickwinkel optimal ein. (Nur LA98**, LM96**)
7 7
Page 92
MONTAGE UND VORBEREITUNG
20
DEUTSCH
DEU
Befestigen des TV-Gerätes an einer Wand
(Diese Funktion der Kippsicherung steht nicht bei allen Modellen zur Verfügung.)
VORSICHT
Wenn Sie das Produkt auf den optimalen Winkel einstellen, sollten Sie darauf achten, dass Sie Ihre Finger nicht einklemmen.
»
Das Einklemmen von Händen oder Fingern kann Verletzungen verursachen. Wenn das Gerät zu stark geneigt ist, kann es herunterfal­len und beschädigt werden bzw. Verletzungen verursachen.
<Rückseite> <Vorderseite>
VORSICHT
yAchten Sie darauf, dass Kinder nicht auf das
TV-Gerät klettern oder sich daran hängen.
HINWEIS
yVerwenden Sie eine Haltevorrichtung oder
einen Schrank, der stabil und groß genug ist, um das TV-Gerät sicher abzustützen.
yHalterungen, Seile und anderes
Befestigungsmaterial gehören nicht zum Lieferumfang des Gerätes. Bitte wenden Sie sich zum Erwerb von geeignetem Zubehör an Ihren Fachhändler.
Wandmontage
Befestigen Sie an der Rückseite des TV-Gerätes sorgfältig eine optionale Wandhalterung, und montieren Sie die Wandhalterung an einer stabilen Wand, die senkrecht zum Fußboden steht. Wenn Sie das TV-Gerät an anderen Baustoffen befestigen möchten, fragen Sie
zunächst bei einer qualizierten Fachkraft nach. LG empehlt, dass die Wandmontage von einem qualizierten Techniker durchgeführt wird.
1 Setzen Sie die Ringschrauben oder TV-
Halterungen und Schrauben an der Rückseite des TV-Gerätes ein, und befestigen Sie sie.
- Wenn an den Ringschraubenpositionen Schrauben eingesetzt sind, entfernen Sie zunächst die Schrauben.
2 Montieren Sie die Wandhalterungen mit den
Schrauben an der Wand. Stimmen Sie die Position der Wandhalterung auf die Ringschrauben an der Rückseite des TV-Gerätes ab.
3 Verbinden Sie die Ringschrauben und
Wandhalterungen fest mit einem stabilen Seil. Achten Sie darauf, dass das Seil horizontal verläuft.
10 cm
10 cm
10 cm
10 cm
Page 93
Verwenden Sie unbedingt Schrauben
A
B
und Wandhalterungen, die der VESA­Norm entsprechen. Die Standardmaße der Wandmontagesätze können der folgenden Tabelle entnommen werden.
Separat zu beziehen (Wandmontagehalterung)
Modell
VESA (A x B) 400 x 400 600 x 400
Standardschraube Anzahl Schrauben Wandmontage­halterung
Modell
VESA (A x B) 400 x 400 400 x 400
Standardschraube Anzahl Schrauben Wandmontage-
halterung
LSW430B
LSW430BX
42/47/55LA79** 42/47/55LA86** 47/55LA960* 55LA965*
M6 M8 4 4 MSW240
LSW430B
60LA86** 65LA965* 55LA97**
M6 M8 4 4 LSW430B LSW430BX
Wandmontagehalterung
LSW630B
65LA97** 84LA98** 84LM96**
LSW630B
70LA86**
MSW240
MONTAGE UND VORBEREITUNG
21
VORSICHT
yTrennen Sie erst das Netzkabel, bevor Sie das
TV-Gerät bewegen oder installieren. Ansonsten besteht Stromschlaggefahr.
yWenn Sie das TV-Gerät an einer Decke oder
Wandschräge montieren, kann es herunterfallen und zu schweren Verletzungen führen. Verwenden Sie eine zugelassene Wandhalterung von LG, und wenden Sie sich an Ihren Händler vor Ort oder an qualifiziertes Fachpersonal.
yZiehen Sie die Schrauben nicht zu fest an, da
dies Beschädigungen am TV-Gerät hervorrufen und zum Erlöschen Ihrer Garantie führen könnte.
yVerwenden Sie die Schrauben und
Wandhalterungen, die der VESA-Norm entsprechen. Schäden oder Verletzungen, die durch unsachgemäße Nutzung oder die Verwendung von ungeeignetem Zubehör verursacht werden, fallen nicht unter die Garantie.
HINWEIS
yVerwenden Sie die Schrauben, die unter den
Spezifikationen der VESA-Norm aufgeführt sind.
yDer Wandmontagesatz beinhaltet eine
Installationsanleitung und die notwendigen Teile.
yDie Wandhalterung ist optional.
Zusätzliches Zubehör erhalten Sie bei Ihrem Elektrohändler.
yDie Schraubenlänge hängt von der
Wandbefestigung ab. Verwenden Sie unbedingt Schrauben der richtigen Länge.
yWeitere Informationen können Sie dem
im Lieferumfang der Wandhalterung enthaltenen Handbuch entnehmen.
yWenn Sie die LG-Wandmontagehalterung
am Fernseher anbringen, verwenden Sie nicht die Distanzstücke und Schrauben, die der LG-Wandmontagehalterung beiliegen. (Nur LA97**)
DEUDEUTSCH
Distanzstücke für Wandhalterung
Page 94
MONTAGE UND VORBEREITUNG
22
Verwenden des Ausfahrbare Lautsprecher
(Nur LA97**)
DEUTSCH
DEU
1 Wenn der Fernseher eingeschaltet wird, wird
2 Um den Ausfahrbare Lautsprecher einzurichten,
3 Stellen Sie sicher, dass der Lautsprecher
Ausfahrbare Lautsprecher
der Ausfahrbare Lautsprecher.
wählen Sie MehrEinstellungenTONAusfahrbare Lautsprecher.
- Wenn Sie den Fernseher auf einem Tisch oder einer Fläche anbringen, vergewissern Sie sich, dass genügend Platz vorhanden ist, damit die Ausfahrbare Lautsprecher werden können. Andernfalls kann es zu Schäden am Fernseher oder zu Verletzungen kommen.
- Wenden Sie beim Einsatz der Ausfahrbare Lautsprecher keine Gewalt an, da dies zu Fehlfunktionen führen kann.
- Wenn der Ton fehlerhaft oder verzerrt ist, überprüfen Sie, ob der Ausfahrbare Lautsprecher ist.
eingefahren ist, wenn der Fernseher transportiert wird. Wenn der Lautsprecher beim Transport ausgefahren ist, kann er beschädigt werden und funktioniert dann möglicherweise nicht mehr richtig.
Verwendung der integrierten Kamera
(Abhängig vom Modell)
Sie können über Skype Videogespräche führen oder mithilfe der integrierten Kamera des Fern­sehgeräts die Bewegungserkennung nutzen. Dieses Fernsehgerät unterstützt nicht die Ver-
wendung einer externen Kamera.
HINWEIS
Vor der Verwendung der integrierten Kamera
y
müssen Sie sich bewusst sein, dass Sie nach den einschlägigen nationalen Gesetzen, einschließlich des Strafrechts, gesetzlich für die Nutzung oder den Missbrauch der Kamera verantwortlich sind. Die einschlägigen nationalen Gesetze
y
umfassen das Gesetz über den Schutz personenbezogener Daten, das die Verarbeitung und Weitergabe von persönlichen Daten regelt, und das Gesetz über die Regulierung der Kameraüberwachung am Arbeitsplatz und an anderen Orten. Verwenden Sie die integrierte Kamera auf
y
keinen Fall für bedenkliche, rechts- oder sittenwidrige Aufnahmen. Mit Ausnahme von öffentlichen Orten oder Veranstaltungen muss gegebenenfalls eine Einverständniserklärung für Fotoaufnahmen eingeholt werden. Wir raten Ihnen von Aufnahmen folgender Szenen ab: (1) Filmen Sie nicht an Orten, an denen dies generell verboten ist, z. B. Toiletten, Umkleiden, Umkleidekabinen und Sicherheitsbereiche. (2) Verletzen Sie nicht die Privatsphäre anderer Personen. (3) Verletzen Sie nicht die einschlägigen Vorschriften oder Gesetze.
- Um den Lautsprecher einzufahren, wählen Sie TONAusfahrbare Lautsprecher und “Beim Einschalten des TV-Geräts offen.” und drücken Sie die EIN/AUS­Taste.
Page 95
Vorbereitung der integrierten Kamera
Bewegen Sie den Schieberegler an der Rück-
1
seite des Fernsehgeräts nach oben, wenn Sie die Kamera verwenden möchten.
Schieberegler
MONTAGE UND VORBEREITUNG
Ziehen Sie den Schieberegler nach unten,
3
wenn Sie die integrierte Kamera nicht verwenden.
Bezeichnungen der Teile
23
DEUDEUTSCH
HINWEIS
Entfernen Sie die Schutzfolie bevor Sie die
y
integrierte Kamera verwenden.
Sie können den Kamerawinkel (innerhalb 5
2
Grad vertikal) mit dem Hebel zur Anpassung des Winkels an der Rückseite der integrierten Kamera einstellen.
Hebel zur Anpassung
des Winkels
der integrierten Kamera
Mikrofon
Anzeige
Kameraobjektiv
Überprüfung des Aufnahmebereichs der Kamera
1 Drücken Sie zur Anzeige des Menüs „Mehr“ die
Taste SMART auf der Fernbedienung.
2 Wählen Sie im Menü „Mehr“ die Einstellungen,
und drücken Sie die Radtaste (OK).
3 Gehen Sie zu OPTIONEN
Kameraeinstellung, und drücken Sie die Radtaste (OK).
Hilfe zur
HINWEIS
Der optimale Abstand zur Kamera beträgt bei
y
der Verwendung der Bewegungserkennung zwischen 1,5 und 4,5 m.
Page 96

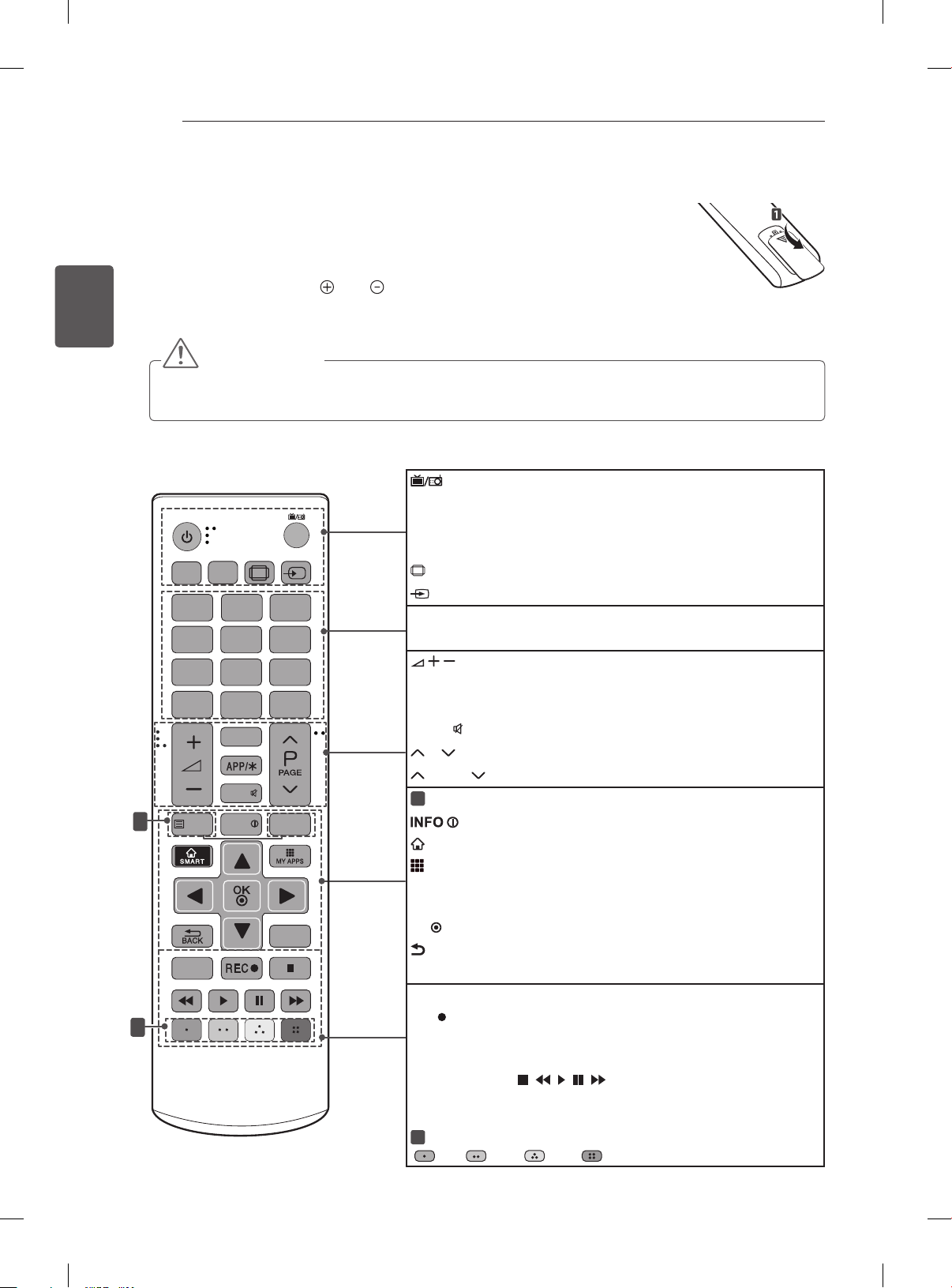

24
AD/PIP
FERNBEDIENUNG
Die Beschreibungen in diesem Handbuch beziehen sich auf die Tasten der Fernbedienung. Lesen Sie dieses Handbuch bitte aufmerksam durch, und verwenden Sie das TV-
DEUTSCH
DEU
Gerät bestimmungsgemäß. Um die Batterien zu wechseln, öffnen Sie das Batteriefach, wechseln Sie die Batterien (1,5 V, AAA), legen Sie die - und -Enden entsprechend der Kennzeichnung im Fach ein, und schließen Sie das Batteriefach. Gehen Sie zum Herausnehmen der Batterien in umgekehrter Reihenfolge vor.
Stellen Sie sicher, dass die Fernbedienung auf den Sensor am TV-Gerät gerichtet ist.
(Abhängig vom Modell)
1
2
FERNBEDIENUNG
VORSICHT
yVerwenden Sie niemals alte zusammen mit neuen Batterien, da dies Schäden
an der Fernbedienung hervorrufen kann.
TV/RAD Wählt Radio-, TV- und DTV-Programme. SUBTITLE Ruft den bevorzugten Untertitel im digitalen Modus auf. Q. MENU Öffnet die Schnellmenüs. GUIDE Öffnet den Programmführer.
RATIO Ändert die Bildgröße.
INPUT Ändert die Eingangsquelle. LIST Zum Zugriff auf die Liste der gespeicherten Programme. Q.VIEW Kehrt zurück zum vorherigen Programm.
Regelt die Lautstärke.
FAV Zugriff auf die Liste der Lieblingskanäle. APP/
Wählen Sie die Menüquelle für MHP TV. (Nur Italien) (abhängig vom Modell)
*
MUTE Stellt den Ton aus.
P
Navigiert durch die gespeicherten Programme oder Kanäle.
PAGE
1
TELETEXT-Tasten Diese Tasten werden für Teletext verwendet.
Wechselt zum vorherigen oder nächsten Bildschirm.
Anzeige von Informationen zum aktuellen Programm und Bildschirm.
SMART Öffnet die Smart-Startmenüs. MY APPS Zeigt die Liste der Apps an.
Navigationstasten (nach oben/nach unten/nach links/nach rechts) Navigiert
durch Menüs und Einstellungen.
OK Wählt Menüs oder Einstellungen und speichert Ihre Eingabe.
BACK Zurück zur vorherigen Ebene. EXIT Ausblenden der Bildschirmmenüs und Zurückkehren zum TV-Bild. SETTINGS Öffnen der Hauptmenüs. REC
Beginnen Sie mit dem Aufnehmen, und lassen Sie das Aufnah-
memenü anzeigen.
LIVE TV Rückkehr zum LIVE-TV. Steuerungstasten (
Machine
- oder Smart Share-Menüs oder der SIMPLINK-kompatiblen Geräte
(USB oder SIMPLINK oder
2
Farbtasten Öffnen Sonderfunktionen in manchen Menüs.
Time Machine).
) Steuerung von Premium-Inhalten,
( : Rot, : Grün, : Gelb, : Blau)
GUIDE
RATIO
2 3
SUBTITLE
Q.MENU
1 4 5 6
7 8 9
LIST
TEXT
SETTINGS
0
FAV
MUTE
INFO
TV / RAD
INPUT
Q.VIEW
T.OPT
EXIT
LIVE TV
Time
Page 97
TASTENFUNKTIONEN DER MAGIC-FERNBEDIENUNG
TASTENFUNKTIONEN DER MAGIC­FERNBEDIENUNG
Wenn die Meldung „Die Batterie der Magic-Fernbedienung ist schwach. Bitte Batterie wechseln.“ angezeigt wird, wechseln Sie die Batterie. Um die Batterien zu wechseln, öffnen Sie das Batteriefach, wechseln Sie die Batterien (1,5 V, AA), legen Sie die - und -Enden entsprechend der Kennzeichnung im Fach ein, und schließen Sie das Batteriefach. Richten Sie die Fernbedienung auf den Fernbedienungssensor am TV-Gerät aus. Gehen Sie zum Herausnehmen der Batterien in umgekehrter Reihenfolge vor.
VORSICHT
yVerwenden Sie niemals alte zusammen mit neuen Batterien, da dies Schäden an der Fernbedienung hervorrufen kann.
(Nur LA79**, LA86**, LA960*, LA98**, LM96**)
oder
25
DEUDEUTSCH
Ein- oder Ausschalten des TV-
(EIN/AUS)
Gerätes
BACK
Zurück zur vorherigen Ebene.
Rad(OK)
Wählt Menüs oder
Einstellungen und speichert
Ihre Eingabe.
Navigiert durch die
gespeicherten Programme
Wenn Sie die Navigationstaste
drücken, während Sie den
Zeiger über den Bildschirm
bewegen, verschwindet
der Zeiger, und die Magic-
Fernbedienung funktioniert wie
eine normale Fernbedienung.
Wenn Sie den Zeiger wieder
einblenden möchten, schütteln
Sie die Magic-Fernbedienung
hin und her.
+ -
Regelt die Lautstärke.
3D
Ansicht von 3D-Video.
Zeiger(HF-Sender)
SMART
Öffnet die Smart-Startmenüs.
Spracherkennung
(Abhängig vom Modell)
Beleuchtung ein/aus
Schaltet das Licht ein und aus. Bei „ON“ (EIN) wird das Licht nach 5 Sekunden automatisch ausgeschaltet.
Navigationstasten (nach oben/nach unten/nach links/ nach rechts)
Navigiert durch Menüs und Einstellungen.
P
Navigiert durch die ges­peicherten Programme oder Kanäle
/Q.MENU
Öffnet die Schnellmenüs. Öffnet die Universalsteuerung. (Diese Funktion ist in einigen Ländern nicht verfügbar.)
(STUMM)
Stellt den Ton aus.
Spracherkennung (Abhängig vom Modell) Um die Spracherkennungs-Funktion zu nutzen, ist eine Netzwerkverbindung erforderlich. Die Erkennungsrate kann je nach den Merkmalen des Benutzers (Stimme, Aussprache, Betonung, Sprechgeschwindigkeit) und der Umgebung (Geräusche und Lautstärke des Fernsehers) variieren.
1. Drücken Sie die Taste „Spracherkennung“.
2. Beginnen Sie zu sprechen, wenn das Fenster zur Spracherkennung auf der linken Seite des Fernsehbildschirms erscheint.
Wenn Sie zu schnell oder zu langsam sprechen, kann die Spracherkennung fehlschlagen.
• Halten Sie die Magic-Fernbedienung maximal 10 cm von Ihrem Gesicht entfernt.
Page 98
TASTENFUNKTIONEN DER MAGIC-FERNBEDIENUNG
26
(Nur LA965*, LA97**)
DEUTSCH
DEU
Wenn Sie die Navigationstaste
Fernbedienung funktioniert wie
einblenden möchten, schütteln
Ein- oder Ausschalten des TV-
(EIN/AUS)
Gerätes
BACK
Zurück zur vorherigen Ebene.
Rad(OK)
Wählt Menüs oder
Einstellungen und speichert
Ihre Eingabe.
Navigiert durch die
gespeicherten Programme
drücken, während Sie den
Zeiger über den Bildschirm
bewegen, verschwindet
der Zeiger, und die Magic-
eine normale Fernbedienung.
Wenn Sie den Zeiger wieder
Sie die Magic-Fernbedienung
hin und her.
Ansicht von 3D-Video.
BACK SMART
/Q.MENU
P
Zeiger(HF-Sender)
Navigationstasten (nach oben/ nach unten/nach links/nach rechts)
Navigiert durch Menüs und Ein­stellungen.
SMART
Öffnet die Smart-Startmenüs.
Spracherkennung
(Abhängig vom Modell)
/Q.MENU
Öffnet die Schnellmenüs. Öffnet die Universalsteuerung. (Diese Funktion ist in einigen Ländern nicht verfügbar.)
+ -
Regelt die Lautstärke.
P
Navigiert durch die ges­peicherten Programme oder Kanäle
(STUMM)
Stellt den Ton aus.
Spracherkennung (Abhängig vom Modell) Um die Spracherkennungs-Funktion zu nutzen, ist eine Netzwerkverbindung erforderlich. Die Erkennungsrate kann je nach den Merkmalen des Benutzers (Stimme, Aussprache, Betonung, Sprechgeschwindigkeit) und der Umgebung (Geräusche und Lautstärke des Fernsehers) variieren.
1. Drücken Sie die Taste „Spracherkennung“.
2. Beginnen Sie zu sprechen, wenn das Fenster zur Spracherkennung auf der linken Seite des Fernsehbildschirms erscheint.
Wenn Sie zu schnell oder zu langsam sprechen, kann die Spracherkennung fehlschlagen.
• Halten Sie die Magic-Fernbedienung maximal 10 cm von Ihrem Gesicht entfernt.
Page 99
TASTENFUNKTIONEN DER MAGIC-FERNBEDIENUNG
HOME
Registrieren der Magic­Fernbedienung
Damit die Magic-Fernbedienung funktioniert, muss sie zuvor mit Ihrem TV-Gerät gekoppelt werden.
So wird die Magic-Fernbedienung registriert
1 Um die Registrierung
automatisch durchzuführen, schalten Sie das TV-Gerät ein, und drücken Sie 20 Sekunden lang auf die Taste Rad (OK). Nach Abschluss der Registrierung wird eine entsprechende Meldung auf dem Bildschirm angezeigt.
2 Wenn die Registrierung
nicht erfolgreich verläuft, schalten Sie das TV-Gerät aus und wieder ein. Drücken Sie dann 20 Sekunden lang die Taste Rad (OK), um die Registrierung abzuschließen.
So wird die Magic-Fernbedienung erneut registriert
1 Drücken und halten Sie 5
BACK
SMART
Sekunden lang die Tasten BACK und SMART , um die Registrierung zurückzusetzen. Führen Sie die Registrierung dann durch, indem Sie den vorangegangenen Anweisungen unter ``So wird die Magic-Fernbedienung registriert´´ folgen.
2 Um die Magic-Fernbedienung
erneut zu registrieren, drücken und halten Sie 5 Sekunden lang die Taste BACK bei auf das TV gerichteter Fernbedienung. Wenn der Rückstellvorgang abgeschlossen ist, erscheint eine Information auf dem Bildschirm.
So wird die Magic­Fernbedienung verwendet
1 Wenn der Zeiger nicht zu
sehen ist, bewegen Sie die Fernbedienung etwas nach links oder rechts. Daraufhin wird der Zeiger automatisch wieder auf dem Bildschirm angezeigt.
»
Wurde der Zeiger über einen längeren Zeitraum nicht ver­wendet, wird er ausgeblendet.
2 Sie können den Zeiger bewegen,
indem Sie den Zeigersender an der Fernbedienung auf Ihr TV-Gerät richten und dann die Fernbedienung nach links, rechts, oben oder unten bewegen.
»
Wenn der Zeiger nicht ord­nungsgemäß funktioniert, war­ten Sie 10 Sekunden, bevor Sie die Fernbedienung erneut verwenden.
Mehr
Wenn Sie auf der Magic-Fernbedienung auf Rad (OK) drücken, wird der folgende Bild­schirm angezeigt.
1
Zeigt Informationen zum aktuellen Programm und Bildschirm an.
Sie können das Menü Mehr wählen.
2
Vorsichtsmaßnahmen bei der Verwendung der Magic­Fernbedienung
Verwenden Sie die Fernbedienung innerhalb
y
der maximalen Kommunikationsreichweite
(10 m). Wird die Fernbedienung außerhalb dieser Entfernung verwendet oder befindet sich ein Hindernis vor der Fernbedienung, kann es zu einem Kommunikationsfehler kommen. Auch andere Geräte in der Nähe können
y
Kommunikationsfehler verursachen. Elek­trogeräte, wie beispielsweise ein Mikrowel­lenherd oder ein kabelloses LAN-Produkt, können zu Störungen führen, weil sie im gleichen Frequenzbereich (2,4 GHz) arbeiten wie die Magic-Fernbedienung. Die Magic-Fernbedienung kann beschädigt
y
werden oder nicht mehr ordnungsgemäß funktionieren, wenn sie herunterfällt oder einen starken Stoß erhält. Achten Sie beim Gebrauch der Magic-Fern-
y
bedienung darauf, nicht gegen in der Nähe stehende Möbel oder Personen zu stoßen. Hersteller und Installateur können keinen
y
Service bezüglich der Sicherheit von Per­sonen bieten. Das Drahtlosgerät verursacht eventuell Interferenzen aufgrund von elektro­magnetischen Wellen. Ein W-LAN Router (Sender) sollte sich min-
y
destens 1 m vom TV-Gerät entfernt befin­den. Wenn er näher als 1 m vom TV-Gerät entfernt ist, funktioniert die Magic-Fernbe­dienung aufgrund von Frequenzstörungen möglicherweise nicht einwandfrei.
27
DEUDEUTSCH
Page 100
28
DAS BENUTZERHANDBUCH VERWENDEN
Im Benutzerhandbuch erhalten Sie auf einfache Weise detaillierte Informationen zum TV-Gerät.
DEUTSCH
DEU
1 Drücken Sie die Taste SMART , um auf das
2 Wählen Sie Benutzerhandbuch, und drücken
DAS BENUTZERHANDBUCH VERWENDEN
Smart-Startmenü zuzugreifen.
Sie Rad (OK).
Benutzerhandbuch
Benutzerhandbuch
OPTION > Festlegen der Sprache
SMART
Einstellungen OPTION Sprache
Wählt die am Bildschirm angezeigte Menü Sprache (Language) und Audiosprache.
Menü Sprache (Language)
Wählt eine Sprache für die Anzeige von Text aus.
[Nur im digitalen Modus] Wenn digital übertragene Sendungen mehrere Audiosprachen enthalten,
Audiosprache
können Sie die gewünschte Sprache wählen.
[Nur im digitalen Modus] Verwenden Sie die Funktion «Untertitel», wenn zwei oder mehr Untertitel-
Untertitel-
sprachen gesendet werden.
sprache
Wenn in einer ausgewählten Sprache keine Untertiteldaten ausgestrahlt
werden, wird die Standard-Untertitelsprache angezeigt.
Zeigt die Beschreibung des ausgewählten
1
1
Index
Menüs an. Navigieren Sie mit ꕌ/ꕍ zwischen den Sei­ten.
Wechselt vom Benutzerhandbuch direkt zum
2
ausgewählten Menü.
Los
Schließen
Online-Benutzerhandbuch
2
Benutzerhandb
1
Einstellung SENDER
Einstellung BILD, TON
OPTION
LG SMART-Funktion
Erweiterte Funktion
Informationen
Zeigt das aktuelle Programm oder den Ein-
1
3
Verwendung eines Eingabegeräts
Festlegen von Zeitoptionen
Optionen für TV-Sperre auswählen
Festlegen der Sprache
So stellen Sie das Land ein
Hilfe für Benutzer mit Behinderungen
2
Einrichten der Magic-Fernbedienung
Index
Online-Benutzerhandbuch
4 5
gangsquellenbildschirm an. Hier können Sie Ihre gewünschte Kategorie
2
auswählen. Hier können Sie das gewünschte Element
3
auswählen. Navigieren Sie mit ꕌ/ꕍ zwischen den Seiten.
Ermöglicht das Blättern durch die Beschreibung
4
Ihrer gewünschten Funktion aus dem Index.
Offeriert detaillierte Informationen über die Funk-
5
tionen des LG Smart TVs bei angeschlossenem Internet. (Verfügbarkeit ist abhängig vom Land bzw. der Sprache.)
Loading...
