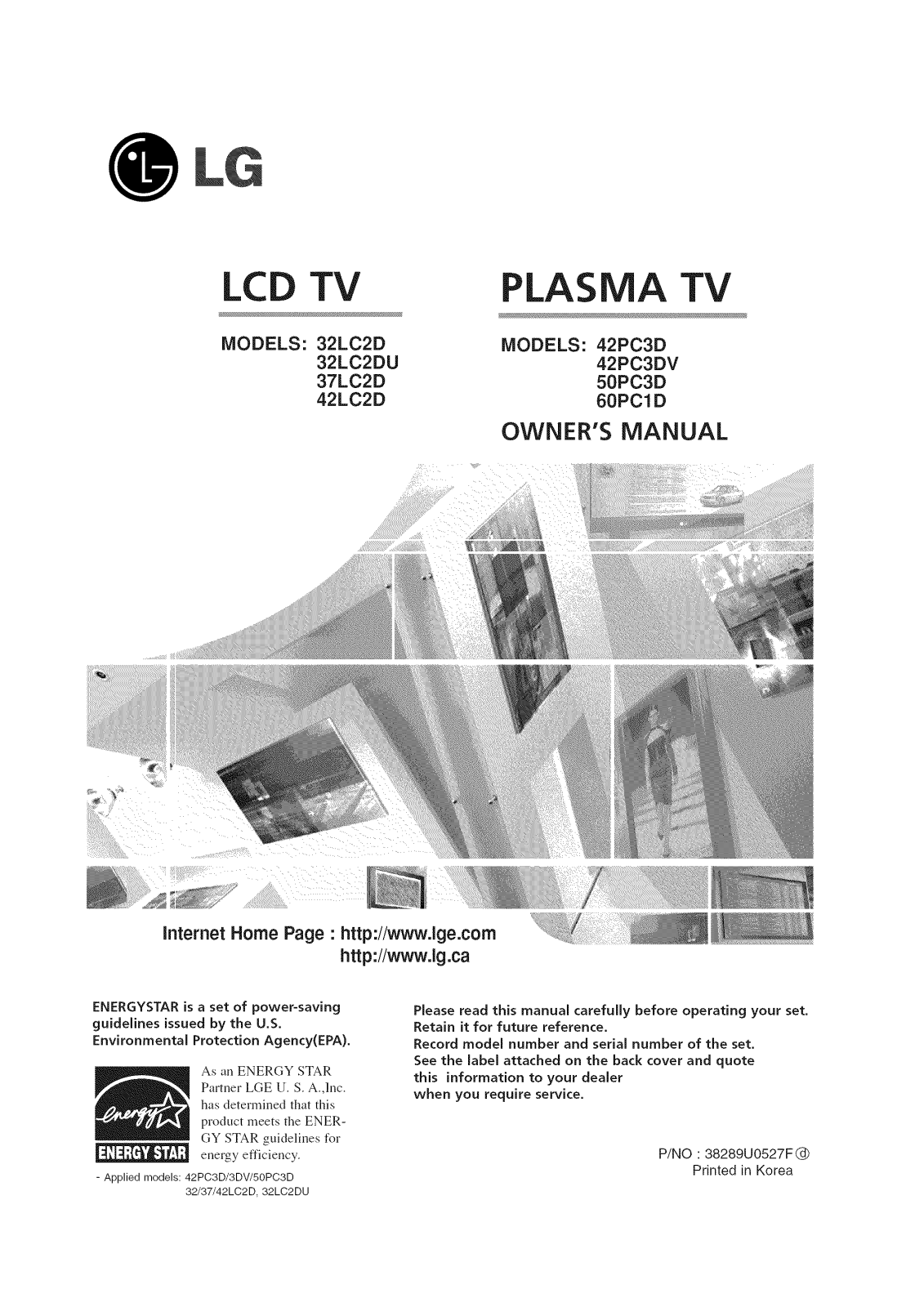

LG Electronics 60PCLD User Manual

LCD TV

LAS TV

MODELS: 32LC2D

32LC2DU 37LC2D

42LC2D

MODELS: 42PC3D

42PC3DV 50PC3D 60PCl D

OWNER'S MANUAL

Internet Home Page : http://www.lge.com

ENERGYSTAR is a set of power-saving

guidelines issued by the U.S.

Environmental Protection Agency(EPA).

Parmer LGE U. S. A.,lnc. has determined that this As an ENERGY STAR

product meets the ENER- GY STAR guidelines for

energy efficiency.

- Applied models: 42PC3D/3DV/50PC3D 32/37/42LC2D, 32LC2DU

http://wwwJg.ca

Please read this manual carefully before operating your set.

Retain it for future reference. Record modem number and serial number of the set.

See the label attached on the back cover and quote this information to your dealer

when you require service.

P/NO : 38289U0527F@

Printed in Korea

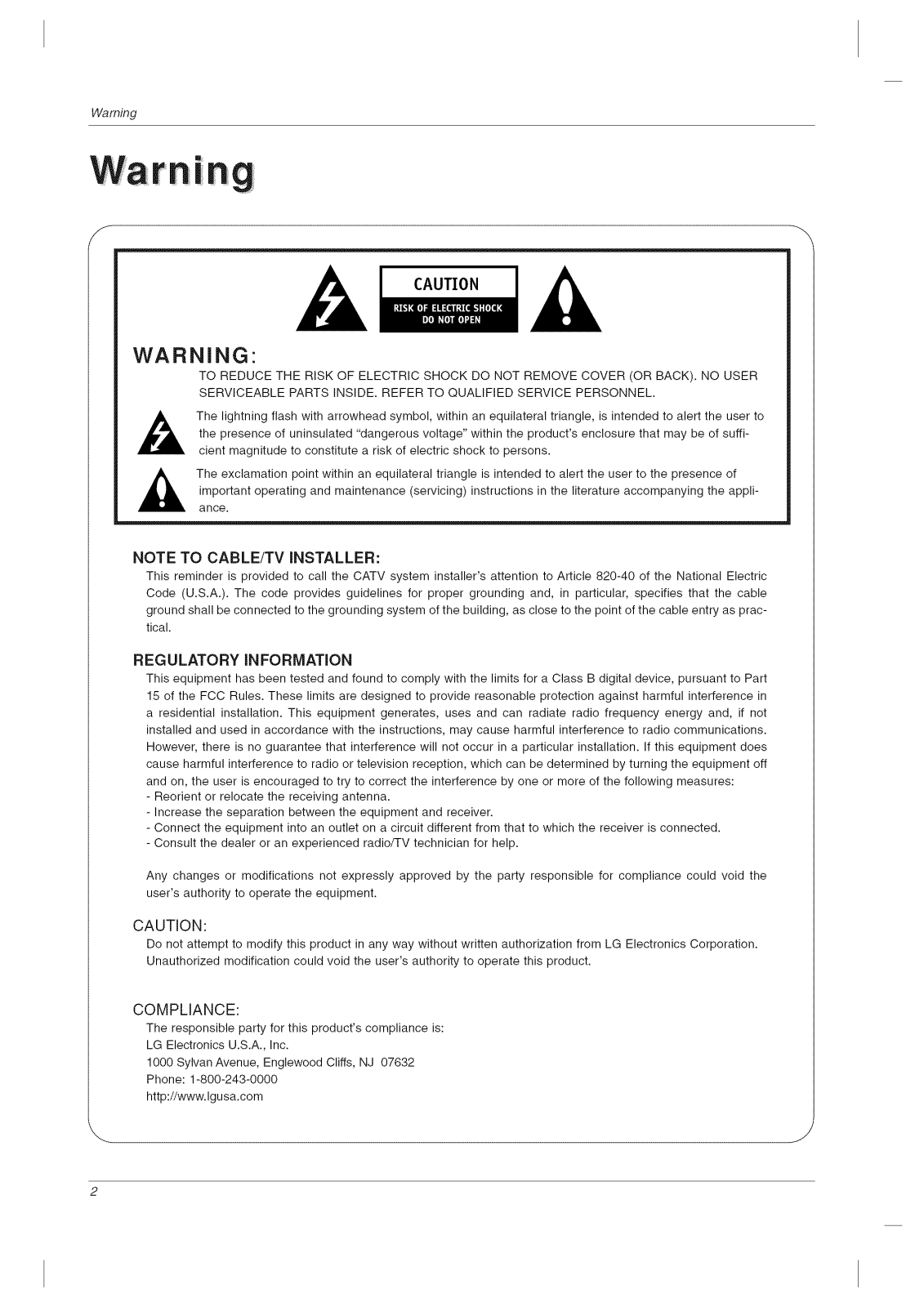

Warning

WARNING:

r n !n

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

,i_ The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to

,_ The exclamation point within an equilateral triangle is intended to alert the user to the presence of

the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of suffi- cient magnitude to constitute a risk of electric shock to persons.

important operating and maintenance (servicing) instructions in the literature accompanying the appli- ance.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as prac-

tical.

REGULATORY INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

CAUTION:

Do not attempt to modify this product in any way without written authorization from LG Electronics Corporation. Unauthorized modification could void the user's authority to operate this product.

COMPLIANCE:

The responsible party for this product's compliance is: LG Electronics U.S.A., Inc.

1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 Phone: 1-800-243-0000

http://www.lgusa.com

SafetyInstructions

! S|ructio S

WARNING •

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

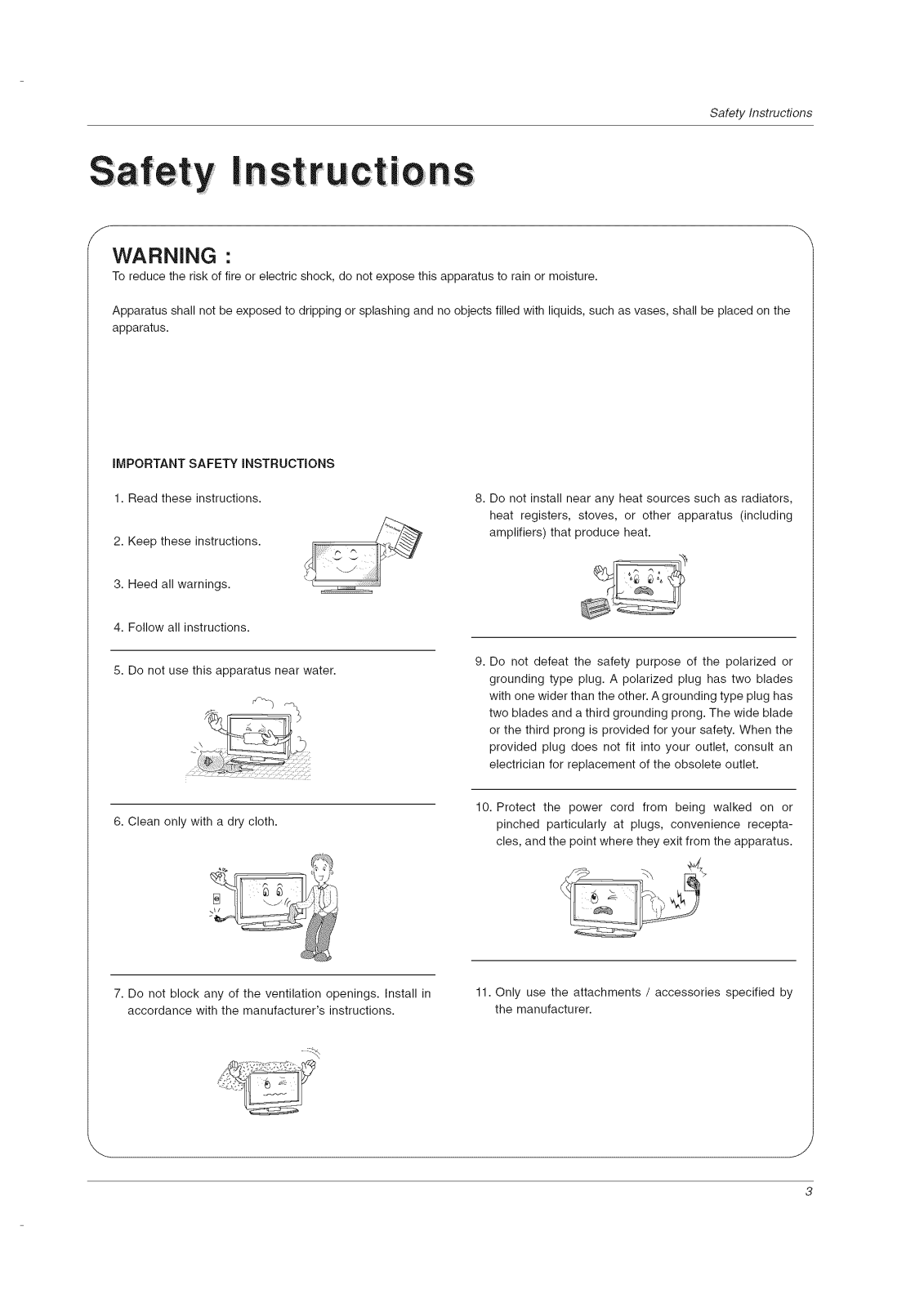

iMPORTANT SAFETY iNSTRUCTiONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience recepta-

cles, and the point where they exit from the apparatus.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.

11. Only use the attachments / accessories specified by the manufacturer.

\ J

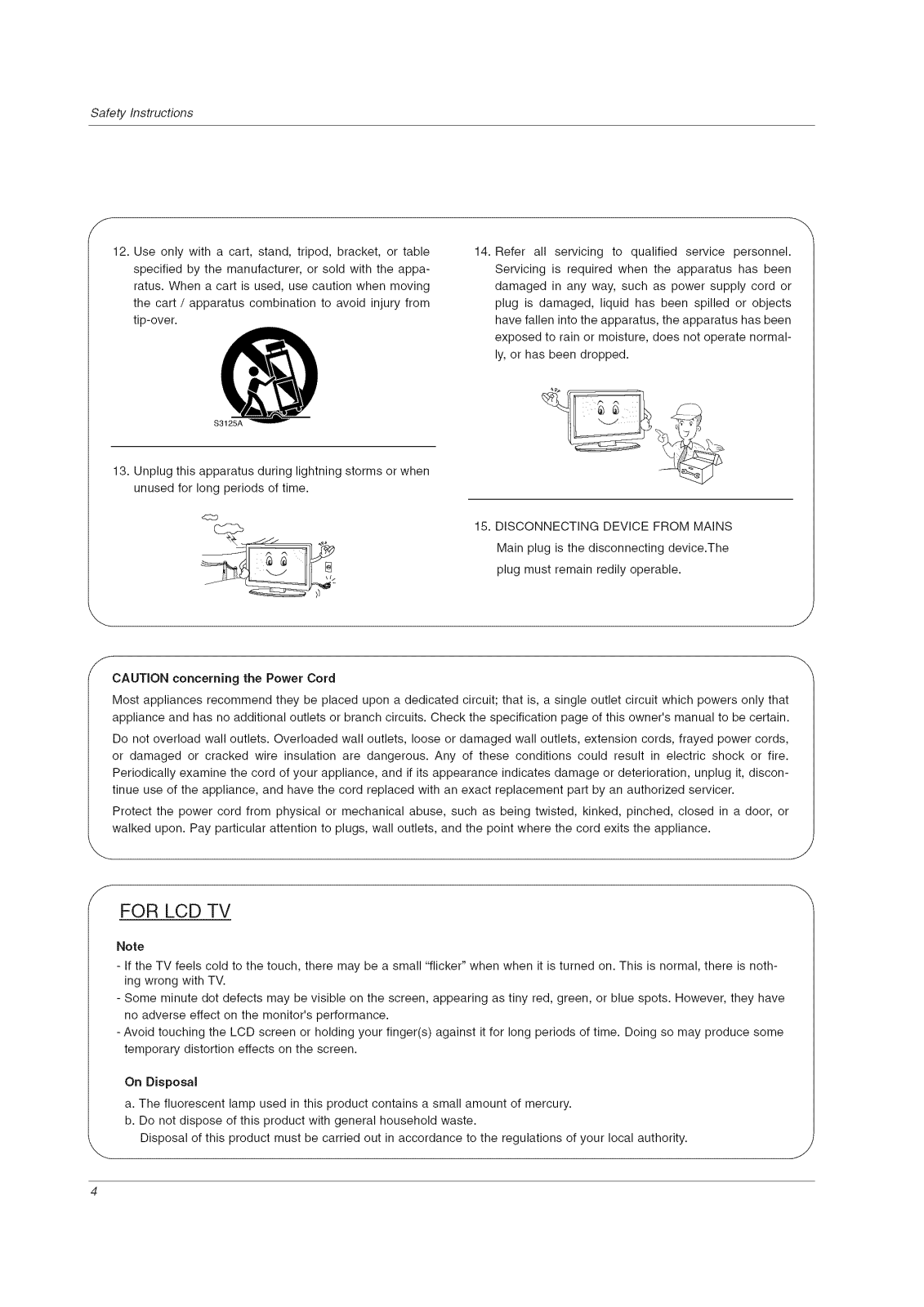

SafetyInstructions

12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the appa- ratus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

$3125A

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normal- ly, or has been dropped.

q:_Cs

15. DISCONNECTING DEVICE FROM MAINS

Main plug is the disconnecting device.The plug must remain redily operable.

CAUTION concerning the Power Cord Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that

appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords,

or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discon- tinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

FOR LCD TV

Note

- If the TV feels cold to the touch, there may be a small "flicker" when when it is turned on. This is normal, there is noth- ing wrong with TV.

- Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor's performance.

- Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

On Disposal a. The fluorescent lamp used in this product contains a small amount of mercury.

b. Do not dispose of this product with general household waste.

Disposal of this product must be carried out in accordance to the regulations of your local authority.

C 0 Bt e n | s

i!!!liii/ll/ll!i lilliii!

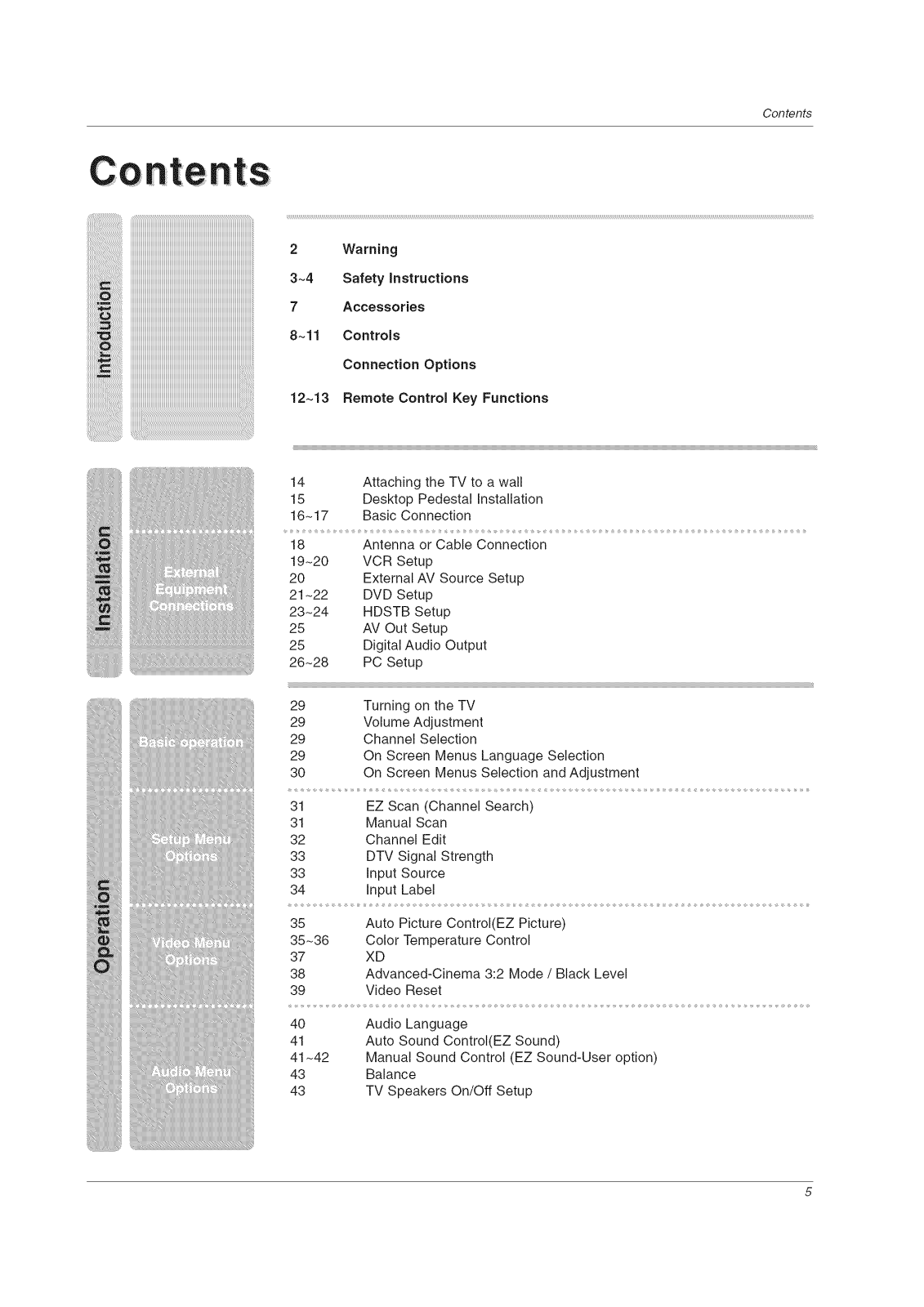

Contents

2 Warning 3~4 Safety instructions

7 Accessories

8~11 Controls

Connection Options

12~13 Remote Control Key Functions

14 Attaching the TV to a wall 15 Desktop Pedestal Installation

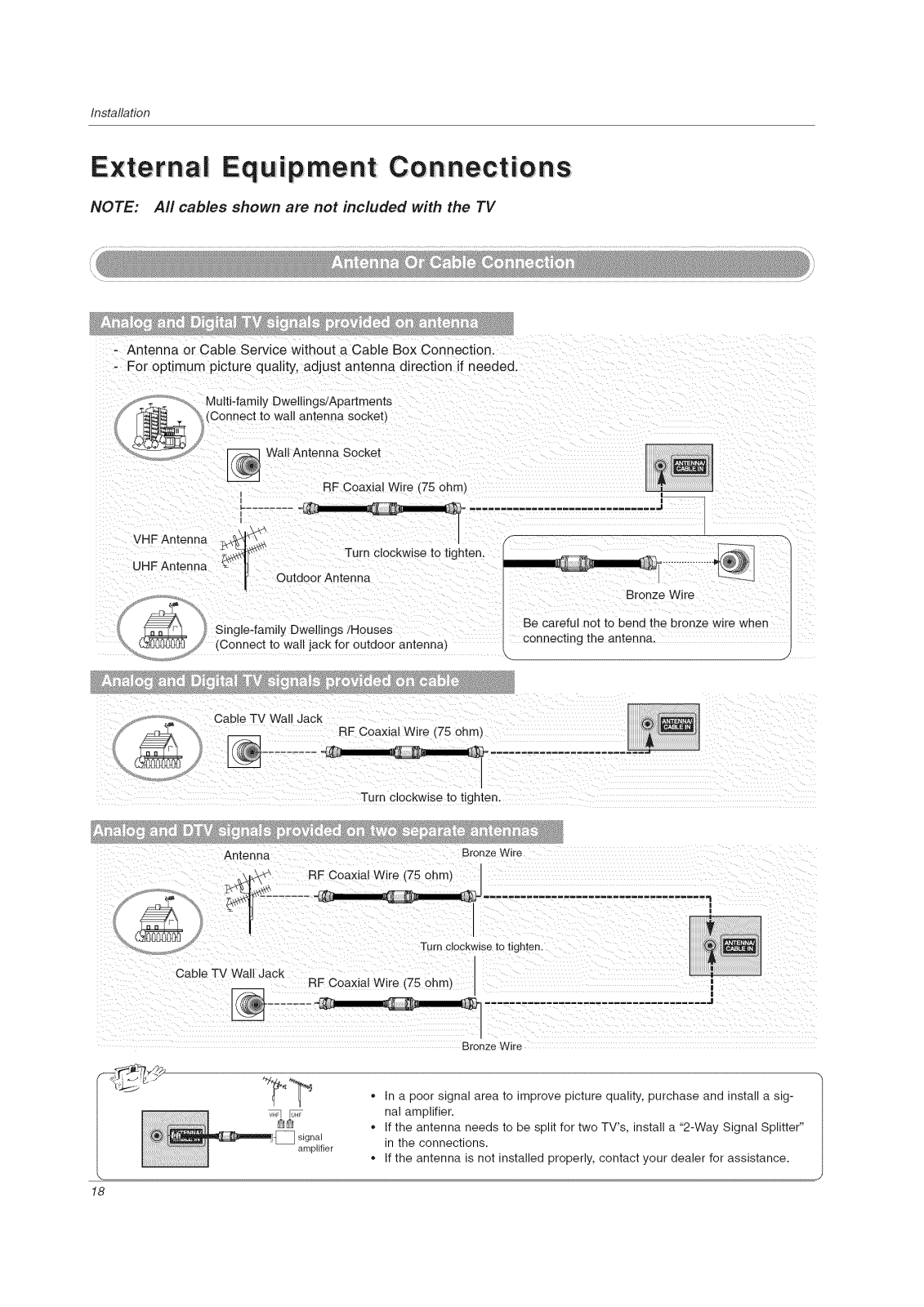

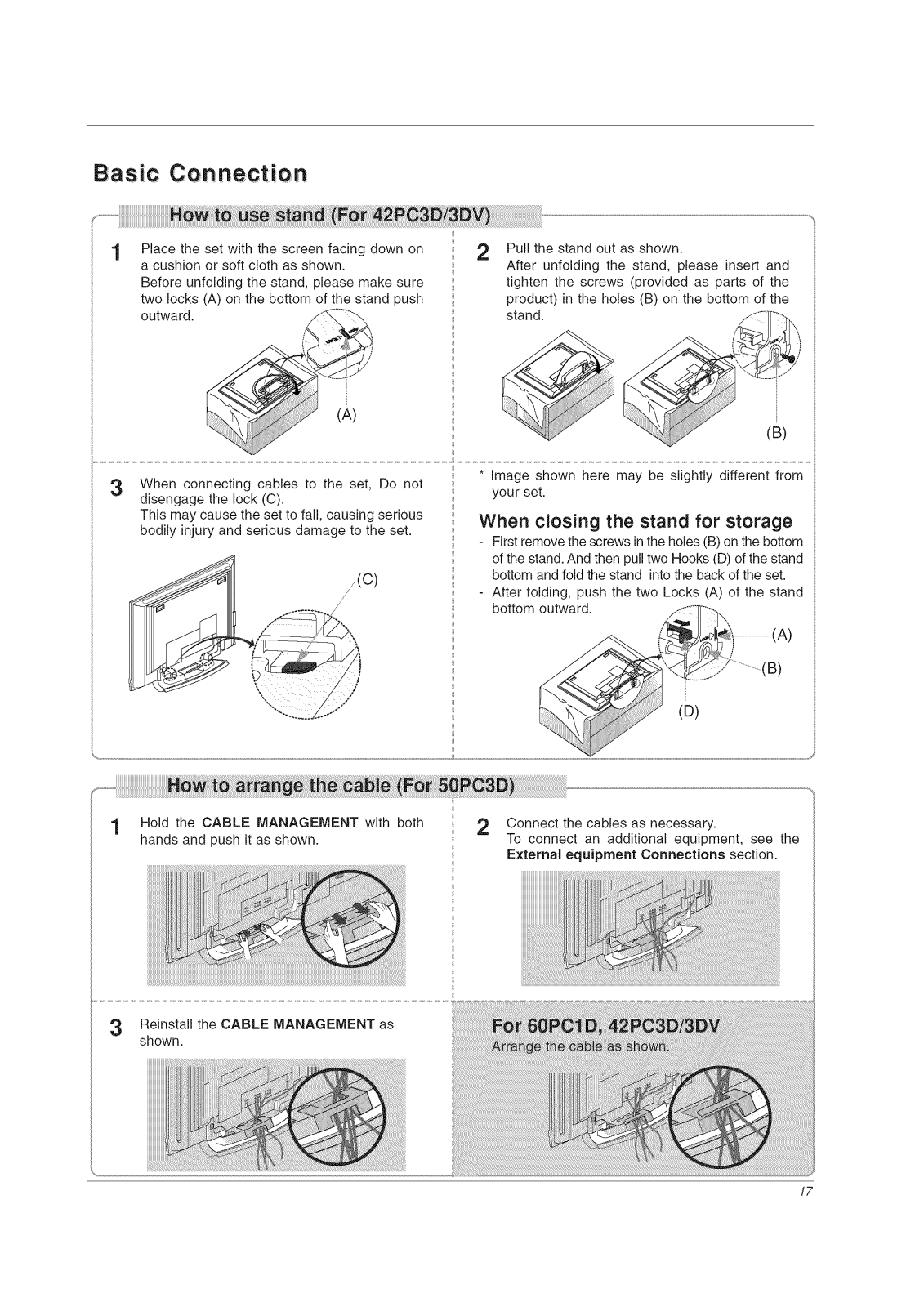

16-17 Basic Connection 18 Antenna or Cable Connection

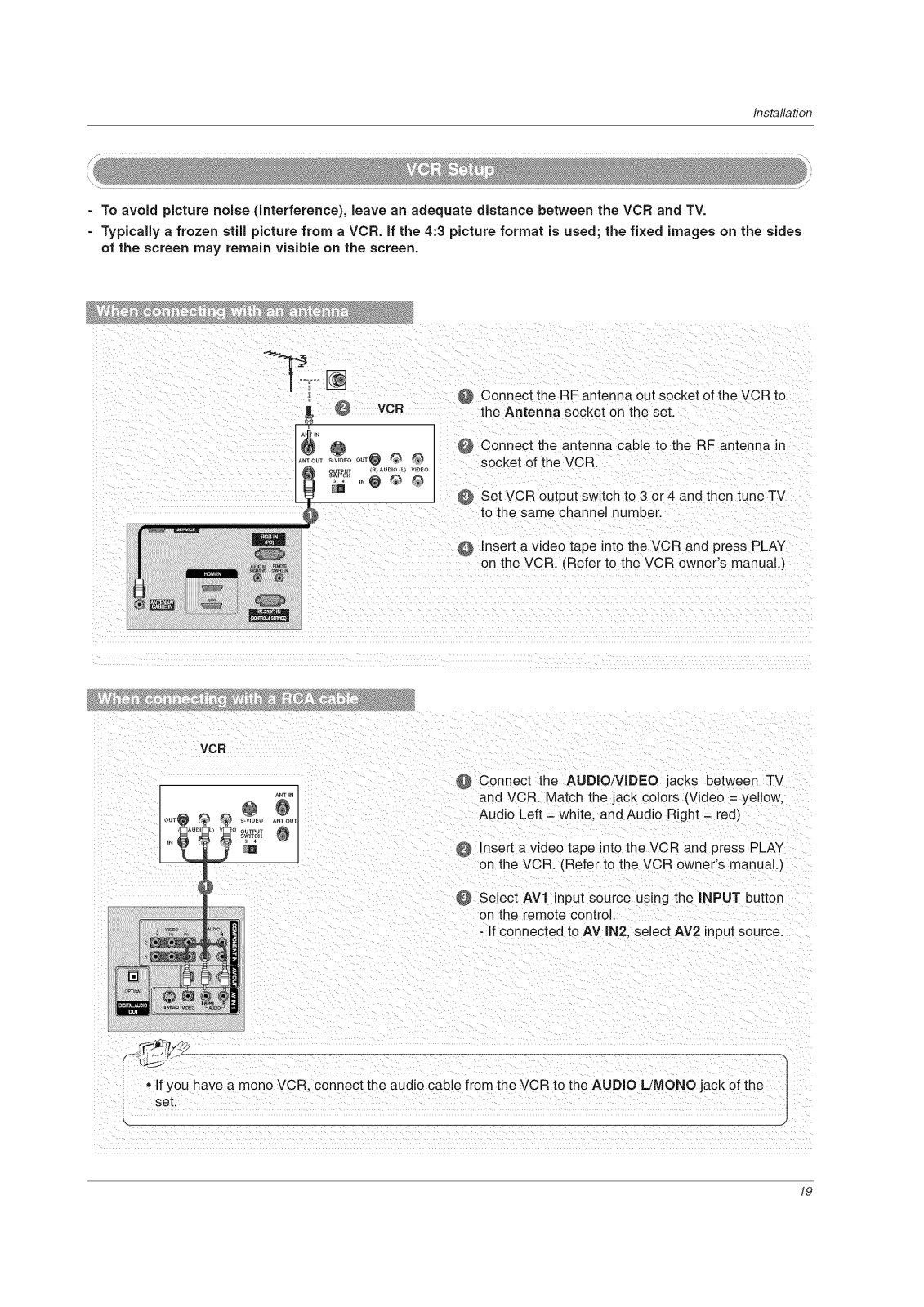

19-20 VCR Setup

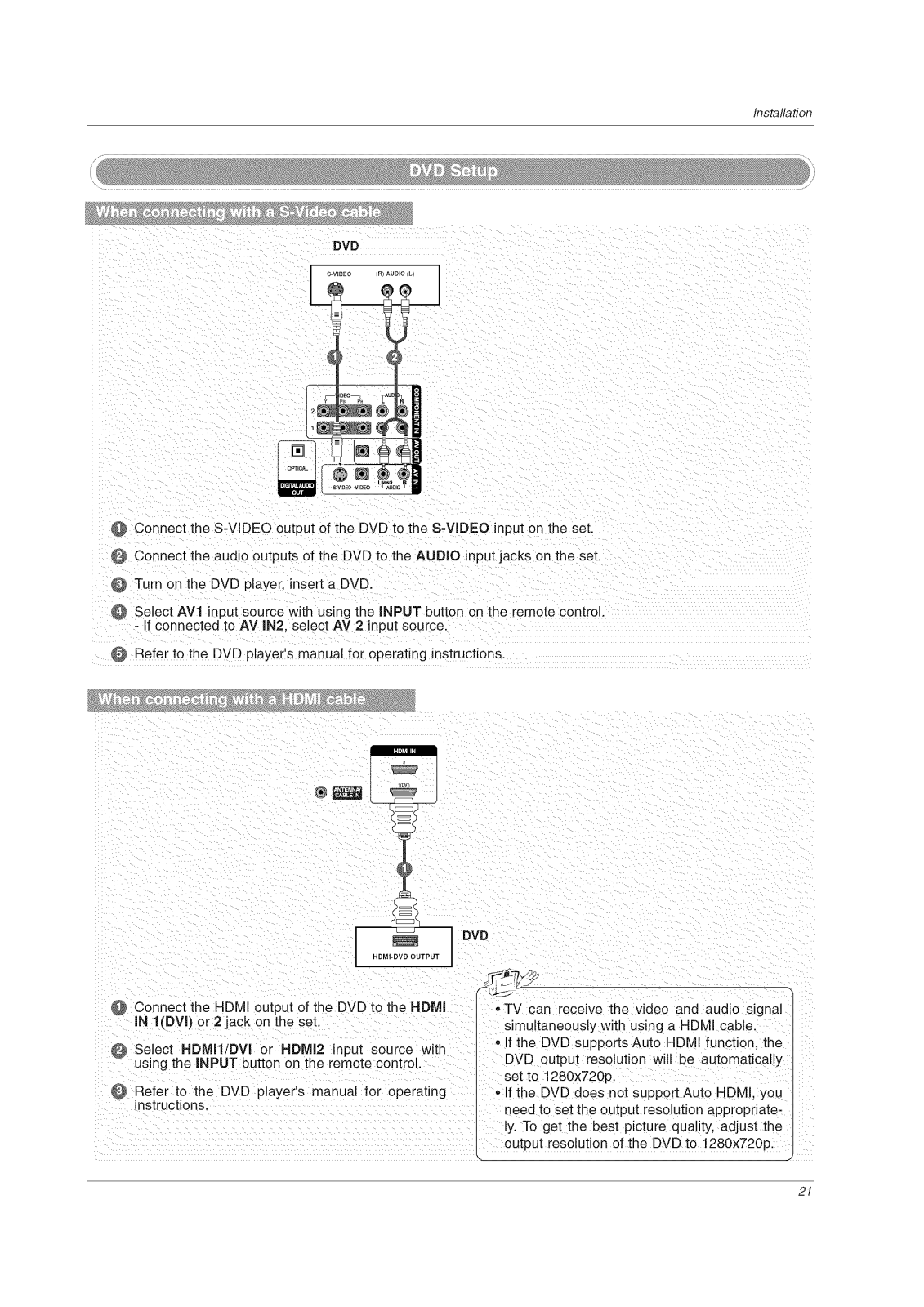

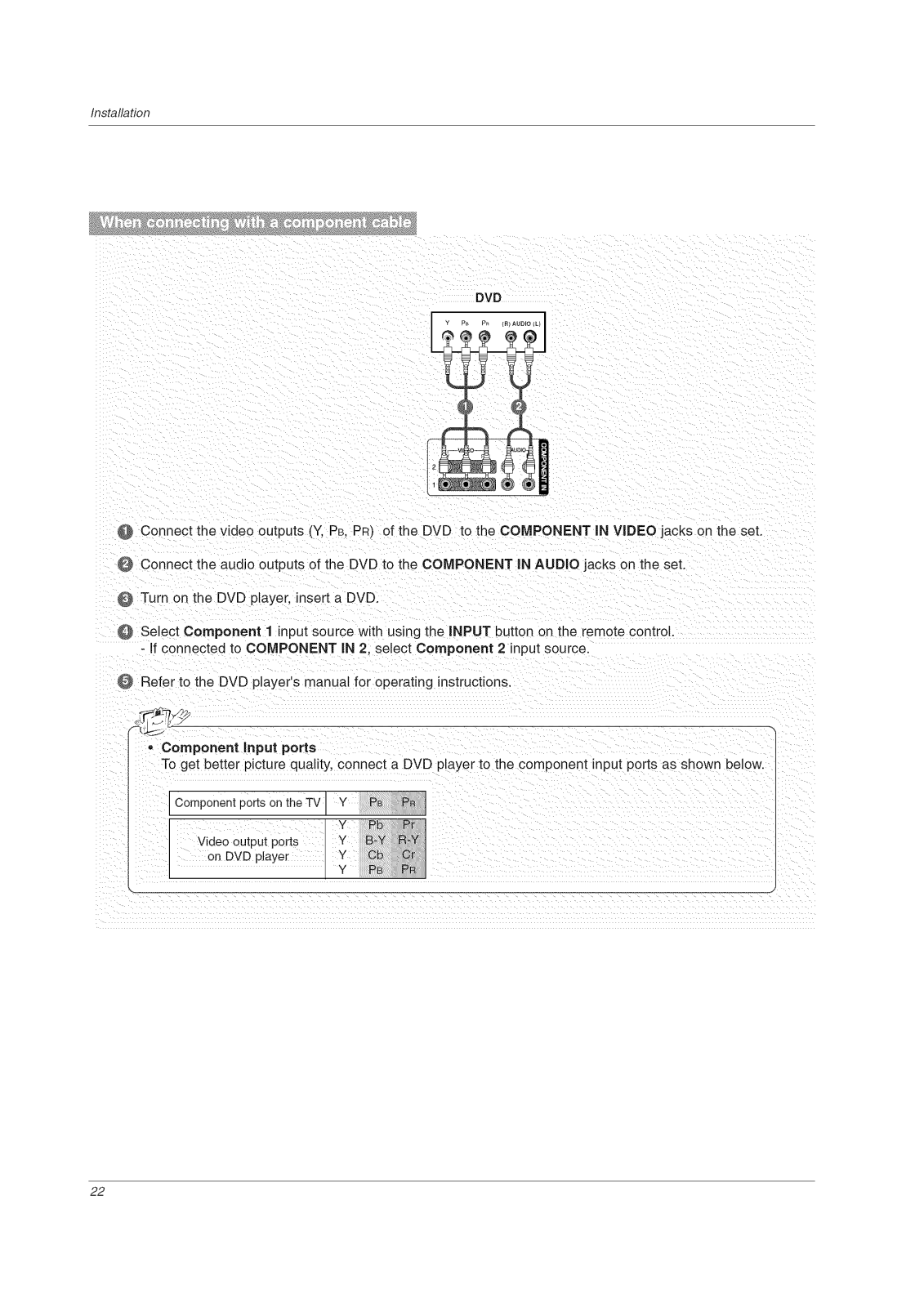

20 External AV Source Setup 21-22 DVD Setup

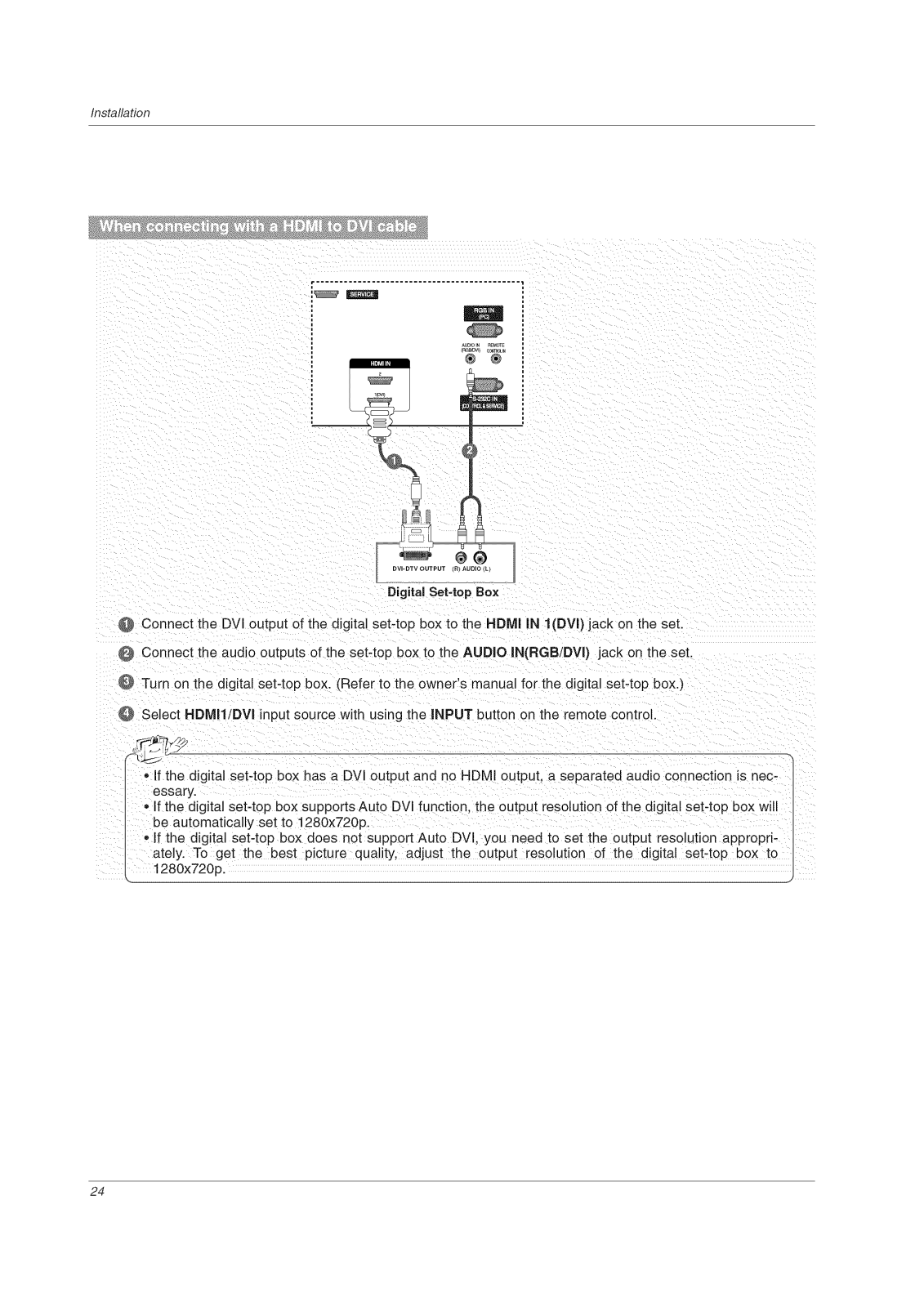

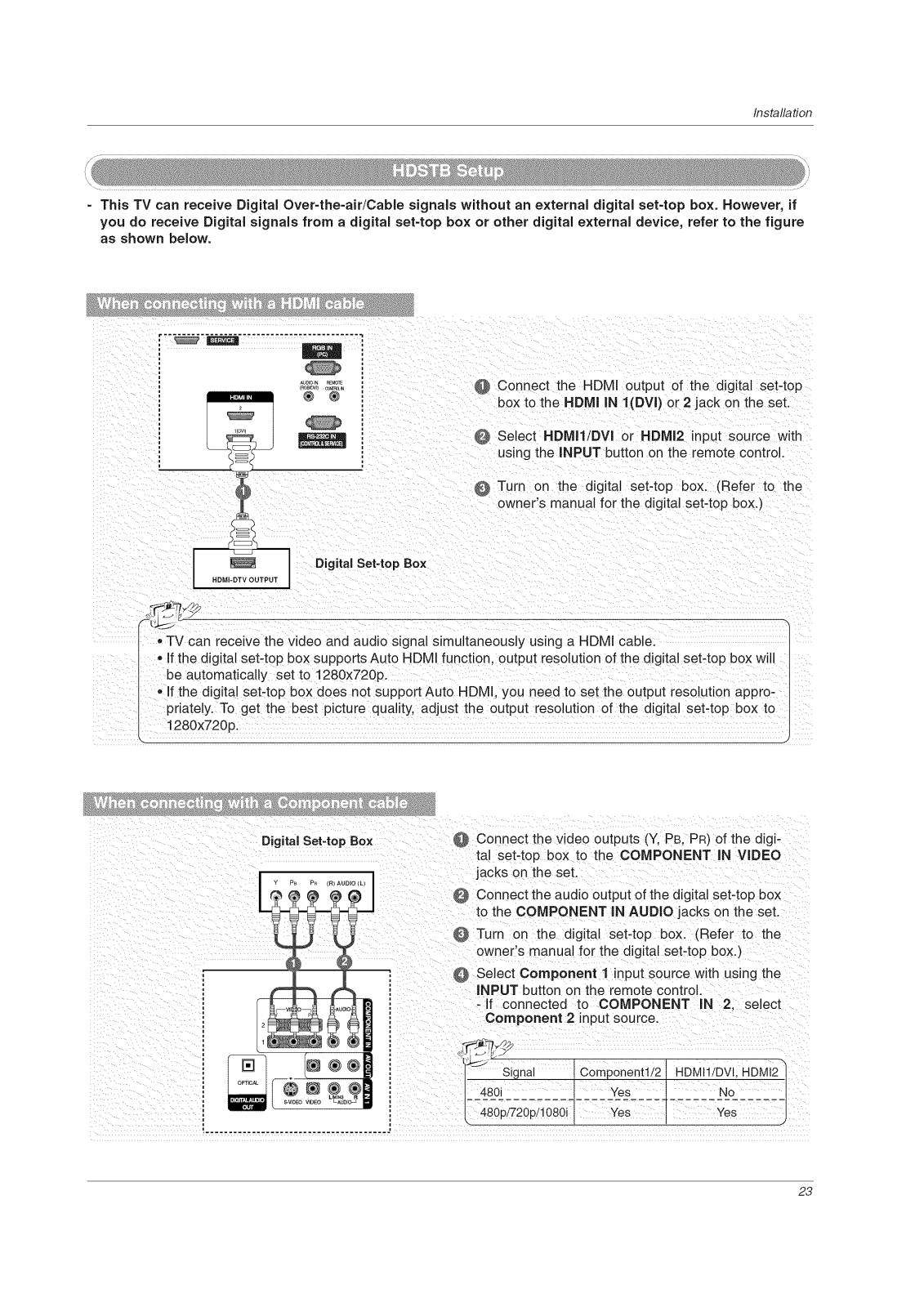

23-24 HDSTB Setup 25 AV Out Setup 25 Digital Audio Output 26-28 PC Setup

29 Turning on the TV 29 Volume Adjustment 29 Channel Selection

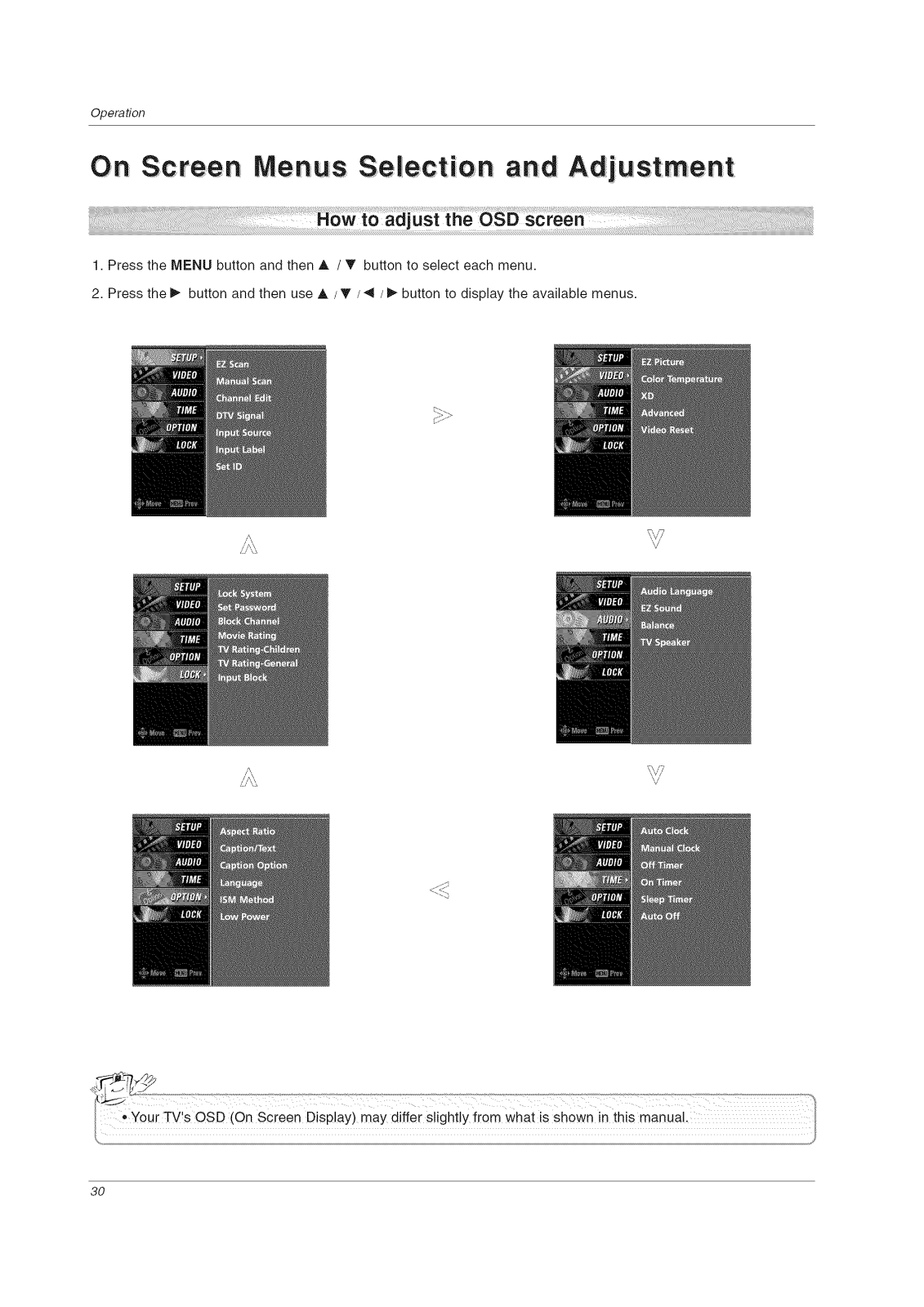

29 On Screen Menus Language Selection 30 On Screen Menus Selection and Adjustment

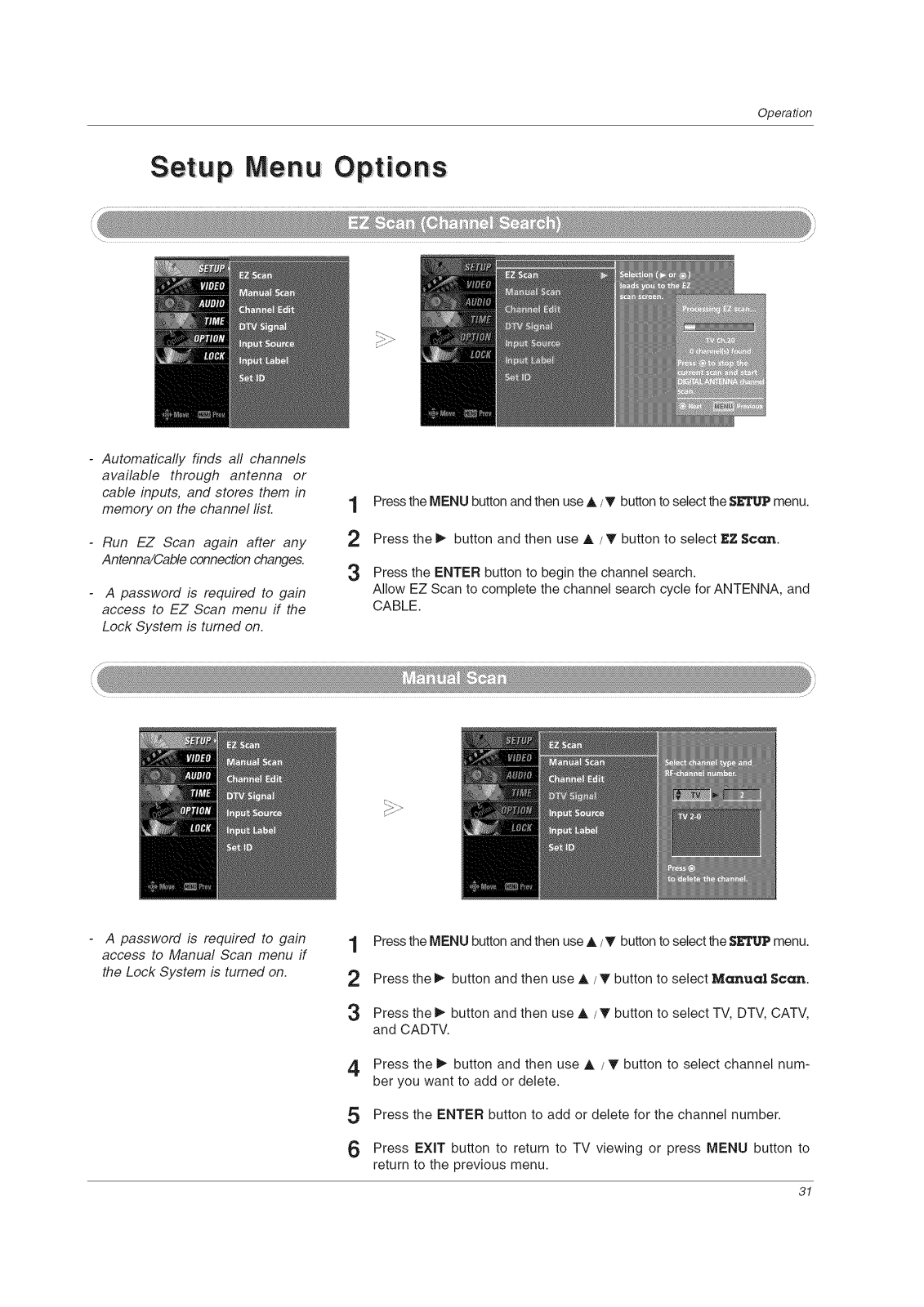

31 EZ Scan (Channel Search) 31 Manual Scan

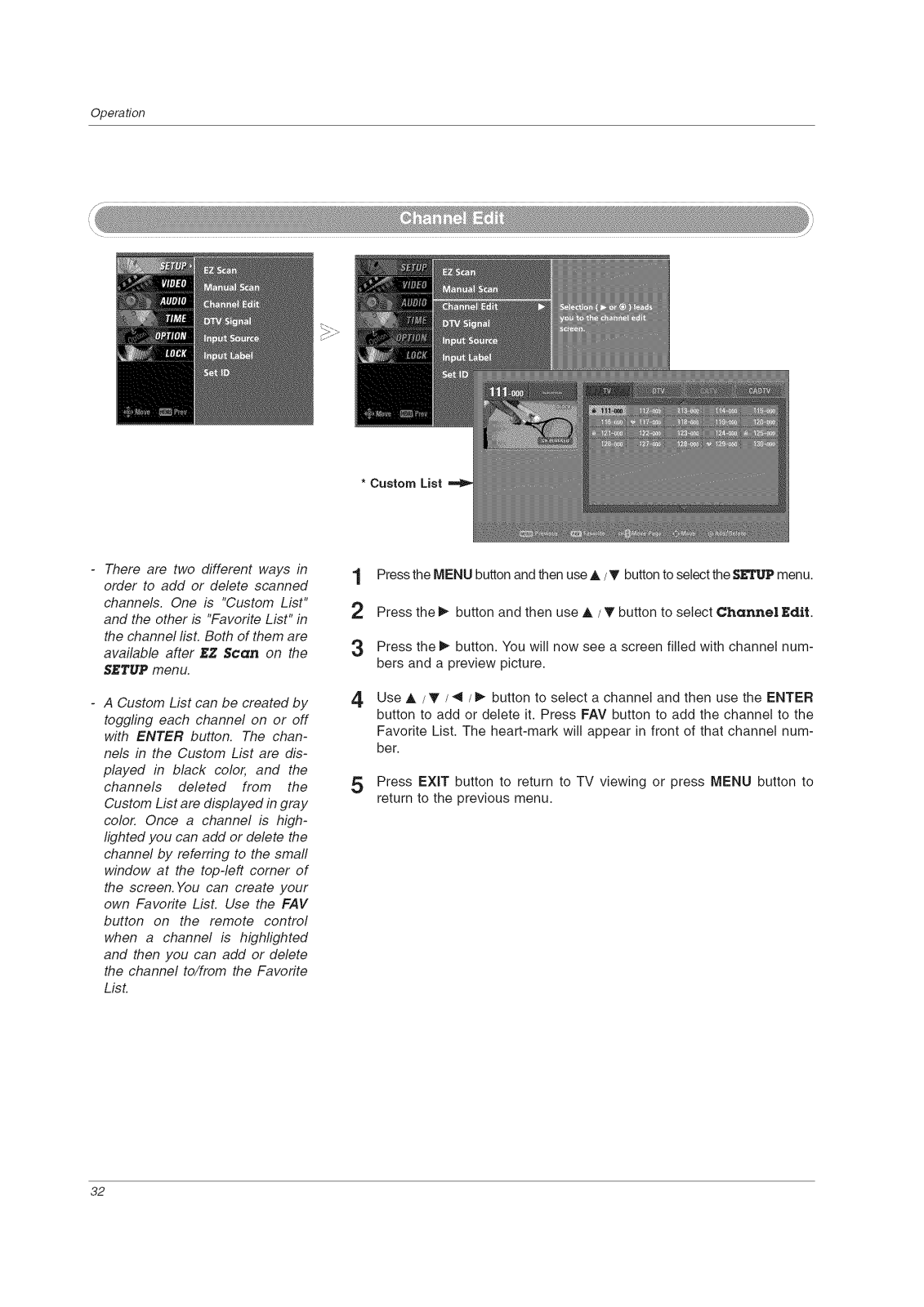

32 Channel Edit 33 DTV Signal Strength

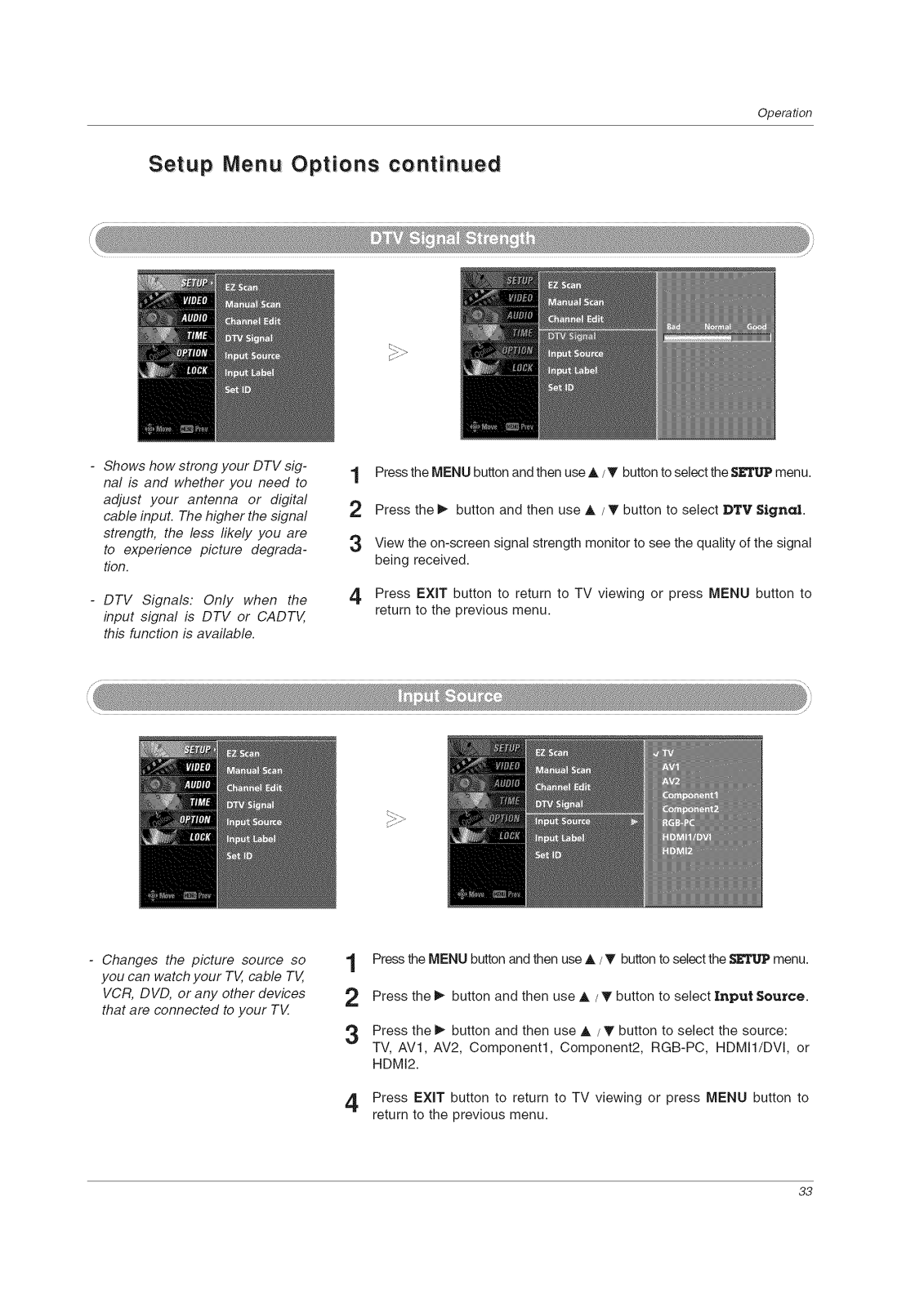

33 Input Source 34 Input Label

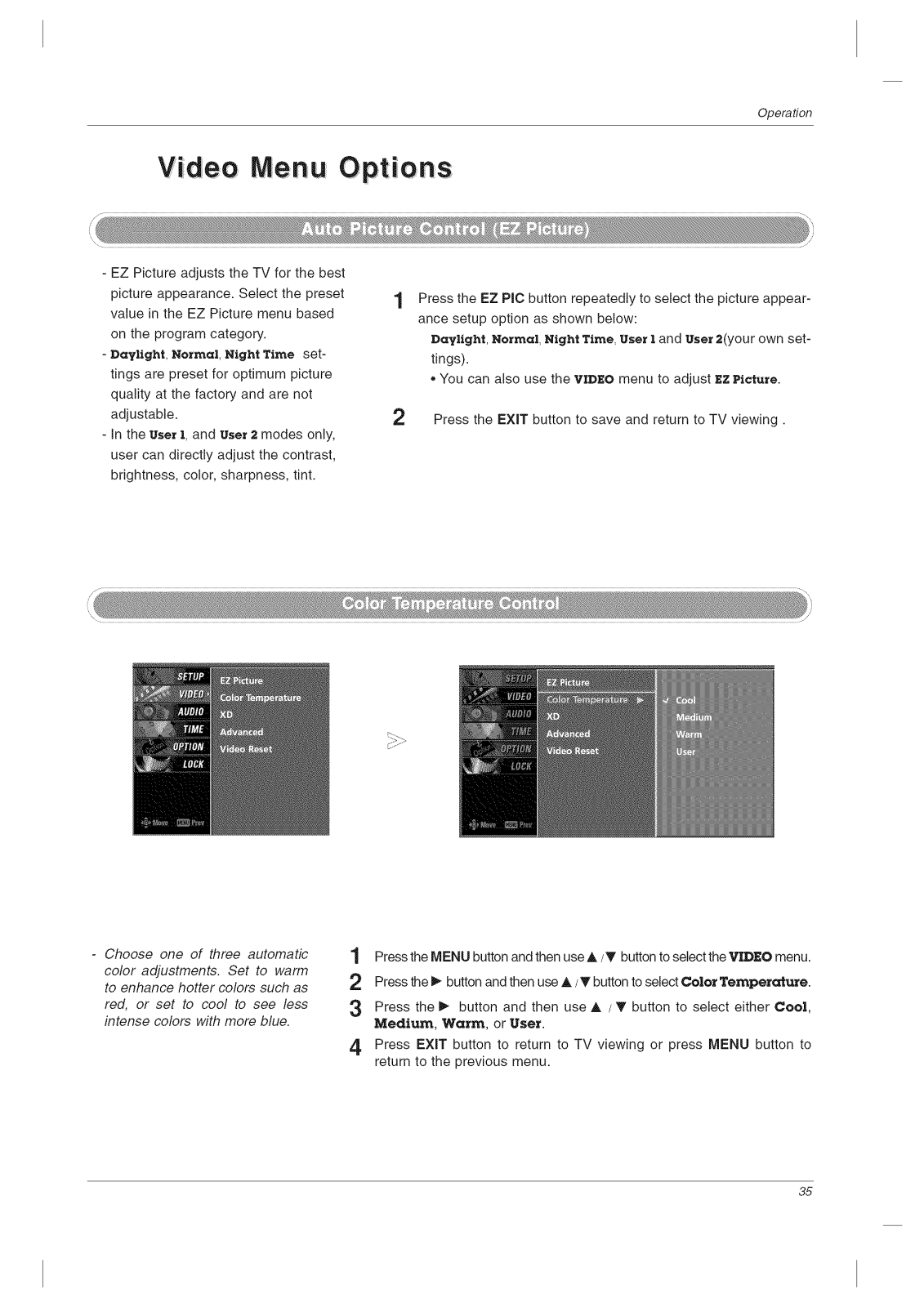

35 Auto Picture Control(EZ Picture) 35_36 Color Temperature Control

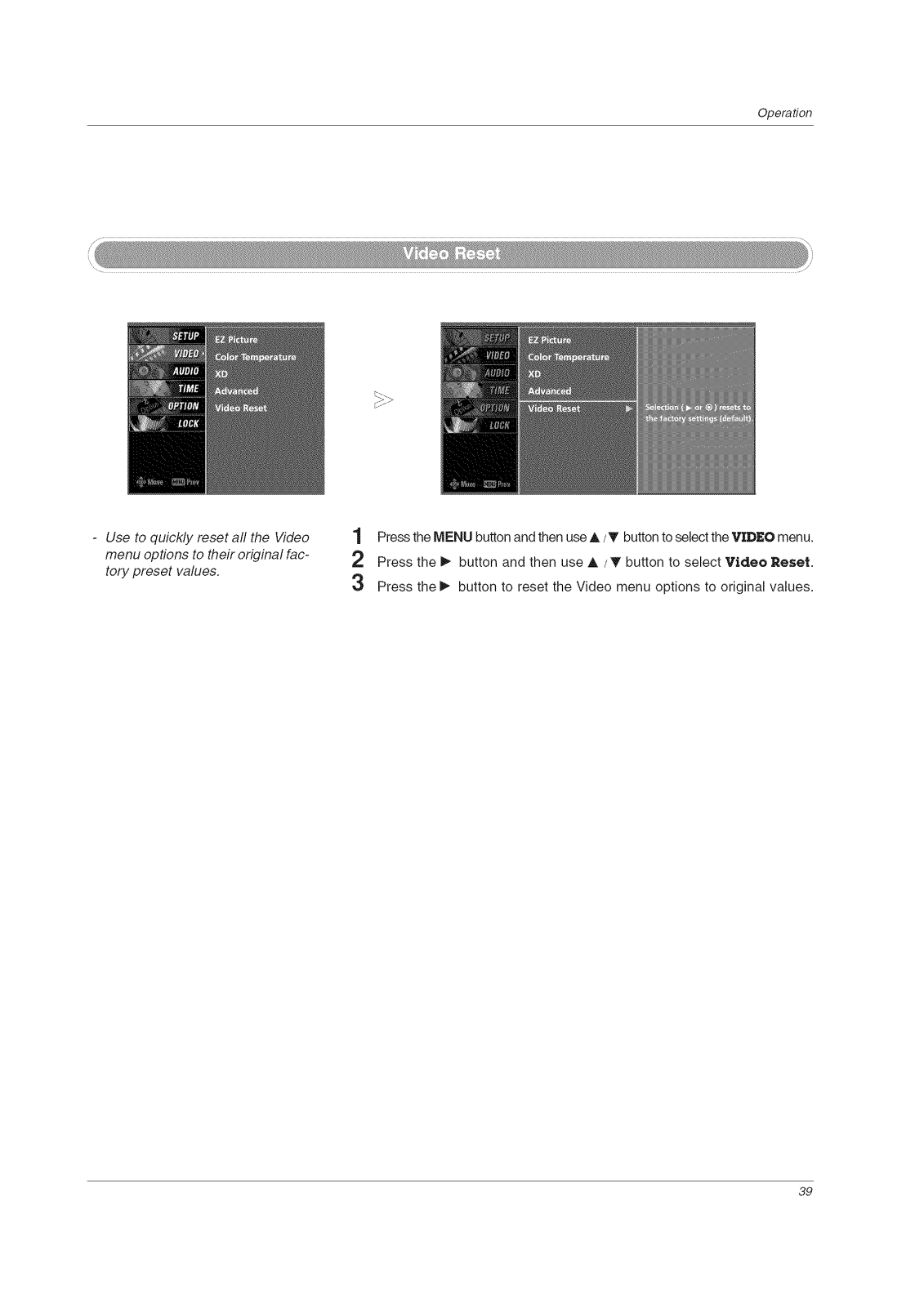

37 XD 38 Advanced-Cinema 3:2 Mode / Black Level 39 Video Reset

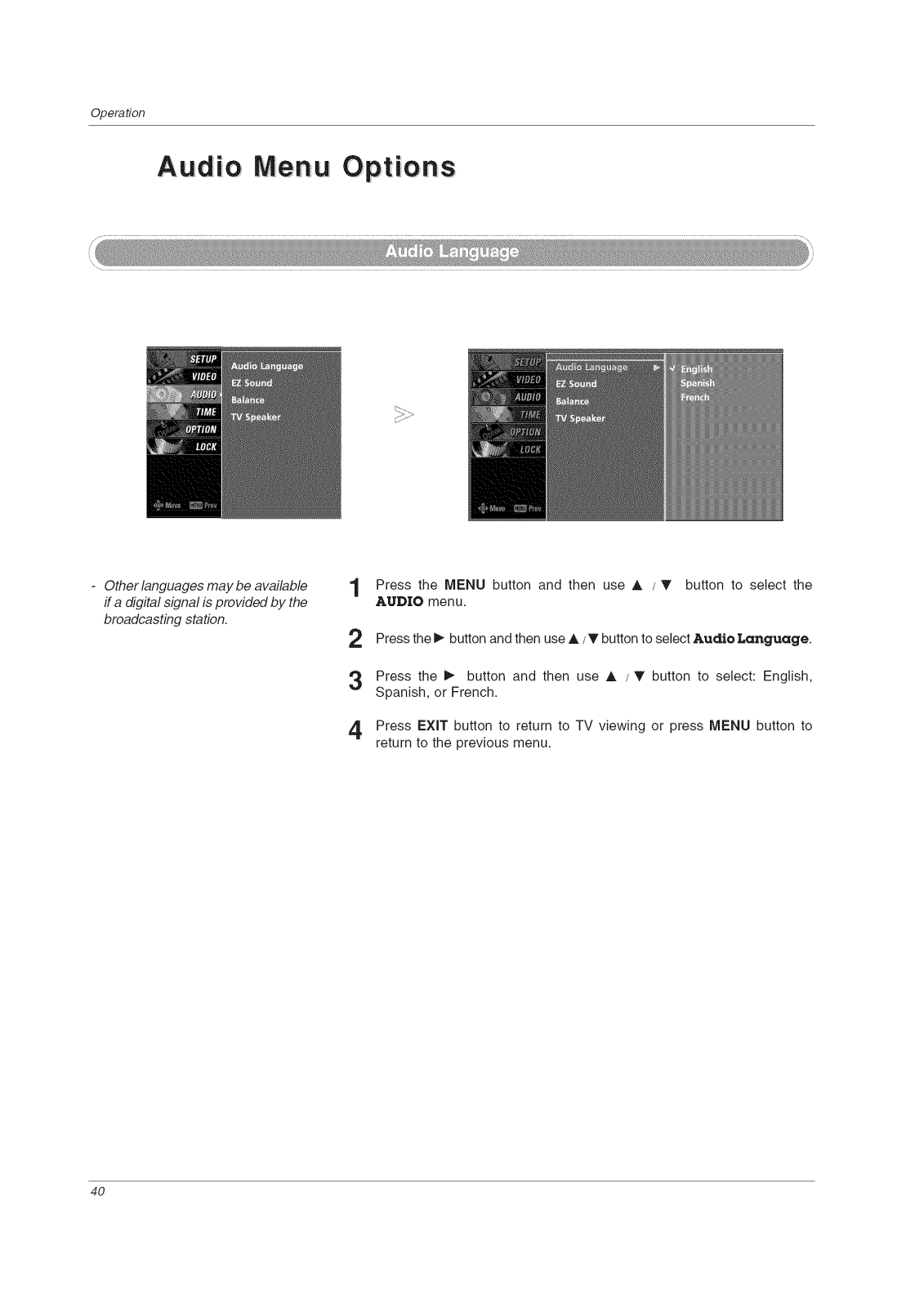

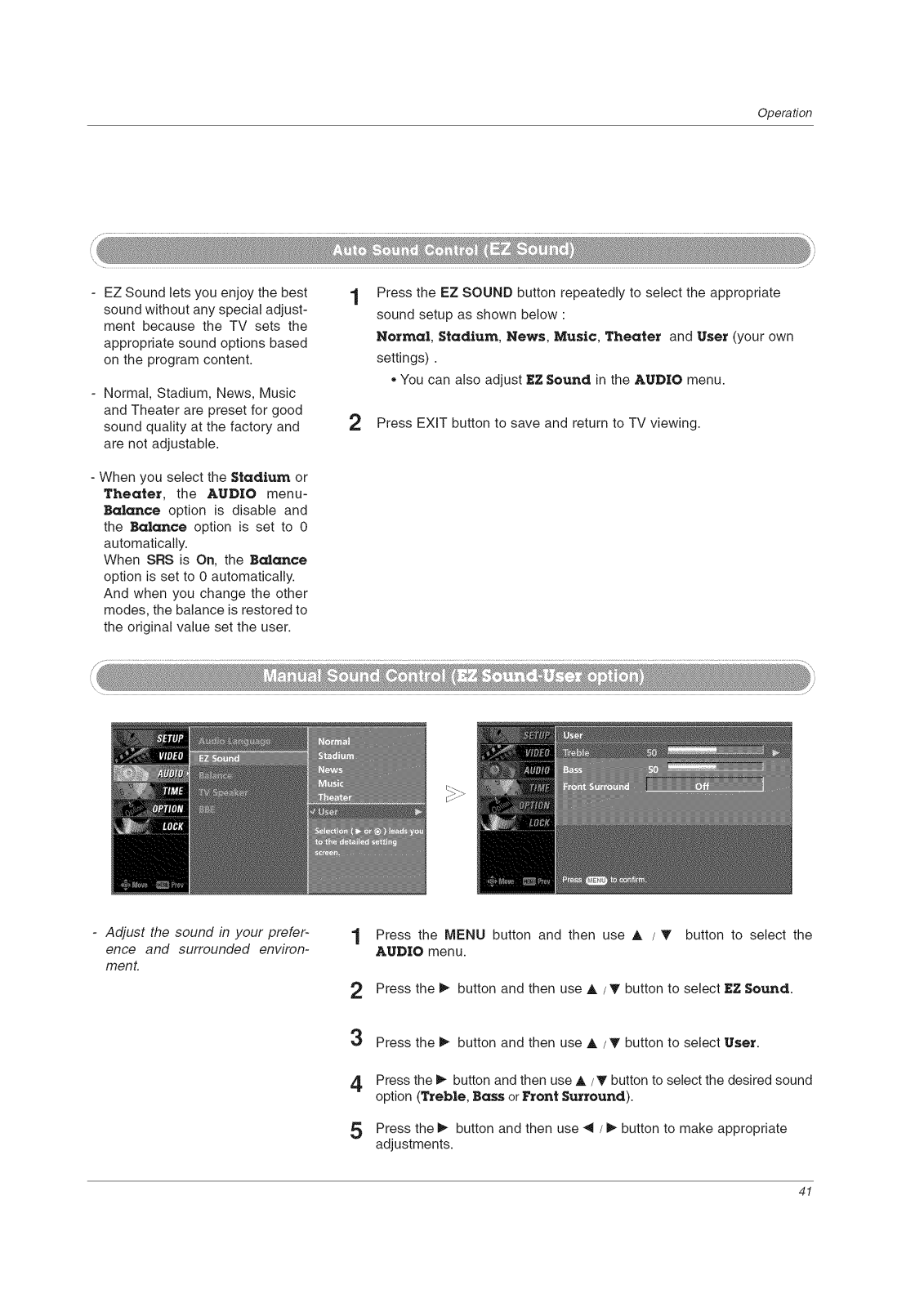

40 Audio Language 41 Auto Sound Control(EZ Sound)

41_42 Manual Sound Control (EZ Sound-User option) 43 Balance

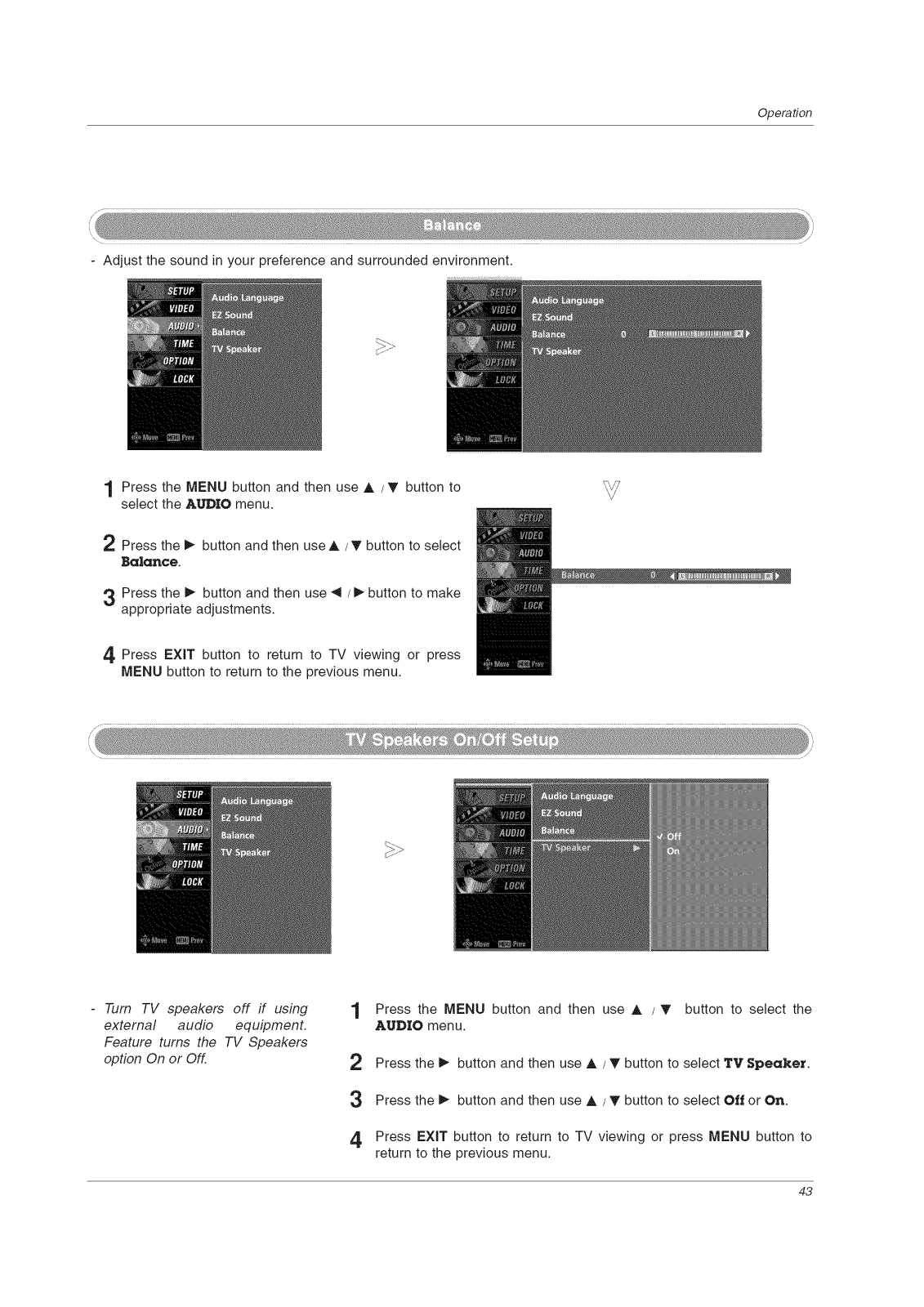

43 TV Speakers On/Off Setup

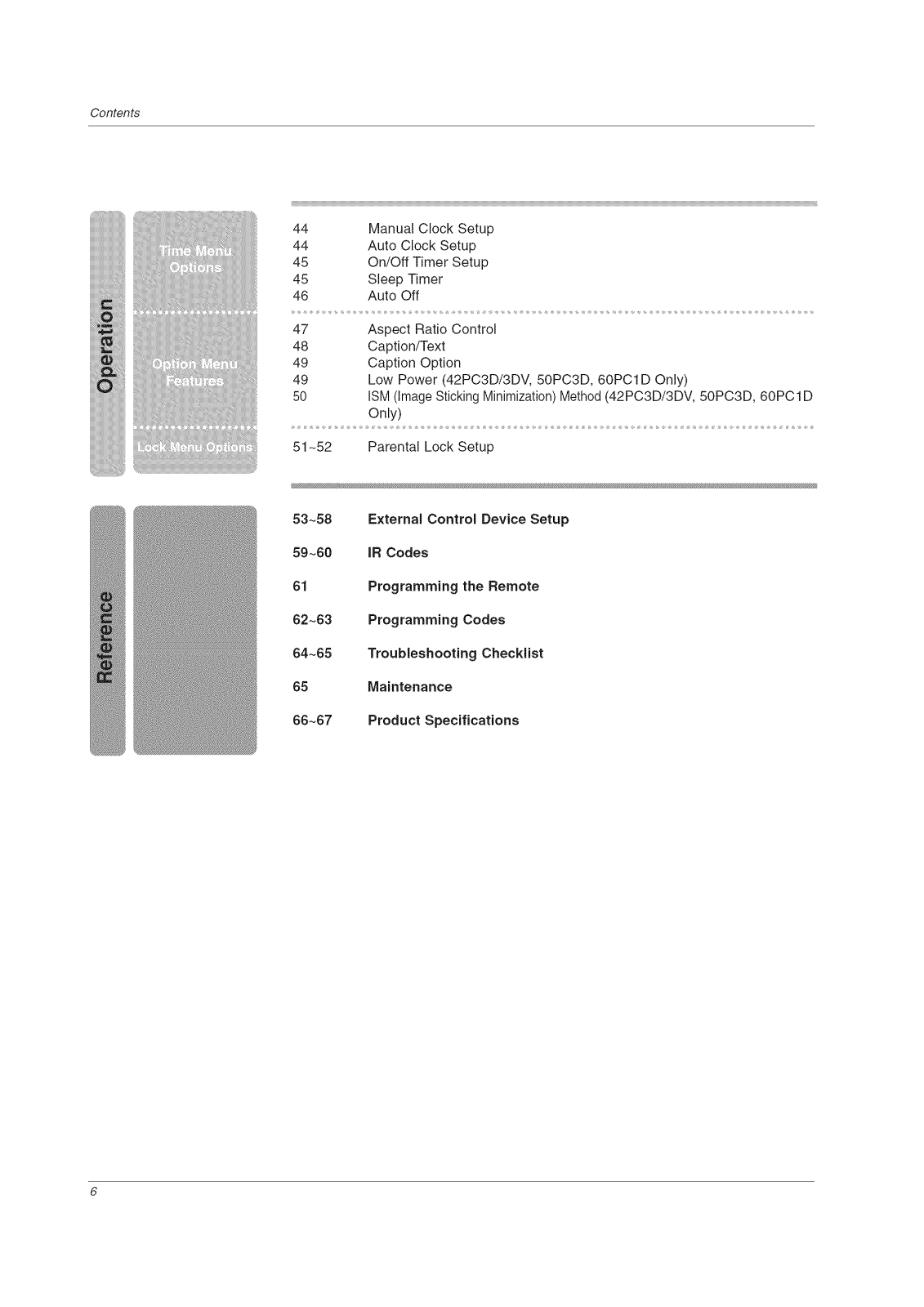

Contents

44 Manual Clock Setup 44 Auto Clock Setup 45 On/Off Timer Setup 45 Sleep Timer

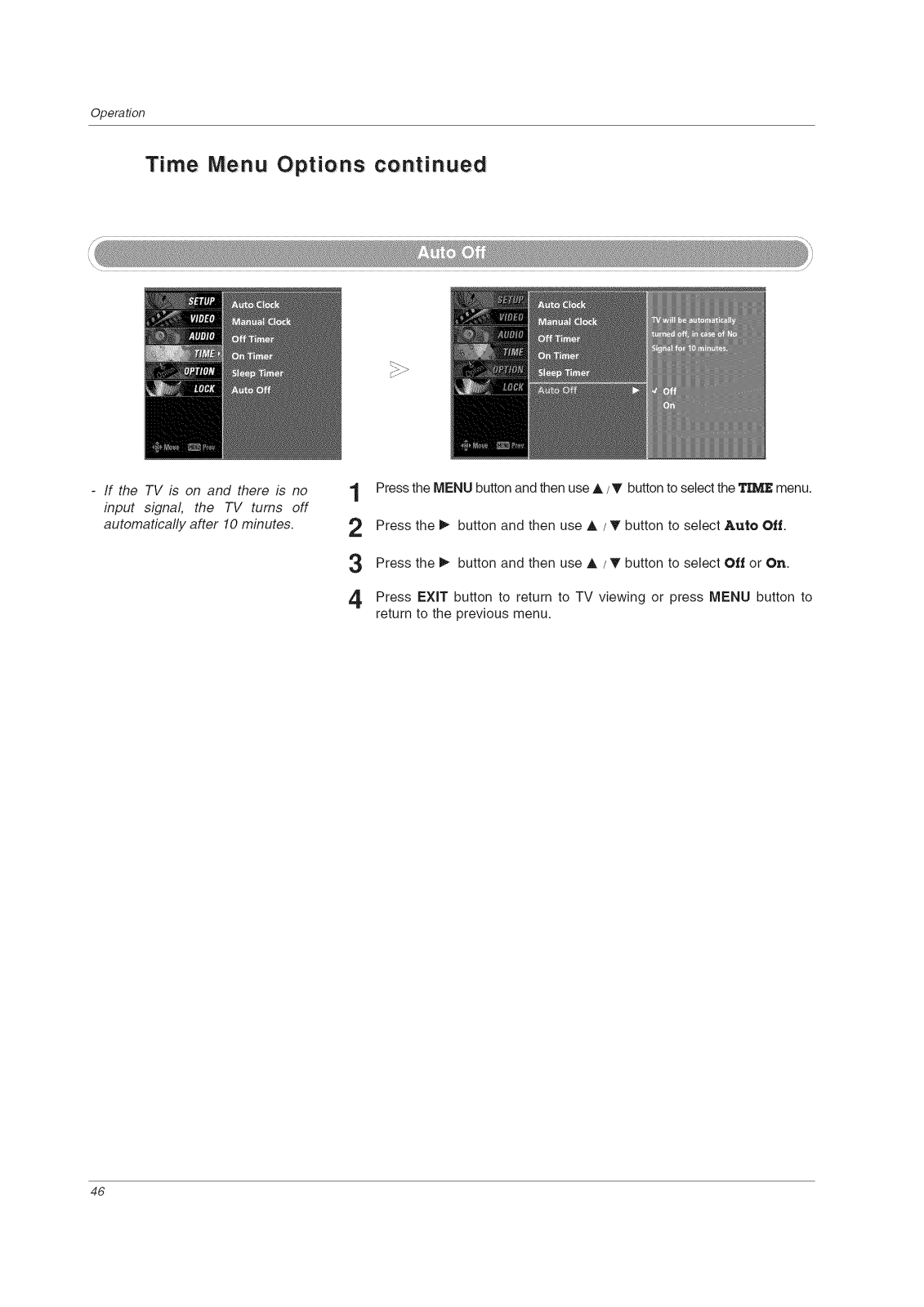

46 Auto Off

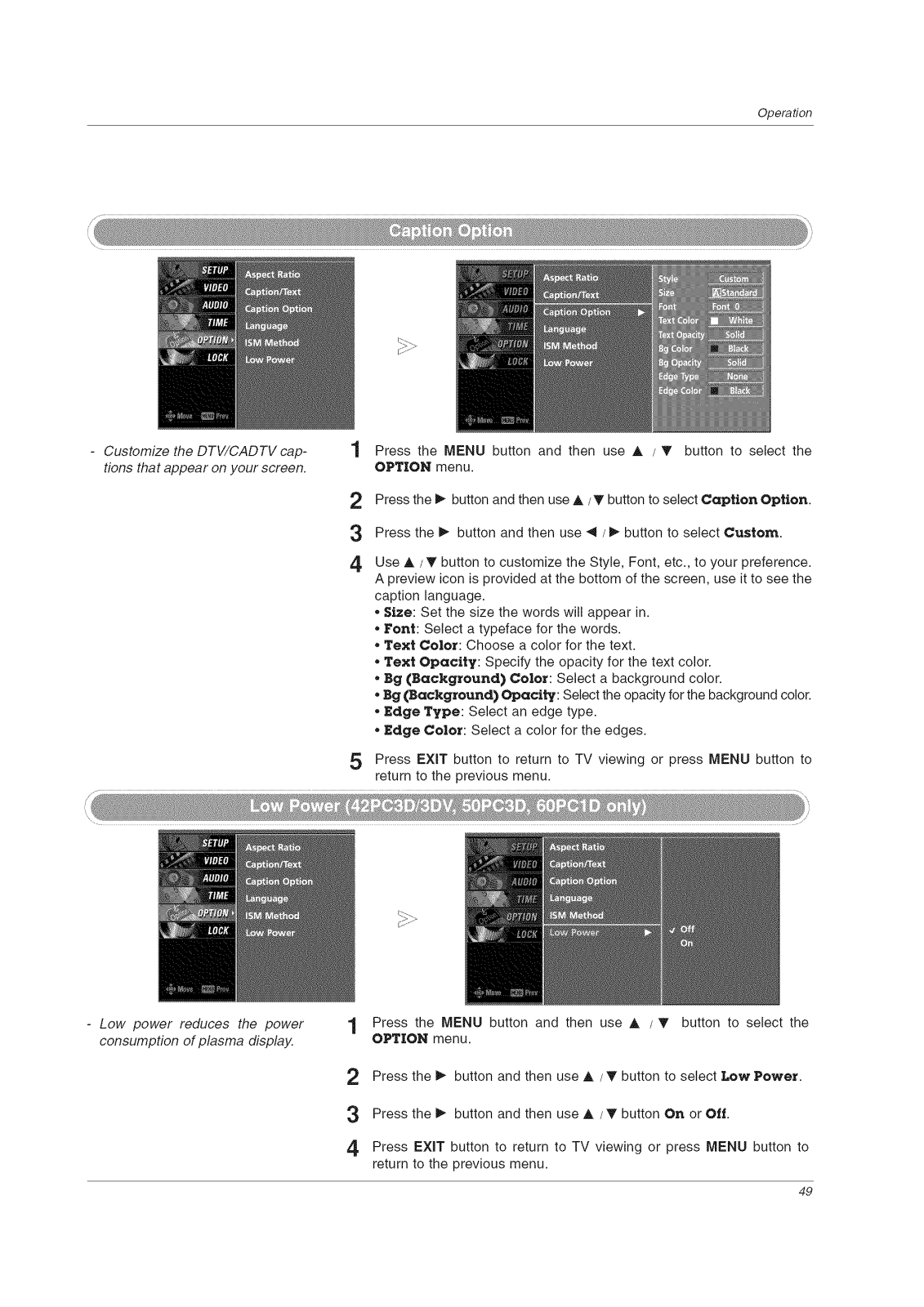

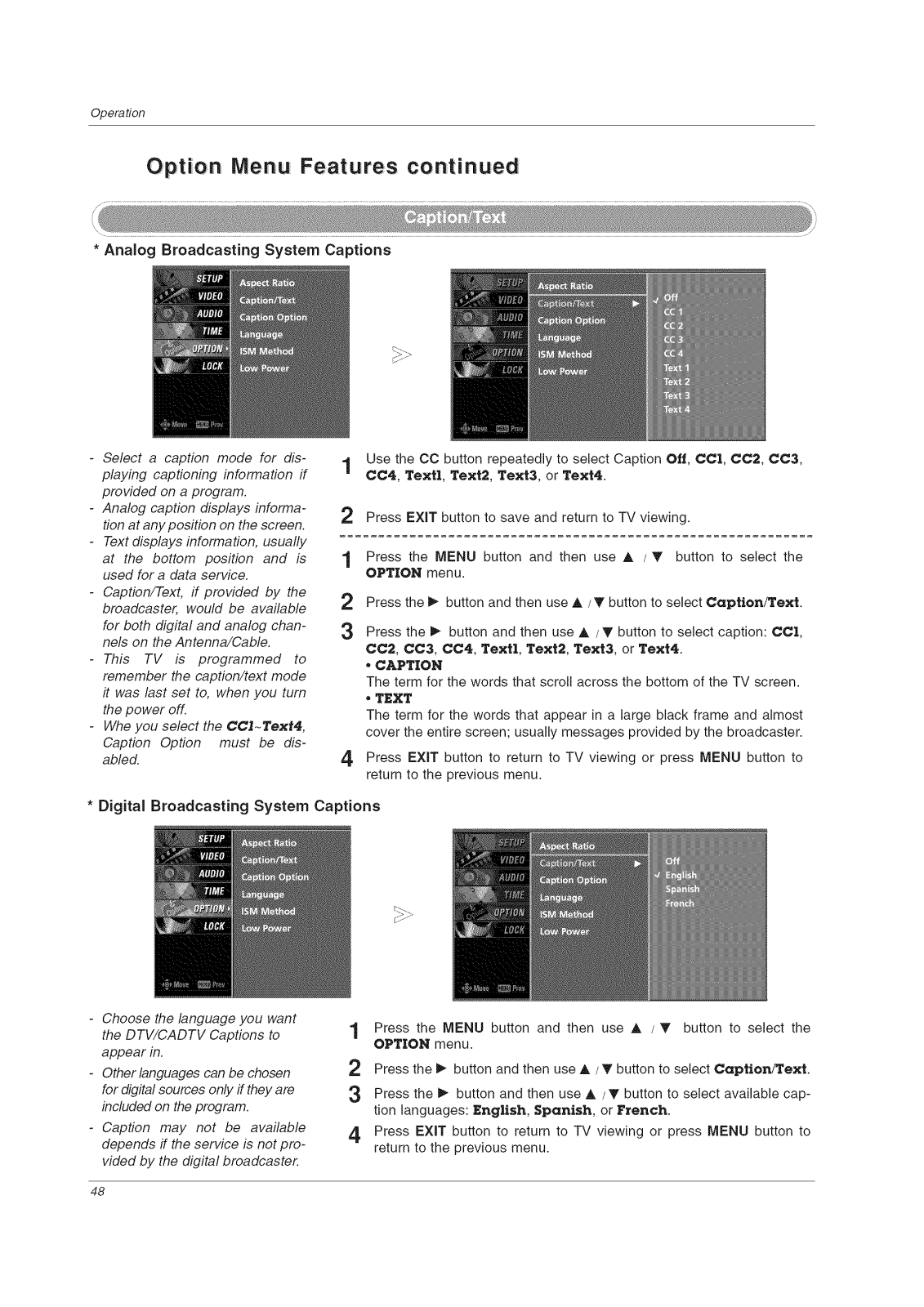

47 Aspect Ratio Control 48 Caption/Text 49 Caption Option 49 Low Power (42PC3D/3DV, 50PC3D, 60PC1D Only)

50 ISM (Image Sticking Minimization) Method (42PC3D/3DV, 50PC3D, 60PC1D

Only)

51_52 Parental Lock Setup

53~58

59~60

62~63

64~65

66~67

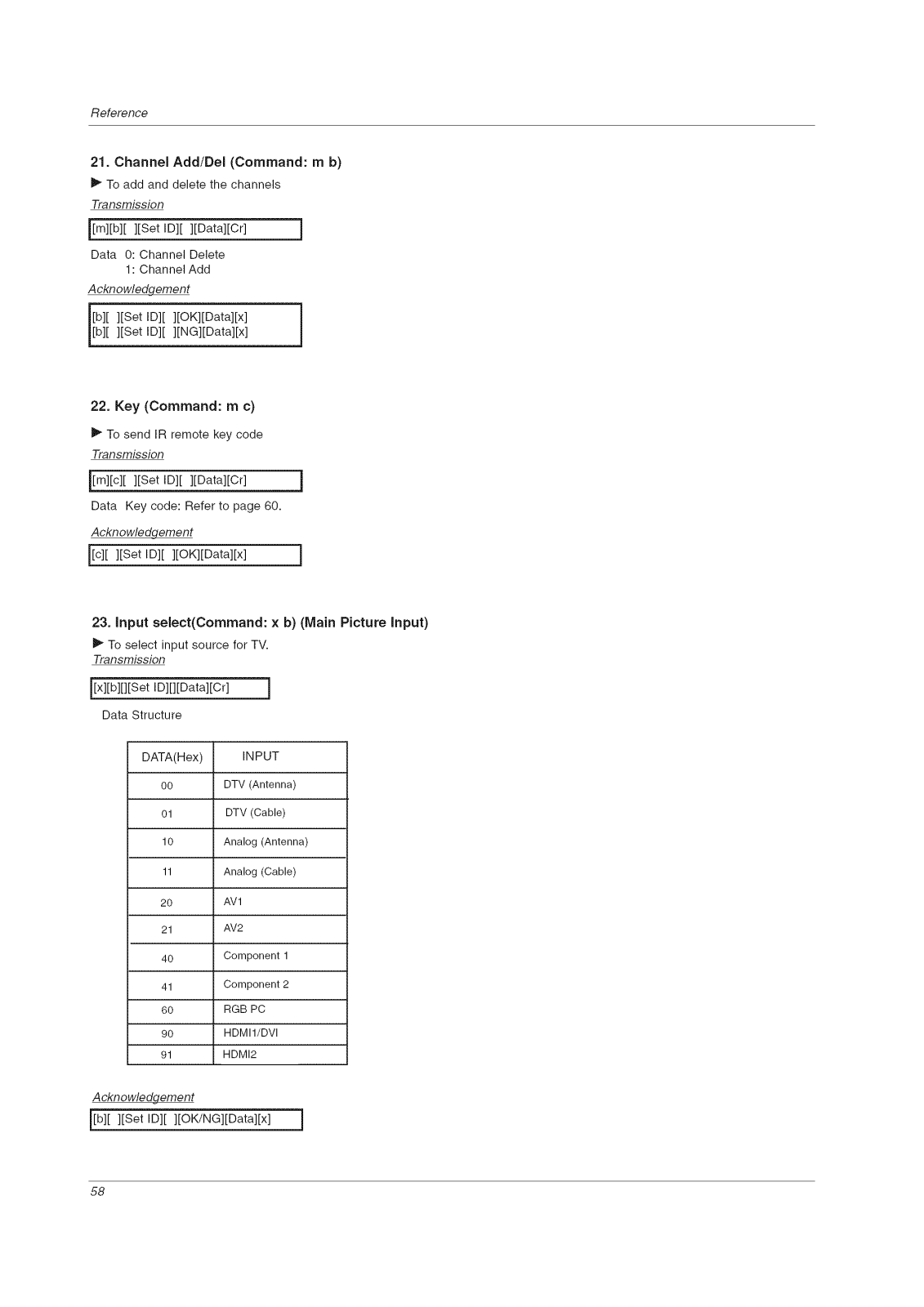

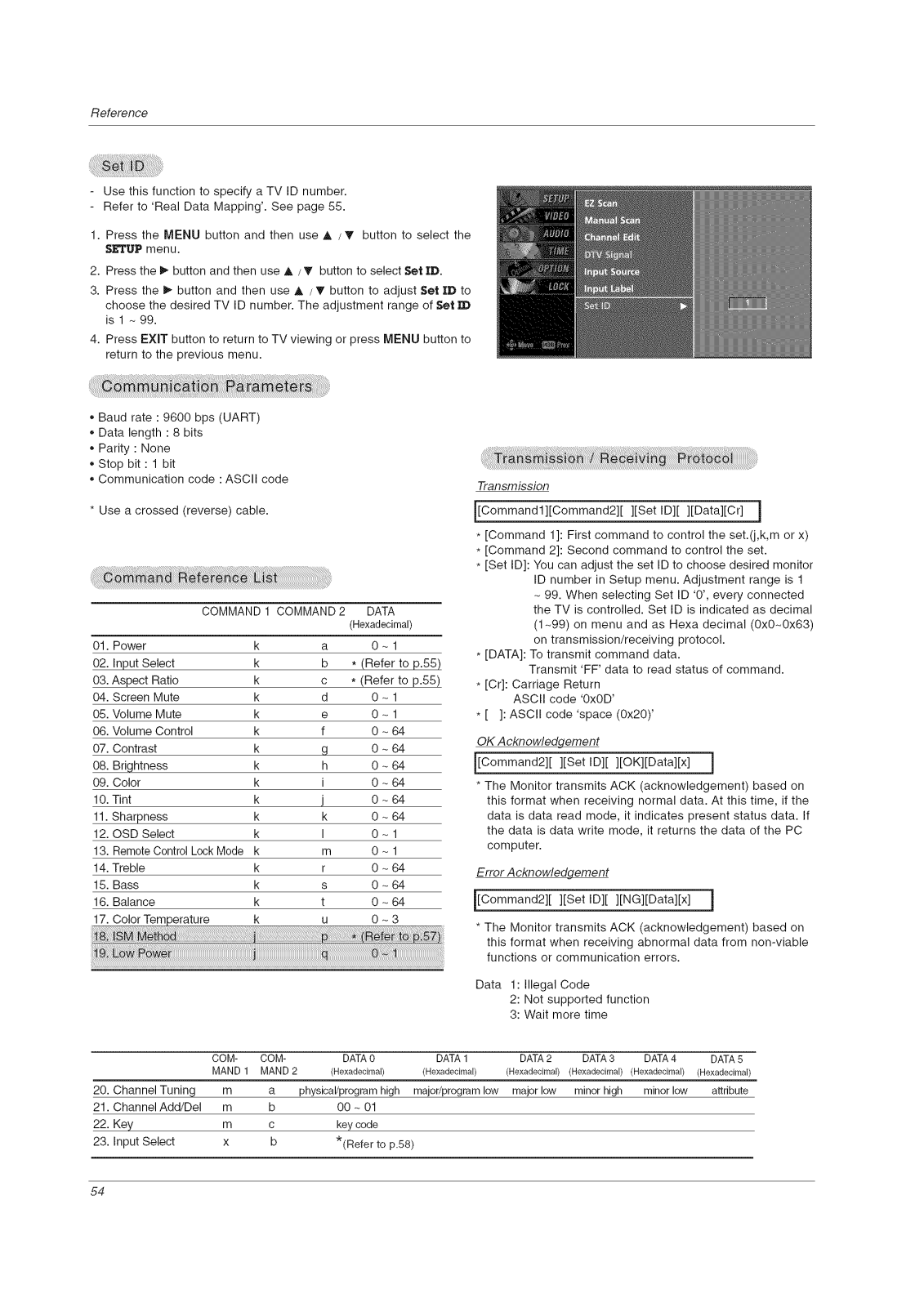

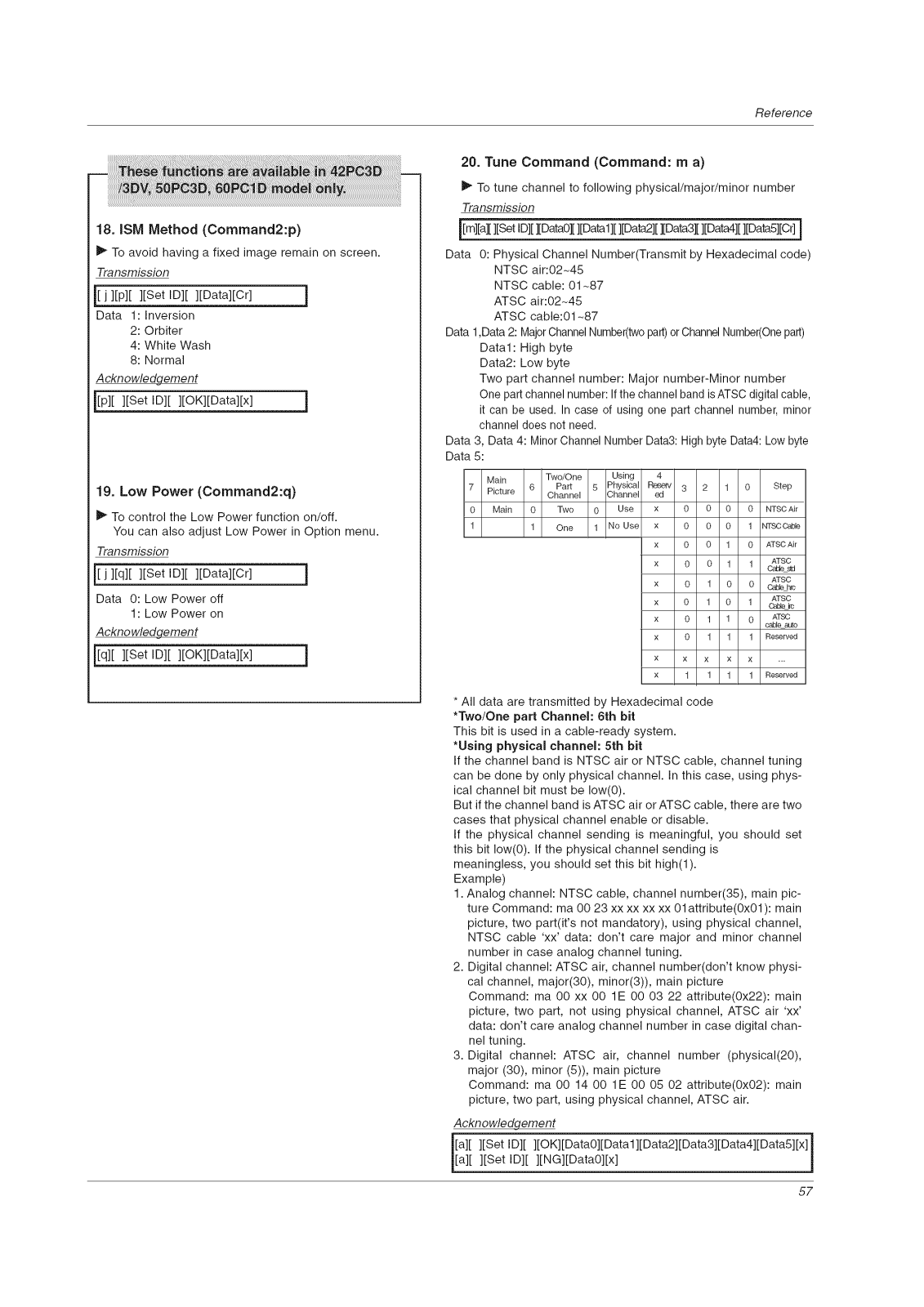

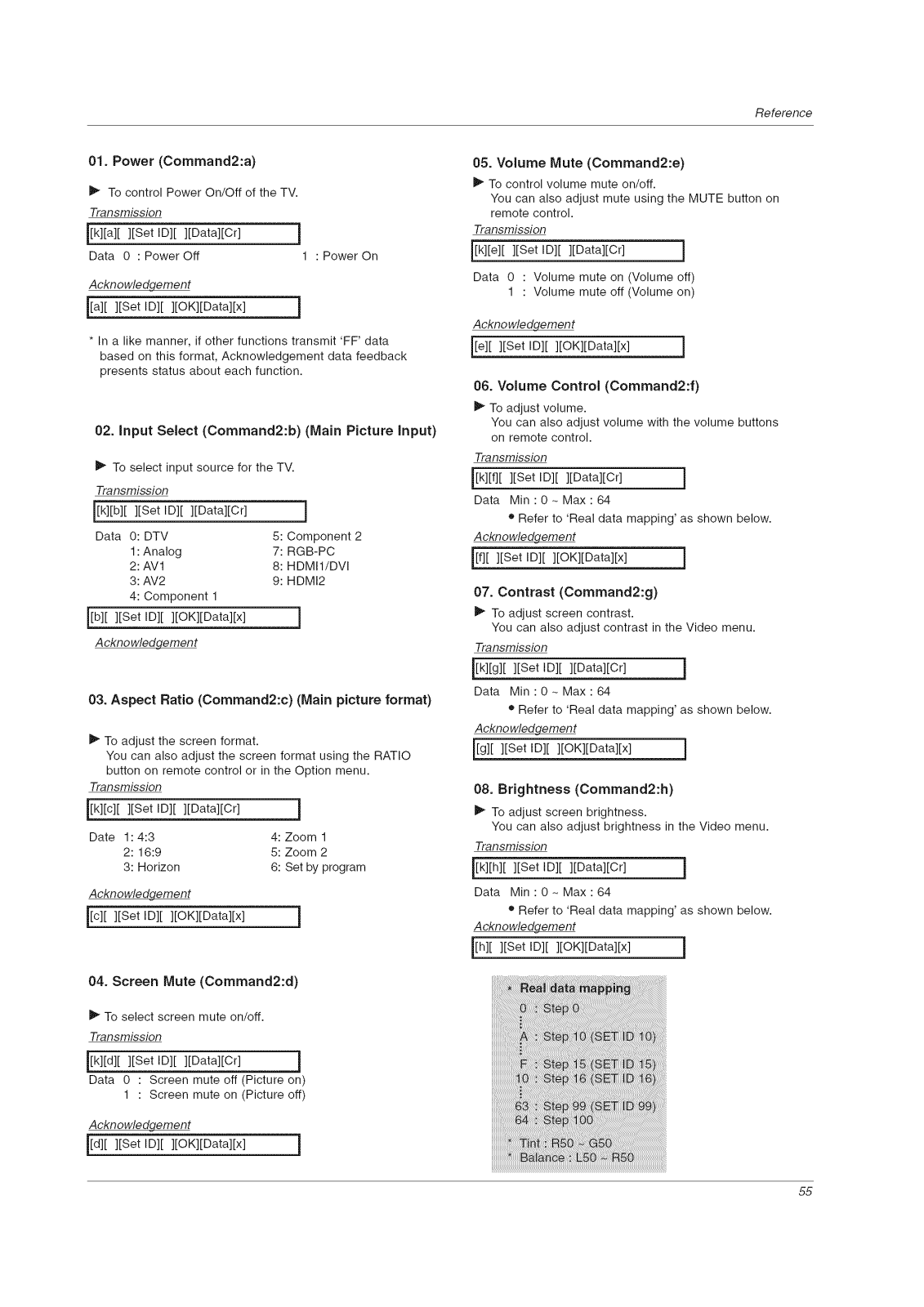

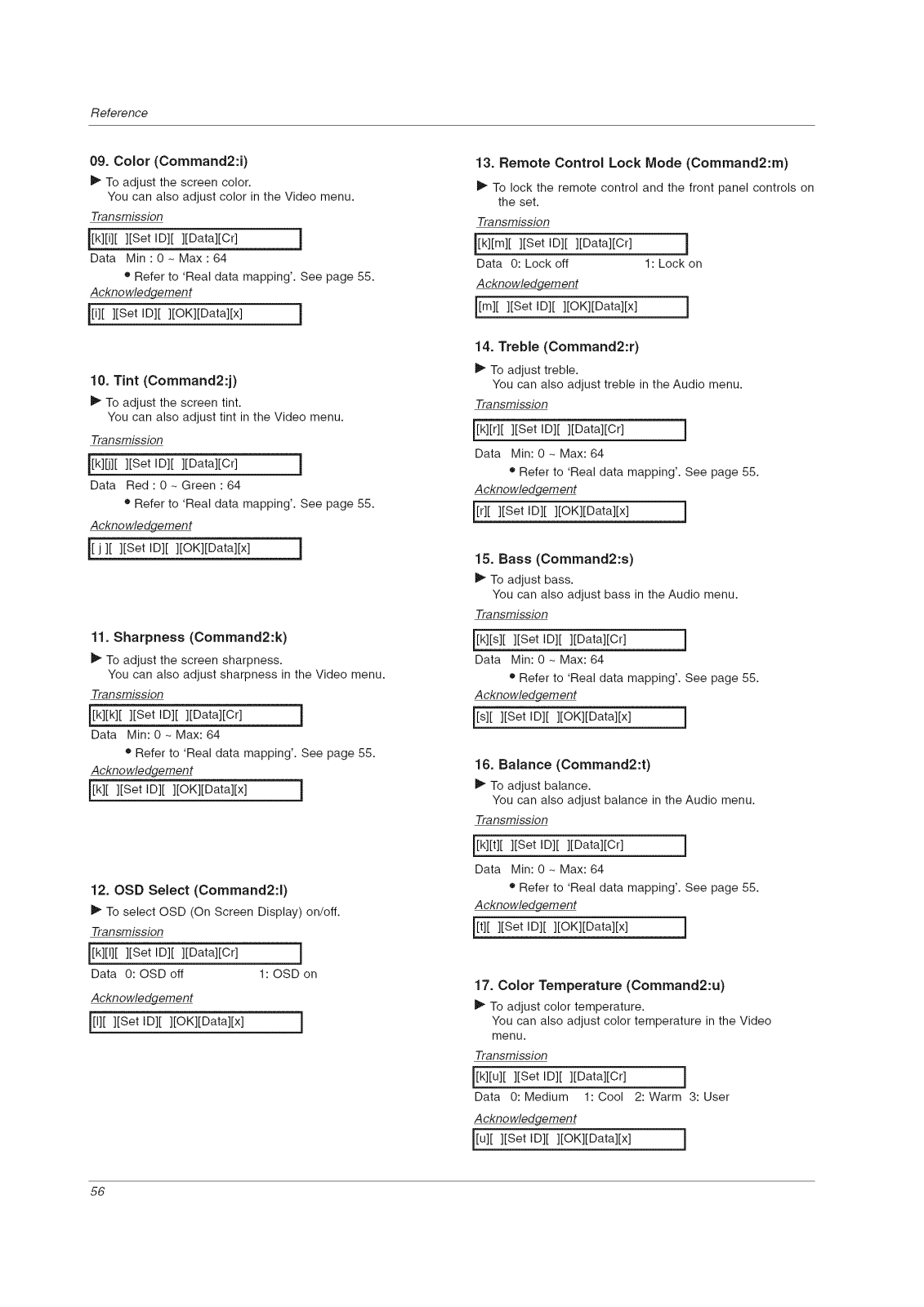

External Control Device Setup

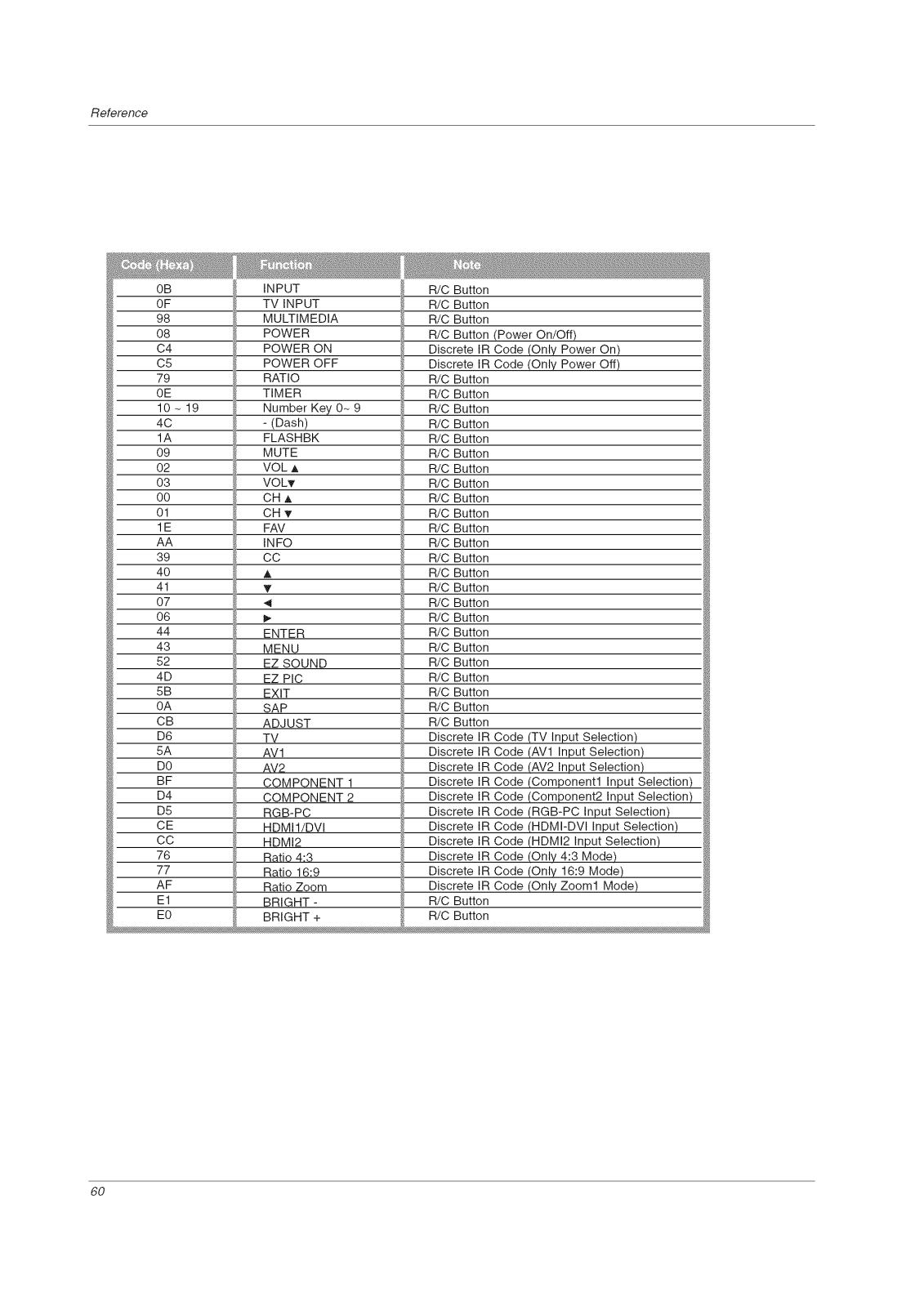

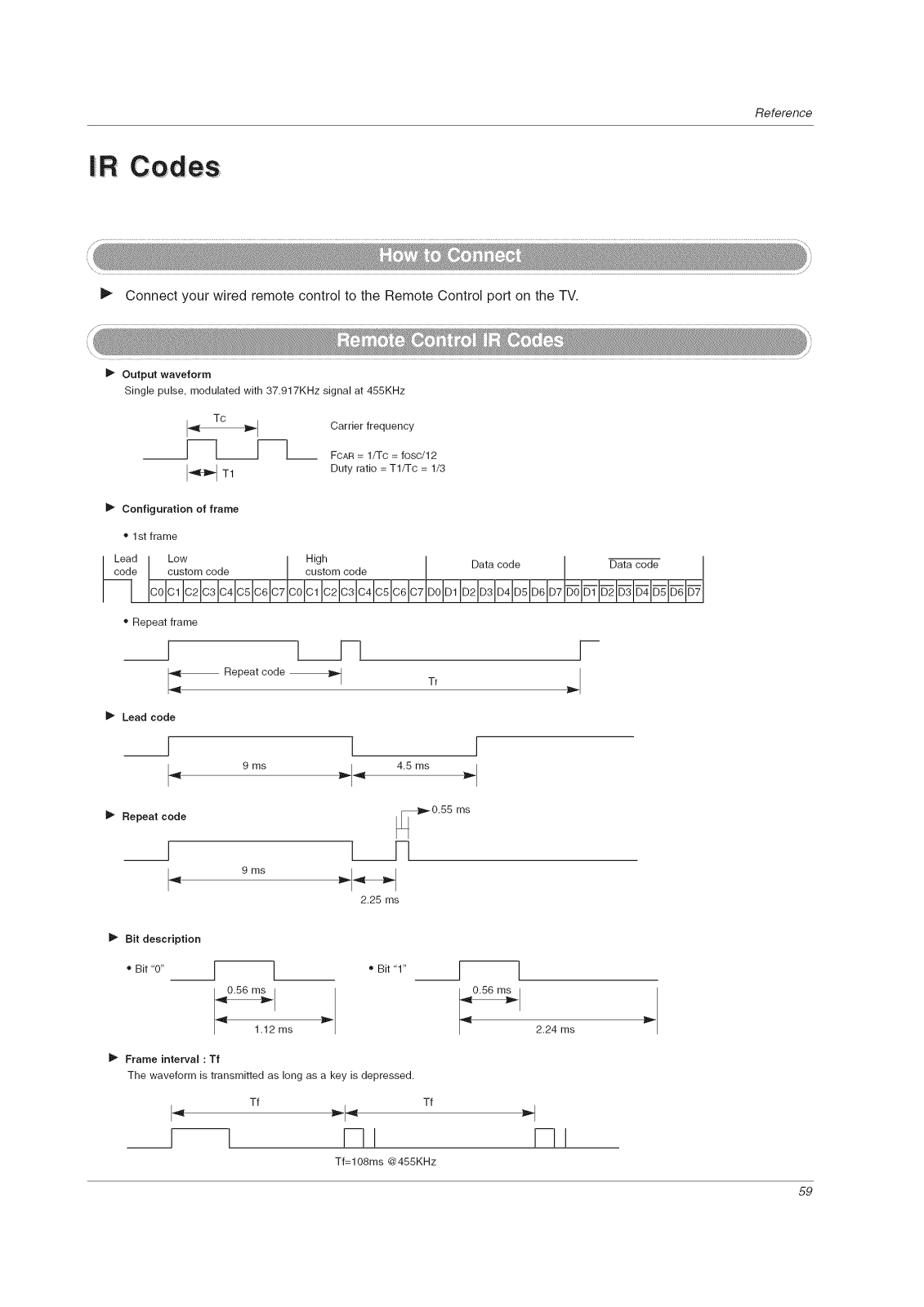

IR Codes

Programming the Remote

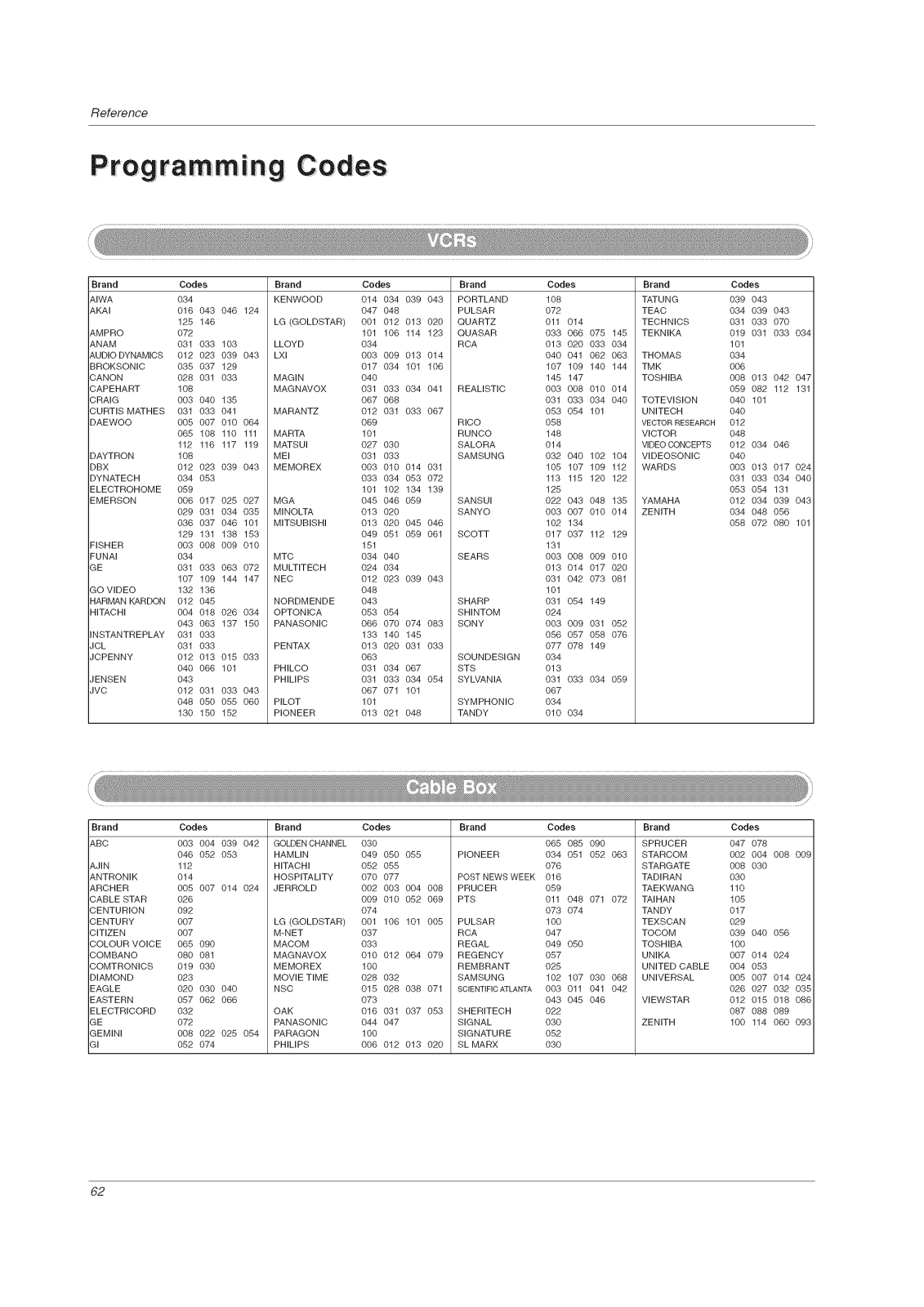

Programming Codes

Troubleshooting Checklist

Maintenance

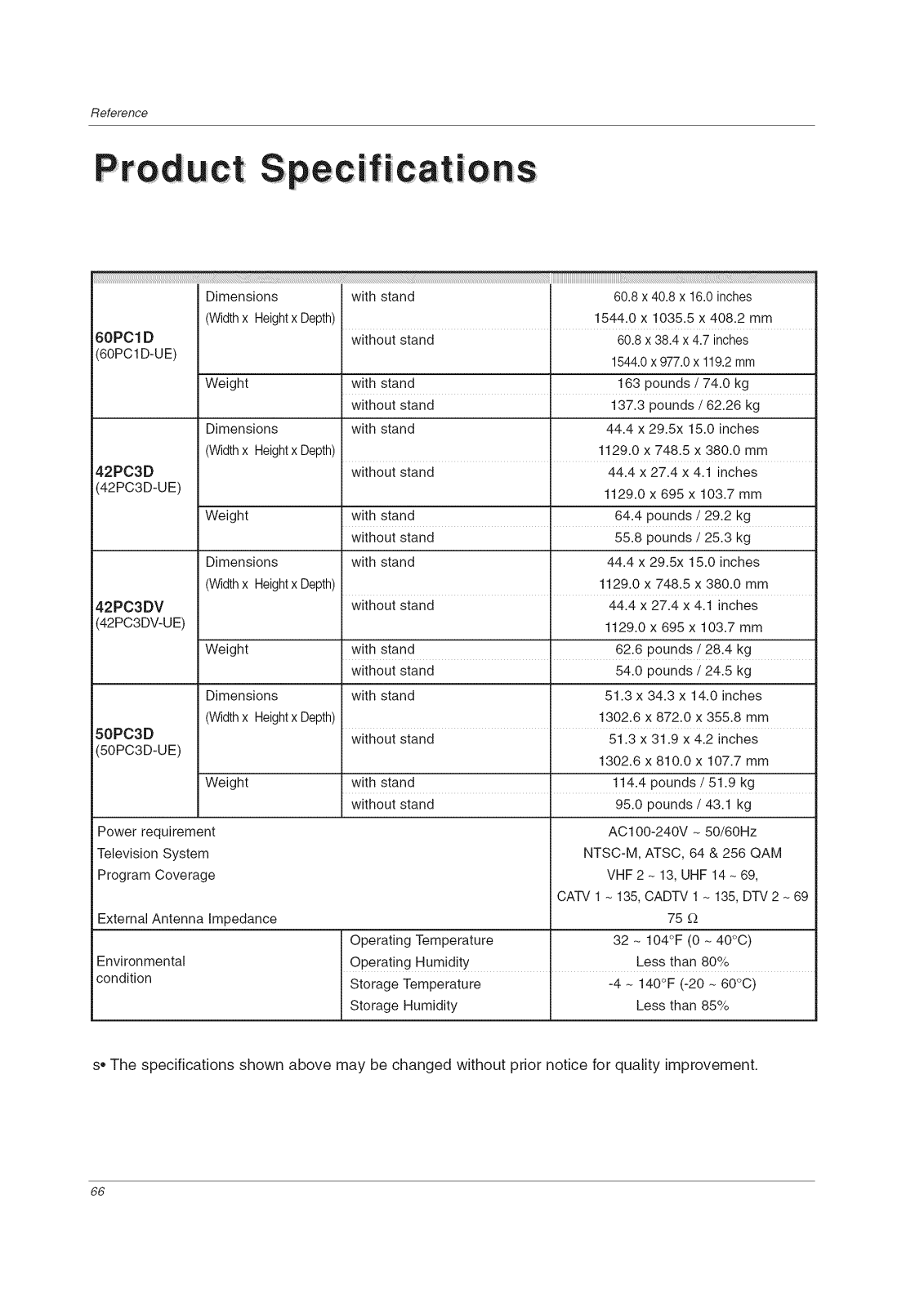

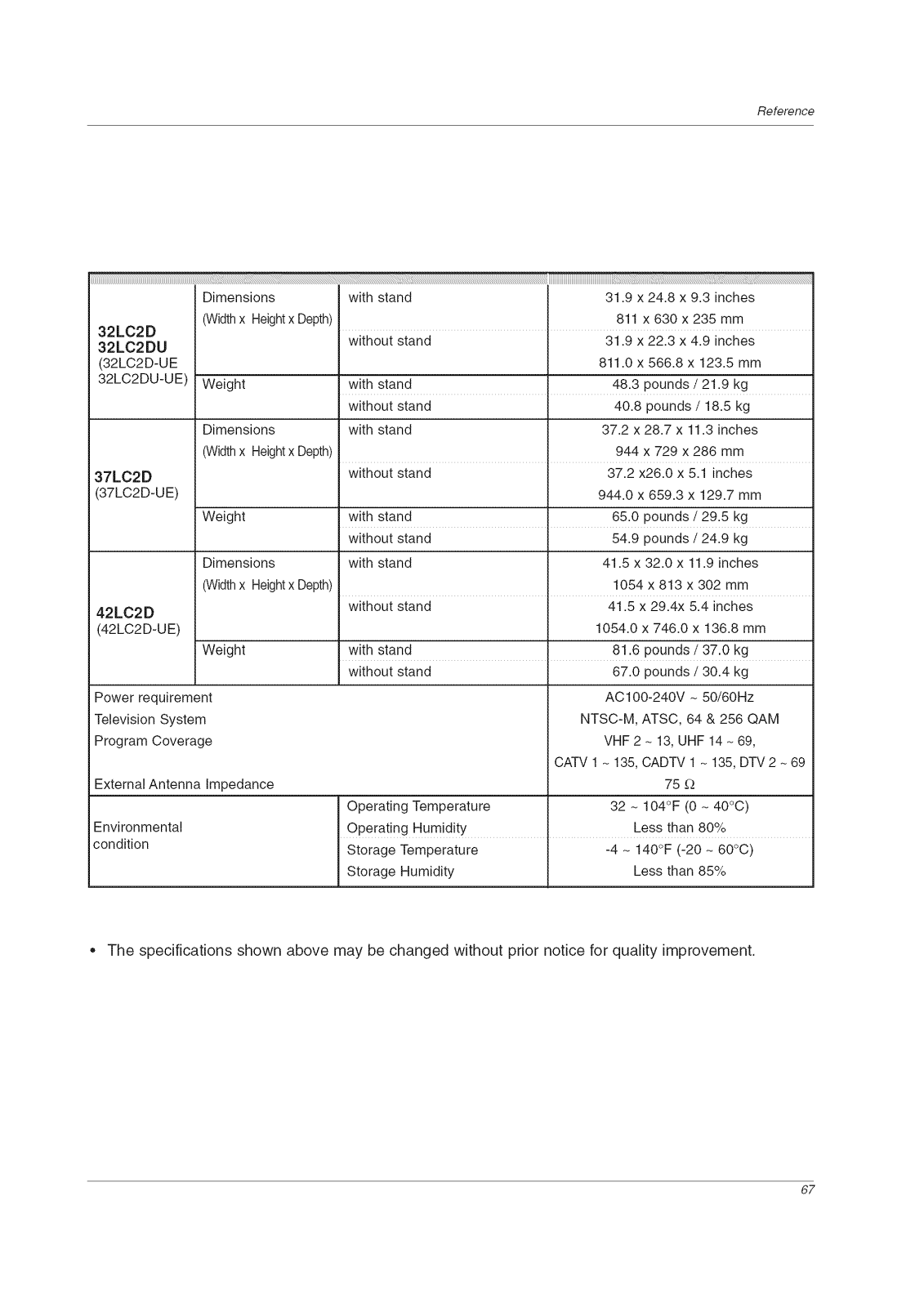

Product Specifications

Introduction

! | rOd UC| i!!iOn

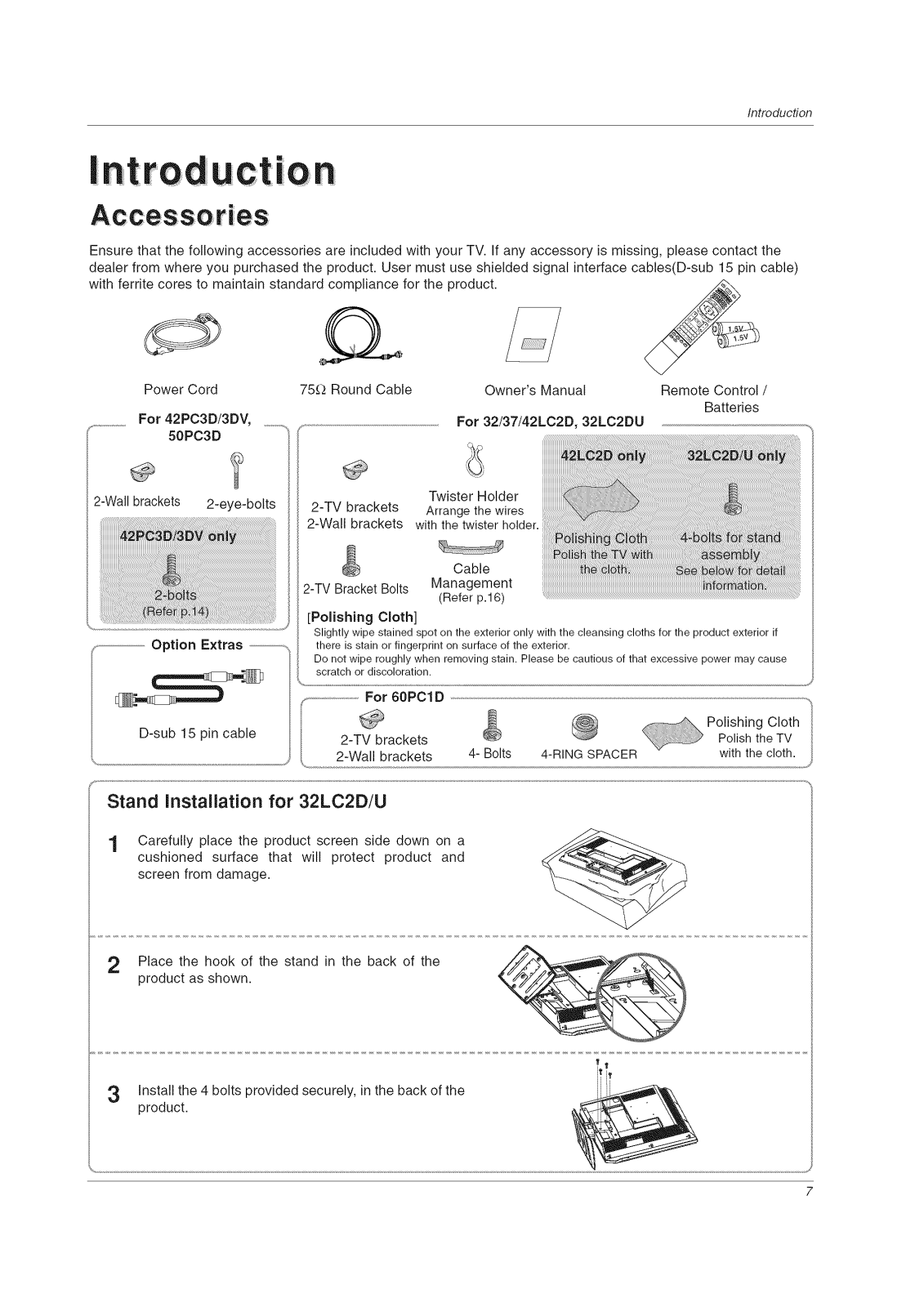

Accesso !es

Ensure that the following accessories are included with your TV. If any accessory is missing, please contact the

dealer from where you purchased the product. User must use shielded signal interface cables(D-sub 15 pin cable) with ferrite cores to maintain standard compliance for the product.

Power Cord

For 42PC3D/3DV,

50PC3D

75D Round Cable Owner's Manual Remote Control /

Batteries

.................................................................................................................For 32/37/42LC2D, 32LC2DU

2-Wall brackets 2-eye-bolts

---------------------Option Extras ----------------

2-TV brackets Arrange the wires

2-Wall brackets with the twister holder.

2-TV Bracket Bolts Management

[Polishing Cloth]

Slightly wipe stained spot on the exterior only with the cleansing cloths for the product exterior if

there is stain or fingerprint on surface of the exterior.

Do not wipe roughly when removing stain. Please be cautious of that excessive power may cause

scratch or discoloration.

Twister Holder

Cable

(Refer p.16)

..........................For 60P01D ..................................................................................................................................................................................................................................................................,

D-sub 15 pin cable

X................................................................................

2-TV brackets

Stand Installation for 32LC2D/U

1 Carefully place the product screen side down on a

cushioned surface that will protect product and screen from damage.

2 Place the hook of the stand in the back of the

product as shown.

the4 o,ts ,othe c o..ho iT i

3 product.

_ _ Polishing Cloth

"_ Polish the TV

4- Bolts 4-RING SPACER with the cloth.2-Wall brackets

Introduction

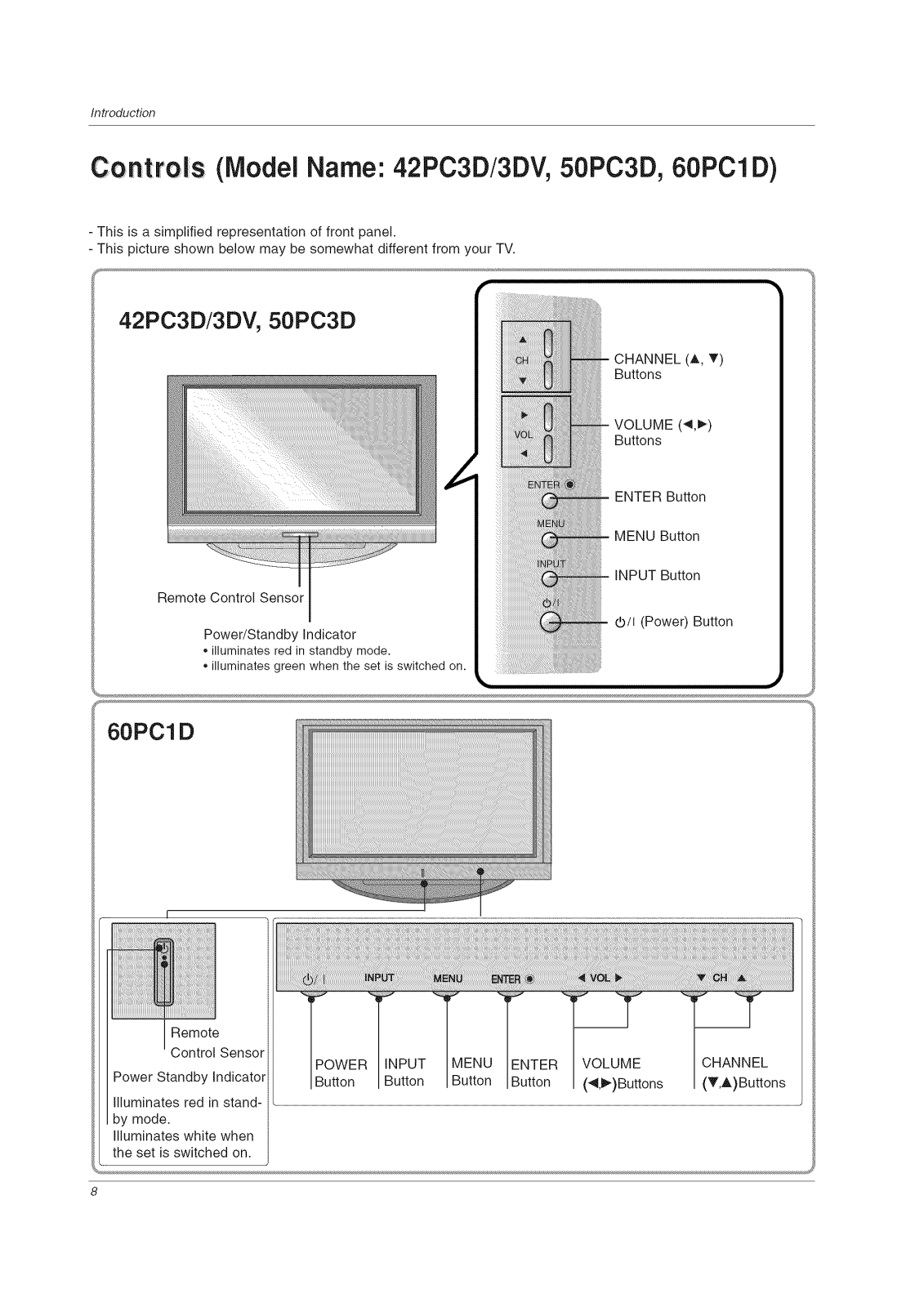

Controls (Model Name: 42PC3D/3DV, 50PC3D, 60PC1D)

- This is a simplified representation of front panel.

- This picture shown below may be somewhat different from your TV.

42PC3D/3DV, 50PC3D

=CHANNEL (A, V')

Buttons

- VOLUME (_,_) Buttons

ENTER Button

MENU Button

Remote Control Sensor

60P01 D

INPUT Button

(b/t (Power) Button

Power/Standby Indicator ,,illuminates red in standby mode. ,,illuminates green when the set is switched on.

Remote Control Sensor

Power Standby Indicator Illuminates red in stand-

by mode. Illuminates white when

the set is switched on.

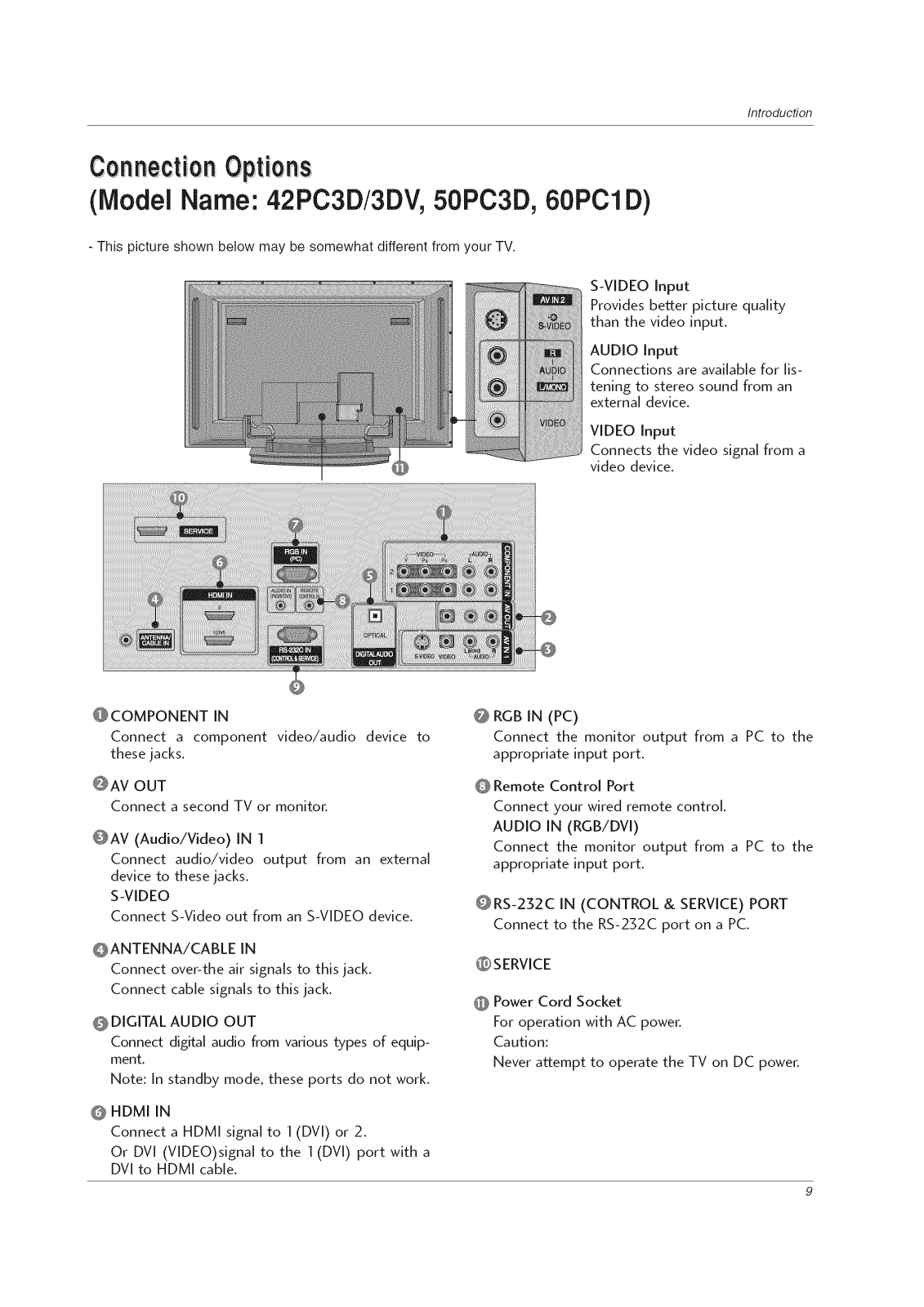

ConnectionOptions

(Model Name: 42PC3D/3DV, 50PC3D, 60PC1D)

- This picture shown below may be somewhat different from your TV.

S-VIDEO Input

Provides better picture quality

than the video input. AUDIO Input

Connections are available for lis- tening to stereo sound from an

external device.

VIDEO Input Connects the video signal from a

video device.

Introduction

@COMPONENT IN

Connect a component video/audio device to these jacks.

@AV OUT

Connect a second TV or monitor.

@AV (Audio/Video) IN 1

Connect audio/video output from an external device to these jacks. S-VIDEO

Connect S-Video out from an S-VIDEO device.

@ANTENNA/CABLE IN

Connect over-the air signals to this jack. Connect cable signals to this jack.

@DIGITAL AUDIO OUT

Connect digital audio from various types of equip- ment.

Note: In standby mode, these ports do not work.

@ HDMI IN

Connect a HDMI signal to 1 (DVI) or 2. Or DVI (VIDEO)signal to the 1(DVI) port with a

DVI to HDMI cable.

@ RGB IN (PC)

Connect the monitor output from a PC to the

appropriate input port.

@ Remote Control Port

Connect your wired remote control.

AUDIO IN (RGB/DVI)

Connect the monitor output from a PC to the

appropriate input port.

@RS-232C IN (CONTROL & SERVICE) PORT

Connect to the RS-232C port on a PC.

@ Power Cord Socket

For operation with AC power. Caution:

Never attempt to operate the TV on DC power.

Introduction

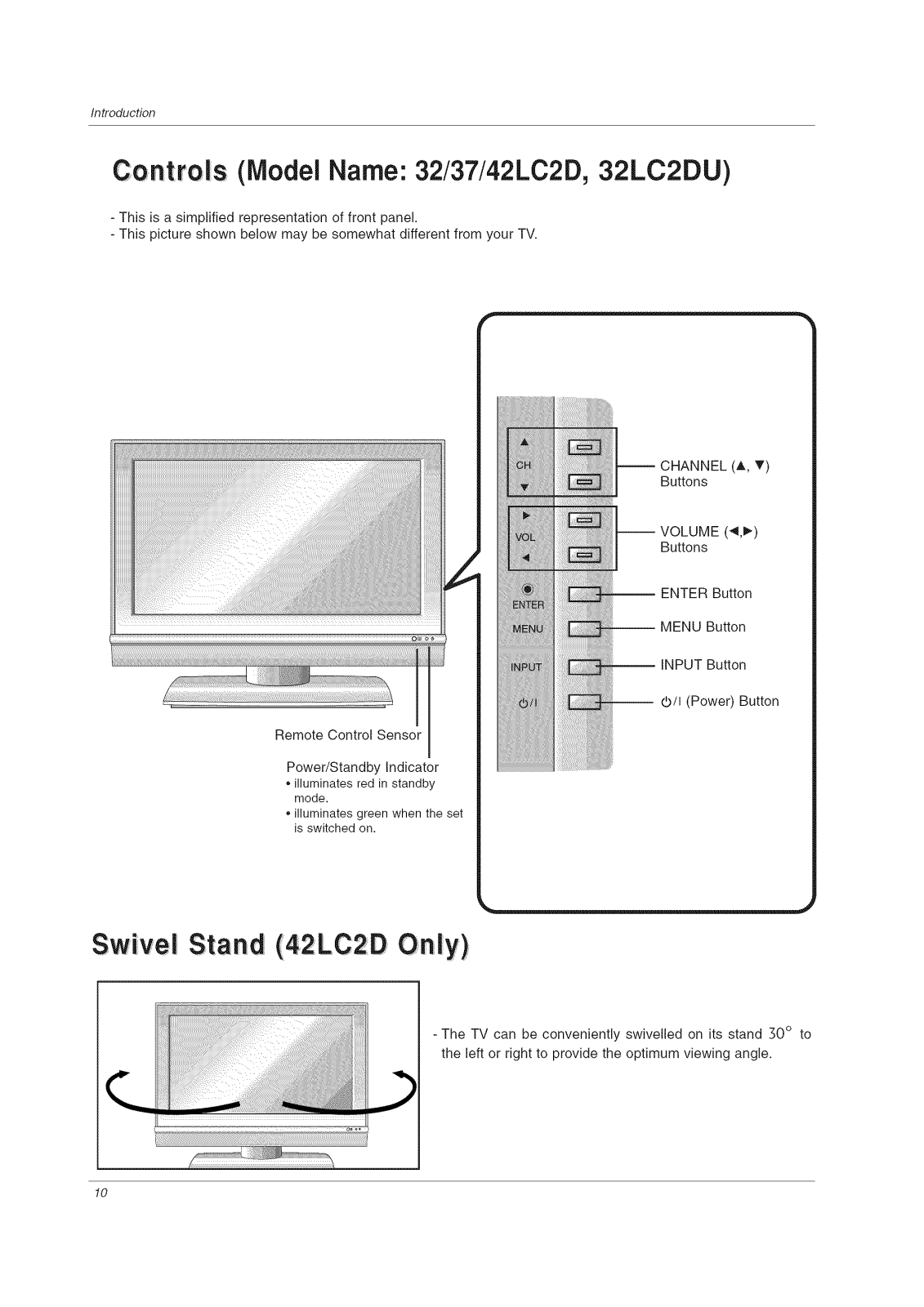

Controls (Model Name: 32/37/42LC2D, 32LC2DU)

- This is a simplified representation of front panel.

- This picture shown below may be somewhat different from your TV.

Remote Control Sensor

Power/Standby Indicator

,, illuminates red in standby

mode.

,, illuminates green when the set

is switched on.

Buttons

(A, _)

(_,_)

Buttons

-- ENTER Button

Button

-- INPUT Button

-- (b/l (Power) Button

Swivel Stand (42:LC2D Only)

- The TV can be conveniently swivelled on its stand 30 ° to the left or right to provide the optimum viewing angle.

Introduction

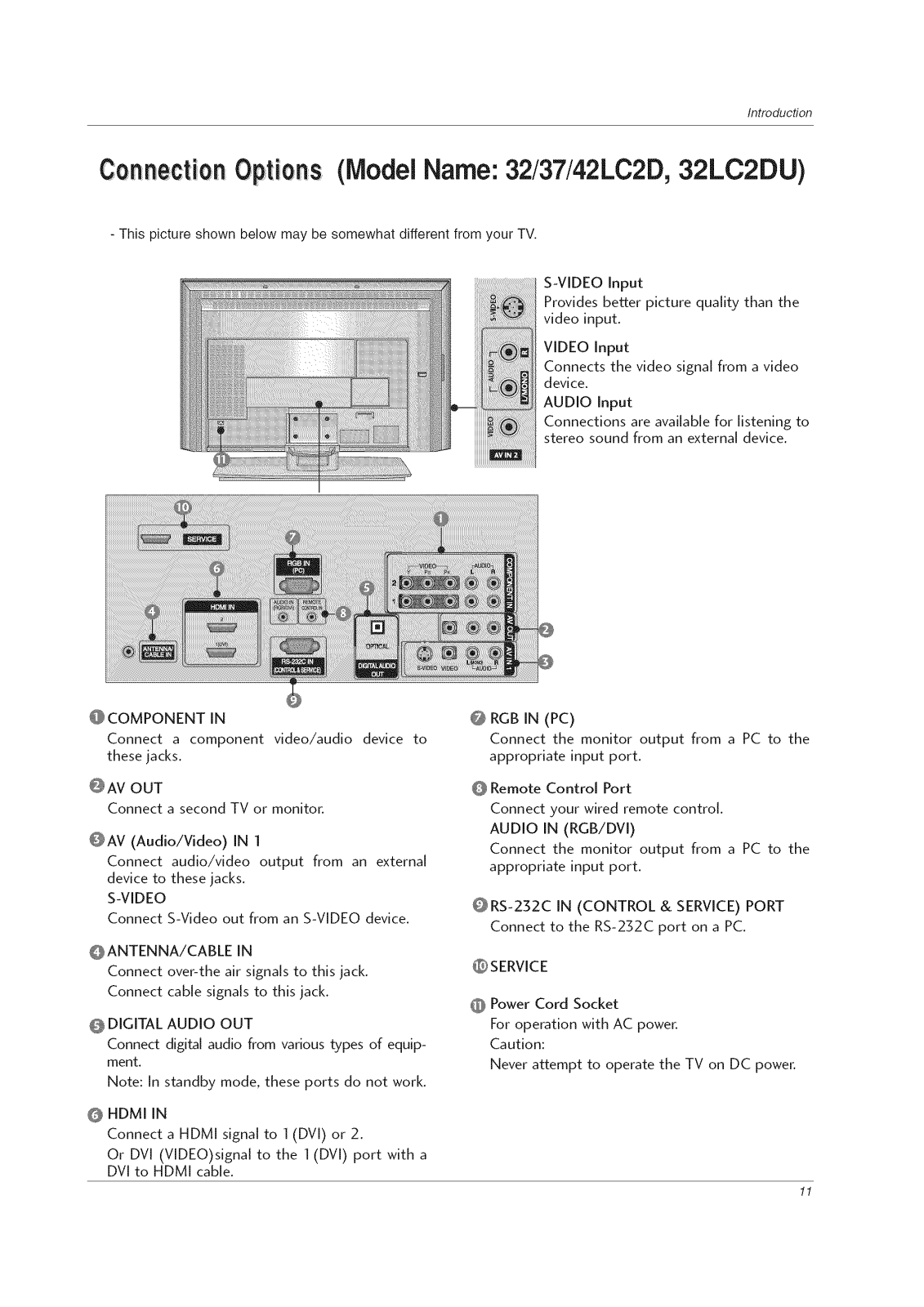

Connecton Optlo s (Model Name: 32/37/42LC2D,32LC2DU)

- This picture shown below may be somewhat different from your TV.

i " n

S-VIDEO Input

Provides better picture quality than the

video input. VIDEO Input

Connects the video signal from a video device.

AUDIO Input Connections are available for listening to

stereo sound from an external device.

@COMPONENT IN

Connect a component video/audio device to these jacks.

@AV OUT

Connect a second TV or monitor.

@AV (Audio/Video) IN 1

Connect audio/video output from an external device to these jacks.

S-VIDEO Connect S-Video out from an S-VIDEO device.

@ANTENNA/CABLE IN

Connect over-the air signals to this jack. Connect cable signals to this jack.

@ DIGITAL AUDIO OUT

Connect digital audio from various types of equip- ment.

Note: In standby mode, these ports do not work.

@ HDMI IN

Connect a HDMI signal to ] (DVl) or 2. Or DVI (VIDEO)signal to the ] (DVI) port with a

DVI to HDMI cable.

@ RGB IN (PC)

Connect the monitor output from a PC to the appropriate input port.

O Remote Control Port

Connect your wired remote control.

AUDIO IN (RGB/DVl) Connect the monitor output from a PC to the appropriate input port.

@RS-232C IN (CONTROL & SERVICE) PORT

Connect to the RS-232C port on a PC.

O Power Cord Socket

For operation with AC power.

Caution:

Never attempt to operate the TV on DC power.

Introduction

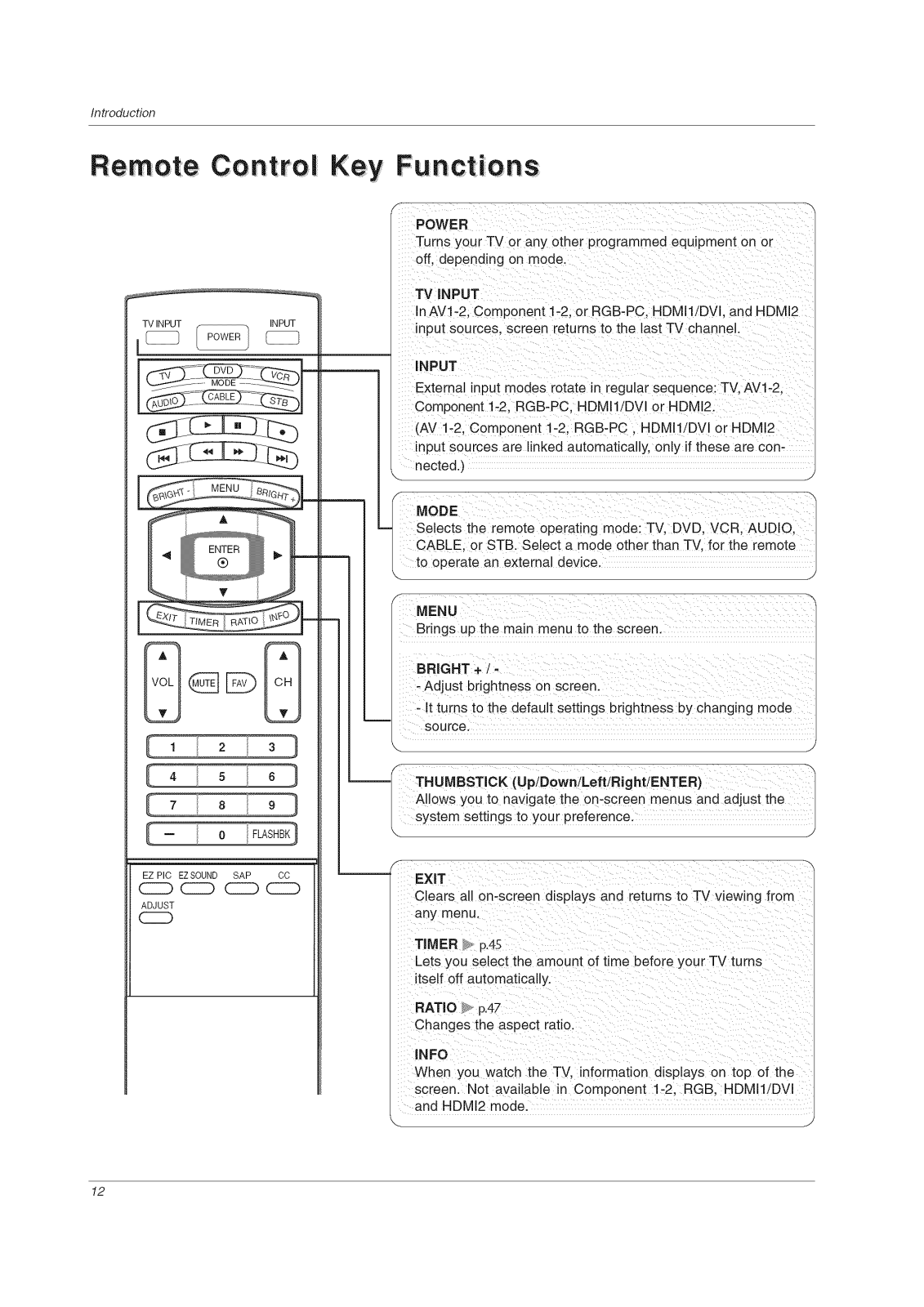

Remote C:ontro! Key Functions

Turns your TV or any other programmed equipment on or

InAV! _2; ComPonent 1:2; or RGB-PC, HDMI!!DVl, and HDM!2

input sources, screen returns t0 the last TV channe!.

......._- h

MODE::- l

[- o F s,BK}

_ ' INPUT

External input modes rotate in regular sequencei Tv, AVl:2, Competent i_21RGB-PC, HDM!!/DVI 0r HUM!2,

(AV !-2, C0mp0nent !-2; RGB:PC, HDMI!/DV! or HDM!2

input sources are linked automatically, only if these are con-

nected.)

MODE

-_ Selects the remote operating mUdei TV,DVD, VCRI AUDiOI _ CABLE, or STB. Select a mode other than TV, for the remote to 0peiaie an eXtema! device,

Brings up the main menu to the screen.

- It turns to the default settings brightness by changing mode

-- source,

\ J

--_ THUMBSTICK (UpiDowniLeftiRight/ENTER) Allows you to navigate the on:screen menus and adjust the

_. s_stem settings t0yourprefeience

EZ PIC EZSOUND SAP CC

CCC) CZ) CCD CZD

ADJUST

Clears all on-screen displays and returns to TV viewing from any menu,

Lets you select the amount of time before your TV turns itse!f eft automatical!y.

RATIO> p,4z

Changes the aspect ratio,

_NFO

When you Watch the T_, infoirnaiion displays on top of the screen. Not available in Component i_2, RGB, HDMI1/DVl

and HDMI2 mode.

,.. y

TV INPUT _ INPUT

Introduction

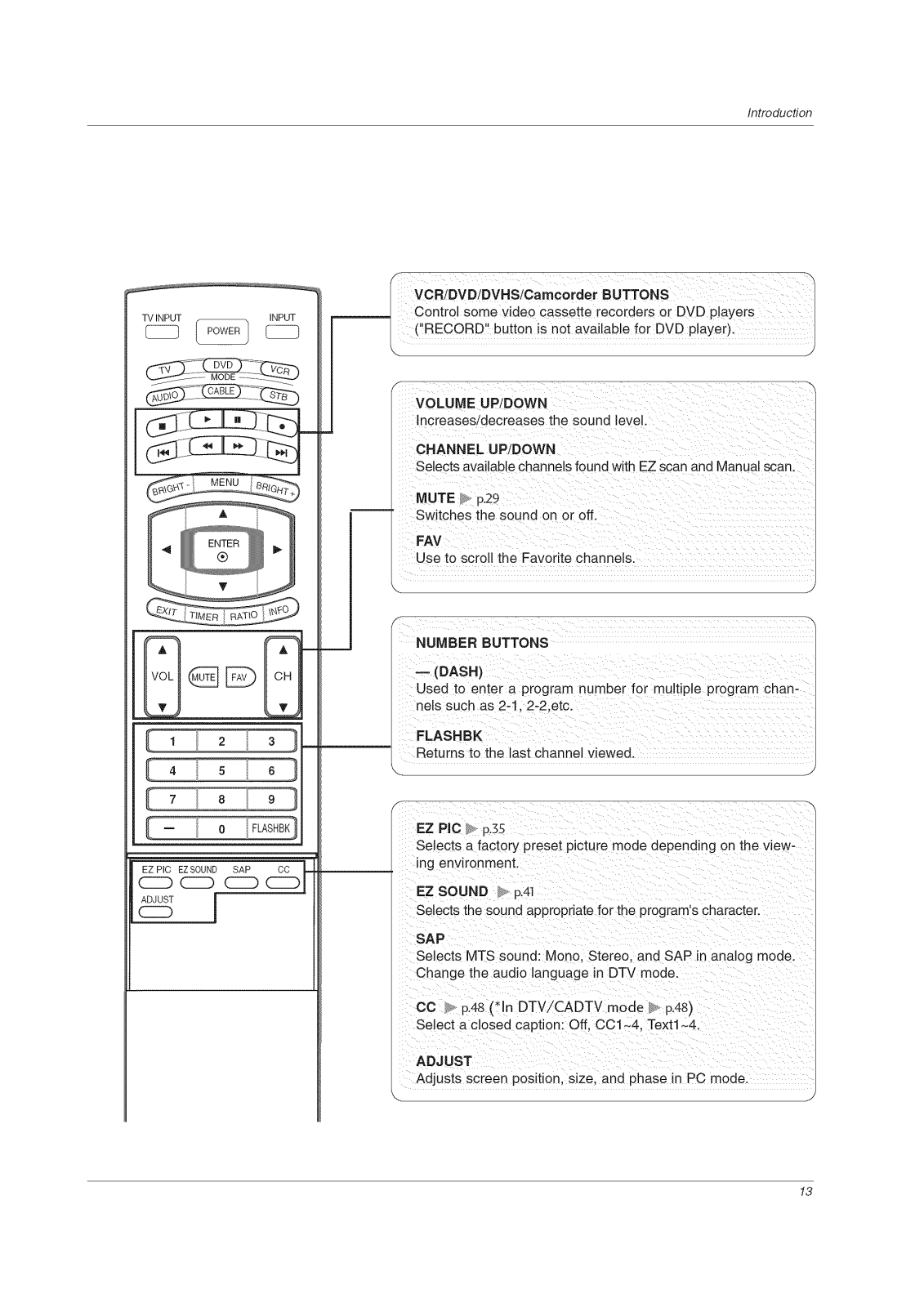

VCBiOVOJBVNSJC",.c,,.,o'BU 'ONS

control some video cassette recorders or DVD players ( RECORD button is net available for DVD player).

Increases/decreases the sound level.

CHANNEL UPiDOWN

Selects availab e channels found with EZ scan and Manual scan

Use to scroll the Favorite channels.

EZ PIC EZSOUND SAP CC m,

CCC) CCC) CCC)

ADJUST i

NUMBER BUTTONS

Used to enter a program number f0r mu!tipie program chan-

Returns to the last Channel viewed.

Selects a factory preset picture mode depending on the view-

ing environment.

EZSOUND_ p141

Selects the Sound appropriate for the progra m s character.

sap

Selects MTS sound: Mono, Stereo, and SAP in analog mode. Change the audio language in DTV mode.

Adjusts screen position, size, and phase in PC mode.

Introduction

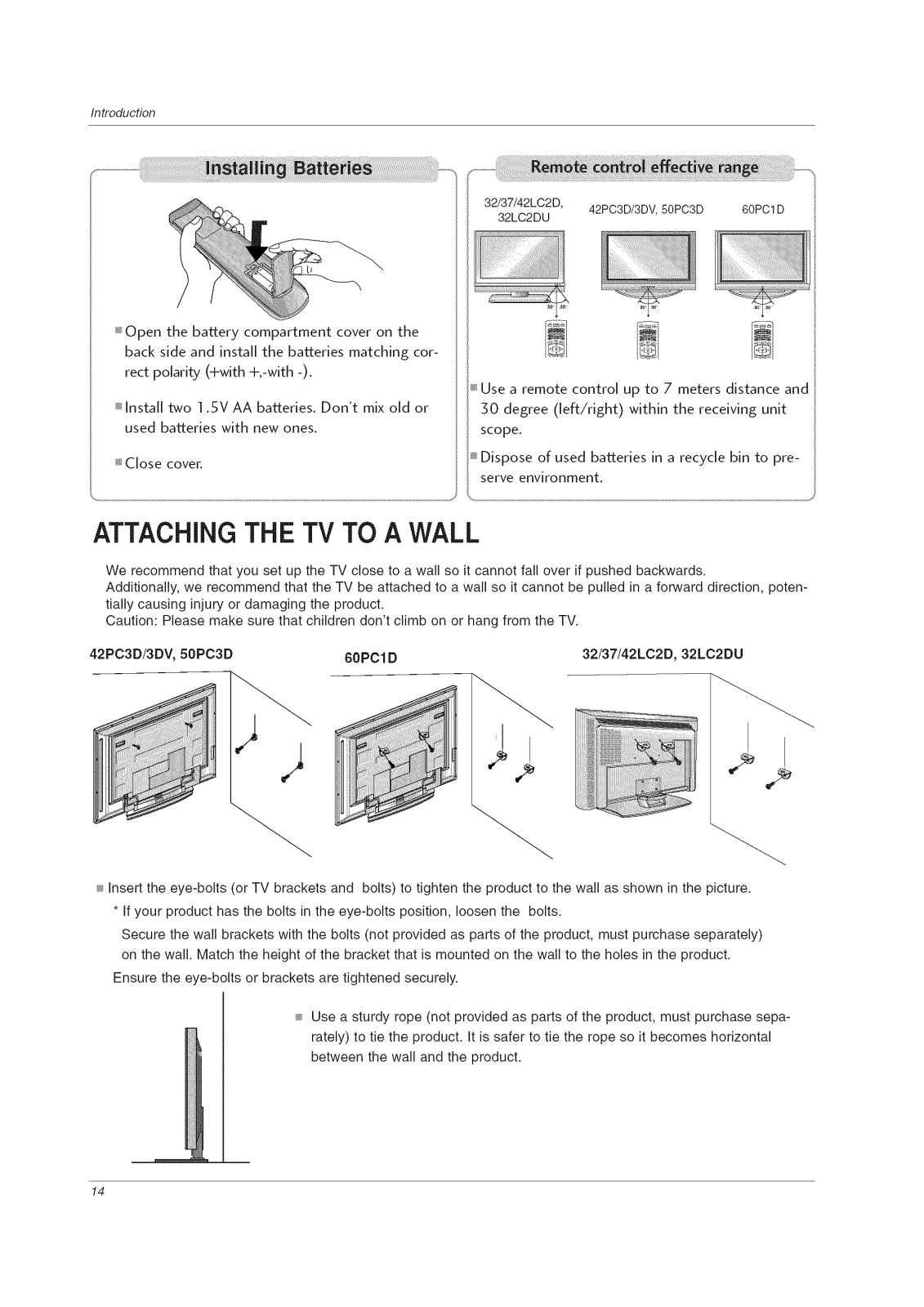

_Open the battery compartment cover on the

back side and instal[ the batteries matching cor- rect polarity (+with +,-with -).

#_Install two ] .5V AA batteries. Don't mix old or

used batteries with new ones.

_Close coveg

ATTACHING THE TV TO A WALL

32/37/42LC2D, 42PC3D/3DV, 50PC3D 60PC1D

32LC2DU

_ Use a remote control up to 7 meters distance and

30 degree (left/right) within the receiving unit

scope.

_ Dispose of used batteries in a recycle bin to pre-

serve environment.

We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards. Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction, poten-

tially causing injury or damaging the product. Caution: Please make sure that children don't climb on or hang from the TV.

42PC3D/3DV, 50PC3D

_ Insert the eye-bolts (or TV brackets and bolts) to tighten the product to the wall as shown in the picture.

* If your product has the bolts in the eye-bolts position, loosen the bolts.

Secure the wall brackets with the bolts (not provided as parts of the product, must purchase separately) on the wall. Match the height of the bracket that is mounted on the wall to the holes in the product.

Ensure the eye-bolts or brackets are tightened securely.

_ Use a sturdy rope (not provided as parts of the product, must purchase sepa-

60PC1D

rately) to tie the product. It is safer to tie the rope so it becomes horizontal

between the wall and the product.

32/37/42LC2D, 32LC2DU

InSta ![a t i1o n

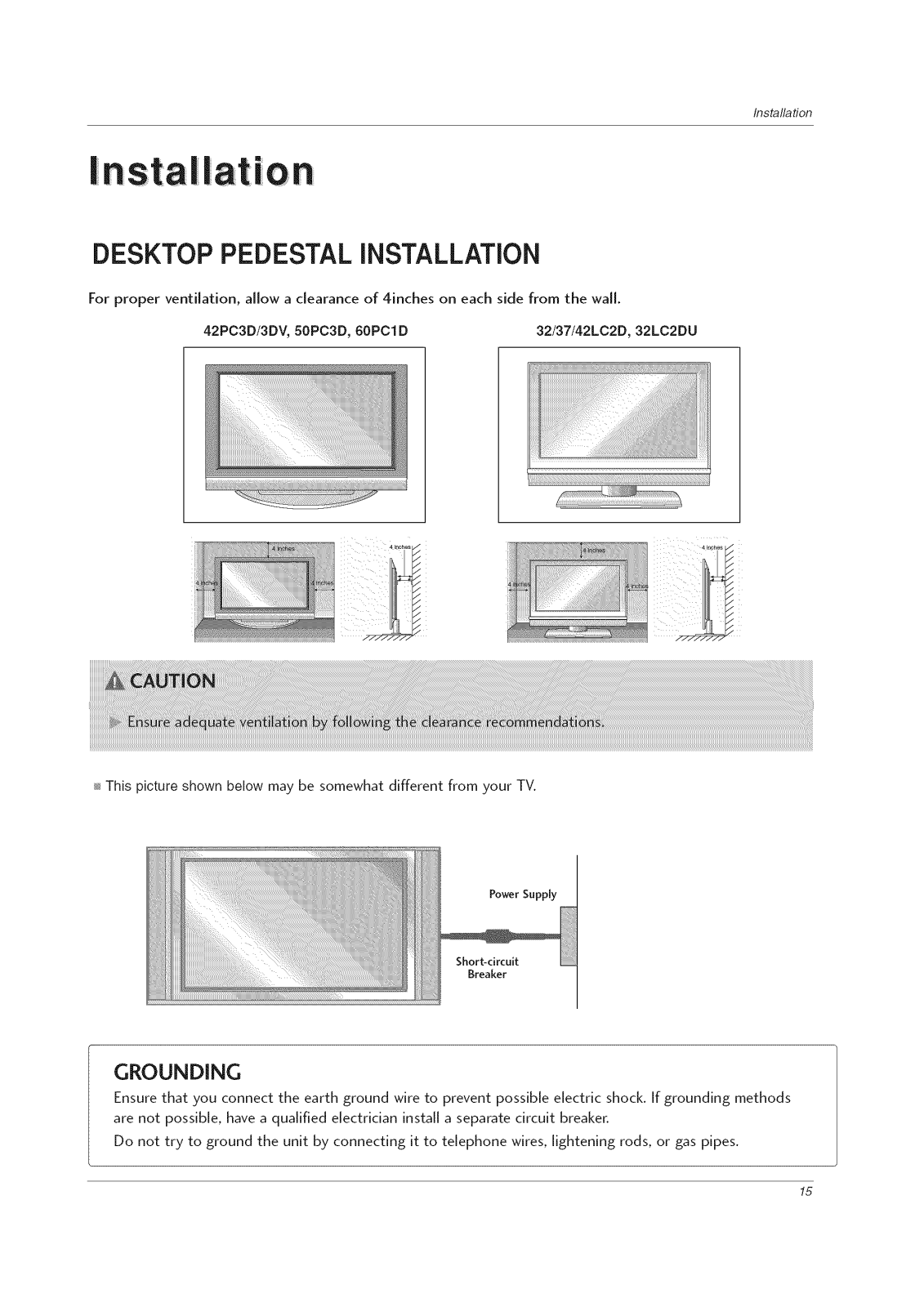

DESKTOPPEDESTALINSTALLATION

For proper ventilation, allow a clearance of 4inches on each side from the wall.

42PC3D/3DV, 50PC3D, 60P01D 32/37/42LC2D, 32LC2DU

iiii_i!i!iiiii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i_i_i_i_iii_i_i!_iiiii!ii_i_;i;1i!!!_i_!_ii!ii_!_iiIi!_i_iiiiIi_i_iiiii[iiii[ii

Installation

_;This picture shown below may be somewhat different from your TV.

Power Supply

Short-circuit

Breaker

GROUNDING

Ensure that you connect the earth ground wire to prevent possible electric shock. If grounding methods

are not possible, have a qualified electrician install a separate circuit breaker.

Do not tr-y to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.

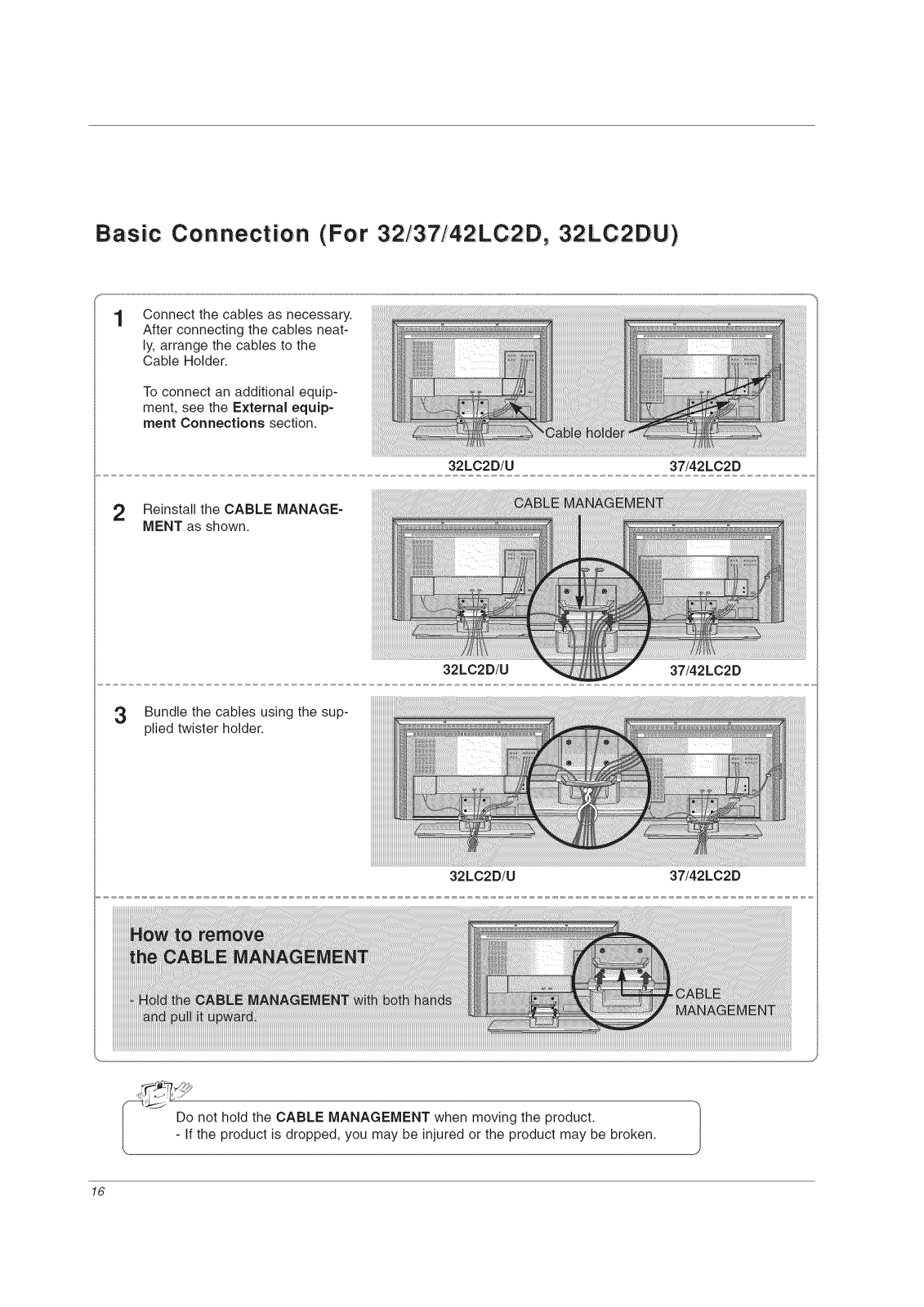

Basic Connection (For 32/37/42LC2D, 32LC2DU)

Connect the cables as necessary. After connecting the cables neat- ly, arrange the cables to the

Cable Holder.

To connect an additional equip- ment, see the External equip-

ment Connections section.

32LC2D/U 37/42LC2D

Reinstall the CABLE MANAGE- MENT as shown.

32LC2D/U 37/42LC2D

3 Bundle the cables using the sup-

plied twister holder.

32LC2D/U 37/42LC2D

¢_ Do not hold the CABLE MANAGEMENT when moving the product. L - If the product is dropped, you may be injured or the product may be broken.

B w

as!c Connection

Place the set with the screen facing down on a cushion or soft cloth as shown•

Before unfolding the stand, please make sure two locks (A) on the bottom of the stand push

outward•

/+: _++':"-,, stand•

(A)

This may cause the set to fall, causing serious bodily injury and serious damage to the set.

2 Pull the stand out as shown•

After unfolding the stand, please insert and tighten the screws (provided as parts of the product) in the holes (B) on the bottom of the

(B)

When closing the stand for storage

- First remove the screws in the holes (B) on the bottom of the stand• And then pull two Hooks (D) of the stand

bottom and fold the stand into the back of the set.

- After folding, push the two Locks (A) of the stand bottom outward•

(A)

1 Hold the CABLE MANAGEMENT with both

hands and push it as shown.

(D)

Connect the cables as necessary•

To connect an additional equipment, see the External equipment Connections section•

Installation

Exte r n a[ ,,,;,;;q u Ip me n t Co nec|:! o s

NOTE: All cables shown are not included with the TV

- Antenna or Cable Service without a Cable Box Connection For optimum picture quality, adjust antenna direction if needed.

Vlulti-family Dwellings/Apartments _Connect to wail antenna socket

Wall Antenna Socket

RF Coaxial Wire (75 onmJ

VHF Antenna _

UHFAntenna _ t Outdoor AnteT_: clockw'se t° tighten"

Bronze Wire

Single-family Dwellings Houses (Connect to wall jack for outdoor antenna.

Cable TV Wall Jack

Turn €lockwise to tighten:

Be careful not to bend the bronze wire when connecting the antenna.

Bronze Wire

in a poor signal area to improve picture quality, purchase and install a sig- nal amplifier.

signal amplifier

if the antenna needs to be split for two TV's, install a "2-Way Signal Splitter" in the connections.

if the antenna is not installed properly, contact your dealer for assistance.

Installation

- To avoid picture noise (interference), leave an adequate distance between the VCR and TV.

- Typically a frozen still picture from a VCR. if the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen.

VCR

AUD 0 OUTPUT

" e the Antenna s0cket on the set

VCR @ Connect the RF antenna out socket of the VCR to

_" @ @ Connect the antenna cable t0the RF antenn a in

.......... @ _ @ socket of the VCR

.£_,[_ /R/AUDioILl WDEO

,.e ® ®

O Set VCR output switch to 3 or 4 and then tune TV

@ Insert a video tape into the VCR and press PLAY

on the VCR. (Refer t0 the vcR owner's manual,)

Connect the AUDIO/VIDEO jacks between TV

and VCR. Match the jack colors (Video = yellow.

tit

Audio Left = white and Audio Right = red/

Insert a video tape into the VCR and press PLAY on the VCR CRefer to the VCR owner's manual.I

Select AV1 input source using the INPUT button on the remote control.

- f connected to AV IN2. select AV2 input source.

• If you have a mono VCR. connect me audio cable from the VCR to the AUDIO L/MONO jack of the set

Installation

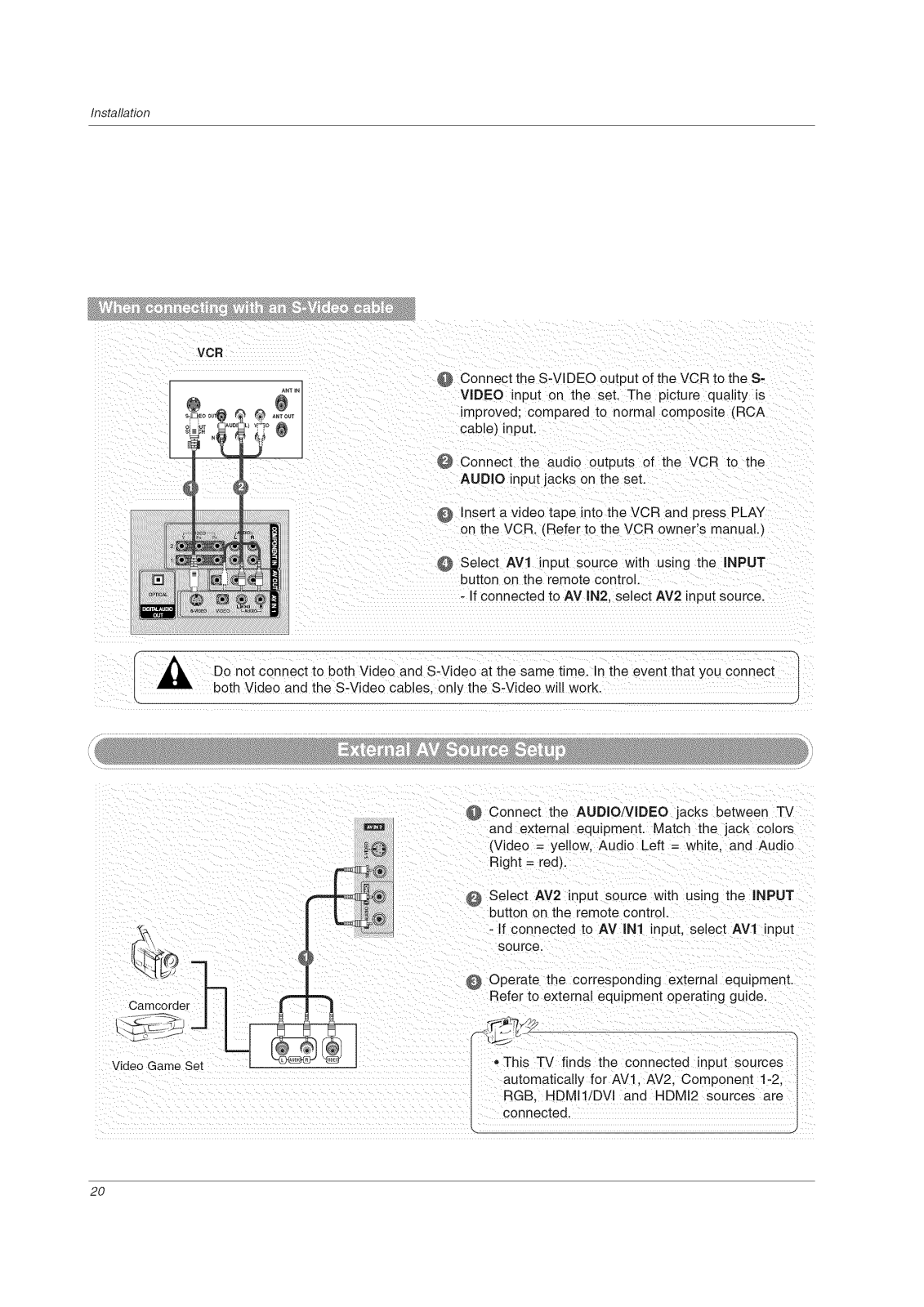

VIDE0 inPut on the set. The picture quality is

@ Select AV! input source With using the NPUT

button on the remote control. _!f connected to AV IN2, se!ect AV2 input s0urce.

[ Do not c0nnect to both Video and STVideo at the same time: In the e_ent that you Connect "t

L both Video and the S-Video cables, only the S-Video will work.

@ Connect the AUDIO/VIDEO jacks between TV

and external equipment. Match the jack colors

i_ Right = red

Select AV2 input source with using the iNPUT

(Video = yellow. Audio Left = white, and Audio button on the remote control.

- If connected to AV IN1 input, select AVl input

source.

Operate the corresponding external equipment. Refer to external equipment operating guide.

Video Game Set

,This TV finds the connected input sources

automatically for AV1. AV2. Component 1-2. RGB. HDMI1!DVl and HDMI2 sources are

connected.

Installation

O Select AV1 input source with using the iNPUT button on the remote control.

!t connected to AV IN2, select AV 2 input source.

Refer to the DVD player's manual for operating instructions.

Connect the HDMI output of the DVD to the NDMI IN 1(DVl) or 2 jack on the set.

Select NDMiliDVl or NDMI2 input source with using the iNPUT button on the remote control.

_ Refer to the DVD player's manual for operating

instructions.

TV can recewe the video and audio signal

simultaneously with using a HDMI cable If the DVD supports Auto HDMI function, the DVD output resolution will be automatically

set to 1280x720p. If the DVD does not support Auto HDMI, you need to set the output resolution appropriate- ly. To get the best picture quality, adjust the output resolution of the DVD to 1280x720p.

+ 47 hidden pages
