LG 60LN54 Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LB31F

MODEL : 60LN54** 60LN54**-T*

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL67704514 (1301-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ........................................................................ 3

SERVICING PRECAUTIONS ................................................................... 4

SPECIFICATION ...................................................................................... 6

ADJUSTMENT INSTRUCTION ............................................................... 8

TROUBLE SHOOTING .......................................................................... 14

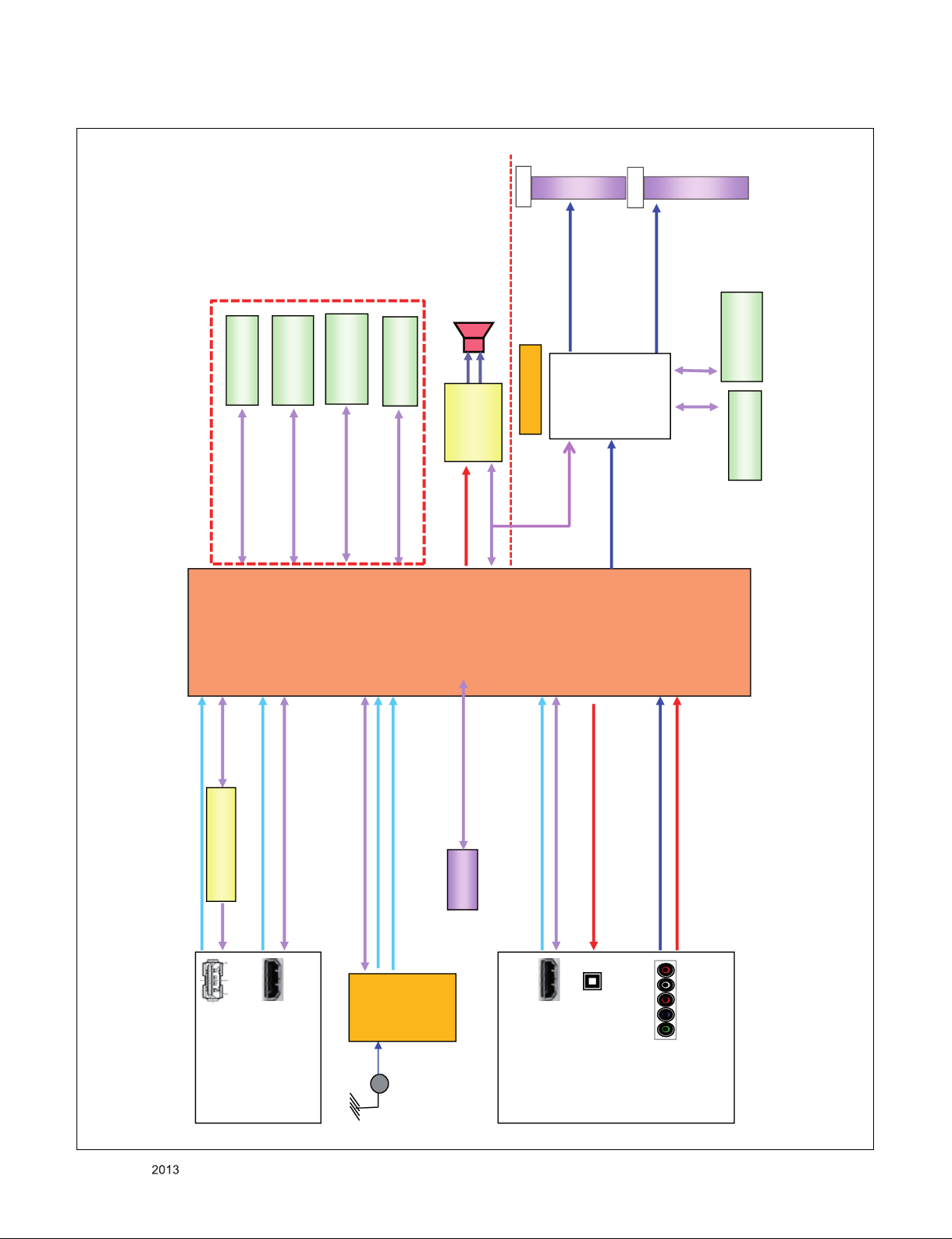

BLOCK DIAGRAM ................................................................................. 20

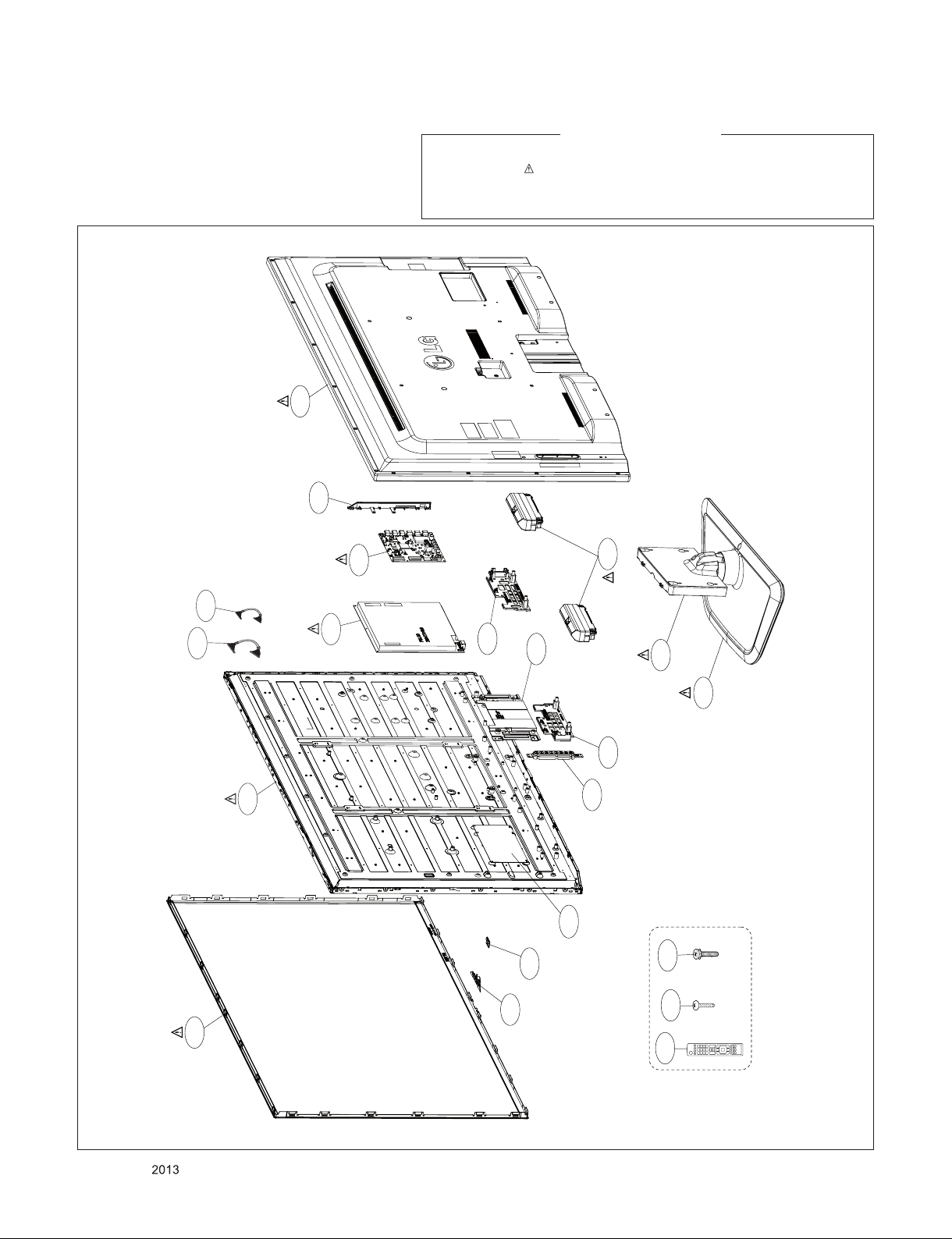

EXPLODED VIEW .................................................................................. 21

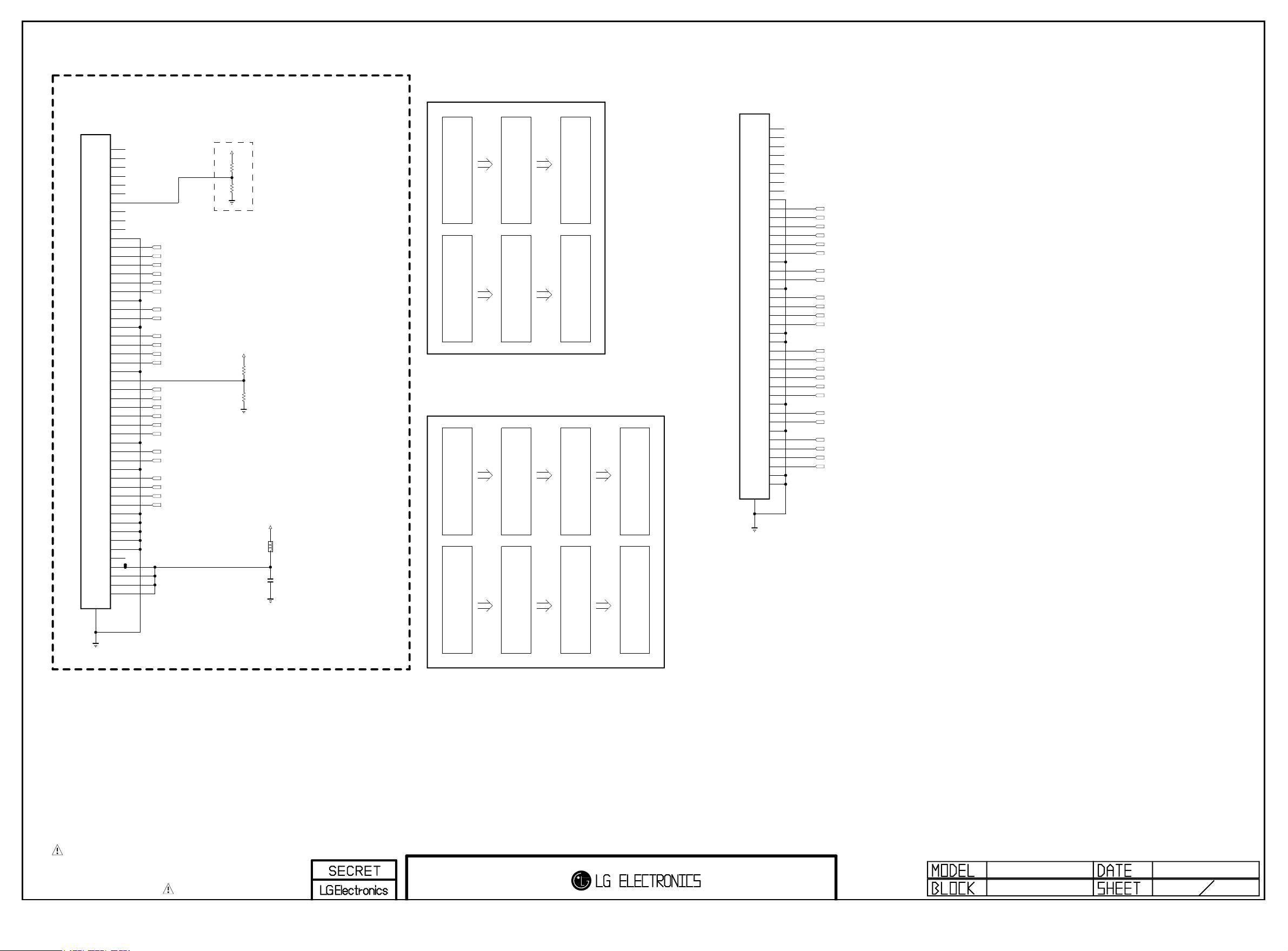

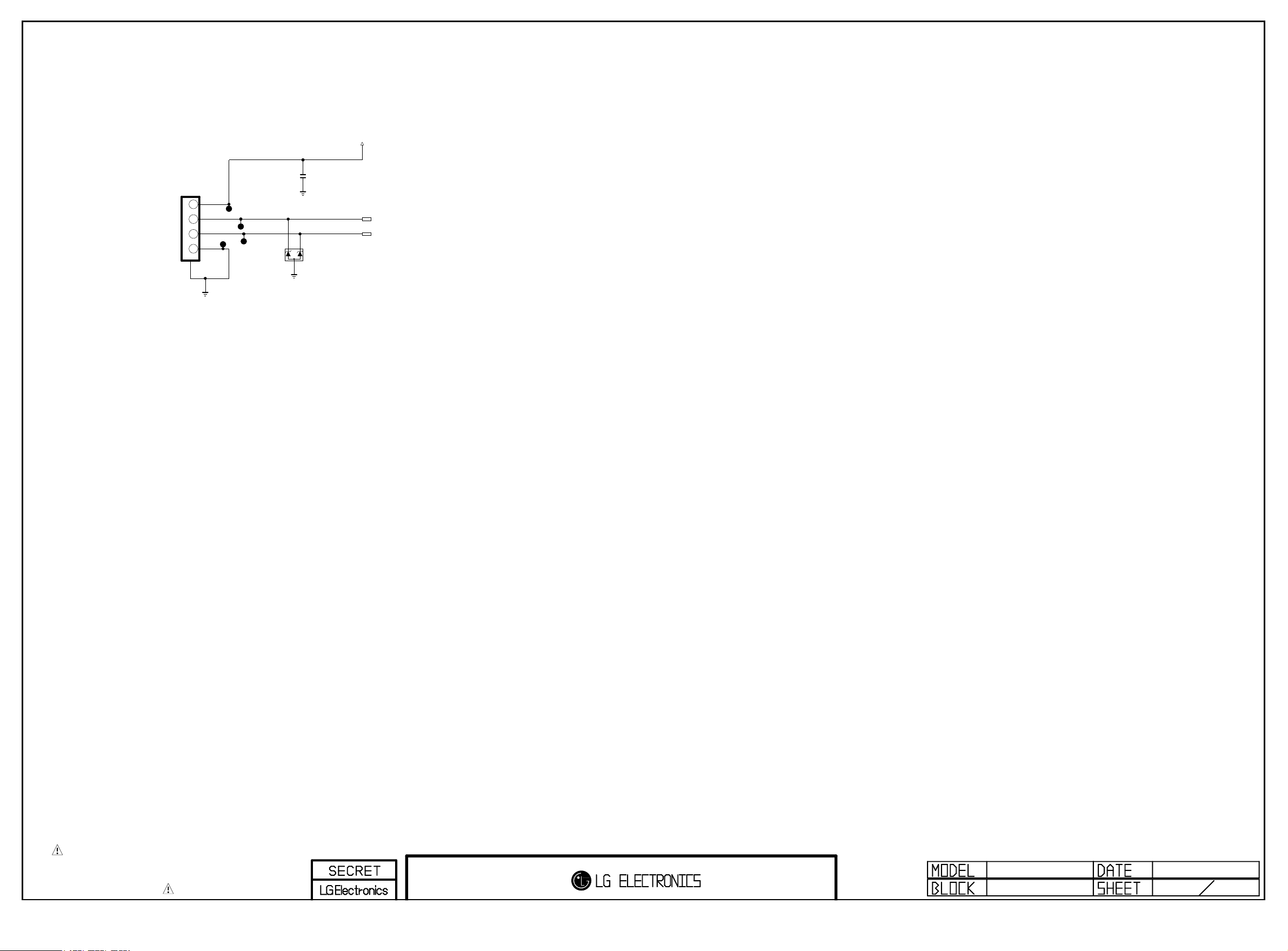

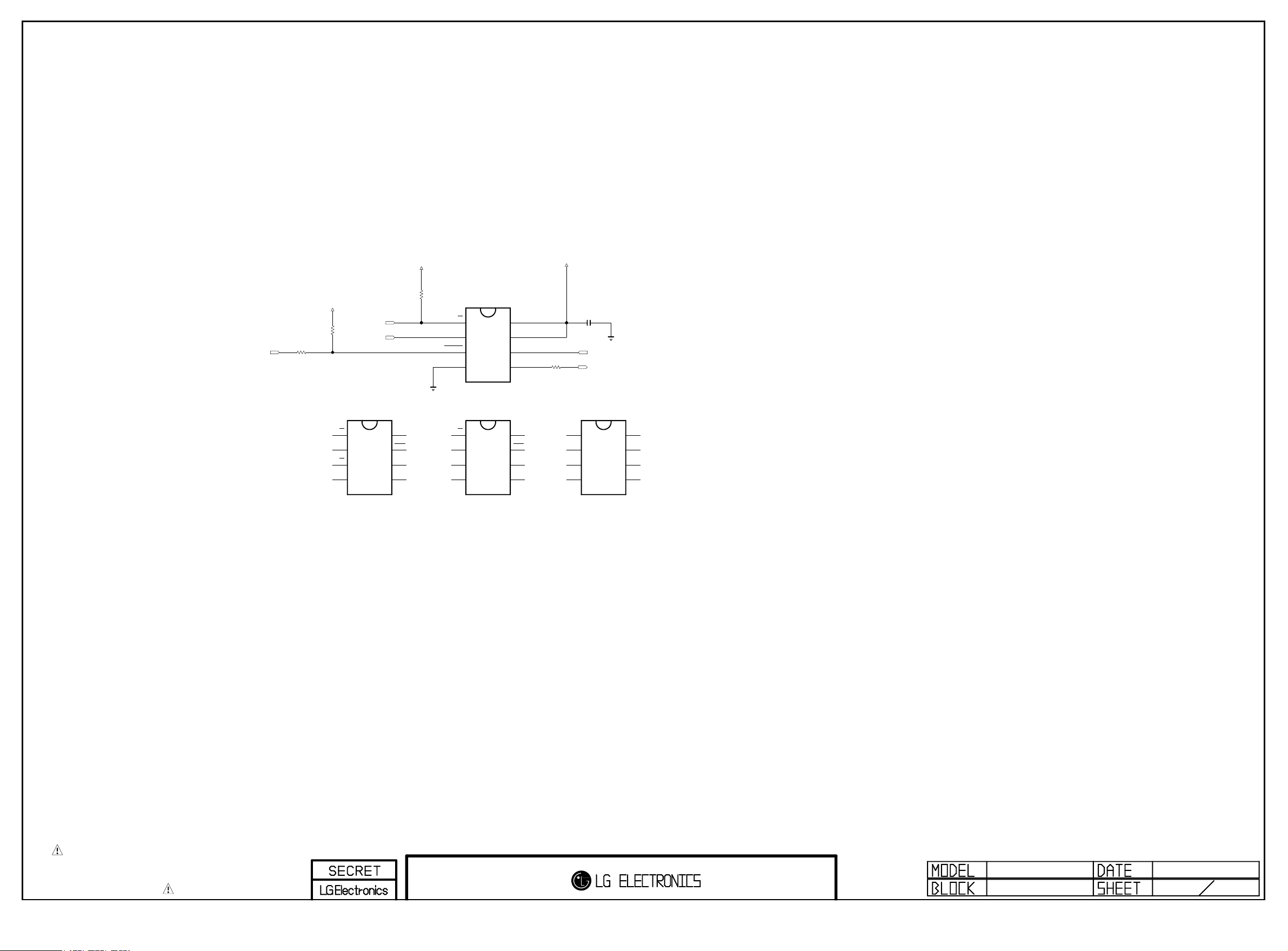

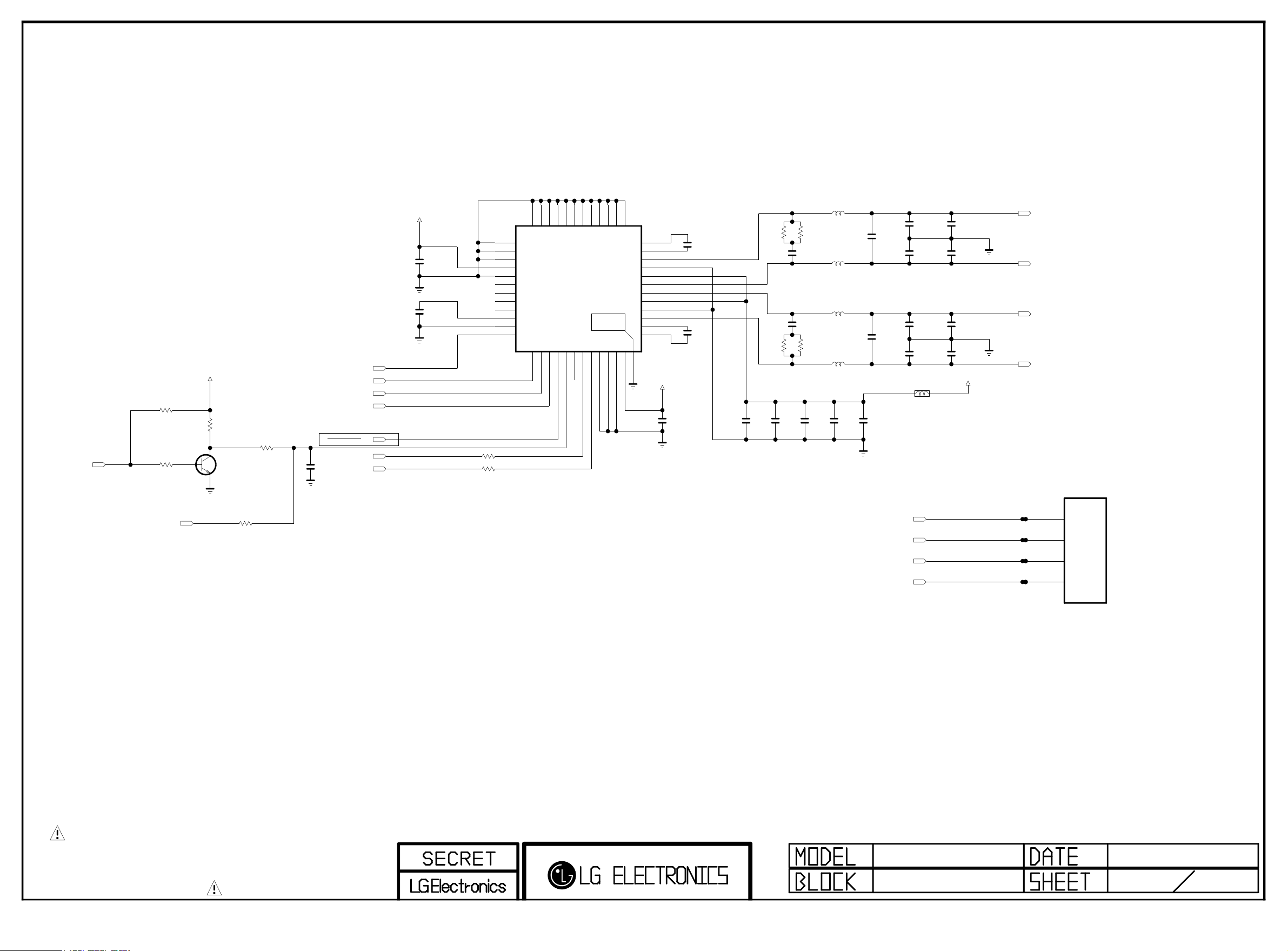

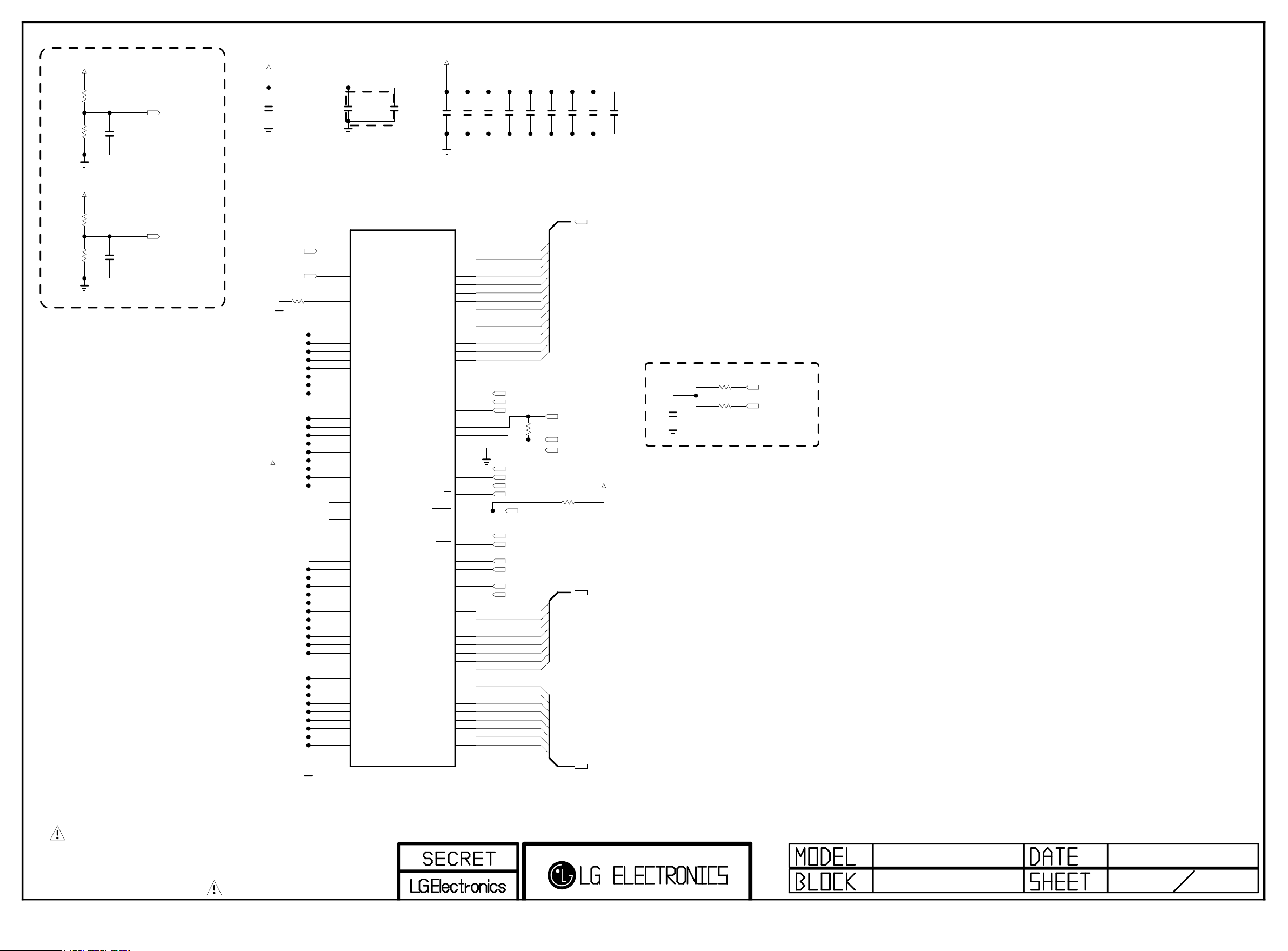

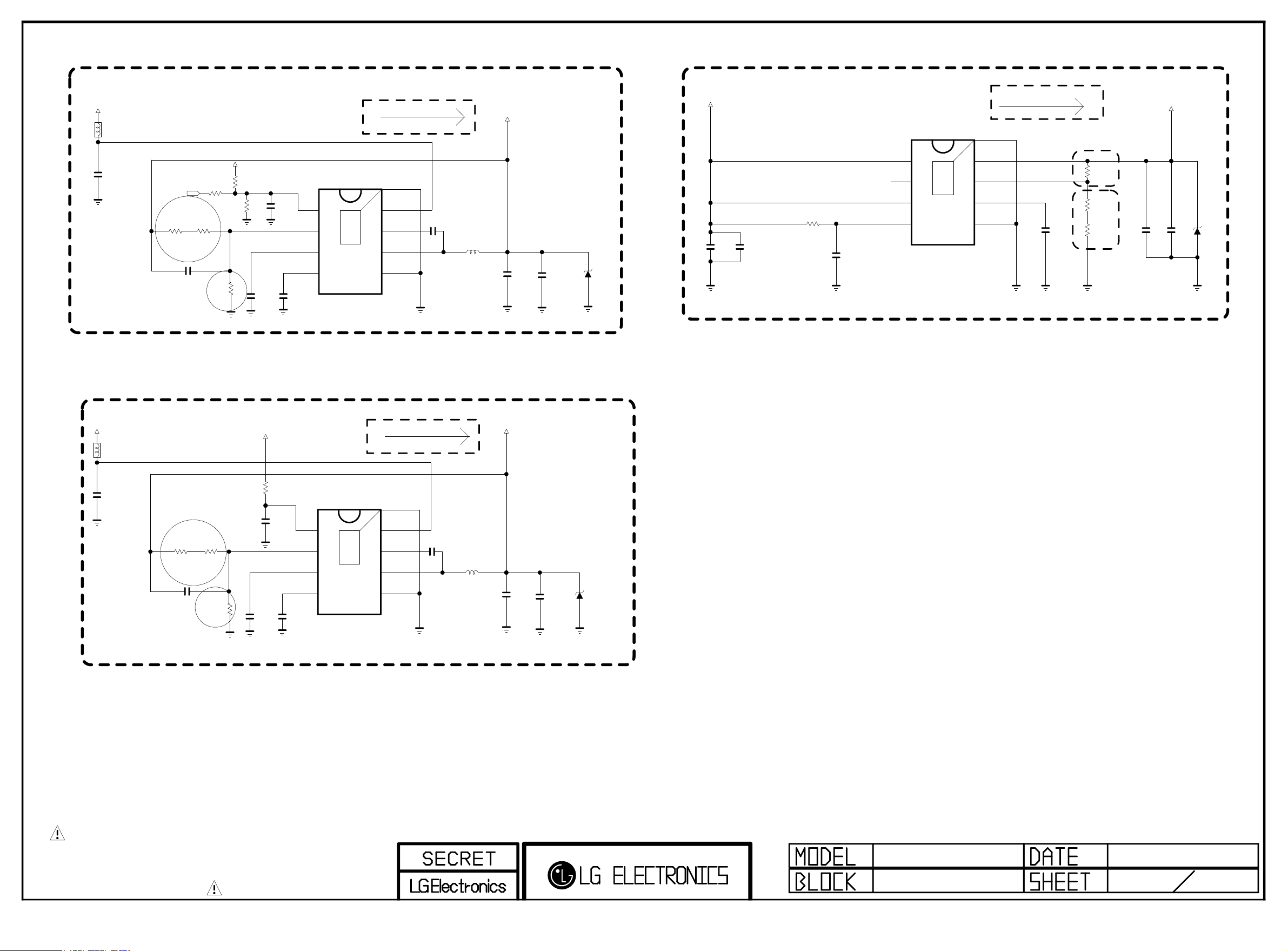

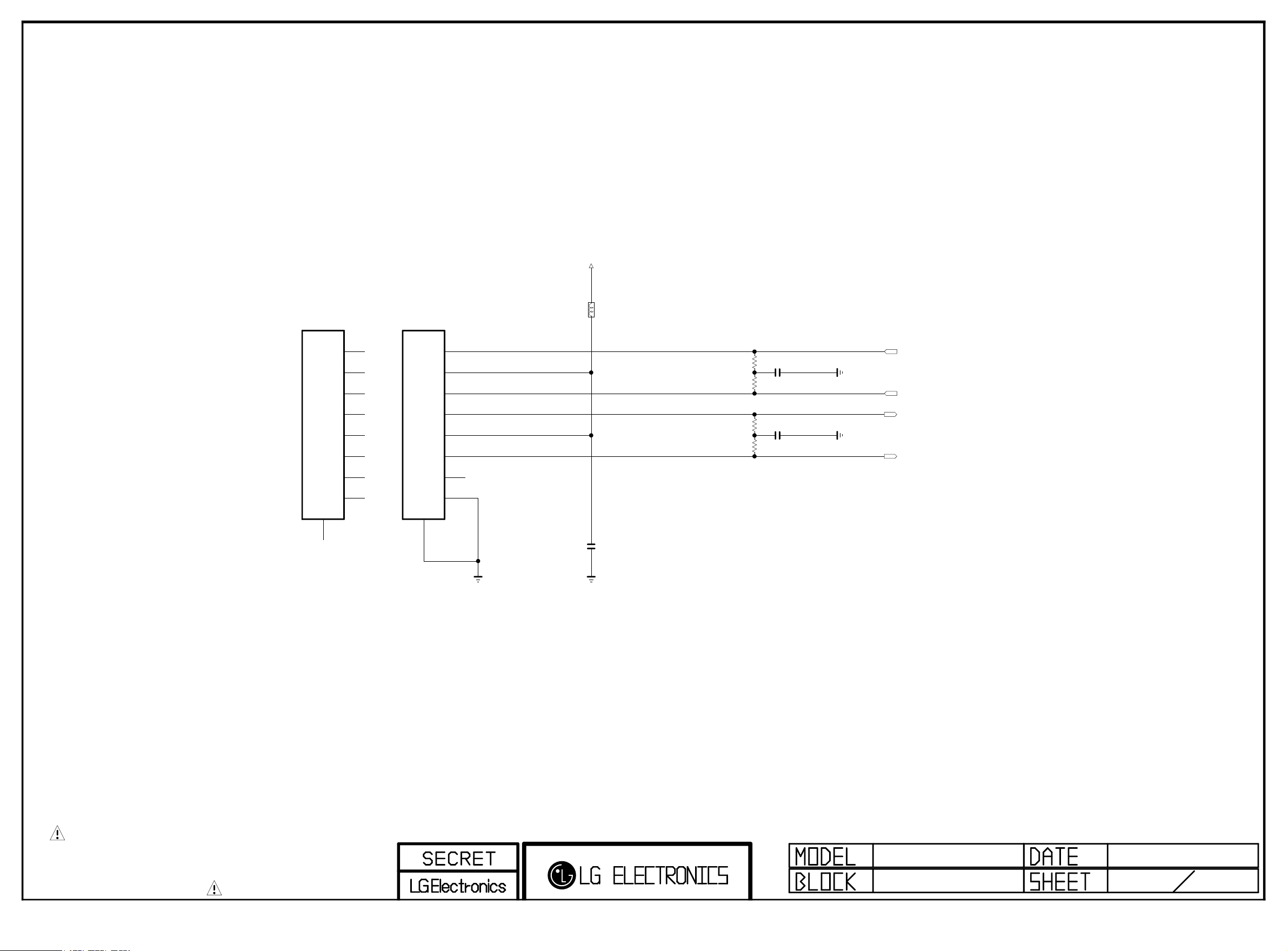

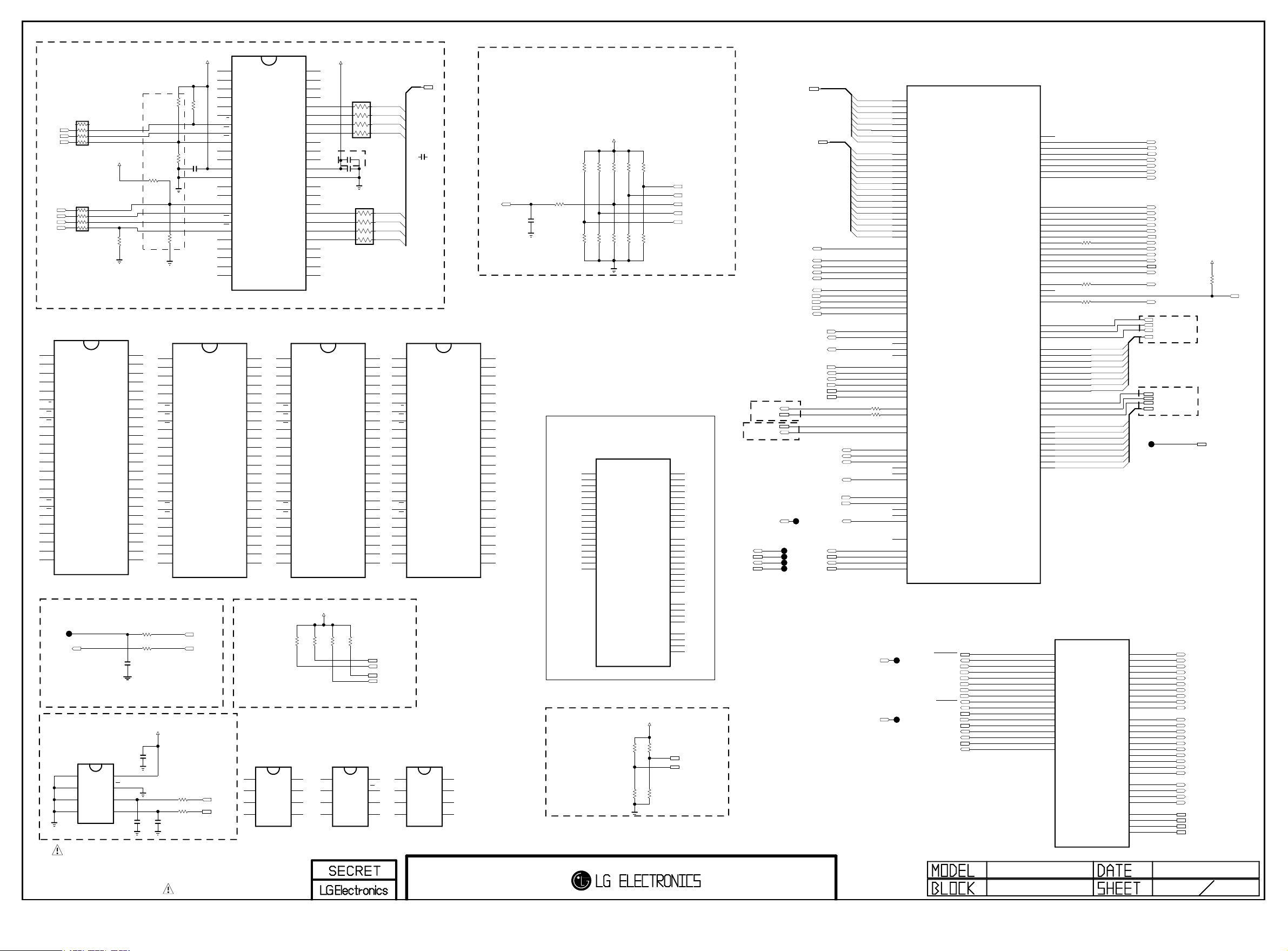

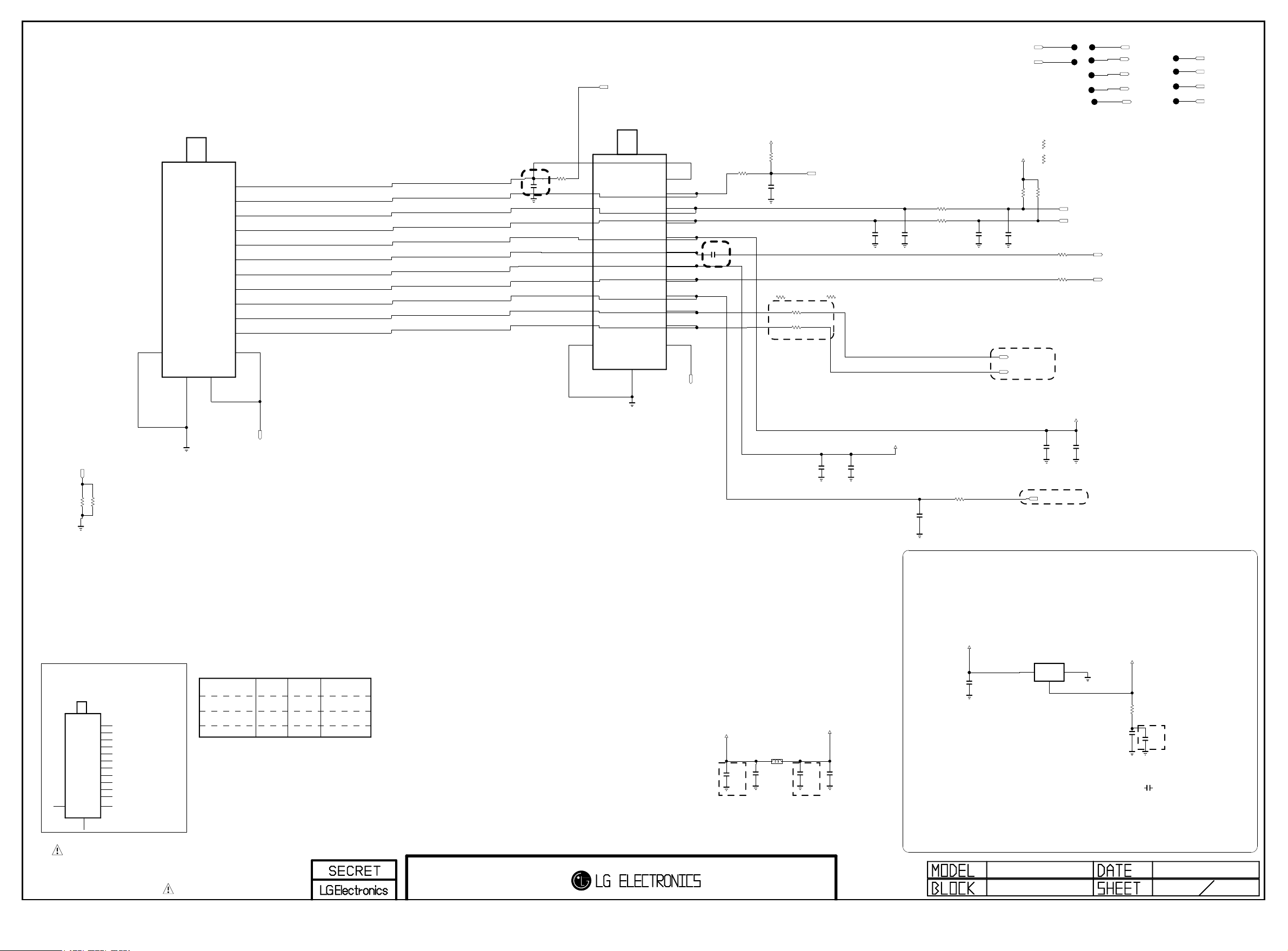

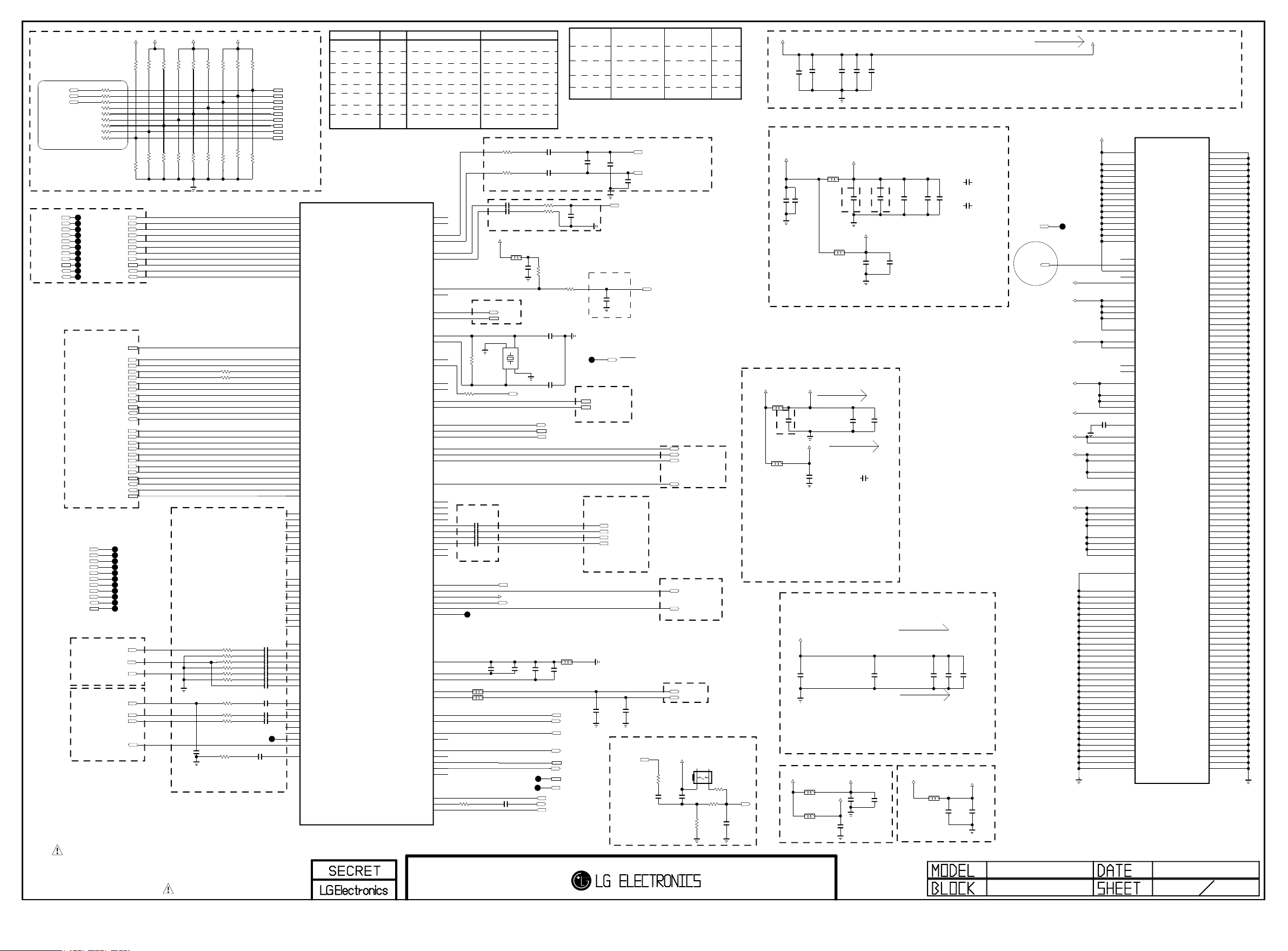

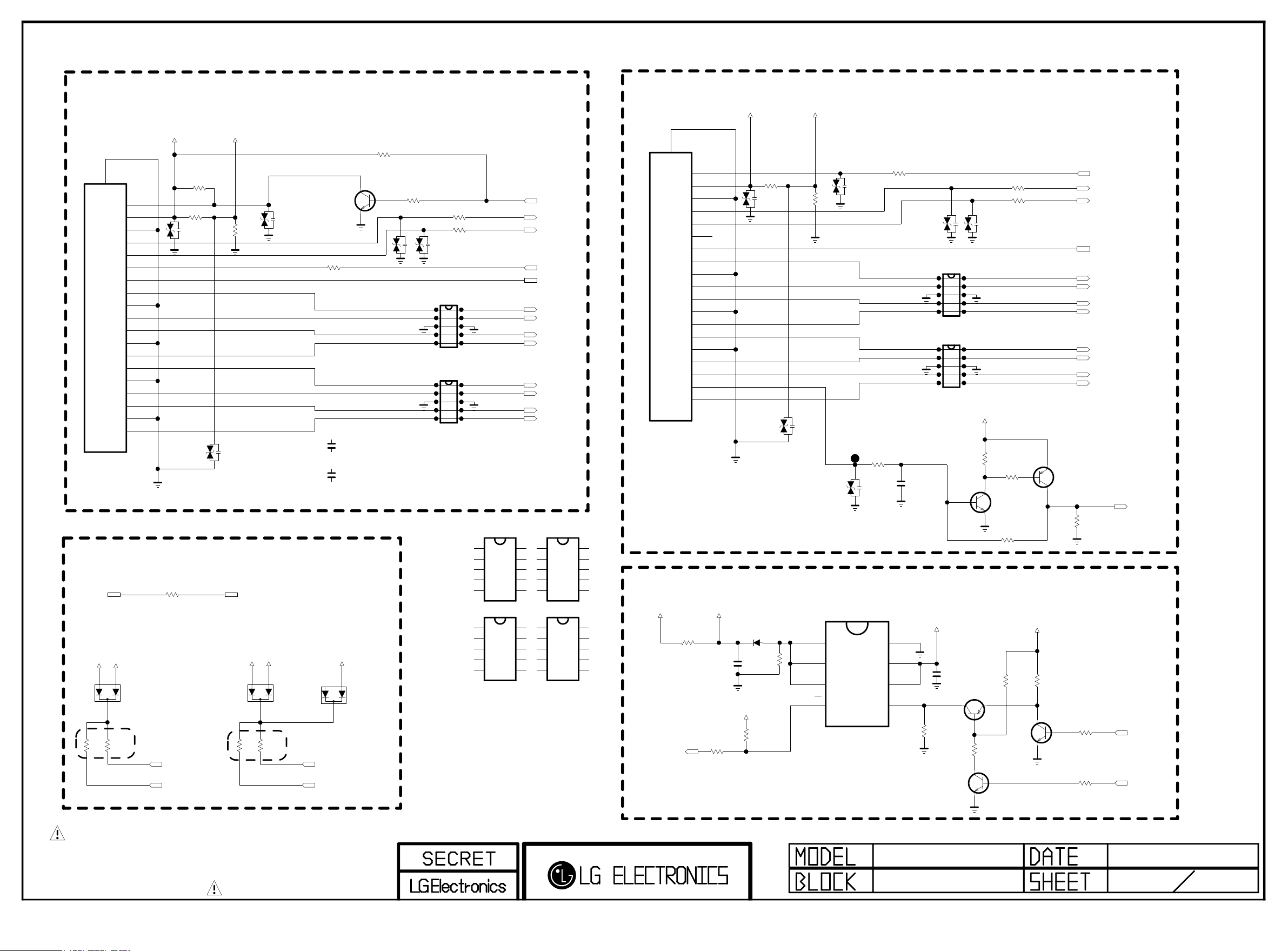

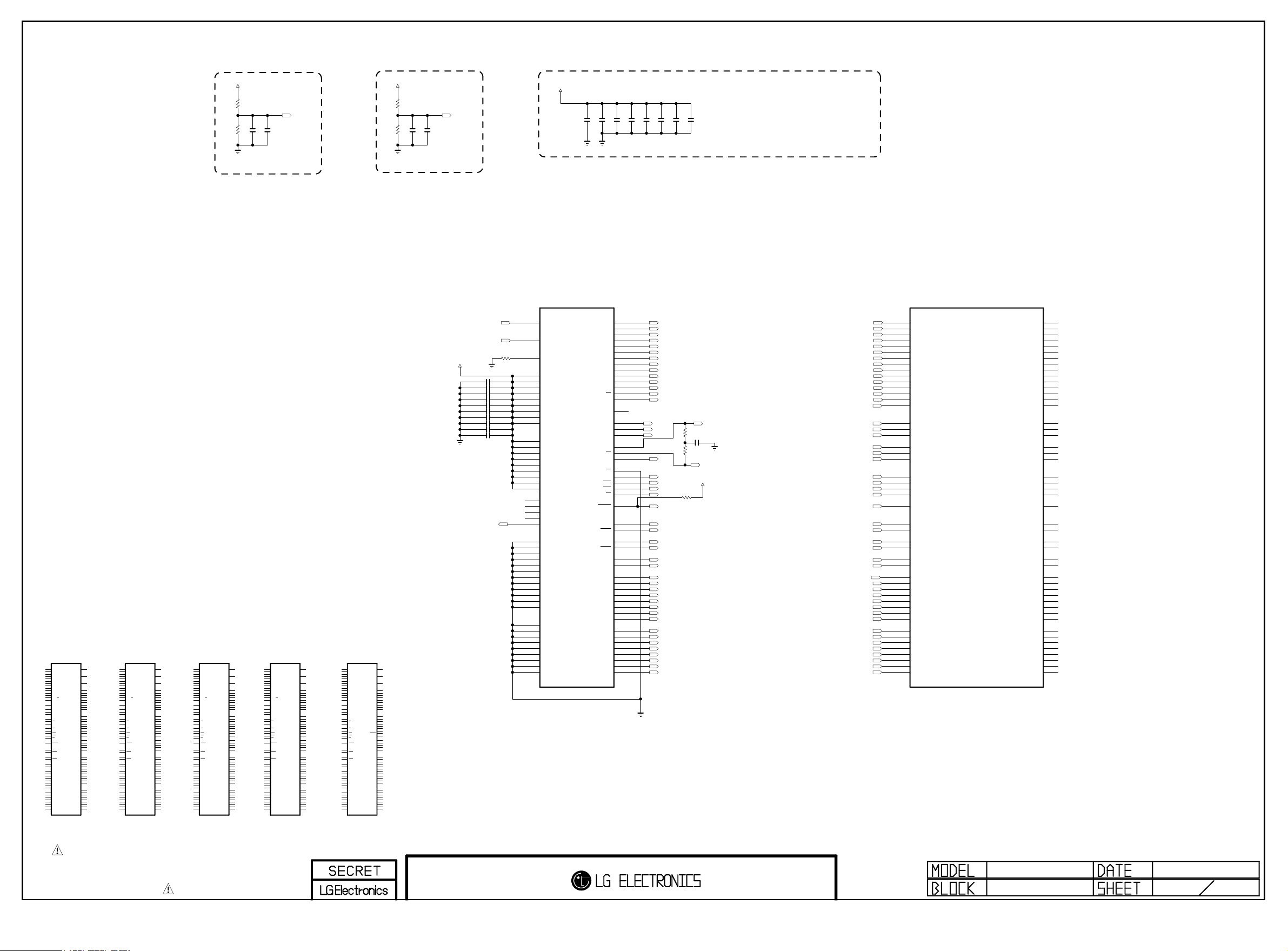

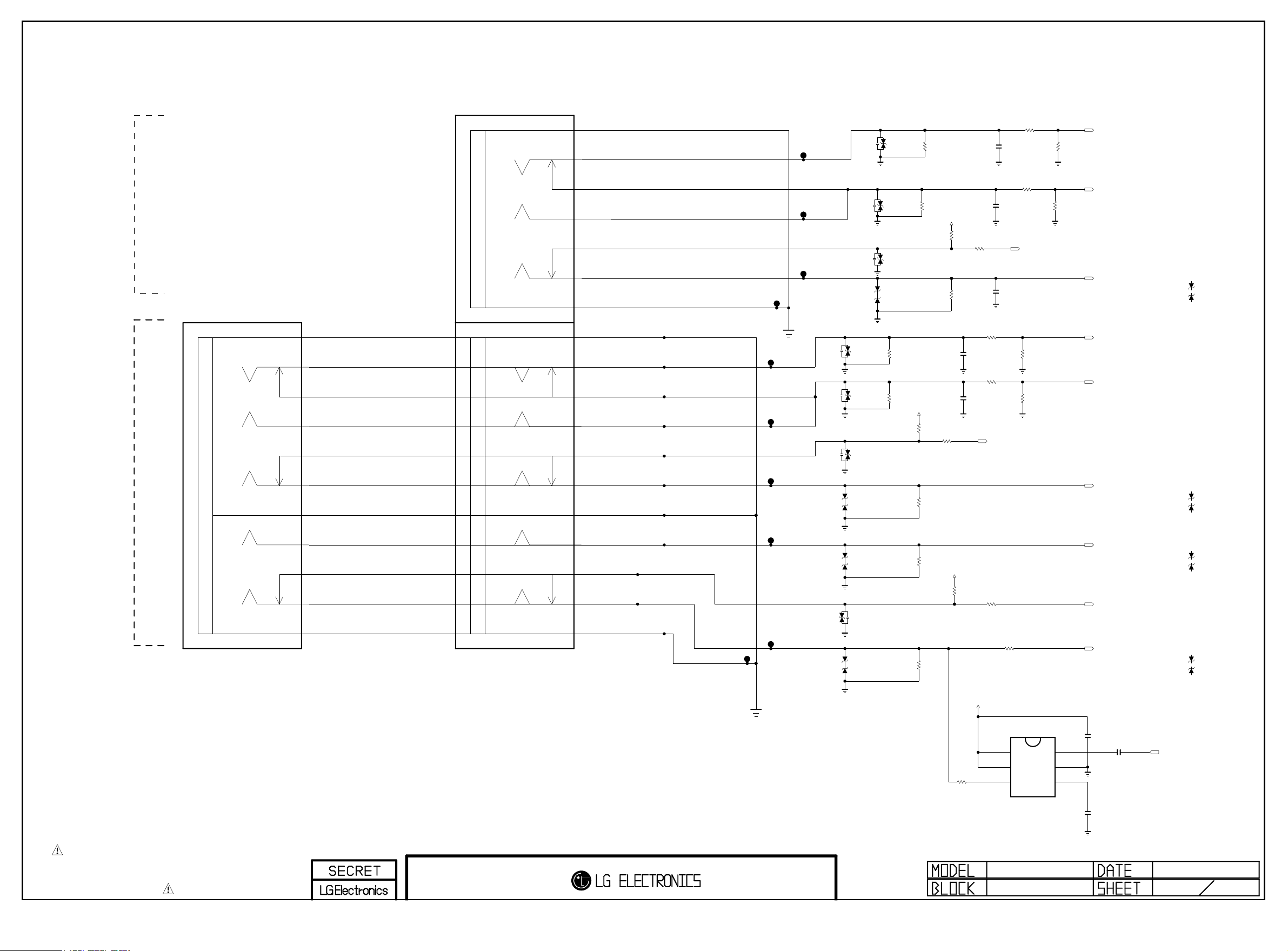

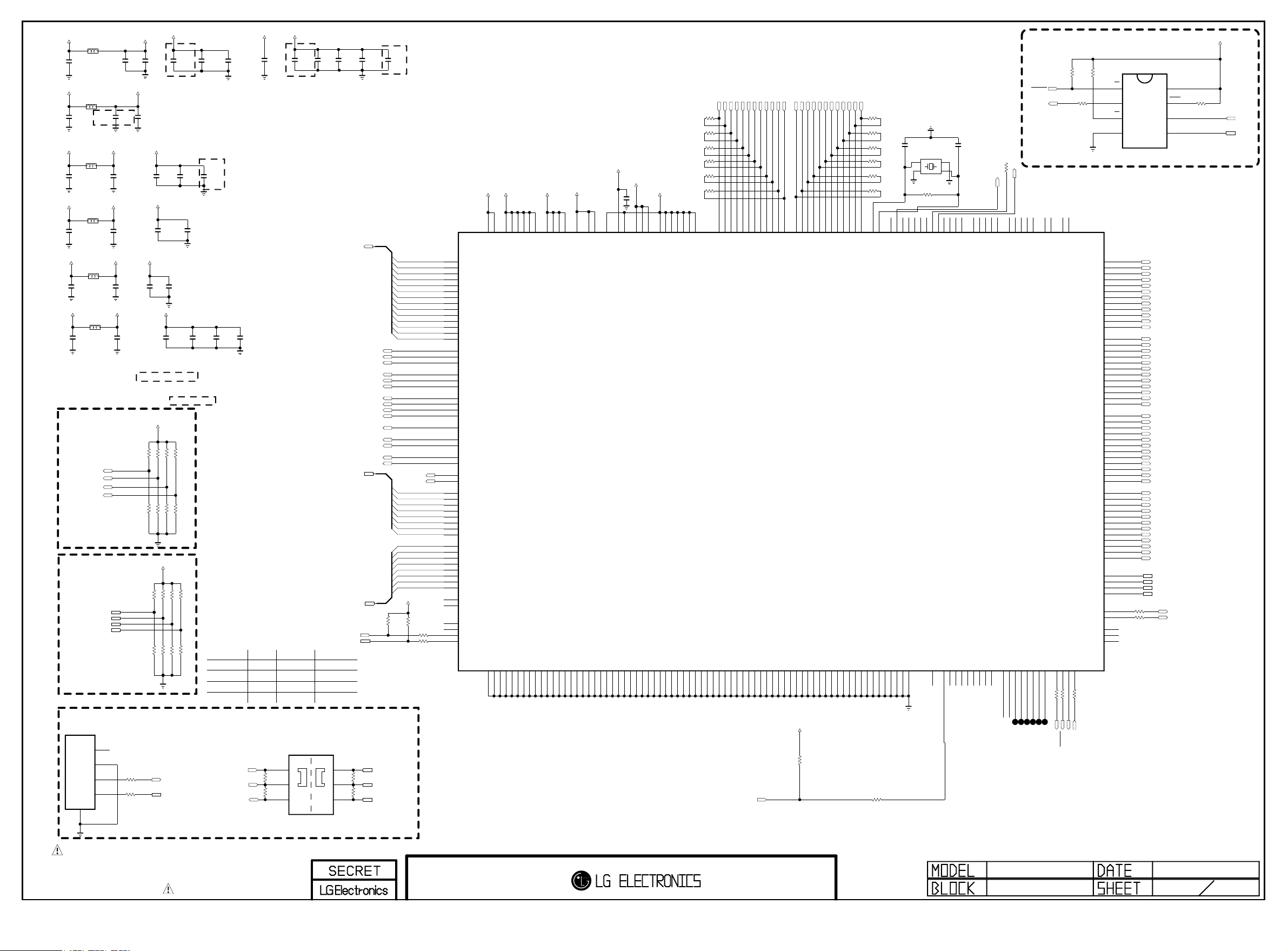

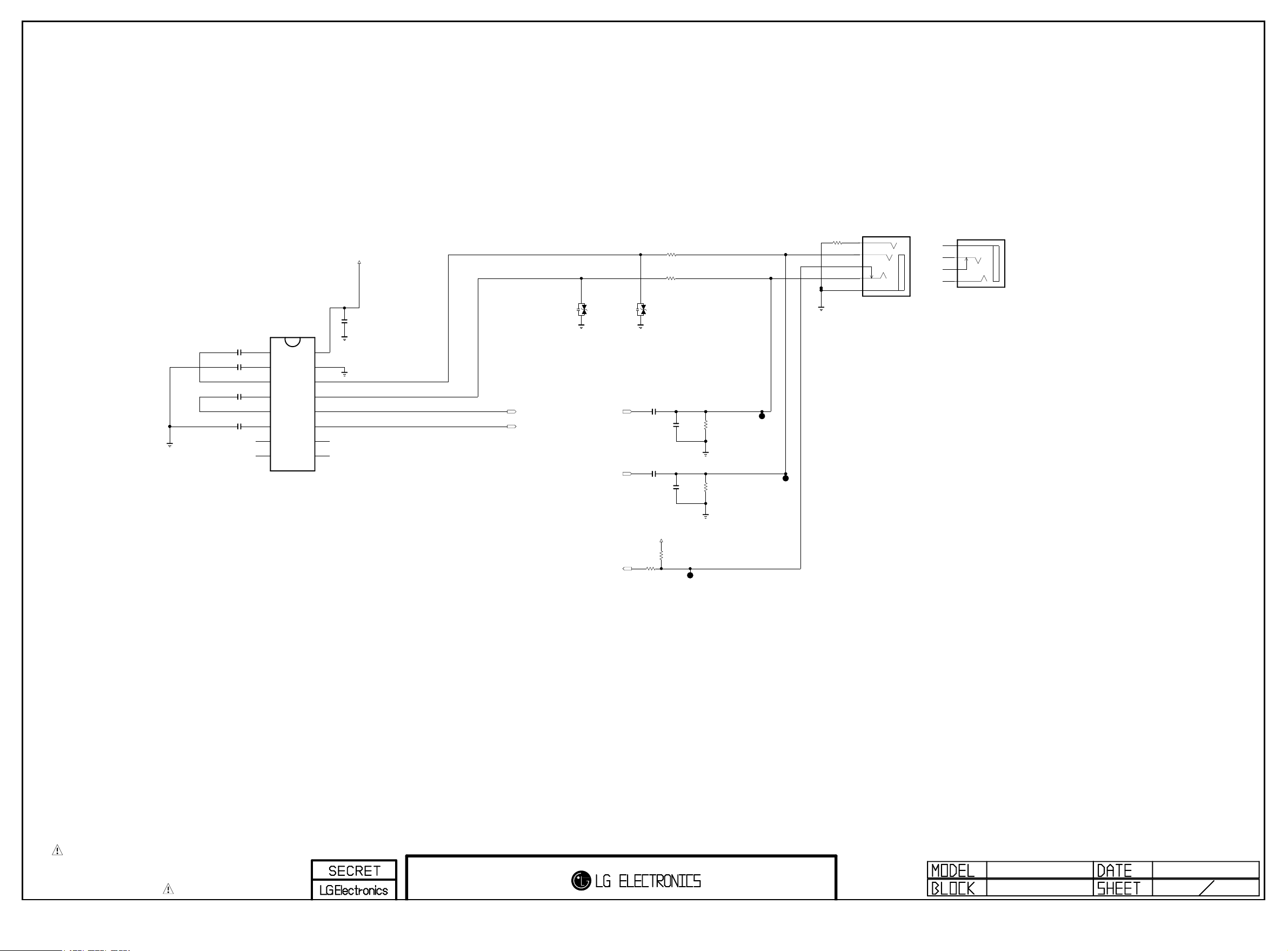

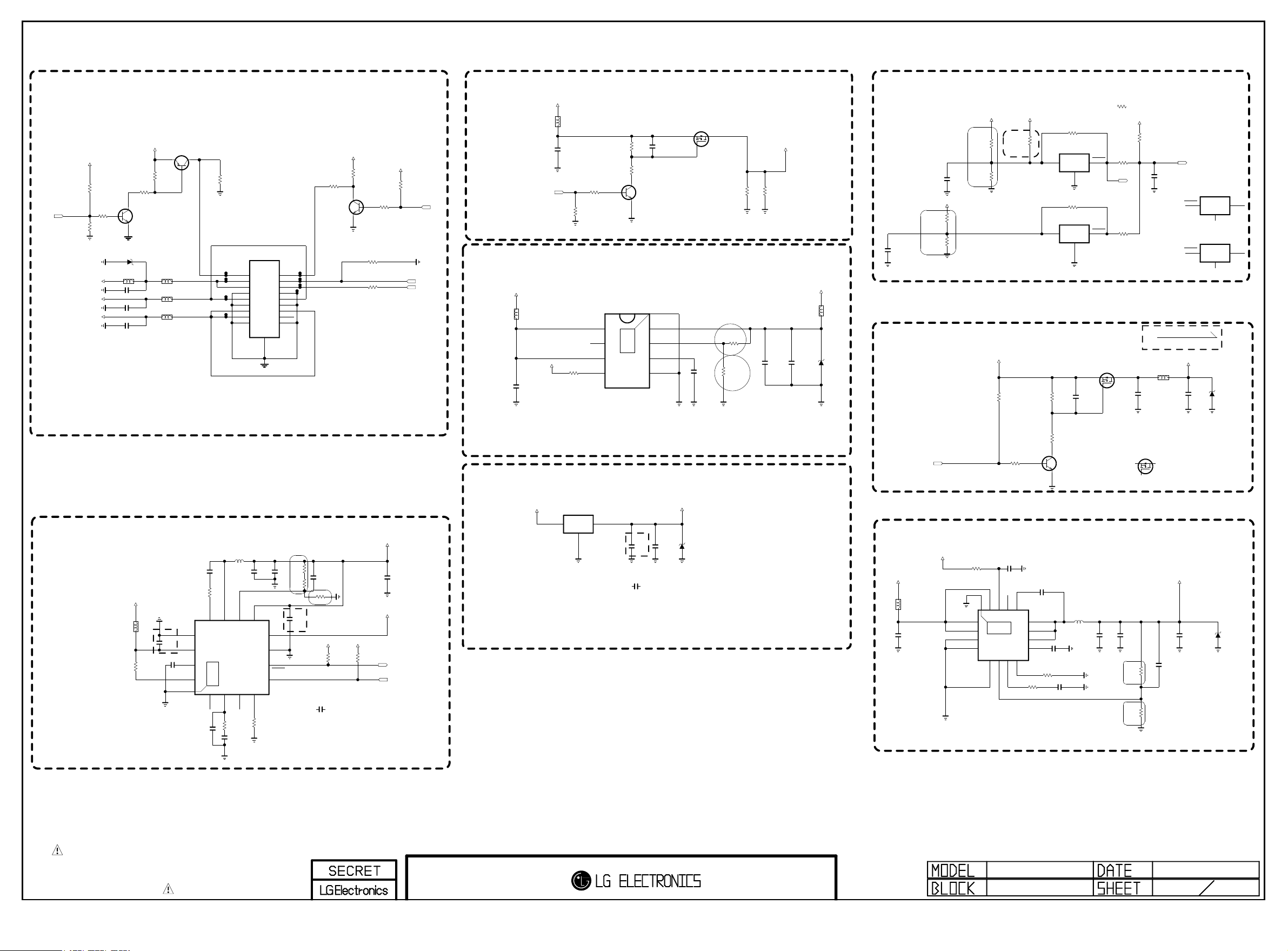

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of th e cir cuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exp ose d metallic par t. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug

or other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength) CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this service manual. CAUTION: Do not connect the test xture ground strap to any heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some eld-effect transistors and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand

against the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This specification is applied to the LED TV used LB31F chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

(1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C (2) Relative Humidity: 65 % ± 10 % (3) Power Voltage

: Standard input voltage (AC 100-240 V~, 50/60 Hz) * Standard Voltage of each products is marked by models.

(4) Specification and performance of each parts are followed

ea ch dra wing and speci ficat ion by part number in accordance with BOM.

(5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC : CE, IEC

4. Model General Specification

No. Item Specication Remarks

1. Market

2. Broadcasting system

3. Channel Storage ATV - 135EA, DTV - 1000EA

4. Receiving system

5. Video(Composite Input) PAL, SECAM, NTSC 4 System : PAL, SECAM, NTSC, PAL60

6. Component Input Y/Cb/Cr, Y/Pb/Pr

7. HDMI Input

8. SPDIF out SPDIF out

9 USB Input For My Media(Movie/Photo/Music List) and SVC

10 Headphone

Asia, Oceania, Africa, Middle East (PAL/DVB Market)

1) PAL/SECAM-B/G/D/K

2) PAL-I

3) NTSC-M

4) DVB-T

Analog : Upper Heterodyne Digital : COFDM(DVB-T)

HDMI1-DTV/DVI HDMI2-DTV/DVI

► DVB-T

- Guard Interval(Bitrate_Mbit/s) 1/4, 1/8, 1/16, 1/32

- Modulation : Code Rate QPSK : 1/2, 2/3, 3/4, 5/6, 7/8 16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8 64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8

Only for training and service purposes

- 6 -

5. Component Video Input (Y, Cb/Pb, Cr/Pr)

No. Resolution H-freq(kHz) V-freq(Hz) Porposed

1 720×480 15.73 60.00 SDTV, DVD 480i

2 720×480 15.63 59.94 SDTV, DVD 480i

3 720×480 31.47 59.94 480p

4 720×480 31.50 60.00 480p

5 720×576 15.625 50.00 SDTV, DVD 625 Line

6 720×576 31.25 50.00 HDTV 576p

7 1280×720 45.00 50.00 HDTV 720p

8 1280×720 44.96 59.94 HDTV 720p

9 1280×720 45.00 60.00 HDTV 720p

10 1920×1080 31.25 50.00 HDTV 1080i

11 1920×1080 33.75 60.00 HDTV 1080i

12 1920×1080 33.72 59.94 HDTV 1080i

13 1920×1080 56.250 50 HDTV 1080p

14 1920×1080 67.5 60 HDTV 1080p

6. HDMI Input : Refer to adjust specification about EDID data.

6.1. DTV mode

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed

1. 720*480 31.469 / 31.5 59.94 / 60 27.00/27.03 SDTV 480P

2. 720*576 31.25 50 54 SDTV 576P

3. 1280*720 37.500 50 74.25 HDTV 720P

4. 1280*720 44.96 / 45 59.94 / 60 74.17/74.25 HDTV 720P

5. 1920*1080 33.72 / 33.75 59.94 / 60 74.17/74.25 HDTV 1080I

6. 1920*1080 28.125 50.00 74.25 HDTV 1080I

7. 1920*1080 26.97 / 27 23.97 / 24 74.17/74.25 HDTV 1080P

8. 1920*1080 33.716/33.75 29.976/30.00 74.25 HDTV 1080P

9. 1920*1080 56.250 50 148.5 HDTV 1080P

10. 1920*1080 67.43 / 67.5 59.94 / 60 148.35/148.50 HDTV 1080P

6.2. PC mode

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1. 640*350 @70Hz 31.468 70.09 25.17 EGA

2. 720*400 @70Hz 31.469 70.08 28.321 DOS

3. 640*480 @60Hz 31.469 59.940 25.175 VESA(VGA)

4. 800*600 @60Hz 37.879 60.31 40.000 VESA(SVGA)

5. 1024*768 @60Hz 48.363 60.00 65.000 VESA(XGA)

6 1152*864 @60Hz 54.348 60.053 80.002 VESA

7. 1280*1024 @60Hz 63.981 60.020 108 VESA(SXGA) FHD only(Support to HDMI-PC)

8. 1360*768 @60Hz 47.712 60.015 85.5 VESA(WXGA)

9. 1920*1080 @60Hz 67.5 60.0 148.5

- 7 -

Only for training and service purposes

WUXGA (Reduced blanking)

FHD only(Support to HDMI-PC)

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to all of the LED TV with LB31F chassis.

2. Designation

(1) Th e ad justm ent is accord ing to the order whic h is

designated and which must be followed, according to the

plan which can be changed only on agreeing. (2) Power adjustment : Free Voltage. (3) Magnetic Field Condition: Nil. (4) Input signal Unit: Product Specification Standard. (5) Reserve after operation: Above 5 Minutes (Heat Run)

Temperature : at 25 °C ± 5 °C Relative humidity : 65 ± 10 % Input voltage : 100-220 V~, 50/60 Hz

(6) Adjustment equipments

: Color Analyzer(CA-210 or CA-110), Service remote control.

(7) Push the “IN STOP" key - For memory initialization.

Case1 : Software version up

1. After downloading S/W by USB , TV set will reboot automatically.

2. Push “In-stop” key.

3. Push “Power on” key.

4. Function inspection

5. After function inspection, Push “In-stop” key.

Case2 : Function check at the assembly line

1. When TV set is entering on the assembly line, Push “In-stop” key at rst.

2. Push “Power on” key for turning it on.

→ If you push “Power on” key, TV set will recover

channel information by itself.

3. After function inspection, Push “In-stop” key.

(4) Click "Connect" tab. If "Can't" is displayed, check connection

between computer, jig, and set.

(2)

(3)

Please Check the Speed : To use speed between from 200KHz to 400KHz

(5) Click "Auto" tab and set as below. (6) Click "Run". (7) After downloading, check "OK" message.

(4)

filexxx.bin

(5)

(7)...........OK

(6)

3. Main PCB check process

▪ APC - After Manual-Insert, executing APC

* Boot file Download

(1) Execute ISP program "Mstar ISP Utility" and then click

"Config" tab.

(2) Set as below, and then click "Auto Detect" and check "OK"

message. If "Error" is displayed, check connection between computer, jig, and set.

(3) Click "Read" tab, and then load download file(XXXX.bin)

by clicking "Read"

(1)

filexxx.bin

* USB DOWNLOAD(*.epk file download)

(1) Put the USB Stick to the USB socket. (2) Automatically detecting update file in USB Stick.

- If version of update file in USB Stick is lower, it will not work. But version of update file is higher, USB data will be detected automatically.

Only for training and service purposes

- 8 -

(3) Show the message "Copying files from memory".

(4) Updating is starting.

4. ADC Process

4.1. ADC

- Enter Service Mode by pushing "ADJ" key,

- Enter Internal ADC mode by pushing "►" key at "8. ADC Calibration".

<Caution> Using "P-ONLY" key of the Adjustment remote

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Tool Option Commercial

6. Country Group

7. Area Option

8. ADC Calibration ►

9. White Balance

10. 10 Point WB

11. Test Pattern

12. EDID D/L

13. Sub B/C

14. Ext. Input Adjust

control, power on TV.

ADC Calibration

ADC Comp 480i

ADC Comp 1080p

ADC Type

Start

Reset

OTP

NG

(5) Updating Completed, The TV will restart automatically. (6) If your TV is turned on, check your updated version and

Tool option. (explain the Tool option, next stage)

* If updated version is higher than what TV has, the TV can

lost all channel data. In this case, you have to channel recover. If all channel data is cleared, you didn’t have a DTV/ATV test on production line.

* After downloading, have to adjust Tool Option again.

(1) Push "IN-START" key in service remote control. (2) Select "Tool Option 1" and push "OK" key. (3) Punch in the number. (Each model has their number) (4) Completed selecting Tool option.

*

RS-232C Connection Method.

Connection : PCBA (USB Port) → USB to Serial Adapter (UC-232A) → RS-232C cable → PC(RS-232C port)

● Product name of USB to Serial Adapter is UC-232A.

* ADC Calibration Protocol (RS232)

NO Item CMD 1 CMD 2 Data 0

Enter Adjust MODE

ADC adjust ADC Adjust A D 1 0

Adjust ‘Mode In’

A A 0 0

When transfer the ‘Mode In’, Carry the command.

Automatically adjustment (The use of a internal pattern)

Adjust Sequence ▪ aa 00 00 [Enter Adjust Mode] ▪ xb 00 40 [Component1 Input (480i)] ▪ ad 00 10 [Adjust 480i Comp1] ▪ aa 00 90 End Adjust mode * Required equipment : Adjustment remote control.

4.2. Function Check

4.2.1. Check display and sound

■ Check Input and Signal items.

(1) TV (2) AV (CVBS) (3) COMPONENT (480i) (4) HDMI * Display and Sound check is executed by Remote control.

<Caution> Not to push the "INSTOP" key after completion if

the function inspection.

Only for training and service purposes

- 9 -

5. Total Assembly line process

5.1. Adjustment Preparation

▪ W/B Equipment condition

CA210: CH14, Test signal: Inner pattern(80IRE)-LED Module

▪ Above 5 minutes H/run in the inner pattern. ("power on" key

of Adjustment remote control)

* Connecting picture of the measuring instrument

(On Automatic control) Inside Pattern is used when W/B is controlled. Connect to auto controller or push Adjustment Remote control POWER ON → Enter the mode of White-Balance, the pattern will come out.

* The spec of color temperature and coordinate.

Mode Color Temp Color coordinate Remark

Cool (C50) 13,000 K

Medium(0) 9,300 K

Warm(W50) 6,500 K

X=0.271 (±0.002) Y=0.270 (±0.002)

X=0.285 (±0.002) Y=0.293 (±0.002)

X=0.313 (±0.002) Y=0.329 (±0.002)

- Inner pattern for W/B adjust

- External white pattern

(80IRE, 204gray)

▪ W/B Table in process of aging time

- LGD / CMI Module(Normal line)

Aging time Cool Medium Warm

Color coordinate X y x y x y

Target 271 270 285 293 313 329 1 0-2 281 287 295 310 320 342 2 3-5 280 285 294 308 319 340 3 6-9 278 284 292 307 317 339 4 10-19 276 281 290 304 315 336 5 20-35 275 277 289 300 314 332 6 36-49 274 274 288 297 313 329 7 50-79 273 272 287 295 312 327 8 80-119 272 271 286 294 311 326 9 Over 120 271 270 285 293 310 325

- LGD / CMI Module(aging chamber)

Aging time Cool Medium Warm

Color coordinate X y x y x y

Target 271 270 285 293 313 329 1 0-5 280 285 294 308 319 340 2 6-10 276 280 290 303 315 335 3 11-20 272 275 286 298 311 330 4 21-30 269 272 283 295 308 327 5 31-40 267 268 281 291 306 323 6 41-50 266 265 280 288 305 320 7 51-80 265 263 279 286 304 318 8 81-119 264 261 278 284 303 316 9 Over 120 264 260 278 283 303 315

- AUO/COST/SHARP/BOE Module which cool spec is 13000K

Cool Medium Warm

X y x y x y

spec 271 270 285 293 313 329

target 275 276 289 299 317 335

Full White Pattern

RS-232C Communication

CA-210

COLOR ANALYZER TYPE : CA-210

* Auto-control interface and directions

(1) Adjust in the place where the influx of light like floodlight

around is blocked. (Illumination is less than 10 lux).

(2) Adhere closely the Color analyzer(CA210) to the module

less than 10 cm distance, keep it with the surface of the Module and Color analyzer's prove vertically.(80° ~ 100°).

(3) Aging time

- After aging start, keep the power on (no suspension of power supply) and heat-run over 5 minutes.

- Using ‘no signal’ or ‘full white pattern’ or the others, check the back light on.

▪ Auto adjustment Map(RS-232C)

RS-232C COMMAND [CMD ID DATA] Wb 00 00 White Balance Start Wb 00 ff White Balance End

RS-232C COMMAND

[CMD ID DATA]

Cool Mid Warm Cool Mid Warm

R Gain jg Ja jd 00 172 192 192 192

G Gain jh Jb je 00 172 192 192 192

B Gain ji Jc jf 00 192 192 172 192

R Cut 64 64 64 128

G Cut 64 64 64 128

B Cut 64 64 64 128

MIN

Color Temperature : COOL, Medium, Warm. One of R Gain/G Gain/ B Gain should be kept on 0xC0, and adjust other two lower than C0.(When R/G/B Gain are all C0, it is the FULL Dynamic Range of Module)

CENTER

(DEFAULT)

MAX

Only for training and service purposes

- 10 -

* Manual W/B process using adjust Remote control.

■ Color analyzer(CA100+, CA210) should be used in the calibrated ch by CS-1000.

■ Operate the zero-calibration of the CA100+ or CA-210, then stick sensor to the module when adjusting.

■ After enter Service Mode by pushing “ADJ” key,

■ Enter White Balance by pushing “►” key at “9. White Balance”.

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Tool Option Commercial

6. Country Group

7. Area Option

8. ADC Calibration

9. White Balance

10. 10 Point WB

11. Test Pattern

12 EDID D/L

13. Sub B/C

14. Ext. Input Adjust

■ For manual adjustment, it is also possible by the following sequence.

(1) Set TV in Adj. mode using “P-ONLY” key on remote

controller and then operate heat run longer than 15 minutes.(If not executed this step, the condition for W/B

may be different.) (2) Push “Exit” key. (3) Enter White Balance mode by pushing the ADJ key and

select “9. White Balance”. When KEY (►) is pressed,

206 Gray internal pattern will be displayed. (4) Zero Calibrate the probe of Color Analyzer, then place it

on the center of LCD module within 10cm of the surface (5) Sele ct eac h it ems (R ed/Gr een/Blu e Ga in) us ing

▲/▼(CH +/-) key on Remote control. (6) Adjust R/ G/ B Gain using ◄/►(VOL +/-) key on R/C. (7) Adjust three modes all (Cool / Medium / Warm)

- For All model w/o LS345 Fix the one of R/G/B gain and change the others

- For G-FIX model Cool Mode

1) Fix the one of R/G/B gain to 192 (default data) and

decrease the others. (If G gain is adjusted over 172 and R and B gain less than 192 , Adjust is O.K.)

2) If G gain is less than 172, Increase G gain by up to

172, and then increase R gain and G gain same amount of increasing G gain.

3) If R gain or B gain is over 255, readjust G gain less

than 172, Conform to R gain is 255 or B gain is 255 Medium / Warm Mode - Fix the one of R/G/B gain to 192 (default data) and decrease the others.

(8) When adjustment is completed, exit adjustment mode

using EXIT key on Remote control.

Whit Balance

Color Temp. ◄ ►

R-Gain

G-Gain

B-Gain

R-Cut

G-Cut

B-Cut

Test-Pattern

Backlight

Reset To Set

Cool

172

192

64

ON

100

* CASE Cool

First adjust the coordinate far away from the target value(x, y).

1) x, y > target i) Decrease the R, G.

2) x, y < target i) First decrease the B gain, ii) Decrease the one of the others.

3) x > target, y < target i) First decrease B, so make y a little more than the

target.

ii) Adjust x value by decreasing the R.

4) x < target, y > target i) First decrease B, so make x a little more than the

target.

ii) Adjust x value by decreasing the G.

* After You finish all adjustments, Press “In-start” button

and compare Tool option and Area option value with its BOM, if it is correctly same then unplug the AC cable.

If it is not same, then correct it same with BOM and unplug AC cable. For correct it to the model’s module from factory JIG model.

* Push the “IN STOP" key after completing the function

inspection.

5.2. DDC EDID Write (HDMI 256Byte)

■ Connect HDMI Signal Cable to HDMI Jack.

■ Write EDID DATA to EEPROM(24C02) by using DDC2B protocol.

■ Check whether written EDID data is correct or not.

* For Service main Assembly, EDID have to be downloaded.

5.3. EDID DATA

1) All Data : HEXA Value

2) Changeable Data : *: Serial No : Controlled / Data:01 **: Month : Controlled / Data:00 ***: Year : Controlled ****: Check sum

- Auto Download

■ After enter Service Mode by pushing “ADJ” key,

■ Enter EDID D/L mode.

■ Enter “START” by pushing “OK” key.

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Tool Option Commercial

6. Country Group

7. Area Option

8. ADC Calibration

9. White Balance

10. 10 Point WB

11. Test Pattern

12. EDID D/L ►

13. Sub B/C

14. Ext. Input Adjust

EDID D/L

HDMI1 NG

HDMI2 NG

Reset

Start

EDID D/L

HDMI1 OK

HDMI2 OK

Reset

Start

Only for training and service purposes

- 11 -

* Edid data and Model option download (RS232)

NO Item CMD 1 CMD 2 Data 0

Enter download Mode

EDID data and Model option download

No. Item Condition Hex Data

1 Manufacturer ID GSM 1E6D

2 Version Digital : 1 01

3 Revision Digital : 3 03

Download ‘Mode In’

ADC Adjust A E 00 10

A A 0 0

When transfer the ‘Mode In’, Carry the command.

Automatically adjustment (The use of a internal pattern)

5.4. Outgoing condition Configuration

■ When pressing IN-STOP key by Service remote control, Red LED are blinked alternatively. And then automatically turn off. (Must not AC power OFF during blinking)

5.5. GND and HI-POT Test

5.5.1. GND & HI-POT auto-check preparation

(1) Check the POWER CABLE and SIGNAL CABE insertion

condition

(2) You can’t use Tuner Ground & Tuner signal line at LB31B/

LB36B/LB31F/LB31J.

[Caution]

* Use the proper signal cable for EDID Download

- Analog EDID : Pin3 exists

- Digital EDID : Pin3 exists

(1) FHD 10BIT HDMI EDID DATA (60LN54 SREIRS)

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D A B 10 C 01 03 80 A0 5a 78 0A EE 91 A3 54 4C 99 26 20 0F 50 5 4 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 45 0 0 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30 50 40 70 36 0 0 A0 5A 00 0 0 00 1E 0 0 00 00 FD 00 3A

60 3E 1E 53 10 00 0A 20 20 20 20 20 20 D

70 D 01 E 80 02 03 22 F1 4E 10 9F 04 13 05 14 03 02 12 20 21 90 22 15 01 26 15 07 50 09 57 07 f

A0 f 01 1d 80 18 71 1c 16 20 58 2c 25 00 20 C2 B0 31 00 0 9e 01 1d 00 72 51 d0 1e 20 6e 28 55 0 0 C0 20 C2 31 00 00 1e 02 3a 80 18 71 38 2d 40 58 2c D0 45 00 A0 5a 00 00 00 1e 01 1d 00 Bc 52 d0 1e 20 E0 B8 28 55 40 C4 8e 21 00 00 1e 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E

(2) Detail EDID Options are below

a. Product ID

Model Name HEX EDID Table DDC Function

HD/FHD Model 0001 01 00 Analog/Digital

b. Serial No: Controlled on production line. c. Month, Year: Controlled on production line:

ex) Week : '01' -> '01'

Year : '2013' -> '17' fix

d. Model Name(Hex):

cf) TV set’s model name in EDID data is below.

MODEL NAME MODEL NAME(HEX)

LG TV 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 (LG TV)

e. Checksum: Changeable by total EDID data.

EDID C/S data FHD-10BIT(HDMI)

Check Sum

(Hex)

Block 0 42

Block 1

DE (HDMI1) CE (HDMI2)

f. Vendor Specific

- FHD 10bit model Input Model name(HEX)

HDMI1 67030C001000B82D HDMI2 67030C002000B82D

5.5.2. GND & HI-POT auto-check

(1) Pallet moves in the station.(POWER CORD / AV CORD is

tightly inserted) (2) Connect the AV JACK Tester. (3) Controller (GWS103-4) on. (4) GND Test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, execute next process(Hi-pot test). (Remove A/V CORD from A/V JACK BOX)

(5) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next process automatically.

5.5.3. Checkpoint

(1) Test voltage

1) 3 Poles

- GND: 1.5 KV/min at 100 mA

- SIGNAL: 3 KV/min at 100 mA

2) 2 Poles

- SIGNAL: 3 KV/min at 100 mA (2) TEST time: 1 second (3) TEST POINT

1) 3 Poles

- GND Test = POWER CORD GND and SIGNAL

CABLE GND.

- Hi-pot Test = POWER CORD GND and LIVE &

NEUTRAL.

2) 2 Poles

- Hi-pot Test = Accessible Metal and LIVE & NEUTRAL. (4) LEAKAGE CURRENT: At 0.5 mArms

6. Local Dimming Function Check

Step1) Turn on TV. Step2) Press “P-only” key, enter to power only mode and

escape the “P-only” Mode by pressing “Exit” key. Step3) Press “Tilt” key, entrance to Local Dimming mode. Step4) At the Local Dimming mode, module Edge Backlight

moving Top to bottom Back light of module moving. Step5) confirm the Local Dimming mode. Step6) Press “Exit” key.

Only for training and service purposes

- 12 -

7. 3D function test

(Pattern Generator MSHG-600, MSPG-6100[Support HDMI1.4]) * HDMI mode No. 872 , pattern No.83 (1) Please input 3D test pattern like below.

(2) When 3D OSD appear automatically, then select OK key.

(3) Don't wear a 3D Glasses, check the picture like below.

8. EYE-Q function check

Step1) Turn on TV Step 2) Press EYE key of Adj. R/C. Step 3) Cover the Eye Q sensor on the front of the using your

hand and wait for 6 seconds.

Step 4) Confirm that R/G/B value is lower than 10 of the “Raw

Data(Sensor data, Back light)”. If after 6 seconds, R/ G/ B value is not lower than 10, replace Eye Q sensor

Step 5) Remove your hand from the Eye Q sensor and wait

for 6 seconds.

Step 6) Confirm that “ok” pop up. If change is not seen, replace

Eye Q sensor.

Only for training and service purposes

- 13 -

1. Power-up boot check

TROUBLESHOOTING

Check stand - by Voltage.

P401 3, 5pin : +3.5V_ST

ok

Check stand - by Voltage

L404, L408 : +3.5V

ok

Check X201 clock

24 MHz

ok

Check P401 PWR_ON.

1pin : 3.3V

ok

Check Multi Voltage P401 9, 10pin : 24V

/ 13, 14, 15pin:12V

ok

Check IC402/3/7 Output Voltage

IC402 : 2.5V

IC403 : 1.15V

IC407 : 1.5V

Q403 : 3.3V

ok

Check LVDS Power Voltage

Q409 : 12V

ok

Check Mstar LVDS Output

ok

Check URSA5 LVDS Output

ok

Check DRV ON Control

P403 2 pin : High

ok

Change Module

No

Check 18pin Power connector

Replace L404, L408

Replace X201

Re- download software.

Replace Power Board

Replace IC402, IC403, IC407, Q403

Replace Q409

Replace Mstar(IC101) or Main Board

No

Replace URSA5(IC6101) or Main Board.

Check Power Board

okNo

Main B/D 3.5V Line

Short Check

No

Replace Mstar(IC101) or Main board

ok

Replace Power board.

Only for training and service purposes

- 14 -

2. Digital/Analog TV Video

Check RF Cable & Signal

ok

Check Tuner 3.3V Power

L3703

ok

Check Tuner 1.8V Power

IC3703 2 pin : 1.8V

ok

Check IF_P/N Signal

TU3700 10/11 Pin

ok

Check Mstar LVDS Output

ok

Check URSA5 LVDS Output

No

Replace L3703

Replace IC3703

Bad Tuner. Replace Tuner.

Replace Mstar(IC101) or Main Board.

Replace URSA5(IC6101) or Main Board.

3. AV Video

Check input signal format.

Is it supported?

Check AV Cable for damage

for damage or open conductor

Check JK1702, CVBS Signal Line

R1722

Check CVBS_DET Signal

Check Mstar LVDS Output

Check URSA5 LVDS Output

ok

No

ok

No

ok

No

ok

No

Replace Jack

Replace R1713

Replace Mstar(IC101) or Main Board.

Replace URSA5(IC6101) or Main Board.

Only for training and service purposes

- 15 -

4. Component Video

Check input signal format.

Is it supported?

ok

Check Component Cable

for damage or open conductor.

ok

Check JK1702

Y/PB/PR signal Line

ok

Check COMP_DET Signal

ok

Check Mstar LVDS Output

ok

Check URSA5 LVDS Output

5. HDMI Video

No

Replace Jack

Replace R1712 or R1713

Replace Mstar(IC101) or Main Board.

Replace URSA5(IC6101) or Main Board.

Check input signal format.

Is it supported?

ok

Check HDMI Cable conductors for damage or open conductor.

ok

Check EDID

R832, R833, R834, R835 I2C Signal

ok

Check JK801, JK803

ok

Check HDMI_DET (HPD)

ok

Check HDMI Signal

ok

Check Mstar LVDS Output

ok

Check URSA5 LVDS Output

No

Replace the defective IC or re-download EDID data

No

Replace Jack

No

Replace R803, R801, R826, R807, R817, Q801, R819, R818, R830

No

Check other set If no problem, check signal line

No

Replace Mstar(IC101) or Main Board.

No

Replace URSA5(IC6101) or Main Board.

No

Replace Main Board

Only for training and service purposes

- 16 -

6. MHL Video

Check input signal format.

Is it supported?

ok

Check MHL Cable conductors

for damage or open conductor.

ok

Check MHL Signal (R214, R215)

ok

Check JK803

ok

Check CD_Sense, Cbus, Vbus

ok

Check MHL Signal

ok

Check Mstar LVDS Output

No

Replace the defective IC or re-download EDID data

No

Replace Jack

No

Replace R810, R802, R831, R830, IC802, D800

No

Check other set If no problem, check signal line

No

Replace Mstar(IC101) or Main Board.

No

Replace Main Board

ok

Check URSA5 LVDS Output

No

Replace URSA5(IC6101) or Main Board.

Only for training and service purposes

- 17 -

7. All Source Audio

Check the TV Speaker Menu

(Menu -> Audio -> TV Speaker)

On

Check AMP IC(IC3401) Power

24V, 3.3V

ok

Check Mstar AUDIO_MASTER_CLK

R148

ok

Check AMP I2C Line

R3406, R3407

ok

Check Mstar I2S Output

IC3401 37,38,39 Pin

ok

Check Output Signal P3401

1, 2, 3, 4 pin.

ok

Check Connector & P3401

ok

Check speaker resistance

and connector damage.

Off

No

Toggle the Menu

Replace Amp IC(IC501)

Replace Mstar(IC101) or Main Board.

Check signal line. Or replace Mstar(IC101)

Replace Audio AMP IC(IC3401)

Replace connector if found to be damaged.

Replace speaker.

Only for training and service purposes

- 18 -

8. Digital/Analog TV Audio

Check RF Ca ble & Signal

ok

Check Tuner 3.3V Power

L3703

ok

Check Tuner 1.8V Power

IC3703 2 pin : 1.8V

ok

Check IF_P/N Signal

TU3700 10/11 Pin

ok

Follow procedure ‘7 . All source audio’

trouble shooting guide.

9. AV Audio

Check AV Cable for damage

for damage or open conductor

ok

Check JK1702 Signal Line

R1714,R1715

No

Replace L3703

Replace IC3703

Bad Tuner. Repla ce Tuner.

Replace Jack

ok

Follow procedure

‘7. All source audio’

trouble shooting guide.

10. Component Audio

Check Component Cable

for damage or open conductor.

ok

Check JK1702 Signal Line

R1714,R1715

ok

Follow procedure

‘7. All source audio’

trouble shooting guide.

No

Replace Jack

Only for training and service purposes

- 19 -

BLOCK DIAGRAM

51P LVDS wafer

(P6401)

TXA0+/-~TXA4+/-, TXACK+/-

TXB0+/ -~TXB4+/-, TXB CK+/-

SPK_L

IC102

IC1300

(16Mbit)

Serial Flash

SPI_SCK /SDI/SD O/CS

IC1201

(1Gbit)

NAND FLASH

PCM_A[0-7],…

IC104

(2Gbit)

DDR3 SDRAM

A-MDQL[0-7], A-MDQU[0-7], …

(256Kbit)

System EEPROM

I2C_SC L/SDA

AUD_LR CH,

AUD_MASTER _CLK,

SPK_R

(IC3401)

STA380BW

AMP_SCL/ SDA

AUD_LR CK, AUD_SCK

URSA Block

(P6402)

TXC0+/ -~TXC4+/-, TXC CK+/-

TXD0+/ -~TXD4+/-, TXD CK+/-

(IC6101)

LGE7303C

URSA5

RXA0+/-~RXA4+/-, RXACK+/-

RXB0+/ -~RXB4+/-, RXB CK+/-

41P LVDS wafer

IC6201

A-MDQL[0-7], A-MDQU[0-7], …

(1Gbit)

DDR3 SDRAM

IC6102

(2Mbit)

Serial Flash

SPI_SCK /SDI/SD O/CS

(IC101)

Main SOC

M1(MSD804KKX)

USB1_OC D/CTL

SIDE_U SB_DM/D P

(IC401)

OCP IC : TPS65281

CK+/ -, D0+/-, D1+/-, D2+/-, _HDMI 4

+5V_USB

USB

(JK700)

DDC _SCL/SDA_4, HD MI_CEC, MHL _CD_SENSE

(JK803)

HDM I2(MHL)

SIDE

IF

SIF (Read y)

TU_SC L / SDA

TDSH-G501D

RF

KEY1/2, LED_R , IR, SDA, SCL

SPDIF _OUT

(P600)

Connector

DDC _SCL/SDA_2, HD MI_CEC

CK+/ -, D0+/-, D1+/-, D2+/-_H DMI2

COMP1_L /R_IN

COMP1_Y+/ AV_CVB S_IN, COMP1_Pb +/Pr +

Half NIM

HDM I1

REAR

(JK1103)

(JK802)

SPDIF (Optic)

(JK1602)

Comp 1 & AV1

Only for training and service purposes

- 20 -

400

521

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essenti al that these special safet y parts shoul d be replac ed with the same compo nents as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

LV1

300

540

120

LV2

530

123

810

910

900

122

200

510

200T

500

301

A10

A9

Set + Stand

Stand Base+Stand Body

A2

Only for training and service purposes

- 21 -

TP for NON-EU models(except EU and China)

LGE Internal Use Only

TP for CI slot

/PCM_REG

/PCM_OE

/PCM_WE

/PCM_IORD PCM_A[11]

/PCM_IOWR CI_TS_DATA[1]

/PCM_CE

/PCM_IRQA

/PCM_CD

/PCM_WAIT

PCM_RST

PCM_5V_CTL

CI_DET

TP for S2

PCM_D[0]

PCM_D[2]

PCM_D[3]

PCM_D[4]

PCM_D[5]

PCM_D[6]

PCM_D[7]

PCM_A[8]

PCM_A[9]

PCM_A[10]

PCM_A[12]

PCM_A[13]

PCM_A[14]

TP for FE_TS_DATA

CI_TS_CLK

CI_TS_VAL

CI_TS_SYNC

CI_TS_DATA[2]

CI_TS_DATA[3]

CI_TS_DATA[4]

CI_TS_DATA[5]

CI_TS_DATA[6]

CI_TS_DATA[7]

TP for SCART

SCART1_MUTE

SC1_IDPCM_D[1]

SC1_FB

SC1_SOG_INCI_TS_DATA[0]

DTV/MNT_VOUT

SCART1_Lout

SCART1_Rout

SC1_CVBS_IN

SC1_R+/COMP1_Pr+

SC1_G+/COMP1_Y+

SC1_B+/COMP1_Pb+

SC1/COMP1_DET

SC1/COMP1_L_IN

SC1/COMP1_R_IN

TP for Headphone

HP_LOUT

HP_ROUT

SIDE_HP_MUTE

HP_DET

S2_RESET

FE_TS_DATA[1]

FE_TS_DATA[2]

FE_TS_DATA[3]

FE_TS_DATA[4]

FE_TS_DATA[5]

FE_TS_DATA[6]

FE_TS_DATA[7]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

TP_NON_EN

2012.07.02 3

L13 POWER BLOCK (POWER DETECT 2)

LGE Internal Use Only

FROM LIPS & POWER B/D

+3.5V_ST

MMBT3906(NXP)

Q402

3

1

2

L404

CIC21J501NE

L407

MLB-201209-0120P-N2

L402

MLB-201209-0120P-N2

R411

OPT 33K

P401

SMAW200-H18S1

PWR ON

3.5V

3.5V GND 24V GND 12V 12V GND

DRV ON

1

2

PDIM#1

3

4

PDIM#2

5

6

GND

7

8

24V

10

9

GND

11

12

12V

13

14

N.C

15

16

GND

17

18

19

.

R415 100

RL_ON

+3.5V_ST

R461 10K

+3.5V_ST

+24V

+12V

10K

OPT

R401

R462

10K

B

D401 5V

CIC21J501NE

L408

C406 0.1uF

C418 0.1uF

C404 0.1uF

R416 10K

R406

4.7K

C

Q401 MMBT3904(NXP)

E

OPT

16V

50V

16V

+3.3V_Normal

R419

1K

C

R421 10K

B

E

Q405

MMBT3904(NXP)

R412 3.9K

PWM_DIM_PULL_DOWN

*For 55LN54 Power ON Noise

R408 100

PWM2_2CH_POWER

+3.5V_ST

R426 10K

INV_CTL

PWM_DIM PWM1

PANEL_POWER

+12V

L412 120

CIS21J121

C438

0.1uF 25V

OPT

PANEL_CTL

001:AL22

R489 10K

+1.5V_DDR

+3.5V_ST

L420 BLM18PG121SN1D

C461 10uF

10V

+3.3V_Normal

R433 10K

R439

33K

R440

5.6K

1

2

3

1.5A

4

B

IC407

C

Q407 MMBT3904(NXP)

E

9

THERMAL

8

7

6

5

R430 10K

AP7173-SPG-13 HF(DIODES)

IN

PG

VCC

EN

[EP]

OUT

FB

SS

GND

C443 10uF

16V

Q409

AO3407A

S

G

C467 560pF 50V

+3.5V_ST --> 3.375V --> 3.46V

+24V --> 3.78V --> 3.92V (3.79V)

Power_DET

+12V

+3.5V_ST

D

R1

R457

4.3K

1/16W 1%

R2

R456

4.7K 1/16W 1%

R405

5.6K

PANEL_VCC

R407

5.6K

C472 22uF 10V

L410

CIC21J501NE

C476

0.1uF 16V

+1.5V_DDR

D403 5V OPT

PD_+24V

R482

8.2K 1%

PD_+24V

PD_+24V C412

0.1uF 16V

R403

1.5K 1%

+3.3V_Normal

+24V

C411

0.1uF 16V

PD_+12V

R448

2.7K

PD_+12V

R447

1.2K

1%

+3.5V_ST

PD_+3.5V

R434

10K

R450

0

5%

PWR_DET_ON_SEMI

NCP803SN293

VCC

3

PD_+24V_PWR_DET_ON_SEMI

NCP803SN293

VCC

3

R438 22K

+12V --> 3.58V --> 3.82V (3.68V)

R402-*1 100

+3.5V_SOC_RESET

RESET_IC_SOC_RESET

R402 300

PD_+24V

R480 100

AO3435 Q403

D

S

G

+3.5V_ST

R463

RESET_IC_SOC_RESET

10K

BLM18PG121SN1D

C425

0.1uF 16V

R488 100K

IC408

GND

PD_+24V

R404

100K

IC409

GND

1

C423

2.2uF 10V

RESET

2

POWER_DET_RESET

RESET

2

FET_2.5V_AOS

C474

0.1uF

L403

POWER_DET

+3.3V_Normal

IC408-*1

APX803D29

RESET

PWR_DET_ON_DIODES

RESET

PD_+24V_PWR_DET_DIODES

C437 22uF 10V

2

1

IC409-*1

APX803D29

2

1

5V

3

GND

3

GND

D405

VCC

+5V_Normal & +5V_USB

+12V

L401

CIC21J501NE

R410

100K

CHANGE TO 16V/X5R

C405 10uF 16V

C419

4.7uF 10V

Vout=0.8*(1+R1/R2)

L406

R491

0

BST

13

14

15

16

THERMAL

1

SS

3.6uH

10FB11LX12

IC401 TPS65281RGV

17

3

2

ROSC

COMP4RLIM

R409 2K

C410 3300pF 50V

C413

0.047uF 25V

PGND

VIN

V7V

[EP]

EN

C426 100pF 50V

OPT

SW_IN

9

C420 22uF 16V

R413 16K

8

7

6

5

C421 22uF 16V

SW_OUT

AGND

FAULT

EN_SW

R445

Vout=0.8*(1+R1/R2)=1.5319

POWER_ON/OFF_1

R443 10K

+2.5V_Normal

+3.3V_Normal

+5V_Normal

R1

R452

33K

1%

C424 330pF

R453

OPT

27K

C417 10uF

10V 85C

1%

50V

R454

11K 1%

CAP_10uF_X5R

CHANGE TO 10UF/10V/X5R

+5V_Normal

C417-*1

10uF 10V

CAP_10uF_X7R

R2

R414 10K

+3.3V_Normal

+5V_USB

R417

4.7K OPT

C422

0.1uF 16V

OPT

USB1_OCD

USB1_CTL

TJ1118S-2.5

IN

3

IC402

1

GND

OUT

2

CAP_10uF_X5R

CHANGE TO 10UF/10V/X5R

C403

10uF

10V

85C

C403-*1

10uF 10V

CAP_10uF_X7R

C440

0.1uF 16V

+2.5V_Normal

D402 5V OPT

S7LR core 1.15V volt

R428 10K

VIN_3

EP[GND]

1

THERMAL

2

3

TPS54319TRE

4

5

AGND

17

IC403

VSENSE

3A

15EN16

6

C447

0.33uF 16V

7

COMP

BOOT14PWRGD

13

12

11

10

8

RT/CLK

+3.5V_ST

L413 CIC21J501NE

C430 10uF

10V

+3.3V_Normal

VIN_1

VIN_2

GND_1

GND_2

2.2K

C

Q400

B

MMBT3904(NXP)

E

C441

0.1uF 16V

L415

C488 3300pF

330K1/16W 5%

C448

3300pF

50V

3.6uH

C453 22uF 10V

PH_3

PH_2

PH_1

SS/TR

9

R432

R436 15K

C456 22uF 10V

FET_2.5V_DIODE

R1

R442 30K 1/16W 1%

R2

R441 75K 1/16W 1%

DMP2130L Q403-*1

S

G

D

C439

50V 100pF

+1.10V_VDDC

C444

0.1uF 16V

D404 5V OPT

Vout=0.827*(1+R1/R2)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

Power_PD2

2012/09/19

4

USB (SIDE)

LGE Internal Use Only

JK700

1234

USB DOWN STR EAM

3AU 04S-3 05-Z C-(LG )

5

C700 22uF 10V

D700 RCLAMP0502BA

OPT

+5V_USB

SIDE_USB1_DM

SIDE_USB1_DP

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

USB

12/06/20

7

HDMI (REAR 1 / SIDE 1 MHL)

LGE Internal Use Only

HDMI_1

SHIELD

20

EAG59023302

JK801

CEC

HDMI_CEC

5V_HDMI_2

R823

R822

2.7K

19

18

17

16

15

14

13

12

11

CK+

10

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

+5V_Normal

A2CA1 MMBD6100 D822

5V_HDMI_2

R826

1K

R803

1.8K

VA801

ESD_HDMI1_VARISTOR

R820 100

DDC_SDA_2

DDC_SCL_2

5V_DET_HDMI_2

VA802

R801

3.3K

D801

ESD_HDMI1_VARISTOR

ESD_HDMI

CEC_REMOTE_S7

5V_HDMI_4

R824

2.7K

+5V_Normal

A2CA1

MMBD6100 D824

R825

2.7K

MMBT3904(NXP)

Q801

R805 0

HDMI1_ARC

VA801-*1 1uF 10V

ESD_HDMI1_CAP

D801-*1 1uF 10V

ESD_HDMI1_CAP

+3.5V_ST

DDC_SDA_4

DDC_SCL_4

C

E

ESD_HDMI

A2CA1

MMBD6100 D825

R807

10K

B

VA803

R817

10K

VA804

ESD_HDMI

1 2 3 4 5

ESD_HDMI_SEMTECH

1 2 3 4 5

ESD_HDMI_SEMTECH

R832 100

R833 100

D826 RCLAMP0524PA

10 9 8 7 6

D827 RCLAMP0524PA

10 9 8 7 6

TMDS_CH1-

TMDS_CH1+

GND_1

TMDS_CH2-

TMDS_CH2+

TMDS_CH1-

TMDS_CH1+

GND_1

TMDS_CH2-

TMDS_CH2+

D826-*1

IP4283CZ10-TBA

1

2

3

4

5

ESD_HDMI_NXP

D828-*1

IP4283CZ10-TBA

1

2

3

4

5

ESD_HDMI_NXP

SIDE_HDMI (MHL)

5V_HDMI_4

GND

BODY_SHIELD

20

HP_DET

HPD2

DDC_SDA_2

DDC_SCL_2

HDMI_ARC HDMI_CEC

CK-_HDMI2 CK+_HDMI2

D0-_HDMI2 D0+_HDMI2

D1-_HDMI2 D1+_HDMI2

D2-_HDMI2 D2+_HDMI2

19

18

17

16

15

14

13

12

11

10

EAG62611204

9

8

7

6

5

4

3

2

1

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

R819

1.8K

VA805 ESD_HDMI

JK803

D827-*1

IP4283CZ10-TBA

TMDS_CH1-

NC_4

10

TMDS_CH1+

NC_3

9

GND_1

GND_2

8

TMDS_CH2-

NC_2

7

TMDS_CH2+

NC_1

6

10

9

8

7

6

NC_4

NC_3

GND_2

NC_2

NC_1

ESD_HDMI_NXP

IP4283CZ10-TBA

TMDS_CH1-

TMDS_CH1+

GND_1

TMDS_CH2-

TMDS_CH2+

ESD_HDMI_NXP

1

2

3

4

5

D829-*1

1

2

3

4

5

NC_4

10

NC_3

9

GND_2

8

NC_2

7

NC_1

6

NC_4

10

NC_3

9

GND_2

8

NC_2

7

NC_1

6

MHL OCP

AVDD5V_MHL

R809

10

5V_HDMI_4

C809

10uF

10V

D800

MBR230LSFT1G

30V

100K

OPT

R808

+3.3V_Normal

R806

/MHL_OCP_DET

R804 0

10K

OPT

D811

OUT_3

OUT_2

OUT_1

R818

OC

5V_DET_HDMI_4

VA806 ESD_HDMI

3.3K

D812

5.6V

IC802

BD82020FVJ

8

7

6

5

OPT

R810 0

R830 100

GND

1

IN_1

2

IN_2

3

EN

4

VA807

ESD_HDMI

1 2 3 4 5

ESD_HDMI_SEMTECH

1 2 3 4 5

ESD_HDMI_SEMTECH

C801

0.047uF 25V

+5V_Normal

R827

20K

D828 RCLAMP0524PA

10 9 8 7 6

D829 RCLAMP0524PA

10 9 8 7 6

+3.5V_ST

R811

OPT

B

C802

0.1uF

C

Q804

B

R813

10K

C

E

R834 100

R835 100

VA808 ESD_HDMI

10K

R812 10K

C

Q802

OPT

E

R802 0

R821 10K

E

B

Q805

B

OPT

+3.3V_Normal

R814

2.7K

C

E

C

B

Q806

Q803

OPT

R831 300K

R815

10K

R816

10K

HPD4

DDC_SDA_4

DDC_SCL_4

HDMI_CEC

CK-_HDMI4 CK+_HDMI4

D0-_HDMI4 D0+_HDMI4

D1-_HDMI4 D1+_HDMI4

D2-_HDMI4 D2+_HDMI4

MHL_CD_SENSE

/VBUS_EN

(Active Low)

MHL_OCP_EN

(Active High)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

2012/11/07

HDMI_R1_S1 8

SPDIF

LGE Internal Use Only

SPDIF OPTIC JACK

5.15 Mstar Circuit Application

SPDIF_OUT

+3.3V_Normal

ESD_SPDIF_0.1uF

C1001-*1 1uF 10V ESD_SPDIF_1uF

C1001

0.1uF 16V

SPDIF-JACK-FOXCONN

2F01TC1-CLM97-4F

GND

VCC

VIN

C1002 100pF 50V

JK1001

1

2

3

4

SHI ELD

SPDIF-JACK-SOLTEAM

JK1001-*1

JST1223-001

GND

Fiber Optic

1

VCC

2

Fib er Op tic

VINPUT

3

4

FIX_POLE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

SPDIF

2012/06/12

10

GLOBAL tuner block except EU and China

LGE Internal Use Only

RF_SWITCH_CTL

Pull-up can’t be applied because of MODEL_OPT_2

TU3700

TU3702 TDSH-G501D(B)

TUNER_ISOLATOR_DVB_1INPUT_H

1

2

3

4

5

6

7

8

9

10

11

B1

B2

A1

A2

B2

NC

RESET

SCL

SDA

+B1[3.3V]

SIF

+B2[1.8V]

CVBS

IF_AGC

DIF[P]

DIF[N]

A1

close to TUNER

R3705 0

C3701

0.1uF 16V

OPT

TDSS-G201D

B1

TUNER_OPT

12

SHIELD

1

2

3

4

5

6

7

8

9

10

11

A1

NC_1

RESET

SCL

SDA

+B1[3.3V]

NC_2

0.1uF 16V

+B2[1.8V]

NC_3

IF_AGC

DIF[P]

DIF[N]

A1

TU_GND_A

C3702

OPT

close to TUNER

R3732 100

+3.3V_TU

R3733 100K

C3710

0.1uF 16V

HALF_NIM/IF_FILTER

R3760-*1 10

R3761 0

HALF_NIM/IF_NON_FILTER

R3760 0

HALF_NIM/IF_NON_FILTER

Close to the tuner

TUNER_RESET

HALF_NIM/IF_FILTER

R3761-*1 10

C3711 18pF 50V

C3713 18pF 50V

R3735 33

R3736 33

LNA_CTRL_1

LNA_CTRL_2

+3.3V_TU

R3740

1.8K

TU_IIC_ATSC_1.8K

OPT C3742 20pF 50V

OPT C3743 20pF 50V

R3741

1.8K TU_IIC_ATSC_1.8K

IF_P_MSTAR

IF_N_MSTAR

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils Signal to Signal Width = 12mils Ground Width >= 24mils

R3740-*1 1K TU_IIC_NON_ATSC_1K

R3741-*1 1K TU_IIC_NON_ATSC_1K

TU_SCL

TU_SDA

R3758 82

OPT

R3784 0

OPT

+3.3V_TU

TU_SIF

TU_CVBS

BR_RESET_DEMOD

FE_TS_SYNC

FE_TS_VAL_ERR

FE_TS_CLK

FE_TS_DATA[0]

FE_AGC_SPEED_CTL IF_AGC_SEL

FE_BOOSTER_CTL LNA2_CTL

DEMOD_SCL

DEMOD_SDA

GND seperation for ASIS tuner

TU_GND_A

R3714

R3715

NON_ASIA

0

NON_ASIA

TUNER MULTI-OPTION

TU3700-*1 TDSS-H501F(B)

TUNER_ATSC

NC_1

1

RESET

2

SCL

3

SDA

4

+B1[3.3V]

5

NC_2

6

+B2[1.8]

7

NC_3

8

IF_AGC

9

DIF[P]

10

DIF[N]

11

X

B1

A1

12

SHIELD

TU_GND_A

TW_FE_LNA FILTER_SETTING

Frequence

54MHz~350MHz

350Hz~450MHz

450Hz~870MHz

CTRL_1 CTRL_2

1

0

1

Filter_Type

LPF

Through

HPF

+3.3V_TU

CHANGE TO

6.3V 2012 X5R

C3723 22uF

6.3V

Size change,0929

L3703

CIS21J121

C3725

0.1uF 16V

+3.3V_Normal

C3715 22uF

6.3V

CHANGE TO

6.3V 2012 X5R

C3737 100pF 50V

C3727

0.1uF 16V

C3738

0.1uF 16V

+1.8V_TU

C3716

0.1uF 16V

close to the tuner pin, add,09029

R3704 100

should be guarded by ground

+3.3V_TU

C3717

0.1uF 16V

C3707 100pF 50V

IF_AGC_MAIN

IC3703

AP1117E18G-13

3

IN1ADJ/GND

OUT 2

C3708

0.1uF 16V

+1.8V_TU

C3740

0.1uF 16V

R3766 1

C3741 10uF

10V

85C

C3741-*1

10uF 10V

CAP_X7R_MP

CAP_10uF_X5R CHANGE TO

10UF 10V X5R

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

TUNER_NON_EU

2012.06.21 14

COMPONENT1 & AV(COMMON), AV2

LGE Internal Use Only

COMP_AV1/2

JK1701

PPJ248-01

[RD3]E-LUG

7C

[RD3]C-SPRING

6C

D1700

5.6V AV2_LR_ZENER

R1700 470K AV2

C1701 1000pF 50V OPT

R1716 10K

AV2

R1718 12K AV2

AV2_R_IN

AV2

COMPONENT & AV1

COMP_AV1

JK1702

PPJ245-01

[RD2]E-LUG

7E

[RD2]C-SPRING

6E

[RD2]CONTACT

4E

[WH]C-SPRING

5D

[RD1]CONTACT

4C

[RD1]C-SPRING

6C

[RD1]E-LUG-S

8C

[RD3]CONTACT

4C

[WH2]C-SPRING

5B

[YL]CONTACT

4A

[YL]C-SPRING

6A

[YL]E-LUG

7A

[RD2]E-LUG

7H

[RD2]C-SPRING

6H

[RD2]CONTACT

4H

[WH1]C-SPRING

5G

[RD1]CONTACT

4F

[RD1]C-SPRING

6F

[RD1]E-LUG-S

8F

AV2_CVBS_ZENER_ROHM

COMP_Pr_ZENER_ROHM

D1707

D1701

5.6V AV2_LR_ZENER

D1702

5.6V OPT

D1713 AV2_CVBS_ZENER_ROHM

D1714

D1704

5.6V COMP_LR_ZENER

D1705

5.6V COMP_LR_ZENER

D1706

5.6V OPT

D1703 COMP_Pr_ZENER_ROHM

R1703

470K

R1704

470K

R1709 10K

R1701 470K AV2

+3.3V_Normal

R1705 75

+3.3V_Normal

R1708 10K AV2

R1702 75 AV2

R1712

1K

R1711 1K

AV2

C1704 1000pF 50V OPT

C1705 1000pF 50V OPT

R1714 10K

R1715 10K

COMP2_DET

C1702 1000pF 50V OPT

C1703 47pF 50V

AV2

R1717 10K

AV2

AV2_CVBS_DET

R1720 12K

R1721 12K

R1719 12K AV2

AV2_L_IN

AV2_CVBS_IN

COMP2_R_IN

COMP2_L_IN

COMP2_Pr+

D1714-*1

AV2_CVBS_ZENER_KEC

D1707-*1

COMP_Pr_ZENER_KEC

D1713-*1

AV2_CVBS_ZENER_KEC

D1703-*1 COMP_Pr_ZENER_KEC

[BL]C-SPRING

5B

[GN]CONTACT

4A

[GN]C-SPRING

6A

[GN]E-LUG

7A

[BL]C-SPRING

5E

[GN]CONTACT

4D

[GN]C-SPRING

6D

[GN]E-LUG

7D

D1710

COMP_Pb_ZENER_ROHM

D1712

COMP_Y_ZENER_ROHM

D1708 COMP_Pb_ZENER_ROHM

D1709

5.6V OPT

D1711

COMP_Y_ZENER_ROHM

R1706

75

R1707 75

+3.3V_Normal

R1710 10K

CVBS_TEST

R1723

75

+3.3V_Normal

R1713

1K

COMP2_Pb+

D1710-*1

COMP_Pb_ZENER_KEC

AV_CVBS_DET

R1722 0

CVBS_TEST

IC1700

MM1756DURE

VCC

6

PS

5

OUT

4

IN

1

GND

2

BIAS

3

COMP2_Y+/AV_CVBS_IN

CVBS_TEST

C1706

0.1uF

CVBS_TEST

4.7uF

C1708

C1707

0.1uF

CVBS_TEST

D1712-*1

COMP_Y_ZENER_KEC

DTV/MNT_VOUT

D1708-*1 COMP_Pb_ZENER_KEC

D1711-*1

COMP_Y_ZENER_KEC

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

REAR_NON_EU_L

2012.08.14NC4_S7LRM 17

ETHERNET

LGE Internal Use Only

* H/W option : ETHERNET

JK2100-*1

RJ45VT-01SN002

JK2100

XRJV-01V-0-D12-080

+2.5V_Normal

ETHERNET

L2101

BLM18PG121SN1D

1

2

3

ETHERNET_XML_EMI

4

5

6

7

8

9

1

2

3

ETHERNET_XMULTIPLE

4

5

6

7

8

9

ETHERNET

C2104

0.01uF 50V

ETHERNET

R2101

49.9

R2102

49.9

R2103

49.9

R2104

49.9

C2101

0.1uF

ETHERNET

C2102

0.1uF

ETHERNET

EPHY_TP

EPHY_TN

EPHY_RP

EPHY_RN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

LAN

2012/06/21

21

AUDIO AMP(STA380BWEF)

LGE Internal Use Only

AUD_MASTER_CLK

C3401 1000pF 50V

AMP_MUTE

R3402 10K

R3401

10K

POWER_DET

+3.5V_ST

R3403

10K

B

C

Q3401 MMBT3904(NXP)

E

OPT

R3405

R3404

100

0

AUD_SCK

AUD_LRCK

AUD_LRCH

AMP_RESET

AMP_SDA

AMP_SCL

+3.3V_Normal

C3403

0.1uF 16V

C3404

2.2uF 10V

NC_13 NC_14

NC_15 VDDDIG1 GNDDIG1

FFX3A

FFX3B

EAPD/FFX4A

TWARNEXT/FFX4B

VREGFILT

AGNDPLL

MCLK

R3406 0

R3407 0

25 26 27 28 29 30 31 32 33 34 35 36

NC_12

24

IC3401

STA380BWF

39

40

38

37

SDI

PWDN

RESET

LRCKI

BICKI

41

42

INTLINE

43

SDA44SCL

49

45SA46

TESTMODE

NC_114NC_215NC_316NC_417NC_518NC_619NC_720NC_821NC_922NC_1023NC_11

13

12 GND_REG 11 VDD_REG 10 OUT1A

9 GND1 8 VCC1 7 OUT1B 6 OUT2A 5 VCC2 4 GND2 3 OUT2B

THERMA L

2 VSS_REG 1 VCC_REG

47

[EP]

GNDDIG248VDDDIG2

+3.3V_Normal

C3407

0.1uF 16V

C3409

0.1uF 16V

C3408

0.1uF 16V

C3411

0.1uF 50V

R3408

43

R3410

43

C3412 1uF 50V

R3409

C3413 330pF 50V

C3414 330pF 50V

R3411

43

C3415 1uF 50V

L3402

10uH

L3403

10uH

L3404

10uH

L3405

10uH

C3416

0.1uF 50V

C3417 10uF 35V

3216

C3418

0.22uF 50V

C3419

0.22uF 50V

SPK_L+

SPK_L-

SPK_R+

SPK_R-

C3420

0.22uF 50V

C3421

0.22uF 50V

C3422

0.22uF 50V

C3423

0.22uF 50V

L3401

CIS21J121

C3424 1000pF 50V

C3425 1000pF 50V

C3426 1000pF 50V

C3427 1000pF 50V

+24V

SPK_L+

SPK_L-

SPK_R+

SPK_R-

SPEAKER_L

SPEAKER_R

P3401

WAFER-ANGLE

4

3

2

1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

2012/08/29

AMP_STA380BWEF 34

MSTART DEBUG_4PIN

LGE Internal Use Only

MSTAR_DEBUG_4P

P3900

12505WS-04A00

5

JP_GND2

JP_GND3

1

2

3

4

RGB_DDC_SCL

RGB_DDC_SDA

JP_GND1

JP_GND4

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

2012/06/20

MSTAR DEBUG_4PIN 39

RS-232C

LGE Internal Use Only

PM_TXD

PM_RXD

R4001 100

R4000 100

+3.5V_ST

RS232C_DEBUG_4P

VCC

PM_RXD

GND

RM_TXD

P4000

12507WS-04L

1

2

3

4

5

GND

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

RS232C_4P_OS

2012/06/20

40

IR/LED and Control

LGE Internal Use Only

+3.5V_ST

CONTROL_NO_FILTER

R611 0

CONTROL_FILTER

L601

BLM18PG121SN1D

CONTROL_FILTER

L602

BLM18PG121SN1D

CONTROL_NO_FILTER

R612 0

CONTROL_FILTER

+3.5V_ST

C609

0.1uF 16V

L600

BLM18PG121SN1D

C602

0.1uF 16V

CONTROL_FILTER

C608

0.1uF 16V

C603 1000pF 50V

SENSOR_SCL

SENSOR_SDA

LED_R/BUZZ

+3.3V_Normal

DIGITAL_EYE

R608 1K

R610

1.8K

C604

100pF

50V

DIGITAL_EYE

R609 1K

R604 100

DIGITAL_EYE

R605 100

DIGITAL_EYE

D601

LED_R_Zener

OPT C605 18pF 50V

OPT C606 18pF 50V

IR_8PIN

P600

12507WR-08L

1

2

3

4

5

6

7

8

9

IR_10PIN

P601

12507WR-10L

1

2

3

4

5

6

7

8

9

10

11

R603

R602

R600

KEY1

KEY2

IR

100

R601 100

10K

1%

R607

3.3K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

IR/CONTROL

2012/07/18

6

/F_RB

LGE Internal Use Only

/PF_OE

/PF_CE0

/PF_CE1

PF_ALE /PF_WE /PF_WP

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

R/B

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

DIMMING

NAND FLASH MEMORY

OS

AR103

22

AR104

22 OS

NAND_FLASH_2G_HYNIX

EAN60708702

IC102-*1

H27U2G8F2CTR

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

PWM_DIM

EEPROM

M24256-BRMN6TP

E0

1

E1

2

E2

3

VSS

4

NVRAM_ST

IC104

A0’h

+3.3V_Normal

OS

R102

3.3K

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

OPT C111

2.2uF

VCC

8

WC

7

SCL

6

SDA

5

C105

0.1uF

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

R156

R157

OPT R105 1K

OS R106 1K

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

RY/BY

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

OPT

10K

100

+3.3V_Normal

C104 8pF OPT

OS

R107

1K

OPT

R108

1K

NAND_FLASH_1G_TOSHIBA

TC58NVG0S3ETA0BBBH

1

2

3

4

5

6

7

RE

8

CE

9

10

11

12

13

14

15

CLE

16

ALE

17

WE

18

WP

19

20

21

22

23

24

R111 22

R112 22

C106 8pF OPT

+3.3V_Normal

OS

R109

3.9K

OS

C101

0.1uF

EAN61508001

IC102-*2

PWM0

PWM2

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

R/B

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

I2C_SCL

I2C_SDA

IC102

H27U1G8F2CTR-BC

1

NAND_FLASH_1G_HYNIX

EAN35669103

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O8

44

I/O7

43

I/O6

42

I/O5

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O4

32

I/O3

31

I/O2

30

I/O1

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

I2C

NVRAM_RENESAS

IC104-*1

R1EX24256BSAS0A

A0

1

A1

2

A2

3

VSS

4

EAN62389501

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

RY/BY

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

1

2

3

4

5

6

7

RE

8

CE

9

10

11

12

13

14

15

CLE

16

ALE

17

WE

18

WP

19

20

21

22

23

24

R140 1K

VCC

8

WP

7

SCL

6

SDA

5

+3.3V_Normal

NC_29

NC_28

NC_27

NC_26

I/O7

I/O6

I/O5

I/O4

NC_25

NC_24

CAP_10uF_X5R_OS

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

NAND_FLASH_2G_TOSHIBA

TC58NVG1S3ETA00

+3.3V_Normal

R141

1K

EAN60991001

IC102-*3

R144

R145

2.2K

NON_OS_512k_ST

IC104-*2

M24512-RMN6TP

E0

1

E1

2

E2

3

VSS

4

C102 10uF

C103

0.1uF

EAN43349003

OS

OS 22

AR101

OS

AR102

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

85C

10V

CHANGE TO 10UF 10V X5R

PCM_A[3]

PCM_A[2]

PCM_A[1]

PCM_A[0]

22

NC_29

NC_28

NC_27

NC_26

I/O8

I/O7

I/O6

I/O5

NC_25

NC_24

NC_23

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O4

I/O3

I/O2

I/O1

NC_19

NC_18

NC_17

NC_16

AMP_SDA AMP_SCL

I2C_SDA I2C_SCL

VCC

8

WC

7

SCL

6

SDA

5

PCM_A[0-7]

C102-*1

10uF 10V

CAP_10uF_X7R_OS

NAND_FLASH_1G_SS

EAN61857001

K9F1G08U0D-SCB0

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

NON_OS_512k_ATMEL

IC104-*3

AT24C512C-SSHD-T

A0

1

A1

2

A2

3

GND

4

EAN43349004

IC102-*4

8

7

6

5

<CHIP Config(LED_R/BUZZ)> Boot from SPI CS1N(EXT_FLASH) 1’b0 Boot from SPI_CS0N(INT_FLASH) 1’b1

<CHIP Config> (I2S_OUT_BCK,I2S_OUT_MCK,PAD_PWM1PAD_PWM0)

B51_no_EJ : 4’b0000 Boot from 8051 with SPI flash SB51_WOS : 4’b0001 Secure B51 without scramble SB51_WS : 4’b0010 Secure B51 with scramble MIPS_SPE_NO_EJ : 4’b0100 Boot from MIPS with SPI flash MIPS_SPI_EJ_1 : 4’b0101 Boot from MIPS with SPI flash MIPS_SPI_EJ_2 : 4’b0110 Boot from MIPS with SPI flash MIPS_WOS : 4’b1001 Secure MIPS without scramble MIPS_WS : 4’b1010 Scerur MIPS with SCRAMBLE

AUD_MASTER_CLK

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

R148

56

OPT

C112 100pF 50V

S7LR-M Multi Package

PM MODEL OPTION

VCC

WP

SCL

SDA

+3.3V_Normal

OS

OPT

R115 1K

R117 1K

R116 1K

R118 1K

LGE2121-MS (M1_L13_MS10)

C7

GPIO39

E6

GPIO40

F5

GPIO41

B6

GPIO42

E5

GPIO43

D5

GPIO44

B7

GPIO45

E7

GPIO48

F7

GPIO49

AB5

GPIO52

AB3

GPIO53

A9

GPIO54

F4

GPIO55

AB1

I2C_SCKM0/GPIO56

N6

I2C_SDAM0/GPIO57

AB2

GPIO76

AC2

GPIO77

OPT

R165 1K

R121 1K

IC101-*1

S/W_EU/AJ

OPT

R123 1K

NON_OS

R124 1K

S7LR-M_MS10

R174

10K

S/W_TW

R175

10K

OPT

R152 1K

R153 1K

LVACLKP LVACLKN LVBCLKP LVBCLKN

GPIO194 GPIO191 GPIO192 GPIO193

+3.5V_ST

R177 10K HD_LVDS_NON_EU

R176 10K HD_LVDS_EU

LVA0P LVA0N LVA1P LVA1N LVA2P LVA2N LVA3P LVA3N LVA4P LVA4N

LVB0P LVB0N LVB1P LVB1N LVB2P LVB2N LVB3P LVB3N LVB4P LVB4N

LED_R/BUZZ

AUD_SCK

AUD_MASTER_CLK_0

PWM1

PWM0

AB25 AB23 AC25 AB24 AD25 AC24 AE23 AC23 AC22 AD23

V23 U24 V25 V24 W25 W23 AA23 Y24 AA25 AA24

AE24 AD24 Y23 W24

T25 U23 T24 T23

PM_MODEL_OPT_0

PM_MODEL_OPT_1

for SYSTEM EEPROM (IC104)

RGB_DDC_SDA RGB_DDC_SCL

SCART1_MUTE

V-COM_SCL

SENSOR_SCL

PM_MODEL_OPT_0 HIGH : HD_NON_EU LOW : HD_EU HD_LVDS_pattern is different. Between EU and NON_EU

PM_MODEL_OPT_1 HIGH : S/W_NON_EU LOW : S/W_EU/AJ S/W is different. Between TW

I2C_SCL I2C_SDA

PCM_D[0-7]

PCM_A[0-14]

/PCM_REG

/PCM_OE

/PCM_WE /PCM_IORD /PCM_IOWR

/PCM_CE /PCM_IRQA

/PCM_CD /PCM_WAIT

PCM_RST

PCM_5V_CTL

/MHL_OCP_DET

MHL_OCP_EN

MODEL_OPT_6 MODEL_OPT_7

SENSOR_SCL SENSOR_SDASENSOR_SDA

USB1_OCD USB1_CTL

PM_TXD PM_RXD

LED_R/BUZZ

SCART1_MUTE

V-COM_SCL V-COM_SDAV-COM_SDA

PWM0 PWM1 PWM2

KEY1 KEY2

PCM_D[0] PCM_D[1] PCM_D[2] PCM_D[3] PCM_D[4]

PCM_D[5]

PCM_D[6] PCM_D[7]

PCM_A[0] PCM_A[1] PCM_A[2] PCM_A[3] PCM_A[4] PCM_A[5] PCM_A[6] PCM_A[7] PCM_A[8] PCM_A[9] PCM_A[10] PCM_A[11] PCM_A[12] PCM_A[13] PCM_A[14]

R136 22 R137 22

FRC_RESET

AA18 AB22 AE20 AA15 AE21 AB21

AB18 AA20 AA21

AB17

AB19 AB20 AA16 AA19 AC21 AA17

AB15 AA22 AD22 AD20

AD21 AC20

W21

Y15

W20 V20 W22

Y19

Y16

Y20

Y18 Y21 Y22

U21 V21 R20 T20 U22

D4

E4 N25 N24

B8

A8

P23 P24

D2

D1

P21 N23 P22 R21 P20

F6

H6

G5

G4

J5

J4

R23

R24 R25 T21 T22

S7LR-M_NON_MS10

IC101

MSD804KKX

PCMDATA[0]/GPIO129 PCMDATA[1]/GPIO130 PCMDATA[2]/GPIO131 PCMDATA[3]/GPIO123 PCMDATA[4]/GPIO122 PCMDATA[5]/GPIO121 PCMDATA[6]/GPIO120 PCMDATA[7]/GPIO119

PCMADR[0]/GPIO128 PCMADR[1]/GPIO127 PCMADR[2]/GPIO125 PCMADR[3]/GPIO124 PCMADR[4]/GPIO102 PCMADR[5]/GPIO104 PCMADR[6]/GPIO105 PCMADR[7]/GPIO106 PCMADR[8]/GPIO111 PCMADR[9]/GPIO113 PCMADR[10]/GPIO117 PCMADR[11]/GPIO115 PCMADR[12]/GPIO107 PCMADR[13]/GPIO110 PCMADR[14]/GPIO109

PCMREG_N/GPIO126

PCMOE_N/GPIO116 PCMWE_N/GPIO195 PCMIORD_N/GPIO114 PCMIOWR_N/GPIO112

PCMCE_N/GPIO118 PCMIRQA_N/GPIO108 PCMCD_N/GPIO133 PCMWAIT_N/GPIO103 PCM_RESET/GPIO132

PCM2_CE_N/GPIO134 PCM2_IRQA_N/GPIO135 PCM2_CD_N/GPIO138 PCM2_WAIT_N/GPIO136 PCM2_RESET/GPIO137

UART1_TX/GPIO46 UART1_RX/GPIO47 UART2_TX/GPIO68 UART2_RX/GPIO67 UART3_TX/GPIO50 UART3_RX/GPIO51

I2C_SCKM2/DDCR_CK/GPIO75 I2C_SDAM2/DDCR_DA/GPIO74

DDCA_DA/UART0_TX DDCA_CK/UART0_RX

PWM0/GPIO69 PWM1/GPIO70 PWM2/GPIO71 PWM3/GPIO72 PWM4/GPIO73 PWM_PM/GPIO197

SAR0/GPIO34 SAR1/GPIO35 SAR2/GPIO36 SAR3/GPIO37 SAR4/GPIO38

VSYNC_LIKE/GPIO146

SPI1_CK/GPIO199 SPI1_DI/GPIO200 SPI2_CK/GPIO201 SPI2_DI/GPIO202

5V_DET_HDMI_2 5V_DET_HDMI_4

AV_CVBS_DET

AV2_CVBS_DET

SC1/COMP1_DET

TUNER_RESET MODEL_OPT_0

5V_DET_HDMI_15V_DET_HDMI_1

MODEL_OPT_1

MODEL_OPT_2

BR_RESET_DEMOD

PM_UART_RX/GPIO_PM[5]/GPIO11

PM_SPI_SCZ1/GPIO_PM[6]/GPIO12

PM_SPI_SCZ2/GPIO_PM[10]/GPIO16

PM_SPI_CZ0/GPIO_PM[12]/GPIO0

AMP_RESET FRC_RESET

HP_DET

S2_RESET

LNA_CTRL_1 LNA_CTRL_2

SYM.D

NF_CE1Z/GPIO141

NF_WPZ/GPIO196 NF_CEZ/GPIO140 NF_CLE/GPIO139 NF_REZ/GPIO142 NF_WEZ/GPIO143 NF_ALE/GPIO144 NF_RBZ/GPIO145

GPIO_PM[0]/GPIO6

PM_UART_TX/GPIO_PM[1]/GPIO7

GPIO_PM[2]/GPIO8 GPIO_PM[3]/GPIO9

GPIO_PM[4]/GPIO10

GPIO_PM[7]/GPIO13 GPIO_PM[8]/GPIO14 GPIO_PM[9]/GPIO15

GPIO_PM[11]/GPIO17

PM_SPI_SCK/GPIO1

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

TS0CLK/GPIO90

TS0VALID/GPIO88

TS0SYNC/GPIO89

TS0DATA_[0]/GPIO80 TS0DATA_[1]/GPIO81 TS0DATA_[2]/GPIO82 TS0DATA_[3]/GPIO83 TS0DATA_[4]/GPIO84 TS0DATA_[5]/GPIO85 TS0DATA_[6]/GPIO86 TS0DATA_[7]/GPIO87

TS1CLK/GPIO101 TS1VALID/GPI99

TS1SYNC/GPIO100

TS1DATA_[0]/GPIO91 TS1DATA_[1]/GPIO92 TS1DATA_[2]/GPIO93 TS1DATA_[3]/GPIO94 TS1DATA_[4]/GPIO95 TS1DATA_[5]/GPIO96 TS1DATA_[6]/GPIO97 TS1DATA_[7]/GPIO98

AE18 AC17 AD18 AC18 AC19 AD17 AE17 AD19

H5 K6 K5 J6 K4 L6 C2 L5 M6 M5 C1 M4

A2

R147 33 D3 B2 B1

R151 33

for SERIAL FLASH

Y14 AA10 Y12

Y13 Y11 AA12 AB12 AA14 AB14 AA13 AB11

AC15 AD15 AC16

AD16 AE15 AE14 AC13 AC14 AD12 AD13 AD14

AB5 AB3

AB1

AB2 AC2

CI_TS_DATA[0] CI_TS_DATA[1] CI_TS_DATA[2] CI_TS_DATA[3] CI_TS_DATA[4] CI_TS_DATA[5] CI_TS_DATA[6] CI_TS_DATA[7]

S7LR-M_NON_MS10

IC101

MSD804KKX

SYM.A

C7

GPIO39

E6

GPIO40

F5

GPIO41

B6

GPIO42

E5

GPIO43

D5

GPIO44

B7

GPIO45

E7

GPIO48

F7

GPIO49 GPIO52 GPIO53

A9

GPIO54

F4

GPIO55 I2C_SCKM0/GPIO56

N6

I2C_SDAM0/GPIO57 GPIO76 GPIO77

R146 33

FE_TS_DATA[0] FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3] FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7]

LVA0P LVA0N LVA1P LVA1N LVA2P LVA2N LVA3P LVA3N LVA4P LVA4N

LVB0P LVB0N LVB1P LVB1N LVB2P LVB2N LVB3P LVB3N LVB4P LVB4N

LVACLKP LVACLKN LVBCLKP LVBCLKN

GPIO194 GPIO191 GPIO192 GPIO193

/PF_WP

/PF_CE0

/PF_CE1 /PF_OE

/PF_WE

PF_ALE /F_RB

POWER_DET PM_TXD INV_CTL RL_ON POWER_ON/OFF_1 PM_RXD /SPI_CS /FLASH_WP SIDE_HP_MUTE PANEL_CTL PM_MODEL_OPT_0 AMP_MUTE

SPI_SCK

SPI_SDO

CI_TS_CLK CI_TS_VAL CI_TS_SYNC

CI_TS_DATA[0-7]

from CI SLOT

FE_TS_CLK FE_TS_VAL_ERR FE_TS_SYNC FE_TS_DATA[0-7]

Internal demod out

FE_TS_DATA[0]

AB25 AB23 AC25 AB24 AD25 AC24 AE23 AC23 AC22 AD23

V23 U24 V25 V24 W25 W23 AA23 Y24 AA25 AA24

AE24 AD24 Y23 W24

T25 U23 T24 T23

+3.5V_ST

R180

4.7K

RXA0+ RXA0RXA1+ RXA1RXA2+ RXA2RXA3+ RXA3RXA4+ RXA4-

RXB0+ RXB0RXB1+ RXB1RXB2+ RXB2RXB3+ RXB3RXB4+ RXB4-

RXACK+ RXACKRXBCK+ RXBCK-

MODEL_OPT_3 MODEL_OPT_4 MODEL_OPT_5 MODEL_OPT_8

SPI_SDI

FE_TS_DATA[0]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

2012/09/19

MAIN1_NON_EU 51

RS-232C

LGE Internal Use Only

RS232_PHONE

C5302

0.1uF

C5303

0.1uF

C5304

0.1uF

C5305

0.1uF DOUT2

RIN2

C1+

C1-

C2+

C2-

V+

V-

RS232_PHONE

IC5301 MAX3232CDR

1

2

3

4

5

6

7

8

EAN41348201

HEAD_PHONE

R5309

RS232_PHONE

R5302

+3.5V_ST

OPT D5301 ADUC 20S 02 010L

RS232_PHONE

C5306

0.1uF

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

PM_RXD

PM_TXD

20V

HP_LOUT

HP_ROUT

HP_DET

RS232_PHONE

OPT D5302 ADUC 20S 02 010L 20V

HEAD_PHONE

C5307 10uF 16V

HEAD_PHONE

C5308 10uF 16V

+3.3V_Normal

R5306 10K

R5305 1K

HEAD_PHONE

100

R5301 100

HEAD_PHONE

OPT C5309 1000pF 50V

OPT C5310 1000pF 50V

HEAD_PHONE

R5307 1K

HEAD_PHONE

R5308

1K

0

RS232_PHONE

6M6

1M1

3M3_DETECT

4M4

5M5_GND KJA-PH-1-0177

JK5301

HEAD_PHONE

JK5301-*1

KJA-PH-0-0177

5GND

4L

3DETECT

1R

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

RS232C_PHONE

2012/06/21

53

+1.5V_DDR +1.5V_DDR

LGE Internal Use Only

+1.5V_DDR

DDR_1600_2G_SS

IC1201-*1

K4B2G1646E-BCK0

EAN61848802

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

R1201

R1202

1K 1%

0.1uF

1K 1%

C1201

A-MVREFDQ

1000pF

C1202

CLose to DDR3

DDR_1600_2G_NANYA

IC1201-*2

NT5CB128M16FP-DI

EAN61859702

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

N3

A0

VREFCA

P7

A1

P3

A2

N2

A3

VREFDQ

P8

A4

P2

A5

R8

A6

ZQ

R2

A7

T8

A8

R3

A9

VDD_1

L7

A10/AP

VDD_2

R7

A11

VDD_3

N7

A12/BC

VDD_4

T3

A13

VDD_5 VDD_6

M7

NC_6

VDD_7 VDD_8

M2

BA0

VDD_9

N8

BA1

M3

BA2

VDDQ_1

J7

CK

VDDQ_2

K7

CK

VDDQ_3

K9

CKE

VDDQ_4 VDDQ_5

L2

CS

VDDQ_6

K1

ODT

VDDQ_7

J3

RAS

VDDQ_8

K3

CAS

VDDQ_9

L3

WE

NC_1

T2

RESET

NC_2 NC_3 NC_4

F3

DQSL

NC_5

G3

DQSL

C7

DQSU

VSS_1

B7

DQSU

VSS_2 VSS_3

E7

DML

VSS_4

D3

DMU

VSS_5 VSS_6

E3

DQL0

VSS_7

F7

DQL1

VSS_8

F2

DQL2

VSS_9

F8

DQL3

VSS_10

H3

DQL4

VSS_11

H8

DQL5

VSS_12

G2

DQL6

H7

DQL7

VSSQ_1

D7

DQU0

VSSQ_2

C3

DQU1

VSSQ_3

C8

DQU2

VSSQ_4

C2

DQU3

VSSQ_5

A7

DQU4

VSSQ_6

A2

DQU5

VSSQ_7

B8

DQU6

VSSQ_8

A3

DQU7

VSSQ_9

M8

H1

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

DDR_1600_1G_HYNIX

IC1201-*3

H5TQ1G63EFR-PBC

EAN61829003

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

NC_7

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_1600_1G_SS

IC1201-*4

K4B1G1646G-BCK0

EAN61836301

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

M8

A0

VREFCA A1 A2

H1

A3

VREFDQ A4 A5

L8

A6

ZQ A7 A8

B2

A9

VDD_1

D9

A10/AP

VDD_2

G7

A11

VDD_3

K2

A12/BC

VDD_4

K8

A13

VDD_5

N1

VDD_6

N9

NC_5

VDD_7

R1

VDD_8

R9

BA0

VDD_9 BA1 BA2

A1

VDDQ_1

A8

CK

VDDQ_2

C1

CK

VDDQ_3

C9

CKE

VDDQ_4

D2

VDDQ_5

E9

CS

VDDQ_6

F1

ODT

VDDQ_7

H2

RAS

VDDQ_8

H9

CAS

VDDQ_9

WE

J1

NC_1

J9

RESET

NC_2

L1

NC_3

L9

NC_4

T7

DQSL

NC_6 DQSL

A9

DQSU

VSS_1

B3

DQSU

VSS_2

E1

VSS_3

G8

DML

VSS_4

J2

DMU

VSS_5

J8

VSS_6

M1

DQL0

VSS_7

M9

DQL1

VSS_8

P1

DQL2

VSS_9

P9

DQL3

VSS_10

T1

DQL4

VSS_11

T9

DQL5

VSS_12 DQL6 DQL7

B1

VSSQ_1

B9

DQU0

VSSQ_2

D1

DQU1

VSSQ_3

D8

DQU2

VSSQ_4

E2

DQU3

VSSQ_5

E8

DQU4

VSSQ_6

F9

DQU5

VSSQ_7

G1

DQU6

VSSQ_8

G9

DQU7

VSSQ_9

DDR_1600_1G_NANYA

IC1201-*5

NT5CB64M16DP-DH

EAN61859501

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

R1204

R1205

CLose to Saturn7M IC

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

1K 1%

0.1uF

1K 1%

C1203

C1204

1000pF

A-MVREFCA

+1.5V_DDR

A-MVREFCA

A-MVREFDQ

C120510uF10V C122710uF10V C1207 0.1uF C1208 0.1uF C1210 0.1uF C1211 0.1uF C1212 0.1uF C1213 0.1uF C1214 0.1uF C1215 0.1uF

A-MA14

DDR_1600_2G_HYNIX

IC1201

H5TQ2G63DFR-PBC

EAN61829203

M8

VREFCA

H1

VREFDQ

R1203

L8

240

1%

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

C1251

10uF10V

A10/AP

A12/BC

RESET

C1206

NC_5

DQSL DQSL

DQSU DQSU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

1uF

C1217

C1218

0.1uF

C1239

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7 R7

A11

N7 T3

A13

M7

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

F3 G3

C7 B7

E7

DML

D3

DMU

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

C1219

A-MA0 A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8

A-MA10 A-MA10 A-MA11 A-MA12 A-MA13

A-MBA0 A-MBA1 A-MBA2

A-MCKE

A-MODT A-MRASB A-MCASB A-MWEB

A-MRESETB

A-MDQSL A-MDQSLB

A-MDQSU A-MDQSUB

A-MDML A-MDMU

A-MDQL0 A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7

A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

C1238

R1235

56

R1236

56

R1231 10K

1uF

C1241

1%

C1209

0.01uF 50V

1%

+1.5V_DDR

A-MCK

A-MCKB

A-MA0 A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8 A-MA9A-MA9

A-MA11 A-MA12 A-MA13 A-MA14

A-MBA0 A-MBA1 A-MBA2

A-MCK A-MCKB A-MCKE

A-MODT

A-MRASB A-MCASB

A-MWEB

A-MRESETB

A-MDQSL

A-MDQSLB

A-MDQSU

A-MDQSUB

A-MDML A-MDMU

A-MDQL0

A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7

A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

MSD804KKX

S7LR-M_NON_MS10

A11

A_DDR3_A[0]

C14 B11 F12 C15 E12 A14 D11 B14 D12 C16 C13 A15 E11 B13

F13 B15 E13

C17 A17 B16

E14 B12 A12 C12

F11

B19 C18

B18 A18

E15 A21

D17 G15 B21 F15 B22 F14 A22 D15

G16 B20 F16 C21 E16 A20 D16 C20

A_DDR3_A[1] A_DDR3_A[2] A_DDR3_A[3] A_DDR3_A[4] A_DDR3_A[5] A_DDR3_A[6] A_DDR3_A[7] A_DDR3_A[8] A_DDR3_A[9] A_DDR3_A[10] A_DDR3_A[11] A_DDR3_A[12] A_DDR3_A[13] A_DDR3_A[14]

A_DDR3_BA[0] A_DDR3_BA[1] A_DDR3_BA[2]

A_DDR3_MCLK A_DDR3_MCLKZ A_DDR3_MCLKE

A_DDR3_ODT A_DDR3_RASZ A_DDR3_CASZ A_DDR3_WEZ

A_DDR3_RESET

A_DDR3_DQSL A_DDR3_DQSLB

A_DDR3_DQSU A_DDR3_DQSUB

A_DDR3_DQML A_DDR3_DQMU

A_DDR3_DQL[0] A_DDR3_DQL[1] A_DDR3_DQL[2] A_DDR3_DQL[3] A_DDR3_DQL[4] A_DDR3_DQL[5] A_DDR3_DQL[6] A_DDR3_DQL[7]

A_DDR3_DQU[0] A_DDR3_DQU[1] A_DDR3_DQU[2] A_DDR3_DQU[3] A_DDR3_DQU[4] A_DDR3_DQU[5] A_DDR3_DQU[6] A_DDR3_DQU[7]

SYMBOL.B

IC101

B_DDR3_A[0] B_DDR3_A[1] B_DDR3_A[2] B_DDR3_A[3] B_DDR3_A[4] B_DDR3_A[5] B_DDR3_A[6] B_DDR3_A[7] B_DDR3_A[8]

B_DDR3_A[9] B_DDR3_A[10] B_DDR3_A[11] B_DDR3_A[12] B_DDR3_A[13] B_DDR3_A[14]

B_DDR3_BA[0] B_DDR3_BA[1] B_DDR3_BA[2]

B_DDR3_MCLK B_DDR3_MCLKZ B_DDR3_MCLKE

B_DDR3_ODT B_DDR3_RASZ B_DDR3_CASZ

B_DDR3_WEZ

B_DDR3_RESET

B_DDR3_DQSL

B_DDR3_DQSLB

B_DDR3_DQSU

B_DDR3_DQSUB

B_DDR3_DQML B_DDR3_DQMU

B_DDR3_DQL[0] B_DDR3_DQL[1] B_DDR3_DQL[2] B_DDR3_DQL[3] B_DDR3_DQL[4] B_DDR3_DQL[5] B_DDR3_DQL[6] B_DDR3_DQL[7]

B_DDR3_DQU[0] B_DDR3_DQU[1] B_DDR3_DQU[2] B_DDR3_DQU[3] B_DDR3_DQU[4] B_DDR3_DQU[5] B_DDR3_DQU[6] B_DDR3_DQU[7]

B23 D25 F22 G22 E24 F21 E23 D22 D24 D21 C24 C25 F23 E21 D23

G20 F24 F20

G25 G23 F25

D20 B25 B24 A24

E20

K24 K25

J21 J20

H24 L20

L23 J24 L24 J23 M24 H23 M23 K23

G21 L22 H22 K20 H20 L21 H21 K21

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

M1_DDR (1DDR)

2012/06/21

54

Serial Flash for SPI boot_NON_OS

LGE Internal Use Only

/FLASH_WP

R5502 0

+3.5V_ST

OPT R5501 10K

MX25L6406EM2I-12G

CS

SO/SIO1

WP

GND

/SPI_CS

SPI_SDO

SFLASH_NON_OS_MX

IC1300-*1

1

2

3

4

8

7

6

5

VCC

HOLD

SCLK

SI/SIO0

+3.5V_ST

OPT

R5503

4.7K

SFLASH_NON_OS_WINBOND

IC1300

W25Q64FVSSIG

CS

1

DO[IO1]

2

WP[IO2]

3

GND

4

SFLASH_OS_WINBOND

IC1300-*2

W25Q80BVSSIG

CS

1

DO[IO1]

2

%WP[IO2]

3

GND

4

VCC

8

%HOLD[IO3]

7

CLK

6

DI[IO0]

5

VCC

8

HOLD[IO3]

7

CLK

6

DI[IO0]

5

+3.5V_ST

0.1uF

R5504 33

SFLASH_OS_MACRONIX

MX25L8006EM2I-12G

CS#

SO/SIO1

WP#

GND

C5501

SPI_SCK

SPI_SDI

IC1300-*3

1

2

3

4

8

7

6

5

VCC

HOLD#

SCLK

SI/SIO0

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

S_FLASH_NON_OS

2012.06.21

55

+1.26V_FRC

LGE Internal Use Only

BLM18SG121TN1D

C6101

0.1uF

+1.26V_FRC

BLM18SG121TN1D

C6102

0.1uF

L6103

L6101

C6109 22uF 10V

FRC_VDDC10

C6112 22uF 10V

DVDD_DDR_1V

C6113

0.1uF

FRC_VDDC10

C6114 22uF 10V

Place Close to Bead

+3.3V_FRC

GPIO1 : HI => B8/94, LOW => B4/98 CHIP_CONF : {GPIO8, PWM1, PWM0} CHIP_CONF = 3’d5 : boot from interal SRAM CHIP_CONF = 3’d6 : boot from EEPROM CHIP_CONF = 3’d7 : boot from SPI Flash

FRC_VDD33

L6102

BLM18SG121TN1D

C6103

0.1uF

AFRC_VDD33

L6104

BLM18SG121TN1D

C6104

0.1uF

FRC_AVDD_PLL

L6105

BLM18SG121TN1D

C6105

0.1uF

FRC_AVDD_LVDS33

L6106

BLM18SG121TN1D

C6106

0.1uF

URSA5 CONFIGURATION

PWM0_CONFIG PWM1_CONFIG

GPIO[8]

GPIO[1]

URSA5 H/W OPTION

URSA_MODEL_OPT_0 URSA_MODEL_OPT_1 URSA_MODEL_OPT_2 URSA_MODEL_OPT_3

C6107

0.1uF

C6108 10uF

C6110

0.1uF

C6111 10uF

FRC_VDD33

AFRC_VDD33

FRC_AVDD_PLL

FRC_AVDD_LVDS33

+3.3V_FRC

R6103 10K

OPT

R6104 10K

+3.3V_FRC

OPT

C6115 10uF

6.3V

R6105 10K

R6106 10K

C6116 10uF

10K

R6107

10K

OPT

R6108

OPT

(VDDP)

C6117

0.1uF

R6111 10K

OPT

R6112 10K

10K

R6109

10K

R6110

OPT

C6119

0.1uF

C6118

0.1uF

OPT

R6113 10K

R6114 10K

Debugging for URSA5

P6101

12505WS-04A00

URSA5_DEBUG

1

2

URSA5_DEBUG

R6102 22

3

URSA5_DEBUG

R6101 22

4

5

SCL2_+3.3V_DB

SDA2_+3.3V_DB

C6120

0.22uF

6.3V

R6115 10K

R6116 10K

OPT

R6117 10K

R6118 10K

C6121

0.1uF

C6124

0.1uF

C6125

0.22uF

6.3V

C6122

0.1uF

C6123

0.1uF

MODEL OPTION

URSA_MODEL_OPT_1

URSA_MODEL_OPT_2

URSA_MODEL_OPT_3

SCL2_+3.3V_URSA

C6127

0.1uF

C6126

0.1uF

PIN NAME

URSA_SCL

SCL2_+3.3V_DB

C6128

0.1uF

PIN NO.

D10

D11

D12

D13

URSA5_MP

+1.5V_FRC_DDR+1.5V_FRC_DDR

C6129

0.1uF

HIGH

L/DIM_10BLOCKURSA_MODEL_OPT_0

LVDS_EXT_URSA5

RESERVED

R6119 0

R6120 0 OPT

C6130

0.22uF

6.3V

SW6101

JS2235S

1

2

URSA5_DEBUG

3

C6131

C6132

0.1uF

FRC_DDR3_RESETB

SCL2_+3.3V_URSA SDA2_+3.3V_URSA

LOW

L/DIM_16BLOCK

RESERVEDRESERVED

LVDS_S7M_PLUS

RESERVED

6

URSA5_MP

5

4

C6133

0.1uF

FRC_A[0-13]

FRC_BA0

FRC_BA1 FRC_BA2

FRC_MCK

FRC_MCKB

FRC_CKE

FRC_ODT FRC_RASB FRC_CASB

FRC_WEB

FRC_DQSL FRC_DQSU

FRC_DQSLB FRC_DQSUB

FRC_DQL[0-7]

FRC_DQU[0-7]

URSA_SDA

R6121 0

SDA2_+3.3V_URSA

R6122 0

OPT

SDA2_+3.3V_DB

5%

1/16W

C6134 1uF 10V

+3.3V_FRC

5%

2.2K R6123

FRC_A[0] FRC_A[1] FRC_A[2] FRC_A[3] FRC_A[4] FRC_A[5] FRC_A[6] FRC_A[7] FRC_A[8] FRC_A[9] FRC_A[10] FRC_A[11] FRC_A[12] FRC_A[13]

FRC_DML FRC_DMU

FRC_DQL[0] FRC_DQL[1] FRC_DQL[2] FRC_DQL[3] FRC_DQL[4] FRC_DQL[5] FRC_DQL[6] FRC_DQL[7]

FRC_DQU[0] FRC_DQU[1] FRC_DQU[2] FRC_DQU[3] FRC_DQU[4] FRC_DQU[5] FRC_DQU[6] FRC_DQU[7]

2.2K R6124

1/16W

R612533 R612633

P14

DDR3_A0/DDR2_NC

G15

DDR3_A1/DDR2_A8

N14

DDR3_A2/DDR2_NC

L15

DDR3_A3/DDR2_A10

H15

DDR3_A4/DDR2_A2

L14

DDR3_A5/DDR2_A3

G14

DDR3_A6/DDR2_A4

N12

DDR3_A7/DDR2_A5

G13

DDR3_A8/DDR2_A6

N13

DDR3_A9/DDR2_A9

H14

DDR3_A10/DDR2_RASZ

F15

DDR3_A11/DDR2_A11

H13

DDR3_A12/DDR2_A0

P13

DDR3_A13/DDR2_A12

M12

DDR3_BA0/DDR2_BA2

H12

DDR3_BA1/DDR2_CASZ

L13

DDR3_BA2/DDR2_A1

F16

DDR3_MCLK/DDR2_MCLK

F17

DDR3_MCLKZ/DDR2_MCLKZ

J13

DDR3_CKE/DDR2_ODT

K12

DDR3_ODT/DDR2_CKE

L12

DDR3_RASZDDR2_WEZ

K13

DDR3_CASZ/DDR2_BA1

K14

DDR3_WEZ/DDR2_BA0

M14

DDR3_RESET/DDR2_A7

N16

DDR3_DQSL/DDR2_DQSL

M17

DDR3_DQSU/DDR2_DQSU

M16

DDR3_DQSBL/DDR2_DQSBL

M15

DDR3_DQSBU/DDR2_DQSBU

J15

DDR3_DQML/DDR2_DQU5

R16

DDR3_DQMU/DDR2_DQU4

R17

DDR3_DQL0/DDR2_DQU3

H17

DDR3_DQL1/DDR2_DQL0

R15

DDR3_DQL2/DDR2_DQL6

J17

DDR3_DQL3/DDR2_DQL7

T17

DDR3_DQL4/DDR2_DQL3

H16

DDR3_DQL5/DDR2_DQL2

T15

DDR3_DQL6/DDR2_DQL1

G16

DDR3_DQL7/DDR2_DQL5

K15

DDR3_DQU0/DDR2_DQU7

N15

DDR3_DQU1/DDR2_DQML

K17

DDR3_DQU2/DDR2_DQU2

P17

DDR3_DQU3/DDR2_DQU6

L17

DDR3_DQU4/DDR2_NC

P16

DDR3_DQU5/DDR2_DQU1

K16

DDR3_DQU6/DDR2_DQU0

P15

DDR3_DQU7/DDR2_DQMU

F14

DDR3_NC/DDR2_A13

T16

DDR3_NC/DDR2_DQL4

D14

I2CM_SCL

D15

I2CM_SDA

P1

I2CS_SCL

P2

I2CS_SDA

AFRC_VDD33

+1.5V_FRC_DDR

F5

F10

G10

F11

F12

G11

G12

AVDD_1F4AVDD_2

AVDD_DDR_C_1

AVDD_DDR_C_2

AVDD_DDR_D_1

AVDD_DDR_D_2

AVDD_DDR_D_3

AVDD_DDR_D_4

VSS_1D6VSS_2D7VSS_3D8VSS_4D9VSS_5E6VSS_6E7VSS_7E8VSS_8E9VSS_9

E10

E16

DVDD_DDR_1V

FRC_AVDD_PLL

FRC_AVDD_LVDS33

D4

D5

E4

E5

M5

L4

L5

K10

L10

AVDD_PLL3.3V

AVDD_MPLL3.3V

AVDD_LPLL3.3V

AVDDL_MOD1.26V

AVDD_LVDS3.3V_1

AVDD_LVDS3.3V_2

AVDD_LVDS3.3V_3

AVDD_LVDS3.3V_4

VSS_10

VSS_11F3VSS_12F6VSS_13F7VSS_14F8VSS_15F9VSS_16G1VSS_17G2VSS_18G4VSS_19G5VSS_20G6VSS_21G7VSS_22G8VSS_23G9VSS_24

DVDD_DDR_1.26V

FRC_VDD33

FRC_VDDC10

C6135

0.1uF

K9

N5

M9

M10

VD33_1M4VD33_2N4VD33_3

DVDD_HF1.26V

G17

VDDC_1.26V_1

VDDC_1.26V_2

VSS_25H1VSS_26H2VSS_27H4VSS_28H5VSS_29H6VSS_30H7VSS_31H8VSS_32H9VSS_33

PLACE TERMINATION RESISTORS CLOSE TO URSA5

RXBCK+

RXBCK-

RXB1-

RXB1+

RXB0-

R1

RXB0+

R7

RXACLKPR6RXACLKN

N9

N10

N11

P10

VDDC_1.26V_3

VDDC_1.26V_4

VDDC_1.26V_5

R6127

100

R6128

100

R6129

100

R6130

100

R6131

100

R6132

100

P11

VDDC_1.26V_6

VDDC_1.26V_7

RXB4-

RXB4+

RXB2-

RXB2+

RXB3+

RXB3-

R3

RXB0PR4RXB0NR5RXB1PT4RXB1NU4RXB2PU3RXB2NT3RXB3PT2RXB3NU2RXB4PT1RXB4N

RXBCLKPR2RXBCLKN

RXA2-

IC6101

LGE7303C

VSS_34

VSS_35J4VSS_36J5VSS_37J6VSS_38J7VSS_39J8VSS_40J9VSS_41

H10

H11

J10

VSS_42

VSS_43

J11

J12

J14

FRC_RESET

VSS_44

VSS_45

VSS_46K4VSS_47K5VSS_48K6VSS_49K7VSS_50K8VSS_51

J16

VSS_52L6VSS_53L7VSS_54L8VSS_55

K11

+3.3V_FRC

RXACK+

RXACK-

M11

RXA0-

RXA1+

RXA1-

VSS_61

VSS_62N6VSS_63N7VSS_64N8VSS_65

M13

RXA0+

R6134

100

R6135

100

R6136

100

R6137

100

R6138

100

R6139

100

N17

R6140 33

RXA4-

RXA4+

RXA3-

RXA3+

RXA2+

RXA0PR8RXA0NR9RXA1PT8RXA1NU8RXA2PU7RXA2NT7RXA3PT6RXA3NU6RXA4PU5RXA4NT5XTALOJ1XTALI

VSS_56

VSS_57M6VSS_58M7VSS_59M8VSS_60

L11

L16

R6133 10K

10pF

C6136

X-TAL_2

GND_2

J2

R13

P9

T13

U15

R14

GPIO1

GPIO3/(LTD_DA1)

GPIO2/(S_PIF_CLK)

GPIO0/(UART_RX/S_PIF_DA0)

VSS_66P3VSS_67P4VSS_68P5VSS_69P6VSS_70P7VSS_71

VSS_72

P12

U16

C6137 10pF

2

3

GND_1

4

1

X-TAL_1

24MHz X6101

1M

R6141

K2

K1

T14

P8

U14

U13

R12

E11

N2

M1

GPIO8

VSYNC_LIKE

GPIO4/(LTD_DE)

GPIO7(3D_FLAG)

GPIO5/(LTD_CLK)

GPIO6/(LTD_DA0)

NCL9HW_RESETJ3TESTPIN_1D1TESTPIN_2D2TESTPIN_3D3TESTPIN_4E1TESTPIN_5E2TESTPIN_6E3TESTPIN_7F1TESTPIN_8F2M0_SCLK

M_S_PIF_CLK

GPIO10/(S_PIF_FC)

GPIO11/(S_PIF_CS)

GPIO9/(UART_TX/S_PIF_DA1)

GPIO[1]

N3

M3

M_S_PIF_CS

M_S_PIF_FC

M_S_PIF_DA0N1M_S_PIF_DA1

C17

[SPI FLASH(2Mbit)]

SPI_CS

SPI_DO

0

GPIO[8]

OPT

R61 42

L1

M2

L2

K3

R10

S_M_PIF_CS

S_M_PIF_FCL3SOFT_RST_L

S_M_PIF_CLK

S_M_PIF_DA0

S_M_PIF_DA1

TXA1P/OPT_N/LK3/BLUE[9]

TXA2N/OPT_P/LK2/GREEN[0]

TXACLKP/RLV0N/GREEN[3] TXACLKN/RLV0P/GREEN[2]

TXB2P/RLV4P/RED[3]/EPI_A3P

TXB2N/RLV4N/RED[2]/EPI_A3N TXBCLKP/RLV5N/RED[5]/EPI_A2P TXBCLKN/RLV5P/RED[4]/EPI_A2N

TXB3P/RLV6N/RED[7]/EPI_A1P

TXB3N/RLV6P/RED[6]/EPI_A1N/

TXB4P/RLV7N/RED[9]/EPI_A0P

TXB4N/RLV7P/RED[8]/EPI_A0N

TXDCLKP/LLV5N/BLUE[1]/EPI_B2P TXDCLKN/LLV5P/BLUE[0]/EPI_B2N

TXD3N/LLV6P/BLUE[2]/EPI_B1N TXD4P/LLV7N/BLUE[5]/EPI_B0P TXD4N/LLV7P/BLUE[4]/EPI_B0N

MOD_GPIO0/VDD_ODD/HSYNC

MOD_GPIO1/VDD_EVEN/VSYNC MOD_GPIO2/PWM13/GCLK4/LCK MOD_GPIO3/PWM14/GCLK2/LDE

M0_MOSI

M1_SCLK

M1_MOSI

M2_SCLK

M2_MOSI

M3_SCLK

M3_MOSI

D16

D17

E15

E14

E13

E12

F13

TP6101

TP6104

TP6102

TP6105

TP6103

TP6106

R6146

4.7K

R6147

33

T11

R11

U11

OP_SYNC_L

OP_SYNC_R

SOFT_RST_R

TXA0P/GCLK6/BLUE[7] TXA0N/GCLK5/BLUE[6]

TXA1N/FLK/BLUE[8]

TXA2P/GREEN[1]

TXA3P/RLV1N/GREEN[5] TXA3N/RLV1P/GREEN[4] TXA4P/RLV2N/GREEN[7] TXA4N/RLV2P/GREEN[6]

TXB0P/RLV3N/GREEN[9] TXB0N/RLV3P/GREEN[8] TXB1P/RLVCLKN/RED[1] TXB1N/RLVCLKP/RED[0]

TXC0P/SOE TXC0N/POL

TXC1P/GSP_R

TXC1N/GSP/VST TXC2P/GOE/GCLK1 TXC2N/GSC/GCLK3

TXCCLKP/LLV0N

TXCCLKN/LLV0P

TXC3P/LLV1N TXC3N/LLV1P TXC4P/LLV2N TXC4N/LLV2P

TXD0P/LLV3N

TXD0N/LLV3P TXD1P/LLVCLKN TXD1N/LLVCLKP

TXD2P/LLV4N/EPI_B3P TXD2N/LLV4P/EPI_B3N

TXD3P/LLV6N/BLUE[3]

PWM0/SCAN_BLK1 PWM1/SCAN_BLK2

LPLL_FBCLK

LPLL_OUTCLK

LPLL_REFIN

SPI_CKT9SPI_CZ

SPI_DIU9SPI_DO

U10

T10

R6143 33

R6145 33

R6144 33

SPI_DI

SPI_DO

SPI_CS

SPI_SCLK

R6148

W25X20BVSNIG

10K

CS

DO

WP

GND

URSA5_FLASH_WINBOND_2M

C8 C9 B8 A8 A7 B7 C6 C7 B6 A6 A5 B5

C4 C5 B4 A4 A3 B3 C2 C3 B2 A2 C1 B1

C16 B17 B16 A16 A15 B15 C14 C15 B14 A14 A13 B13

C12 C13 B12 A12 A11 B11 C10 C11 B10 A10 A9 B9

D10 D11 D12 D13

U12

R6149

T12

R6150

G3 E17 H3

1

2

3

4

IC6102

VCC

8

HOLD

7

CLK

6

DIO

5

TXA0P TXA0N TXA1P TXA1N TXA2P TXA2N TXACLKP TXACLKN TXA3P TXA3N TXA4P TXA4N

TXB0P TXB0N TXB1P TXB1N TXB2P TXB2N TXBCLKP TXBCLKN TXB3P TXB3N TXB4P TXB4N

TXC0P TXC0N TXC1P TXC1N TXC2P TXC2N TXCCLKP TXCCLKN TXC3P TXC3N TXC4P TXC4N

TXD0P TXD0N TXD1P TXD1N TXD2P TXD2N TXDCLKP TXDCLKN TXD3P TXD3N TXD4P TXD4N

URSA_MODEL_OPT_0 URSA_MODEL_OPT_1 URSA_MODEL_OPT_2 URSA_MODEL_OPT_3

33

PWM0_CONFIG

33

PWM1_CONFIG

+3.3V_FRC

R6151

3.3K

SPI_SCLK

SPI_DI

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

URSA5

2012. 10. 10NC4_S7LRM 61

Close to DDR Pin

LGE Internal Use Only

+1.5V_FRC_DDR

R6201

1K 1%

R6202

1K

C6201

1%

0.1uF

+1.5V_FRC_DDR

MVREFCA

+1.5V_FRC_DDR

C6203

0.1uF 16V

C6204 22uF 10V

Place Close to DDR Pin

C6205

0.1uF

+1.5V_FRC_DDR

0.1uF

C6206

DDR3 1.5V De-Cap Place near Memory

C6207

0.1uF

C6208

0.1uF

C6209

0.1uF

C6210

0.1uF

C6211

0.1uF

C6212

0.1uF

C6213

0.1uF

C6214

0.1uF

R6203

1K 1%

R6204

1K 1%

C6202

0.1uF

MVREFDQ

MVREFCA

MVREFDQ

+1.5V_FRC_DDR

R6205

240

1%

VREFCA

VREFDQ

ZQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

IC6201

H5TQ1G63EFR-PBC

M8

H1

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

A10/AP

A11

A12/BC

NC_7

NC_5

BA0 BA1 BA2

CKE

ODT RAS CAS

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

FRC_A[0-13]

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7 R7 N7 T3

M7

M2 N8 M3

J7

CK

K7

CK

K9

L2

CS

K1 J3 K3 L3

WE

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

FRC_A[0]

FRC_A[1]

FRC_A[2]

FRC_A[3]

FRC_A[4]

FRC_A[5] FRC_A[6] FRC_A[7] FRC_A[8] FRC_A[9]

FRC_A[10] FRC_A[11] FRC_A[12] FRC_A[13]

FRC_BA0 FRC_BA1 FRC_BA2

FRC_ODT FRC_RASB FRC_CASB FRC_WEB

FRC_DQSL FRC_DQSLB

FRC_DQSU FRC_DQSUB

FRC_DML FRC_DMU

FRC_DQL[0]

FRC_DQL[1] FRC_DQL[2] FRC_DQL[3] FRC_DQL[4]

FRC_DQL[5]

FRC_DQL[6]

FRC_DQL[7]

FRC_DQU[0]

FRC_DQU[1] FRC_DQU[2] FRC_DQU[3] FRC_DQU[4] FRC_DQU[5] FRC_DQU[6]

FRC_DQU[7]

FRC_MCK

OPT

150

R6206

FRC_DDR3_RESETB

FRC_MCKB FRC_CKE

R6207

510

+1.5V_FRC_DDR

FRC_DQL[0-7]

Place Close to DDR Pin

R6208

C6215

0.01uF 50V

56

R6209 56

FRC_MCK

FRC_MCKB

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

FRC_DQU[0-7]

NC4_S7LRM 2012. 10.10

URSA5_DDR3 62

CORE +1.26V_FRC

LGE Internal Use Only

+12V

L6302

BLM18PG121SN1D

C6302 10uF 16V

Switching freq: 700K

POWER_ON/OFF_1

R1

R6301

R6303

6.8K

1K

1%

C6304

100pF

50V

OPT

R6305

10K

R2

12K

1%

+3.3V_FRC

10K R6309

R6310 330K OPT

C6306 1uF

R6308

10V

C6308 1uF 10V

TYPICAL 980mA

IC6302

VREG5

C6310 3300pF 50V

EN

VFB

SS

TPS54327DDAR

1

2

THERMAL

3

4

3A

[EP]GND

VIN

8

VBST

9

7

SW

6

GND

5

Vout=0.765*(1+R1/R2)

C6312

0.1uF 16V

+1.26V_FRC

L6304

3.6uH

LPB8040T-3R6N

C6314 22uF 10V

C6316 22uF 10V

OPT

D6301

5V

+3.3V_FRC

C6317 10uF 10V

C6318

0.1uF 16V

+1.5V_FRC

AP7173-SPG-13 HF(DIODES)

IN

PG

R6312 10K

C6319

1uF

10V

VCC

EN

IC6303

1

2

THERMAL

3

4

EAN41406705

[EP]

8

9

7

6

5

Vout=0.6*(1+R1/R2)

+1.5V of DDR&URSA5 uses same power line

TYPICAL 350mA

OUT

FB

SS

GND

C6320 560pF 50V

R1

R6313

4.3K 1%

R6314

3.9K 1%

R2

R6315 1K 1%

C6321 10uF 16V

+1.5V_FRC_DDR

C6322 10uF 16V

OPT

D6303

5V

+12V

L6301

BLM18PG121SN1D

C6301 10uF 16V

Switching freq: 700K

+3.3V_FRC

R1

R6304

R6302

220

33K

C6303

1%

27pF 50V

R2

1%

R6307

10K 1%

+12V

5%

1/16W

C6305 1uF 10V

10K

R6311

C6307 1uF 25V

TYPICAL 300mA

IC6301

VREG5

C6309 3300pF 50V

EN

VFB

SS

TPS54327DDAR

1

2

THERMAL

3

4

3A

[EP]GND

VIN

8

VBST

9

7

SW

6

GND

5

Vout=0.765*(1+R1/R2)

C6311

0.1uF 16V

L6303

3.6uH

LPB8040T-3R6N

+3.3V_FRC

C6313 22uF 10V

OPT

C6315 22uF 10V

OPT

D6302

5V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM 2012. 10. 10

URSA5_POWER

63

LVDS (URSA)

LGE Internal Use Only

[51Pin LVDS Connector] (For FHD 60Hz)

FHD

P6401

FI-RE51S-HF-J-R1500

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

TXA0N

TXA0P

TXA1N

TXA1P

TXA2N

TXA2P

TXACLKN

TXACLKP

TXA3N

TXA3P

TXA4N

TXA4P

TXB0N

TXB0P

TXB1N

TXB1P

TXB2N

TXB2P

TXBCLKN

TXBCLKP

TXB3N

TXB3P

TXB4N

TXB4P

LVDS_SEL

+3.3V_Normal

OPT R6401

3.3K

OPT R6402

10K

+3.3V_Normal

10Bit R6403

3.3K

OPT R6404

3.3K

PANEL_VCC

FHD L6401 120

CIS21J121

FHD

C6401

0.1uF 16V

FOR FHD REVERSE(10bit) Change in S7LR

MIRROR

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

Pol-change

RXA0+

RXA0-

RXA1+

RXA1-

RXA2+

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXA4+

RXA4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXBCK-

RXB3+

RXB3-

RXB4+

RXB4-

FOR FHD REVERSE(8bit) Change in S7LR

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

MIRROR

Pol-change

RXA4+

RXA4-

RXA0+

RXA0-

RXA1+

RXA1-

RXA2+ RXA2-

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXB4+

RXB4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXBCK-

RXB3+

RXB3-

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXA4-

RXA4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

Shift

RXA4- RXA0-

RXA4+

RXA0-

RXA0+

RXA1-

RXA1+

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXB4-

RXB4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXA4-

RXA4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

[41Pin LVDS Connector] (For URSA5_M120)

P6402

FI-RE41S-HF-J-R1500

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

TXC0N

TXC0P

TXC1N

TXC1P

TXC2N

TXC2P

TXCCLKN

TXCCLKP

TXC3N

TXC3P

TXC4N

TXC4P

TXD0N

TXD0P

TXD1N

TXD1P

TXD2N

TXD2P

TXDCLKN

TXDCLKP

TXD3N

TXD3P

TXD4N

TXD4P

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

URSA_LVDS

2012 .10 .10

64

MODEL OPTION

LGE Internal Use Only

IF_AGC_SEL

LNA2_CTL

RF_SWITCH_CTL

CK+_HDMI1 CK-_HDMI1 D0+_HDMI1 D0-_HDMI1 D1+_HDMI1 D1-_HDMI1 D2+_HDMI1 D2-_HDMI1 DDC_SDA_1 DDC_SCL_1

HPD1

R201 100

BOOSTER_OPT

R202

RF_SW_OPT

R203 R204 100 R225 100 R228 100 R230 100 R229 100 R213 100

HDMI FOR LN52

PM_MODEL_OPT_1

HDMI

CEC_REMOTE_S7

SC1_ID SC1_FB

SC1_R+/COMP1_Pr+

SC1_G+/COMP1_Y+

SC1_B+/COMP1_Pb+

SC1_SOG_IN

SC1_CVBS_IN SC1/COMP1_L_IN SC1/COMP1_R_IN

DEMOD_SCL DEMOD_SDA

COMP2

COMP2_Y+/AV_CVBS_IN

CVBS In/OUT

COMP2_Y+/AV_CVBS_IN

AV2_CVBS_IN

DTV/MNT_VOUT

+2.5V_Normal

OPT

OPT OPT OPT OPT OPT OPT

CK+_HDMI1 CK-_HDMI1 D0+_HDMI1 D0-_HDMI1 D1+_HDMI1 D1-_HDMI1 D2+_HDMI1 D2-_HDMI1 DDC_SDA_1 DDC_SCL_1

HPD1

CK+_HDMI4 CK-_HDMI4 D0+_HDMI4 D0-_HDMI4 D1+_HDMI4 D1-_HDMI4 D2+_HDMI4 D2-_HDMI4 DDC_SDA_4 DDC_SCL_4 HPD4

CK+_HDMI2 CK-_HDMI2 D0+_HDMI2 D0-_HDMI2 D1+_HDMI2 D1-_HDMI2 D2+_HDMI2 D2-_HDMI2 DDC_SDA_2 DDC_SCL_2 HPD2

COMP2_Pr+

COMP2_Pb+

TU_CVBS

100

0

+3.3V_Normal

1K

OPT

R290

R298

1K

OPT

R293

R297

+2.5V_Normal

MIU1-128M

DUALSTREAM

R222 1K

R291 1K

MIU1-NO_DDR

R294 1K

R224 1K

NON_DUALSTREAM

C203

1000pF

OPT

DVB_S

MIU0-256M

R221 1K

NON_DVB_S

MIU0-128M

R223 1K

50V

Close to MSTAR

+3.3V_Normal

M120

R206 1K

R208 1K

NON_M120

R207 1K

R209 1K

R214 2.2 R215 2.2

R237 33 R238 68 R239 R240 R241 33 R242 68

R244 33

R246 33 R249 33

AV2

R252 68

S/W_AJ

DVB_T2

R211 1K

S/W_NON_AJ

NON_DVB_T2

R212 1K

33 68

HD

R226 1K

FHD

R227 1K

C218 0.047uF C219 0.047uF C220 0.047uF C221 0.047uF C222 0.047uF C223 0.047uF C224 1000pF

C225 0.047uF

C227 0.047uF C230 0.047uF

AV2

C233 0.047uF

MODEL_OPT_0 MODEL_OPT_1 MODEL_OPT_2 MODEL_OPT_3 MODEL_OPT_4 MODEL_OPT_5 MODEL_OPT_6 MODEL_OPT_7 MODEL_OPT_8

J2

RXACKP

J3

RXACKN

K3

RXA0P

J1

RXA0N

K2

RXA1P

K1

RXA1N

L2

RXA2P

L3

RXA2N

T5

DDCDA_DA/GPIO27

T4

DDCDA_CK/GPIO26

V5

HOTPLUGA/GPIO22

R5

HOTPLUGD/GPIO25

AE9

RXCCKP

AC9

RXCCKN

AC10

RXC0P

AD9

RXC0N

AC11

RXC1P

AD10

RXC1N

AE11

RXC2P

AD11

RXC2N

AE8

DDCDC_DA/GPIO31

AD8

DDCDC_CK/GPIO30

AC8

HOTPLUGC/GPIO24

F2

RXBCKP

F3

RXBCKN

G3

RXB0P

F1

RXB0N

G2

RXB1P

G1

RXB1N

H2

RXB2P

H3

RXB2N

R6

DDCDB_DA/GPIO29

U6

DDCDB_CK/GPIO28

P5

HOTPLUGB/GPIO23

R4

CEC/GPIO5

P2

HSYNC0

R3

VSYNC0

N2

RIN0P

P3

RIN0M

N3

GIN0P

N1

GIN0M

M3

BIN0P

M2

BIN0M

M1

SOGIN0

V2

HSYNC1

V3

VSYNC1

U3

RIN1P

U2

RIN1M

T1

GIN1P

T2

GIN1M

R2

BIN1P

R1

BIN1M

T3

SOGIN1

AA2

HSYNC2

Y2

RIN2P

AA3

RIN2M

W2

GIN2P

Y3

GIN2M

V1

BIN2P

W3

BIN2M

W1

SOGIN2

AA8

CVBS0

Y4

CVBS1

W4

CVBS2

AA5

CVBS3

Y5

NC_5

AA4

NC_7

Y6

NC_6

AA1

CVBSOUT1

AB4

VCOM

MODEL OPTION

PIN NAME MODEL_OPT_0 MODEL_OPT_1

MODEL_OPT_2 MODEL_OPT_3 MODEL_OPT_4 MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7

PIN NO.

AB3

F4 AB2 T25

U23 T24

B8

A8

LOW

FHD

S/W_NON_AJ

NON_DVB_T2 NON_M120

MIU0-128M

NON_DVB_S MIU1-NO_DDR

NON_DUALSTREAM

* Dual Stream is only Korea 3D spec

MODEL_OPT_6

MODEL_OPT_4

S7LR-M_NON_MS10

IC101

MSD804KKX

SYM.C

I2C_SCKM1/GPIO78

I2C_SDAM1/GPIO79

SPDIF_IN/GPIO150

SPDIF_OUT/GPIO151

I2S_IN_BCK/GPIO148

I2S_IN_SD/GPIO149 I2S_IN_WS/GPIO147

I2S_OUT_BCK/GPIO154 I2S_OUT_MCK/GPIO152

I2S_OUT_SD/GPIO155

I2S_OUT_WS/GPIO153

GPIO_PM[13]/GPIO19

AVDD5V_MHL

GPIO_PM[14]/GPIO20

GPIO_PM[15]/GPIO21

EARPHONE_OUTL EARPHONE_OUTR

LED1/GPIO59

LED0/GPIO58

IRIN/GPIO4

NC_8 NC_9

SIFP SIFM

IF_AGC RF_AGC

XOUT

USB0_DM USB0_DP

USB1_DM USB1_DP

AUL0 AUR0 AUL1 AUR1 AUL2 AUR2 AUL3 AUR3 AUL4 AUR4

AUOUTL2

AUOUTR2

AUVRM

AUVAG AUVRP

RP/GPIO63 TP/GPIO60

RN/GPIO66

TN/GPIO62

GPIO61 GPIO64 GPIO65

ARC0

HWRESET

AC4 AD3

AC3

IP

AE3

IM

AD4 AC5

AD2 AE2

AE6 AD6

AD1

XIN

AC1

D7 D6

E3 E2

AC12 AE12

C8 D8 D9

B10 C9 B9

C10

AB9 AA11 Y9 AA9 AA7 AB8 Y8 Y10 AC7 AD7

W6 V6 V4 Y7 W5 U5

AD5

AE5 AC6

AA6 AB6

C6 C5

A6 C4

B5 C3 A3 B3 B4

N4 T6 N5

R296

SPDIF_OPTIC

C238 C239 2.2uF C242 2.2uF C243 2.2uF

CHANGE TO X5R

L203 HEAD_PHONE5.6uH L205 HEAD_PHONE5.6uH

R210 0

HDMI1_ARC

HIGH

HD

S/W_AJ

DVB_T2

M120 MIU0-256M

DVB_S MIU1-128M

DUALSTREAM

Close to MSTAR

R288 100

HALF_NIM/EU_NON_T2

R289 100

HALF_NIM/EU_NON_T2

C250 0.1uF C251 0.1uF

ANALOG SIF

Close to MSTAR

+3.3V_Normal

HALF_NIM/EU_NON_T2

TUNER_I2C

TU_SCL TU_SDA

1M

R287

100

AV2

2.2uF AV2

TP209

C249

C253

4.7uF

C231 1uF HDMI1_ARC

C257 0.1uF

C258 0.1uF

R216 47 R218 47

L227 BLM18PG121SN1D HALF_NIM/EU_NON_T2

C282

0.1uF

GND_1

2

X201

24MHz

4

3

GND_2 X-TAL_1

X-TAL_2

SPDIF_OUT

MHL_CD_SENSE

AVDD5V_MHL

/VBUS_EN

C256

0.1uF

1uF

128M+128M

256M+128M

HALF_NIM/EU_NON_T2

C264 1000pF OPT

50V

HALF_NIM/EU_NON_T2 R220 10K

HALF_NIM/EU_NON_T2

R219

0

C261 8pF

C262 8pF

AMP_SCL AMP_SDA COMP2_DET

L202

BLM18SG121TN1D

C263 10uF

EPHY_RP EPHY_TP

EPHY_RN

EPHY_TN

URSA_SDA URSA_SCL

URSA_SDA

URSA_SCL

IR HDMI_ARC SOC_RESET

Memory OPTION

Memory

128M

MODEL_OPT_4

PIN NO.

0

U23

0

256M

1

DTV_IF

IF_P_MSTAR

HALF_NIM/IF_FILTER

C287

C288 33pF

OPT

C285

0.047uF 25V

HALF_NIM/EU_NON_T2

IF_N_MSTAR

HALF_NIM/IF_FILTER C289 33pF

TU_SIF

IF_AGC_MAIN

Close to MSTAR

CI_DET

SIDE USB

SIDE_USB1_DM SIDE_USB1_DP

AV2_L_IN AV2_R_IN COMP2_L_IN COMP2_R_IN

AUDIO IN

C272

C268

4.7uF

4.7uF 10V

10V

HEAD_PHONE

SOC_RESET

POWER_DET_RESET

RESET_IC_SOC_RESET

R266 470

C202

4.7uF 10V

+3.5V_SOC_RESET

MODEL_OPT_6

PIN NO.

0

1

0

1

AUD_SCK AUD_MASTER_CLK_0 AUD_LRCH

I2S_I/F

AUD_LRCK

AUDIO OUT

SCART1_Lout

SCART1_Rout

H/P OUT

HP_LOUT HP_ROUT

+3.5V_ST

JTP-1127WEM

C200

4.7uF 10V

R200

62K

SWICH SW200

1 2

Note

B8

Ginga

+1.10V_VDDC

C228

+3.3V_Normal

0.1uF

C255

Normal 2.5V

+2.5V_Normal

CAP_10uF_X5R

CHANGE TO 10UF 10V X5R

AVDD2P5

L211

BLM18PG121SN1D

10uF

10V

85C

C269

AVDD2P5_MOD

L229

BLM18PG121SN1D

10uF 10V

C259 0.1uF

C275

10uF 10V

L204

BLM18PG121SN1D

CHANGE TO 10UF 10V X5R

BLM18PG121SN1D

AVDD2P5:172mA

AVDD25_PGA:13mA

C291

0.1uF 16V

C280 1uF

C283 0.1uF

C277 1uF

Normal Power 3.3V

VDD33

85C

10uF 10V

C204

10uF 10V

C284

CAP_10uF_X5R

CHANGE TO 10UF 10V X5R

AVDD_AU33

L208

C241

C240

0.1uF

C274

C273

0.1uF

C269-*1

10uF 10V

CAP_10uF_X7R

C209 0.1uF

VDDC 1.05V

C235 0.1uF

C245 0.1uF

C284-*1

10uF 10V

CAP_10uF_X7R

C204-*1

10uF 10V

CAP_10uF_X7R

VDDC : 2026mA

FB_CORE

AVDD2P5_MOD

AVDD_NODIE

AVDD_DMPLL

AVDD_AU33

+1.5V_DDR

DDR3 1.5V

C278

10uF 10V

C252

0.1uF

AVDD_DDR0:55mA

AVDD_DDR1:55mA

+1.10V_VDDC

BLM18PG121SN1D

L228

C248

10uF

10V

C296

0.1uF

C207

0.1uF

C254

MIUVDDC

1uF

C279

0.1uF

43

R217

0.1uF

SWICH R205 100

C201

+1.5V_DDR

C266

0.1uF

STby 3.5V

+3.5V_ST

BLM18PG121SN1D

0

SOC_RESET

BLM18PG121SN1D

L206

L207

AVDD_NODIE

AVDD_DMPLL

C205

0.1uF

C286

0.1uF

MIUVDDC

AVDD2P5

VDD33

+1.10V_VDDC

AVDD25_PGA

AVSS_PGA

C260 1uF

MSD804KKX

S7LR-M_NON_MS10

K12

AVDDLV_USB

G9

VDDC_1

H9

VDDC_2

K10

VDDC_3

K11

VDDC_4

L10

VDDC_5

M12

VDDC_6

M13

VDDC_7

N12

VDDC_8

P14

VDDC_9

P15

VDDC_10

R10

VDDC_11

R14

VDDC_12

R15

VDDC_13

T10

VDDC_14

P10

NC_2

P19

FB_CORE

R16

AVDDL_MOD

L11

NC_1

M14

DVDD_DDR

W9

AVDD2P5_ADC_1

W10

AVDD2P5_ADC_2

W11

AVDD2P5_ADC_3

W12

AVDD2P5_ADC_4

Y17

AVDD25_LAN

V18

AVDD_MOD_1

U19

AVDD_MOD_2

W14

NC_3

W15

NC_4

U7

AVDD_NODIE

L7

AVDD_DVI_USB_1

M7

AVDD_DVI_USB_2

P7

AVDD3P3_MPLL

R7

AVDD_DMPLL

M19

DVDD_NODIE

V7

AVDD_AU33

W7

AVDD_EAR33

R19

VDDP_1

T19

VDDP_2

W18

AVDD_LPLL_1

W19

AVDD_LPLL_2

V19

VDDP_NAND

J17

AVDD_DDR0_D_1

K15

AVDD_DDR0_D_2

K16

AVDD_DDR0_D_3

L15

AVDD_DDR0_C

K17

AVDD_DDR1_D_1

L17

AVDD_DDR1_D_2

M17

AVDD_DDR1_D_3

L16

AVDD_DDR1_C

E9

GND_EFUSE

A23

GND_1

B17

GND_2

C23

GND_3

A5

GND_4

C11

GND_5

C19

GND_6

C22

GND_7

D14

GND_8

D18

GND_9

D19

GND_10

E17

GND_11

E18

GND_12

E19

GND_13

E22

GND_14

F8

GND_15

F17

GND_16

F18

GND_17

F19

GND_18

G8

GND_19

H8

GND_20

N22

GND_21

N21

GND_22

N20

GND_23

M22

GND_24

M21

GND_25

M20

GND_26

F10

GND_27

V15

GND_28

W16

GND_29

V8

GND_30

T18

GND_31

IC101

GND_32 GND_33 GND_34 GND_35 GND_36 GND_37 GND_38 GND_39 GND_40 GND_41 GND_42 GND_43 GND_44 GND_45 GND_46 GND_47 GND_48 GND_49 GND_50 GND_51 GND_52 GND_53 GND_54 GND_55 GND_56 GND_57 GND_58 GND_59 GND_60 GND_61 GND_62 GND_63 GND_64 GND_65 GND_66 GND_67 GND_68 GND_69 GND_70 GND_71 GND_72 GND_73 GND_74 GND_75 GND_76 GND_77 GND_78 GND_79 GND_80 GND_81 GND_82 GND_83 GND_84 GND_85 GND_86 GND_87 GND_88 GND_89 GND_90 GND_91 GND_92 GND_93 GND_94 GND_95 GND_96 GND_97 GND_98

GND_99 GND_100 GND_101 GND_102 GND_103 GND_104 GND_105 GND_106 GND_107 GND_108 GND_109 GND_110 GND_111 GND_112 GND_113 GND_114 GND_115 GND_116 GND_117 GND_118 GND_119 GND_120 GND_121 GND_122 GND_123 GND_124 GND_125 GND_126 GND_127 GND_128 GND_129 GND_130 GND_131 GND_132 GND_133 GND_134 GND_135 GND_136

SYM.E

G10 G11 G12 G13 G14 G17 G18 G19 G24 H11 H12 H13 H14 H15 H16 H17 H18 H19 J9 J10 J11 J12 J13 J14 J15 J16 J18 J19 J25 K9 K13 K14 H10 K18 K19 K22 L8 L9 J8 L12 L13 L18 L19 M8 K8 M10 M11 L14 M15 M16 M18 M25 N10 N11 N13 N14 N15 N16 N17 N19 K7 P8 P9 M9 P11 P13 P16 P17 P18 P12 R8 R9 R11 R12 R13 R17 T8 T9 N7 T11 T12 T13 T14 T15 T16 T17 U8 U9 U10 U11 U12 U13 U14 U15 U16 U17 R18 V9 V10 V11 V12 V14 V17 T7 E8

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

MAIN2_NON_EU

2012.09.19

52

LG 60LN54 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
