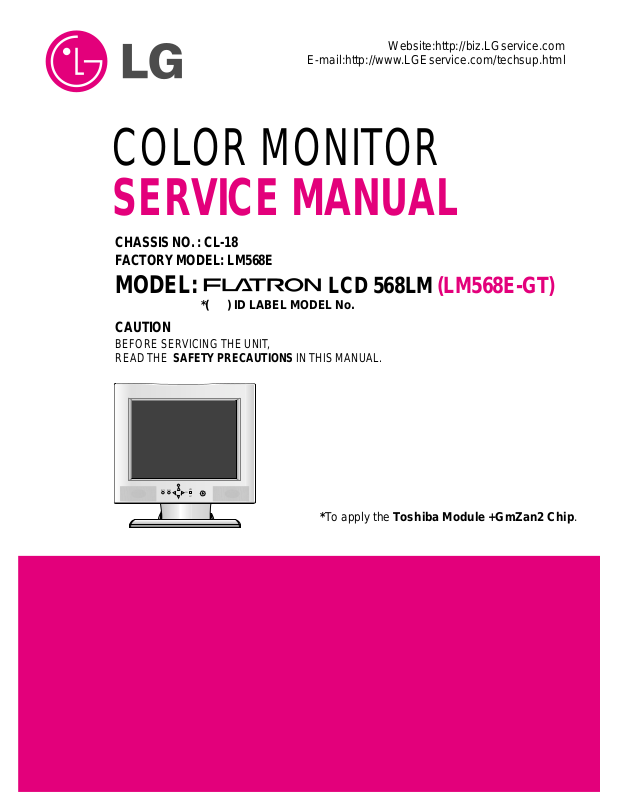

LG 568LM, LM568E-GT Full

AUTO

VOL

MUTE MENU

SET

COLOR MONIT OR

SER VICE MANUAL

Website:http://biz.LGservice.com

E-mail:http://www.LGEservice.com/techsup.html

CAUTION

BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS NO. : CL-18
F ACTORY MODEL: LM568E

MODEL: LCD 568LM (LM568E-GT)

*( ) ID LABEL MODEL No.

*To apply the Toshiba Module +GmZan2 Chip.

CONTENTS

SPECIFICATIONS

- 2 -

1. LCD CHARACTERISTICS

Type : Color TFT LCD
Size : 15.0 inch (38.1cm)
Pixel Pitch : 0.297mm x 0.297mm
Electrical Interface : LVDS Interface
Color Depth : 6-bits/ 16,194,277colors
Active Video Area : 304.1mm x 228.1mm
Surface Treatment : Anti-Glare, Hard Coating (3H)
Backlight Unit : Bottom edge side 2CCFL

(Cold Cathode Fluorescent Lamp)

2. OPTICAL CHARACTERISTICS

2-1. Viewing Angle by Contrast Ratio ≥ 10

Left : 60° typ., 50° min.
Right : 60° typ., 50° min.
Top : 55° typ., 40° min.

Bottom : 45° typ., 40° min.
2-2. Luminance : 160(min), 200(typ)
2-3. Contrast Ratio : 150(min), 250(typ)

3. SIGNAL (Refer to the Timing Chart)

3-1. Sync Signal

1) Type : Separate Sync. (Horizontal & Vertical)

2) Input Voltage Level : Low=0~0.8V, High=2.1~5.5V

3) Sync Polarity : Positive or Negative

3-2. Video Input Signal

1) Type : R, G, B Analog

2) Voltage Level : 0~0.714 V
a) Color 0, 0 : 0 Vp-p
b) Color 7, 0 : 0.467 Vp-p
c) Color 15, 0 : 0.714 Vp-p

3) Input Impedance : 75 Ω

3-3. Operating Frequency

Horizontal : 31 ~ 61kHz
Vertical : 56 ~ 75Hz

4. POWER SUPPLY

4-1. Power Adaptor

Input : AC 100~240V, 50/60Hz 1.2A
Output : DC 12V 3.0A

4-2. Power Consumption

5. ENVIRONMENT

5-1. Operating Temperature: 10°C~35°C (50°F~95°F)

(Ambient)

5-2. Relative Humidity : 5%~95%

(Non-condensing)

5-3. MTBF : 40,000(Min)

6. DIMENSIONS (with TILT/SWIVEL)

Width : 389.2mm (15.32'')
Depth : 161.8mm (6.37'')
Height : 382.4mm (15.05'')

7. WEIGHT (with TILT/SWIVEL)

Net. Weight : 4.8kg (10.58 lbs)
Gross Weight : 6.8kg (14.99 lbs)

8. Audio Spec

8-1. Audio AMP

Input : 0.700Vrms
Output : 1Wrms+1Wrms
S/N : more then 40dB

8-2. Speaker

Impedance : 4

Ω

input : Max: 1.5W, Normal: 1W

SPECIFICATIONS ................................................... 2

PRECAUTIONS ....................................................... 3

TIMING CHART ....................................................... 4

OPERATING INSTRUCTIONS ................................ 5

WIRING DIAGRAM ................................................. 6

BLOCK DIAGRAM ................................................... 7

DESCRIPTION OF BLOCK DIAGRAM.....................8

ADJUSTMENT ........................................................ 9

TROUBLESHOOTING GUIDE .............................. 10

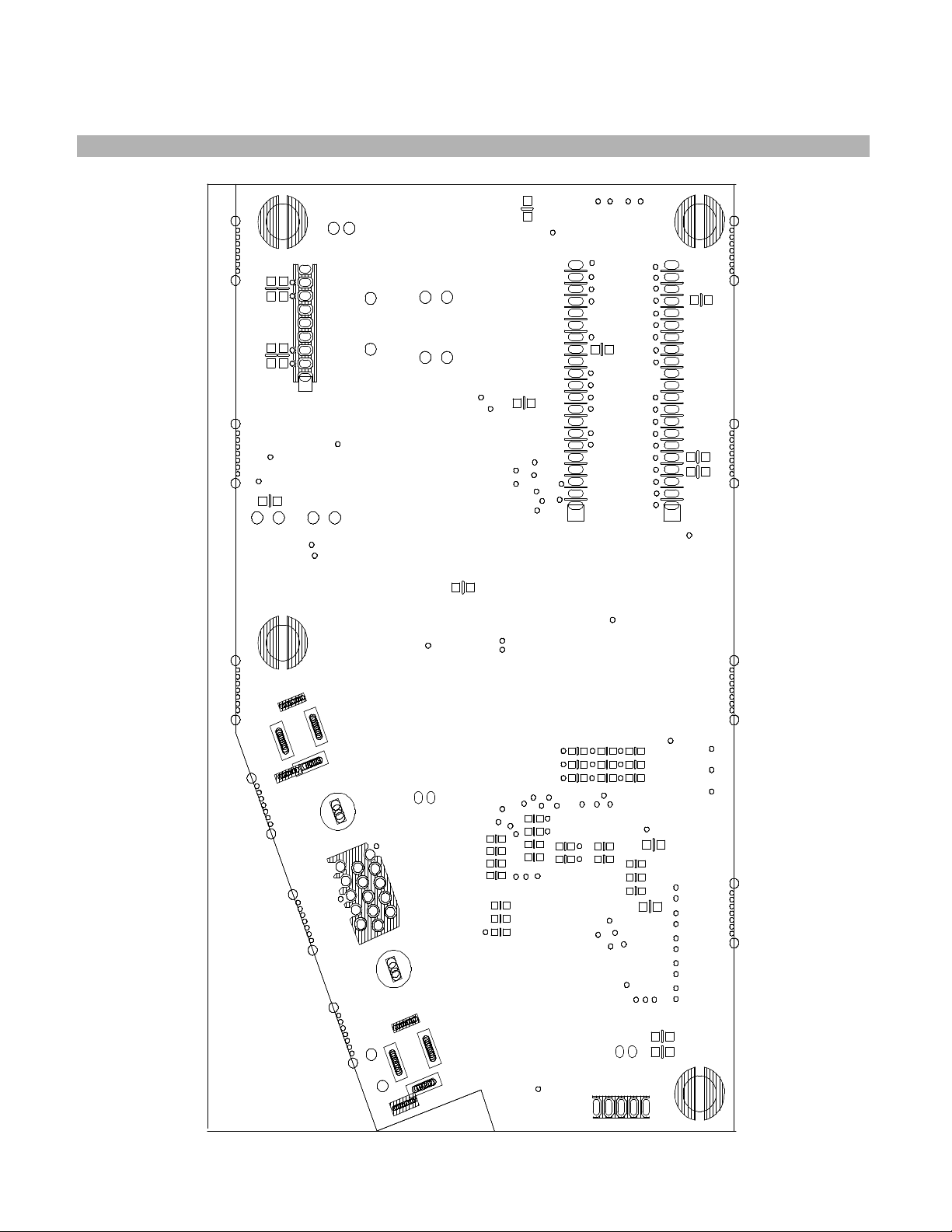

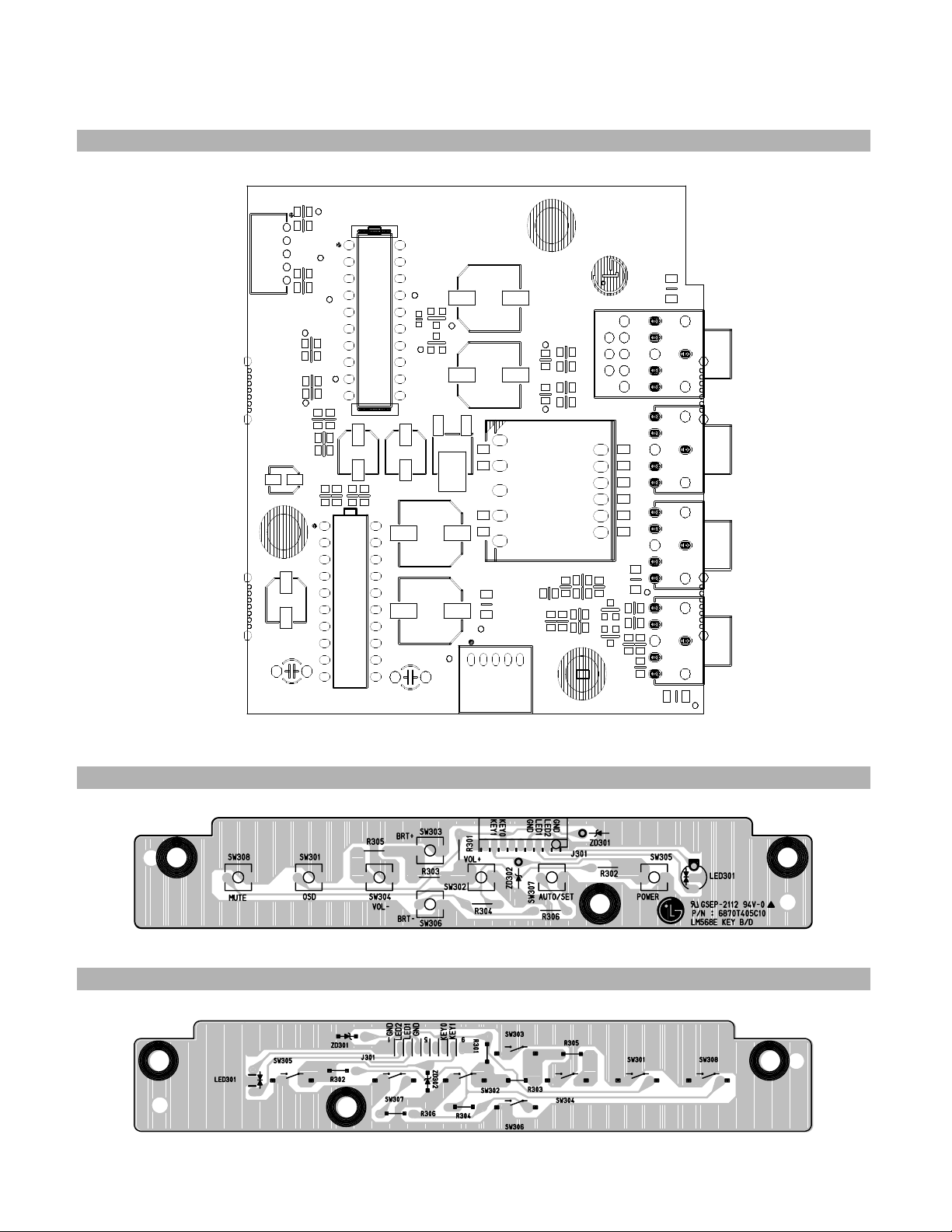

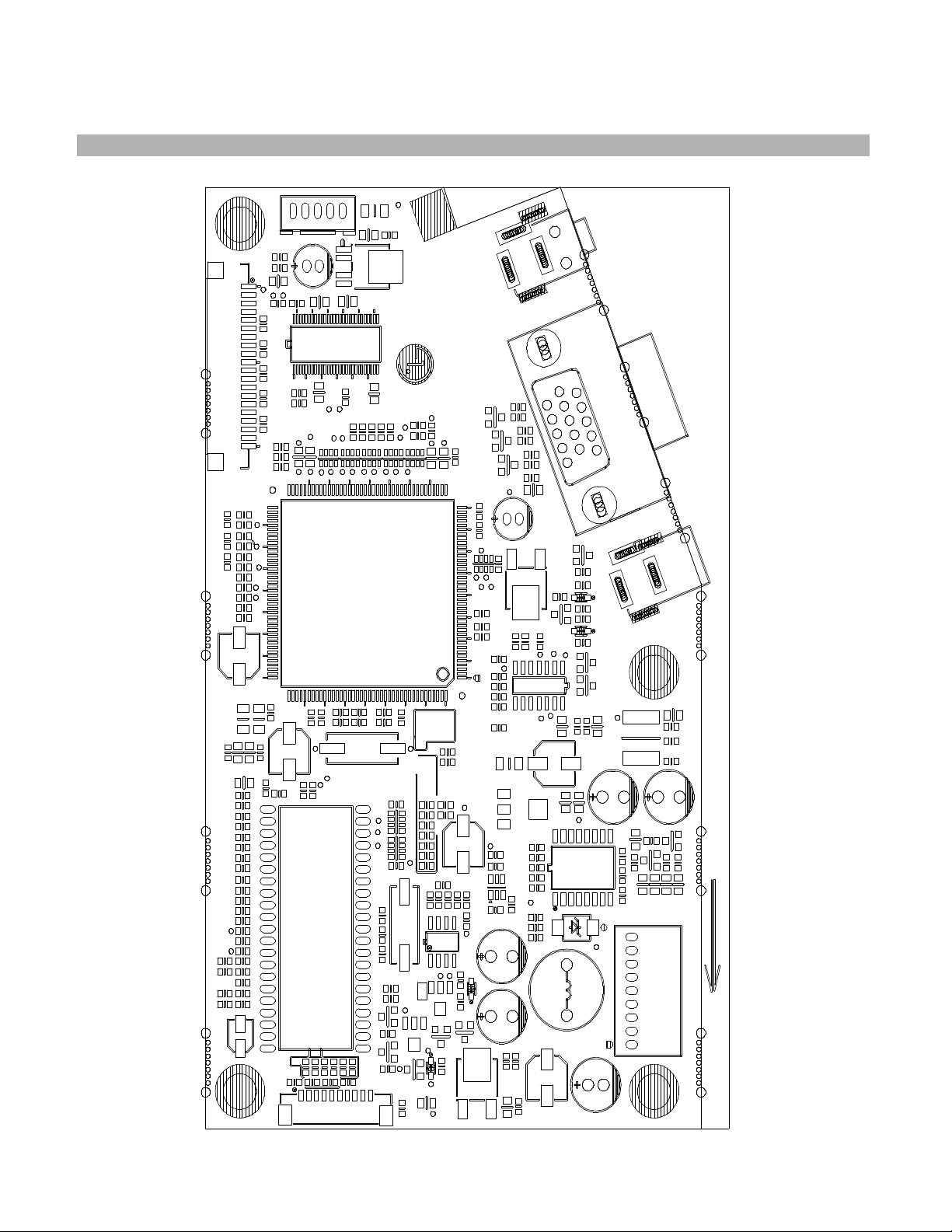

PRINTED CIRCUIT BOARD................................... 15

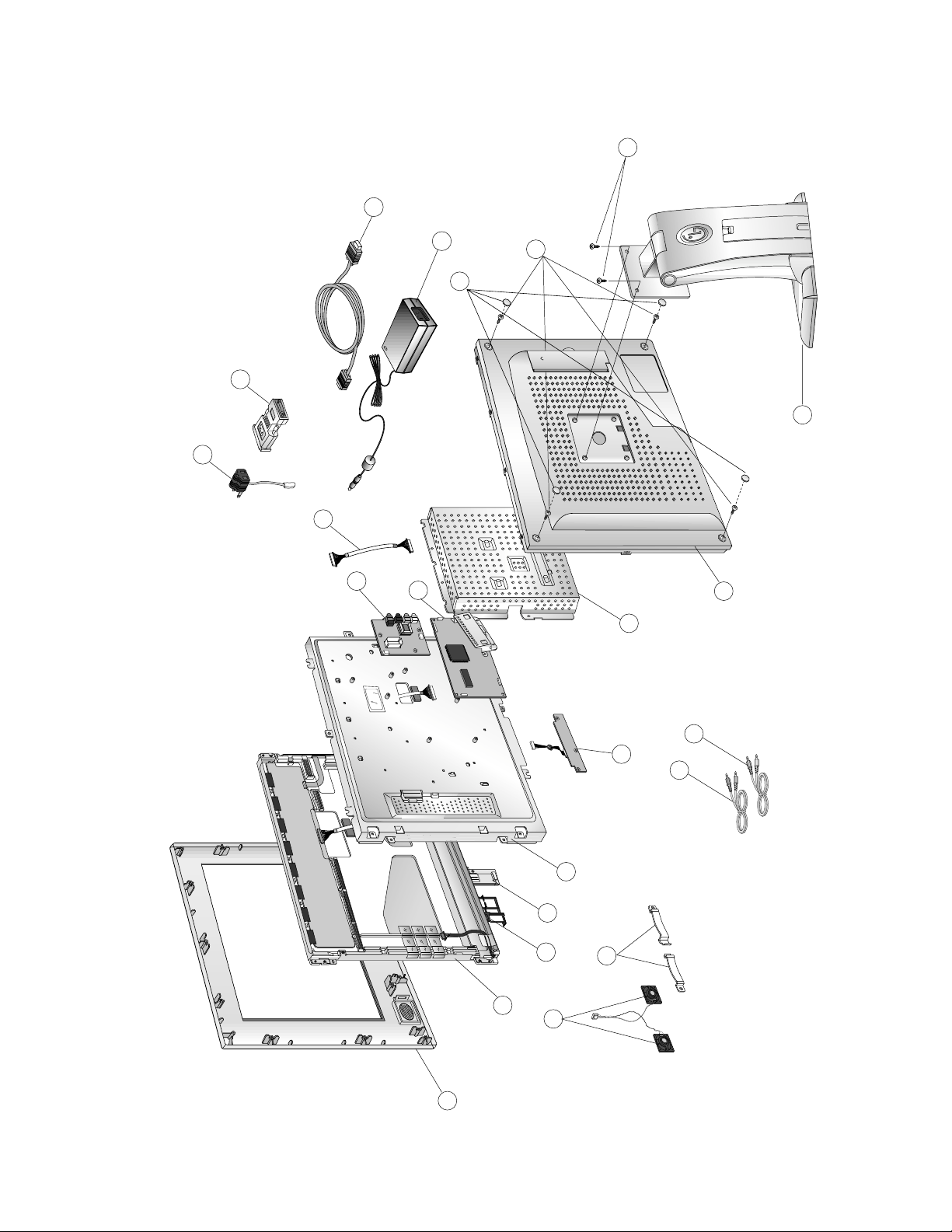

EXPLODED VIEW...................................................18

REPLACEMENT PARTS LIST ...............................20

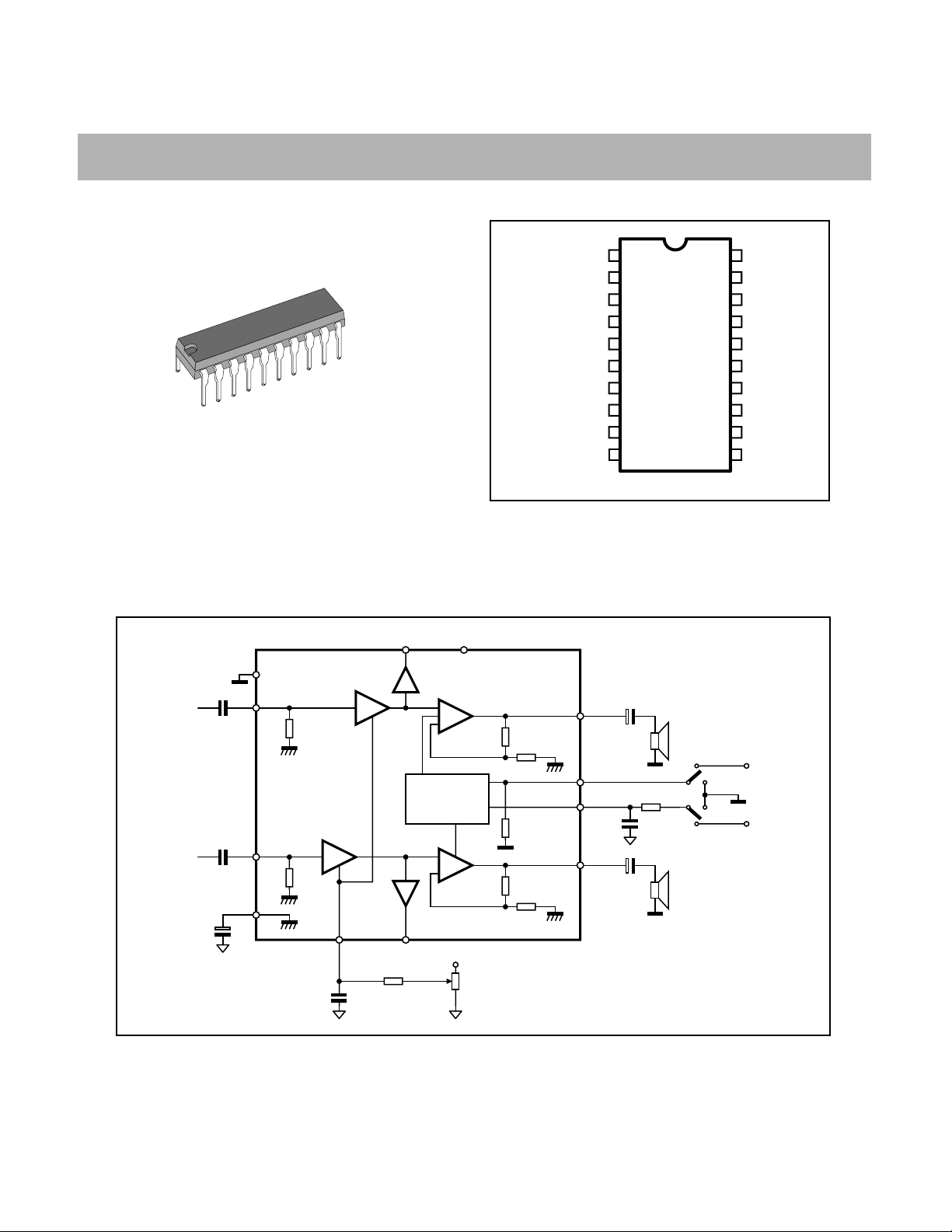

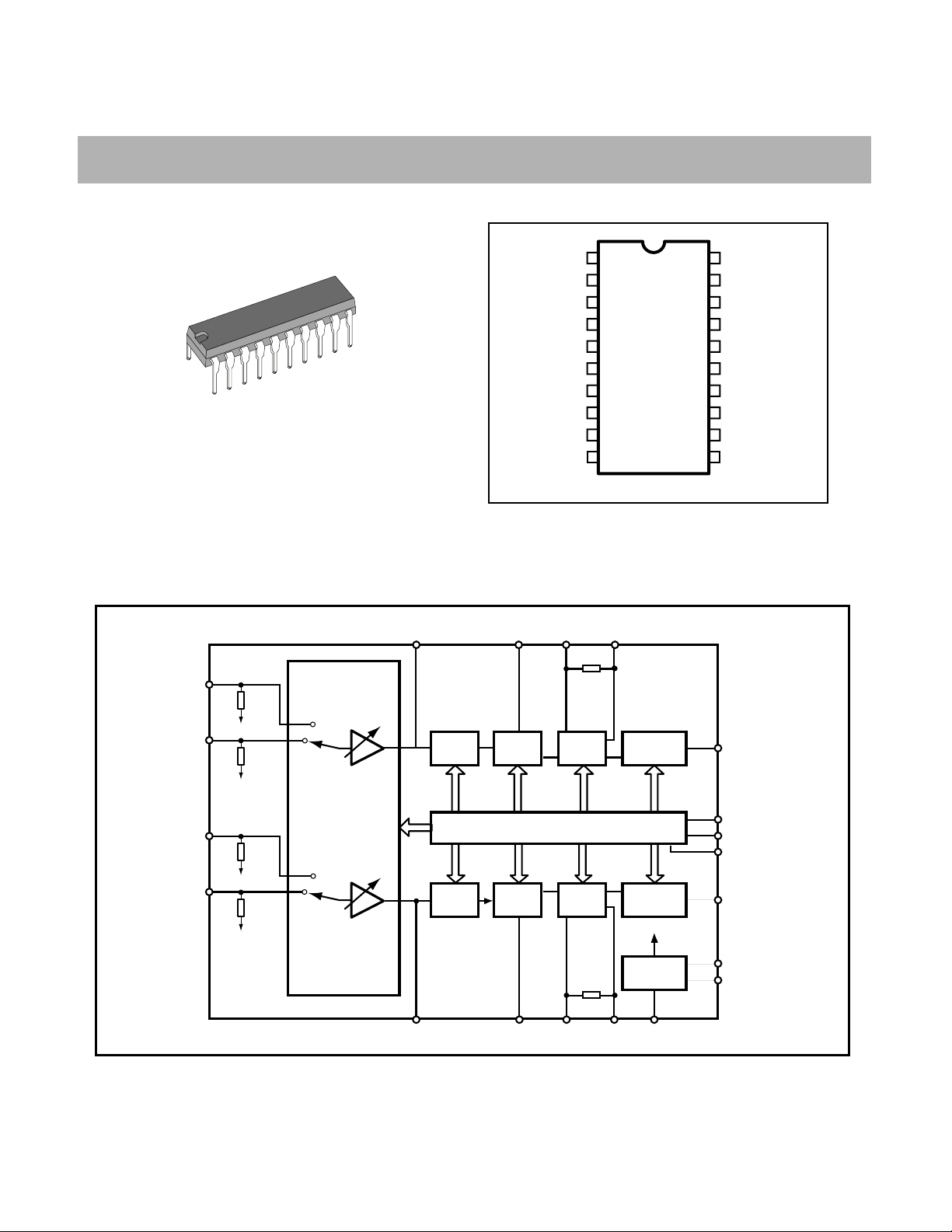

PIN CONFIGURATION............................................24

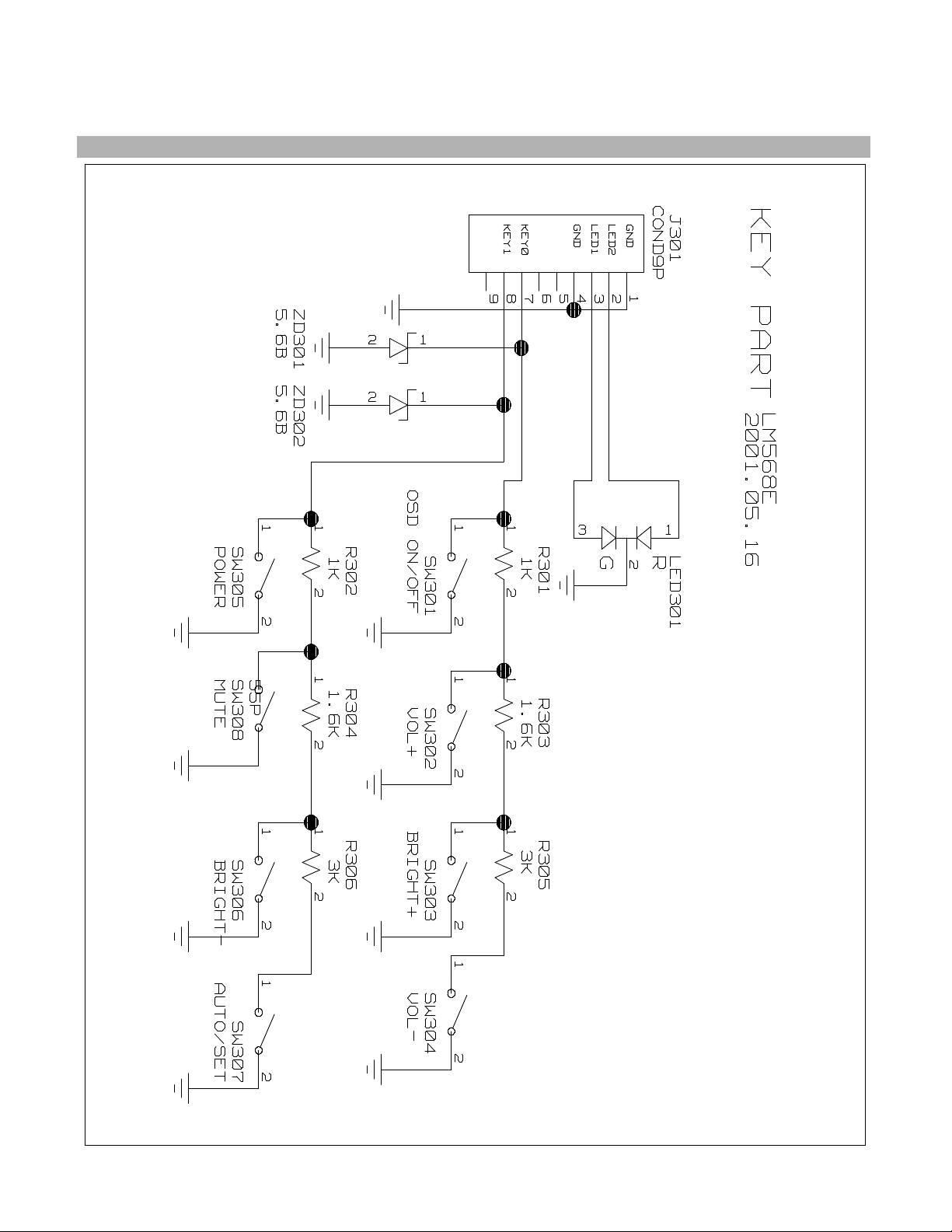

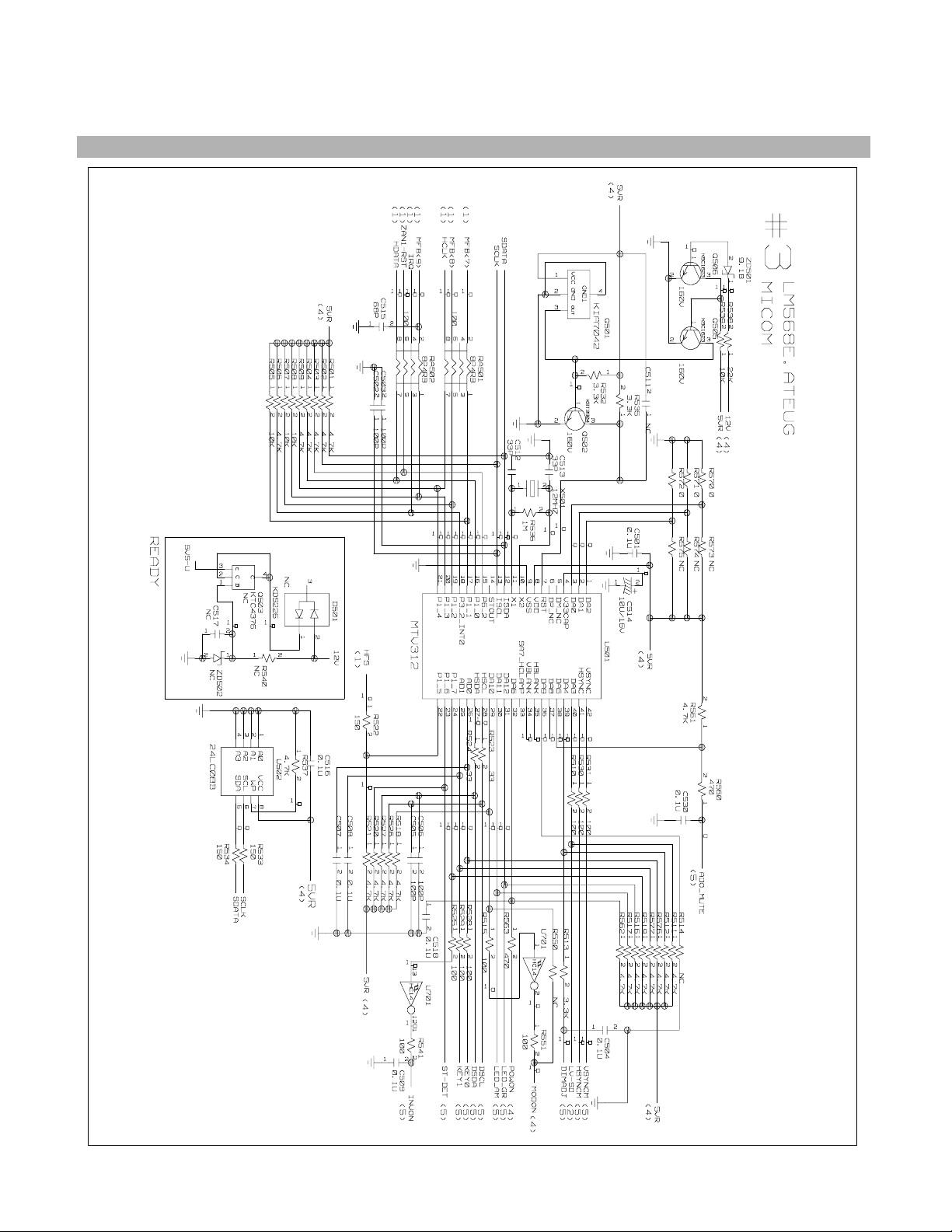

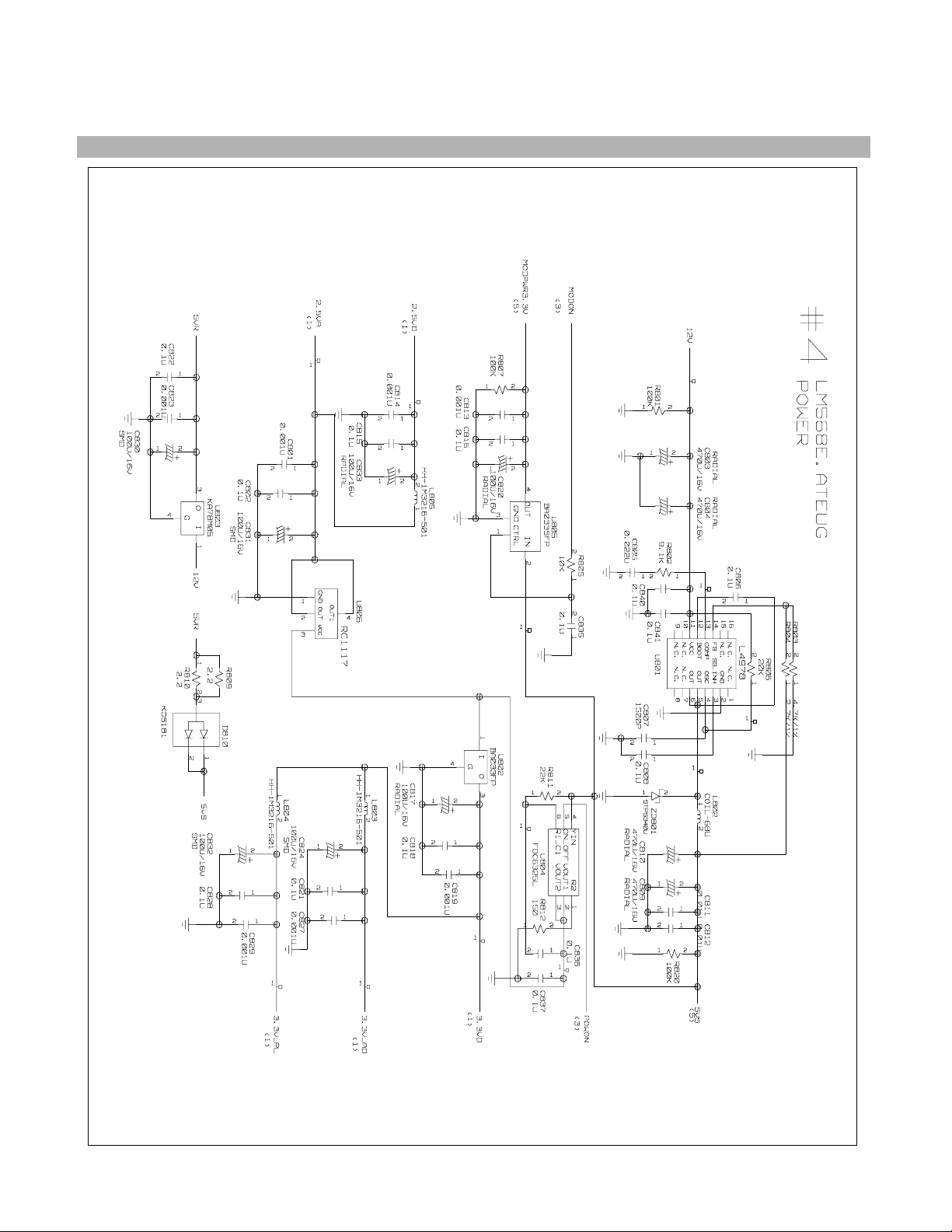

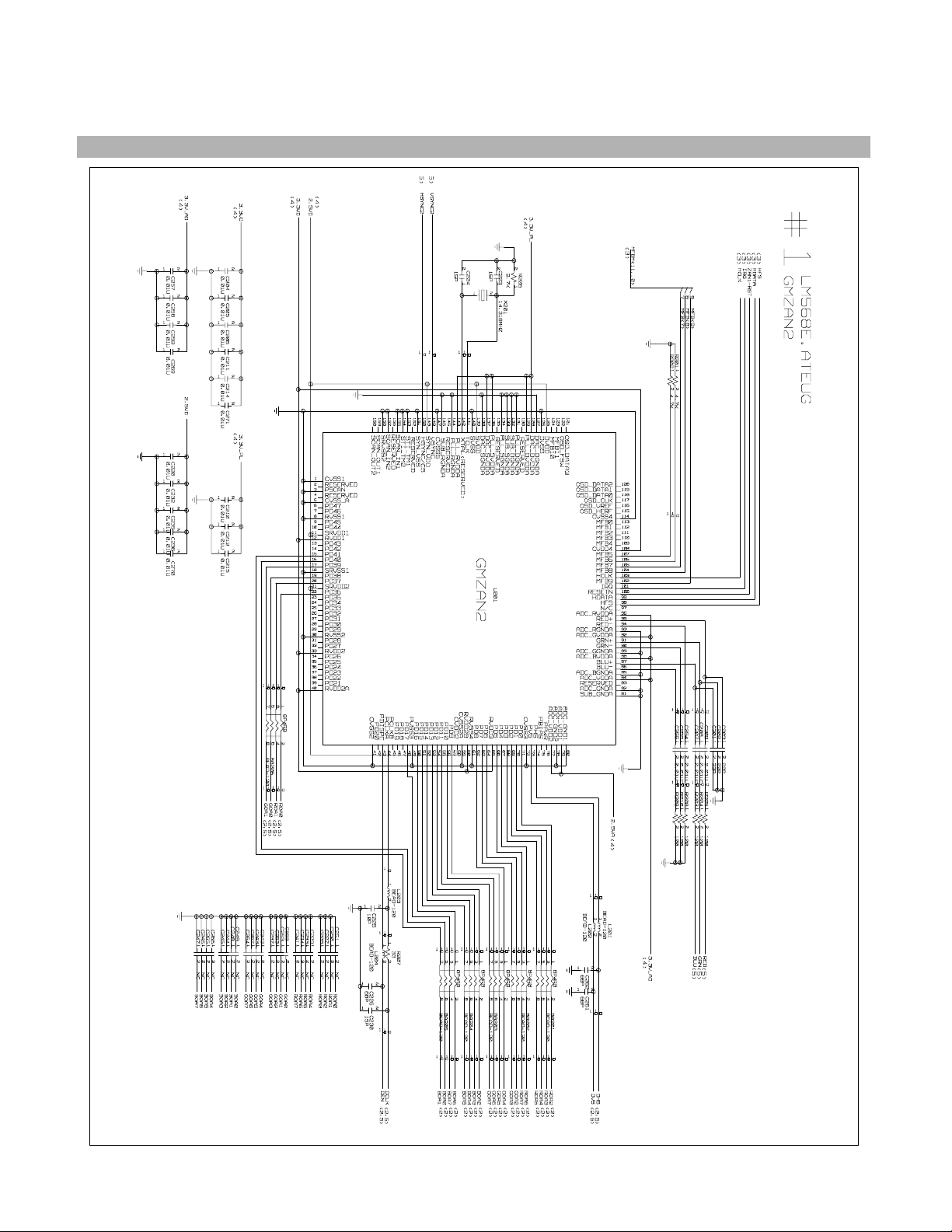

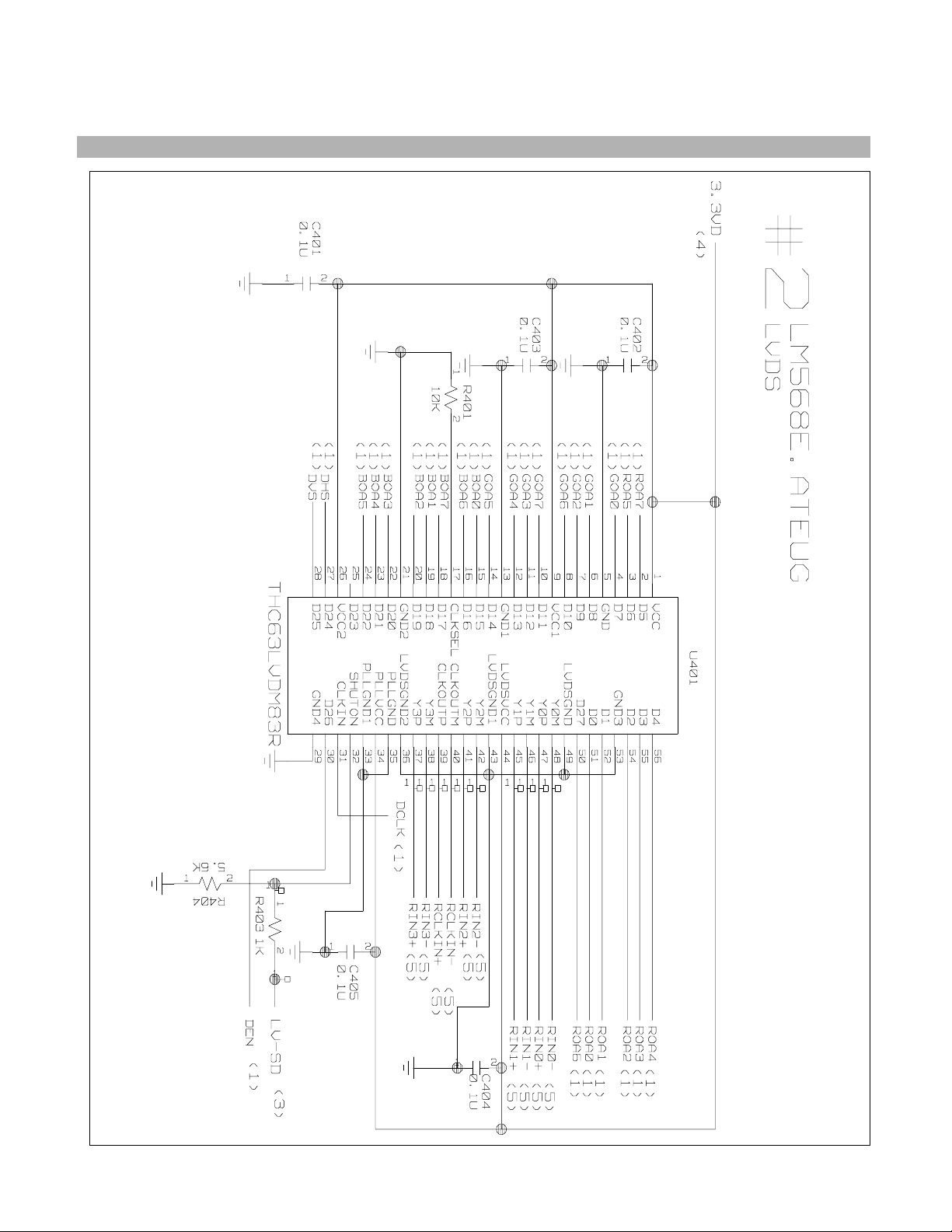

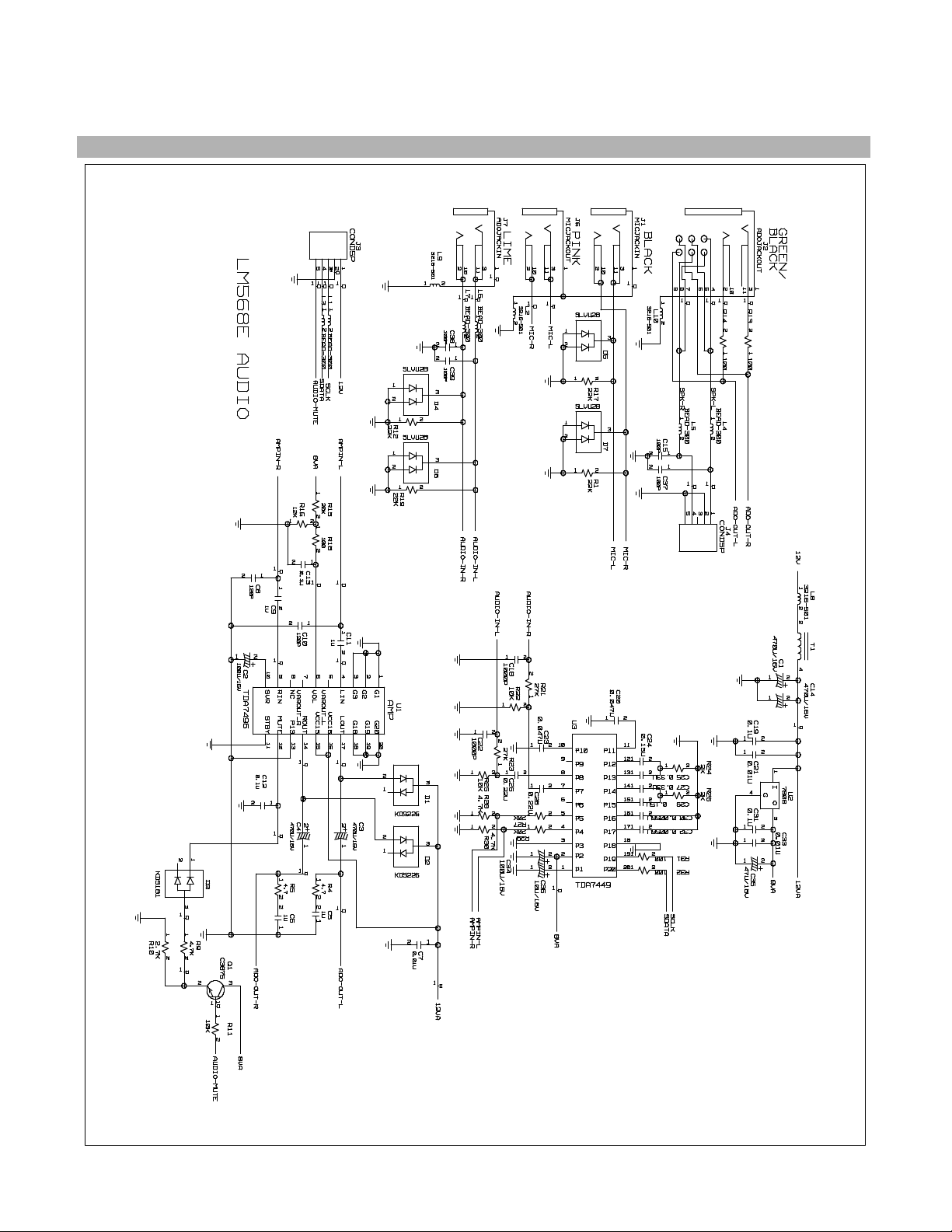

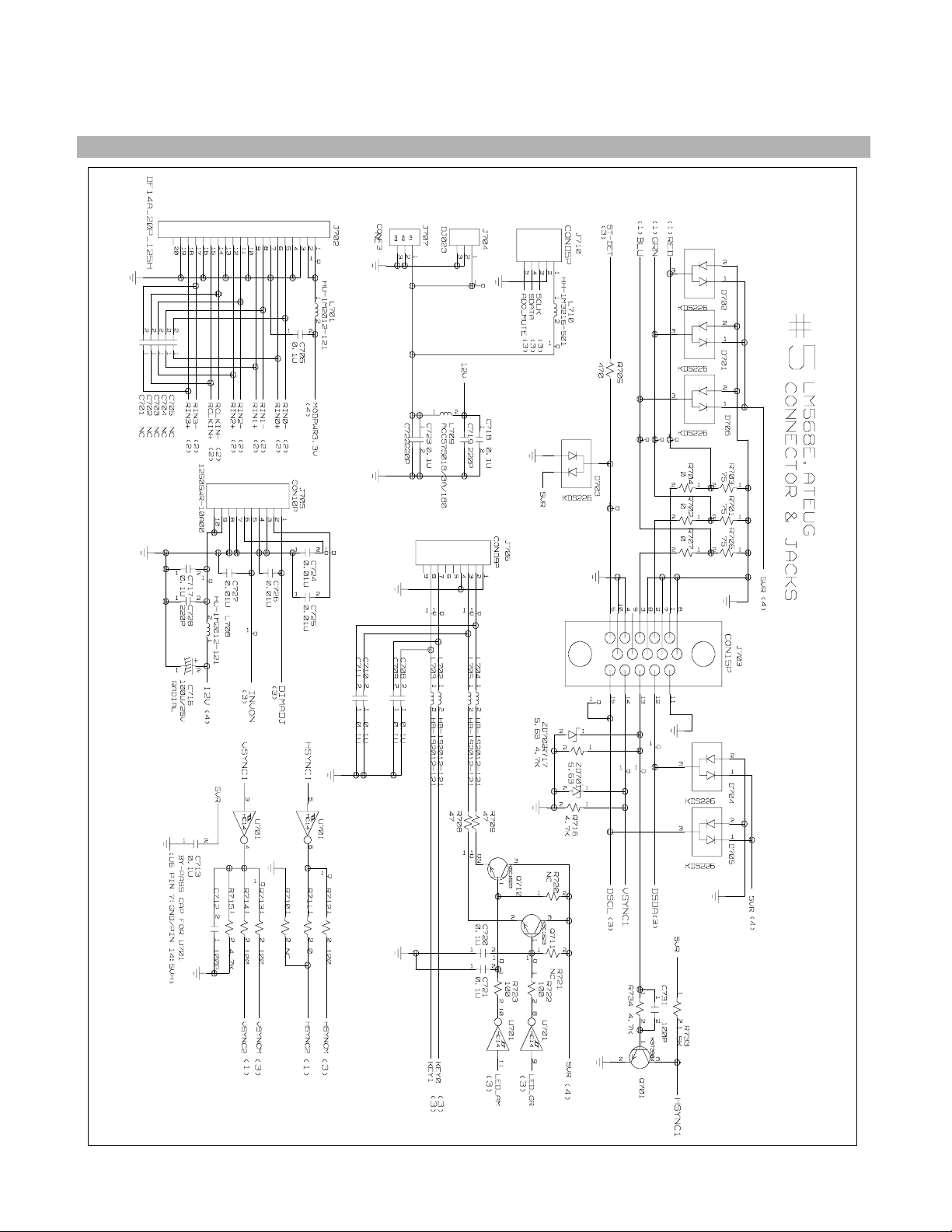

SCHEMATIC DIAGRAM......................................... 26

MODE

POWER ON (NORMAL)

STAND-BY

SUSPEND

OFF

POWER OFF

H/V SYNC

ON/ON
OFF/ON
ON/OFF

OFF/OFF

-

POWER CONSUMPTION

less than 36 W

less than 3 W
less than 3 W

less than 3 W
less than 3 W

LED COLOR

GREEN
YELLOW
YELLOW
YELLOW

OFF

VIDEO

ACTIVE

OFF
OFF
OFF

-

- 3 -

WARNING FOR THE SAFETY-RELATED COMPONENT.

• There are some special components used in LCD
monitor that are important for safety. These parts are

marked on the schematic diagram and the
replacement parts list. It is essential that these critical

parts should be replaced with the manufacturer’s
specified parts to prevent electric shock, fire or other
hazard.

• Do not modify original design without obtaining written
permission from LG or you will void the original parts
and labor guarantee.

TAKE CARE DURING HANDLING THE LCD MODULE
WITH BACKLIGHT UNIT.

• Must mount the module using mounting holes arranged
in four corners.

• Do not press on the panel, edge of the frame strongly
or electric shock as this will result in damage to the
screen.

• Do not scratch or press on the panel with any sharp
objects, such as pencil or pen as this may result in
damage to the panel.

• Protect the module from the ESD as it may damage the
electronic circuit (C-MOS).

• Make certain that treatment person’s body are
grounded through wrist band.

• Do not leave the module in high temperature and in
areas of high humidity for a long time.

• The module not be exposed to the direct sunlight.

• Avoid contact with water as it may a short circuit within
the module.

• If the surface of panel become dirty, please wipe it off
with a softmaterial. (Cleaning with a dirty or rough cloth
may damage the panel.)

WARNING

BE CAREFUL ELECTRIC SHOCK !

• If you want to replace with the new backlight (CCFL) or
inverter circuit, must disconnect the AC adapter
because high voltage appears at inverter circuit about
650Vrms.

• Handle with care wires or connectors of the inverter
circuit. If the wires are pressed cause short and may
burn or take fire.

PRECAUTION

CAUTION

Please use only a plastic screwdriver to protect yourself
from shock hazard during service operation.

TIMING CHART

- 4 -

VIDEO

SYNC

B

D

C

F

E

A

H / V

H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)

Sync

Polarity

+

–
–

+

–
–
–
–
–
–
–
–

+
+
+
+
+
+
+
+

–
–
–
–
–
–

+
+

Dot

Clock

25.175

28.322

25.175

30.24

31.5

31.5

36.0

40.0

50.0

49.5

57.2832

65

75

78.75

Frequency

31.468 KHz

70.0 Hz

31.468 KHz

70.0 Hz

31.469 KHz

60.0 Hz

35.00 KHz

66.67 Hz

37.861 KHz

72.8 Hz

37.50 KHz

75.0 Hz

35.156 KHz

56.25 Hz

37.879 KHz

60.3 Hz

48.077 KHz

72.188 Hz

46.875 KHz

75.0 Hz

49.725 KHz

74.55 Hz

48.363 KHz

60.0 Hz

56.476 KHz

70.0 Hz

60.023 KHz

75.0 Hz

Resolution

640 x 350

720 x 400

(TEXT)

640 x 480

640 x 480

640 x 480

640 x 480

800 x 600

800 x 600

800 x 600

800 x 600

832 x 624

(MAC)

1024 x 768

1024 x 768

1024 x 768

Total

Period

( E )

800
449
900
449
800
525
864
525
832
520
840
500

1024

625

1056

628

1040

666

1056

625

1152

667

1344

806

1328

806

1312

800

Video

Active

Time ( A )

640
350
720
400
640
480
640
480
640
480
640
480
800
600
800
600
800
600
800
600
832
624

1024

768

1024

768

1204

768

Blanking

Time

( B )

160

99

180

49

160

45

224

45

192

40

200

20

224

25

256

28

240

66

256

25

320

43

320

38

304

38

288

32

Sync

Duration

( D )

96

2

108

2

96

2

64

3

40

3

64

3

72

2

128

4

120

6

80

3

64

3

136

6

136

6

96

3

Back

Porch

( F )

48
60
55
34
48
33
96
39

128

28

120

16

128

22
88
23
64
23

160

21

224

39

160

29

144

29

176

28

Front

Porch

( C )

16
37
17
13
16
10
64

3

24

9

16

1

24

1

40

1
56
37
16

1
32

1
24

3
24

3
16

1

MODE

1

2

3

4

5

6

7

8

9

10

11

12

13

14

AUTO

VOL

MUTE MENU

SET

OPERATING INSTRUCTIONS

- 5 -

FRONT VIEW REAR VIEW

Front Control Panel

24V

AUDIO
DCOUT

MIC.

IN

AUDIO

IN

MIC.
OUT

Power (DPMS) Indicator

1. Power ON/OFF Button

Use this button to turn the monitor On or Off.

2. Power Indicator

This indicator lights up green when the monitor
operates normally. If the monitor is in DPM (Energy
Saving) mode (stand-by/ suspend/power off), this
indicator color changes to yellow.

3. AUTO/SET Button

Use this button to enter a selection in the on
screen display.

* AUTO adjustment function

Touch the AUTO/SET button
before using OSD menu.
This button is for the automatic
adjustment of the screen position, clock and phase.

Note: Some signal from some graphics boards may not
function properly. If the results are unsatisfactory, adjust
your monitor’s Position, Clock and Phase manually.

4.

Use these buttons to choose or adjust
items in the on screen display.

Use to adjust the brightness.
Use to adjust the volume.

5. MENU Button

Use this button to enter and from the on

screen display (OSD).

6. MUTE Button

Use this button to turn on the audio or off.

Power ON/OFF Button

Front Control Panel

DC Power Connector

MIC. IN

MIC. OUT

HEAD PHONE

AUDIO IN

D-Sub

Signal Connector

-

+

PROCESSING

AUTO CONFIGURATION

Buttons

1356

24

VOL

AUTO

SET

MENU

MUTE

MUTE MENU

AUTO

VOL

SET

- 6 -

WIRING DIAGRAM

J4

CN2

CN1

J4

J10

J5

J3

Connector Ass’y P/N: 6631T11012N

BLOCK DIAGRAM

- 7 -

Power Part

DC/DC

Converter

(L4973)

12V

ST5V

ST5V

EEPROM

24WC08

ADC/PLL/Scaler

(gmZAN1)

(MICOM)

(MTV312)

Switch

FDC6325L

Schmitt Trigger

(74HCT14)

RGB

H.V

D-

Sub

15P

DDC

Control

DC

Jack

SCL

SDA

CON

10P

Inverter

3.3 VD

3.3V_PL

Module Power

3.3V

3.3V_PL

3.3VD

2.5VD

5VR

RGB

3.3V_AD

Regulator

BA033S

3.3V_AD

Headphone

MIC In

MIC Out

Audio In

Audio

Processor

(TDA7449)

Audio Amp

(TDA7496L)

SCLSDA

78 M08

8VA

12V

12V(Audio B/d)

Audio Mute

(Audio B/d)

CON 5P

12V

GND

SCL

SDA

Audio

Mute

12V

Audio Mute

LCD

Interface

20Pin

Connector

(12507WR-20P)

LVDS

(LVDS83)

RIN

RCLK

Regulator

BA033S

Hsync2

Vsync2

Hsyncm

Vsyncm

+3.3V

CON 5P

To Audio B/d

Main B/d

Audio B/d

7805

5VR

2.5VD

Regulator

1725

DESCRIPTION OF BLOCK DIAGRAM

- 8 -

1. Scaler One chip IC(GMZAN2, U201)

GMZAN2 (U201) is one chip IC which it supports four internal function blocks of Video Amp, PLL,
A/D converter and Video processor.
Video signal (0.7Vp.p) clamped through C209, 208, 207 with matching IC’s proper cut off voltage.
This signal is processed as a proper 8 bit digital signal by U201’s amplifying, phase locking, A/D converting,
and scaling operations.
U3 generates Clock, Horizontal and Vertical sync, Data Enable signals as LCD Panel’s input signals.

2. System Controller (Microprocessor) Circuit.

1) Microprocessor (U501) distinguishes polarity and frequency by calculating horizontal and vertical sync input
from signal source.

2) Microprocessor (U501) carries out power control by sending power-down trigger signal to each IC.

3) Microprocessor (U501) communicates with EEPROM (U502), and GMZAN2 (U201)
through IIC(2 lines) or 6 bit bus line. It makes all devices operated properly.

4) Microprocessor (U501) let User adjust screen by OSD function.

3. DC/ DC Converter.

This circuit supplies DC power for each device needing DC voltage of 3.3VD, 3.3V_AD, 3.3V_PL, Module Power 3.3V

and 5VS.
L4978(U801) , the DC/DC controller IC converts input 12Vdc into 5VS and 3.3Vdc, 2.5Vdc with peripheral circuit
composed of condensing components (ZD801, C810), and Regulators(U802,U805).
MODPWR(3.3V) for LCD module power is Regulator by U805, Regulator, controlled by Microprocessor.

3.3VD, 3.3V_AD, and 3.3V_PL for GMZAN2 (U201) and 3.3V for LVDS (U401) are switched by U804, switching FET,

controlled by Microprocessor for Power saving.

4. Display Data Transmitter Part (LVDS).

This part transmit digital signal from the Scaler to the receiver of module.

5. Audio Part (TDA7449,TDA7496L)

In This Circuit, Audio Processor(TDA7449) Which is Controlled by Microprocessor(U501) adjust
volume/treble/bass/balance of Audio signal which come from PC.
The Signal come from TDA7449 is amplified by TDA7496L. The final output signal is output through speaker.

ADJUSTMENT

- 9 -

220

IBM
Compatible PC

PARALLEL PORT

Power inlet (required)

Power LED

ST Switch

Power Select Switch
(110V/220V)

Control Line

Not used

RS232C

PARALLEL

V-SYNC

POWER

ST

VGS

MONITOR

E

E

V-Sync On/Off Switch
(Switch must be ON.)

F

F

A

A

B

B

C

C

15

10

5

5

69

1

1

1

14

13

25

6

5V

5V

5V

4.7K

4.7K

4.7K

74LS06

74LS06

OFF ON

OFF

ON

11

Video Signal
Generator

24V

AUDIO
DC OUT

MIC.

IN

AUDIO

IN

MIC.
OUT

Figure 1. Cable Connection

All adjustment are thoroughly checked and corrected
when the monitor leaves the factory, but sometimes
several minor adjustment may be required.
Adjustment should be following procedure and after
warming up for a minimum of 10 minutes.
Alignment appliances and tools.

- IBM Compatible PC

- Programmable Signal Generator.
(eg. VG-819 made by Astrodesign Co.)

- E(E)PROM with each mode data saved.

- Alignment Adapter and Software.

1. Adjustment for Factory Preset Mode

1) Run alignment program for LM568E on the IBM
compatible PC.

2) Display cross hatch pattern at Mode 1.

3) Select EEPROM ALL Init command and Enter.

4) Press "Y" key, it will automatically save all FOS data
to EEPROM.

2. Adjustment for White Balance

1) Display color 0,0 pattern at Mode 12.

2) Set External Bright to MAX position and Contrast to
MAX Position.

3) Select PRESET START

→ BIAS CAL command

and Enter.

4) No attempt to manually adjust, BIAS data is auto­matically adjusted and saved to the EEPROM.

5) Display color 15,0 pattern at Mode 12.

6) Select DRIVE CAL command and Enter.

7) Color 1 (9300K) and Color 2 (6500K) are
automatically adjusted and saved to the EEPROM.

8) Select PRESET EXIT command and Enter.

3. DDC Data Write Procedure

1) Use this procedure only when there is some
probelm on EDID data.

2) Select EEPROM → EDID Write command and
Enter.

3) This will write the EDID data to EEPROM.

- 10 -

TROUBLESHOOTING GUIDE

1. NO POWER

CHECK U501,

U803 LINE

CHECK

U803 PIN 1

VOLTAGE

(12V) ?

NO

NO POWER

(POWER INDICATOR OFF)

CHECK ADAPTER,

AND FIND OUT

A SHORT POINT

AS OPENING

EACH POWER LINE

CHECK J04’S

VOLTAGE

(12V) ?

NO

CHECK U803

CHECK

U803 PIN 3

Voltage

(5V) ?

NO

YES

YES

YES

CHECK KEY CONTROL

CONNECTOR ROUTINE

CHECK U501

CHECK

U501 PIN 8

Voltage

(5V) ?

NO

YES

- 11 -

2. NO RASTER (OSD IS NOT DISPLAYED) – INVERTER

CHECK MICOM INV

ON/OFF PORT.

J705 PIN5

5V?

NO

NO RASTER

(OSD IS NOT DISPLAYED)

CHECK ADAPTER

J705 PIN10

12V?

NO

1.CHECK MICOM DIM-ADJ
PORT

J705 PIN1

5V?

NO

REPLACE

INVERTER ASS’Y

CHECK

PULSE AS

CONTACTING SCOPE

PROBE TO CAUTION LABEL.

(CONTACT PROBE TO

CAUTION LABEL.

CAN YOU SEE PULSE

AT YOUR

SCOPE?

NO

REPLACE CCFL LAMP

IN THE LCD MODULE

YES

YES

YES

YES

- 12 -

1. CHECK PIN141, 142

SOLDERING CONDITION

2. CHECK X201

3. TROUBLE IN U201

U201

POWER PINS

3.3V?

NO

CHECK U2, U24

U201 PIN141, 142

OSCILLATE AS 20M?

NO

CHECK U401’S SOLDERING
CONDITION AND
CHECK CONNECTION LINE
FROM U201 TO J702

NO

TROUBLE IN CABLE

OR LCD MODULE

CHECK U805

J702 PIN1

3.3V?

NO

YES

YES

YES

YES

3. NO RASTER (OSD IS NOT DISPLAYED) – gmZAN1

NO RASTER

(OSD IS NOT DISPLAYED)

U401

PIN31 IS 65MHz CLOCK?

PIN27 IS H-SYNC?
PIN28 IS V-SYNC?

IS PULSE APPEARED

AT SIGNAL PINS?

- 13 -

CHECK U802

CHECK H/V SYNC LINE

(U201, U501, D-SUB)

U201

POWER PIN

3.3V?

NO

1. CHECK PC

2. CHECK SIGNAL CABLE

& D-SUB CONNECTOR
LINE

CHECK

R,G,B INPUT?

U201 PIN 87, 91, 95

NO

YES

YES

YES

NO RASTER

(OSD IS DISPLAYED)

4. NO RASTER (OSD IS DISPLAYED) – gmZAN1

- 14 -

CHECK SPEAKER

CHECK SPEAKER

ASS’Y?

NO

CHECK JACK(J7)
& AUDIO CORD

AUDIO PCB

CHECK INPUT SIGNAL

U3(TDA7449)

PIN7,8?

NO

CHECK MAIN

U501(MICOM)

→AUDIO J3

→U3(TDA7449)

CHECK

IIC LINE

NO

YES

YES

YES

YES

CHECK U3(TDA7449)

CHECK

INPUT SIGNAL

U1(TDA7496L)

PIN4,9?

NO

CHECK U1(TDA7496L)

CHECK

OUTPUT SIGNAL

U1(TDA7496L)

PIN14,17?

NO

NO SOUND

5. NO SOUND

YES

PRINTED CIRCUIT BOARD

- 15 -

L710

J710

C813

C820

C835

1

R805

J704

L701

1

R807

J702

R404

C404

U805

C405

R403

C705

50

U401

30 40

1

C704

C703

C702

10

R406

C402

10

C403

20

R401

MODEL:LM568E.ATEUG

P/N:6870T485A10

DATE:2002.04.02

J703

R706

R707

R405

C701

C262

20

C261

BA201

L202

L201

BA202

C267

C264

C243

C242

C237

L203

R207

C230

C225

L204

D706

D701

C226

R702

R701

C801

C269

C258

C257
C256

C254

C255

70

80

BA203

60

BA205

BA204

50

C204

D702

R704

C818

C819

R703

R210 R209

90

30 40

BA206

C253

C205

C817

J707

D703

R202

R201

R208

C211

C259

100

20

U802

R733

ZD702

R734

R717

R705

C206

110

R551

5 10

C235

R711

C271

R710

C232

R714

Q701

ZD701

R716

C731

C824

120

L804

130

140

150

160

U201

R712

C712

R713

R722

D705

D704

R723

C723

C827

L803

C214

C828

C210

C220

R575

R574

R573

R570

R505

C725

C236

B

R572

R571

C727

R550
R515

R715

U701

L805

R541

C713

C831

L709

C721

R801

C719

C722

R521
R520

C821

C530

R560

C829

R561

R530

C832

R531

R206

C215

RA501

C223 C224

C212C270

R522

R509
R508

R507

R506
R504

R503

X201

C815

C814

C840

C803

C804

R577

R519

R525

R529

R576

C833

U806

R804

R803

C836

U801

C720

R806

C841

Q711

R720

Q710

SOLDERING DIRECTION

R518
R517

R528
R524

R523

U501

RA502

X501

C515

C503

C502

R502

R533

R501

R534

U804

C808

C805

C837

R802

R811

R820

C812

C807

C806

R721

R708

L705

L702

L703

R709

L704

R516

C505

C518

R526
R527

C506

R536 C512C513

C517

R537

R812

C811

L802

ZD801

R563

R513

R512

R511

R514

R510

R562

Q502

U502

Q501

R535

C511

5VS-U

Q503

ZD502

D810

R540

C810

C514

B

R532

Q505

D501

R538

C809

R810

R809

C830

J706

1

C726

J705

1

C724

Q506

ZD501

L708

R539

C728

U803

C822

C823

C716

1. MAIN BOARD (Component Side)

- 16 -

2. MAIN BOARD (Solder Side)

C816

C706

C401

C250

C252

C228

C227

C229

C233

C263

C251

C248

C249

C802

C234

C241

C244

C245

C266
C265

C246

C247

C202

C201

C207

C208R204

R203

C203

C209

R205

C509

C508

C718

C507

C516

C501

C709

C708

C504

C711

C710

C717

25

20

30

15

35

10

5

40

1

- 17 -

3. AUDIO BOARD

5. CONTROL BOARD(Solder Side)

J4

L4

C37

1

20

L5

U1

C3

DATE:2001.09.05

MODEL:LM568E(AUDIO)

L10

P/N :6870T393S10

C15

C10

C7

D1

J2

R14

C11

C9

C4

D2

R4

C5

C6

C8

C13

R16

R18

10

C35

C2

11

U2

T1

R5

R13

J1

SOLDERING DIRECTION

C36

R15

R30

R29

R28

R27

1

U3

20

J6

C34

C1

C22

R25

L2

R19

C14

L8

C26

C28

C18

R23

R21

R22

D6D4

L6

C39

C23

10

11

C20

J3

L7

C38

R12

J7

L9

4. CONTROL BOARD(Component Side)

- 18 -

EXPLODED VIEW

1

523

8

7

14

9

16

17

22

21

6

11

10

2

15

18

3

13

12

20

4

MIC.

IN

AUDIO

IN

MIC.

OUT

19

- 19 -

EXPLODED VIEW PARTS LIST

Ref. No.

1

2
3

4

5
6
7
8

9
10
11
12
13
14
15

16

17

18
19
20
21
22
23

Part No.

3091TKL030B
3091TKL030E
6304FTS001A

3809TKL020B
3043TKK057M
3043TKK057Q
6633TZA003G
4951TKS072D

6871TST257A
6871TMT315A

6871TST256A
4951TKS077C

6631T11012N

332-068T

332-105F
6401TZZ025A
4950TKK337A
6634TBZ016A

or

6634B00046A

or

6634TBZ014A

6866TD9001F

or

6866TD9001G
6852TAZ006E
6852TAZ006F

5410TKK015D

381-240A
6634TFZ002A
4810TKK173A

Description

CABINET ASSEMBLY, LM568E BRAND 3090TKL029A ONLY TCO95 LABEL

-For Europe

CABINET ASSEMBLY, LM568E BRAND 3090TKL029A TCO95, SILVER SPRAY

-For Japan

LCD, LTM15C443L TOSHIBA 15.0 INCH XGA(1024 X 768) TFT COLOR W/O INVERTER
BACK COVER ASSEMBLY, LM568E 3808TKL023 ADD ADAPTOR LABEL
TILT SWIVEL ASSEMBLY, LM568E (BUILT-IN SPEAKER) SPRAY -For Europe
TILT SWIVEL ASSEMBLY, LM568E . BOTTOM(BLUE SPRAY) -For Japan
INVERTER ASSEMBLY, SAMSUNG LG1511 LB565C
METAL ASSEMBLY, "FRAME MAIN, LB568"
PWB(PCB) ASSEMBLY, SUB, LM568E SOUND TOTAL BRAND XAGC
PWB(PCB) ASSEMBLY, MAIN, LM568E ATEUG BRAND CL-18 TOTAL
PWB(PCB) ASSEMBLY, SUB, LM568E CONTROL TOTAL BRAND XAGC
METAL ASSEMBLY, "REAR FRAME, LM568(TOSHIBA)"
CONNECTOR ASSEMBLY, 20P H-H 120MM UL20276 LM568E INTERFACE,UNIXTAR
SCREW, PPB+3*10(MSWR/FZMW)
SCREW, PVS+4*10(MSWR/FZMW)
SPEAKER ASSEMBLY, LM568E T401SX154K14 SPEAKER ASSY 1W 4OHM
METAL,FIX SPEAKER (LM568E)
ADAPTER, AC-DC, ADP-36UB DELTA 12V 3.0A FOR LG
ADAPTER, AC-DC, LSE0107A1236 LISHIN 12V 3.0A FOR LG
ADAPTER, AC-DC, PSCV360104A SAMSUNG 12V 3.0A FOR LG
SIGNAL CABLE, UL 2990-9C(7.5) DT 1870MM GRAY(85964) LB500 DM
CABLE, D-SUB, UL 2990-9C(7.5)DT 1870MM PANTONE BLUE(661C)LV501A DM
CORD,A/V, AUDIO UL 2851 #28-2C 1500MM QUARTZ KSD
CORD,A/V, A/V DH-1560SP-BL UL 2851 #28 1560MM GRAY(85964)
INSULATION, PVC SHEET LM568E(89483)
ADAPTER, AC, KPR-24 KAWASAKI 125V 15A BLACK -Only Japan
ADAPTER,SIGNAL, LIBERTY ENHANCE MAC 6-DIP -Only Japan
BRACKET, LB565C SUPPOTER INVERTER

- 20 -

DATE: 2002. 04. 25.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C201 0CC220CK41A 22PF 1608 50V 5% R/TP NP0
C202 0CC220CK41A 22PF 1608 50V 5% R/TP NP0
C203 0CC220CK41A 22PF 1608 50V 5% R/TP NP0
C204 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C205 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C206 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C207 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C208 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C209 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C210 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C211 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C212 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C214 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C215 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C220 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C223 0CC150CK41A 15PF 1608 50V 5% R/TP NP0
C224 0CC150CK41A 15PF 1608 50V 5% R/TP NP0
C225 0CC100CK41A 10PF 1608 50V 5% R/TP NP0
C226 0CC680CK41A 68PF 1608 50V 5% R/TP NP0
C230 0CC150CK41A 15PF 1608 50V 5% R/TP NP0
C232 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C235 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C236 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C254 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C255 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C256 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C257 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C258 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C259 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C261 0CC680CK41A 68PF 1608 50V 5% R/TP NP0
C262 0CC680CK41A 68PF 1608 50V 5% R/TP NP0
C269 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C270 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C271 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C401 DCH3104K946 DCH3104K946
C402 DCH3104K946 DCH3104K946
C403 DCH3104K946 DCH3104K946
C404 DCH3104K946 DCH3104K946
C405 DCH3104K946 DCH3104K946
C501 DCH3104K946 DCH3104K946
C502 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C503 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C504 DCH3104K946 DCH3104K946
C505 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C506 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C507 DCH3104K946 DCH3104K946
C508 DCH3104K946 DCH3104K946
C509 DCH3104K946 DCH3104K946
C512 0CC330CK41A 33PF 1608 50V 5% R/TP NP0
C513 0CC330CK41A 33PF 1608 50V 5% R/TP NP0
C514 0CH8106F611 10UF 16V M 85STD(CYL) R/TP
C515 0CC680CK41A 68PF 1608 50V 5% R/TP NP0

DATE: 2002. 04. 25.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C516 DCH3104K946 DCH3104K946
C518 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7
C530 DCH3104K946 DCH3104K946
C701 0CC030CK01A 3PF 1608 50V 0.25 PF R/TP
C702 0CC030CK01A 3PF 1608 50V 0.25 PF R/TP
C703 0CC030CK01A 3PF 1608 50V 0.25 PF R/TP
C704 0CC030CK01A 3PF 1608 50V 0.25 PF R/TP
C705 0CC030CK01A 3PF 1608 50V 0.25 PF R/TP
C706 DCH3104K946 DCH3104K946
C708 DCH3104K946 DCH3104K946
C709 DCH3104K946 DCH3104K946
C710 DCH3104K946 DCH3104K946
C711 DCH3104K946 DCH3104K946
C712 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C713 DCH3104K946 DCH3104K946
C716 0CE107CH610 100UF SHL,SD 25V 20% BULK
C717 DCH3104K946 DCH3104K946
C718 DCH3104K946 DCH3104K946
C719 0CC221CK41A 220PF 1608 50V 5% R/TP NP0
C720 DCH3104K946 DCH3104K946
C721 DCH3104K946 DCH3104K946
C722 0CC221CK41A 220PF 1608 50V 5% R/TP NP0
C723 DCH3104K946 DCH3104K946
C724 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C725 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C726 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C727 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C728 0CC221CK41A 220PF 1608 50V 5% R/TP NP0
C731 0CC101CK41A 100PF 1608 50V 5% R/TP NP0
C801 0CC102CK41A 1000PF 1608 50V 5% R/TP NP
C802 DCH3104K946 DCH3104K946
C803 0CE477CF610 470UF SHL,SD 16V 20% FL BU
C804 0CE477CF610 470UF SHL,SD 16V 20% FL BU
C805 0CK223CK51A 0.022UF 1608 50V 10% R/TP
C806 DCH3104K946 DCH3104K946
C807 0CK152CK51A 1500PF 1608 50V 10% R/TP B
C808 DCH3104K946 DCH3104K946
C809 0CE477EF610 470UF KMG,RD 16V 20% BULK
C810 0CE477EF610 470UF KMG,RD 16V 20% BULK
C811 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C812 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C813 0CC102CK41A 1000PF 1608 50V 5% R/TP NP
C814 0CC102CK41A 1000PF 1608 50V 5% R/TP NP
C815 DCH3104K946 DCH3104K946
C816 DCH3104K946 DCH3104K946
C817 0CE107CF610 100UF SHL,SD 16V 20% BULK
C818 DCH3104K946 DCH3104K946
C819 0CC102CK41A 1000PF 1608 50V 5% R/TP NP
C820 0CE107CF610 100UF SHL,SD 16V 20% BULK
C821 DCH3104K946 DCH3104K946
C822 DCH3104K946 DCH3104K946
C823 0CC102CK41A 1000PF 1608 50V 5% R/TP NP
C824 0CH8107F611 100UF 16V M 85STD(CYL) R/T
C827 0CC102CK41A 1000PF 1608 50V 5% R/TP NP

REPLACEMENT PARTS LIST

CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS,

READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL.

* NOTE : S SAFETY Mark

AL ALTERNATIVE PARTS

MAIN BOARD

CAPACITORS

DATE: 2002. 04. 25.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

C828 DCH3104K946 DCH3104K946
C829 0CC102CK41A 1000PF 1608 50V 5% R/TP NP
C830 0CH8107F611 100UF 16V M 85STD(CYL) R/T
C831 0CH8107F611 100UF 16V M 85STD(CYL) R/T
C832 0CH8107F611 100UF 16V M 85STD(CYL) R/T
C833 0CH8107F611 100UF 16V M 85STD(CYL) R/T
C835 DCH3104K946 DCH3104K946
C836 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7
C837 0CK104CK56A 0.1UF 1608 50V 10% R/TP X7
C840 DCH3104K946 DCH3104K946
C841 DCH3104K946 DCH3104K946

D701 0DS226009AA KDS226 TP KEC SOT-23 80V
D702 0DS226009AA KDS226 TP KEC SOT-23 80V
D703 0DS226009AA KDS226 TP KEC SOT-23 80V
D704 0DS226009AA KDS226 TP KEC SOT-23 80V
D705 0DS226009AA KDS226 TP KEC SOT-23 80V
D706 0DS226009AA KDS226 TP KEC SOT-23 80V
D810 0DS181009AA KDS181 TP KEC SOT-23 80V
ZD501 0DZ910009FE UDZS 9.1B TP ROHM - - 9.1V
ZD701 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD32
ZD702 0DZ560009DA UDZ S 5.6B TP ROHM-K SOD32
ZD801 0DRSG00028A STPS340U SGS-THOMSON R/TP

U201 0IPRPGA002A GMZAN2-160P GENESIS MICROC
U401 0ITH638300B THC63LVDM83R THINE 56P,TSS
U501 0IZZTSZ186A MYSON 42PIN BK OTP LM568E­U502 0ICS240813B CAT24WC08J-TE13 8P,SOIC R/
U701 0IMO741420B MC74HCT14ADR2 14P,SOIC TP
U801 0IPMGSG008A L4978D SGS-THOMSON 16P,SOI
U802 0IRH033200A BA033FP-E2 MOLD-3 TP REGUL
U803 0ISS780500H KA78M05-R 3P,D-PAK TP 5V 0
U804 0TF632509AA FDC6325L TP FAIRCHILD 8V 2
U805 0IRH033000A BA033SFP P/MOLD-5 TP REGUL
U806 0IPMGON007A NCP1117ST25T3 ON SEMI SOT2

L201 6210TCE001P HB-1S2012-121JT CERATECH 2
L202 6210TCE001P HB-1S2012-121JT CERATECH 2
L203 6210TCE001P HB-1S2012-121JT CERATECH 2
L204 6210TCE001P HB-1S2012-121JT CERATECH 2
L701 6210TCE001S HU-1M2012-121 CERATECH 201
L702 6210TCE001P HB-1S2012-121JT CERATECH 2
L703 6210TCE001P HB-1S2012-121JT CERATECH 2
L704 6210TCE001P HB-1S2012-121JT CERATECH 2
L705 6210TCE001P HB-1S2012-121JT CERATECH 2
L708 6210TCE001S HU-1M2012-121 CERATECH 201
L709 6210TCT002C HF50ACC575018-T TDK ,MM CH
L710 6210TCE001G HH-1M3216-501 CERATEC 3216
L802 6140TBZ016E LX31 GET DR10*7,0.45*37TS,
L803 6210TCE001G HH-1M3216-501 CERATEC 3216
L804 6210TCE001G HH-1M3216-501 CERATEC 3216
L805 6210TCE001G HH-1M3216-501 CERATEC 3216
BA201 6210TCE002B HB-4M3216-121JT CERATECH 3
BA202 6210TCE002B HB-4M3216-121JT CERATECH 3
BA203 6210TCE002B HB-4M3216-121JT CERATECH 3
BA204 6210TCE002B HB-4M3216-121JT CERATECH 3

DATE: 2002. 04. 25.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

BA205 6210TCE002B HB-4M3216-121JT CERATECH 3
BA206 6210TCE002B HB-4M3216-121JT CERATECH 3

Q501 0IKE704200J KIA7042AF SOT-89 TP 4.2V V
Q502 0TR390409AE FAIRCHILD KST3904(LGEMTF)
Q505 0TR162309CA KSC1623 TP SAMSUNG SOT23
Q506 0TR162309CA KSC1623 TP SAMSUNG SOT23
Q701 0TR390409AE FAIRCHILD KST3904(LGEMTF)
Q710 0TR162309CA KSC1623 TP SAMSUNG SOT23
Q711 0TR162309CA KSC1623 TP SAMSUNG SOT23

R201 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R202 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R203 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R204 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R205 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R206 0RJ2701D677 2.7K OHM 1/10 W 5% 1608 R/
R207 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R208 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R209 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R210 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R401 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/T
R403 0RJ1001D677 1K OHM 1/10 W 5% 1608 R/TP
R404 0RJ5601D477 5.6K OHM 1/10 W 1% 1608 R/
R501 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R502 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R503 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R504 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R505 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/T
R506 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R507 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/T
R508 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/T
R509 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R510 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R511 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R512 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R513 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/
R515 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R516 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R517 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R518 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R519 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R520 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R521 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R522 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/T
R523 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R524 0RJ0332D677 33 OHM 1/10 W 5% 1608 R/TP
R525 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R526 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R527 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R528 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R529 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R530 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R531 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R532 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/
R533 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/T
R534 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/T
R535 0RJ3301D677 3.3K OHM 1/10 W 5% 1608 R/

- 21 -

DIODEs

ICs

COILs & COREs

TRANSISTOR

RESISTORs

DATE: 2002. 04. 25.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R536 0RJ1004D677 1000000 OHM 1/10 W 5% 1608
R537 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R538 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/T
R539 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/T
R541 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R551 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R560 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/T
R561 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R562 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R563 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/T
R570 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R571 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R572 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R576 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R577 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R701 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R702 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R703 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R704 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R705 0RJ4700D677 470 OHM 1/10 W 5% 1608 R/T
R706 0RJ0752D677 75 OHM 1/10 W 5% 1608 R/TP
R707 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R708 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP
R709 0RJ0472D677 47 OHM 1/10 W 5% 1608 R/TP
R711 0RJ0000D677 0 OHM 1/10 W 5% 1608 R/TP
R712 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R713 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R714 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R715 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R716 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R717 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R722 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R723 0RJ1000D677 100 OHM 1/10 W 5% 1608 R/T
R733 0RJ1501D677 1.5K OHM 1/10 W 5% 1608 R/
R734 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/
R801 0RJ1003D677 100K OHM 1/10 W 5% 1608 R/
R802 0RJ9101D677 9.1K OHM 1/10 W 5% 1608 R/
R803 0RJ4701D477 4.7K OHM 1/10 W 1% 1608 R/
R804 0RJ2701D477 2.7K OHM 1/10 W 1% 1608 R/
R805 0RJ1002D677 10K OHM 1/10 W 5% 1608 R/T
R806 0RJ2002D677 20000 OHM 1/10 W 5% 1608 R
R807 0RJ1003D677 100K OHM 1/10 W 5% 1608 R/
R809 0RJ0221D677 2.2 OHM 1/10 W 5% 1608 R/T
R810 0RJ0221D677 2.2 OHM 1/10 W 5% 1608 R/T
R811 0RJ2202D677 22K OHM 1/10 W 5% 1608 R/T
R812 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/T
R820 0RJ1003D677 100K OHM 1/10 W 5% 1608 R/
RA501 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/T
RA502 0RHZTCZ001A 100 OHM 1/16 W 5% 3215 R/T

J704 6612TAH003A DJ-023 KSD R/ANGLE LB563B
X201 6202TST003F HC-49/SM5H KONY 20.0MHZ +/
X501 6202TST003D HC-49/SM5H KONY CHIP 12 MH

R301 0RN1001F409 1K 1/6W 1% TA52
R302 0RN1001F409 1K 1/6W 1% TA52
R303 0RN1601F409 1.60K 1/6W 1% TA52
R304 0RN1601F409 1.60K 1/6W 1% TA52

DATE: 2002. 04. 25.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

R305 0RN3001F409 3K 1/6W 1% TA52
R306 0RN3001F409 3K 1/6W 1% TA52
SW301 140-058E SKHV10910B LGEC NON 12V 20
SW302 140-058E SKHV10910B LGEC NON 12V 20
SW303 140-058E SKHV10910B LGEC NON 12V 20
SW304 140-058E SKHV10910B LGEC NON 12V 20
SW305 140-058E SKHV10910B LGEC NON 12V 20
SW306 140-058E SKHV10910B LGEC NON 12V 20
SW307 140-058E SKHV10910B LGEC NON 12V 20
SW308 140-058E SKHV10910B LGEC NON 12V 20
ZD301 0DZ560009CE MTZJ5.6B TP ROHM-K DO34 5
ZD302 0DZ560009CE MTZJ5.6B TP ROHM-K DO34 5
LED301 0DL305029BA LTL-305DJ-0C2 TP LITEON GR

C1 0CH8477F611 470UF 16V M 85STD(CYL) R/T
C2 0CH8107F611 100UF 16V M 85STD(CYL) R/T
C3 0CH8477F691 470UF 16V M 105STD (CYL) R
C4 0CH8477F691 470UF 16V M 105STD (CYL) R
C5 0CH3105F946 1UF 16V Z F 2012 R/TP
C6 0CH3105F946 1UF 16V Z F 2012 R/TP
C7 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C8 0CH6121K416 120PF 50V J NP0 2012 R/TP
C9 0CH3105F946 1UF 16V Z F 2012 R/TP
C10 0CH6121K416 120PF 50V J NP0 2012 R/TP
C11 0CH3105F946 1UF 16V Z F 2012 R/TP
C12 DCH3104K946 DCH3104K946
C13 DCH3104K946 DCH3104K946
C14 0CH8477F611 470UF 16V M 85STD(CYL) R/T
C15 0CH6101K416 100PF 50V J NP0 2012 R/TP
C18 0CH6102K406 1000PF 50V J SL 2012 R/TP
C19 DCH3104K946 DCH3104K946
C20 181-288D MKT 100V 473JTR PHS26473
C21 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C22 0CH6102K406 1000PF 50V J SL 2012 R/TP
C23 181-288D MKT 100V 473JTR PHS26473
C24 0CH3154K946 0.15UF 50V Z F 2012 R/TP
C25 0CH3334K946 0.33UF 50V Z F(Y5V) 2012 R
C26 0CH3224K946 0.22UF 50V Z F 2012 R/TP
C27 0CH3334K946 0.33UF 50V Z F(Y5V) 2012 R
C28 0CH3224K946 0.22UF 50V Z F 2012 R/TP
C29 0CH3154K946 0.15UF 50V Z F 2012 R/TP
C30 0CK562CK51A 5600PF 1608 50V 10% R/TP B
C31 DCH3104K946 DCH3104K946
C32 0CK562CK51A 5600PF 1608 50V 10% R/TP B
C33 0CK103CK51A 0.01UF 1608 50V 10% R/TP B
C34 0CH8107F611 100UF 16V M 85STD(CYL) R/T
C35 0CH8476F611 47UF 16V M 85STD(CYL) R/TP
C36 0CH8106F611 10UF 16V M 85STD(CYL) R/TP
C37 0CH6101K416 100PF 50V J NP0 2012 R/TP
C38 0CH6101K416 100PF 50V J NP0 2012 R/TP
C39 0CH6101K416 100PF 50V J NP0 2012 R/TP
D1 0DS226009AA KDS226 TP KEC SOT-23 80V
D2 0DS226009AA KDS226 TP KEC SOT-23 80V
D3 0DS181009AA KDS181 TP KEC SOT-23 80V
J1 6612F00001A DJ-S360P KSD STEREO R/A PI
J2 6612F00005D DJ-SW3P-LM KSD STERO R/A L
J6 6612F00001A DJ-S360P KSD STEREO R/A PI
J7 6612F00001C DJ-S360LB KSD STERO R/A LI
L1 6210TCE001H HB-1T2012-301JT CERATEC 20
L10 6210TCE001G HH-1M3216-501 CERATEC 3216

- 22 -

OTHERs

CONTROL BOARD

SOUND BOARD

DATE: 2002. 04. 25.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION

L2 6210TCE001G HH-1M3216-501 CERATEC 3216
L3 6210TCE001H HB-1T2012-301JT CERATEC 20
L4 6210TCE001H HB-1T2012-301JT CERATEC 20
L5 6210TCE001H HB-1T2012-301JT CERATEC 20
L6 6210TCE001H HB-1T2012-301JT CERATEC 20
L7 6210TCE001H HB-1T2012-301JT CERATEC 20
L8 6210TCE001G HH-1M3216-501 CERATEC 3216
L9 6210TCE001G HH-1M3216-501 CERATEC 3216
Q1 0TR387500AA CHIP 2SC3875S(ALY) KEC
R1 0RH2202D622 22K 1/10W 5 D.R/TP
R10 0RH2701D622 2.7K 1/10W 5 D.R/TP
R11 0RH1002D622 10K OHM 1 / 10 W 2012 5.00
R12 0RH2202D622 22K 1/10W 5 D.R/TP
R13 0RH1000D622 100 1/10W 5 D.R/TP
R14 0RH1000D622 100 1/10W 5 D.R/TP
R15 0RH2002D622 20K OHM 1 / 10 W 2012 5.00
R16 0RH1202D622 12K 1/10W 5 D.R/TP
R17 0RH2202D622 22K 1/10W 5 D.R/TP
R18 0RH1000D622 100 1/10W 5 D.R/TP
R19 0RH2202D622 22K 1/10W 5 D.R/TP
R21 0RH2702D622 27K 1/10W 5 D.R/TP
R22 0RH1002D622 10K OHM 1 / 10 W 2012 5.00
R23 0RH2702D622 27K 1/10W 5 D.R/TP
R24 0RH2001D622 2.0K 1/10W 5 D.R/TP
R25 0RH1002D622 10K OHM 1 / 10 W 2012 5.00
R26 0RH2001D622 2.0K 1/10W 5 D.R/TP
R27 0RH2002D622 20K OHM 1 / 10 W 2012 5.00
R28 0RH4701D622 4.7K 1/10W 5 D.R/TP
R29 0RH2002D622 20K OHM 1 / 10 W 2012 5.00
R30 0RH4701D622 4.7K 1/10W 5 D.R/TP
R31 0RH1000D622 100 1/10W 5 D.R/TP
R32 0RH1000D622 100 1/10W 5 D.R/TP
R4 0RH0471D622 4.7 1/10W 5 D.R/TP
R5 0RH0471D622 4.7 1/10W 5 D.R/TP
R9 0RH4701D622 4.7K 1/10W 5 D.R/TP
T1 6140TBZ039A LX31 GET 0.4*150TS,11 PIN,
U1 0ISG749600A TDA7496L 20DIP BK 2W+2W AM
U3 0ISG744900B TDA7449 20DIP ST TONE CONT
U2 0ISS780800J KA78M08R 3P,D-PAK TP VOL.

- 23 -

PIN CONFIGURATION

- 24 -

TDA7496L SGS-THOMOSN 2W+2W AMPLIFIER WITH DC VOLUME CONTROL

Powerdip(14+3+3)

ORDERING NUMBER: TDA7496L

GND
GND
GND

INL

VAROUT_L

VAROUT_R

VOLUME

N.C.

INR

1

3

2

4
5
6
7
8
9 MUTE

GND

OUTR

V

S

V

S

OUTL

GND

GND

GND20
19
18
17
16

14

15

13
12

D97AU597A

SVR 10 STBY11

PIN CONNECTION

VOLUME

OP AMP

+

-

MUTE/STBY

PROTECTIONS

9

470nF

INR

30K

VOLUME

OP AMP

+

-30K

1000mF

1000mF

1mF

10K

4

470nF

INL

7

14

11

12

17

65

300K

100nF

VOLUME

VAROUT_L

OUTR

STBY

MUTE

OUTL

1,2,3,13,
18,19,20

GND

470mF

SVR 10

D97AU596A

V

S

VAROUT_R

15,16

+5V

S1 ST-BY

+5V

S2 MUTE

+5V

S_GND

60K

BLOCK DIAGRAM

Pin Configuration

- 25 -

TDA7449 SGS-THOMOSN TONE CONTROL DIGITALLY CONT. AUDIO PROCESSOR

ORDERING NUMBER: TDA7449

CREF

PGND
ROUT

LOUT
R_IN2
R_IN1

L_IN1
L_IN2

1

3

2

4
5
6
7
8
9 BIN(R)

BOUT(L)
BOUT(R)

BIN(L)

V

S

TREBLE(R)
TREBLE(L)

DIG_GND

SCL

SDA20
19
18
17
16

14

15

13
12

D98AU848

MUXOUT(L) 10 MUXOUT(R)11

PIN CONNECTION

0/30dB

2dB STEP

MUXOUTL

TREBLE(L)

MUXOUTR TREBLE(R)

LOUT

SCL
SDA
DIG_GND

ROUT

D98AU847A

I2CBUS DECODER + LATCHES

100K

100K

G

L-IN1

L-IN2

100K

100K

R-IN1

R-IN2

G

INPUT

MULTIPLEXER

+ GAIN

BOUT(L)

BIN(R) BOUT(R) CREF

AGND

V

S

BIN(L)

5

8

9

7

6

19
20
18

4

2
3

11 17 12 13 1

10 16 15 14

R

B

R

B

V

REF

BLOCK DIAGRAM

VOLUME

VOLUME

TREBLE

TREBLE

BASS

BASS

SPKR

ATT

LEFT

SPKR

ATT

RIGHT

SUPPLY

Pin Configuration

DIP20

SCHEMATIC DIAGRAM

- 26 -

1. GMZAN2

- 27 -

2. LVDS

/

- 28 -

3. MICOM

- 29 -

4. POWER

- 30 -

5. CONNECTOR & JACKS

- 31 -

6. AUDIO

- 32 -

7. CONTROL KEY

Apr. 2002

P/NO : 3828TSL072J Printed in Korea
