Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

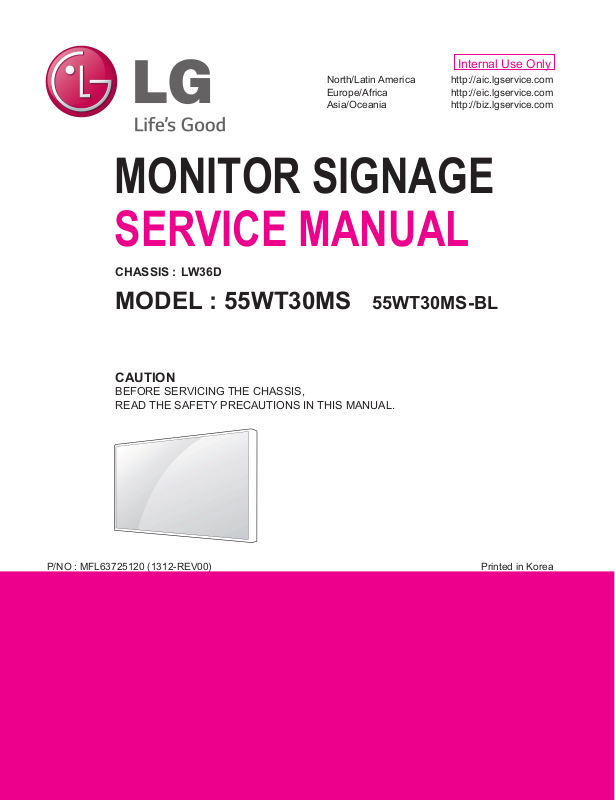

MONITOR SIGNAGE

SERVICE MANUAL

CHASSIS :

MODEL :

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

LW36D

55WT30MS 55WT30MS-BL

MFL63725120 (1312-REV00)

Printed in KoreaP/NO :

CONTENTS

CONTENTS .............................................................................................. 2

PRECAUTION ........................................................................................... 3

SERVICING PRECAUTIONS .................................................................... 4

SPECIFICATION ....................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 10

TROUBLE SHOOTING ........................................................................... 16

BLOCK DIAGRAM .................................................................................. 27

EXPLODED VIEW .................................................................................. 28

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

- 2 -

LGE Internal Use Only

PRECAUTION

AC Volt-meter

WARNING FOR THE SAFETY-RELATED COMPONENT.

• There are some special components used in LCD zmonitor that are important for safety. These parts are

marked on th e schematic diagram and the Exploded View. It is essential that these critical parts

should be replaced with the manufacturer' s specified parts to prevent electric shock, fire or other hazard.

• Do not modify original design without obtaining written permission from manufacturer or you will void the original parts and labor guarantee.

TAKE CARE DURING HANDLING THE LCD MODULE WITH BACKLIGHT UNIT.

• Must mount the module using mounting holes arranged in four corners.

• Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

• Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel.

• Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

• Make certain that treatment person' s body are grounded through wrist band.

WARNING

BE CAREFUL ELECTRIC SHOCK !

• If you want to replace with the new backlight or inverter circuit, must disconnect the AC adapter because high voltage appears at inverter circuit about 650Vrms.

• Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take fire.

Leakage Current Hot Check Circuit

Good Earth Ground such as WATER PIPE,

To Instrument's exposed METALLIC PARTS

When 25A is impressed between Earth and 2nd Ground for 1 second, Resistance must be less than 0.1

*Base on Adjustment standard

0.15µF

1.5 Kohm/10W

CONDUIT etc.

• Do not leave the module in high temperature and in areas of high humidity for a long time.

• The module not be exposed to the direct sunlight.

• Avoid contact with water as it may a short circuit within the module.

• If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.)

CAUTION

Please use only a plastic screwdriver to protect yourself from shock hazard during service operation.

• Replaceable batteries

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.

ADVARSEL Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren.

- 3 -

LGE Internal Use Only

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.

CAUTION: A wrong part substitution or incorrect polarity

installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe.

Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unl ess specified othe rwise in this service manua l, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength)

CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead.

Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this service manual.

CAUTION: Do not connect the test fixture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components com monly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" compon ents. The following techniques should be used to help reduce the incide nce of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alter natively, obtain and wear a comme rcially availab le discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most re pla cem ent ES dev ice s are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

CAUTION: Be sure no power is applied to the chassis or circuit,

and observe all other safety precautions.

8. Mi nimiz e bodil y motio ns wh en h andli ng u npack ag ed replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carp eted floor can ge ner ate st atic electricit y sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 ˚F to 600 ˚F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25cm) brush with a metal handle.

Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature. (500 ˚F to 600 ˚F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 ˚F to 600 ˚F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only un til the solder fl ows onto and around both the component lead and the foil.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

- 4 -

LGE Internal Use Only

IC Remove/Replacement Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush.

(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

CAUTION: Maintain original spacing between the replaced

component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern si de of the circuit board. (Use this techniq ue onl y on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

3. Solder the connections.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous

condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break an d loc ate the nearest component that is dir ect ly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side.

Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the

it does not touch components or sharp edges.

- 5 -

LGE Internal Use Only

SPECIFICATION

1. Application range

This specication is applied to the LW36D chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage : Standard input voltage (AC 100-240 V~, 50/60 Hz) * Standard Voltage of each products is marked by models.

4) Specication and performance of each parts are followed each drawing and specication by part number in accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to the adjustment.

3. Test method

1) Performance: LGE Monitor test method followed.

2) Demanded other specication

- Safety : CE, IEC specication

- EMC : CE, IEC

4. General Specication

4.1. General Specication

No. Item Content Remark

1 RGB Input(1EA) RGB-PC Analog (D-SUB 15Pin)

2 DVI Input(1EA) DVI-D Not support D-TV resolution

3 HDMI Input (1EA) HDMI Rear / support D-TV&PC resolution

4 DP Input(1EA) DP Rear / support D-TV&PC resolution

5 Component Input (1EA) Y/Cb/Cr , Y/Pb/Pr Shared with D-SUB 15Pin

6 Audio Input (1EA) RGB, Component Audio L/R Input

7 Speaker Output (2EA) Compatible with common speaker 10W Output

8 IR Input (1EA) IR Dongle

9 External/Touch USB (2EA) Picture, Music, Movie, SVC / Touch Control(with

PC)

10 RS-232C Input/Output (1EA) Display Control

11 LAN(1EA) RJ45, 100BASE-T Network Connection for SuperSign Elite

12 Local Key INPUT, MENU, ▲,▼, ◄, ►, AUTO/SET, POWER 8 keys

13 Touch IR Spread Touch 10point

Software Update + Picture + Music + Movie & Connect PC

4.2. RGB, DVI-D, HDMI, Display Port (PC) Specication

No. Item Specication Remarks 1 Supported Sync. Type Separate Sync.(RGB), SOG

Analog

2 Operating Frequency

Digital

Analog

3 Resolution

Digital

Horizontal 30 ~ 83 kHz Vertical 50 ~ 75 Hz Horizontal 30 ~ 83 kHz Vertical 50 ~ 60.317 Hz Max 1920×1080 @ 60 Hz Recommend 1920×1080 @ 60 Hz Max 1920×1080 @ 60 Hz Recommend 1920×1080 @ 60 Hz

- 6 -

LGE Internal Use Only

5. Timing

5.1. RGB (PC Mode)

No. Section Pol. Dot Clock

[MHz]

1 H(Pixels) + 25.175 31.469 800 640 16 96 48 640 x 350

V(Lines) - 70.8 449 350 37 2 60

2 H(Pixels) - 28.321 31.468 900 720 18 108 54 720 X 400

V(Lines) + 70.8 449 400 12 2 35

3 H(Pixels) - 25.175 31.469 800 640 16 96 48 640 x 480

V(Lines) - 59.94 525 480 10 2 33

4 H(Pixels) - 31.5 37.5 840 640 16 64 120 640 x 480

V(Lines) - 75 500 480 1 3 16

5 H(Pixels) + 40.0 37.879 1056 800 40 128 88 800 x 600

V(Lines) + 60.317 628 600 1 4 23

6 H(Pixels) + 49.5 46.875 1056 800 16 80 160 800 x 600

V(Lines) + 75.0 625 600 1 3 21

7 H(Pixels) +/- 57.283 49.725 1152 832 32 64 224 832 x 624

V(Lines) +/- 74.55 667 624 1 3 39

8 H(Pixels) - 65.0 48.363 1344 1024 24 136 160 1024 x 768

V(Lines) - 60.0 806 768 3 6 29

9 H(Pixels) - 78.75 60.123 1312 1024 16 96 176 1024 x 768

V(Lines) - 75.029 800 768 1 3 28

10 H(Pixels) + 74.5 44.772 1664 1280 64 128 192 1280 x 720

V(Lines) + 59.855 748 720 3 5 20

11 H(Pixels) - 85.86 47.7 1800 1366 72 144 216 1366 x 768

V(Lines) - 60 795 768 1 3 23

12 H(Pixels) + 108.0 63.981 1688 1280 48 112 248 1280 x 1024

V(Lines) + 60.02 1066 1024 1 3 38

13 H(Pixels) + 135.00 79.98 1688 1280 16 144 248 1280 x 1024

V(Lines) + 75.02 1066 1024 1 3 38

14 H(Pixels) - 146.25 65.290 2240 1680 104 176 280 1680 x 1050

V(Lines) + 59.954 1089 1050 3 6 30

15 H(Pixels) + 148.5 67.5 2200 1920 88 44 88 1920 x 1080

V(Lines) + 60 1125 1080 4 5 46

Frequency

[kHz]/[Hz]

Total

Cycle

(E)

Display

(A)

Front

Porch(B)

Sync.

(D)

Back

Porch(F)

Resolution

- 7 -

LGE Internal Use Only

5.2. HDMI, DVI-D, Display Port (PC Mode )

No. Section Pol. Dot Clock

[MHz]

1 H(Pixels) - 25.175 31.469 800 640 16 96 48 640 x 480

V(Lines) - 59.94 525 480 10 2 33

2 H(Pixels) + 40.0 37.879 1056 800 40 128 88 800 x 600

V(Lines) + 60.317 628 600 1 4 23

3 H(Pixels) - 65.0 48.363 1344 1024 24 136 160 1024 x 768

V(Lines) - 60.0 806 768 3 6 29

4 H(Pixels) + 74.5 44.772 1664 1280 64 128 192 1280 x 720

V(Lines) + 59.855 748 720 3 5 20

5 H(Pixels) - 85.86 47.7 1800 1366 72 144 216 1366 x 768

V(Lines) - 60 795 768 1 3 23

6 H(Pixels) + 108.0 63.981 1688 1280 48 112 248 1280 x 1024

V(Lines) + 60.02 1066 1024 1 3 38

7 H(Pixels) - 146.25 65.290 2240 1680 104 176 280 1680 x 1050

V(Lines) + 59.954 1089 1050 3 6 30

8 H(Pixels) + 148.50 67.5 2200 1920 88 44 88 1920 x 1080

V(Lines) + 60 1125 1080 4 5 46

Frequency

[kHz]/[Hz]

Total

Cycle

(E)

Display

(A)

Front

Porch(B)

Sync.

(D)

Back

Porch(F)

Resolution

5.3. HDMI, Display Port (DTV Mode ), * DVI Input dont support DTV Mode

No.

Resolution H-freq(kHz) V-freq(Hz) Proposed

1 480/60P 31.5 60 EDTV 480p

2 576/50P 31.25 50 EDTV 576p

3 720/50P 37.5 50 HDTV 720p

4 720/60P 45 60 HDTV 720p

5 1080/50i 28.1 50 HDTV 1080i 50Hz For Australian

6 1080/60i 33.75 60 HDTV 1080i 60Hz

7 1080/50P 56.25 50 HDTV 1080P 50Hz

8 1080/60P 67.5 60 HDTV 1080P 60Hz

Specication Remark

- 8 -

LGE Internal Use Only

5.4. Component Input (Y/Pb/Pr)

No.

Resolution H-freq(kHz) V-freq(Hz) Proposed

1 720*480 15.63 59.94 SDTV, DVD 480i

2 720*483 31.47 59.94 EDTV 480p

3 720*576 15.625 50.00 SDTV, DVD 576i

4 720*576 31.25 50.00 EDTV 576p

5 1280*720 45.00 60.00 HDTV 720p

6 1280*720 37.5 50 HDTV 720p

7 1280*720 44.96 59.94 HDTV 720p

8 1920*1080 31.25 50.00 HDTV 1080i 50Hz For Australian

9 1920*1080 33.75 60.00 HDTV 1080i 60Hz ATSC

10 1920*1080 33.72 59.94 HDTV 1080i 59.94Hz

11 1920*1080 56.25 50 HDTV 1080P 50Hz

12 1920*1080 67.5 60 HDTV 1080P 60Hz

Specication Remark

- 9 -

LGE Internal Use Only

ADJUSTMENT INSTRUCTION

1. Application Range

This spec sheet is applied all of the Digital Signage Product with LW36D chassis.

2. Designation

1) The adjustment is according to the order which is designated and which must be followed, according to the plan which can be changed only on agreeing.

2) Power adjustment : Free Voltage.

3) Magnetic Field Condition: Nil.

4) Input signal Unit: Product Specication Standard.

5) Reserve after operation: Above 5 Minutes (Heat Run)

Temperature : at 25 °C ± 5 °C Relative humidity : 65 % ± 10 % Input voltage : 220V, 60Hz

6) Adjustment equipments : Color Analyzer (CA-210 or CA-

110), DDC Adjustment Jig equipment, SVC remote controller.

7) Push The "IN STOP KEY" – For memory initialization.

Case1 : Software version up

1) After downloading S/W by USB , Multi-vision set will reboot automatically

2) Push "In-stop" key

3) Push "Power on" key

4) Function inspection

5) After function inspection, Push "In-stop" key.

Case2 : Function check at the assembly line

1) When TV set is entering on the assembly line, Push "Instop" ke y at rst.

2) Push "Power on" key for turning it on.

→ If you push "Power on" key, TV set will recover channel

information by itself.

3) After function inspection, Push "In-stop" key.

3. Main PCB check process

3.1. ADC Process

3.1.1. ADC

· Enter Service Mode by pushing “ADJ” key,

· Enter Internal ADC mode by pushing “►” key at “ADC Calibration”

WUG{GvXG G G

XUG{GvYG G G

YUG{GvZG G G

ZUG{Gv[G G G

[UG{Gv\G G G

\UGjGnG G G

]UGhGvG G G

^UGhkjGjG G ඖG

_UG~GiG G G

`UGXWGwG~iG G G

XWUG{GwG G G

XXUGlkpkGkVsG G G

XYUGzGiVjG

lGhkq|z{G

kjGjG[_WG vrG

hkjGjGXW_WG vrG

hkjGyniG vrG

G zG yG

G G

hkjGjG

* ADC Calibration Protocol (RS232)

NO Item CMD 1CMD 2Data 0

Enter

Adjust MODE

ADC adjust ADC

Adjust

‘Mode In’

Adjust

A A 0 0 When transfer the

A D 1 0 Automatically download

‘Mode In’,

Carry the command.

(The use of a internal

Data)

Adjust Sequence

▪aa 00 00 [Enter Adjust Mode] ▪xb 00 40 [Component1 Input (480i)] ▪ad 00 10 [Adjust 480i Comp1] ▪xb 00 60 [RGB Input (1024*768)] ▪ad 00 10 [Adjust 1024*768 RGB] ▪aa 00 90 End Adjust mode * Required equipment : Adjustment R/C.

3.2. DDC EDID Download

- Auto Download

· After enter Service Mode by pushing “ADJ” key,

· Enter EDID D/L mode.

· Enter “START” by pushing “OK” key.

WUG{GvXG G G

XUG{GvYG G G

YUG{GvZG G G

ZUG{Gv[G G G

[UG{Gv\G G G

\UGjGnG G G

]UGhGvG G G

^UGhkjGjG G G

_UG~GiG G G

`UGXWGwG~iG G G

XWUG{GwG G G

XYUGzGiVjG

lGhkq|z{G

lkpkGkVs G

G G G

G G

oktpX

oktpY G vrG

yni G vrG

ඖXXUlkpkGkVs

G zG yG

G vrG

→ Caution: Never connect HDMI & D-sub Cable when EDID

downloaded.

* EDID data and Model option download (RS232)

NO Item CMD 1CMD 2Data 0

Enter

download

MODE

EDID data and

Model option

download

Download ‘Mode In’

Download A E 00 10 Automatically download

A A 0 0 When transfer the

‘Mode In’,

Carry the command.

(The use of a internal

Data)

→ Caution: Using ‘power on’ button of the Adjustment R/C , power on Multi-vision.

- 10 -

LGE Internal Use Only

3.2.1. DDC EDID Write (RGB 128Byte )

0x48 0x000x200x200x0A0x450x470x410x4E0x470x490x530x200x470x4C0x00

0xFC 0x000x000x000x200x200x200x200x200x200x0A0x000x0F0x530x1E0x4B

0x32 0x000xFD0x000x000x000x180x000x000x420xAE0xBF0x000x330x8F0x46

0x30 0x1E0x000x510xAA0x560x210x660x1E0x000x000x420xAE0xBF0x000x45

0x2C 0x580x400x2D0x380x710x180x800x3A0x02

0xC00x810x400x310x400x45

0x40 0x610x400x710x800x810x400x810x000xB30x000x080xA10x4A0x470x0F

0x26 0x9A0x4E0x540xA60x5B0x7C0xEA0x780x450x7A0x6C0x030x010x170x1E

0x01 0x010x010x010x9E0x750x6D0x1E0x000xFF0xFF0xFF0xFF0xFF0xFF0x00

0x48 0x000x200x200x0A0x450x470x410x4E0x470x490x530x200x470x4C0x00

0xFC 0x000x000x000x200x200x200x200x200x200x0A0x000x0F0x530x1E0x4B

0x32 0x000xFD0x000x000x000x180x000x000x420xAE0xBF0x000x330x8F0x46

0x30 0x1E0x000x510xAA0x560x210x660x1E0x000x000x420xAE0xBF0x000x45

0x2C 0x580x400x2D0x380x710x180x800x3A0x02

0xC0

0x810x400x310x400x45

0x40 0x610x400x710x800x810x400x810x000xB30x000x080xA10x4A0x470x0F

0x26 0x9A0x4E0x540xA60x5B0x7C0xEA0x780x450x7A0x6C0x030x010x170x1E

0x01 0x010x010x010x9E0x750x6D0x1E0x000xFF0xFF0xFF0xFF0xFF0xFF0x00

0x3C0x000x200x200x0A0x450x470x410x4E0x470x490x530x200x470x4C0x00

0xFC0x000x000x000x200x200x200x200x200x200x0A0x000x0F0x530x1E0x3C

0x380x000xFD0x000x000x000x180x000x000x420xAE0xBF0x000x330x8F0x46

0x300x1E0x000x510xAA0x560x210x660x1E0x000x000x420xAE0xBF0x000x45

0x2C0x580x400x2D0x380x710x180x800x3A0x02

0xC0

0x810x400x310x400x45

0x400x610x400x710x800x810x400x810x000xB30x000x080xA10x4A0x470x0F

0x260x9A0x4E0x540xA60x5B0x7C0xEA0x780x450x7A0x800x030x010x170x1E

0x010x010x010x010x9E0x760x6D0x1E0x000xFF0xFF0xFF0xFF0xFF0xFF0x00

0x3C0x000x200x200x0A0x450x470x410x4E0x470x490x530x200x470x4C0x00

0xFC0x000x000x000x200x200x200x200x200x200x0A0x000x0F0x530x1E0x3C

0x380x000xFD0x000x000x000x180x000x000x420xAE0xBF0x000x330x8F0x46

0x300x1E0x000x510xAA0x560x210x660x1E0x000x000x420xAE0xBF0x000x45

0x2C0x580x400x2D0x380x710x180x800x3A0x02

0xC0

0x810x400x310x400x45

0x400x610x400x710x800x810x400x810x000xB30x000x080xA10x4A0x470x0F

0x260x9A0x4E0x540xA60x5B0x7C0xEA0x780x450x7A0x800x030x010x170x1E

0x010x010x010x010x9E0x760x6D0x1E0x000xFF0xFF0xFF0xFF0xFF0xFF0x00

0x3E0x010x200x200x0A0x450x470x410x4E0x470x490x530x200x470x4C0x00

0xFC0x000x000x000x200x200x200x200x200x200x0A0x000x0F0x530x1E0x3C

0x380x000xFD0x000x000x000x180x000x000x420xAE0xBF0x000x330x8F0x46

0x300x1E0x000x510xAA0x560x210x660x1A0x000x000x420xAE0xBF0x000x45

0x2C0x580x400x2D0x380x710x180x800x3A0x02

0xC0

0x810x400x310x400x45

0x400x610x400x710x800x810x400x810x000xB30x000x080xA10x4A0x470x0F

0x260x9A0x4E0x540xA60x5B0x7C0xEA0x780x450x7A0x800x030x010x170x1E

0x010x010x010x010x9E0x770x6D0x1E0x000xFF0xFF0xFF0xFF0xFF0xFF0x00

0x3E0x010x200x200x0A0x450x470x410x4E0x470x490x530x200x470x4C0x00

0xFC0x000x000x000x200x200x200x200x200x200x0A0x000x0F0x530x1E0x3C

0x380x000xFD0x000x000x000x180x000x000x420xAE0xBF0x000x330x8F0x46

0x300x1E0x000x510xAA0x560x210x660x1A0x000x000x420xAE0xBF0x000x45

0x2C0x580x400x2D0x380x710x180x800x3A0x02

0xC0

0x810x400x310x400x45

0x400x610x400x710x800x810x400x810x000xB30x000x080xA10x4A0x470x0F

0x260x9A0x4E0x540xA60x5B0x7C0xEA0x780x450x7A0x800x030x010x170x1E

0x010x010x010x010x9E0x770x6D0x1E0x000xFF0xFF0xFF0xFF0xFF0xFF0x00

0xA20x000x000x000x000x000x000x1E0x000x000x420xAE0xBF0x200x450x2C

0x100x400x2D0x380x720xD00x800x3A0x020x9E0x000x000x420xAE0xBF0x80

0x250x2C0x100x200x160x1C0x720xD00x800x1D0x010x1E0x000x000x420xAE

0xBF0x000x550x280x6E0x200x1E0xD00x510x720x000x1D0x010x9E0x000x00

0x420xAE0xBF0x000x250x2C0x580x200x160x1C0x710x180x800x1D0x010x1E

0x000x000x420xAE0xBF0x000x450x2C0x580x400x2D0x380x710x180x800x3A

0x020x2D0x800x000x100x000x0C0x030x670x000x000x010x830x070x070x09

0x230x110x020x130x030x120x1F0x140x040x050x900x4A0xF10x1F0x030x02
