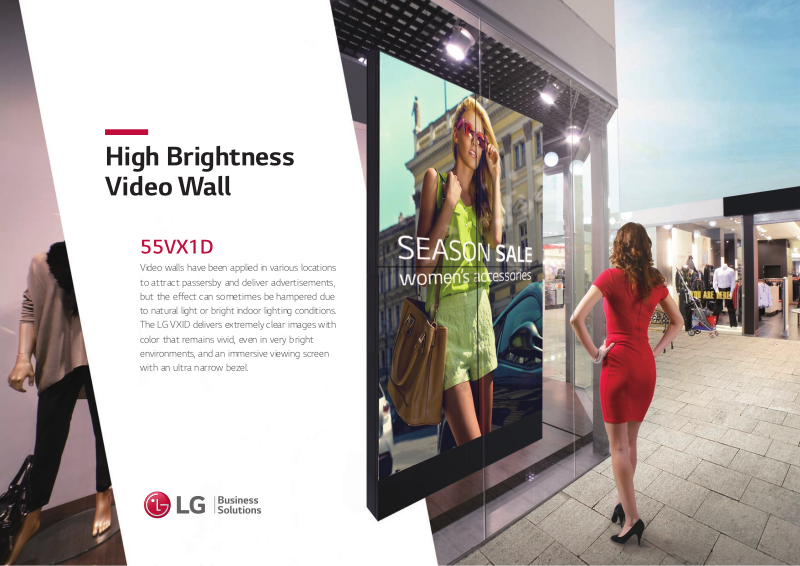

Page 1
High Brightness
Video Wall
55VX1D
Video walls have been applied in various locations
to attract passersby and deliver advertisements,
but the effect can sometimes be hampered due
to natural light or bright indoor lighting conditions.
The LG VXID delivers extremely clear images with
color that remains vivid, even in very bright
environments, and an immersive viewing screen
with an ultra narrow bezel.
Page 2
High Brightness Video Wall
55VX1D
Superior Picture Quality
Clear and Vivid Screen
Other video walls are unable to sufficiently display content due to low
visibility under bright lighting. LG's new high brightness video wall stands out
against such backgrounds, with a high luminance of 1,500 cd/m2. It delivers
advertisements clearly under the brightest lights.
500 cd/m
*For exterior window-facing video walls, the conditions of the installation site should be checked in advance.
2
1500 cd/m
2
Ultra Narrow Bezel
The 3.5mm ultra narrow bezel size creates immersive and seamless viewing
experiences on assembled video wall screens.
Bezel to Bezel 3.5mm
2.25mm (Left/Top)
1.25mm (Right/Bottom)
Page 3
High Brightness Video Wall
55VX1D
Superior Picture Quality
Wide Viewing Angle
Stable image reproduction is critical in video walls,
as it is usually installed in places above eye level and
is seen from various angles. Thanks to the IPS panel
and the high half luminance angle, VX1D delivers the
best picture quality from any viewer position.
Half luminance angle (vertical-wise): 45 degree*
5 m
3 m
45°
1 m
3 m
*The angle from the center of the screen to have 50 % of the initial luminance.
Uniform Brightness
LG’s LED backlight technology guarantees high
uniformity in brightness to ensure a clear picture. On
other screens, certain spots may appear darker than
others, but the new VX1D generates high visibility
and a consistent brightness across the whole screen.
Conventional
(80%)
55VX1D
Consistent White Balance
Through Video Wall Image Creation (VIC) technology,
color and brightness differences are compensated
in circuit part with an algorithm to make the panels
into a same characteristic so that each video wall
maintains the consistent white balance.
Conventional
55VX1D
Page 4
High Brightness Video Wall
55VX1D
Quiet Operation Smart Platform
Fan-Less Noise Reduction
55VX1D is the perfect choice for an in-window environment due to the
removal of the cooling fan. Its operating noise level is under 25 dB, which is
quieter than a recording studio (30 dB).
55VX1D
under 25 dB
Conversation
50 dB
Noise
Library
40 dB
Office
55 dB
Typing
78 dB
Built-in SoC and Synced Playback
The optimized built-in quad-core SoC* in the 55VX1D can play various content
formats and eliminates the need for an external media player. Using its builtin SoC, each display plays its video tile without lag for synchronized content
playback.
CPU
1.2GHz Quad Core CPU
Memory
2.5GB double data 3 (DDR3) 32bit memory
GPU
550MHz video processor with full codec
(WMV, MP4, HEVC, VP9, and H.264 capabilities)
SoC
Internal Memory
A storage of 8GB (4GB is occupied by system)
Page 5
High Brightness Video Wall
55VX1D
Enhanced Usability
Convenient UX for Video Wall
Depending on the content, the color temperature of the screen can be easily
adjusted by users with a remote control. Also, the settings for tile mode and
content playback become more convenient because the dedicated menu is
specialized based on the visual guide.
Color Temperature
1
2
2
3
4
Easy Setting
White Balance
Picture Mode
White Pattern
Backlight
‹ Standard ›
‹2›
‹2›
Easy Management with LAN Daisy Chain
The LAN daisy chain allows users to control and monitor signage, distribute
content, and even update firmware all at once.
LAN
LAN
Controlling
Monitoring
Firmware Update
1
4
LAN
2
LAN
3
Page 6
Dimension
55"
600
684.2
2.25
680.4
1209.6
1213.4
1.25
2.25
400
1.25
38.85
92.8
Connectivity
1 2 3 4 5 6 7 8 9 10 11 12 13
1
HDMI IN
2
DVI-D IN
3
DP IN
4
DP OUT
5
USB IN
6
RGB/COMPONENT/
7
AUDIO IN
8
AUDIO OUT
9
LAN IN
10
LAN OUT
11
IR IN
12
RS-232C IN
13
RS-232C OUT
Specifications
Screen Size
Panel Technology IPS
Aspect Ratio 16:9
Native Resolution 1,920 x 1,080 (FHD)
Brightness 1,500 cd/m
PANEL
CONNECTIVITY
PHYSICAL
SPECIFICATION
SPECIAL FEATURES
ENVIRONMENT
CONDITIONS
POWER
STANDARD
(CERTIFICATION)
MEDIA PLAYER
COMPATIBILITY
SOFTWARE
COMPATIBILITY
ACCESSORIES
Contrast Ratio 1,300:1
Dynamic CR 500,000:1
Viewing Angle (H x V) 178 x 178
Response Time 8 ms (G to G)
Surface Treatment Hard Coating (2H), Anti-glare Treatment of the Front Polarizer (Haze 3% Typ.)
Operation Hours 24 Hours
Orientation
Input
Output DP, Audio Out
External Control
Bezel Color
Bezel Width (B to B)*
Monitor Dimension (W x H x D) 1,213.4 x 684.2 x 92.8 mm
Weight (Head) 23.5 kg
Carton Dimensions (W x H x D) 1,353 x 855 x 263 mm
Packed Weight 36.6 kg
TM
Standard Mount Interface
VESA
Operation Temperature Range
Operation Humidity Range
Power Supply
Power Type Built-In Power
Power
Consumption
Safety
EMC FCC Class "A" / CE / KCC
ErP / Energy Star
OPS Type Compatible
External Media Player Attachable
Content Management Software
Control and Monitoring Software
Basic
Optional
55VX1D
55"
Landscape & Portrait
HDMI, DP, DVI-D, RGB, Audio In, USB 3.0
RS232C In/out, RJ45 In/out, IR Receiver In
2.25 mm (L/T) / 1.25 mm (R/B)
Temperature Sensor, Tile Mode (Up to 15 x 15), Natural Mode @Tile Mode,
ISM Method, DPM Select, Energy Saving, Smart Energy Saving,
File Play with USB, Internal memory (8GB, System 4GB + Available 4GB),
USB Cloning, Contents Scheduling, Fail Over, Media Share
Typ. / Max. 250 W / 280 W
Smart Energy Saving
NA / Yes (Energy Star 7.0)
Remote Controller, Power Cable, DP Cable, Manual, IR Receiver,
RS-232C Cable, LAN Cable, Guide Bracket, Screws
Wall mount (Landscape: WM-L640V, Portrait: WM-P640V)
-
600 x 400 mm
0°C ~ 40°C
10% ~ 80%
100-240V~, 50/60Hz
213 W
UL / cUL / CB / TUV / KC
-
Yes (MP500/MP700)
SuperSign Premium
SuperSign Link
2
Download LG Commercial Display Mobile App
Apple App Store Google Play Store
www.lg.com/b2b
youtube.com/c/LGECommercialDisplay
https://www.facebook.com/LGInformationDisplay/
https://www.linkedin.com/company-beta/16235211/
LG may make changes to specifications and product descriptions without notice.
Copyright © 2017 LG Electronics Inc. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
The names of products and brands mentioned here may be the trademarks of their respective owners.
