LG 55VM5B-A User guide

Download

LG Digital Signage

(MONITOR SIGNAGE)

55VH7B

55VM5B

AAA

(M4 x L6)

(M6 x L14)

*MFL69272303*

P/No: MFL69272303 (1708-REV04)

Source PCB

COF Cable

Source PCB

COF Cable

ENGLISH

РУССКИЙ

ҚАЗАҚША

УКРАЇНСЬКА

O’ZBEKCHA

You can download the owner’s manual for this product at the following websites. (Keyword: VH7B, VM5B)

Руководство пользователя для данного устройства можно скачать на следующих веб-сайтах. (Ключевое с лово: VH7B, VM5B)

Бұл өнімге арналған пайдаланушы нұсқаулығын төмендегі веб-сайттардан жүктеп алуға болады. (Негізгі сөз: VH7B, VM5B)

Завантажити посібник користувача для цього виробу можна на веб-сайтах, поданих нижче. (Ключове с лово: VH7B, VM5B)

Quyidagi veb-saytlarda ushbu mahsulot uchun foydalanuvchi qo’llanmasini yuklab olish- ingiz mumkin. (Kalit so’z: VH7B, VM5B)

TÜRKÇE Bu ürünün kullanıcı kılavuzunu aşağıdaki web

sitelerinden indirebilirsiniz. (Anahtar sözcük: VH7B, VM5B)

www.lg.com

* SuperSign : http://partner.lge.com

3 4

5 6

2-1

DVI OUT

Mac

AUDIO OUT

HDMI OUT

DP OUT

RGB OUT

AUDIO OUT

Mac

DVI OUT

AUDIO OUT

2-2

HDMI OUT

DVI OUT

Network

AC - IN

600

400

(M6 x L14)

(M4 x L6)

OWNER’S MANUAL

LG Digital Signage

(MONITOR SIGNAGE)

Please read this manual carefully before operating your set and retain it

for future reference.

55VH7B 55VM5B

www.lg.com

ENGLISH

TABLE OF CONTENTS

3 SAFETY PRECAUTIONS

3 Precautions In Installing the Product

4 Precautions to the AC Adapter and

Electrical Power

5 Precautions In Moving the Product

5 Precautions In Using the Product

5 Mounting on a Wall

6 LICENSES

7 ASSEMBLY AND PREPARATION

7 Optional Accessories

9 Parts and Buttons

9 To Install in a Portrait Layout

9 Remove brackets before Installation

10 STORAGE METHOD FOR PANEL

PROTECTION

10 - Correct Method 10 - Incorrect Method 11 Installing on a Wall

13 EXTERNAL EQUIPMENT SETUP

13 - IR RECEIVER 13 Tiling Displays

13 - How to Mount the Set 14 - How to Join Sets

17 MAKING CONNECTIONS

17 Connecting to a PC

17 External Device Connection

17 Using the Input List

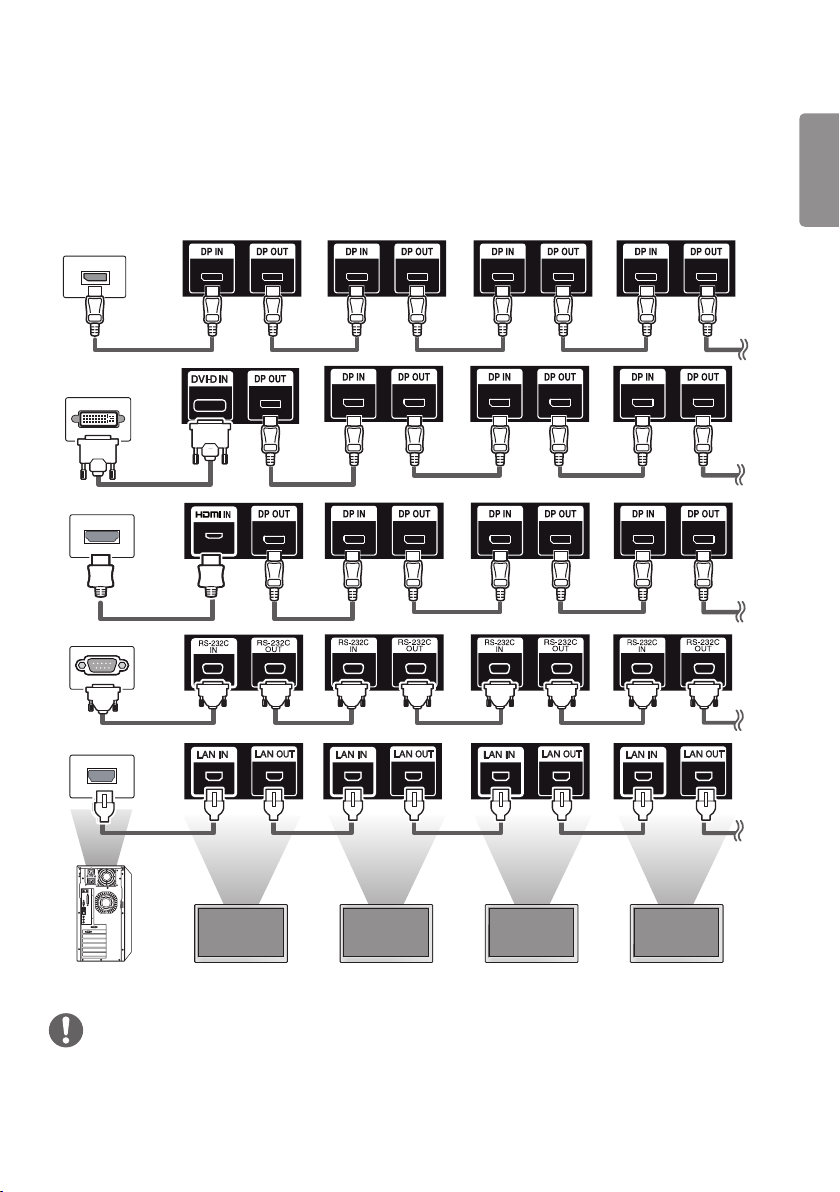

19 Daisy Chain Monitors

20 TROUBLESHOOTING

23 PRODUCT SPECIFICATIONS

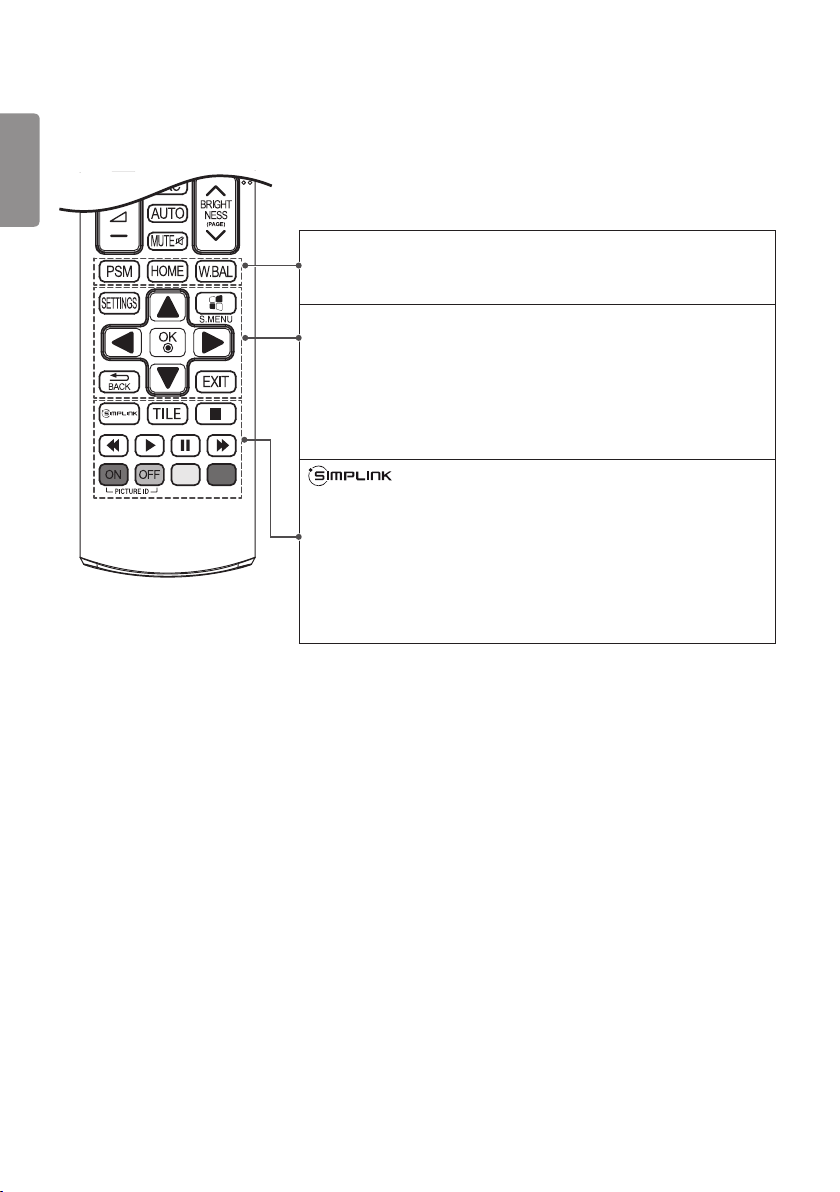

15 REMOTE CONTROL

Safety precautions

Please read these safety precautions carefully before using the product.

WARNING

If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

CAUTION

If you ignore the caution message, you may be slightly injured or the product may be damaged.

WARNING

• Indoor Use Only.

Precautions In Installing the Product

WARNING

• Keep away from heat sources like electrical heaters.

► Electrical shock, fire, malfunction, or deformation may occur.

• Keep the packing anti-moisture material or vinyl packing out of

the reach of children.

► Anti-moisture material is harmful if swallowed. If swallowed by

mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the

reach of children.

• Do not put heavy objects on the product or sit upon it.

► If the product collapses or is dropped, you may be injured. Children

must pay particular attention.

• Do not leave the power or signal cable unattended on the

pathway.

► The passerby can trip or fall, which can cause electrical shock, fire,

product breakdown, or injury.

• Install the product in a neat and dry place.

► Dust or moisture can cause electrical shock, fire or product damage.

• If you can smell smoke or other odors or hear a strange sound

unplug the power cord and contact the service center.

► If you continue to use without taking proper measures, electrical

shock or fire can occur.

• If you dropped the product or the case is broken, turn off the

product and unplug the power cord.

► If you continue to use without taking proper measures, electrical

shock or fire can occur. Contact the service center.

• Do not drop an object on or apply impact to the product. Do not

throw any toys or objects on the product screen.

► It can cause injury to human, problem to product and damage the

display.

• Do not let the product fall or drop when connecting it with an

external device.

► This may cause injury and/or damage to the product.

• When connecting it to a game device, keep a distance of four times

the diagonal measurement of the screen from the device.

► If the product falls because of the short cable, this may cause injury

and/or damage to the product.

• Leaving a fixed image on the screen for a long time may cause

damage to the screen and cause image burn-in. To use the product for a long period of time, use a screen saver on the PC or utilize the residual image prevention function on the product, and when the product is not used, turn off the power. Burn-in and related problems are not covered by the warranty on this product.

• Do NOT install this product on a wall where there is high risk of

exposure to oil fumes or mist.

► This may damage product and cause it to fail.

CAUTION

• Make sure the product ventilation holes are not blocked. Install

the product in a suitably wide place (more than 100 mm from the wall)

► If you install the product too close to the wall, it may be deformed or

fire can break out due to internal heat.

• Do not block the ventilation hole of the product by a tablecloth

or curtain.

► The product can be deformed or fire can break out due to overheating

inside the product.

• Install the product on a flat and stable place that has no risk of

dropping the product.

► If the product is dropped, you may be injured or the product may

be broken.

• Install the product where no EMI occurs.

• Keep the product away from direct sunlight.

► The product can be damaged.

• If you install the product in a place that does not meet the

recommended conditions, this may cause serious damage to the product’s picture quality, life cycle, and appearance. Please check with LG or a qualified installer before installing. This caution applies to a place where there is an abundance of fine dust or oil mist, chemical substances are used, the temperature is very high or low, the humidity is very high, or the product is likely to remain turned on for a long period of time (airport and train station). failure to do so will invalidate the warranty.

• Do not install the product in an area with poor ventilation (e.g.on

a bookshelf, in a closet) or outside and avoid placing on cushions or carpets.

• In addition, do not install it where there are heating objects such

as lighting equipment.

ENGLISH

Precautions to the AC Adapter

ENGLISH

and Electrical Power

WARNING

• If water or any foreign substance goes inside the product (TV,

monitor, power cord, or AC adapter), disconnect the power cord immediately and contact the service center.

► Otherwise, this may cause a fire or electric shock due to damage to

the product.

• Do not touch the power plug or AC adapter with wet hands. If the

pins of the plug are wet or dusty, wipe and dry them before use.

► Otherwise, this may cause a fire or electric shock.

• Make sure to completely insert the power cord into the AC adapter.

► If loosely connected, the poor connection may cause a fire or electric

shock.

• Be sure to use power cords and AC adapters provided or approved

by LG Electronics, Inc.

► The use of non-approved products may cause a fire or electric shock.

• When unplugging the power cord, always pull it by the plug. Do

not bend the power cord with excessive force.

► The power line can be damaged, which may cause electric shock

or fire.

• Be careful not to step or place heavy objects (electronic appliances,

clothing, etc.) on the power cord or AC adapter. Be careful not to damage the power cord or AC adapter with sharp objects.

► Damaged power cords may cause a fire or electric shock.

• Never disassemble, repair or modify the power cord or AC adapter.

► This may cause a fire or electric shock.

• Make sure to connect the power cable to the grounded current.

► You may be electrocuted or injured.

• Use the rated voltage only.

► The product can be damaged, or you may be electrocuted.

• In the presence of thunder and lightning, never touch the power

cord and signal cable because it can be very dangerous.

► It can cause electric shock.

• Do not connect several extension cords, electrical appliances,

or electrical heaters to a single outlet. Use a power strip with a grounding terminal designed for exclusive use with the computer.

► A fire can break out due to overheating.

• Do not touch the power plug with wet hands. Additionally, if

the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off.

► You may be electrocuted due to excess moisture.

• If you don't intend to use the product for a long time, unplug the

power cable from the product.

► Covering dust can cause a fire, or insulation deterioration can cause

electric leakage, electric shock or fire.

• Fix the power cable completely.

► If the power cable is not fixed completely, a fire can break out.

• Do not insert a conduc tor (like a metal chopstick) into one end

of the power cable while the other end is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal.

► You may be electrocuted.

• The appliance coupler is used as the disconnect device.

• Please make sure the device is installed near the wall outlet to

which it is connected and that the outlet is easily accessible.

• As long as this unit is connected to the AC wall outlet, it is not

disconnected from the AC power source even if the unit is turned off.

CAUTION

• Be sure to keep the outlet, AC adapter, and pins of the power plug

clean from dust and etc.

► This may cause a fire.

• Do not unplug the power cord while the product is in use.

► Electrical shock can damage the product.

• Use only the power cord supplied with the unit. If you use another

power cord, make sure that it is certified by the applicable national standards when not provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement.

Precautions In Moving the Product

WARNING

• Make sure to turn off the product.

► You may be electrocuted or the product can be damaged.

• Make sure to remove all cables before moving the product.

► You may be electrocuted or the product can be damaged.

• Make sure the panel faces forward and hold it with both hands to

move. If you drop the product, the damaged product can cause electric shock or fire. Contact an authorized the service center for repair.

• Make sure the product is turned off, unplugged, and all cables

have been removed. It may take 2 or more people to carry larger apparatus. Do not press against or put stress on the front panel of the apparatus.

CAUTION

• Do not shock the product when moving it.

► You may be electrocuted or the product can be damaged.

• Do not dispose the product-packing box. Use it when you move.

Precautions In Using the Product

WARNING

• Do not disassemble, repair or modify the product at your own

discretion.

► Fire or electric shock accident can occur. ► Contact the service center for check, calibration or repair.

• When the display is to be left unattended for an extended period

of time, unplug it from the wall outlet.

• Keep the product away from water.

► Fire or electric shock accident can occur.

• Do not shock or scratch the front and sides of the screen with

metallic objects.

► Otherwise, it may cause damage to the screen.

• Avoid high temperatures and humidity.

CAUTION

• Do not put or store inflammable substances near the product.

► There is a danger of explosion or fire due to careless handling of the

inflammable substances.

• When cleaning the product, unplug the power cord and scrub

gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product. An electric shock may occur. (Do not use chemicals such as benzene, paint thinners, or alcohol)

• Take a rest from time to time to protect your vision.

• Keep the product clean at all times.

• Take a comfortable and natural position when working with a

product to relax the muscles.

• Take a regular break when working with a product for a long time.

• Do not press strongly upon the panel with a hand or sharp object

such as nail, pencil, or pen, or make a scratch on it.

• Keep the proper distance from the product.

► Your vision may be impaired if you look at the product too closely.

• Set the appropriate resolution and clock by referring to the User’s

Guide.

► Your vision can be impaired.

• Use authorized detergent only when cleaning the product. (Do not

use benzene, thinner, or alcohol.)

► Product can be deformed.

• Do not expose to dripping or splashing and do not place objects

filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g. on shelves above the unit).

• Batteries should not be exposed to excessive heat. For example,

keep away from direct sunlight, open fireplace, and electric heaters.

• Do NOT place non-rechargeable batteries in charging device.

• Using headsets (earphones) for a long time or listening loudly can

cause damage to your hearing.

• Spray water onto a soft cloth 2 to 4 times, and use it to clean the

front frame; wipe in one direction only. Too much moisture may cause staining.

• Do not use products using high voltage around the Monitor.

(e.g., a bug zapper)

► Monitor may have malfunction as its electrical shock.

Mounting on a Wall

• Do NOT install this product by yourself as you may injure yourself

or cause damage to product. Please contact service personnel authorised by manufacturer.

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

This DivX Certified® device has passed rigorous testing to ensure it plays DivX® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified® to play DivX® video up to HD 1080p,including premium content.

DivX®, DivX Certified® and associated logos are trademarks of DivX, LLC and are used under license.

Covered by DivX Patents 7,295,673; 7,515,710; RE45,052; and others available at [www.divx.com/patents]

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

ASSEMBLY AND PREPARATION

CAUTION

• Always use genuine components to ensure safety and product performance.

• The product warranty will not cover damage or injury caused by the use of counterfeit components.

NOTE

• The accessories provided with your product may vary depending on the model or region.

• Product specifications or contents in this manual may be changed without prior notice due to upgrade of

product functions.

• SuperSign Software & Manual

- Downloading from the LG Electronics website.

- Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your model.

• Product damage from moving or changing the installation location is not covered by warranty.

• The warranty will not cover any damage caused by using the product in an excessively dusty environment.

Optional Accessories

Without prior notice, optional accessories are subject to change to improve the performance of the product, and new accessories may be added. The illustrations in this manual may differ from the actual product and accessories.

ENGLISH

AN-WF500

Wi-Fi Dongle kit

ENGLISH

KT-OPSA

(Easy Setup Guide)

Card

Screws

Power Cord

Connecting

Cable

OPS kit

NOTE

• Optional accessories are available for some models. If necessary, please purchase them separately.

• Please turn off the power before connecting or removing the Wi-Fi dongle kit.

Parts and Buttons

The image may be different according to the model.

Buttons

yINPUT: Changes the input source. yMENU: Accesses the main menus, or saves

your input and exits the menus.

yUP/DOWN: Adjust the up and down. yL/R: Moves left and right. yAUTO/SET: Displays the current signal and

mode.

y/I: Turns the power on or off.

To Install in a Portrait Layout

When installing in a Portrait Layout, rotate the monitor clockwise 90 degrees (when facing the screen).

Remove brackets before Installation

Make sure that the protection pads are removed from each corner before installing the product.

ENGLISH

NOTE

• Keep the removed protection pads and use

them when moving the product later.

STORAGE METHOD FOR PANEL PROTECTION

ENGLISH

Correct Method

Panel

If the product needs to be set upright, hold both sides of the product, and tilt backward carefully for. Do not let the panel to touch the floor.

Panel

Cushion

Incorrect Method

Panel

If the product is tilted onto the bezel, the bottom of the panel may be damaged.

Panel

When laying down the product, lay a cushion on a flat floor. Put the product on it with the panel of the product facing down.

Panel

If there is not a cushion available, ensure the floor is clean and then lay the product down carefully with the panel facing either upward or downward. At this time, be careful for objects not to fall on the panel.

If the product is tilted onto the edge of the panel, the panel may be damaged.

Installing on a Wall

To install the Monitor on a wall (optional), use the VESA screws provided as accessories to fasten it.

100 mm

Install the monitor at least 200 mm away from the wall and leave about 100 mm of space at each side of the monitor to ensure sufficient ventilation.

Use the wall mount plate and screws that comply with the VESA standard.

100 mm

200 mm

ENGLISH

CAUTION

• Disconnect the power cord before moving or

installing the monitor to avoid risk of electric shock.

• If you install the monitor on a ceiling or slanted

wall, it may fall and result in injury. Use an authorized LG wall mount and contact your local dealer or qualified personnel to assist with the installation.

• Do not over tighten the screws as this may

damage the monitor and void your warranty.

• Use only screws and wall mounting brackets

that meet the VESA standard. Any damage or injuries caused by misuse or use of improper accessories are not covered by the warranty.

• To prevent injury, this apparatus must be

securely attached to the wall in accordance with the installation instructions. (This pertains only to Australia and New Zealand.)

NOTE

• Do not install the product in a place with no

ventilation (e.g., on a bookshelf or in a closet) or on a carpet or cushion. If there is no other option but to mount the product on the wall, make sure that sufficient ventilation is provided before installation.

- Failure to do so may result in a fire due to the increase in the internal temperature.

• The illustration shows a general example of

installation and may look different from the actual product.

ENGLISH

Securing the monitor to a wall (optional)

(Depending on model)

1 Insert and tighten the eyebolts, or brackets and

bolts on the back of the monitor.

- If there are already bolts inserted in the

eyebolts’ position, remove the other bolts first.

2 Mount the wall brackets with the bolts to the

wall. Match the location of the wall bracket and the eyebolts on the rear of the monitor.

3 Connect the eyebolts and wall brackets tightly

with a sturdy cord. Make sure the securing cord is horizontal with the flat surface.

WARNING

• If the monitor is not positioned in a sufficiently stable location, there is a danger that it will fall. Many injuries,

particularly to children, can be avoided by taking simple precautions such as:

» Only using furniture that can safely support the monitor. » Ensuring the monitor is not overhanging the edge of the supporting furniture. » Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both

the furniture and the monitor to a suitable support.

» Not placing cloth or other materials between the monitor and supporting furniture. » Educating children about the dangers of climbing on furniture to reach the monitor or its controls.

CAUTION

• Make sure that children do not climb on or hang from the monitor.

NOTE

• Use a platform or cabinet that is large and strong enough to support the monitor securely.

• Brackets, bolts, and cords are sold separately. You can obtain additional accessories from your local retail

store.

• The illustration shows a general example of installation and may look different from the actual product.

EXTERNAL EQUIPMENT SETUP

IR RECEIVER

This allows a remote control sensor to be placed in a custom location. Then that display can control other displays via an RS-232C cable.

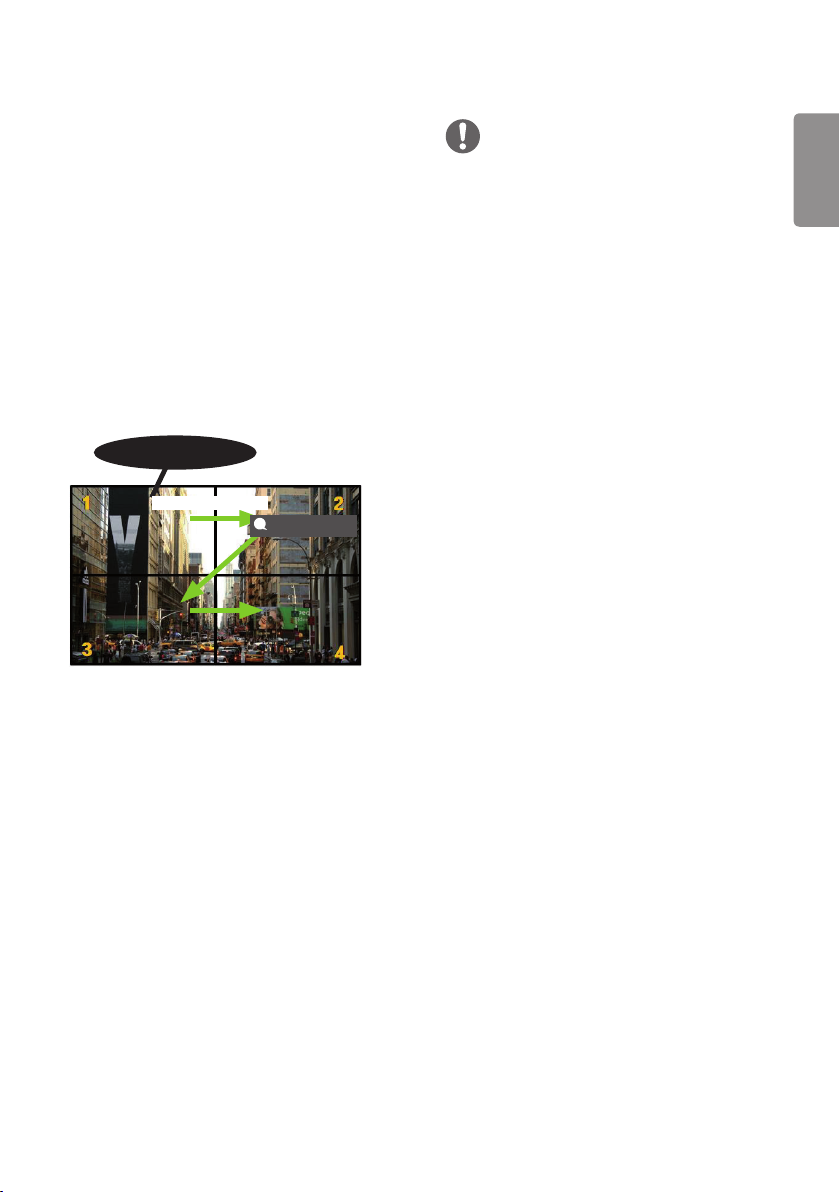

Tiling Displays

How to Mount the Set

Example of 2 x 2 Tiling

Using the screws for attaching the VESA wall mount, mount the set to the wall mount plate or the wall.

Screws for attaching the VESA wall mount (M6)

ENGLISH

400

600

How to Join Sets

ENGLISH

1 Join other sets using screws for fixing the VESA wall mount in the same way as above.

Set 4 joined to the rest of the sets

(2 x 2 tiling)

2 After joining the sets, use the tiling guide to adjust the gap between the sets.

(M4 x L6)

3 Now the 2 x 2 tiling is complete.

You can tile in various combinations, such as 3 x 3.

NOTE

• The load applied to each set should be supported by the wall mount plate or the wall using a VESA wall

mount (600 x 400).

• The load applied to each set should be supported by the wall mount plate using a VESA wall mount. (Each

set must be firmly mounted to the wall mount plate or the wall.)

• You may mount the set without using the tiling guide; this does not affect the performance of the device.

• The screws are enclosed with the other components in the box, including the tiling guides.

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to use the monitor correctly.

To install batteries, open the battery cover, place batteries (1.5 V AAA) matching and terminals to the labels inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse. The illustrations may differ from the actual accessories.

CAUTION

• Do not mix old and new batteries, as this may

damage the remote control.

• Be sure to point the remote control toward the

remote control sensor on the monitor.

(POWER) Turns the monitor on or off.

MONITOR ON Turns the monitor on. MONITOR OFF Turns the monitor off. ENERGY SAVING Adjusts the brightness of the picture to reduce energy

consumption.

INPUT Selects the input mode. 3D Used for viewing 3D videos. (This model does not support this.)

ENGLISH

1/a/A Toggles between numerical and alpha betical.

(Depending upon the model, this feature may not be supported.)

Number and Alphabet buttons

Enters numerical or alphabetical characters depending upon the setting. (Depending upon the model, this feature may not be supported.)

CLEAR Deletes the entered numerical or alphabetical character.

(Depending upon the model, this feature may not be supported.)

Volume Up/Down Button Adjusts the volume. ARC Selects the Aspect Ratio mode. AUTO Automatically adjusts picture position and minimizes image

instability (available for RGB input only). (Depending upon the model, this feature may not be supported.)

MUTE Mutes all sounds. BRIGHTNESS Adjusts the brightness of the display. PAGE function is not

supported in this model. (Depending upon the model, this feature may not be supported.)

ENGLISH

PSM Selects the Picture Mode. HOME Activates the Launcher. W.BAL Enters the White Balance menu.

SETTINGS Accesses the main menus or saves your input and exit menus. S.MENU SuperSign menu key (Depending upon the model, this feature

may not be supported.)

Navigation Buttons Scrolls through menus or options. OK Selects menus or options and confirms your input. BACK Allows you to move back one step in the user interaction function. EXIT Quit all OSD tasks and applications.

Allows you to control various multimedia devices to enjoy

multimedia simply by using the remote control through the SimpLink menu. (Depending upon the model, this

feature may not be supported.)

TILE Selects the TILE Mode. PICTURE ID ON/OFF When the Picture ID number matches the Set ID

number, you can control whichever monitor you want in multi-display format.

USB Menu Control Buttons Controls media playback.

MAKING CONNECTIONS

You can connect various external devices to your monitor. Change the input mode and select the external device you want to connect.

For more information about external device connections, see the user manual provided with each device.

Connecting to a PC

Some of the cables are not provided.

This monitor supports the Plug and Play* feature.

* Plug and Play: a feature that enables a PC to recognize devices attached by the user without device configuration or user intervention when powering up.

External Device Connection

Connect a HD receiver, DVD, or VCR player to the monitor and select an appropriate input mode.

Some of the cables are not provided. For the best picture and sound quality, connecting external devices to your monitor using HDMI cables is recommended.

Using the Input List

y RGB, HDMI, DVI-D, DISPLAYPORT, OPS, COMPONENT, AV

ENGLISH

NOTE

• For the best image quality, using the monitor with HDMI connection is recommended.

• To comply with the standard specifications of the product, use a shielded interface cable with a ferrite core,

such as a DVI-D cable.

• If you turn the monitor on when the set is cold, the screen may flicker. This is normal.

• Sometimes red, green, or blue spots may appear on the screen. This is normal.

• Use a High Speed HDMI®/TM cable.

• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may

not display or a connection error may occur.

• Recommended HDMI Cable Types

- High-Speed HDMI®/TM Cable

- High-Speed HDMI®/TM Cable with Ethernet

• If you cannot hear any sound in HDMI mode please check your PC settings. Some PCs require you to

manually change the default audio output to HDMI.

• If you want to use HDMI-PC mode, you must set your PC/DTV to PC mode.

• You may experience compatibility issues if you use HDMI-PC mode.

• Make sure the power cable is disconnected.

• If you connect a gaming device to the monitor, use the cable provided with the gaming device.

• High Speed HDMI®/TM cables transmit a HD signal up to 1080p and higher.

• Use the standard Macintosh adapter since an incompatible adapter is available in the market. (Different

signaling system)

• Apple computers may require an adapter to connect to this monitor. Call or visit their web site for more

information.

• When connecting to the component port using the shared interface, the port must match up to the input

source. Otherwise, noise may occur.

• When connecting an external audio device, use a device with audio amplifier.

CAUTION

• Connect the signal input cable and tighten it by turning the screws clockwise.

• Do not press the screen with your finger for a prolonged period as this may result in temporary distortion on

the screen.

• Avoid displaying static images on the screen for a long period of time to prevent image burn. Use a

screensaver if possible.

• A wireless communication device near your monitor can affect the image.

Daisy Chain Monitors

To use different products connected to each other, connect one end of the signal input cable (DP Cable) to the DP Out connector of Monitor 1 and connect the other end to the DP In connector of the other product.

ENGLISH

Monitor 1 Monitor 2 Monitor 3 Monitor 4

NOTE

• If the signal cable between the product and your PC is too long, make sure to use the Booster or optical

cable.

• Daisy chaining the video output may be limited depending on the performance of the input device that

supports HDCP.

ENGLISH

TROUBLESHOOTING

No image is displayed.

Problem Action

Is the product power cord connected? y Check if the power cord is correctly plugged into the power

outlet.

Does the “Invalid Format” message appear?

Does the “No Signal” message appear? y The signal cable between PC and product is not connected.

The Unknown Product message appears when the product is connected.

Problem Action

Did you install the driver? y Check if the Plug and Play function is supported by referring to

y The signal from the PC (graphics card) is out of the vertical or

horizontal frequency range of the product. Adjust the frequency range by referring to the Specifications in this manual.

Check the signal cable.

y Press the INPUT menu in the remote Control to check the input

signal.

the graphics card user manual.

The screen image looks abnormal.

Problem Action

Is the screen position wrong? y Check if the graphics card resolution and frequency are

supported by the product. If the frequency is out of range, set to the recommended resolution in the Control Panel Display Setting menu.

The screen is displayed abnormally. y The proper input signal is not connected to the signal port.

Connect the signal cable that matches with the source input signal.

After-image appears on the product.

Problem Action

After-image appears when the product is turned off.

y If you use a fixed image for a long time, the pixels may be

damaged. Use the screen-saver function.

y When a dark image is displayed on the screen after an image

with high contrast (black and white or gray), this may cause image sticking. This is normal for LCD screen products.

The audio function does not work.

Problem Action

No sound? y See if the audio cable is connected properly.

y Adjust the volume of the external device. y See if the sound is set properly.

Sound is too dull. y Select the appropriate equalizing sound of the external device.

Sound is too low. y Adjust the volume of the external device.

Screen color is abnormal.

Problem Action

Screen has poor color resolution (16 colors).

Screen color is unstable or mono-colored.

Do black spots appear on the screen? y Several pixels (red, green, white, or black color) may appear

y Set the number of colors to more than 24 bits (true color). Select

Control Panel - Display - Settings - Color Table menu in Windows.

y Check the connection status of the signal cable. Or, re-insert the

PC graphics card.

on the screen, which can be attributable to the unique characteristics of the LCD panel. This is not a malfunction of the LCD.

ENGLISH

The operation does not work normally.

Problem Action

The power suddenly turned off. y Is the Timer set?

y Check the power control settings. Power interrupted.

NOTE

• The software-related contents may be changed without prior notice due to upgrade of the product

functions.

ENGLISH

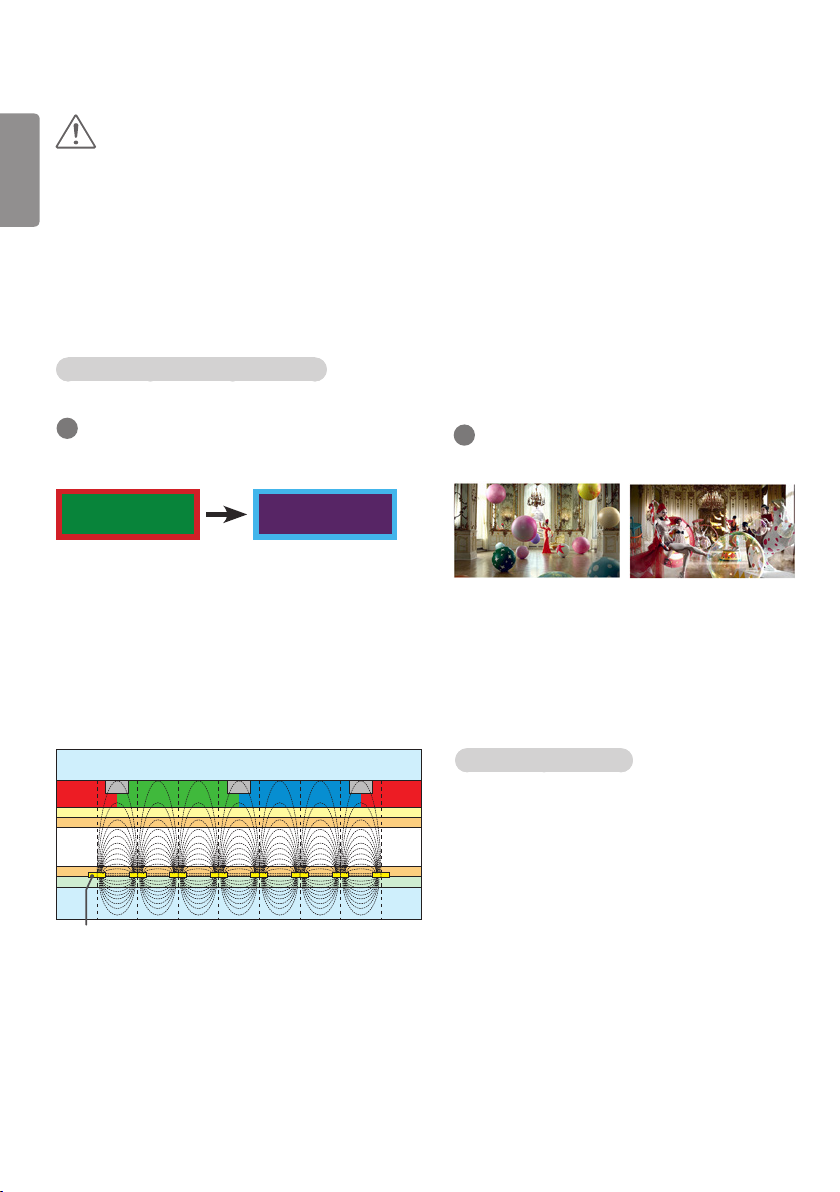

CAUTION

• Image sticking does not occur when using constantly changing images but may occur when using a fixed

image for an extended period of time. Therefore, it is recommended that you use the instructions below to decrease the likelihood of image sticking occurring when using a fixed image. It is recommended that you change the screen at least once every 12 hours at the very minimum; if done more frequently, the prevention of image sticking is more effective.

Recommended operating conditions

Change the background and the character

colors using the same time interval.

ID: UPM 123 PW: ****

Change the image using the same time

interval.

When changing colors, using complementary colors helps to prevent image sticking.

Make sure that the characters or images before changing the image remain in the same location after changing the image.

Glass

BM BM BM

TFT Layers

Glass

ITO or MoTi Pixel Layer

What is image sticking?

CFCFCF

When the LCD panel displays a static image for an extended period of time, it can cause a voltage difference between the electrodes that operate the liquid crystals. When the voltage difference between the electrodes builds up over time, liquid crystals have a tendency to remain aligned in one direction. During this process, a previously displayed image remains visible. This phenomenon is referred to as image sticking.

PRODUCT SPECIFICATIONS

The product specifications below may be changed without prior notice due to upgrade of product functions.

“ ” refers to alternating current (AC), and “ ” refers to direct current (DC).

LCD screen Screen type Thin Film Transistor (TFT)

Liquid Crystal Display (LCD) Screen

Video signal Maximum resolution HDMI, DISPLAYPORT: 3840 x 2160 @ 30 Hz

RGB, DVI-D, OPS: 1920 x 1080 @ 60 Hz

- This may not be supported on some OS or graphic card types.

Recommended resolution

Horizontal frequency RGB : 30 kHz to 83 kHz

Vertical frequency RGB : 50 Hz to 75 Hz

Synchronization Separate Sync, Digital

Input/ Output ports IR IN, RS-232C IN/OUT, HDMI IN, DVI-D IN, DP IN/OUT,

Embedded battery Applied

Environmental Conditions

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

1920 x 1080 @ 60 Hz

- This may not be supported on some OS or graphic card types.

HDMI/OPS/DVI-D/DISPLAYPORT : 30 kHz to 83 kHz

HDMI/OPS/DVI-D/DISPLAYPORT : 56 Hz to 60 Hz 3840 x 2160 24p, 25p, 30p.

USB 2.0 IN, USB3.0 IN, RGB/COMPONENT/AV IN, AUDIO IN/OUT, LAN IN/OUT

0 °C to 40 °C

10 % to 80 %

-20 °C to 60 °C

5 % to 95 %

ENGLISH

LCD screen Pixel Pitch 0.630 mm (H) x 0.630 mm (V)

Power Rated Voltage AC 100-240 V~ 50/60 Hz 2.7 A

Power Consumption On Mode: 220 W (Typ.)

Dimensions (Width x Height x Depth) /

Weight

LCD screen Pixel Pitch 0.630 mm (H) x 0.630 mm (V)

Power Rated Voltage AC 100-240 V~ 50/60 Hz 2.7 A

Dimensions (Width x Height x Depth) /

Weight

1211.4 mm x 682.2 mm x 86.5 mm / 18.6 kg

Power Consumption On Mode: 160 W (Typ.)

1211.4 mm x 682.2 mm x 86.5 mm / 18.6 kg

55VH7B

Sleep Mode : ≤ 0.5 W

Off Mode: ≤ 0.5 W

55VM5B

Sleep Mode : ≤ 0.5 W

Off Mode: ≤ 0.5 W

RGB (PC) Support mode

Resolution

640 x 480 31.469 59.94

640 x 480 37.5 75

720 x 400 31.468 70.8

800 x 600 37.879 60.317

800 x 600 46.875 75

832 x 624 49.725 74.55

1024 x 768 48.363 60

1024 x 768 60.023 75.029

1152 x 864 53.783 59.959

1280 x 720 45 60

1280 x 1024 63.981 60.02

1280 x 1024 79.98 75.02

1360 x 768 47.712 60.015

1600 x 900 60 60

1680 x 1050 65.290 59.954

1920 x 1080 67.5 60

Horizontal frequency (kHz)

Vertical frequency (Hz)

HDMI / DISPLAYPORT (PC) Support Mode

Resolution

640 x 480 31.469 59.94

800 x 600 37.879 60.317

1024 x 768 48.363 60

1152 x 864 53.783 59.959

1280 x 720 45 60

1280 X 800 49.702 59.81

1366 x 768 47.712 59.79

1280 x 1024 63.981 60.02

1600 x 900 60 60

1680 x 1050 65.29 59.954

1920 x 1080 67.5 60

1920 x 1200 74.038 59.95

3840 x 2160 67.5 30

Horizontal frequency (kHz)

Vertical frequency (Hz)

DVI-D (PC) Support Mode

Resolution

640 x 480 31.469 59.94

800 x 600 37.879 60.317

1024 x 768 48.363 60

1152 x 864 53.783 59.959

1280 x 720 45 60

1366 x 768 47.712 59.79

1280 x 1024 63.981 60.02

1600 x 900 60 60

1680 x 1050 65.29 59.954

1920 x 1080 67.5 60

Horizontal frequency (kHz)

Vertical frequency (Hz)

OPS (PC) Support Mode

Resolution

640 x 480 31,469 59,94

800 x 600 37,879 60,317

1024 x 768 48,363 60

1152 x 864 53,783 59,959

1280 x 720 45 60

1280 X 800 49,702 59,81

1366 x 768 47,712 59,79

1280 x 1024 63,981 60,02

1600 x 900 60 60

1680 x 1050 65,29 59,954

1920 x 1080 67,5 60

Horizontal frequency (kHz)

Vertical frequency (Hz)

ENGLISH

HDMI / DISPLAYPORT (DTV) Support Mode

ENGLISH

Resolution

480/60p 31.5 60

576/50p 31.25 50

720/50p 37.5 50

720/60p 45 60

1080/50i 28.1 50

1080/60i 33.75 60

1080/50p 56.25 50

1080/60p 67.432 59.94

1080/60p 67.5 60

2160/24p 54 24

2160/25p 56.25 25

2160/30p 67.5 30

Component Support Mode

Resolution

720 x 576 15.625 50

720 x 576 31.25 50

1280 x 720 45 60

1280 x 720 37.5 50

1280 x 720 44.96 59.94

1920 x 1080 31.25 50

1920 x 1080 56.25 50

1920 x 1080 33.75 60

1920 x 1080 33.72 59.94

1920 x 1080 67.5 60

Horizontal frequency (kHz)

Vertical frequency (Hz)

NOTE

• When the cable is connected to the DVI-D,

HDMI or the Display Port, you can select the PC/DTV mode optionally. It is recommended that you select PC mode when connecting to a PC and select DTV mode when connecting to other devices. The DTV mode refers to all modes excluding the PC mode.

• Vertical frequency: The product display

functions by the screen image changing dozens of times every second like a fluorescent lamp. The vertical frequency or refresh rate is the number of image displays per second. The unit is Hz.

• Horizontal frequency: The horizontal interval

is the time taken to display one horizontal line. When 1 is divided by the horizontal interval, the number of horizontal lines displayed every second can be tabulated as the horizontal frequency. The unit is kHz.

ENERGY STAR® is a set of power-saving guidelines issued by the U.S.Environmental Protection Agency (EPA).

As an ENERGY STAR® Partner LGE U. S. A., Inc. has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. Refer to ENERGYSTAR.gov for more information on the ENERGY STAR® program.

Make sure to read the Safety Precautions before using the product. The model and serial numbers of the SET are located on the back and one side of the SET.

WARNING -This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

MODEL

SERIAL

Temporary noise is normal when powering ON or OFF this device.

USER GUIDE

LG Digital Signage

(MONITOR SIGNAGE)

Please read this manual carefully before operating your set and retain it for future reference.

webOS 2.0

www.lg.com

ENGLISH

TABLE OF CONTENTS

3 USER SETTINGS

3 Main Menu Settings

3 - Picture Settings 8 - Sound Settings 9 - Network Settings 11 - General Settings

13 ENTERTAINMENT

13 Using My Media

13 - Connecting USB/SD Storage Devices 15 - Files Supported by My Media 18 - Viewing Videos 20 - Viewing Photos 20 - Listening to Music 20 - Settings 21 - Moving, Copying, or Deleting a File 21 SuperSign Contents

21 Information

22 Local Contents Scheduler

23 Screen Share

25 SuperSign EZ

27 Multi-Screen

29 PICTURE ID Settings

30 IR CODES

32 TO CONTROL MULTIPLE

PRODUCTS

32 Connecting the Cable

33 Communication Parameter

34 Command Reference List

37 Transmission/Reception Protocol

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit

http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com . This offer is valid for three (3) years from the date on which you purchased the product.

NOTE

• The software-related contents may be changed without prior notice due to upgrade of the product

functions.

• Some features described in the Installation manual may not be supported in certain models.

• SNMP 2.0 is supported.

User Settings

Main Menu Settings

Picture Settings

To Select Picture Mode

Advanced Picture Picture Mode Settings Picture Mode

Select the picture mode that is best suited to the video type.

• Vivid: adjusts the video image for a retail environment by enhancing the contrast, brightness, and

sharpness.

• Standard: adjusts the video image for a normal environment.

• APS: APS (Auto power saving ) mode reduces power consumption by dimming control.

• Cinema: optimizes the video image for watching movies.

• Sports: optimizes the video image for watching sports. Even fast actions such as kicking or throwing a ball

are rendered clearly on the screen.

• Game: optimizes the video image for playing videogames.

• Photo: Optimizes the screen for viewing photos. (This feature is available only with certain models.)

• Expert/Calibration: allows an expert, or anyone interested in high quality pictures, to manually tune the

picture for the best picture quality.

ENGLISH

NOTE

• Depending on the input signal, the available Picture Modes may differ.

• Expert is an option that allows a picture quality expert to fine-tune the picture quality using a specific

image. Thus, it may not be effective for a normal picture.

To fine-tune the picture mode

ENGLISH

Advanced Picture Picture Mode Settings Customize

• Backlight: adjusts the brightness of the screen by controlling the LCD backlight. The closer the value is to

100, the brighter the screen is.

• Contrast: adjusts the difference between the light and dark areas of the picture. The closer the value is to

100, the greater the difference is.

• Brightness: adjusts the overall brightness of the screen. The closer the value is to 100, the brighter the

screen is.

• Sharpness: adjusts the sharpness of the edges of objects. The closer the value is 50, the clearer and the

sharper the edge becomes.

• H Sharpness: adjusts the sharpness of the contrast edges on the screen from a horizontal point of view.

• V Sharpness: adjusts the sharpness of the contrast edges on the screen from a vertical point of view.

• Color: softens or deepens the tints on the screen. The closer the value is 100, the deeper the colors become.

• Tint: adjusts the balance between red and green levels displayed on the screen. The closer the value is to

Red 50, the deeper the color red becomes, and the closer the value is to Green 50, the deeper the color green becomes.

• Color Temperature: adjusts the tints of the screen to evoke feelings of warmth or coolness.

• Advanced Controls/Expert Control: customizes the advanced options.

– Dynamic Contrast: Optimizes the difference between the light and dark parts of the screen according to the

– Super Resolution: Sharpens the blurry or indistinguishable parts of the picture. – Color Gamut: Selects the range of colors to display. – Dynamic Color: Adjusts the tint and saturation of the image for a more vivid and lively display. – Edge Enhancer: Provides much sharper and clearer edges to the picture. – Color Filter: Accurately adjusts color and tint by filtering a specific color area of RGB space. – Preferred Color: Adjusts the skin tint, grass tint, and sky tint to your preference. – Gamma: Adjusts the medium brightness of the image. – White Balance: Adjusts the overall tint of the picture to your preference. In Expert mode, you can fine-tune the

– Color Management System: Experts use the color management system when they adjust the colors by using

brightness of the image.

picture using the Method/Pattern options.

the test pattern. The color management system allows you to make an adjustment by selecting from among 6 different color spaces (Red/Yellow/Blue/Cyan/Magenta/ Green) without affecting other colors. You may not see tints change in a normal picture even after adjustment.

• Picture Options: customizes the picture options.

– Noise Reduction: Removes irregularly generated tiny dots for a clear picture. – MPEG Noise Reduction: Reduces the noise produced while creating digital video signals. – Black Level: Adjusts the black level of the picture to correct the brightness and contrast of the picture. – Real Cinema: Optimizes the video image for a cinematic look. – TruMotion: Reduces image shaking and image sticking that can occur with moving images.

• Reset: resets the picture settings.

NOTE

• You can adjust advanced settings only in the User mode.

• Depending upon the input signal or the selected picture mode, the available options may differ.

To set the aspect ratio,

(Some features may not be supported in certain models.)

Advanced Picture Aspect Ratio

Changes the aspect ratio to view the image in its optimal size.

• 16:9: displays the image with a 16:9 aspect ratio.

• Just Scan: displays the image in the original size without cutting off the edges.

Original is available in HDMI (720p or higher) mode. (On 58:9 models, this option can be selected regardless of the input signal.)

• Set By Program: automatically changes the aspect ratio to 4:3 or 16:9 depending on the input video signal.

• 4:3: displays the image with a 4:3 aspect ratio.

• Zoom: expands the image to fit to the width of the screen. The top and bottom of the image may be

cropped.

• Cinema Zoom: enlarges the image to have a cinemascope ratio of 2.35:1 without distortion.

• 58:9: Displays the screen with a 58:9 aspect ratio.

ENGLISH

CAUTION

• If a fixed image is displayed on the screen for a long period of time, it will be imprinted and become a

permanent disfigurement on the screen. This image burn or burn-in is not covered by the warranty.

• If the aspect ratio is set to 4:3 for a long period of time, image burn may occur on the letterboxed area of the

screen.

• The options may differ depending on the model.

• Depending on the input signal, the available aspect ratio may differ.

• You can select only 4:3 and 16:9 aspect ratios in HDMI-PC/ DVI-D/ DISPLAYPORT-PC/ OPS-PC/ RGB input

mode. (This does not apply to 58:9 models.)

• When you adjust Zoom or Cinema Zoom, the screen may flicker for some input signals.

To use the Energy Saving function

ENGLISH

Advanced Picture Energy Saving

Reduces power consumption by adjusting peak screen brightness.

• Auto: adjusts the brightness of the monitor according to ambient light. (This feature is available only with

certain models.)

• Off: disables the Energy Saving mode.

• Minimum/Medium/Maximum: uses the Energy Saving according to the Energy Saving level specified for

your monitor.

• Screen Off: turns off the screen. You will only hear audio. You can turn on the screen again by pressing any

button on the remote control except the power button.

To use the Smart Energy Saving function

Advanced Picture Smart Energy Saving

According to picture brightness, the brightness of the monitor will be adjusted automatically to save energy.

• Off: disables the Smart Energy Saving function.

• On: enables the Smart Energy Saving function.

To use the SCREEN(RGB-PC) function

(Only applies to certain models.)

Advanced Picture SCREEN(RGB-PC)

Customizes the PC display options in RGB mode.

• Set Automatically: Sets to adjust the screen position, clock, and phase automatically.

• Resolution: Selects a proper resolution.

• Position/Size/Phase: Adjusts the options when the picture is not clear, especially when characters are

• Reset: Restores the options to the default setting.

The displayed image may be unstable for a few seconds while the configuration is in progress.

shaky, after the auto configuration.

To run a Picture Test

(Only applies to certain models.)

Advanced Picture Picture Test

Run a Picture Test to check that picture signals are outputted normally, then solve any problems by selecting the relevant option on the screen. If there are no problems with the Test Picture, check connected external devices.

How to Use HDMI ULTRA HD Deep Colour

[For Ultra HD models only]

Advanced Picture HDMI ULTRA HD Deep Colour

If you connect an HDMI device to one of the Deep Colour adjustable ports, you can select Deep Colour On (6G) or Off (3G) in the HDMI ULTRA HD Deep Colour settings menu.

If a compatibility issue occurs with a graphics card when the Deep Colour option is set to On at 3840 x 2160 @ 60 Hz, set the Deep Colour option to Off.

• HDMI specifications may vary depending on the input port. Check the specifications of each device before

connecting.

• HDMI input port 1,2 are best suited for 4K at 60 Hz (4:4:4, 4:2:2) to enjoy high definition video. However,

video or audio may not be supported depending on the specifications of the external devices. In that case, please connect to another HDMI port.

ENGLISH

Sound Settings

ENGLISH

• Only applies to certain models.

To select a Sound Mode

Advanced Sound Sound Mode

The best sound quality will be selected automatically depending on the video type currently being watched.

• Standard: this sound mode works well for content of all types.

• Cinema: optimizes sound for watching movies.

• News: optimizes sound for watching news.

• Sports: optimizes sound for watching sports.

• Music: optimizes sound for listening to music.

• Game: optimizes sound for playing videogames.

To use the Sound Effects function

Advanced Sound Sound Effects

• Clear Voice ll: enjoy clearer sound with the three-level adjustment.

• Equalizer: manually adjust sound by using the equalizer.

• Balance: adjust the output volume for the left speaker and the right speaker.

• Reset: reset the sound settings.

To select a Volume Increase Rate,

Advanced Sound Volume Increase Amount

you can set the volume range by selecting any of Low/ Medium/ High.

To sync audio with video

Advanced Sound AV Sync Adjustment

• Speaker: adjusts the sync between video and audio coming from external speakers, such as those

connected to the digital audio output port, LG audio equipment, or headphones. From the default value, the closer the value is to -, the faster the sound output becomes, and the closer the value is to +, the slower the sound output becomes.

• Bypass: audio coming from external devices without delay. Audio may be outputted earlier than video due

to the processing time for video that is inputted into the monitor.

To Run a sound test

Advanced Sound Sound Test

Run a sound test to check that sound signals are outputted normally, then solve any problems by selecting the relevant option on the screen. If there are no problems with the Sound Test, check connected external devices.

Network Settings

To Set a Signage Monitor Name

Advanced Network Signage Name

You can set a name for Signage Monitor that will be used on the network by using the on-screen keyboard.

To Set Your Wired Network

Advanced Network Wired Connection (Ethernet)

• Connecting to a wired network: Connect your monitor to a local area network (LAN) via the LAN port,

and configure the network settings. Only wired network connections are supported. After making a physical connection, a small number of networks may require the display network settings to be adjusted. For most networks, the display will automatically make a connection without any adjustments. For detailed information, contact your Internet provider or consult your router manual.

Setting a Wireless Network

Advanced Network Wi-Fi Connection

If you have set the monitor up for a wireless network, you can check and connect to the available wireless Internet networks.

• Add a Hidden Wireless Network: If you input the name of network directly, you can add a wireless network.

• Connect via PBC: Connects easily when the button of a wireless AP supporting PBC is pressed.

• Connect via PIN: Connects easily when the PIN of the wireless AP that you wish to connect to is entered in to

the AP configuration webpage.

• Advanced Settings: If you input the information of network directly, you can enter a wireless network.

If there is no wireless network available, click Advanced Settings. You can add a network.

ENGLISH

Setting up a SoftAP

Advanced Network SoftAP

If you set up a SoftAP, you can connect many devices via a Wi-Fi connection without a wireless router and use wireless Internet.

• To use SIGNAGE, you must have an Internet connection.

• You cannot use the SoftAP feature and the Screen Share feature at the same time.

• On models that support Wi-Fi dongles, the SoftAP menu is enabled only when a Wi-Fi dongle is connected

to the product.

• SoftAP connection information

– SSID: A unique identifier necessary to make a wireless Internet connection – Security key: The security key you enter to connect to the desired wireless network – Number of connected devices: Shows the number of devices currently connected to your Signage device via a

Wi-Fi connection. Up to 10 devices are supported.

Tips for Network Setting

ENGLISH

• Use a standard LAN cable (Cat5 or higher with a RJ45 connector) with this display.

• Many network connection problems during set-up can often be fixed by re-setting the router or modem.

After connecting the display to the home network, quickly power off and/or disconnect the power cable of the home network router or cable modem, then power on and/or connect the power cable again.

• Depending on the Internet Service Provider (ISP), the number of devices that can receive Internet service

may be limited by the applicable terms of service. For details, contact your ISP.

• LG is not responsible for any malfunction of the display and/or the Internet connection feature due

to communication errors/malfunctions associated with your Internet connection, or other connected equipment.

• LG is not responsible for problems with your Internet connection.

• You may experience undesired results if the network connection speed does not meet the requirements of

the content being accessed.

• Some Internet connection operations may not be possible due to certain restrictions set by the Internet

Service Provider (ISP) supplying your Internet connection.

• Any fees charged by an ISP including, without limitation, connection charges are your responsibility.

NOTE

• If you want to access the Internet directly on your display, the Internet connection should always be on.

• If you cannot access the Internet, check the network conditions from a PC on your network.

• When you use Network Setting, check the LAN cable or check if DHCP in the router is turned on.

• If you do not complete the network settings, the network may not function correctly.

CAUTION

• Do not connect a modular telephone cable to the LAN port.

• Since there are various connection methods, please follow the specifications of your telecommunication

carrier or Internet Service Provider.

• Network Setting menu will not be available until the display is connected to a physical network.

Tips for Wireless Network Setting

• Wireless networks can be subject to interference from other devices operating at a frequency of 2.4 GHz

(wireless phones, Bluetooth devices or microwave ovens). There may also be interference from devices with a frequency of 5 GHz, same as other Wi-Fi devices.

• The surrounding wireless environment can cause the wireless network service to run slowly.

• If you do not turn off the entire local home network, network traffic may occur on some devices.

• For an AP connection, an access point device that supports wireless connection is required and the wireless

connection feature must be enabled on the device. Contact your service provider regarding availability of wireless connection on your access point.

• Check the SSID and security settings of the AP for AP connection. Refer to the appropriate documentation

for SSID and security settings of the AP.

• Invalid settings on network devices (wired/wireless line sharer, hub) can cause the monitor to run slowly or

not operate properly. Install the devices correctly according to the appropriate manual and set the network.

• Connection method may differ according to the AP manufacturer.

General Settings

To configure the language

Advanced General Menu Language

Select one of the languages on the menu displayed on the screen.

• Menu Language: sets a language for Signage.

Setting up the keyboard language

Advanced General Keyboard Languages

Select the language you wish to show on the keyboard.

• Keyboard Languages: Sets the keyboard language.

To set the time/date

Advanced General Time & Date

You can check or change the time.

• Set Automatically : You can set Time and Date.

• Daylight Saving Time: You can set Start Time and End Time for Daylight Saving Time. The DST start/end

settings work only when you set them more than one day apart from each other.

• Time zone: You can change the settings for Continent, Country/Territory, and City.

To turn your monitor on or off automatically

Advanced General Timers

You can set the On/Off Timer for your monitor.

• On Timer: you can set the time when your monitor turns on.

• Off Timer: you can set the time when your monitor turns off.

• No Signal Power Off (15Min): When there is no input source, the monitor will automatically turn off after

15 minutes. If you don’t want it to turn off automatically, set No Signal Power Off to Off.

• Auto Power Off: When there is no key input, the monitor will automatically turn off.

ENGLISH

NOTE

• On Time/Off Time can be saved for up to seven schedules; the monitor is turned on or off at the preset time

in the schedule list. If multiple preset times are stored in the schedule list, this function works at the nearest time from the current time.

• Once the on or off time is set, these functions operate daily at the preset time.

• The scheduled power-off function works properly only when the device time is set correctly.

• When the scheduled power-on and power-off times are the same, the power-off time has priority over the

power-on time if the set is turned on, and vice versa if the set is turned off.

To reset your monitor settings

ENGLISH

Advanced General Reset to Initial Settings

Resets all monitor settings.

ENTERTAINMENT

Using My Media

Connecting USB/SD Storage Devices

Connect a USB storage device such as a USB flash memory, SD storage devices or an external hard drive to the display and use multimedia features.

CAUTION

• Do not turn off the monitor or remove a USB storage device when the My Media screen is activated. This

could result in loss of files or damage to the USB storage device.

• Back up files you have saved on a USB storage device frequently, as loss or damage to the files may be not

covered by the warranty.

ENGLISH

Tips for using USB/SD storage devices

ENGLISH

• Only a USB storage device can be recognized.

• A USB device does not work effectively when it is connected via a USB hub.

• A USB storage device using an automatic recognition program may not be recognized.

• A USB storage device using its own driver may not be recognized.

• The recognition speed of a USB storage device may depend on each device.

• Please do not turn off the display or unplug the USB storage device when the connected device is working. If

the USB storage device is suddenly disconnected, the stored files or the device itself may be damaged.

• Please do not connect a USB storage device which was modified to work on a PC. The device may cause

the monitor to malfunction or the content fail to be played. Use only a USB storage device which contains normal music, image or video files.

• A USB storage device formatted as a utility program not supported by Windows may not be recognized.

• A USB storage device (over 0.5 A) which requires an external power supply must be connected to a power

supply separately. If it is not, the device may not be recognized.

• Please connect the USB storage device using the cable provided by the device manufacturer.

• Some USB storage devices may not be supported or operate smoothly.

• File alignment method of USB storage devices is similar to that of Window XP and filenames can recognize

up to 100 English characters.

• Back up important files regularly as data stored on a USB storage device may be damaged. We will not be

responsible for any data loss.

• If the USB HDD does not have an external power source, the USB device may not be detected. To ensure the

device is detected, connect the external power source.

- Please use a power adapter for an external power source. We do not provide a USB cable for an external power source.

• If your USB storage device has multiple partitions, or if you use a USB multi-card reader, you can use up to

four partitions or USB storage devices.

• If a USB storage device is connected to a USB multi-card reader, its volume data may not be detected.

• If the USB storage device does not work properly, disconnect and reconnect it.

• Detection speed differs from device to device.

• If the USB storage device is connected in Standby Mode, the specific hard disk will automatically be loaded

when the display is turned on.

• The recommended capacity is 1 TB or less for a USB external hard drive and 32 GB or less for USB memory

stick.

• Any device with more than the recommended capacity may not work properly.

• If a USB external hard drive with an “Energy Saving” function does not work, try turning the hard drive off

and on again.

• USB storage devices below USB 2.0 are also supported but may not function correctly in the Videos.

• A maximum of 999 sub-folders or files can be recognized under one folder.

• The SDHC type for SD cards is supported. To use an SDXC card, format it to the NTFS file system first.

• The exFAT file system is not supported for SD cards and USB storage devices.

Files Supported by My Media

Supported External Subtitle Format

(Subtitles are not supported in certain models.)

• *.smi, *.srt, *.sub (MicroDVD, SubViewer 1.0/2.0), *.ass, *.ssa, *.txt (TMPlayer), *.psb (PowerDivX), *.dcs (DLP

Cinema)

To use Select Play

Photos/ Videos/ Music/ All

• Play Selection: plays back selected content.

To set FILTER

Photos/ Videos/ Music/ All

• FILTER: import contents from the selected device.

To set Scheduled Playing

Photos/ Videos/ Music/ All

• Scheduled Playing: You can play the selected content at the scheduled time.

ENGLISH

Supported Internal Subtitle Format

ENGLISH

• FULL HD Video

1920 x 1080: XSUB (Supports internal subtitles generated from DivX6)

• [For Ultra HD models only] Ultra HD image: Does not support internal subtitles.

Supported Video Codec

Extension Codec

.asf .wmv

.divx .avi

.mp4 .m4v .mov

.3gp .3g2

.mkv Videos H.264/AVC

.ts .trp .tp .mts .m2ts

.mpg .mpeg

.vob Videos MPEG-1, MPEG-2

Videos VC-1 Simple and Main Profiles

Audio WMA Standard, WMA 10 Professional

Videos DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC, Motion Jpeg, MPEG-4 Part2

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, LPCM, ADPCM, DTS

Videos H.264/AVC, MPEG-4 Part2

Audio AAC, MPEG-1 Layer III (MP3)

Videos H.264/AVC, MPEG-4 Part2

Audio AAC, AMR-NB, AMR-WB

Audio HE-AAC, Dolby Digital

Videos H.264/AVC, MPEG-2

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, PCM

Videos MPEG-1, MPEG-2

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), AAC

Audio Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM

Supported Audio File

File Format Item Information

.MP3 Bit rate 32 Kbps to 320 Kbps

Sample freq. 16 KHz to 48 KHz

Support MPEG1, MPEG2, Layer2, Layer3

channels mono, stereo

.ogg Bit rate 64 Kbps to 500 Kbps

Sample freq. 8 kHz to 48 kHz

Support Vorbis

channels mono, stereo

.wma Bit rate ~1.5 Mbps

Sample freq. 8 kHz to 192 kHz

Support WMA

channels up to 6 ch

Supported Photo File

File Format Format Item

jpeg, jpg, jpe JPEG y Minimum : 64 x 64

y Maximum

- Normal Type: 15360 (W) x 8640 (H)

- Progressive Type: 1920 (W) x 1440 (H)

.png PNG y Minimum : 64 x 64

y Maximum: 5760 ( W) x 5760 (H)

.bmp BMP y Minimum : 64 x 64

y Maximum: 1920 ( W) x 1080 (H)

ENGLISH

Supported Files and Formats for Content (with SuperSign Manager)

File extension *.cts, *.sce

Video file extension

Video format MPEG1, MPEG2, MPEG4,H.264, DivX 3.11, DivX 4, DivX 5, DivX 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid

Audio format MP3, Dolby Digital, LPCM, AAC, HE-AAC, AMR-NB, AMR-WB

Web page Only web pages that support iframe can be displayed.

*.mpg, *.mpeg, *.dat, *.ts, *.trp, *.tp, *.mp4, *.mkv, *.avi, *. avi(motion JPEG), *. mp4(motion JPEG), *.mkv(motion JPEG)

1.03,Xvid 1.10-beta1/2, JPEG

Viewing Videos

ENGLISH

Play video files on display. All of the saved video files are shown in your display.

To play video files on display

Videos

Tips for Playing Video Files

• Some user-created subtitles may not work properly.

• Some special characters in subtitles are not rendered.

• HTML tags are not supported in subtitles.

• Subtitles in languages other than the supported languages are not available.

• The screen may suffer temporary interruptions (image stoppage, faster playback, etc.) when the audio

language is changed.

• A damaged video file may not play correctly, or some player functions may not be usable.

• Video files produced with some encoders may not be played correctly.

• If the video and audio structure of a recorded file is not interleaved, either video or audio is outputted.

• Video files other than the specified types and formats may not play correctly.

• Maximum bit rate of playable video file is 20 Mbps. (Motion JPEG: 10 Mbps only)

• We cannot guarantee smooth playback of files encoded level 4.1 or higher in H.264 / AVC.

• Video files more than 30 GB in file size are not supported.

• A DivX video file and its subtitle file must be located in the same folder.

• A video file and its subtitle file must be located in the same folder. A video file name and its subtitle file

name must be identical in order to display the subtitle properly.

• Playing a video via a USB connection that does not support high-speed connection may not function

correctly.

• Subtitles on a Network Attached Storage (NAS) device may not be supported depending on the

manufacturer and model.

• Streaming of files encoded by GMC (Global Motion Compensation) or Qpel (Quarterpel Motion Estimation)

is not supported.

• [For Ultra HD models only] Ultra HD image: 3840 X 2160

Some HEVC-encoded Ultra HD videos other than the content officially provided by LG Electronics may not be played. Some codecs can be used after upgrading software.

Extension Codec

.mkv .mp4 .ts

• Playable file sizes may vary depending on the encoding condition.

• The AAC Main profile is not supported.

• Video files created by some encoders may not play.

Video H.264/AVC, HEVC

Audio Dolby Digital, Dolby Digital Plus, AAC, HE-AAC

NOTE

• Option values changed in Videos do not affect the Photos and Music. and in turn are not affected by option

values changed in Photos or Music.

• Option values changed in Photos and Music do affect each other.

• When restarting a video file after stopping it, you can play from the point at which it was stopped.

• Only 10,000 sync blocks can be supported within the subtitle file.

• When playing a video, you can adjust the picture size by pressing the ARC button.

• Korean subtitle is supported only when the OSD menu is in Korean.

• The code page options may be disabled depending on the language of the subtitle files.

• Select the appropriate code page for the subtitle files.

ENGLISH

Viewing Photos

ENGLISH

The displays on the screen may differ from the model.

Viewing image files

Photos

Listening to Music

Viewing music files

Music

NOTE

• Files with unsupported extensions are not

displayed.

• If a file is invalid, a broken image and the

message "unrecognizable file" are displayed.

• Damaged music files are displayed as 00:00 and

will not be played.

• A music file downloaded from a paid service

with copyright protection will not play, and incorrect information may be displayed during playback.

• You can use , , , , buttons on

the remote control also in this mode.

• You can use the button to select the next

track and the button to select the previous track.

• If you press the button within 5 seconds

after playing the song, you will return to the previous song; if you press the same button after 5 seconds, you will return to the start of the song.

Settings

You must register your product to play a DRMprotected DivX video.

In order to register/deregister purchased or

rented DivX® VOD contents

Videos DivX® VOD

In order to play purchased or rented DivX® VOD contents, you should register your device with 10 digit DivX registration code from your device at www.divx.com/vod.

• Registration: view the registration code of your

display.

• Deregistration: cancel the registration.

NOTE

• While you are checking the registration code,

some buttons may not work.

• If you use the DivX registration code of another

device, you cannot play rented or purchased DivX files. Use only the DivX registration code assigned to your product.

• Video or audio files that are not converted using

the standard DivX codec may be corrupted or not play.

• The DivX® VOD code allows you to activate up to

6 devices under one account.

• After deregistration, you must register your

device again to see DivX® VOD contents.

Moving, Copying, or Deleting a File

You can move, copy, or delete files.

To move, copy, or delete files

Devices

• You can move or copy files or folders from

internal to external memory.

• You can move or copy files or folders from

external to internal memory.

• You can delete files or folders from internal or

external memory.

NOTE

• Those files bigger than internal remaining

memory aren`t allowed to be copied or moved to the internal memory.

SuperSign Contents

Plays stored files using the Export option in SuperSign Editor.

To play back the stored files using the Export

option

Only contents distributed by SuperSign Manager are displayed and selectable. If there is a USB/SD storage device connected, the image on the USB/ SD device is outputted additionally.

NOTE

• If there is an AutoPlay folder in the USB storage

device and its files are in supported formats, they will be played back automatically when the USB storage device is connected to the monitor.

ENGLISH

Information

To check the basic information of Signage

Monitor

You can see the basic information on Signage Monitor.

You can also switch to Smart Energy Saving Mode or configure Fail Over settings. (You can switch to Smart Energy Saving Mode only when Energy Saving Mode is set to Off.)

Local Contents Scheduler

ENGLISH

• Only applies to certain models.

You can view or delete any scheduled playing

created in MY MEDIA.

To access Local Contents Scheduler

Go to Local Contents Scheduler to check the list of the scheduled playing created in MY MEDIA.

NOTE

• By default, Local Contents Scheduler lists the

scheduled playing created by the currently connected devices.

To add new a scheduled playing

• NEW SCHEDULED PLAYING: In the pop-up

window, click the GO TO MY MEDIA button and enter MY MEDIA to create new a scheduled playing.

To configure FILTER

• FILTER: You can view the list by sorting it based

on the type of device used for creating the scheduled playing.

To view detailed information about a

scheduled playing

Select Scheduled Playing

• From list of the scheduled playing, select a

specific scheduled playing and view its detailed information.

To play scheduled playing instantly

Select Scheduled Playing

Play Button

• In the detailed information page of the

scheduled playing, click the Play button above the thumbnail to play the scheduled playing instantly.

NOTE

• To play a scheduled playing instantly rather than

at the scheduled time, the scheduled playing must be in a playable status. In other words, the device used for creating the scheduled playing must be connected, and all the content included in the scheduled playing must be valid.

Editing a Scheduled Playing

Select the desired scheduled

Playing

To delete a scheduled playing

• DELETE: You can select a scheduled playing and

delete it.

• EDIT: Click the EDIT button at the top left of the

Details page of your desired scheduled Playing, and then you will be directed to My Media where you can edit information about the scheduled Playing including its content and other details.

NOTE

• You can edit the scheduled Playing only when

the device used for creating the scheduled playback is connected.

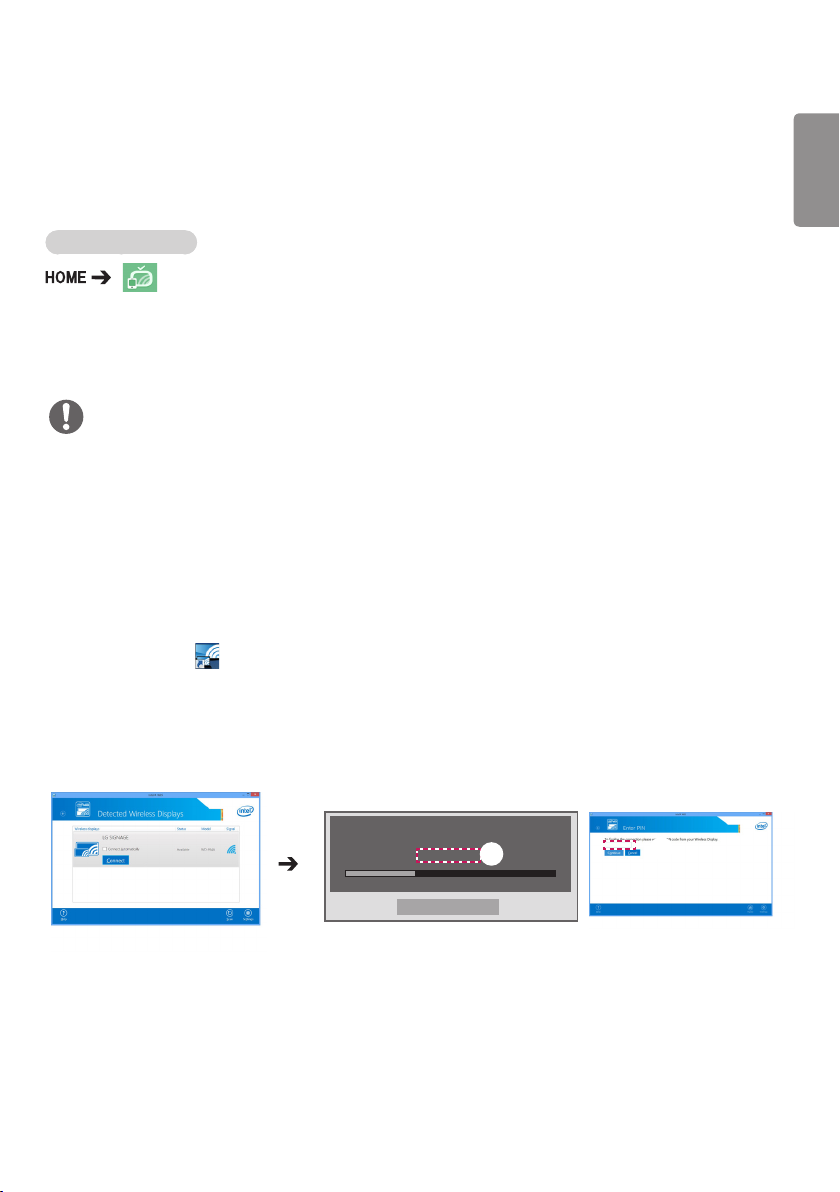

Screen Share

• Only applies to certain models.

Allows the screen of a user's device such as a mobile or PC Windows to be shared with a display using a wireless connection such as WiDi or Miracast.

To use Screen Share

When the Screen Share app is running, the wireless connection such as WiDi or Miracast is automatically set to ON and the display is automatically changed to the connection ready mode. In this state, you can use Screen Share by turning on the wireless connection on the device and selecting the display to establish a connection between the device and the display.

NOTE

Configuring WiDi (Wireless Display)

WiDi, which is short for Wireless Display, is a system that wirelessly transmits video and sound files from a laptop that supports Intel WiDi to the display. This is available only in certain input modes (Composite/Component/RGB/HDMI/DP/OPS/DVI-D). Other than these modes, LG Signage cannot be detected by your PC.

1 Connect your laptop to an AP. (This feature can be used without an AP, but it is recommended that you

connect to it for optimal performance.) Run the Intel WiDi ( ) program on your laptop.

2 Any nearby LG Signages supporting WiDi are detected. In the list of detected displays, select a Signage to

connect to and then, click Connect. Enter the 8-digit PIN number (a) displayed on the Signage in the input eld of your laptop (b) and click Continue.

ENGLISH

[Intel Notebook] Connection Request

Enter the PIN below.

PIN********

Time remaining: 92 seconds

Cancel

********

Signage screen Laptop screen

3 The laptop screen appears in the Signage screen within 10 seconds. The wireless environment may aect

the screen from displaying. If the connection is poor, the Intel WiDi connection may be lost.

• LG Signage does not need to be registered.

• For more information on how to use Intel WiDi, visit

• This works normally with WiDi 3.5 or later versions.

http://intel.com/go/widi

To select connection mode

ENGLISH

Listen Mode

You can select between On and Off. If it is set to On, even when the app is not running, you can turn on a wireless connection feature such as WiDi or Miracast and select a display to connect the device and display. Then, Screen Share will be available for use.

NOTE

• If the Screen Share app has been deleted from

the HOME screen, Screen Share cannot be used even if Listen Mode is set to On.

To set the transfer speed

Transfer Speed

Transfer speed can be set to Fast or Normal. When Screen Share is running, this option adjusts the

time difference of the image output between the device and the display. Adjusting the transfer speed can repair any interruptions in displays when mirroring is used.

SuperSign EZ

• Only applies to certain models.

SuperSign EZ enables you to produce and play Signage content. This feature enables you to edit Signage content based on templates and set its playback time. In addition, this feature also enables you to access

SuperSign EZ from your mobile device or PC and create/edit content.

CAUTION

• A maximum of 5,000 images stored on a USB drive/SD card can be displayed from your PC or mobile device.

Images more than 5,000 cannot be displayed from your PC or mobile device. In addition, we recommend you store no more than 1,000 images for use on your USB drive or SD card. If you use more than 1,000 images, the images may not be displayed smoothly depending on your environment.

• Supported devices (Some features may not be available depending on the type or version of your device or

browser.)

–Android 4.4 or later (Chromium v.38.0) –iOS 8 or later (Safari v.600.1.4 or later) –PC: Chromium v.38.0

• Content playback time: The minimum playback time is set to 5 seconds. If you set the content playback time

to less than 5 seconds, it is automatically reset to 5 seconds.

• If you play UHD videos on a UHD model, videos with a high bitrate may not play properly due to the

limitations of the processing speed.

Features

• Add/edit (images and texts)/delete Signage content/change playback times and names.

• Add images and videos on mobile devices.

• You can use images added from USB/SD storage devices and internal memory.

How to Use

• Monitors: Run the app in the Launcher bar and add/edit/delete the desired content.

• Mobile devices: Run the app in the Launcher bar and get access using the QR code or URL provided.

ENGLISH

NOTE

• If you use a mobile device, you need to go through an authorization process using a PIN code. The default

PIN code is '0000'.

• When using a PC, use the full screen (F11) feature in 1920 x 1080 (Full HD) resolution to view the same

screen as the monitor.

Photo Supported File

File Format Format Item

jpeg, jpg, jpe JPEG y Minimum : 64 x 64

.png PNG y Minimum : 64 x 64

y Maximum

- Normal Type: 15360 (W) x 8640 (H)

- Progressive Type: 1920 (W) x 1440 (H)

y Maximum: 5760 ( W) x 5760 (H)

Supported Video Codec

ENGLISH

Extension Codec

.asf .wmv

.divx .avi

.mp4 .m4v .mov

.3gp .3g2

.mkv Videos H.264/AVC

.ts .trp .tp .mts .m2ts

.mpg .mpeg

.vob Videos MPEG-1, MPEG-2

Videos VC-1 Simple and Main Profiles

Audio WMA Standard, WMA 10 Professional

Videos DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC, Motion Jpeg, MPEG-4 Part2

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, LPCM, ADPCM, DTS

Videos H.264/AVC, MPEG-4 Part2

Audio AAC, MPEG-1 Layer III (MP3)

Videos H.264/AVC, MPEG-4 Part2

Audio AAC, AMR-NB, AMR-WB

Audio HE-AAC, Dolby Digital

Videos H.264/AVC, MPEG-2

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, PCM

Videos MPEG-1, MPEG-2

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), AAC

Audio Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM

Tips for Playing Video Files

• A damaged movie file may not play correctly, or some player features may not be usable.

• Movie files produced with some encoders may not be played correctly.

• Movie files other than the specified types and formats may not work properly.

• Max bit rate of playable movie file is 20 Mbps. (For Motion JPEG: 10 Mbps only)

• We do not guarantee smooth playback of profiles encoded level 4.1 or higher in H.264 / AVC.

• Video files larger than 50 MB may not upload properly from mobile devices. We recommend that you play

such files via USB/SD storage devices.

• [For Ultra HD models only] Ultra HD image: 3840 X 2160

Some HEVC-encoded Ultra HD videos other than the content officially provided by LG Electronics may not be played.

Extension Codec

.mkv .mp4 .ts

Video H.264/AVC, HEVC

Audio Dolby Digital, Dolby Digital Plus, AAC, HE-AAC

• Some codecs can be used after upgrading software.

Multi-Screen

yOnly applies to certain models.

This feature allows you to view multiple external inputs and videos on a single screen.

Accessing Multi-Screen

Enter Multi-screen to select the screen layout.

NOTE

yWhen entering Multi-screen, the screen

may flicker and the picture may appear abnormal on certain devices while the optimal resolution is selected automatically. If this happens, please restart the monitor.

Selecting Screen Layout

When you enter Multi-screen without having set any screen layout, the screen layout selection menu appears.

If the screen layout menu does not appear, you can press the up arrow key on the remote control to go to the screen layout menu bar and select it to show the screen layout menu.

Changing Screen Input

Press the button on the top right of each split

screen to select the desired input.

NOTE

yInputs which have already been selected for

other split screens cannot be selected again. To select them, press the RESET button to reset the inputs for all screens first.

Playing Videos on Split Screens

Press the button on the upper right of each

split screen, select Video File, and then select

a storage device to view the list of videos in the

selected device. Next, select your desired video

from the list to play it.

ENGLISH

Closing Screen Layout Menu

From the screen layout menu, press the up arrow key on the remote control to go to the screen layout menu bar and select it or press the BACK key to close the screen layout menu.

Tips for playing Multi-Screen files

ENGLISH

yThe number of split screens available may

differ by model.

ySome tips on playing video files are

included.

ySubtitles are not supported. yAudio is only supported for the main screen. yThe following video types are supported in

split mode.

Codec MPEG-2, H.264, HEVC, VP9

Scan Type Progressive

Frame rate 24, 25, 30

Resolution PIP mode supports 3840 x 2160

(main screen only), 1920 x 1080 and 1280 x 720. PBP mode supports 1920 x 1080 and 1280 x 720.

yCertain videos may not play normally

depending on codec, resolution, frame rate

and scan type.

NOTE

yCertain models may not support the

following codec combinations when playing

3840 x 2160 resolution videos on the main

screen in PIP mode.

Main (3840 x 2160) Sub

HEVC HEVC

H.264 HEVC

VP9 VP9

yWhen the 4-section screen has been

selected in PBP mode, up to two H.264 and

MPEG2 codecs can be used on condition

that the HEVC codec is in use on one screen

only.

Resolutions supported on external input split

screens

The following resolutions are supported when external input is selected.

Mode Resolution Frame

PIP Main 2160p 30

1080p, 720p 50, 60

Sub 1080p, 720p

PBP 1080p, 720p

960 x 600, 1280 x 600, 1920 x 300 (Only applies to the models that support the resolutions)

Rate

yThe resolutions supported on the split

screens may differ depending on the resolutions supported by the model being used.

AUDIO

(RGB/DVI)

REMOTE

CONTROL IN

RS-232C OUT

RS-232C IN

RS-232C OUT

RS-232C IN

RS-232C OUT

RS-232C IN

PICTURE ID Settings

• Only applies to certain models.

PICTURE ID is used to change the settings of a specific set (display) using a single IR receiver for multi-vision. Communication is possible between a monitor with an IR receiver and other monitors using RS-232C cables. Each monitor is identified by a Set ID. If you assign the PICTURE ID using the remote control, only displays with matching PICTURE ID and Set ID can be controlled remotely.

1 Assign the Set ID to the installed monitors as

shown below.

IR & Light Sensor

RS-232C cables

PICTURE ID

NOTE

• If PICTURE ID is set to 2, only the upper

right monitor, which has a Set ID of 2, can be controlled by IR signals.

• If you press the green OFF button for PICTURE

ID, the PICTURE IDs for all monitors are turned off. If you then press any button on the remote control, all monitors can be controlled by IR signals regardless of Set ID.

ENGLISH

2 Press the red ON button on the remote control

to assign the PICTURE ID.

3 Assign the Set ID to the selection of your

choice.

• A set with a different Set ID from the PICTURE

ID cannot be controlled by IR signals.

ENGLISH

IR CODES

All models do not support the HDMI/USB function. Some key codes may not be supported depending on the model.

Code (Hex) Function Remarks

C4 MONITOR ON Remote control button

C5 MONITOR OFF Remote control button

95 Energy Saving Remote control button

0B INPUT Remote control button

10 Number Key 0

11 Number Key 1 Remote control button

12 Number Key 2

13 Number Key 3

14 Number Key 4 Remote control button

15 Number Key 5 Remote control button

16 Number Key 6

17 Number Key 7 Remote control button

18 Number Key 8 Remote control button

19 Number Key 9 Remote control button

DC 3D Remote control button

32 1/a/A Remote control button

2F CLEAR Remote control button

7E Remote control button

79 ARC(MARK) (Aspect Ratio) Remote control button

4D PSM (Picture Mode)

09 MUTE Remote control button

43 SETTINGS (Menu) Remote control button

99 Auto Config. Remote control button

40 Up Remote control button

41 Down Remote control button

06 Right Remote control button

07 Left Remote control button

44 OK Remote control button

28 BACK Remote control button

POWER

Volume

BRIGHTNESS (Page Up)

BRIGHTNESS (Page Down)

Remote control button

Code (Hex) Function Remarks

7B TILE Remote control button

EXIT Remote control button

PICTURE ID ON (RED) Remote control button

PICTURE ID OFF (GREEN) Remote control button

YELLOW Remote control Button

BLUE Remote control button

Remote control button

W.BAL Remote control button

S.MENU Remote control button

HOME Remote control button

* Some key codes are not supported depending on the model.

ENGLISH

TO CONTROL MULTIPLE PRODUCTS

• Only applies to certain models.

Use this method to connect several products to a single PC. You can control several products at a time by connecting them to a single PC.

In the Option menu, the Set ID must be between 1 and 1000 without being duplicated.

Connecting the Cable

• The image may be different according to the model.

Connect the RS-232C cable as shown in the picture.

The RS-232C protocol is used for communication between the PC and product. You can turn the product on or off, select an input source or adjust the OSD menu from your PC.

Monitor 1 Monitor 2 Monitor 3Monitor 4

RS-232C

OUT

RS-232C

OUT

RS-232C

OUT

RS-232C

OUT

RS-232C

Monitor 1 Monitor 2 Monitor 3 Monitor 4

RS-232C Cable (not included)

4P Cable (not included)

RS-232C Gender

RS-232C Cable (not included)

Communication Parameter

Baud Rate: 9600 BPS

Data Length: 8 bit

Parity Bit: None

Stop Bit: 1 bit

Flow Control: None

Communication Code: ASCII code

NOTE

• When using three-wire connections (non-

standard), an IR daisy chain cannot be used.

• Be sure to only use the provided gender to

connect properly.

• When monitors connected via Daisy Chain (that

controls multiple monitors) are turned off and on successively, some monitors may not turn on. In this case, you can turn those monitors on by pressing the MONITOR ON button, not the POWER button.

(POWER)

MONITOR ON

ENGLISH

Command Reference List

ENGLISH

COMMAND

1 2

01 Power k a 00 to 01

02 Select input x b See Select Input

03 Aspect Ratio k c See Aspect Ratio

04 Energy Saving j q See Energy Saving

05 Picture Mode d x See Picture Mode

06 Contrast k g 00 to 64

07 Brightness k h 00 to 64

08 Sharpness k k 00 to 32

09 Color k i 00 to 64

10 Tint k j 00 to 64

11 Color temperature x u 00 to 64

12 Balance k t 00 to 64

13 Sound Mode d y See Sound Mode

14 Mute k e 00 to 01

15 Volume Control k f 00 to 64

16 Time 1 (year/month/day) f a See Time 1

17 Time 2 (hour/minute/second) f x S ee Time 2

18 Off time schedule f c 00 to 01

19 On Time Schedule f b 00 to 01

20 Off Timer (Repeat/Time) f e See Off Timer

21 On Timer (Repeat/Time) f d See On Timer

22 On Timer Input f u Refer to On Timer Input.

23 No Signal Power Off (15Min) f g 00 to 01

24 Auto Power Off (4 Hours) m n 00 to 01

25 Language f i See Language

26 Reset f k 00 to 02

27 Current Temperature d n FF

28 Key m c See Key

29 Time Elapsed d l FF

30 Product Serial Number f y FF

31 Software Version f z FF

32 White Balance Red Gain j m 00 to FE

33 White Balance Green Gain j n 00 to FE

34 White Balance Blue Gain j o 00 to FE

35 White Balance Red Offset s x 00 to 7F

36 White Balance Green Offset s y 00 to 7F

37 White Balance Blue Offset s z 00 to 7F

38 Backlight m g 00 to 64

39 Screen off k d 00 to 01

DATA

(Hexadecimal)

COMMAND

1 2

40 Tile Mode d d 00 to FF

41 Check Tile Mode d z FF

42 Tile ID d i See Tile ID

43 Natural Mode d j 00 to 01

44 DPM Select f j 00 to 07

45 Remote Control/Local Key Lock k m 00 to 01

46 Power On Delay f h 00 to FA

47 Fail Over Select m i 00 to 02

48 Fail Over Input Select m j See Fail Over Input Select

49 IR Operation t p 00 to 02

50 Local Key Operation t o 00 to 02

51 Check the status s v See Check the status

52 Check Screen t z 00 to 01

53 Speakers d v 00 to 01

54 Daylight Saving Time s d Refer to ‘Daylight Saving Time’

55 PM Mode s n, 0c 00 to 03

56 ISM Method j p See ISM Method

57 Network Settings s n, 80(81)(82) See Network Settings

58 Auto-adjustment j u 01

59 H Position f q 00 to 64

60 V Position f r 00 to 64

61 H Size f s 00 to 64

62 Power On Status t r 00 to 02

63 Wake On LAN f w 00 to 01

64 Intelligent Auto t i 00 to 01

65 OSD Portrait Mode t h 00 to 02

66 Reset to Initial Settings t n 00 to 01

67 Time Sync s n, 16 00 to 01

68 Contents Sync t g 00 to 01

69 Pivot Mode t a 00 to 01

70 Studio Mode s n, 83 00 to 01

71 LAN Daisy Chain s n, 84 00 to 01

72 Content Rotation s n, 85 00 to 02

73 DPM Wake up Control s n, 0b 00 to 01

74 Scan Inversion s n, 87 00 to 01

75 Beacon s n, 88 00 to 01

76 Aspect Ratio(Rotation) s n, 89 00 to 01

DATA

(Hexadecimal)

ENGLISH

77 Easy Brightness Control Mode s m 00 to 01

78 Easy Brightness Control Schedule s s See Easy Brightness Control Schedule

79 MultiScreen Mode & Input x c See MultiScreen Mode & Input

80 Aspect Ratio(MultiScreen) x d See Aspect Ratio(MultiScreen)

81 Screen Mute(MultiScreen) x e See Screen Mute(MultiScreen)

82 Screen Off Always s n, 0d 00 to 01

83 Screen Video Freeze k x 00 to 01

84 Wireless Wake On LAN s n, 90 00 to 01

85 OSD Display k l 00 to 01

COMMAND

1 2

DATA

(Hexadecimal)

* Note: Commands may not work when the external input is not used. Some commands may not be supported

depending on the model.

Transmission/Reception Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

* [Command1]: identifies between the factory setting and the user setting modes.

* [Command2]: controls monitor sets.

* [Set ID]: Used for selecting a set you want to control. A unique Set ID can be assigned to each set ranging

from 1 to 1000(01H~3E8H) under Settings in the OSD menu. Selecting '00H' for Set ID allows the simultaneous control of all connected monitors. (The maximum value may differ depending on the model.)

* [Data]: Transmits command data.

Data count may increase depending on the command.

* [Cr]: Carriage Return. Corresponds to '0x0D' in ASCII code.

* [ ]: White Space. Corresponds to '0x20' in ASCII code.

Acknowledgement

[Command2][ ][Set ID][ ][OK/NG][Data][x]

* The Product transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is FF, it indicates the present status data. If the data is in data write mode, it returns the data of the PC computer.

* If a command is sent with Set ID '00' (=0x00), the data is reflected to all monitor sets and each monitor set does not send an acknowledgement (ACK).

* If the data value 'FF' is sent in control mode via RS-232C, the current setting value of a function can be checked (only for some functions).

*Some commands are not supported depending on the model.

ENGLISH

01. Power (Command: k a)

ENGLISH

Controls the power on/off of the set.

Transmission

[k][a][ ][Set ID][ ][Data][Cr]

Data 00: O ff 01: On

Acknowledgement

[a][ ][Set ID][ ][OK/NG][Data][x]

*The acknowledgement signal is returned properly only when the monitor is fully powered on. * There may be a delay between the transmission and acknowledgement signals.

02. Select Input (Command: x b)

Selects an input signal.

Transmission

[x][b][ ][Set ID][ ][Data][Cr]

Data 20: AV 40: COMPONENT 60: RGB 70: DVI-D (PC) 80: DVI-D (DTV ) 90: HDMI1 (DTV ) A0: HDMI1 (PC) 91: HDMI2/OPS (DTV ) A1: HDMI2/OPS (PC) 92: OPS/HDMI3/DVI-D (DTV ) A2: OPS/HDMI3/DVI-D (PC) 95: OPS/DVI-D (DTV ) A5: OPS/DVI-D (PC) 98: OPS (DTV ) A8: OPS (PC) C0: DISPLAYPORT (DTV) D0: DISPLAYPORT (PC) E0: SuperSign webOS Player E1: Others E2: Multi Screen

Acknowledgement

[b][ ][Set ID][ ][OK/NG][Data][x]

* Some input signals may not be supported depending on the model. ** If it is not distributed from SuperSign W, webOS Player

returns NG.

03. Aspect Ratio (Command: k c)

Adjusts the aspect ratio.

Transmission

[k][c][ ][Set ID][ ][Data][Cr]

Data 01: 4:3 02: 16:9 04: Zoom 06: Set by Program 09: Just Scan (720p or higher) 10 to 1F: Cinema Zoom 1 to 16 21: 58:9 30: Vertical Zoom 31: All-Direction Zoom * Available data types differ depending on the input signal. For more information, see the aspect ratio section of the owner’s manual. * The aspect ratio may differ depending on the model’s input configuration.

Acknowledgement

[c][ ][Set ID][ ][OK/NG][Data][x]

04. Energy Saving (Command: j q)

Sets the Energy Saving.

Transmission

[j][q][ ][Set ID][ ][Data][Cr]

Data 00: O ff 01: Minimum 02: Medium 03: Maximum 04: Automatic 05: Screen off

Acknowledgement

[q][ ][Set ID][ ][OK/NG][Data][x]

** This may not be supported depending on the model.

05. Picture Mode (Command: d x)

Selects a picture mode.

Transmission

[d][x][ ][Set ID][ ][Data][Cr]

Data 00: Vivid 01: Standard 02: Cinema 03: Sports 04: Game 05: Expert 1 06: Expert 2 08: APS 09: Photos 10: Touch 11: Calibration

Acknowledgement

[x][ ][Set ID][ ][OK/NG][Data][x]

* Depending on the model, some picture modes may not be supported.

06. Contrast (Command: k g)

Adjusts the screen contrast.

Transmission

[k][g][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Contrast 0 to 100

Acknowledgement

[g][ ][Set ID][ ][OK/NG][Data][x]

07. Brightness (Command: k h)

Adjusts the screen brightness.

Transmission

[k][h][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Brightness 0 to 100

Acknowledgement

[h][ ][Set ID][ ][OK/NG][Data][x]

08. Sharpness (Command: k k)

Adjusts the screen sharpness.

Transmission

[k][k][ ][Set ID][ ][Data][Cr]

Data 00 to 32: Sharpness 0 to 50

Acknowledgement

[k][ ][Set ID][ ][OK/NG][Data][x]

10. Tint (Command: k j)

Adjusts the screen tint.

Transmission

[k][j][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Tint red 50 to green 50

Acknowledgement

[j][ ][Set ID][ ][OK/NG][Data][x]

11. Color Temperature (Command: x u)

Adjusts the screen color temperature.

Transmission

[x][u][ ][Set ID][ ][Data][Cr]

Data 00 to 64: warm 50 to cool 50

Acknowledgement

[u][ ][Set ID][ ][OK/NG][Data][x]

ENGLISH

09. Color (Command: k i)

Adjusts the screen color.

Transmission

[k][i][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Color 0 to 100

Acknowledgement

[i][ ][Set ID][ ][OK/NG][Data][x]

12. Balance (Command: k t)

Adjusts the sound balance.

Transmission

[k][t][ ][Set ID][ ][Data][Cr]

Data 00 to 64: left 50 to right 50

Acknowledgement

[t][ ][Set ID][ ][OK/NG][Data][x]

13. Sound mode (Command: d y)

Selects a sound mode.

ENGLISH

Transmission

[d][y][ ][Set ID][ ][Data][Cr]

Data 01: Standard 02: Music 03: Cinema 04: Sports

05. Game 07: News

Acknowledgement

[y][ ][Set ID][ ][OK/NG][Data][x]

14. Mute (Command: k e)

Mutes/unmutes the sound.

Transmission

[k][e][ ][Set ID][ ][Data][Cr]

Data 00: Mute 01: Unmute

Acknowledgement

[e][ ][Set ID][ ][OK/NG][Data][x]

15. Volume Control (Command: k f)

Adjusts the playback volume.

Transmission

[k][f][ ][S et ID][ ][Data][Cr]

Data 00 to 64: Volume 0 to 100

Acknowledgement

[f][ ][S et ID][ ][OK/NG][Data][x]

2. Setting the Auto time Data1 00: Auto 01: Manual * To view the set value of the Auto time, enter “fa [Set ID] 00 ff”.

Acknowledgement

1. [a][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

2. [a][ ][Set ID][ ][OK/NG][0][0][Data1][x]

17. Time 2 (hour/minute/second) (Command: f x)

Adjusts the Time 2 (hour/minute/second) value.

Transmission

[f][x][ ][S et ID][ ][Data1][ ][Data2][ ][Data3][Cr]

Data1 00 to 17: 00 to 23 hours Data2 00 to 3B: 00 to 59 minutes Data3 00 to 3B: 00 to 59 seconds * Enter “fx [Set ID] ff” to view the Time 2 (hour/minute/second) settings. ** This function is only available when Time 1 (year/month/ day) is set.

Acknowledgement

[x][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

18. Off Time Schedule (Command: f c)

Enables/disables the Off Time Schedule.

Transmission

[f][c][ ][S et ID][ ][Data][Cr]

Data 00: O ff 01: On

Acknowledgement

[c][ ][Set ID][ ][OK/NG][Data][x]

16. Time 1 (year/month/day) (Command: f a)

Sets the values of the Time 1 (year/month/day), or sets the Auto time.

Transmission

1. [f][a][ ][S et ID][ ][Data1][ ][Data2][ ][Data3][Cr]

2. [f][a][ ][S et ID][ ][0][0][ ][Data1][ ][Cr]

1. Setting the Time 1 (year/month/day) Data1 04~1B: year 2014 to 2037 Data2 01 to 0C: January to December Data3 01 to 1F: 1st to 31st * Enter "fa [Set ID] ff" to view the Time 1 (year/month/day) settings.

19. On Time Schedule (Command: f b)

Enables/disables the On Time schedule.

Transmission

[f][b][ ][Set ID][ ][Data][Cr]

Data 00: O ff 01: On

Acknowledgement

[b][ ][Set ID][ ][OK/NG][Data][x]

20. Off Timer (Repeat/Time) (Command: f e)

Configures Off Timer (Repeat/Time) settings.

Transmission

[f][e][ ][S et ID][ ][Data1][ ][Data2][ ][Data3][Cr]

Data1

1. f1h to f7h (reading data) F1: reads the 1st Off Timer data F2: reads the 2nd Off Timer data F3: reads the 3rd Off Timer data F4: reads the 4th Off Timer data F5: reads the 5th Off Timer data F6: reads the 6th Off Timer data F7: reads the 7th Off Timer data

2. e1h-e7h (delete one index), e0h (delete all indexes) E0: erases all Off Timer settings E1: erases the 1st Off Timer setting E2: erases the 2nd Off Timer setting E3: erases the 3rd Off Timer setting E4: erases the 4th Off Timer setting E5: erases the 5th Off Timer setting E6: erases the 6th Off Timer setting E7: erases the 7th Off Timer setting

3. 01h to 0Ch (sets the day of the week for the Off Timer) 01: Once

02. Daily 03: Mon - Fri 04: Mon - Sat 05: Sat - Sun

06. Every Sunday

07. Every Monday

08. Every Tuesday

09. Every Wednesday 0A. Every Thursday 0B. Every Friday 0C. Every Saturday Data2 00 to 17: 00 to 23 hours Data3 00 to 3B: 00 to 59 minutes * To read or delete the Off Time Schedule list, [Data2][Data3] must be set to FFH. Example 1: fe 01 f1 ff ff – reads the first index data in Off Timer. Example 2: fe 01 e1 ff ff - deletes the first index data from Off Timer. Example 3: fe 01 04 02 03 - sets Off Timer to 02:03 from Monday to Saturday. * This function is only available when Time 1 (year/month/day) and Time 2 (hour/minute/second) are set.

Acknowledgement

[e][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

21. On timer (Repeat/Time) (Command: f d)

Configures On Timer (Repeat/Time) settings.

Transmission

[f][d][ ][S et ID][ ][Data1][ ][Data2][ ][Data3][Cr]

Data1

1. f1h to f7h (reading data) F1: reads the 1st On Timer data F2: reads the 2nd On Timer data F3: reads the 3rd On Timer data F4: reads the 4th On Timer data F5: reads the 5th On Timer data F6: reads the 6th On Timer data F7: reads the 7th On Timer data

2. e1h-e7h (delete one index), e0h (delete all indexes) E0: erases all On Timer settings E1: erases the 1st On Timer setting E2: erases the 2nd On Timer setting E3: erases the 3rd On Timer setting E4: erases the 4th On Timer setting E5: erases the 5th On Timer setting E6: erases the 6th On Timer setting E7: erases the 7th On Timer setting

3. 01h to 0Ch (sets the day of the week for the On Timer) 01: Once

02. Daily 03: Mon - Fri 04: Mon - Sat 05: Sat - Sun

06. Every Sunday

07. Every Monday

08. Every Tuesday

09. Every Wednesday 0A. Every Thursday 0B. Every Friday 0C. Every Saturday Data2 00 to 17: 00 to 23 hours Data3 00 to 3B: 00 to 59 minutes * To read or delete an On Time schedule list, [Data2][Data3] must be set to FF. Example 1: fd 01 f1 ff ff - reads the first index data from On Timer. Example 2: fd 01 e1 ff ff - deletes the first index data from On Timer. Example 3: fd 01 04 02 03 - sets On Timer to 02:03 from Monday to Saturday. * This function is only available when Time 1 (year/month/day) and Time 2 (hour/minute/second) are set.

Acknowledgement

[d][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

ENGLISH

22. On Timer Input (Command: f u)

Select an external input for the current On Time setting and add

ENGLISH

a new schedule.

Transmission

[f][u][ ][S et ID][ ][Data1][Cr]

[f][u][ ][S et ID][ ][Data1][][Data2][Cr]

Data (Add schedule) 40: COMPONENT 60: RGB 70: DVI-D A0: HDMI1 A1: HDMI2/OPS A2: OPS/HDMI3/DVI-D A5: OPS/DVI-D A8: OPS D0: DISPLAYPORT

Data1 (Read schedule)

1. f1h to f7h (Read data) F1: Select the 1st schedule input F2: Select the 2nd schedule input F3: Select the 3rd schedule input F4: Select the 4th schedule input F5: Select the 5th schedule input F6: Select the 6th schedule input F7: Select the 7th schedule input

Data2 (Read schedule) FF

* To read the schedule input, enter FF for [Data2]. If no schedule is available for [Data1] when attempting to read the schedule data, the text ‘NG’ will be displayed and the operation will fail. (Example 1: fu 01 90 - Move each schedule input down one row and save the 1st schedule input in HDMI mode.) (Example 2: fu 01 f1 ff - Read the 1st schedule input.) * This function is supported only when 1 (Year/Month/Day), 2 (Hour/Minute/Second), On Time (Repeat Mode/Time) are set. ** It may not be supported depending on the model.

Acknowledgement

[u][ ][Set ID][ ][OK/NG][Data][x]

[u][ ][Set ID][ ][OK/NG][Data1][Data2][x]

23. No Signal Power Off (15Min) (Command: f g)

Sets the monitor to enter Automatic Standby mode if there is no signal for 15 minutes.

Transmission

[f][g][ ][S et ID][ ][Data][Cr]

Data 00: O ff 01: On

Acknowledgement

[g][ ][Set ID][ ][OK/NG][Data][x]

24. Auto Power Off (4 Hours) (Command: m n)

Sets the monitor to enter Auto Power Off after 4 hours.

Transmission

[m][n][ ][Set ID][ ][Data][Cr]

Data 00: O ff 01: 4 hours

Acknowledgement

[n][ ][Set ID][ ][OK/NG][Data][x]

25. Language (Command: f i)

Sets the OSD language.

Transmission

[f][i][ ][S et ID][ ][Data][Cr]

Data 00: Czech 01: Danish 02: German 03: English 04: Spanish (Europe) 05: Greek 06: French 07: Italian 08: Dutch 09: Norwegian 0A: Portuguese 0B: Portuguese (Brazil) 0C: Russian 0D: Finnish 0E: Swedish 0F: Korean 10: Chinese (Mandarin) 11: Japanese 12: Chinese (Cantonese)

Acknowledgement

[i][ ][Set ID][ ][OK/NG][Data][x]

26. Reset (Command: f k)

Performs the reset function. Screen Reset can only be performed in RGB input mode.

Transmission

[f][k][ ][S et ID][ ][Data][Cr]

Data 00: Picture Reset 01: Screen reset 02: Initial Settings

Acknowledgement

[k][ ][Set ID][ ][OK/NG][Data][x]

** It may not be supported depending on the model.

27. Current temperature (Command: d n)

Checks the inside temperature.

Transmission

[d][n][ ][Set ID][ ][Data][Cr]

Data FF: Check the status

Acknowledgement

[n][ ][Set ID][ ][OK/NG][Data][x]

* Temperature is displayed as a hexadecimal value.

29. Time Elapsed (Command: d l)

Checks the elapsed time.

Transmission

[d][l][ ][Set ID][ ][Data][Cr]

Data FF: Read status

Acknowledgement

[l][ ][Set ID][ ][OK/NG][Data][x]

* The data received is shown as a hexadecimal value.

30. Product serial number (Command: f y)

Checks the serial number of the product.

Transmission

[f][y][ ][S et ID][ ][Data][Cr]

Data FF: Check product serial number

Acknowledgement

[y][ ][Set ID][ ][OK/NG][Data][x]

* Data is in ASCII code.

ENGLISH

28. Key (Command: m c)

Sends a key code for the IR remote control.

Transmission

[m][c][ ][Set ID][ ][Data][Cr]

Data IR_KEY_CODE

Acknowledgement

[c][ ][Set ID][ ][OK/NG][Data][x]

For key codes, see IR Codes. * Some key codes are not supported depending on the model.

31. Software Version (Command: f z)

Checks the software version of the product.

Transmission

[f][z][ ][S et ID][ ][Data][Cr]

Data FF: Check soft ware version

Acknowledgement

[z][ ][Set ID][ ][OK/NG][Data][x]

32. White balance red gain (Command: j m)

Adjusts the white balance red gain value.

ENGLISH

Tran smission

[j][m][ ][Set ID][ ][Data][Cr]

Data 00 to FE: Red Gain 0 to 254 FF: checks the red gain value

Acknowledgement

[m][ ][Set ID][ ][OK/NG][Data][x]

33. White Balance Green Gain (Command: j n)

Adjusts the white balance green gain value.

Transmission

[j][n][ ][Set ID][ ][Data][Cr]

Data 00 to FE: Green Gain 0 to 254 FF: checks the green gain value

Acknowledgement

[n][ ][Set ID][ ][OK/NG][Data][x]

35. White Balance Red Offset (Command: s x)

Adjusts the white balance red offset value.

Transmission

[s][x][ ][Set ID][ ][Data][Cr]

Data 00 to 7F: Red Offset 0 to 127 FF: checks the red offset value

Acknowledgement

[x][ ][Set ID][ ][OK/NG][Data][x]

36. White Balance Green Offset (Command: s y)

Adjusts the white balance green offset value.

Transmission

[s][y][ ][Set ID][ ][Data][Cr]

Data 00 to 7F: Green Offset 0 to 127 FF: checks the green offset value

Acknowledgement

[y][ ][Set ID][ ][OK/NG][Data][x]

34. White Balance Blue Gain (Command: j o)

Adjusts the white balance blue gain value.

Transmission

[j][o][ ][Set ID][ ][Data][Cr]

Data 00 to FE: Blue Gain 0 to 254 FF: checks the blue gain value

Acknowledgement

[o][ ][Set ID][ ][OK/NG][Data][x]

37. White Balance Blue Offset (Command: s z)

Adjusts the white balance blue offset value.

Transmission

[s][z][ ][Set ID][ ][Data][Cr]

Data 00 to 7F: Blue Offset 0 to 127 FF: checks the blue offset value

Acknowledgement

[z][ ][Set ID][ ][OK/NG][Data][x]

38. Backlight (Command: m g)

Adjusts the backlight brightness.

Transmission

[m][g][ ][Set ID][ ][Data][Cr]

Data 00 to 64: Backlight 0 to 100

Acknowledgement

[g][][set ID][][OK/NG][Data][x]

39. Screen Off (Command: k d)

Turns the screen on or off.

Transmission

[k][d][ ][Set ID][ ][Data][Cr]

Data 00: turns the screen on 01: turns the screen off

Acknowledgement

[d][ ][Set ID][ ][OK/NG][Data][x]

41. Check Tile Mode (Command: d z)

Checks the tile mode.

Transmission [d][z][ ][Set ID][ ][Data][Cr]

Data FF: checks the tile mode

Acknowledgement [z][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

Data1 00: tile mode off 01: tile mode on Data2 00 to 0F: tile column Data3 00 to 0F: tile row

42. Tile ID (Command: d i)

Sets the tile ID value of the product.

Transmission [d][i][ ][Set ID][ ][Data][Cr]

Data 01 to E1: Tile ID 1 to 225** FF: checks the tile ID ** The data value cannot exceed the value of row x column.

Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]

* When a data value that exceeds the value of row x column is entered (except 0xFF), ACK becomes NG.

ENGLISH

40. Tile Mode (Command: d d)

Sets the Tile Mode and sets values for the tile rows and

columns.

Transmission

[d][d][ ][Set ID][ ][Data][Cr]

Data 00 to FF: The first byte - tile column The second byte - tile row * 00, 01, 10, and 11 mean that the tile mode is off ** The maximum value may differ depending on the model.

Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x]

43. Natural Mode (in Tile mode) (Command: d j)

When displaying the image naturally, the part of the image

that would normally be displayed in the gap between the monitors is omitted.

Transmission

[d][j][ ][Set ID][ ][Data][Cr]

Data 00: Off 01: On

Acknowledgement

[j][ ][Set ID][ ][OK/NG][Data][x]

44. DPM Select (Command: f j) To set the DPM (Display Power Management) function.

ENGLISH

Transmission

[f][ j][ ][Set ID][ ][Data][Cr]

Data 00: Off 01: 5 seconds 02: 10 seconds 03: 15 seconds 04: 1 minutes 05: 3 minutes 06: 5 minutes 07: 10 minutes

Acknowledgement

[j][ ][Set ID][ ][OK/NG][Data][x]

45. Remote Control/Local Key Lock (Command: k m)

Adjusts the remote control/local key (front) lock.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Data 00: Off (Lock Off ) 01: On (Lock On) * When the monitor is turned off, the power key works even in On (01) mode.

Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]

46. Power On Delay (Command: f h)

Sets the schedule delay when the power turns on. (unit:

seconds).

Transmission [f][h][ ][S et ID][ ][Data][Cr]

Data 00 to FA: min. 0 to maximum 250 (seconds) * The maximum value may differ depending on the model.

Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x

47. Fail Over Select (Command: m i)

Selects an input mode for auto switch.

Transmission [m][i][ ][Set ID][ ][Data][Cr]

Data 00: Off 01: Auto 02: Manual

Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]

48. Fail Over Input Select (Command: m j)

Selects an input source for auto switch.

* This command is only available when the Fail Over (auto) mode is set to Custom.

Transmission [m][j][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][ ] [Data4]...[ ][DataN][Cr]

Data 1 to N-1 (Input priority: 1 to N-1) 40: COMPONENT 60: RGB 70: DVI-D 90: HDMI1 91: HDMI2/OPS 92: OPS/HDMI3/DVI-D 95: OPS/DVI-D 98: OPS C0: DISPLAYPORT

Data N: E0: INTERNAL Memor y E1: USB E2: SD CARD

Acknowledgement [j][ ][SetID][ ][OK/NG][Data1][Data2][Data3][Data4]

...[DataN] [x

Data 1 to N-1 (Input priority: 1 to N-1) 40: COMPONENT 60: RGB 70: DVI-D 90: HDMI1 91: HDMI2/OPS 92: OPS/HDMI3/DVI-D 95: OPS/DVI-D 98: OPS C0: DISPLAYPORT

Data N: E0: INTERNAL Memor y E1: USB E2: SD CARD

* Some input signals may not be available with certain

** The data number (N) may vary depending on the model. (The data number depends on the number of supported input signals.) *** Only the value of E0, E1, or E2 is acceptable for the last data.

]

models.

49. IR Operation (Command: t p)

Configures the IR operation settings of the product.

Transmission [t][p][ ][Set ID][ ][Data][Cr]

Data 00: locks off all of the keys 01: locks on all of the keys except the Power key 02: locks on all of the keys

Acknowledgement [x][ ][Set ID][ ][OK/NG][Data][x]

* When the monitor is turned off, the power key works even in the locks on all of the keys (02) mode.

50. Local Key Operation (Command: t o)

Configures the local key operation settings of the product.

Transmission [t][o][ ][Set ID][ ][Data][Cr]

Data 00: locks off all of the keys 01: locks on all of the keys except the Power key 02: locks on all of the keys

Acknowledgement [o][ ][Set ID][ ][OK/NG][Data][x]

* When the monitor is turned off, the power key works even in the locks on all of the keys (02) mode.

52. Check Screen (Command: t z)

Sets Check Screen.

Transmission

[t][z][ ][Set ID][ ][Data][Cr]

Data 00: Off

01: On

Acknowledgement [z][ ][Set ID][ ][OK/NG][Data][x]

** It may not be supported depending on the model.

53. Speaker (Command: d v)

Sets the speaker function.

Transmission [d][v][ ][Set ID][ ][Data][Cr]

Data 00: Off 01: On

Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]

** It may not be supported depending on the model.

ENGLISH

51. Status (Command: s v)

Checks the current signal status of the product.

Transmission [s][v][ ][Set ID][ ][Data][ ][FF][Cr]

Data 02: checks whether there is a signal or not 03: check the PM mode. 10: RGB sensing OK/NG (Check Screen)

Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][Data1][x]

Data: 02 (when a signal is found) Data1 00: no signal 01: there is a signal

Data: 03 (when checking the PM mode) Data1 00: The PM mode is set to Screen On 01: The PM mode is set to Screen Off 02: The PM mode is set to Screen Off Always

Data: 10 (Check Screen) Data1 00: Check Screen result NG 07: Check S creen result OK

* Sets to NG when Check Screen is set to Off or not supported.

54. Daylight Saving Time (Command: s d)

To set theDaylight Saving Time function.

Transmission [s][d][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][ ][Data4]

[ ][Data5][Cr]

Data 00: Off (Data2~5: FFH) 01: Start Time 02: End Time Data2 01~0C: January to December Data3 01~06: 1 ~ 6th week * The maximum number of [Data3] differs depending on Date. Data4 00~06 ( Sun. ~ Sat. ) Data5 00~17: 00 ~ 23 hours * To read the Start Time/End Time, enter FFH for [Data2]~[Data5]. (ex1: sd 01 01 ff ff ff ff - To check the Start Time ex2: sd 01 02 ff ff ff ff - To check the End Time) * This function is supported only when 1 (Year/Month/ Day) and 2 (Hour/Minute/Second) are set.

Acknowledgement [d][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][Data4] [Data5][x]

** It may not be supported depending on the model.

55. PM Mode (Command: s n, 0c)

ENGLISH

Selects the desired PM mode option.

Transmission

[s][n][ ][Set ID][ ][0c][ ][Data][Cr]

Data 00: Sets the Power Off mode. 01: Sets the Sustain Aspect Ratio mode. 02: Sets the Screen Off mode. 03: S ets the Screen Off Always mode.

Acknowledgement

[n][ ][Set ID][ ][OK/NG][0c][Data][x]

* It may not be supported depending on the model.

56. ISM Method (Command: j p)

Selects the ISM Method option.

Transmission

[j][p][ ][Set ID][ ][Data][Cr]

Data 01: Inversion 02: Orbiter 04: White Wash

08: Normal

20: Color Wash 80: Washing Bar 90: User Image 91: User Video

** The jp command works when Timer is set to Immediately.

Acknowledgement

[p][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

57. Network Settings (Command: s n, 80 or 81 or 82)

Configures network and DNS settings.

Transmission [s][n][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][ ][Data4][ ] [Data5][Cr]

Data1 80: Configures/views the temporary IP mode

81: Configures/views the temporary DNS address.

82: Saves temporary settings and views

* If Data1 is 80, Data2 00: Auto 01: Manual FF: Views the temporary IP mode (Auto/Manual),

** If Data2 is 01 (Manual), Data3 : Manual IP address Data4 : Subnet mask address Data5 : Gateway address

(Auto/Manual), subnet mask, and gateway.

information about the current network.

subnet mask, and gateway.

* If Data1 is 81, Data2 : DNS address FF: Views the temporary DNS address. * If Data1 is 82, Data2 80: Applies the temporarily saved IP mode (Auto/

81: Applies the temporary DNS address FF: Information on the current network (IP, subnet

*** Examples of settings

1. Auto: sn 01 80 00

2. Manual: sn 01 80 01 010177223241 255255254000

3. Network read: sn 01 80 ff

4. DNS setting: sn 01 81 156147035018

5. Applying the settings: sn 01 82 80 (applies the saved IP

**** Each IP address contains 12 decimal digits .

Acknowledgement [n][ ][Set ID][ ][OK/NG][Data1][Data][x]

* It may not be supported depending on the model.

** This feature is available only for wired networks.

58. Auto-adjustment (Command: j u)

Automatically corrects the position and shaking of the picture. (Works only in RGB-PC input mode.)

Transmission

[j][u][ ][Set ID][ ][Data][Cr]

Data 01: Execution

Acknowledgement

[u][ ][Set ID][ ][OK/NG][Data][x

* It may not be supported depending on the model.

59. H Position (Command: f q)

Adjusts the horizontal position of the screen. This feature only works when the Tile Mode is set to Off. * The operational range varies depending on the RGB input resolution. (Works only in RGB-PC input mode.)

Transmission [f][q][ ][S et ID][ ][Data][Cr]

Data 00-64: M in -50 (Left) to Max 50 (Right)

Acknowledgement

[q][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

Manual), subnet mask, and gateway.

gateway, DNS)

010177222001 (IP: 10.177.223.241, subnet:

255.255.254.0, gateway: 10.177.222.1)

(DNS: 156.147.35.18)

mode (auto/manual), subnet mask, and gateway) sn 01 82 81 (applies the saved DSN)

]

60. V Position (Command: f r)

Adjusts the vertical position of the screen. This feature only works when the Tile Mode is set to Off. * The operational range varies depending on the RGB input resolution. (Works only in RGB-PC input mode.)

Transmission

[f][r][ ][S et ID][ ][Data][Cr]

Data 00-64: M in -50 (Down) to Max 50 (Up)

Acknowledgement

[r][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

61. H Size (Command: f s)

Adjusts the horizontal size of the screen. This feature only works when the Tile Mode is set to Off. * The operational range varies depending on the RGB input resolution. (Works only in RGB-PC input mode.)

Transmission

[f][s][ ][S et ID][ ][Data][Cr]

Data 00-64: M in -50 (Small) to Max 50 (Large)

Acknowledgement

[s][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

62. Power On Status (Command: t r)

Selects the desired Power On status option.

Transmission

[t][r][ ][Set ID][ ][Data][Cr]

Data 00: LST (Stays in the previous status) 01: STD (Stays powered off ) 02: PWR (Stays powered on)

Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]

63. Wake On LAN (Command: f w)

Selects the desired Wake On LAN option.

Transmission [f][w][ ][S et ID][ ][Data][Cr]

Data 00: O ff 01: On

Acknowledgement [w][ ][Set ID][ ][OK/NG][Data][x]

64. Intelligent Auto (Command: t i)

Selects the desired Intelligent Auto option.

Transmission [t][i][ ][Set ID][ ][Data][Cr]

Data 00: O ff 01: On

Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

65. OSD Portrait Mode (Command: t h)

Selects the desired Portrait mode option.

Transmission [t][h][ ][Set ID][ ][Data] [Cr]

Data 00: O ff 01: 90 degrees 02: 270 degrees

Acknowledgement [h][ ][Set ID][ ][OK/NG][Data] [x]

* It may not be supported depending on the model.

ENGLISH

66. Reset to Initial Settings (Command: t n)

ENGLISH

Enables/disables the Reset to Initial settings.

Transmission [t][n][ ][Set ID][ ][Data] [Cr]

Data 00: Disables the settings. 01: Enables the settings.

Acknowledgement [n][ ][Set ID][ ][OK/NG][Data] [x]

* It may not be supported depending on the model.

67. Time Sync (Command: s n, 16)

Configures the Time Sync.

Transmission [s][n][ ][Set ID][ ][1][6][ ][Data][Cr]

Data 00: O ff 01: On

* This feature works in the Master mode. ** This feature does not work if the current time is not set.

Acknowledgement [n][ ][Set ID][ ][OK/NG][ ][1][6][ ][Data][x]

* It may not be supported depending on the model.

68. Contents Sync (Command: t g)

Configures the Contents Sync.

Transmission [t][g][ ][Set ID][ ][Data][Cr]

Data 00: O ff 01: On

Acknowledgement

[g][ ][Set ID][ ][OK/NG][Data][x]

* It may not be supported depending on the model.

69. Pivot Mode (Command: t a)

Sets Pivot Mode to on/off.

Transmission

[t][a][ ][Set ID][ ][Data][Cr

Data 00: O ff

01: On

Acknowledgement

[a][ ][Set ID][ ][OK/NG][Data][x]

* This feature may not be supported in certain models.

70. Studio Mode (Command: s n, 83)

Sets Studio Mode to on/off.

Transmission

[s][n][ ][Set ID][ ][8][3][ ][Data][Cr]

Data 00: O ff 01: On

Acknowledgemen [n][ ][Set ID][ ][OK/NG][8][3][Data][x]

* This feature may not be supported in certain models.

71. LAN Daisy Chain (Command: s n, 84)

Sets LAN Daisy Chain to on/off.

Transmission

[s][n][ ][Set ID][ ][8][4][ ][Data][Cr]

Data 00: O ff

01: On

Acknowledgement

[n][ ][Set ID][ ][OK/NG][8][4][Data][x]

* This feature may not be supported in certain models.

]

72. Content Rotation (Command: s n, 85)

Sets Content Rotation to on/off.

Transmission

[s][n][ ][Set ID][ ][8][5][ ][Data][Cr]

Data 00: O ff 01: 90 degrees 02: 270 degrees

Acknowledgement

[n][ ][Set ID][ ][OK/NG][8][5][Data][x]

* This feature may not be supported in certain models.

73. DPM Wake up Control (Command: s n, 0b)

Sets the DPM Wake up Control Mode.

Transmission

[s][n][ ][Set ID][ ][0][b][ ][Data][Cr]

Data 00: Clock 01: Clock+DATA

Acknowledgement

[n][ ][Set ID][ ][OK/NG][0][b][Data][x]

* This feature may not be supported in certain models.

74. Scan Inversion (Command: s n, 87)

Sets Scan Inversion to on/off.

Transmission

[s][n][ ][Set ID][ ][8][7][ ][Data][Cr]

Data 00: O ff 01: On

Acknowledgement

[n][ ][Set ID][ ][OK/NG][8][7][Data][x]

* This feature may not be supported in certain models.

75. Beacon (Command: s n, 88)

Sets Beacon to on/off.

Transmission

[s][n][ ][Set ID][ ][8][8][ ][Data][Cr]

Data 00: O ff

01: On

Acknowledgement

[n][ ][Set ID][ ][OK/NG][8][8][Data][x]

* This feature may not be supported in certain models.

77. Easy Brightness Control Mode (Command: s m)

Selects whether to turn on/off Easy Brightness Control Mode.

Transmission

[s][m][ ][Set ID][ ][Data][Cr]

Data 00: Easy Brightness Control off 01: Easy Brightness Control on

* This feature does not work if the current time is not set.

** This may not be supported on some models.

Acknowledgement

[m][ ][Set ID][ ][OK/NG][Data][x]

ENGLISH

76. Aspect Ratio (Rotation) (Command: s n, 89)

Controls the Aspect Ratio (Rotation) screen.

(This command works only when Content Rotation is on.)

Transmission

[s][n][ ][Set ID][ ][8][9][ ][Data][Cr]

Data 00: Full 01: Original

Acknowledgement

[n][ ][Set ID][ ][OK/NG][8][9][Data][x]

* This feature may not be supported in certain models.

78. Easy Brightness Control Schedule (Command: s s)

ENGLISH

Sets Easy Brightness Control schedules.

Transmission

[s][s][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]

Data1

1. F1–F6 (reads data) F1: Reads the 1st data from the Easy Brightness Control F2: Reads the 2nd data from the Easy Brightness Control F3: Reads the 3nd data from the Easy Brightness Control F4: Reads the 4th data from the Easy Brightness Control F5: Reads the 5th data from the Easy Brightness Control F6: Reads the 6th data from the Easy Brightness Control

2. FF: Reads all stored lists

3. e1-e6 (deletes one index); e0 (deletes all indexes) E0: Deletes all Easy Brightness Control. E1: Deletes the 1st Easy Brightness Control. E2: Deletes the 2nd Easy Brightness Control. E3: Deletes the 3rd Easy Brightness Control. E4: Deletes the 4th Easy Brightness Control. E5: Deletes the 5th Easy Brightness Control. E6: Deletes the 6th Easy Brightness Control.

4. 00 to 17: 00th to 23th hour Data2 00 to 3B: 00th to 59th minute Data3 00 to 64: Backlight, 0 to 100 * If you want to read or delete the configured Easy Brightness

Control lists, set [Data2][Data3] to FF. * If you want to import all the configured Easy Brightness

Control lists through FF, do not enter any values in [Data2]

[Data3]. * When all the configured Easy Brightness Control lists are

imported through FF, OK is acknowledged even if there is

no stored list.

Example 1: ss 01 f1 ff ff - Reads the first index data from the Easy

Brightness Control. Example 2: ss 01 ff - Reads all index data from the Easy

Brightness Control. Example 3: ss 01 e1 ff ff - Deletes the first index data from the

Easy Brightness Control. Example 4: ss 01 07 1E 46 - Adds a schedule whose time is 07:30

and whose backlight is 70.

Acknowledgement

[s][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]

* This feature may not be supported in certain models.

79. MultiScreen Mode & Input (Command: x c)

Saves or controls the MultiScreen Mode and input.

Transmission [x][c][ ][Set ID][ ][Data1][ ][Data2][ ][Data3[ ][Data4] [ ][Data5[ ]Cr]

Data1 (sets the MultiScreen Mode) 10: PIP 22: PBP2 23: PBP3 24: PBP4 Data2 (sets the MultiScreen Main Input) Data3 (sets the MultiScreen Sub1 Input) Data4 (sets the MultiScreen Sub2 Input) Data5 (sets the MultiScreen Sub3 Input) 20: AV 40: COMPONENT 60: RGB 80: DVI-D 90: HDMI1 91: HDMI2/OPS 92: OPS/HDMI3/DVI-D 95: OPS/DVI-D 98: OPS C0: DISPLAYPORT

Acknowledgement [c][ ][Set ID][ ][OK/NG][ ][Data1][Data2][Data3] [Data4] [Data5][x]

* This feature may not be supported in certain models. ** Only the input modes supported by the model works.

80. Aspect Ratio (MultiScreen) (Command: x d)

Saves or controls the Aspect Ratio (MultiScreen) screen.

Transmission [x][d][ ][Set ID][ ][Data1][ ][Data2][Cr]

Data1 01: Controls the Main input 02: Controls the Sub1 input 03: Controls the Sub2 input 04: Controls the Sub3 input Data2 00: Full 01: Original

Acknowledgement [d][ ][Set ID][ ][OK/NG][Data1][Data2][x]

* This feature may not be supported in certain models.

81. Screen Mute (MultiScreen) (Command: x e)

Turns on/off each screen in MultiScreen.

Transmission [x][e][ ][Set ID][ ][Data1][ ][Data2][Cr]

Data1 01: Controls the Main input 02: Controls the Sub1 input 03: Controls the Sub2 input 04: Controls the Sub3 input Data2 00: Turns the screen on. 01: Turns the screen off. * This function works when the Multi Screen App is running. ** This function may not work properly if there is no signal.

Acknowledgement [e][ ][Set ID][ ][OK/NG][Data1][Data2][x]

* This feature may not be supported in certain models.

82. Screen Off Always (Command: s n, 0d)

Screen Off Always has the same effect as entering the Screen Off menu regardless of the PM Mode setting.

Transmission [s][n][ ][Set ID][ ][0][d][ ][Data][Cr]

Data 00: Off 01: On

Acknowledgement [n][ ][Set ID][ ][OK/NG][0][d][Data][x]

* This feature may not be supported in certain models.

84. Wireless Wake-on-LAN (Command: s n, 90)

Sets Wireless Wake-on-LAN.

Transmission [s][n][ ][Set ID][ ][9][0][ ][Data][Cr]

Data 00: Off 01: On

Acknowledgement [n][ ][Set ID][ ][OK/NG][9][0][Data][x]

* This feature may not be supported in certain models.

85. OSD Display (Command: k l)

Selects the desired OSD Display option.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 00: No (Off ) 01: Yes (On)

Acknowledgement [l][ ][Set ID][ ][OK/NG][Data][x]

* This feature may not be supported for certain models.

ENGLISH

83. Screen Video Freeze (Command: k x)

Turns on/off the video freeze function.

Transmission [k][x][ ][Set ID][ ][Data][Cr]

Data 00: Turns on the freeze function. 01: Turns off the freeze function. * Available in single input mode.

Acknowledgement [x][ ][Set ID][ ][OK/NG][Data][x]

* This feature may not be supported in certain models.

LG 55VM5B-A User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety precautions

Precautions In Installing the Product

Precautions In Moving the Product

Precautions In Using the Product

Mounting on a Wall

LICENSES

ASSEMBLY AND PREPARATION

Optional Accessories

Parts and Buttons

To Install in a Portrait Layout

Remove brackets before Installation

STORAGE METHOD FOR PANEL PROTECTION

Correct Method

Incorrect Method

Installing on a Wall

EXTERNAL EQUIPMENT SETUP

IR RECEIVER

Tiling Displays

How to Mount the Set

How to Join Sets

REMOTE CONTROL

MAKING CONNECTIONS

Connecting to a PC

External Device Connection

Using the Input List

Daisy Chain Monitors

TROUBLESHOOTING

PRODUCT SPECIFICATIONS

User Settings

Main Menu Settings

Picture Settings

Sound Settings

Network Settings

General Settings

ENTERTAINMENT

Using My Media

Connecting USB/SD Storage Devices

Files Supported by My Media

Viewing Videos

Viewing Photos

Listening to Music

Settings

Moving, Copying, or Deleting a File

SuperSign Contents

Information

Local Contents Scheduler

Screen Share

SuperSign EZ

Multi-Screen

PICTURE ID Settings

IR CODES

TO CONTROL MULTIPLE PRODUCTS

Connecting the Cable

Communication Parameter

Command Reference List

Transmission/Reception Protocol
