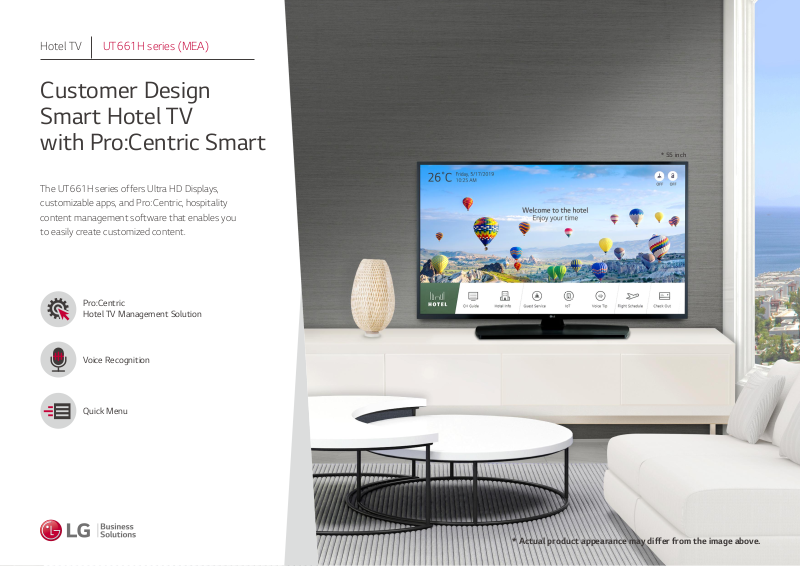

Page 1
Hotel TV
UT661H series (MEA)
Customer Design
Smart Hotel TV
with Pro:Centric Smart
The UT661H series offers Ultra HD Displays,
customizable apps, and Pro:Centric, hospitality
content management software that enables you
to easily create customized content.
Pro:Centric
Hotel TV Management Solution
Voice Recognition
Quick Menu
* 55 inch
* Actual product appearance may differ from the image above.
Page 2
Hotel TV UT661H series
Hotel TV UT661H series
* Actual product appearance may differ from the image above.
Page 3
PRO:CENTRIC SMART APPLICATION PLATFORM
Hotel TV UT661H series
Pro:Centric Hotel Management Solution
Pro:Centric SMART is optimized for customizing hospitality services
for hotel brands and guests through an IP & RF infrastructure. With
its high picture quality, sophisticated design, and advanced connectivity
functions, it upscales in-room entertainment and enhances
convenience through high-end technology.
SI Application IP
API
Pro:Centric
(Middleware Platform)
Pro:Centric Server Application
You can now express your hotel's unique identity with our customizable
templates and pages. Pro:Centric provides you with a solution that can
be especially customized for your business.
Welcome Page Language selection
Pro:Centric
Smart TV
* Customized UI may slightly differ.
Easy Code Editing
with HCAP API
Customized UI & Interactive
Service
Wake-up Setting
Weather Information
Page 4
PRO:CENTRIC SMART APPLICATION PLATFORM
Hotel TV UT661H series
Pro:Centric Direct Solution
Pro:Centric Direct is a hotel content management system that supports simple editing tools and provides various solutions such as 1-click service and IP
network-based remote management. With this solution, users can easily edit the user interface, provide customized service, and efficiently manage all TVs.
PCD version 3.0 offers IoT-based In-room control, as well as voice control through LG Embedded Natural Language Processing (NLP). These IoT and voicerelated features will prepare hotels for a future where rooms will be enhanced by artificial intelligence.
SI
IP or RF
ServerEditing Content
with Pro:Centric Direct
* Actual UI may slightly differ when implemented.
* When PCS400R and PCD 2.0 are used, the PCD feature is available, even in an RF infrastructure. However, to provide interactive services in an RF infrastructure, Wi-Fi is required (RF+Wireless Infrastructure).
Page 5
USER-FRIENDLY EXPERIENCE
Hotel TV UT661H series
Smart TV by LG webOS 4.5
This is LG Smart TV with webOS 4.5. Explore the latest LG Smart
TV features, and discover TVs that deliver innovative technology,
remarkable clarity, and true-to-life colors.
Voice Recognition
From seamless interaction to consistent user experience, LG is going
one step further to lead the commercial TV market by including voice
recognition, allowing users to easily control LG TVs. Our stable and
dependable solutions based on webOS and Pro:Centric Direct will
significantly enhance the competitiveness of your products and
services, helping you achieve a successful future for your business.
* Actual In-screen image may slightly differ. * TV native Control
* Server Based control
* Magic Motion Remote is required (sold separately)
Page 6
USER-FRIENDLY EXPERIENCE
Hotel TV UT661H series
Soft AP
Software-enabled Access Point (SoftAP) is a "virtual" Wi-Fi feature
that uses software to create a wireless hotspot. The current version
supports Bridge Mode, which enables network managers to control
connected devices.
Instant On
The high speed loading system enables users to enjoy content
immediately after turning on the TV.
Standby
1-2 Sec
* SoftAP should be set in the installation menu after the TV is turned on.
* Smart Mirroring may not be operated at the same time.
* Actual remote control may slightly differ.
Page 7
EASY SETUP AND MAINTENANCE
Hotel TV UT661H series
Quick Menu
Now LG provides the new Quick menu (ver. 3.0), making it easier
and more user-friendly than ever. The home menu solution has been
upgraded in a big way with the addition of the new Hotel Promotional
Video Creation Tool. Users can now also use Quick Manager for easy
information distribution throughout the same network without a
server or USB Cloning function, making this the perfect solution for
Stand Alone Usage Scenes.
LAN out with VLAN (Virtual LAN) ID
The connectivity experience is enhanced by overcoming the constraints
of space. This feature enables users to manage a virtual LAN via the
LAN out function by setting an ID for each device in the TV menu.
Laptop
AUX
LAN
<Example>
CASE1 VLAN ID #100 - VoIP Phone
CASE2 VLAN ID #200 - Laptop
CASE3 VLAN ID #201 - OTT box
OR
VoIP Phone
OR
OTT box
4 Templates
* AUX LAN (LAN out) ID: Set a VLAN ID to be assigned to external devices connected
to the LAN out port. (An AUX LAN is used for assigning a VLAN ID.)
* VLAN ID: Create a separate Virtual LAN group with IDs (tagging).
Page 8
EASY SETUP AND MAINTENANCE
Hotel TV UT661H series
EzManager
EzManager provides a convenient installation
function to automatically set up Pro: Centric TV
settings without the extra effort of configuration.
Auto-installation requires 1 - 3 minutes while
manual installation requires 3 - 5 minutes.
Upon Initial Installation
USB Cloning
USB data cloning makes managing multiple
displays more efficient for optimal operation.
Instead of setting up each display one by one,
data can be copied to a USB for one display, and
then that data will be sent to the other displays
through a USB plug-in.
Pro:Idiom
Prevent any illegal copying of content with
widely used DRM (Digital Right Management).
settings
Page 9
DIMENSION
(unit: mm)
Hotel TV UT661H series
55”
1,244
570
43”
973
570
CONNECTIVITY
721
567
726
572
780
626
83.1
80.7
87.1
75.7
49”
645
650
705
87.5
81.1
72
179300166
303
300 472472
250300171
303
85
303
387 200 387
164200203
1,110
570
300 405405
55” 49” 43”
AUX LAN
LAN
EXTERNAL
STEREO
(8Ω)
SPEAKER OUT
VOLUME
CONTROL
1
2
CLOCK
RESET UPDATE
13 / 18V
700mA Max
LNB
Satellite IN
ANTENNA /
CABLE IN
For DTS patents, see http://patents.dts.com
RS-232C IN
(CONTROL & SERVICE)
12V 1A / 5V 2A
OPTICAL
DIGITAL
AUDIO OUT
Manufactured under license from Dolby
Laboratories. Dolby, Dolby Vision, Dolby Audio,
Dolby Atmos, and the double-D symbol
are trademarks of Dolby Laboratories.
* Dimensions & Jack Panels (Read/Side) may differ from the above image, so please contact LG sales team to verify before ordering.
1 2 3
1
2
HDMI IN
USB IN
3
PCMCIA CARD SLOT
Page 10
SPECIFICATION
Hotel TV UT661H series
UT661H series (MEA)
DESIGN
DISPLAY
BROADCASTING
SYSTEM
VIDEO
AUDIO
HOSPITALITY
SOLUTION
SMART FEATURE
Stand Type
Front Color
Inch
Resolution
Backlight Unit Type
Brightness
Digital
HDR (10 Pro / HLG)
Audio Output
Speaker System
DOLBY ATMOS
One Touch Sound Tuning
LG Sound Sync
Solution Type
Data Streaming ( IP & RF )
HCAP (GEM / FLASH / HTML)
Service Carousel (TLL / XML)
IP Return path
Multicast / Unicast ready
webRTC (Real Time Communication)
Pro:Centric Application (version)
Pro:Centric Server
DRM
55UT661H (MEA) 49UT661H (MEA) 43UT661H (MEA)
1 Pole (Swivel) 1 Pole (Swivel) 1 Pole (Swivel)
Ceramic Black Ceramic Black Ceramic Black
55 49 43
3,840 X 2,160 (UHD) 3,840 X 2,160 (UHD) 3,840 X 2,160 (UHD)
Direct Direct Direct
400 nit 400 nit 300 nit
DVB -T2 / C / S2 DVB -T2 / C / S2 DVB -T2 / C / S2
• / • • / • • / •
10W + 10W 10W + 10W 10W + 10W
2.0 ch 2.0 ch 2.0 ch
- - -
Ready Ready Ready
Bluetooth required Bluetooth required Bluetooth required
Pro:Centric (Smart, V, Direct), Quick Menu 3.0 Pro:Centric (Smart, V, Direct), Quick Menu 3.0 Pro:Centric (Smart, V, Direct), Quick Menu 3.0
• • •
GEM / HTML5 GEM / HTML5 GEM / HTML5
• • •
• • •
• • •
PCA3.8 PCA3.8 PCA3.8
PCS400R / PCS200S PCS400R / PCS200S PCS400R / PCS200S
Pro:Idiom (S/W Type), Pro:Idiom Media Pro:Idiom (S/W Type), Pro:Idiom Media Pro:Idiom (S/W Type), Pro:Idiom Media
webOS 4.5, Smart Home (Launcher Bar), Quick Access, Web Browser, Pre-loaded App, SDP Server compatibility, Magic Remote Compatibility (Ready), Clock (World Clock / Alarm),
Soft AP, Wi-Fi (802.11ac, Built-in type), Screen Share (Miracast), Smart Share (DLNA), LG TV Plus App Compatibility, DIAL, Bluetooth Audio Playback, LG Sound Sync / Bluetooth,
SI Compatible (TVLink Interactive), HTNG-CEC (1.4), Simplink (HDMI-CEC, 1.4), IR Out (RS-232C, HDMI), Multi IR Code, Anti-theft System (Kensington Lock), Chromecast Dongle Anti-theft Cover (Optional)
Mobile Connection Overlay, Voice Recognition (Standalone / Solution), IoT, EzManager (Simplicity), USB Cloning, Wake on RF, Wake on LAN, SNMP, Diagnostics (IP Remote),
HOSPITALITY
FEATURES
Set Side
JACK INTERFACE
DIMENSION
(UNIT : mm / kg)
POWER
(UNIT : WATTS)
* Specifications are subject to change without notice, so please contact LG sales team to verify before ordering.
Download
LG C-Display+
Mobile App
Google Play Store
Set Rear
Vesa
W x H x D / Weight (with stand)
W x H x D / Weight (without stand)
W x H x D / Weight (Shipping)
Voltage, Hz
Typical
Stand-by
www.lg.com/b2b
www.youtube.com/c/LGECommercialDisplay
www.facebook.com/LGInformationDisplay
www.linkedin.com/company/LGInformationDisplay
Hotel Mode(Installer Menu), Lock mode (Limited), Welcome Video / Screen(Splash Image), Insert Image, One Channel Map, IP Channel Manager, External Speaker Out (Int / Ext Variable / Fixed), Instant ON,
External Power Out, V-Lan Tag, RJP (Remote Jack Pack) Compatibility, External Clock Compatibility (LEC-005), Moving Picture Playback (SD / HD / Plus HD), Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care
Clock Interface (RJ12), RJ45 (Usage Purpose : 2 (Ethernet, Aux)), External Speaker Out (3.5mm Phone Jack) : 2 (Spk-out 1, 4W (Stereo, R : 2.0W, L : 2.0W, 8Ω) - Vol. Control1)
1,244 x 780 x 303 / 17.5 1,110 x 705 x 303 / 14.3 973 x 626 x 303 / 11.2
1,244 x 726 x 87.1 / 14.3 1,110 x 650 x 81.1 / 11.1 973 x 572 x 85.0 / 8.0
1,410 x 860 x 207 / 23.2 1,296 x 770 x 171 / 17.2 1,147 x 660 x 190 / 14.0
100 ~ 240V, 50/60Hz 100 ~ 240V, 50/60Hz 100 ~ 240V, 50/60Hz
LG may make changes to specifications and product descriptions without notice.
Copyright © 2019 LG Electronics Inc. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp.
The names of products and brands mentioned here may be the trademarks of their respective owners.
HDMI In 2.0, USB 2.0 (2), CI Slot
HDMI In (HDCP, 2.0) (2), RF In (2), Digital Audio Out (Optical), RS-232C (Control & Service),
300 x 300 300 x 300 200 x 200
142W 94W 101W
0.5W 0.5W 0.5W
