LG 55UH65xx Schematic

Internal Use Only
LED TV
SERVICE MANUAL
CHASSIS : UD63J
MODEL : 55UH65** 55UH65**-ZB/ZE
CAUTION
BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL69502005 (1602-REV00)
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS .................................................................... 4
SPECIFICATION ....................................................................................... 6
ADJUSTMENT INSTRUCTION .............................................................. 11

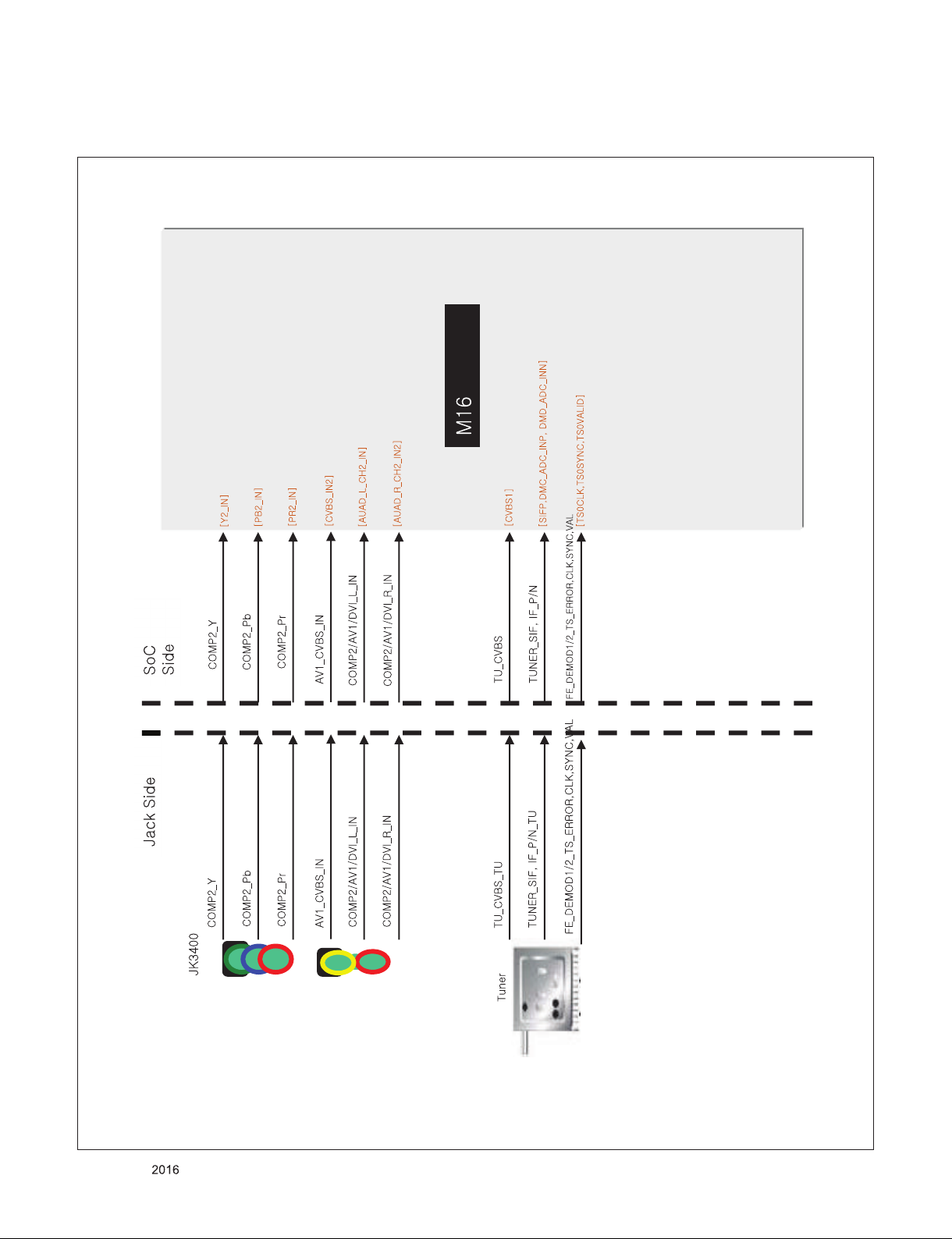

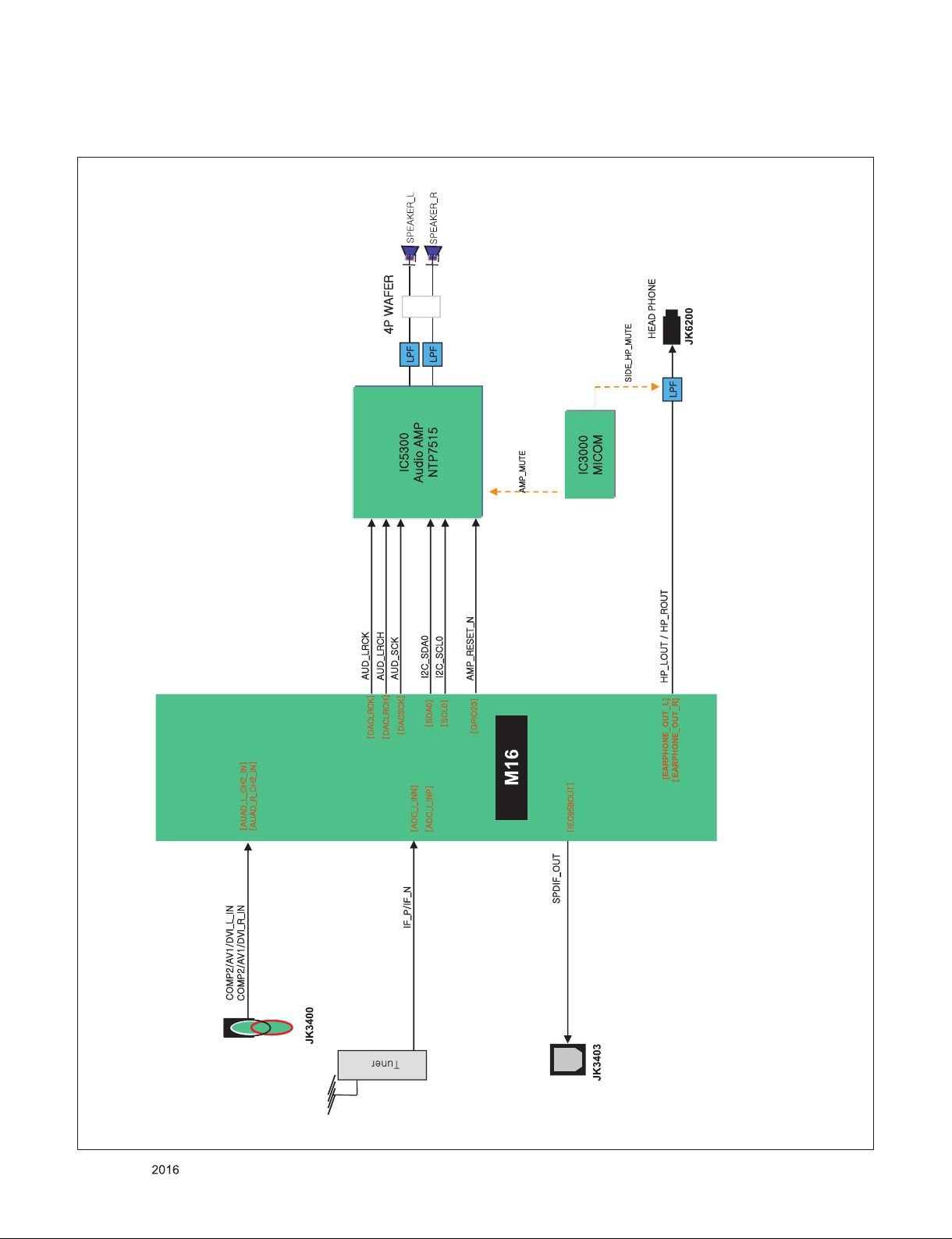

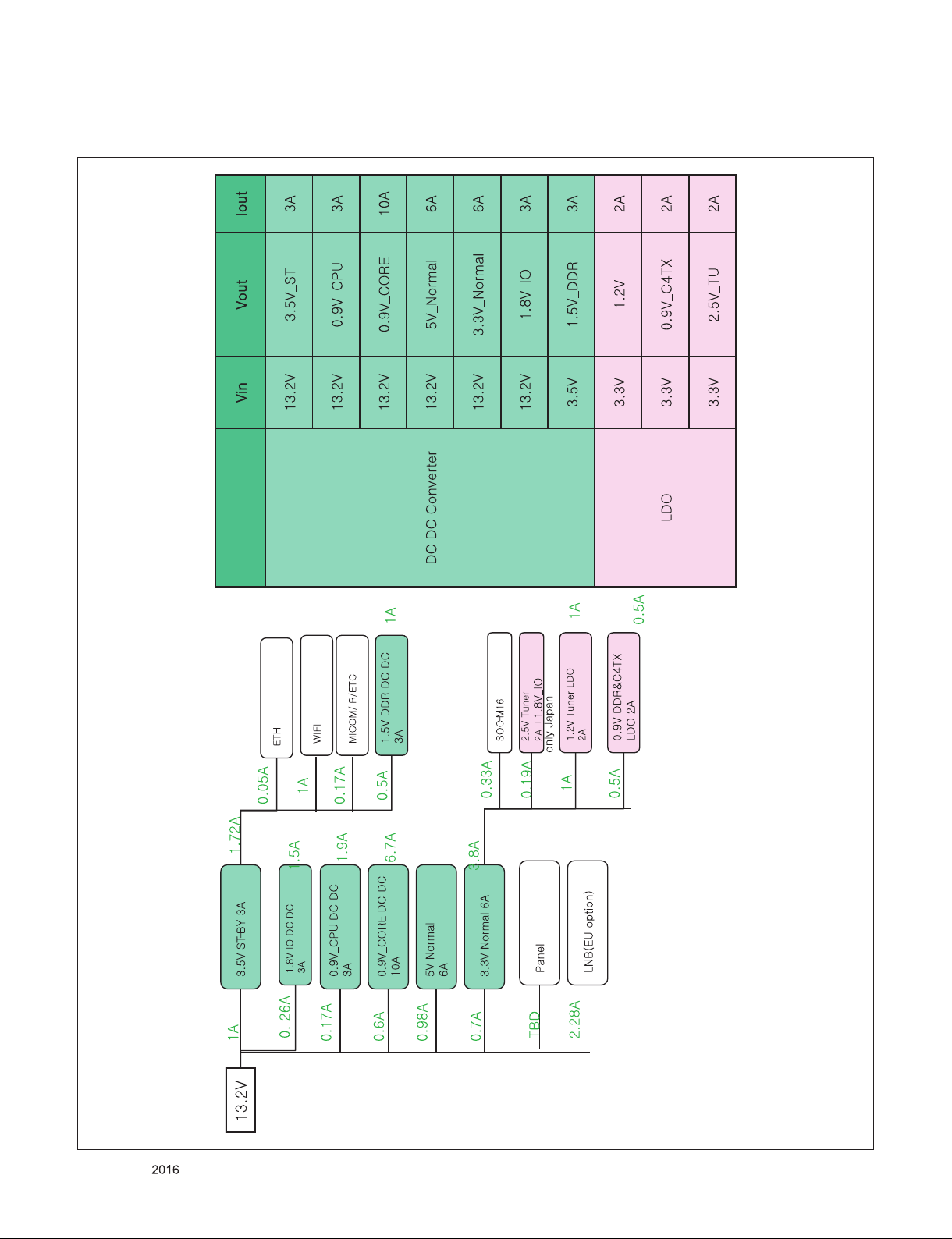

BLOCK DIAGRAM .................................................................................. 21
EXPLODED VIEW .................................................................................. 31

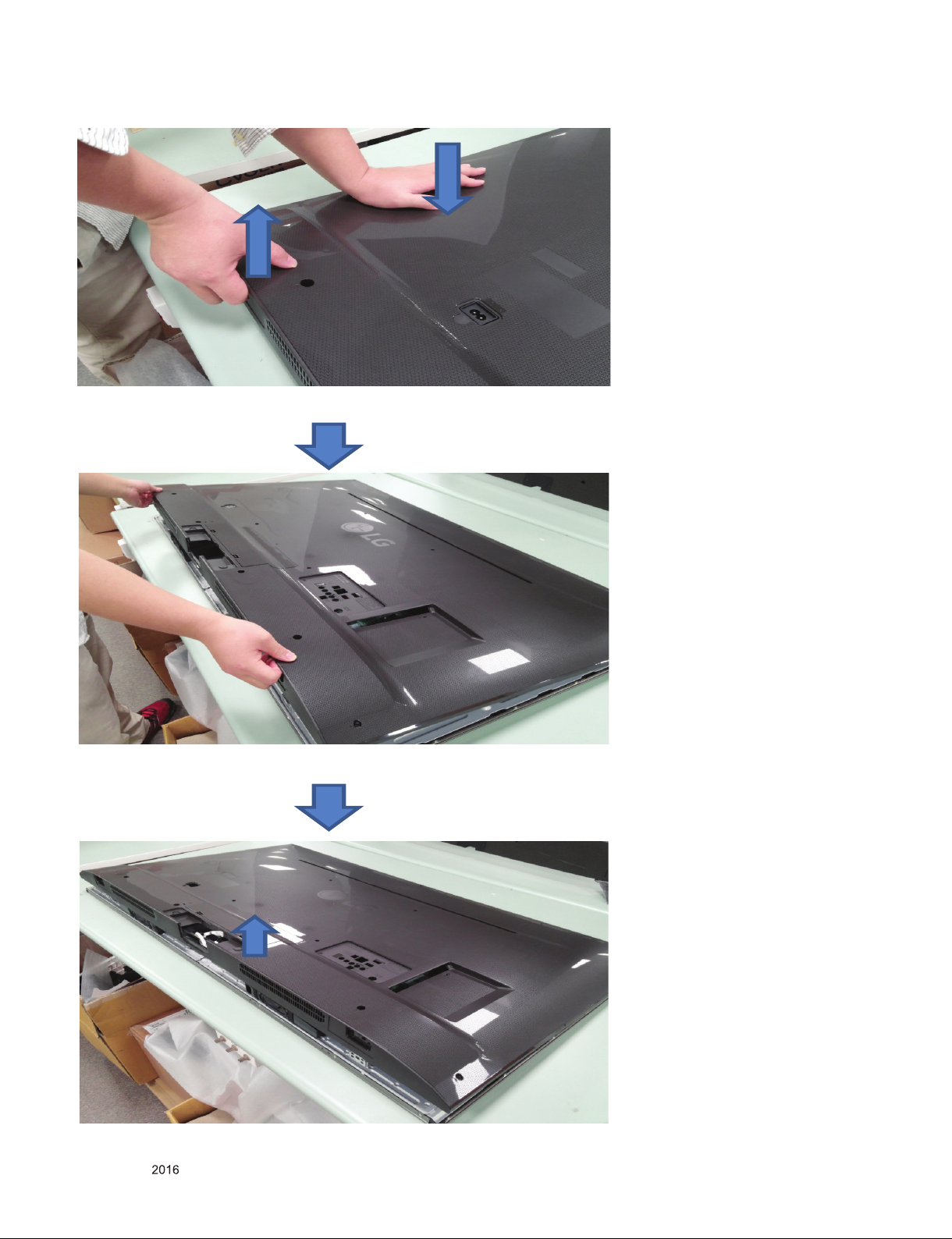

ASSEMBLY / DISASSEMBLY ................................................................32
TROUBLE SHOOTING GUIDE ................................................
APPENDIX
Only for training and service purposes
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.
It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.
Leakage Current Hot Check circuit
Only for training and service purposes
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the
following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precau­tions. Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug
or other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explo­sion hazard.
2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its assemblies.
4. Unless specied otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication
of contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.
7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.
8. Use with this receiver only the test xtures specied in this
service manual.
CAUTION: Do not connect the test xture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged eas­ily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some eld-effect transistors
and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component dam­age caused by static by static electricity.
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alter­natively, obtain and wear a commercially available discharg­ing wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or expo­sure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufcient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads elec­trically shorted together by conductive foam, aluminum foil or comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective mate­rial to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or cir­cuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replace­ment ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your
foot from a carpeted oor can generate static electricity suf­cient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropri­ate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature
(500 °F to 600 °F)
b. First, hold the soldering iron tip and solder the strand
against the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the compo­nent lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
Only for training and service purposes
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the cir­cuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.
2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and solder it.
3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as possible to the component body.
2. Bend into a "U" shape the end of each of three leads remain­ing on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.
Power Output, Transistor Device Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as pos­sible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit board.
3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.
3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed when­ever this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connec­tions).
1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.
1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly con­nected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.
Fuse and Conventional Resistor Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow stake.
2. Securely crimp the leads of replacement component around notch at stake top.
Only for training and service purposes
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement
.
1. Application range
This specification is applied to the LED TV used UD63J chassis.
2. Requirement for Test
Each part is tested as below without special notice.
1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage : Standard input voltage (AC 100-240 V~, 50/60 Hz) * Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC specification
- Wireless : Wireless HD Specification (Option)
4. Model General Specification
No. Item Specication Remarks
DTV & Analog (Total 37 countries)
DTV (MPEG2/4, DVB-T) : 26 countrie
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria, France, Spain, Belgium, Luxemburg, Greece, Czech, Turkey, Morocco, Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania, Bosnia, Slovakia, Belarus
1 Market EU/CIS(PAL Market-37Countries)
DTV (MPEG2/4, DVB-T2) :11 countries
UK(Ireland), Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan, Russia, Italy, Croatia, Serbia
DTV (MPEG2/4, DVB-C) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria, France, Spain, Italy, Belgium, Russia, Luxemburg, Greece, Czech, Cro­atia, Turkey, Morocco, Ireland, Latvia, Estonia, Lithuania, Poland, Portu­gal, Romania, Albania, Bosnia, Serbia, Slovakia, Belarus, UK, Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan
DTV (MPEG2/4,DVB-S) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria, France, Spain,Belgium, Luxemburg, Greece, Czech, Turkey, Morocco, Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania, Bosnia, Slovakia, Belarus, UK(Ireland), Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan,Russia, Italy, Croatia, Serbia
Supported satellite : 35 satellites
ABS1 75.0E, AMOS 4.0W, ASIASAT3S 105.5E, ASTRA 19.2E, ASTRA
23.5E, ASTRA 28.2E, ASTRA 4.8E, ATLANTIC BIRD2 8.0W, ATLANTIC BIRD3 5.0W, BADR 26.0E, DIRECTV-1R 56.0E, EUROBIRD 9A 9.0E, EUROBIRD3 33.0E, EUTELSAT 36 A/B 36.0E,EUTELSAT W2A 10.0E, EUTELSAT W3A 7.0E, EUTELSAT7WA 7.3WEUTELSAT 16.0E, EX­PRESS AM1 40.0E, EXPRESS AM3 140.0E, EXPRESS AM33 96.5E, HELLASSAT 39.0E, HISPASAT 1CDE 30.0WHOTBIRD 13.0E, INTEL­SAT10&7 68.5E, INTELSAT15 85.2E, INTELSAT1R 50.0W, INTEL­SAT903 33.5W, INTELSAT904 60.0E, NILESAT 7.0W, NSS12 57.0E, THOR 0.8W, TURKSAT 42.0E,YAMAL201 90.0E, OTHER
Only for training and service purposes
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
No. Item Specication Remarks
2 Broadcasting system
3 Program coverage
4 Receiving system
(1)PAL/SECAM B/G/I/D/K, SECAM L/L’ (2)DVB-T/T2, C, S/S2
(1) Digital TV
- VHF, UHF
- C-Band, Ku-Band
(2) Analogue TV
-VHF : E2 to E12
-UHF : E21 to E69
-CATV : S1 to S20
-HYPER : S21 to S47
Analog : Upper Heterodyne Digital : COFDM, QAM
► DVB-T
- Guard Interval(Bitrate_Mbit/s) : 1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate QPSK : 1/2, 2/3, 3/4, 5/6, 7/8 16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8 64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-T2
- Guard Interval(Bitrate_Mbit/s) 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,
- Modulation : Code Rate QPSK : 1/2, 2/5, 2/3, 3/4, 5/6 16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6 256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
► DVB-C
- Symbolrate : 4.0 Msymbols/s to 7.2 Msymbols/s
- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM
5 Input Voltage AC 100-240 V~, 50/60Hz
► DVB-S/S2
- symbol rate : DVB-S2 (8PSK / QPSK) : 2 ~ 45 Msymbol/s DVB-S (QPSK) : 2 ~ 45 Msymbol/s
- viterbi DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8 DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10
Only for training and service purposes
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
5. External Input Format
5.1. 2D Mode
(1) Component (Y, CB/PB, CR/PR)
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock Proposed
1 720*480 15.73 60 13.5135 SDTV ,DVD 480I
2 720*480 15.73 59.94 13.5 SDTV ,DVD 480I
3 720*480 31.50 60 27.027 SDTV 480P
4 720*480 31.47 59.94 27.0 SDTV 480P
5 1280*720 45.00 60.00 74.25 HDTV 720P
6 1280*720 44.96 59.94 74.176 HDTV 720P
7 1920*1080 33.75 60.00 74.25 HDTV 1080I
8 1920*1080 33.72 59.94 74.176 HDTV 1080I
9 1920*1080 67.500 60 148.50 HDTV 1080P
10 1920*1080 67.432 59.94 148.352 HDTV 1080P
11 1920*1080 27.000 24.000 74.25 HDTV 1080P
12 1920*1080 26.97 23.976 74.176 HDTV 1080P
13 1920*1080 33.75 30.000 74.25 HDTV 1080P
14 1920*1080 33.71 29.97 74.176 HDTV 1080P
Only for training and service purposes
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
(2) HDMI Input (DTV)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
1 640*480 31.46 59.94 25.13 SDTV 480P
2 640*480 31.50 60.00 25.13 SDTV 480P
3 720*480 15.73 59.94 13.50 SDTV, DVD 480I(525I)
Spec. out but display4 720*480 15.75 60.00 13.51 SDTV, DVD 480I(525I)
5 720*576 15.62 50.00 13.50 SDTV, DVD 576I(625I) 50Hz
6 720*480 31.47 59.94 27.00 SDTV 480P
7 720*480 31.50 60.00 27.03 SDTV 480P
8 720*576 31.25 50.00 27.00 SDTV 576P
9 1280*720 44.96 59.94 74.18 HDTV 720P
10 1280*720 45.00 60.00 74.25 HDTV 720P
11 1280*720 37.50 50.00 74.25 HDTV 720P
12 1920*1080 28.12 50.00 74.25 HDTV 1080I
13 1920*1080 33.72 59.94 74.18 HDTV 1080I
14 1920*1080 33.75 60.00 74.25 HDTV 1080I
15 1920*1080 26.97 23.97 63.30 HDTV 1080P
16 1920*1080 27.00 24.00 63.36 HDTV 1080P
17 1920*1080 33.71 29.97 79.12 HDTV 1080P
18 1920*1080 33.75 30.00 79.20 HDTV 1080P
19 1920*1080 56.25 50.00 148.50 HDTV 1080P
20 1920*1080 67.43 59.94 148.35 HDTV 1080P
21 1920*1080 67.50 60.00 148.50 HDTV 1080P
22 3840*2160 53.95 23.98 297.00 UDTV 2160P UHD only
23 3840*2160 54.00 24.00 297.00 UDTV 2160P UHD only
24 3840*2160 56.25 25.00 297.00 UDTV 2160P UHD only
25 3840*2160 61.43 29.97 297.00 UDTV 2160P UHD only
26 3840*2160 67.50 30.00 297.00 UDTV 2160P UHD only
27 3840*2160 112.50 50.00 594.00 UDTV 2160P(DVB) UHD only
28 3840*2160 135.00 59.94 593.41 UDTV 2160P UHD only
29 3840*2160 135.00 60.00 594.00 UDTV 2160P UHD only
30 4096*2160 53.95 23.98 297.00 UDTV 2160P UHD only
31 4096*2160 54.00 24.00 297.00 UDTV 2160P UHD only
32 4096*2160 56.25 25.00 297.00 UDTV 2160P UHD only
33 4096*2160 61.43 29.97 297.00 UDTV 2160P UHD only
34 4096*2160 67.50 30.00 297.00 UDTV 2160P UHD only
35 4096*2160 112.50 50.00 594.00 UDTV 2160P(DVB) UHD only
36 4096*2160 135.00 59.94 593.41 UDTV 2160P UHD only
37 4096*2160 135.00 60.00 594.00 UDTV 2160P UHD only
Only for training and service purposes
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
(3) HDMI Input (PC)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
1 640*350 31.46 70.09 25.17 EGA
2 720*400 31.46 70.08 28.32 DOS
3 640*480 31.46 59.94 25.17 VESA(VGA)
4 800*600 37.87 60.31 40.00 VESA(SVGA)
5 1024*768 48.36 60.00 65.00 VESA(XGA)
6 1152*864 54.34 60.05 80.00 VESA
7 1280*1024 63.98 60.02 109.00 VESA(SXGA) FHD only
8 1360*768 47.71 60.01 85.00 VESA(WXGA)
9 1920*1080 67.50 60.00 158.40 WUXGA(CEA 861D) FHD only
10 3840*2160 67.50 30.00 297.00 UDTV 2160P UHD only
11 3840*2160 56.25 25.00 297.00 UDTV 2160P UHD only
12 3840*2160 54.00 24.00 297.00 UDTV 2160P UHD only
13 4096*2160 53.95 23.97 296.703 UDTV 2160P UHD only
14 4096*2160 54.00 24.00 297.00 UDTV 2160P UHD only
5.2. 3D Mode
(1) RF Input
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
1 1280*720 37.50 50 74.25 HDTV 720P 2D to 3D, Side by Side, Top & Bottom
2 1920*1080 28.13 50 74.25 HDTV 1080I 2D to 3D, Side by Side, Top & Bottom
Only for training and service purposes
- 10 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
ADJUSTMENT INSTRUCTION
1. Application Range
This specification sheet is applied to all of the LED TV with UD63J chassis.
2. Designation
(1) Because this is not a hot chassis, it is not necessary to
use an isolation transformer. However, the use of isolation
transformer will help protect test instrument. (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of
25 °C ± 5 °C of temperature and 65 % ± 10 % of relative
humidity if there is no specific designation. (4) The input voltage of the receiver must keep AC 100-240
V~, 50/60 Hz. (5) The receiver must be operated for about 5 minutes prior to
the adjustment when module is in the circumstance of over
15.
In case of keeping module is in the circumstance of 0 °C, it should be placed in the circumstance of above 15 °C for 2 hours.
In case of keeping module is in the circumstance of below
-20 °C, it should be placed in the circumstance of above 15 °C for 3 hours.
[Caution] When still image is displayed for a period of 20 minutes or longer (Especially where W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area.
3.2. LAN Inspection
3.2.1. Equipment & Condition
▪ Each other connection to LAN Port of IP Hub and Jig
3.2.2. LAN inspection solution
▪ LAN Port connection with PCB ▪ Network setting at MENU Mode of TV ▪ setting automatic IP ▪ Setting state confirmation
- If automatic setting is finished, you confirm IP and MAC Address.
3.2.3. WIDEVINE key Inspection
- Confirm key input data at the "IN START" MENU Mode.
3. Automatic Adjustment
3.1. MAC address D/L, CI+ key D/L, Widevine key D/L, ESN D/L, HDCP2.0 D/L
Connect: USB port Communication Prot connection
▪ Com 1,2,3,4 and 115200(Baudrate)
Mode check: Online Only
▪ Check the test process : DETECT → MAC → ESN → Widevine → CI → HDCP20 ▪ Play: Press Enter key ▪ Result: Ready, Test, OK or NG ▪ Printer Out (MAC Address Label)
Only for training and service purposes
- 11 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
3.3. LAN PORT INSPECTION(PING TEST)
Connect SET → LAN port == PC → LAN Port
SET PC
3.5. CI+ Key checking method(Only EU Model)
Check whether the key was downloaded or not at ‘In Start’ menu. (Refer to below).
3.3.1. Equipment setting
(1) Play the LAN Port Test PROGRAM. (2) Input IP set up for an inspection to Test Program.
*IP Number : 12.12.2.2
3.3.2. LAN PORT inspection(PING TEST)
(1) Play the LAN Port Test Program. (2) Connect each other LAN Port Jack. (3) Play Test (F9) button and confirm OK Message. (4) Remove LAN CABLE.
*IP : 12.12.2.2G
3.4. Model name & Serial number Download
3.4.1. Model name & Serial number D/L
Press "P-ONLY" key of service remote control.
(Baud rate : 115200 bps)
Connect RS-232C Signal to USB Cable to USB. Write Serial number by use USB port. Must check the serial number at Instart menu.
3.4.2. Method & notice
(1) Serial number D/L is using of scan equipment. (2) Setting of scan equipment operated by Manufacturing
Technology Group.
(3) Serial number D/L must be conformed when it is produced
in production line, because serial number D/L is mandatory by D-book 4.0.
* Manual Download (Model Name and Serial Number)
If the TV set is downloaded by OTA or service man, sometimes model name or serial number is initialized.(Not always) There is impossible to download by bar code scan, so It need Manual download.
1) Press the "Instart" key of Adjustment remote control.
2) Go to the menu "7.Model Number D/L" like below photo.
3) Input the Factory model name(ex 65UG870V-ZA) or Serial number like photo.
=> Check the Download to CI+ Key value in LGset.
3.5.1. Check the method of CI+ Key value
(1) Check the method on Instart menu (2) Check the method of RS232C Command
1) Into the main ass’y mode(RS232: aa 00 00)
CMD 1 CMD 2 Data 0
A 0 0
2) Check the key download for transmitted command (RS232: ci 00 10)
CMD 1 CMD 2 Data 0
C I 1 0
3) Result value
- Normally status for download : OKx
- Abnormally status for download : NGx
3.5.2. Check the method of CI+ key value(RS232)
1) Into the main ass’y mode(RS232: aa 00 00)
CMD 1 CMD 2 Data 0
A A 0 0
2) Check the methed of CI+ key by command (RS232: ci 00 20)
CMD 1 CMD 2 Data 0
C I 2 0
3) Result value i 01 OK 1d1852d21c1ed5dcx
CI+ Key Value
3.6. WIFI MAC ADDRESS CHECK
(1) Using RS232 Command
H-freq(kHz) V-freq.(Hz)
Transmission [A][I][][Set ID][][20][Cr] [O][K][X] or [NG]

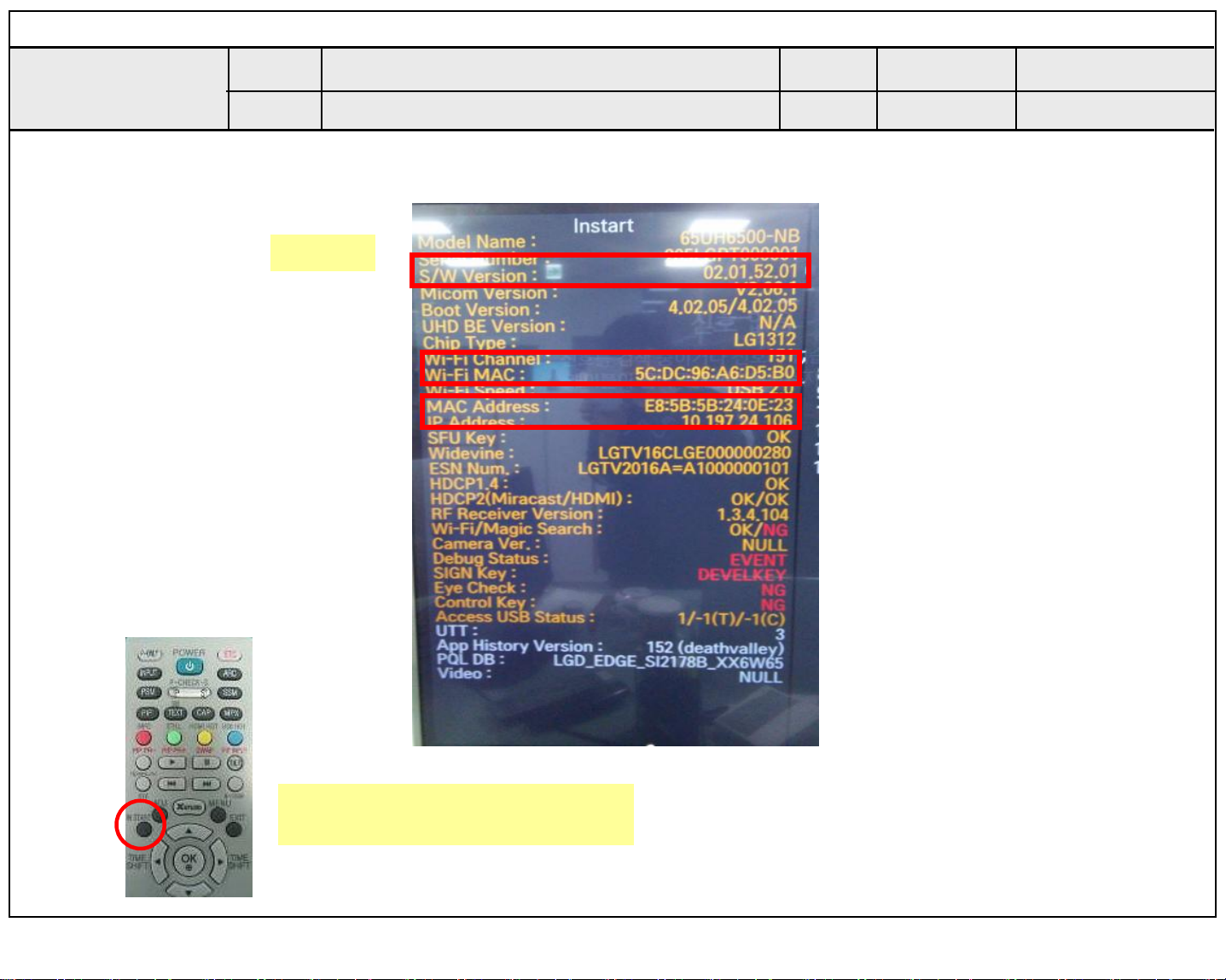

(2) Check the menu on in-start
4) Check the model name Instart menu. → Factory name
displayed. (ex 65UG870V-ZA)
5) Check the Diagnostics.(DTV country only) → Buyer
model displayed. (ex 65UG870V-ZA)
Only for training and service purposes
- 12 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
4. Manual Adjustment
* ADC adjustment is not needed because of OTP(Auto ADC
adjustment)
4.1. EDID(The Extended Display Identification Data)/DDC(Display Data Channel) download
4.1.1. Overview
It is a VESA regulation. A PC or a MNT will display an optimal resolution through information sharing without any necessity of user input. It is a realization of "Plug and Play".
4.1.2. Equipment
- Since embedded EDID data is used, EDID download JIG, HDMI cable and D-sub cable are not need.
- Adjustment remote control
4.1.3. Download method
(1) Press "ADJ" key on the Adjustment remote control, then
select "12.EDID D/L", By pressing "Enter" key, enter EDID D/L menu.
For HDMI EDID
DVI-D to HDMI or HDMI to HDMI
(2) Select "Start" button by pressing "Enter" key, HDMI1/
HDMI2/ HDMI3/ HDMI4 are writing and display OK or NG.
4.1.4. EDID DATA
▪ Reference
- HDMI1 ~ HDMI3
- In the data of EDID, bellows may be different by Input mode.
0 1 2 3 4 5 6 7 8 9 A B C D E F
0x00 00 FF FF FF FF FF FF 00 1E 6D
0x01 0x02 0F 50 54 A1 8 00 31 40 45 40 61 40 71 40 81 80 0x03 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 0x04 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 0x05 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 0x06 3E 1E 53 10 00 0A 20 20 20 20 20 20 0x07 0x00 02 03 3A F1 4E 10 9F 04 13 05 14 03 02 12 20 21 0x01 22 15 01 29 3D 06 C0 15 07 50 0x02 0x03 0x04 2D 40 58 2C 45 00 40 84 63 00 00 1E 01 1D 80 18 0x05 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 0x06 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 0x07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
10 28 10 E3 05 03 01 02 3A 80 18 71 38
Product ID Serial No: Controlled on production line. Month, Year: Controlled on production line:
ex) Monthly : ‘01’ → ‘01’, Year : ‘2016’ → ‘1A’
Model Name(Hex): LGTV Checksum(LG TV): Changeable by total EDID data. Vendor Specific(HDMI)
ⓔ1
01
ⓔ2
(1) EDID for 2D Model
1) DTS # HDMI 1(C/S : 9F 47) - HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3 A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 80 02 03 4B F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 29 3D 06
A0 C0 15 07 50 09 57 07 6E 03 0C 00 10 00 B8 3C 20 B0 00 80 01 02 03 04 67 D8 5D C4 01 78 80 03 E3 05 C0 C0 00 E4 0F 03 00 18 E3 06 07 01 01 1D 80 18 71 D0 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 E0 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 47
# HDMI 1(C/S : 9F E5) - HDMI UHD Deep Off Case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3 A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
80 02 03 40 F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 29 3D 06 A0 C0 15 07 50 09 57 07 6E 03 0C 00 10 00 B8 3C 20 B0 00 80 01 02 03 04 E5 0E 60 61 65 66 E3 06 07 01 C0 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 D0 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 E0 63 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E5
# HDMI 2(C/S : 9F 37) - HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3 A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
80 02 03 4B F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 29 3D 06 A0 C0 15 07 50 09 57 07 6E 03 0C 00 20 00 B8 3C 20 B0 00 80 01 02 03 04 67 D8 5D C4 01 78 80 03 E3 05 C0 C0 00 E4 0F 03 00 18 E3 06 07 01 01 1D 80 18 71 D0 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 E0 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 37
Only for training and service purposes
- 13 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
# HDMI 2(C/S : 9F D5) - HDMI UHD Deep Off Case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 80 02 03 40 F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 29 3D 06 A0 C0 15 07 50 09 57 07 6E 03 0C 00 20 00 B8 3C 20 B0 00 80 01 02 03 04 E5 0E 60 61 65 66 E3 06 07 01 C0 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 D0 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 E0 63 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D5
# HDMI 3(C/S : 9F 27) - HDMI UHD Deep Off Case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3 A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 80 02 03 4B F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 29 3D 06 A0 C0 15 07 50 09 57 07 6E 03 0C 00 10 00 B8 3C 20 B0 00 80 01 02 03 04 67 D8 5D C4 01 78 80 03 E3 05 C0 C0 00 E4 0F 03 00 18 E3 06 07 01 01 1D 80 18 71 D0 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 E0 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 27
# HDMI 3(C/S : 9F C5) - HDMI UHD Deep Off Case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3 A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 80 02 03 40 F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 29 3D 06 A0 C0 15 07 50 09 57 07 6E 03 0C 00 30 00 B8 3C 20 B0 00 80 01 02 03 04 E5 0E 60 61 65 66 E3 06 07 01
C0 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 D0 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 E0 63 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C5
* Checksum(HDMI 1/2/3)
Input
HDMI1 9F 47 9F E5
HDMI2 9F 37 9F D5
HDMI3 9F 27 9F C5
HDMI Deep Color On
FFh (Checksum)
HDMI Deep Color Off
FFh (Checksum)
2) AC3 # HDMI 1(C/S : 9F 50) - HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 80 02 03 48 F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 26 15 07
A0 50 09 57 07 6E 03 0C 00 10 00 B8 3C 20 00 80 01 B0 02 03 04 67 D8 5D C4 01 78 80 03 E3 05 C0 00 E4 C0 0F 03 00 18 E3 06 07 01 01 1D 80 18 71 1C 16 20 D0 58 2C 25 00 40 84 63 00 00 9E 66 21 50 B0 51 00 E0 1B 30 40 70 36 00 40 84 63 00 00 1E 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50
# HDMI 1(C/S : 9F EE) – HDMI UHD Deep Off Case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 80 02 03 3D F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 26 15 07
A0 50 09 57 07 6E 03 0C 00 10 00 B8 3C 20 00 80 01 B0 02 03 04 E5 0E 60 61 65 66 E3 06 07 01 01 1D 80 C0 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 D0 21 50 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 E0 1E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 EE
# HDMI 2(C/S : 9F 40) - HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
Only for training and service purposes
- 14 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 80 02 03 48 F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 26 15 07
A0 50 09 57 07 6E 03 0C 00 20 00 B8 3C 20 00 80 01 B0 02 03 04 67 D8 5D C4 01 78 80 03 E3 05 C0 00 E4 C0 0F 03 00 18 E3 06 07 01 01 1D 80 18 71 1C 16 20 D0 58 2C 25 00 40 84 63 00 00 9E 66 21 50 B0 51 00 E0 1B 30 40 70 36 00 40 84 63 00 00 1E 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 40
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 80 02 03 3D F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 26 15 07
A0 50 09 57 07 6E 03 0C 00 30 00 B8 3C 20 00 80 01 B0 02 03 04 E5 0E 60 61 65 66 E3 06 07 01 01 1D 80 C0 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 D0 21 50 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 E0 1E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 CE
# HDMI 2(C/S : 9F DE) - HDMI UHD Deep off Case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 80 02 03 3D F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 26 15 07
A0 50 09 57 07 6E 03 0C 00 20 00 B8 3C 20 00 80 01 B0 02 03 04 E5 0E 60 61 65 66 E3 06 07 01 01 1D 80 C0 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 D0 21 50 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 E0 1E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 DE
# HDMI 3(C/S : 9F 30) - HDMI UHD Deep off Case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 80 02 03 48 F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 26 15 07
A0 50 09 57 07 6E 03 0C 00 30 00 B8 3C 20 00 80 01 B0 02 03 04 67 D8 5D C4 01 78 80 03 E3 05 C0 00 E4 C0 0F 03 00 18 E3 06 07 01 01 1D 80 18 71 1C 16 20 D0 58 2C 25 00 40 84 63 00 00 9E 66 21 50 B0 51 00 E0 1B 30 40 70 36 00 40 84 63 00 00 1E 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 30
# HDMI 3(C/S : 9F CE) - HDMI UHD Deep off Case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
* Checksum(HDMI 1/2/3)
Input
HDMI1 9F 50 9F EE
HDMI2 9F 40 9F DE
HDMI3 9F 30 9F CE
HDMI Deep Color On
FFh (Checksum)
HDMI Deep Color Off
FFh (Checksum)
3) PCM # HDMI 1(C/S : 9F C2) - HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 80 02 03 45 F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 23 09 57
A0 07 6E 03 0C 00 10 00 B8 3C 20 00 80 01 02 03 04 B0 67 D8 5D C4 01 78 80 03 E3 05 C0 00 E4 0F 03 00 C0 18 E3 06 07 01 01 1D 80 18 71 1C 16 20 58 2C 25 D0 00 40 84 63 00 00 9E 66 21 50 B0 51 00 1B 30 40 E0 70 36 00 40 84 63 00 00 1E 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C2
# HDMI 1(C/S : 9F 60) - HDMI UHD Deep off case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
80 02 03 3A F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 23 09 57 A0 07 6E 03 0C 00 10 00 B8 3C 20 00 80 01 02 03 04 B0 E5 0E 60 61 65 66 E3 06 07 01 01 1D 80 18 71 1C C0 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 B0 D0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60
Only for training and service purposes
- 15 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
# HDMI 2(C/S : 9F B2) - HDMI UHD Deep On Case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3 A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
# HDMI 3(C/S : 9F 40) - HDMI UHD Deep off case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3 A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 80 02 03 45 F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 23 09 57
A0 07 6E 03 0C 00 20 00 B8 3C 20 00 80 01 02 03 04 B0 67 D8 5D C4 01 78 80 03 E3 05 C0 00 E4 0F 03 00 C0 18 E3 06 07 01 01 1D 80 18 71 1C 16 20 58 2C 25 D0 00 40 84 63 00 00 9E 66 21 50 B0 51 00 1B 30 40 E0 70 36 00 40 84 63 00 00 1E 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B2
# HDMI 2(C/S : 9F 50) - HDMI UHD Deep off case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3 A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 80 02 03 3A F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 23 09 57
A0 07 6E 03 0C 00 20 00 B8 3C 20 00 80 01 02 03 04 B0 E5 0E 60 61 65 66 E3 06 07 01 01 1D 80 18 71 1C C0 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 B0 D0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 80 02 03 3A F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 23 09 57 A0 07 6E 03 0C 00 30 00 B8 3C 20 00 80 01 02 03 04 B0 E5 0E 60 61 65 66 E3 06 07 01 01 1D 80 18 71 1C C0 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 B0 D0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 40
* Checksum(HDMI 1/2/3)
Input
HDMI1 9F C2 9F 60
HDMI2 9F B2 9F 50
HDMI3 9F A2 9F 40
HDMI Deep Color On
FFh (Checksum)
HDMI Deep Color Off
FFh (Checksum)
# HDMI 3(C/S : 9F A2) - HDMI UHD Deep off case EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1 A 01 03 80 A0 5 A 78 0 A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3 A 60 3E 1E 88 3C 00 0 A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0 A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 80 02 03 45 F1 58 61 60 10 1F 04 13 05 14 03 02 12 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 23 09 57
A0 07 6E 03 0C 00 30 00 B8 3C 20 00 80 01 02 03 04 B0 67 D8 5D C4 01 78 80 03 E3 05 C0 00 E4 0F 03 00 C0 18 E3 06 07 01 01 1D 80 18 71 1C 16 20 58 2C 25 D0 00 40 84 63 00 00 9E 66 21 50 B0 51 00 1B 30 40 E0 70 36 00 40 84 63 00 00 1E 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 A2
Only for training and service purposes
- 16 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
4.1.5. Green Eye Inspection Guide
(Only use Germany and CIS, Spec out other EU country, but UF690 model only for Germany)
Step 1) Turn on the TV set. Step 2). Press “EYE” button on the Adjustment remote control.
4.2.3. Equipment connection MAP
wG
|ziGGyzTYZYjG
zG
୔pG{}GGGGSGG
୔G
jGh¡G
yzTYZYjG
jG
yzTYZYjG
wG
4.2.4. Adj. Command (Protocol)
<Command Format>
START 6E A 50 A LEN A 03 A CMD A 00 A VA L A CS STOP
- LEN: Number of Data Byte to be sent
- CMD: Command
Step 3) Block the Intelligent Sensor module on the front C/A
about 6 seconds. When the “Sensor Data” is lower than 20, you can see the “OK” message
→ If it doesn’t show “OK” message, the Sensor
Module is defected one.
You have to replace that with a good one.
Step 4) After check the “OK” message come out, take out
your hand from the Sensor module.
→ Check “Backlight” value change from “0” to “100” or
not. If it doesn’t change the value, the sensor is also defected one. You have to replace it.
4.2. White Balance Adjustment
4.2.1. Overview
- VAL: FOS Data value
- CS: Checksum of sent data
- A: Acknowledge Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]
▪ RS-232C Command used during auto-adjustment.
RS-232C COMMAND
[CMD ID DATA]
wb 00 00 Begin White Balance adjustment
wb 00 10 Gain adjustment(internal white pattern)
wb 00 1f Gain adjustment completed
wb 00 20 Offset adjustment(internal white pattern)
wb 00 2f Offset adjustment completed
wb 00 ff
End White Balance adjustment (internal pattern disappears )
Explanation
Ex) wb 00 00 → Begin white balance auto-adj.
wb 00 10 → Gain adj. ja 00 ff → Adj. data
jb 00 c0 ... ...
wb 00 1f -> Gain adj. complete *(wb 00 20(Start), wb 00 2f(end)) → Off-set adj. wb 00 ff -> End white balance auto-adj.
▪ W/B adj. Objective & How-it-works
(1) Objective: To reduce each Panel's W/B deviation (2) How-it-works : When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic Range. In order to prevent saturation of Full Dynamic range and data, one of R/G/B is fixed at 192, and the other two is lowered to find the desired value.
(3) Adjustment condition : normal temperature
1) Surrounding Temperature : 25 °C ± 5 °C
2) Warm-up time: About 5 Min
3) Surrounding Humidity : 20 % ~ 80 %
4.2.2. Equipment
(1) Color Analyzer: CA-210 (LED Module : CH 14) (2) Adjustment Computer(During auto adj., RS-232C protocol
is needed) (3) Adjustment Remote control (4) Video Signal Generator MSPG-925F 720p/216-Gray
(Model: 204, Pattern: 49)
→ Only when internal pattern is not available
Color Analyzer Matrix should be calibrated using CS-100.
- 17 -
▪ Adj. Map
Cool
Medium
Warm
Command
Adj. item
R Gain j g 00 C0 TBD
G Gain j h 00 C0 TBD
B Gain j i 00 C0 TBD
R Cut TBD
G Cut TBD
B Cut TBD
R Gain j a 00 C0 TBD
G Gain j b 00 C0 TBD
B Gain j c 00 C0 TBD
R Cut TBD
G Cut TBD
B Cut TBD
R Gain j d 00 C0 TBD
G Gain j e 00 C0 TBD
B Gain j f 00 C0 TBD
R Cut TBD
G Cut TBD
(lower case ASCII)
CMD1 CMD2 MIN MAX
Data Range
(Hex.)
Default
(Decimal)
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.2.5. Adj. method
(1) Auto adj. method
1) Set TV in adj. mode using POWER ON key.
2) Zero calibrate probe then place it on the center of the Display.
3) Connect Cable.(RS-232C to USB)
4) Select mode in adj. Program and begin adj.
5) When adj. is complete (OK Sign), check adj. status pre mode.(Warm, Medium, Cool)
6) Remove probe and RS-232C cable to complete adj.
▪ W/B Adj. must begin as start command “wb 00 00”, and
finish as end command “wb 00 ff”, and Adj. offset if need.
(2) Manual adjustment method
1) Set TV in Adj. mode using POWER ON.
2) Zero Calibrate the probe of Color Analyzer, then place it on the center of LCD module within 10 cm of the surface.
3) Press ADJ key → EZ adjust using adj. R/C → 7. White­Balance then press the cursor to the right(key ►).
(When right key(►) is pressed 216 Gray internal pattern
will be displayed)
4) One of R Gain / G Gain / B Gain should be fixed at 192, and the rest will be lowered to meet the desired value.
5) Adjustment is performed in COOL, MEDIUM, WARM 3 modes of color temperature.
** G-fix adjustment Adjust modes (Cool), Fix the G gain to 172 (default data) and change the others (G/B Gain). Adjust two modes(Medium / Warm), Fix the one of R/G/B gain to 192 (default data) and decrease the others. If internal pattern is not available, use RF input. In EZ Adj. menu 7.White Balance, you can select one of 2 Test­pattern: ON, OFF. Default is inner(ON). By selecting OFF, you can adjust using RF signal in 216 Gray pattern.
▪ Adjustment condition and cautionary items
1) Lighting condition in surrounding area
Surrounding lighting should be lower 10 lux. Try to isolate adj. area into dark surrounding.
2) Probe location
- PDP: Color Analyzer (CA-100, CA-100+, CA210) probe should be firmly attached to the Module
- LCD: Color Analyzer (CA-210) probe should be within 10cm and perpendicular of the module surface (80°~ 100°)
3) Aging time
- After Aging Start, Keep the Power ON status during 5
Minutes.
- In case of LCD, Back-light on should be checked using
no signal or Full-white pattern.
4.2.6. Reference(White balance adjusmtment coordinate and color temperature)
▪ Luminance : 206 Gray ▪ Standard color coordinate and temperature using CS-1000
(over 26 inch)
Mode
Coordinate
x y
Temp ∆uv
Cool 0.271 0.270 13000K 0.0000
Medium 0.286 0.289 9300K 0.0000
Warm 0.313 0.329 6500K 0.0000
Standard color coordinate and temperature using CA-210(CH 14)
Mode
Coordinate
x y
Temp ∆uv
Cool 0.271±0.002 0.270±0.002 13000K 0.0000
Medium 0.286±0.002 0.289±0.002 9300K 0.0000
Warm 0.313±0.002 0.329±0.002 6500K 0.0000
4.2.7. EDGE & IOL LED White balance table
▪ Apply under the color coordinate table, for compensated
aging time.
-gumi & Global Model : (normal line)LGD
Aging
time
(Min)
1 0-2 282 289 297 308 324 348 2 3-5 281 287 296 306 323 346 3 6-9 279 284 294 303 321 343 4 10-19 277 280 292 299 319 339 5 20-35 275 277 290 296 317 336 6 36-49 274 274 289 293 316 333 7 50-79 273 272 288 291 315 331 8 80-119 272 271 287 290 314 330 9 Over 120 271 270 286 289 313 329
(*) AUO, INX, Sharp, CSOT, BOE model (Cool spec : 13000K) – 40UH63**-Z*/55UH65**-Z*
webOS Cool Medium Warm
271 270 285 293 313 329
Target 278 280 293 299 320 339
Cool Medium Warm
x y x y x y
271 270 286 289 313 329
x y x y x y
Only for training and service purposes
- 18 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
4.3. Local Dimming Function Check
(1) Turn on TV. (2) At the Local Dimming mode, module Edge Backlight
moving right to left Back light of IOP module moving. (3) Confirm the Local Dimming mode. (4) Press “exit” Key.
- [55/60/65UH65, 40/50/68UH63, 49/55/60/65UH75, 49/55/60/65UH77: 6Block]
- [70UH70 : 12Block]
/RFDO'LPPLQJ'HPR
G
4.4. Magic Motion Remote control test
- Equipment : RF Remote control for test, IR-KEY-Code
Remote control for test
- You must confirm the battery power of RF-Remote control
before test(recommend that change the battery per every lot)
- Sequence (test)
1) If you select the ‘start key(OK)’ on the Adjustment remote control, you can pairing with the TV SET.
2) You can check the cursor on the TV Screen, when select the "OK" key on the Adjustment remote control.
3) You must remove the pairing with the TV Set by select ‘Mute + OK Key’ on the Adjustment remote control.
4.5. Option selection per country
4.5.1. Overview
- Option selection is only done for models in AJ/JA/IL
4.5.2.Method
(1) Press ADJ key on the Adj. R/C, then select Country Group
Menu.
(2) Depending on destination, select Country Group Code or
Country Group then on the lower Country option, select
US, CA, MX. Selection is done using +, - or ►◄ KEY.
4.6. HDMI ARC Function Inspection
(1) Test equipment
- Optic Receiver Speaker
- MSHG-600 (SW: 1220 ↑)
- HDMI Cable (for 1.4 version)
(2) Test method
1) Insert the HDMI Cable to the HDMI ARC port from the master equipment. (HDMI2)
2) Check the sound from the TV Set.
3) Check the Sound from the Speaker or using AV & Optic TEST program (It’s connected to MSHG-600)
4.7. Ship-out mode check (In-stop)
- After final inspection, press In-Stop key of the Adjustment remote control and check that the unit goes to Stand-by mode.
5. GND and Internal Pressure check
5.1. Method
(1) GND & Internal Pressure auto-check preparation
- Check that Power Cord is fully inserted to the SET. (If loose, re-insert)
(2) Perform GND & Internal Pressure auto-check
- Unit fully inserted Power cord, Antenna cable and A/V arrive to the auto-check process.
- Connect D-terminal to AV JACK TESTER
- Auto CONTROLLER(GWS103-4) ON
- Perform GND TEST
- If NG, Buzzer will sound to inform the operator.
- If OK, changeover to I/P check automatically. (Remove CORD, A/V form AV JACK BOX.)
- Perform I/P test
- If NG, Buzzer will sound to inform the operator.
- If OK, Good lamp will lit up and the stopper will allow the pallet to move on to next process.
5.2. Checkpoint
▪ TEST voltage
- GND: 1.5 KV / min at 100 mA
- SIGNAL: 3 KV / min at 100 mA
▪ TEST time: 1 second ▪ TEST POINT
- GND TEST = POWER CORD GND & SIGNAL CABLE
METAL GND
- Internal Pressure TEST = POWER CORD GND & LIVE &
NEUTRAL
▪ LEAKAGE CURRENT: At 0.5 mArms
Only for training and service purposes
6. Audio
Measurement condition: (1) RF input: Mono, 1 KHz sine wave signal, 100 % Modulation (2) CVBS, Component: 1 KHz sine wave signal 0.5 Vrms
No. Item Typ Max Unit
10 12 W
8.10 10.8 Vrms
10 12 W
- 19 -
Audio practical max Output,
1
L/R (Distortion=10% max
Output)
Speaker
2
(6/8Ω Impedance)
EQ Off
AVL Off
Clear Voice Off
EQ On
AVL On
Clear Voice On
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
7. USB S/W Download (option, Service only)
(1) Put the USB Stick to the USB socket. (2) Automatically detecting update file in USB Stick
- If your downloaded program version in USB Stick is Lower, it didn’t work.
But your downloaded version is Higher, USB data is automatically detecting (Download Version High & Power only mode, Set is automatically Download) (3) Show the message “Copying files from memory”.
(4) Updating is starting.
(5) Updating completed, the TV will restart automatically
(6) If your TV is turned on, check your updated version and
Tool option. (explain the Tool option, next stage)
* If downloading version is more high than your TV have,
TV can lost all channel data. In this case, you have to channel recover. if all channel data is cleared, you didn’t have a DTV/ATV test on production line.
* After downloading, have to adjust Tool Option again.
(1) Push "IN-START" key in service remote control. (2) Select "Tool Option 1" and push "OK" key. (3) Punch in the number. (Each model has their number)
Only for training and service purposes
- 20 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
1. M16 Only
BLOCK DIAGRAM
Only for training and service purposes
- 21 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
2. M16 ONLY (Internal)
Only for training and service purposes
- 22 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
3. M16 Only I2C
Only for training and service purposes
- 23 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Loading...
+ 52 hidden pages
