OWNER’S MANUAL
LED TV*
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set
and retain it for future reference.
LB55**
LB56**
LB62**
*MFL68003808*
P/NO : MFL68003808 (1402-REV00)
Printed in Korea
www.lg.com
TABLE OF CONTENTS
A-2
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-4 MAKING CONNECTIONS
A-4 Antenna connection
A-4 Satellite dish connection
A-5 Euro Scart connection
A-6 Other connections
LANGUAGE LIST
English
Türkçe
B-1 SPECIFICATIONS
COMMON
LANGUAGE
B-6 REGULATORY
COMMON
SETTING UP THE TV
Image shown may differ from your TV.
SETTING UP THE TV
(Only LB56**-ZT / ZQ, LB62**-ZE)
A-3
Attaching the stand
(Only LB55**, LB56**-ZE / ZC, LB62**-ZA / ZB)
1
A Stand Base
B Stand Base
2
M4 x L14
(Only 32LB55**,
32LB56**-ZE / ZC,
32LB62**-ZA / ZB)
4EA
M4 x L20
1
A Stand Base
B Stand Base
2
M4 x L14
(Only 32LB56**-ZT / ZQ,
32LB62**-ZE)
4EA
M4 x L20
CAUTION
yWhen attaching the stand to the TV set, place
the screen facing down on a cushioned table or
flat surface to protect the screen from scratches.
MAKING CONNECTIONS
A-4
MAKING CONNECTIONS
This section on MAKING CONNECTIONS
mainly uses diagrams for the 47LB561V models.
Antenna connection
Wall Antenna
Socket
English
Connect the TV to a wall antenna socket with an RF
cable (75 Ω).
ANTENNA /
CABLE IN
*Not Provided
Türkçe
TV’yi RF kablosu (75 Ω) ile duvar anten soketine
bağlayın.
NOT
yİkiden fazla TV’de kullanmak için bir sinyal
ayırıcısı kullanın.
yGörüntü kalitesinin kötü olması durumunda
görüntü kalitesini artırmak üzere bir sinyal
güçlendiricisi kullanın.
yAnten bağlıyken görüntü kalitesinin kötü olması
durumunda anteni doğru yönde yeniden
hizalamayı deneyin.
yAnten kablosu ve dönüştürücü ürünle birlikte
verilmemektedir.
yDesteklenen DTV Ses: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
Satellite dish connection
(Only satellite models)
NOTE
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal
amplifier properly to improve the image quality.
yIf the image quality is poor with an antenna
connected, try to realign the antenna in the
correct direction.
yAn antenna cable and converter are not supplied.
ySupported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
Satellite
Dish
*Not Provided
13/18V
700mA Max
LNB
Satellite IN
English
Connect the TV to a satellite dish to a satellite socket
with a satellite RF cable (75 Ω).
Türkçe
TV’yi uydu RF kablosu (75 Ω) kullanarak çanak antene
ve uydu soketine bağlayın.
MAKING CONNECTIONS
A-5
Euro Scart connection
*Not Provided
AUDIO / VIDEO
English
Transmits the video and audio signals from an
external device to the TV set. Connect the external
device and the TV set with the euro scart cable as
shown.
Output
Type
Current
input mode
Digital TV
Analogue TV, AV
Component
HDMI
1 TV Out : Outputs Analogue TV or Digital TV signals.
AV1
(TV Out1)
Digital TV
Analogue TV
Türkçe
Harici cihazdan TV setine video ve ses sinyalleri
gönderir. Harici cihaz ve TV setini aşağıdaki şekilde
gösterildiği gibi Euro Scart kablosuyla bağlayın.
Çıkış tipi
AV1
Geçerli
giriş modu
Dijital TV
Analog TV, AV
Komponent
HDMI
1 TV Çıkışı: Analog TV veya Dijital TV sinyal çıkışı
sağlar.
(TV Çıkışı1)
Dijital TV
Analog TV
NOT
yKullanılacak Euro Scart kablosu sinyal korumalı
olmalıdır.
y3D görüntü modunda dijital TV izlerken, yalnızca
2D çıkış sinyallerinin SCART kablosu aracılığıyla
çıkışı sağlanabilir. (Yalnızca 3D modeller)
NOTE
yAny Euro scart cable used must be signal
shielded.
yWhen watching digital TV in 3D imaging mode,
only 2D out signals can be output through the
SCART cable. (Only 3D models)
MAKING CONNECTIONS
A-6
Other connections
(Only LAN PORT models)
IN
OPTICAL
DIGITAL
AUDIO OUT
13/18V
700mA Max
LNB
Sat ellite IN
ANTENNA /
CABLE I N
HDMI
DVD/ Blu-Ray / HD Cable Box
/ HD STB / PC
(Only Satellite models)
OPTICAL
AUDIO IN
Digital Audio System
YELLOW
WHITE
WHITE
RED
RED
VIDEO
YELLOW
( )
MONO
DVD/ Blu-Ray / HD Cable Box / VCR
GREEN
BLUE
RED
WHITE
RED
WHITE
RED
AUDIO
DVD/ Blu-Ray / HD Cable Box
RED
VIDEO
BLUE
GREEN
MAKING CONNECTIONS
PCMCIA card
A-7
HDMI 2 port position
USB IN
IN 2 (MHL)
USB / HDD
varies by model.
Only LB56**, LB62** series
MHL passive cable
Headphone
H/P OUT
Mobile phone
English
Connect your TV to external devices. For the best picture and audio quality, connect the external device and the
TV with the HDMI cable as shown. Some separate cable is not provided.
Türkçe
En iyi resim ve ses kalitesi için harici cihazı ve TV’yi gösterildiği gibi HDMI kablosu ile bağlayın. TV ile ayrı bir
kablo sağlanmaz.
MAKING CONNECTIONS
A-8
English
Connect various external devices to the TV and switch
input modes to select an external device.
For more information of external device’s connection,
refer to the manual provided with each device.
Available external devices are:
HD receivers, DVD players, VCRs, audio systems,
USB storage devices, PC, gaming devices, and other
external devices.
NOTE
yThe external device connection may differ from
the model.
yConnect external devices to the TV regardless of
the order of the TV port.
yIf you record a TV programme on a DVD recorder
or VCR, make sure to connect the TV signal
input cable to the TV through a DVD recorder or
VCR. For more information of recording, refer to
the manual provided with the connected device.
yRefer to the external equipment’s manual for
operating instructions.
yIf you connect a gaming device to the TV, use the
cable supplied with the gaming device.
yIn PC mode, there may be noise associated
with the resolution, vertical pattern, contrast or
brightness. If noise is present, change the PC
output to another resolution, change the refresh
rate to another rate or adjust the brightness and
contrast on the PICTURE menu until the picture
is clear.
yIn PC mode, some resolution settings may not
work properly depending on the graphics card.
Türkçe
TV’ye çeşitli harici cihazlar bağlayın ve bir harici cihaz
seçmek için giriş modlarına geçin.
Harici cihaz bağlantısı hakkında daha fazla bilgi için
cihazlarla birlikte verilen kılavuza bakın.
Kullanılabilir harici cihazlar şunlardır:
HD alıcılar, DVD oynatıcılar, VCR cihazları,
ses sistemleri, USB depolama aygıtları, PC,
oyun cihazları ve diğer harici cihazlar.
NOT
yHarici cihaz bağlantısı modele göre değişiklik
gösterebilir.
yHarici cihazları TV’ye, TV bağlantı noktalarını
dikkate almaksızın bağlayın.
yDVD kayıt cihazına ya da VCR cihazına bir TV
programı kaydederken TV sinyal giriş kablosunun
DVD kayıt cihazı ya da VCR üzerinden TV’ye
bağlandığından emin olun. Kayıt hakkında daha
fazla bilgi için, bağlanan cihazla birlikte verilen
kılavuza bakın.
yKullanım talimatları için harici cihazın kullanım
kılavuzuna başvurun.
yTV’ye bir oyun cihazı bağlarsanız, oyun cihazıyla
birlikte verilen kabloyu kullanın.
yPC modunda, çözünürlük, dikey desen, kontrast
veya parlaklığa bağlı parazit görülebilir. Parazit
varsa PC çıkışını başka bir çözünürlüğe
ayarlayın, yenileme hızını değiştirin veya net bir
görüntü elde edene kadar RESİM menüsünden
parlaklık ve kontrast ayarlarını değiştirin.
yPC modunda bazı çözünürlük ayarları grafik
kartına bağlı olarak çalışmayabilir.
OWNER’S MANUAL
LED TV*
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and
retain it for future reference.
www.lg.com
LICENSES / OPEN SOURCE SOFTWARE NOTICE
2
LICENSES
ENGLISH
ENG
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an ofcial DivX Certied® device that has
passed rigorous testing to verify that it plays DivX video. Visit divx.com
for more information and software tools to convert your les into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be
registered in order to play purchased DivX Video-on-Demand (VOD)
movies.
To obtain your registration code, locate the DivX VOD section in your device setup
menu. Go to vod.divx.com for more information on how to complete your
registration.
“DivX Certied® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certied® and associated logos are trademarks of
Rovi Corporation or its subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274”
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product,
please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for
download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing
such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com.
This offer is valid for three (3) years from the date on which you purchased the product.

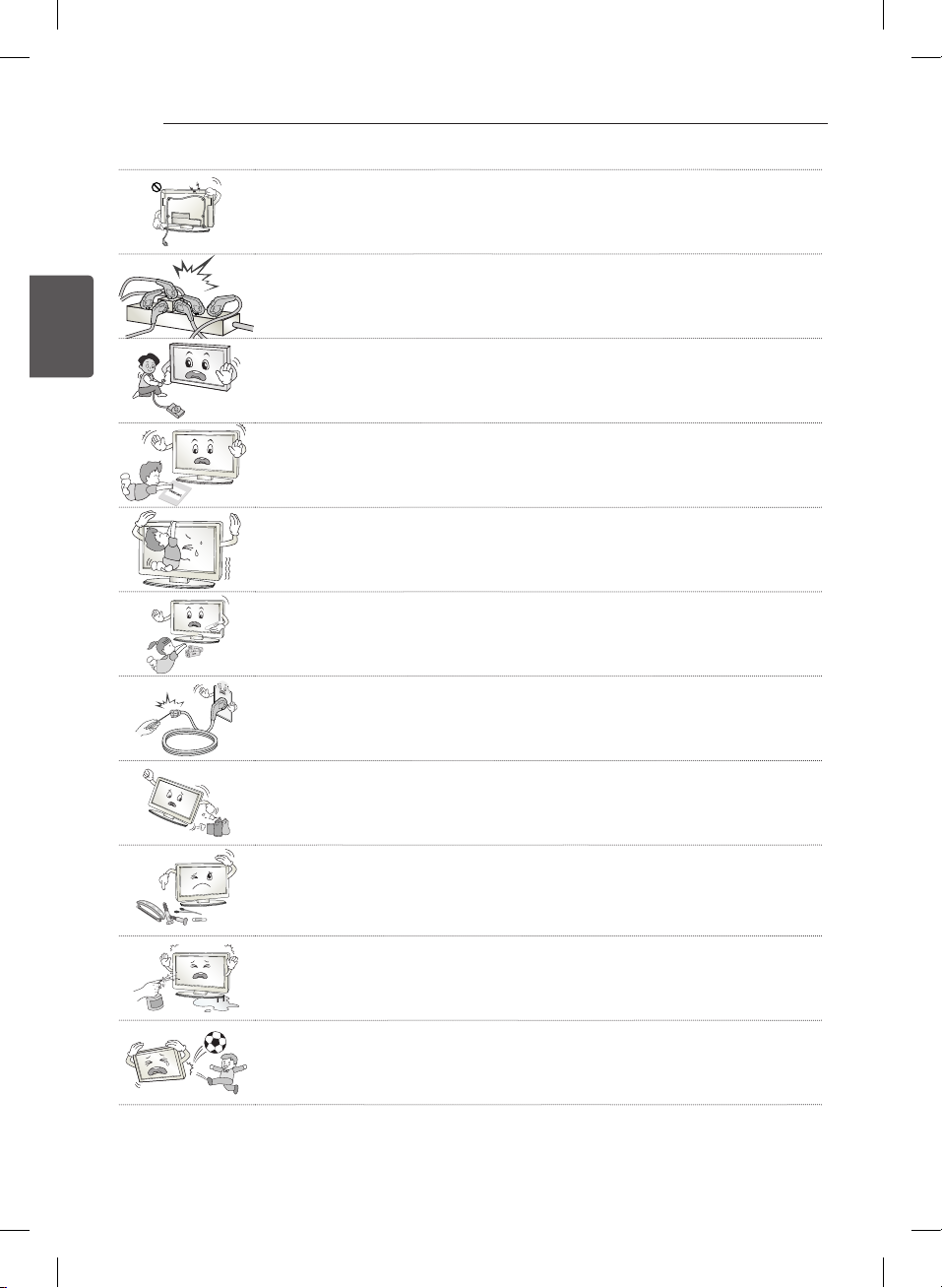

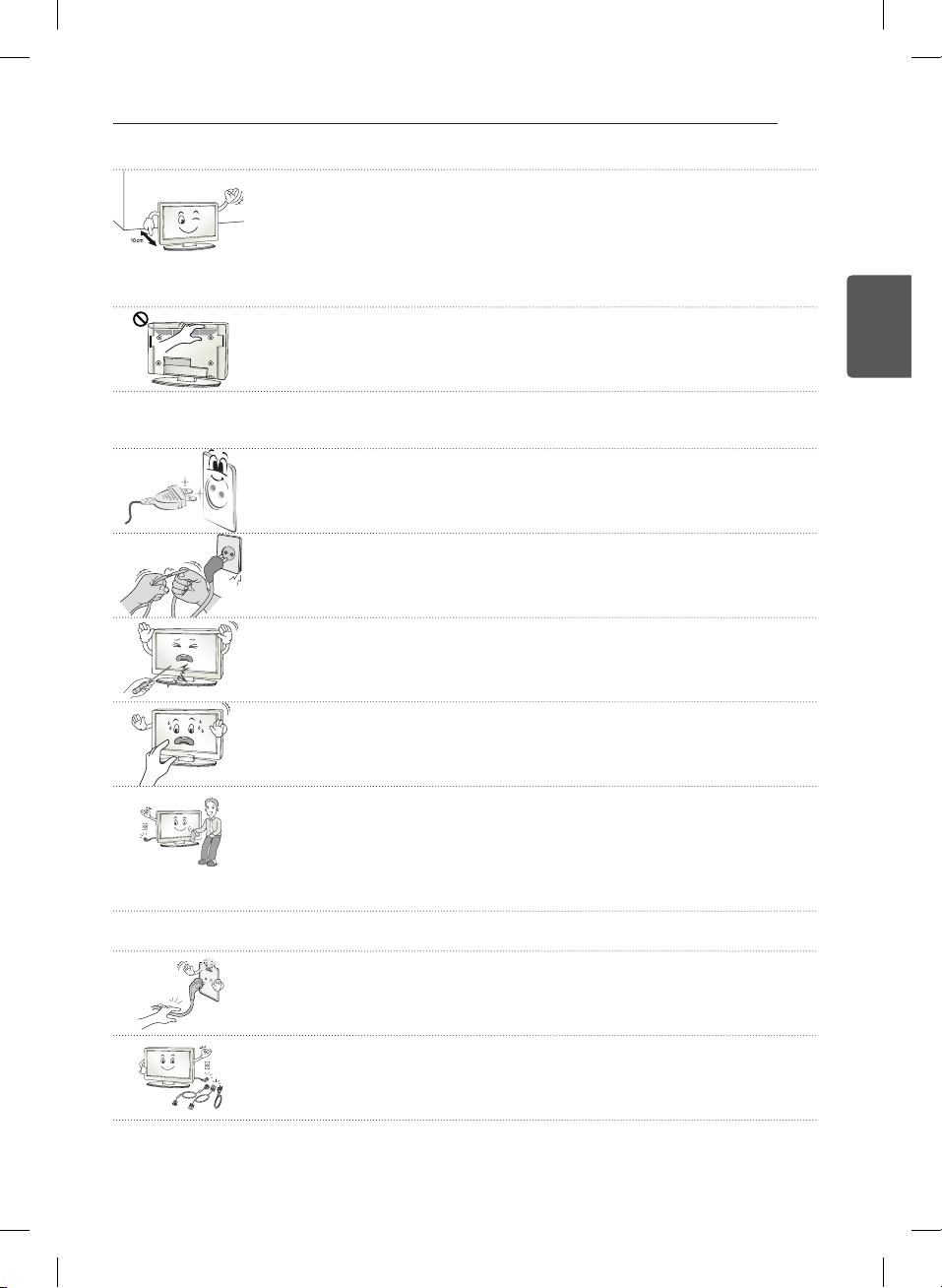

SAFETY INSTRUCTIONS
3

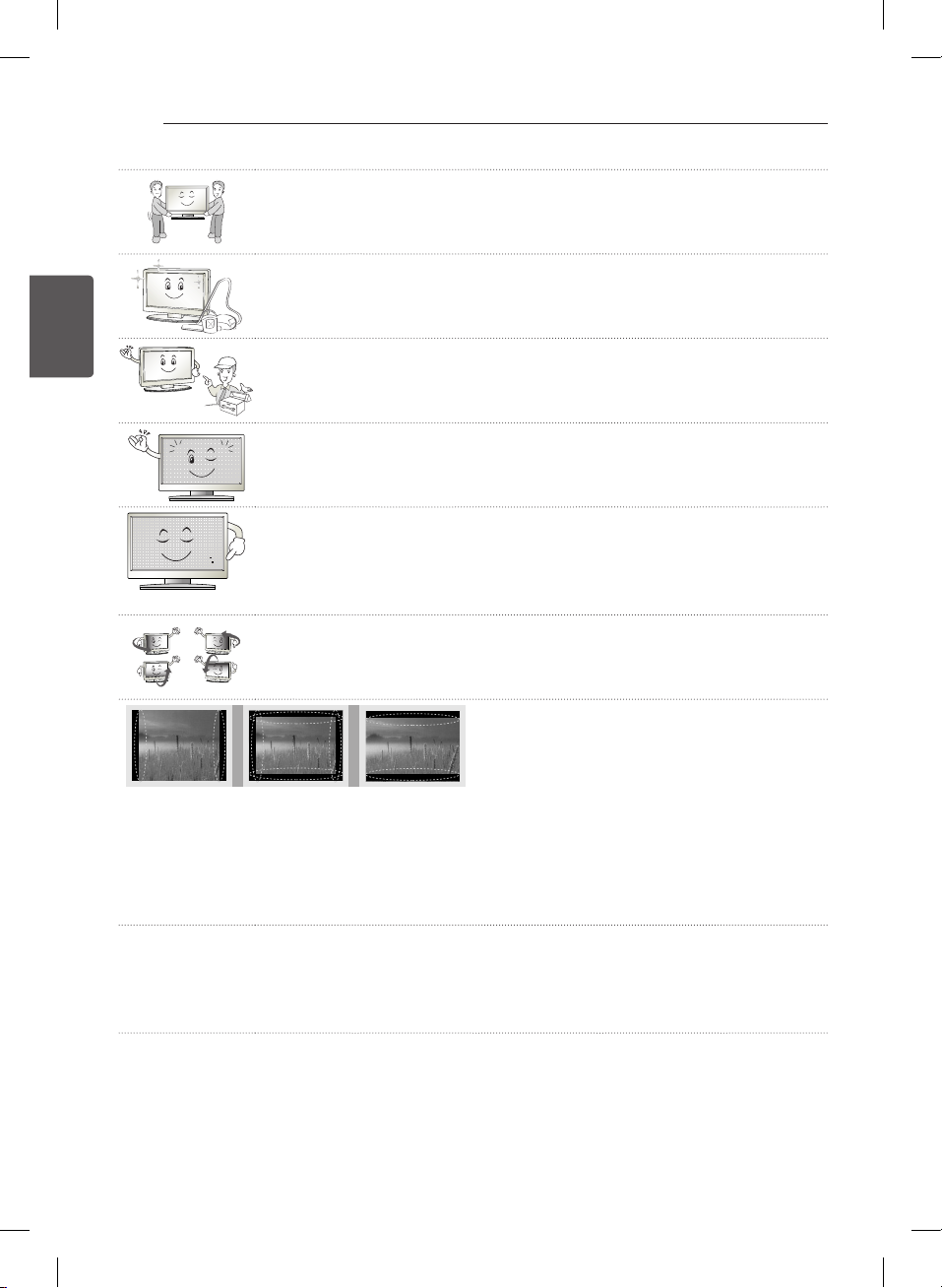

SAFETY INSTRUCTIONS
Please read these safety precautions carefully before using the product.

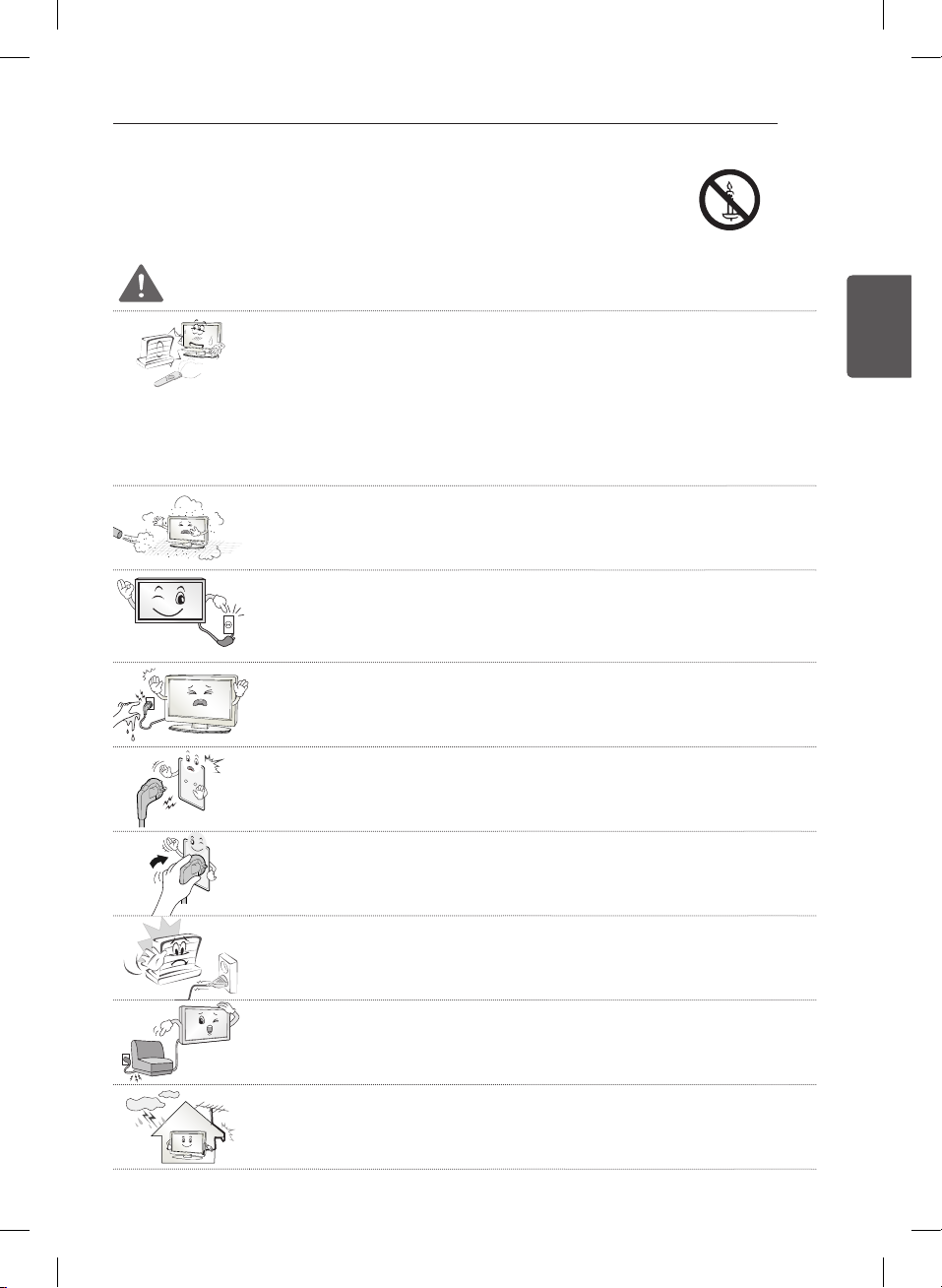

WARNING
yDo not place the TV and/or remote control in the following environments:
- A location exposed to direct sunlight
-
- An area with high humidity such as a bathroom
-
- Near any heat source such as stoves and other devices that produce heat
-
- Near kitchen counters or humidifiers where they can easily be exposed to steam or
-
oil
- An area exposed to rain or wind
-
- Near containers of water such as vases
-
Otherwise, this may result in re, electric shock, malfunction or product deformation.
yDo not place the product where it might be exposed to dust.
This may cause a fire hazard.
yMains Plug is the TV connecting/disconnecting device to AC mains electric supply.This
plug must remain readily attached and operable when TV is in use.
yDo not touch the power plug with wet hands. Additionally, if the cord pin is wet or
covered with dust, dry the power plug completely or wipe dust off.
You may be electrocuted due to excess moisture.
ENGENGLISH
yMake sure to connect Mains cable to compliant AC mains socket with Grounded earth
pin. (Except for devices which are not grounded on earth.) Otherwise possibility you
may be electrocuted or injured.
yInsert power cable plug completely into wall socket otherwise if not secured completely
into socket, fire ignition may break out.
yEnsure the power cord does not come into contact with hot objects such as a heater.
This may cause a fire or an electric shock hazard.
yDo not place a heavy object, or the product itself, on power cables.
Otherwise, this may result in fire or electric shock.
yBend antenna cable between inside and outside building to prevent rain from flowing in.
This may cause water damaged inside the Product and could give an electric shock.
SAFETY INSTRUCTIONS
4
ENGLISH
ENG
yWhen mounting TV onto wall make sure to neatly install and isolate cabling from rear of
TV as to not create possibility of electric shock /fire hazard.
yDo not plug too many electrical devices into a single multiple electrical outlet.
Otherwise, this may result in fire due to over-heating.
yDo not drop the product or let it fall over when connecting external devices.
Otherwise, this may result in injury or damage to the product.
yKeep the anti-moisture packing material or vinyl packing out of the reach of children.
Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient
to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation.
Keep it out of the reach of children.
yDo not let your children climb or cling onto the TV.
Otherwise, the TV may fall over, which may cause serious injury.
yDispose of used batteries carefully to ensure that a small child does not consume them.
Please seek Doctor- Medical Attention immediately if child consumes batteries.
yDo not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver)
between power cable plug and input Wall Socket while it is connected to the input
terminal on the wall. Additionally, do not touch the power cable right after plugging into
the wall input terminal. You may be electrocuted.
(Depending on model)
yDo not put or store inflammable substances near the product.
There is a danger of combustion/explosion or fire due to careless handling of the
inflammable substances.
yDo not drop metallic objects such as coins, hair pins, chopsticks or wire into the
product, or inflammable objects such as paper and matches. Children must pay
particular attention.
Electrical shock, fire or injury can occur. If a foreign object is dropped into the product,
unplug the power cord and contact the service centre.
yDo not spray water on the product or scrub with an inflammable substance (thinner or
benzene). Fire or electric shock accident can occur.
yDo not allow any impact, shock or any objects to fall into the unit, and do not drop
anything onto the screen.
You may be injured or the product can be damaged.
SAFETY INSTRUCTIONS

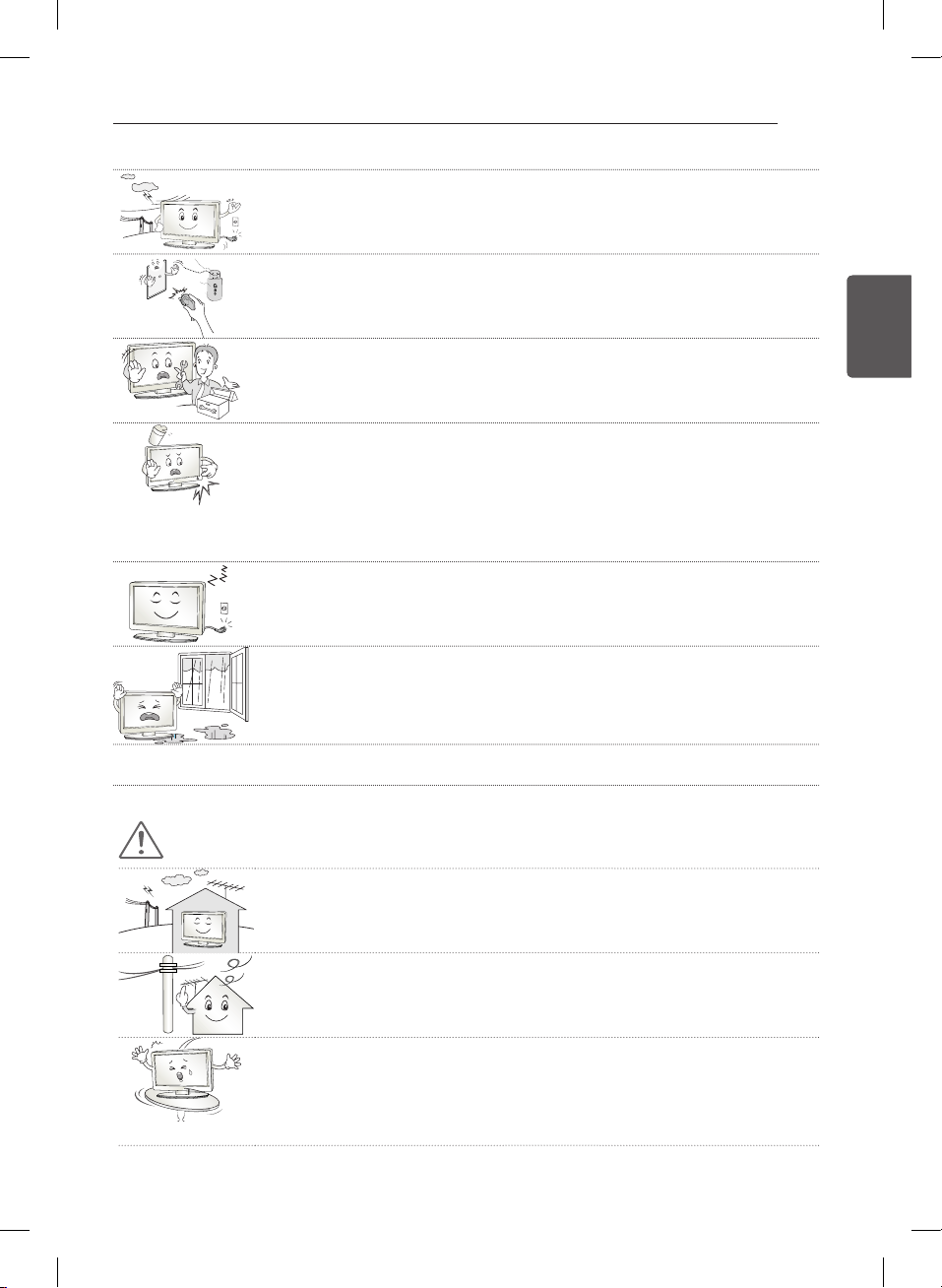

yNever touch this product or antenna during a thunder or lighting storm.
You may be electrocuted.
yNever touch the wall outlet when there is leakage of gas, open the windows and
ventilate.
It may cause a fire or a burn by a spark.
yDo not disassemble, repair or modify the product at your own discretion.
Fire or electric shock accident can occur.
Contact the service centre for check, calibration or repair.
yIf any of the following occur, unplug the product immediately and contact your local
service centre.
- The product has been impacted by shock
-
- The product has been damaged
-
- Foreign objects have entered the product
-
- The product produced smoke or a strange smell
-
This may result in re or electric shock.
yUnplug the TV from AC mains wall socket if you do not intend to use the TV for a long
period of time.
Accumulated dust can cause re hazard and insulation deterioration can cause electric
leakage/shock/re.
yApparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
5
ENGENGLISH
yDo not install this product on a wall if it could be exposed to oil or oil mist.
This may damage the product and cause it to fall.
CAUTION
yInstall the product where no radio wave occurs.
yThere should be enough distance between an outside antenna and power lines to keep
the former from touching the latter even when the antenna falls.
This may cause an electric shock.
yDo not install the product on places such as unstable shelves or inclined surfaces. Also
avoid places where there is vibration or where the product cannot be fully supported.
Otherwise, the product may fall or flip over, which may cause injury or damage to the
product.
SAFETY INSTRUCTIONS
6
ENGLISH
ENG

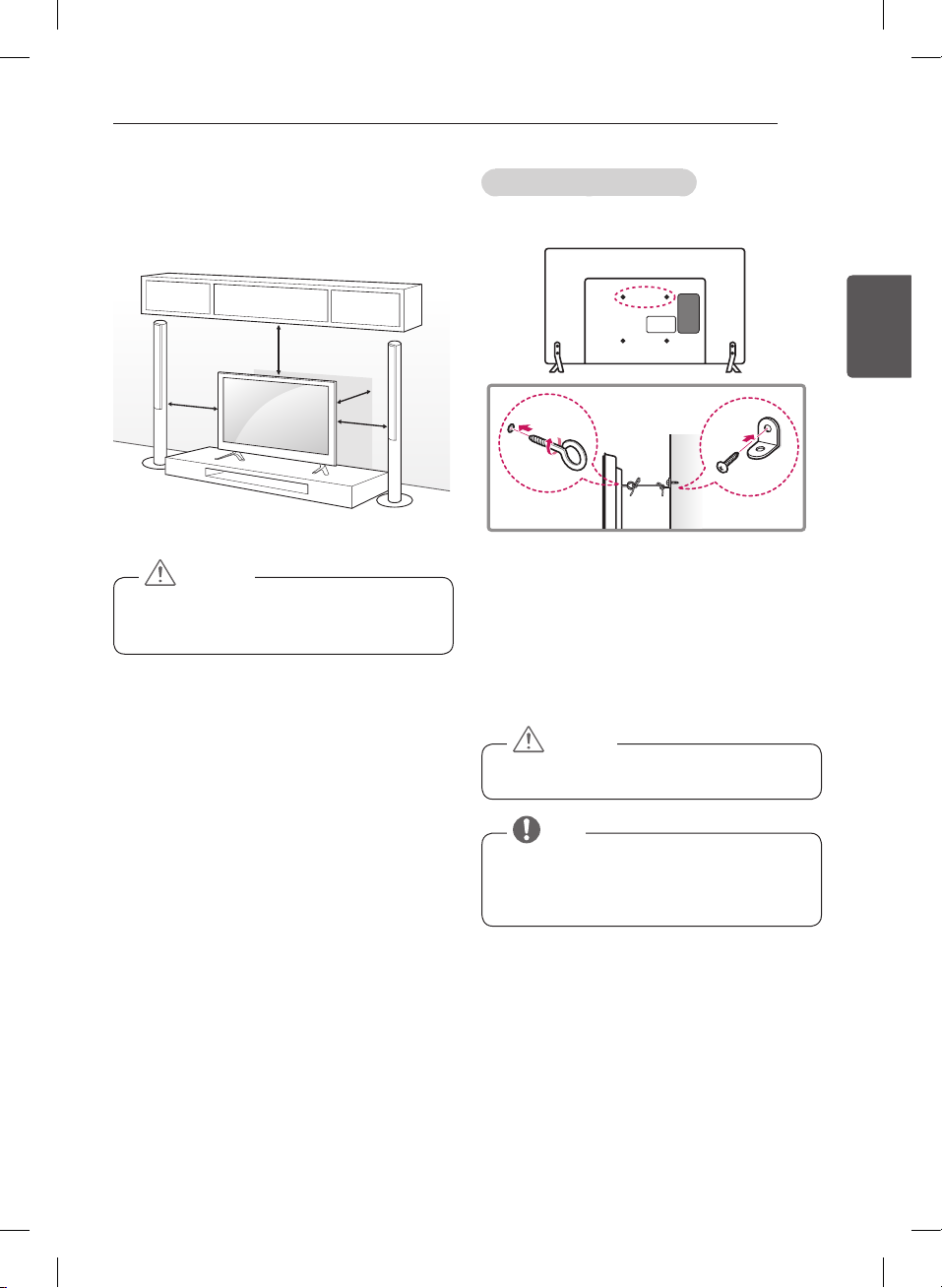

yIf you install the TV on a stand, you need to take actions to prevent the product from
overturning. Otherwise, the product may fall over, which may cause injury.

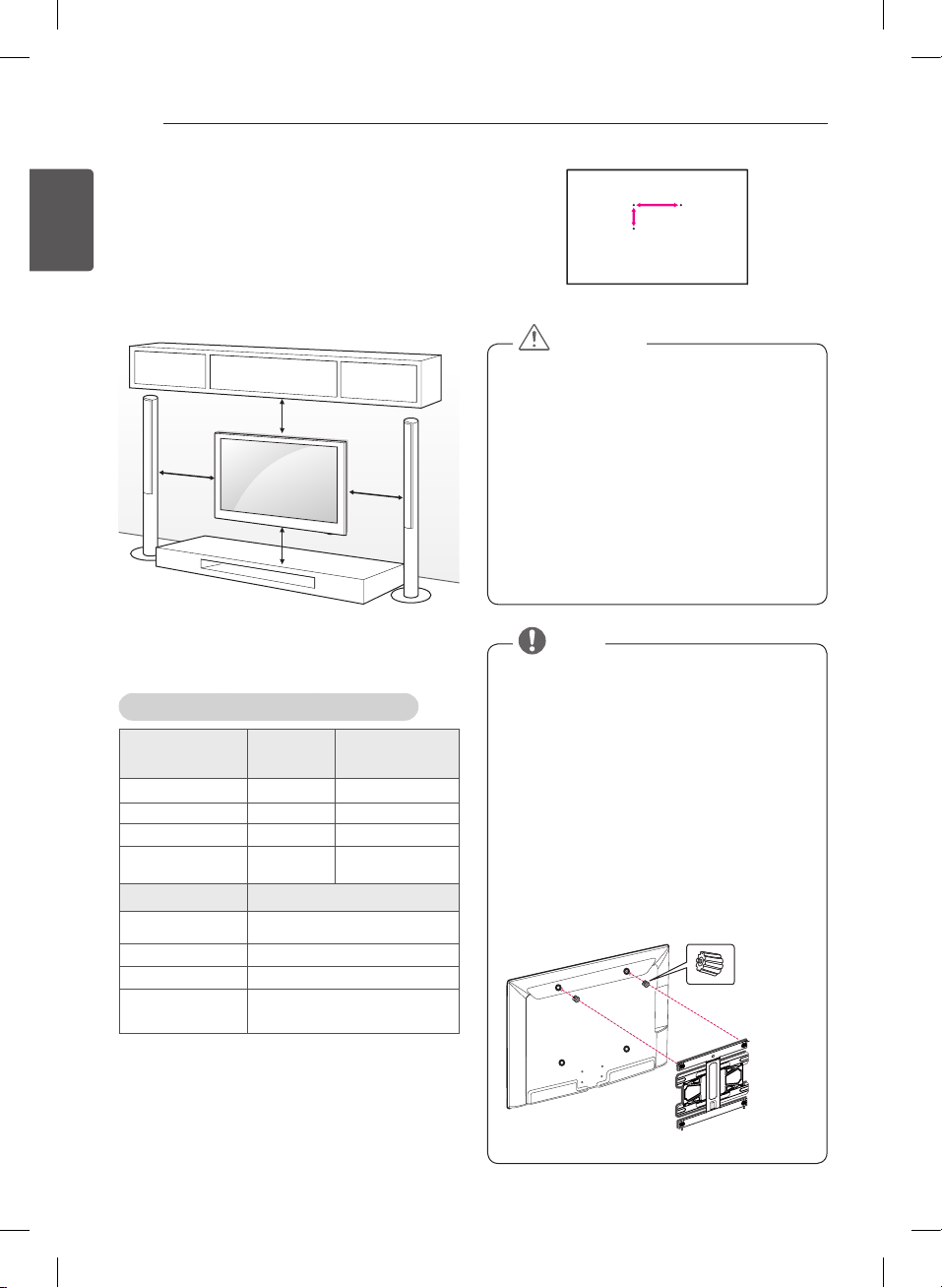

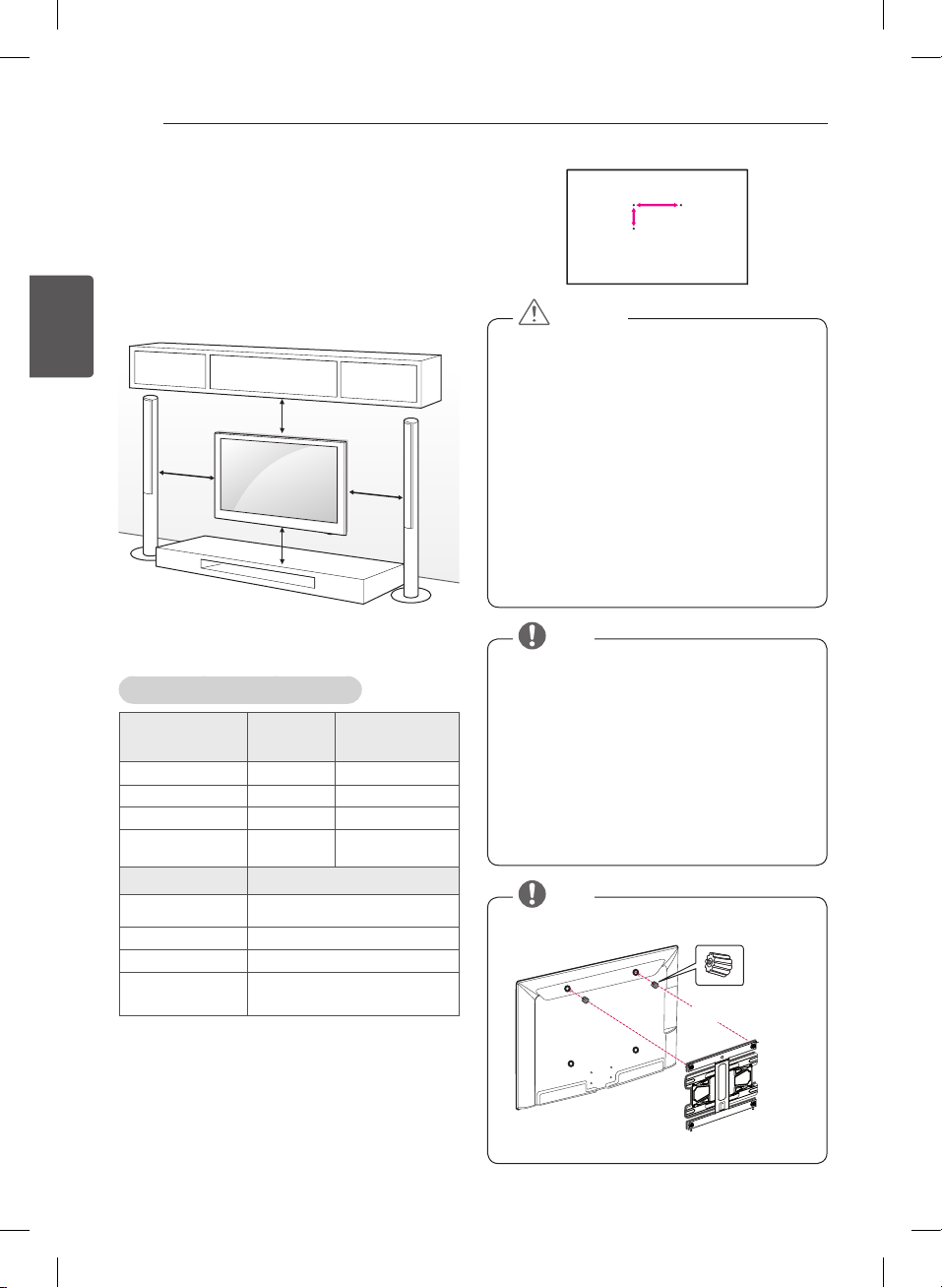

yIf you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the
back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so
as not to drop.
yOnly use the attachments / accessories specified by the manufacturer.
yWhen installing the antenna, consult with a qualified service technician. If not installed
by a qualified technician, this may create a fire hazard or an electric shock hazard.
yWe recommend that you maintain a distance of at least 2 to 7 times the diagonal screen
size when watching TV.
If you watch TV for a long period of time, this may cause blurred vision.
yOnly use the specified type of battery.
This could cause damage to the remote control.
yDo not mix new batteries with old batteries.
This may cause the batteries to overheat and leak.
yBatteries should not be exposed to excessive heat. For example, keep away from direct Sunlight , open
fireplace and electric heaters .
yDo not place non-rechargeable batteries in charging device.
yMake sure there are no objects between the remote control and its sensor.
ySignal from Remote Control can be interrupted due to external/internal lighting eg
Sunlight, fluorescent lighting.
If this occurs turn off lighting or darken viewing area.
yWhen connecting external devices such as video game consoles, make sure the
connecting cables are long enough.
Otherwise, the product may fall over, which may cause injury or damage the product.
yDo not turn the product On/Off by plugging-in or unplugging the power plug to the wall
outlet. (Do not use the power plug for switch.)
It may cause mechanical failure or could give an electric shock.
SAFETY INSTRUCTIONS
yPlease follow the installation instructions below to prevent the product from overheating.
- The distance between the product and the wall should be more than 10 cm.
-
- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a
-
cupboard).
- Do not install the product on a carpet or cushion.
-
- Make sure the air vent is not blocked by a tablecloth or curtain.
-
Otherwise, this may result in re.
yTake care not to touch the ventilation openings when watching the TV for long periods
as the ventilation openings may become hot. This does not affect the operation or
performance of the product.
yPeriodically examine the cord of your appliance, and if its appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an
authorized servicer.
yPrevent dust collecting on the power plug pins or outlet.
This may cause a fire hazard.
yProtect the power cord from physical or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall
outlets, and the point where the cord exits the appliance.
yDo not press strongly upon the panel with a hand or sharp object such as nail, pencil or
pen, or make a scratch on it, as it may cause damage to screen.
7
ENGENGLISH
yAvoid touching the screen or holding your finger(s) against it for long periods of time.
Doing so may produce some temporary or permanent distortion/damage to screen.
yWhen cleaning the product and its components, unplug the power first and wipe it with
a soft cloth. Applying excessive force may cause scratches or discolouration. Do not
spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial
shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its
panel.
Otherwise, this may result in fire, electric shock or product damage (deformation,
corrosion or breakage).
yAs long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if
you turn off this unit by SWITCH.
yWhen unplugging the cable, grab the plug and unplug it, by pulling at the plug.
Don’t pull at the cord to unplug the power cord from the power board, as this could be
hazardous.
yWhen moving the product, make sure you turn the power off first. Then, unplug the
power cables, antenna cables and all connecting cables.
The TV set or power cord may be damaged, which may create a fire hazard or cause
electric shock.
SAFETY INSTRUCTIONS
8
ENGLISH
ENG

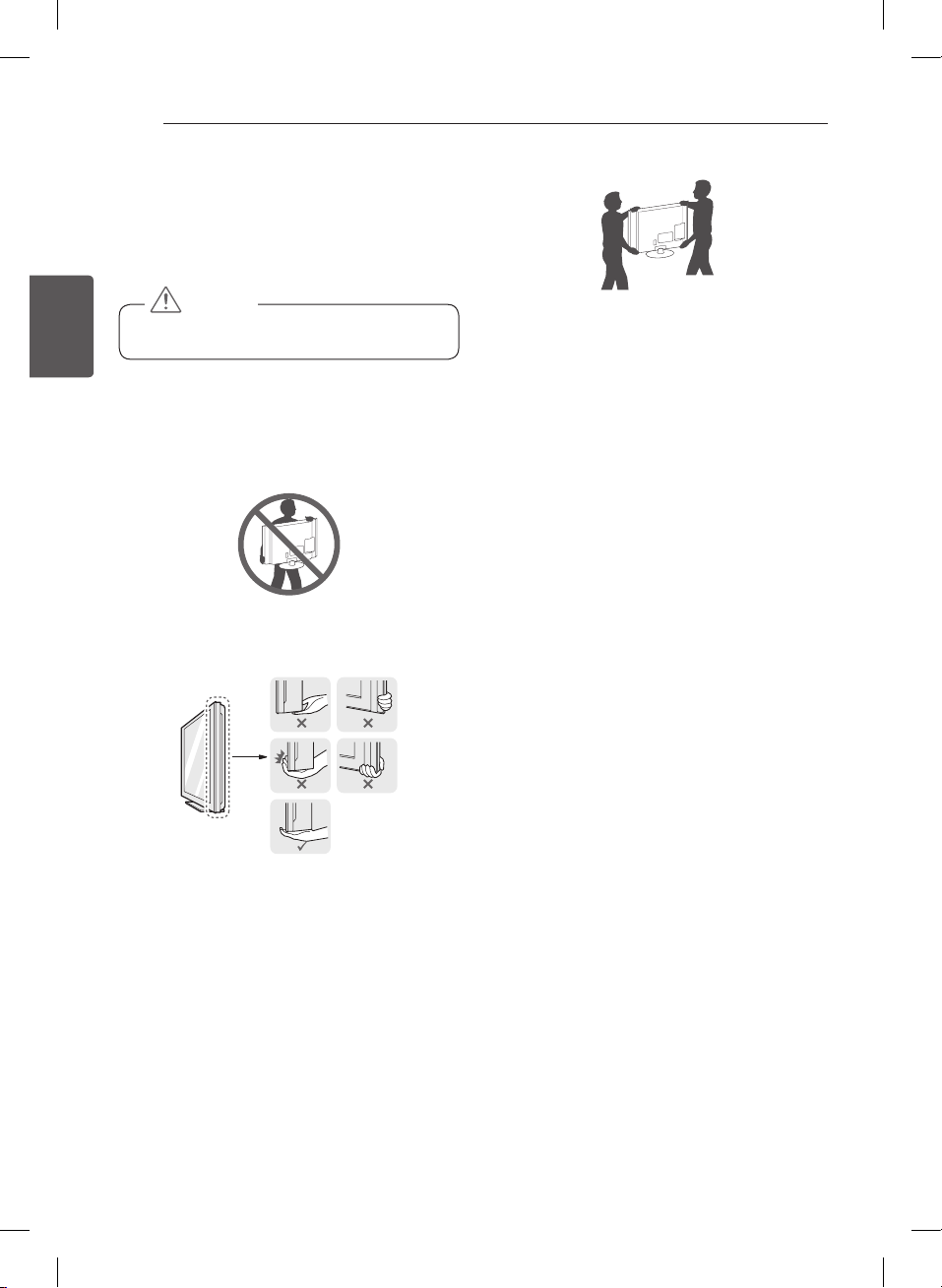

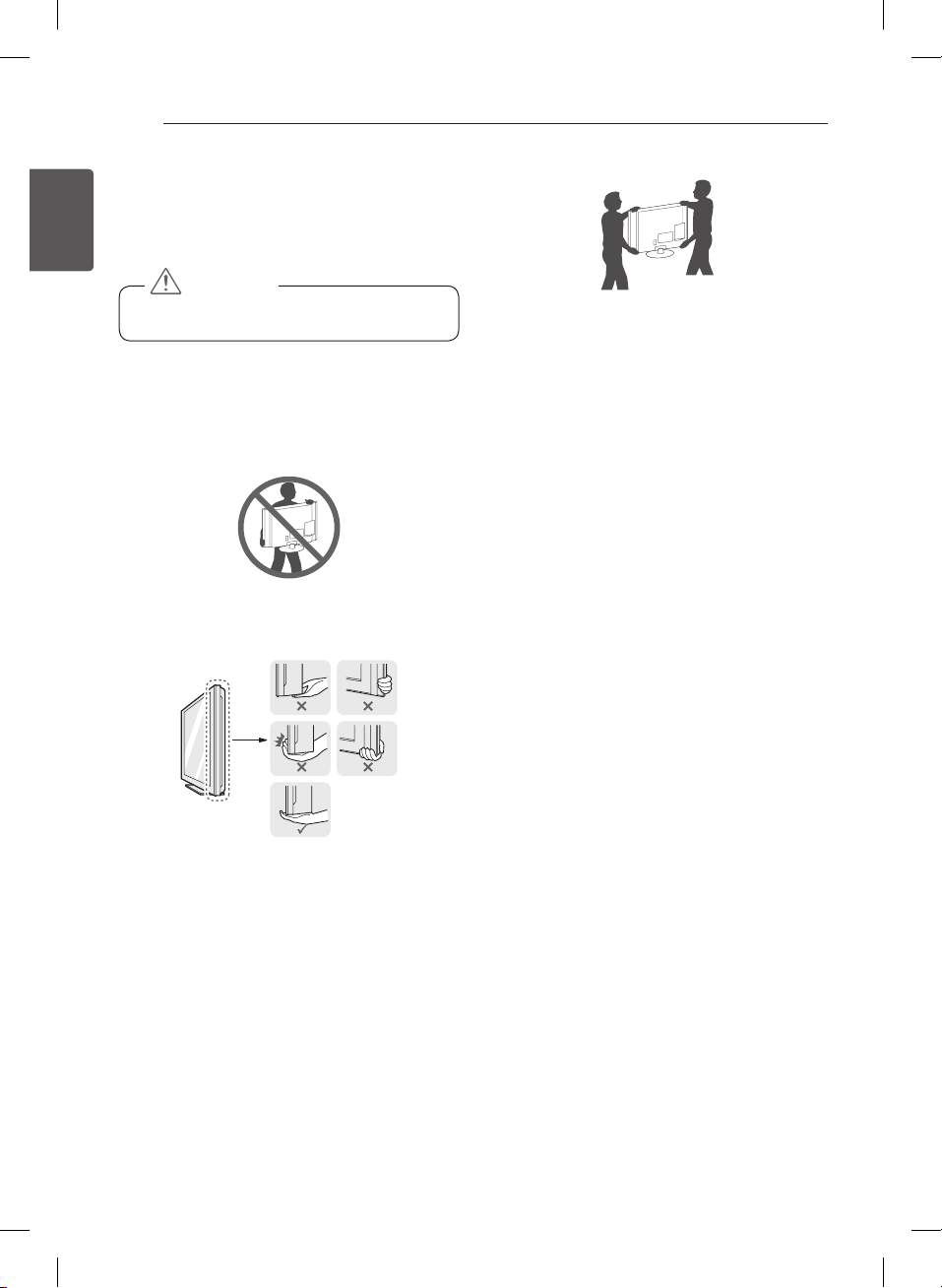

yWhen moving or unpacking the product, work in pairs because the product is heavy.
Otherwise, this may result in injury.
yContact the service centre once a year to clean the internal parts of the product.
Accumulated dust can cause mechanical failure.
yRefer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
yIf the product feels cold to the touch, there may be a small “flicker” when it is turned on.
This is normal, there is nothing wrong with product.
yThe panel is a high technology display product with resolution of two million to six million
pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a
size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the
performance and reliability of the product.
This phenomenon also occurs in third-party products and is not subject to exchange or
refund.
yYou may find different brightness and color of the panel depending on your viewing
position(left/right/top/down).
This phenomenon occurs due to the characteristic of the panel. It is not related with the
product performance, and it is not malfunction.
yDisplaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a
prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image
sticking. The warranty does not cover the product for image sticking.
Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours for LCD, 1
or more hours for Plasma).
Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel.
This phenomenon also occurs in third-party products and is not subject to exchange or refund.
yGenerated Sound
“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic
thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal
deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a highspeed switching circuit, which supplies a large amount of current to operate a product. It varies depending on
the product.
This generated sound does not affect the performance and reliability of the product.
SAFETY INSTRUCTIONS
Viewing 3D Imaging
(Only 3D models)
WARNING
Viewing Environment
yViewing Time
- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of
-
time may cause headache, dizziness, fatigue or eye strain.
Those that have a photosensitive seizure or chronic illness
ySome users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or
particular pattern from 3D contents.
yDo not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy, cardiac
disorder, or blood pressure disease, etc.
y3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double images
or discomfort in viewing may be experienced.
yIf you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing
depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.
yIf your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents.
Symptoms which require discontinuation or refraining from watching 3D contents
yDo not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.
yWhen these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom
subsides.
- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness,
-
nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.
9
ENGENGLISH
SAFETY INSTRUCTIONS
10
ENGLISH
ENG
CAUTION
Viewing Environment
yViewing Distance
- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel
discomfort in viewing 3D contents, move further away from the TV.
Viewing Age
yInfants/Children
- Usage/ Viewing 3D contents for children under the age of 6 are prohibited.
-
- Children under the age of 10 may overreact and become overly excited because their vision is in
-
development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra
attention is required for children watching 3D contents.
- Children have greater binocular disparity of 3D presentations than adults because the distance between the
-
eyes is shorter than one of adults. Therefore they will perceive more stereoscopic depth compared to adults
for the same 3D image.
yTeenagers
- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise
-
them to refrain from watching 3D contens for a long time when they are tired.
yElderly
- The elderly may perceive less 3D effect compared to the youth. Do not sit closer to the TV than the
-
recommended distance.
Cautions when using the 3D glasses
yMake sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
yDo not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
yUsing modified 3D glasses may cause eye strain or image distortion.
yDo not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
yThe 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping the
lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.
ASSEMBLING AND PREPARING
<
<
11
NOTE
yImage shown may differ from your TV.
yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
yThe available menus and options may differ from the input source or product model that you are using.
yNew features may be added to this TV in the future.
yThe TV can be placed in standby mode in order to reduce the power consumption. And the TV should be
turned off if it will not be watched for some time, as this will reduce energy consumption.
yThe energy consumed during use can be significantly reduced if the level of brightness of the picture is
reduced, and this will reduce the overall running cost.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where
you purchased your product. The illustrations in this manual may differ from the actual product and item.
CAUTION
yDo not use any unapproved items to ensure the safety and product life span.
yAny damages or injuries by using unapproved items are not covered by the warranty.
ySome models have a thin film attached on to the screen and this must not be removed.
NOTE
yThe items supplied with your product may vary depending on the model.
yProduct specifications or contents of this manual may be changed without prior notice due to upgrade of
product functions.

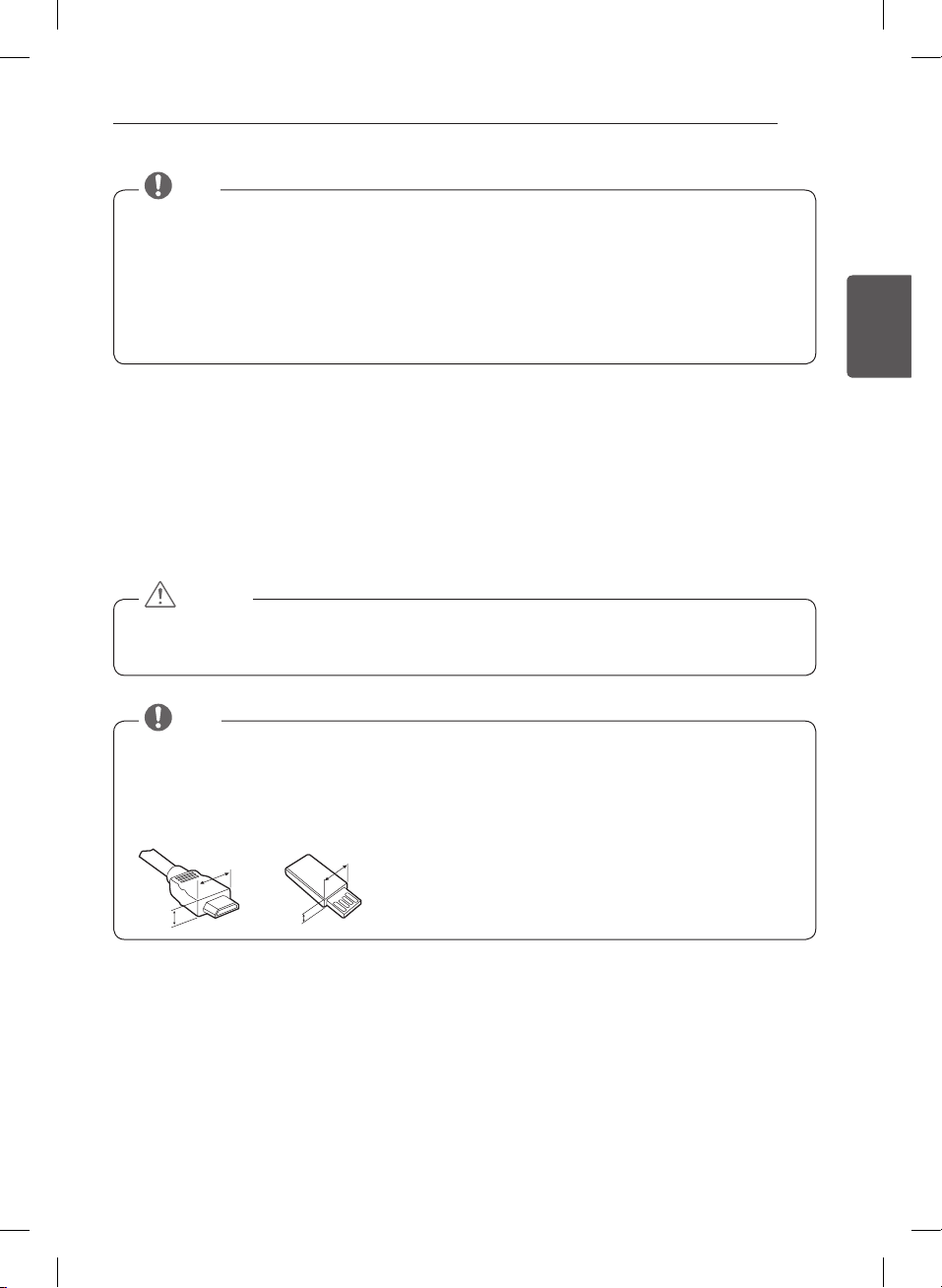

yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18
mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit
into your TV’s USB port.
ENGENGLISH
B
A
B
A
*A
*B
10 mm
=
18 mm
=
ENGLISH
ENG
ASSEMBLING AND PREPARING
12

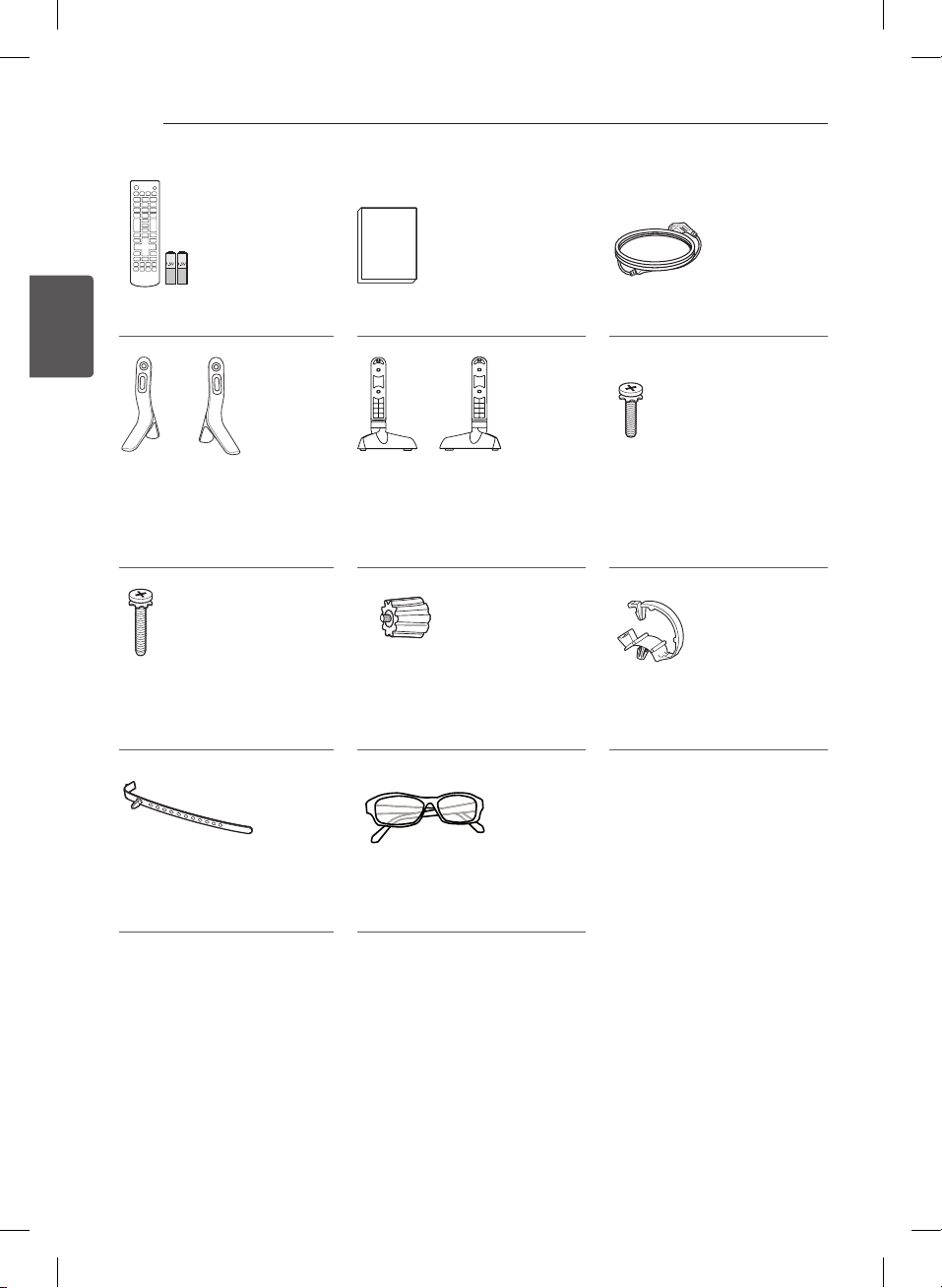

Remote control,
batteries (AAA)
Stand Base
(Only LB55**, LB56**-ZE / ZC,
LB62**-ZA / ZB)
Stand Screws
4EA, M4 x L20
(Only 32LB55**, 32LB56**,
32LB62**)
Cable holder
(Depending on model)
Owner’s manual Power Cord
Stand Base
(Only LB56**-ZT / ZQ, LB62**-ZE)
Wall Mount Spacers
2EA
(Only 42LB55**, 42LB56**,
42LB62**)
Cinema 3D Glasses
The number of 3D glasses may
differ depending on the model or
country.
(Only LB62**)
Stand Screws
4EA, M4 x L14
(Only 42/49LB55**,
39/42/47/50/55/60LB56**,
42/49/55LB62**)
Cable Managements
2EA
ASSEMBLING AND PREPARING
Separate purchase
Optional extras can be changed or modied for quality improvement without any notication.
Contact your dealer for buying these items.
These devices only work with certain models.
13
ENGENGLISH
LG Audio Device AG-F***
Cinema 3D Glasses
Compatibility LB56** / LB55** LB62**
LG Audio device • •
AG-F***
Cinema 3D Glasses
AG-F***DP
Dual play glasses
The model name or design may be changed depending on the upgrade of product functions,
manufacturer’s circumstances or policies.
AG-F***DP
Dual play glasses
•
•
ASSEMBLING AND PREPARING
14

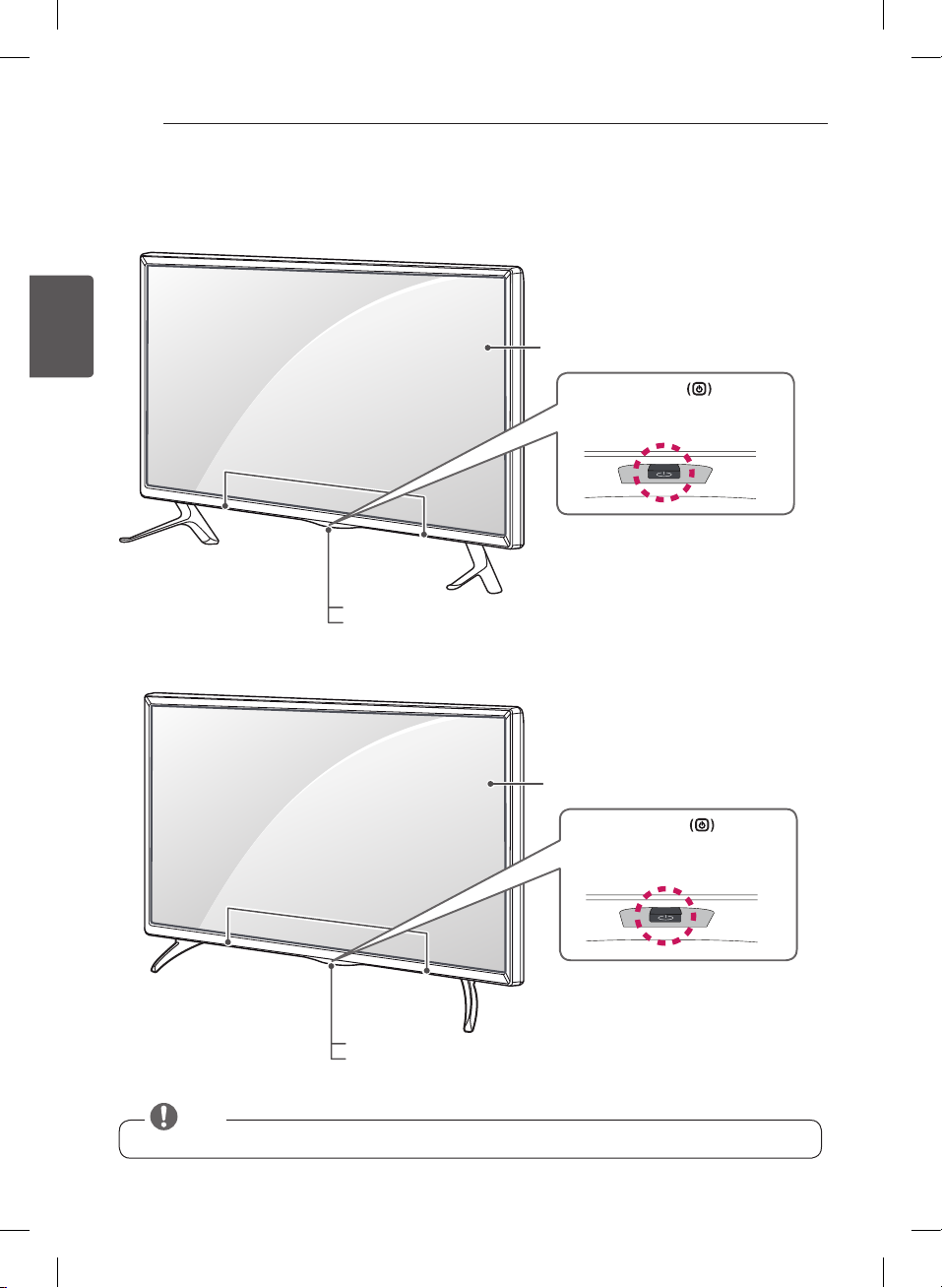

Parts and buttons
ENGLISH
ENG
(Only LB55**, LB56**-ZE / ZC, LB62**-ZA / ZB)
Speakers
Screen
Joystick Button
(* This button is located below
the TV screen.)
Remote control sensor
Power Indicator
(Only LB56**-ZT / ZQ, LB62**-ZE)
Screen
Joystick Button
(* This button is located below
the TV screen.)
Speakers
Remote control sensor
Power Indicator
NOTE
yYou can set the power indicator light to on or off by selecting OPTION in the main menus.
ASSEMBLING AND PREPARING

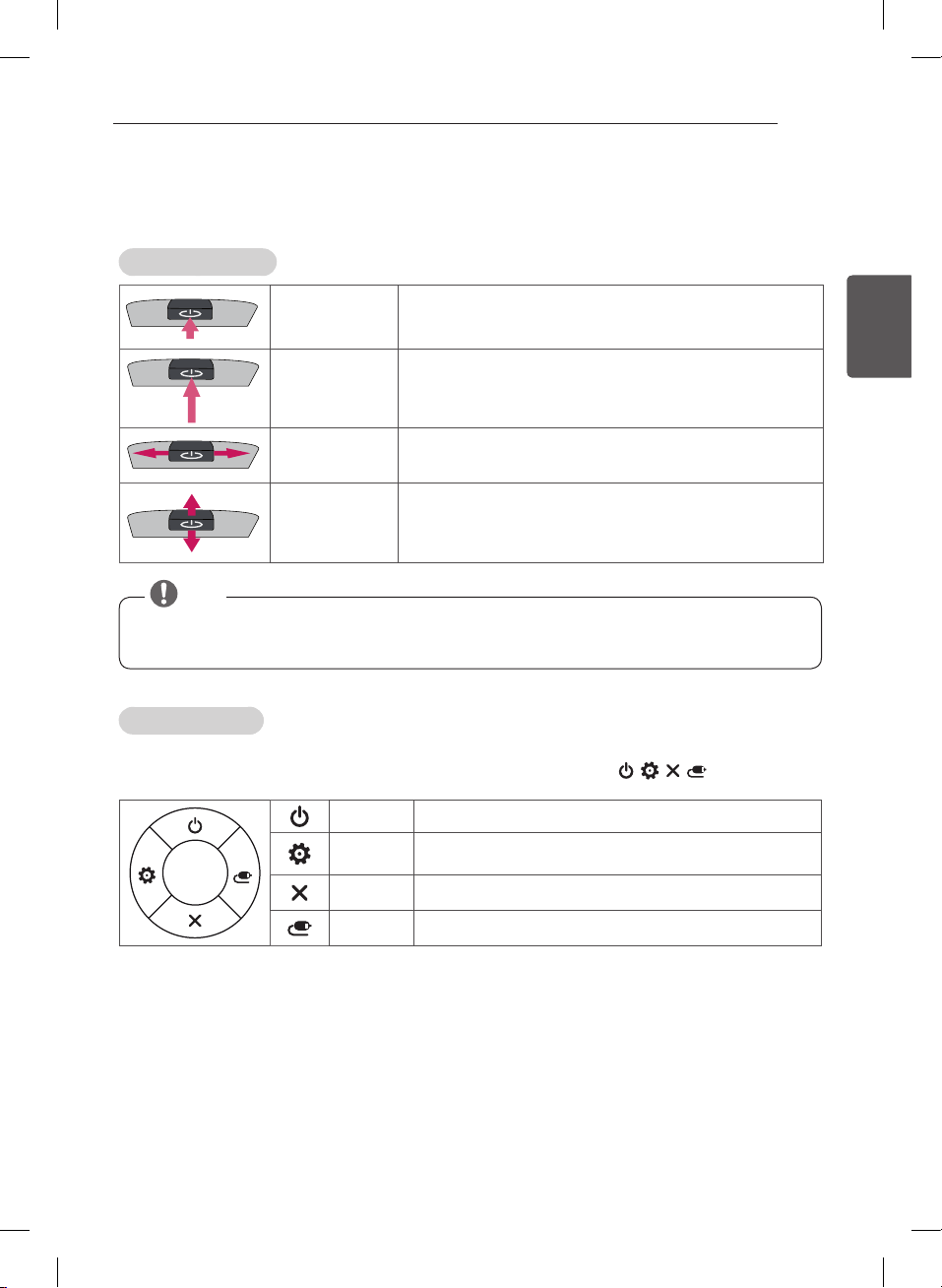

Using the Joystick button
You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right.
Basic Functions
15
ENGENGLISH
Power On
Power Off
Volume Control
Programmes
Control
When the TV is turned off, place your nger on the joystick button
and press it once and release it.
When the TV is turned on, place your nger on the joystick button
and press it once for a few seconds and release it.
(However, if the Menu button is on the screen, pressing and holding
the joystick button will let you exit the Menu.)
If you place your nger over the joystick button and move it left or
right, you can adjust the volume level you want.
If you place your nger over the joystick button and move it up or
down, you can scrolls through the saved programmes you want.
NOTE
yWhen your finger over the joystick button and push it to the up, down, left or right, be careful not to
press the joystick button. If you press the joystick button first, you can not adjust the volume level
and saved programmes.
Adjusting the Menu
When the TV is turned on, press the joystick button one time.
You can adjust the Menu items( , , , ) moving the joystick button up, down, left or right.
TV off Turns the power off.
Settings Accesses the main menu.
Close Clears on-screen displays and returns to TV viewing.
Input List Changes the input source.
Loading...
